Acquired 3/19/2008 - a 500 watt, 136 tube, autotune HF AM/CW/FSK transmitter
page 1 - initial cleanup

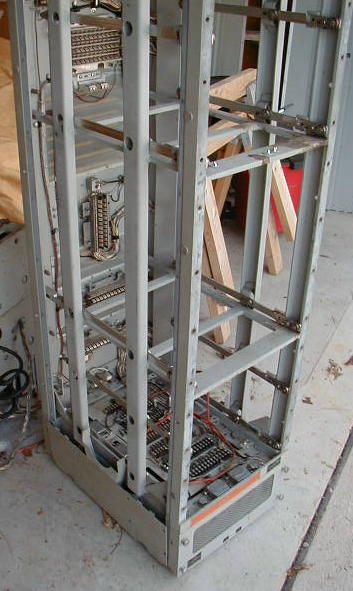

Transmitter cabinet with side panels removed

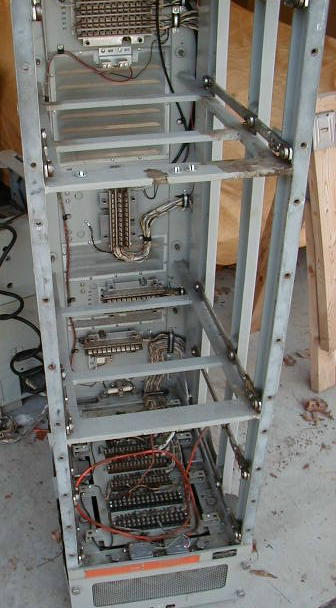

a few stains, overall good shape

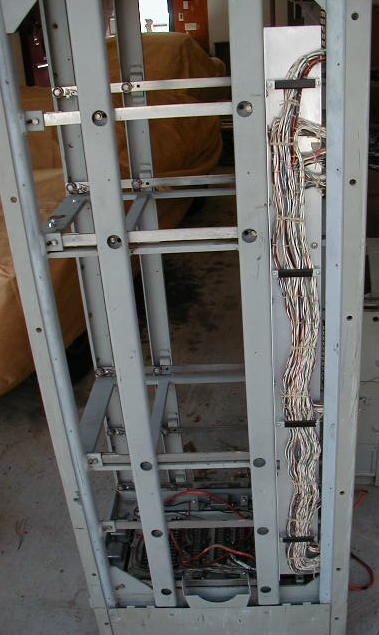

wiring channel on right side

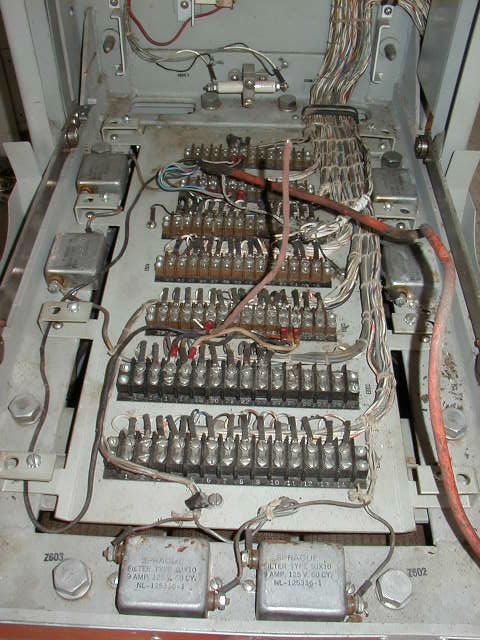

bottom terminal strip panel - dirty

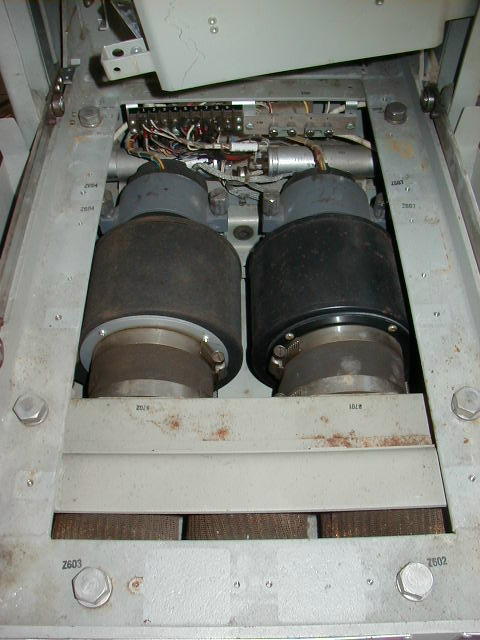

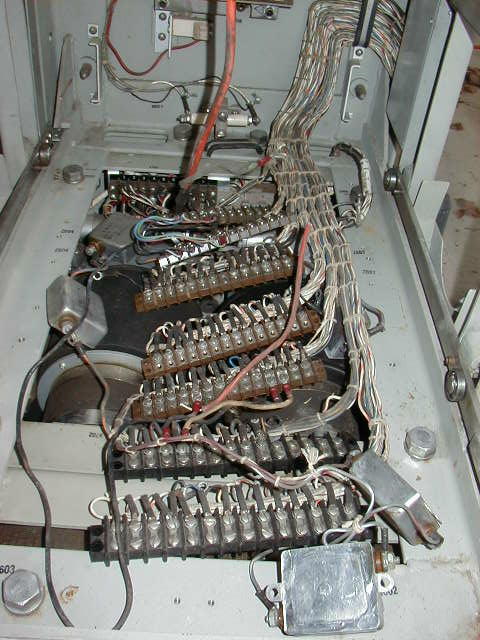

panel lifted - blower area looks OK
panel removed for cleaning

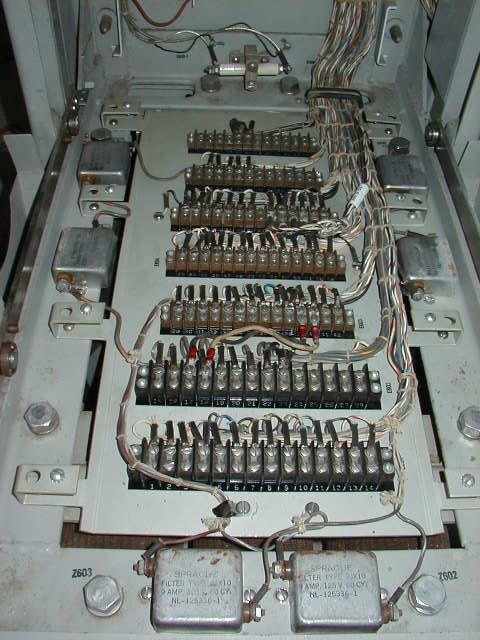

all reassembled and clean
