Acquired 3/19/2008 - a 500 watt, 136 tube, autotune HF AM/CW/FSK transmitter
page 1 - initial cleanup

Booster cabinet - houses modulator and HV supply for 500 watt operation

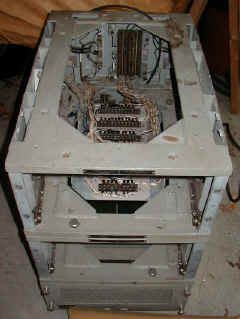

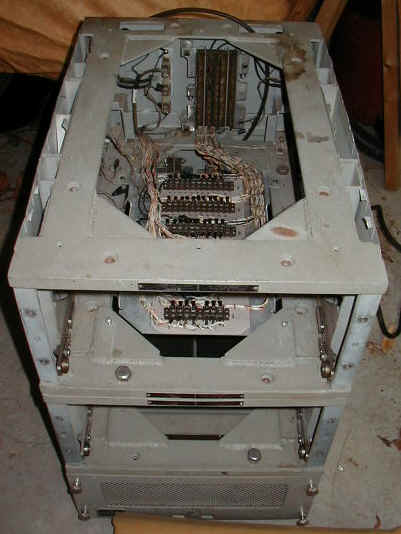

booster cabinet assembly I'm missing CW-287/URT top cover	HLRM, HVPS, blower

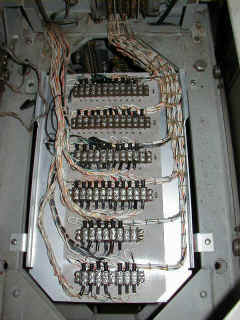

HLRM modulator cabinet

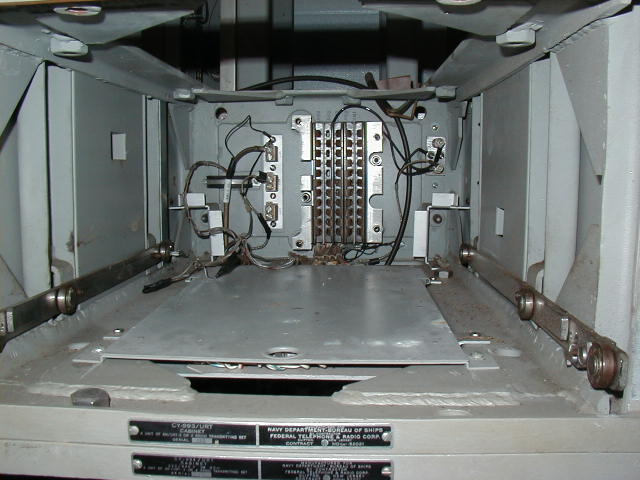

HVPS power supply cabinet
HVPS power supply cabinet blower base below
