Navy Radio Antennas & Antenna Hardware

Shore Station Communication Antennas Page

Shipboard Communication Antenna Systems Page

Antenna  Components

Also see
Antenna Installation Info - from 1963 EIMB
Antenna Trunk Installation Info - from 1963 EIMB
NAVSHIPS 0967-177-3020, SHIPBOARD ANTENNA SYSTEMS
NAVSHIPS 900121(A) SHIPBOARD ANTENNA DETAILS
    Chapter 2 Installation Methods (with change 1 appended) - download pdf
    Chapter 3 Multicouplers - download pdf
    Chapter 6 Antenna Systems - download pdf
    Chapter 8 Installation Bibliography - download pdf
NAVSHIPS 900,121 SHIPBOARD ANTENNA DETAILS (1946, wire antennas only) - download pdf

Shipboard Wire Antenna Installation

Shipboard Receiving Antenna Transmission Line Connections - pdf of 5 drawings

 Receiving Antenna Installation Detail
Shipboard Wire Antenna installation
- USS North Carolina

Wire Antenna & Trunk Hardware
MX-407B/U end seal  (coaxial cable termination) NT-91836 mx407b-u.JPG (17792 bytes) about 8.5" long

used to connect RG-18/U, RG-218/U, RG-220/U coax to antenna tuning and matching network enclosures

 -
MX-1460/U end seal  (coaxial cable termination) need photo used to connect RG-18/U coax to antennas. -
MX-1461/U end seal  (coaxial cable termination) NT-92180 mx1461-u-01.JPG (4960 bytes) about 6" long

used to connect RG-10/U, RG-213/U coax to antenna tuning and matching network enclosures

 -
NT-10658A antenna wire turnbuckle

CBEP-10658A - used to feed antenna wire - Fiege connector clamps wire rope

NT-24206 Antenna Disconnect Switch

Powercraft Corp. CYP-24206

 SPDT, 200 amps @ 7500v
"closed" or "grounded"
NT-24223 Antenna Disconnect Switch
Powercraft Corp. CYP-24206


 SPDT, 100 amps @ 2500v
"closed" or "grounded"
ant-sw-cyp24223-1304-02.JPG (131955 bytes)		 ant-sw-24223-1708-04.jpg (445353 bytes) ant-sw-cyp24223-1304-03.JPG (103494 bytes)
ant-sw-24223-1708-02.jpg (255992 bytes) antswitch-24223-1309-01.JPG (108352 bytes) antswitch-24223-1309-02.JPG (279490 bytes) antswitch-24223-1309-03.JPG (174665 bytes)
ant-sw-24223-1708-01.jpg (356263 bytes) ant_switch-24223-1407-01.jpg (282838 bytes) ant_switch-24223-1407-02.jpg (305621 bytes) ant_switch-24223-1407-03.jpg (233434 bytes)
ant-sw-24223-1504-01.JPG (173831 bytes) ant-sw-24223-1504-02.JPG (266143 bytes) ant-sw-24223-1504-03.JPG (231068 bytes) ant-sw-24223-1504-04.JPG (286249 bytes)
NT-24270 Antenna Disconnect Switch

Powercraft Corp. CYP-24270





 used in 9"x11" antenna trunk

SP3T, 200 amps @ 15kv
"ground", "closed", or "open"


antswitch-24270-02.JPG (950597 bytes) antswitch-24270-03.JPG (927033 bytes) antswitch-24270-04.JPG (993636 bytes) antswitch-24270-05.JPG (988402 bytes)
NT-24894 Coaxial Line Antenna Transfer Switch

CWI-24894


Note: Insulator nomenclature changed: e.g. NT-61335 (1940's) became IL-18/U (1960's), then became NL222B31-203 (1970's)
NT-61019 outside entrance insulator (ceramic bowl is NT-61234)

(NL422B58-055)
(NL422B58-074)



 manuf CAL-61019 & CBJ-61019

used to connect antenna lead-in to antenna trunk. Also used as trunk bulkhead feed-through



NT-61??? 61019-insul.jpg (19456 bytes) used to feed antenna trunk center conductor through bulkhead?

2.5" tall, mounts in 2.75" hole
5/16-18 threaded conductor



 -
NT-61174 pedestal standoff insulator nt61174b.JPG (16780 bytes)   3.3" tall

used to stand off center conductor in antenna trunk

manuf Lapp CBO-61174B

NT-61175 pedestal standoff insulator nt61175a-01.JPG (25064 bytes) used to stand off center conductor in 6"x8" antenna trunk
see trunk drawing above

manuf Lapp CBO-61175A

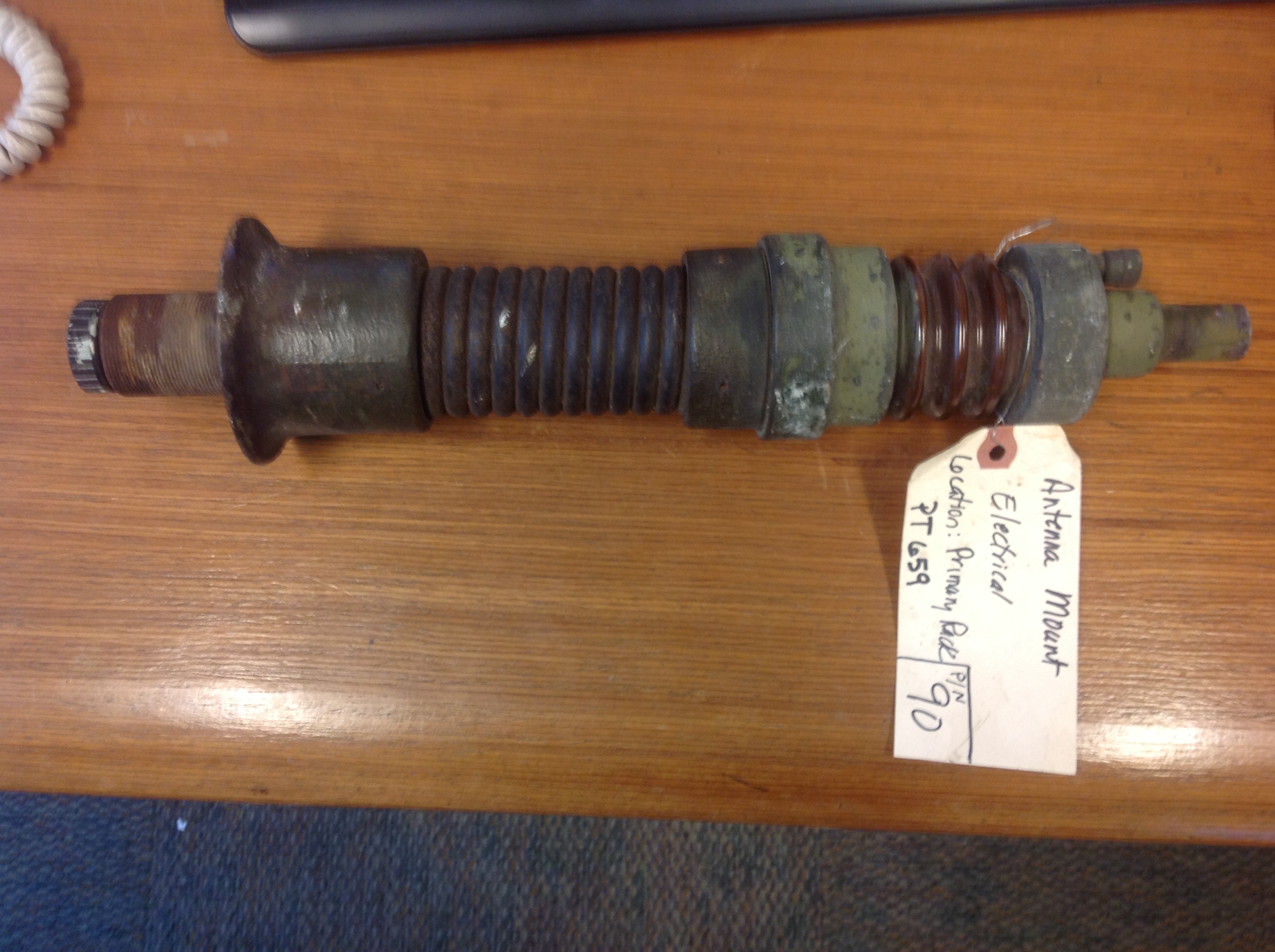

 Also used for whip antenna standoff in PT Boats

NT-61180 pedestal standoff insulator nt61180b-01.JPG (29402 bytes) used to stand off center conductor in antenna trunk
see trunk drawing above		 manuf National Porcelain CPP-61180B
NT-61192 strain insulator insulator-61192-1806.jpg (212454 bytes) Manuf CSJ-61192
NT-61276 antenna base insulator nt61276-01.JPG (249327 bytes) whip antenna base - need more info -
NT-61335 antenna base insulator
- same as IL-18/U
- same as NL222B31-203		 Spare aboard USS North Carolina


 -
NT-61338 standoff insulator need photo
see drawing above		 used to stand off center conductor in 18"x20" antenna trunk
see trunk drawing above		 -
NT-61339 pedestal standoff insulator nt61339-01.JPG (23760 bytes)
not sure of part number		 used to stand off center conductor in 9"x11" antenna trunk
see trunk drawing above		 -
NT-61350 antenna base insulator
- same as IL-19/U
- same as NL222B32-240		 need photo - See NT-61335 above whip antenna base - need more info -
NT-61455  61455-01.jpg (133195 bytes)  purpose?
NT-61475 outside entrance insulator
(NL422B58-122)

used to connect transmitting antenna lead-in to antenna trunk - see trunk drawing above - (ceramic bowl  is NT-61476)

USS Slater - trunk and insulators
Note - red paint indicates transmitting antenna		 insul-61475-1308-1.JPG (461738 bytes) manuf CBJ-61475

NT-61479 strain insulator nt-61479.jpg (16321 bytes) 5" ceramic- overall about 10" long manuf CBJ-61479
NT-61481 strain insulator as above 10" ceramic - overall about 15" long NL422B71-112
NL422W71-112
NT-61493 strain insulator as above 20" ceramic - overall about 25" long NL422B71-207
NL422W71-207
NT-61494 strain insulator as above 15" ceramic - overall about 20" long NL422B71-167
NL422W71-167
NT-62111 end seal (coaxial cable termination) 62111-01.jpg (147516 bytes)  62111-02.jpg (134053 bytes) -
NT-62119 end seal (coaxial cable termination) 62119-01.jpg (115281 bytes)  62119-02.jpg (72514 bytes) -
NT-90835 antenna mount feed-through insulator 90835-insul.jpg (22014 bytes) 5.75" diameter
7/8" x 3.5" antenna mount
9/16" threaded connector		 -
NT-91836 end seal
see MX-407B/U above		 see MX-407B/U above - -
NT-92180 end seal
see MX-1461/U above		 see MX-1461/U above - -

Receiving Antenna Matching Transformers

CU-836/U matching transformer


 cu836-u-01.jpg (73447 bytes) For receiving antenna use - connecting to feedline or rhombic antennas
2-32 mc
matches 600 or 200 ohms to 70 ohm coax feed

TMC model RAC-32
TMC spec sheet




cu836-1312-02.jpg (110117 bytes) cu836-u-02.jpg (66456 bytes) cu836-u-03.jpg (52722 bytes) cu836-1312-03.jpg (259858 bytes)
NT-471138 matching transformer


 rw471138-11.JPG (109994 bytes) For receiving antenna use - connecting to feedline or rhombic antennas
3-22 mc
matches 700 or 250 ohms to 70 ohm coax feed

Similar to CU-128B/U except different transformer shielding and mount

 manuf Washington Naval Gun Factory RW-471138

coax input terminal 2, ground terminal G 		rw471138-14.JPG (180931 bytes)
250 ohm output terminals 4-7
700 ohm output terminals 3-8

Transmitting Antenna Matching Transformers

TMC TRC-500

Spec sheets


 500 watt, 72 ohm to 600 ohm
2-30 mc



TMC TRC-3500 - similar to CU-729/URT (50 ohm, 3500w) & CU-1076/URT (72 ohm, 3500w)




 3500 watt, 50 ohm to 600 ohm
2-30 mc



Transmitting Antenna Terminators for Rhombics and Vee Beams

TMC TER-500 - 600 ohm, 500w

Specs Sheets
