DD-661 USS Kidd Radio Central Photos

Note - as a museum ship being presented in her August 1945 configuration, Kidd has had some WW2 era gear re-installed and some 1950's Navy gray gear painted black. Her 1950's Radio Central equipment would also have included

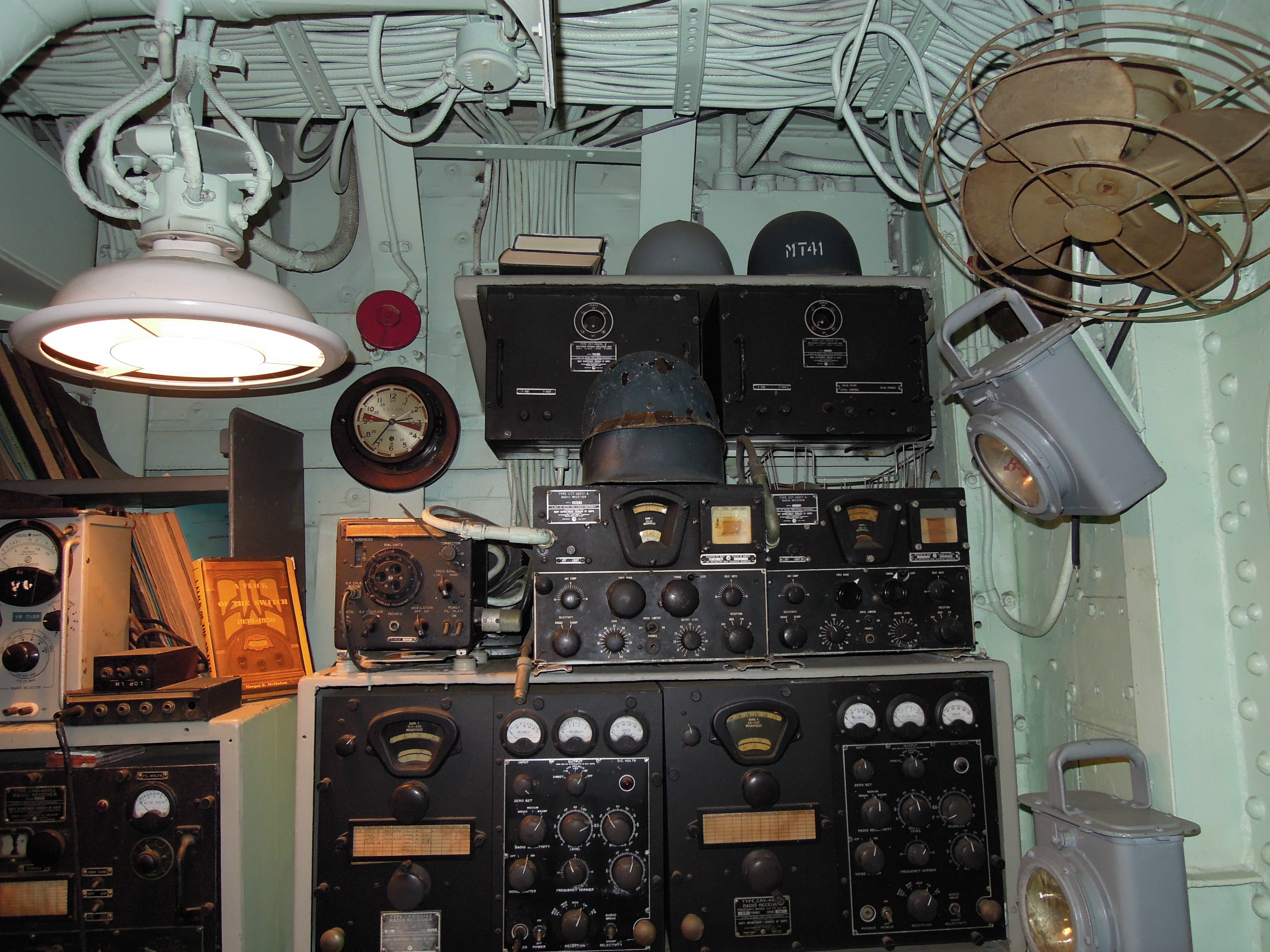

I clean forgot to check out the Emergency Radio Room when visiting! Here's info and a photos from the USS Kidd web site

kidd-emer_radio.jpg (18899 bytes) "Emergency Radio contained radio equipment that was a backup in the event that main Radio Central was destroyed. The equipment in this space is the same as it was during World War II. Two transmitters, a TCS and the large TBL, are present. The two receivers at the operator's table are an RCK-RAL combination."

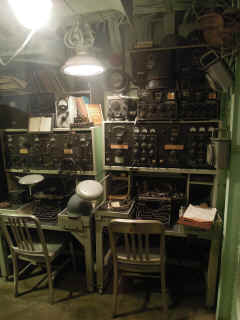

Radio Central

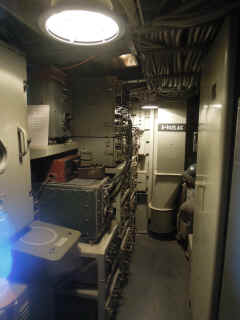

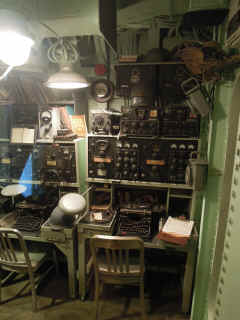

View through plexiglas window
Left LOP #1, Right LOP #2

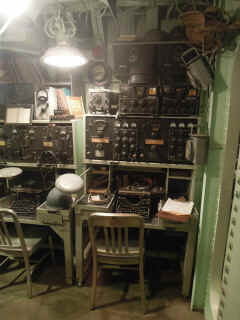

View through plexiglas window
Left LOP #1, Right LOP #2
View through plexiglas window
Left LOP #1, Right LOP #2

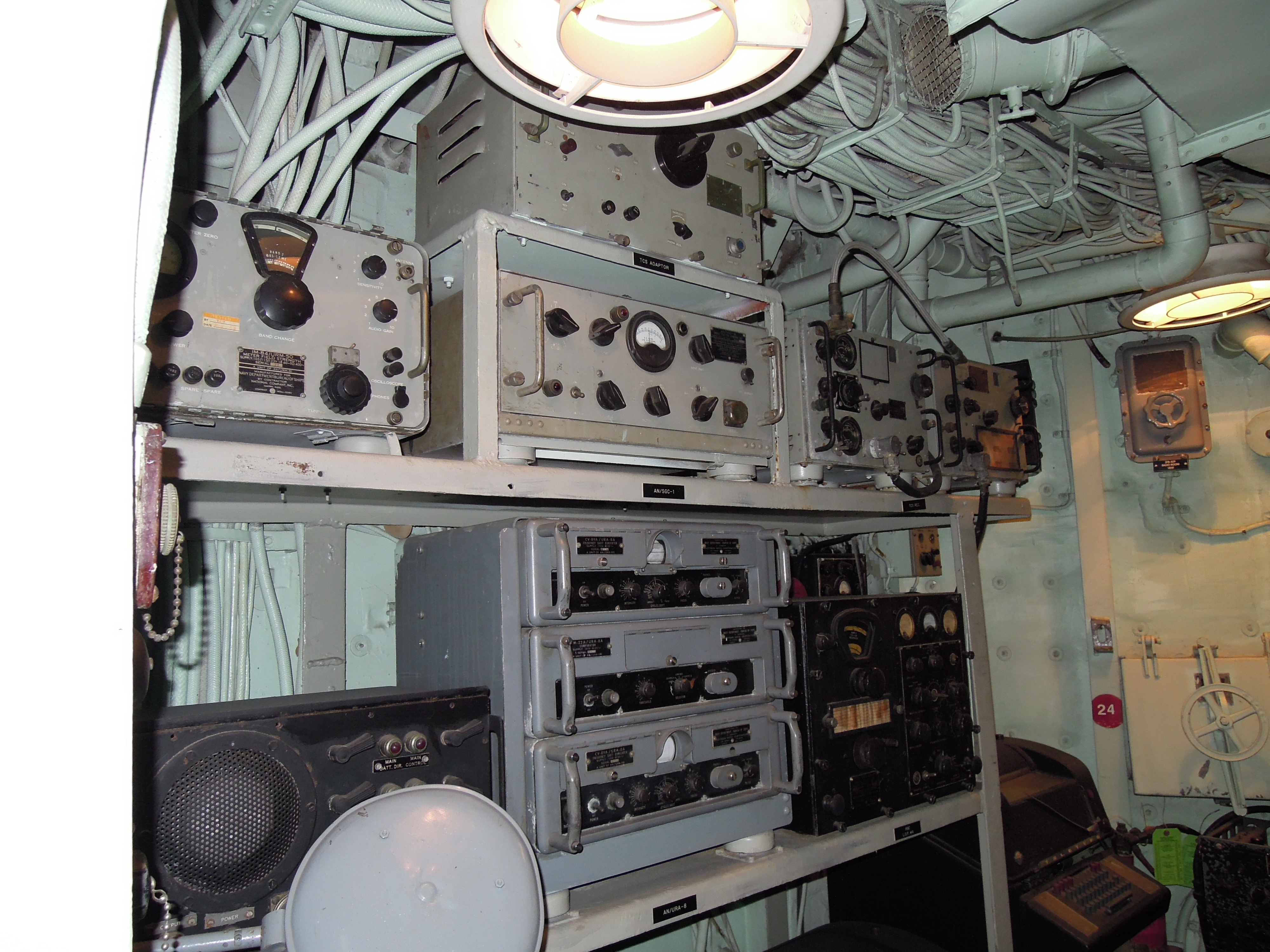

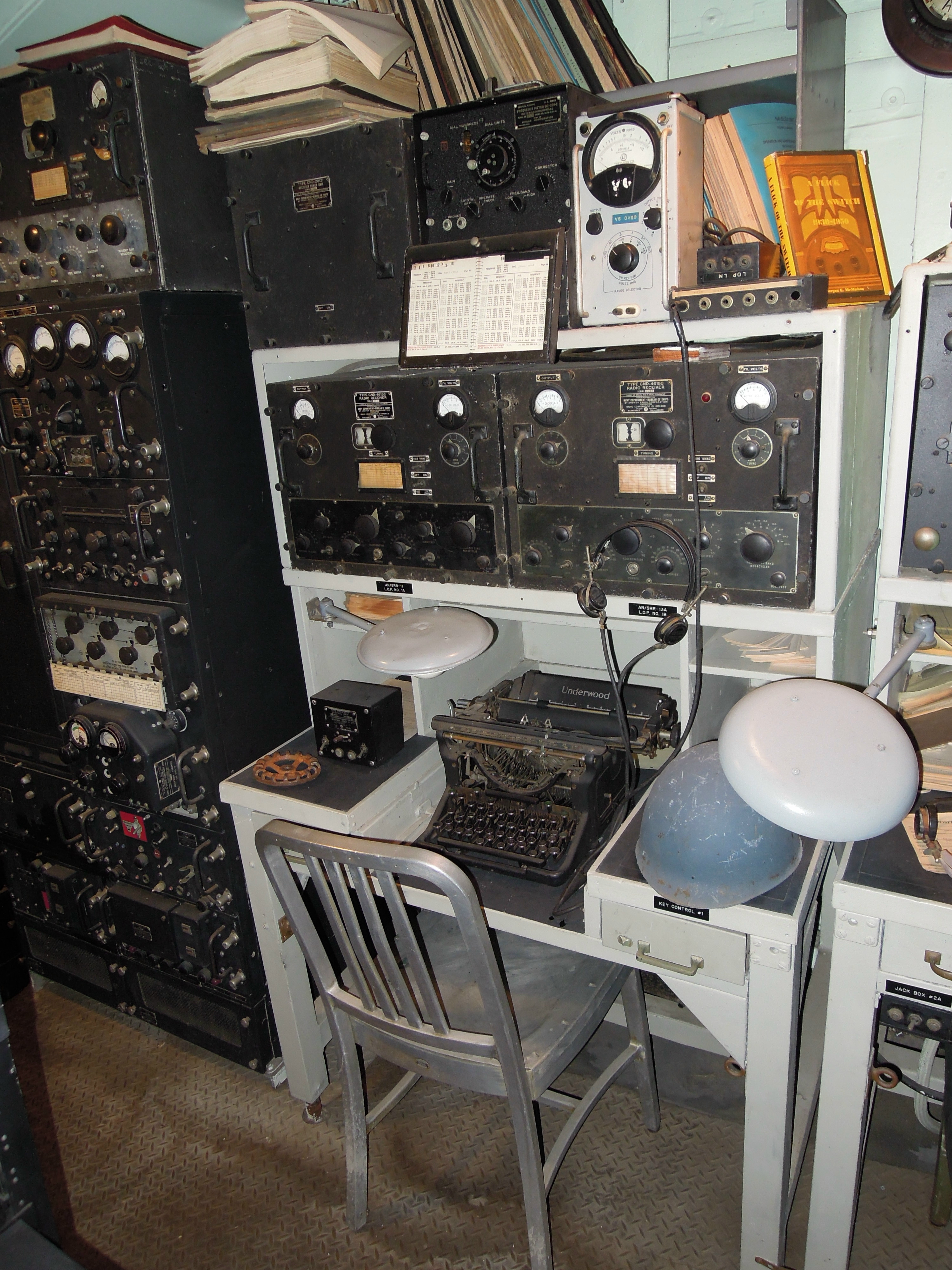

Interior View -  LOP #2
Left LOP #1, Right LOP #2

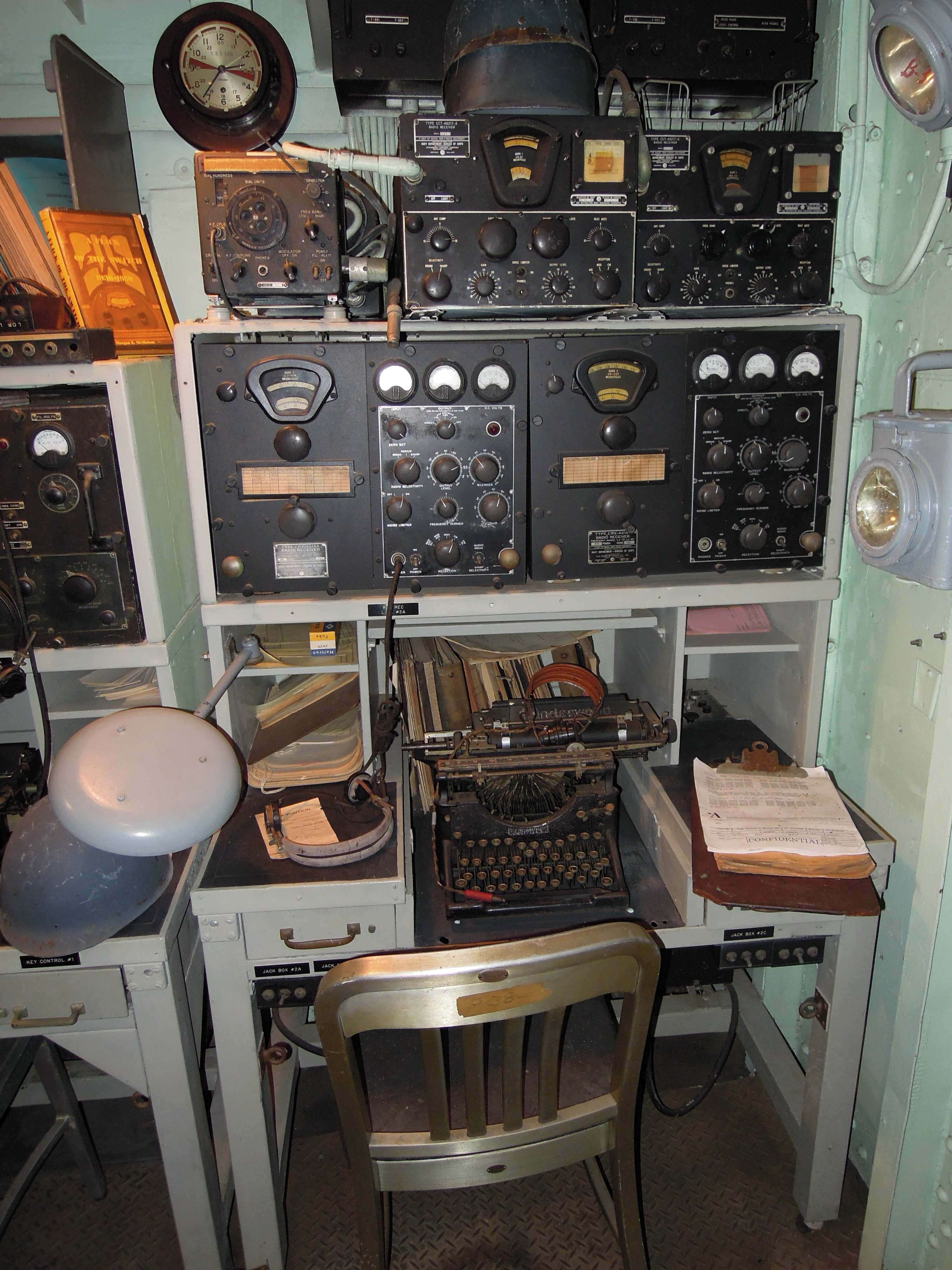

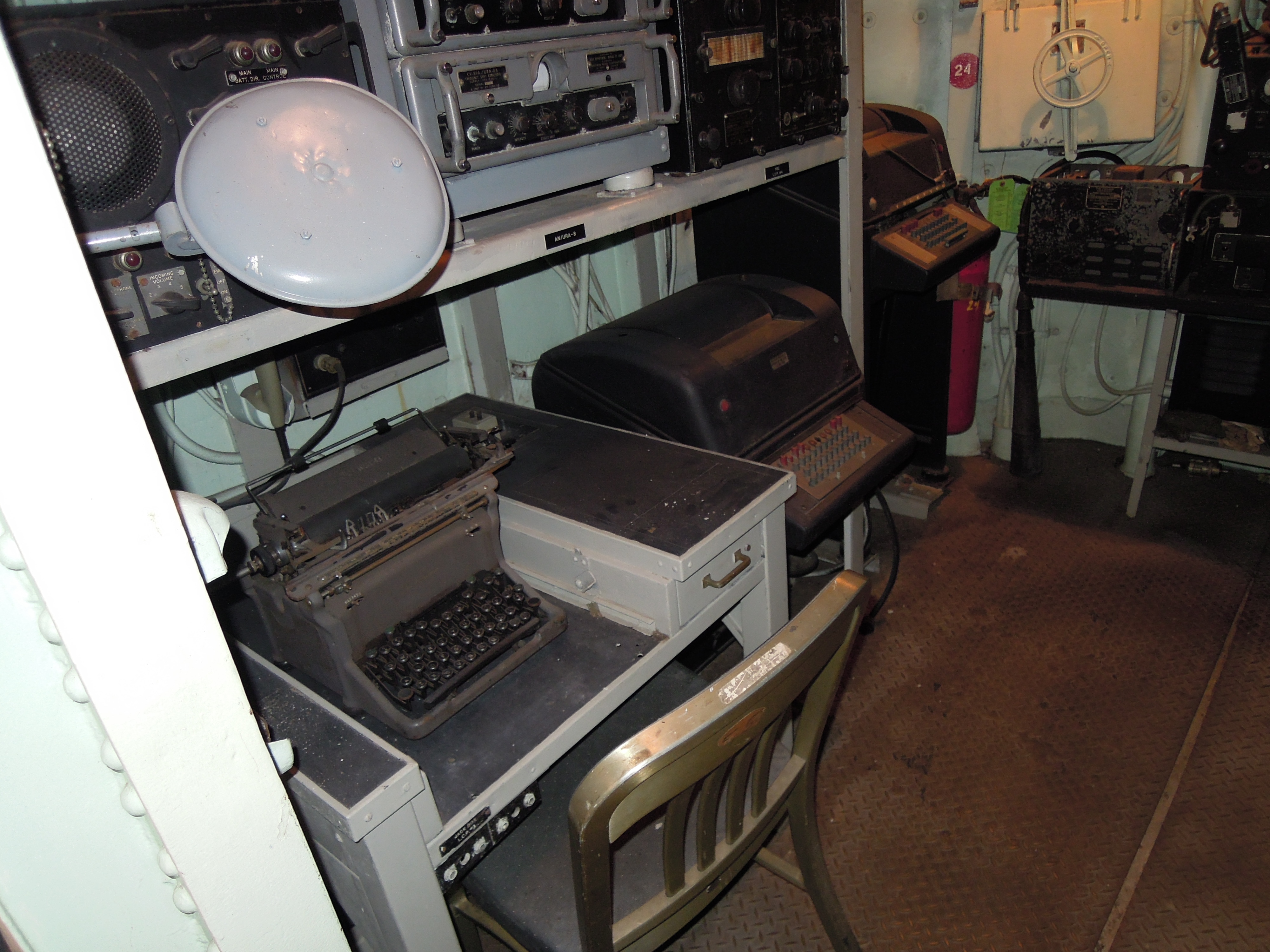

LOP #2
LOP #1
-

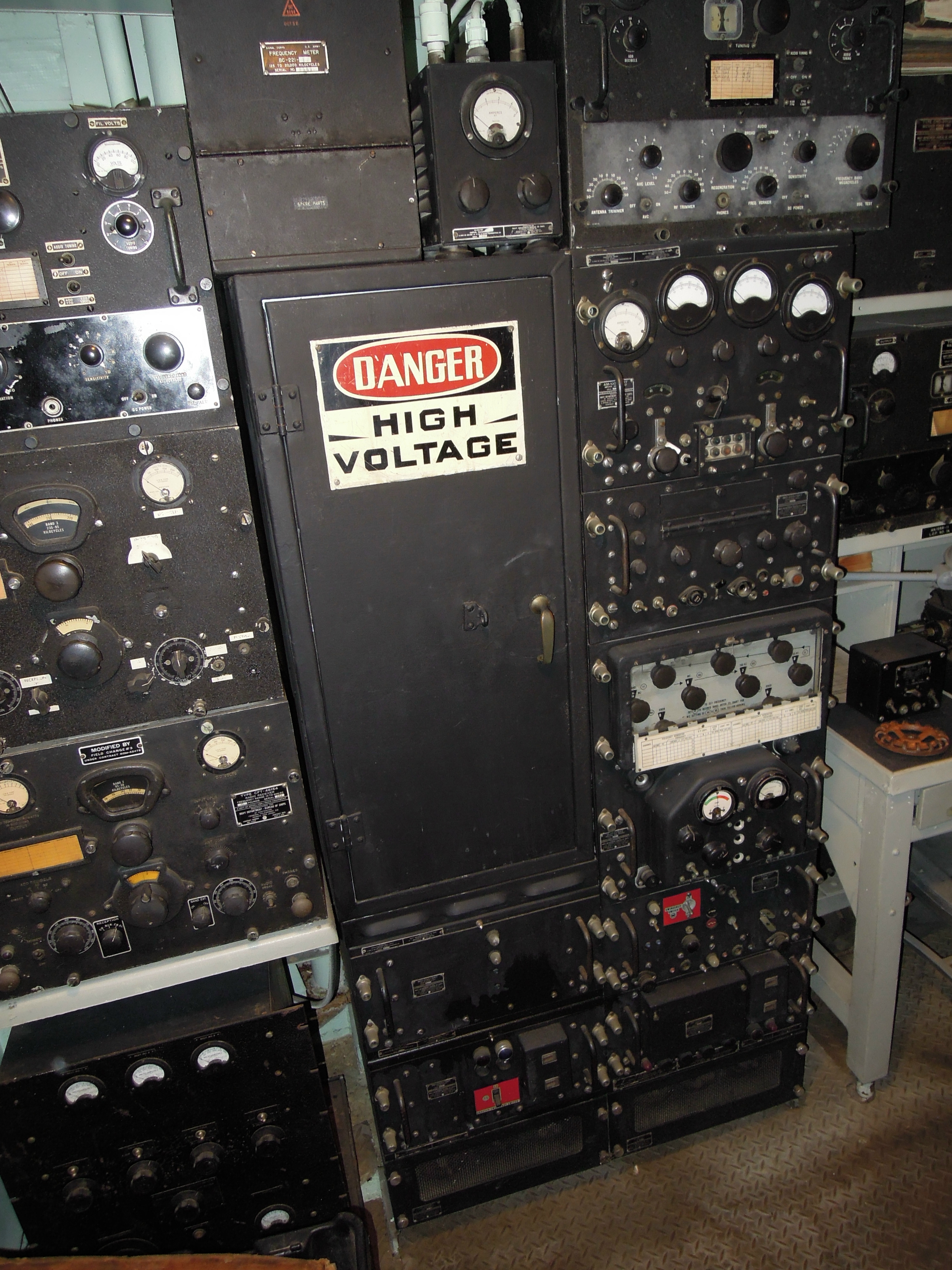

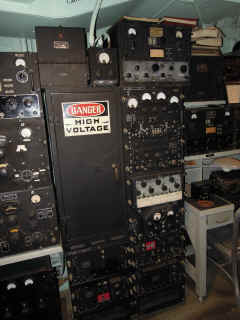

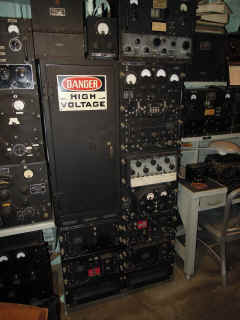

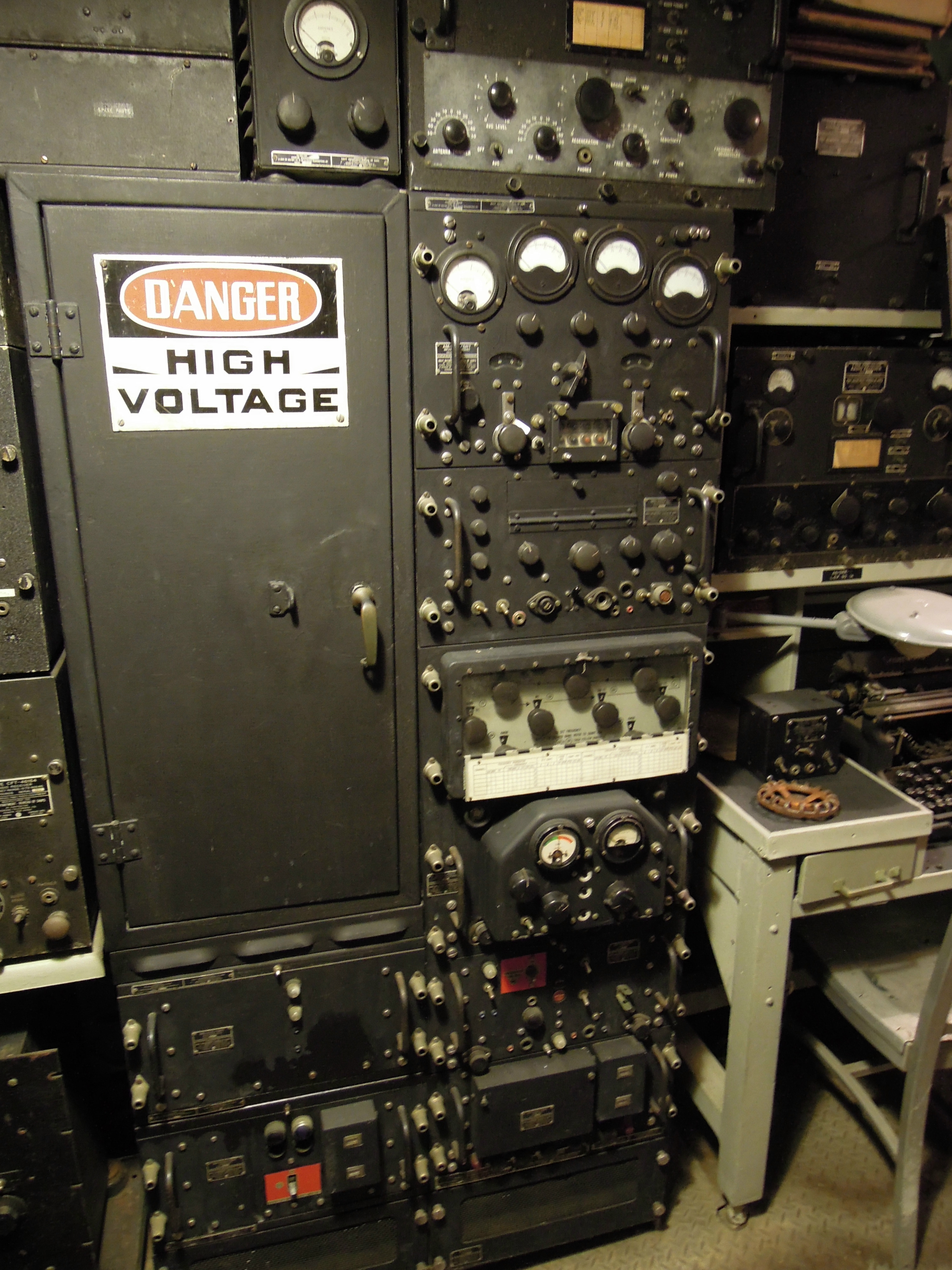

AN/SRT-15 xmtr (painted black)
AN/SRT-15 xmtr (painted black)
AN/SRT-15 xmtr (painted black)
AN/SRT-15 xmtr (painted black)
AN/GRC-27

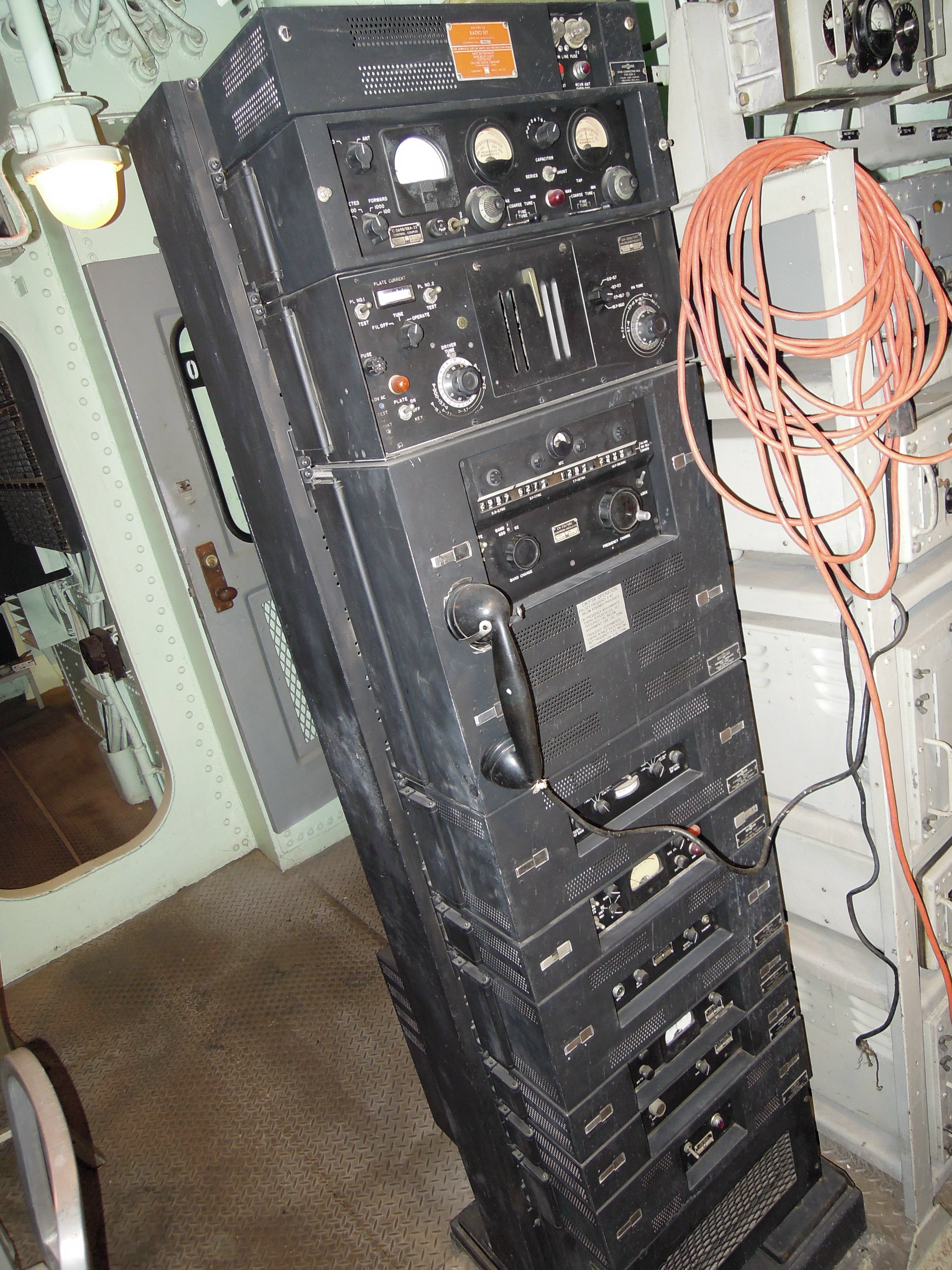

AN/URC-32 (painted black)

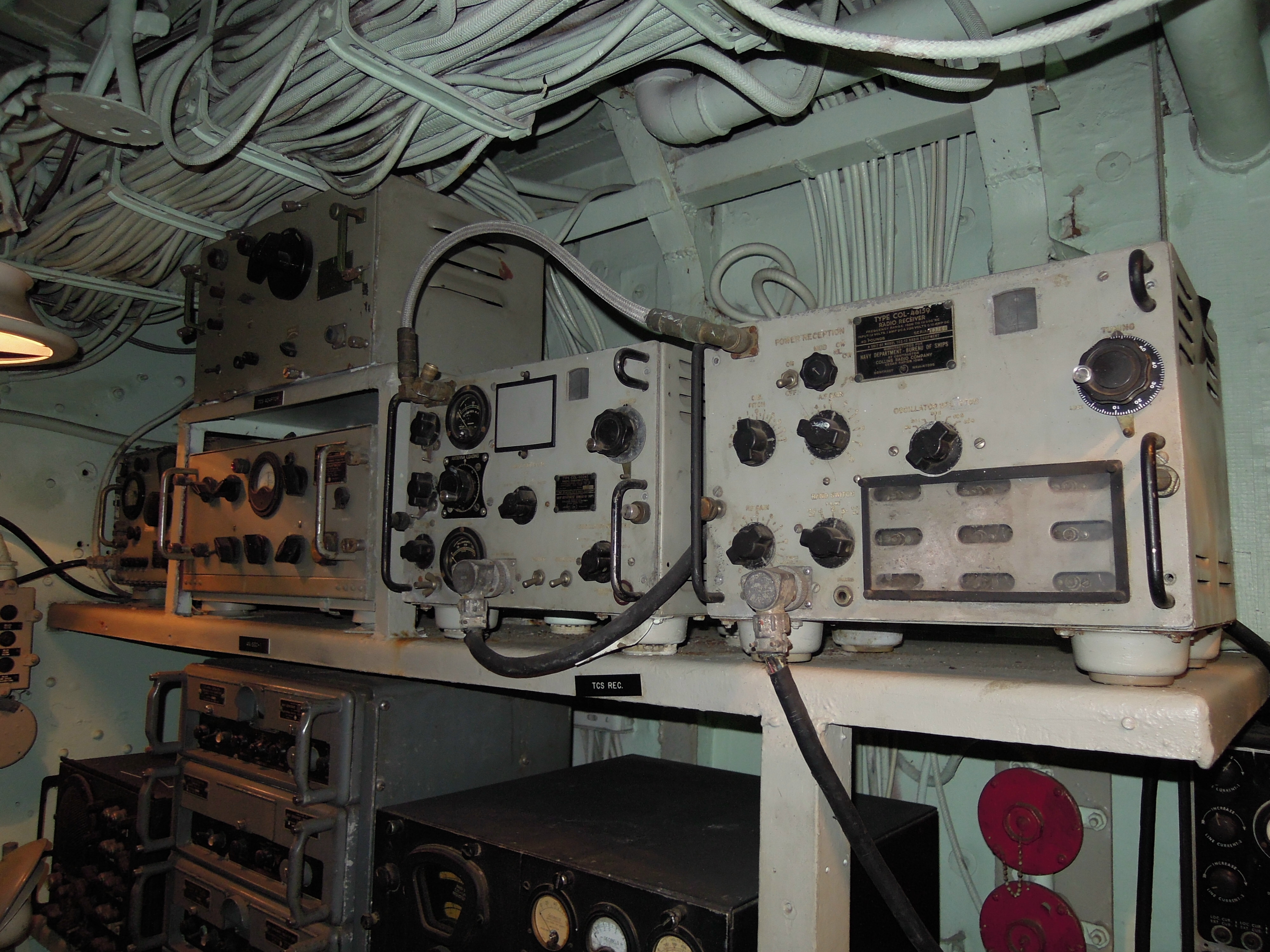

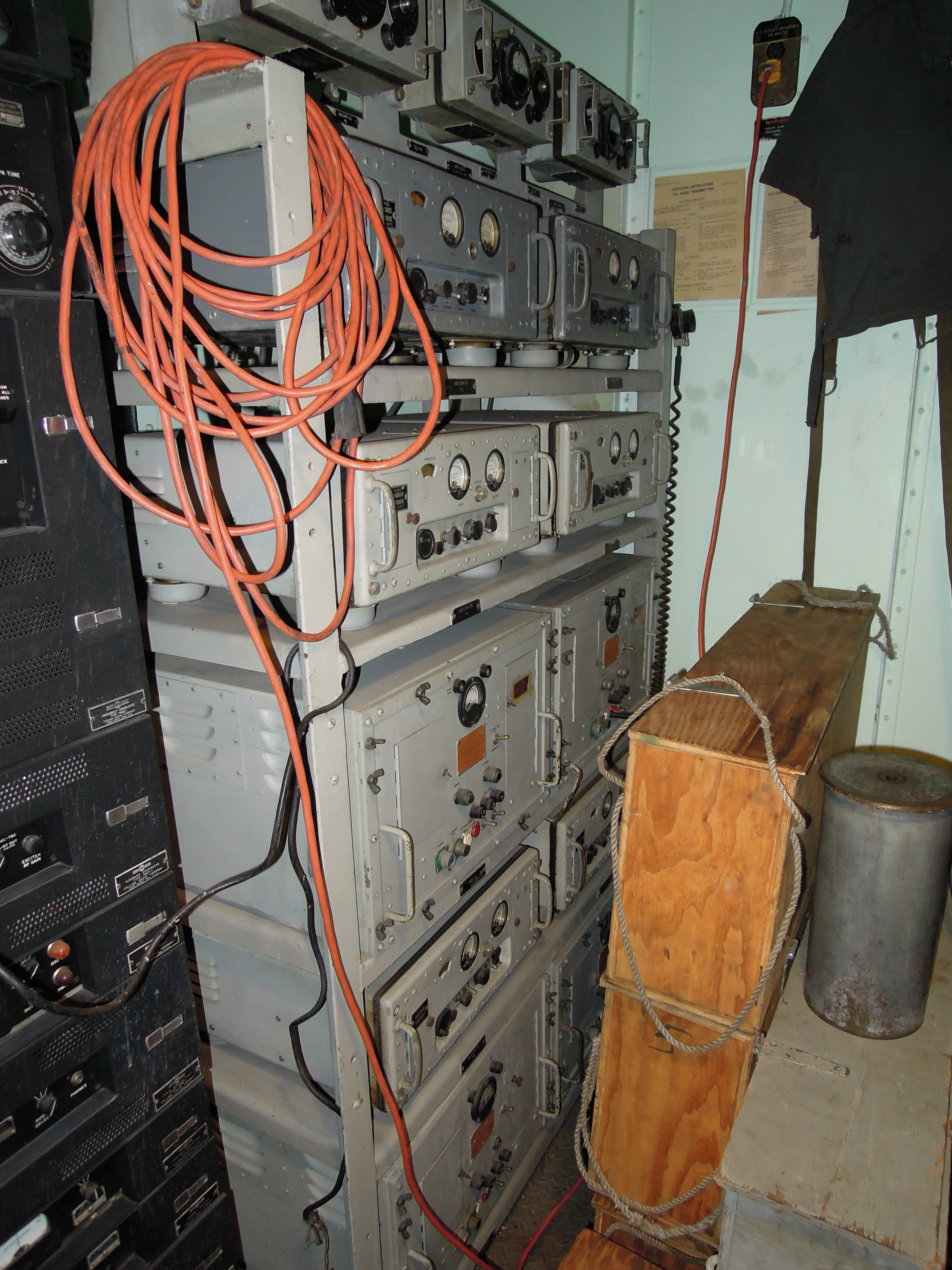

AN/URR-35 rcvrs and TED xmtrs

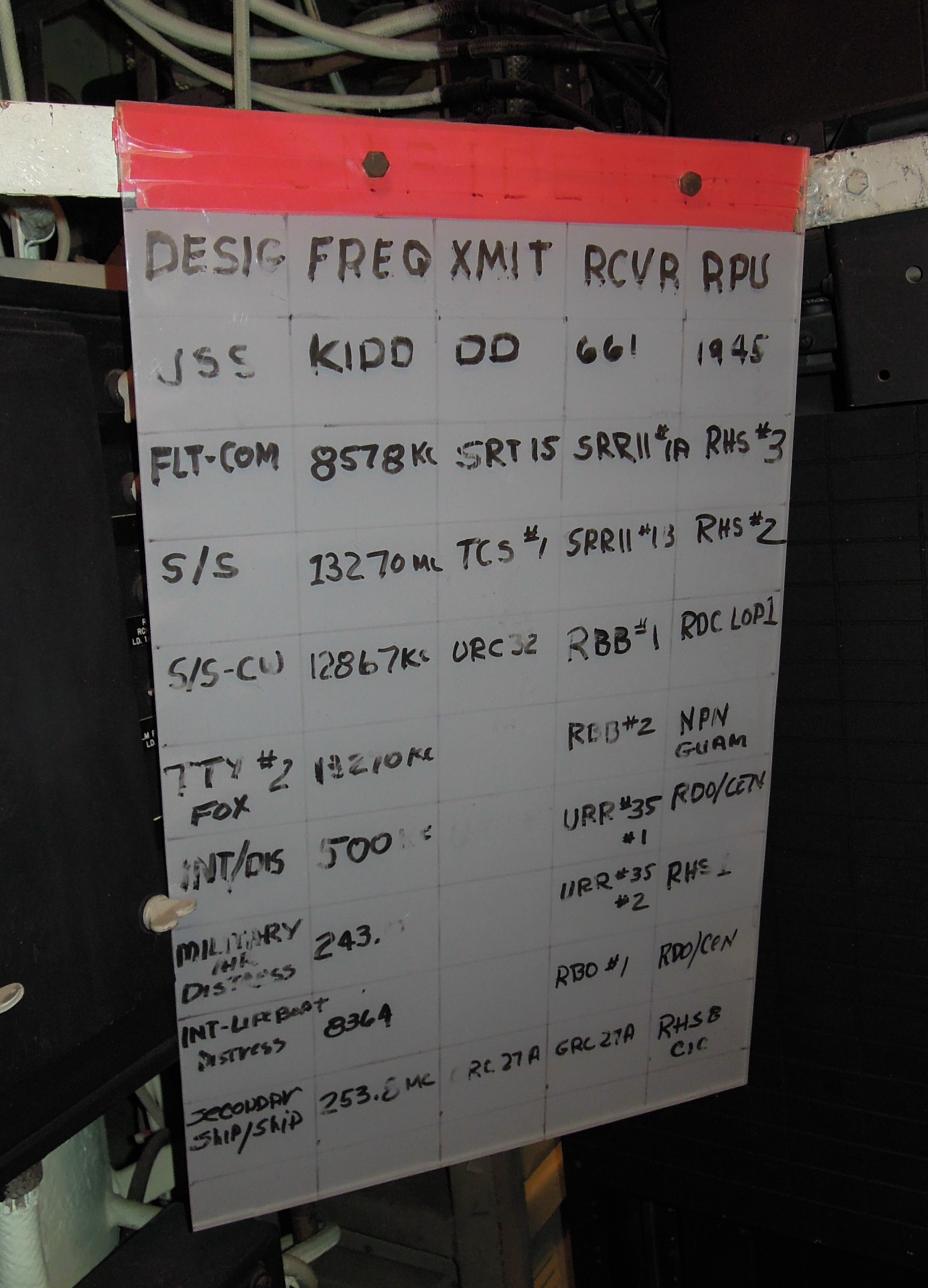

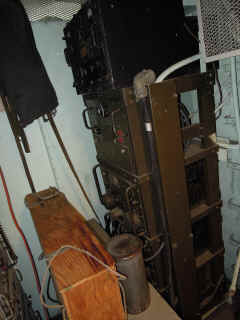

Misc.

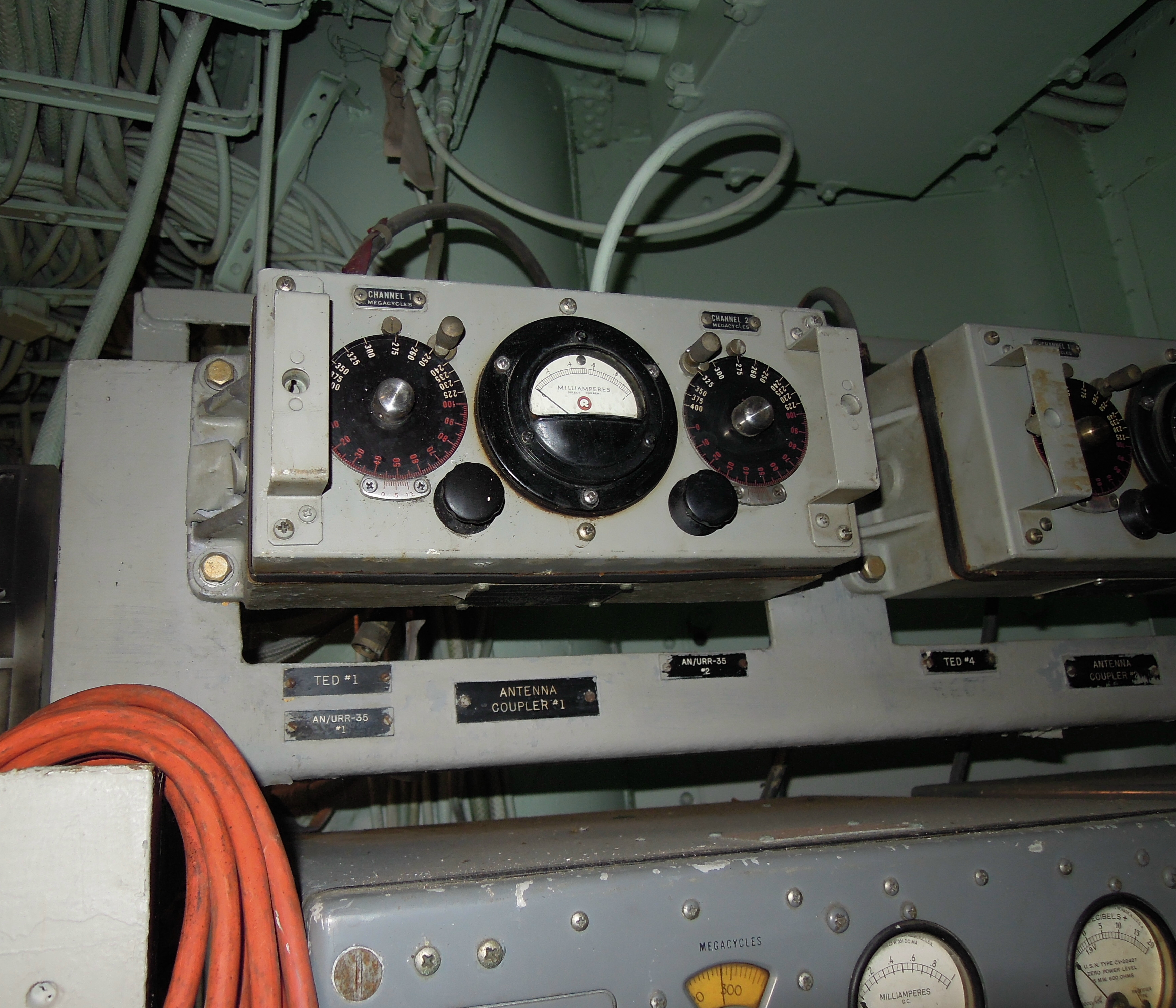

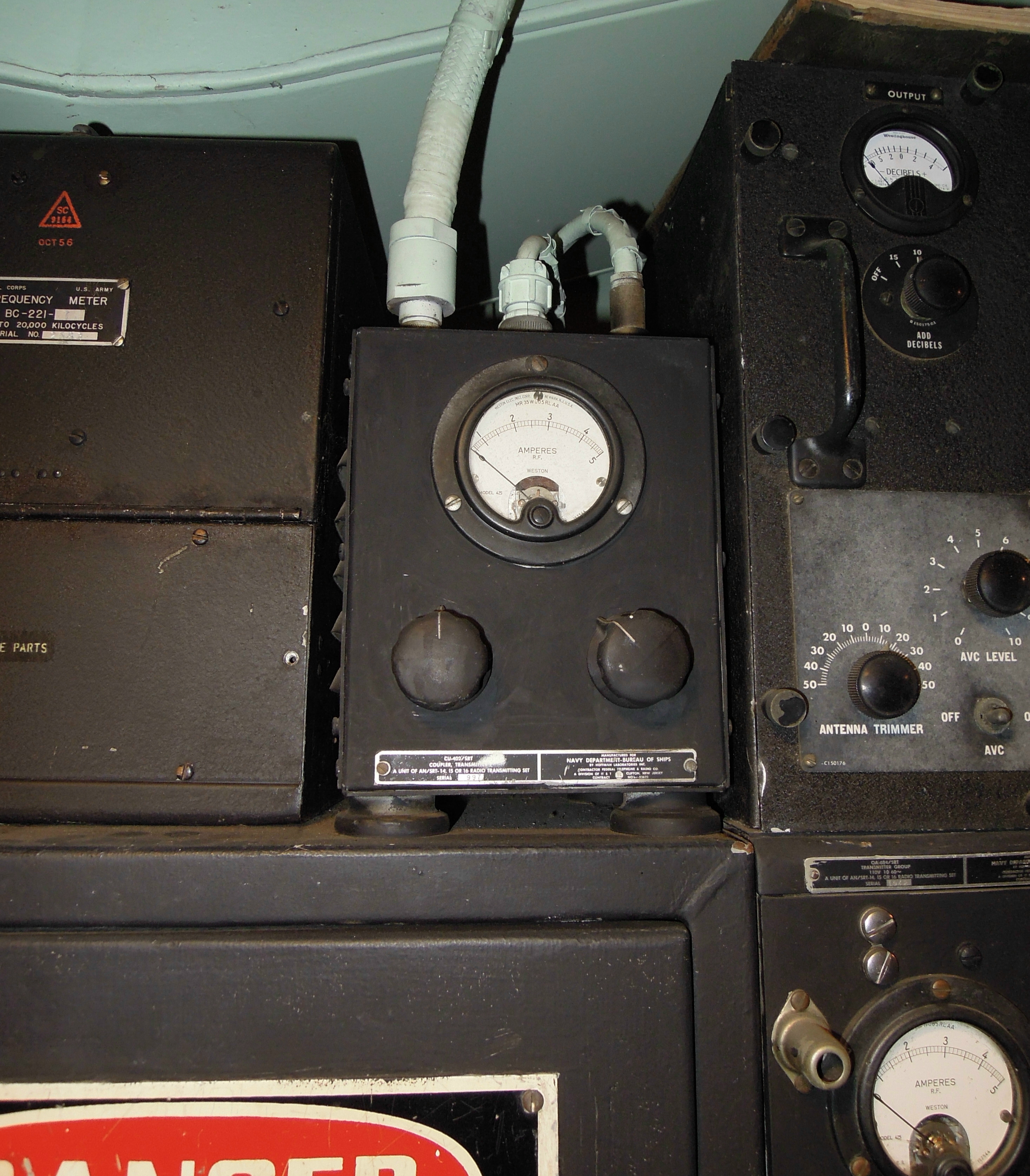

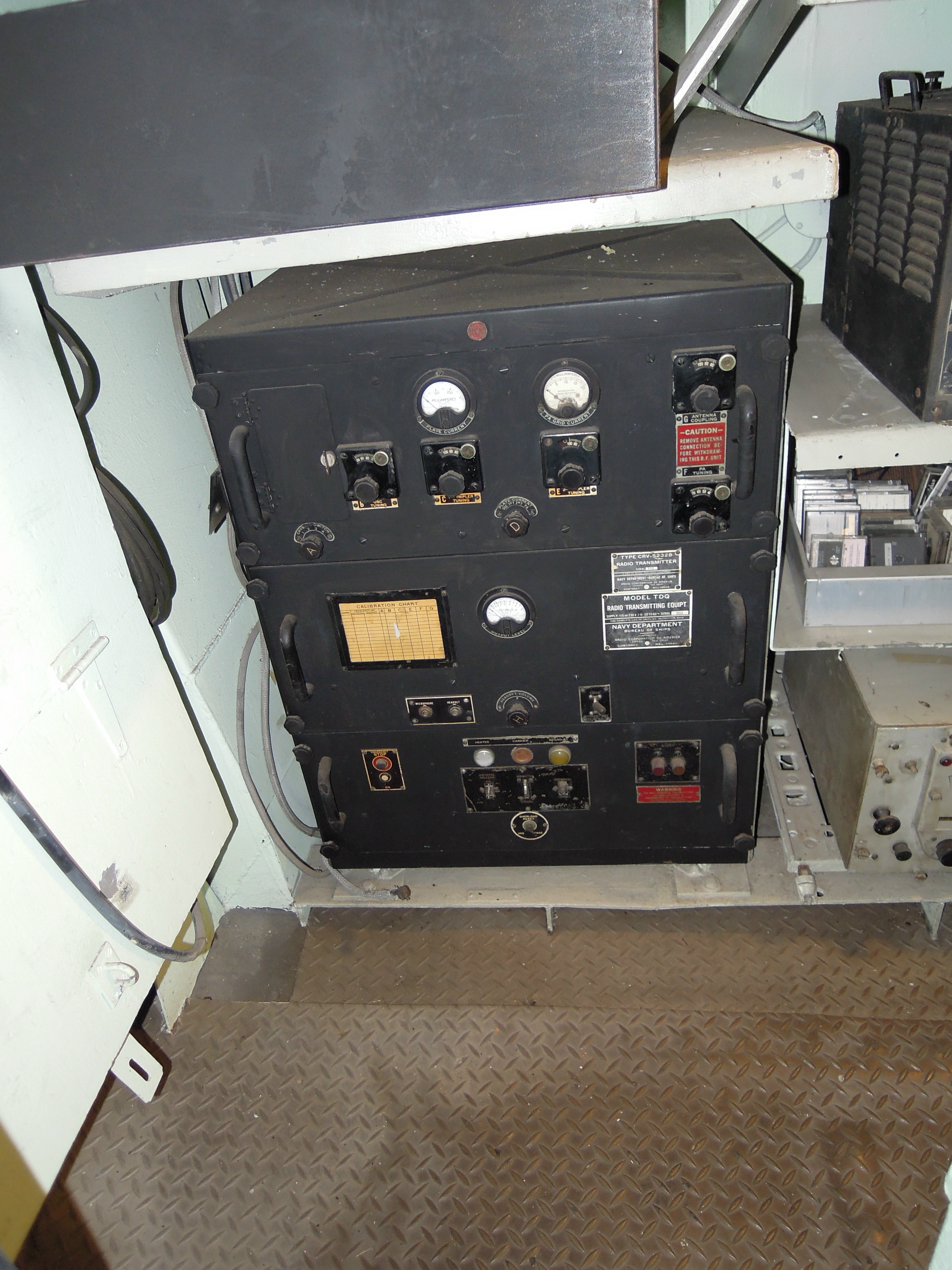

TED Antenna coupler
AN/SRT-15 Antenna Coupler
 (painted black)
- -

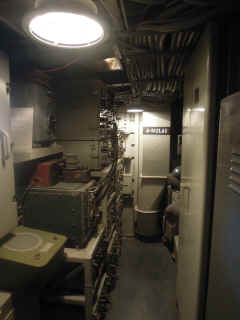

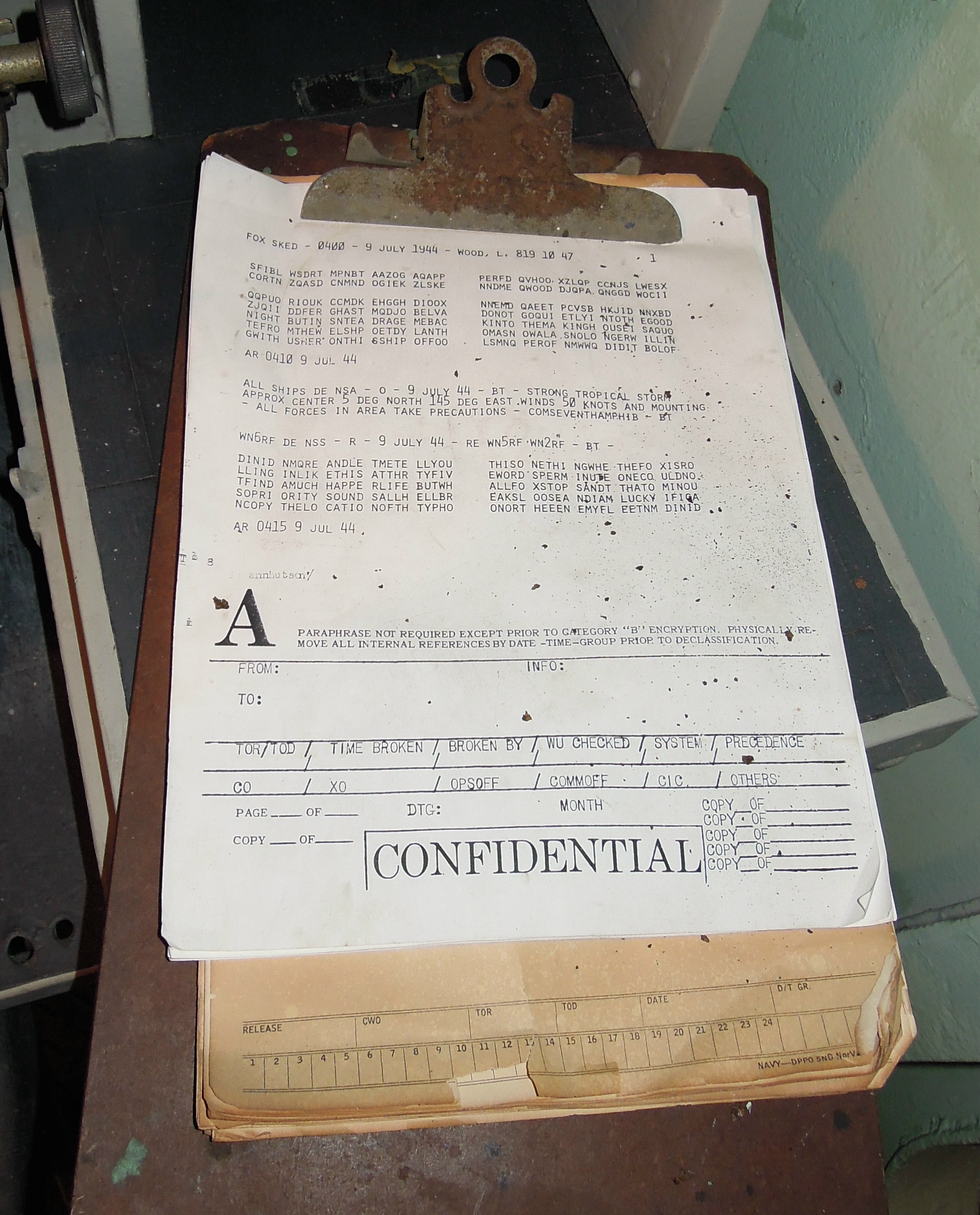

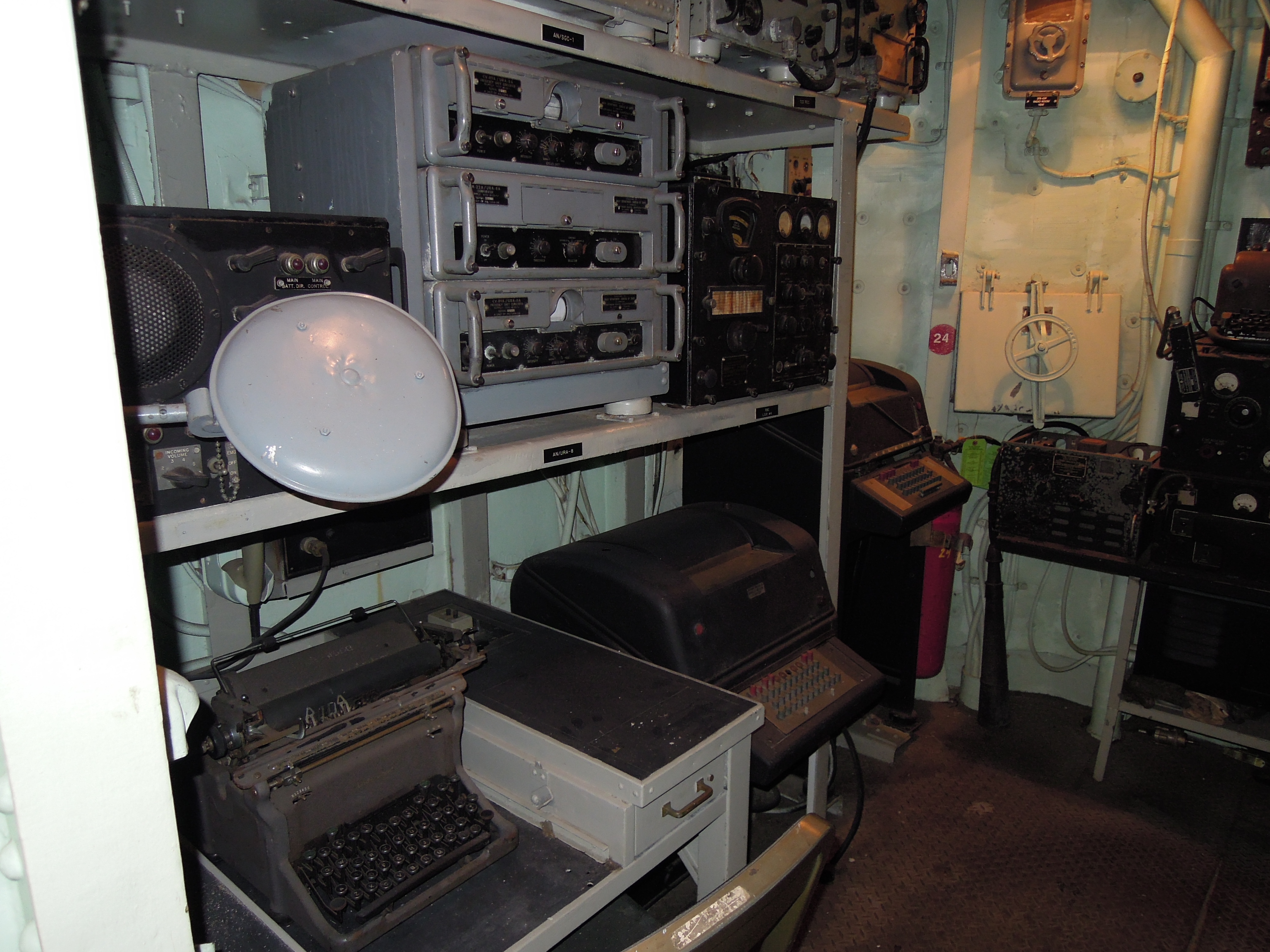

Message Room Adjacent to Radio Central

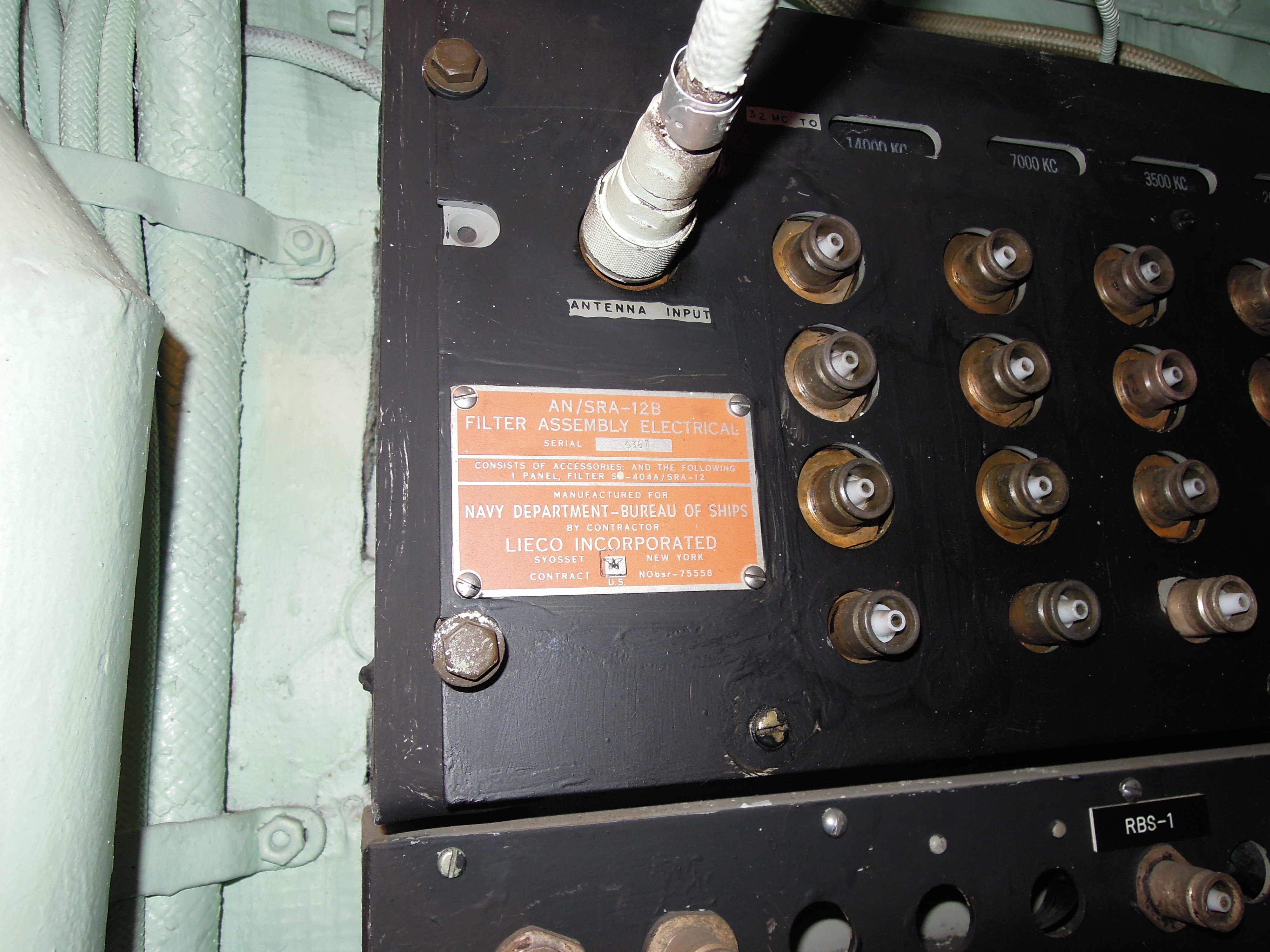

AN/SRA-12 Receive Multicoupler

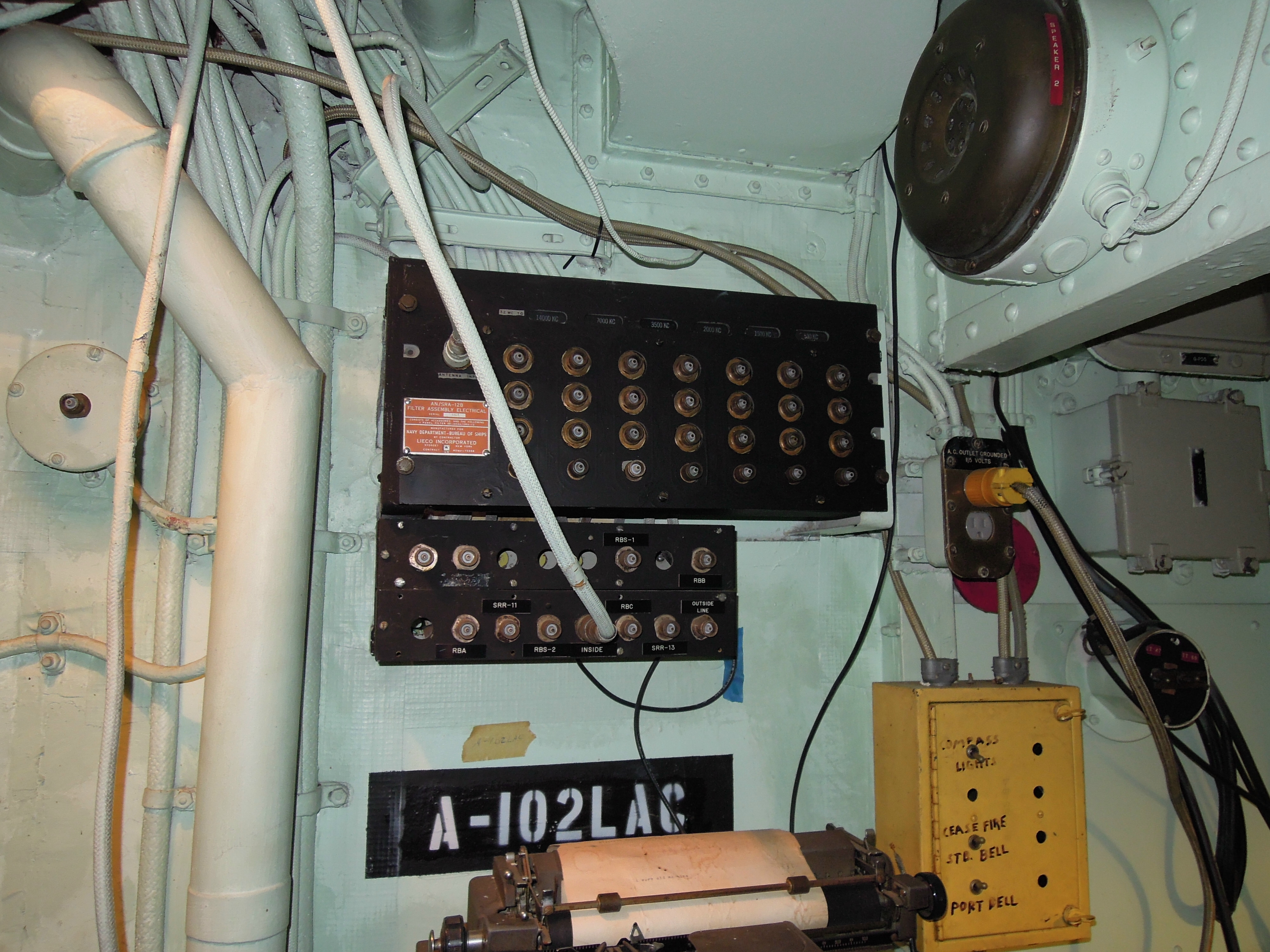

Antenna Patch Panel
 (painted black)
AN/SRA-12 Receive Multicoupler
 (painted black)

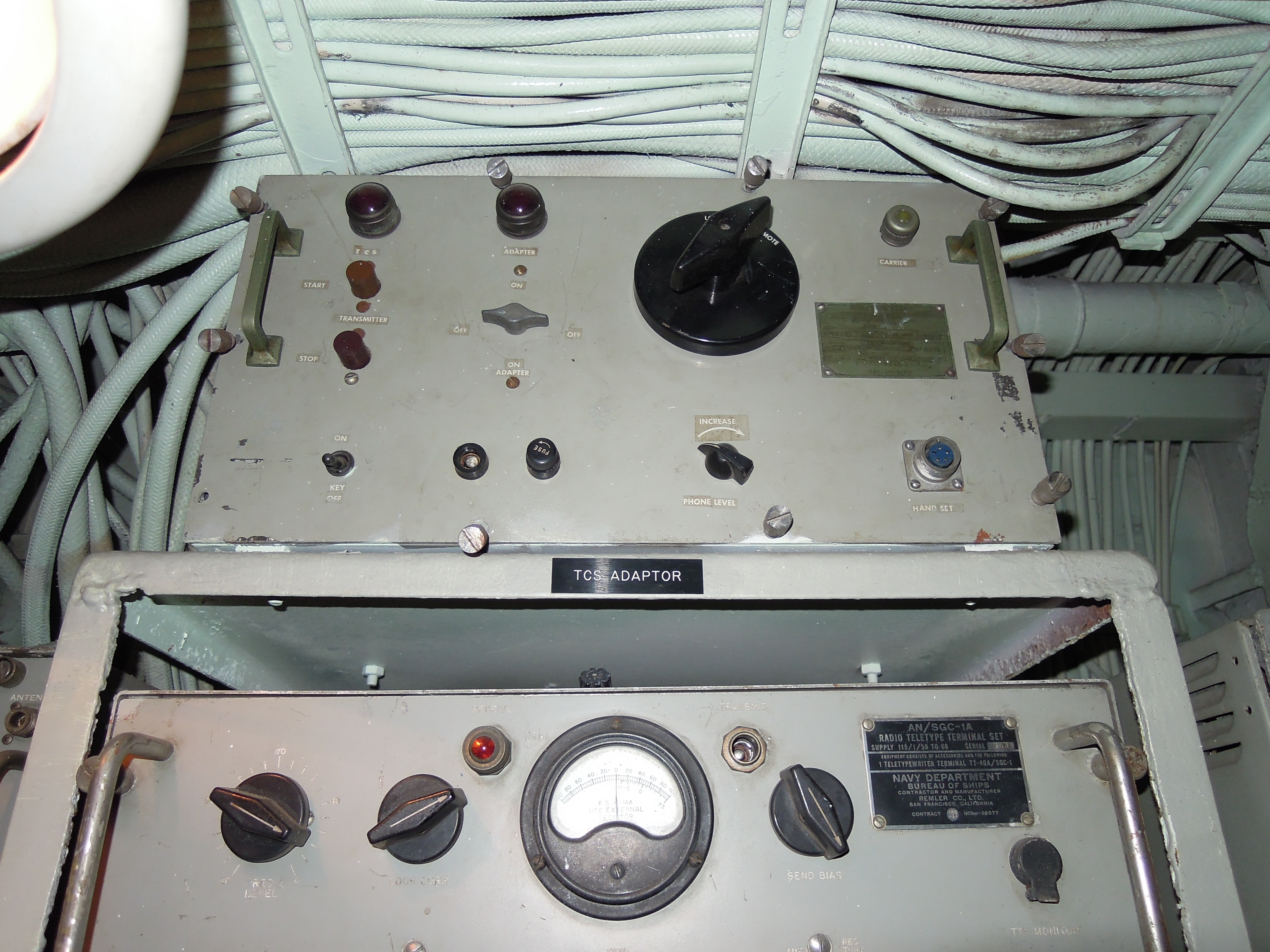

TCS Adapter - what model?

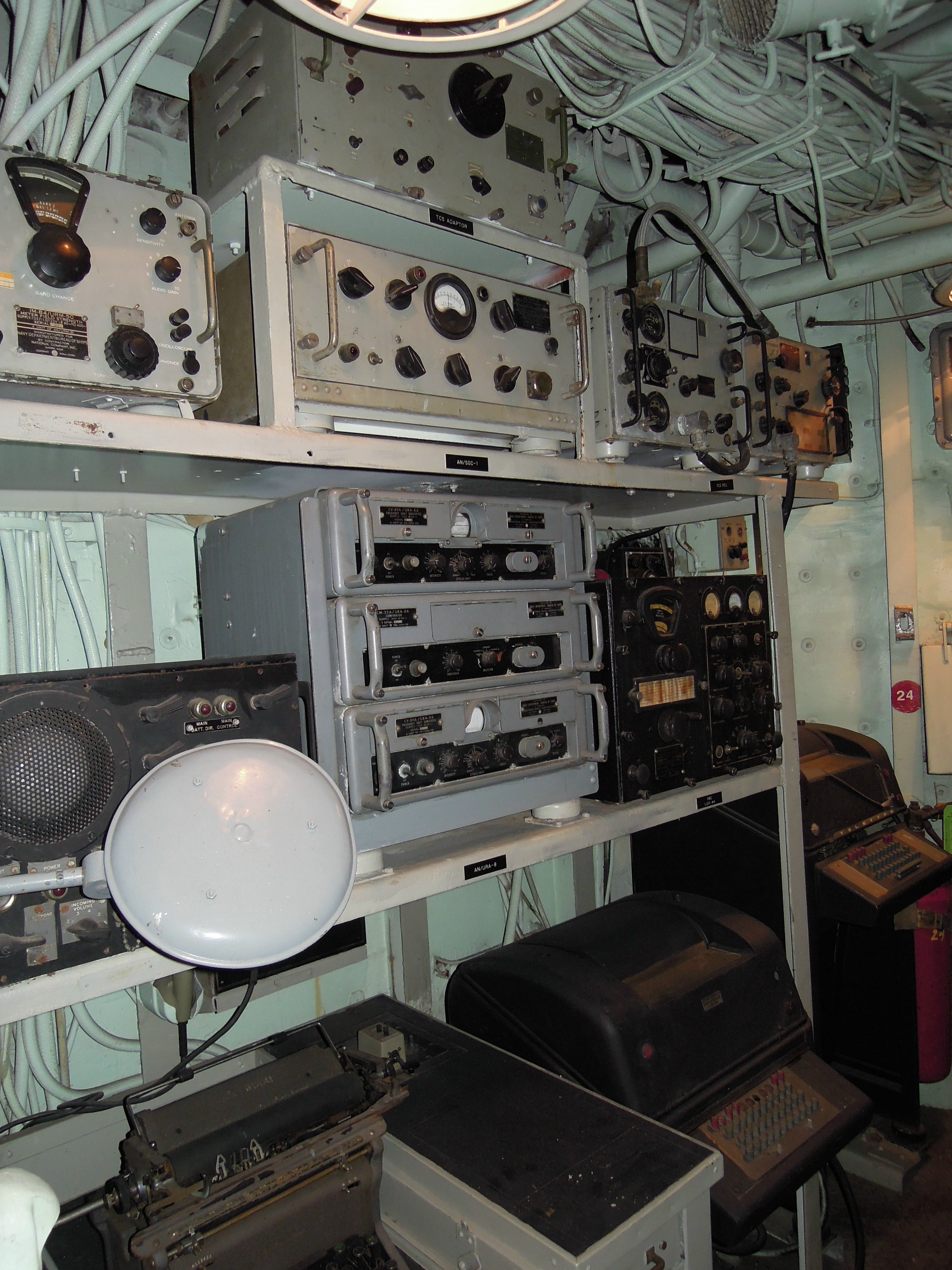

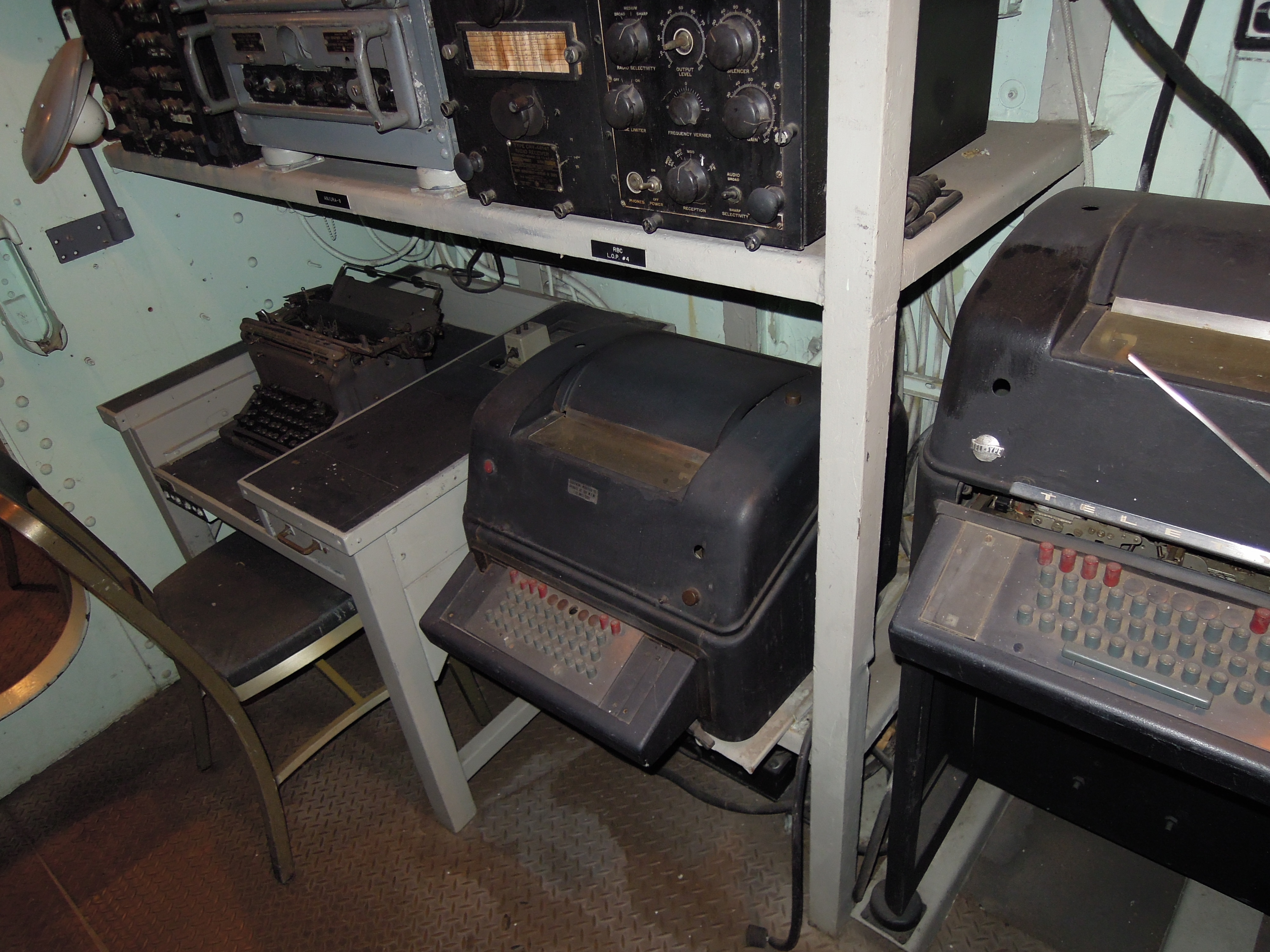

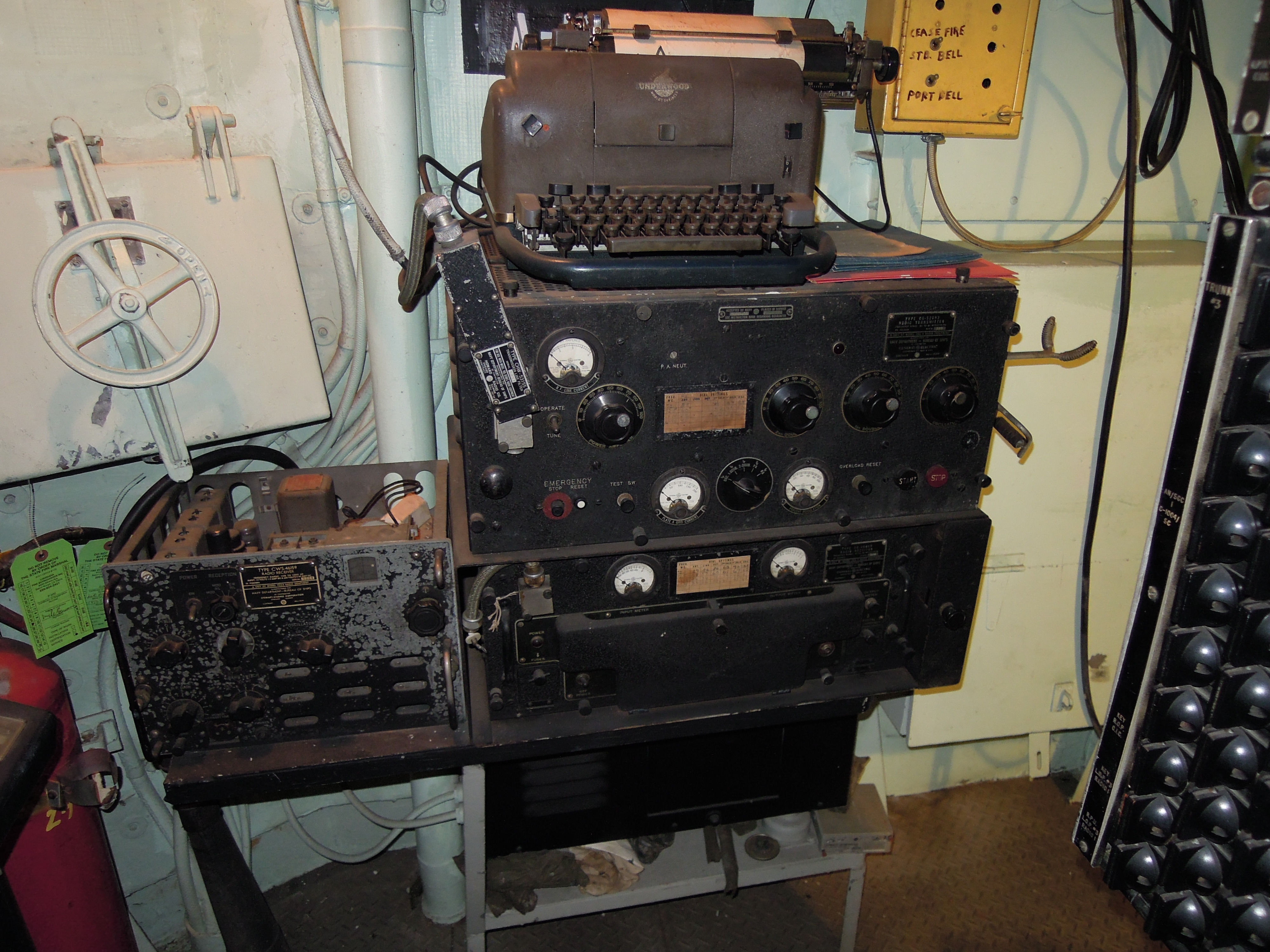

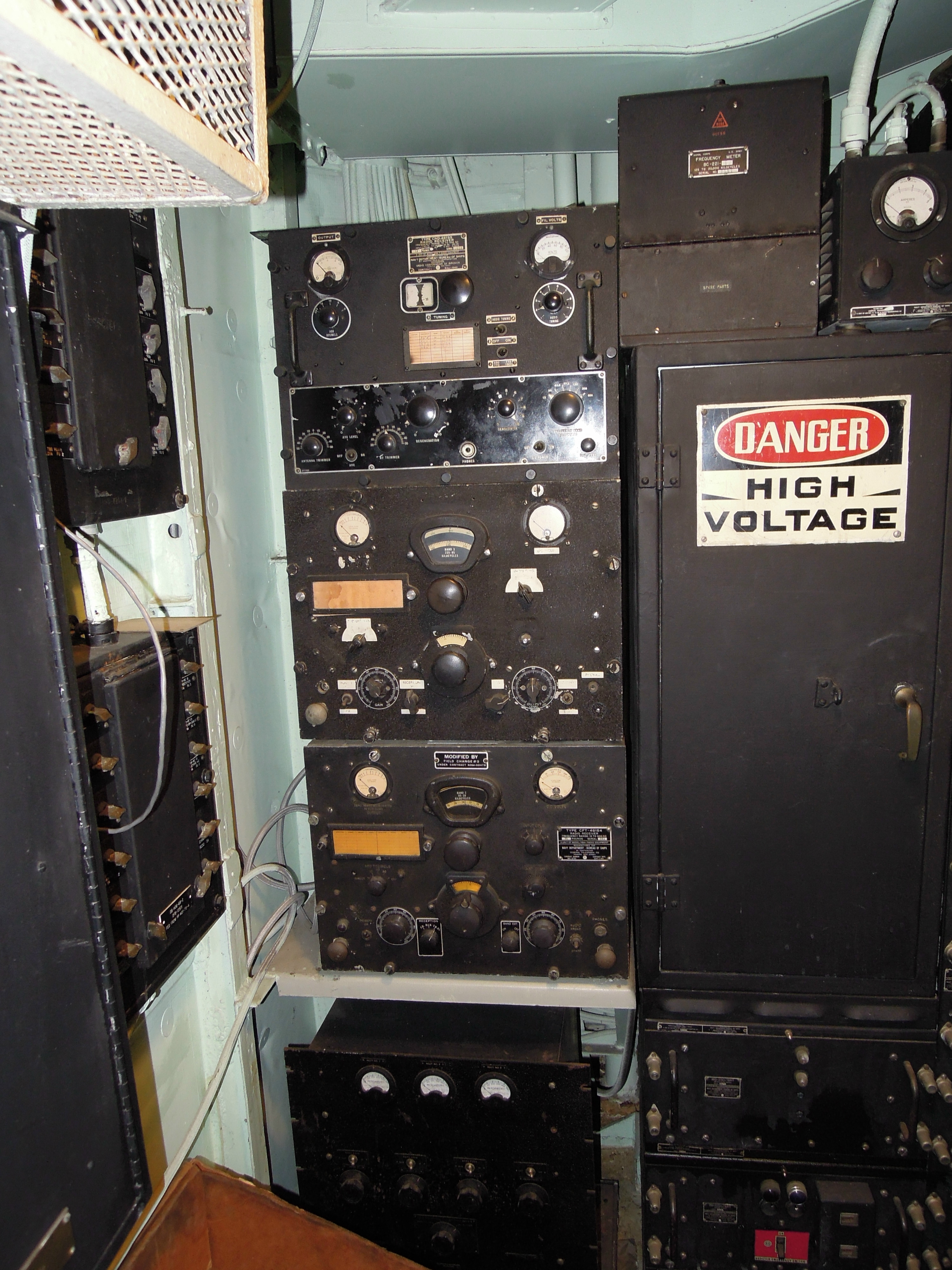

LOP #3 and LOP #4
LOP #4 RBC
TCS
C-1004/SG TTY Control Box
TT-23/SG TTY Patch Panel

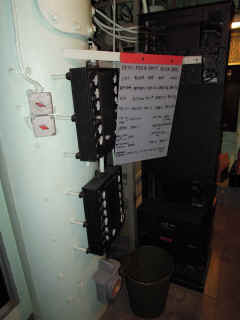

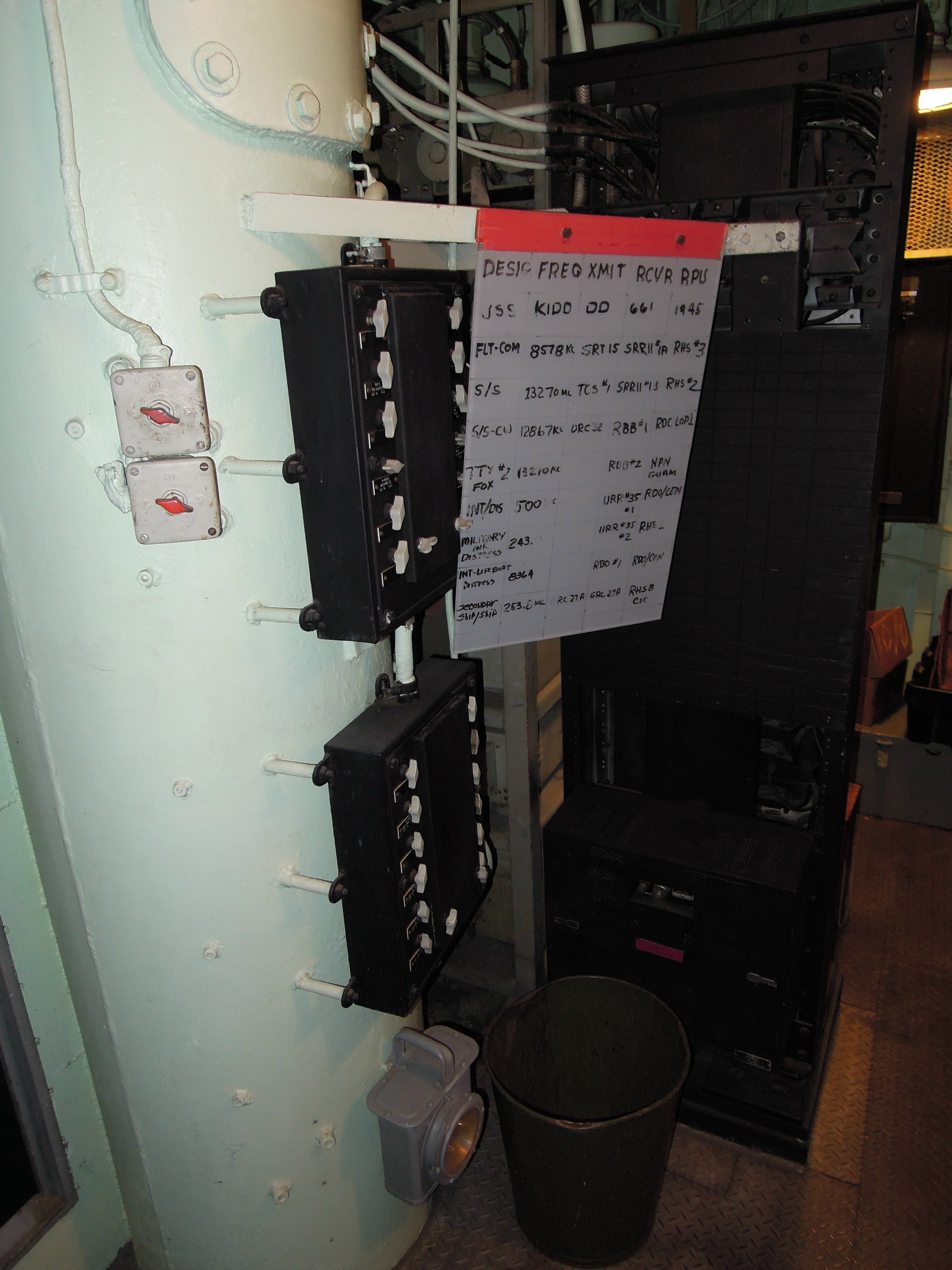

SB-734/SG TTY Switch
TT-23/SG TTY Patch Panel
TBS
TDQ
AN/URA-8A
AN/SGC-1
AN/URA-8A
LOP #3

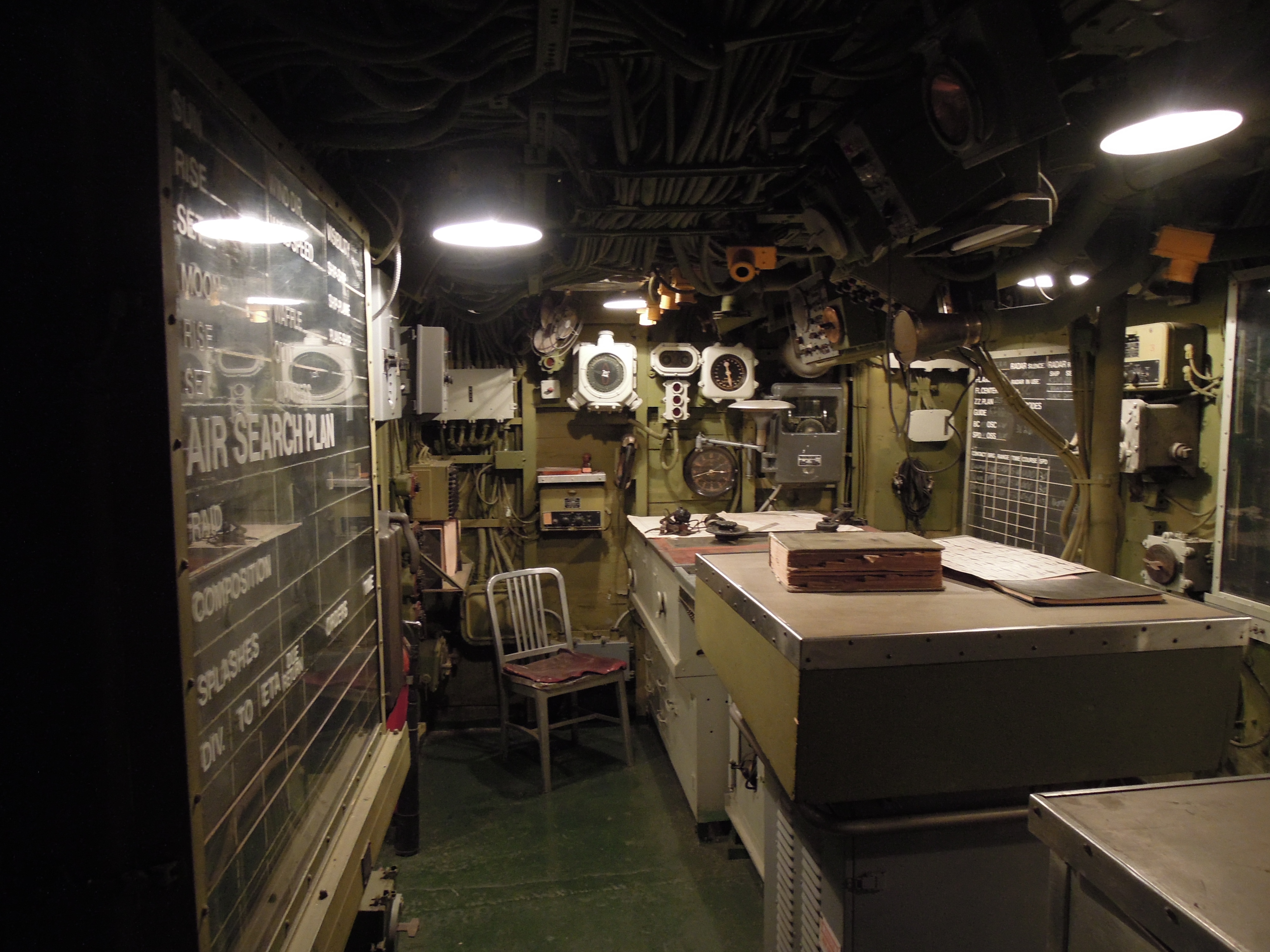

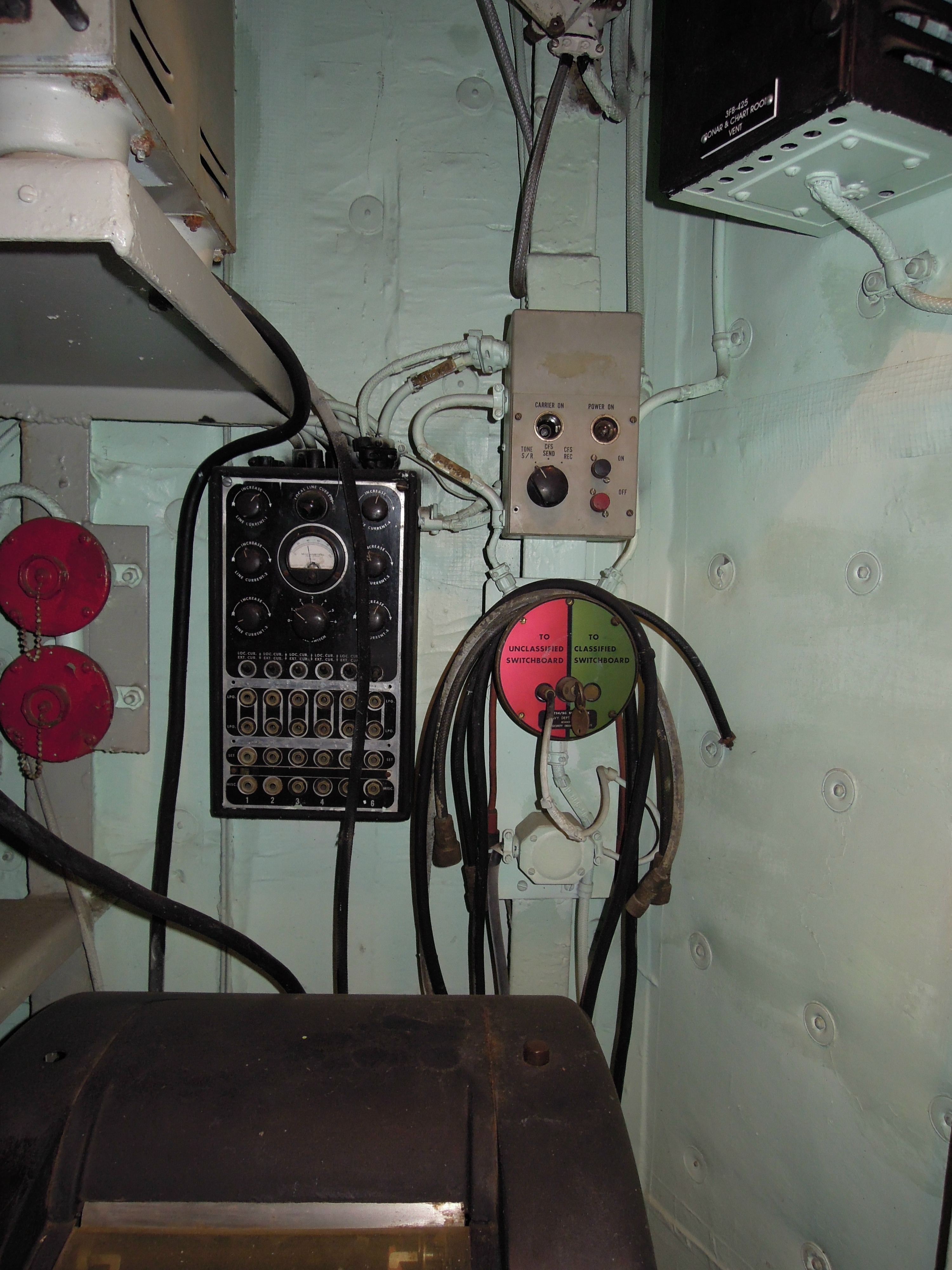

Misc.

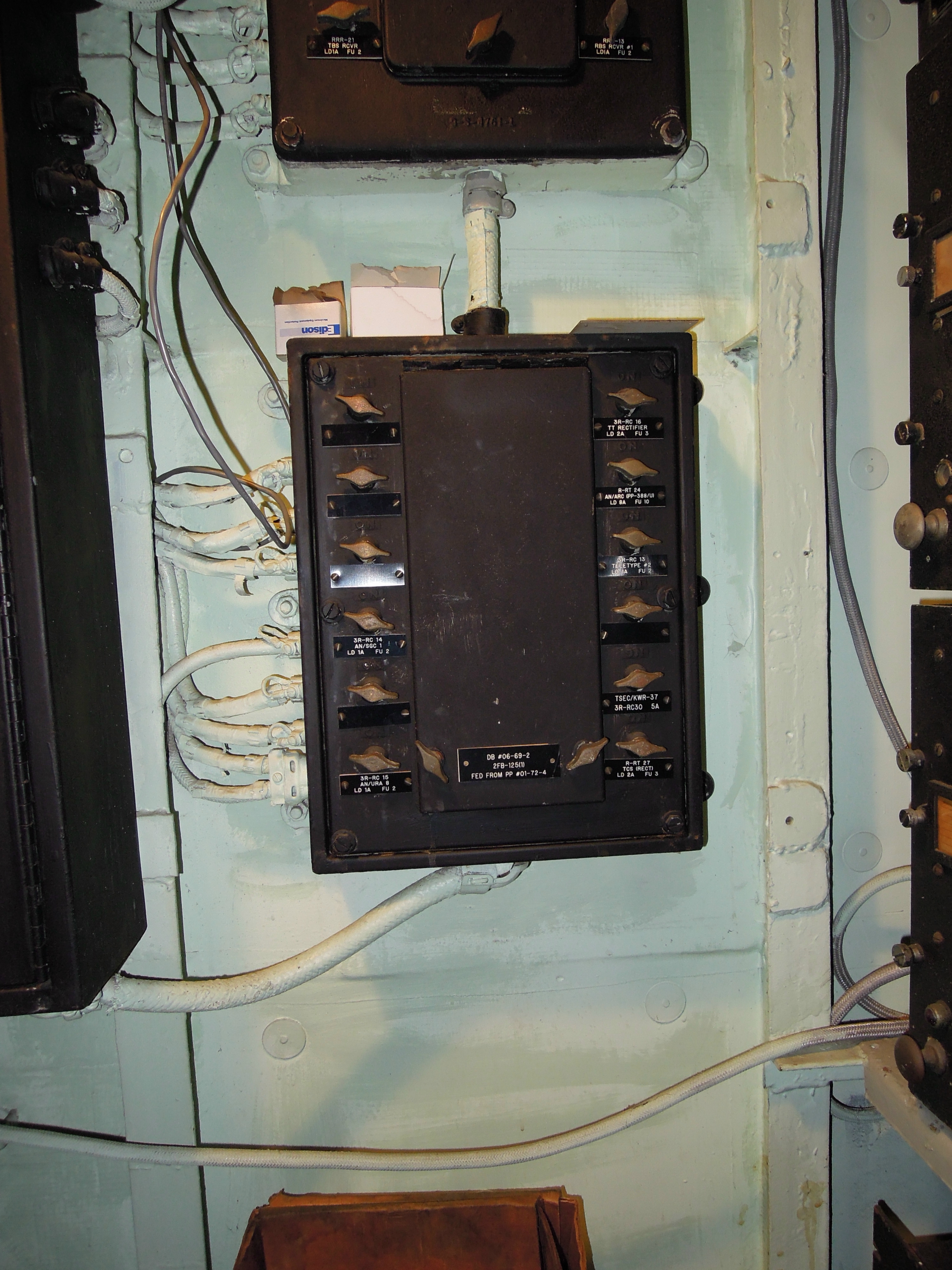

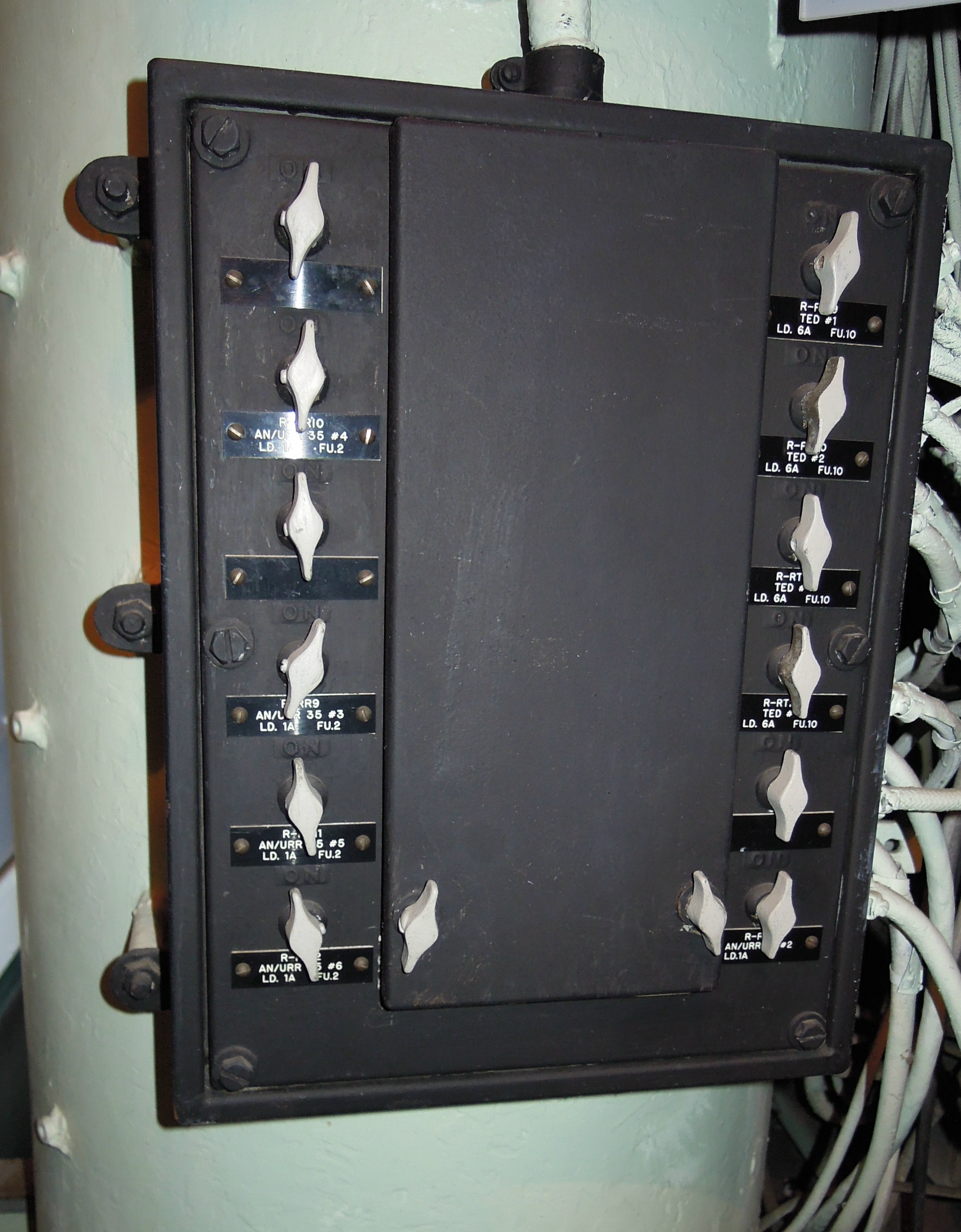

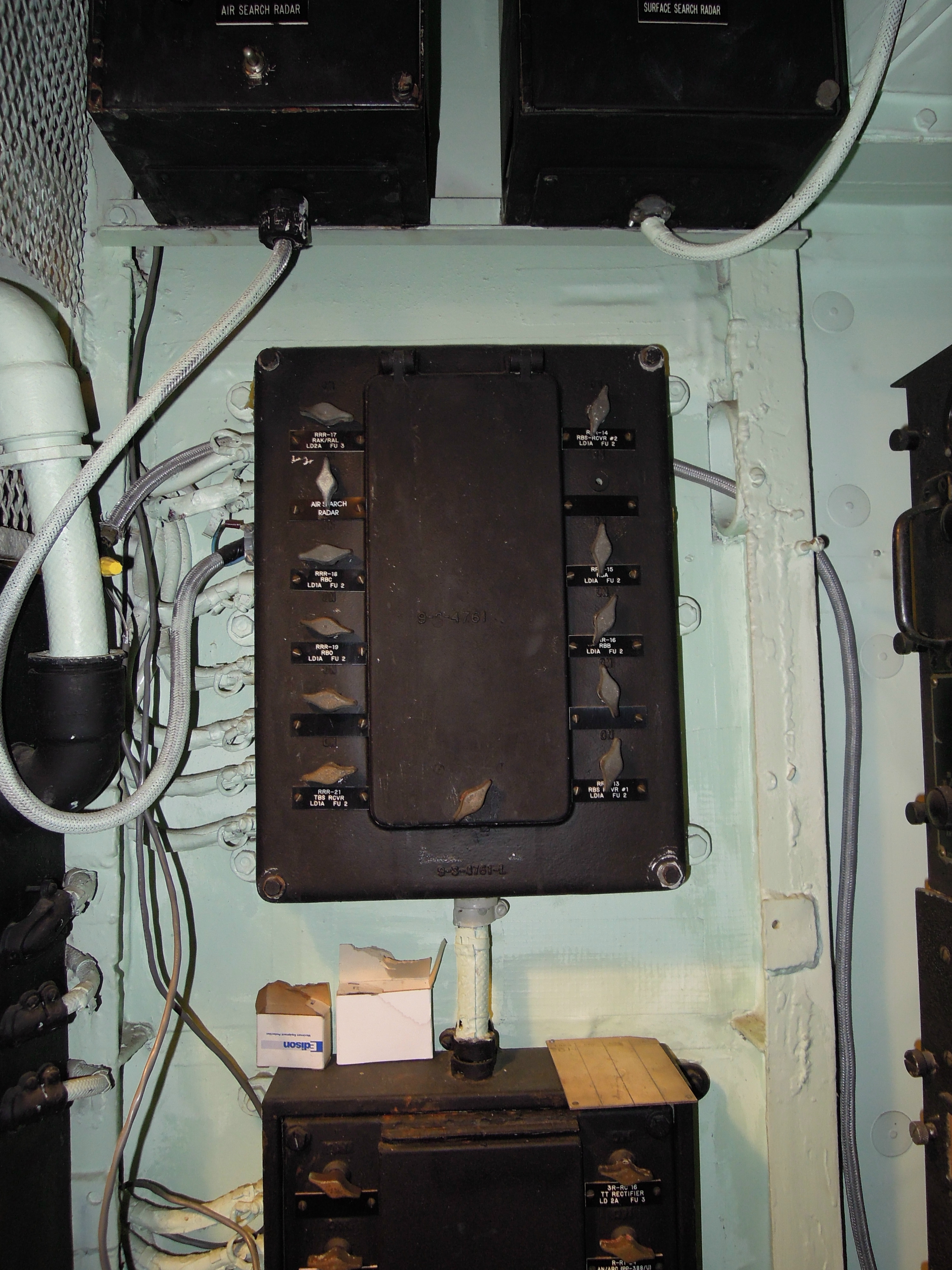

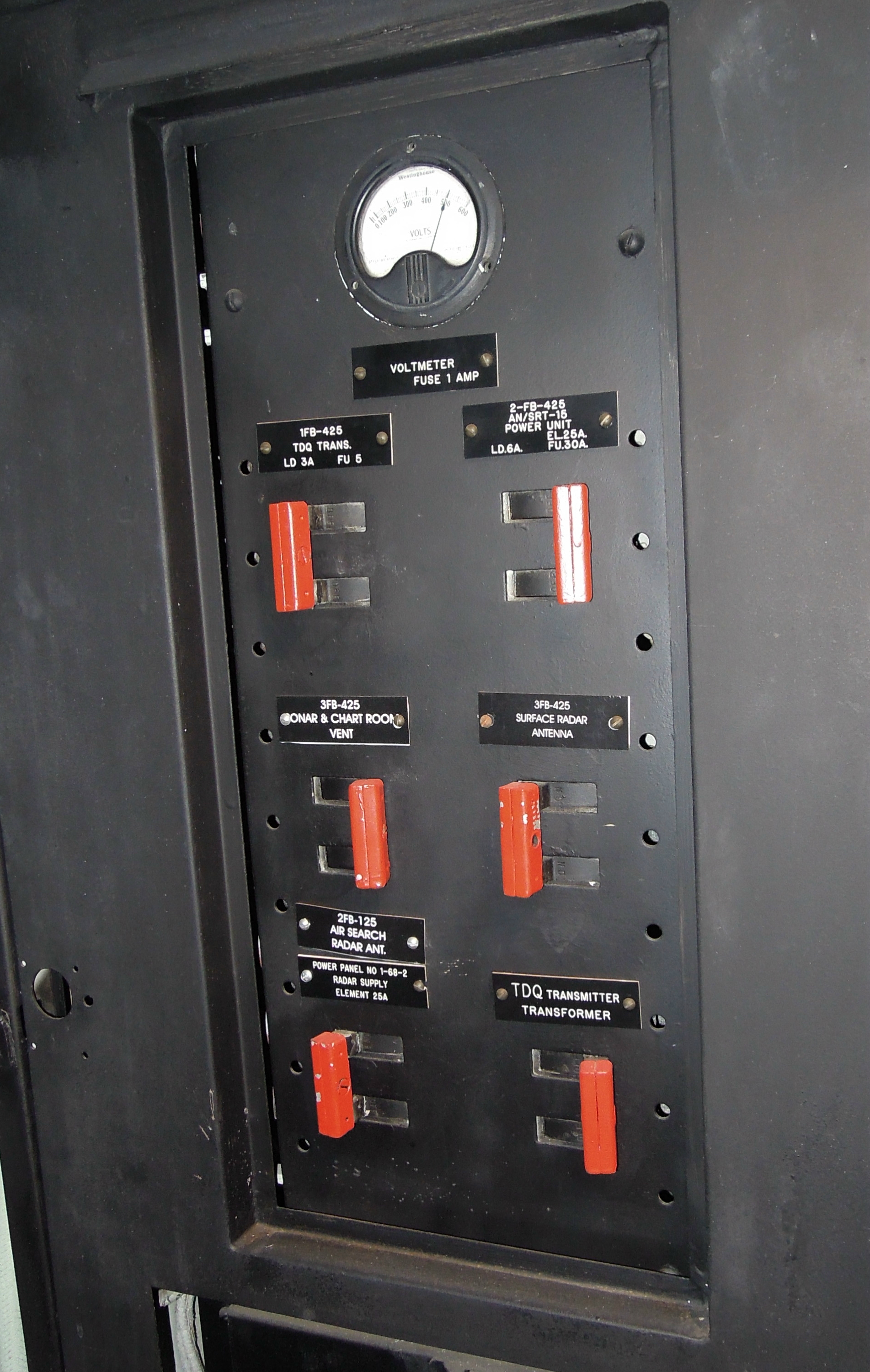

DSCN0046.JPG (5583116 bytes) DSCN0045.JPG (5617075 bytes) DSCN0095.JPG (4279776 bytes) DSCN0098.JPG (3326309 bytes)

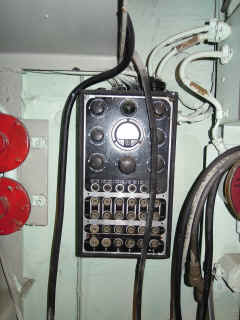

TBS Control Unit in Pilot House
TBS Control Unit in Pilot House

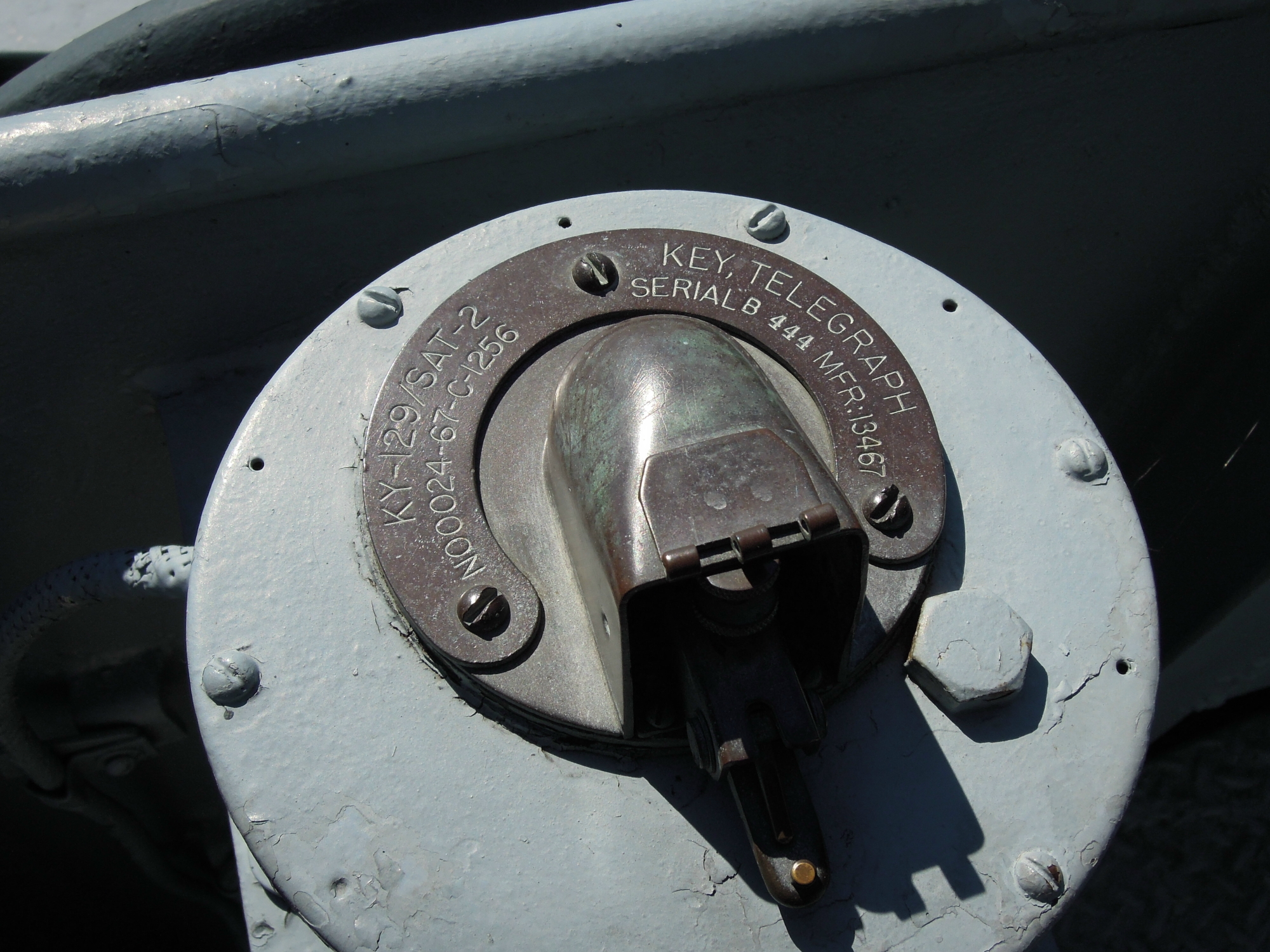

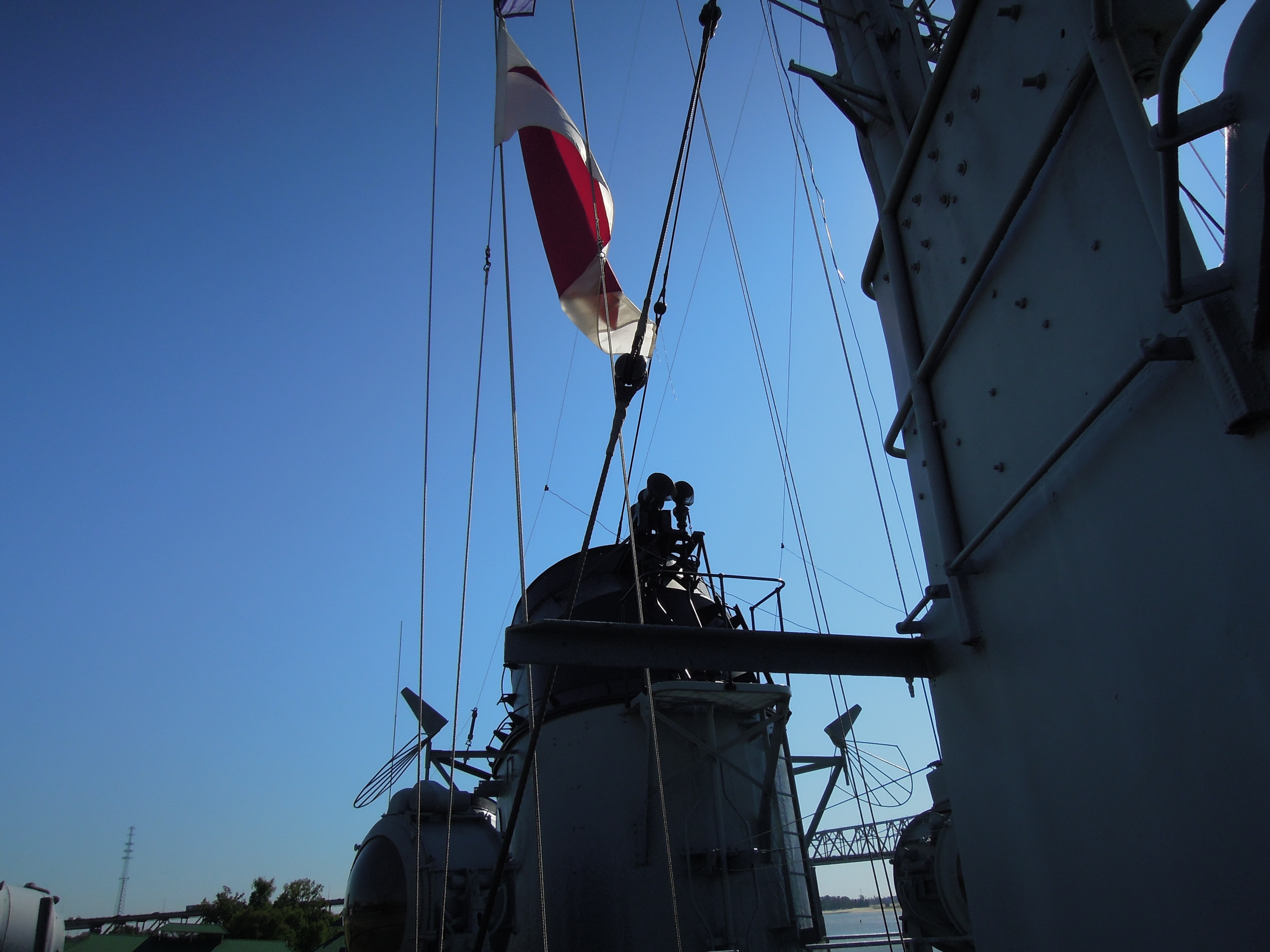

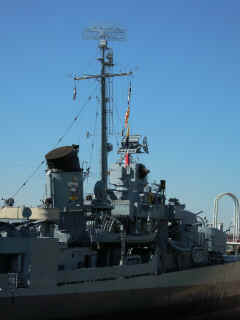

Antenna Lead-in photos
dscn0031.jpg (2339490 bytes) dscn0032.jpg (2767009 bytes) dscn0033.jpg (2725574 bytes) dscn0034.jpg (2111719 bytes)



-

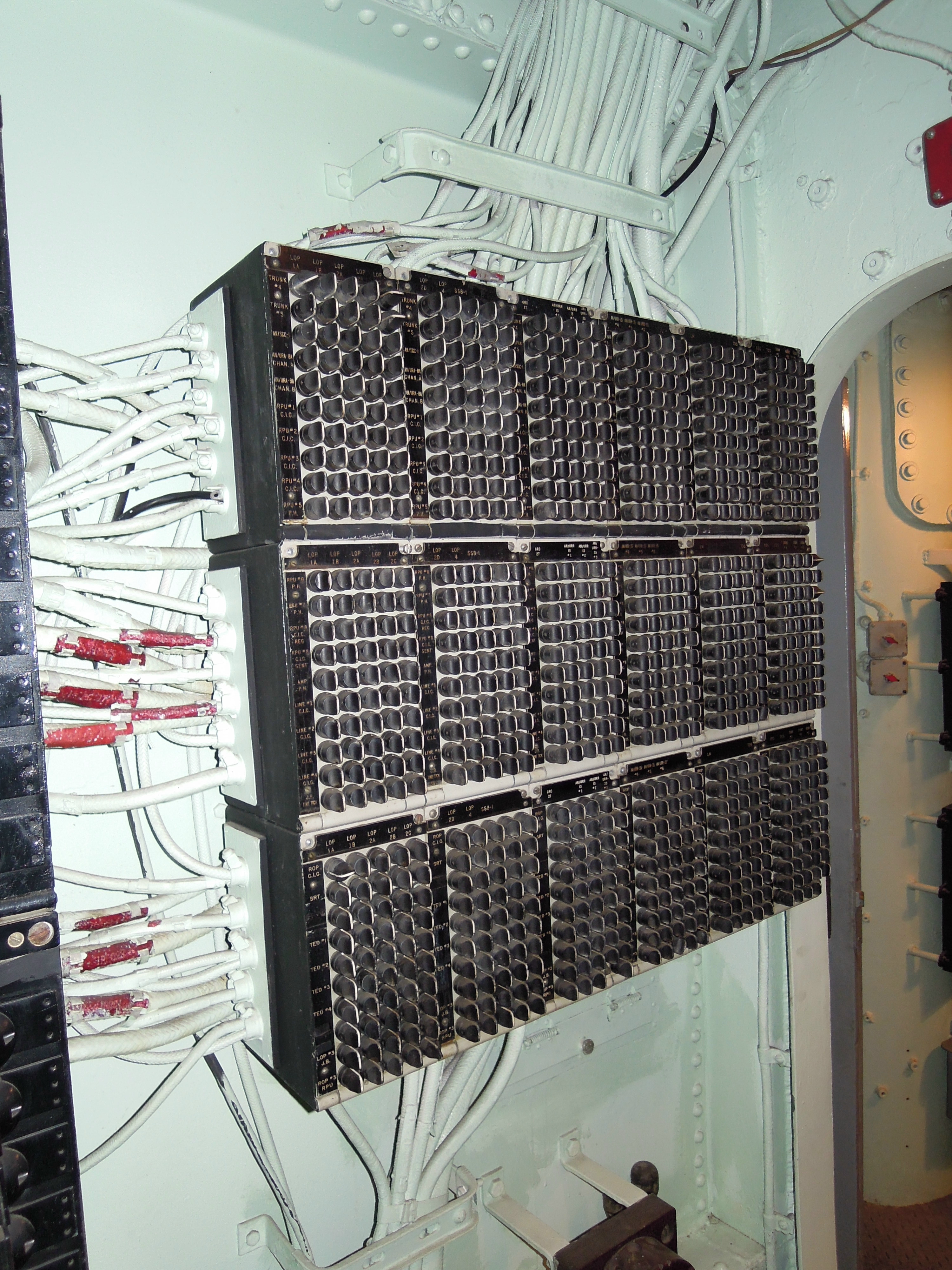

Receiver Switchboard


Additional switchboard photos

Receivers (30 columns)
LOP 1A
LOP 1B
LOP 2A
LOP 2B
LOP 2C
LOP 2D
LOP 4
SSB-1
URC-32 (?)
-
AN/GRC-27
-
AN/URR-13 #1
AN/URR-13 #2
AN/URR-35 #3
AN/URR-35 #4
AN/URR-35 #5
AN/URR-35 #6
-
-
LM
-
-
-
TDQ
TBS
TCS
TRUNK #1
TRUNK #2
TRUNK #3
Remotes (30 rows)
Trunk #4
Trunk #5
AN/SGC-1
AN/URA-8A chan A
AN/URA-8A chan B
RPU #1 (CIC)
RPU #2 (CIC)
RPU #3 (CIC)
RPU #4 (CIC)
RPU #5 (PH)
RPU #6 (PH)
RPU #7 (PH)
RPU #8 (CIC REG)
RPU #9 (CIC CENT)
AMP (PH)
LINE #1 (CIC)
LINE #2 (CIC)
LINE #3 (CIC)
LINE #4 (CIC)
JB TIME TICK
ROP (CIC)
SRT
-
TED #1
TED #2
TED #3
TED #4
SSB-1
LOP #3 JB
ROP #3 RPU
LOP = Local Operating Position
ROP = Remote Operating Position
RPU = RadioPhone Unit (C-1138/UR)
JB  = Jack Box

CIC = Combat Information Center
PH = Pilot House

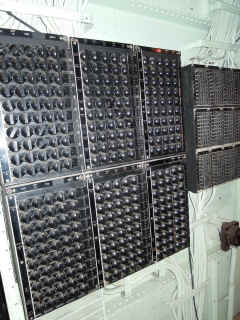

Transmitter Switchboard


Additional switchboard photos

Transmitters (15 columns)
TCS
AN/SRT-15
TDQ
-
SSB-1
AN/GRC-27
TED #1
TED #2
TED #3
TED #4
-
-
AN/URC-32
TRUNK #1
TRUNK #2
Remotes (20 rows)
LOP #2 (RADIO 1)
LOP #1 (RADIO 1)
RPU #8 (CIC)
RPU #7 (PH)
RPU #6 (PH)
RPU #5 (PH)
RPU #4 (CIC)
RPU #3 (CIC)
RPU #2 (CIC)
RPU #1 (CIC)
TRUNK #3
-
-
AN/SGC-1 (C-1004/SG)
-
-
-
KEY ROP (CIC)
KEY LOP #3 (RADIO 1)
RPU LOP #3 (RADIO 1)
