USS Kidd DD-661 Transmitter and Receiver Switchboards

Receiver Switchboard

LOP 1A
LOP 1B
LOP 2A
LOP 2B
LOP 2C
LOP 2D
LOP 4
SSB-1
-
-
AN/GRC-27
-
AN/URR-13 #1
AN/URR-13 #2
AN/URR-35 #3
AN/URR-35 #4
AN/URR-35 #5
AN/URR-35 #6
-
-
LM
-
-
-
TDQ
TBS
TCS
TRUNK #1
TRUNK #2
TRUNK #3
Remotes (30 rows)
Trunk #4
Trunk #5
AN/SGC-1
AN/URA-8A chan A
AN/URA-8A chan B
RPU #1 (CIC)
RPU #2 (CIC)
RPU #3 (CIC)
RPU #4 (CIC)
RPU #5 (PH)
RPU #6 (PH)
RPU #7 (PH)
RPU #8 (CIC REG)
RPU #9 (CIC CENT)
AMP (PH)
LINE #1 (CIC)
LINE #2 (CIC)
LINE #3 (CIC)
LINE #4 (CIC)
JB TIME TICK
ROP (CIC)
SRT
-
TED #1
TED #2
TED #3
TED #4
SSB-1
LOP #3 JB
ROP #3 RPU
LOP = Local Operating Position
ROP = Remote Operating Position
RPU = RadioPhone Unit (C-1138/UR)
JB  = Jack Box

CIC = Combat Information Center
PH = Pilot House

Transmitter Switchboard

TCS
AN/SRT-15
TDQ
-
SSB-1
AN/GRC-27
TED #1
TED #2
TED #3
TED #4
-
-
AN/URC-32
TRUNK #1
TRUNK #2
Remotes (30 rows)
LOP #2 (RADIO 1)
LOP #1 (RADIO 1)
RPU #8 (CIC)
RPU #7 (PH)
RPU #6 (PH)
RPU #5 (PH)
RPU #4 (CIC)
RPU #3 (CIC)
RPU #2 (CIC)
RPU #1 (CIC)
TRUNK #3
-
-
AN/SGC-1 (C-1004/SG)
-
-
-
KEY ROP (CIC)
KEY LOP #3 (RADIO 1)
RPU LOP #3 (RADIO 1)

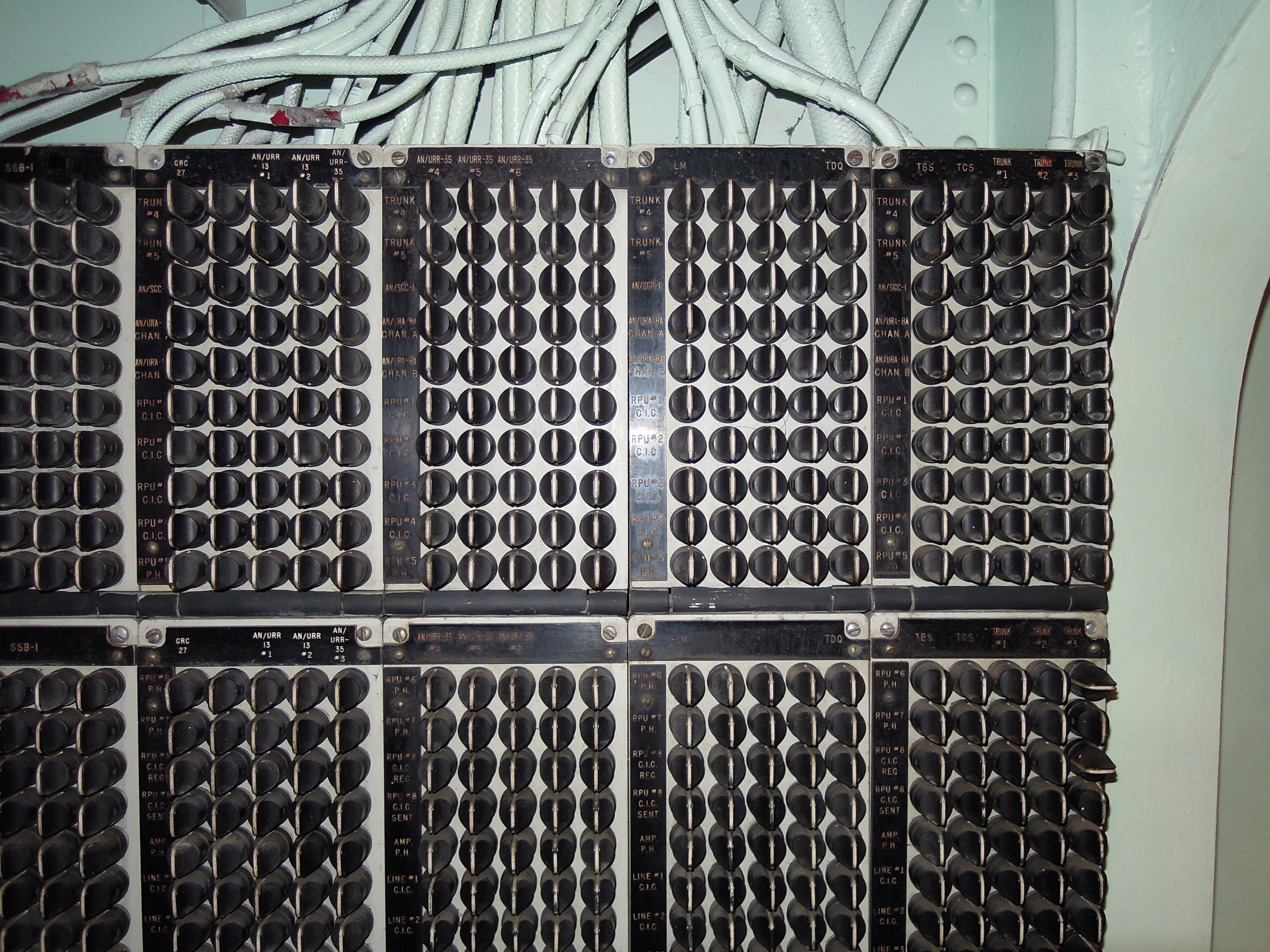

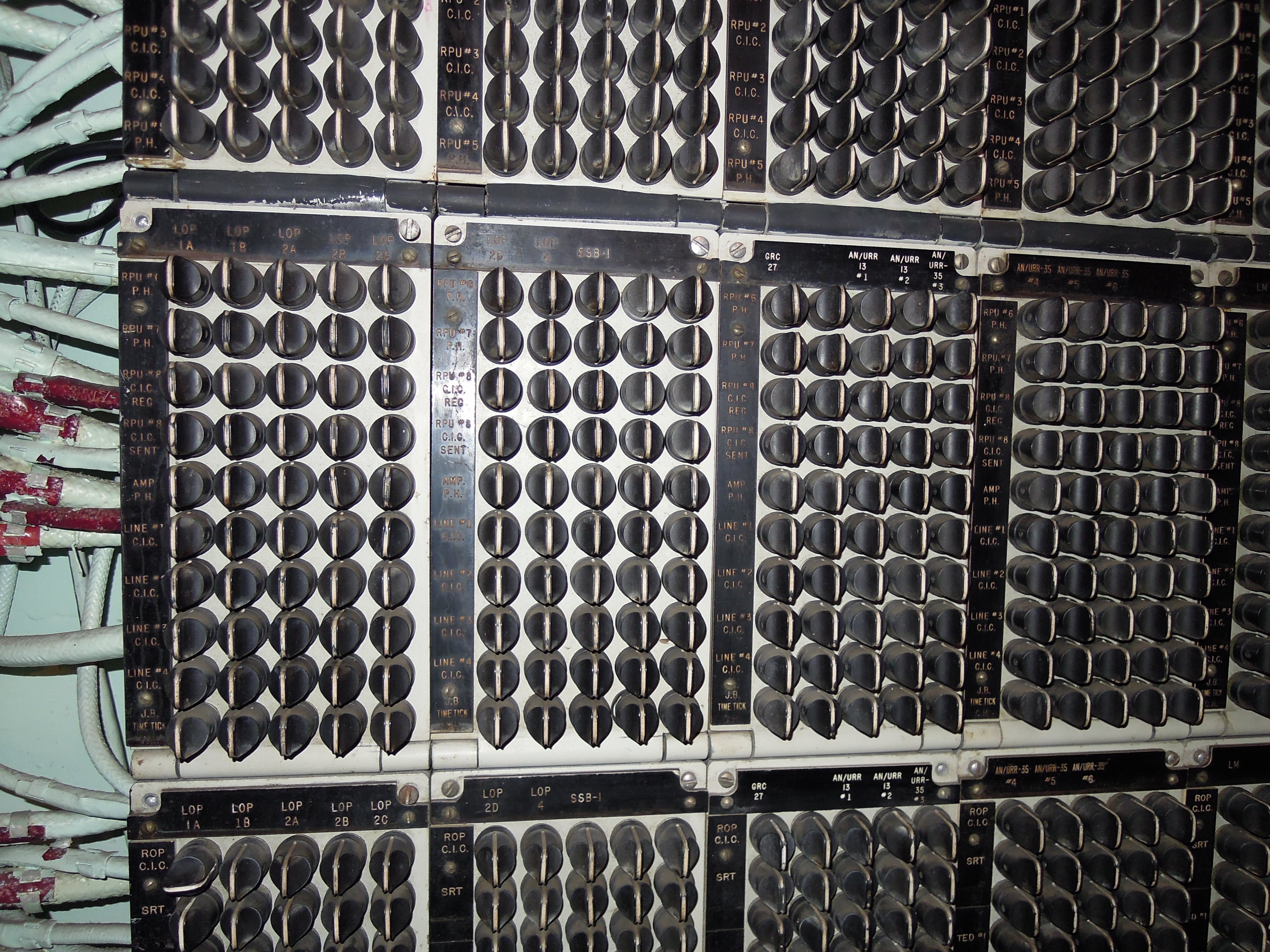

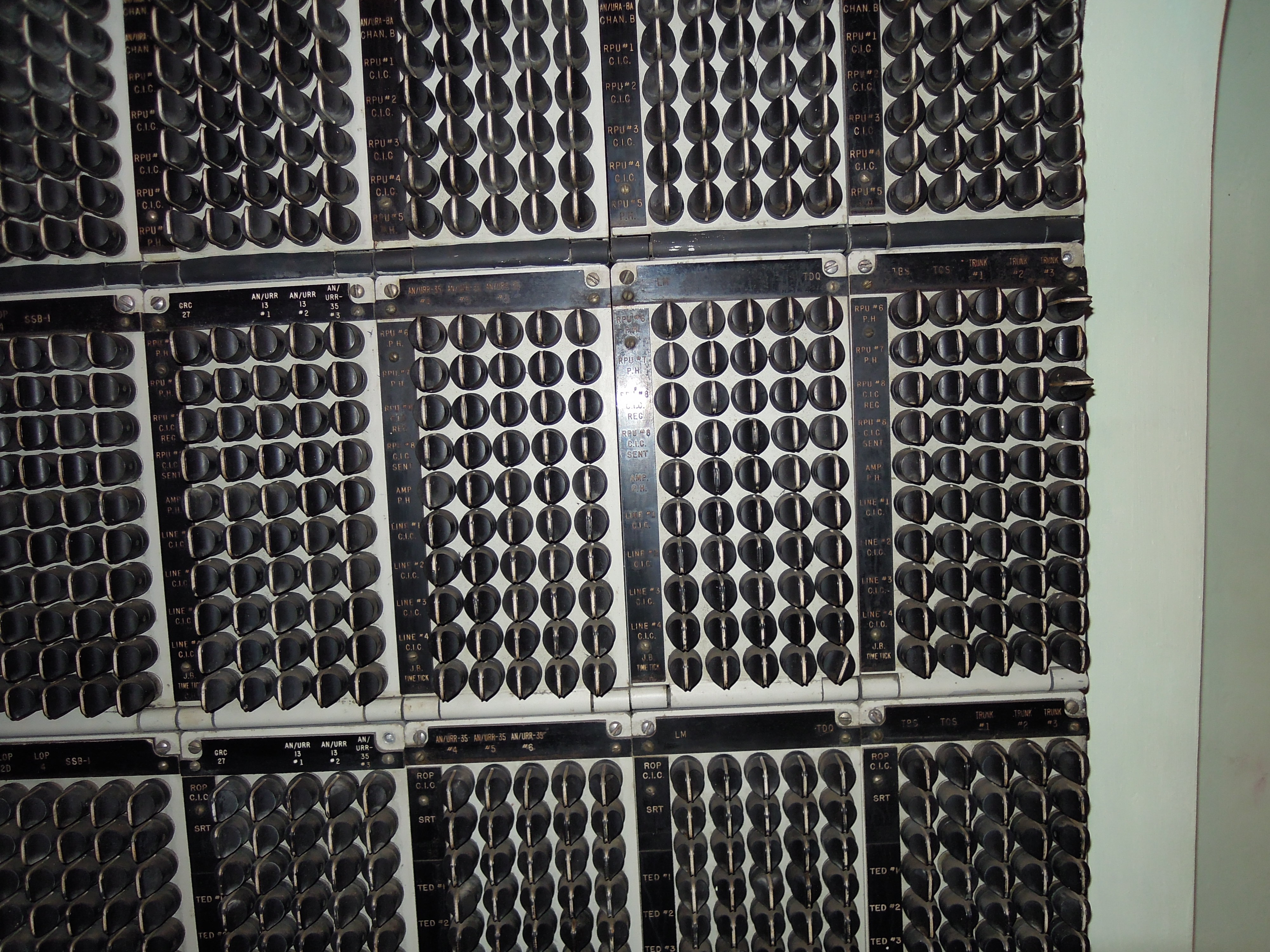

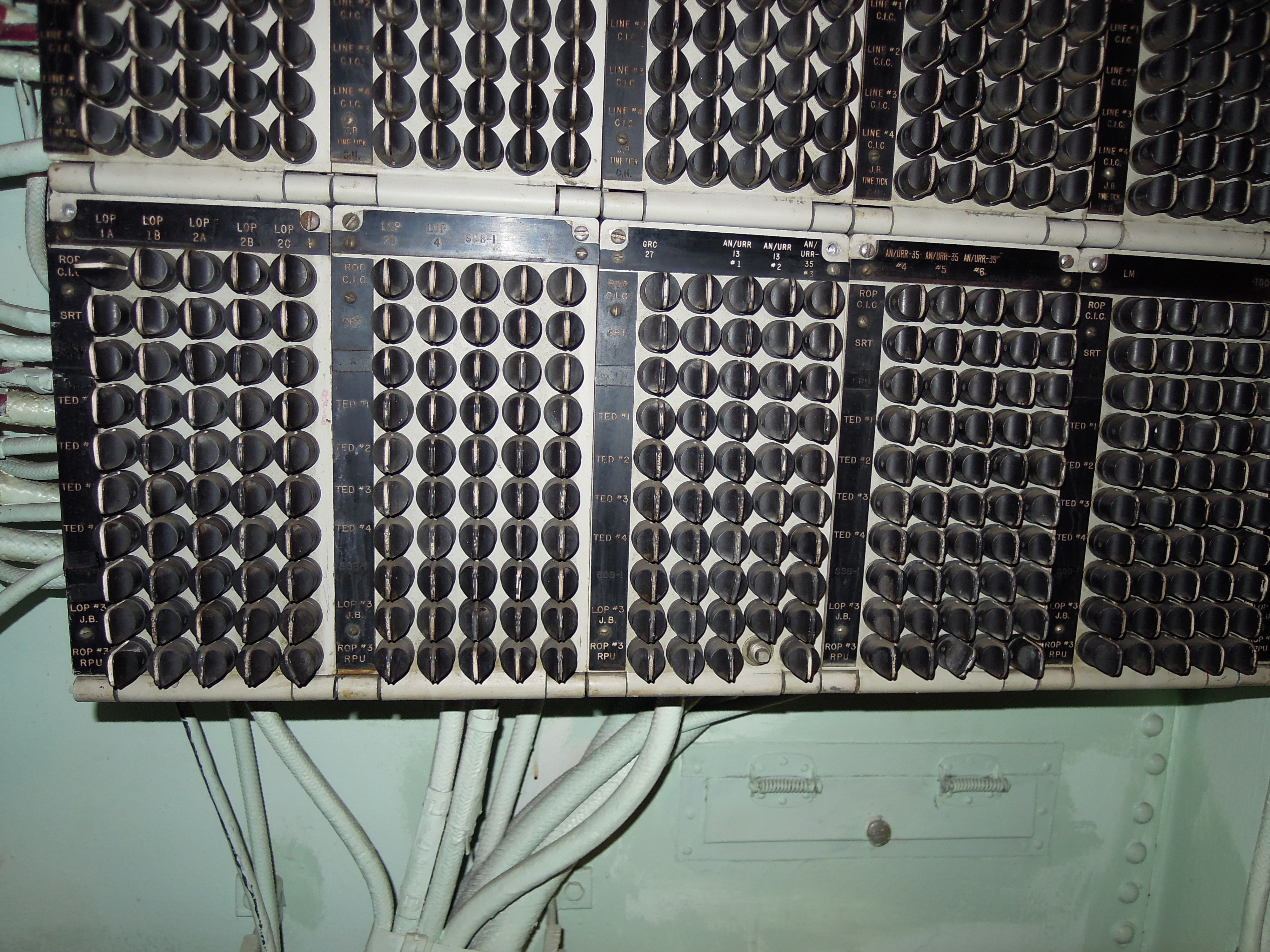

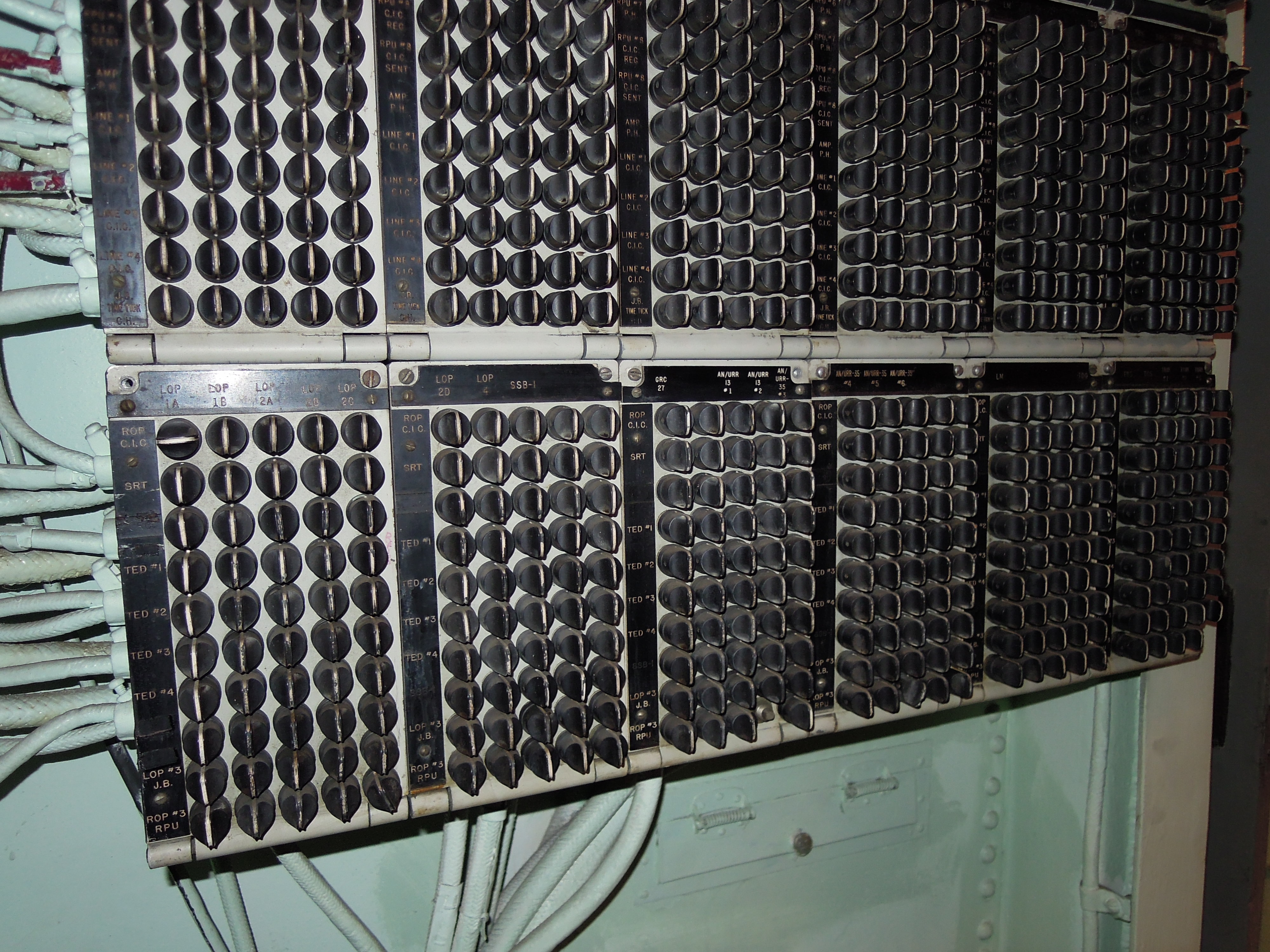

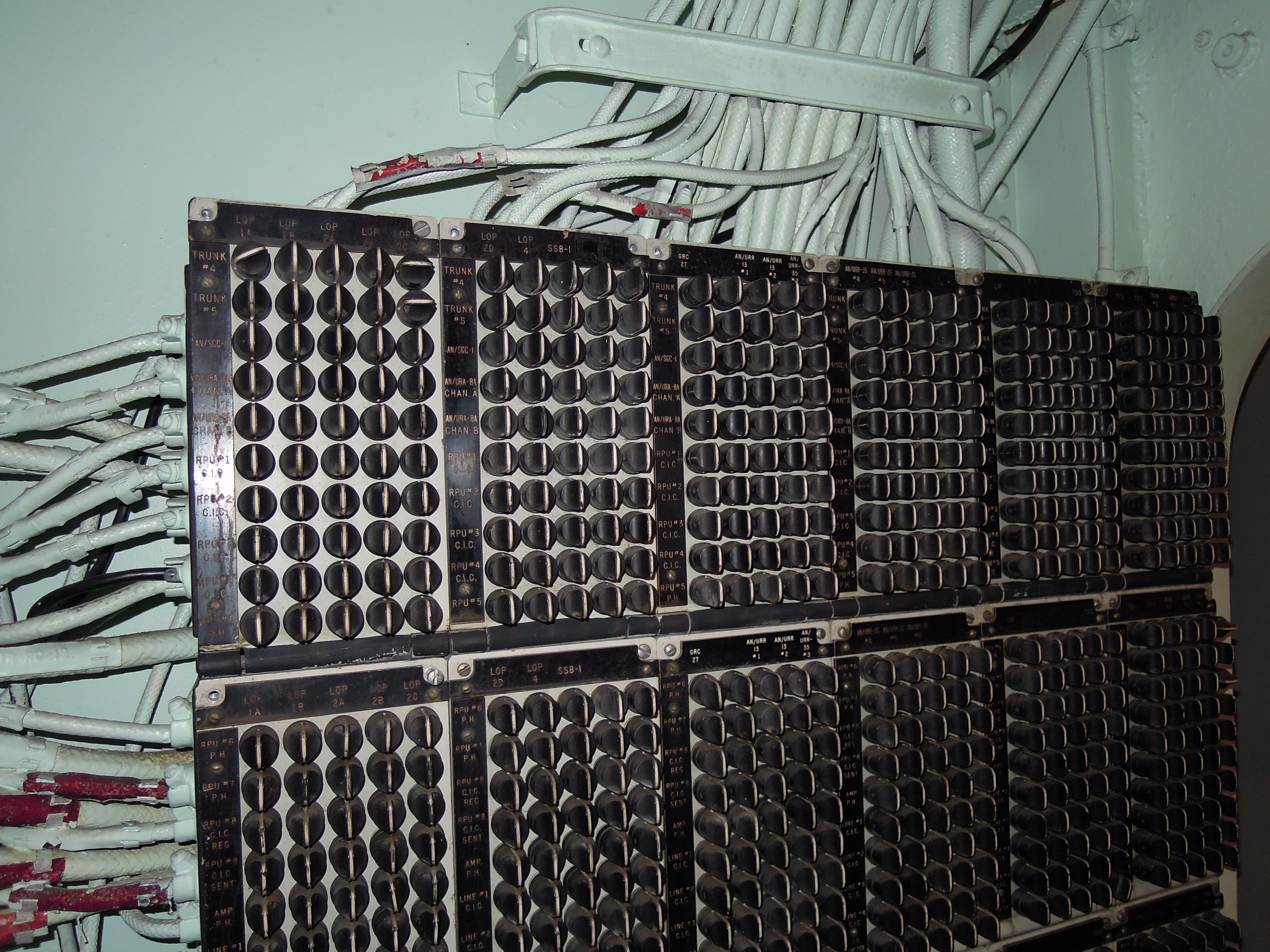

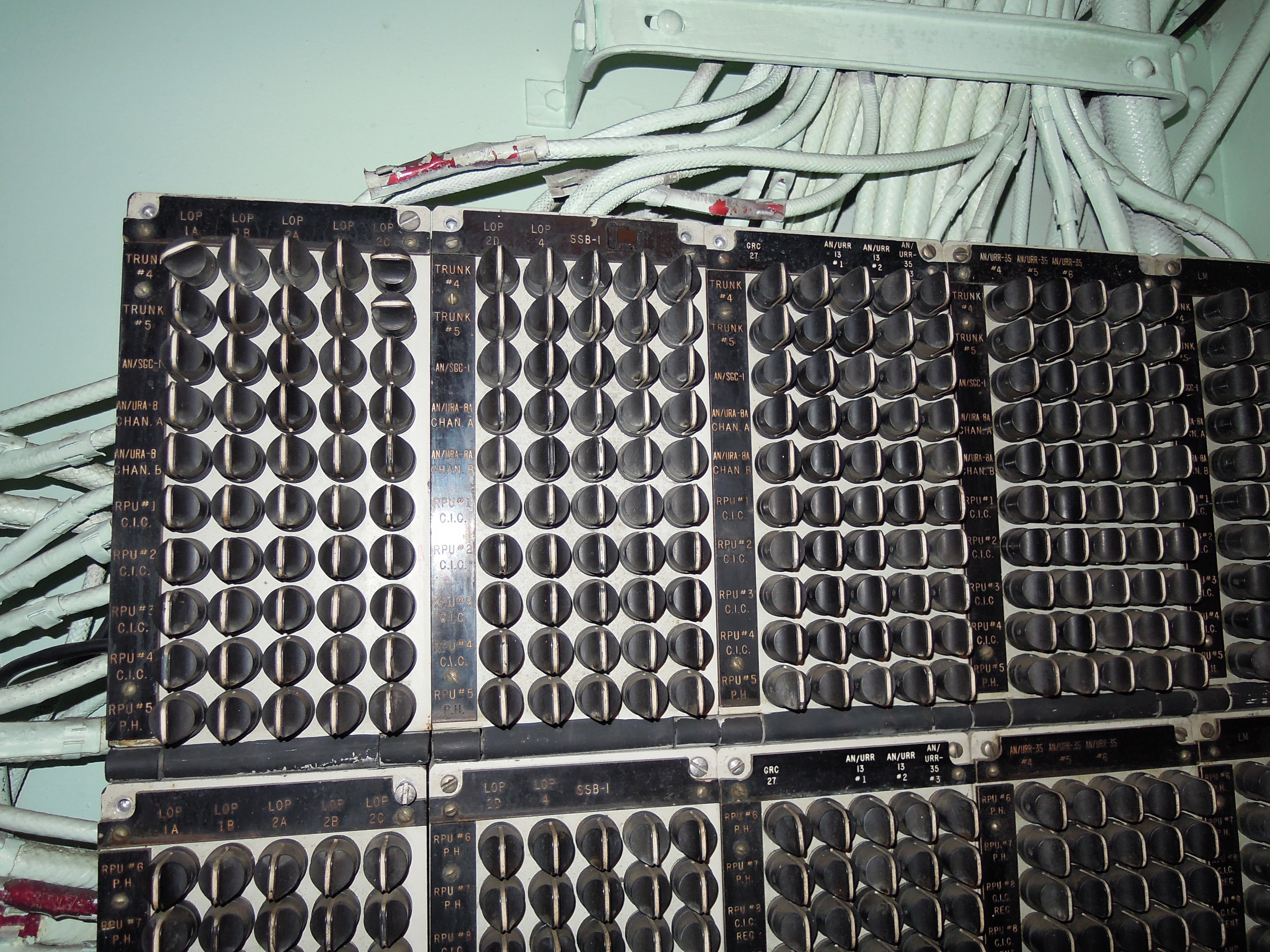

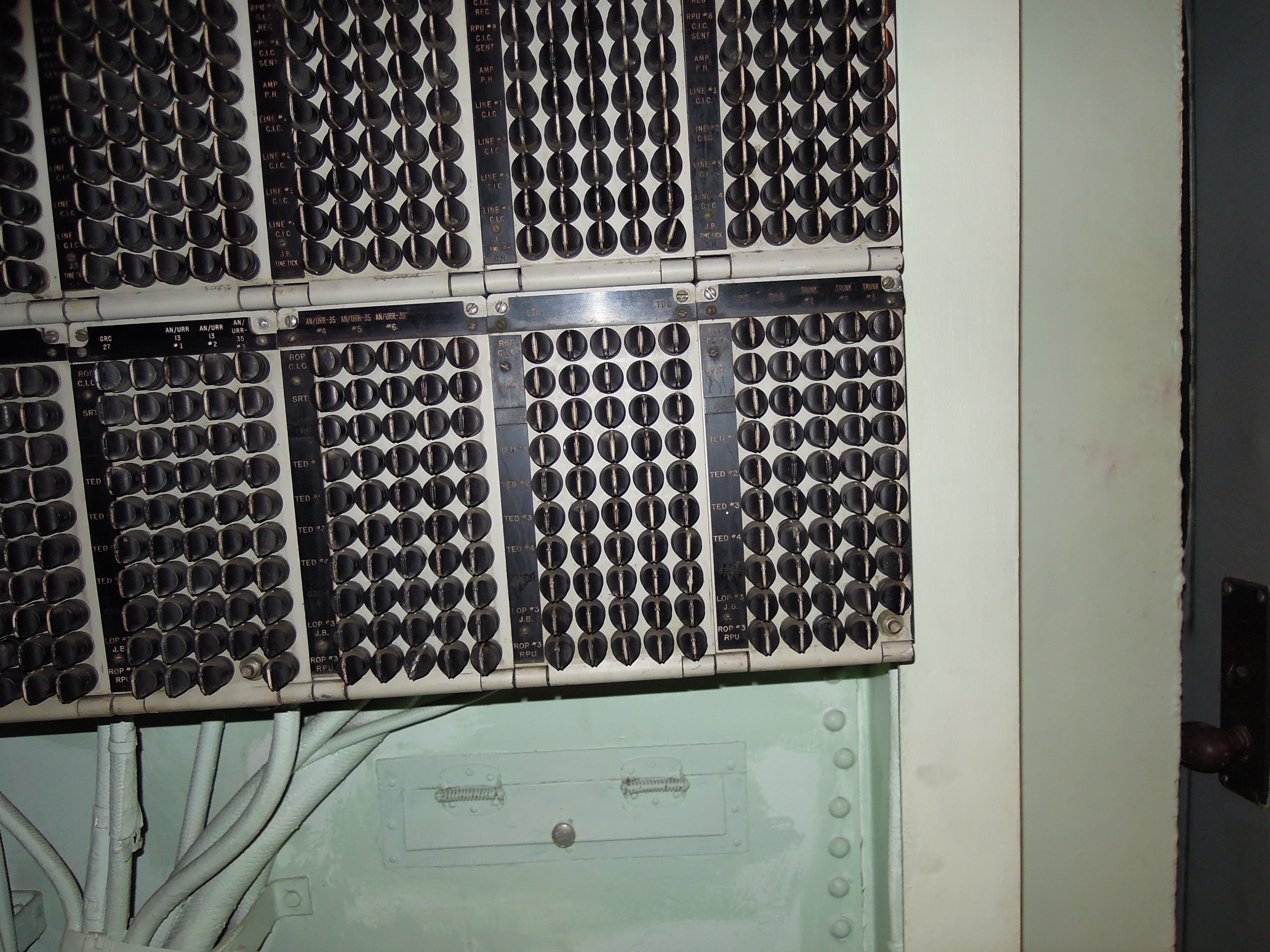

Receiver Switchboard Details - SB-83/SRR

DSCN0088.JPG (2377150 bytes) DSCN0089.JPG (2374261 bytes) DSCN0090.JPG (2370892 bytes) DSCN0091.JPG (2344585 bytes)
DSCN0092.JPG (2357480 bytes) DSCN0093.JPG (2353501 bytes) DSCN0094.JPG (2360485 bytes) dscn0086.jpg (2405913 bytes)

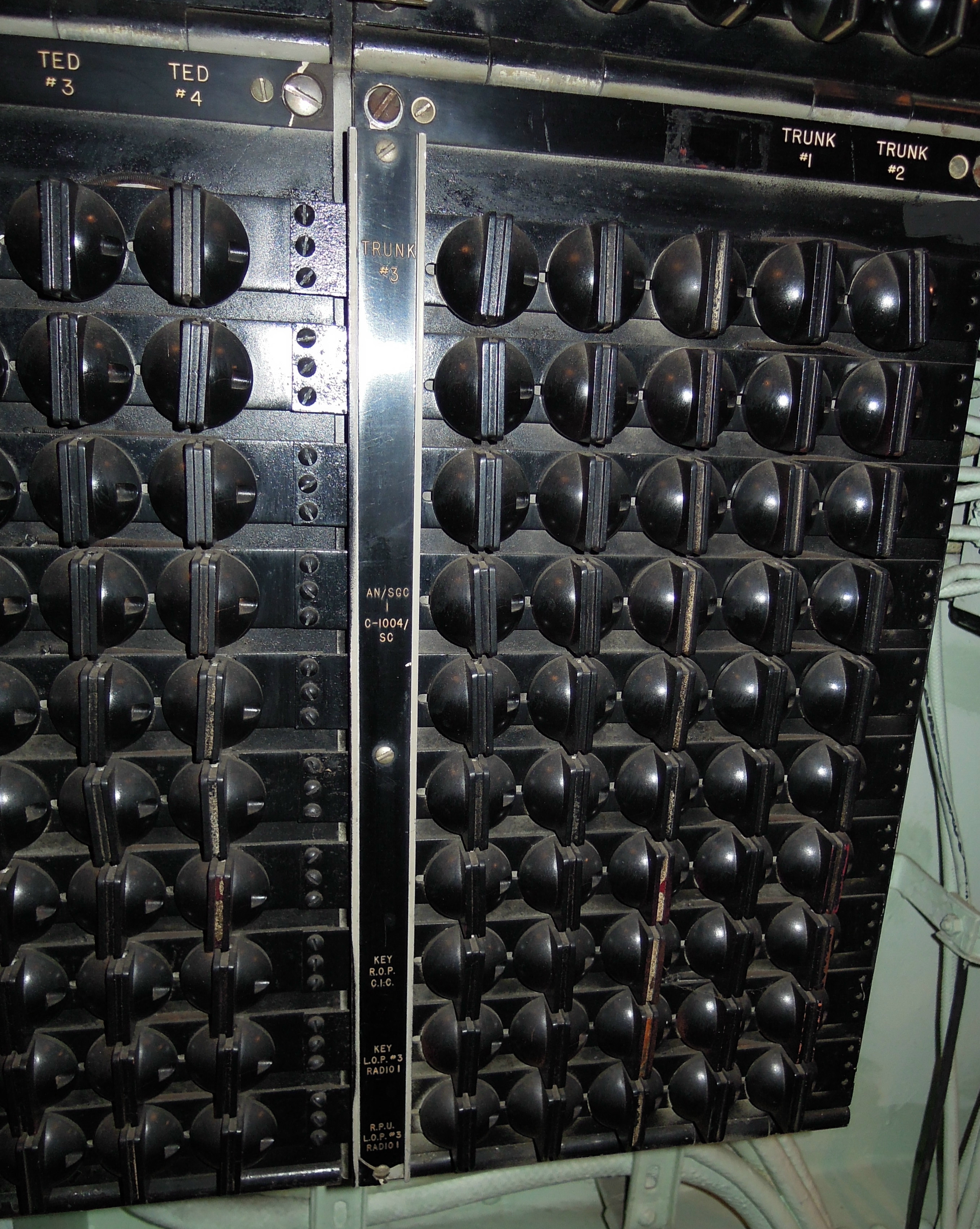

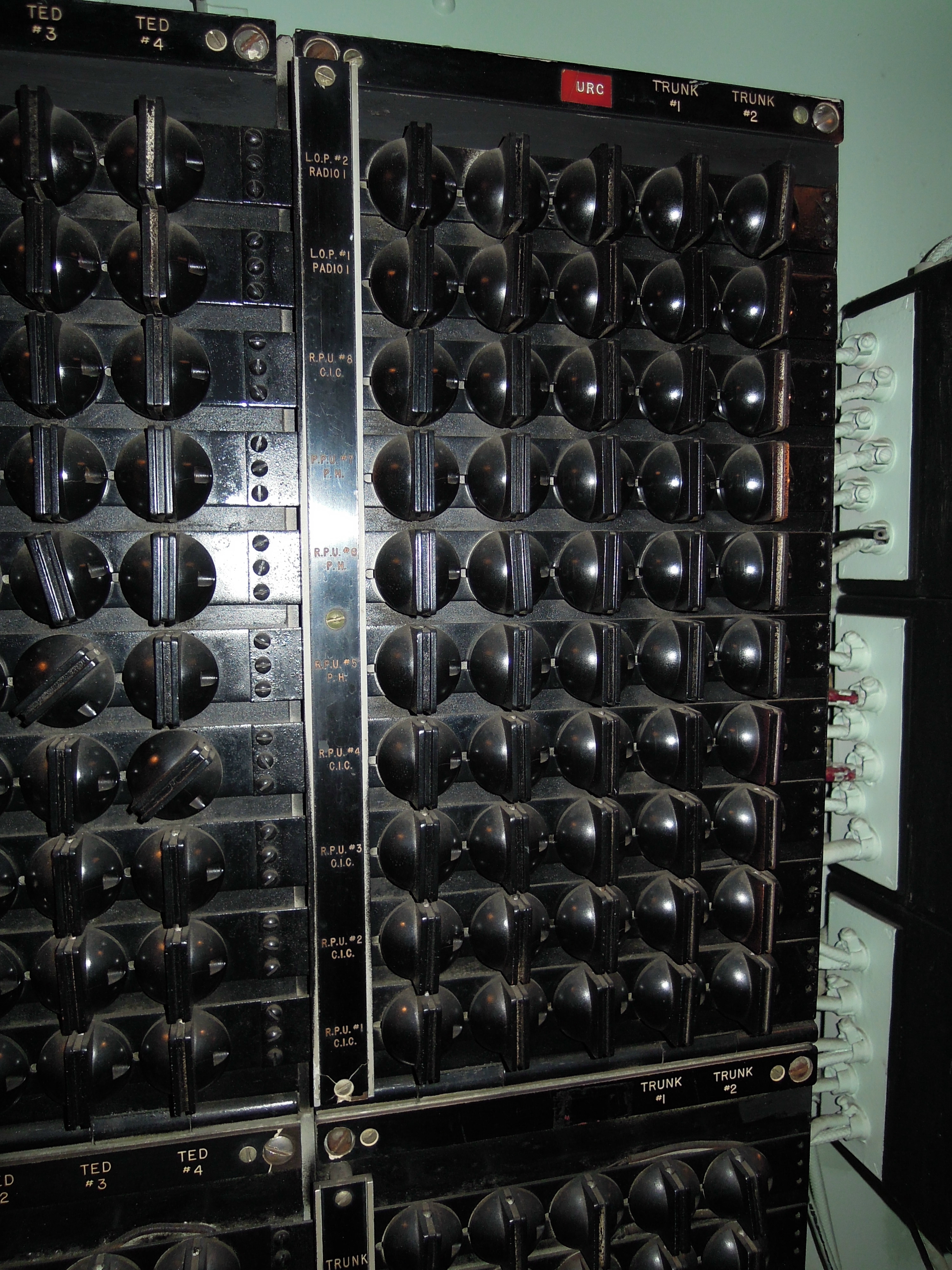

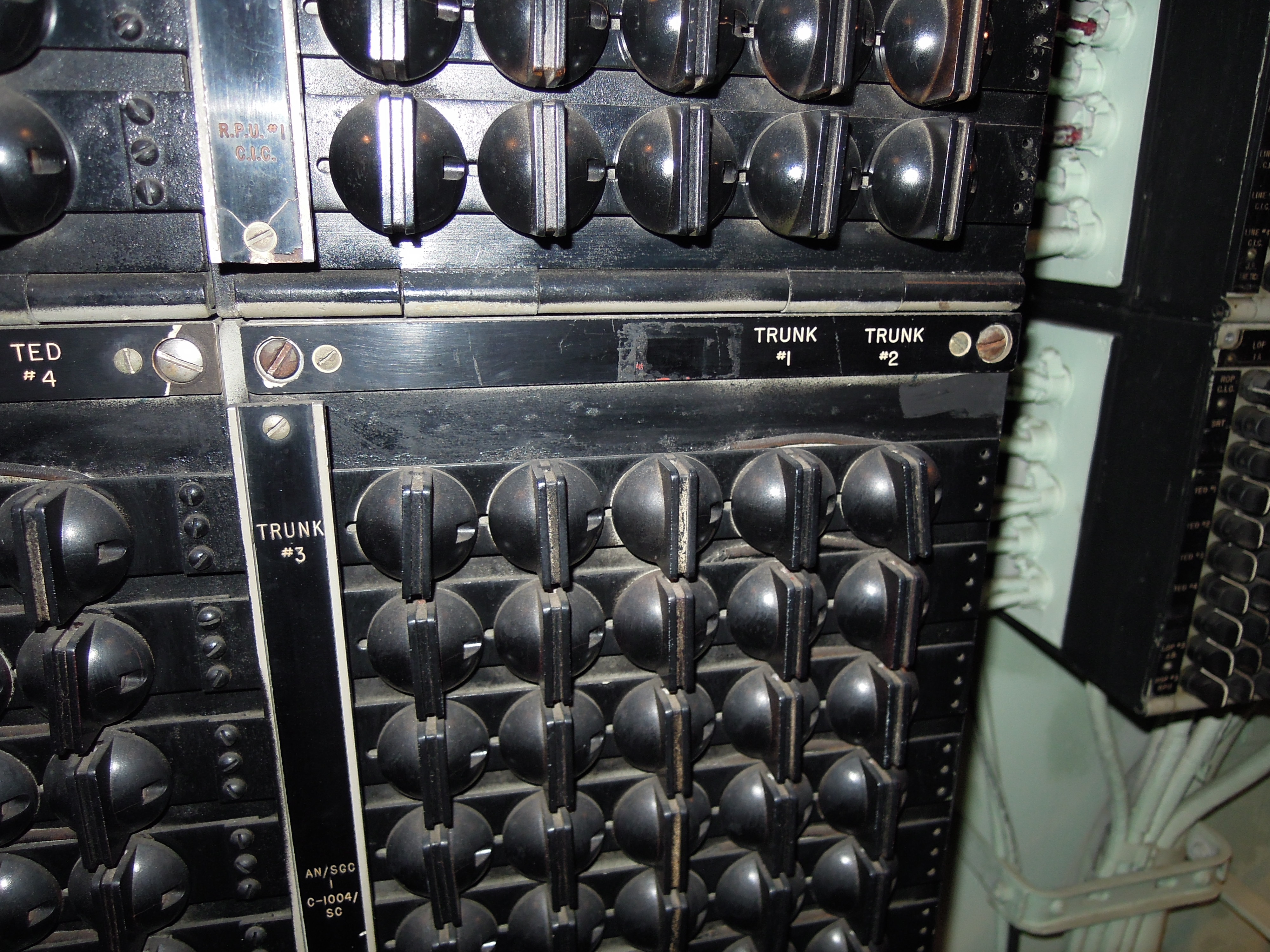

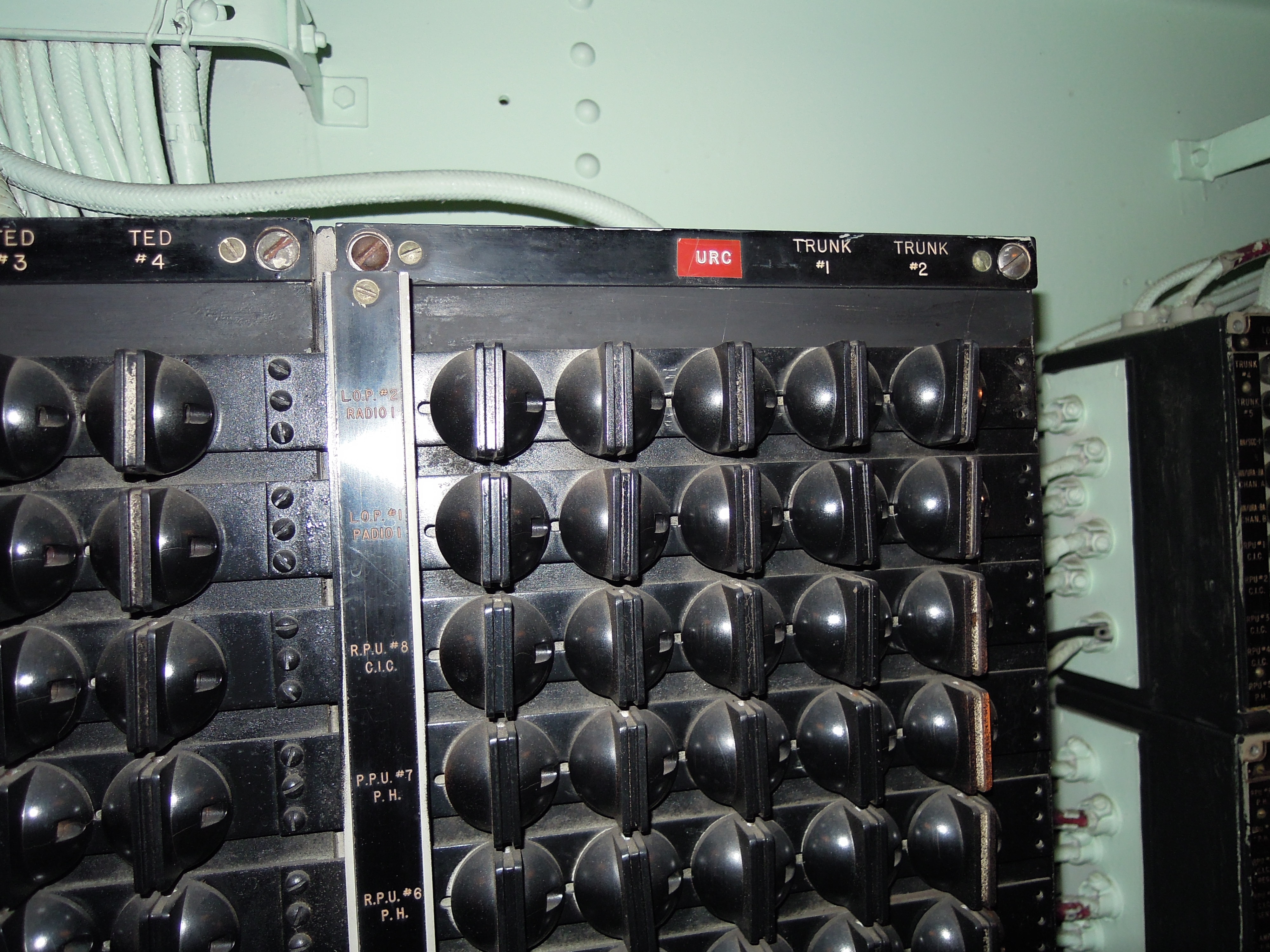

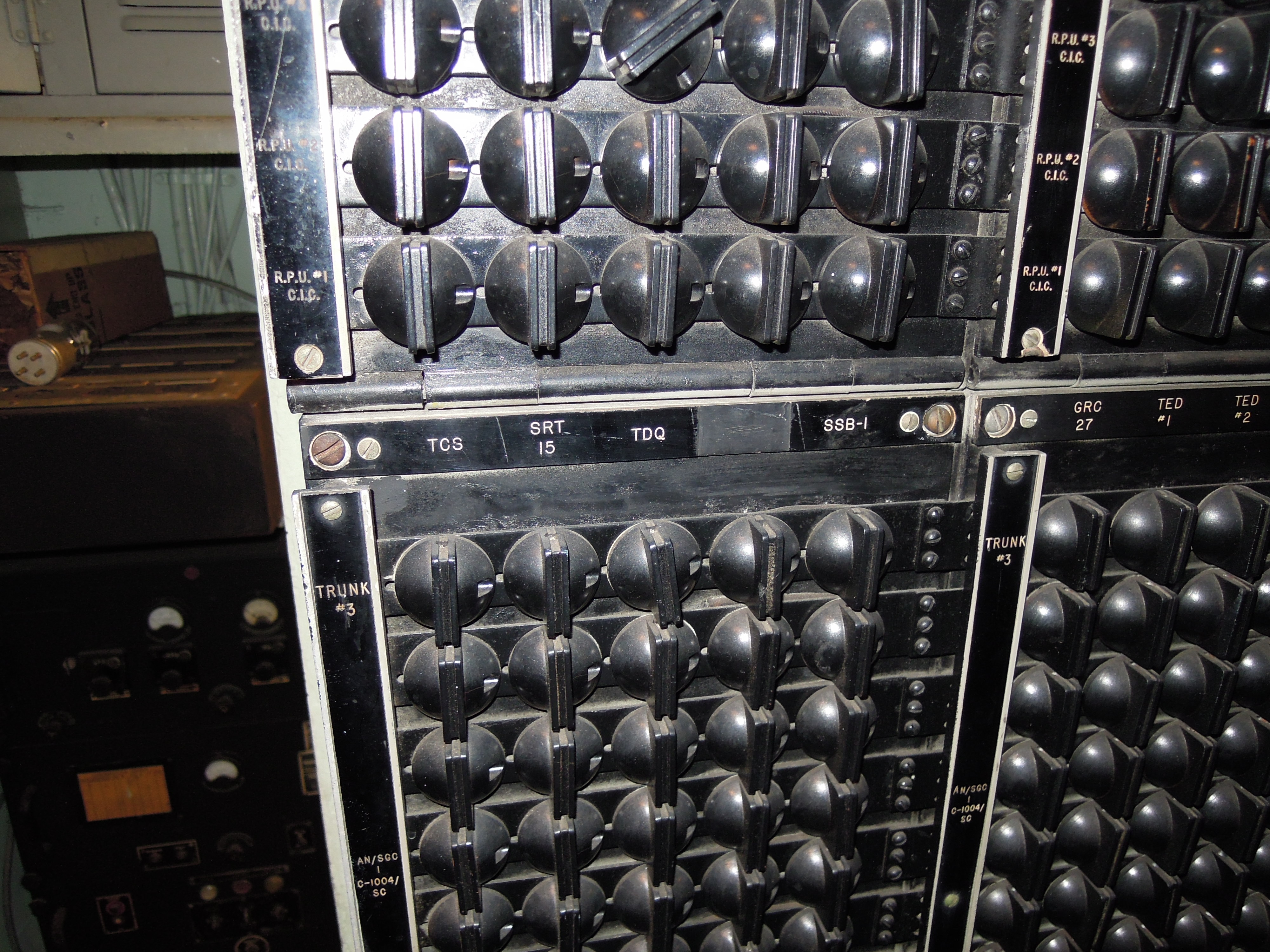

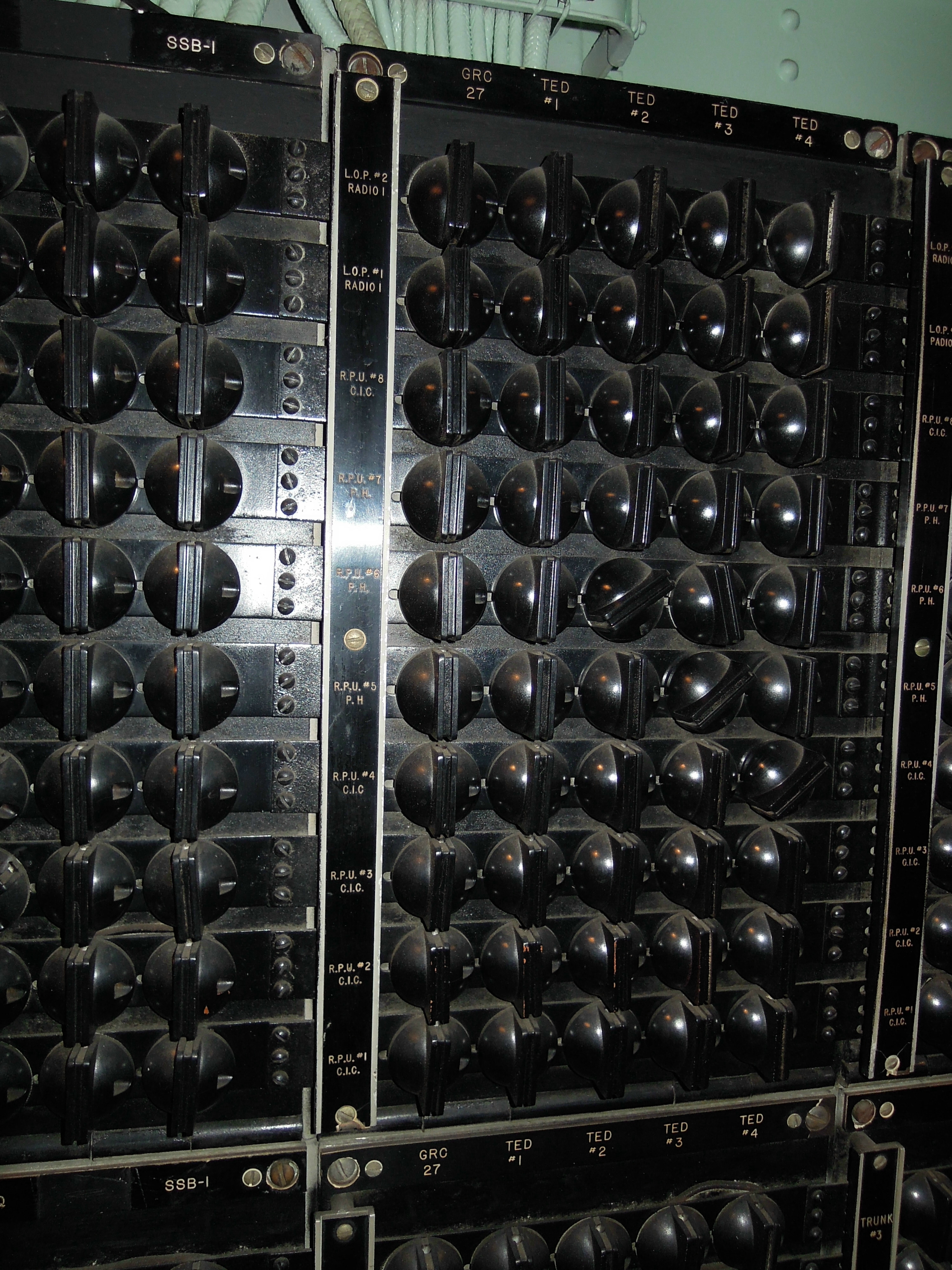

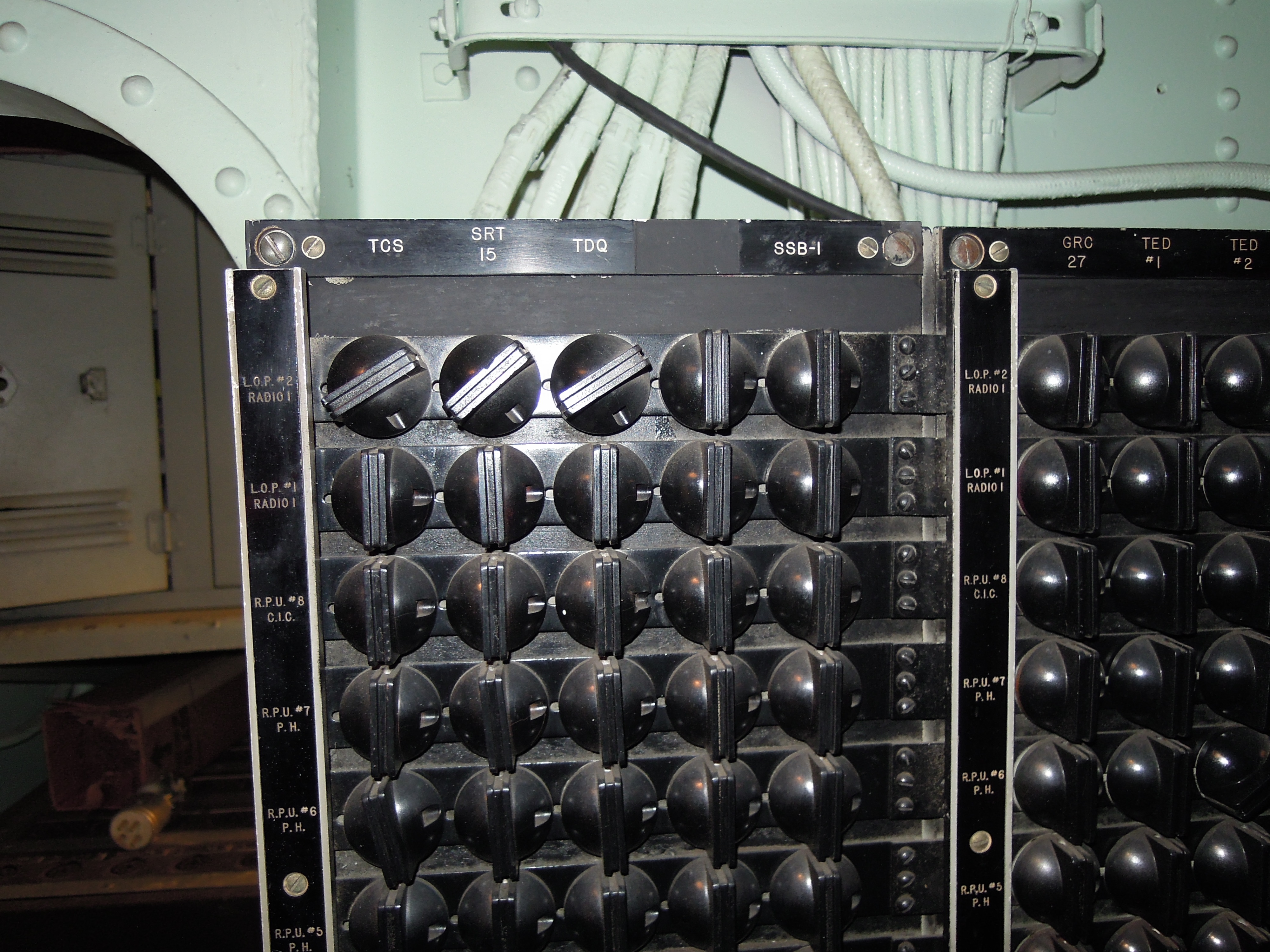

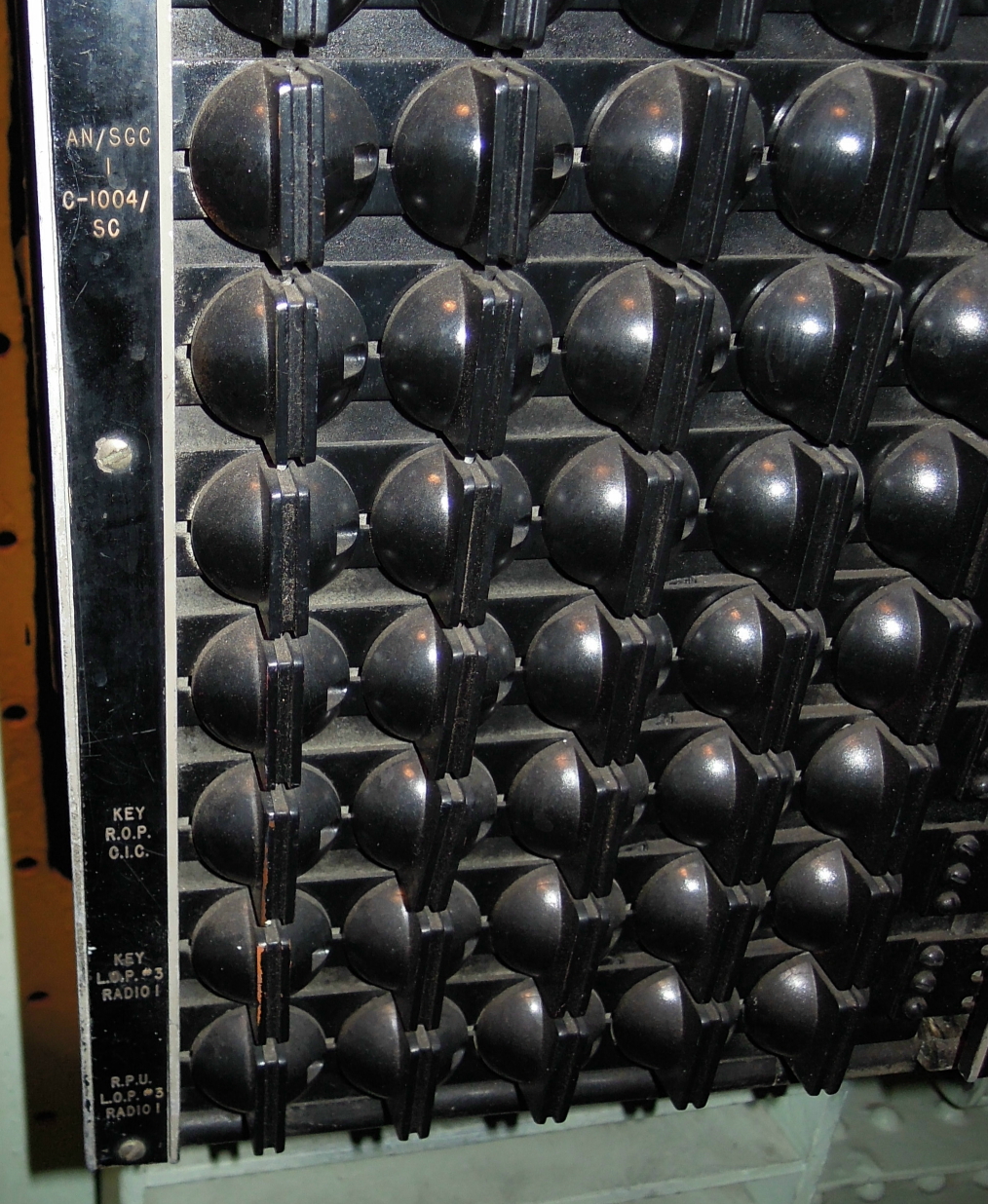

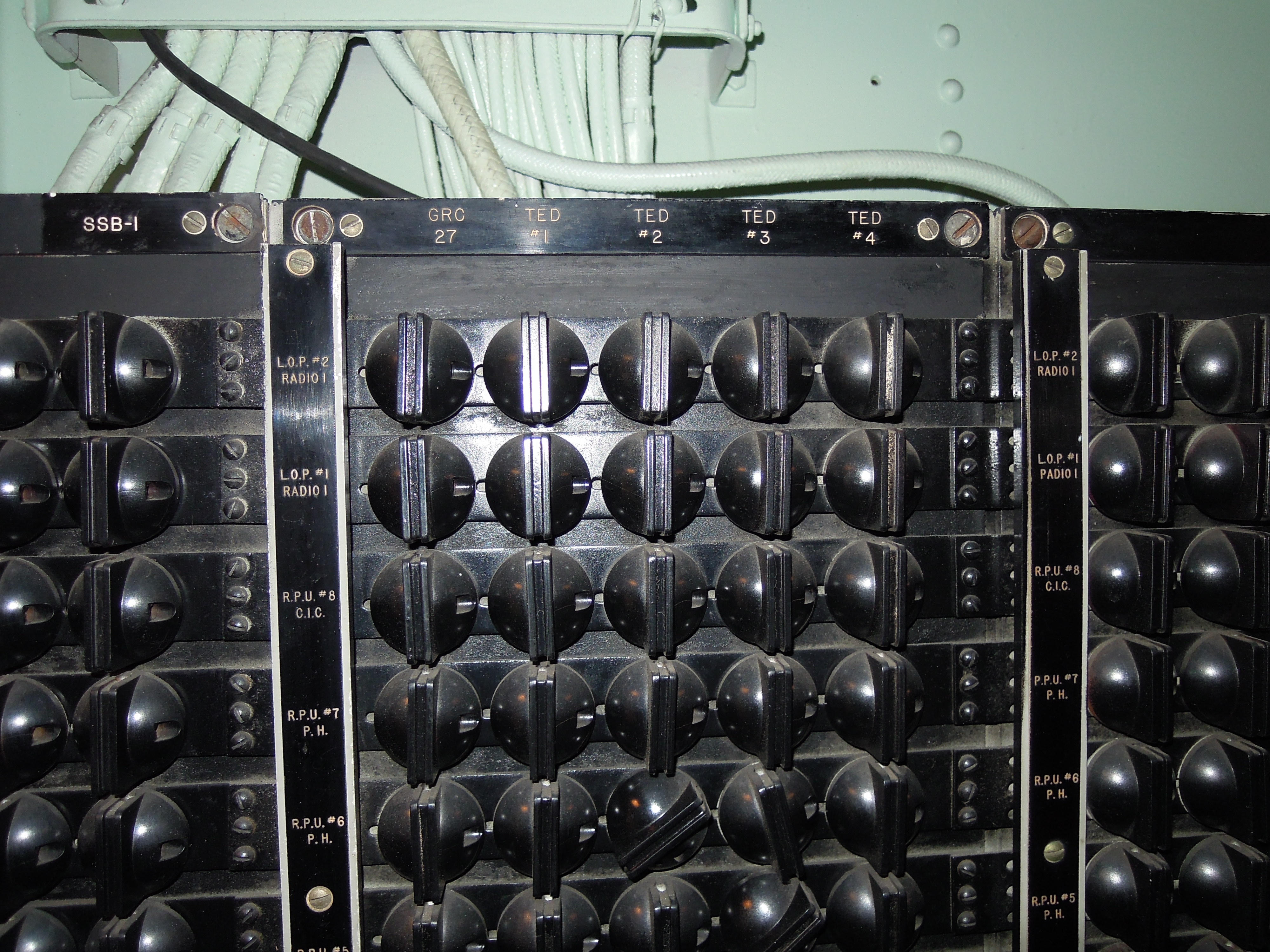

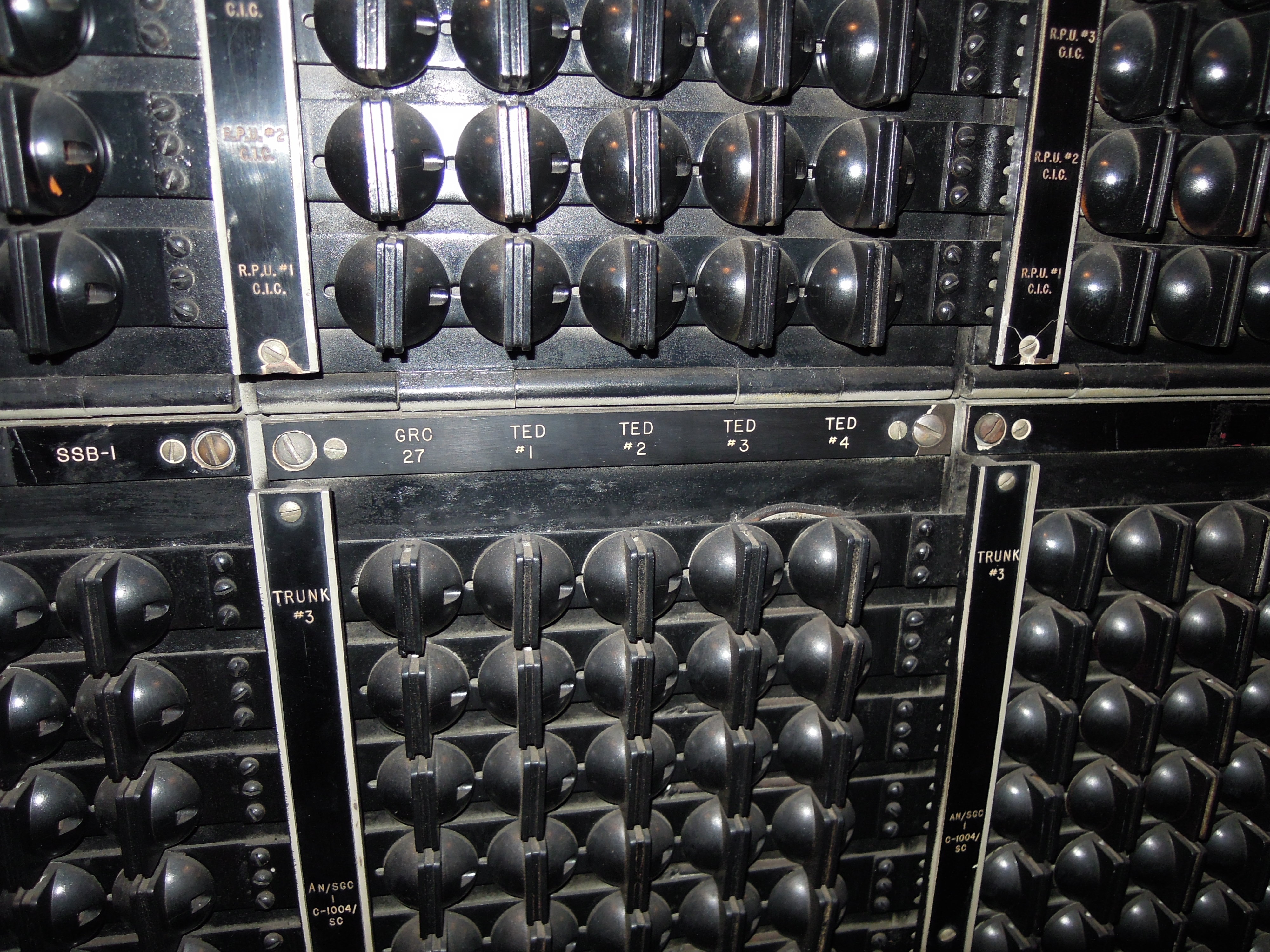

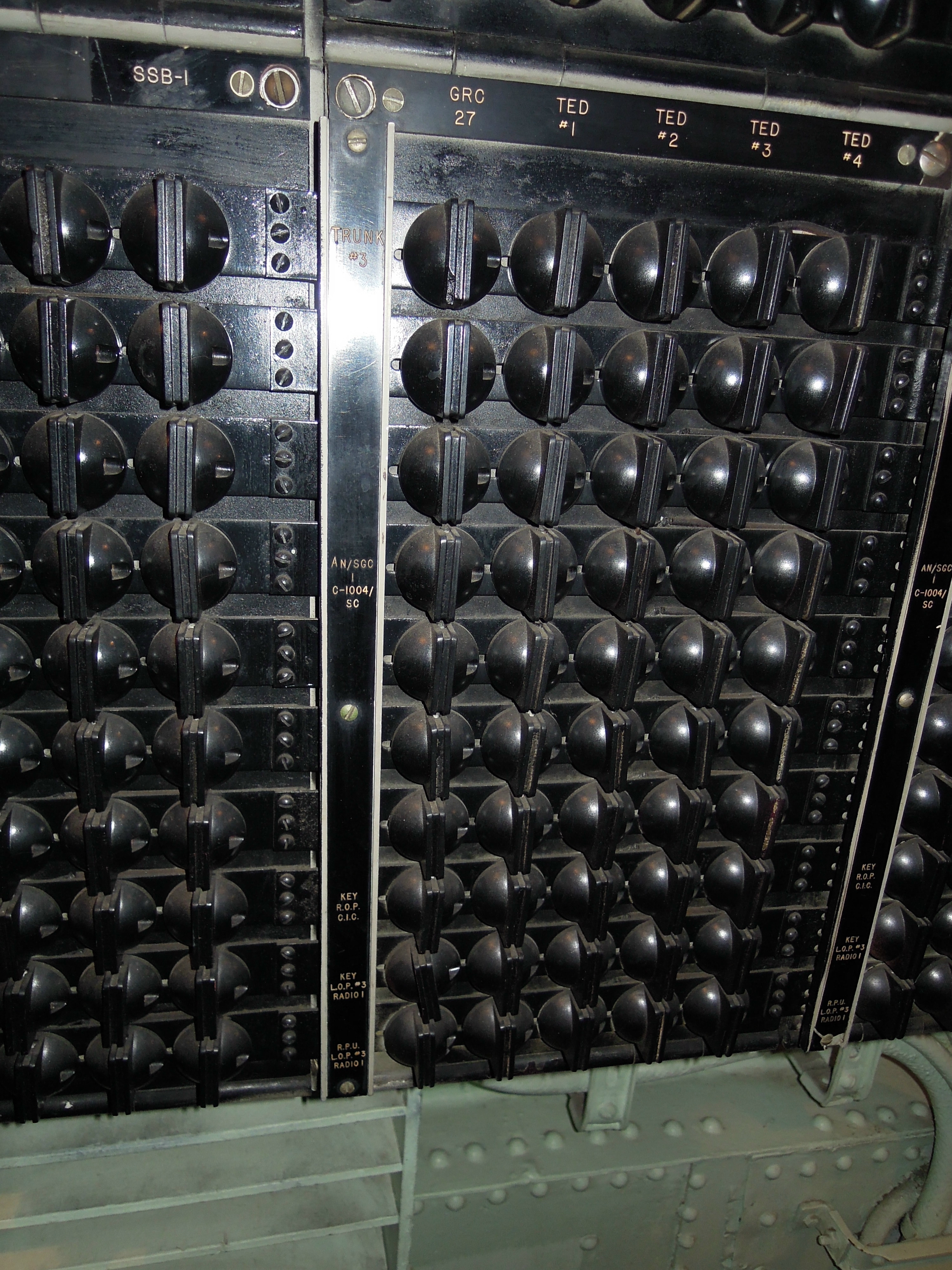

Transmitter Switchboard Details - SB-83/SRT

dscn0084.jpg (6014156 bytes) dscn0082.jpg (6212240 bytes) dscn0083.jpg (6440087 bytes) DSCN0085.JPG (4993011 bytes)
DSCN0081.JPG (1172264 bytes) DSCN0080.JPG (2341253 bytes) DSCN0079.JPG (2327226 bytes) DSCN0078.JPG (2371277 bytes)
