US Navy RTTY Demodulators / FSK Converters

RTTY is also called RATT (Radio Teletype)

This page is for RTTY electronics - Go to Navy Teletype Page for actual TTY equipment

Early USN RTTY equipment - Click Here
           FRA, FRC, FRE, FRF, FRH receiving converters



Dual Diversity system for use with RBP receivers

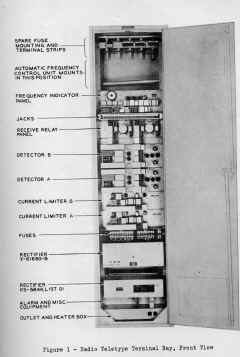

general description from AN/FGC-1 manual (TM 11-356)

general description from AN/FGC-1A manual (Western Electric)


KY-60/FRA-4 keyer
CM-26/FRA-24 comparator
PP-561/FRA-4 power supply

50 kc IF input triple diversity converter - for use with RBP or RCP rcvrs



Manual NAVSHIPS 91496

another  spec sheet

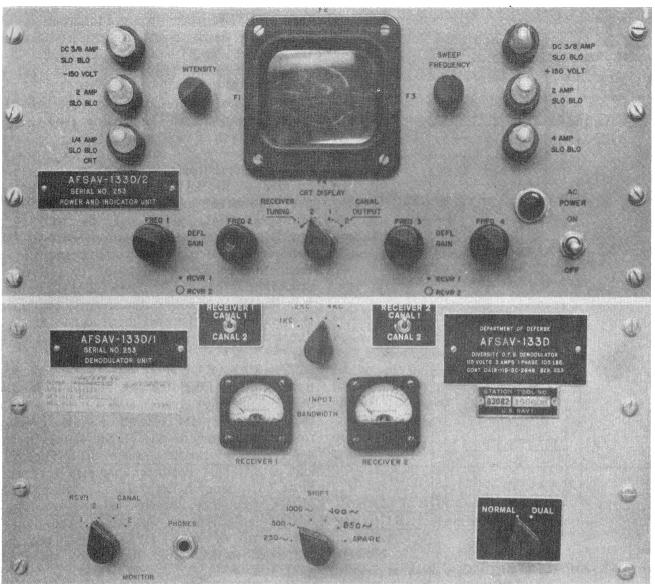

AN/FRA-86 (AFSAV-133D)

Twin-channel FSK & DFSK unit used by SECGRU - also by COMMSTAs?

Info - Description & Operation


more to post later

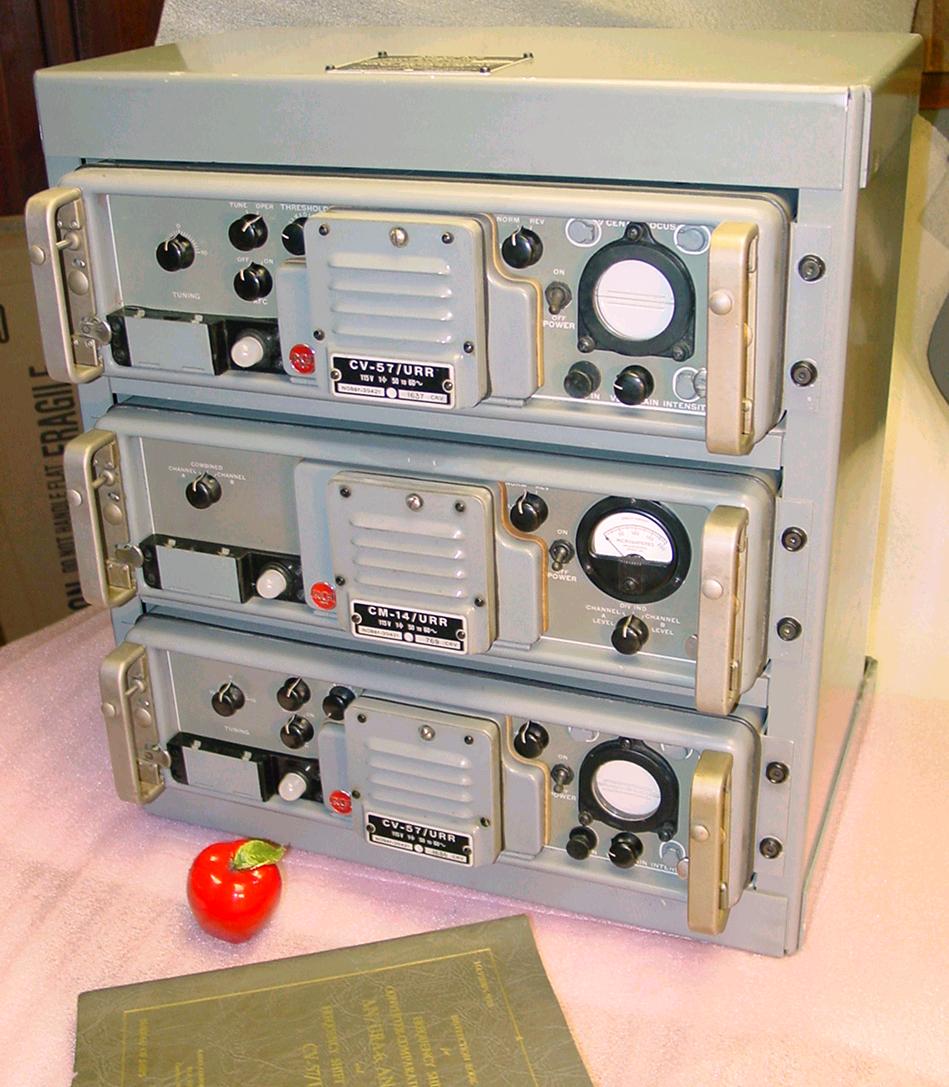

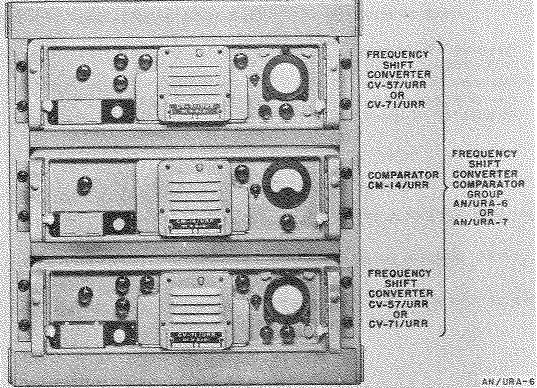

AN/URA-6 diversity system comprises two CV-57/URR plus one CM-14/URR Comparator

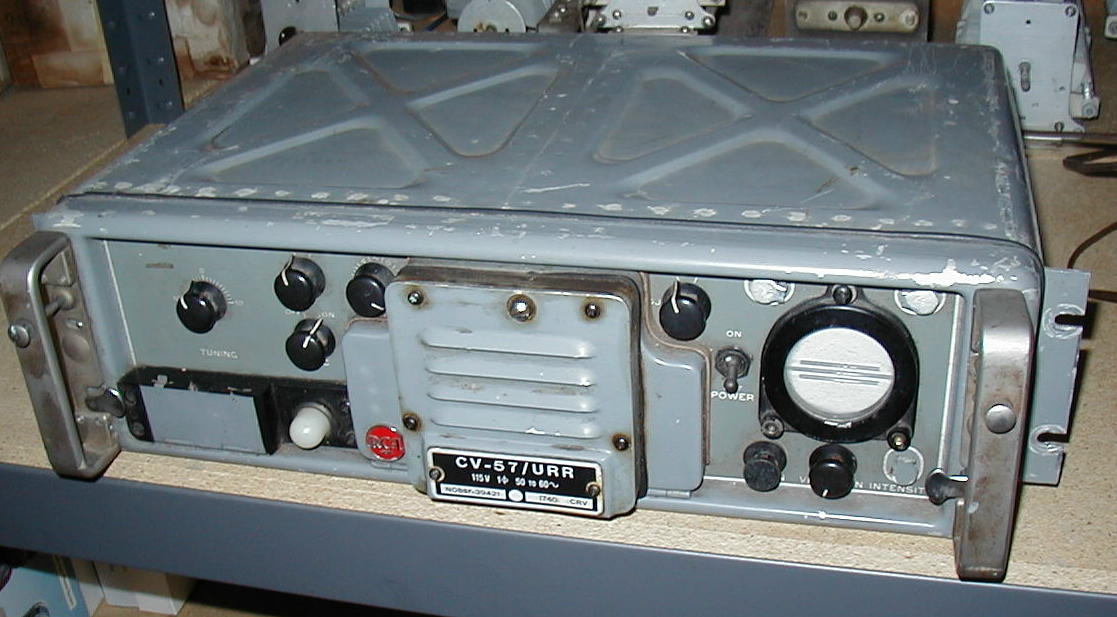

CV-57 - 455kc IF input converter with tuning scope

395-470kc IF input (photos thanks to Ken Schwieker)

CM-14 comparator
CM-14 controls

Photos thanks to W5JV

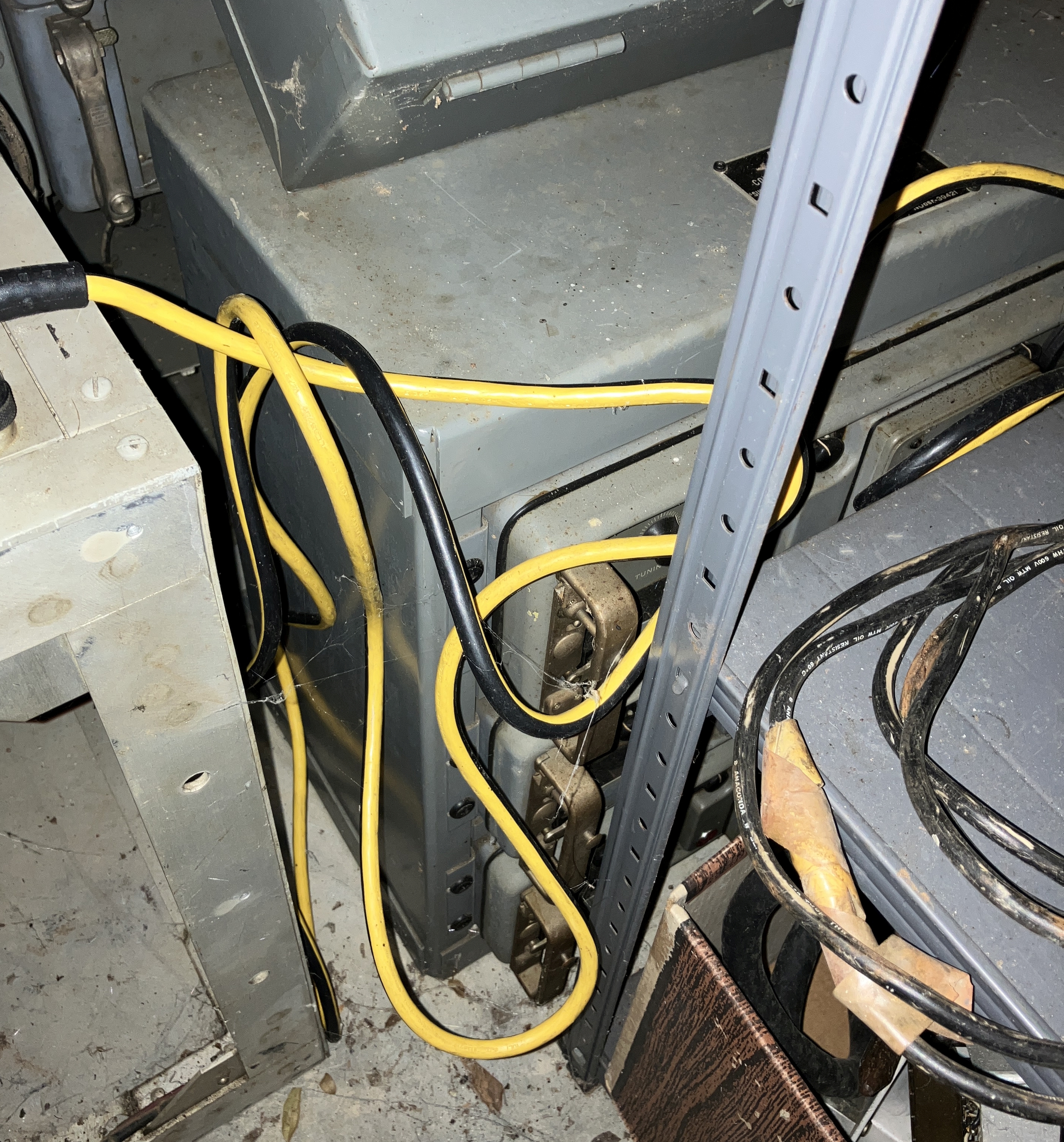

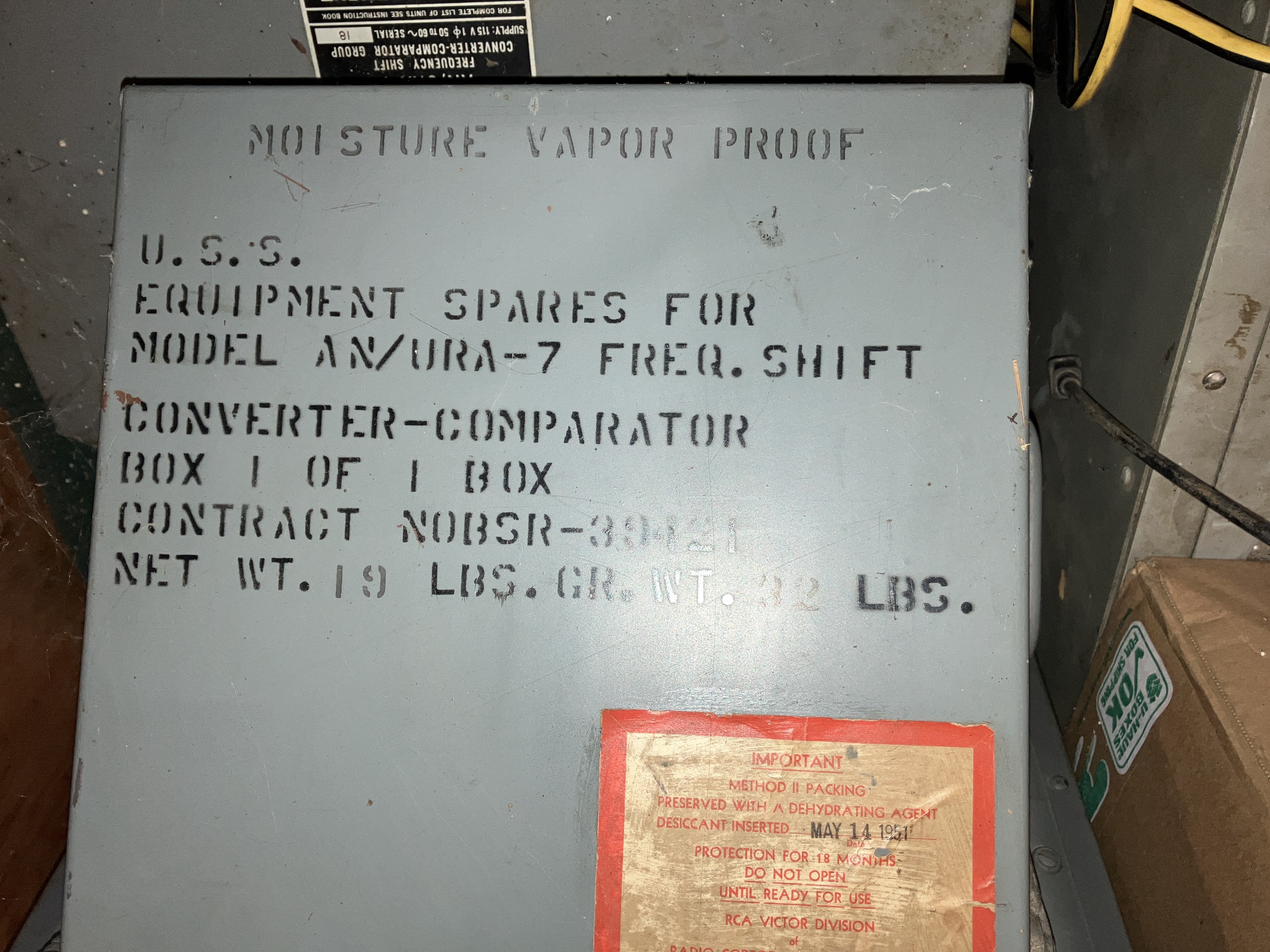

AN/URA-7 diversity system comprises two CV-71/URR plus one CM-14/URR Comparator

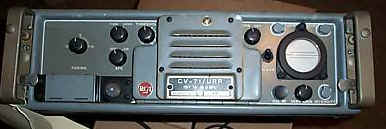

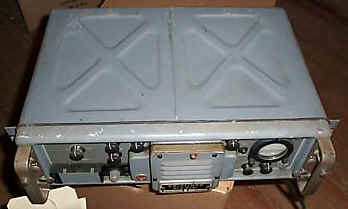

CV-71 50kc IF input converter with tuning scope

CM-14 -

47.5-52.5 kc IF input - otherwise appears identical to CV-57

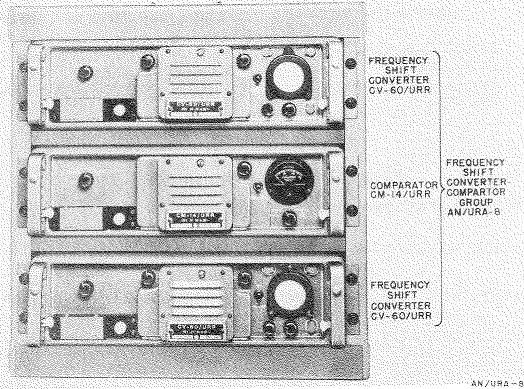

AN/URA-8 diversity system comprises two CV-60/URR plus one CM-14/URR Comparator

CV-60 audio input converter with tuning scope


CM-14 -

  • audio input unit - electrically same as CV-89A but externally same as CV-57


  • Note: URA-8 is interchangeable with but not the same as URA-8A
  • manuf RCA
  • Spec Sheet
  • Manual NAVSHIPS 91339


cv60-177.JPG (4123015 bytes) cv60-182.JPG (3973514 bytes) cv60-178.JPG (3852208 bytes) cv60-179.JPG (4117383 bytes)

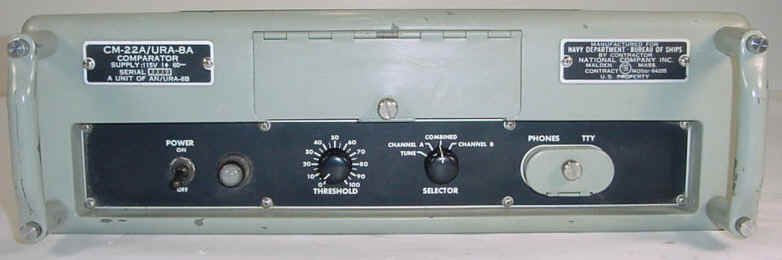

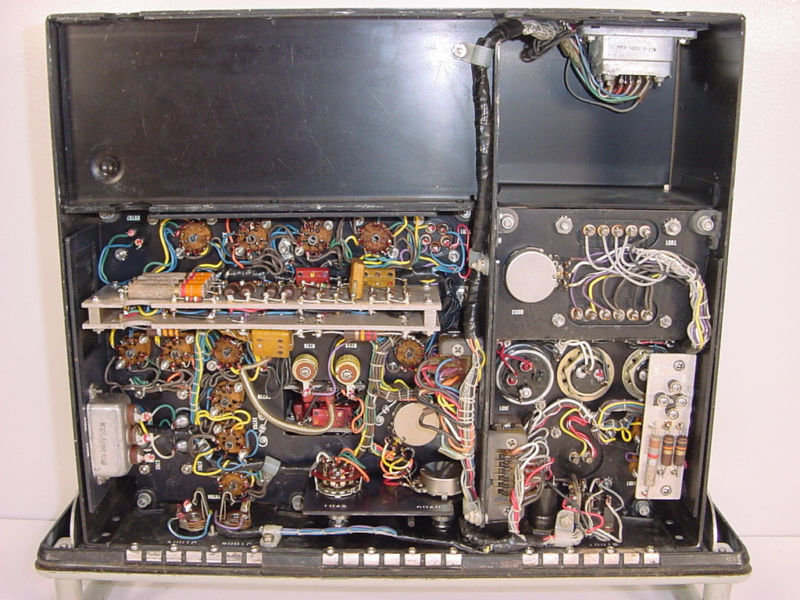

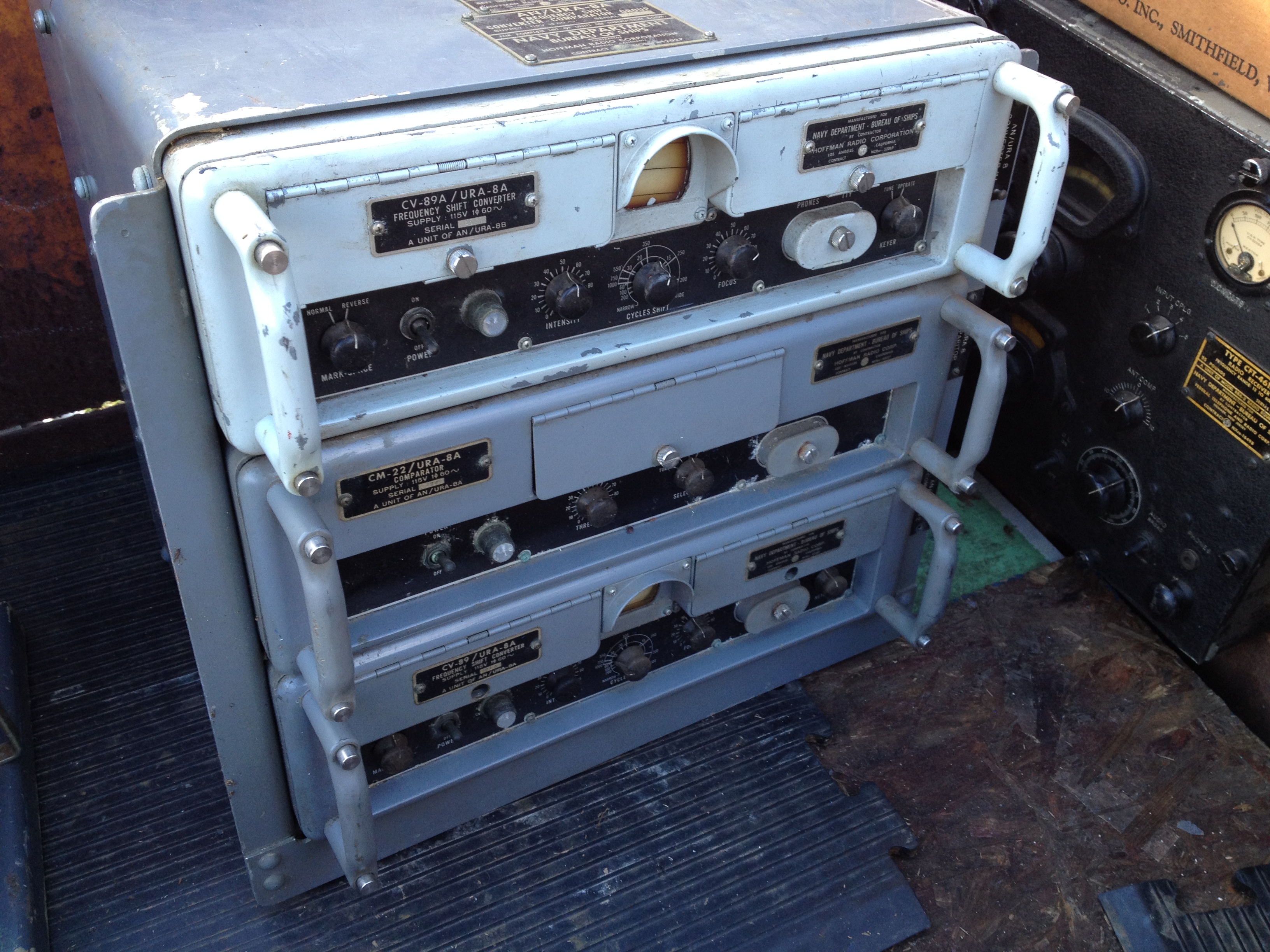

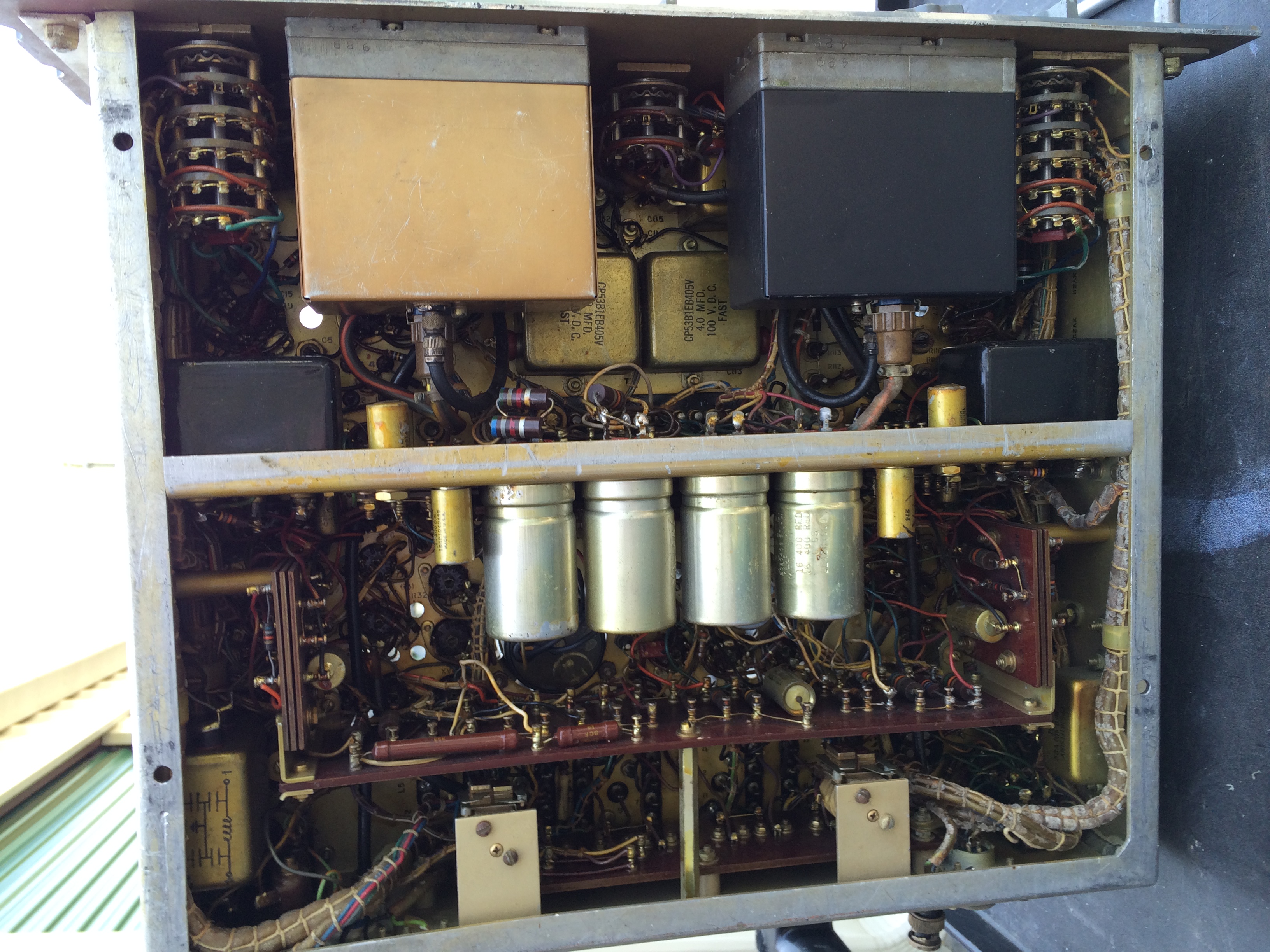

AN/URA-8A diversity system comprises two CV-89/URA-8A plus one CM-22/URR Comparator in MT-719/URA-8A enclosure AN/URA-8B diversity system comprises two CV-89A/URA-8A plus one CM-22A/URR Comparator in MT-719/URA-8A enclosure Note: units and internal modules are interchangeable except URA-8B units have blowers on rear, URA-8A units do not.


audio input converter with tuning scope

CV-89A photo courtesy of Western Historic Radio Museum

  • More CV-89 info here
  • Manual NAVSHIPS 91278 (URA-8A) or 91490 (URA-8B)
  • USAF manual is T.O. 21R1-2URA8-11
  • manuf -
    Hoffman &
    National (URA-8B)



CV-89 rear - no fan connector

CV-89 rear - no fan


CV-89A rear - fan connector

CV-89A fan


  • See CQ Magazine June 1962, page 81, for hookup and operation info (see
  • See 73 Magazine,  June 1985, page 46 for hookup to RS-232



AN/URA-8B manual -
 download pdf

cv89-schem-01.JPG (206533 bytes)cv89-schem-02.JPG (292115 bytes)cv89-schem-03.JPG (274925 bytes)cv89-schem-04.JPG (295912 bytes)
(CV-89 schematic from manual T.O. 16-30URA8-6, thanks to a greenkeys list member)
  • audio input - pin A, pin B (AN3106-14S-7))
  • TTY - negative ground pin B, positive pin A (switched to ground) (AN3106-14S-9S)
  • power - 115vac pin C, pin A (AN3106-14S-7S)


AN/URA-12 diversity system comprises two CV-227/URR and one CM-42/URR comparator

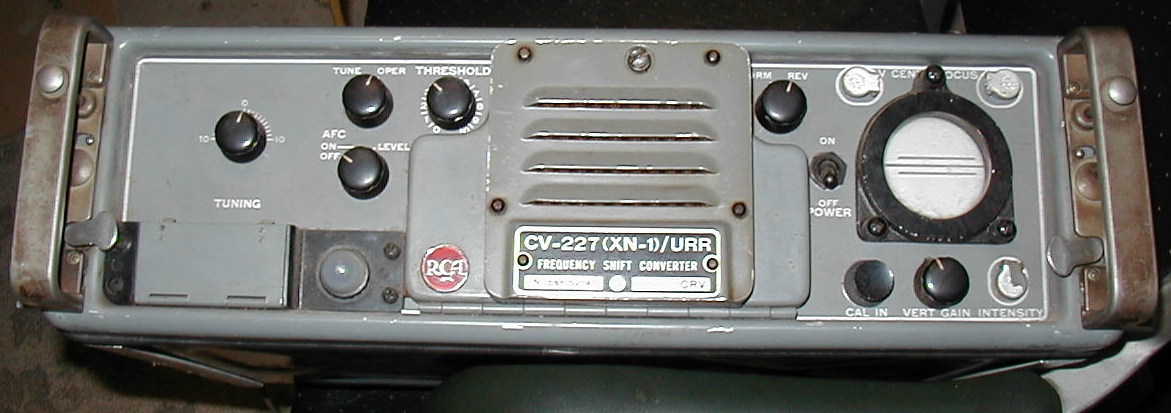

CV-227 - 200kc IF input converter
190-210 kc input

CV-227 controls

spec sheet


prototype serial #1

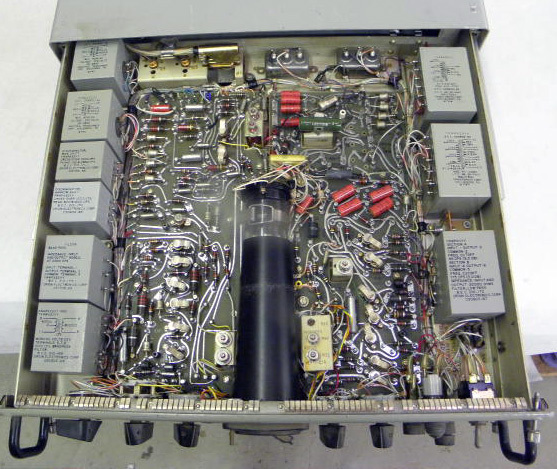

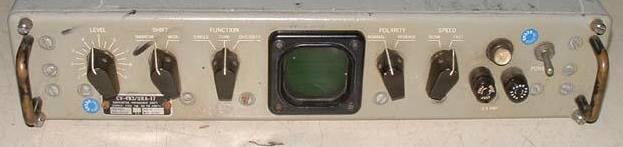

AN/URA-17 diversity system comprises two CV-483/URA-17


audio input converter with tuning scope

Essentially a solid-state version of the CV-89A/URA-8A. 10 to 1000cps shift


CV-483/URA-17 Schematic (thanks to Randy Guttery)
click image above for 3300x750 or click here for 6500x1500

  • J6 TTY output - negative ground pin B, positive pin A  (switched to ground) (AN3106-14S-9S)

URA-17 Manual (thanks to Rice)

URA-17C Manual

URA-17D Manual (thanks to Hutch)







NOTE: AN/URA-17, AN/URA-17A, AN/URA-17B, AN/URA-17C, and AN/URA-17D are receive-only AFSK converters (see above)
NOTE: AN//URA-17E, AN/URA-17F, and AN/URA-17G are receive + transmit AFSK Terminal Units - see TU page

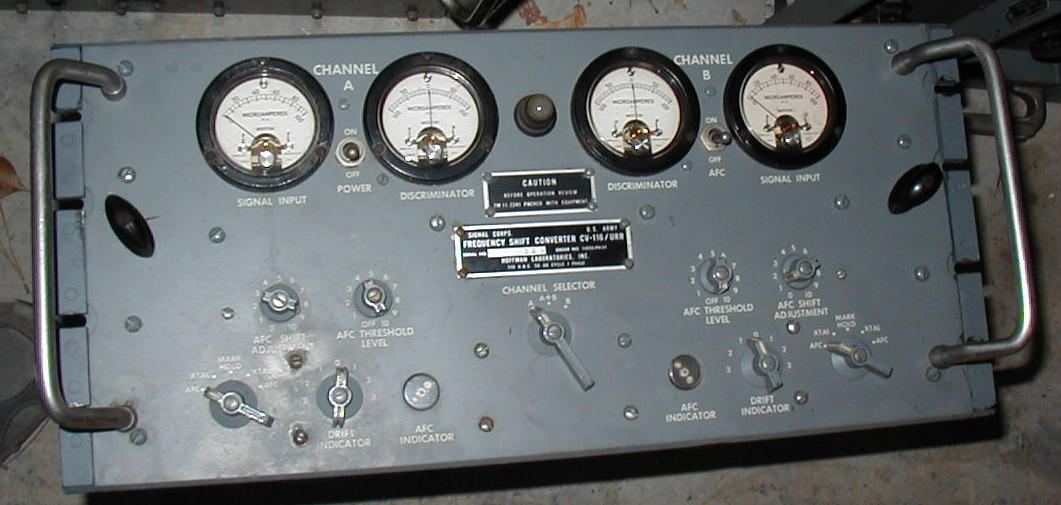

dual diversity 455kc IF input converter


Signal Corps procurement but used by USN as part of AN/FRR-38 dual diversity receiving system


part of AN/FRR-24 receiver system


50kc IF input converter - part of FRR-24 receiver - internal HV power supply only Please send me email if you have a CV-127 or any other FRR-24 parts for sale or trade-
  • Manuf - National Radio

(TMC model CFA-1)


audio input dual diversity converter

Connections -
    audio input #1 - terminals 1,2
    audio input #2 - terminals 3,4
    ground - terminal 5
    loop supply pos - terminal 6
    loop supply neg - terminal 7
    TTY neg - terminal 8 (jumpered internally to terminal 7)
    TTY pos - terminal 9 (switched to terminal 6)

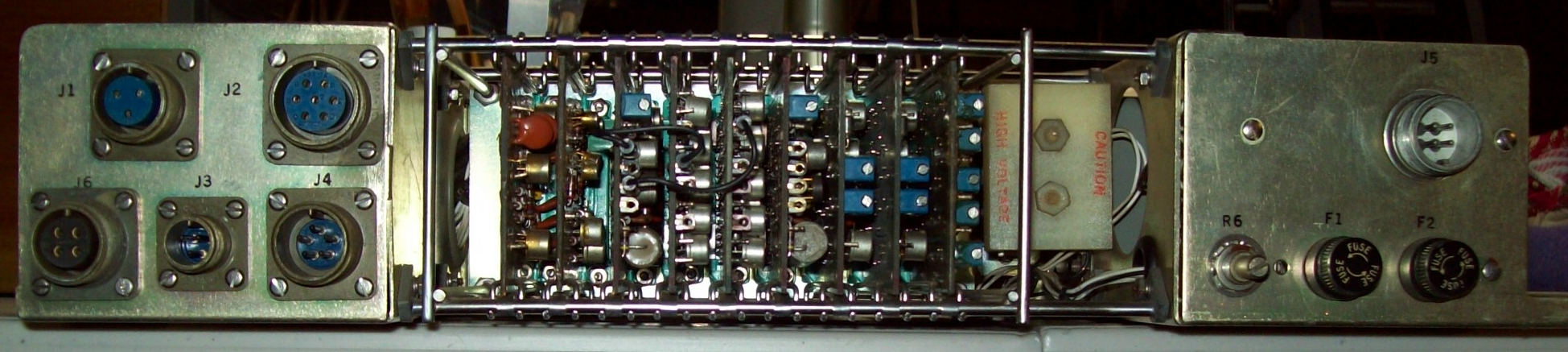

CV-2310()/G FSK and DFSK demodulator  - Perhaps the replacement for AN/FRA-86 (see above). Please send me e-mail if you have any info about this unit.




Please send me e-mail if you have any info about this unit.

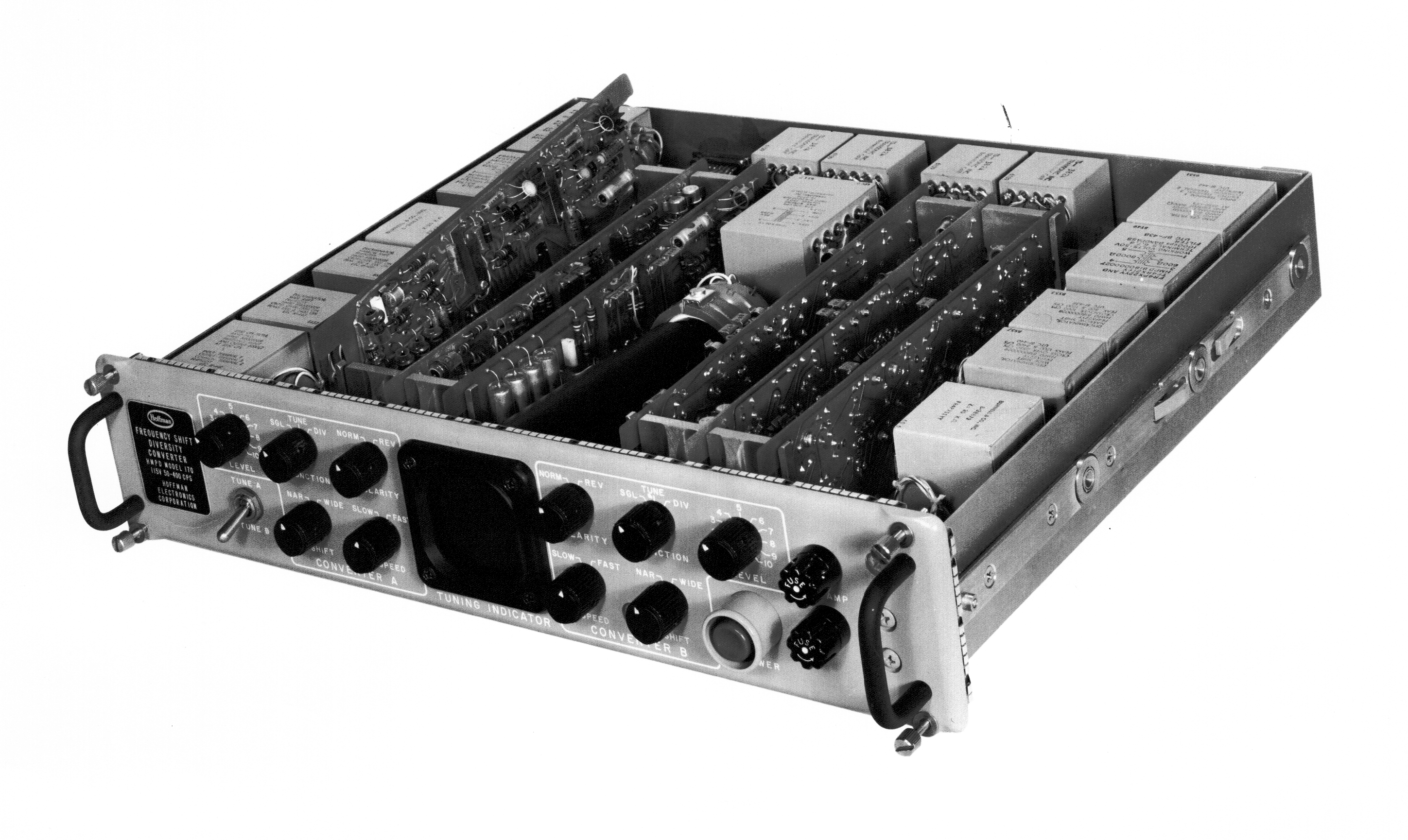

Hoffman Model 170 - prototype

Please send me e-mail if you have any info about this unit.

Dual Diversity RTTY converter

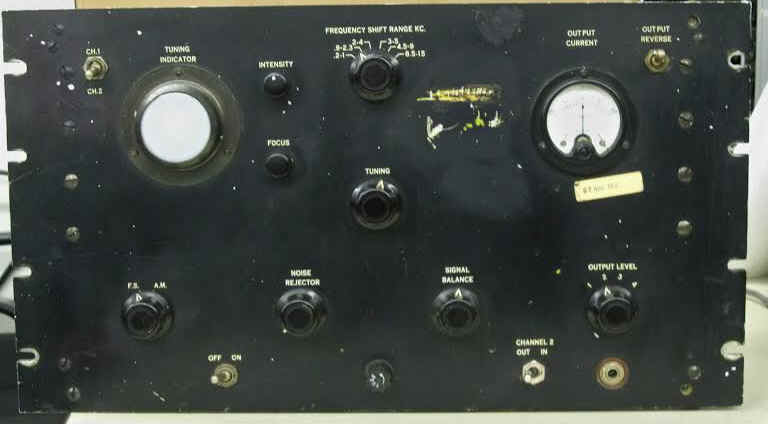

Boehme 5-C Series B boehme5c-awa.jpg (24885 bytes) boehme5c-awa-02.jpg (61818 bytes) NAVSHIPS 92660

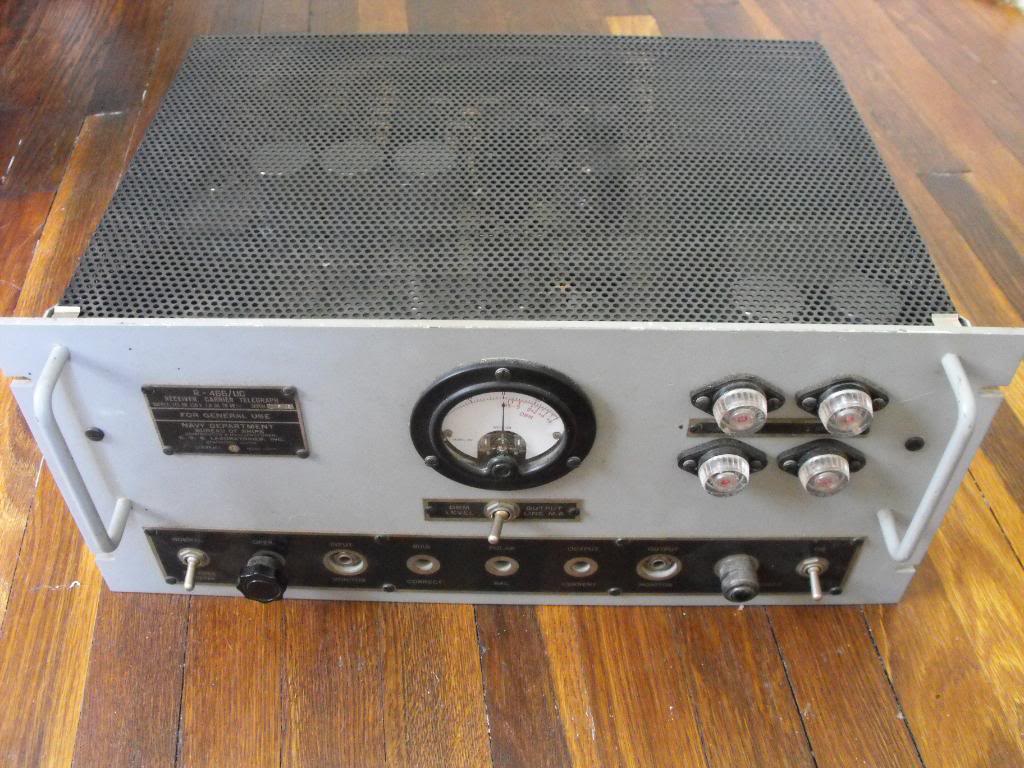

Keying converter

Converts on-off tone signals (not FSK) to loop current keying

Spec Sheet



r466-uc-52.jpg (121047 bytes) r466-uc-53.jpg (113199 bytes) r466-uc-56.jpg (163280 bytes) r466-diag-01.jpg (121613 bytes)

NAVSHIPS 91612 - pdf

Keying converter

Converts on-off tone signals (not FSK) to loop current keying Similar use as R-446/UC but also includes TTY sync pulse circuit NAVSHIPS 91907 - pdf

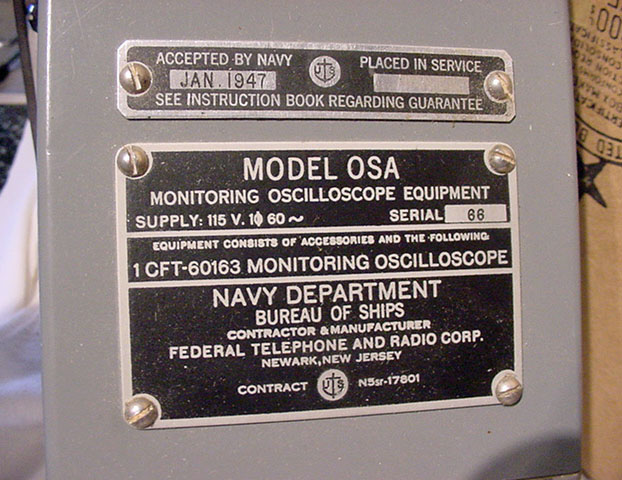

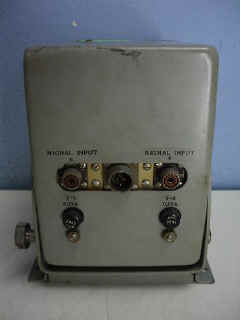

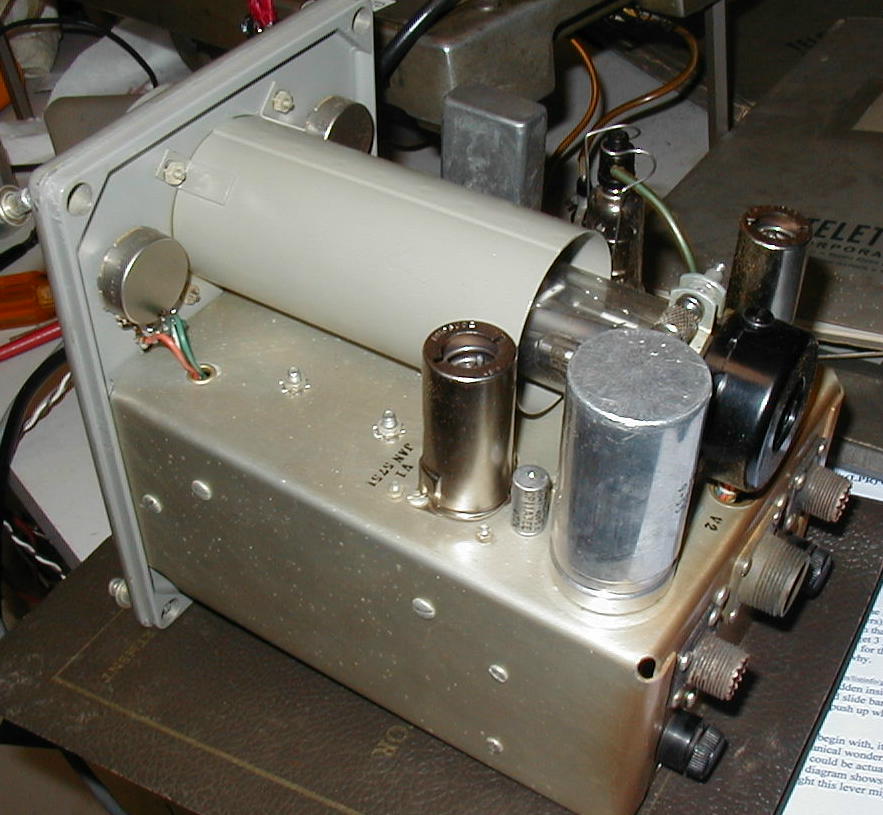

OSA Monitoring Scope
(Tuning Indicator)



designed to mount up high with a tilt-down swivel.

osa-nib-1303-01.JPG (68412 bytes) osa-nib-1303-02.JPG (55910 bytes) osa-nib-1303-03.JPG (47779 bytes) osa-nib-1303-04.JPG (60144 bytes)

IP-352/UR Monitoring Scope
(Tuning Indicator)


Manuf by Hoffman and designed to mount up high with a tilt-down swivel.

Please send me e-mail if you have a NAVSHIPS 92705 manual


Also see Navy RTTY Terminal Unit (converter + keyer) page

List of 61 military surplus RTTY units

Includes brief descriptions - See CQ magazine September 1972, page 83 (avail at

Northern Radio RTTY demods, FSK converters, etc.
