TTY Jack Panels - 9/24/24

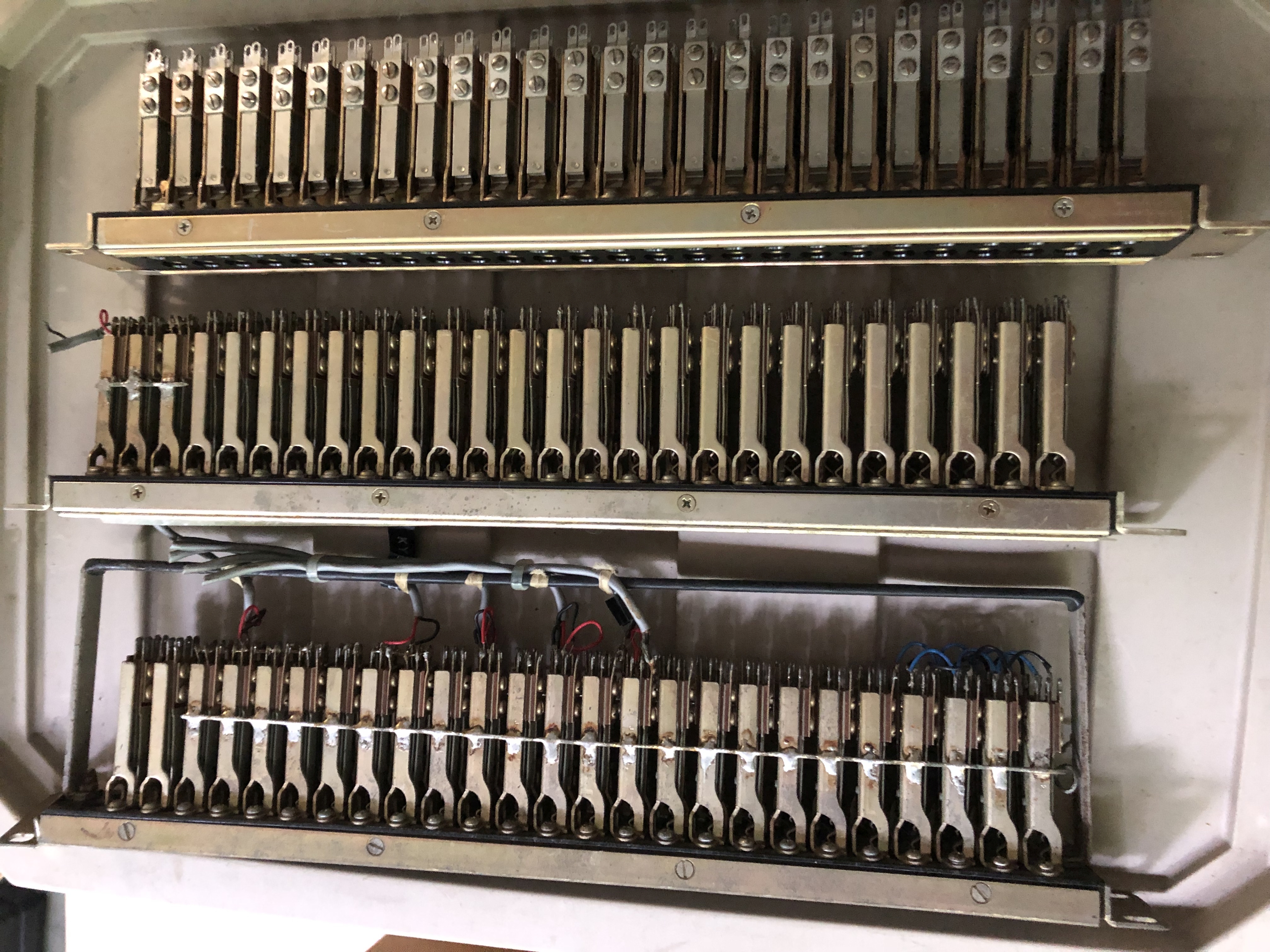

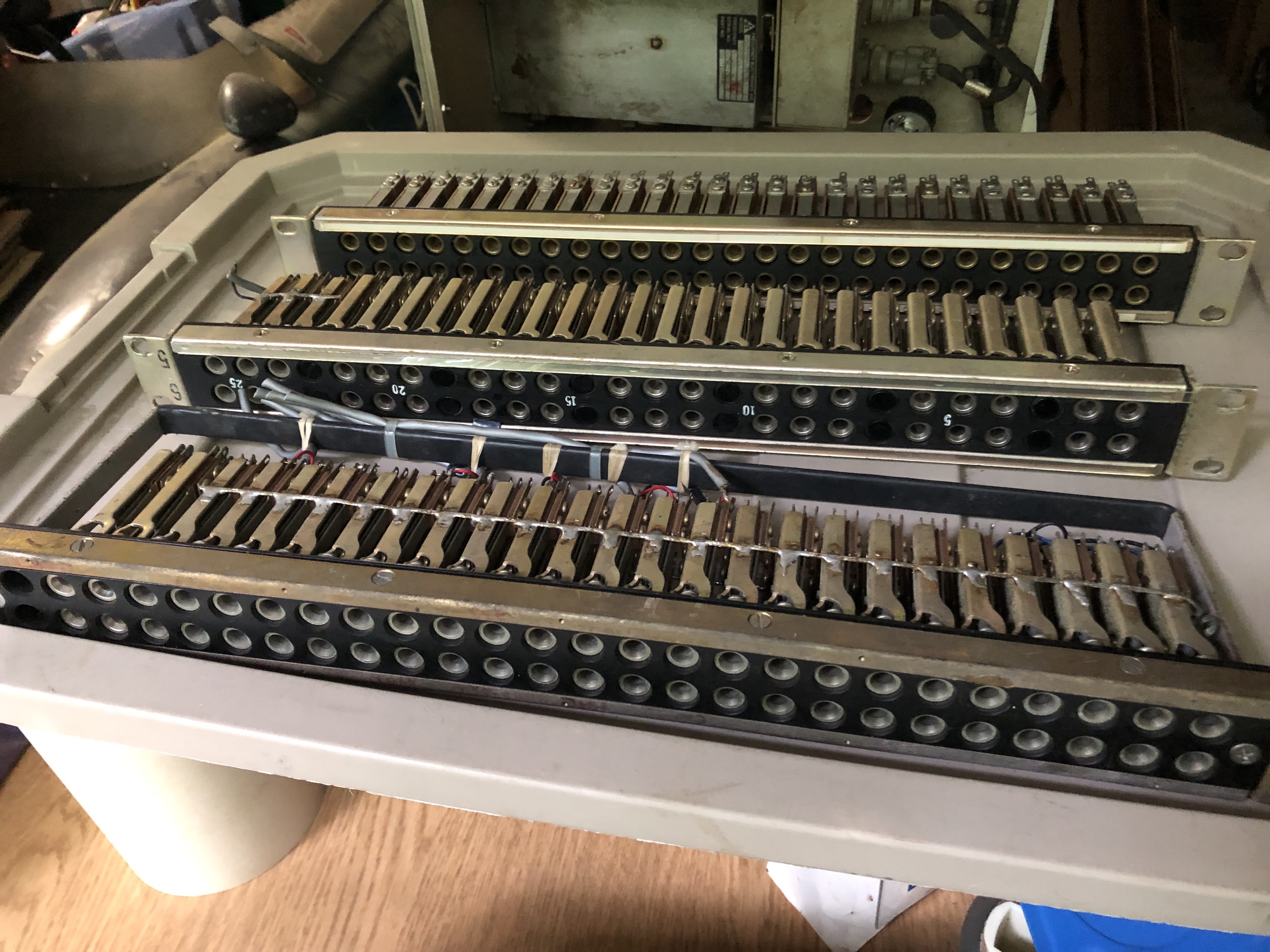

Each panel has 2 rows of 26 jacks
- two panels are TRS (Tip/Ring/Sleeve) and one is TS (Tip/Sleeve)

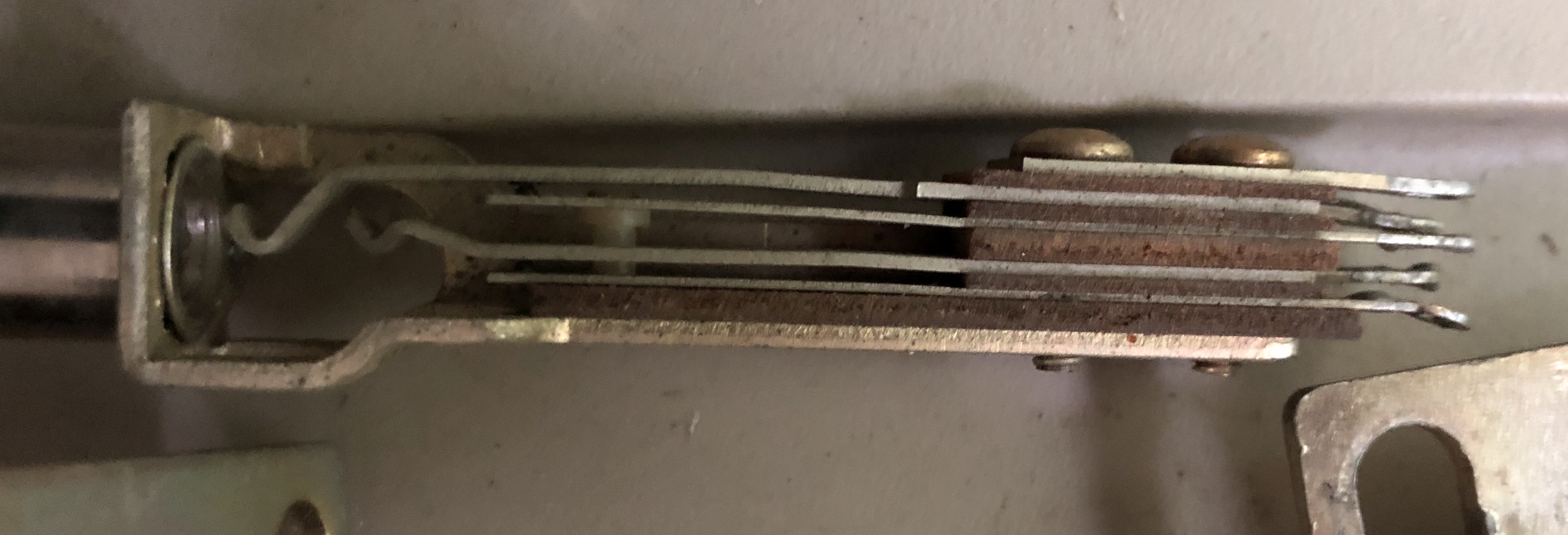

- all jacks have "normal through" connections to short out an unused jack

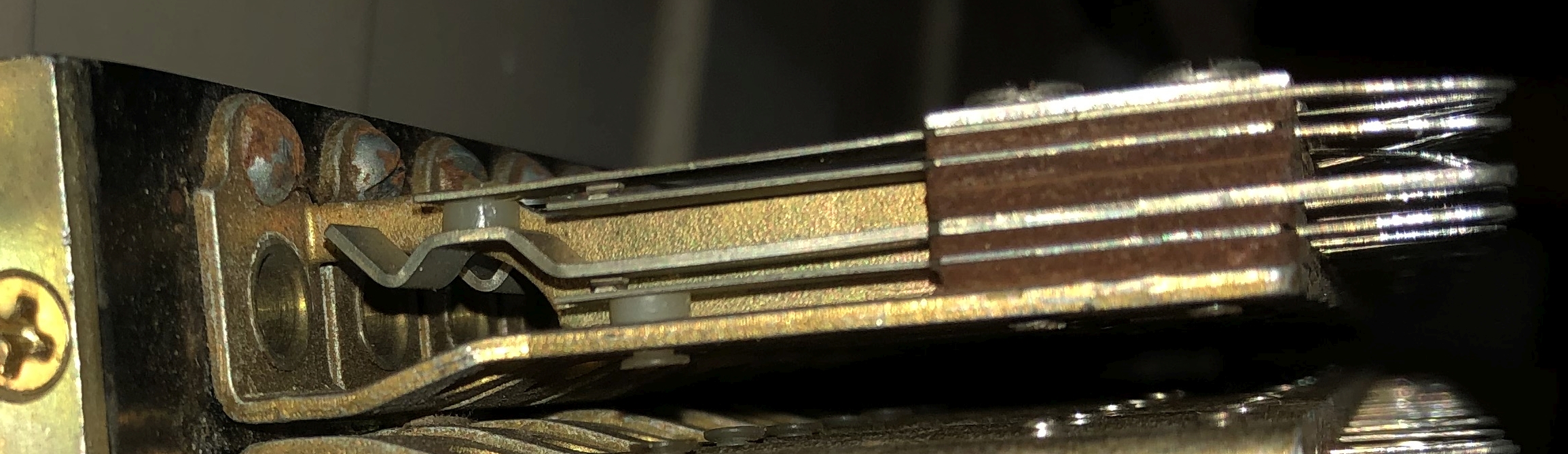

TRS - like a stereo 1/4" audio jack
