Teletype Model 28ASR Restoration Project

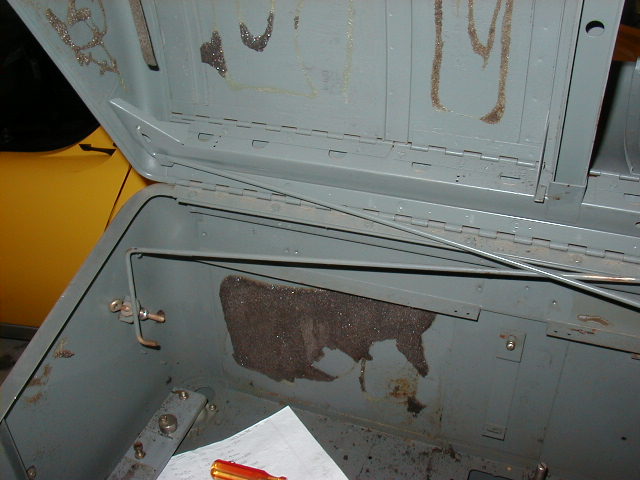

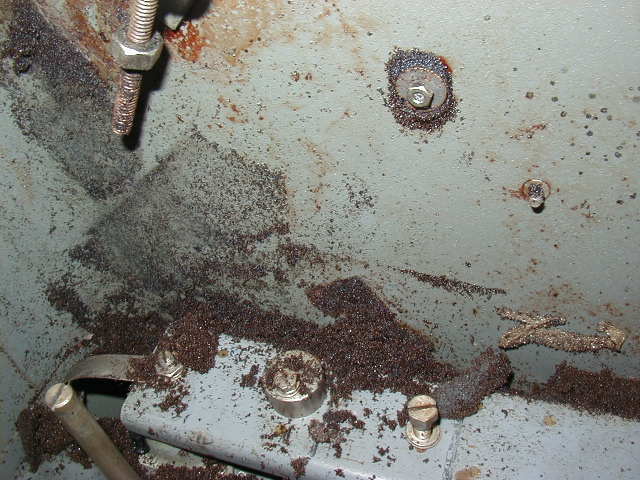

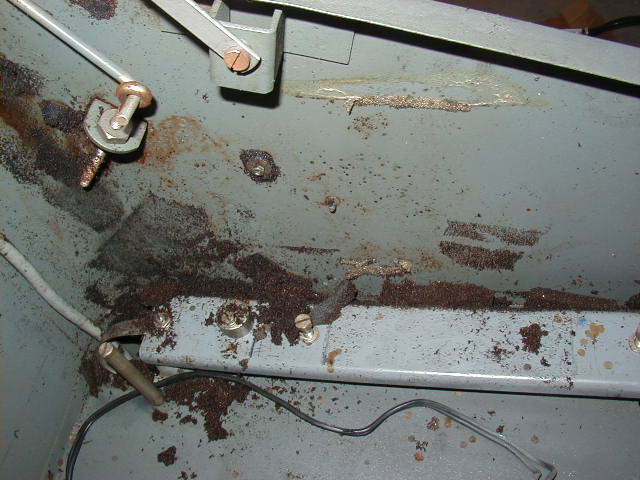

28ASR project - the foam sound deadening pads had turned to black sticky gunk, so I decided to take the whole thing apart to clean it and to learn about it. Photos were taken to document and refresh my memory about how things were put together - I strongly suspect I didn't take enough photos and will deeply regret it.....

Do you have a Western Union 28ASR (with 9797-B LESU) wiring diagram? Please let me know

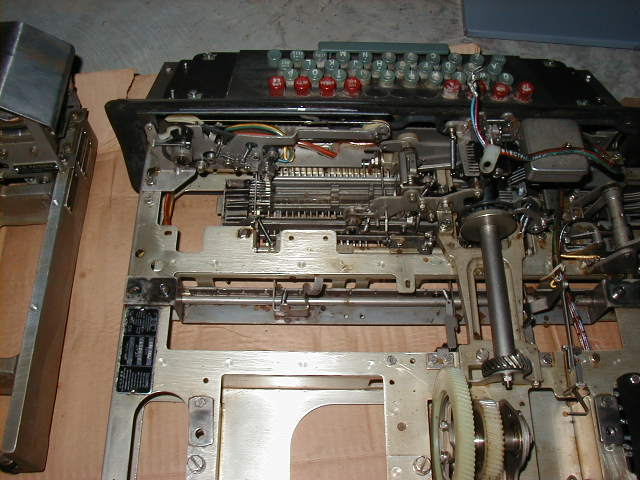

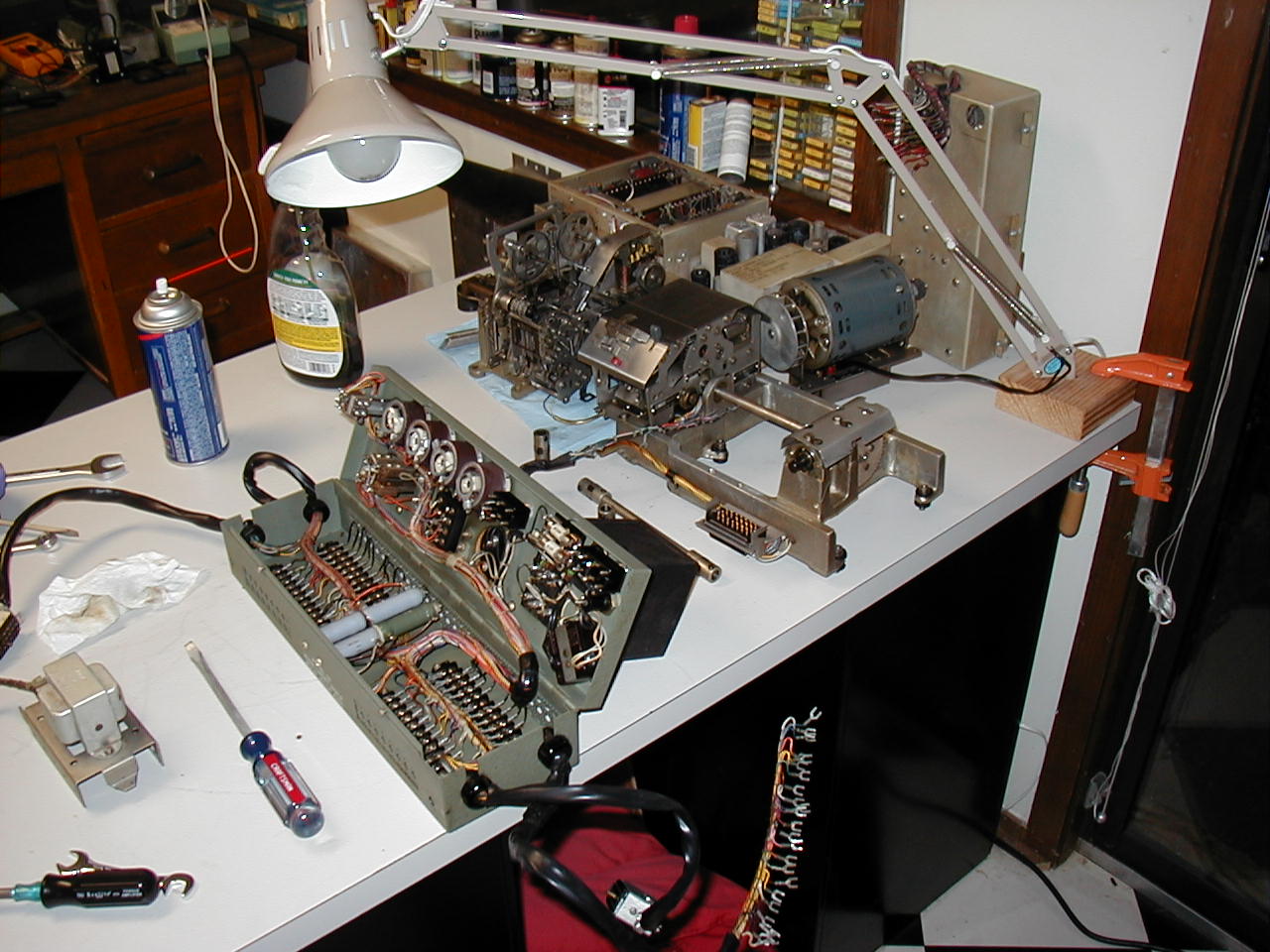

12/07- disassembly to clean and paint begins.

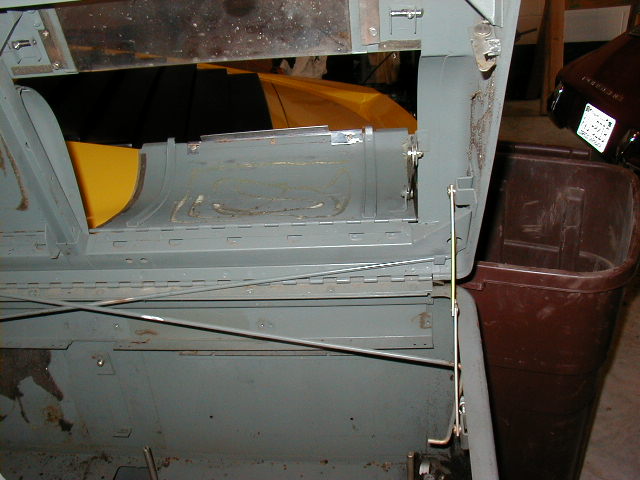

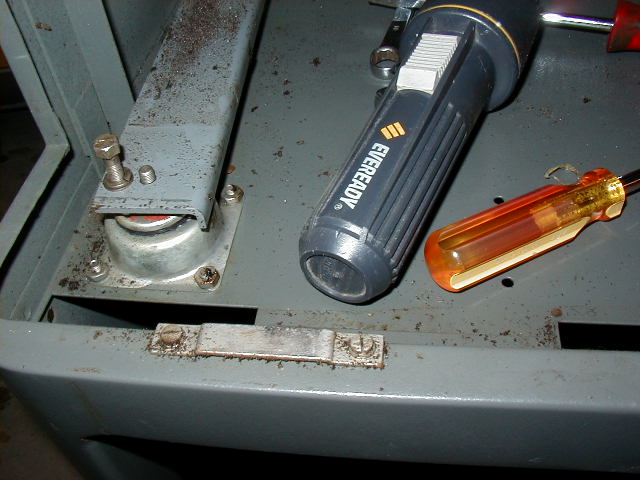

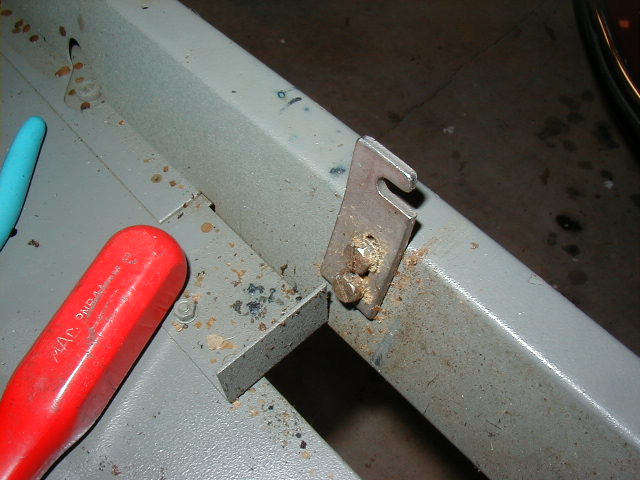

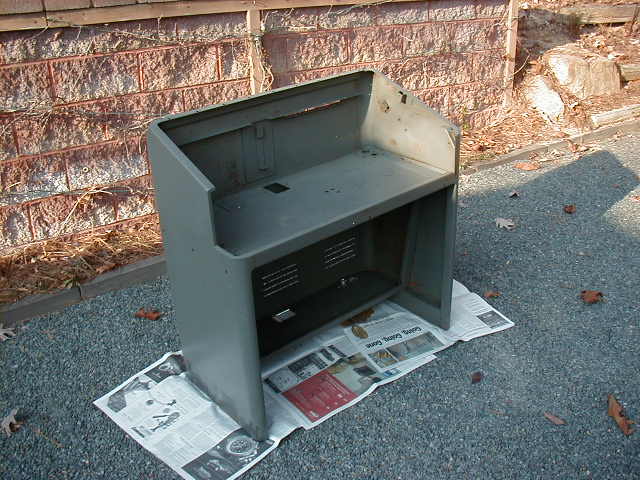

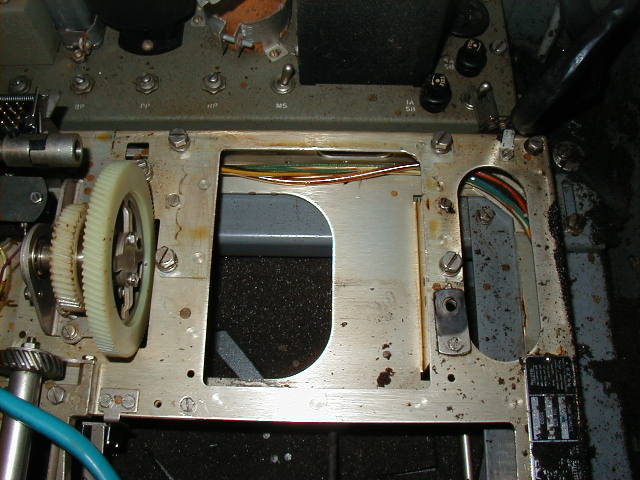

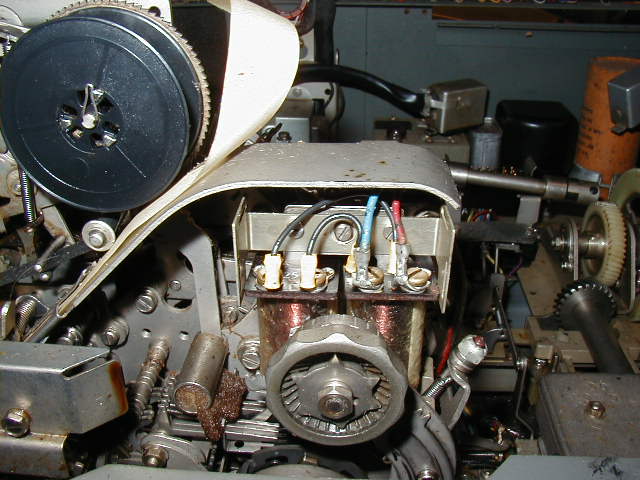

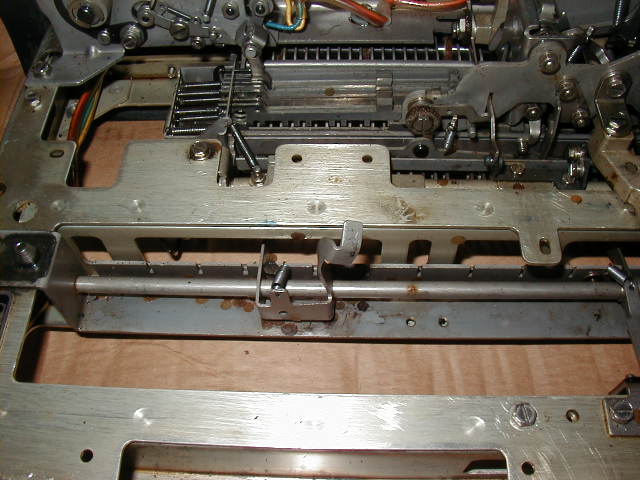

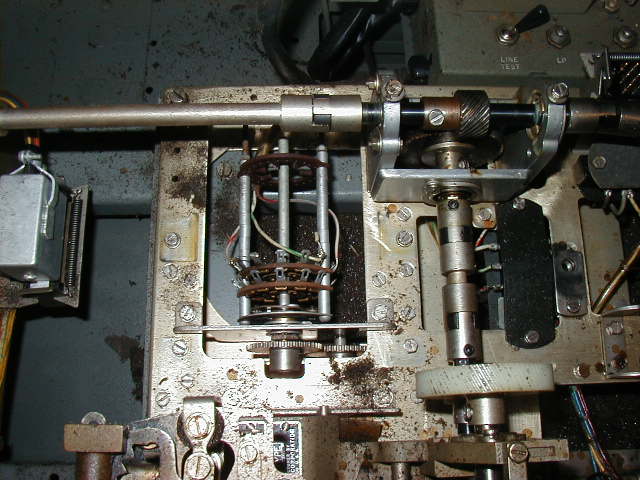

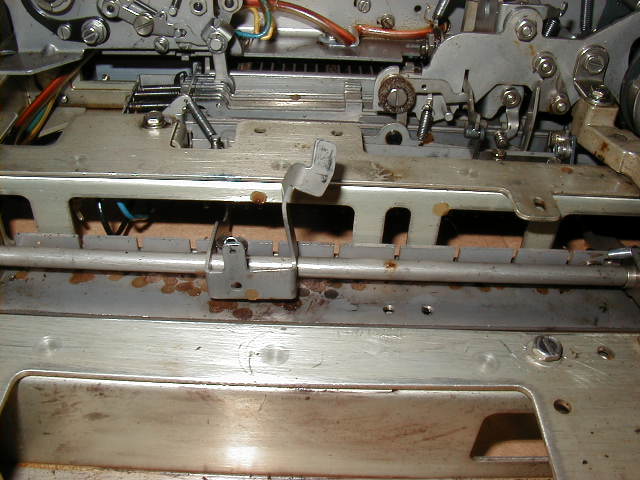

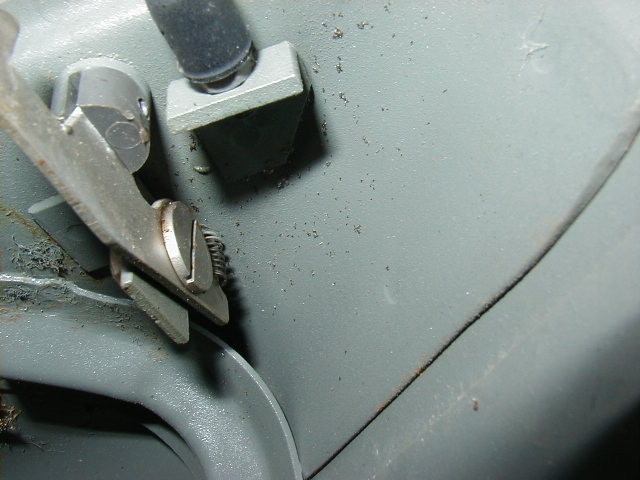

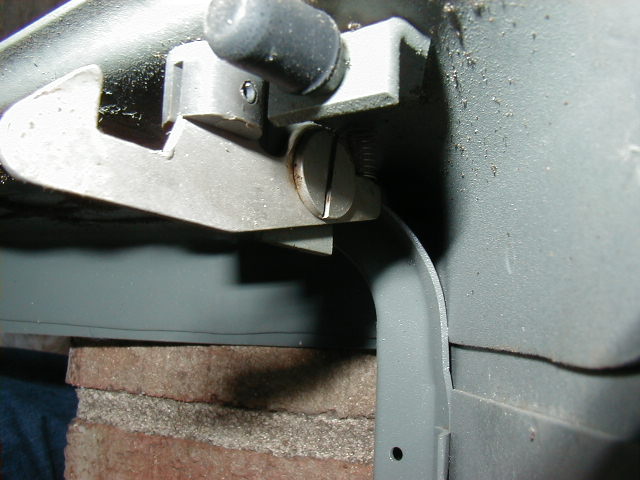

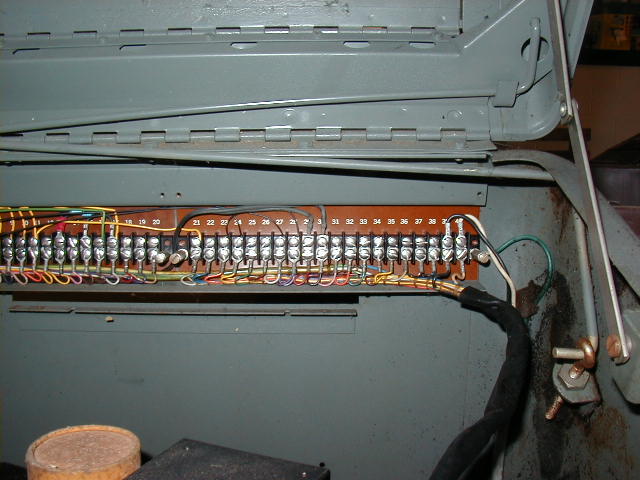

before painting

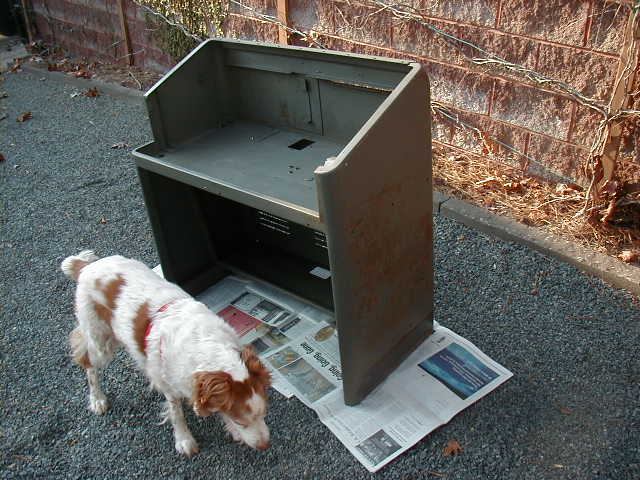

still before painting - dog is

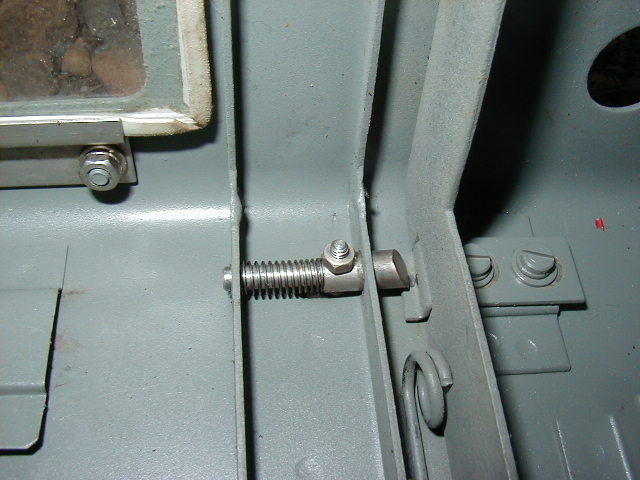

now Navy gray....

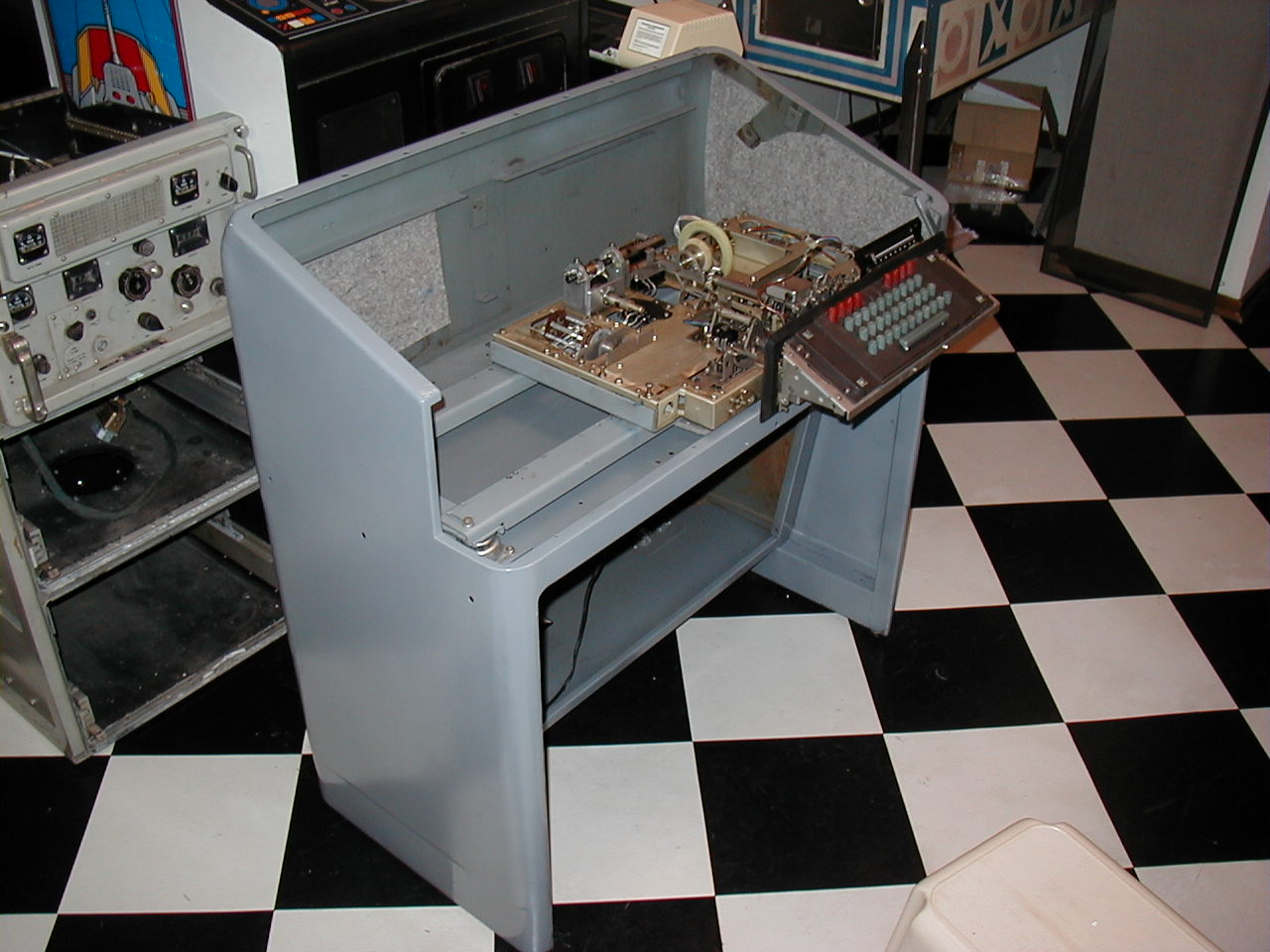

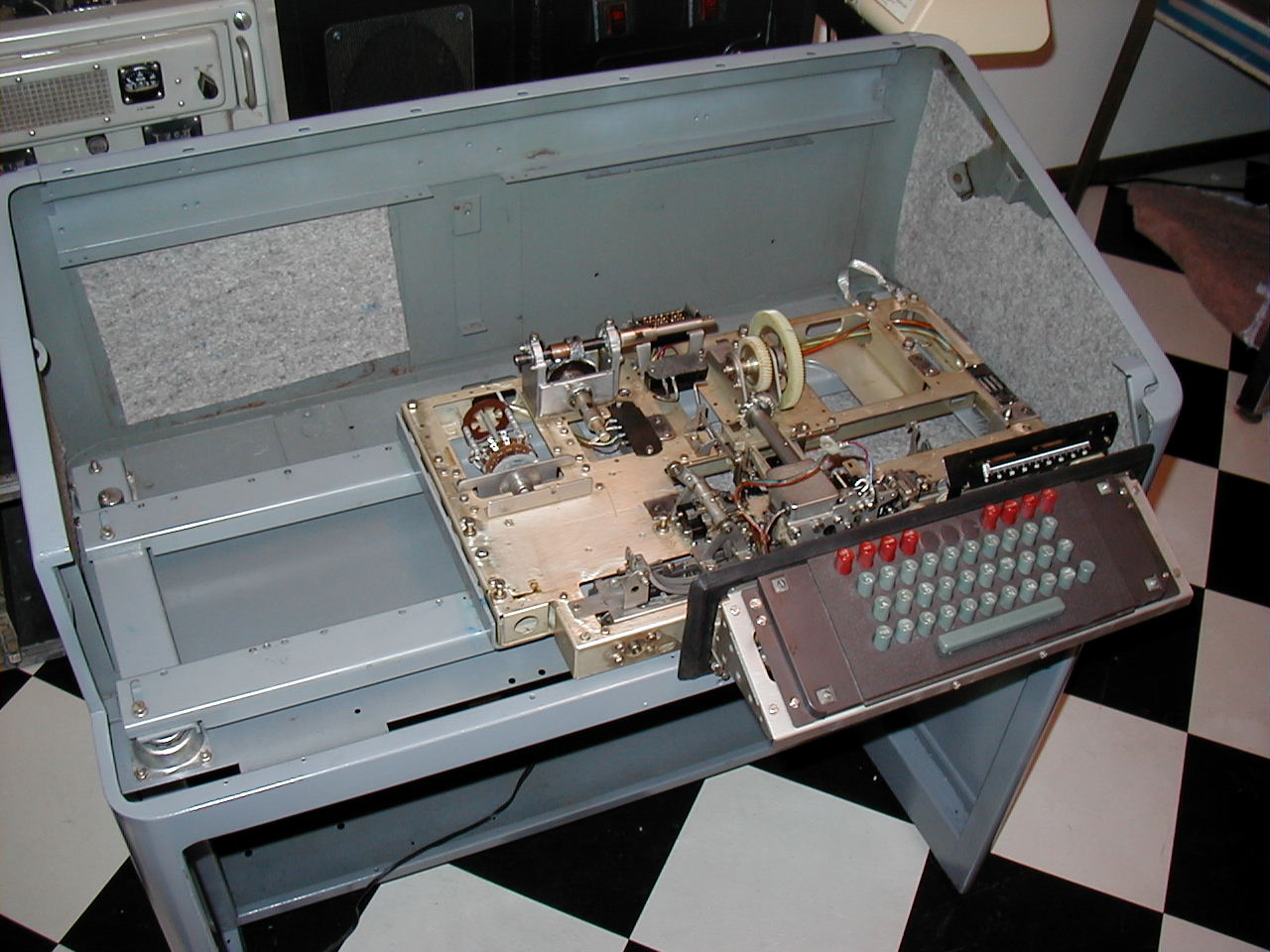

1/08 - reassembly starts

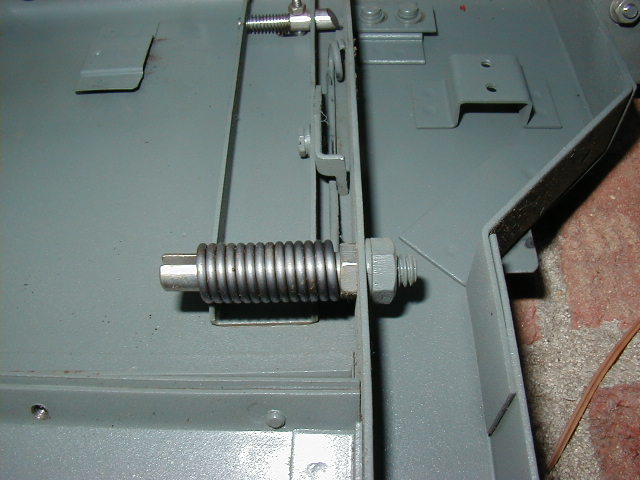

fresh Navy gray paint,
new felt pads,
clean rack and base

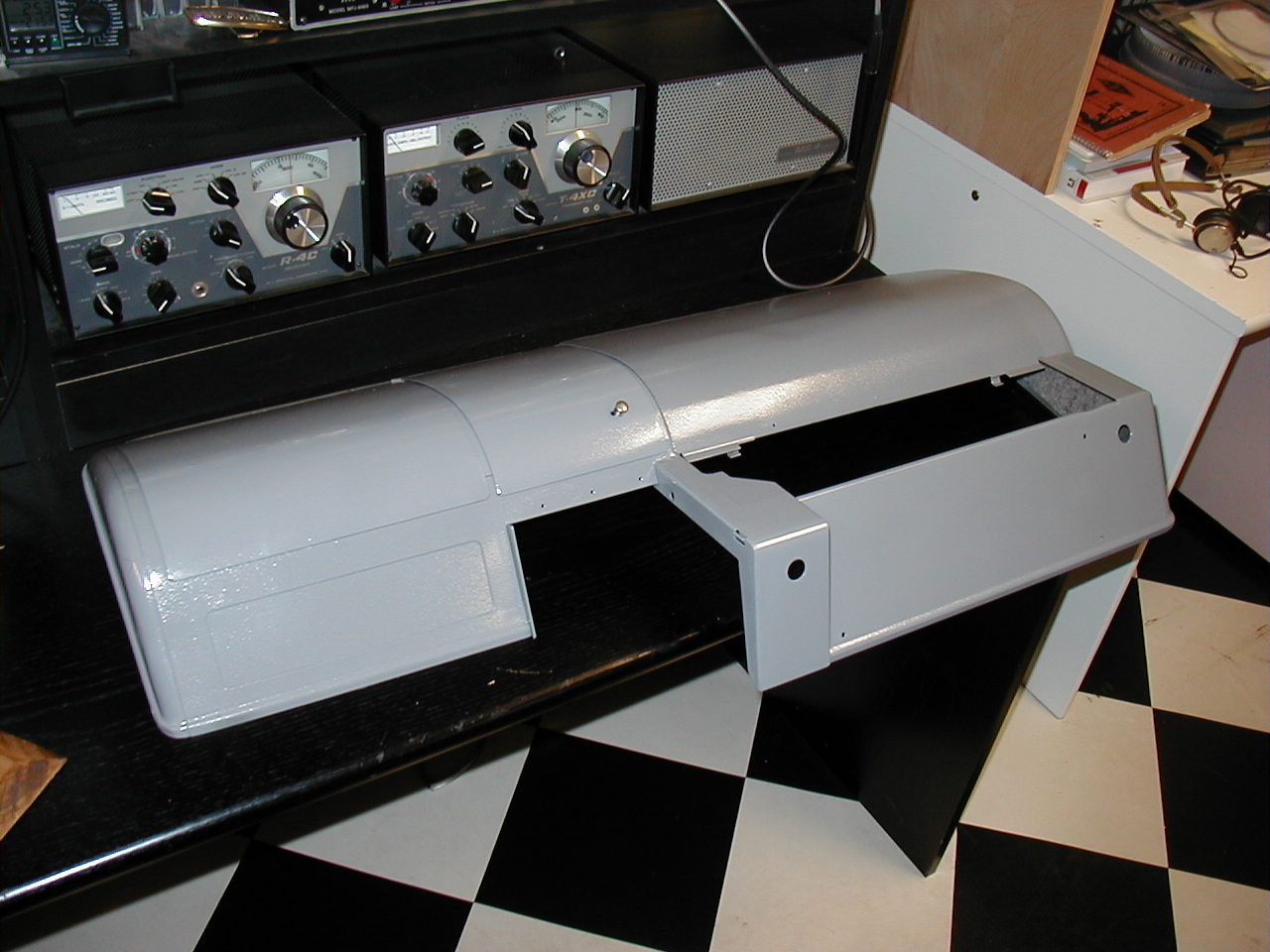

Dome with fresh paint

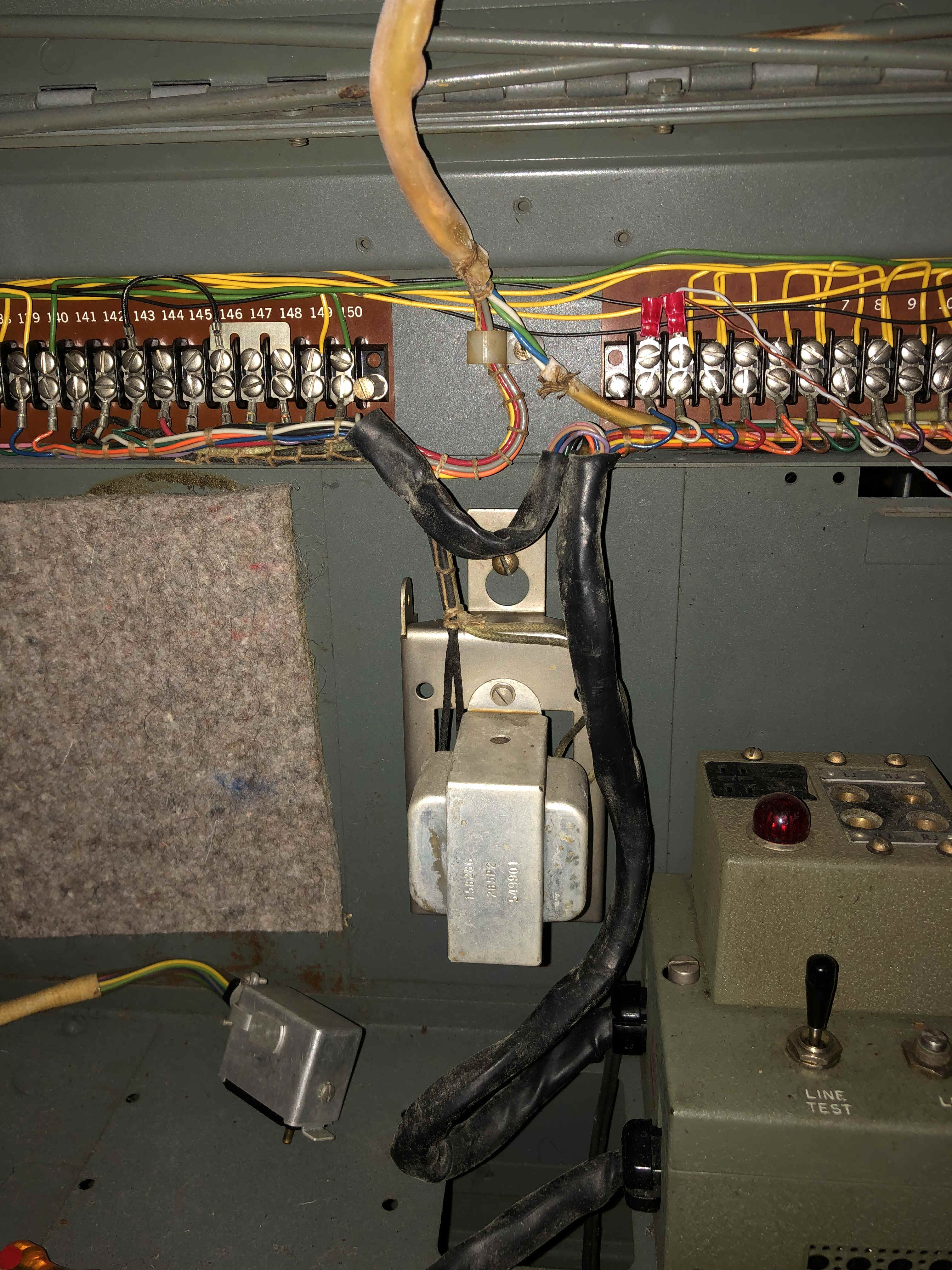

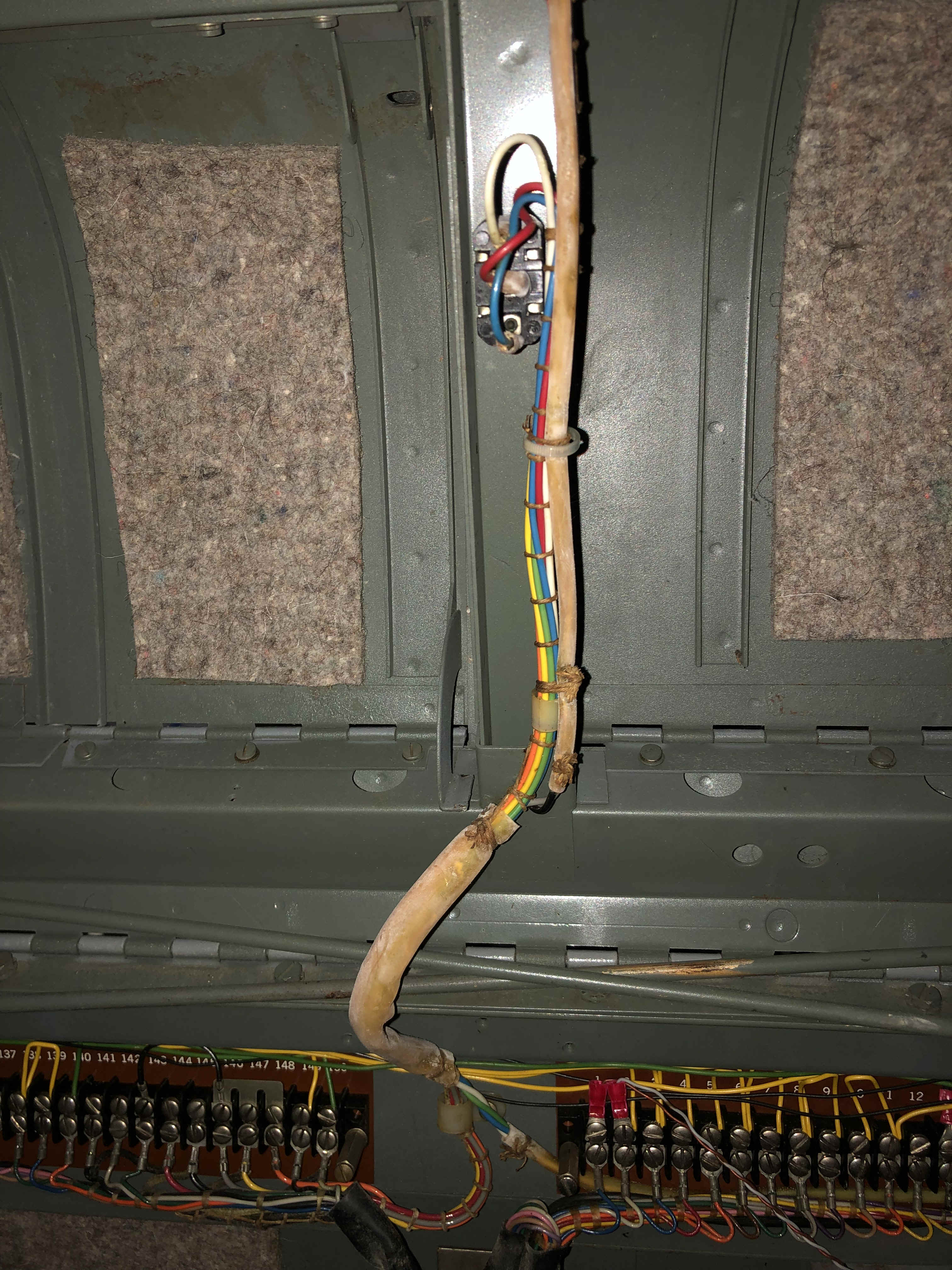

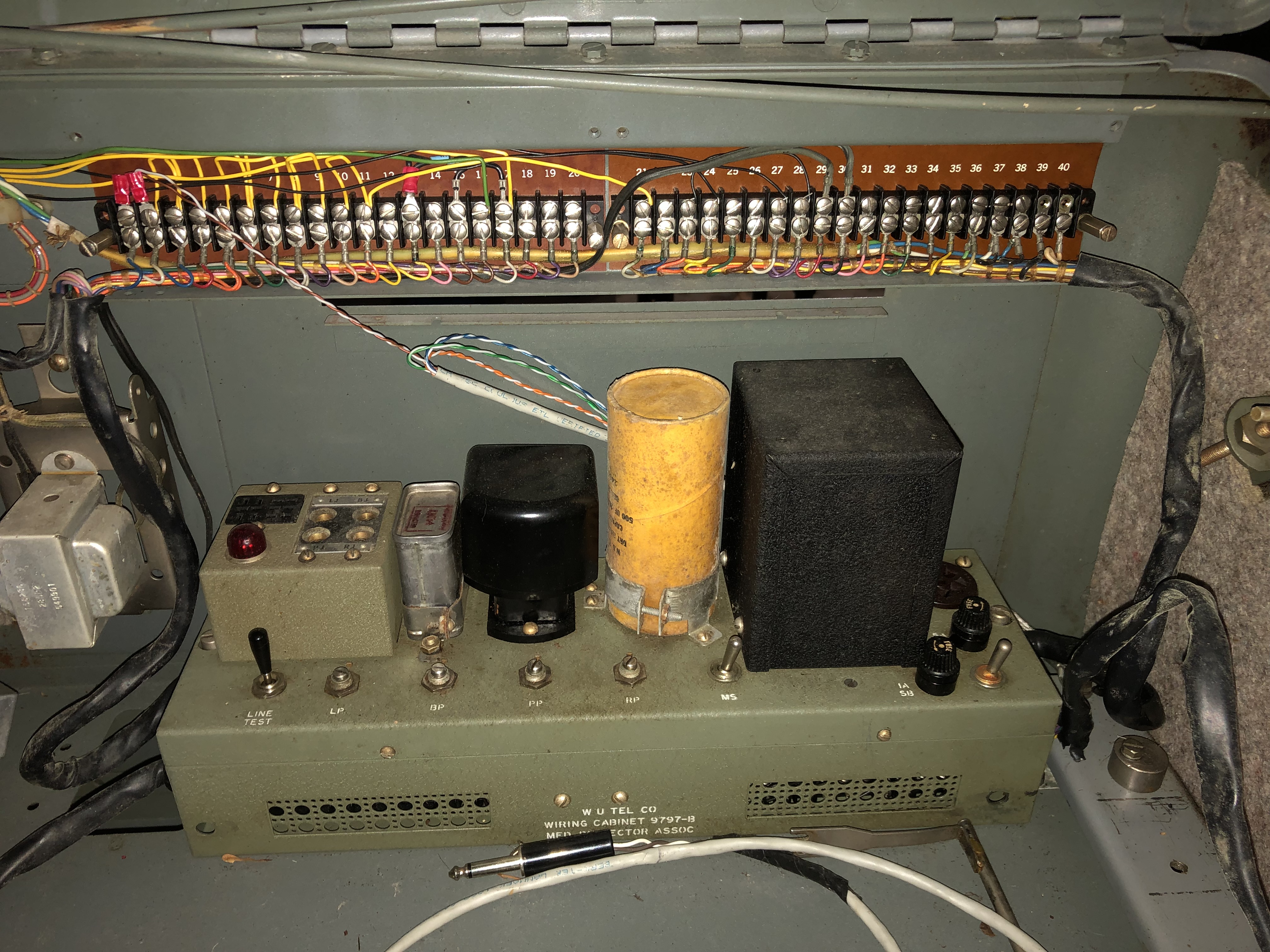

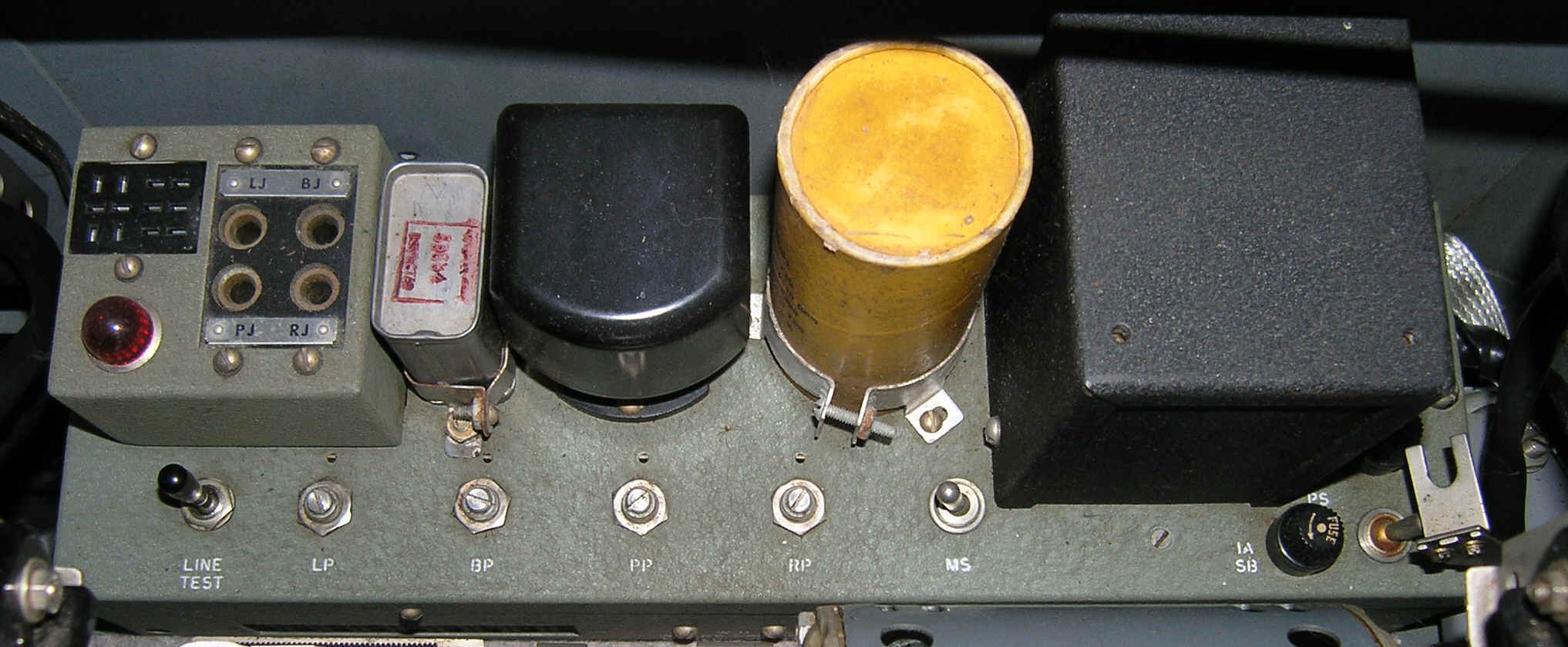

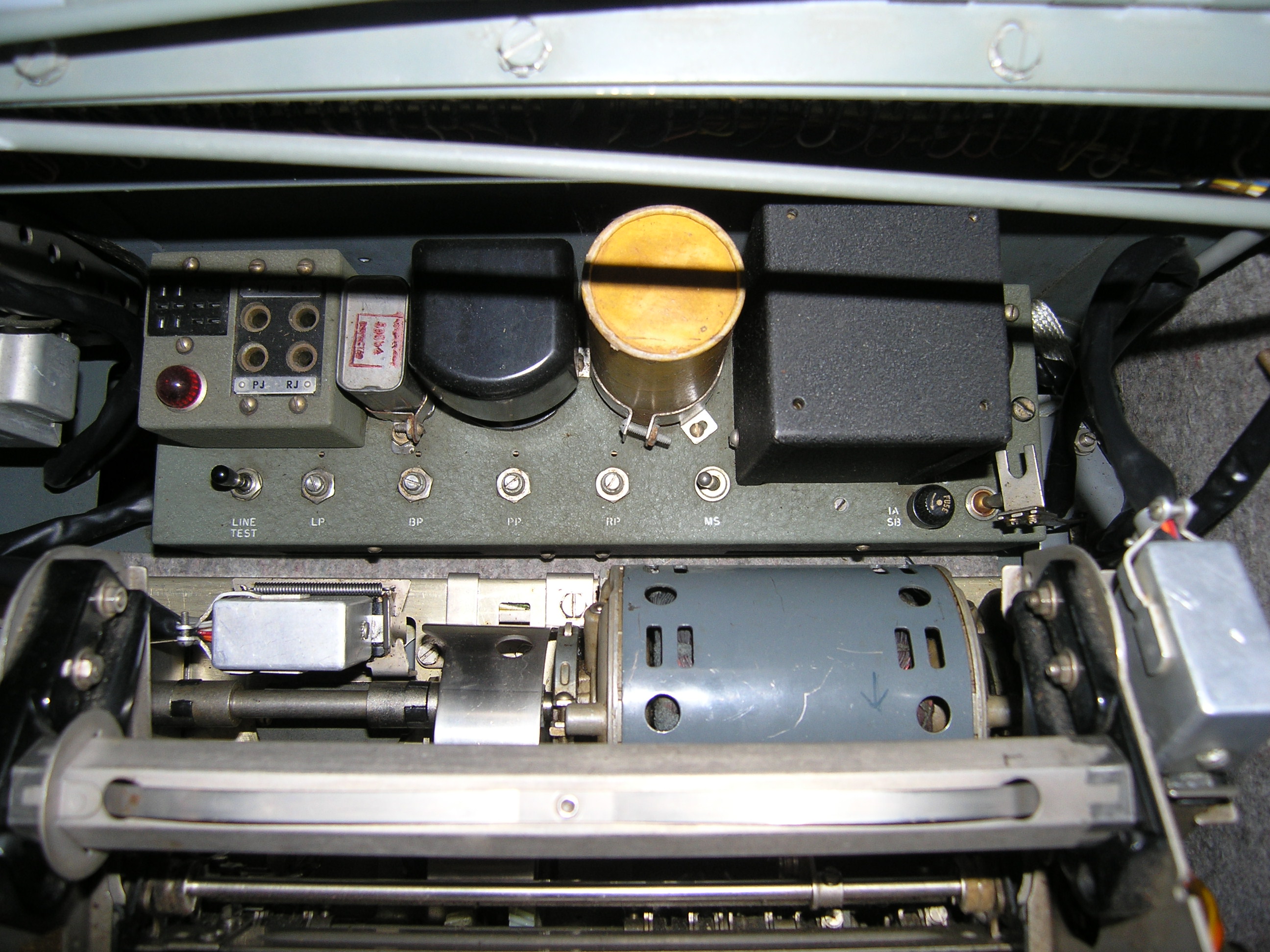

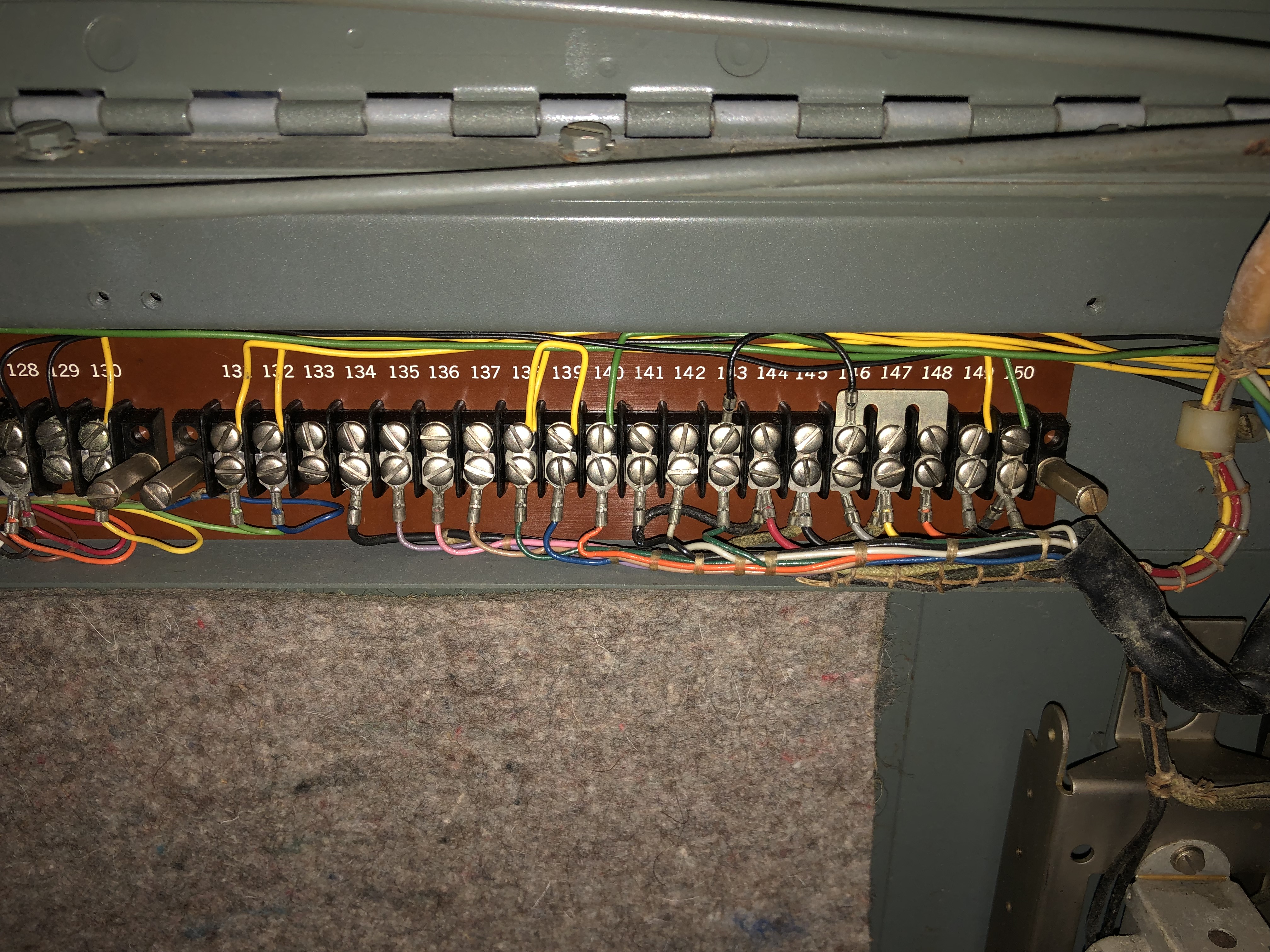

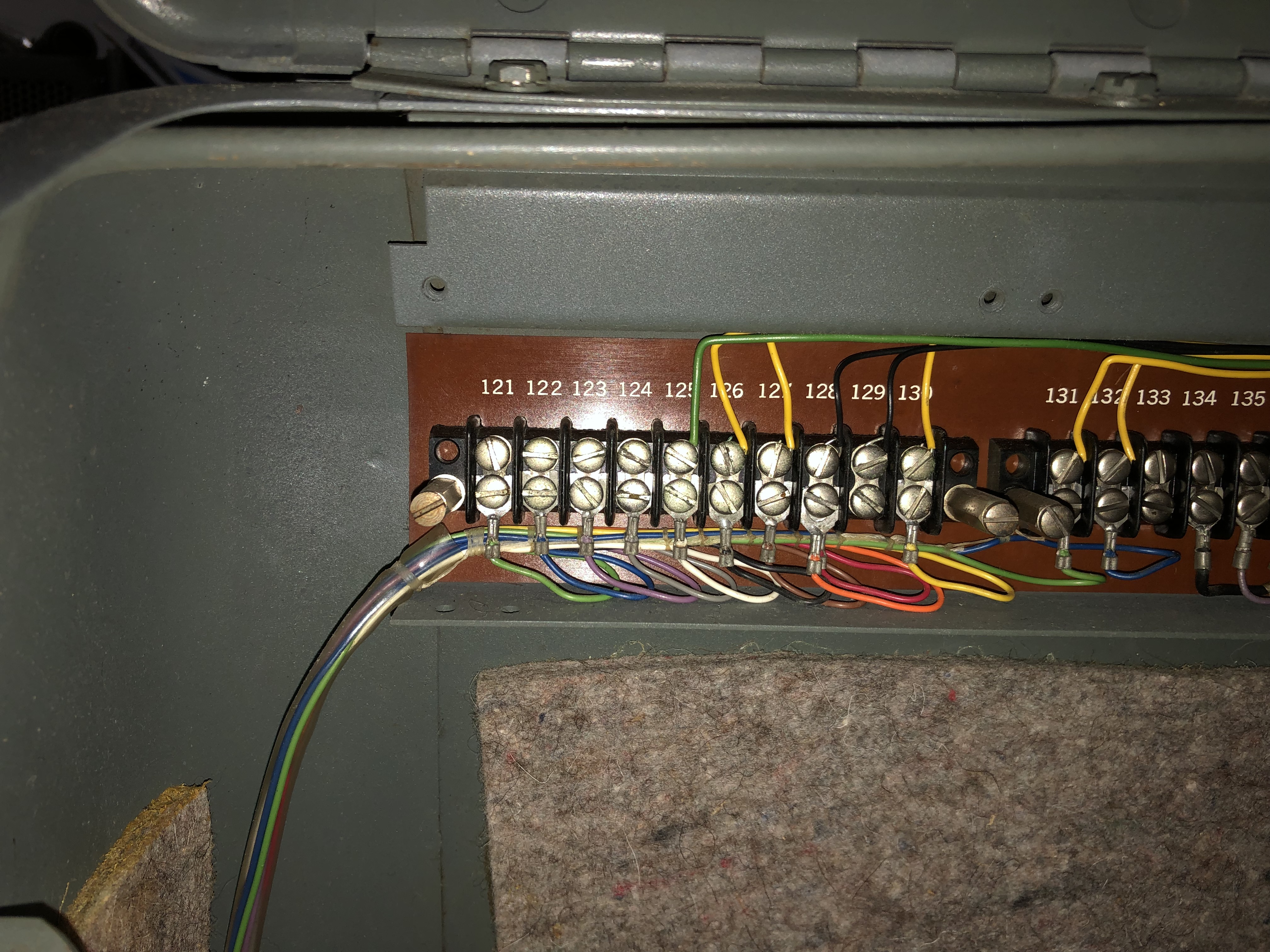

Western Union 9797-B LESU ("wiring cabinet")

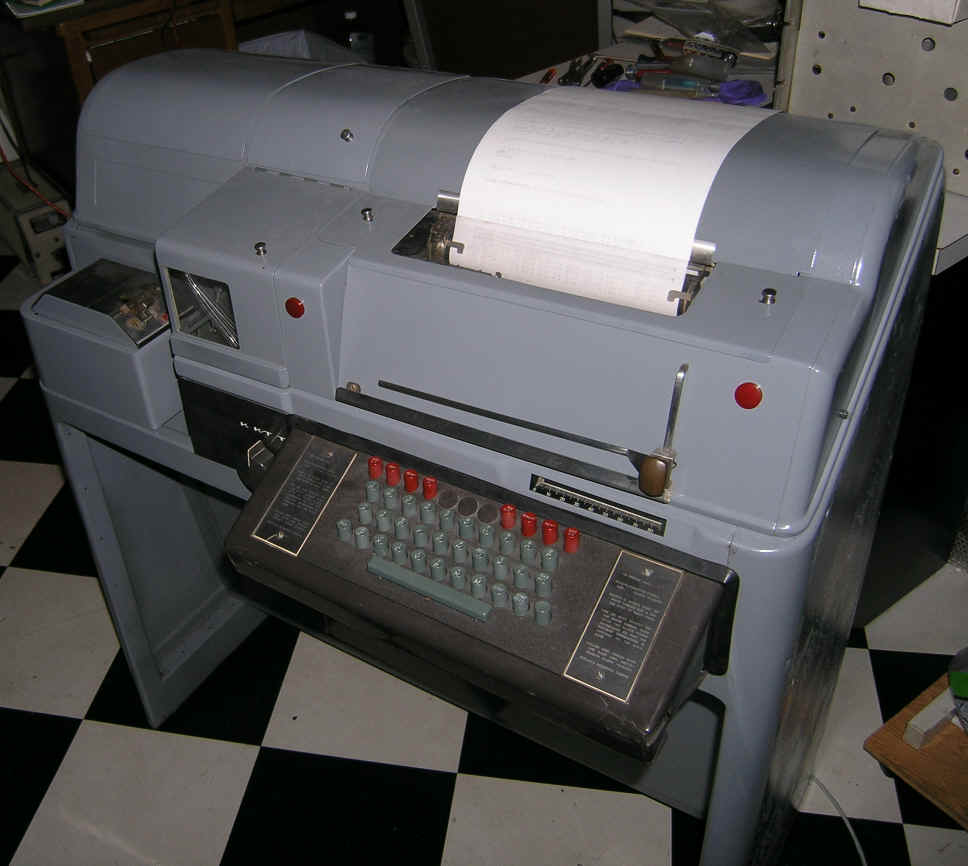

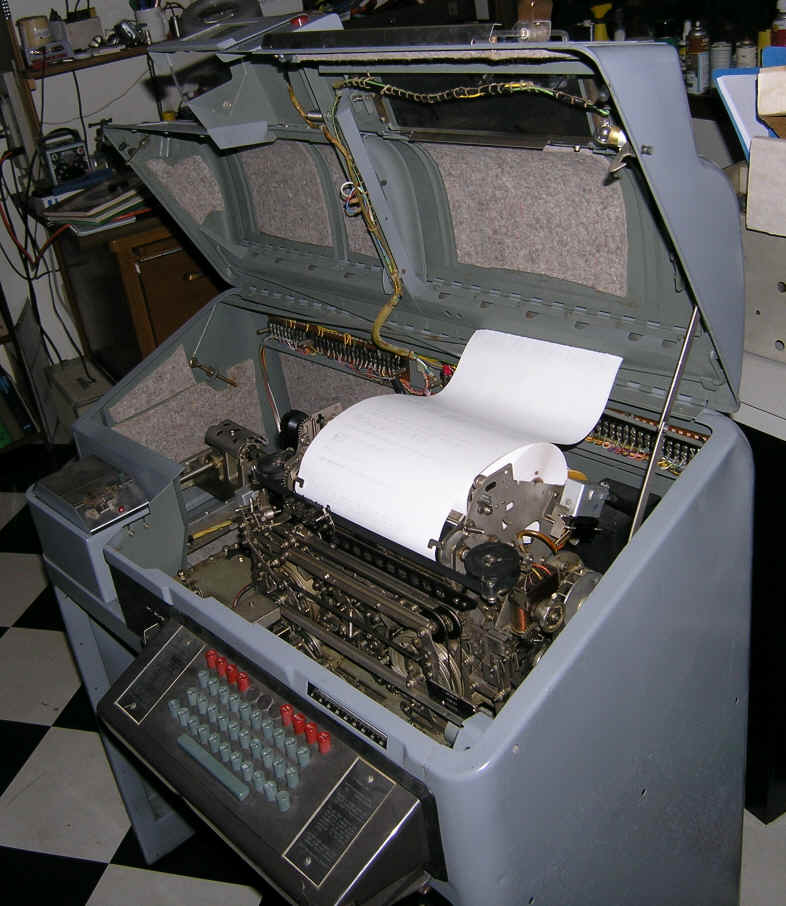

10/2011 - Back together and working (except for the busted reperf)

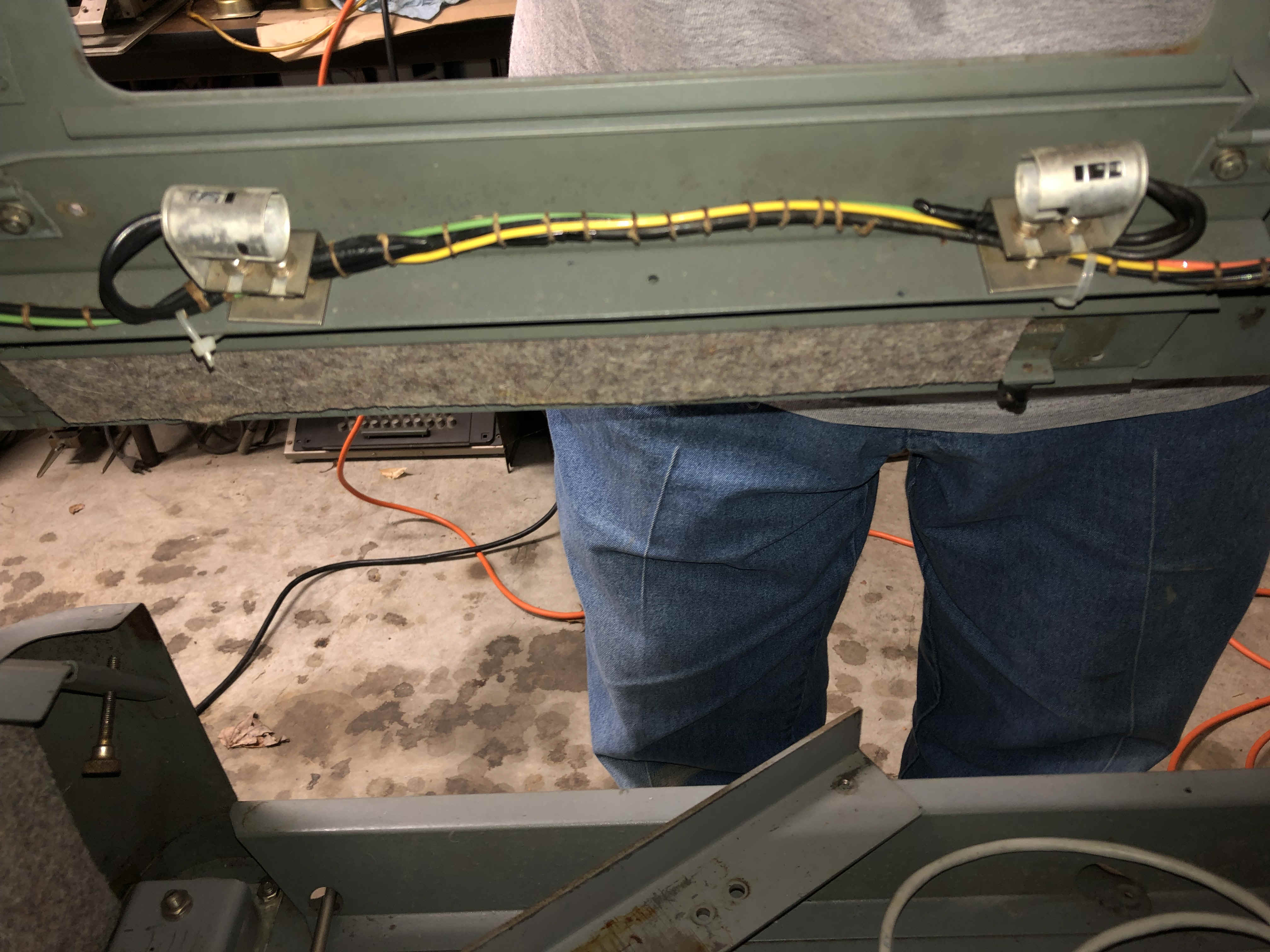

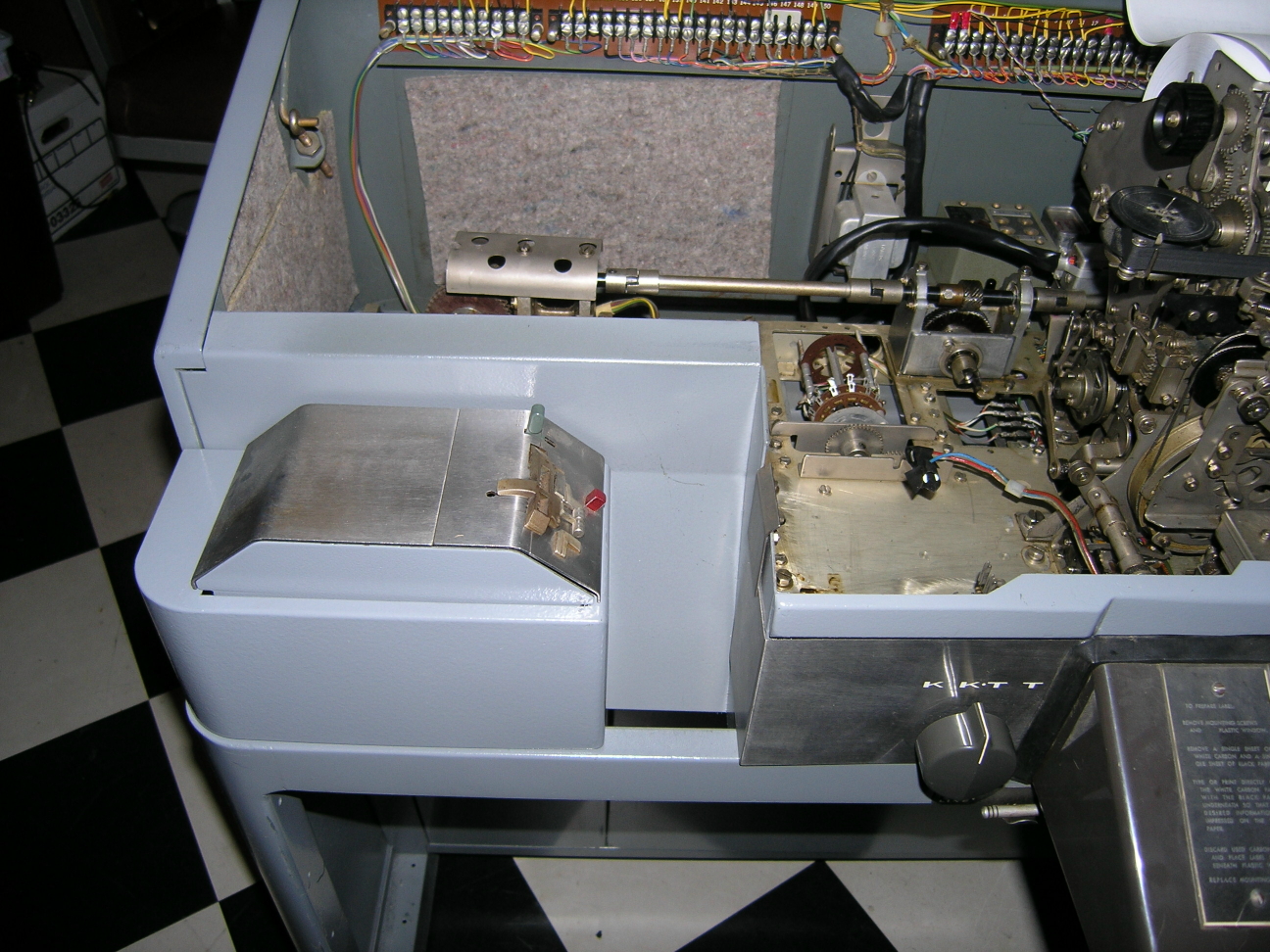

P1010218.JPG (57151 bytes) P1010215.JPG (75950 bytes) P1010214.JPG (1107274 bytes) Location of lamp control switch

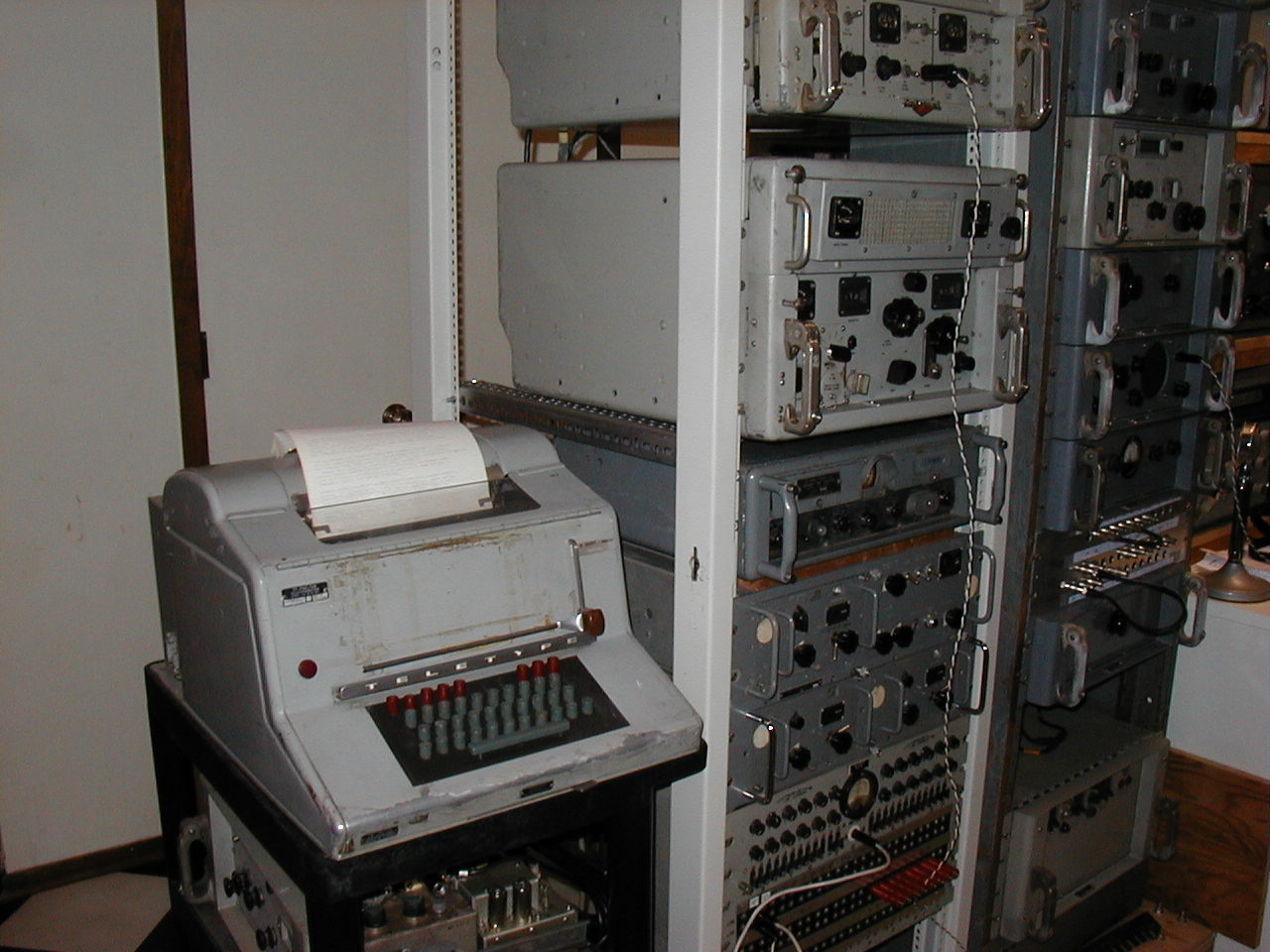

1/08 RTTY setup with TT-176C/UG (28KSR), FRR-59, URA-8, FRR-24

It only took 100+ vacuum tubes to
receive this RTTY message...

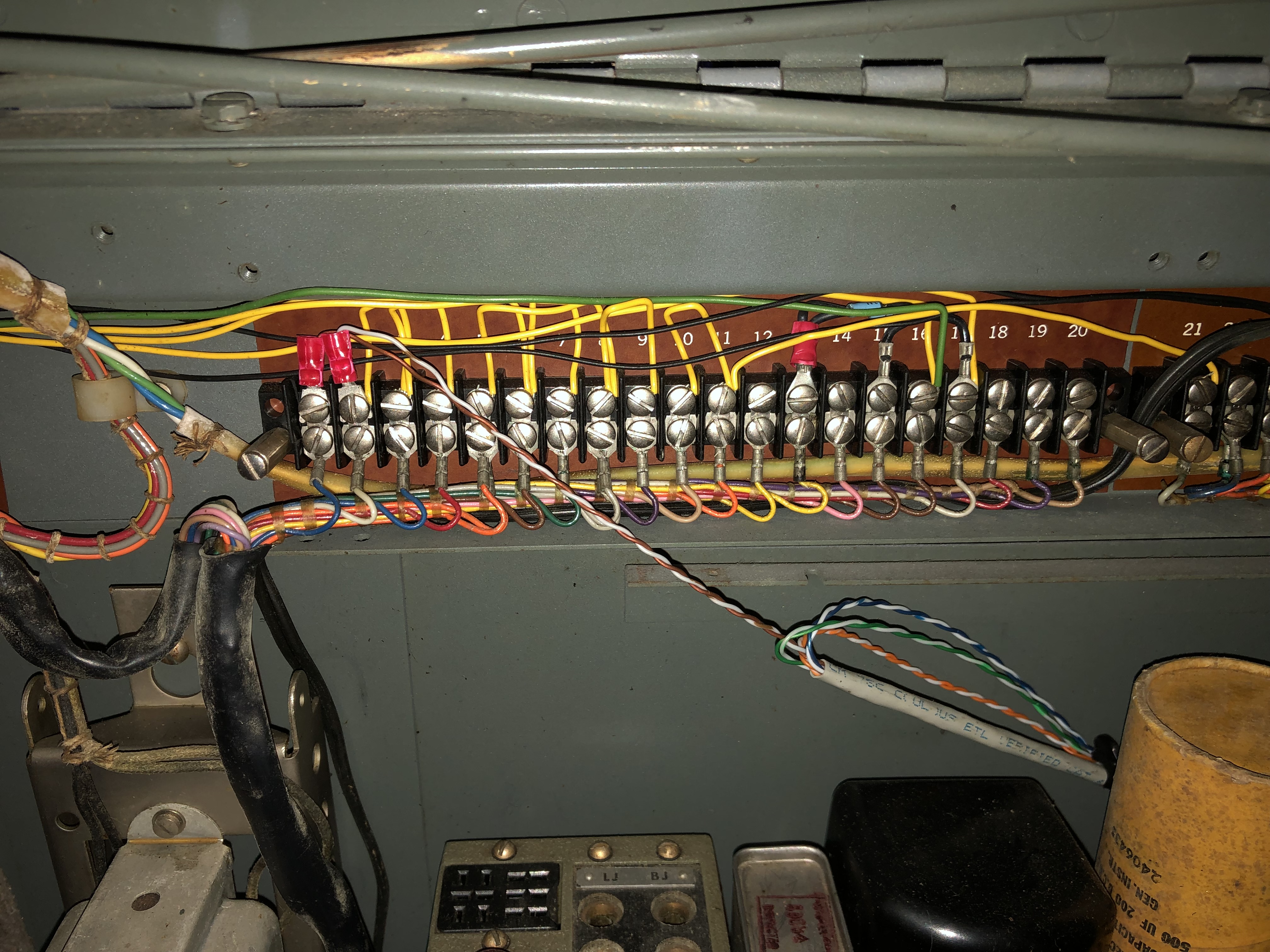

Reference photos - K4OZY's 28ASR
