Navy RBP and RCP Diversity Receivers
RBP Dual Triple-Diversity HF Receiver System
RCP Triple-Diversity HF Receiver System

• Back to Diversity Receiver Page
• Back to Main Navy Receiver Page
• Back to Main Navy Radio Page
• Please send me e-mail if you have any photos, info, additions, corrections, etc.

RBP & RCP Spec Sheets

3-24 mc, RBP operates as two triple-diversity systems, three dual-diversity systems, or six separate receivers
(RBP and RBP-1 differ only in contract number)

RCP is 1/2 of an RBP

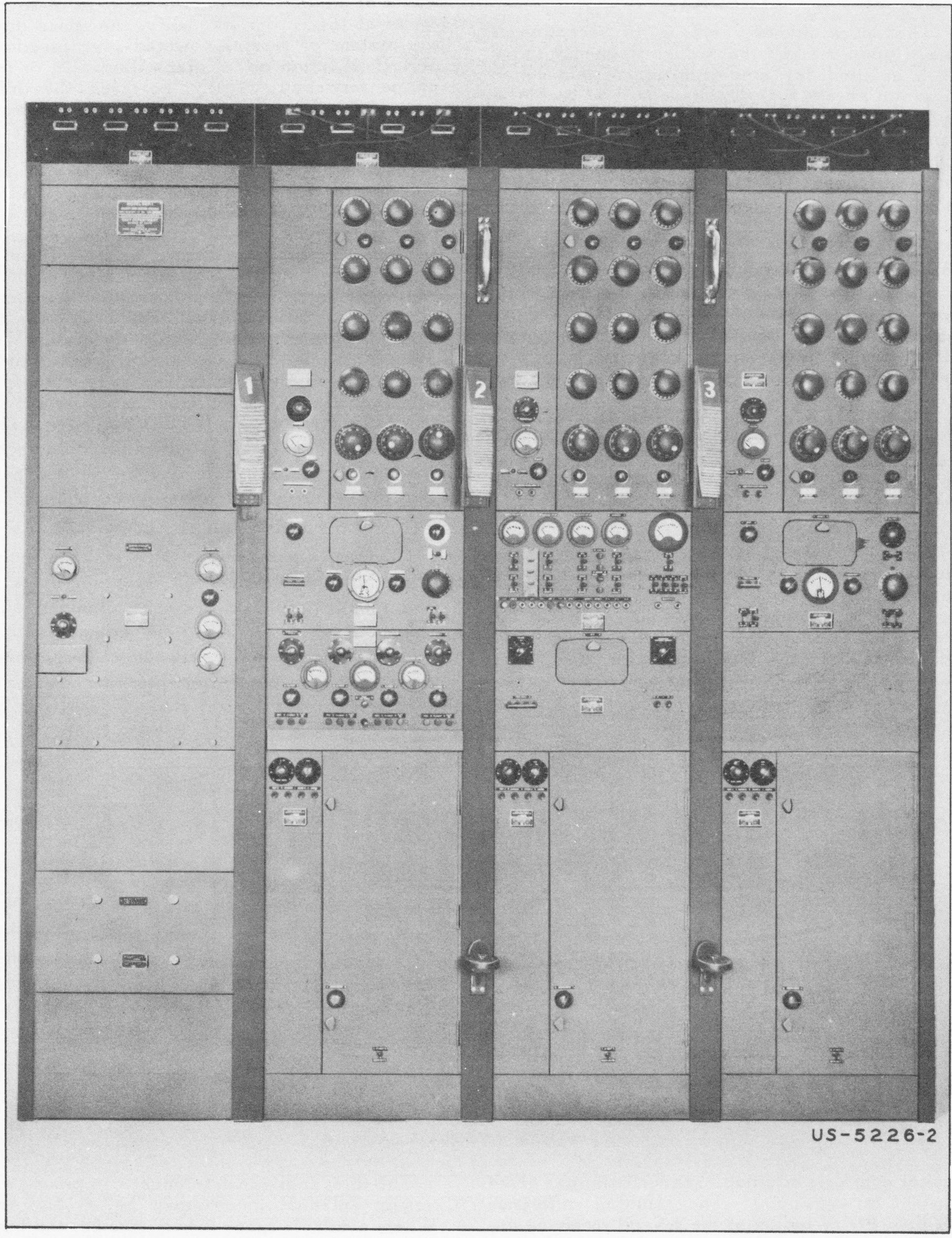

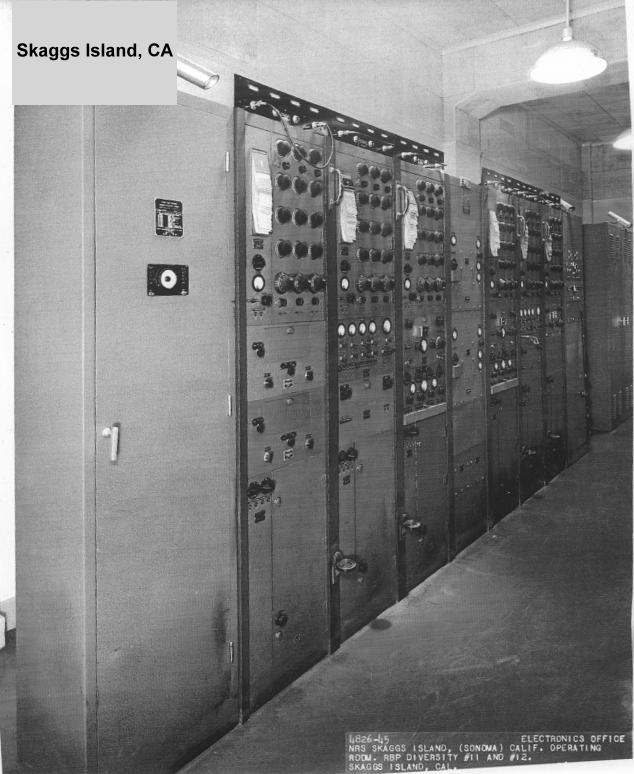

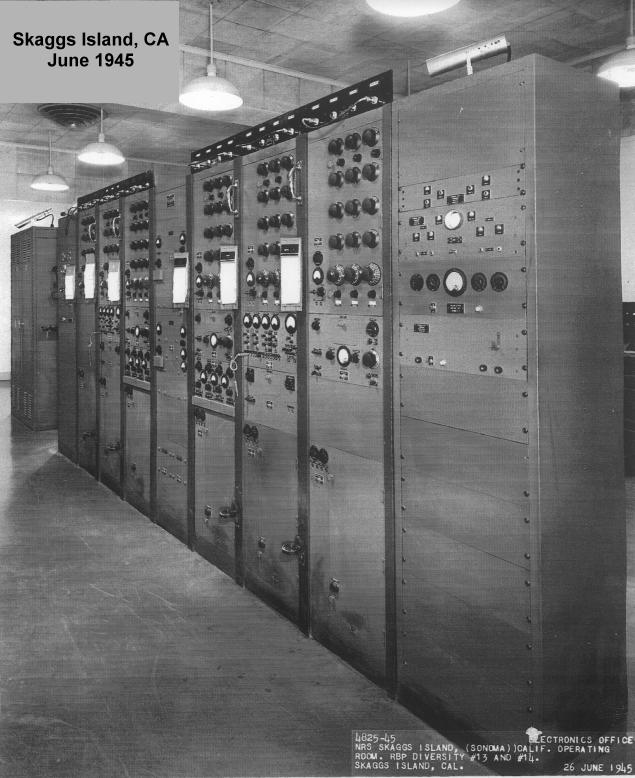

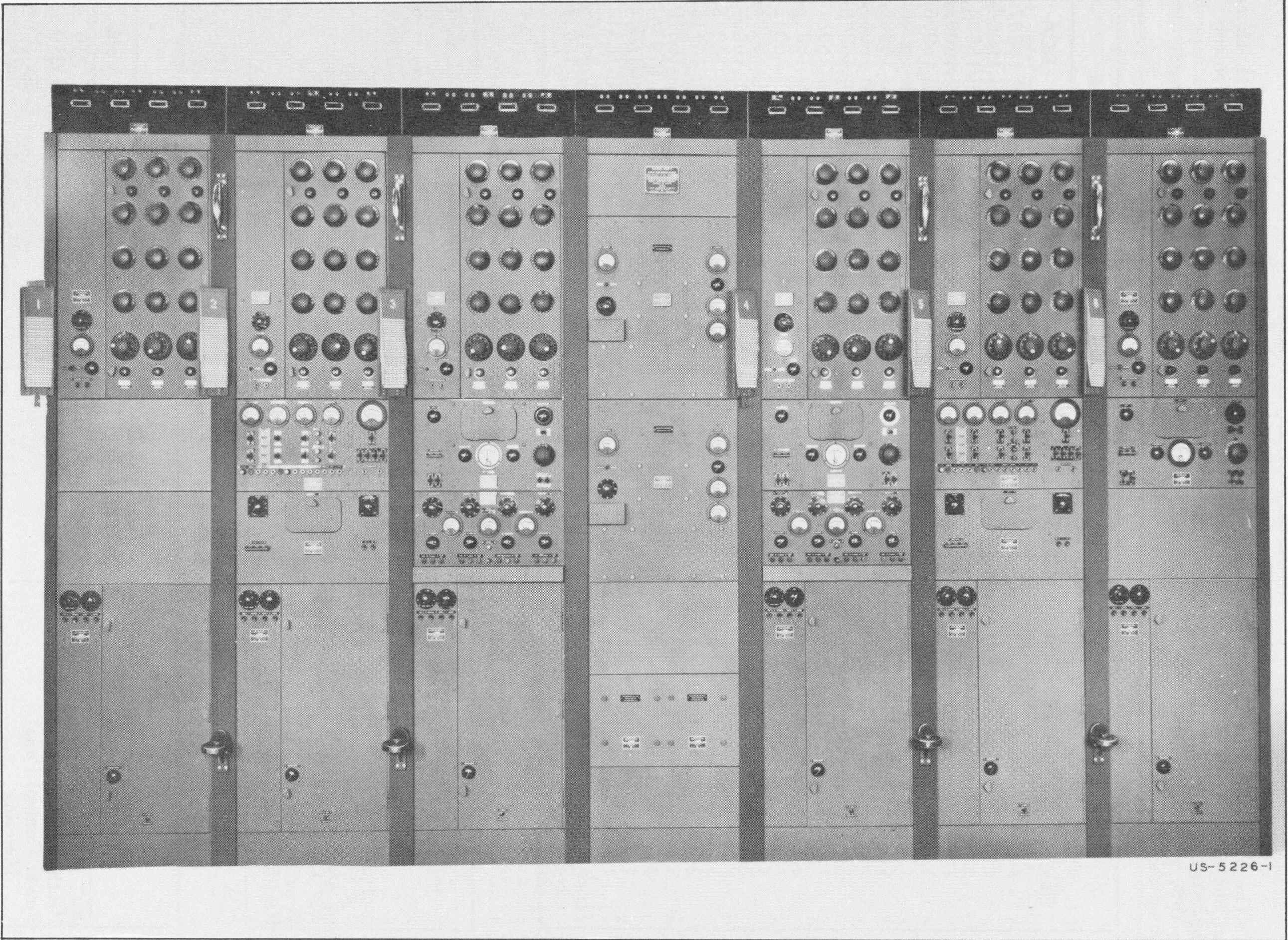

RBP-1 (6 receivers)		RCP (3 receivers)	RBP at Skaggs Island 1945
Block Diagram - 1 receiver		Spec Sheets	-
RCP rear view	RCP installation drawing	==	==

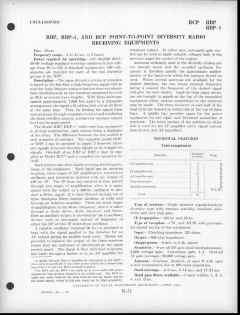

NAVSHIPS 900,478 Manual for RBP-1 & RCP-1
(thanks to AWA)

• Contents - download 1.3 MB pdf
• I. Technical Summary - Diversity Receiving System - download 8.9 MB pdf
• II. Antenna Panel CRV-23276 - download 0.4 MB pdf
• III. RF Amplifier Unit CRV-50096 - download 5.3 MB pdf
• IV. IF Amplifier Unit CRV-50097 - download 9.7 MB pdf
• V. Signal Control Panels CRV-50099, CRV-50120, CRV-50157 - download 4.4 MB pdf
• VI. Tone Keyer Unit CRV-35007 - download 2.5 MB pdf
• VII. Audio Amplifier Unit CRV-50098 - download 1.7 MB pdf
• VIII. Power Control Panel CRV-23275 - download 1.8 MB pdf
• IX. Rectifier Power Unit CRV-20136 - download 1.8 MB pdf
• X. Transformer, Voltage-regulating CSY-30815 - download MB pdf
• Schematics - download 3.1 MB pdf
• Tables I and II Parts List, Spare Parts List - download 9.5 MB pdf
• Tables III-VI Parts Lists by Type Number, Color Code, Manuf List - download 4.4 MB pdf
