Navy RBB & RBC Receivers

RBB & RBC in use at McMurdo Station 1956
Note - these are in the NT-10350 rack mount cabinets

RBB/RBC Contracts - RCA Victor Div, Radio Corp of America, Camden, N.J.
RBB Approximate Cost $2700 including equipment spares
RBC Approximate Cost $2400 including equipment spares

Contracts - . Date RBB model RBC model Power Supply
NOs-73056, (RBB, RBC) 13 April 1940 CRV-46147 CRV-46148 CRV-20130
NOs-91265, (RBB-1, RBC-1) 2 September 1941 CRV-46147 CRV-46148 or CRV-46148-B CRV-20130
NXss-17001, (RBB-2, RBC-2) 17 June 1943 CRV-46147 CRV-46148-B CRV-20130
NXsr-39262, (RBB-2, RBC-2) 3 November 1943 CRV-46147 CRV-46148-B CRV-20130
NObsr-39151, (RBC-3) - [what about RBB-3?] 28 April 1947 CRV-46147 CRV-46148-C CRV-20130-B
NObsr-43335, (RBB-2a, RBC-3a) 15 June 1949 CRV-46147(MOD) CRV-46148-C(MOD) CRV-20130-B(MOD)
NObsr-39340, (RBB-4, RBC-4) rack mounted 30 June 1947 CRV-46147 CRV-46297 CRV-20130-B

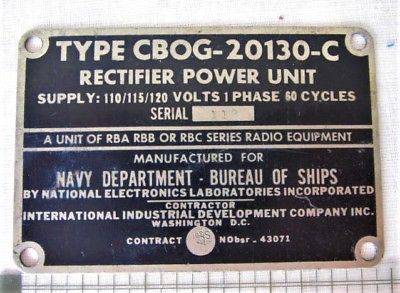

NObsr-43071 ? ? ? CBOG-20130-C
NObsr-52028, (RBB-5, RBC-5). 25 September 1950 CRV-46147-D CRV-46148-D CRV-20130-B
NObsr-52028, (RBB-6, RBC-6) rack mounted 25 September 1950 CRV-46296-A CRV-46297-A CRV-20130-B

RBB & RBC Spec Sheets

Additional RBB & RBC Spec Sheets


RBB-1 & RBC-1 Manual - Thanks to Ben Hall

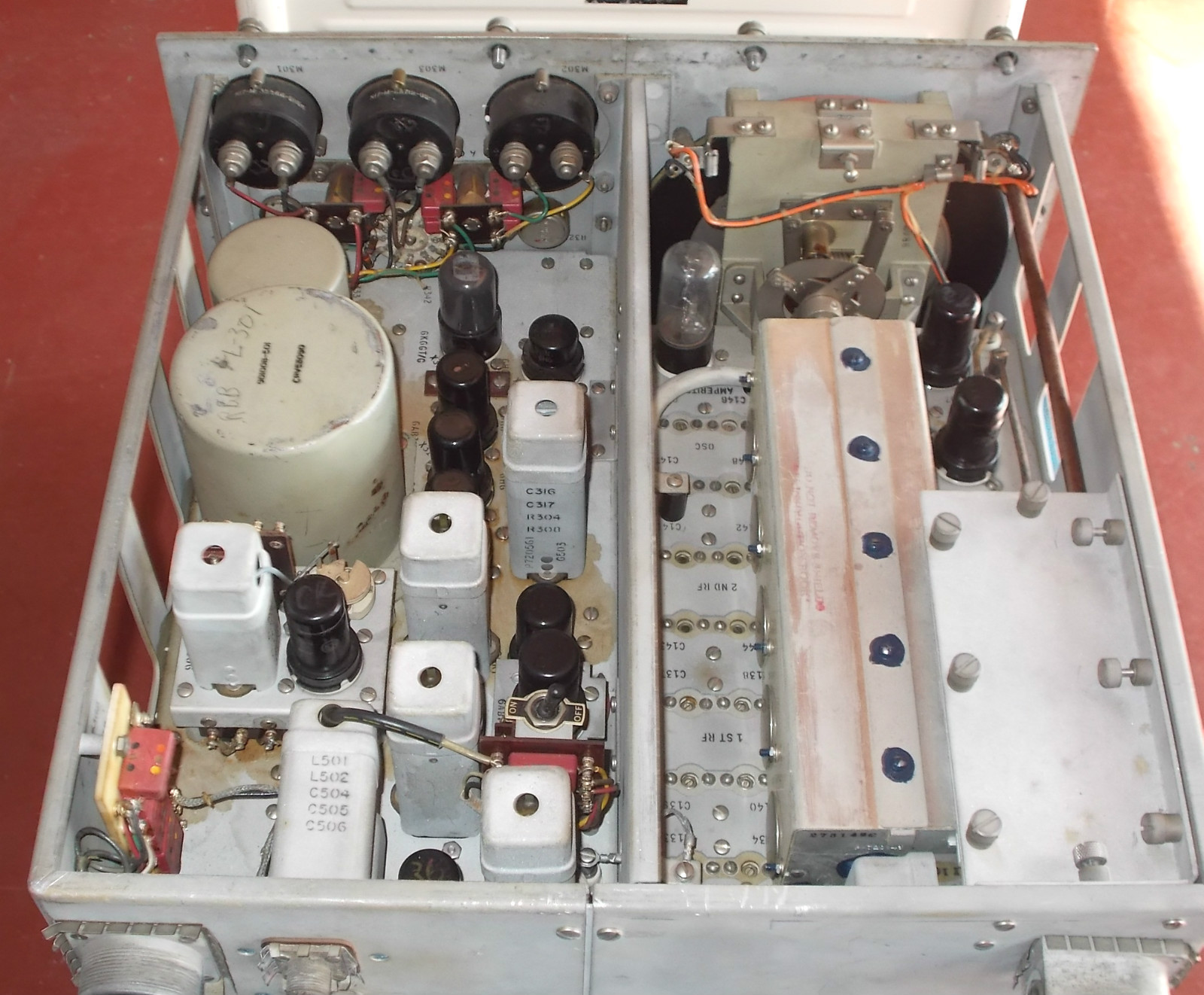

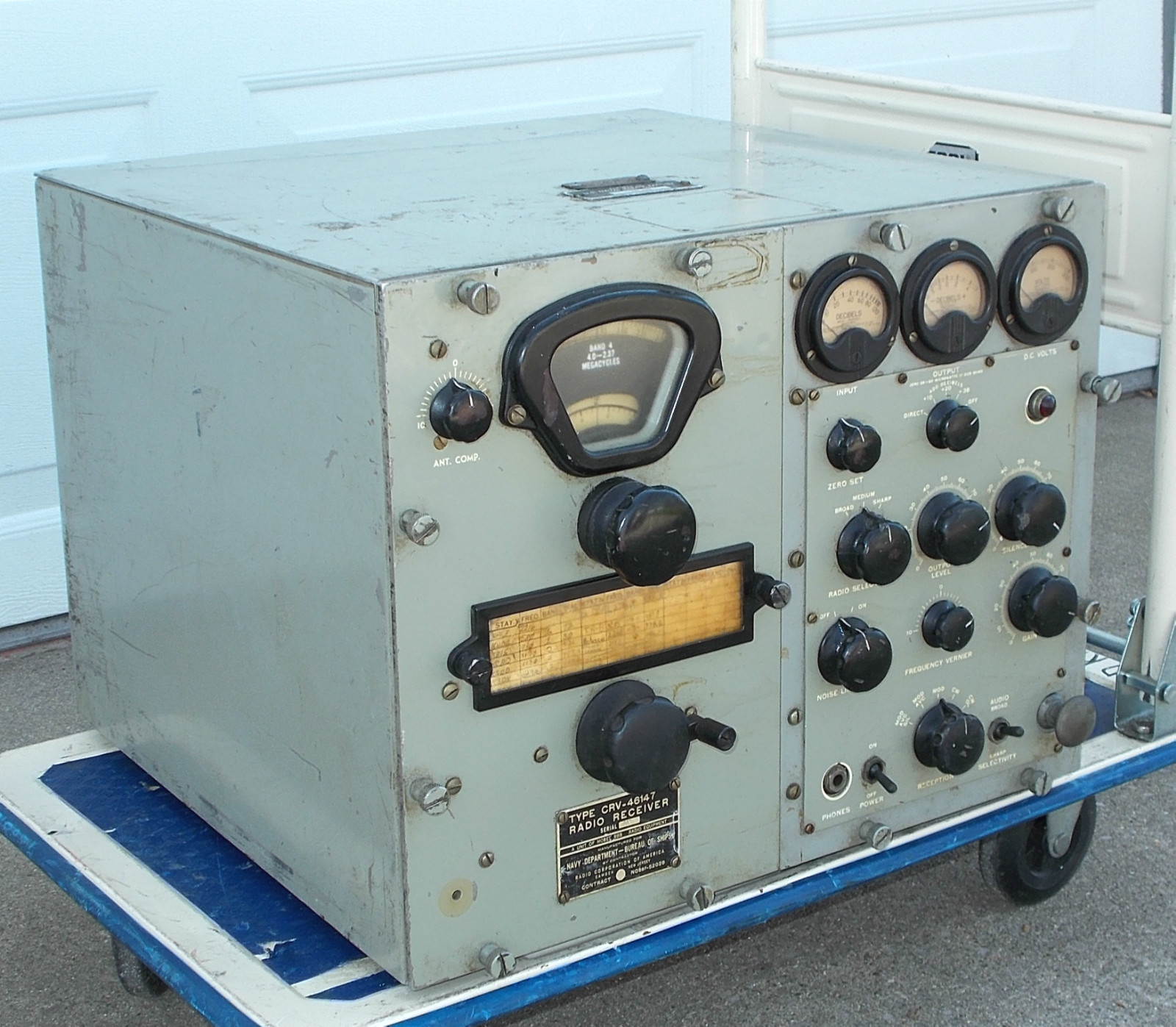

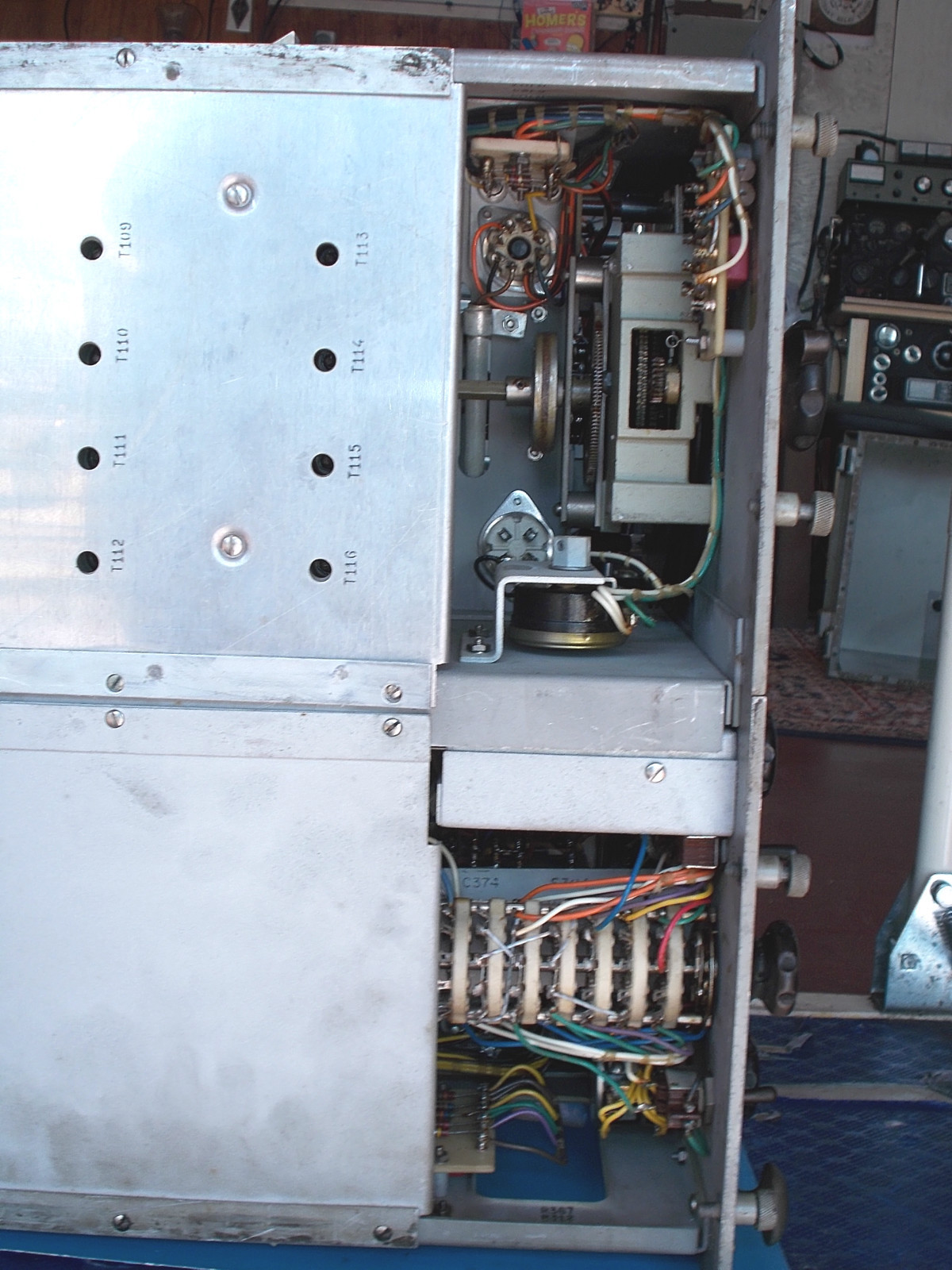

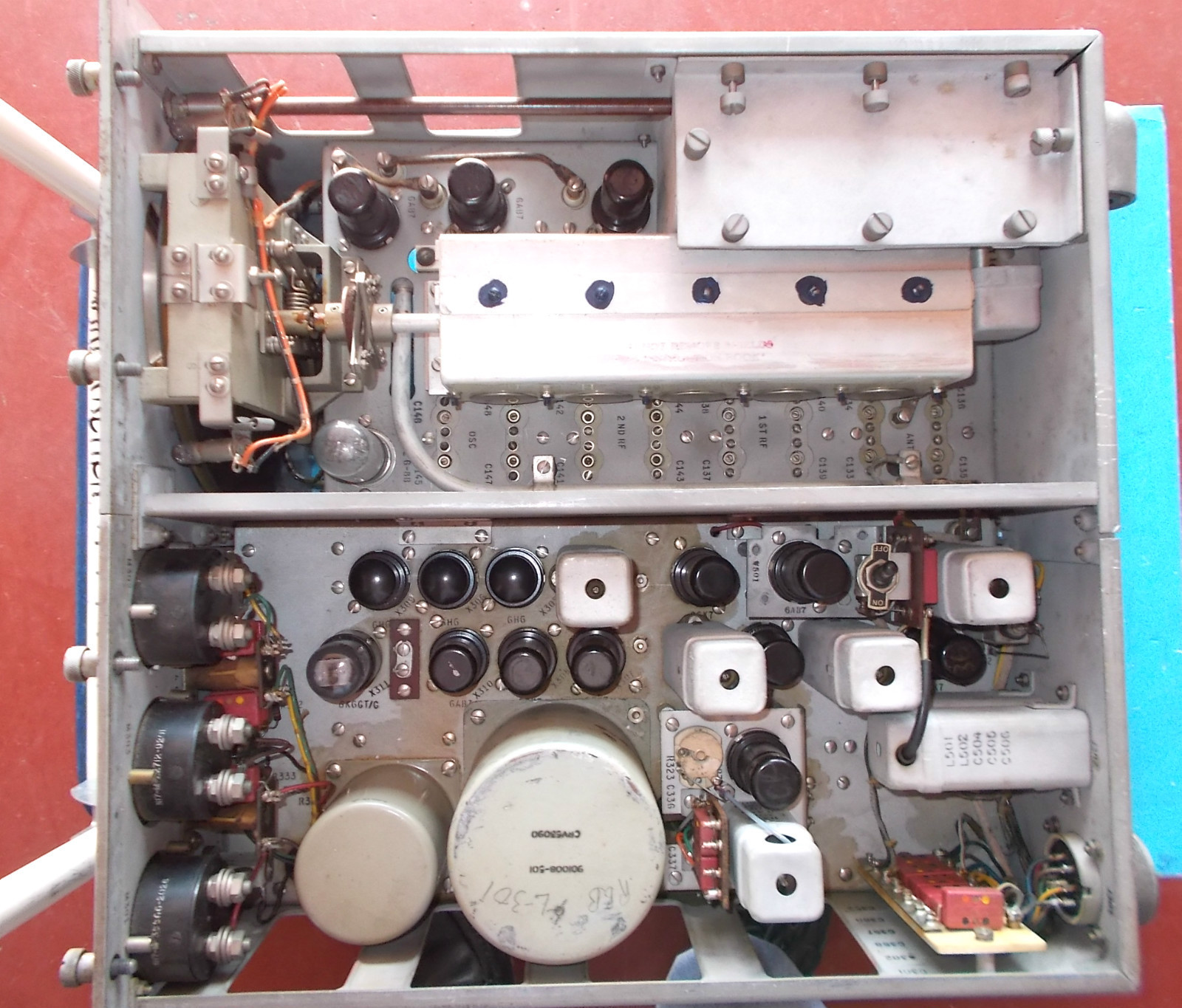

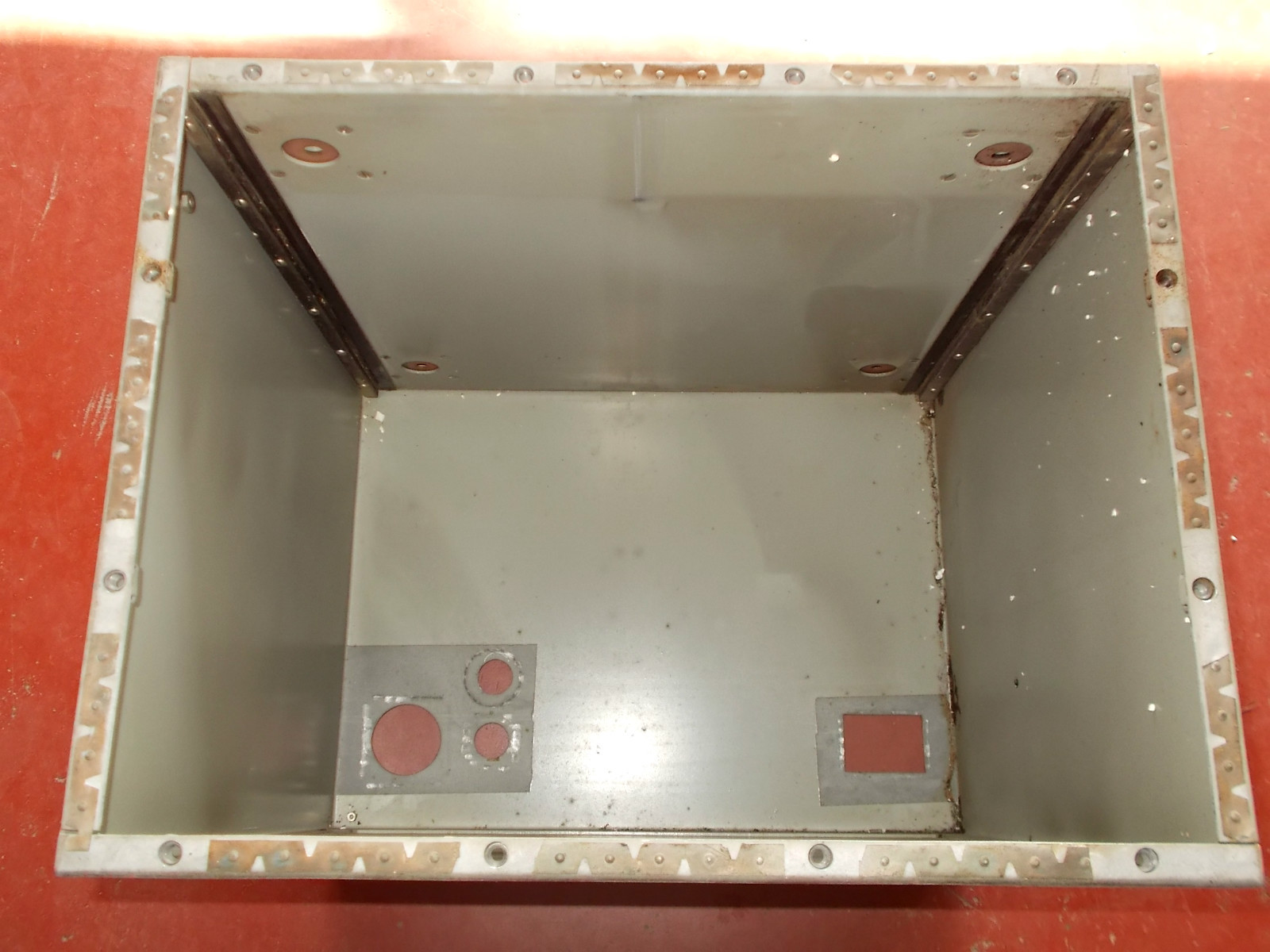

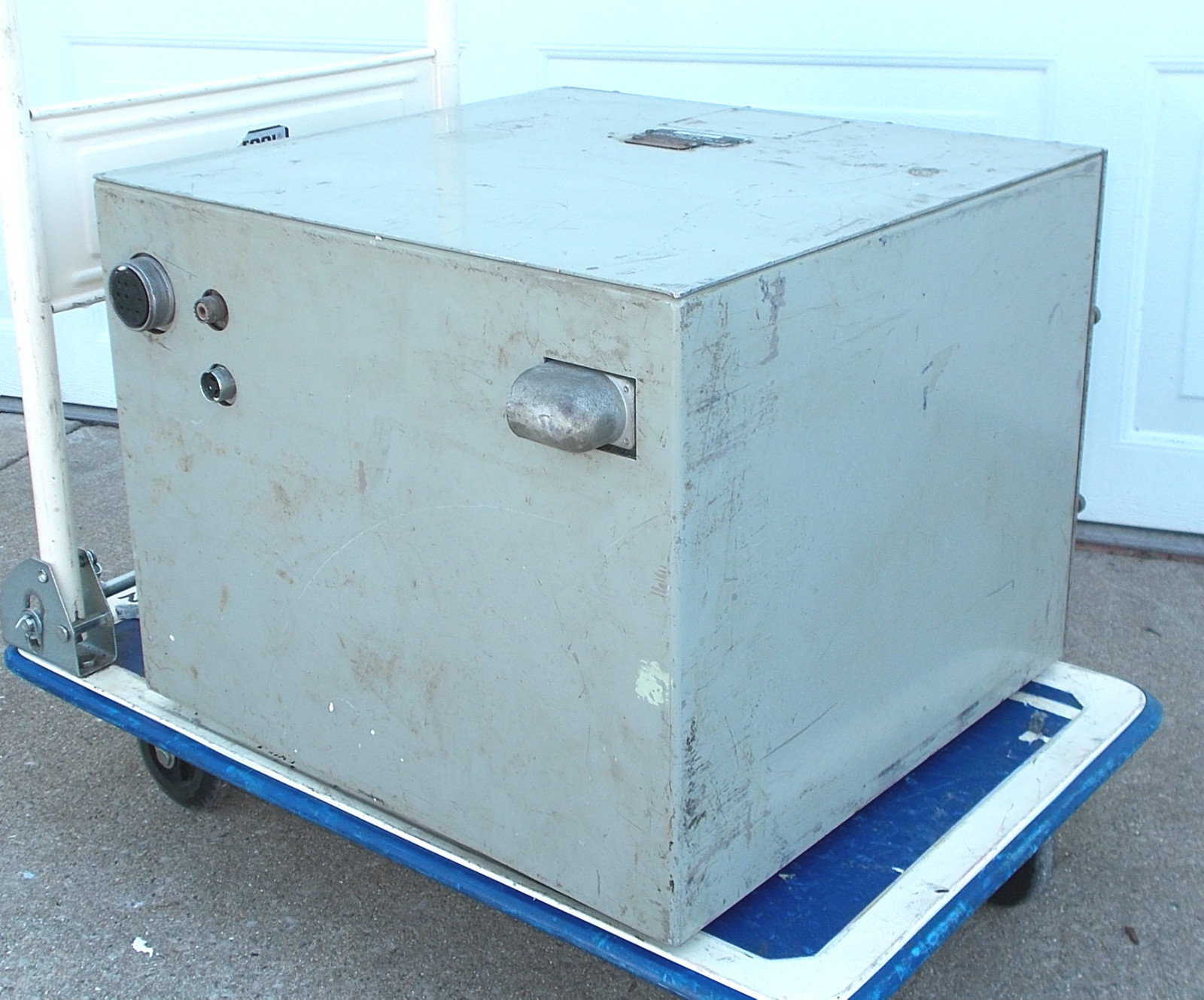

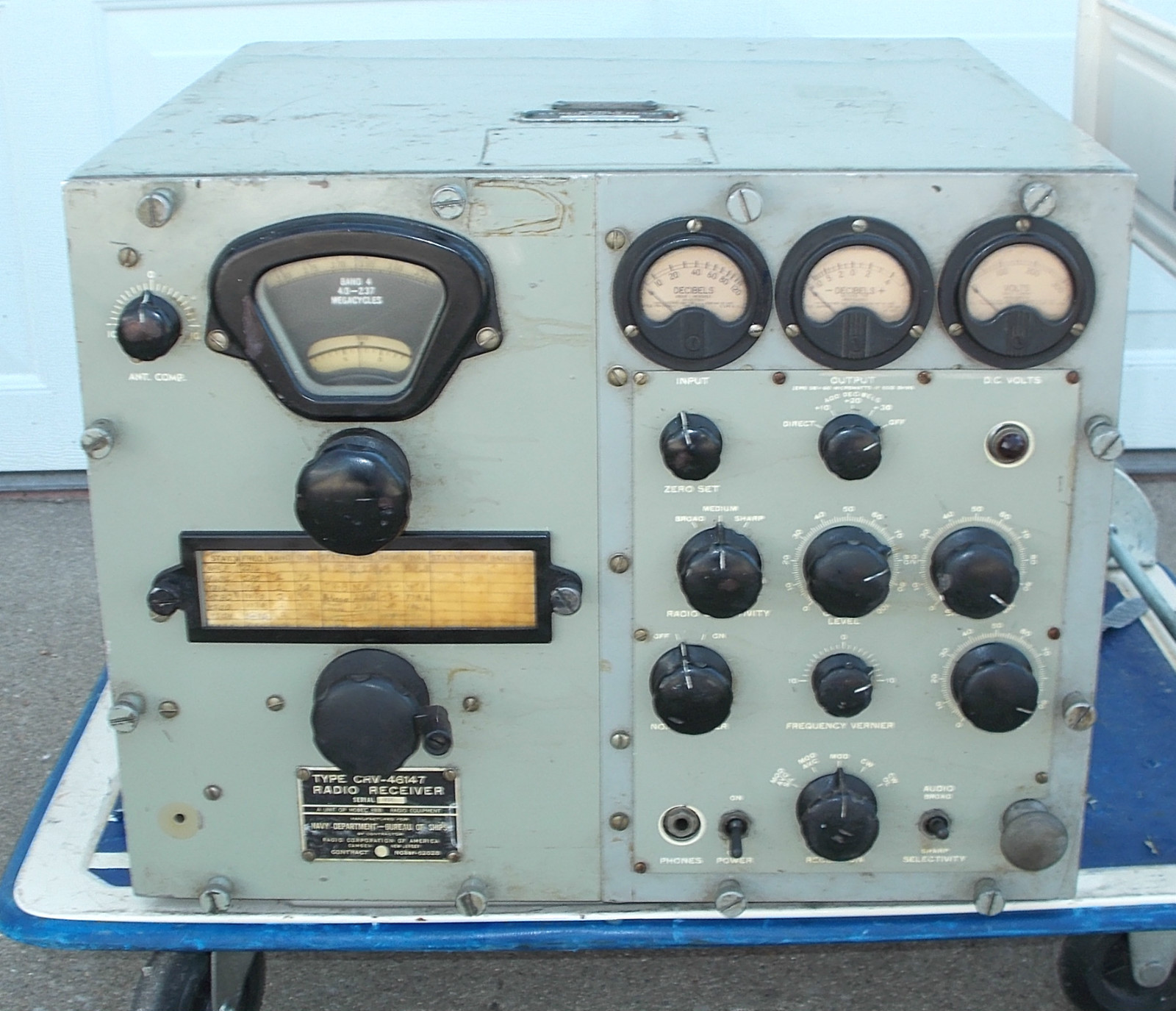

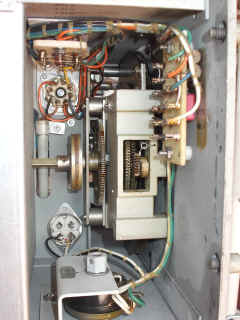

RBB (CRV-46147)

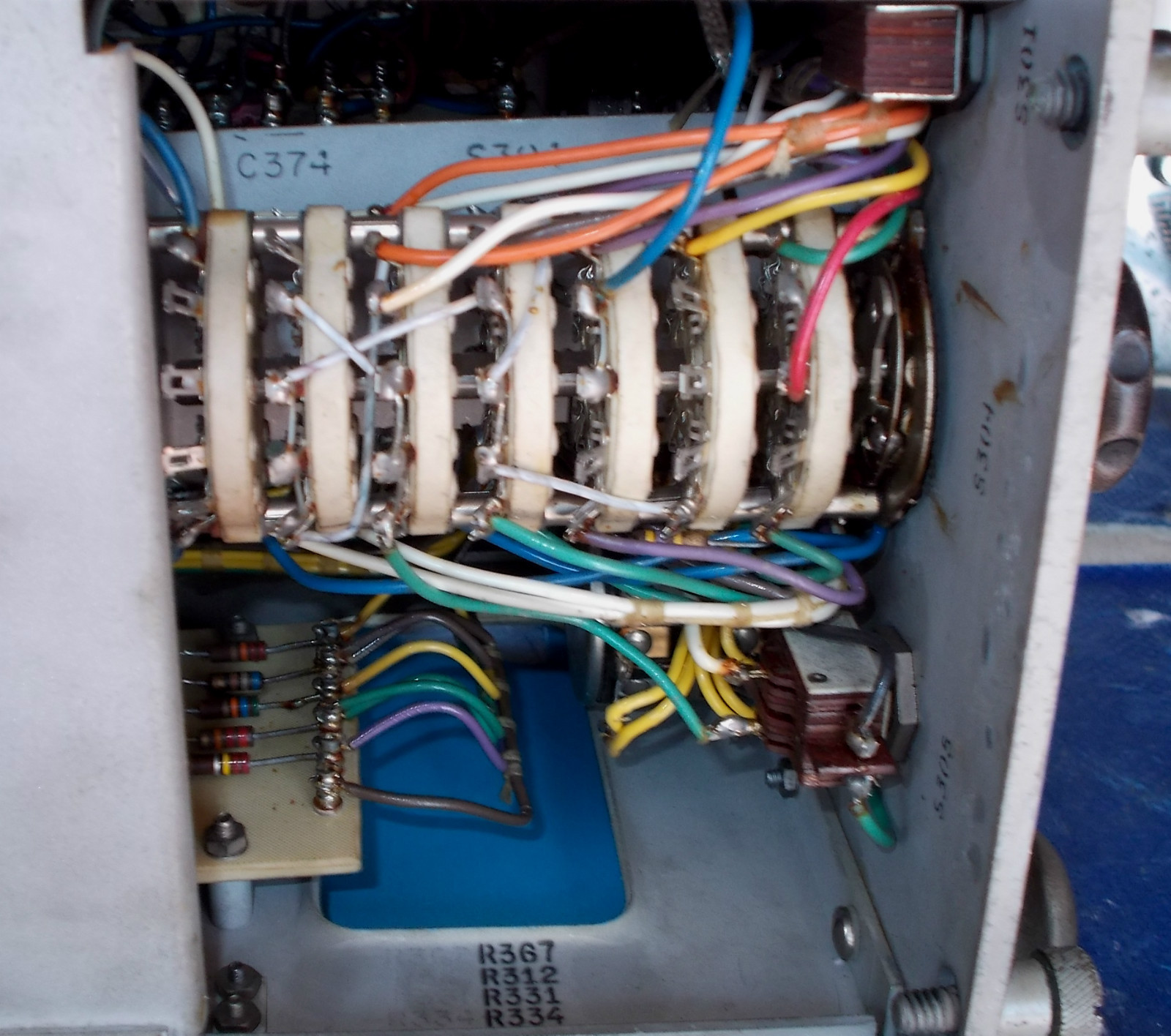

rbb-1305-05.JPG (508162 bytes) rbb-1305-06.JPG (438313 bytes) rbb-1305-08.JPG (445828 bytes) rbb-1305-11.JPG (375912 bytes)

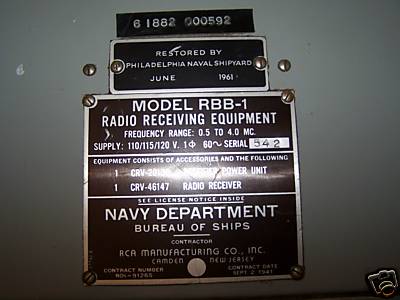

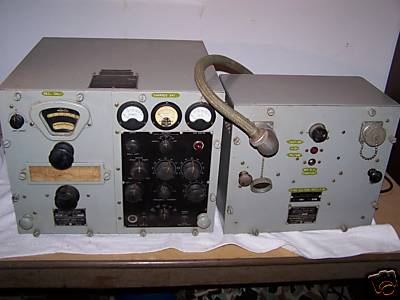

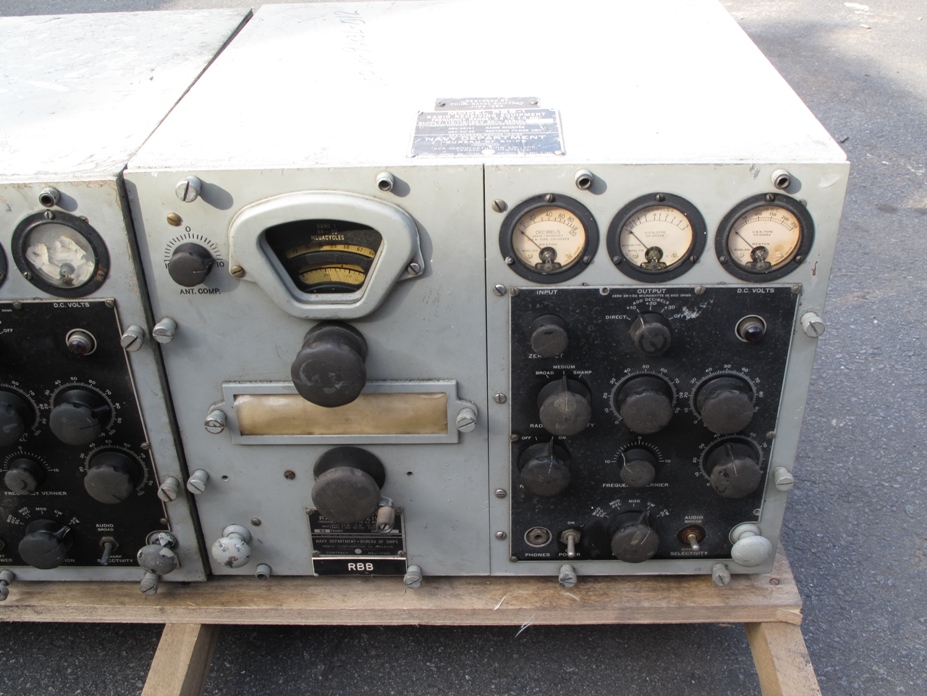

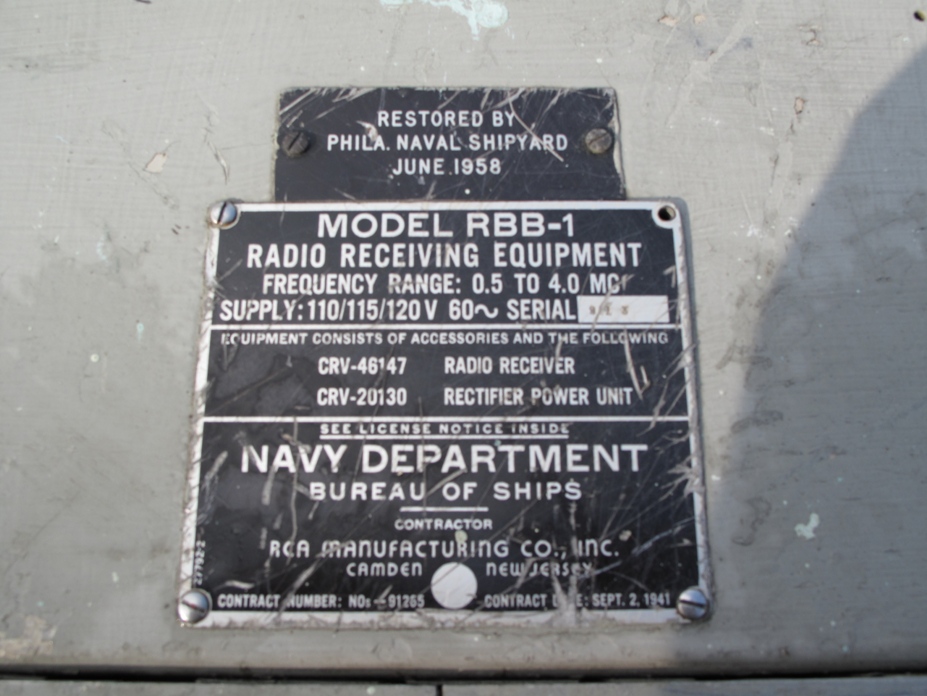

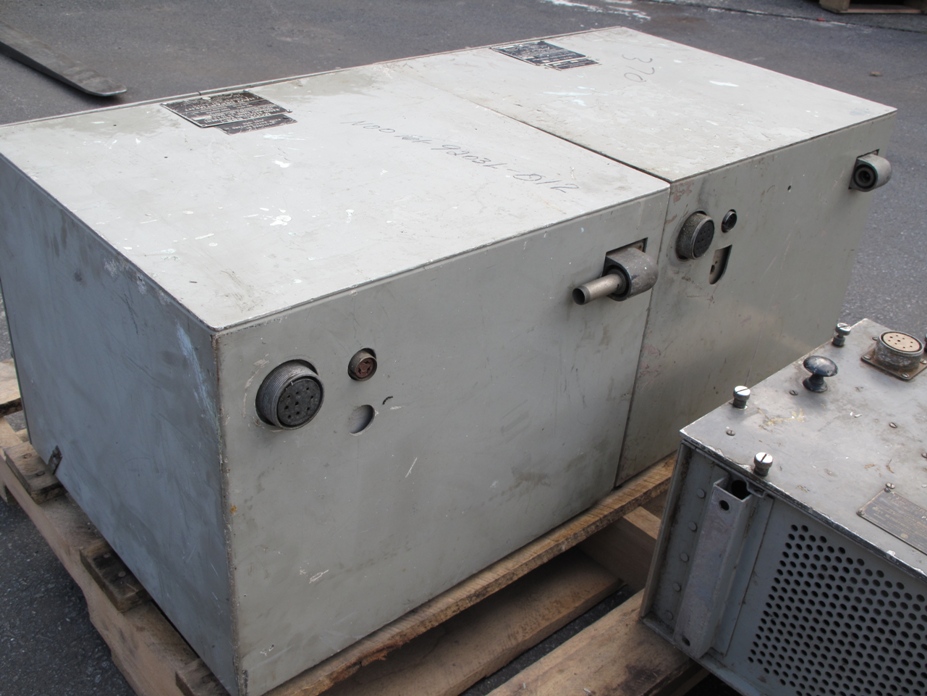

RBB-1 (CRV-46147)

rbb1-1200.jpg (281139 bytes) rbb1-1201.jpg (235744 bytes) rbb1-1202.jpg (243809 bytes) rbb1-1203.jpg (195907 bytes)

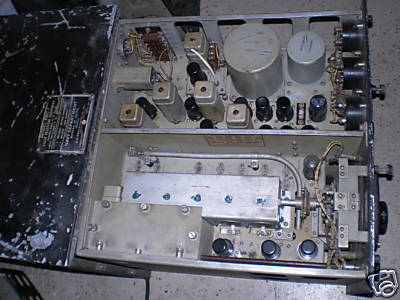

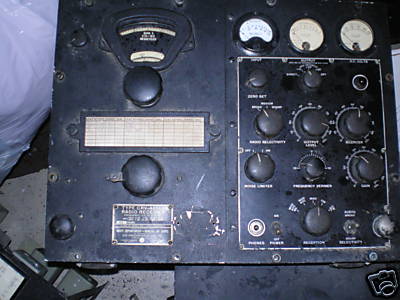

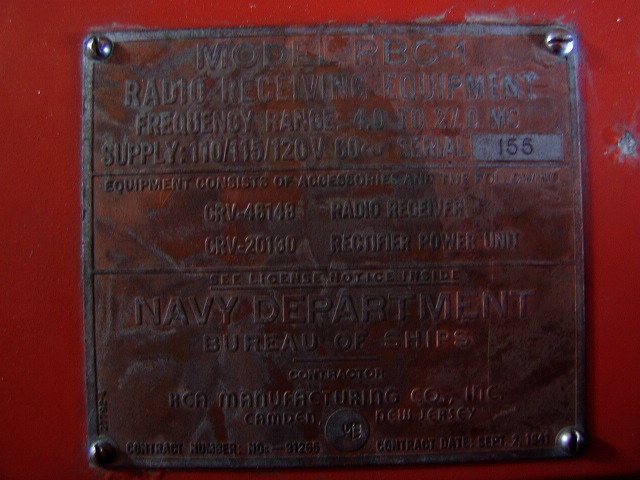

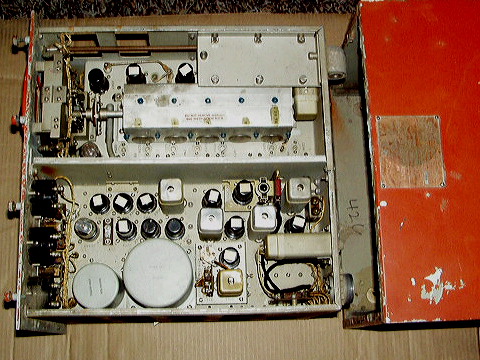

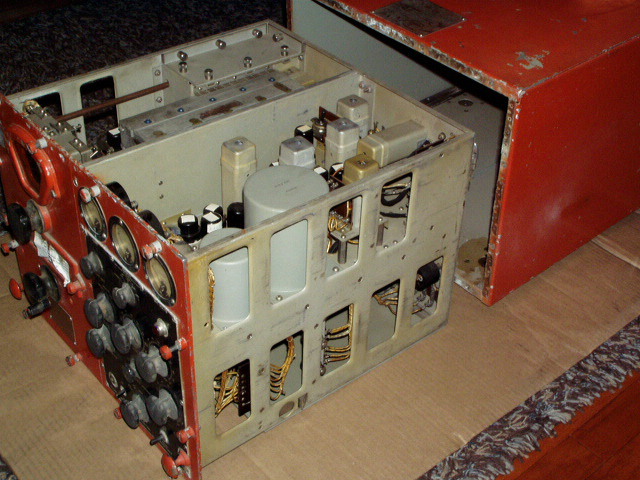

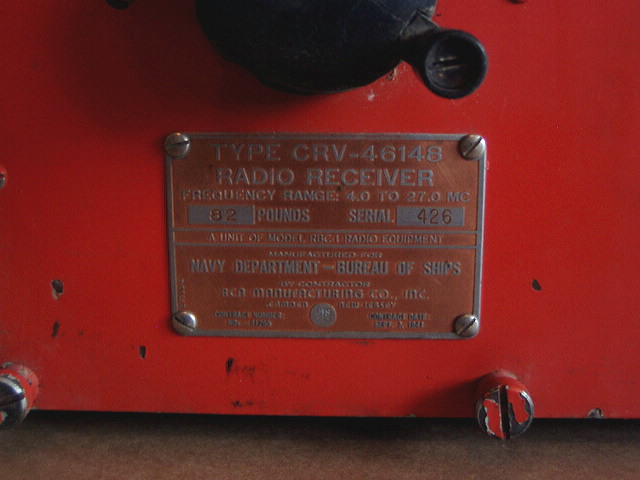

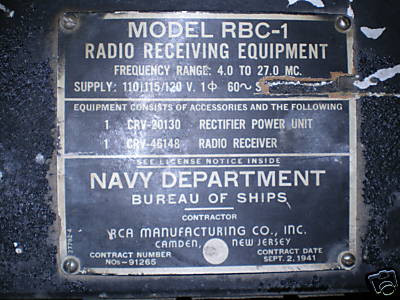

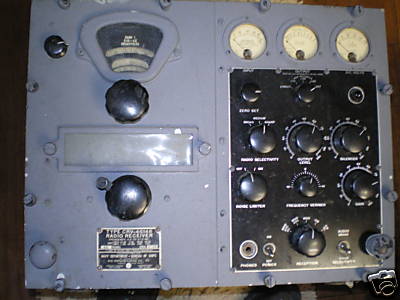

RBC-1 (CRV-46148)

RBC-1 (CRV-46148)

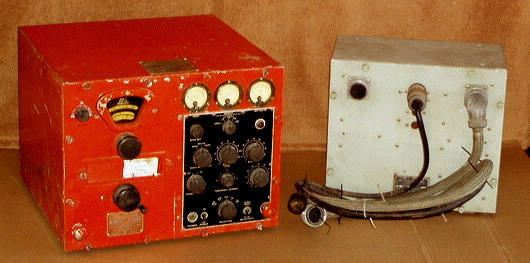

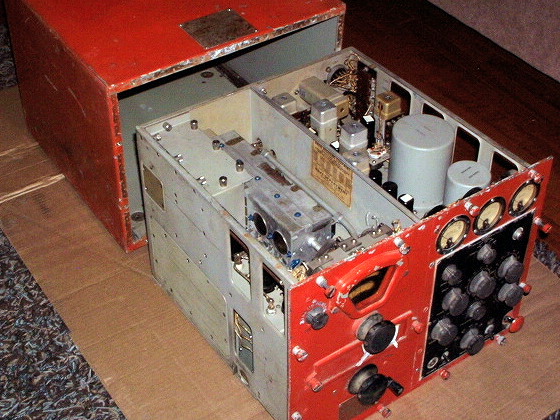

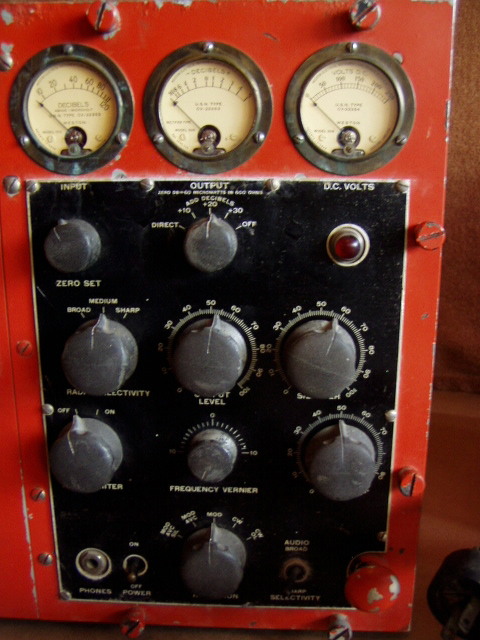

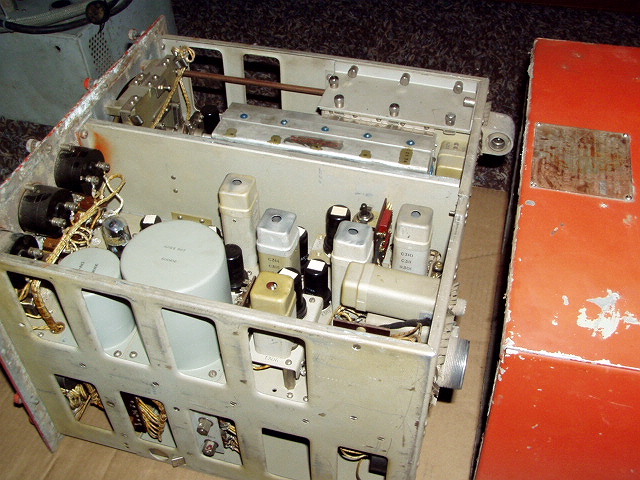

RBC-1 (not original paint!)








rbc1-212.jpg (105821 bytes) rbc1-218.jpg (125338 bytes) rbc1-219.jpg (129623 bytes) rbc1-220.jpg (102618 bytes)

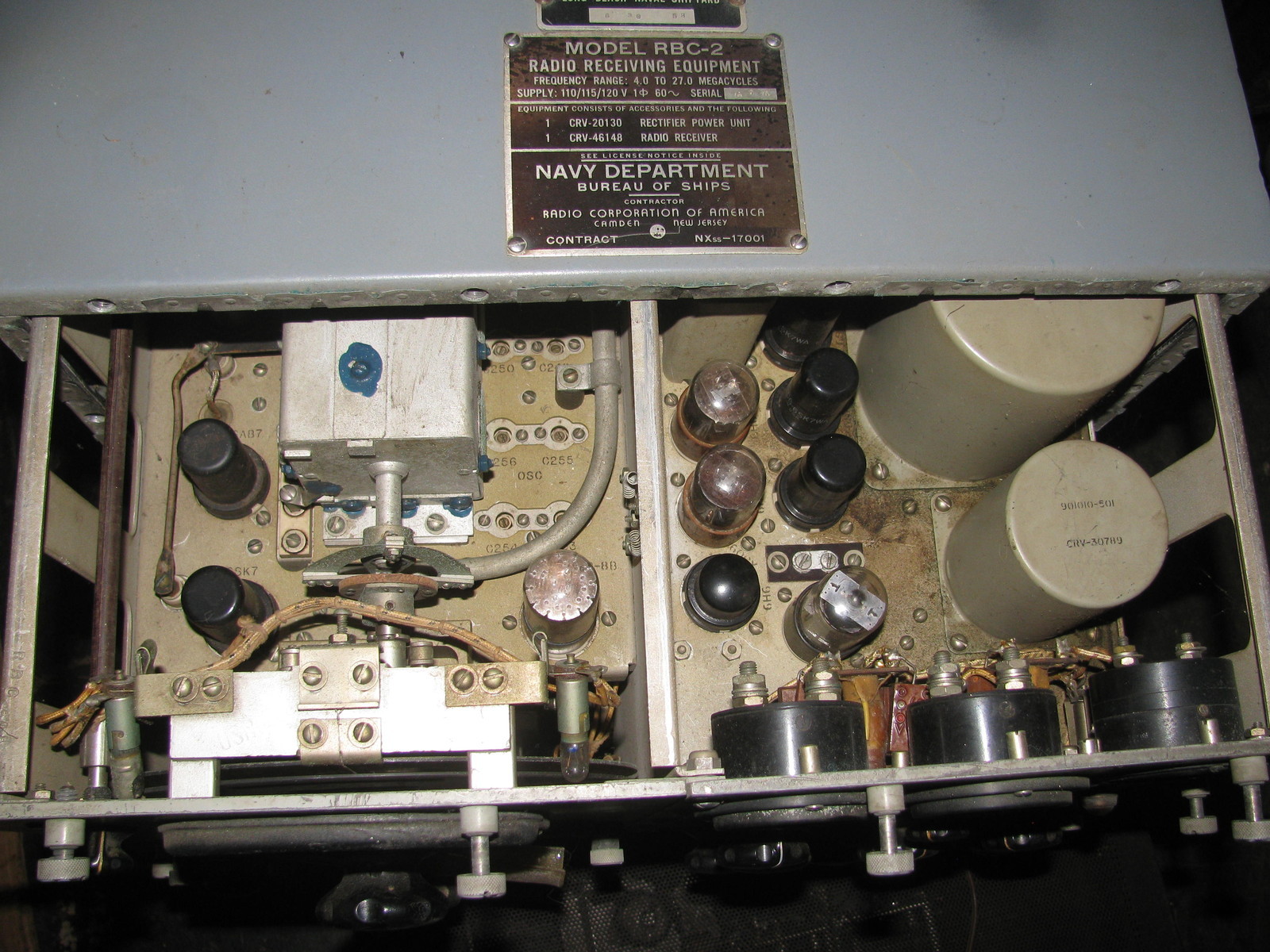

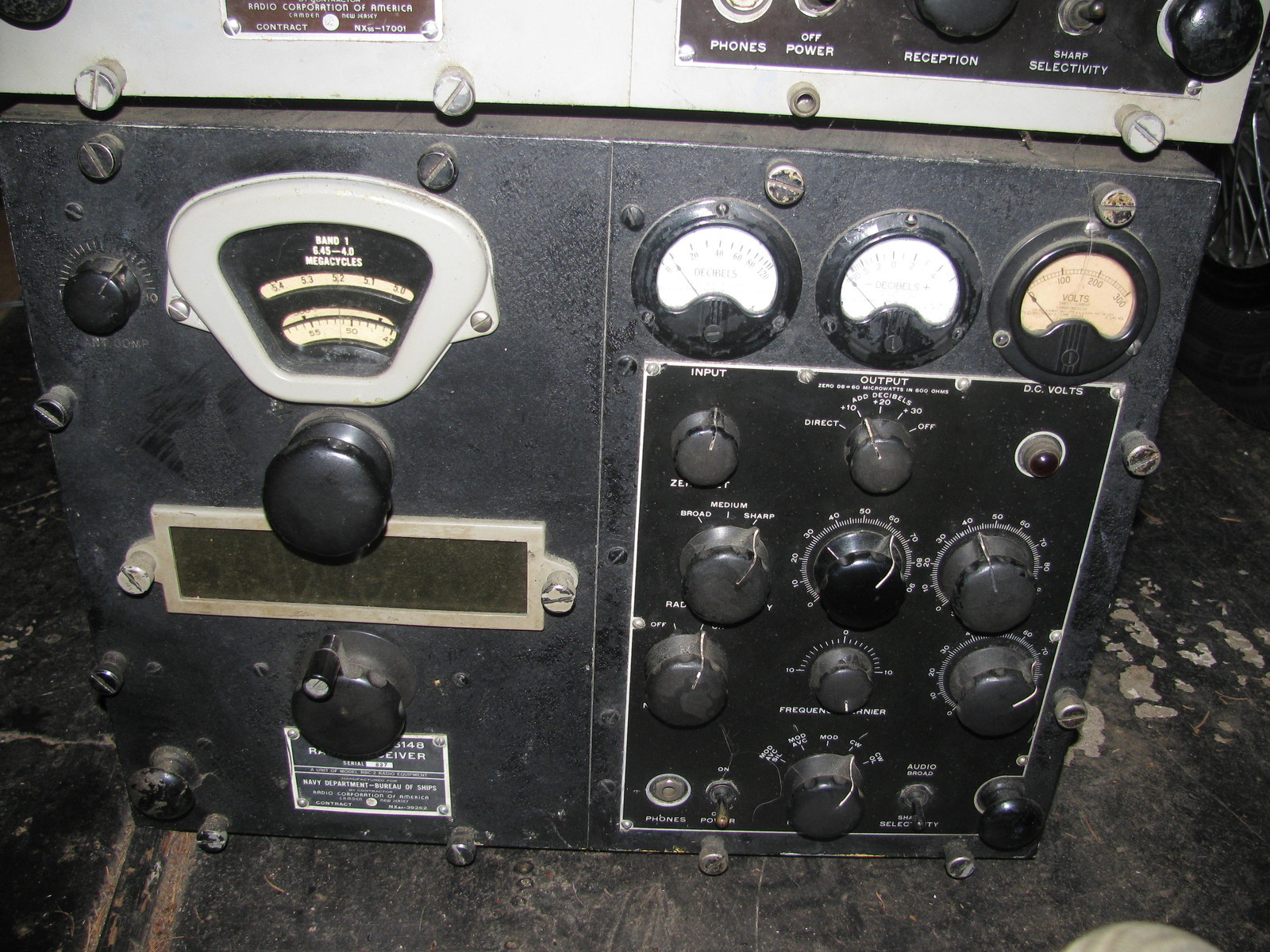

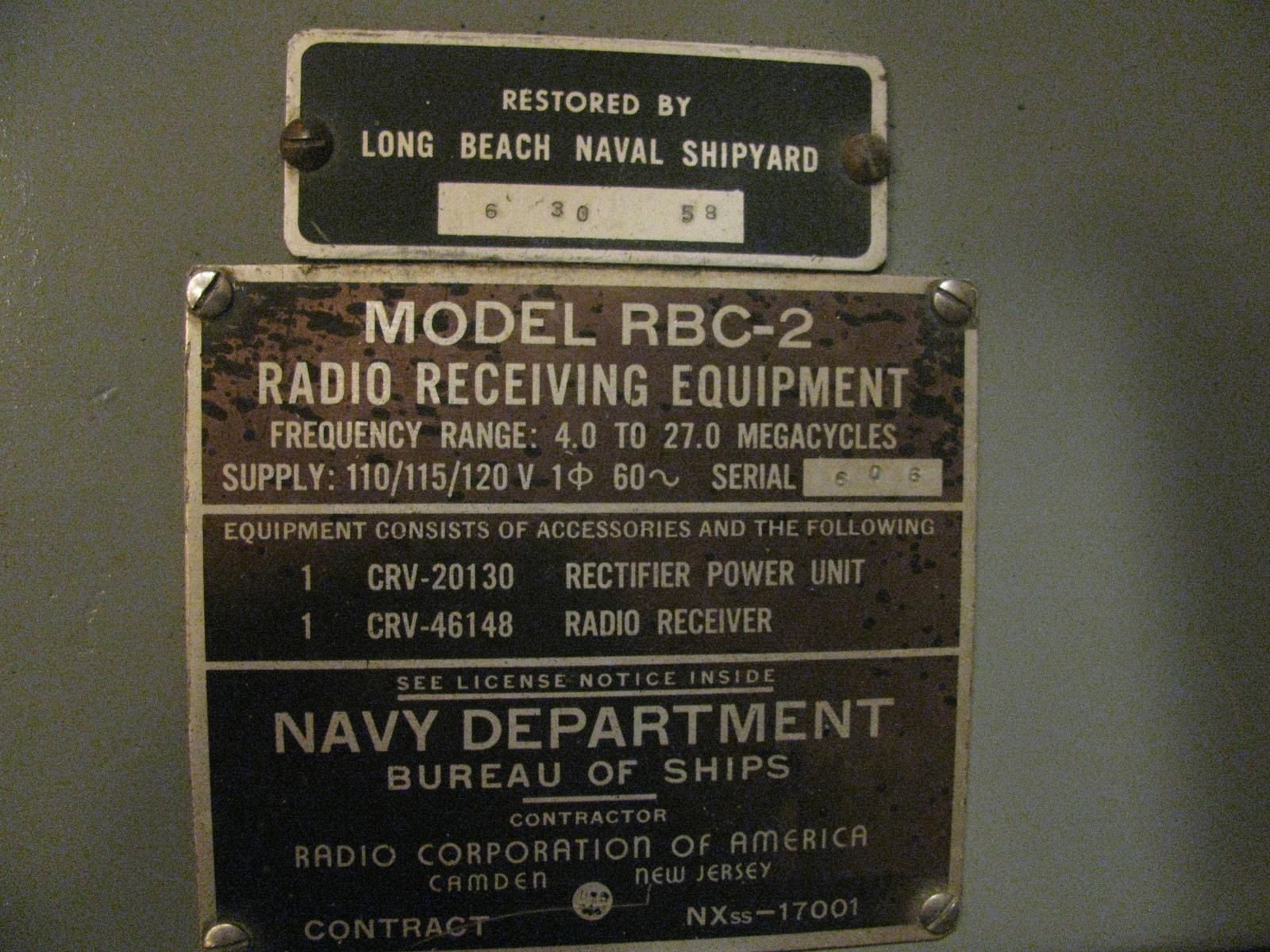

RBC-2 (CRV-46148)

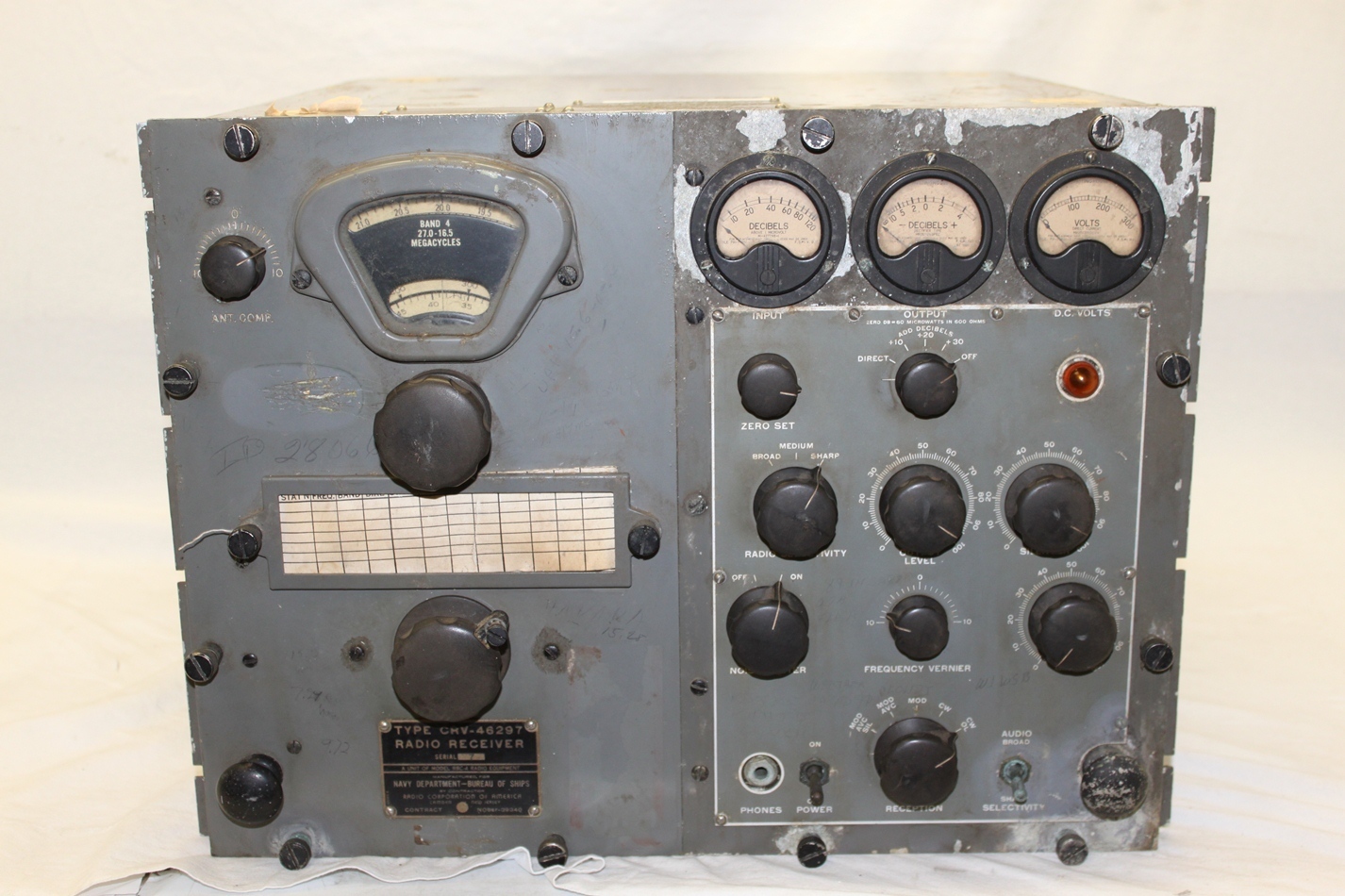

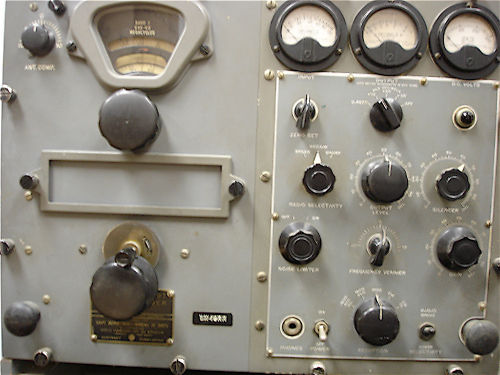

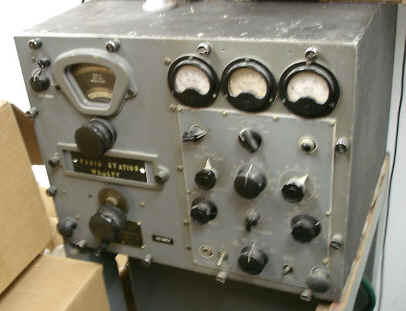

RBC-4 (CRV-46297)

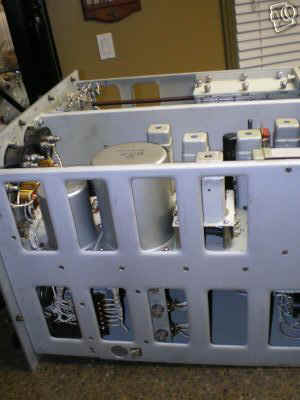

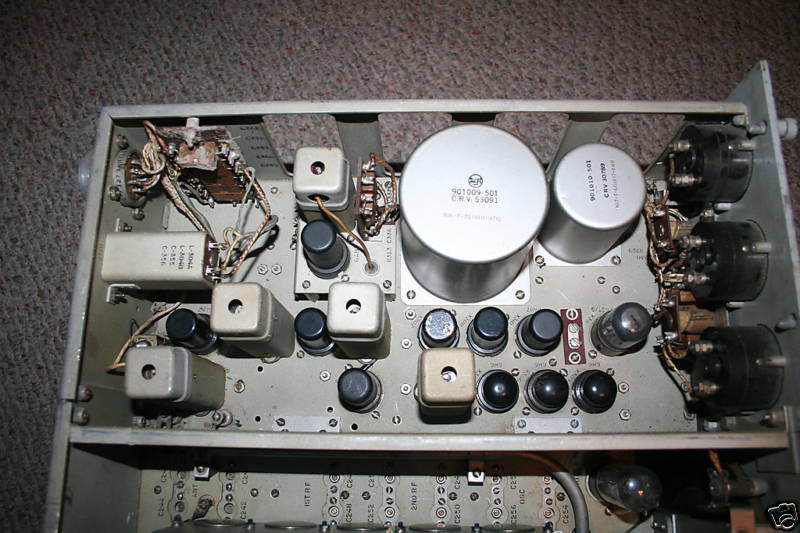

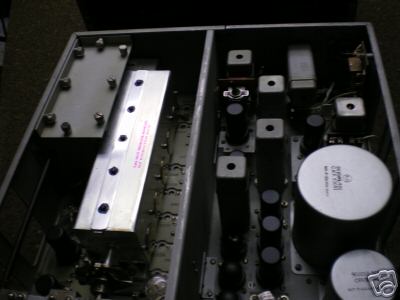

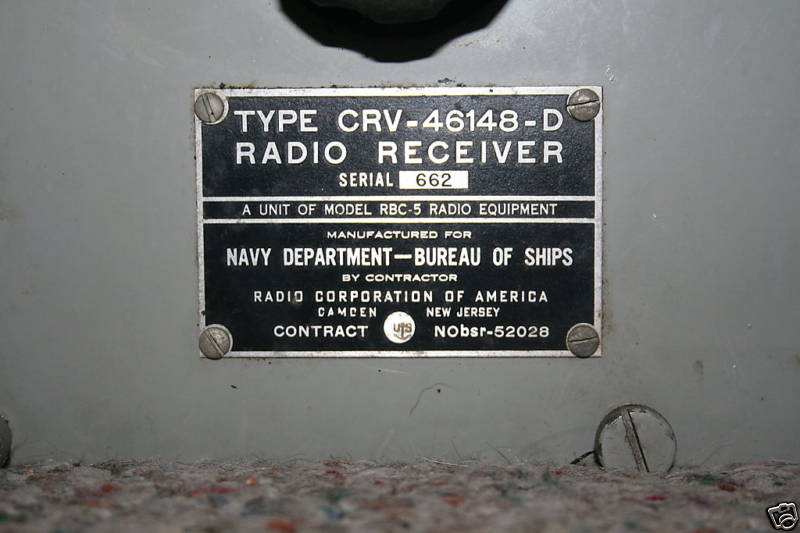

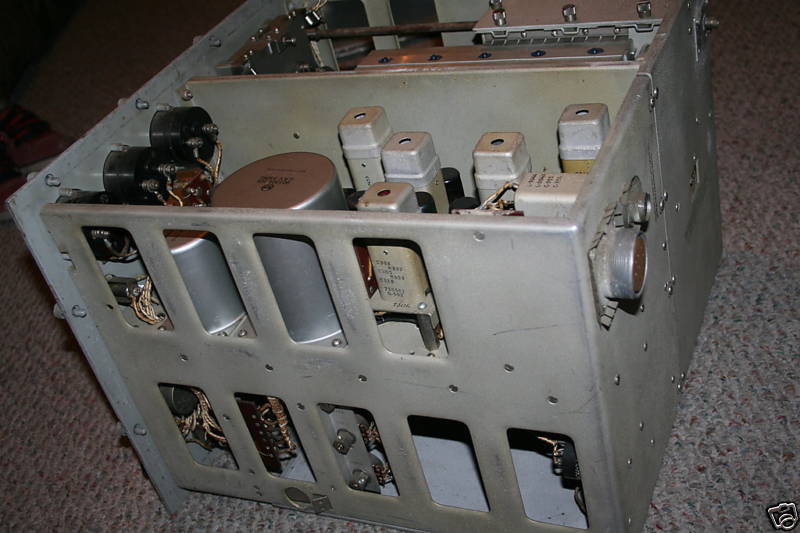

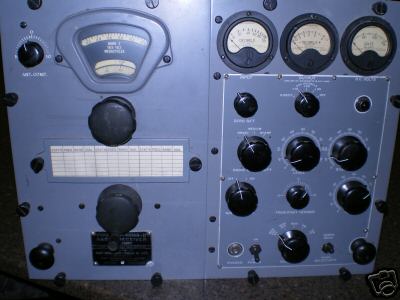

RBC-5 (CRV-46148-D)


rbc5-05.jpg (12501 bytes) rbc5-07.jpg (13665 bytes) rbc5-08.jpg (17631 bytes) rbc4-1211.jpg (472412 bytes)

RBC-5 (CRV-46148-D)

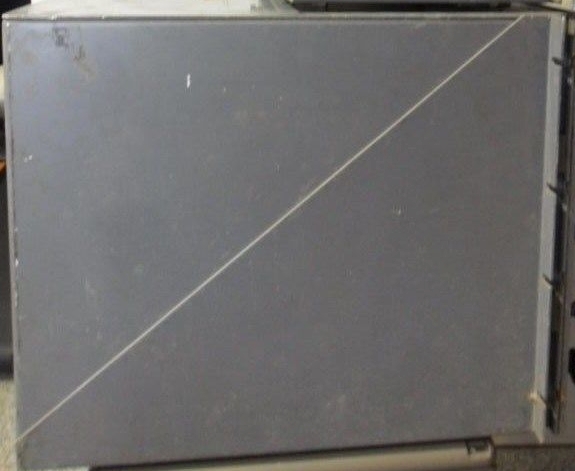

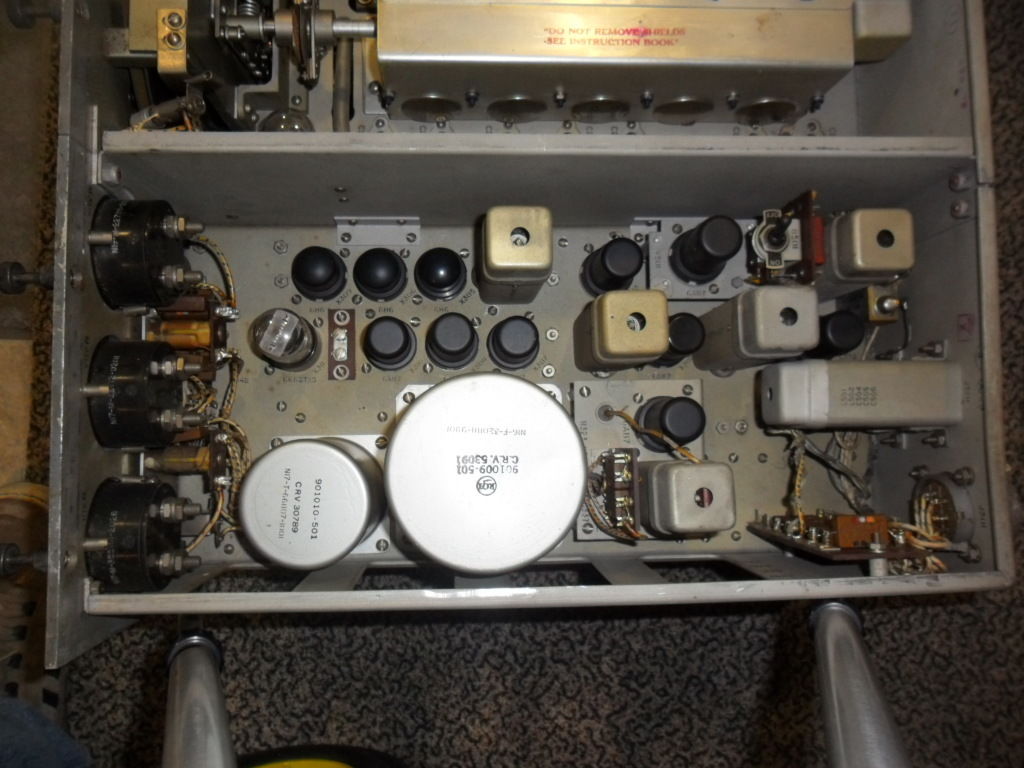

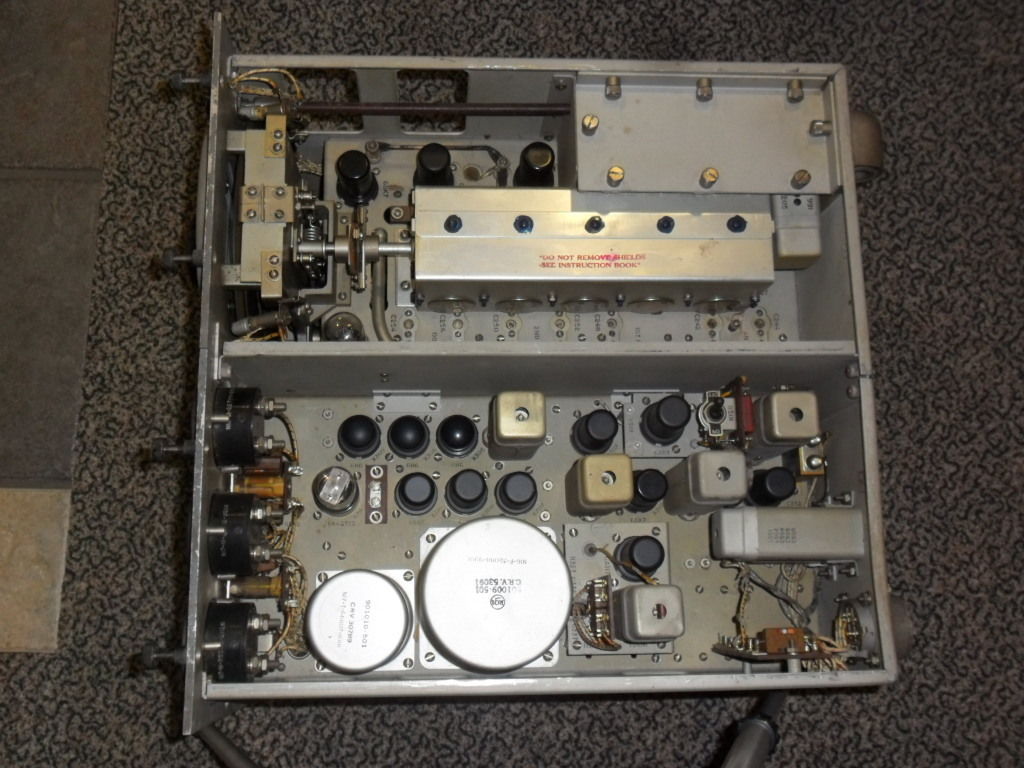

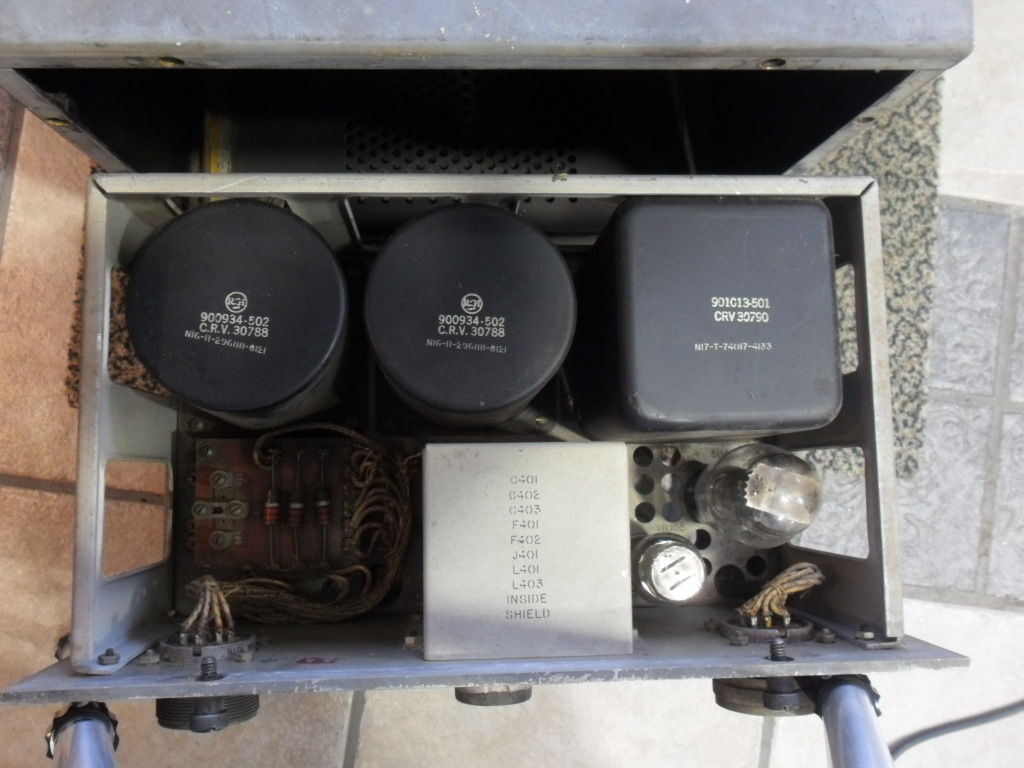

RBC-6 (CRV-46297-A)

rbc6-1504-01.JPG (99063 bytes) rbc6-1504-03.JPG (132354 bytes) rbc6-1504-04.JPG (111848 bytes) rbc6-1504-09.JPG (49579 bytes)

Rack Mount Cabinets - RBB-4, RBC-4. RBB-6, RBC-6 were delivered in rack mount cabinets.

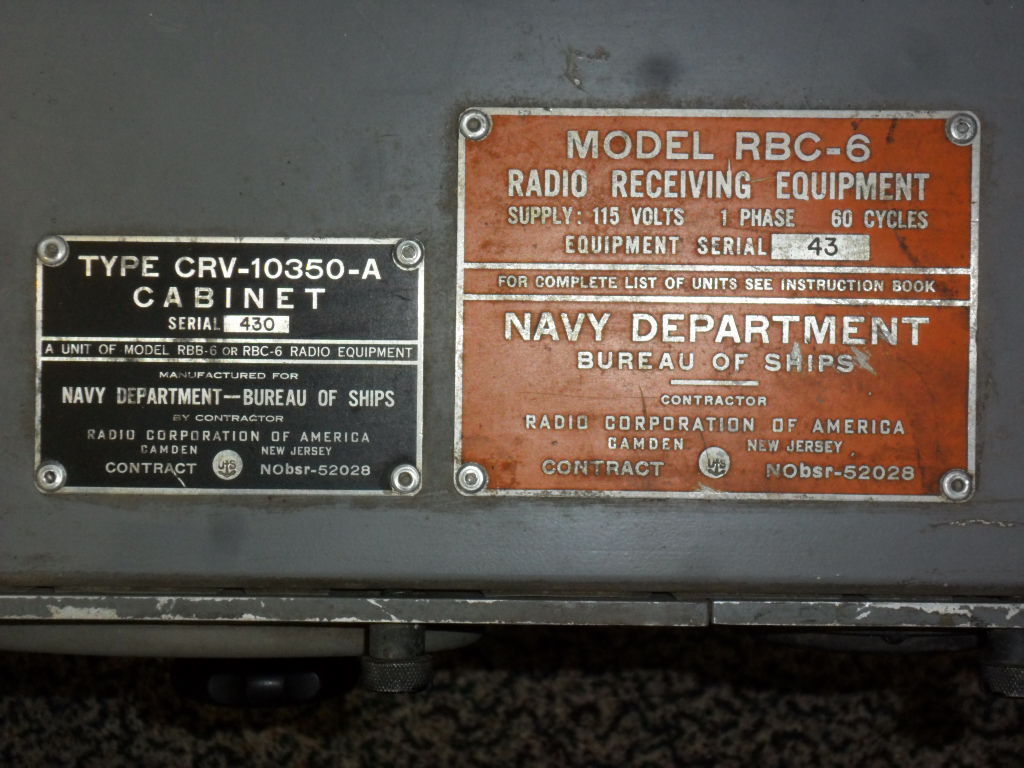

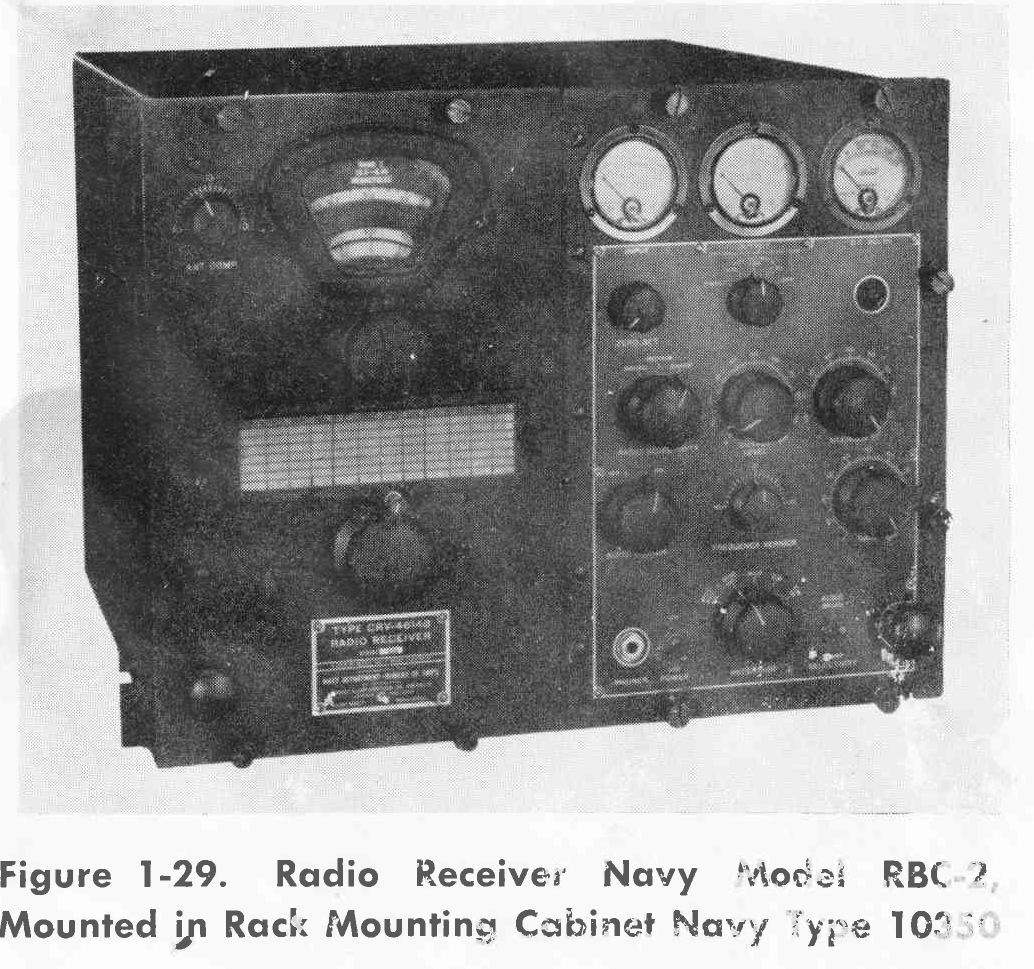

CRV-10350-A Rack Mount Cabinet

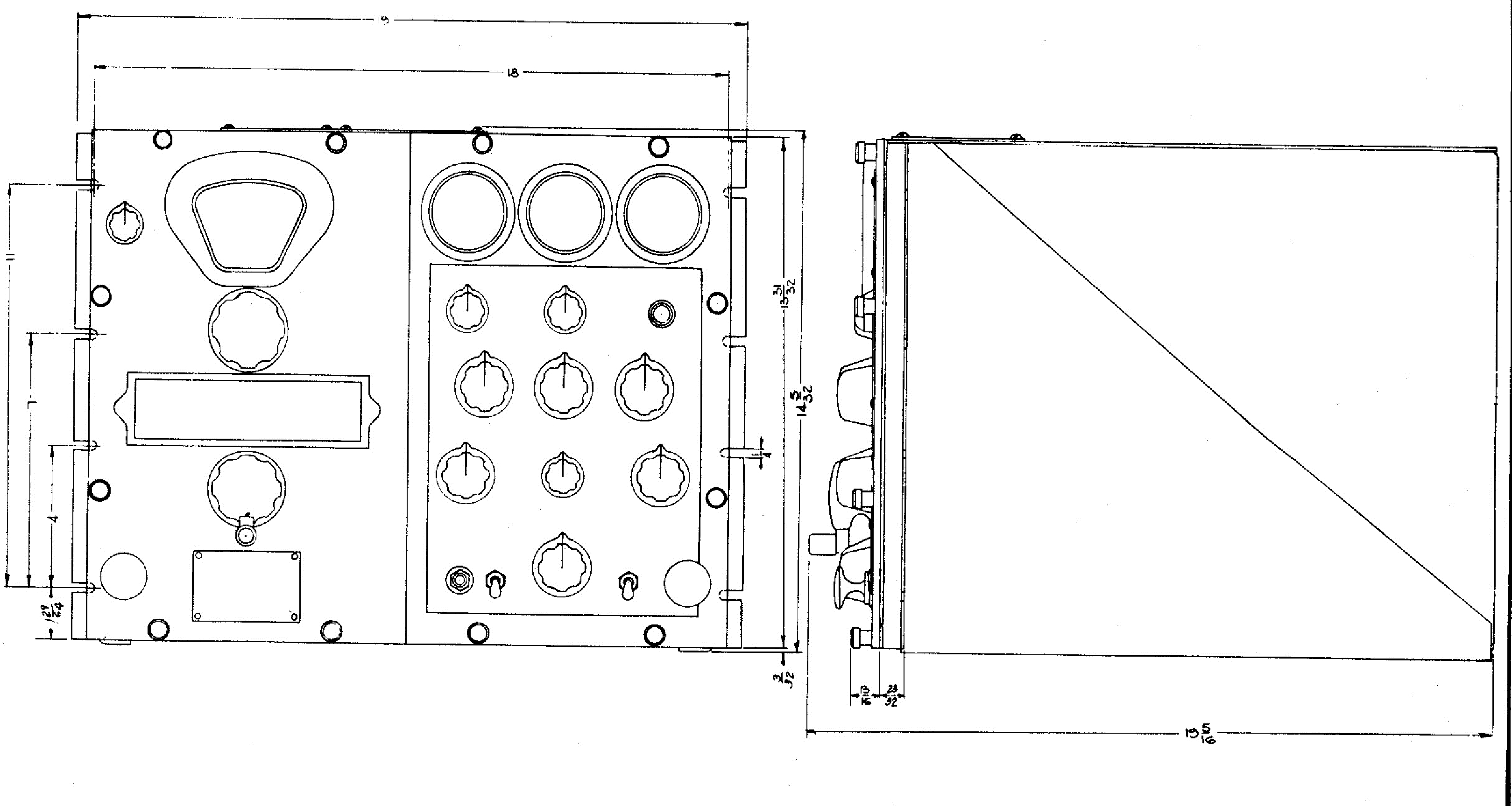

RBB-6 contract

RBC-6 cabinet

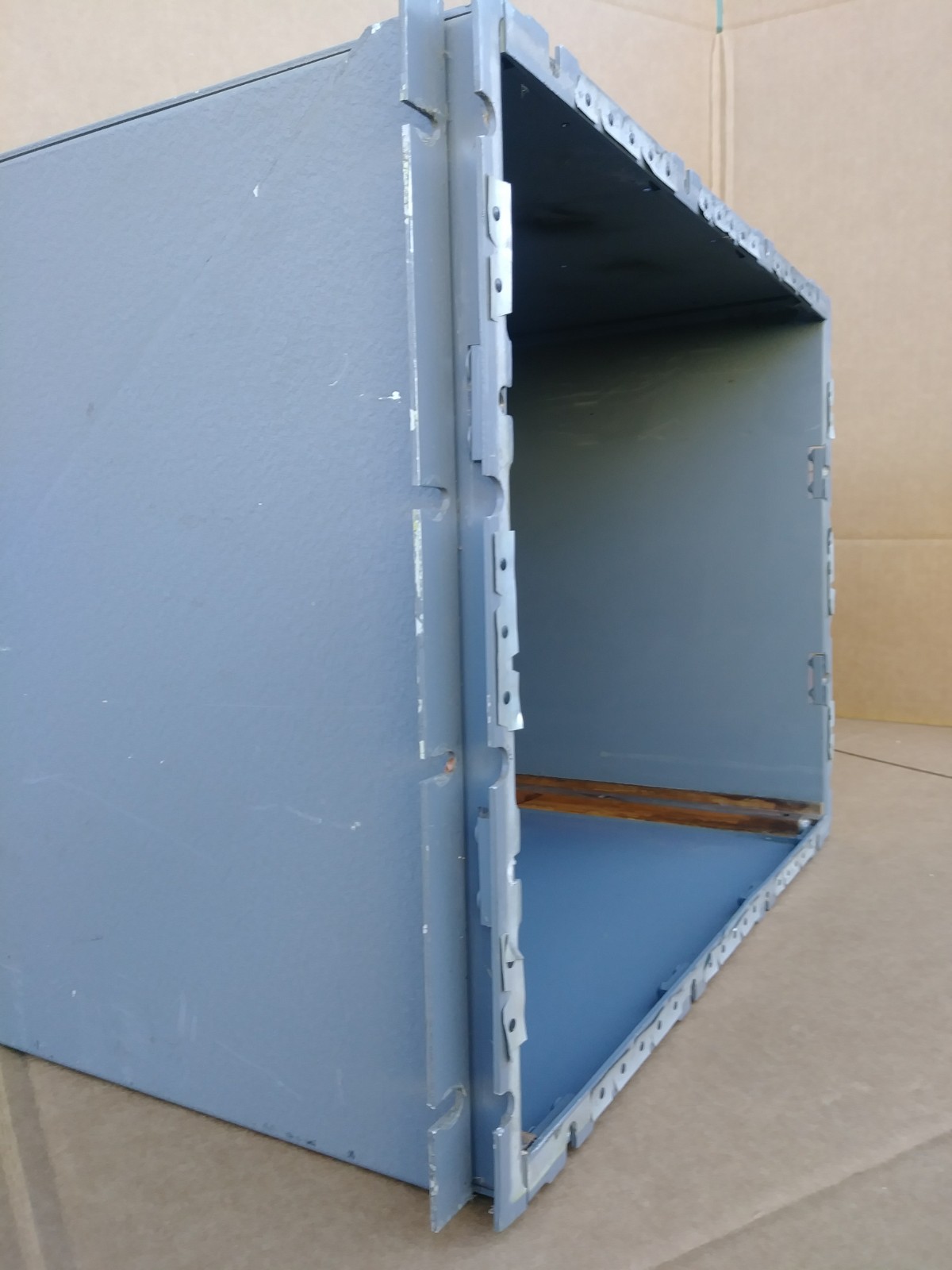

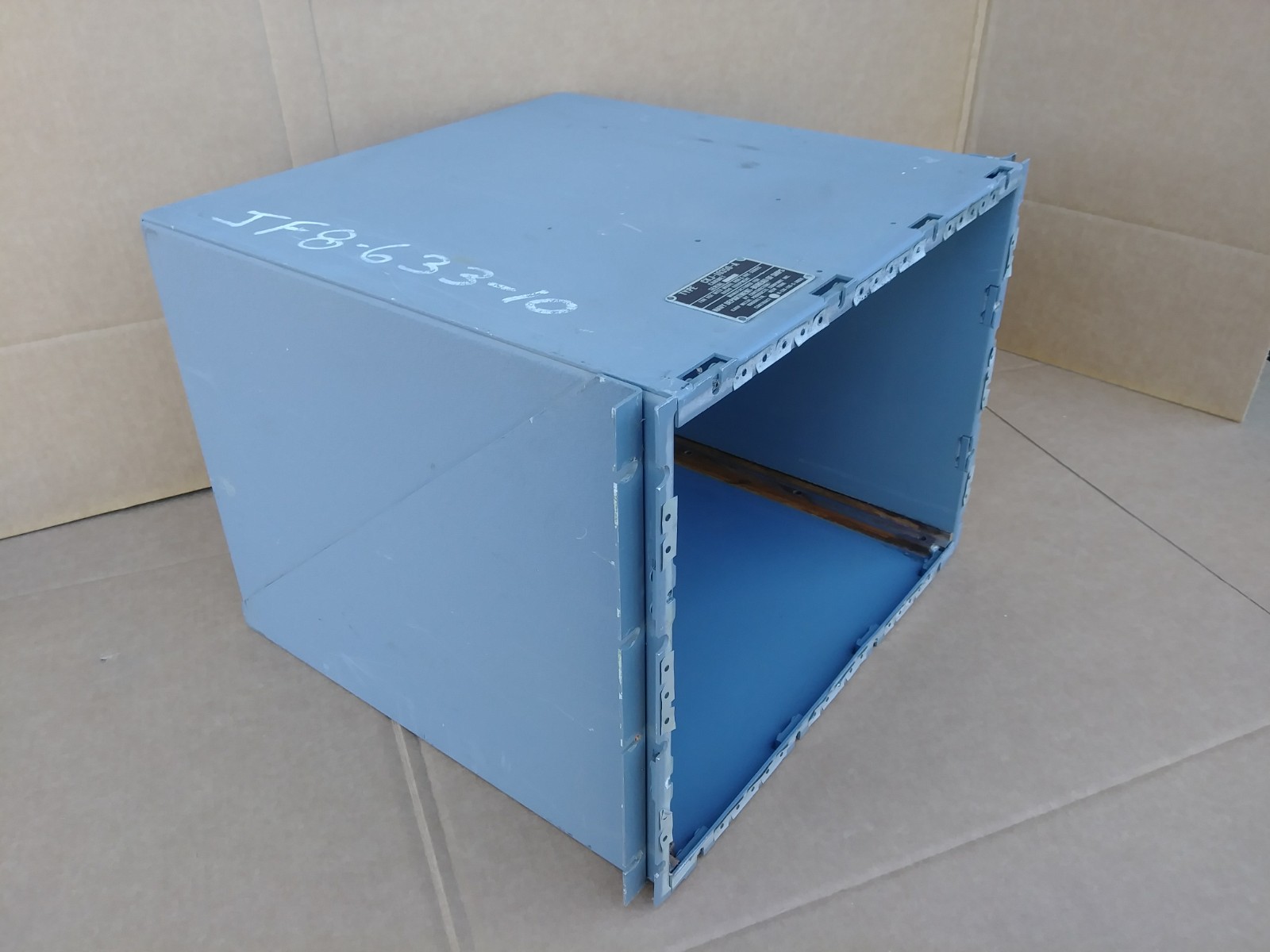

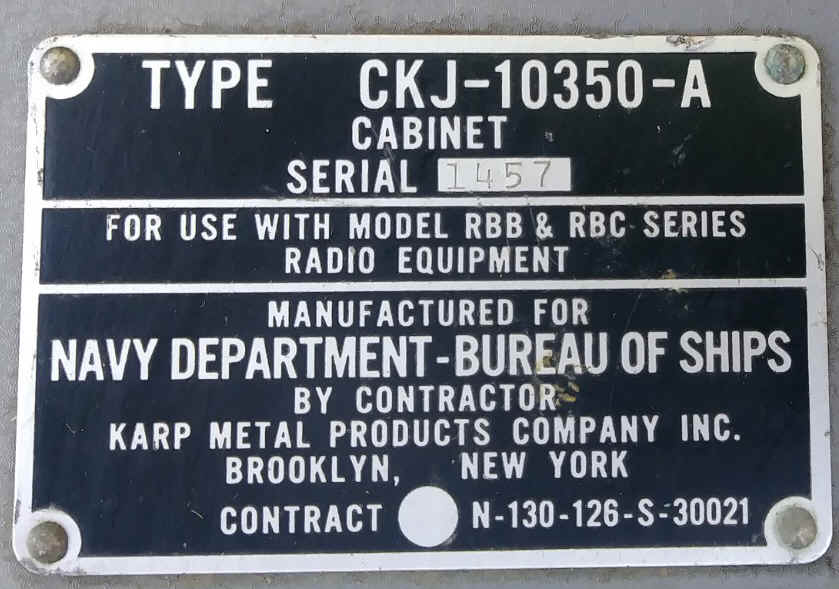

CKJ-10350-A Rack Mount Cabinet
from an add-on contract.

photo thanks to Paul N6FEG

photo thanks to Paul N6FEG
photo thanks to Paul N6FEG

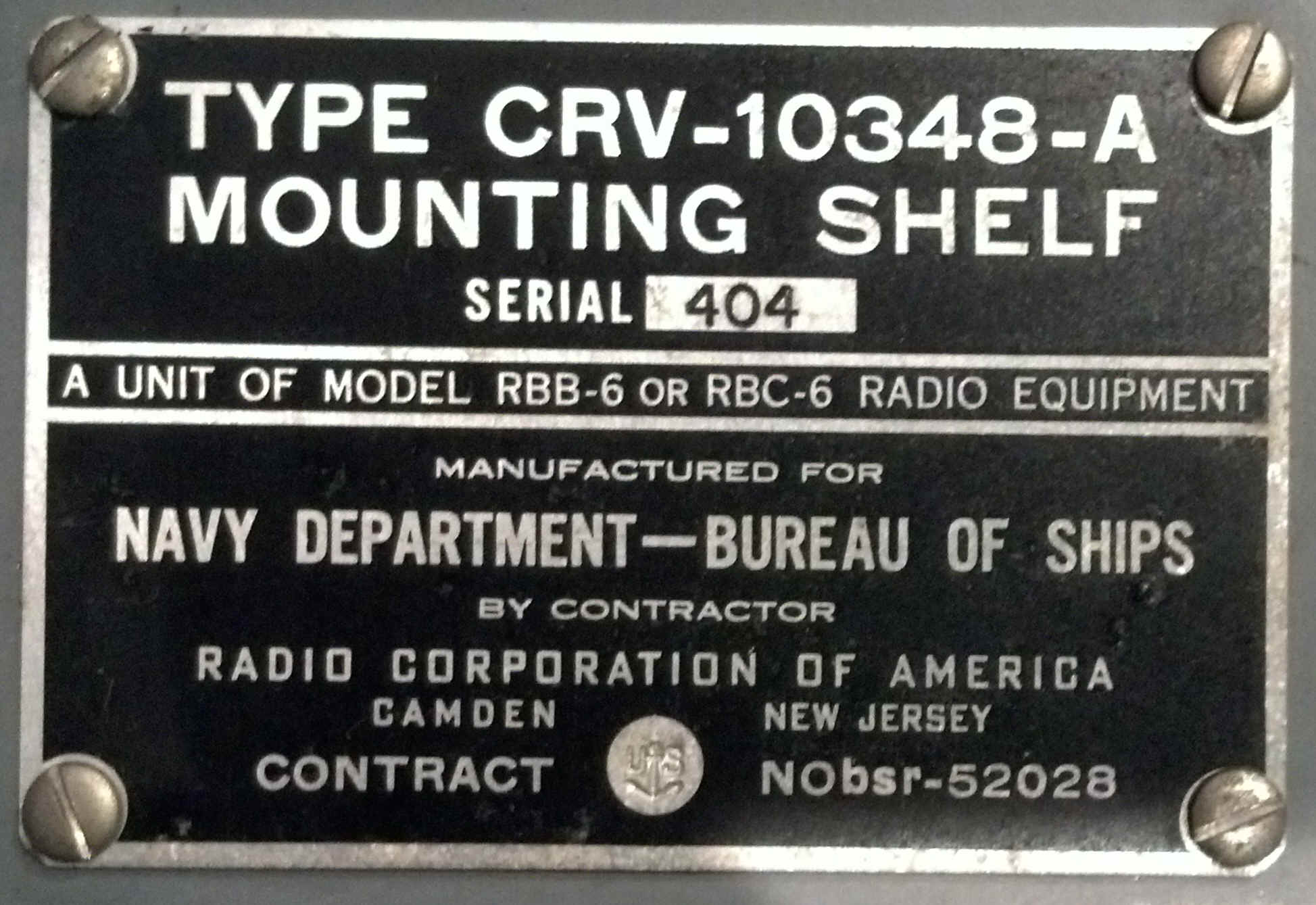

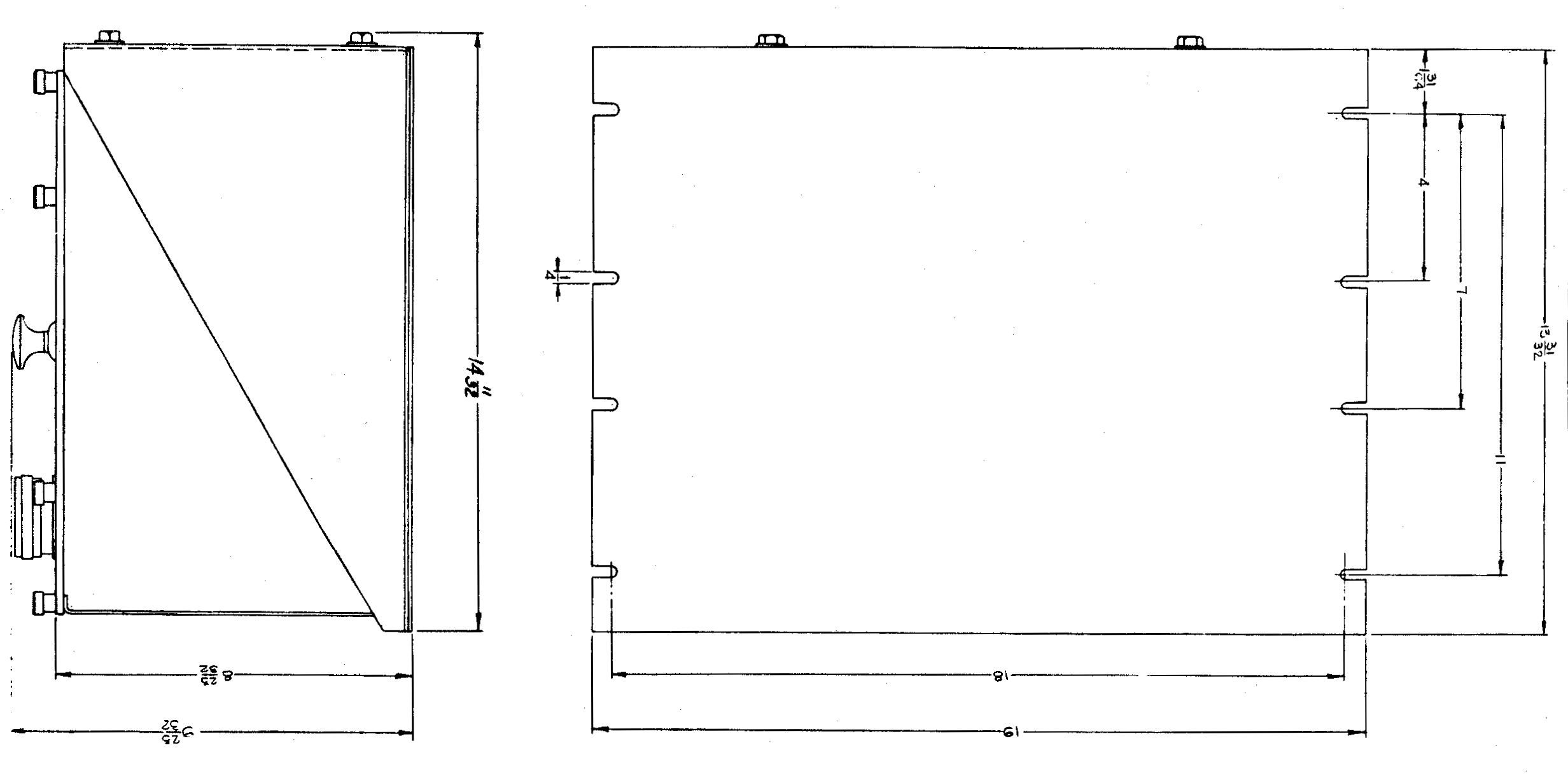

CRV-10348-A Rack Mount Shelf
used with RBB/RBC Power Supply


photo thanks to Eugene W2HX
photo thanks to Eugene W2HX

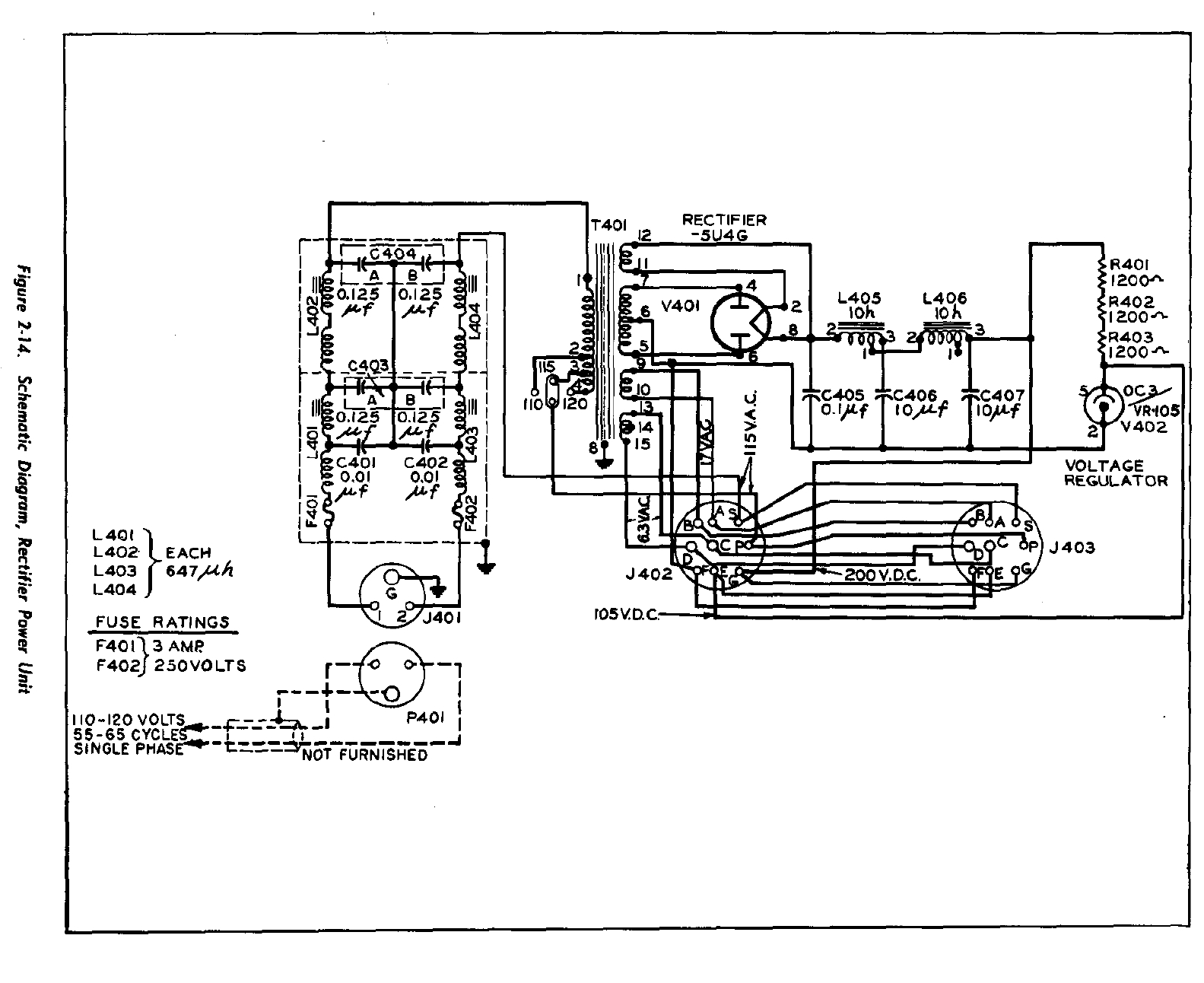

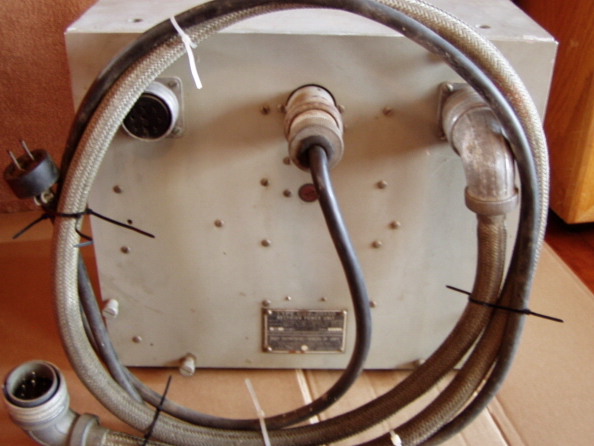

Power Supply

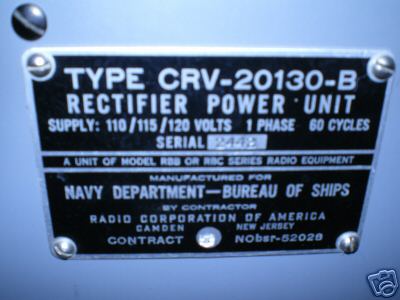

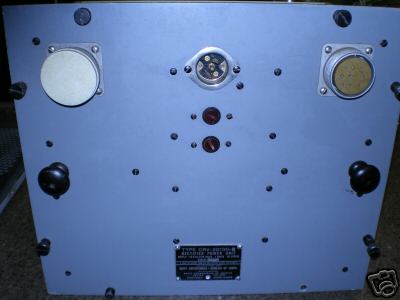

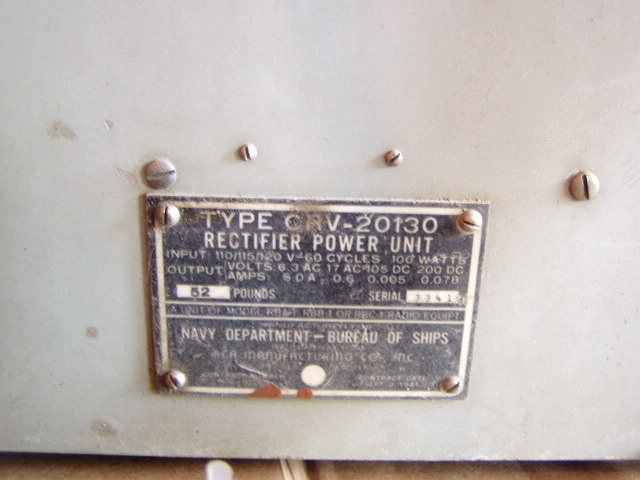

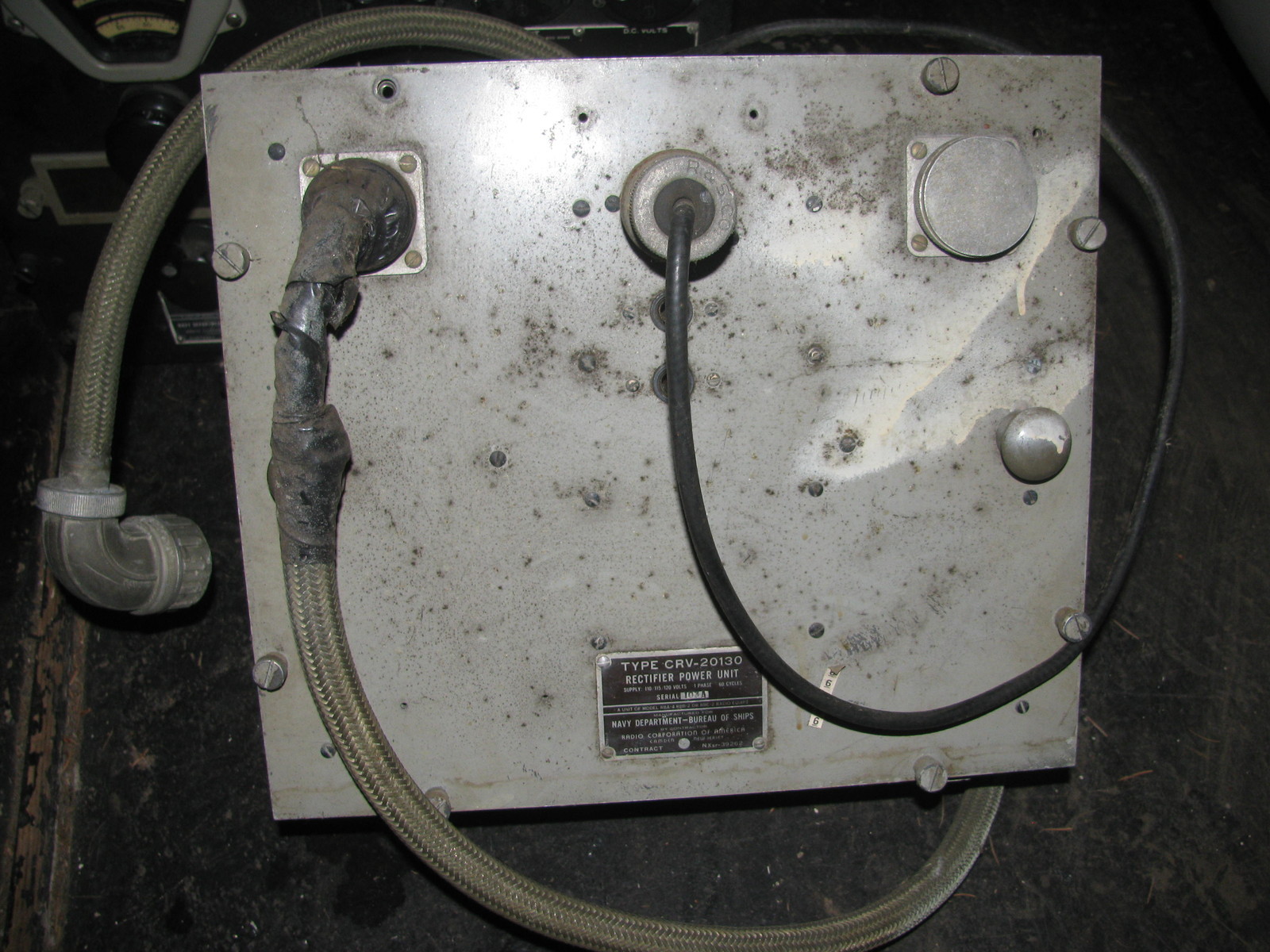

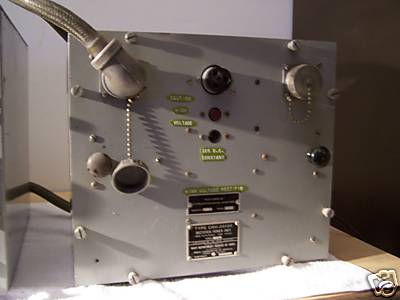

Power Supply CRV-20130

Used with RBA/RBB/RBC - the manual says it is normally used to power one receiver, but can be used to power two receivers temporarily.

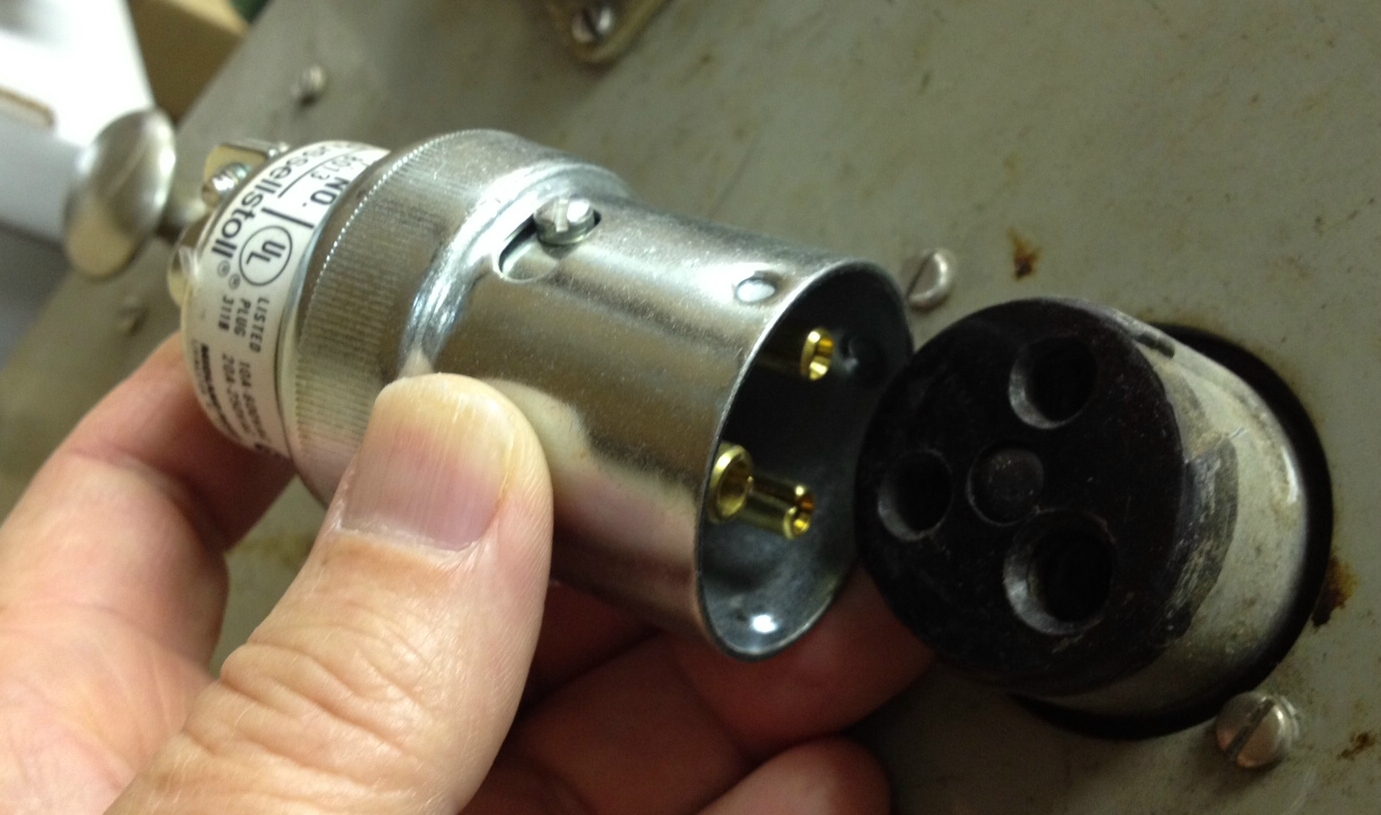

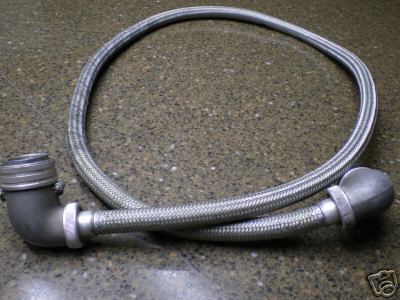

The original power supply AC power cord connector is a Russellstoll Ever-Lok 8013 or 8013N (** NOT 8013U1 **). Look for them on eBay under Russellstoll, Russell Stoll, Russell & Stoll, Ever-Lok, or Thomas & Betts.

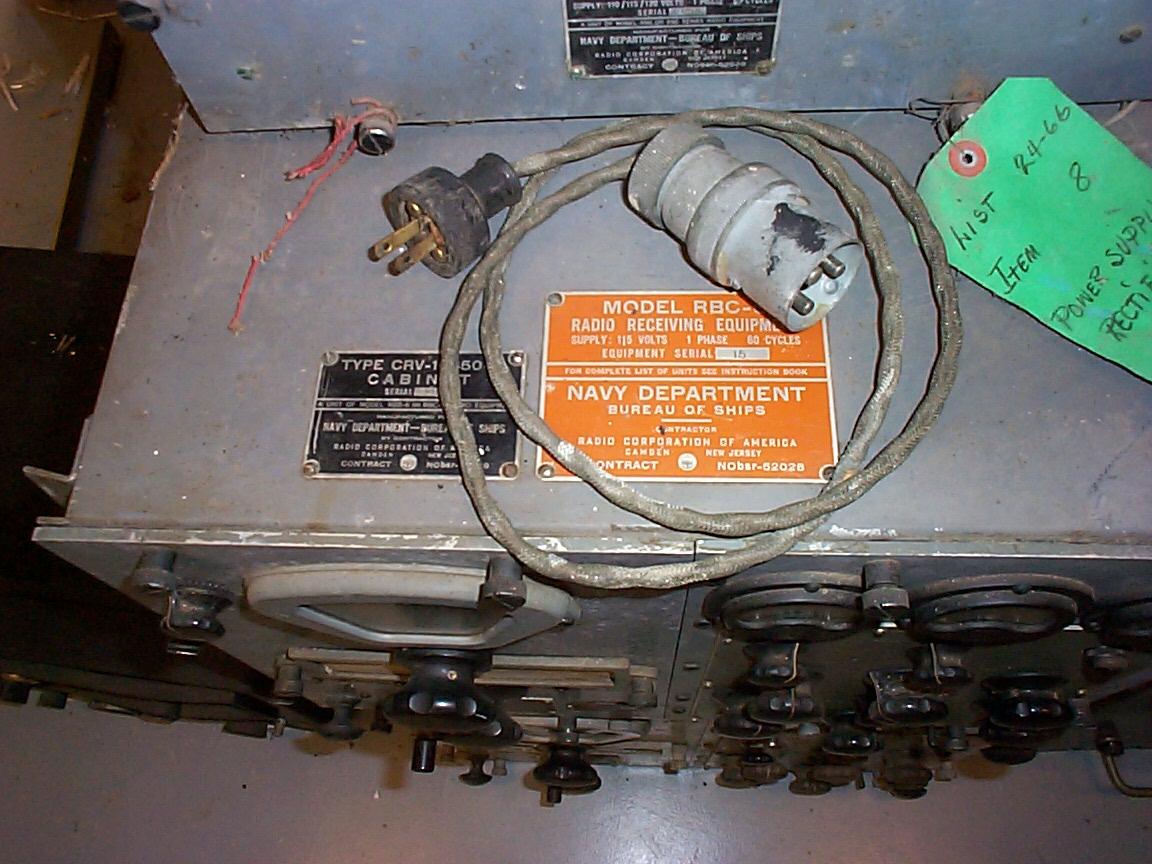

Original AC connector
Note: Rack mount rcvr and p/s shown

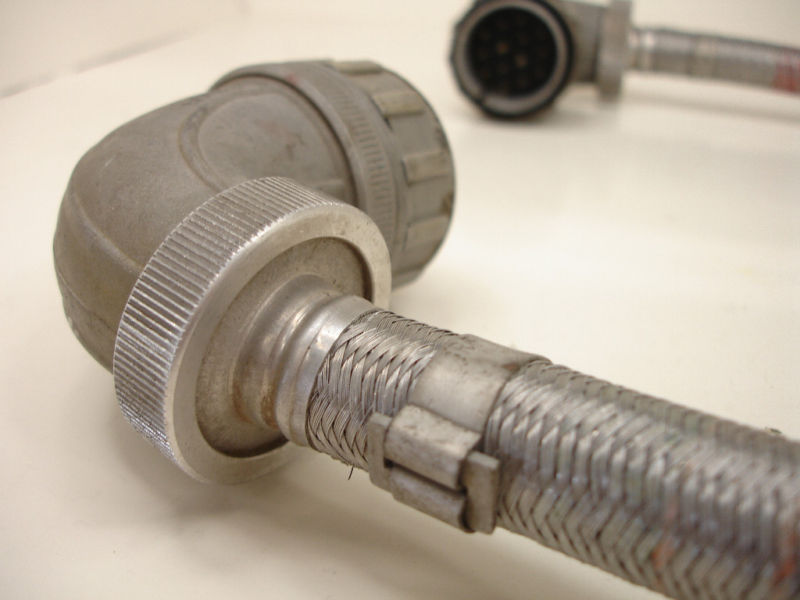

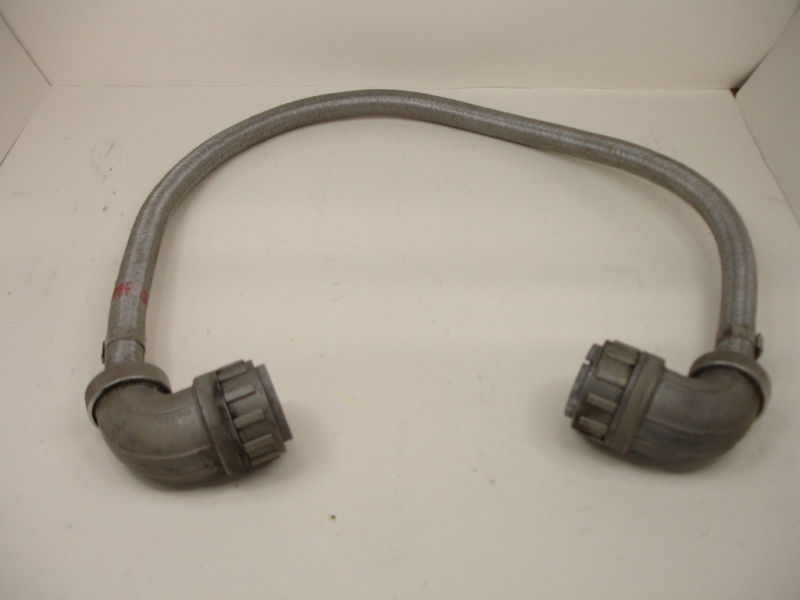

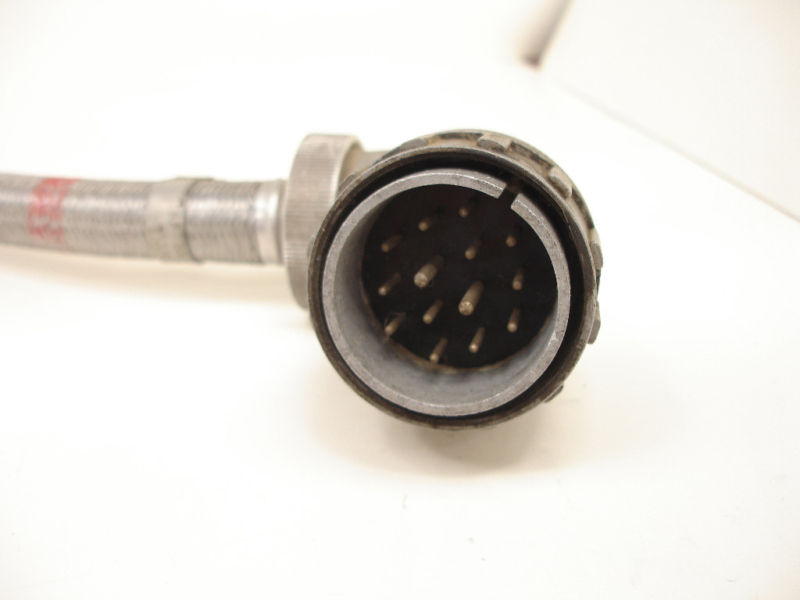

The p/s-to-receiver connectors are usually available from WA5CAB and/or William Perry Co.
