AN/FRR-60 dual diversity synthesized HF receiver

This is a dual-diversity receiver made by TMC - mine was originally a single synthesizer version (TMC DDR-5A) but later converted to a dual synthesizer version (DDR-5C)

JP uses hoist to unload the 600lb. cabinet
Nick & Mary rest after unloading
cabinet waiting for the big move
Nick built a 4' x 2' cart and loaded the cabinet onto it
Then JP, Trey and Nick rolled it down the path.....
....through the woods....
.....down the hill......hoping it would not get away from us and keep rolling  20' down into the creek......
...and around to the bottom floor back entrance.....
Success! - outside looking in

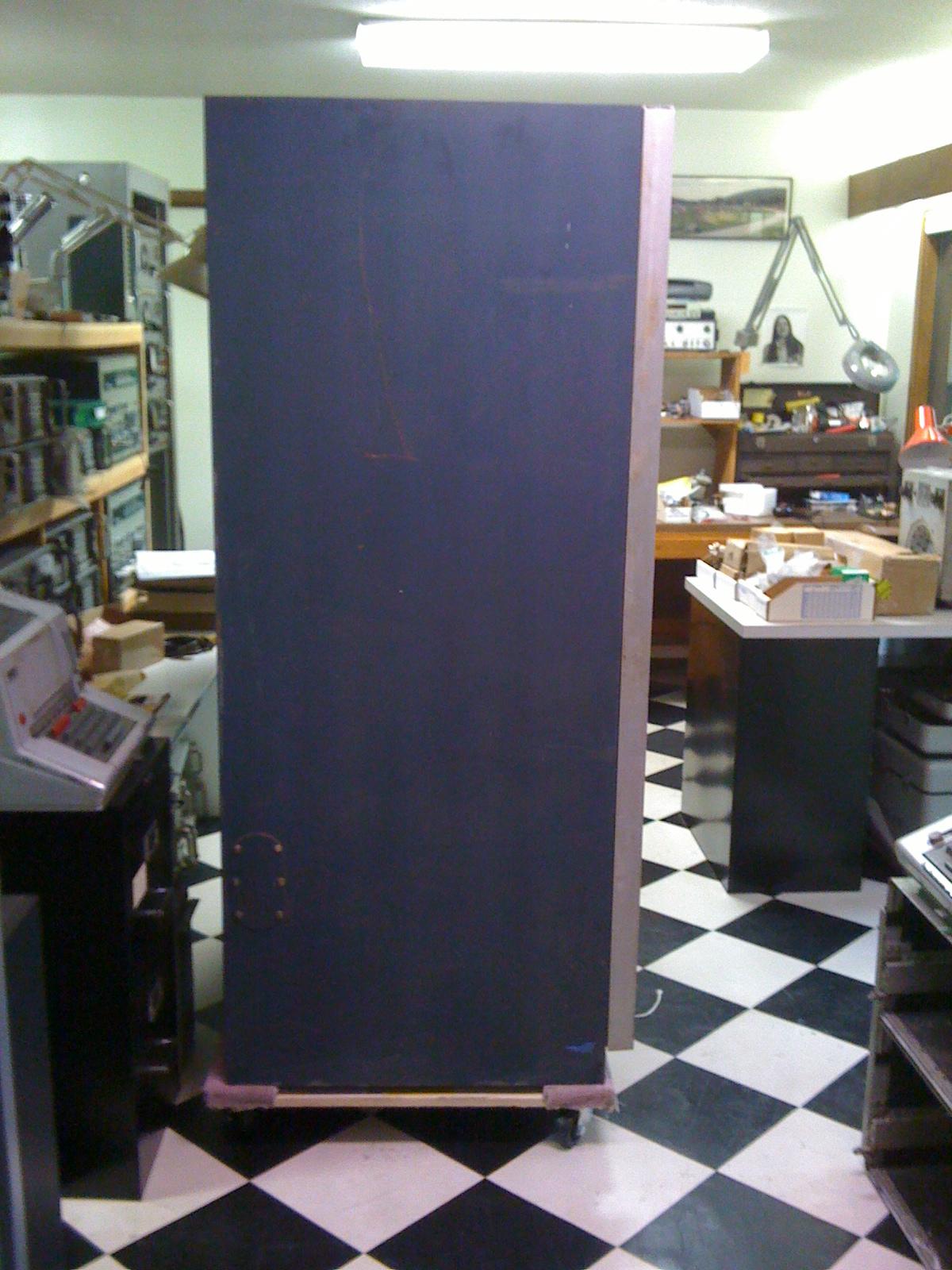

on a dolly in the shack

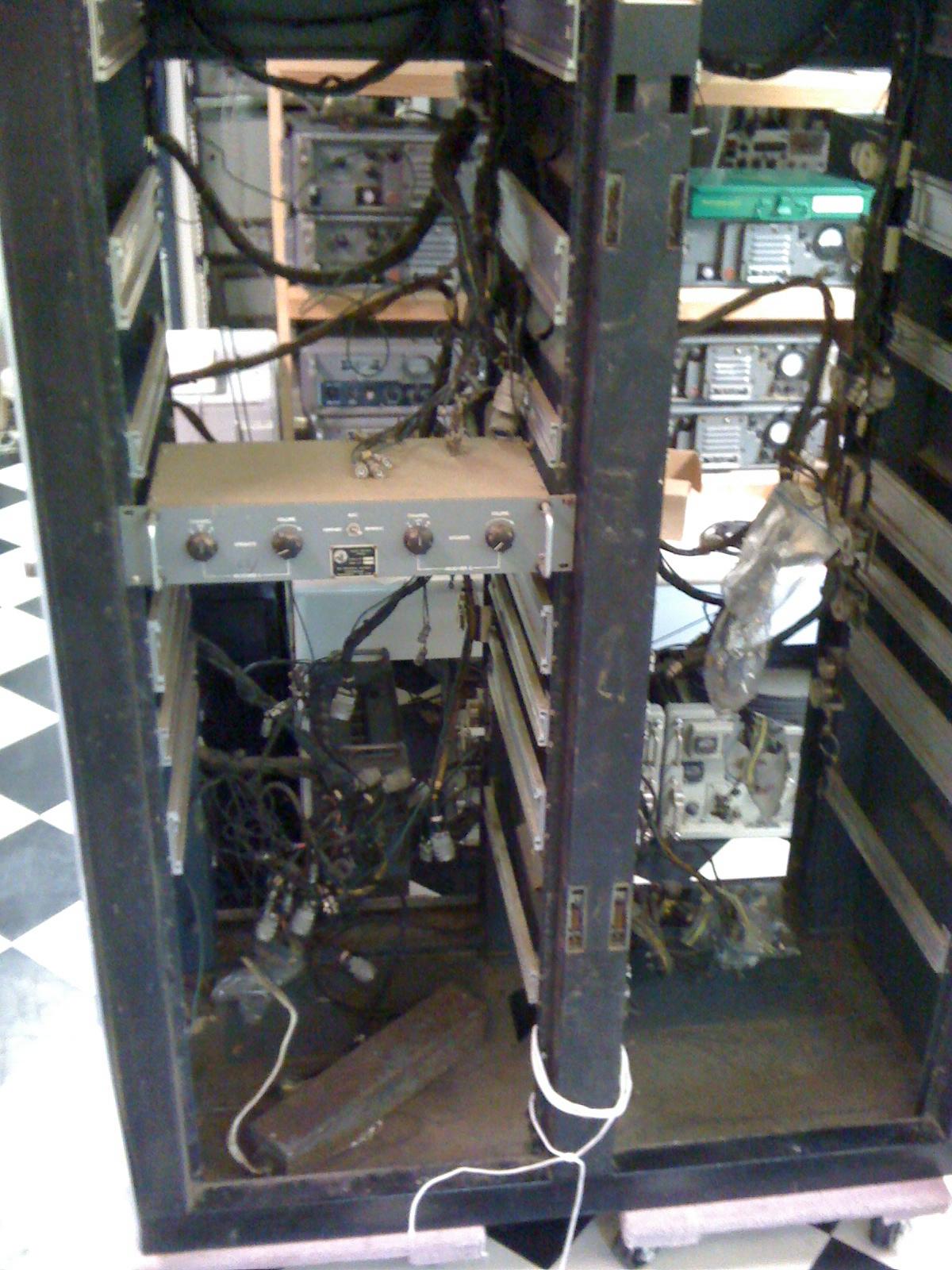

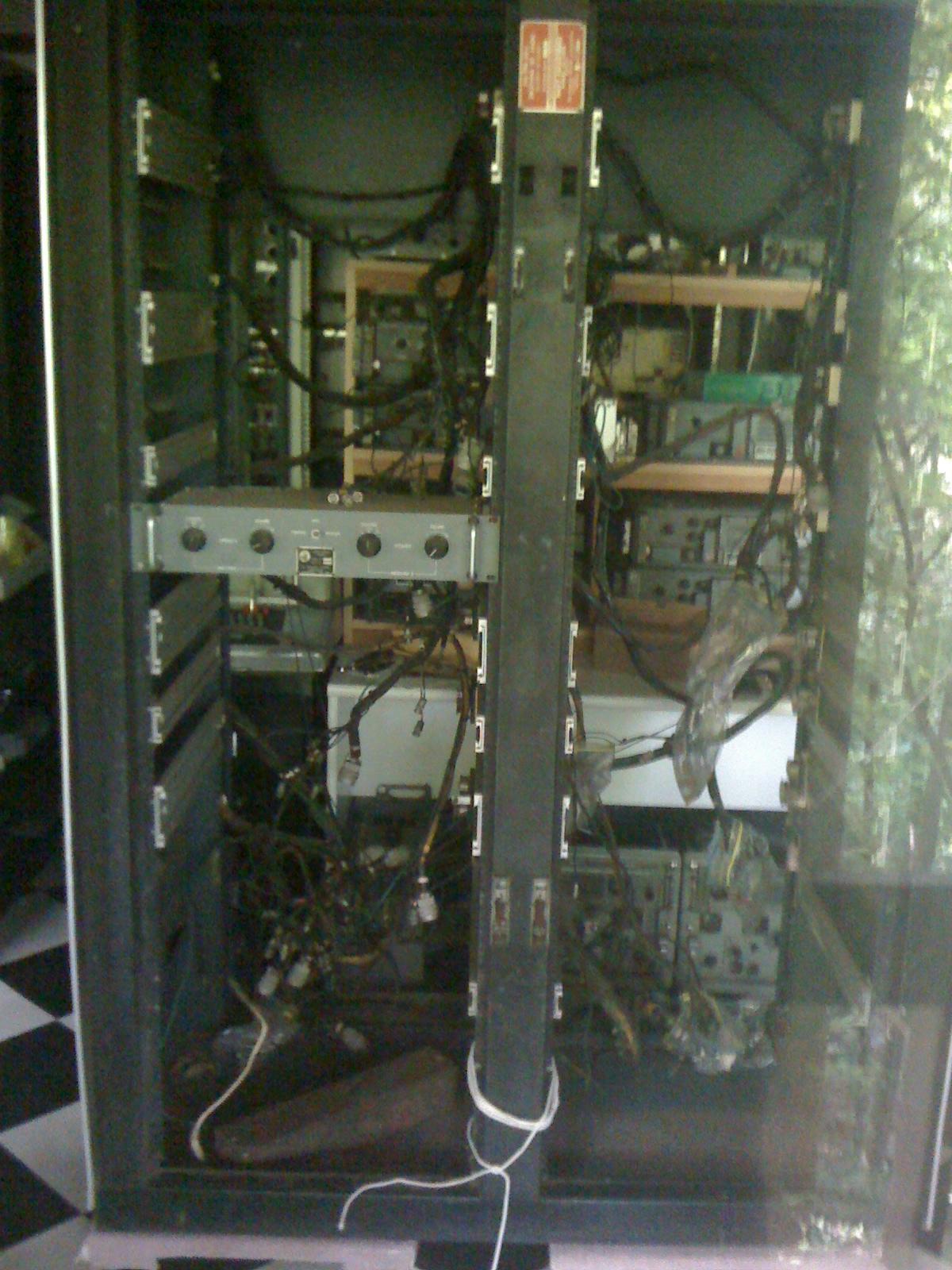

in need of  lots of cleaning

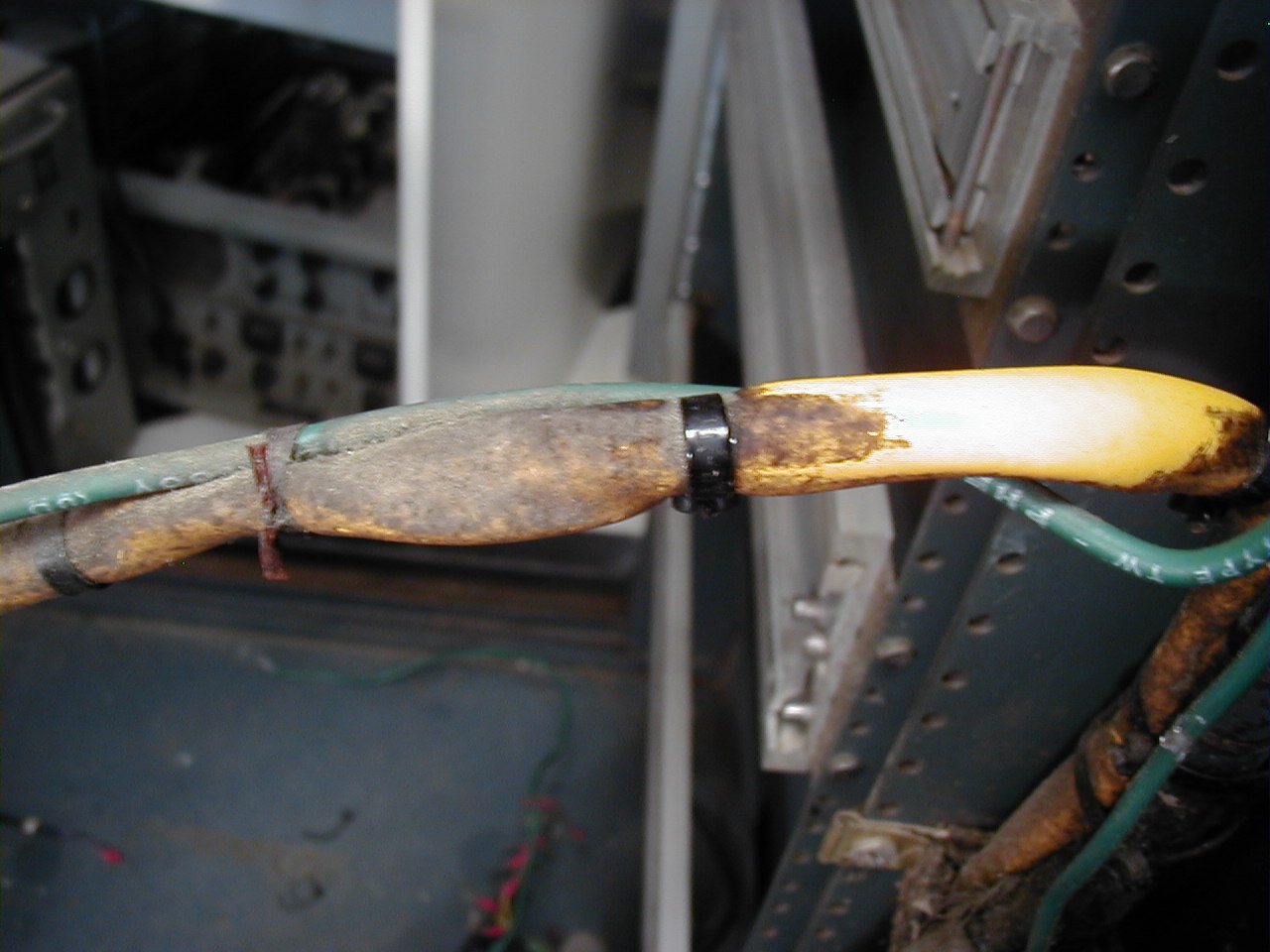

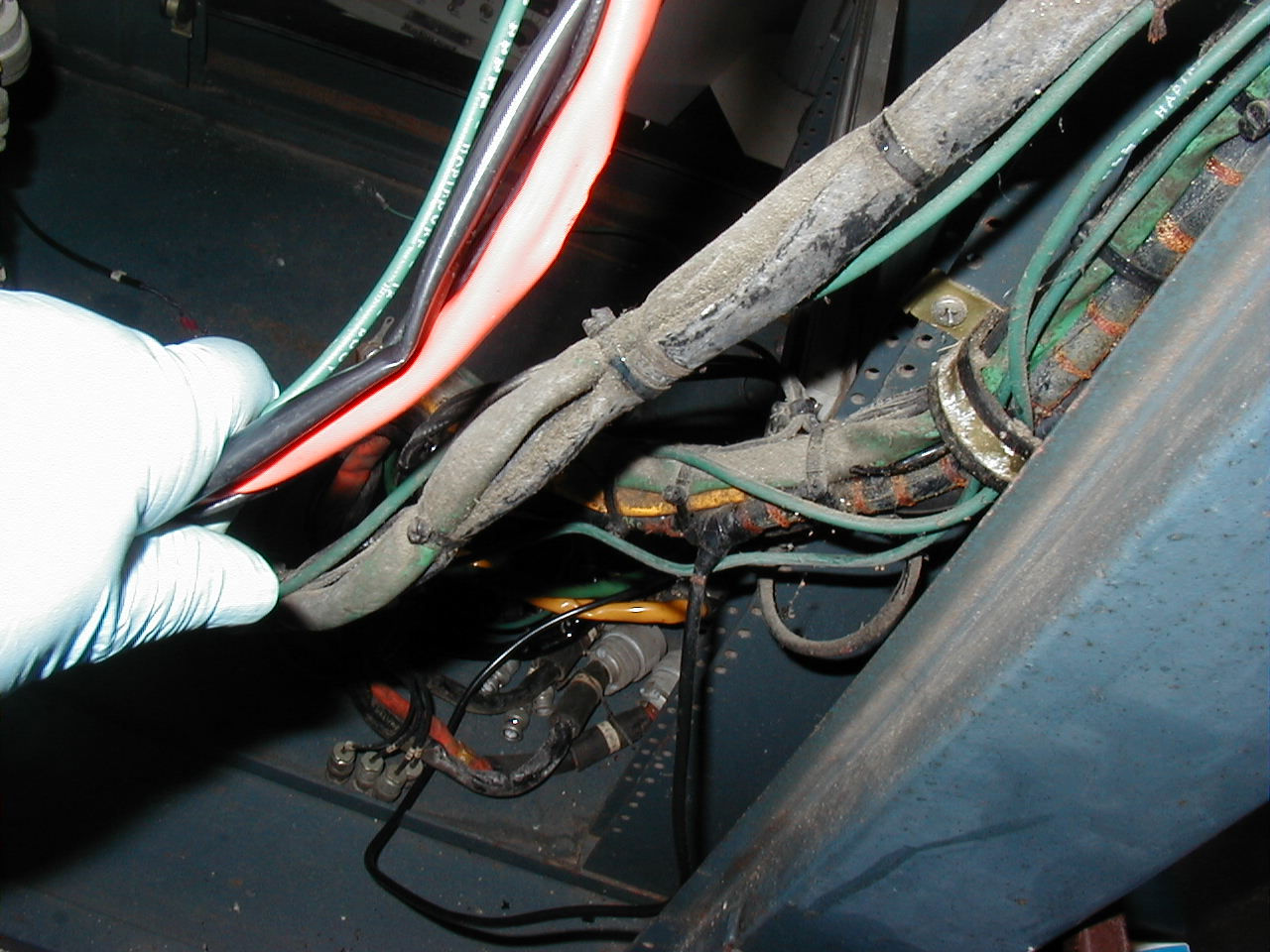

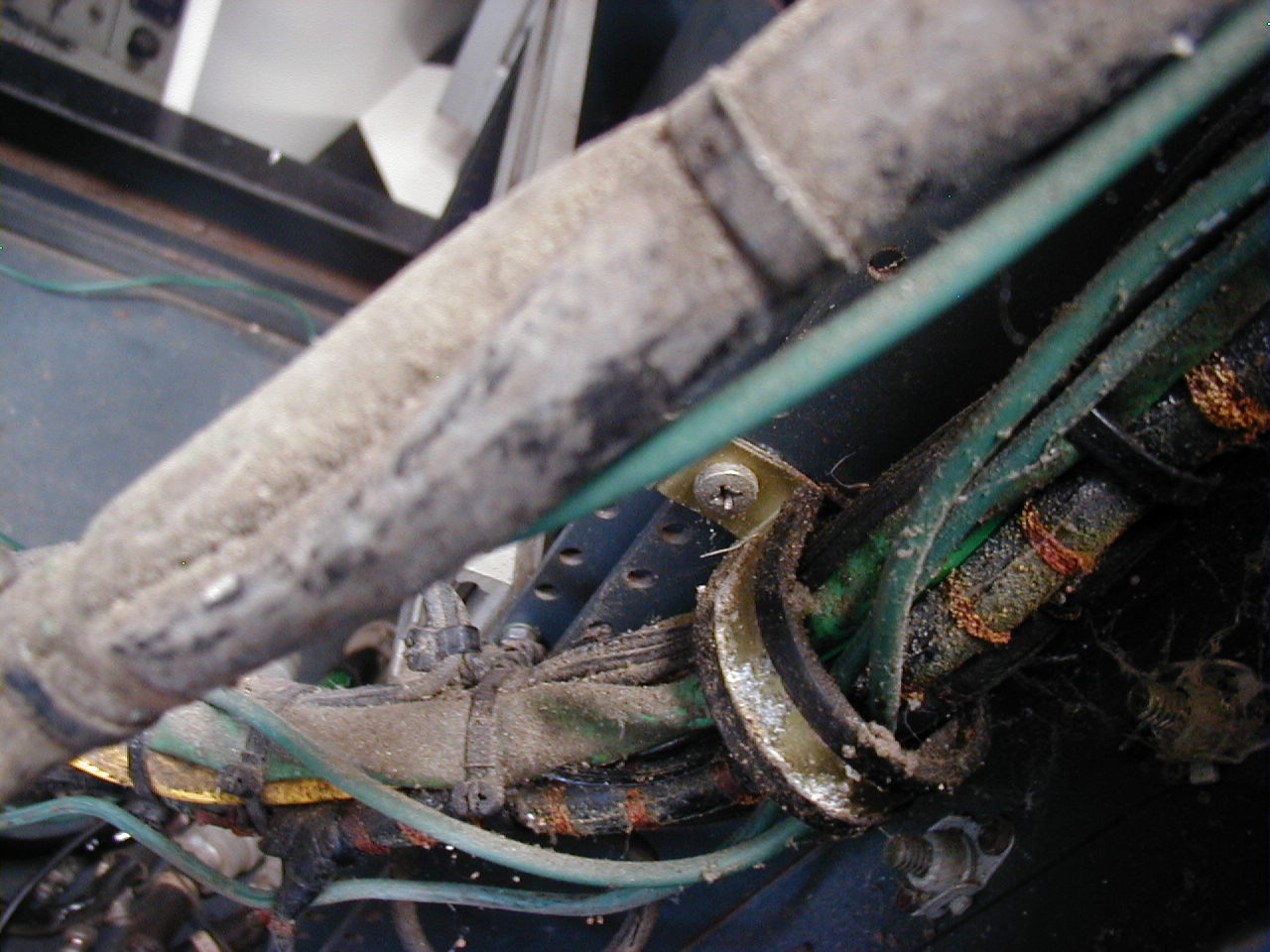

After cleaning the filthy cabinet, I started cleaning the filthy wiring harness
Work in progress - 1 of over 100 cables....

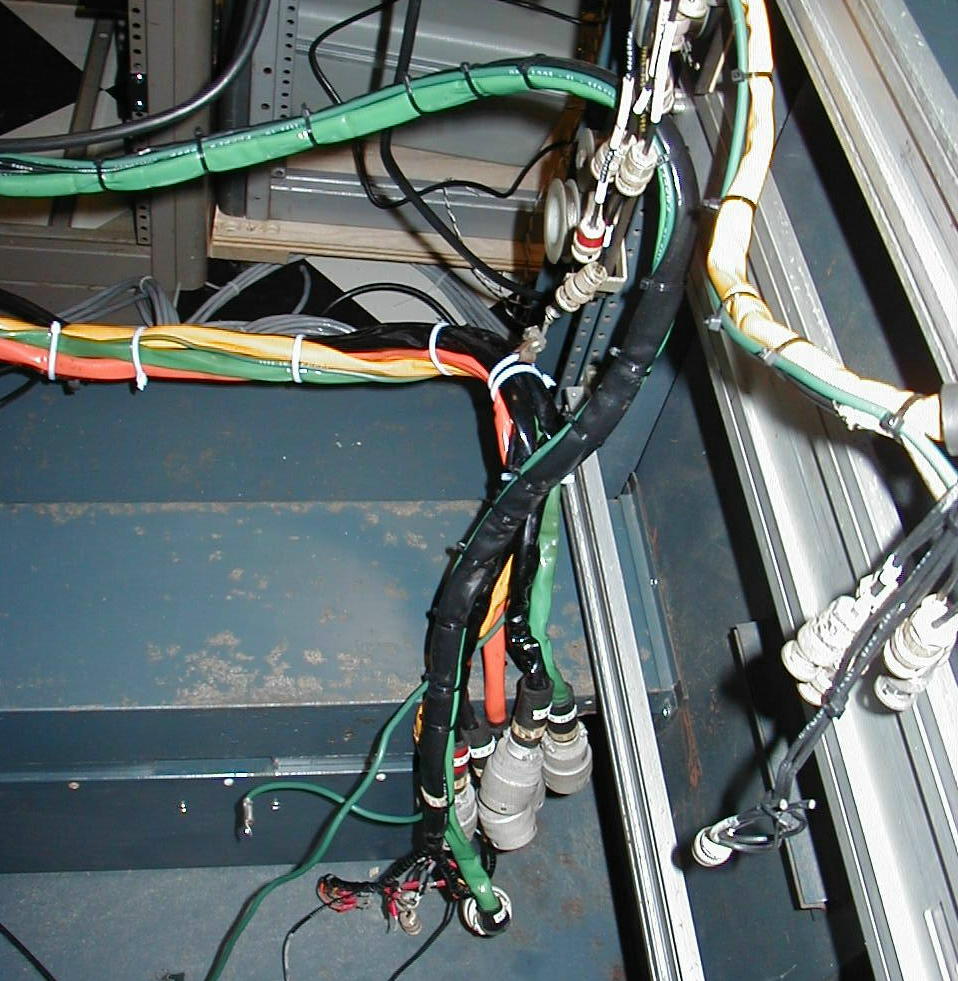

Much nicer!

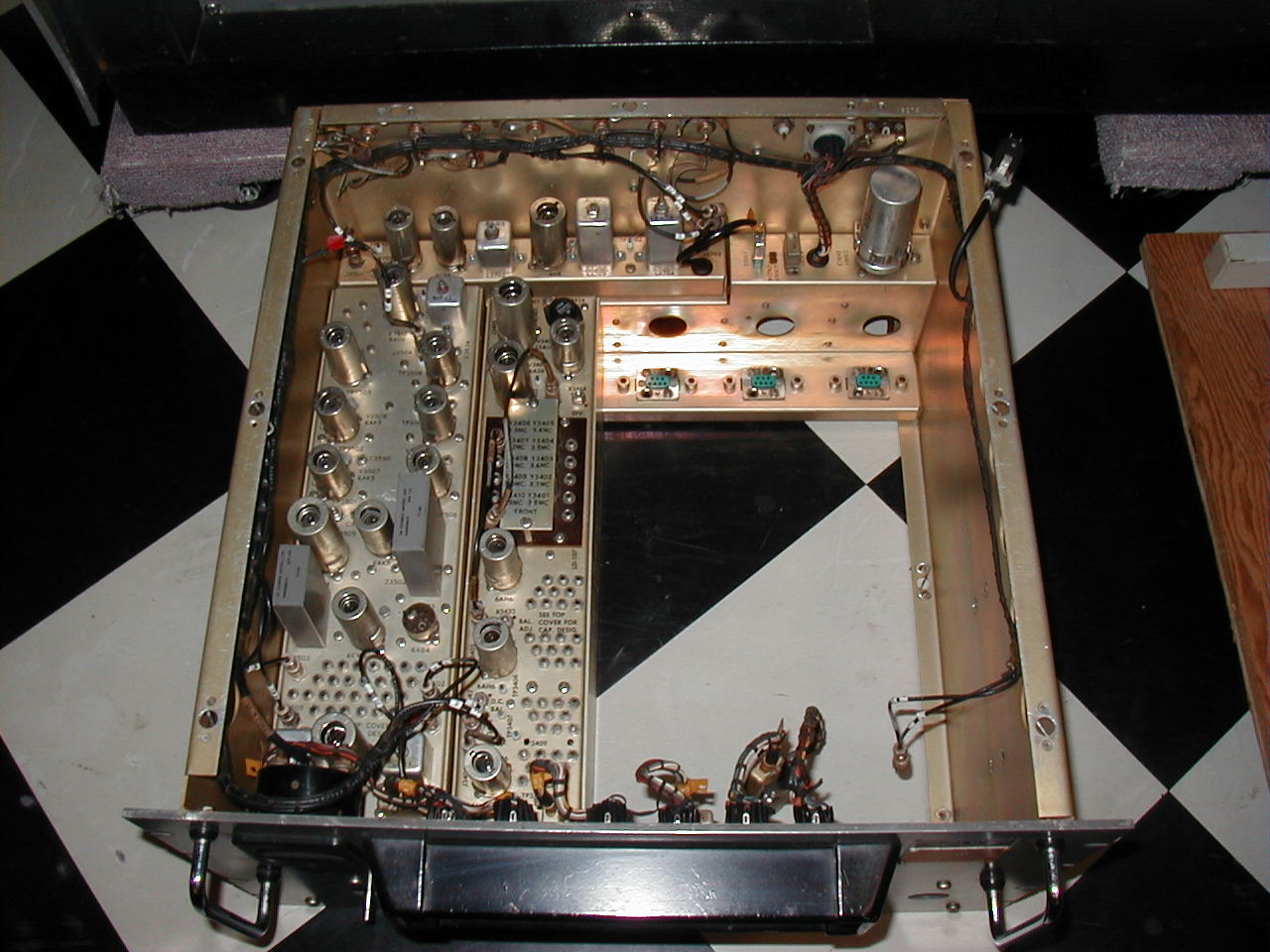

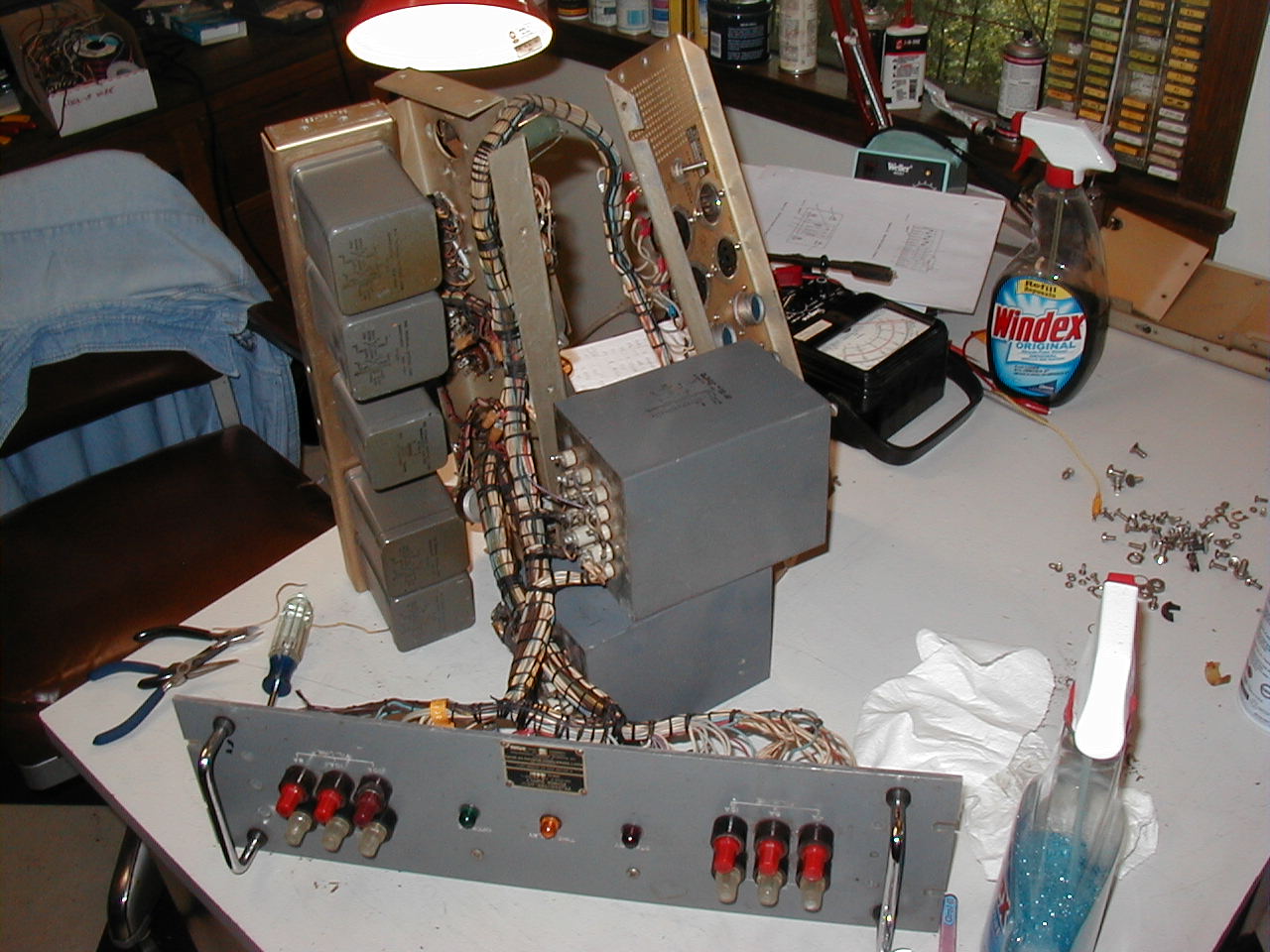

Power supply disassembled for cleaning & repair

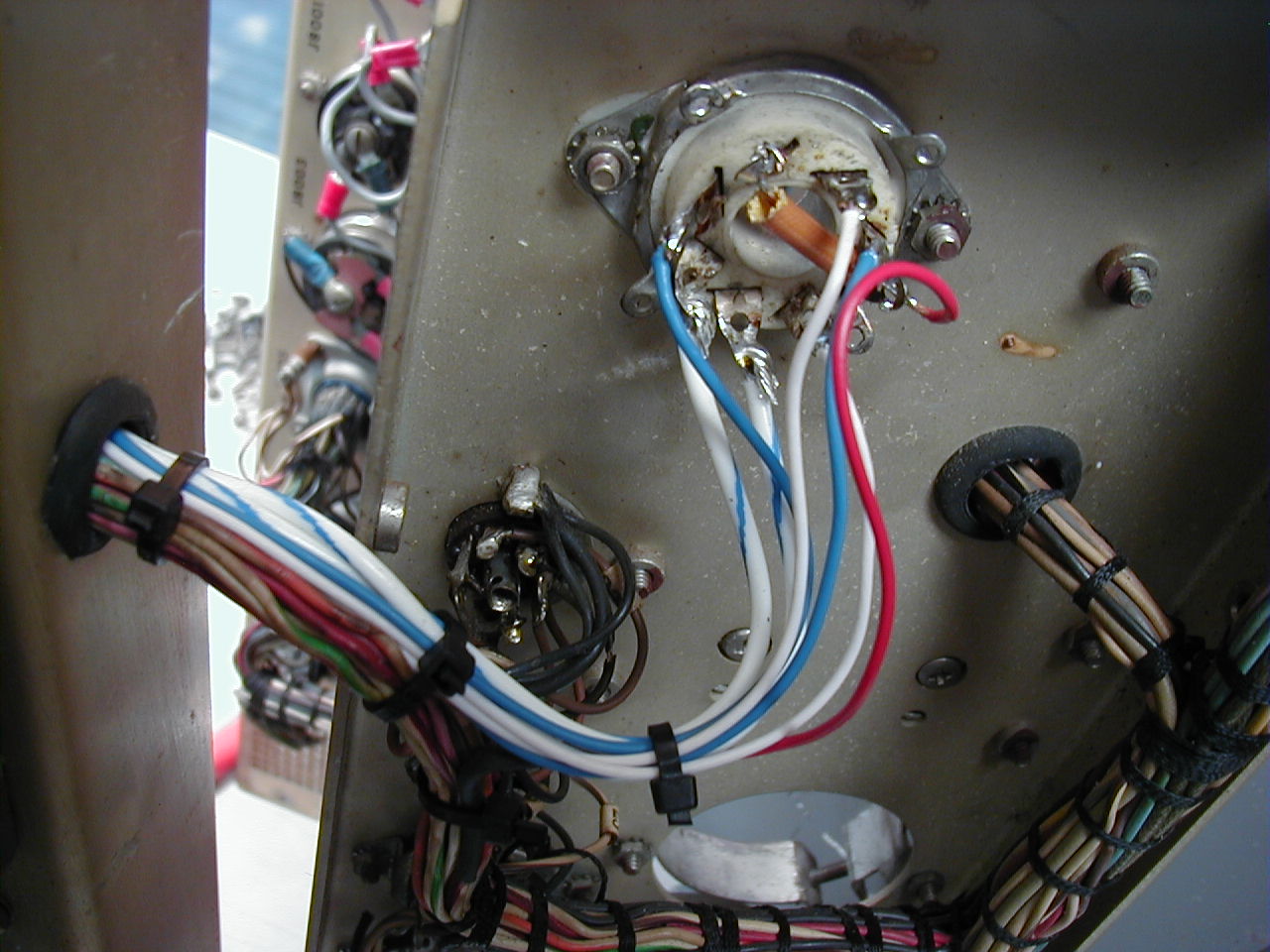

Replaced corroded, overheated wiring in power supply
That looks better...

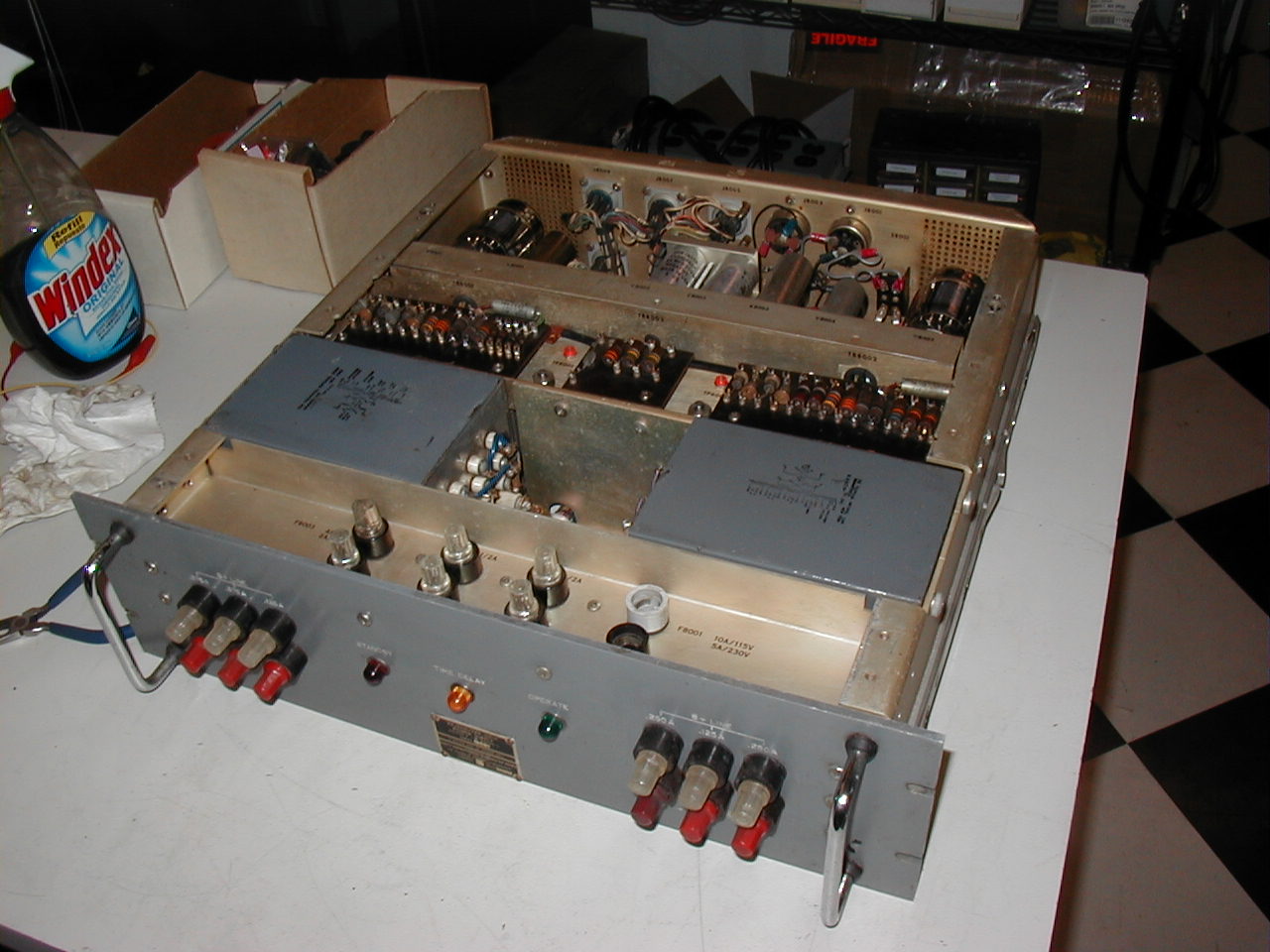

Power supply re-assembled and ready

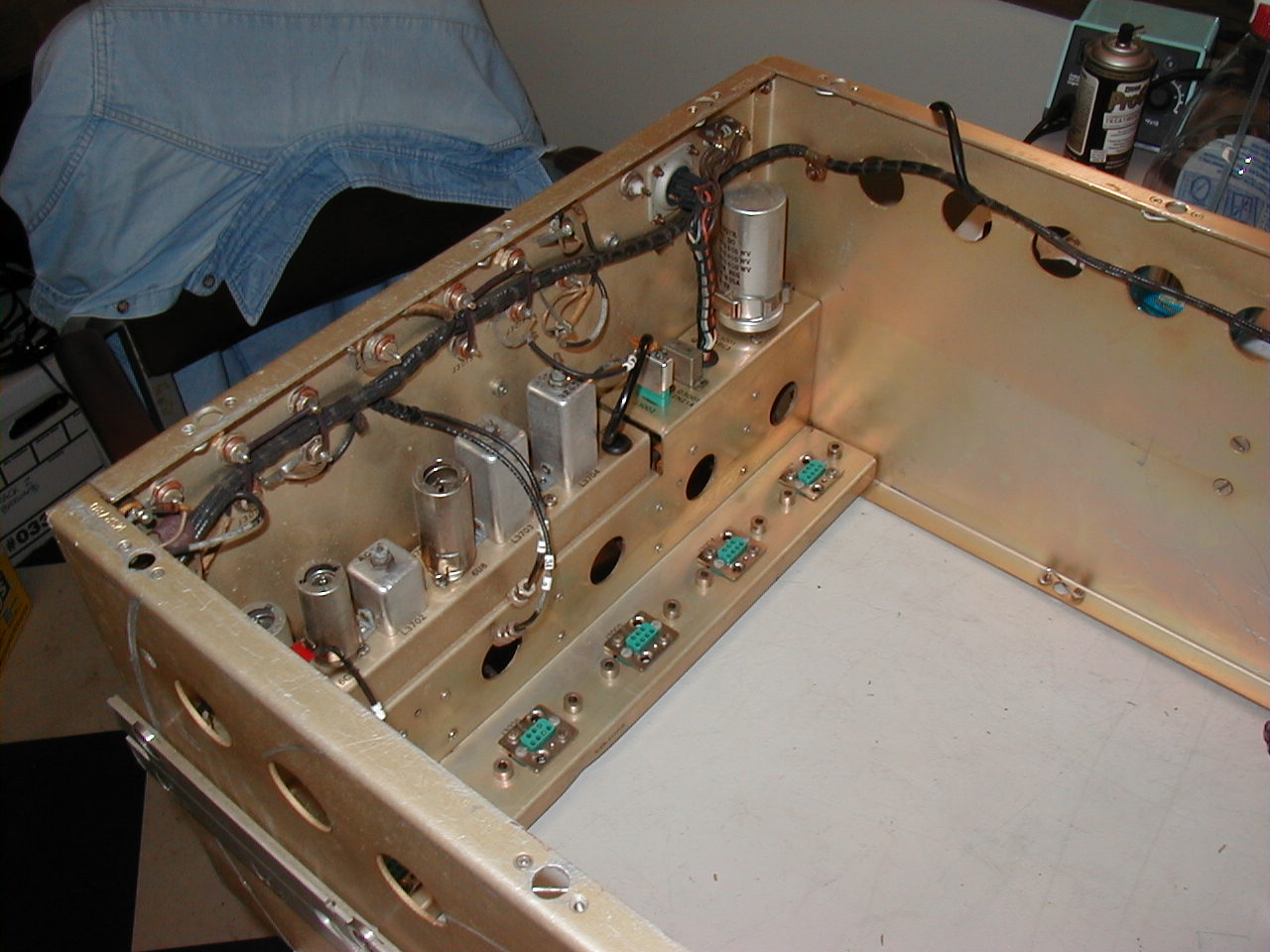

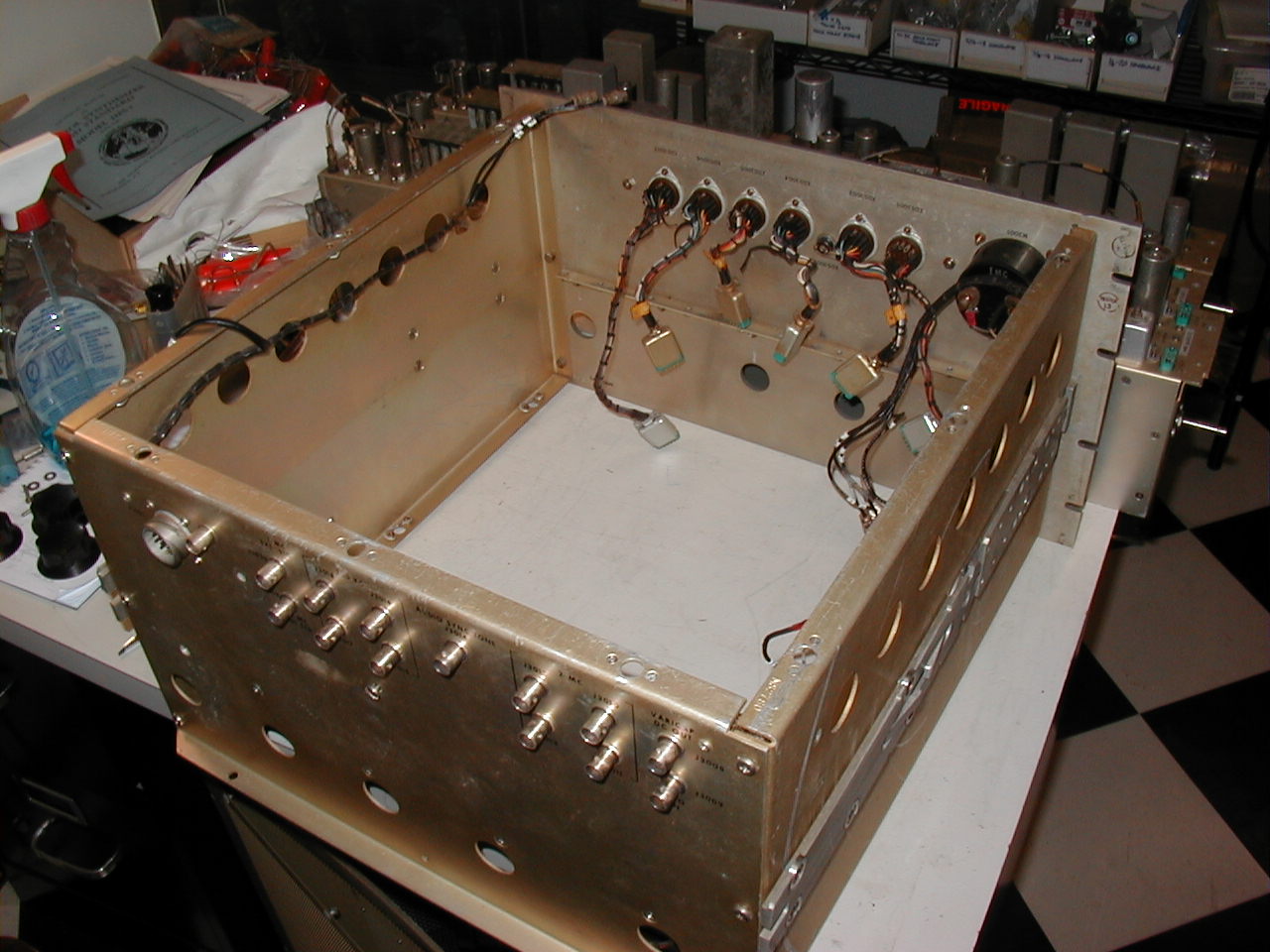

Synthesizer disassembled for cleanup
Synthesizer modules

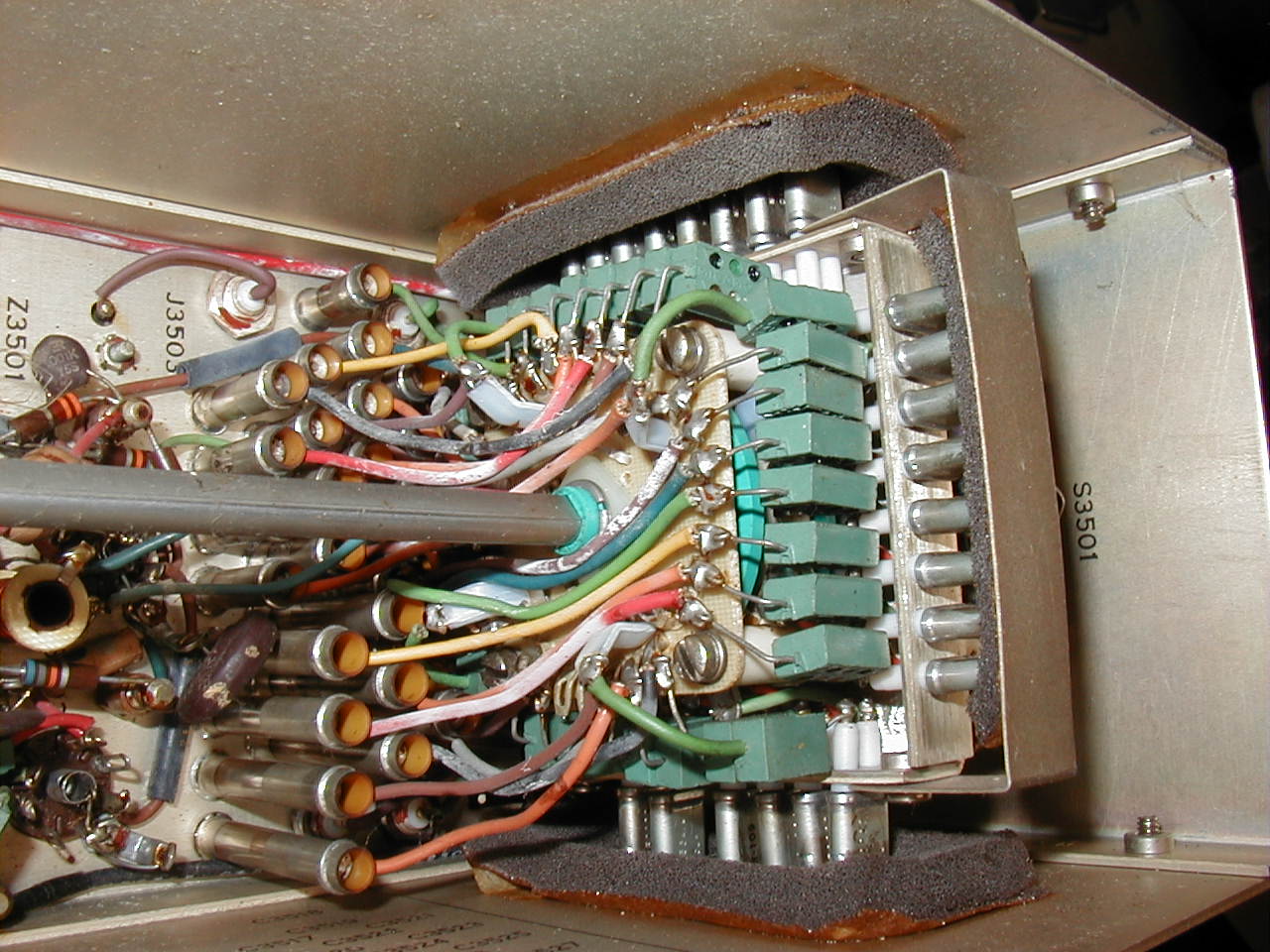

Synthesizer MC selector switch

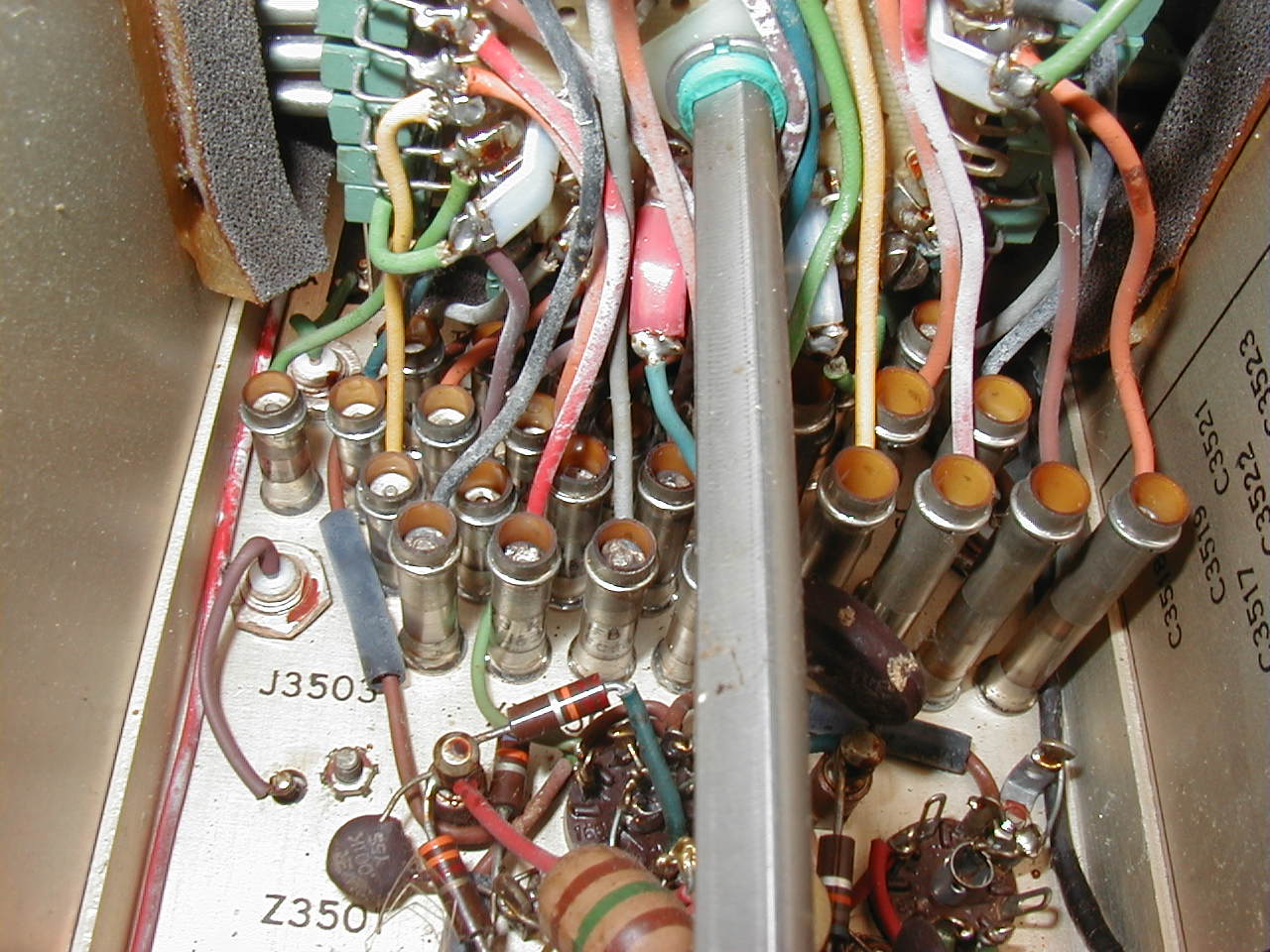

Zillions of trimmer caps
Starting re-assembly

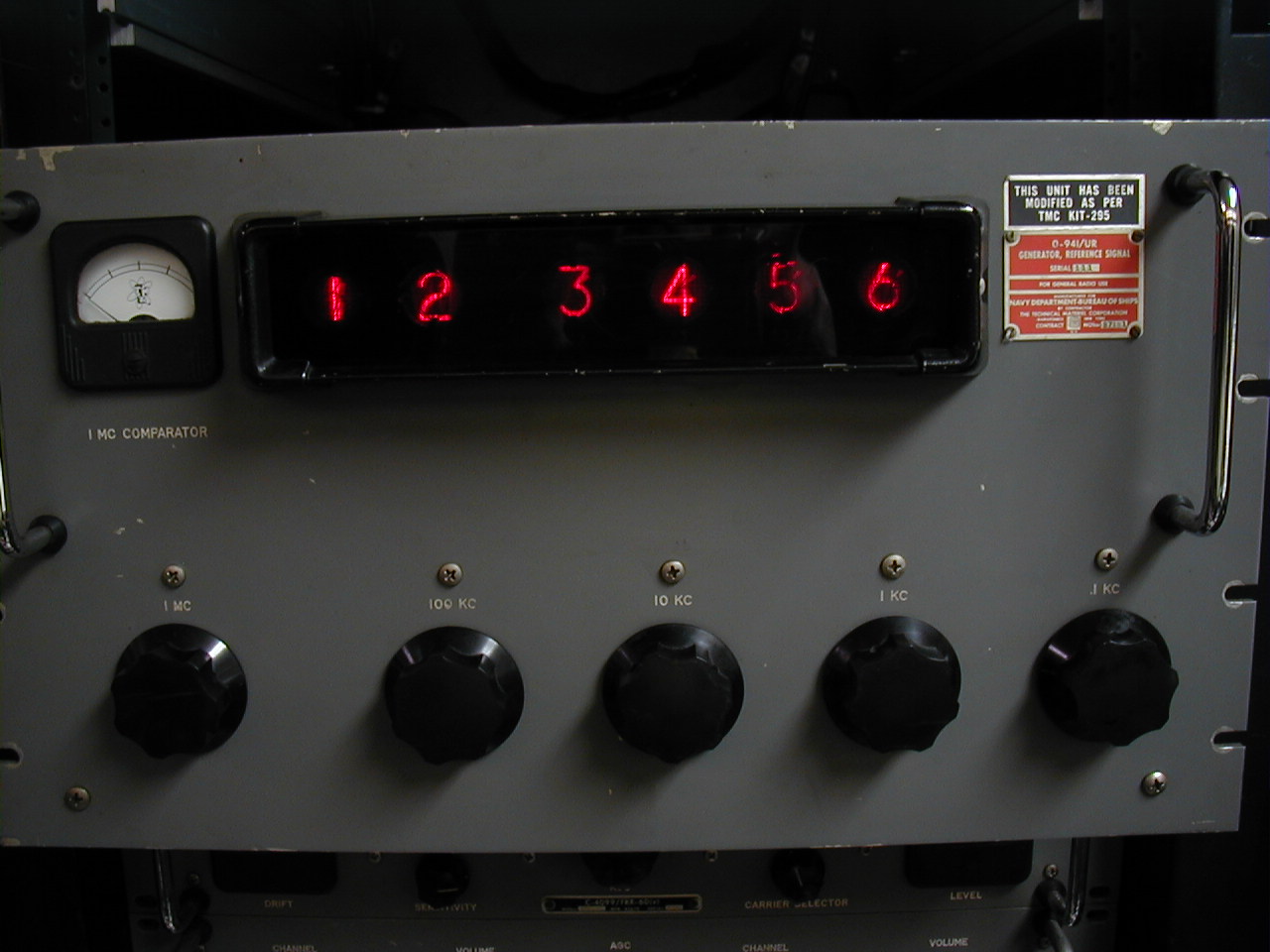

Back together with glowing Nixie tubes
 Oops - can't test the Synthesizer until I get the Tuner hooked up - it has the 28vdc p/s to run the 1mc frequency standard.

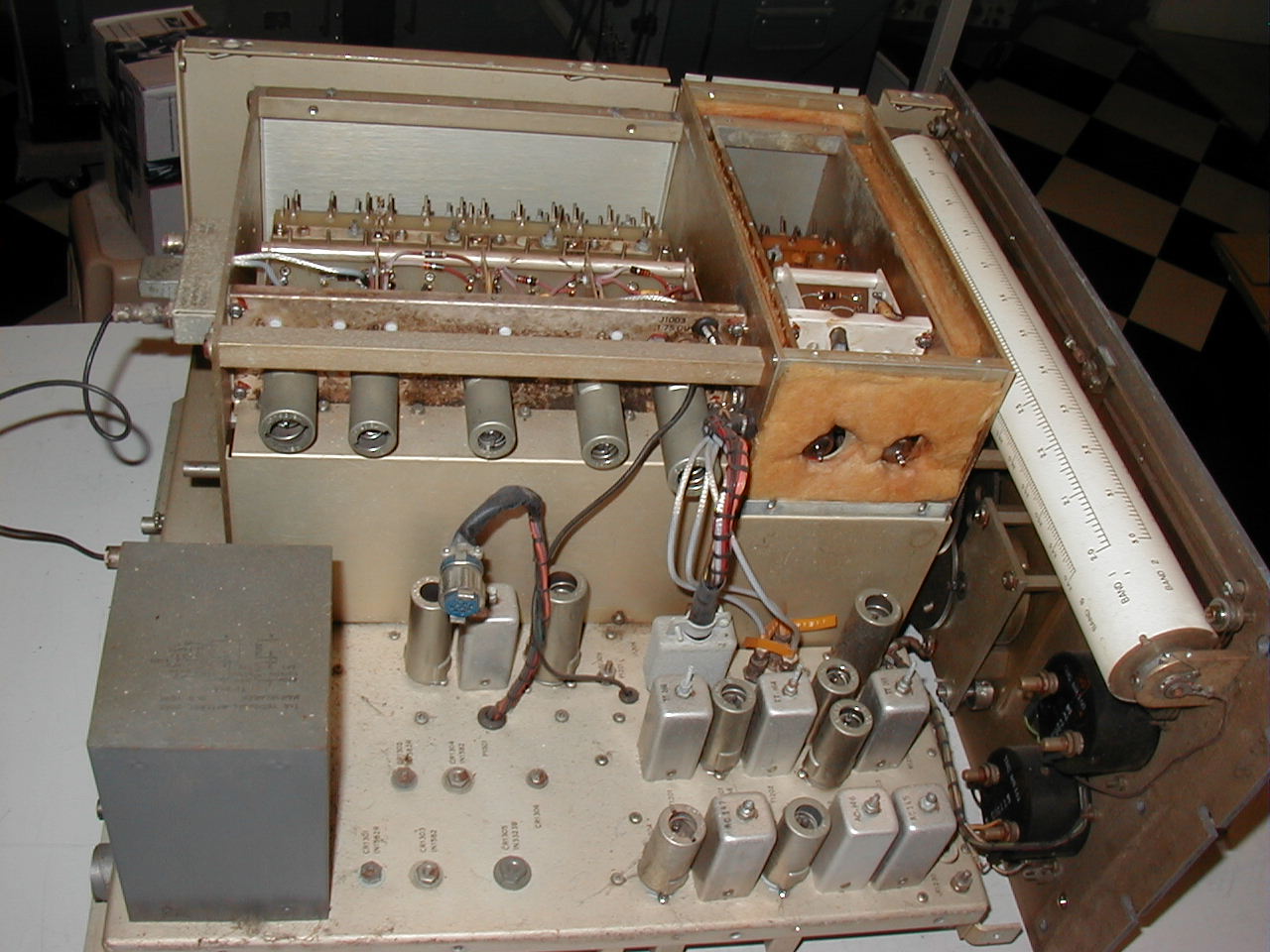

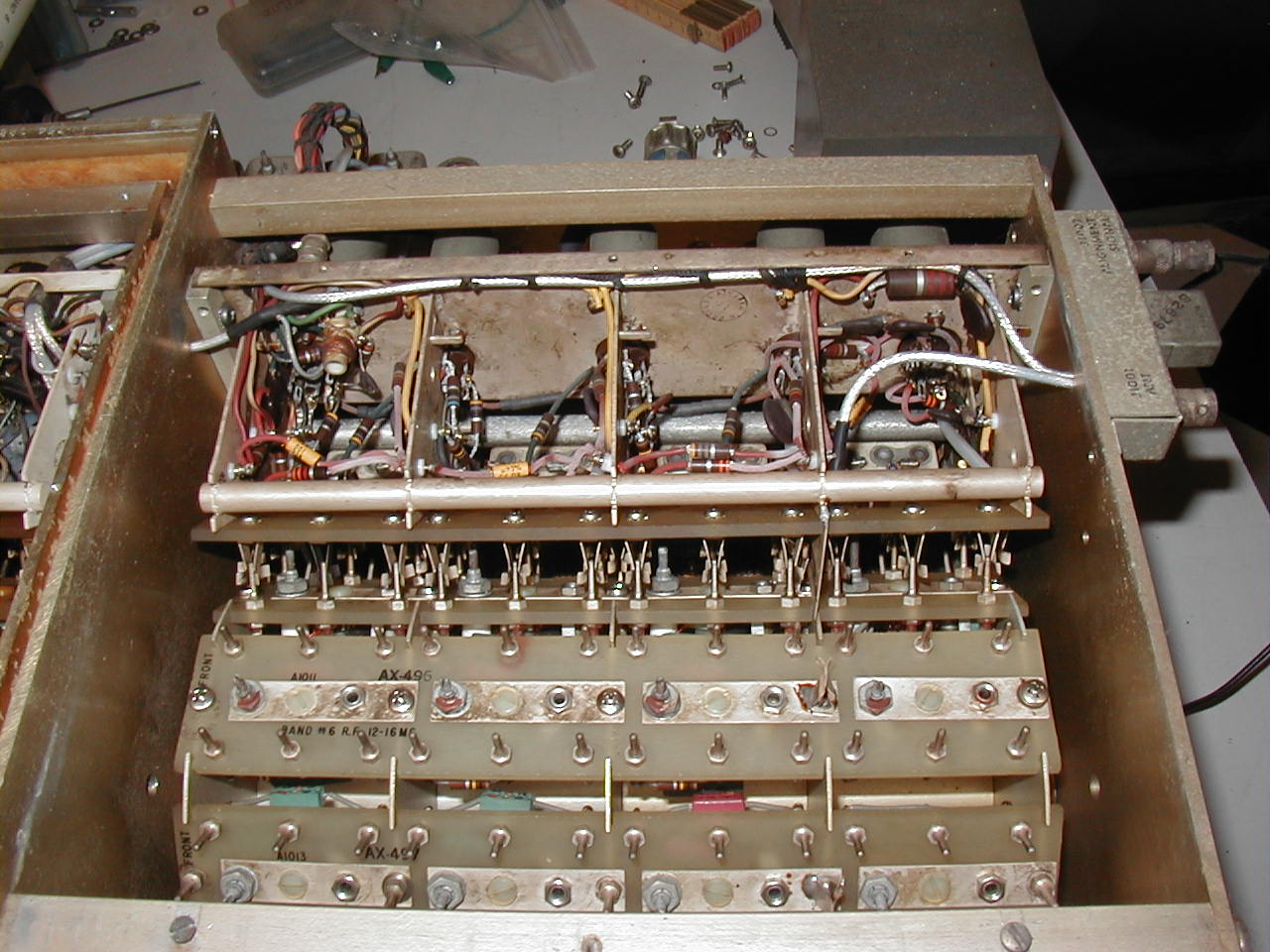

Tuner band-change turret

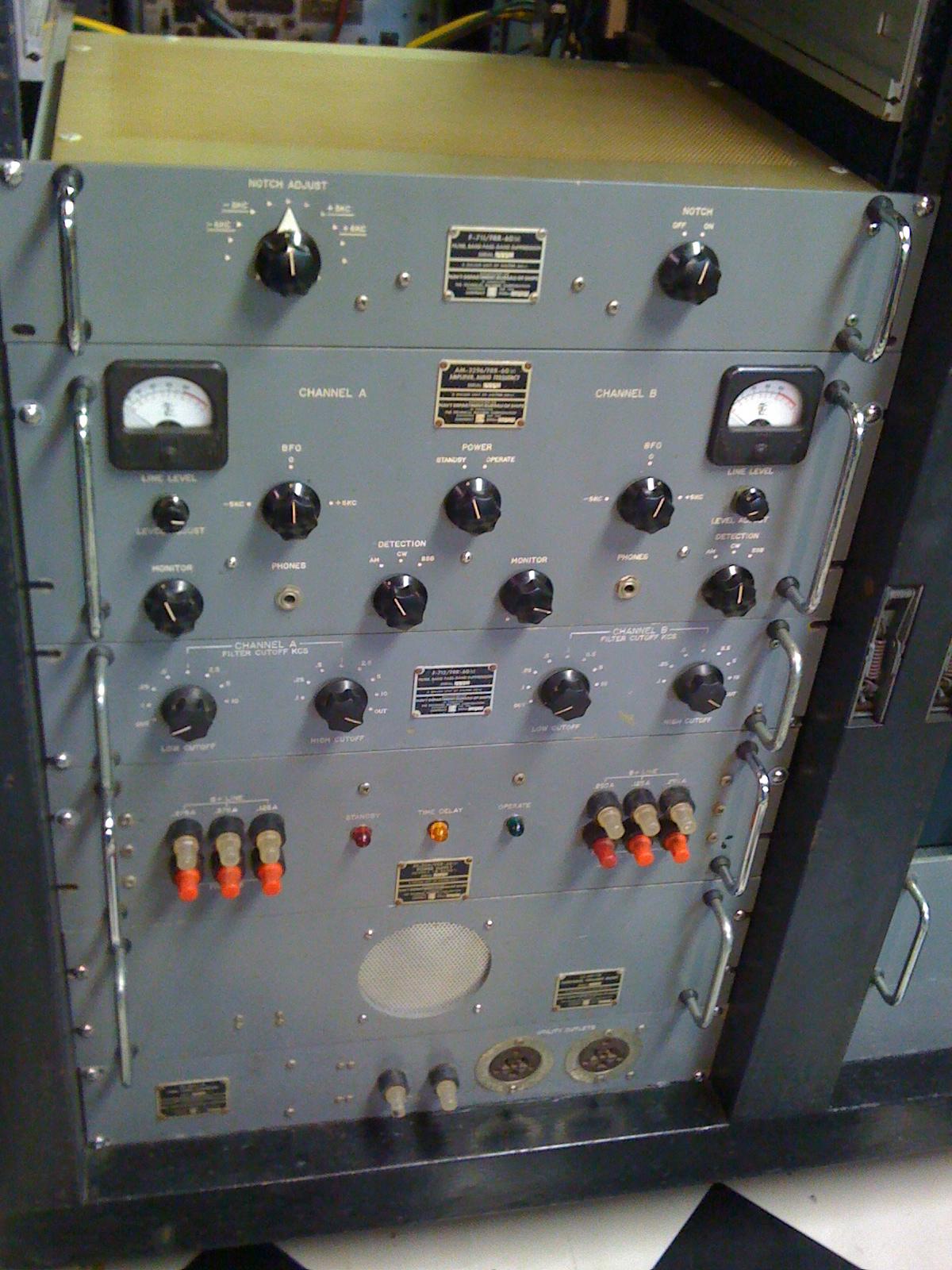

Receiver #1 - notch filter, AF strip, AF filters, p/s, speaker cleaned and working

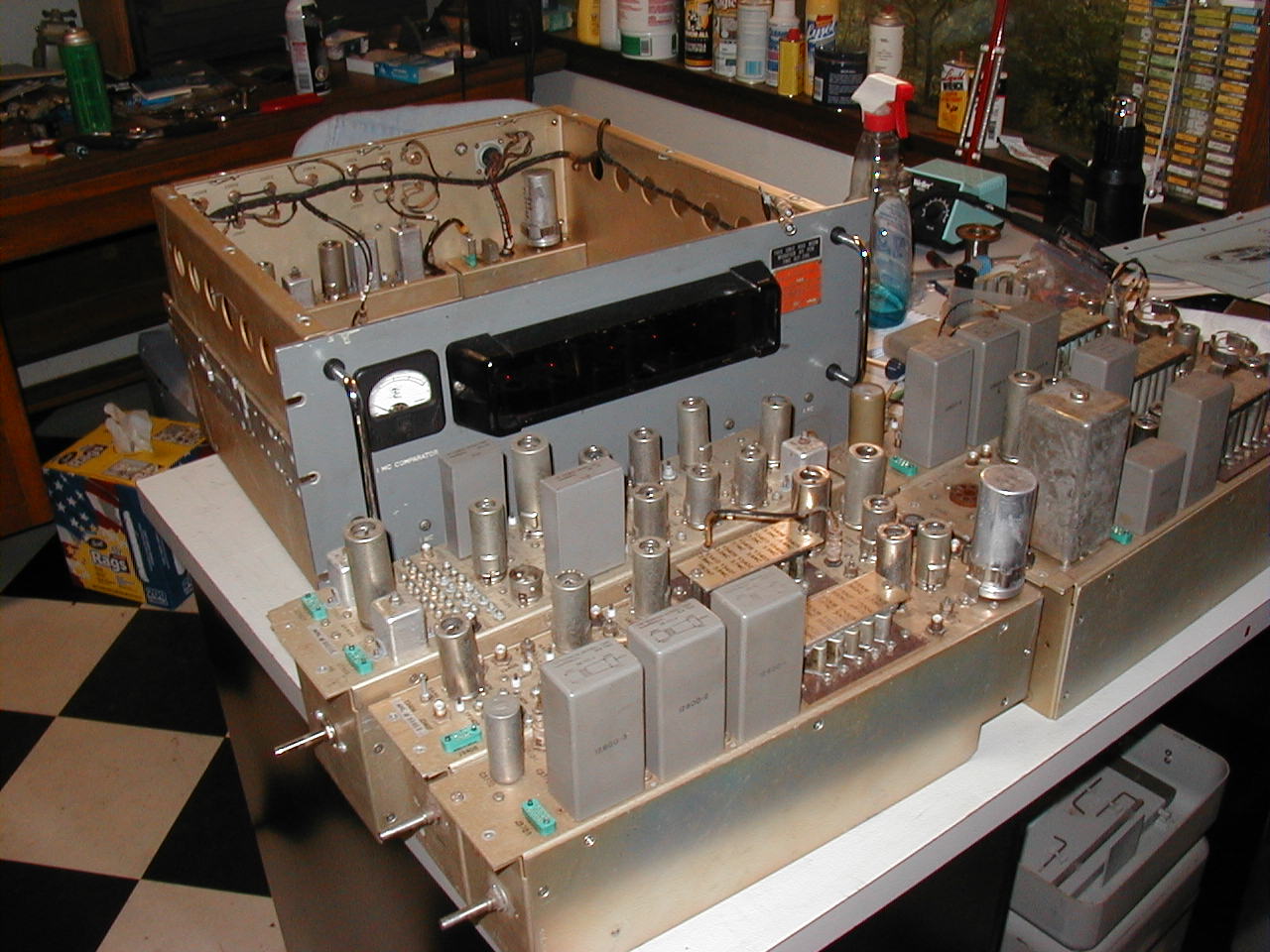

Receiver #1 - AFC, AF control, IF strip, AF strip, etc. cleaned and working - ready to start on the Synthesizer

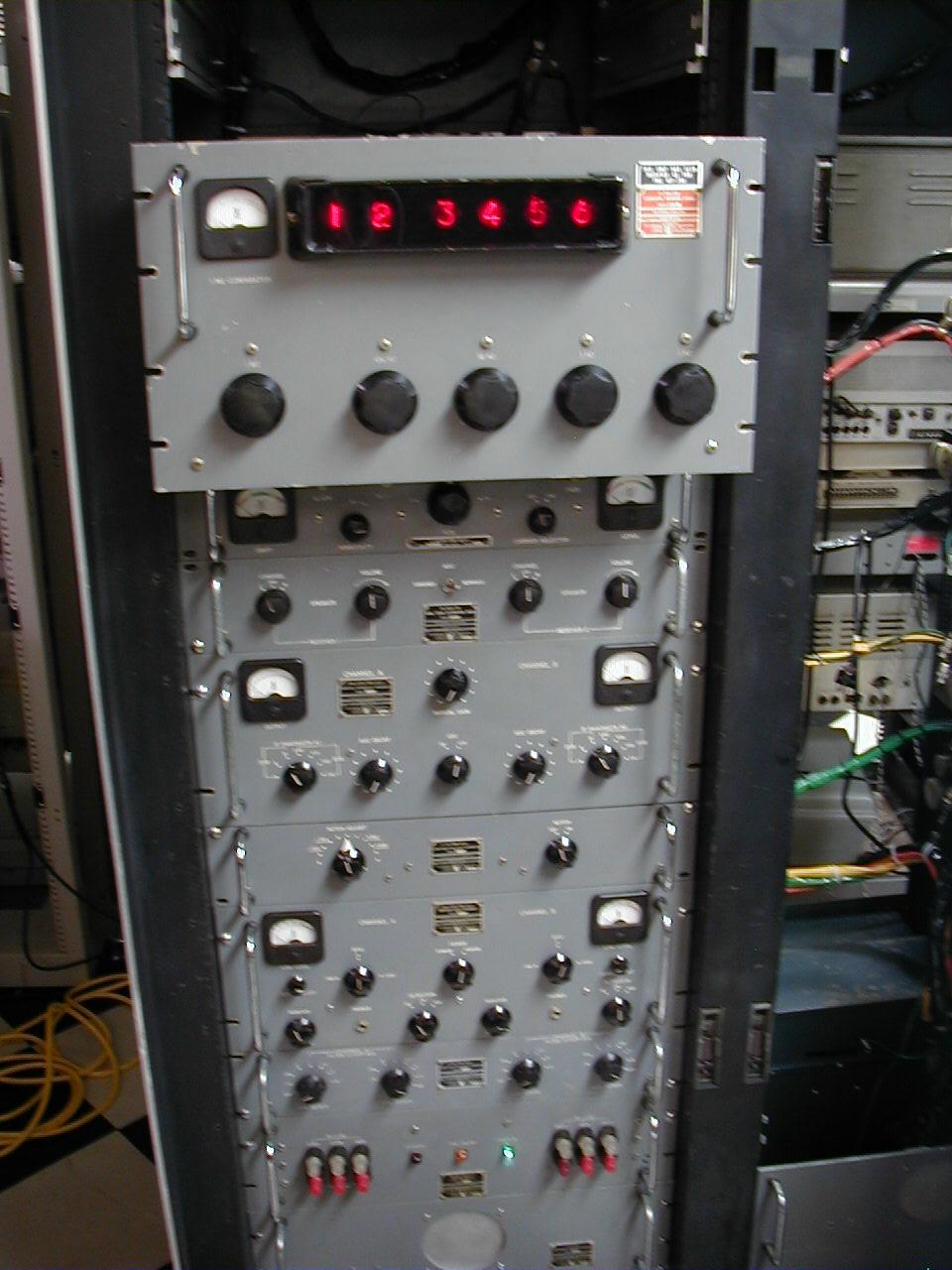

Receiver #1 - cleaned & working!

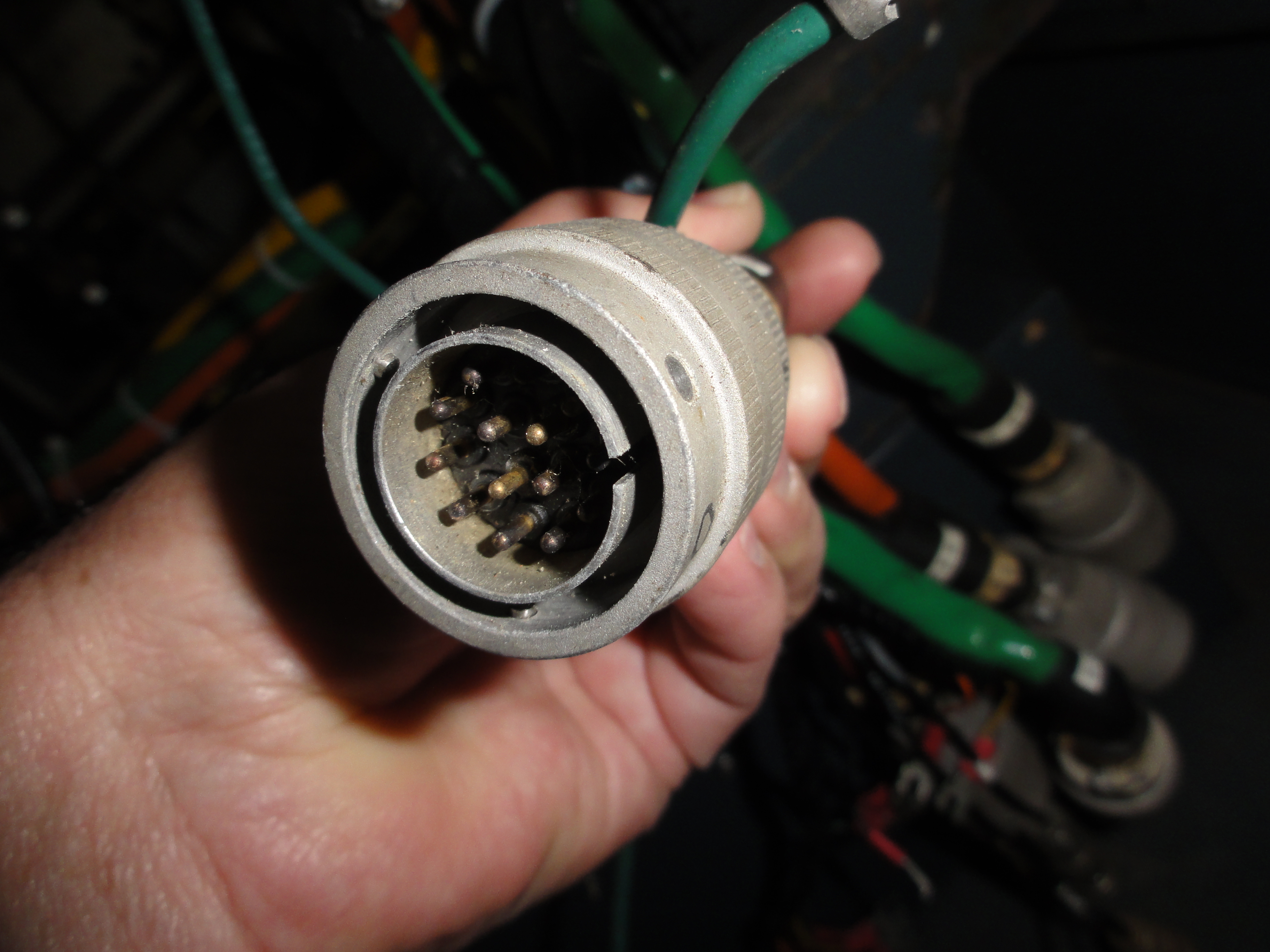

Amphenol 67-06C18-64S
Amphenol 67-06C18-64S

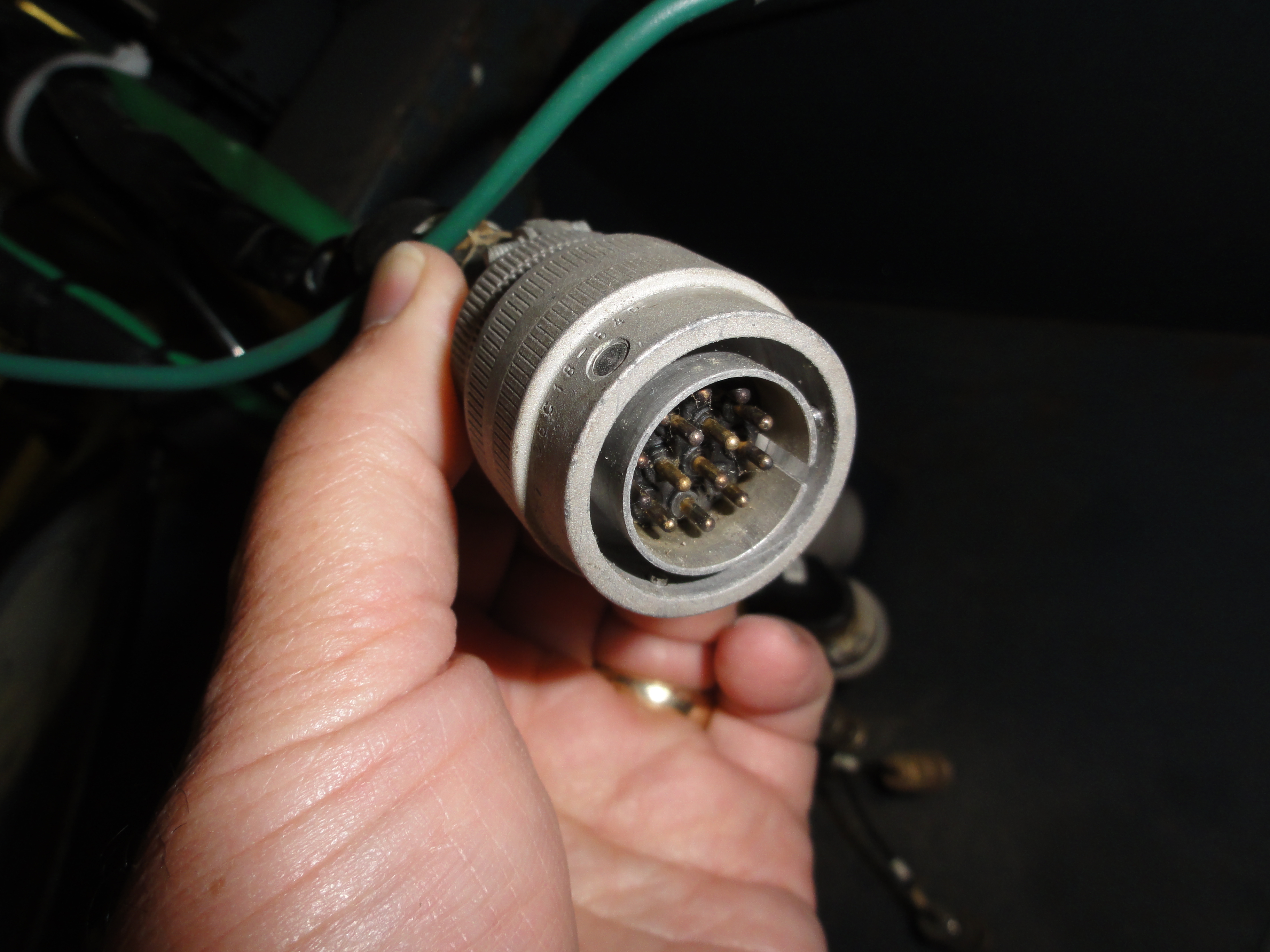

Amphenol 67-06C18-64P
Amphenol 67-06C18-64P
