AN/FRR-42 and AN/FRR-43 Receivers

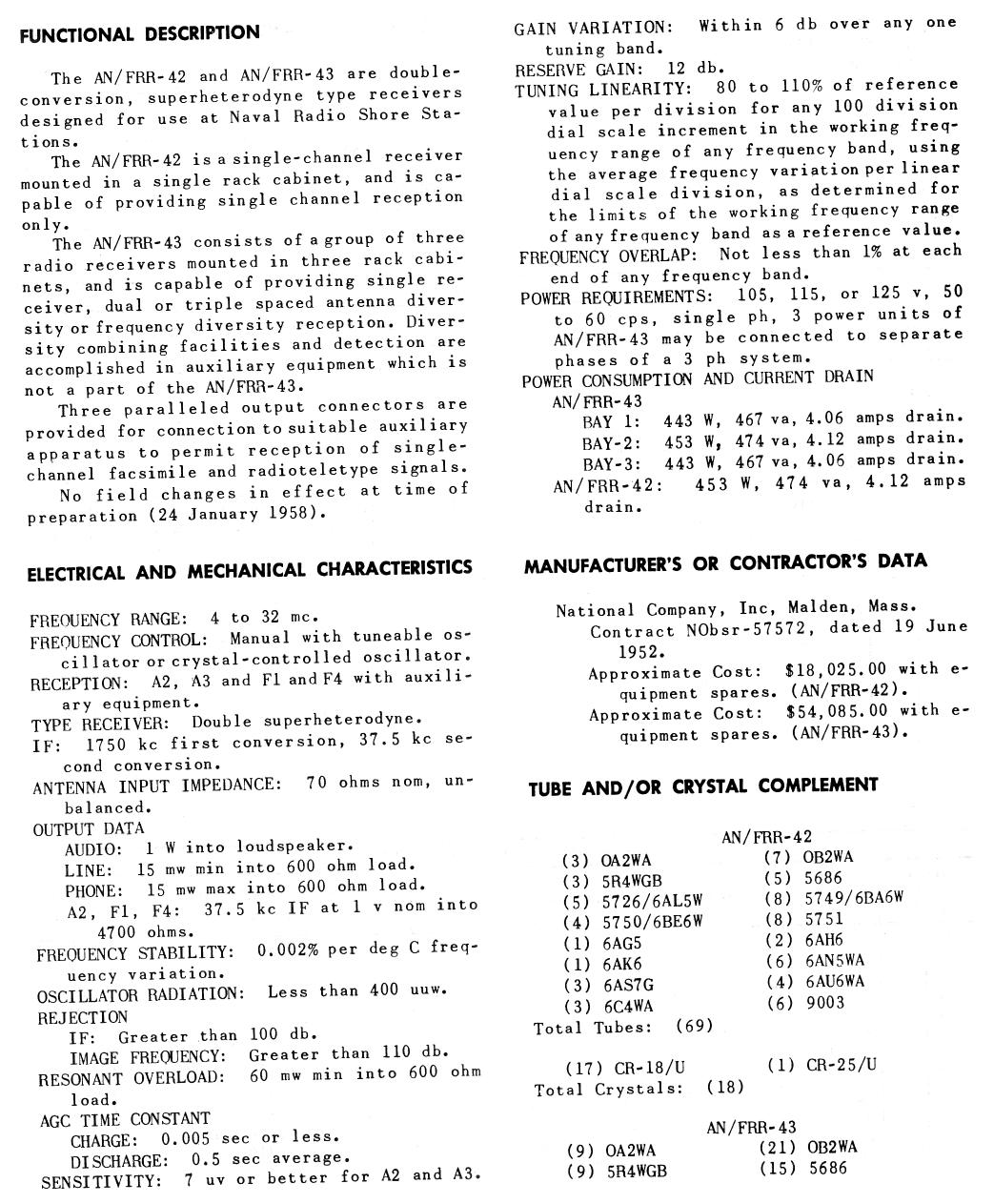

- System Description & Configuration Information

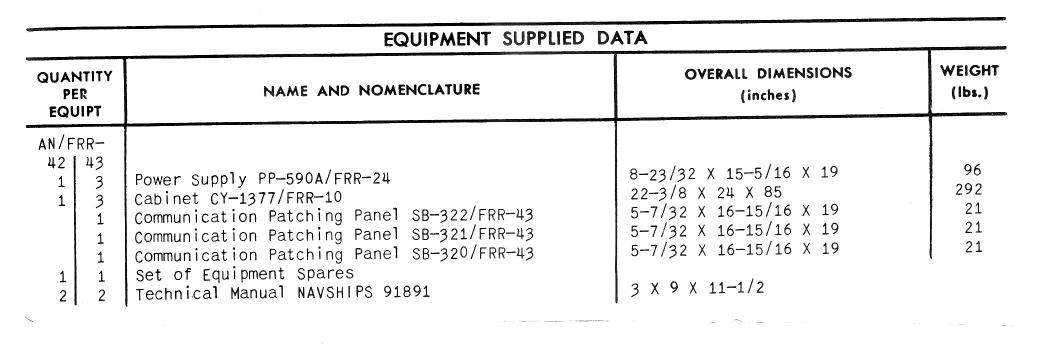

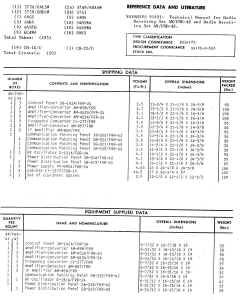

Components
| FRR-42 |
FRR-43 |
Module |
Purpose |
| 1 |
3 |
SB-142A/FRR-24 |
Bandswitch control panel |
| 1 |
3 |
AM-898/FRR |
RF amp & converter |
| 1 |
3 |
AM-452A/FRR-24 |
RF amp & converter |
| 1 |
3 |
AM-453A/FRR-24 |
RF amp & converter |
| 1 |
3 |
CV-277/FRR |
2nd converter |
| 1 |
3 |
AM-857/FRR |
IF Amp & Detector |
| 1 |
3 |
AM-858/FRR |
IF Amp |
| 1 |
- |
SB-323/FRR-42 |
Patch Panel |
| - |
1 |
SB-322/FRR-43 |
Patch Panel |
| - |
1 |
SB-321/FRR-43 |
Patch Panel |
| - |
1 |
SB-320/FRR-43 |
Patch Panel |
| 1 |
1 |
O-131A/FRR-24 |
Master Oscillator |
| 1 |
- |
SB-318/FRR-42 |
Power Distribution |
| - |
1 |
SB-319/FRR-43 |
Power Distribution |
| 1 |
3 |
PP-590A/FRR-24 |
Power Supply |
| 1 |
3 |
CY-1377/FRR-10 |
Cabinet |
