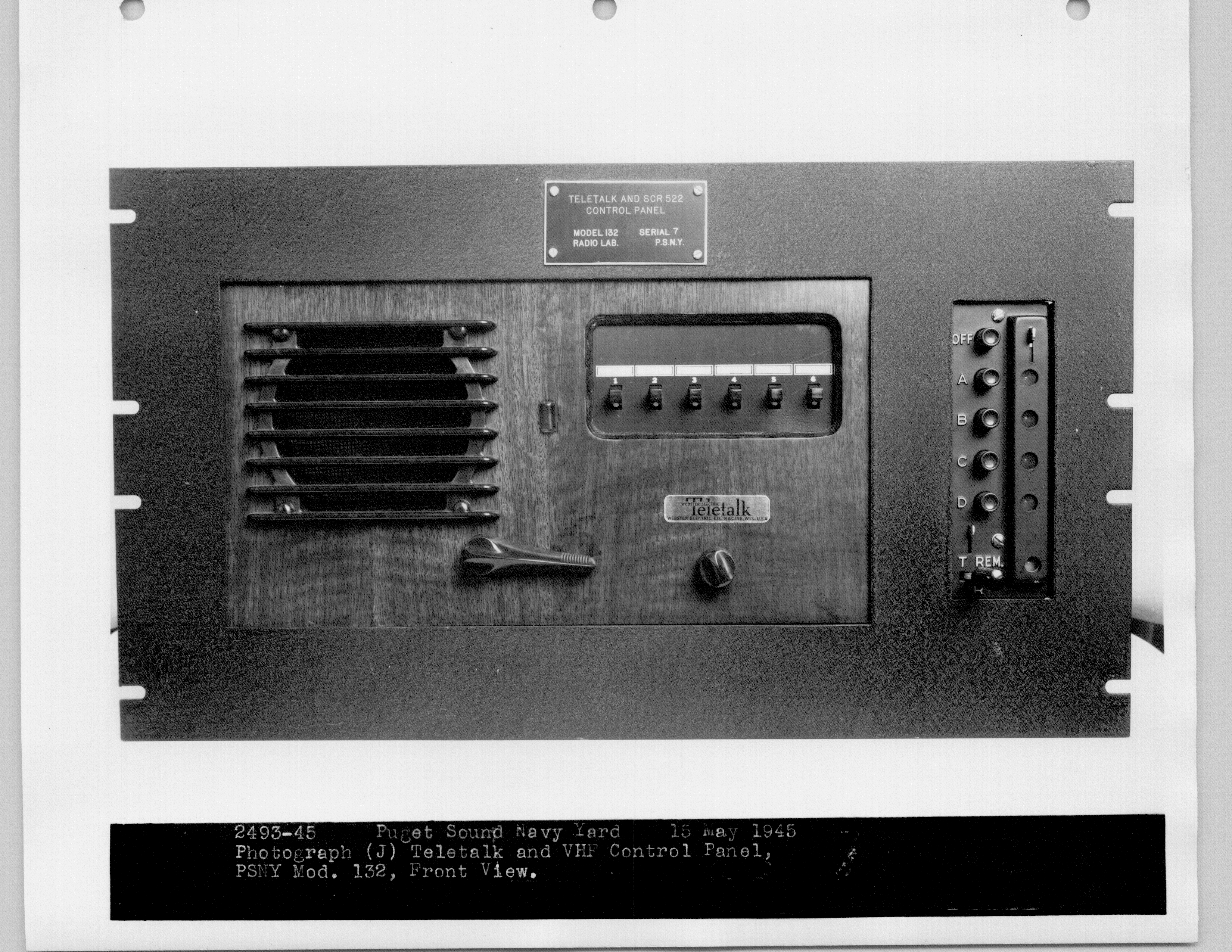

Description - Plans from Puget Sound Navy Yard |
|
||
|
Receivers listed for 3105kc, 3235kc, 3385kc, 4495kc, 6390kc (crash freq),
140.58mc plus spares Transmitters listed for 3295kc, 6970kc, 278kc, 6390kc (crash freq), 142.74mc plus spares |
|||
All Schematic Diagrams - Inter-unit Cabling Diagram - Complete Schematic Diagram |
|||

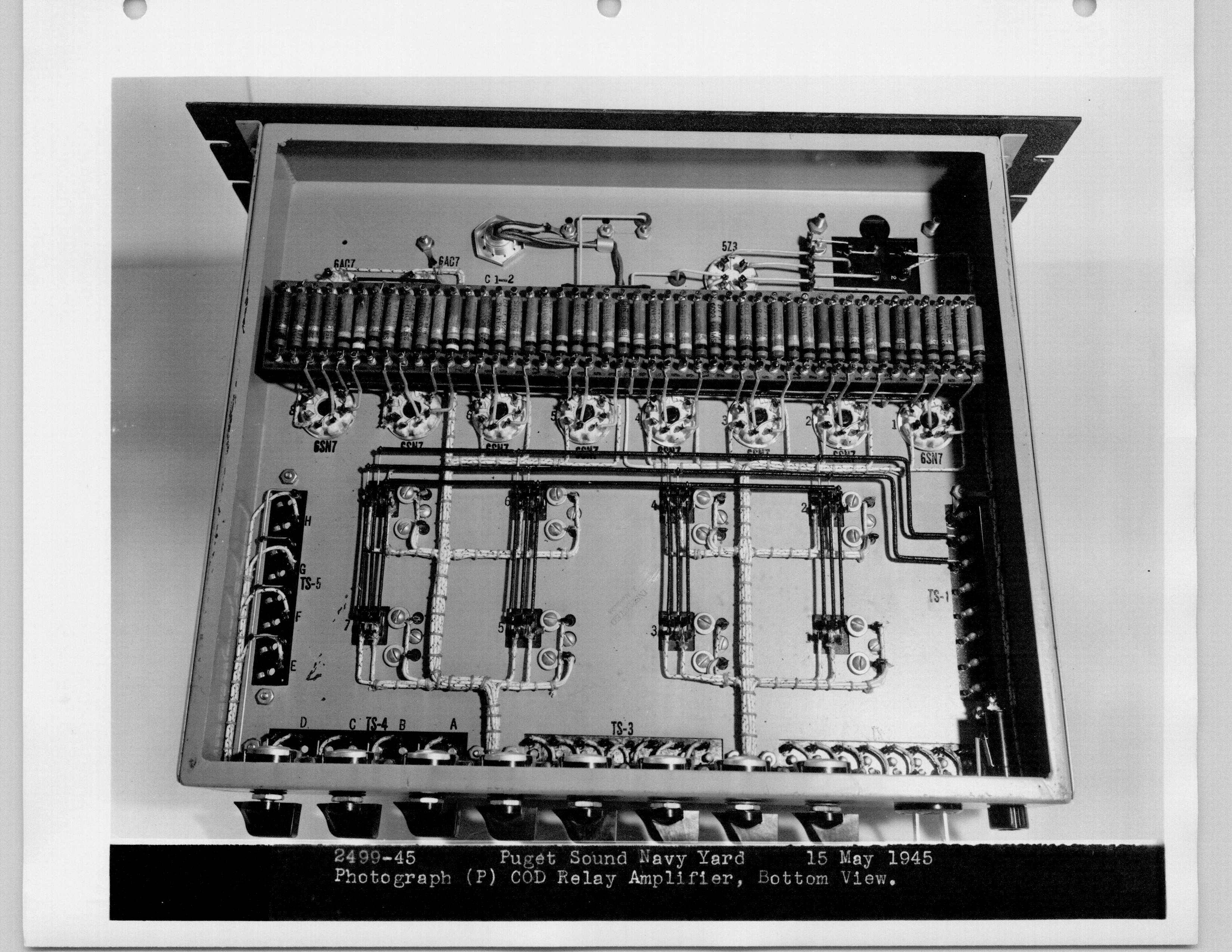

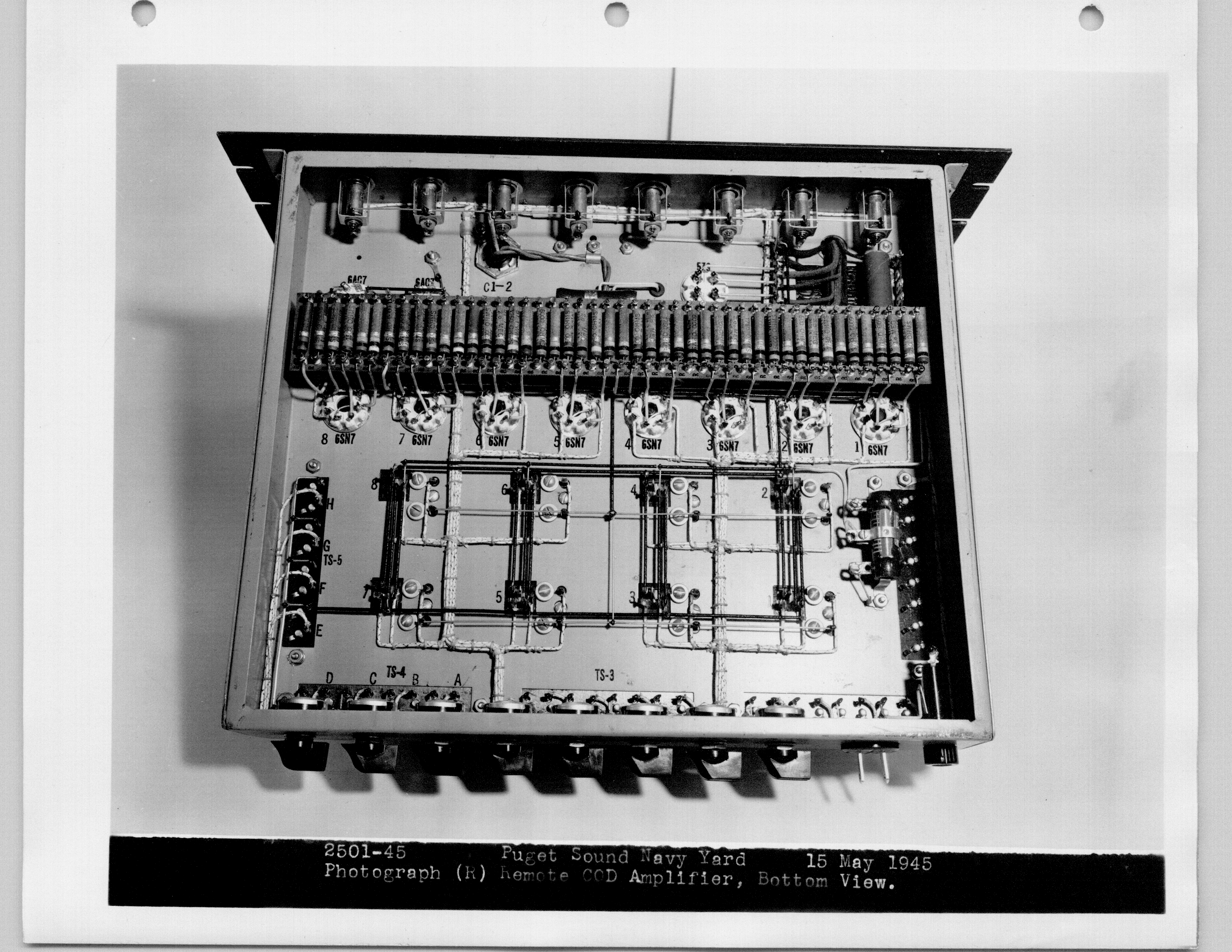

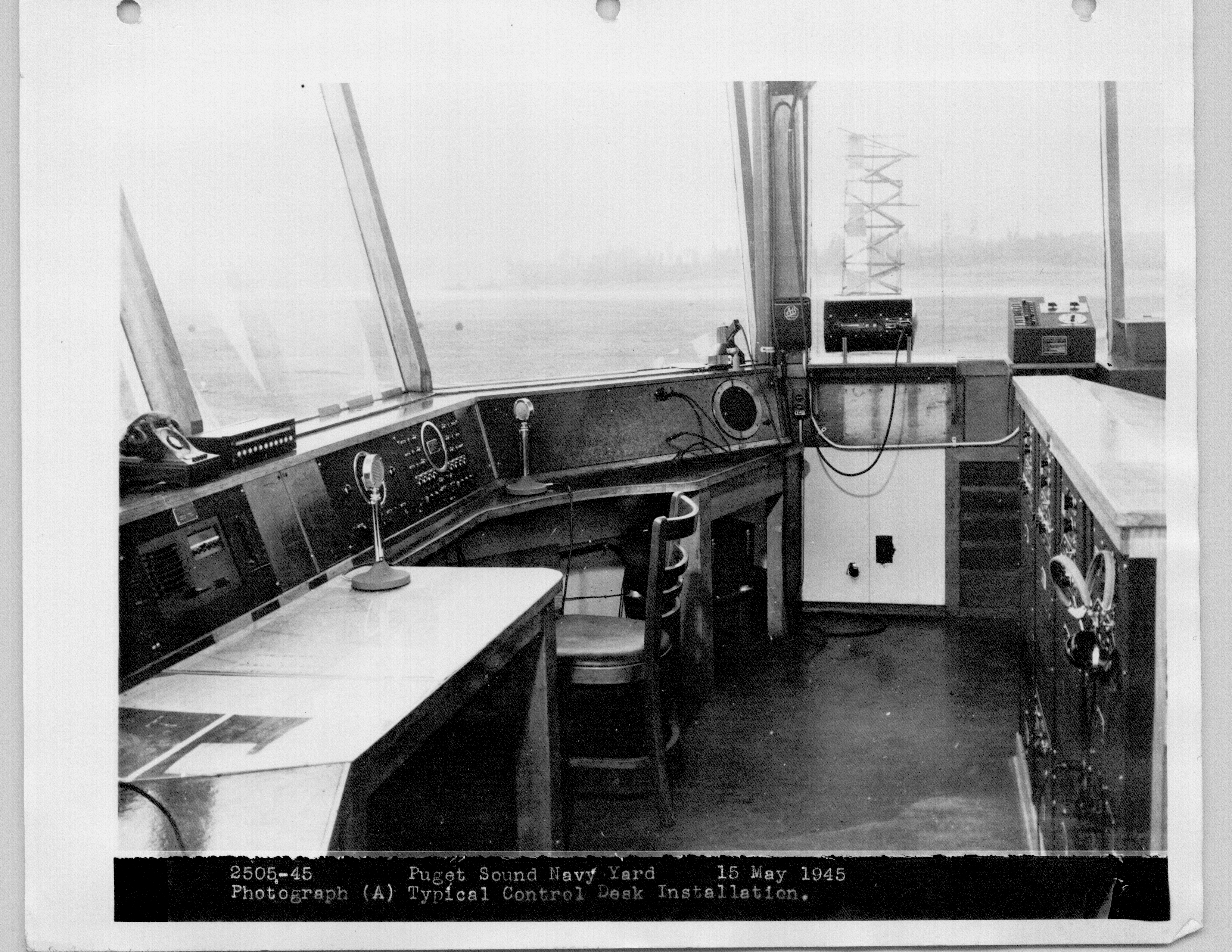

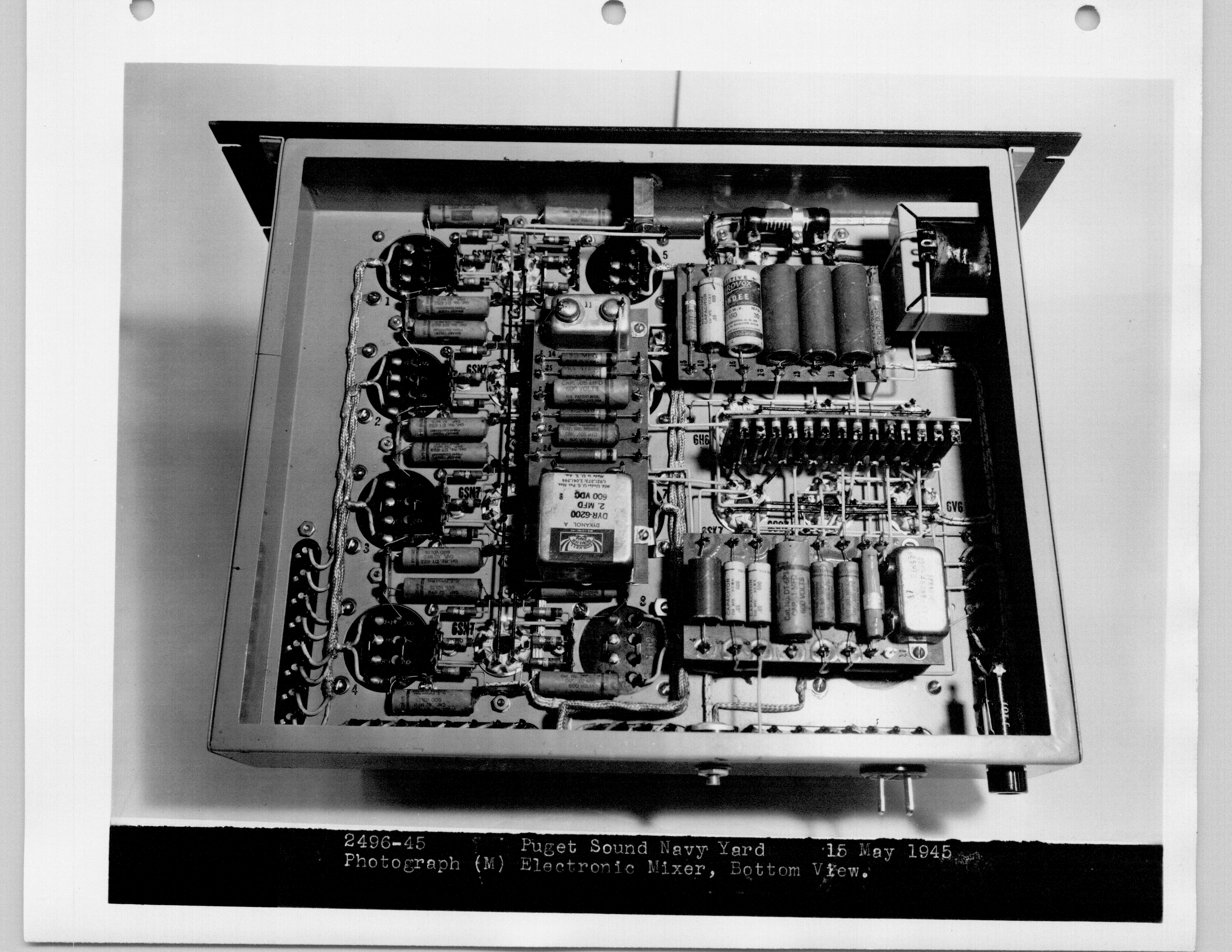

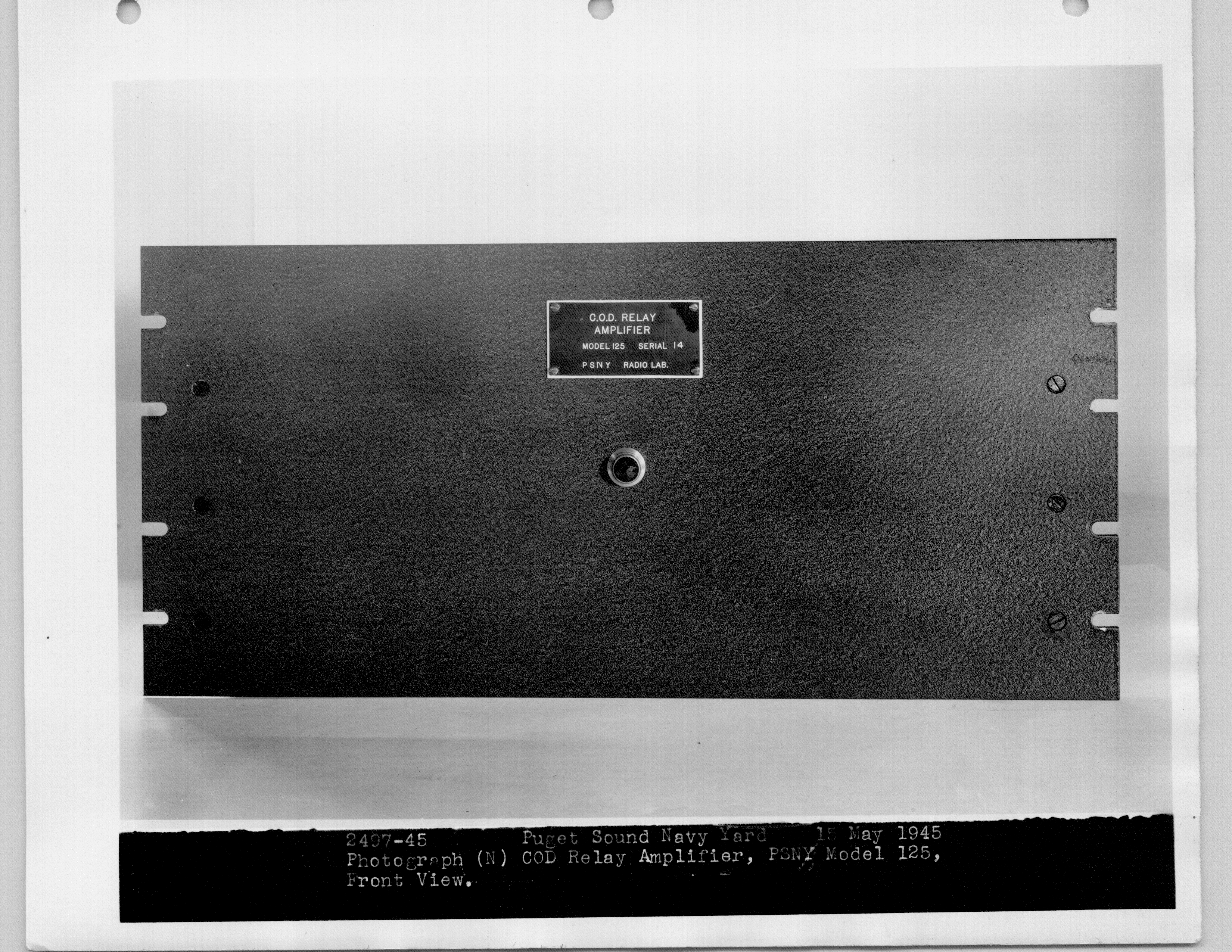

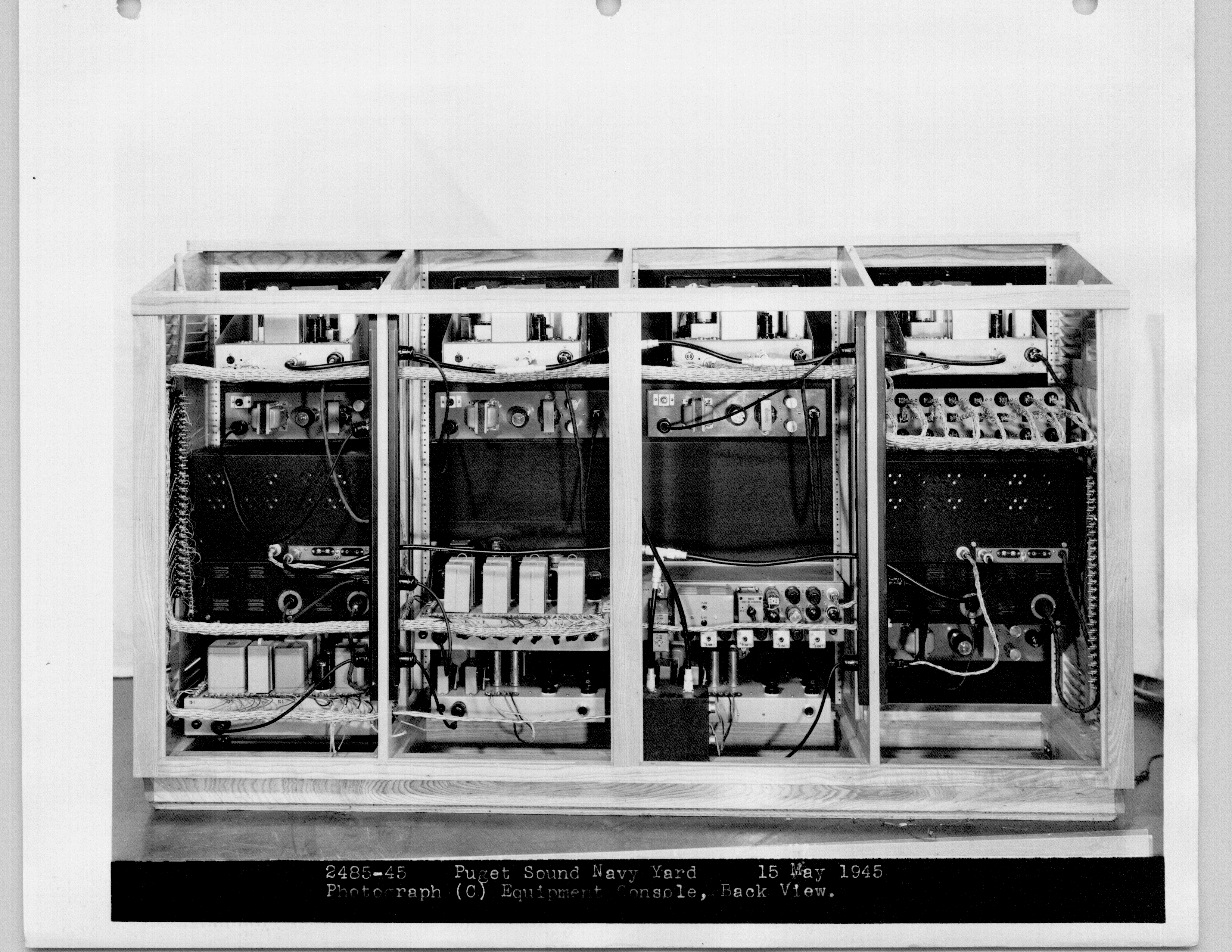

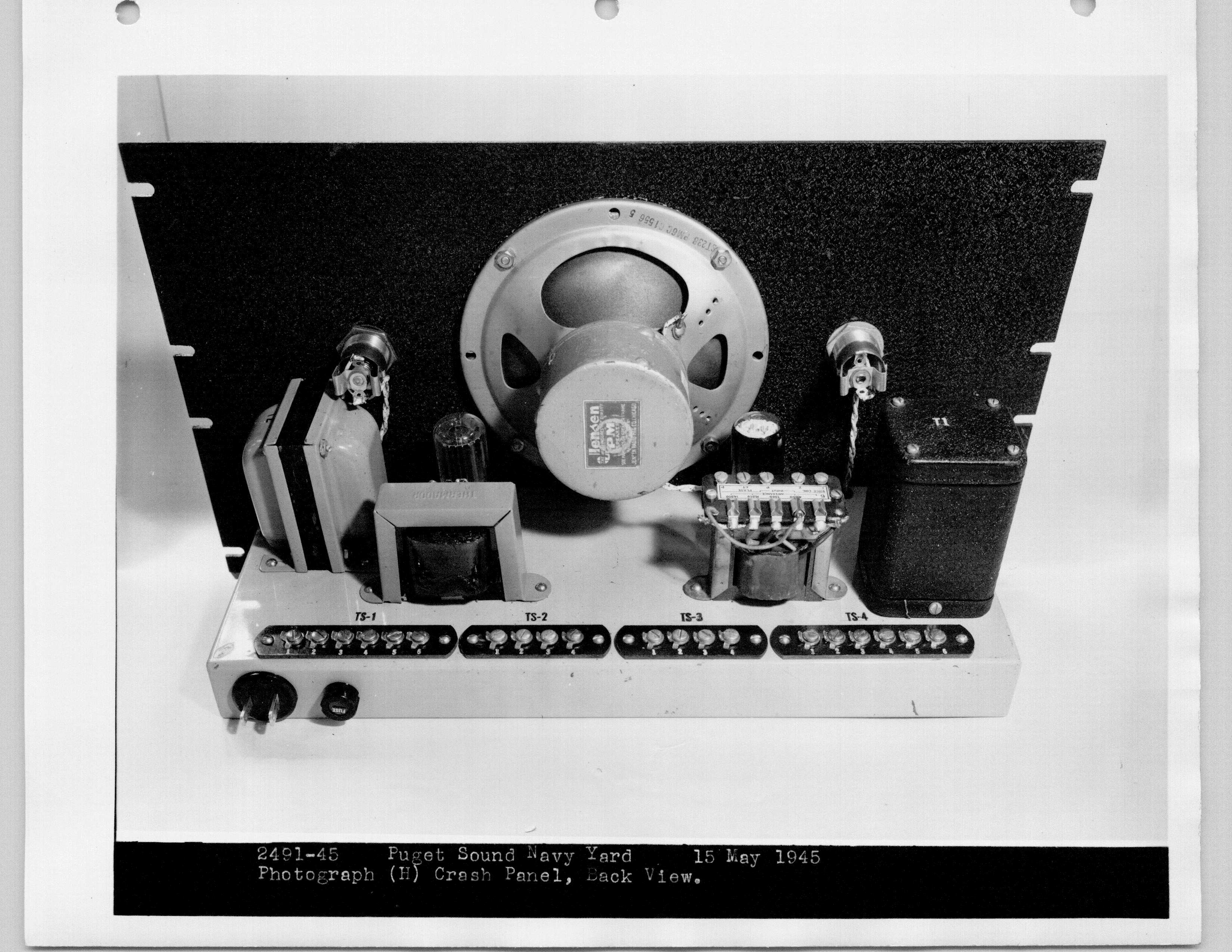

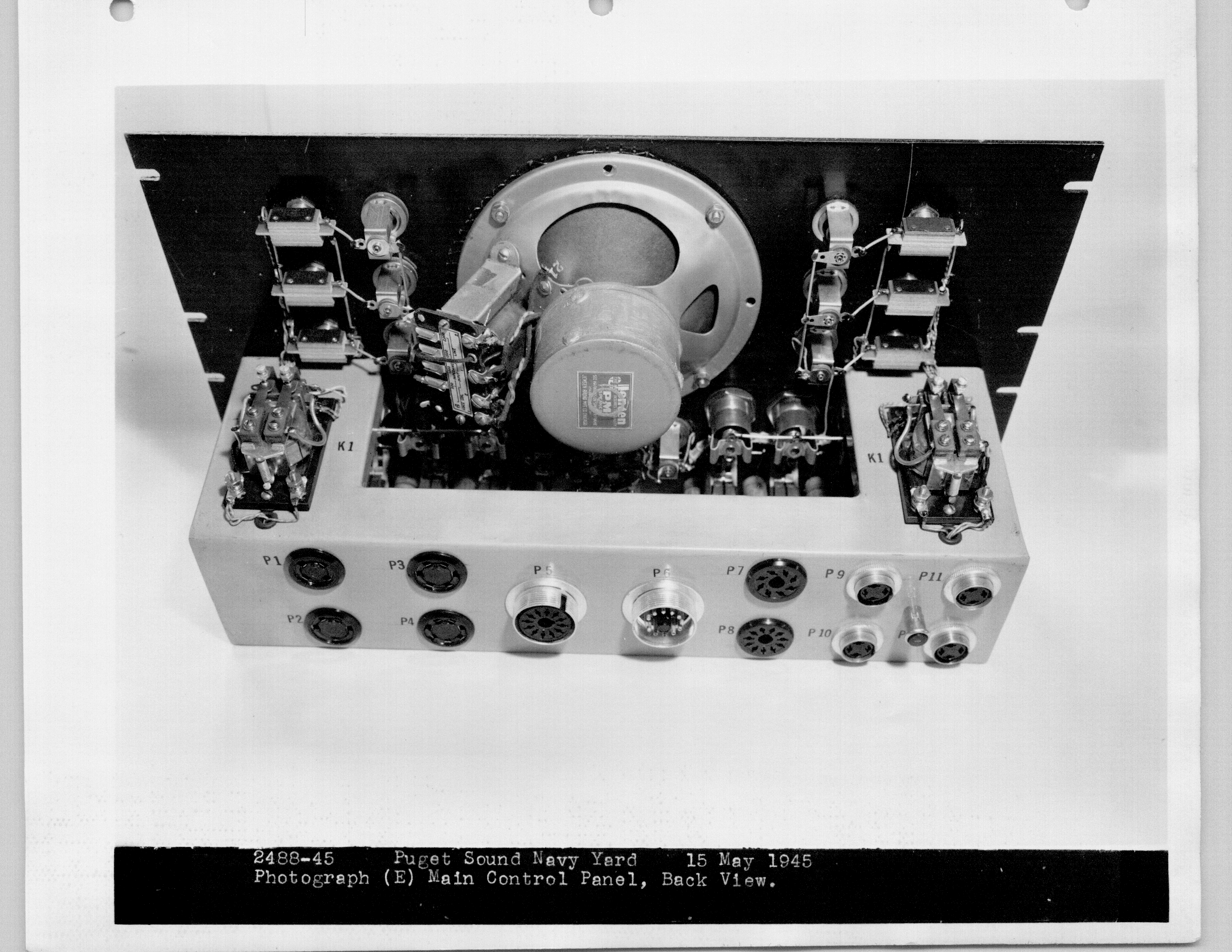

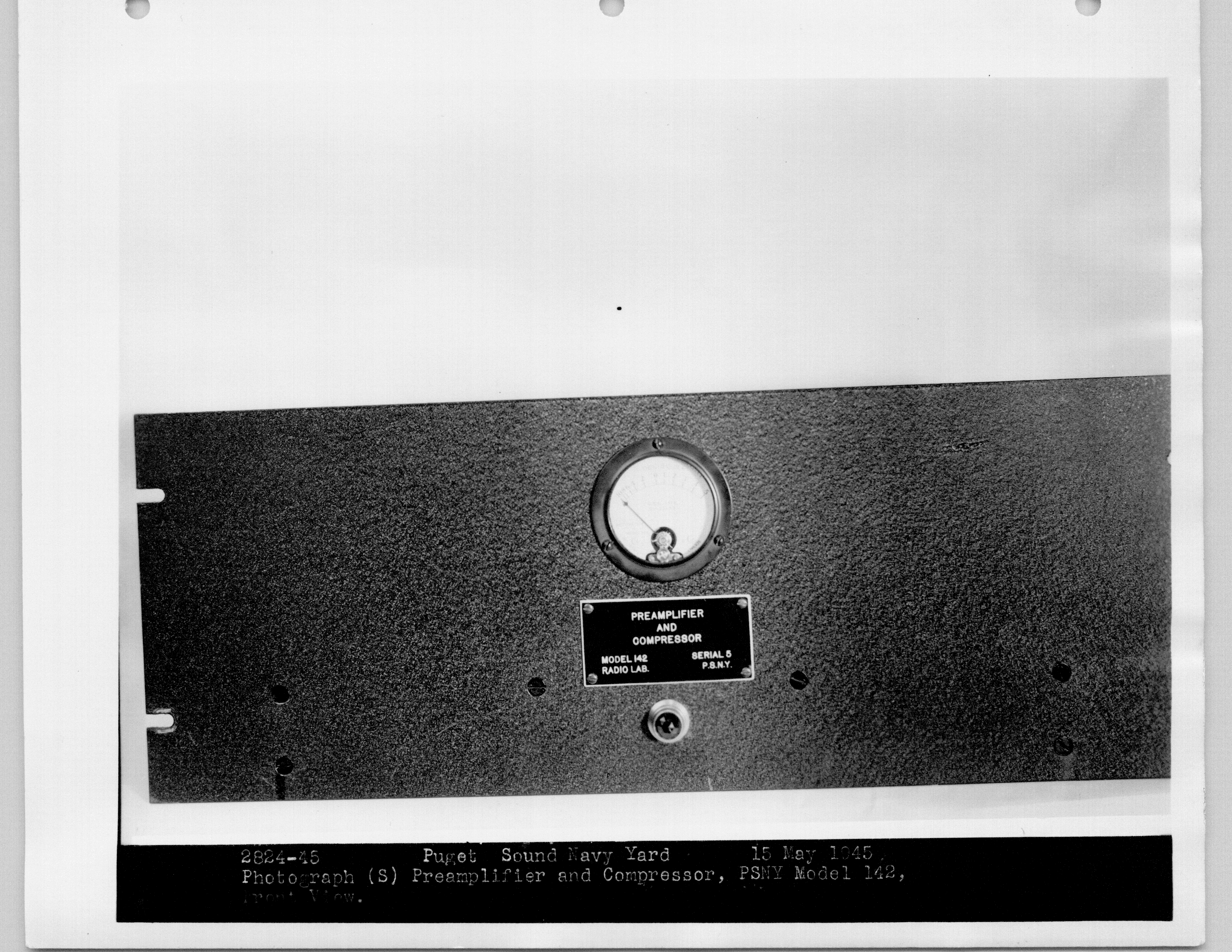

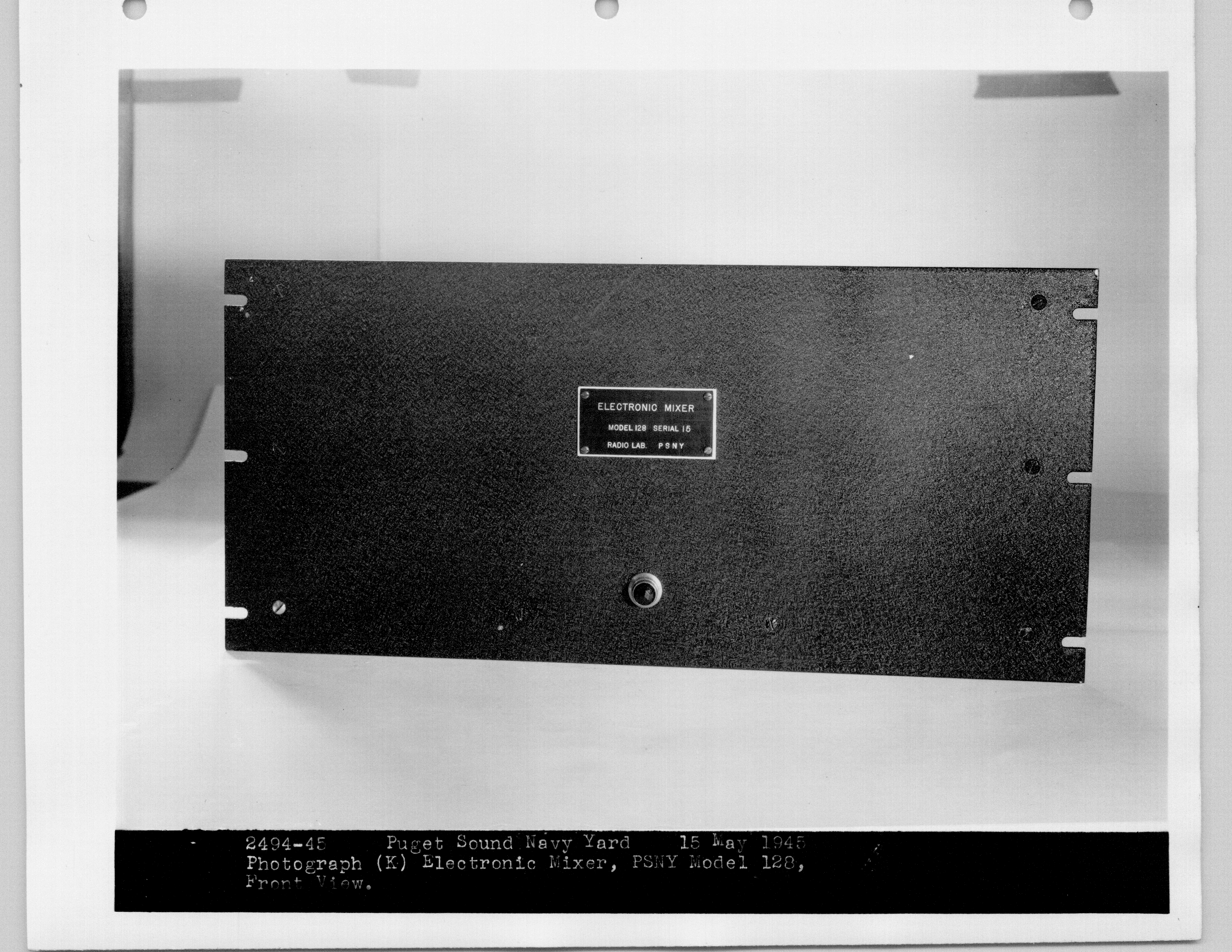

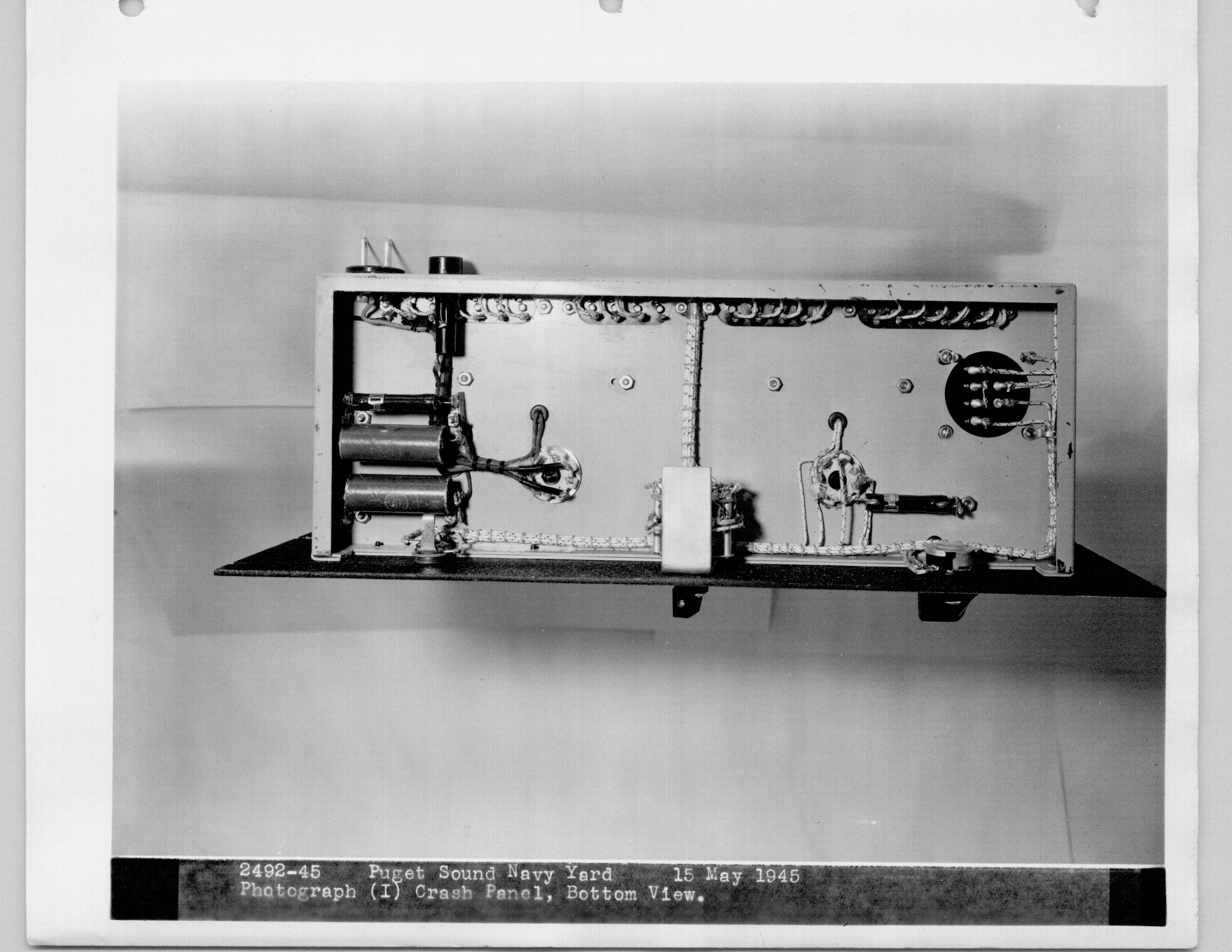

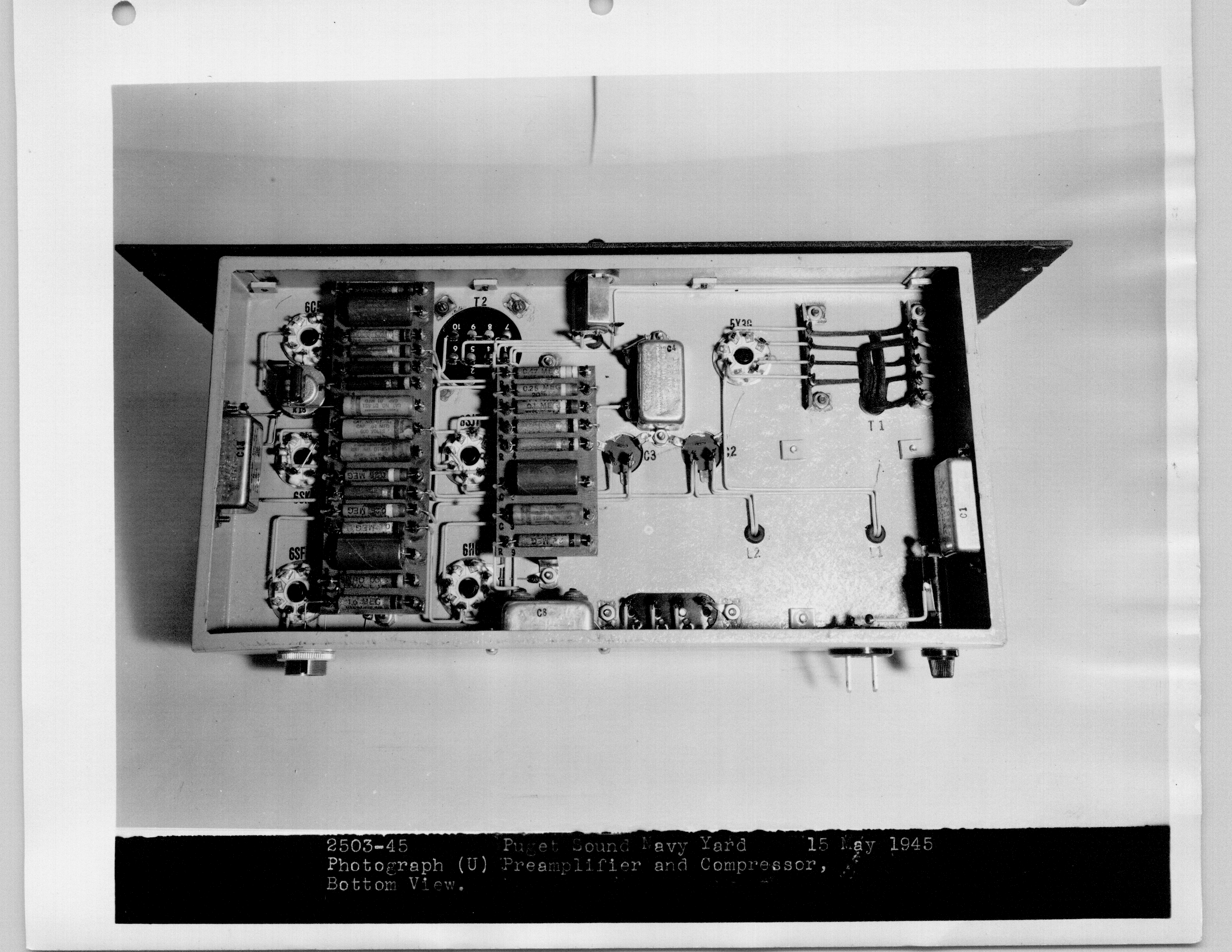

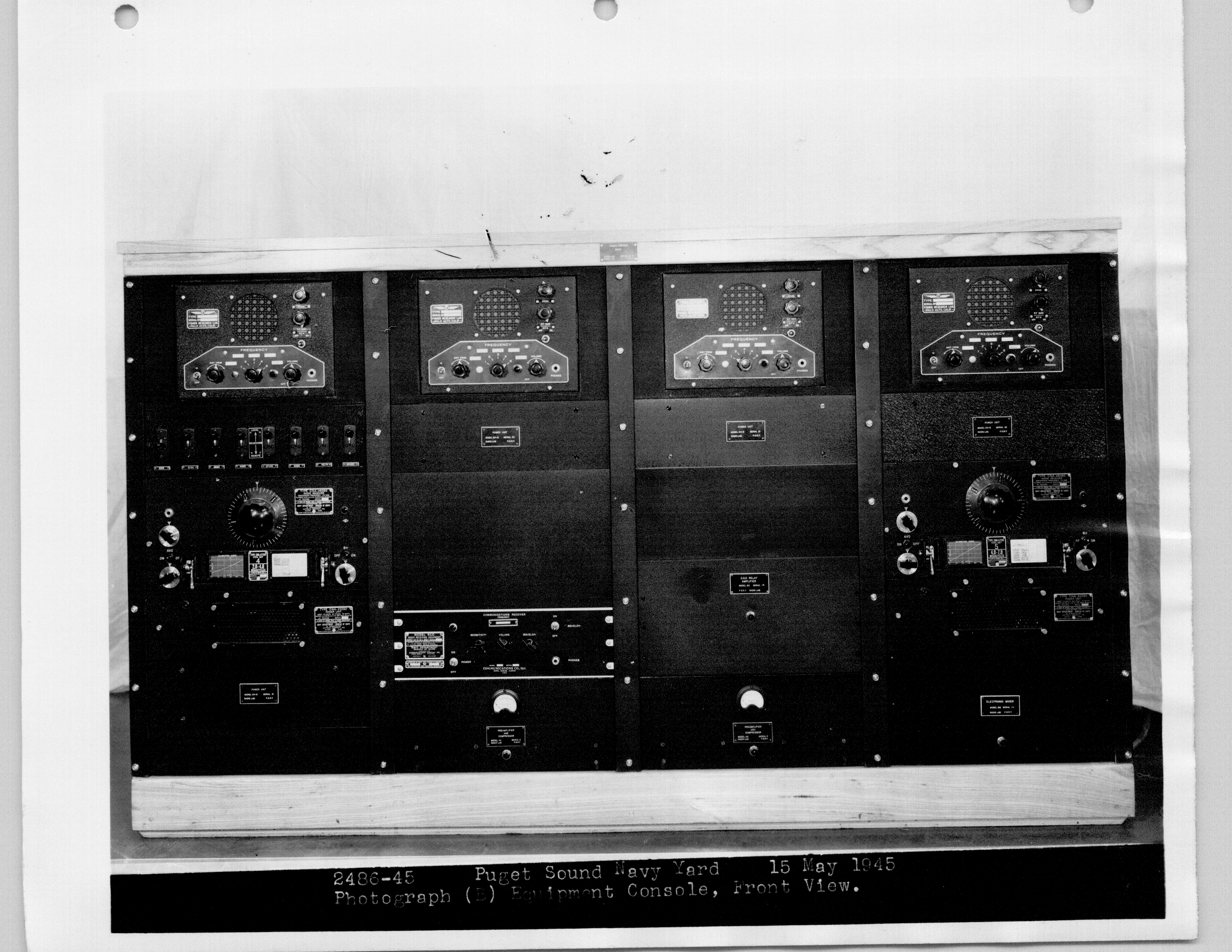

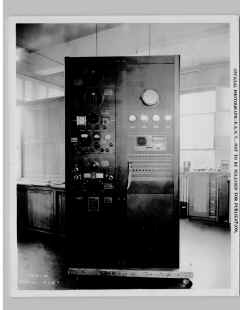

Photos - pdf of photos shown below |
|||
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

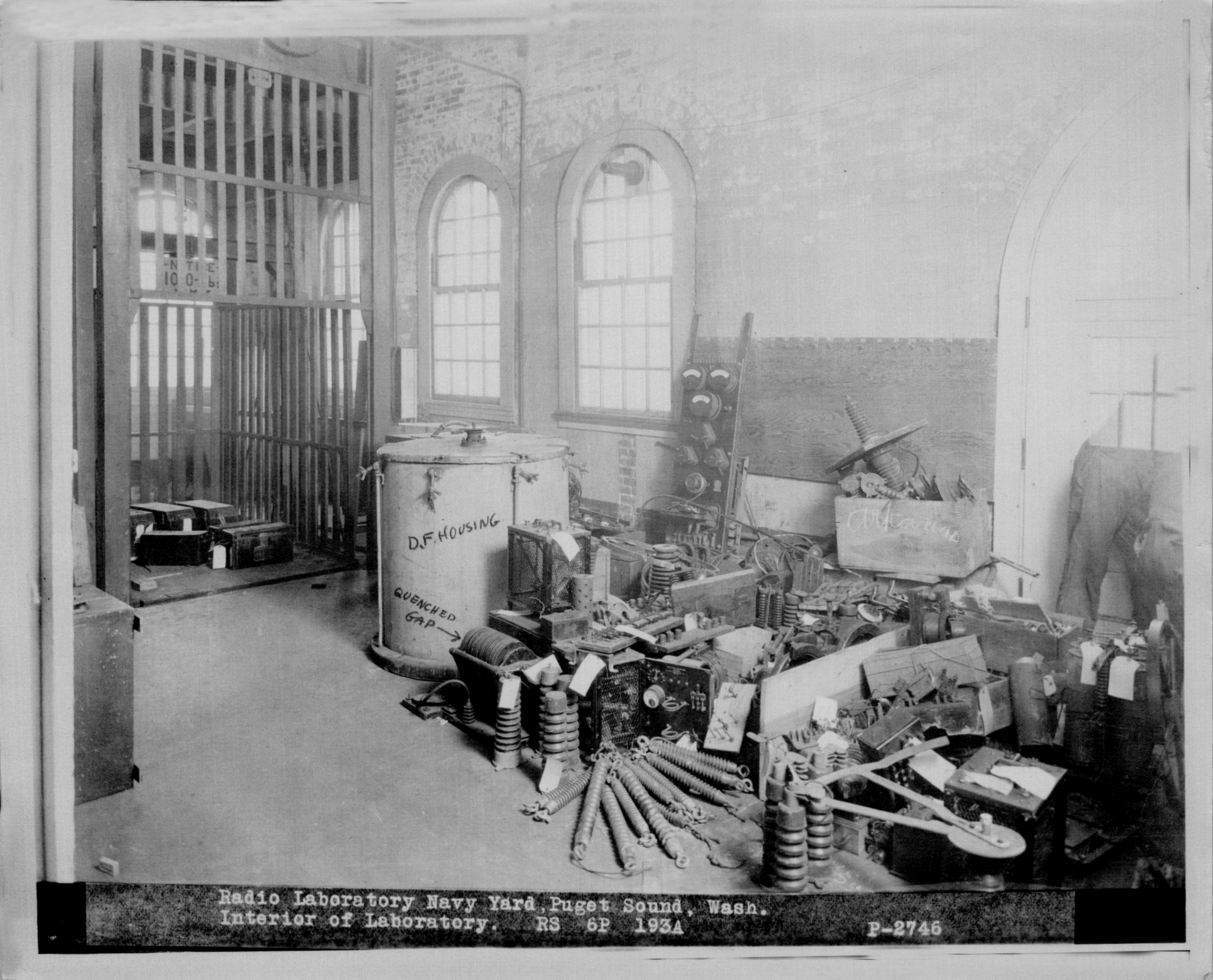

Puget Sound Naval Shipyard Radio Lab |
 |
||
 Thanks to Sam Stokes for enhanced photos |
 |
 |
|
