The adventure begins - thanks to Chuck W3FJJ

AN/FRT-17 in situ at Chuck's house in Maryland - 1500 lbs.
Step 1 - remove the drawers - Nick K4NYW & John K4OZY


Step 2 - turn it over onto the dolly. The book says 1100 lbs. without the drawers.....

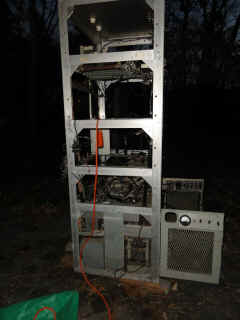

Step 3 - roll it out to the truck and engine hoist

Step 4 - Hoist away

Ready to go - this was nowhere near as smooth a procedure as it seems - we had to try several variations of lift/push/pry/pull before getting it all aboard.

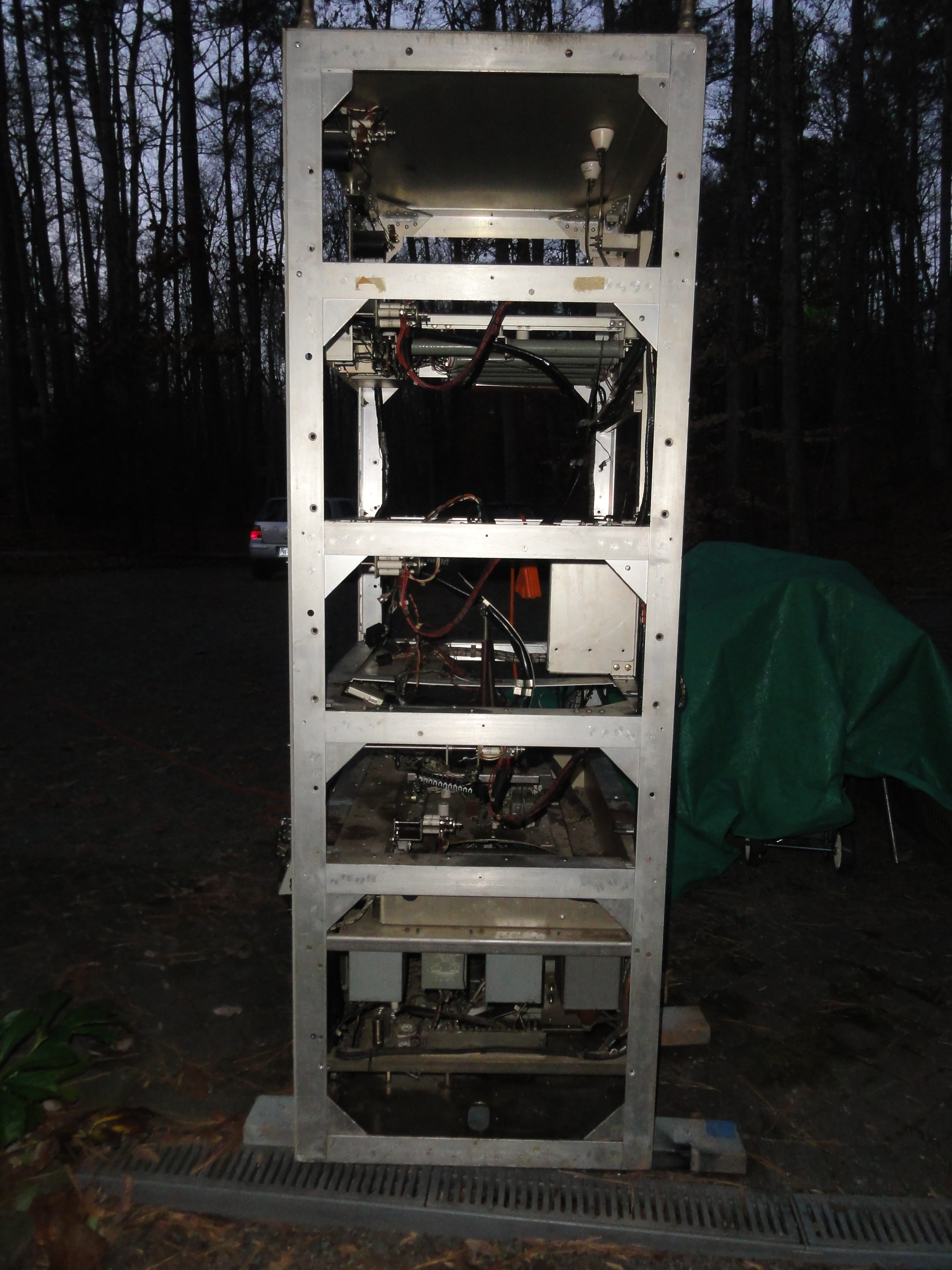

The next night - back in North Carolina

Unload the drawers
Hoist it out - things went smoother this time! Experience helps - so does gravity

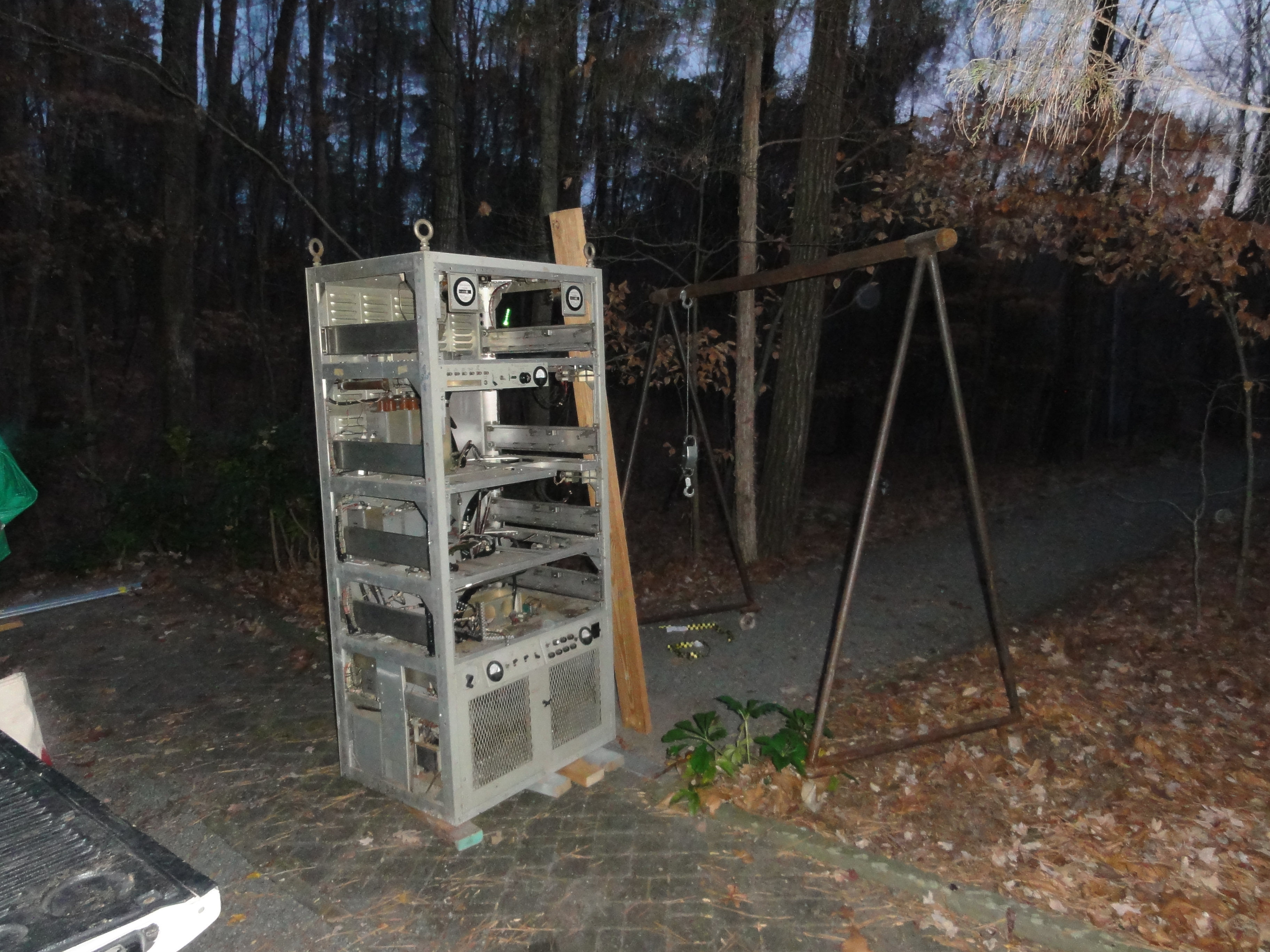

John, Nick, Hoist

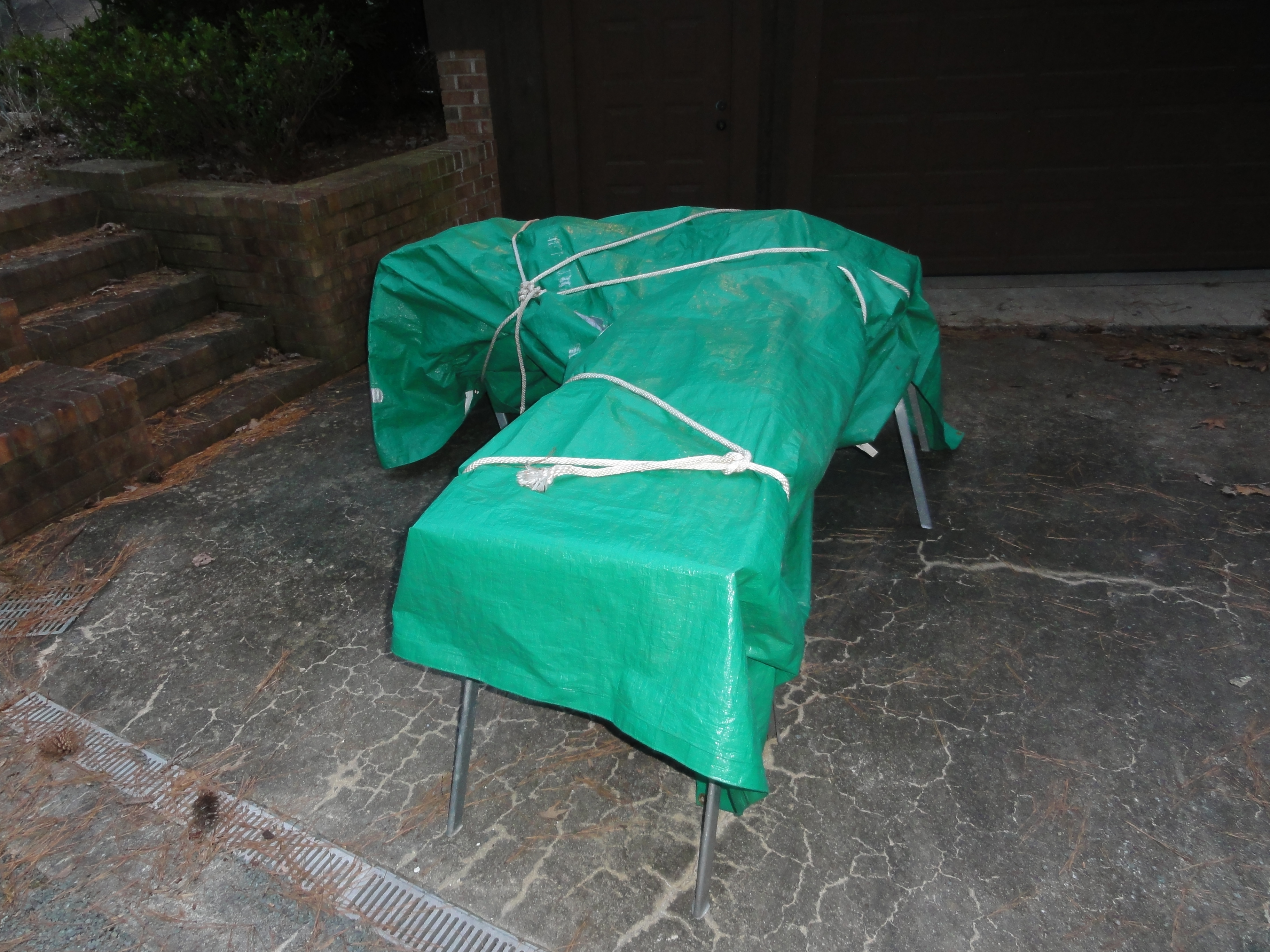

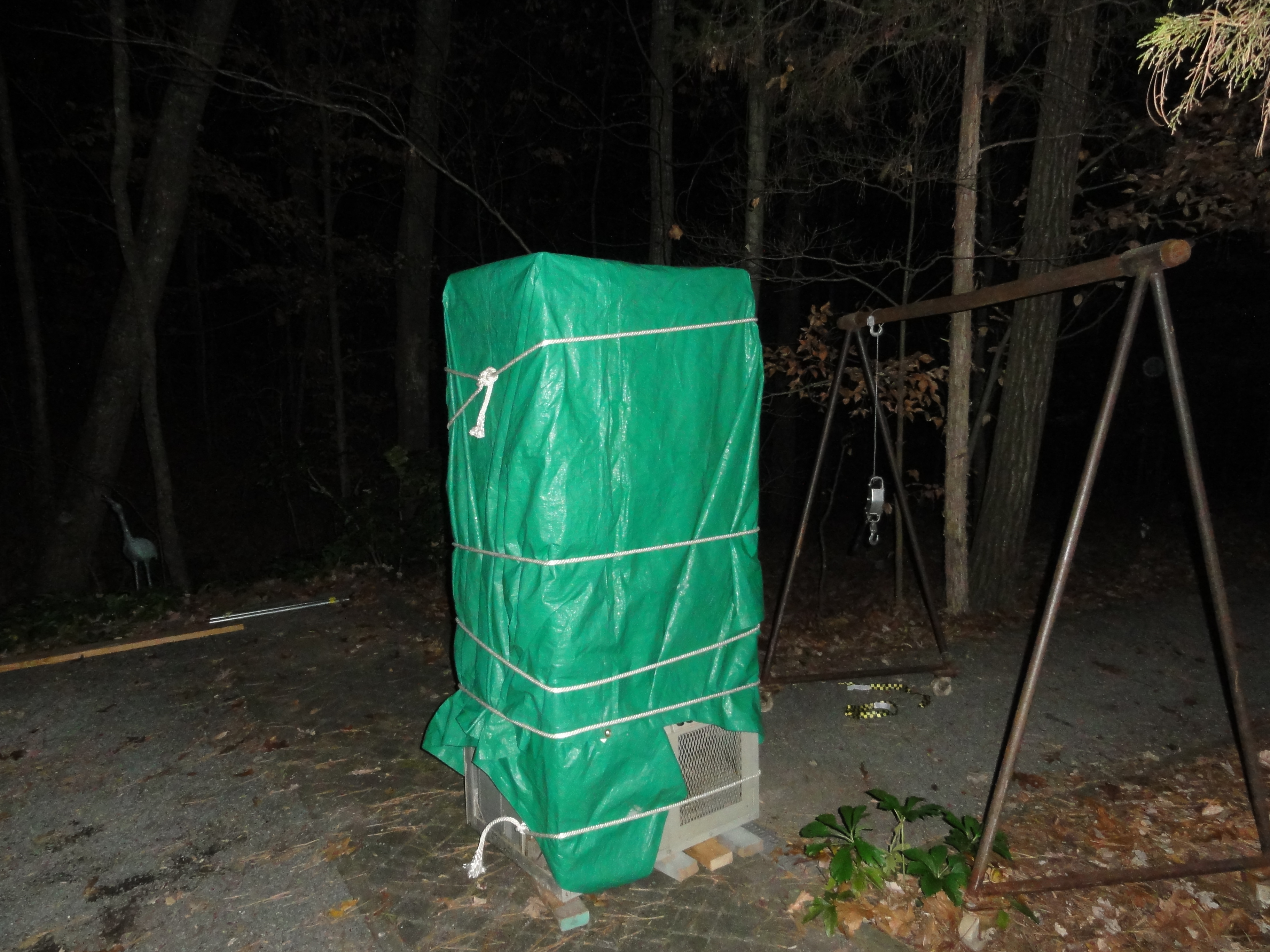

Wrap it up for Christmas - well, for a few days until I have time to get the transformers out and do some serious cleaning

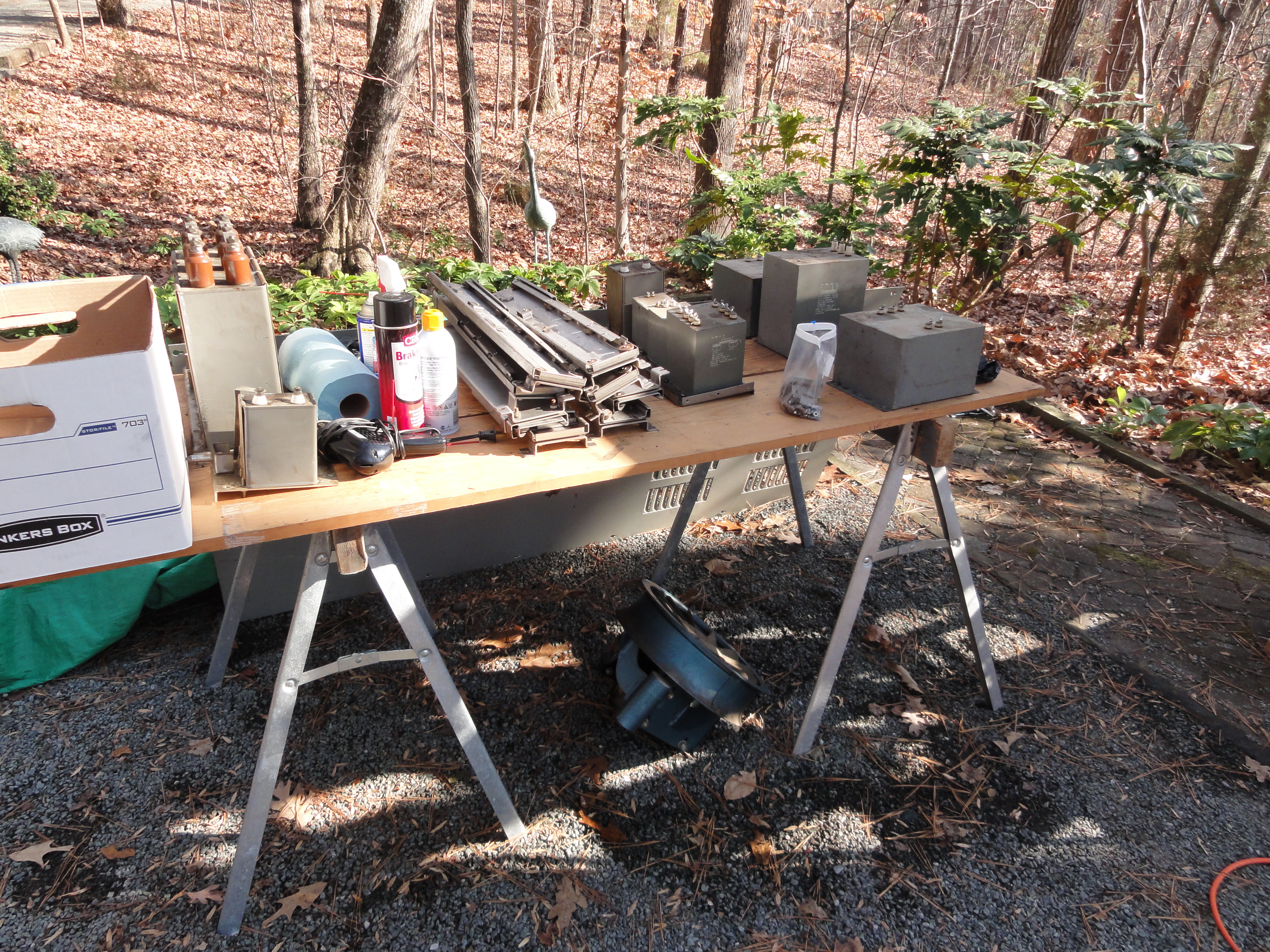

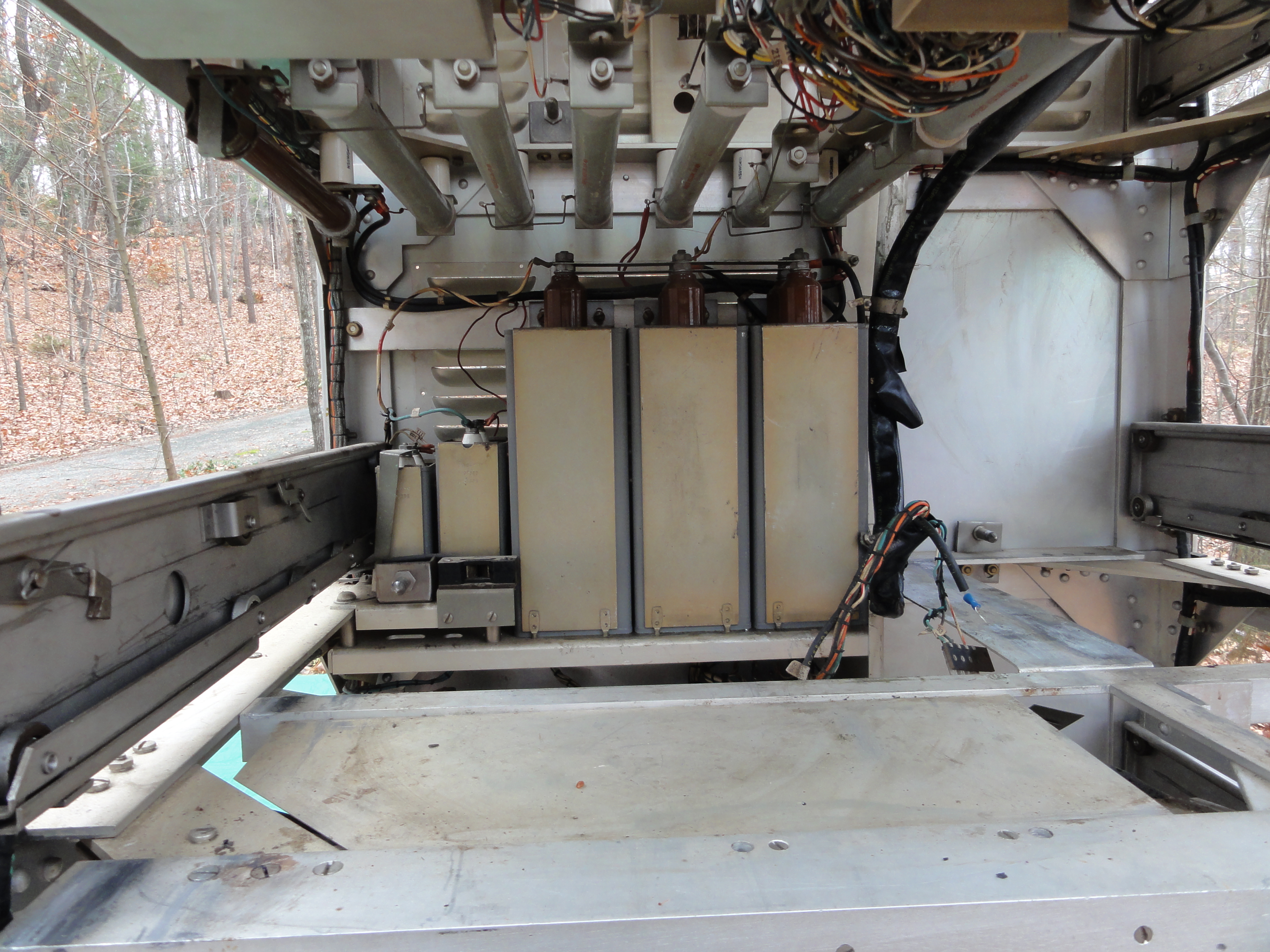

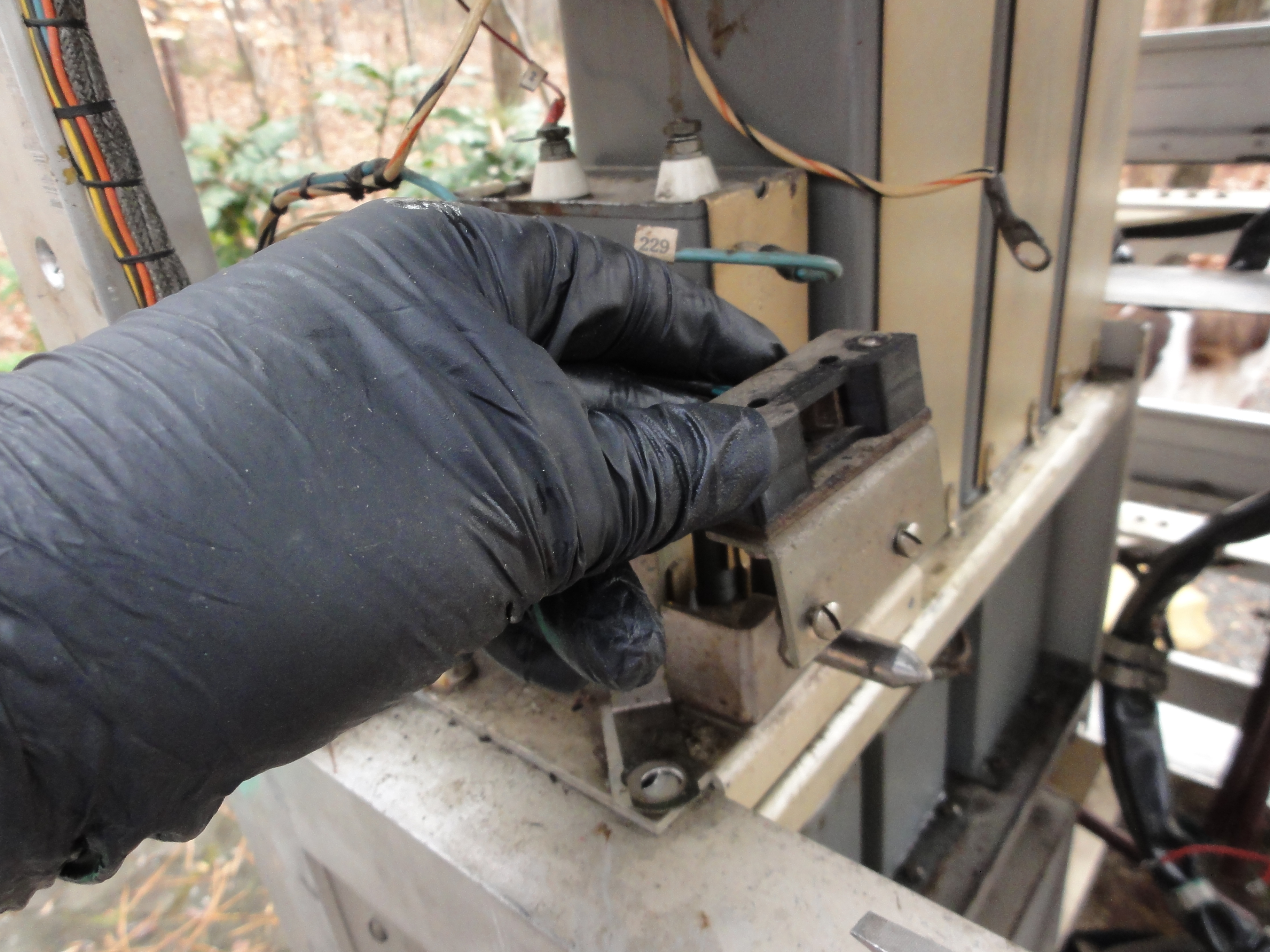

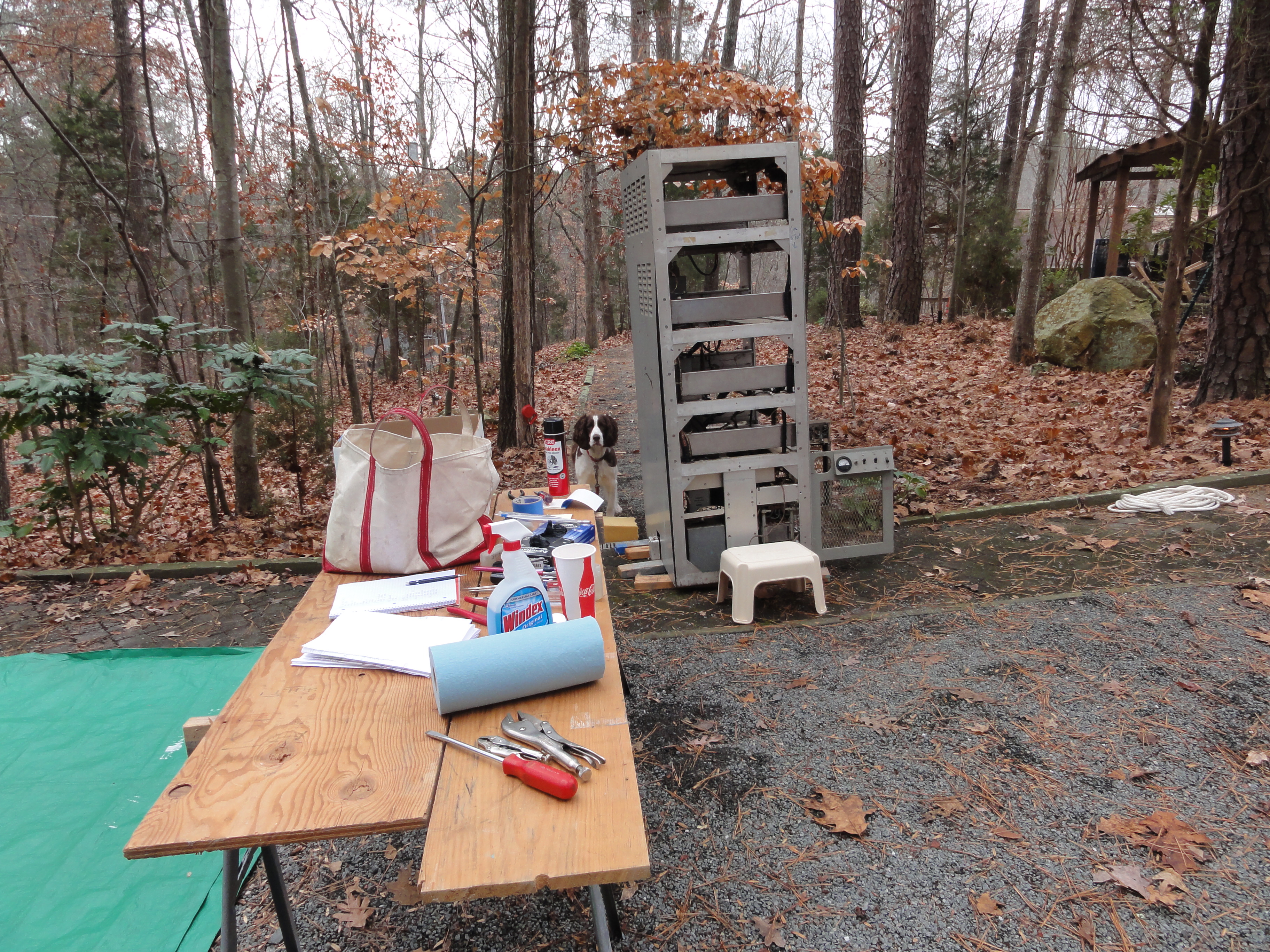

Day 1 of nice weather - removing parts for cleaning and to lighten the load

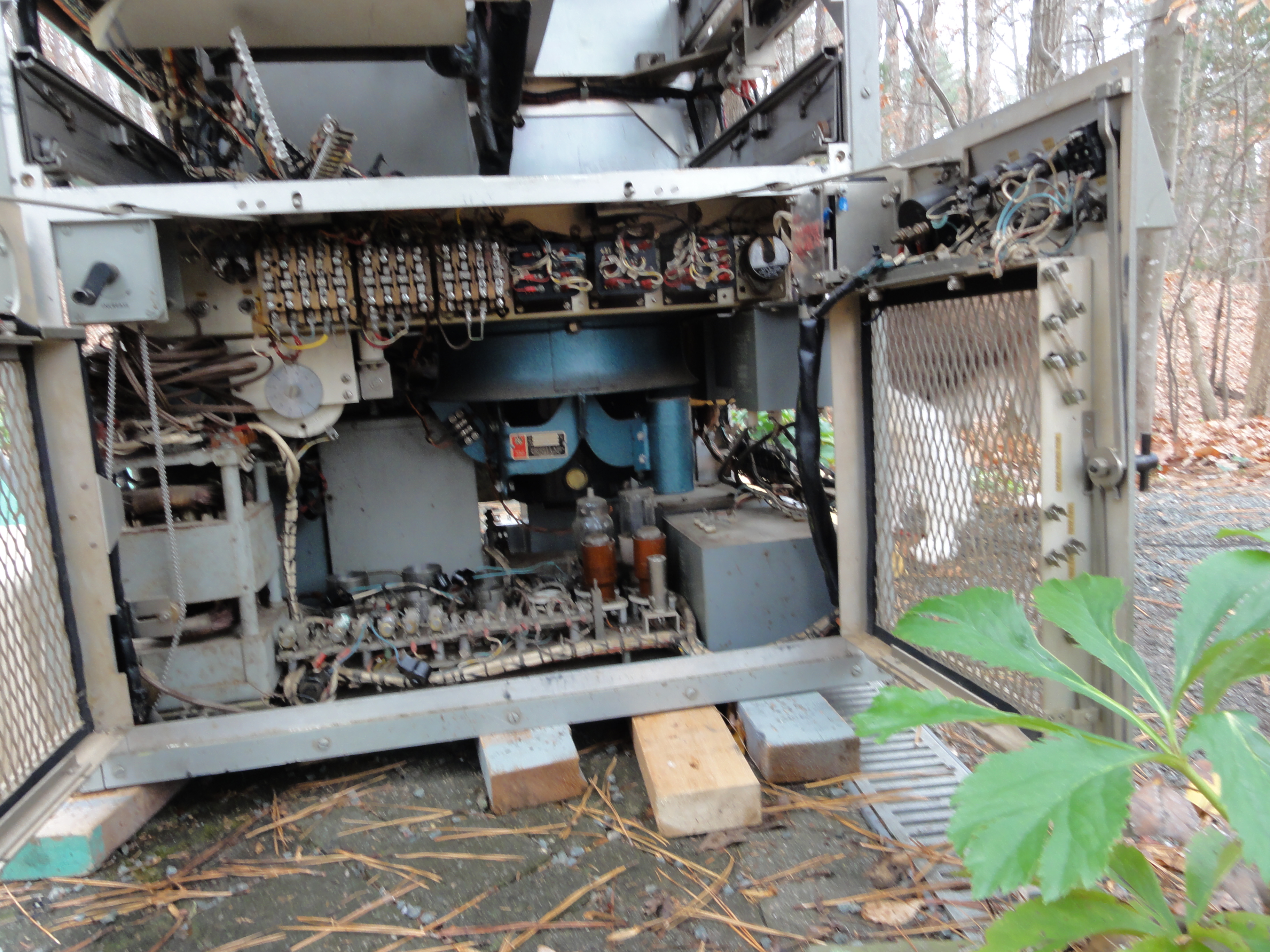

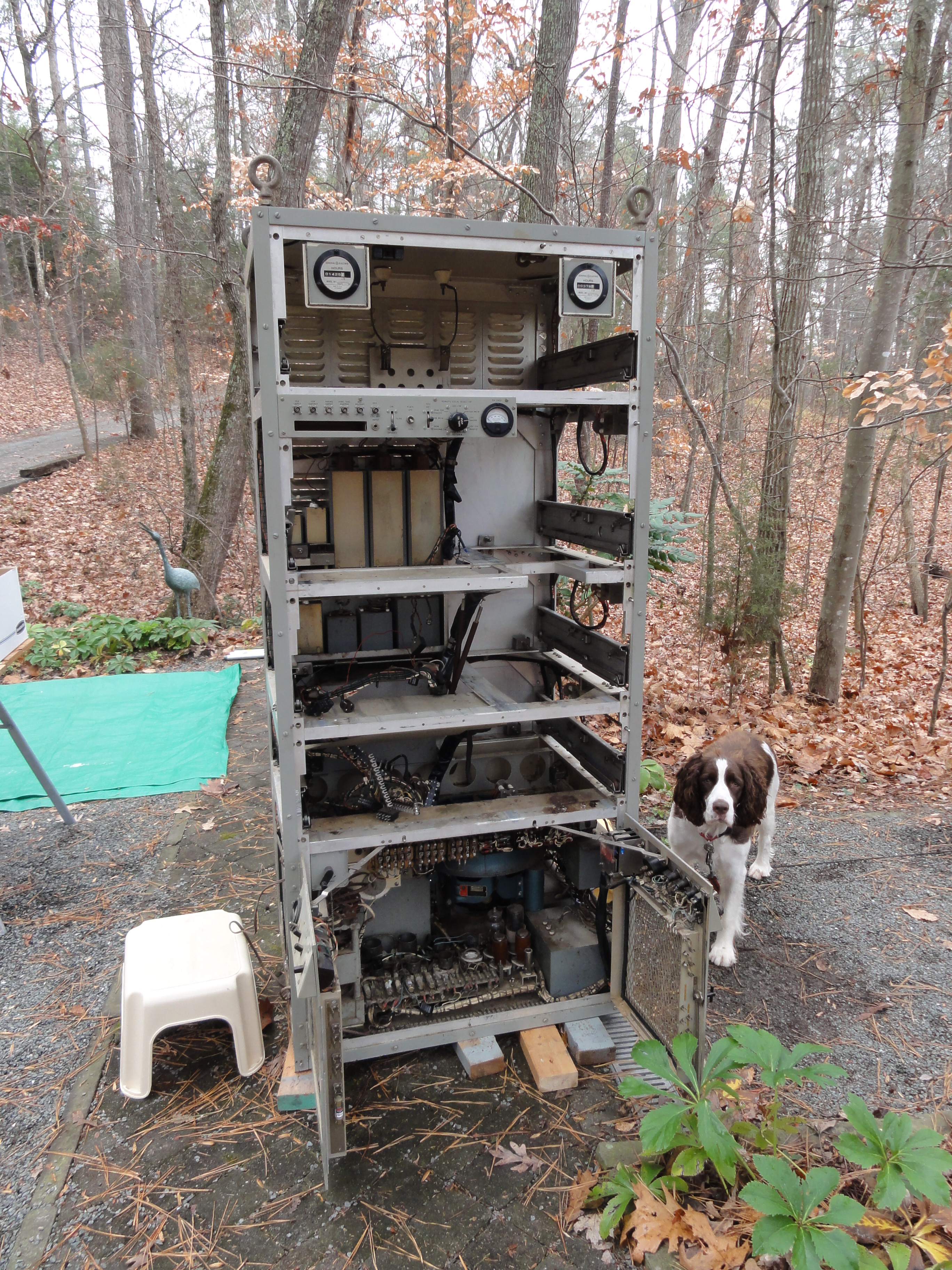

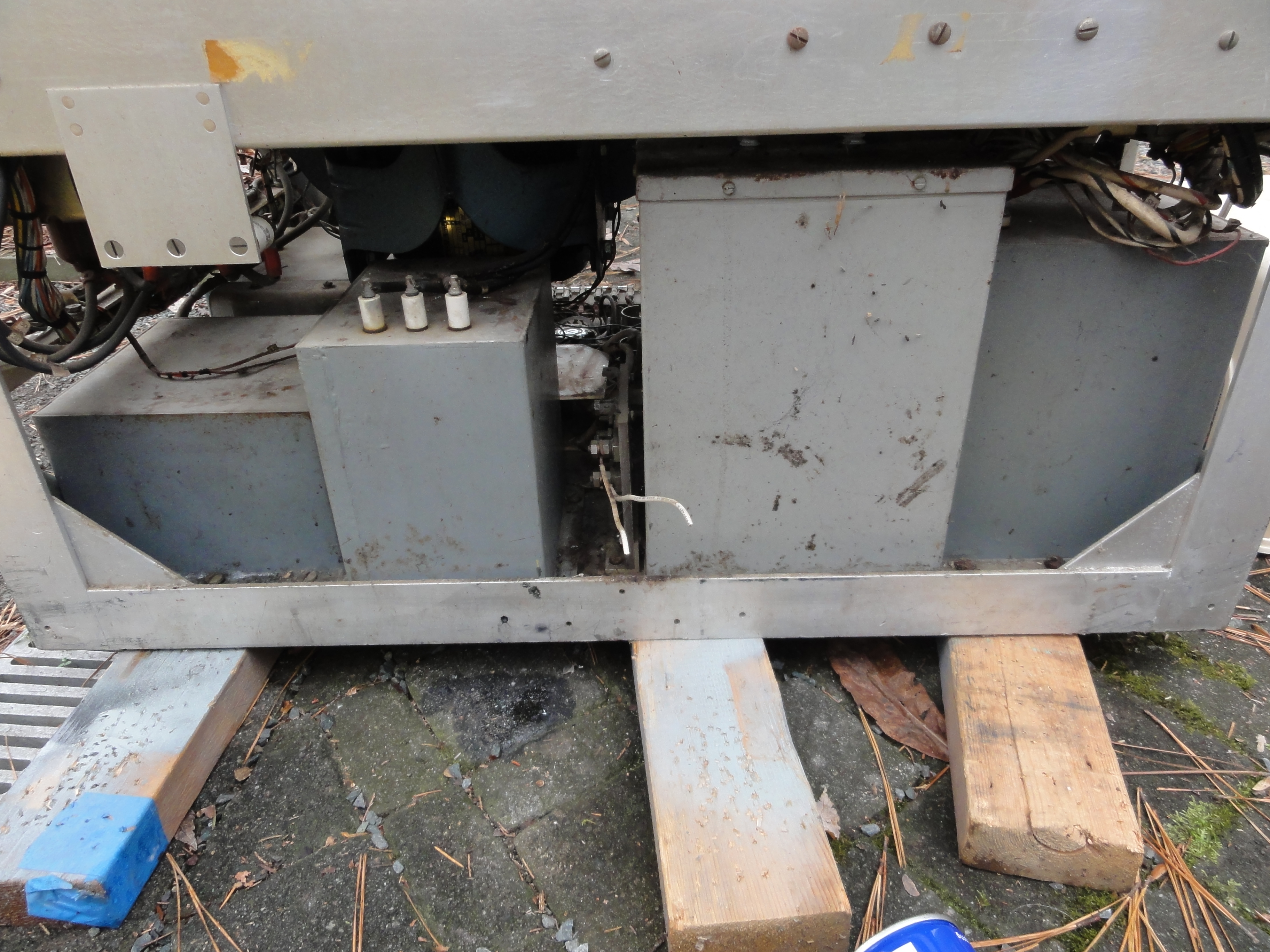

If I take enough reference photos, maybe I'll remember how to put it back together......

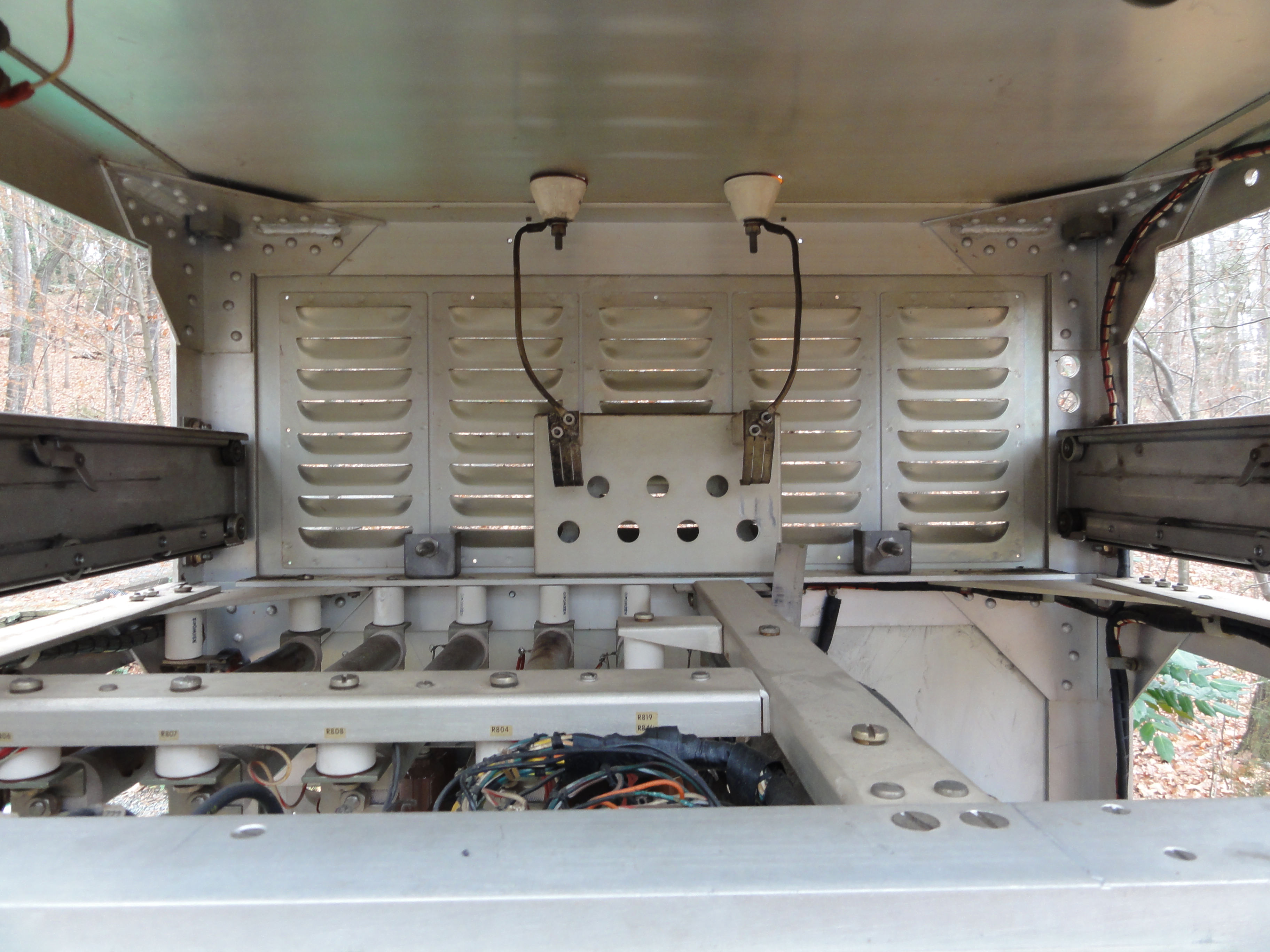

DSC01106.JPG (4474237 bytes) DSC01107.JPG (4496960 bytes) DSC01109.JPG (3804546 bytes) DSC01108.JPG (4232385 bytes)

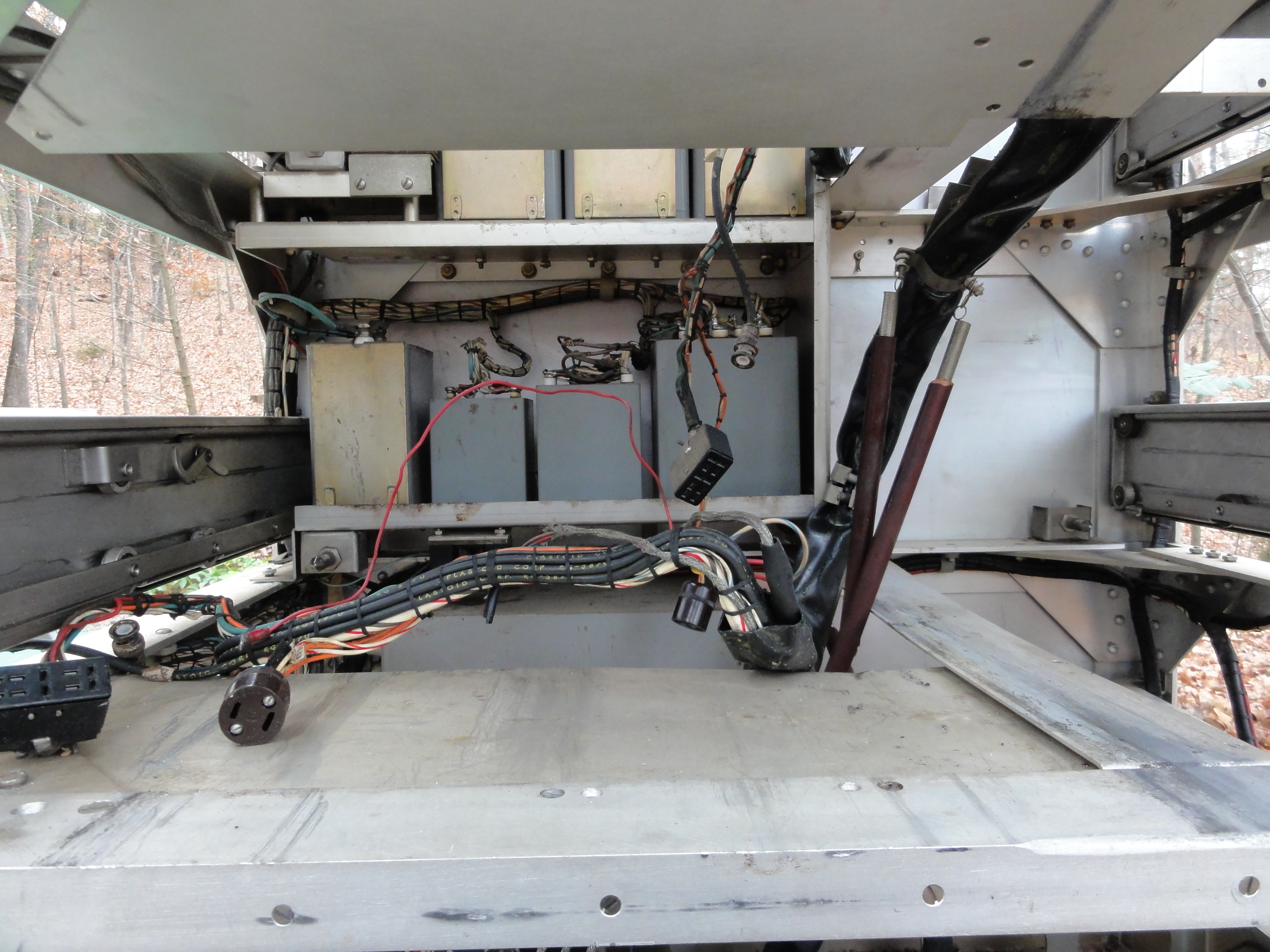

DSC01110.JPG (3860765 bytes) DSC01111.JPG (3713475 bytes) DSC01112.JPG (4017890 bytes) DSC01113.JPG (4131811 bytes)

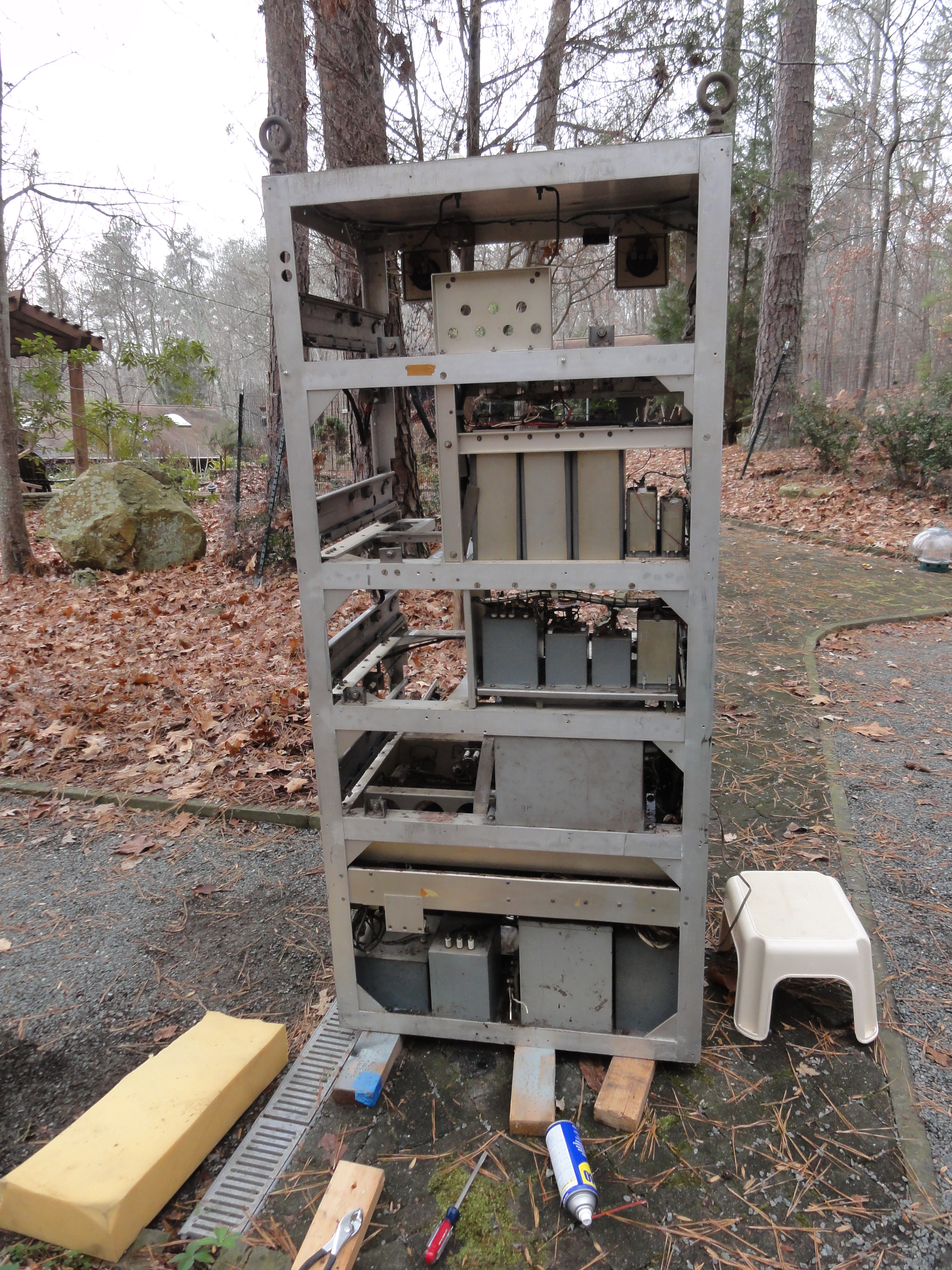

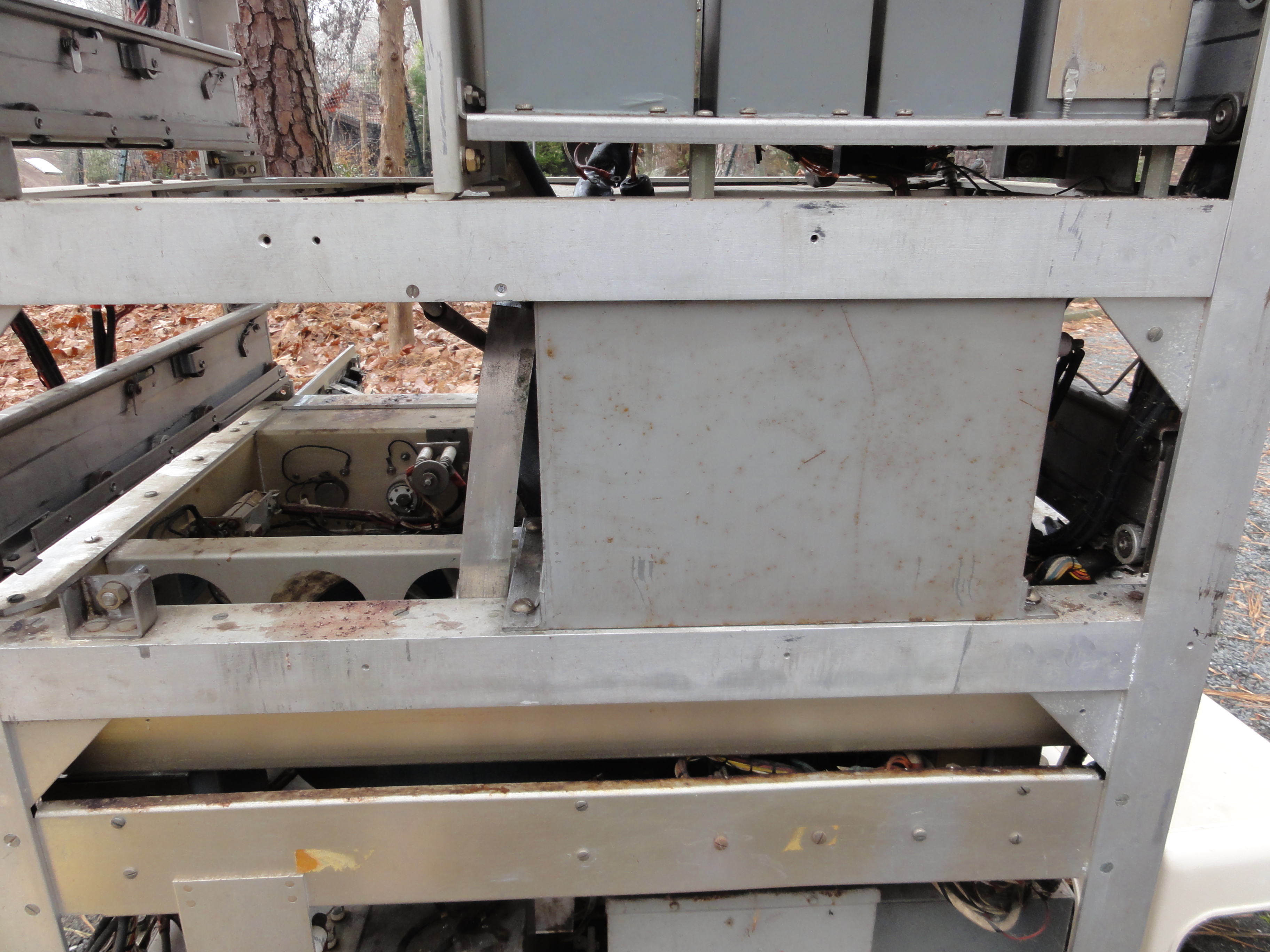

DSC01114.JPG (4496292 bytes) DSC01115.JPG (4091038 bytes) DSC01116.JPG (3893964 bytes) DSC01117.JPG (4091405 bytes)




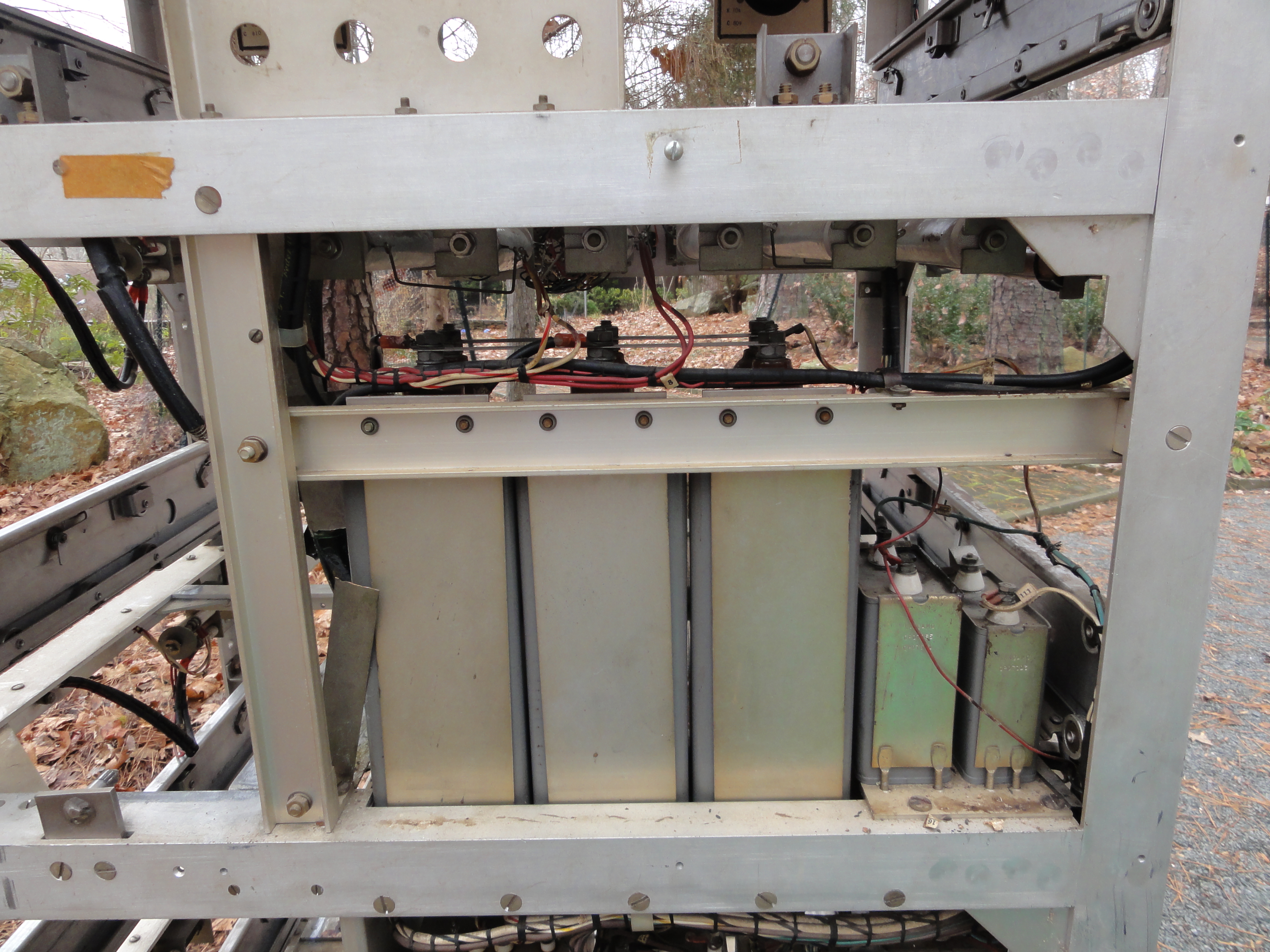

interlock goes here

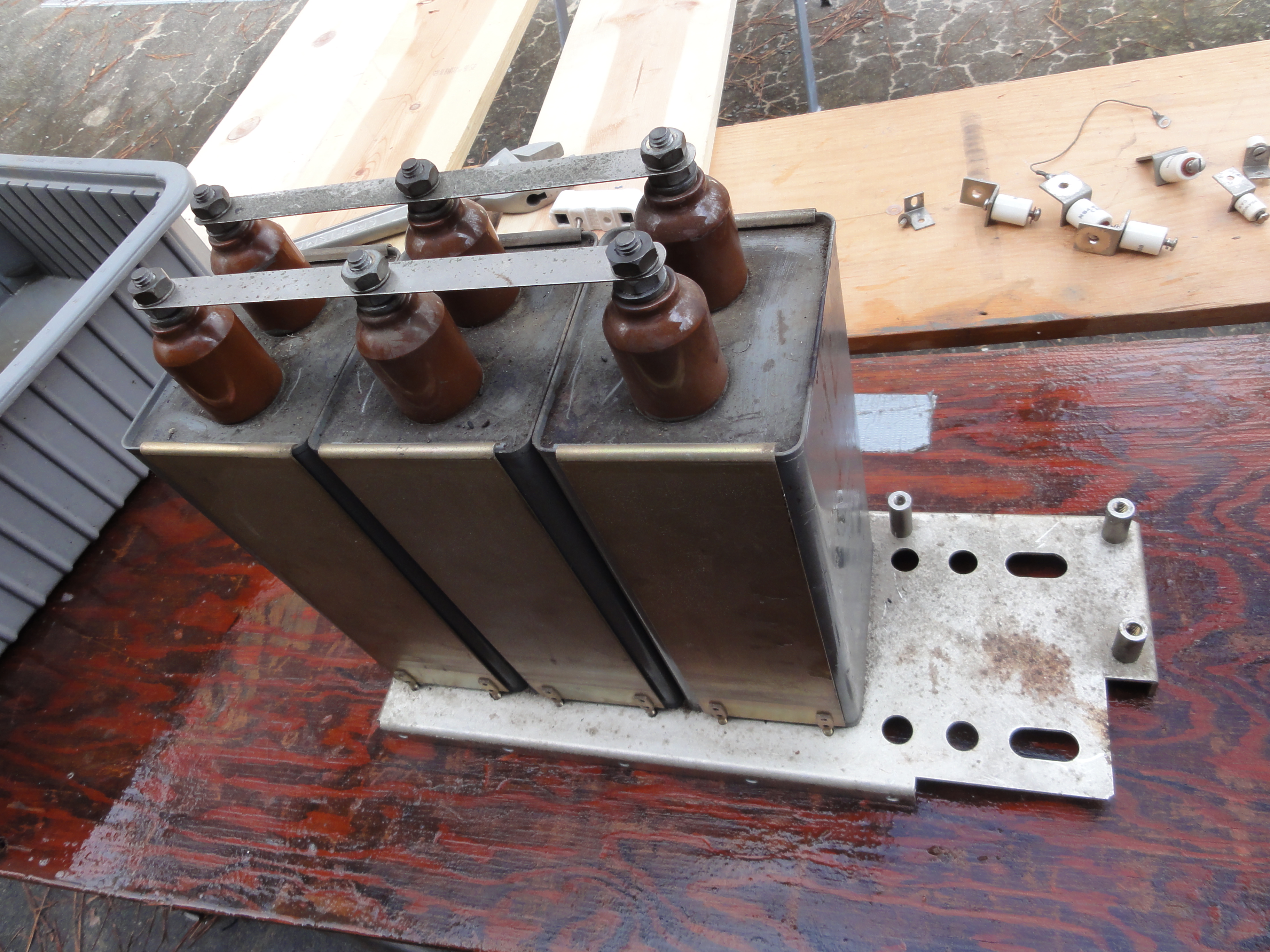

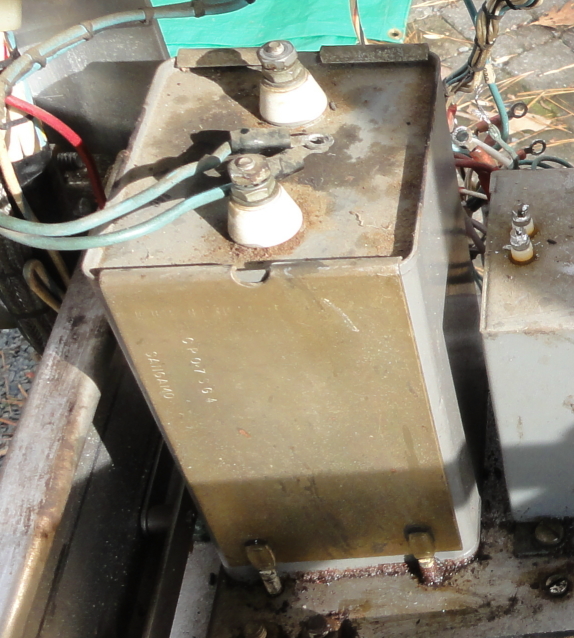

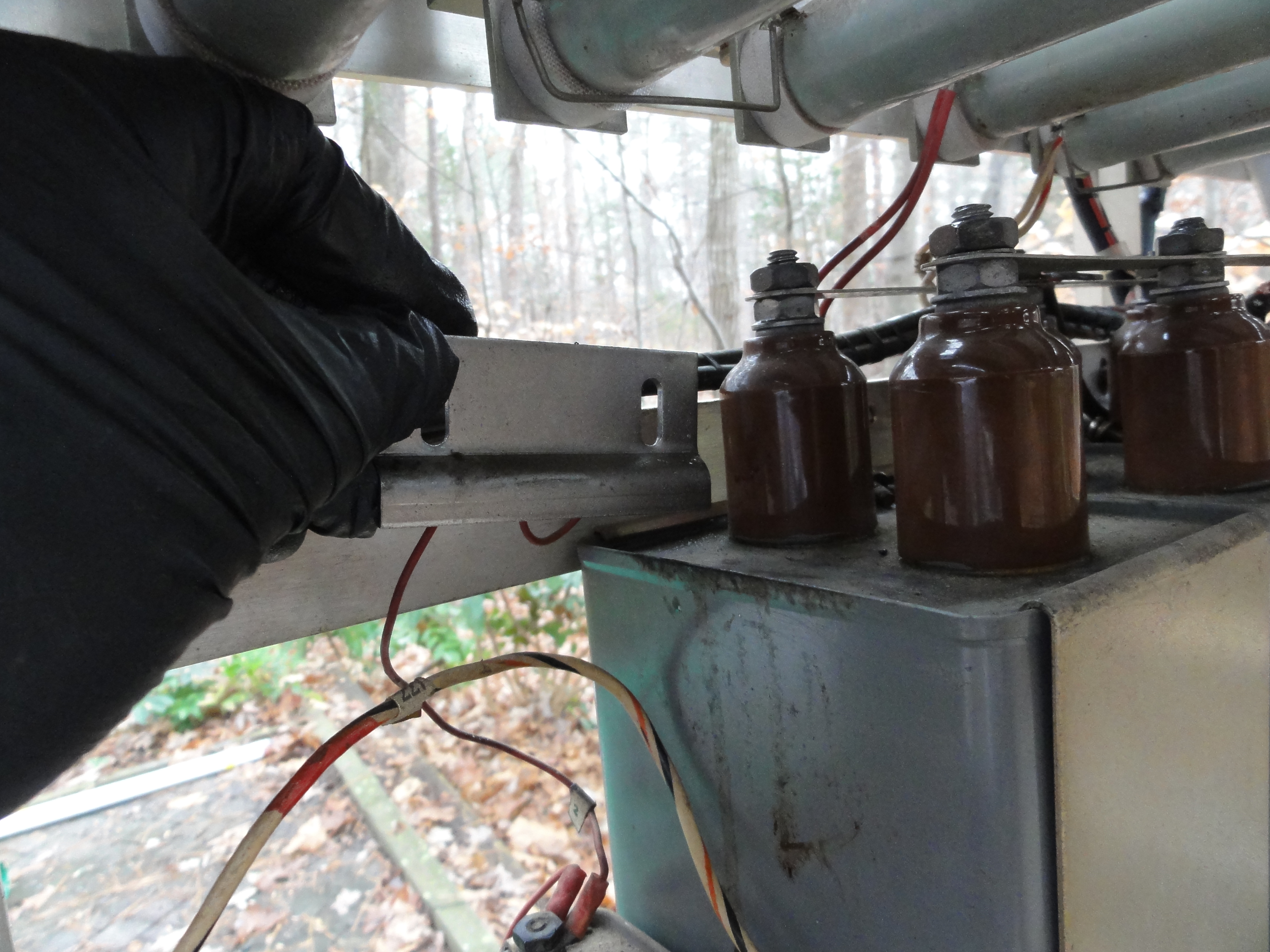

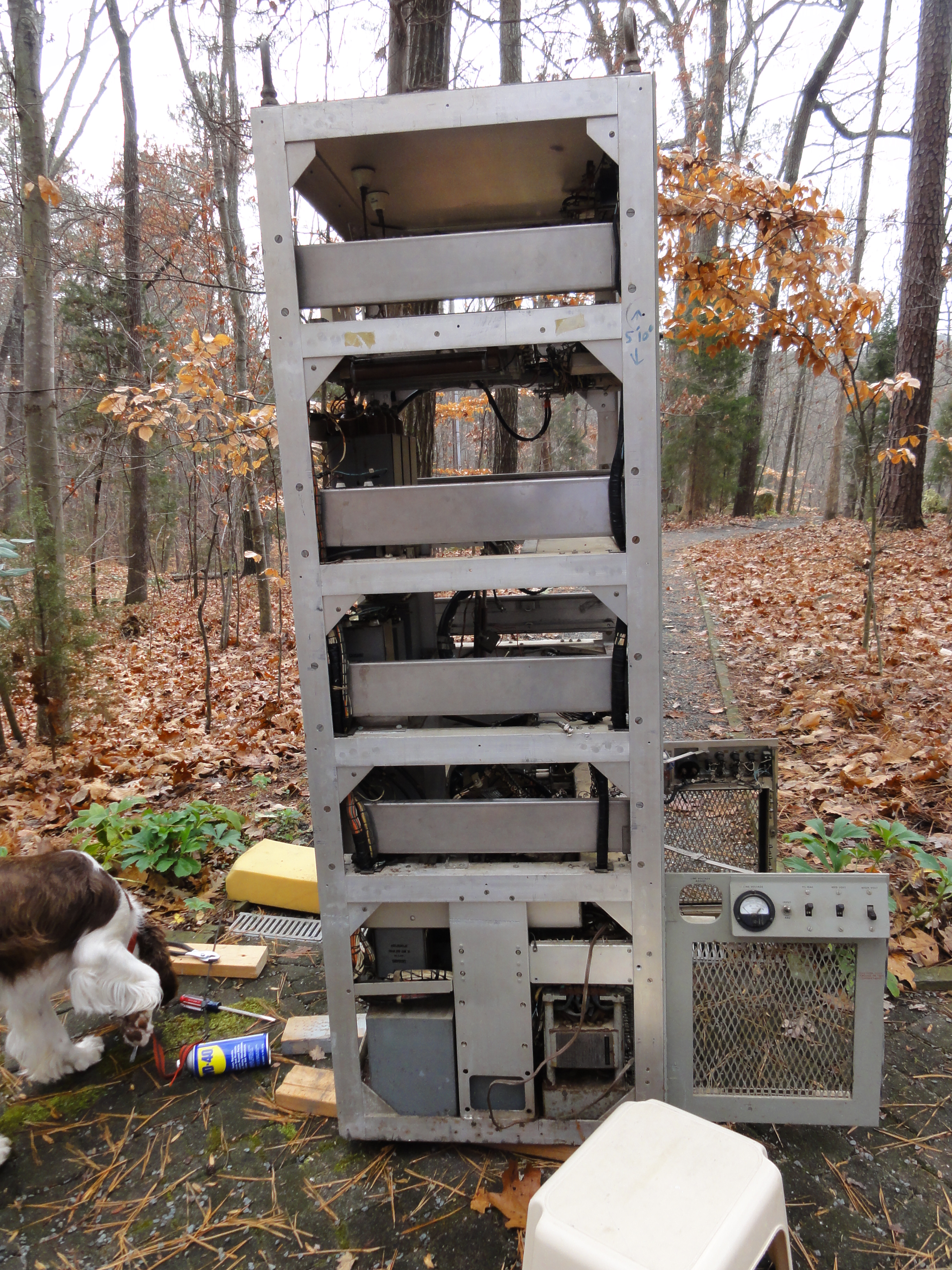

HV caps removed
leads unsoldered

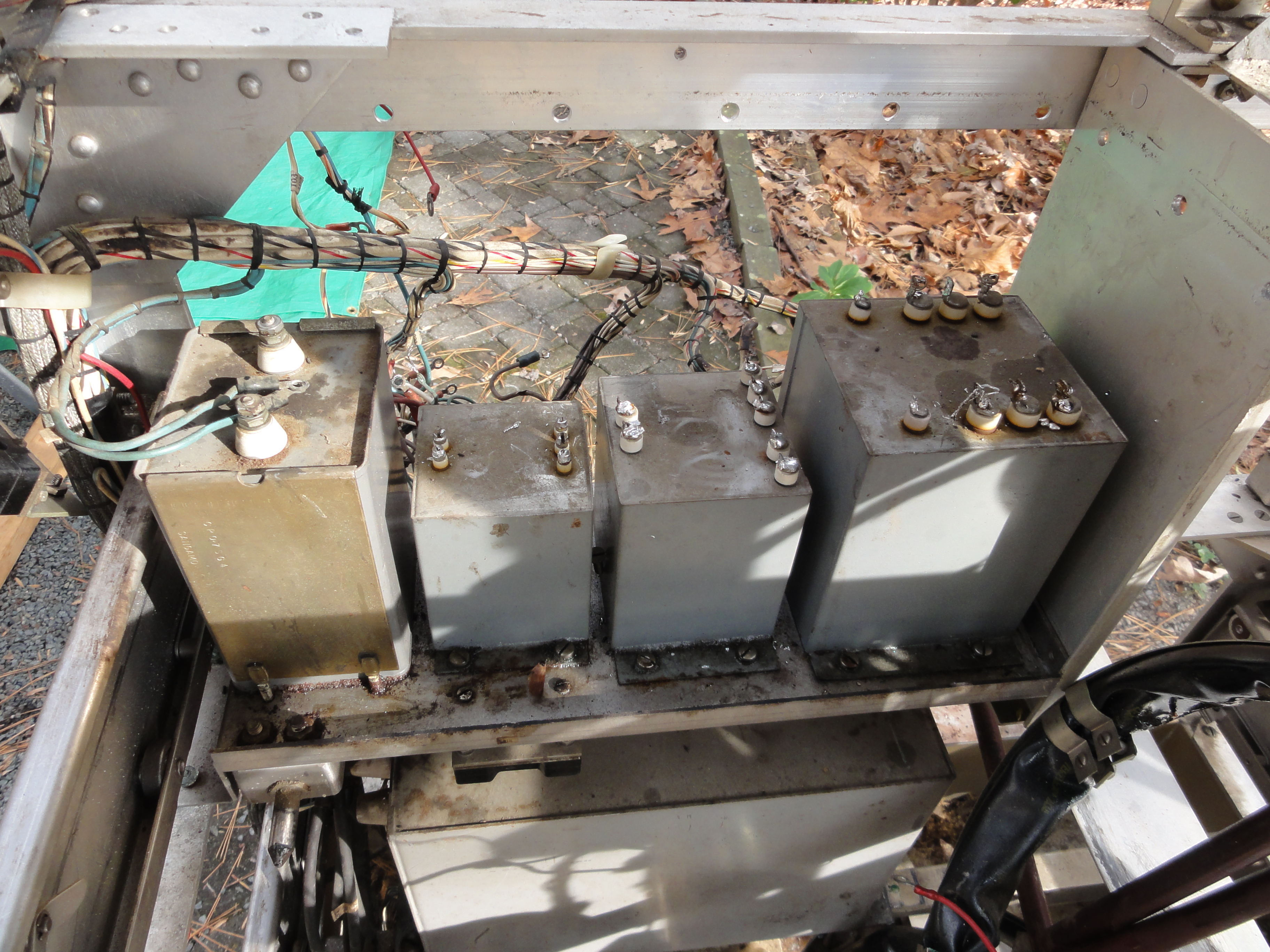

fil xfmr tray removed
mod xfmr
plenty of critter debris
blower removed
HV choke removed at rear

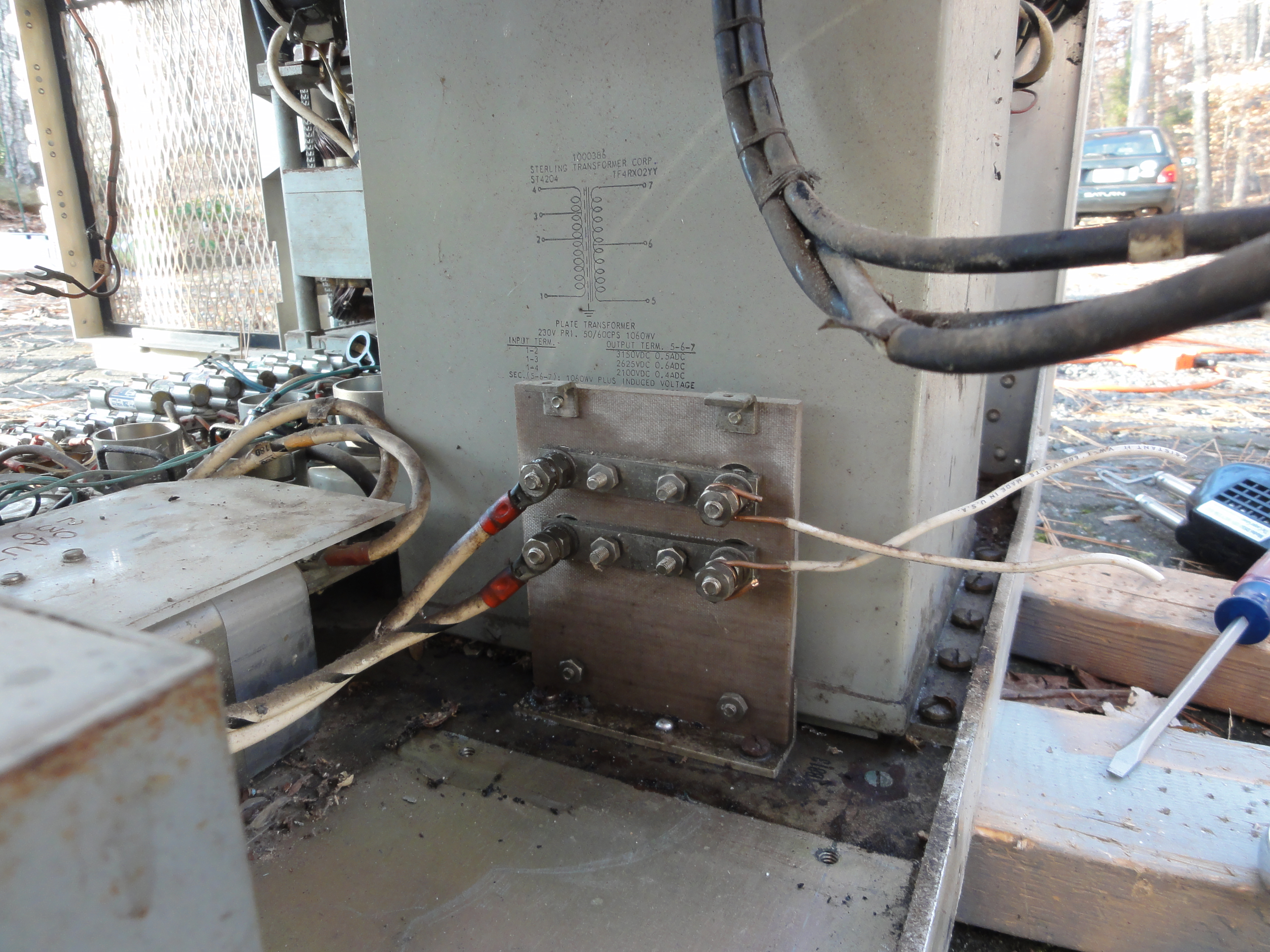

AC mains terminal board

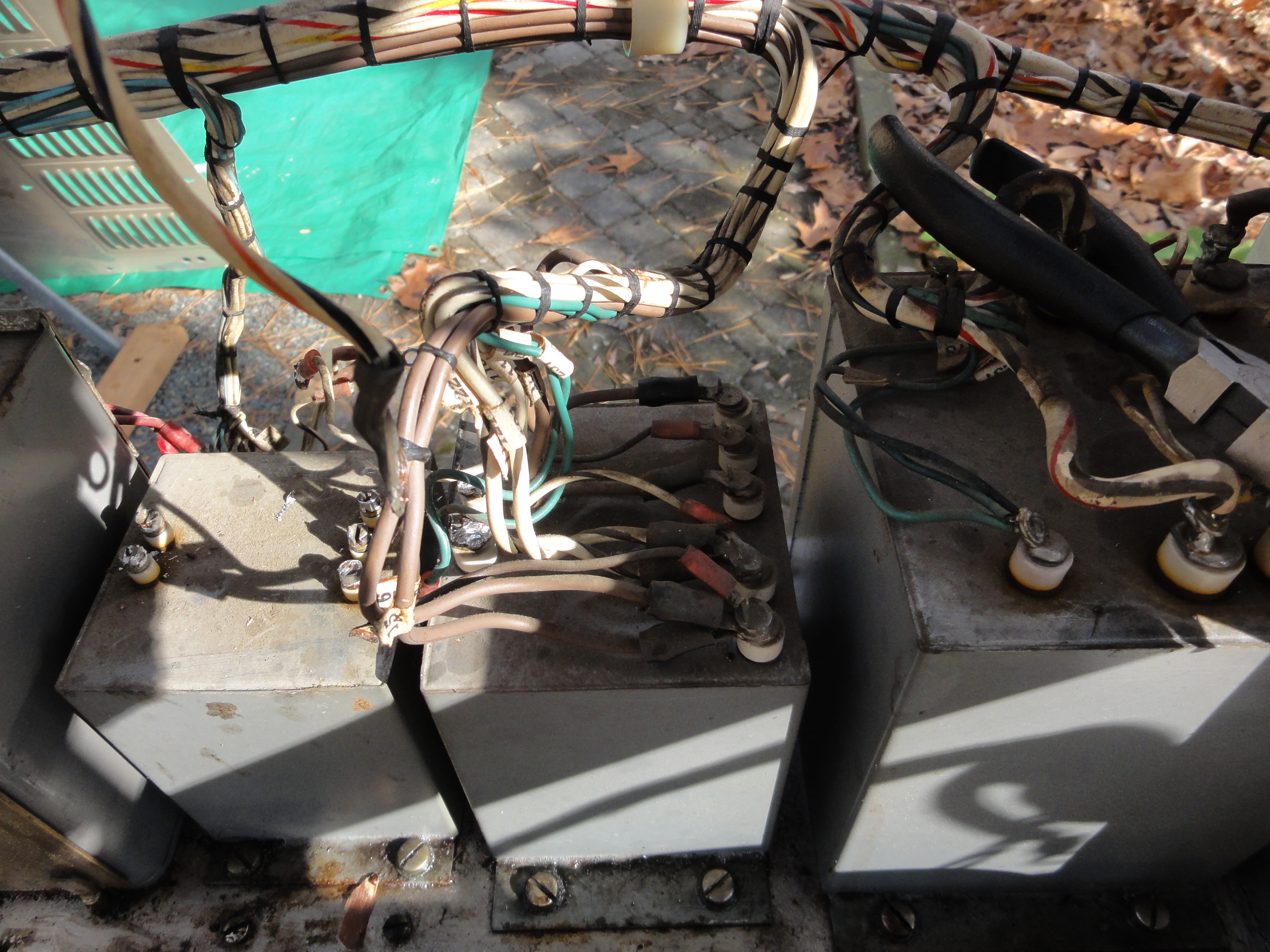

600v choke & HV choke removed

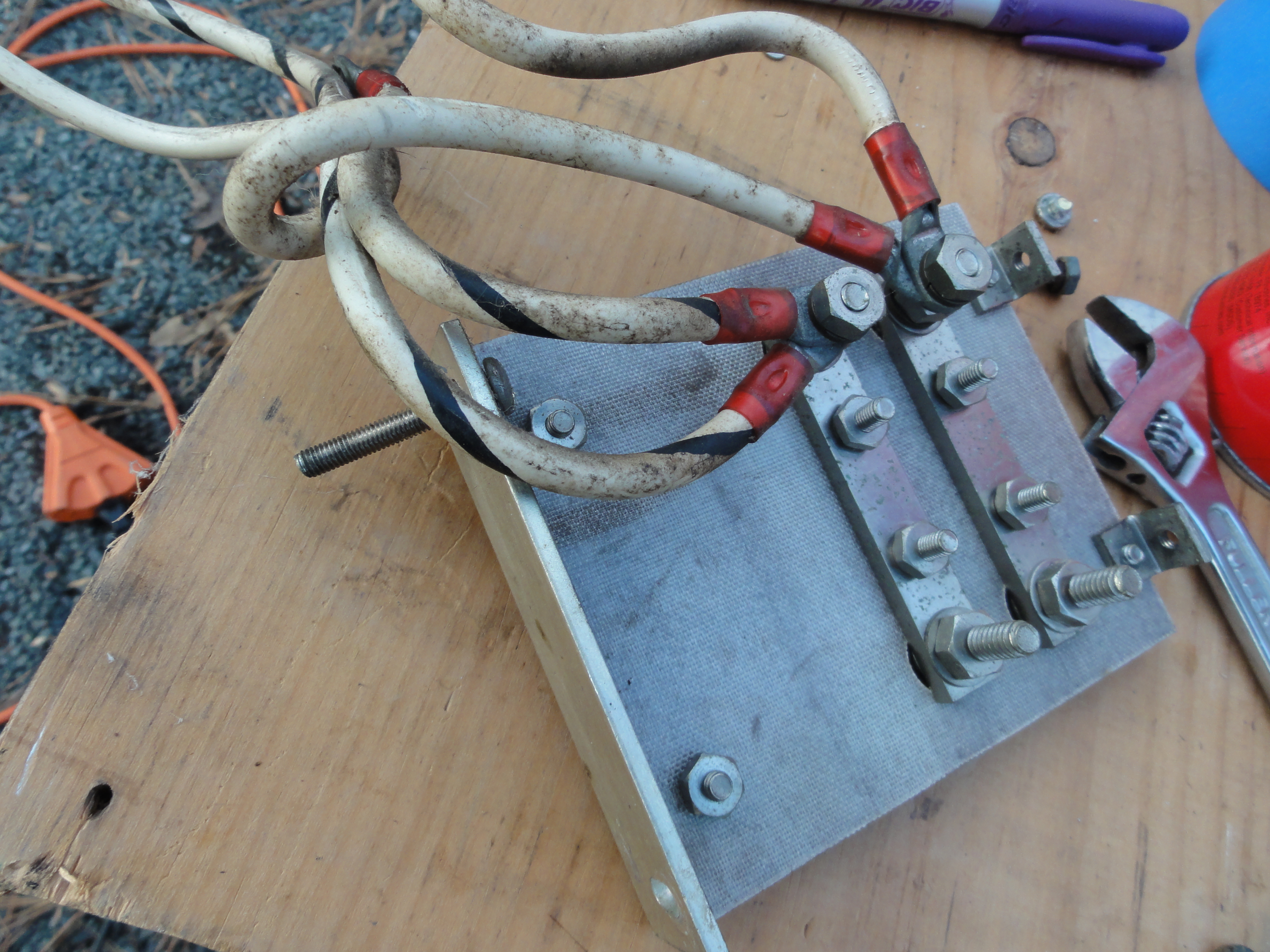

115/230 terminal board on standoffs

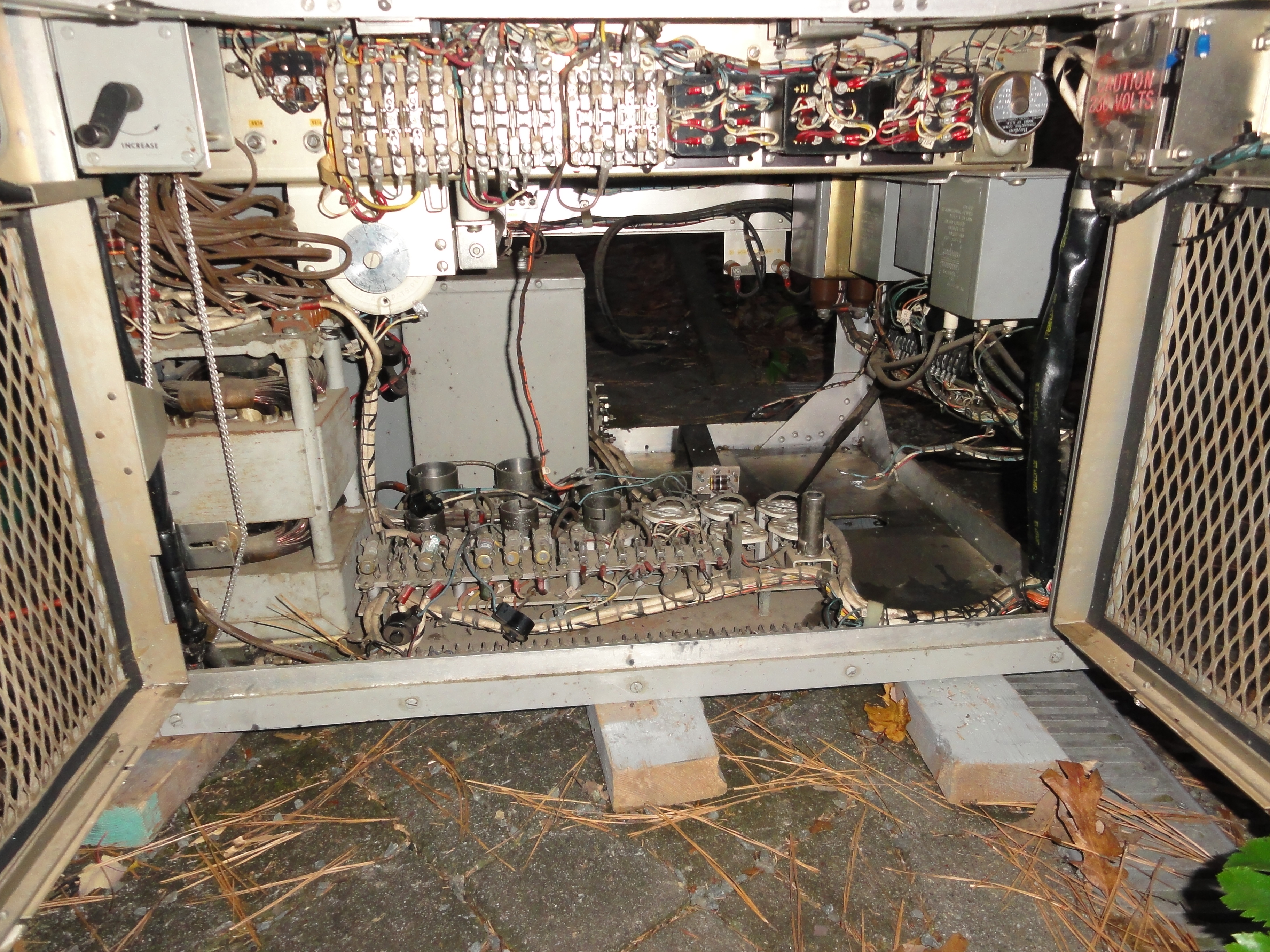

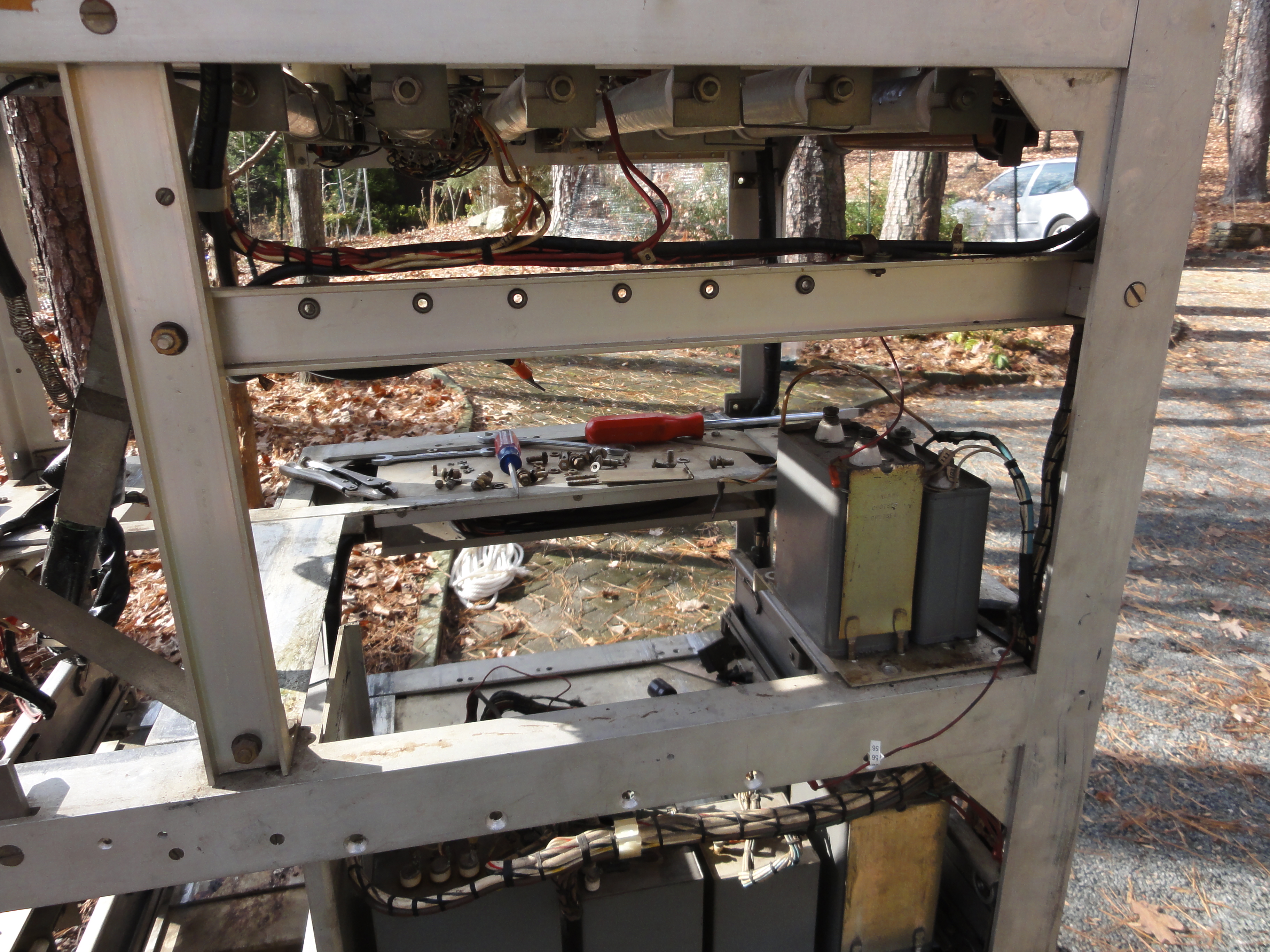

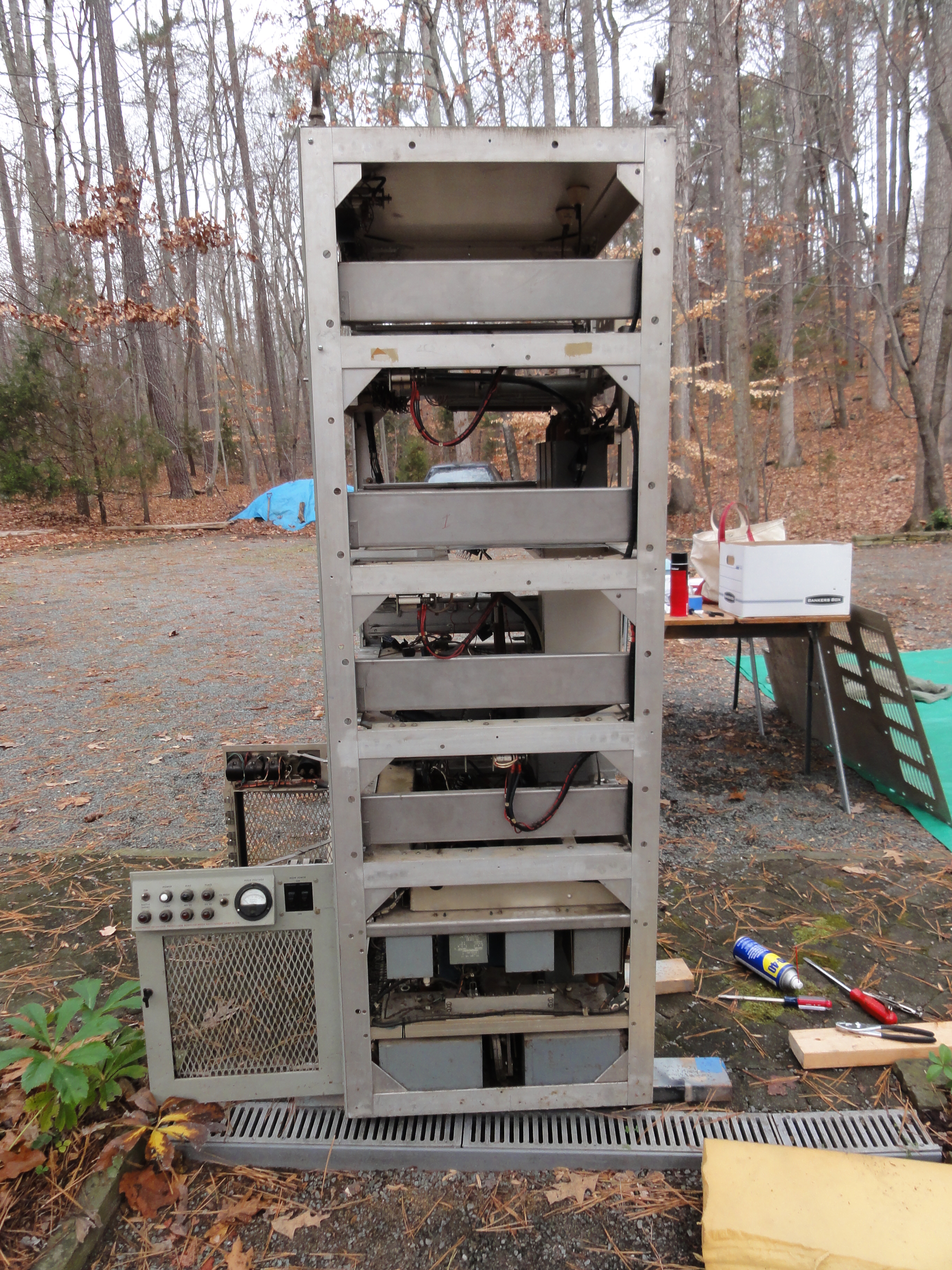

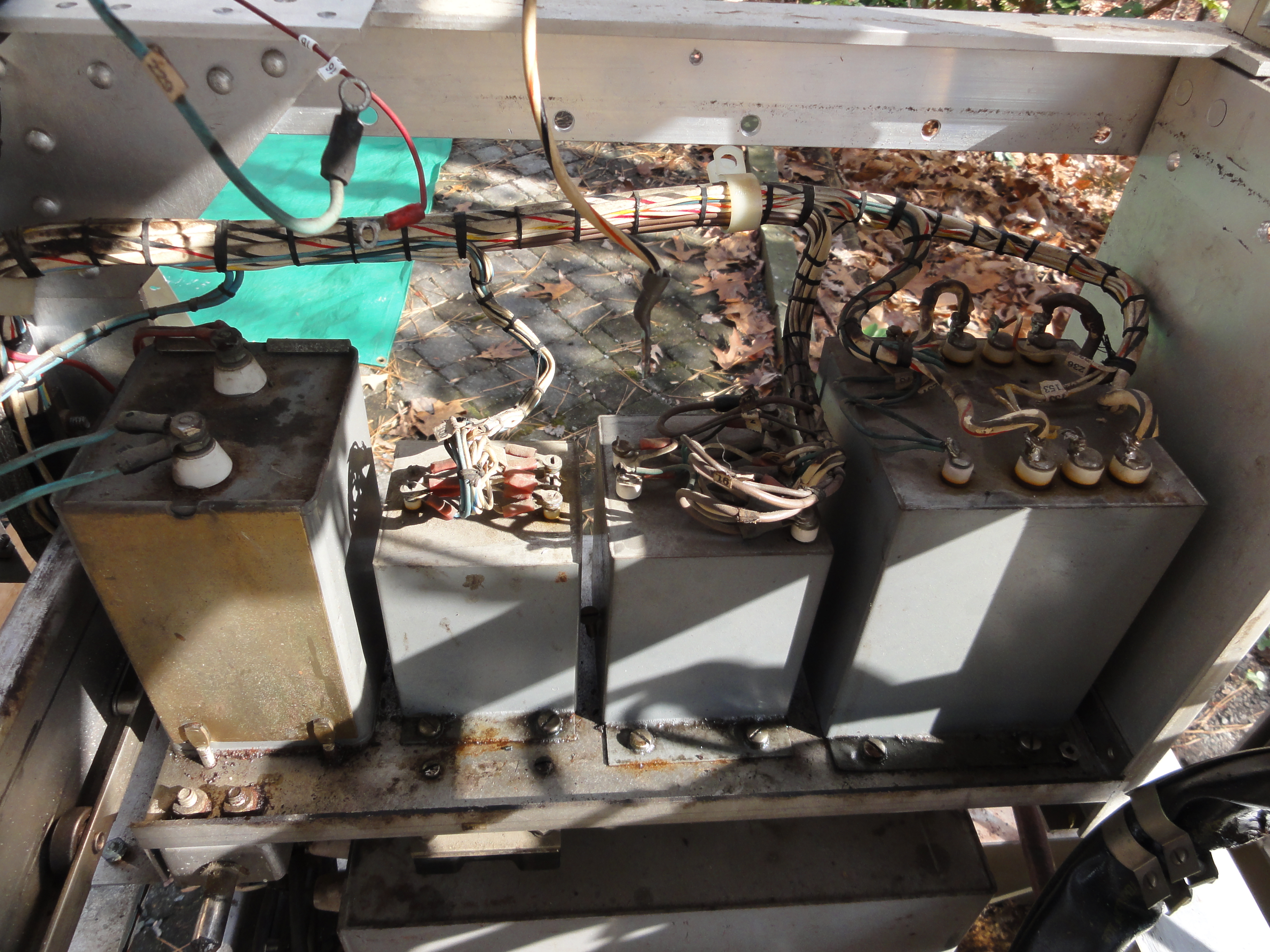

end of day 1 - reference photos
plate xfmr, regulator xfmr, and autoxfmr still to go

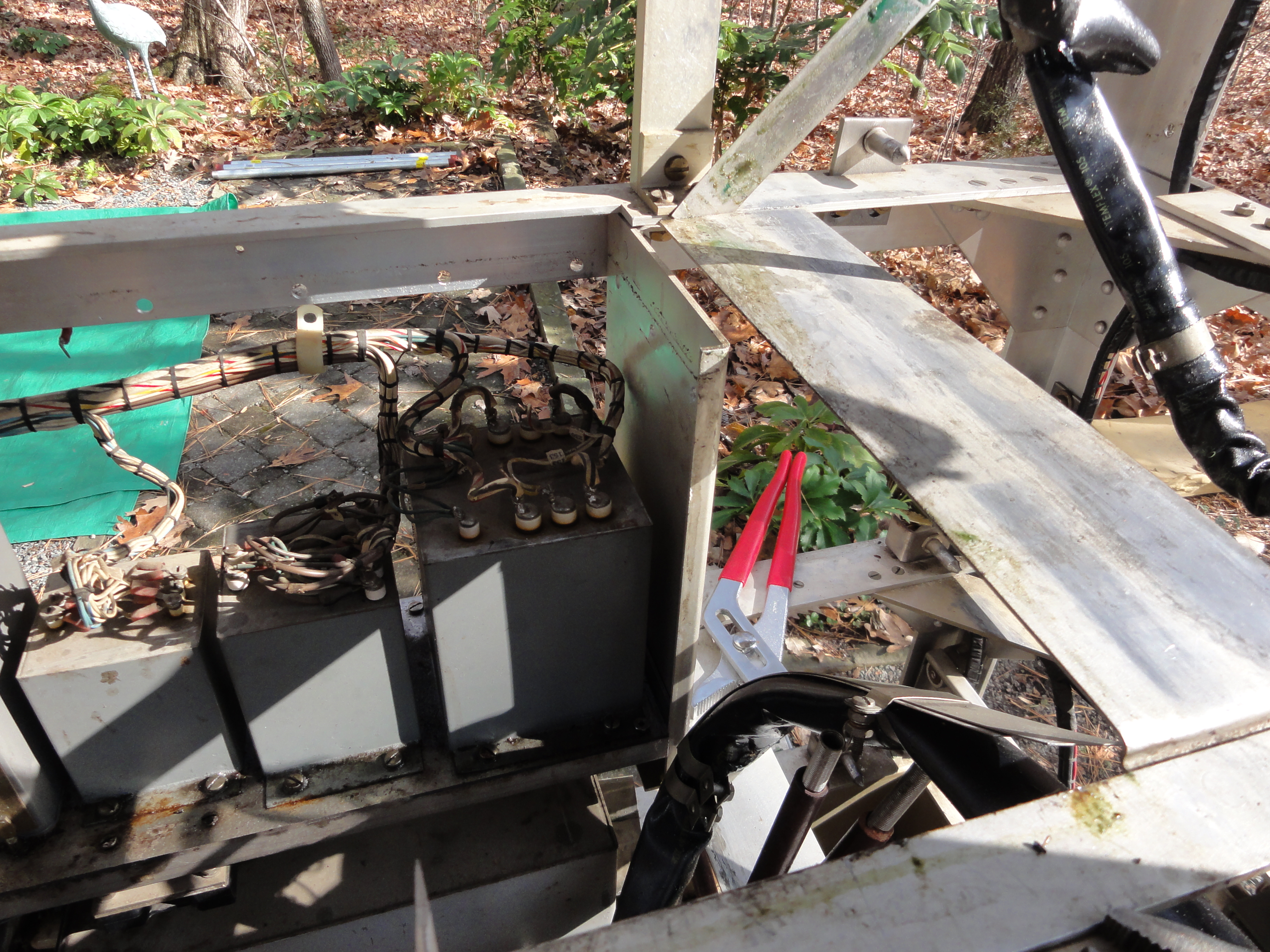

Day 2 - Half a day of kneeling over with my head stuck in the power supply compartment trying to figure out how to get access to the mounting screws for the remaining heavy iron - whew - at least I got the plate xfmr out. Still need to work on the autoxfmr and regulator - not only are they inaccessible but that portion of the deck plate is rusty so the screws are a pain. I'll let the liquid wrench soak in for a few days while my back recovers.

Work bench

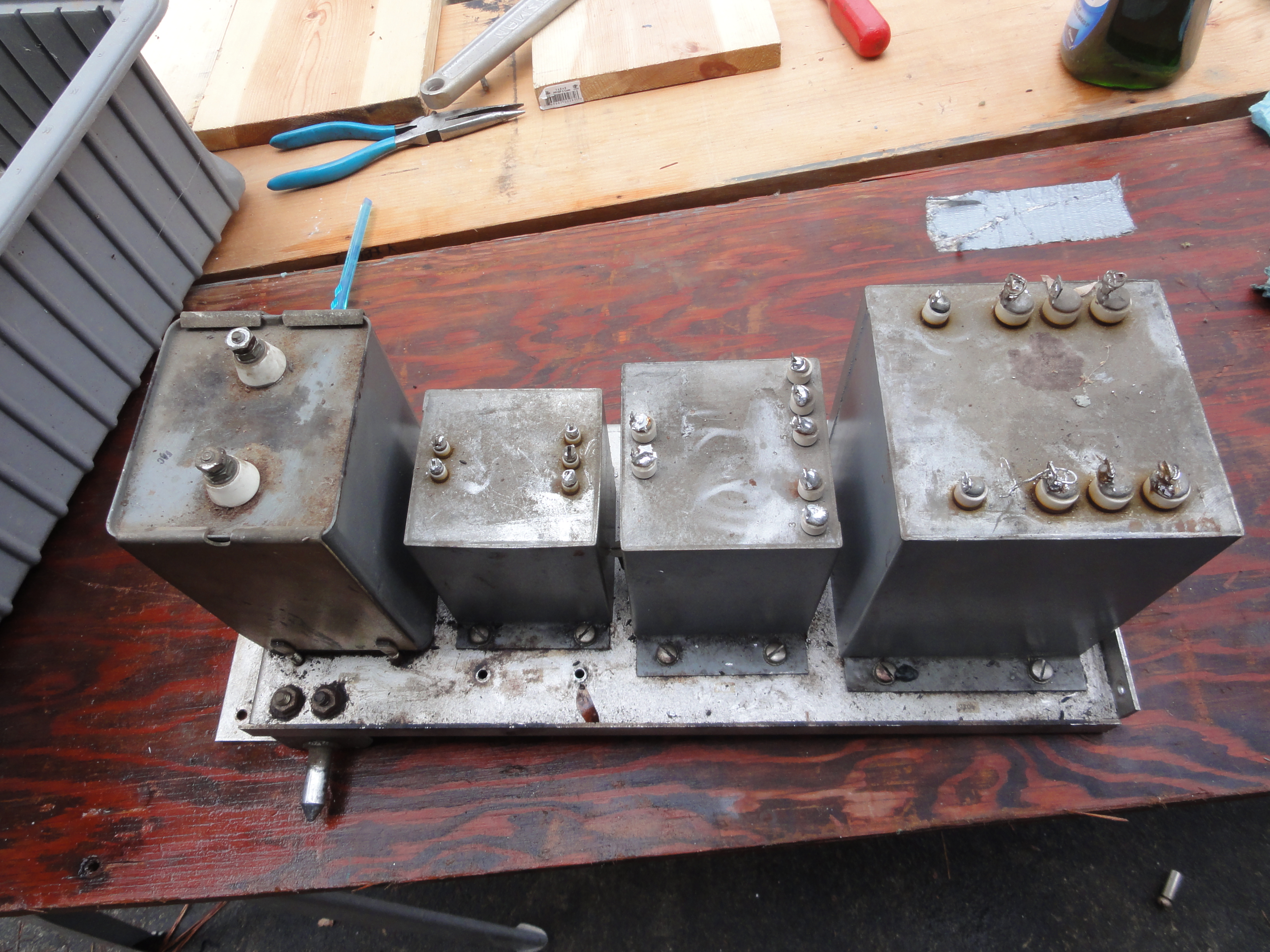

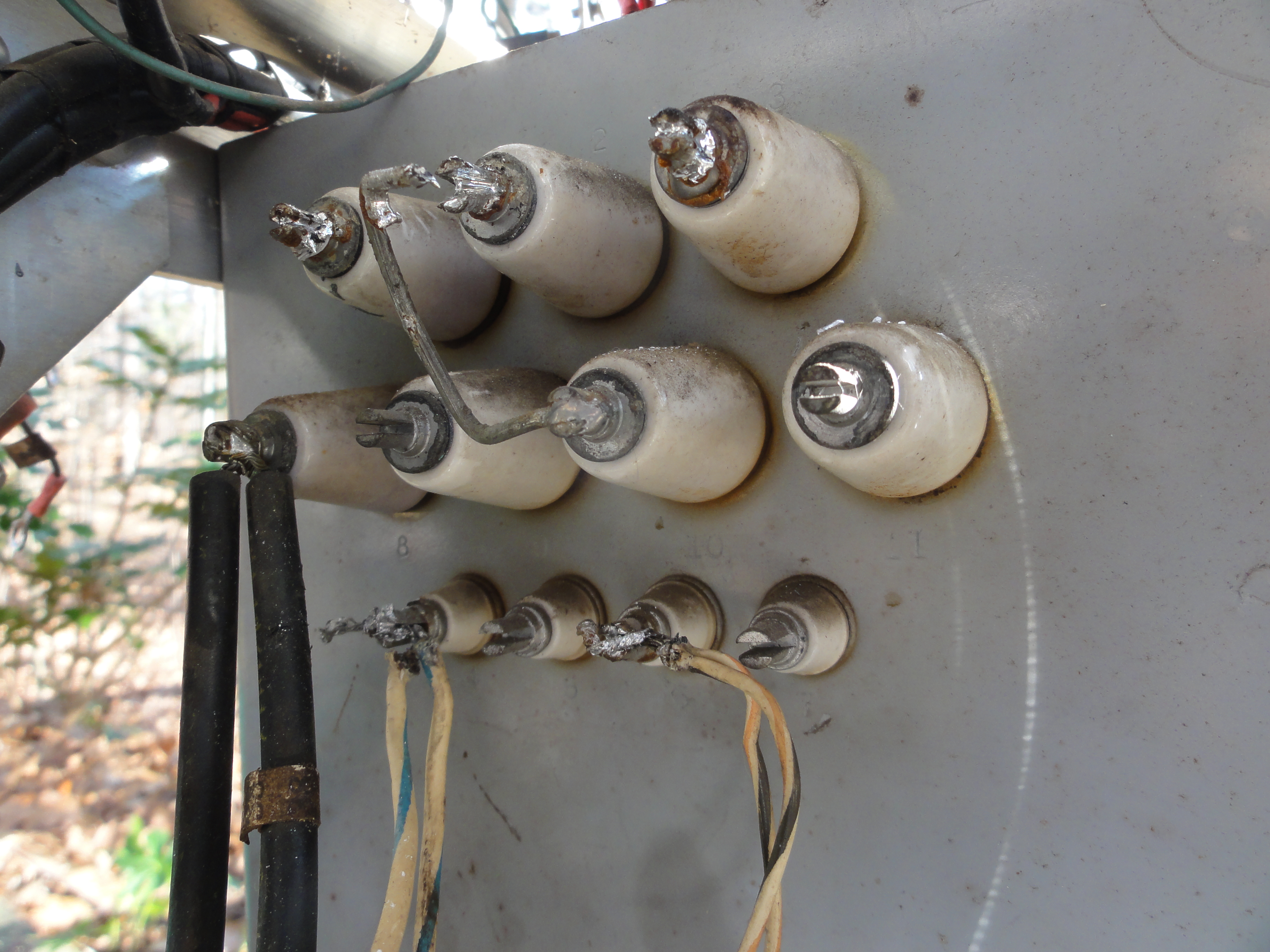

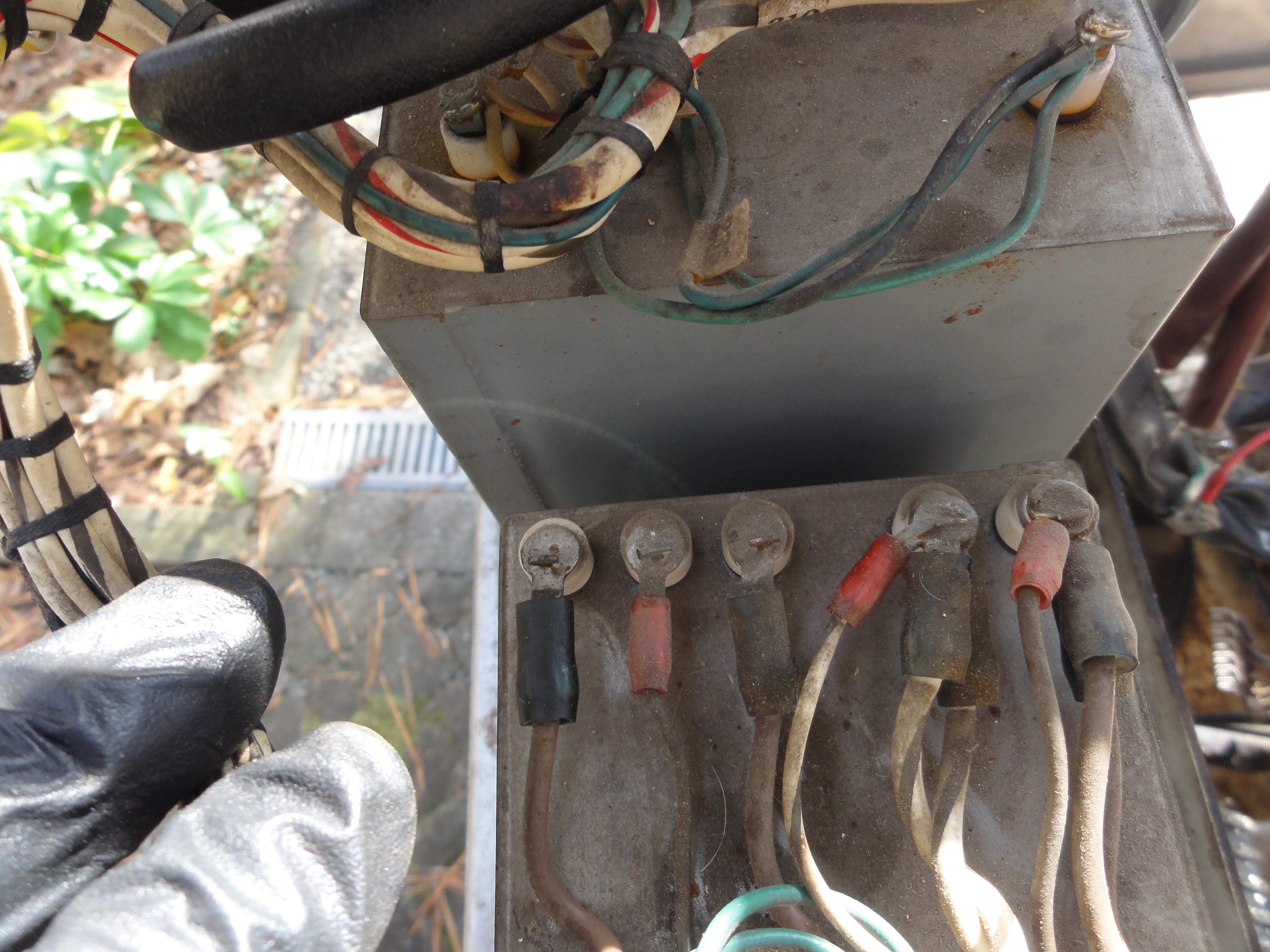

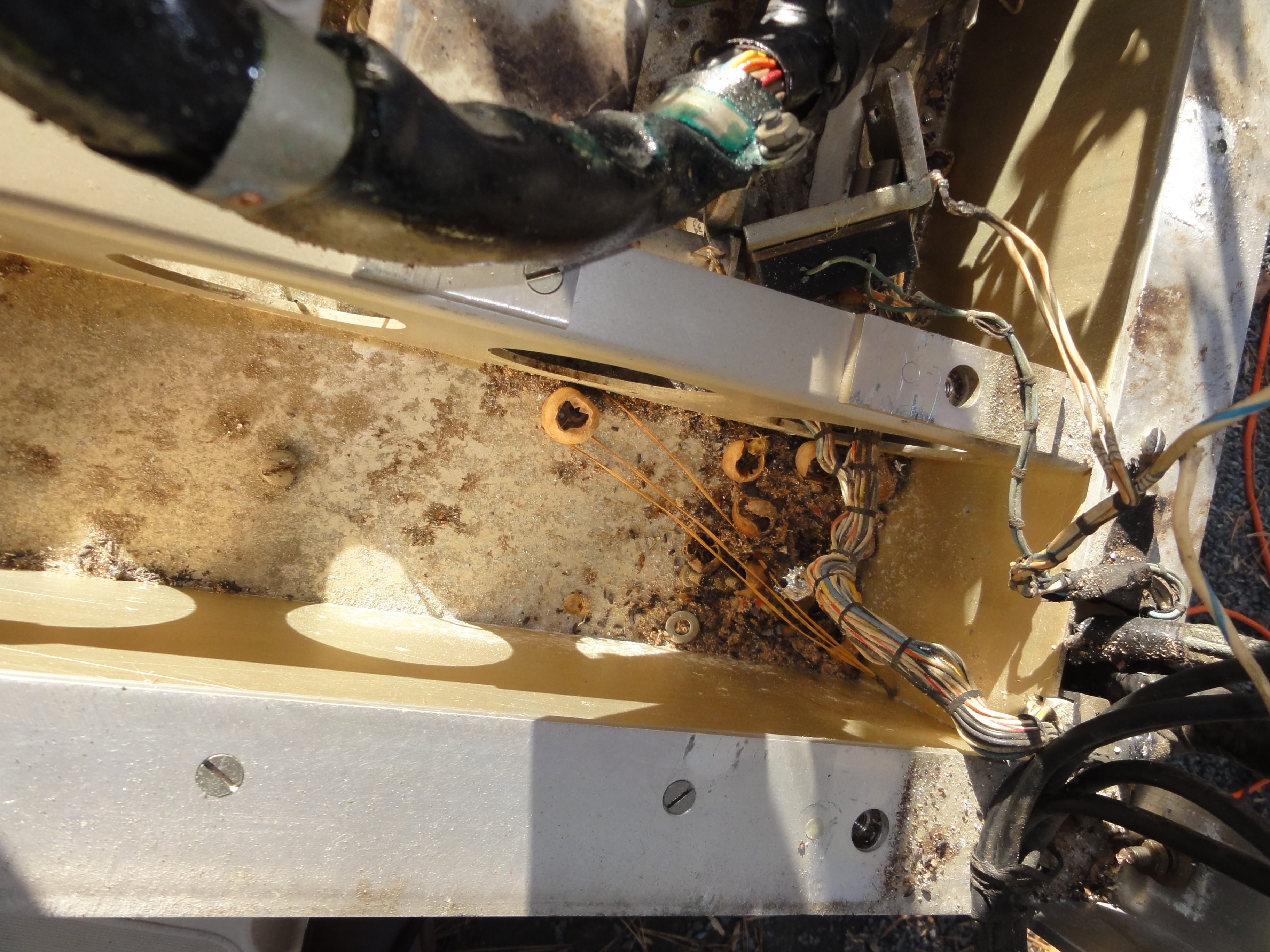

Mod xfmr

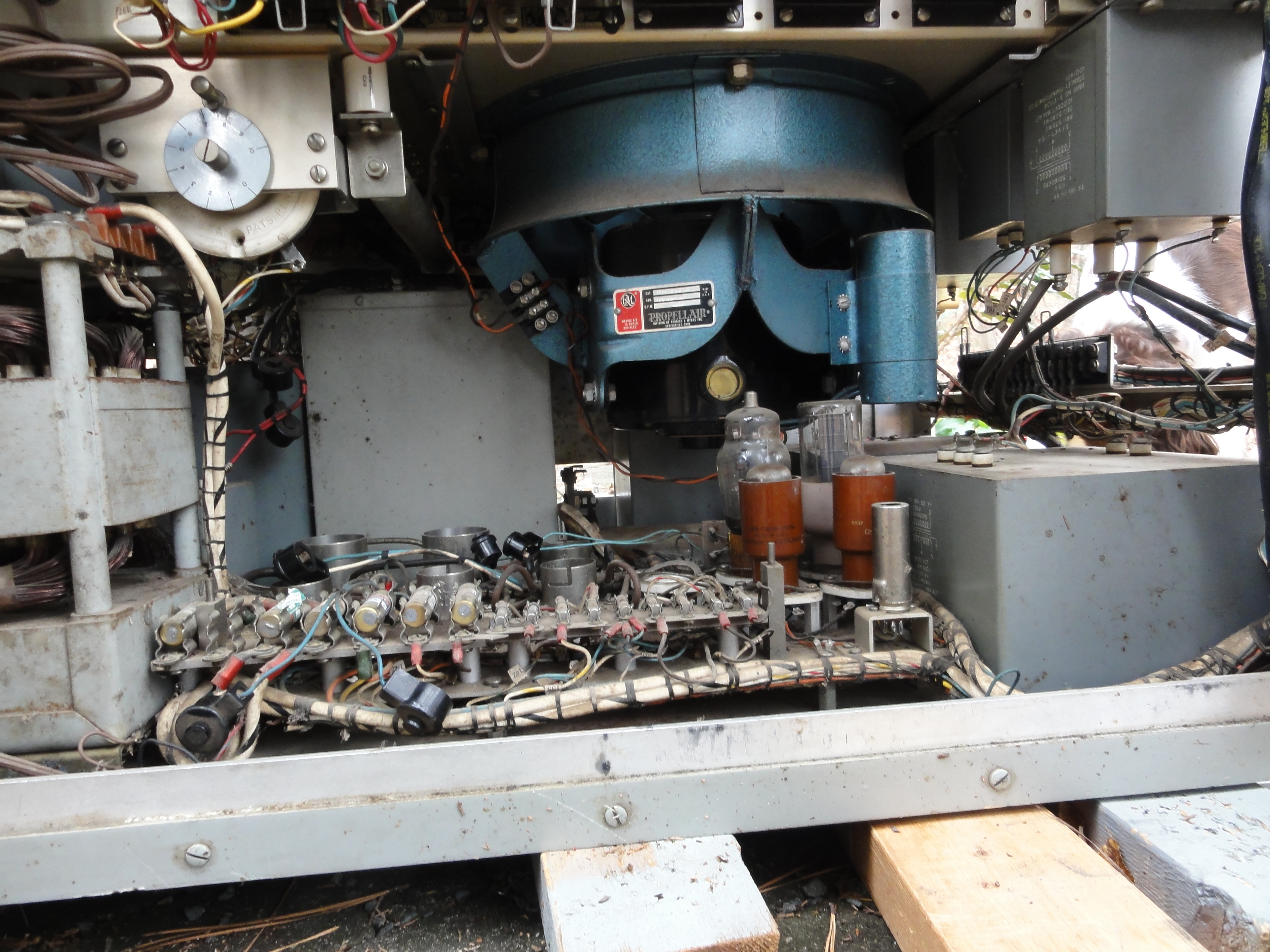

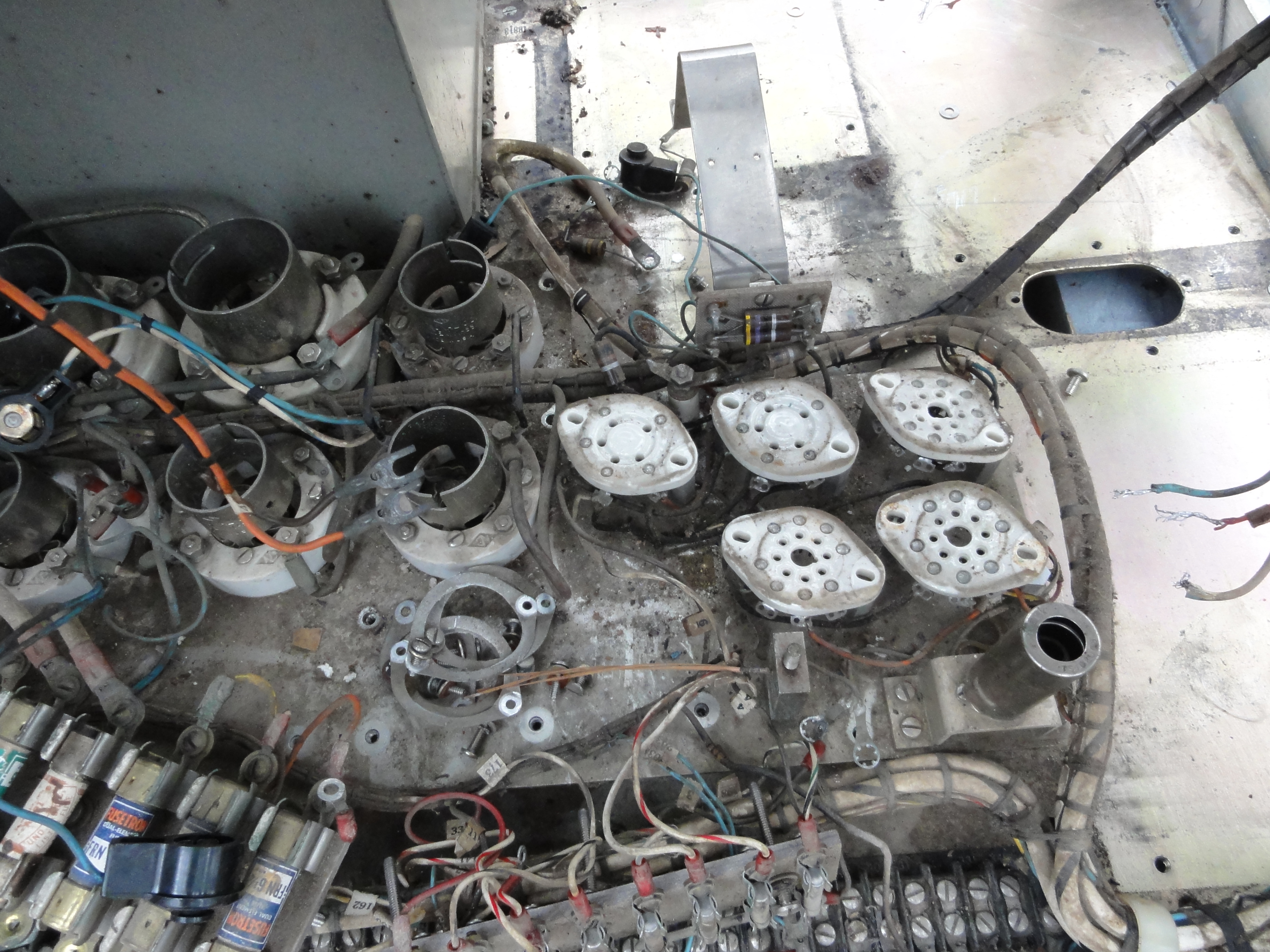

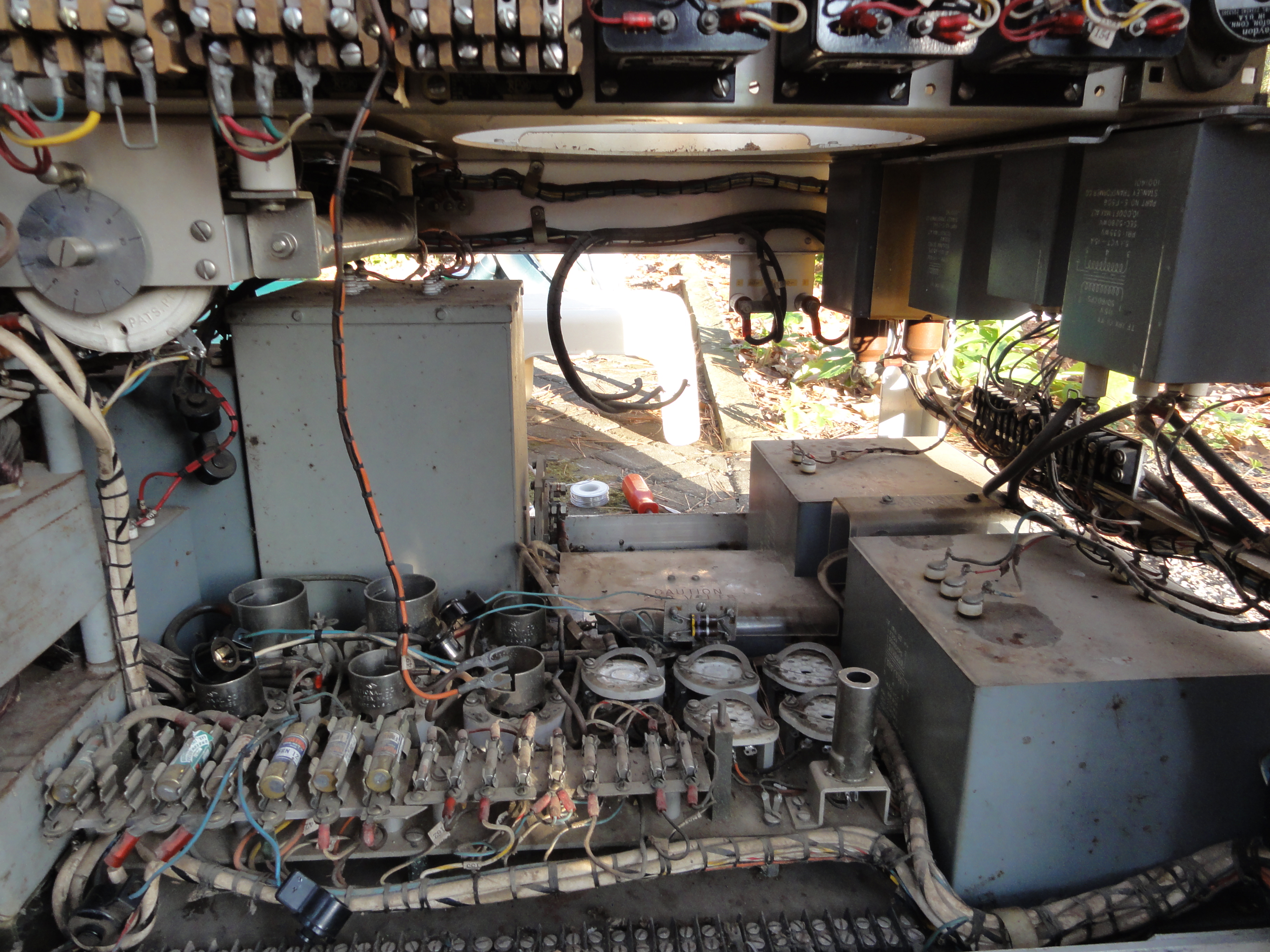

Take a photo before starting

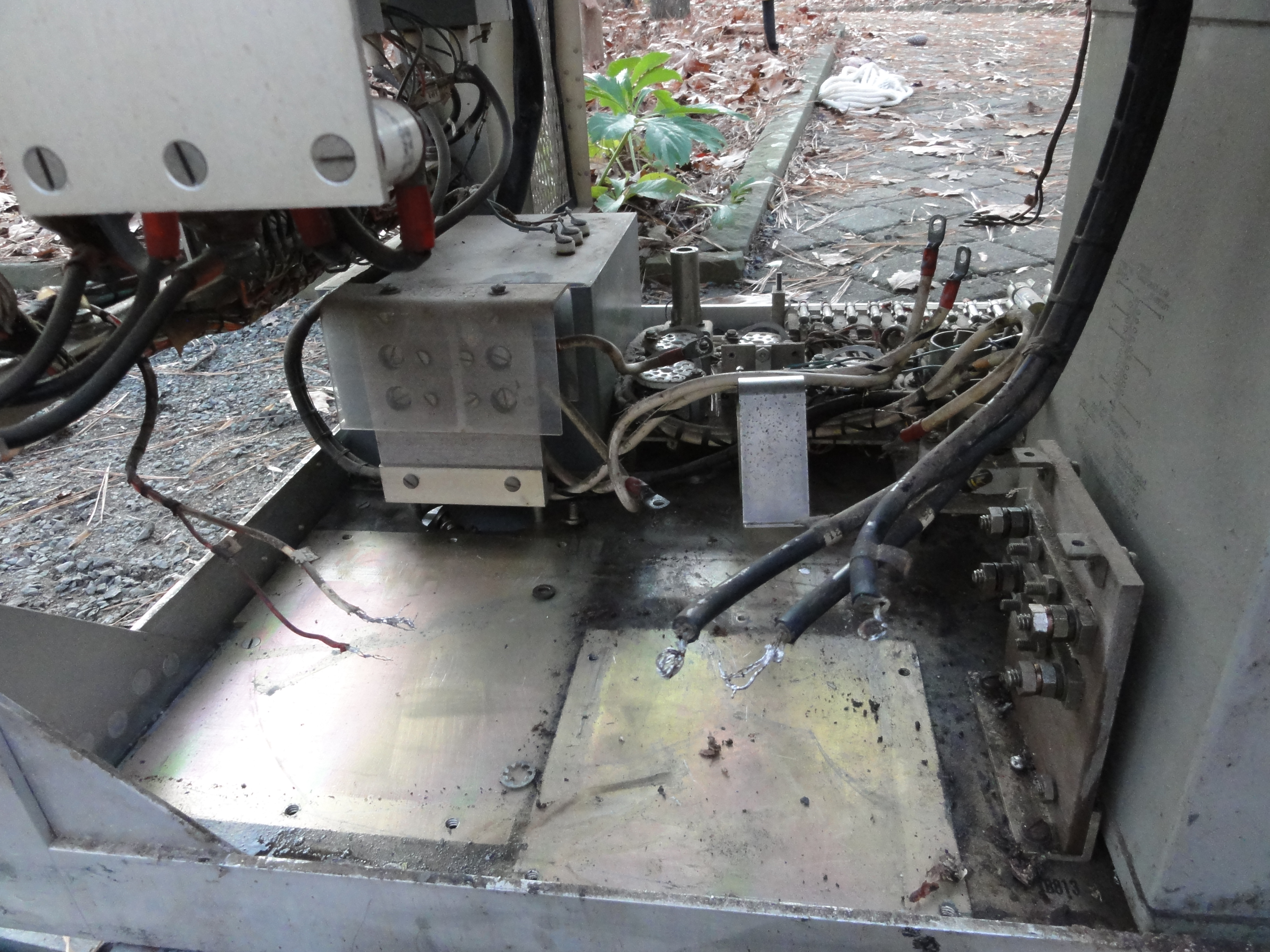

Beginning to remove the rectifier deck
More work on the rectifier deck

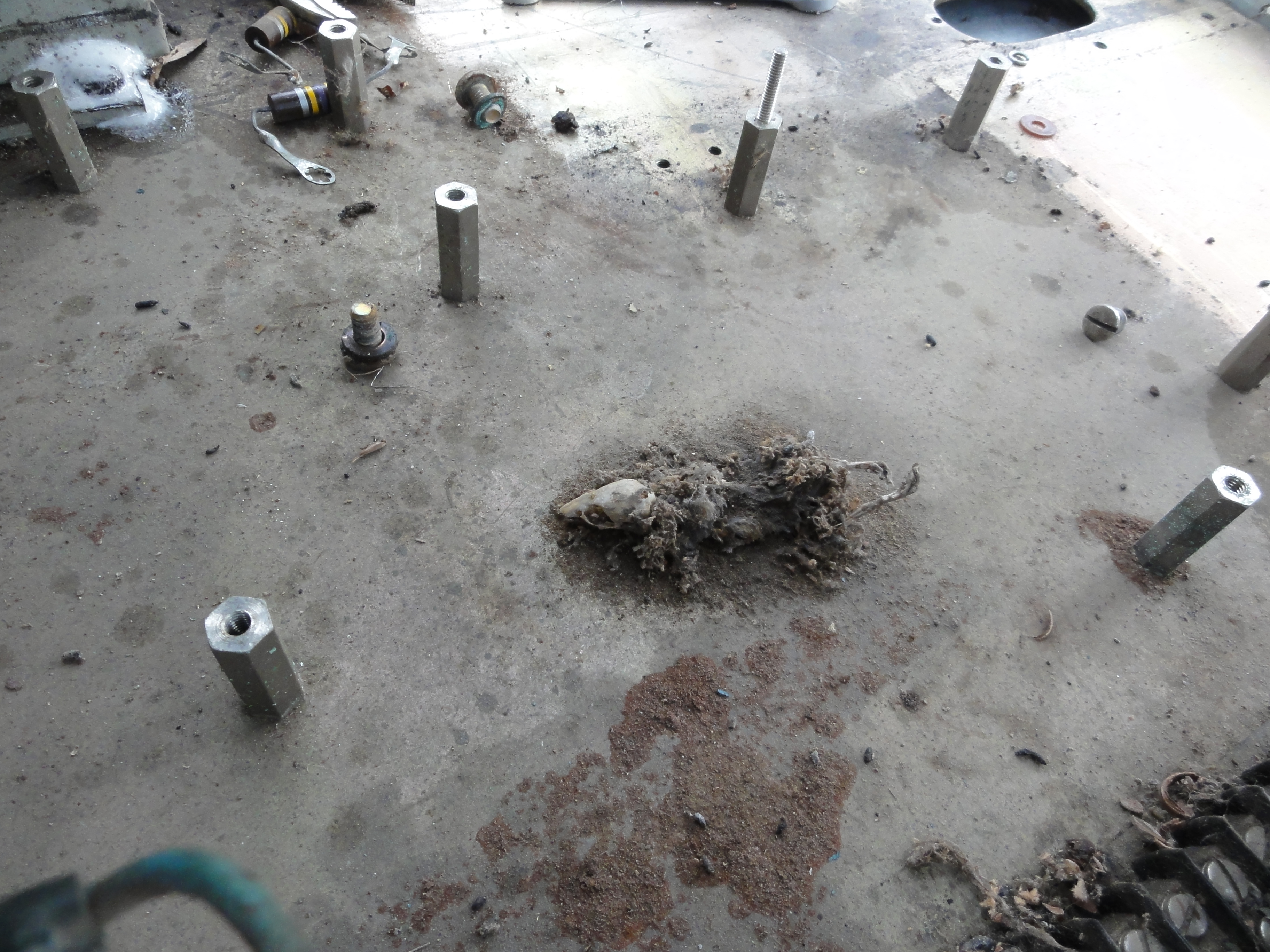

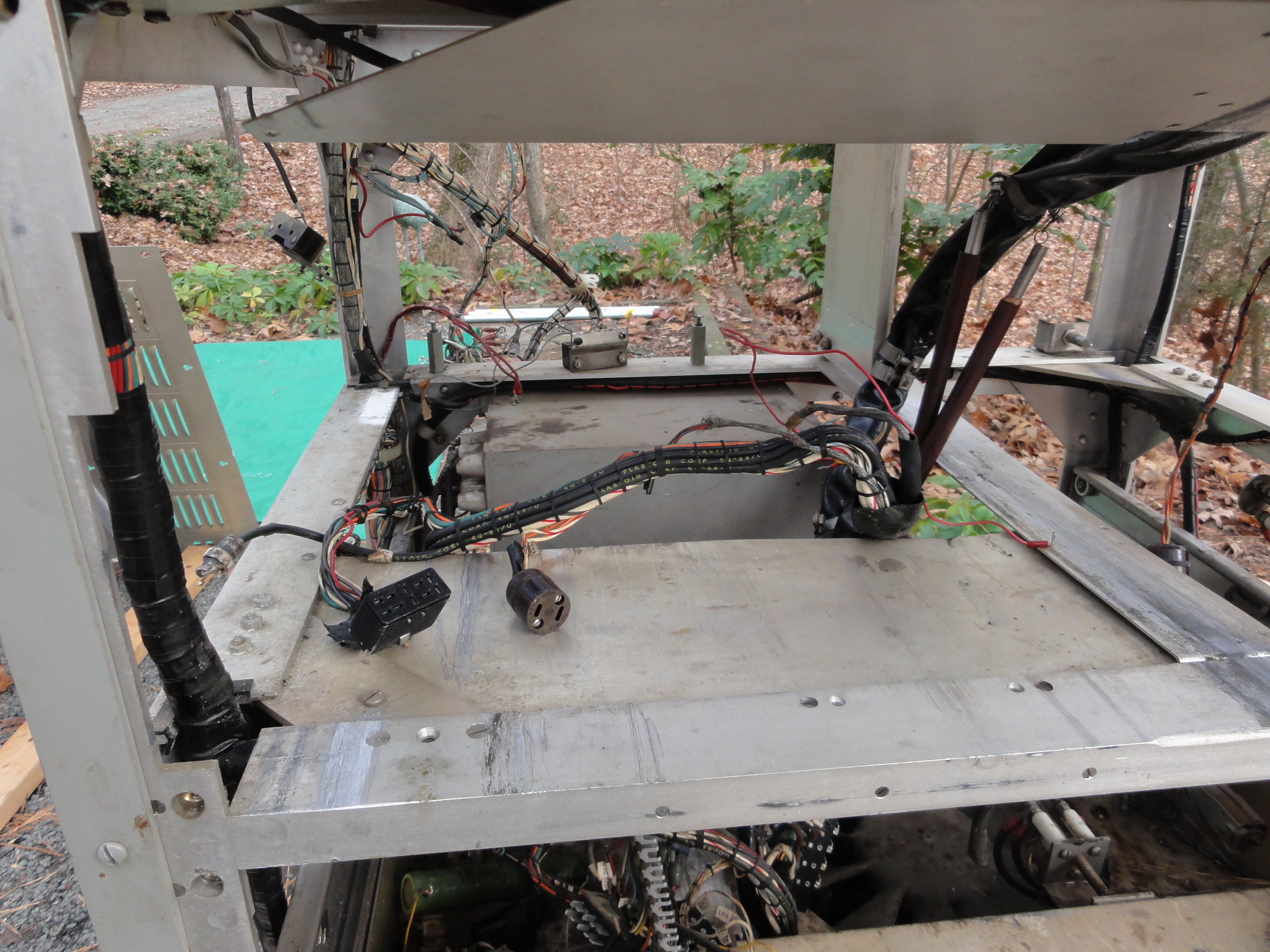

the deck is removed and lookee here - a previous visitor to the power supply cabinet

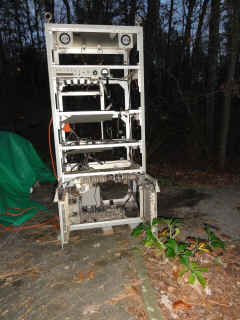

Do you think I am ever going to get this re-assembled???

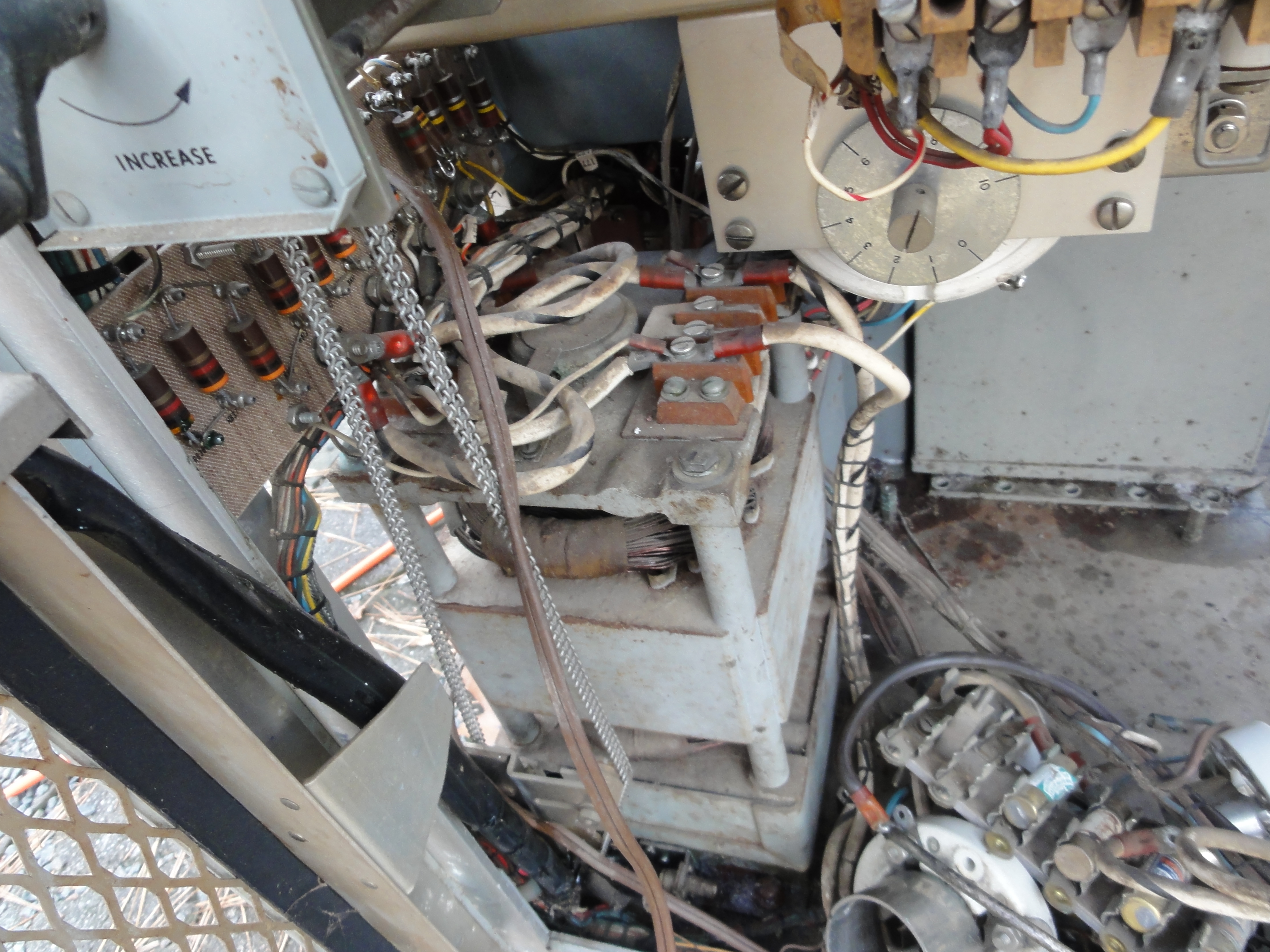

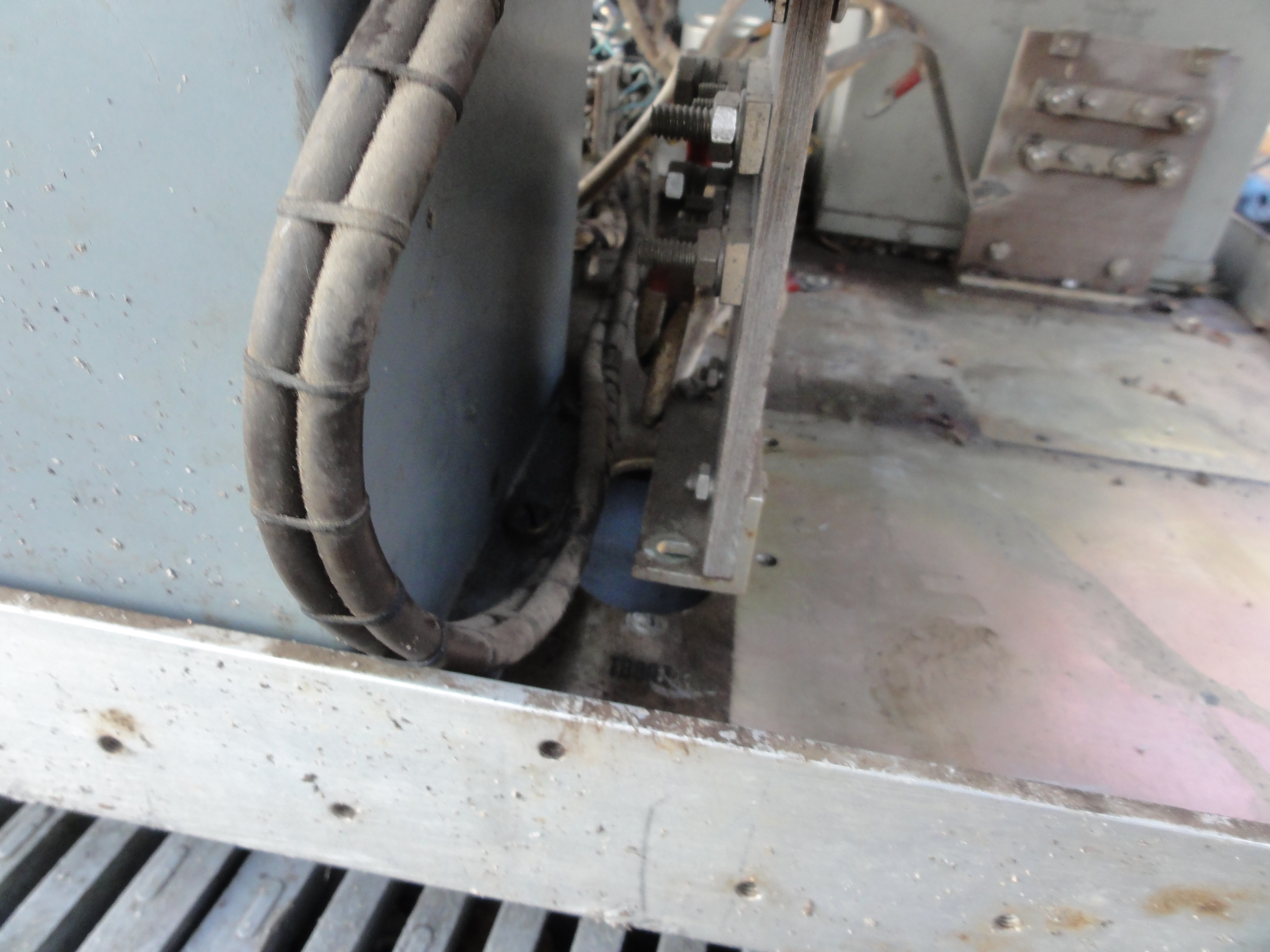

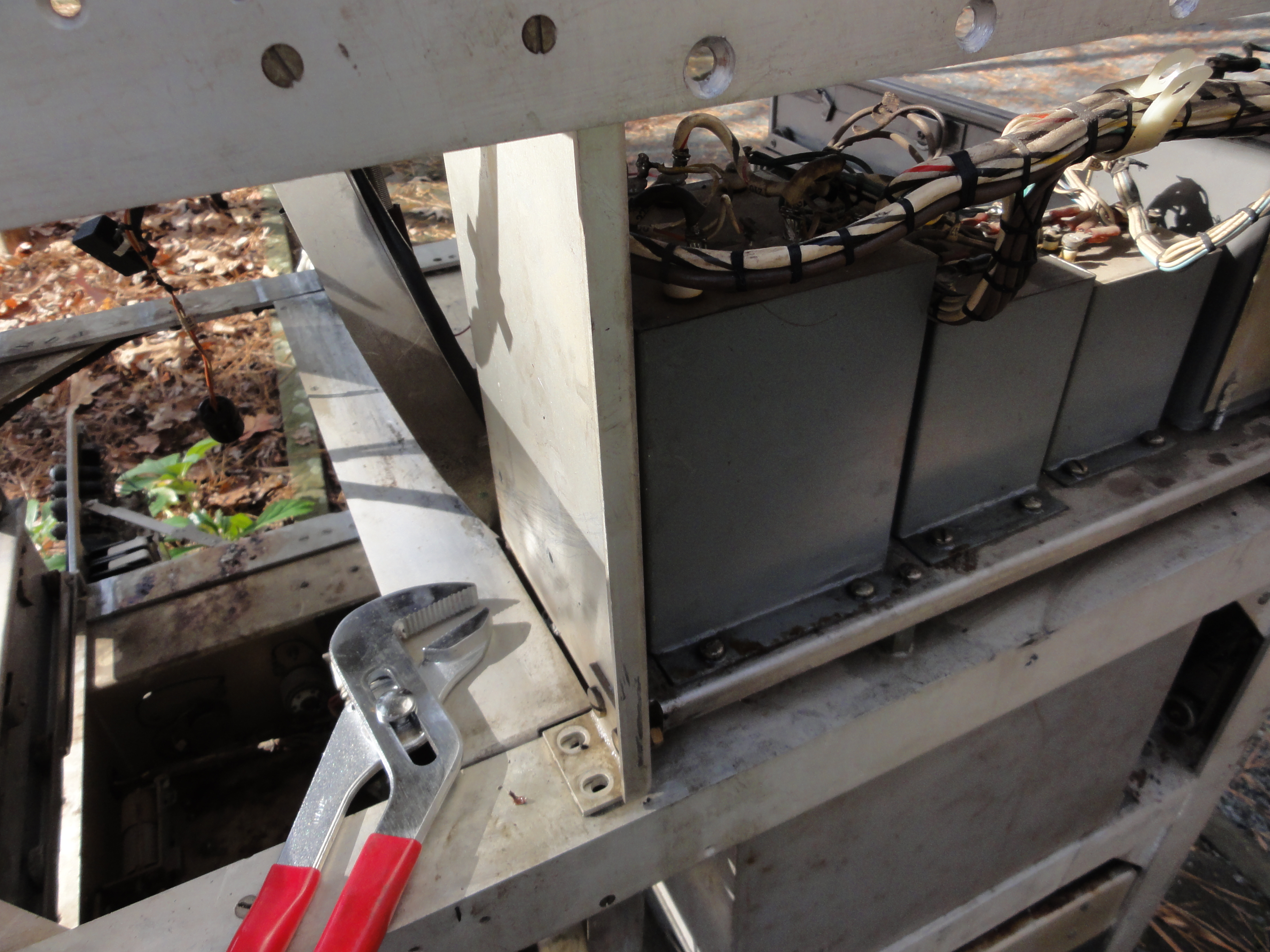

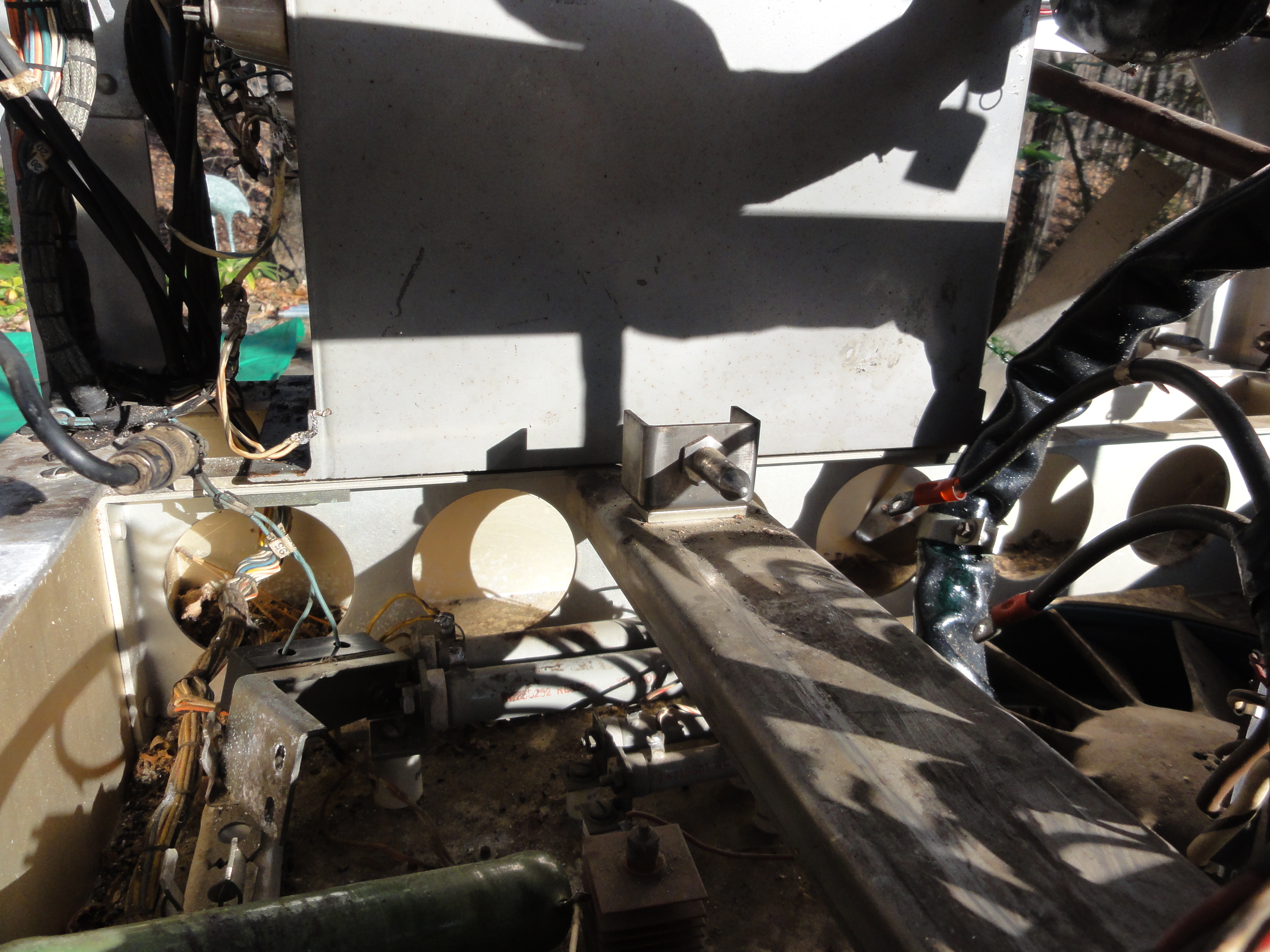

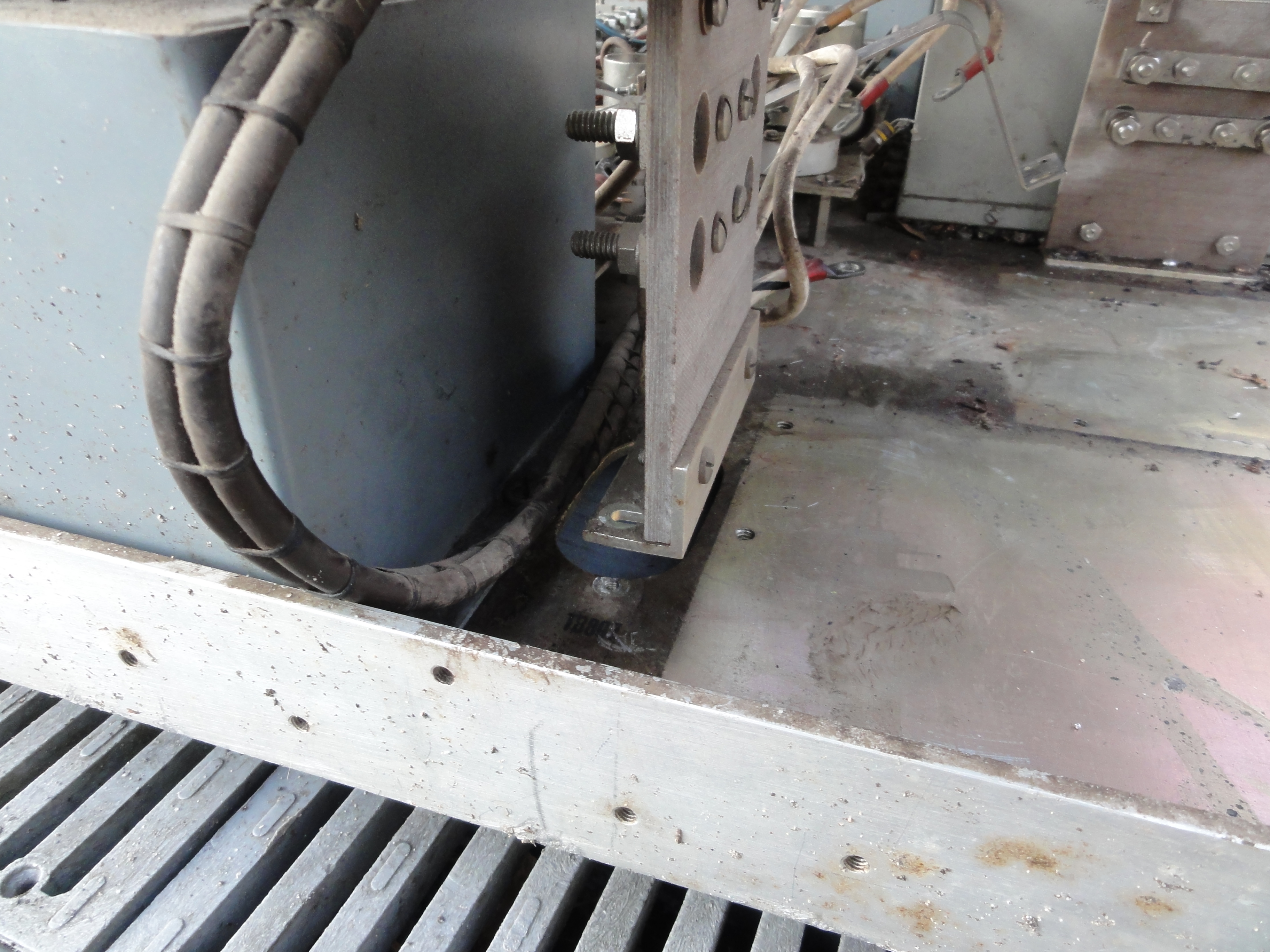

Getting access to the left front regulator mounting screw (hidden in that corner) is a real problem

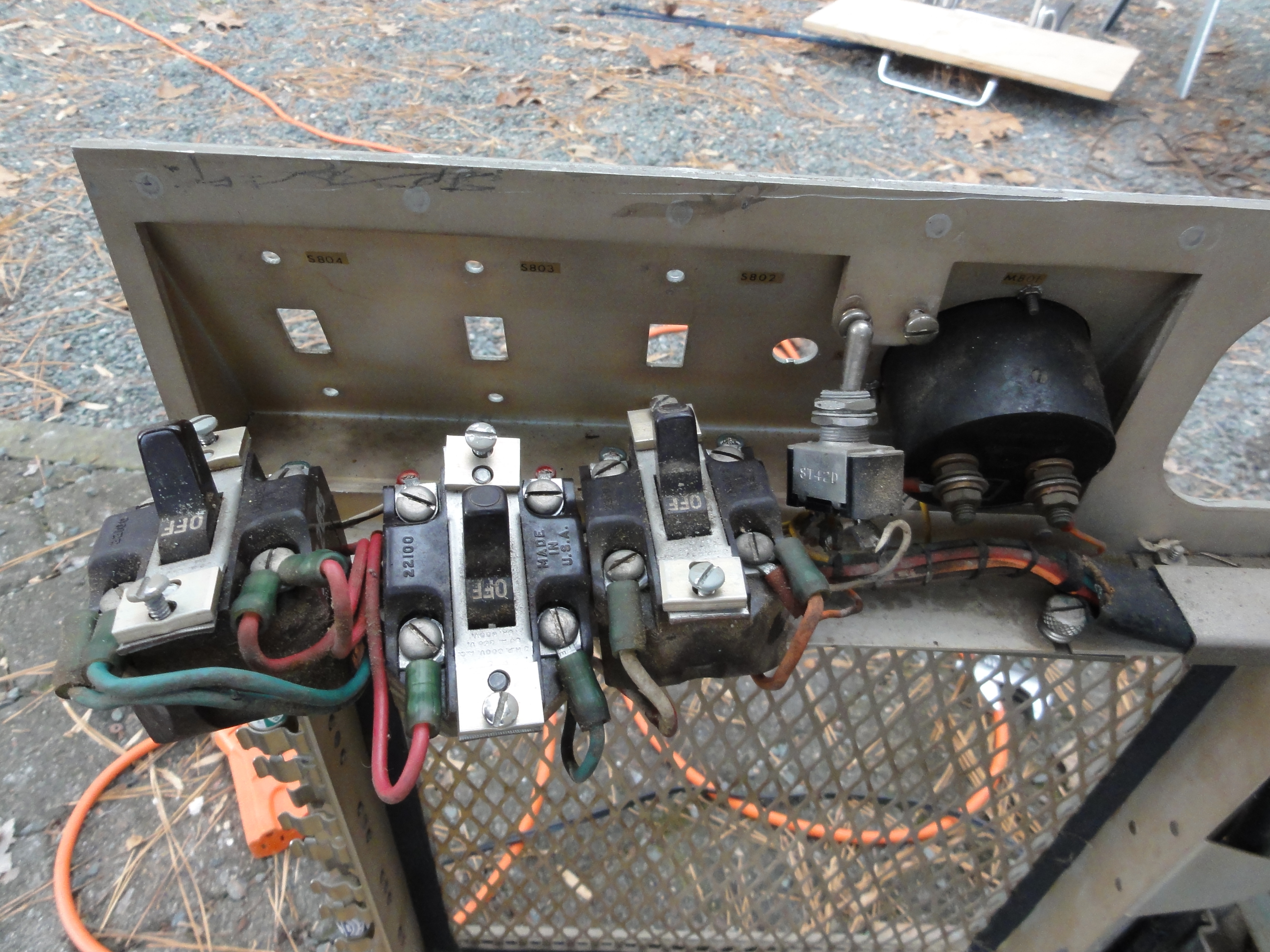

Maybe stripping the left door will help?

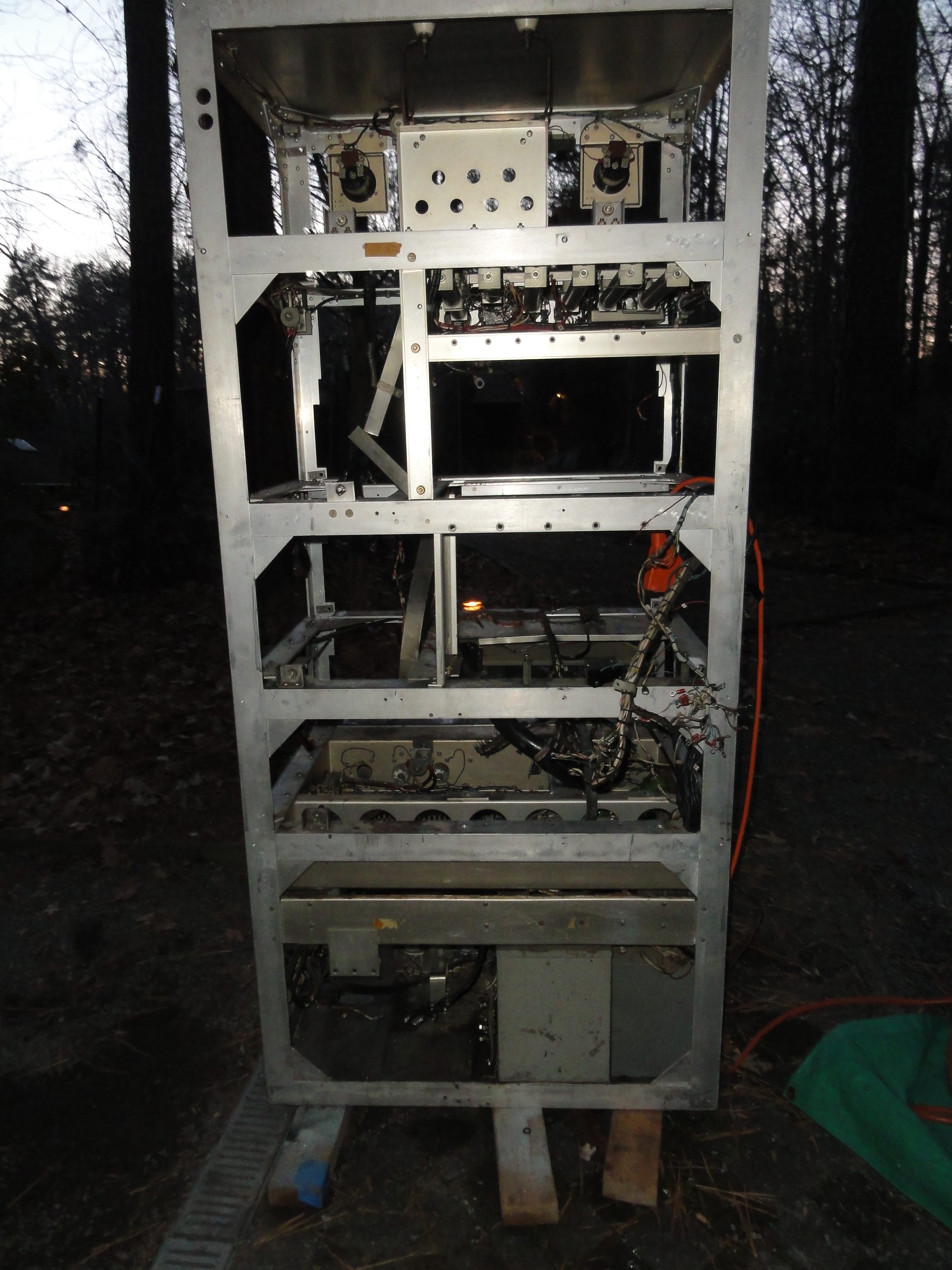

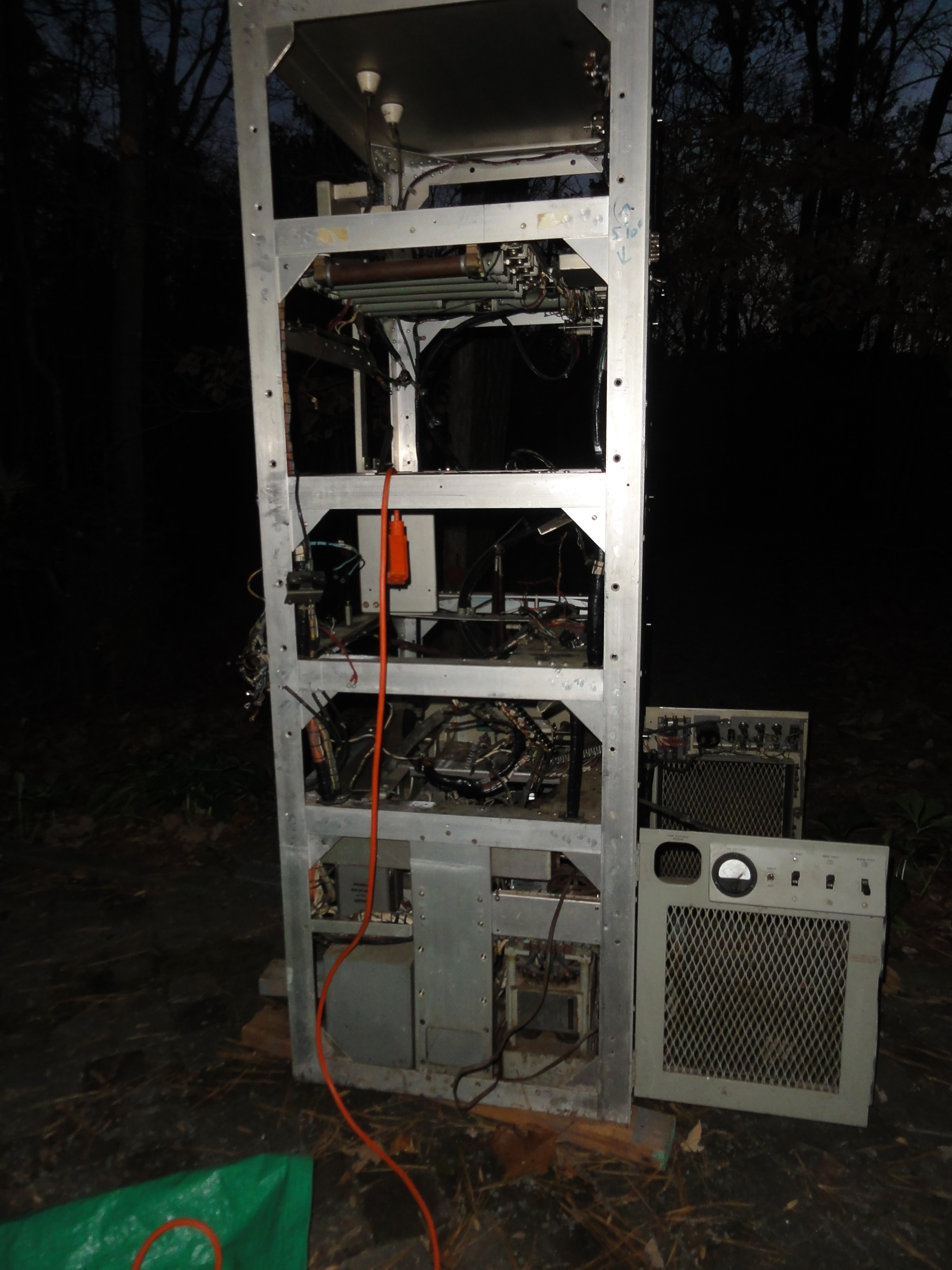

Here's what's left

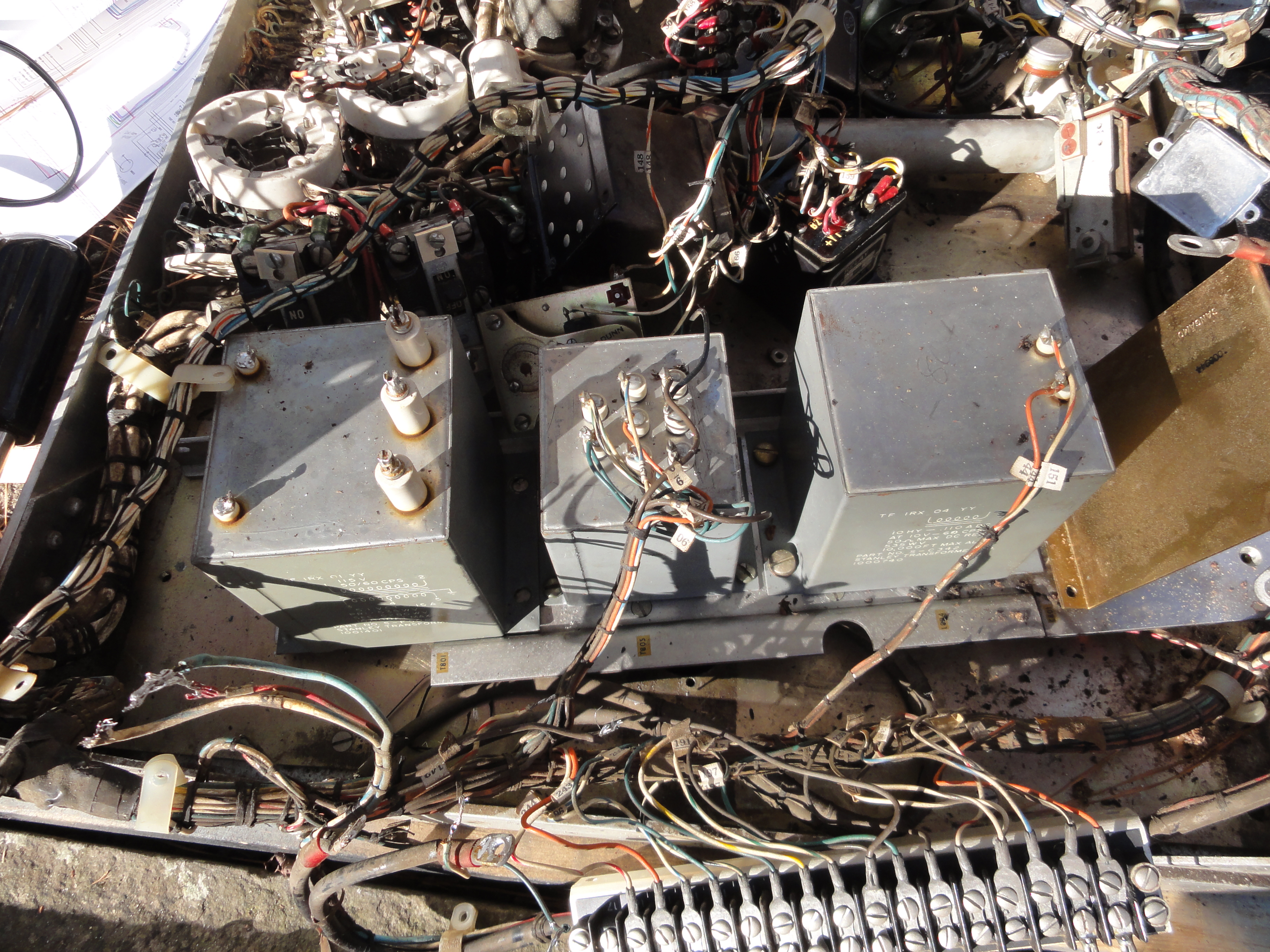

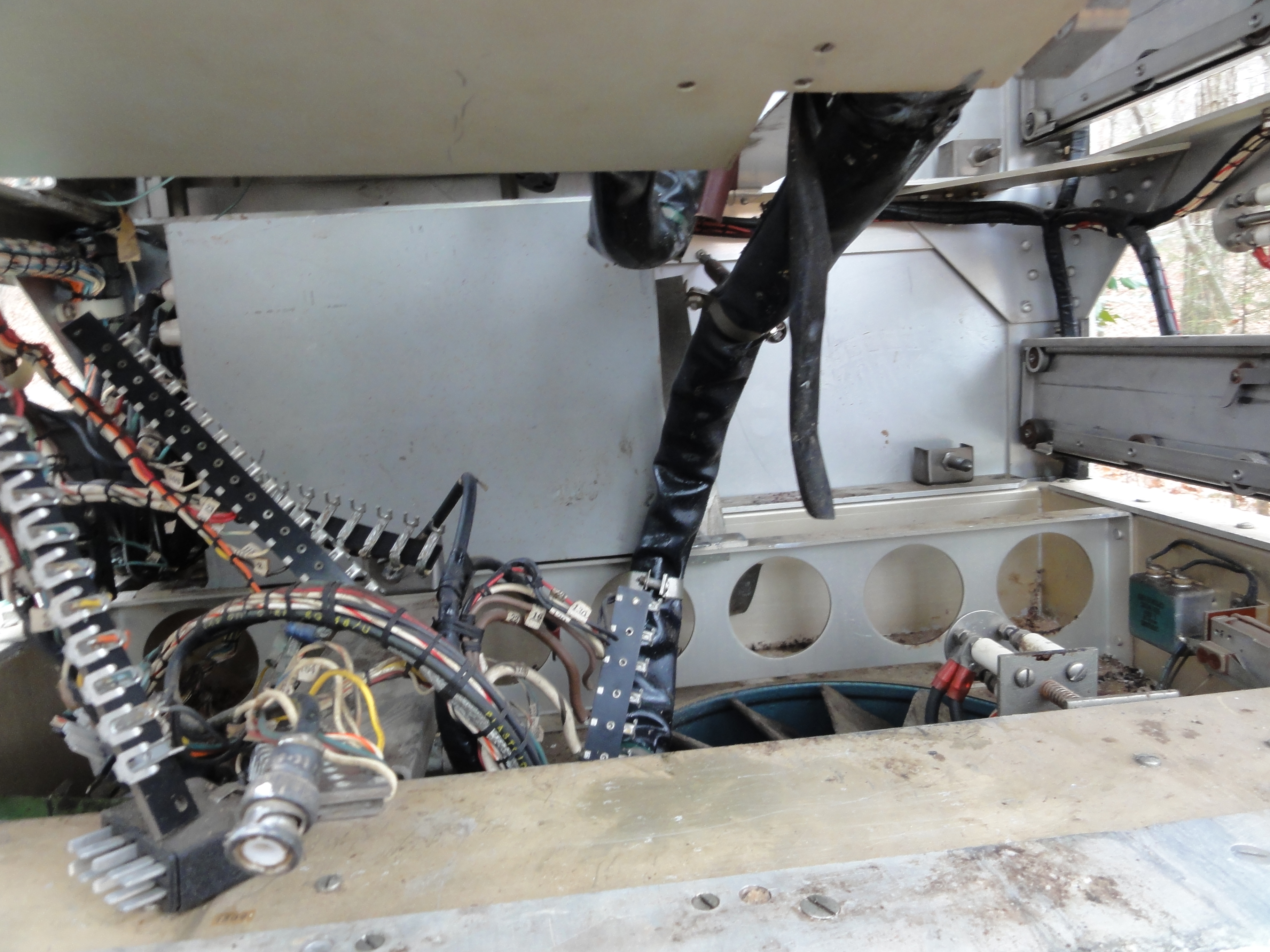

Day 3 - I have a plan. I'll try to remove the fan mounting tray (below the modulator, above the power supply deck)  in order to get access to the remaining power supply components. I'll have to remove components and a wire harness, but it looks do-able. Only had 2 hours of daylight today but made some plans and progress.

Documentation shots of the fan tray

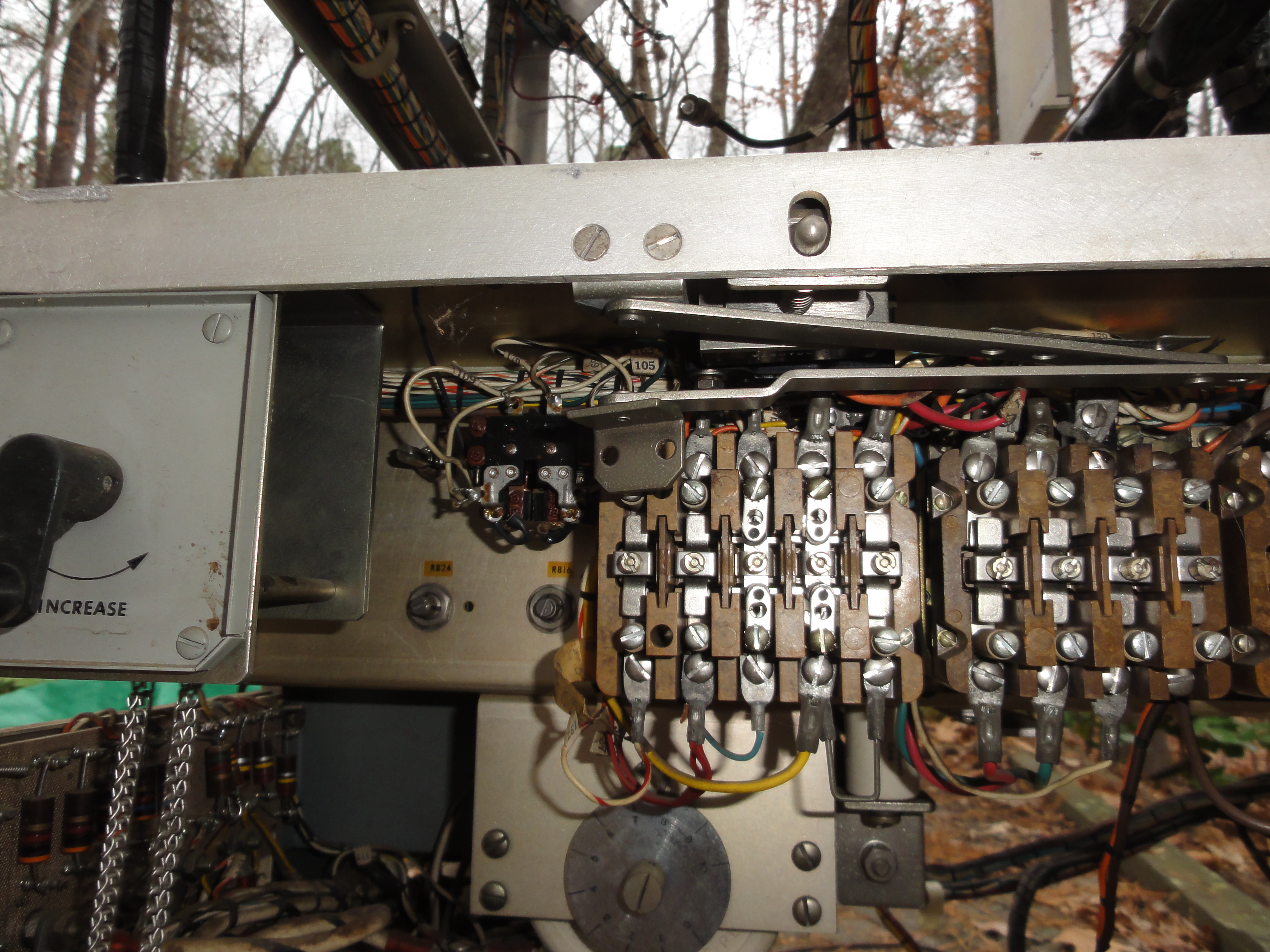

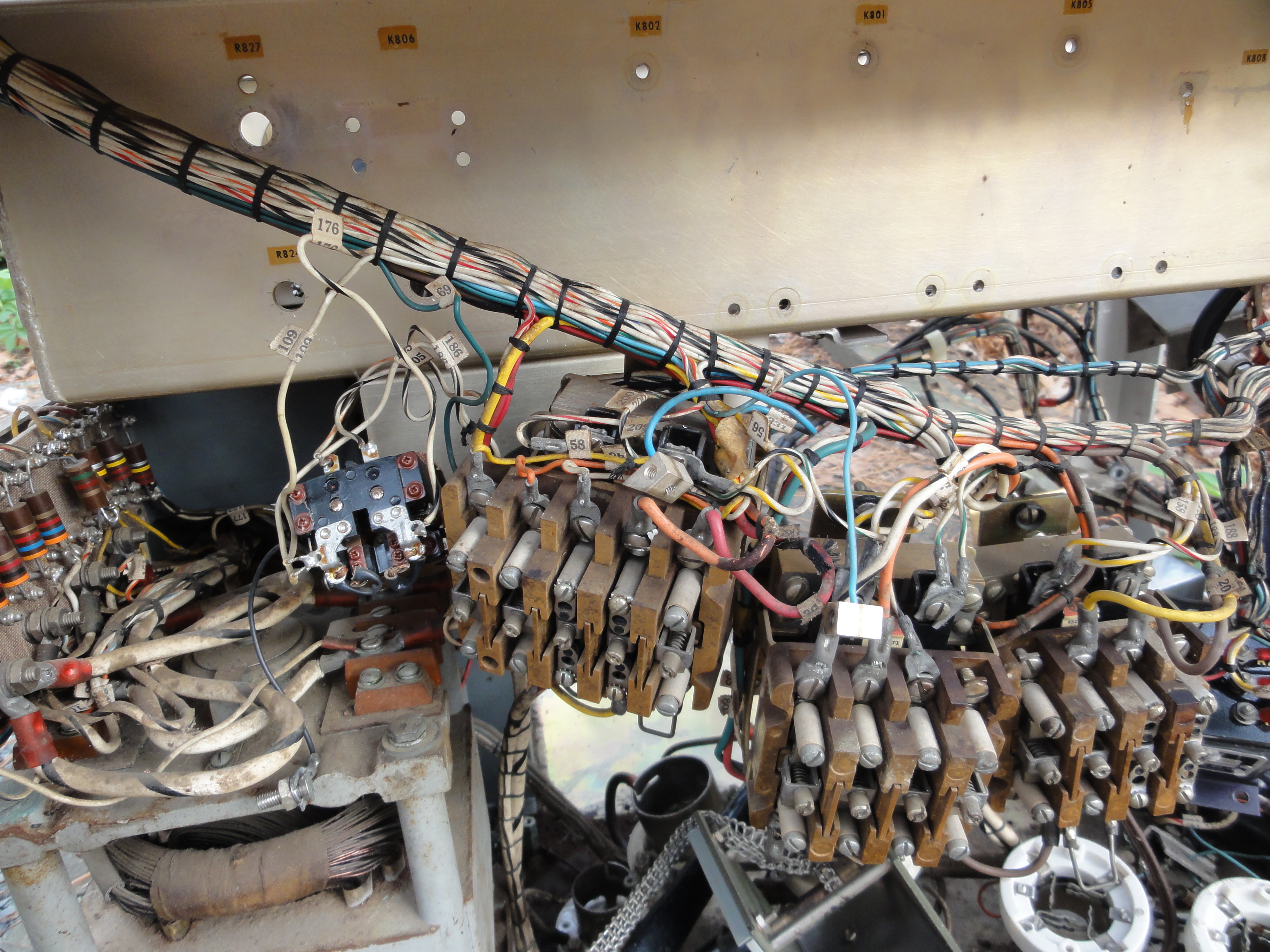

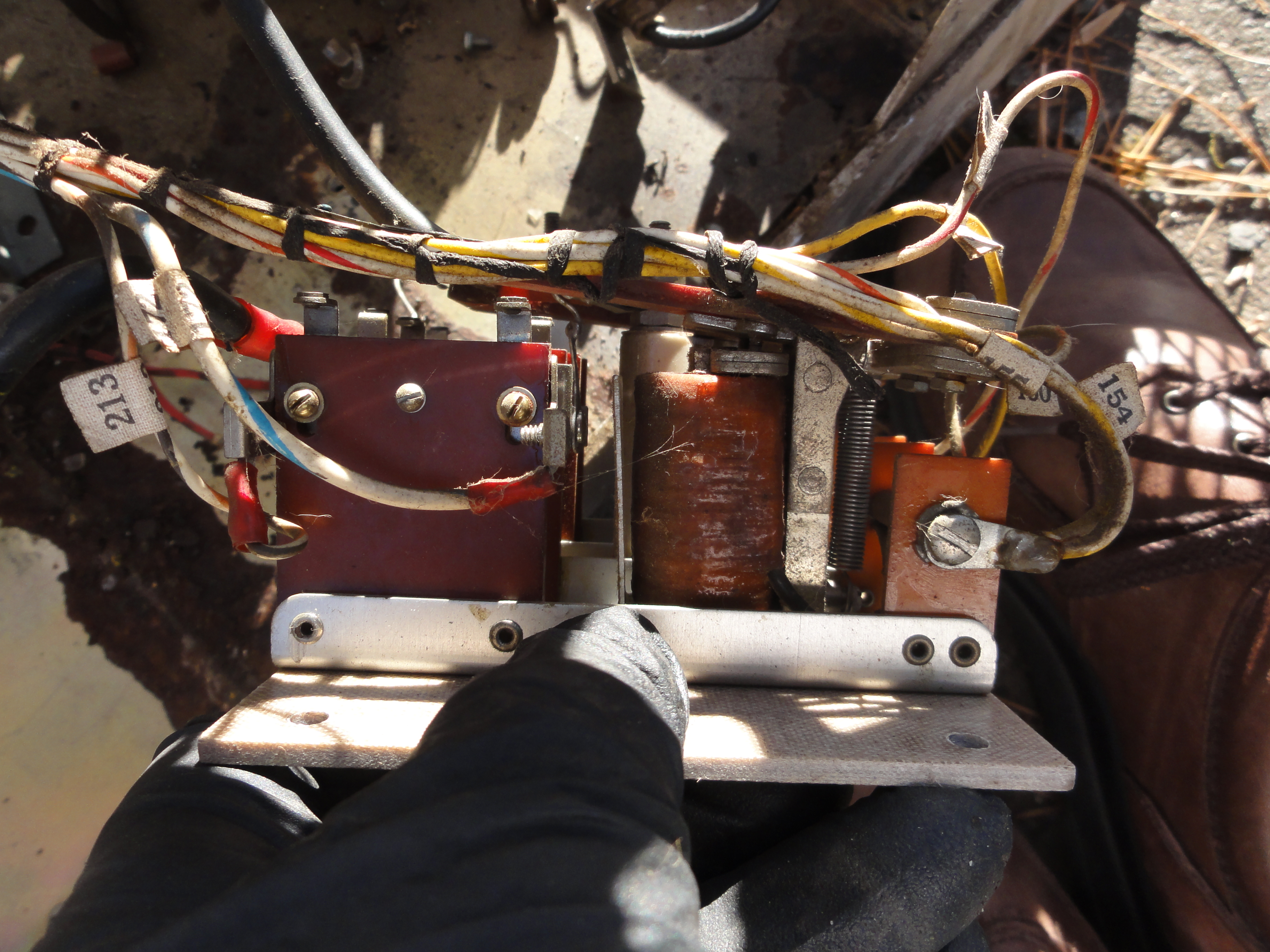

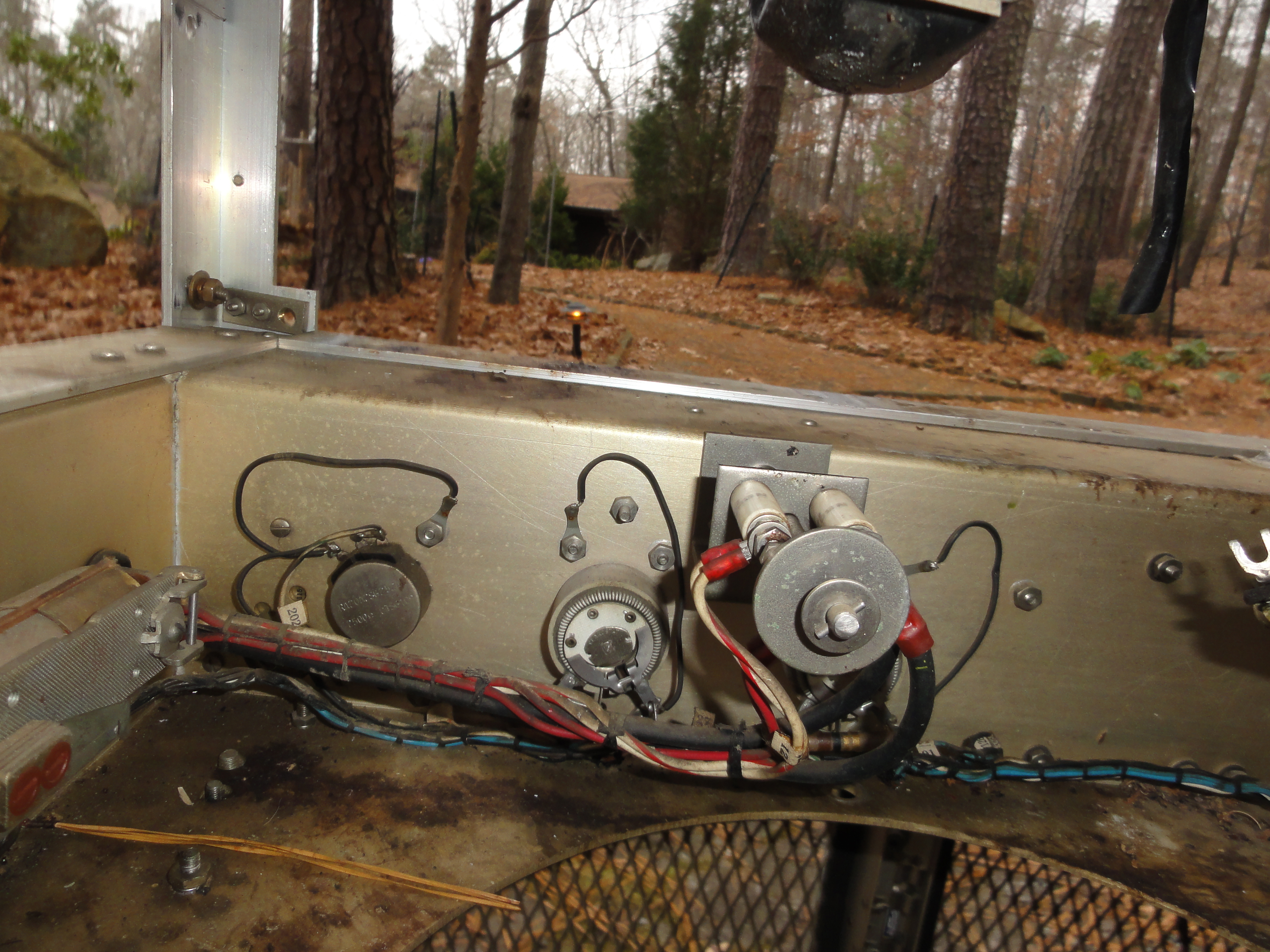

relays mounted on front wall of fan tray

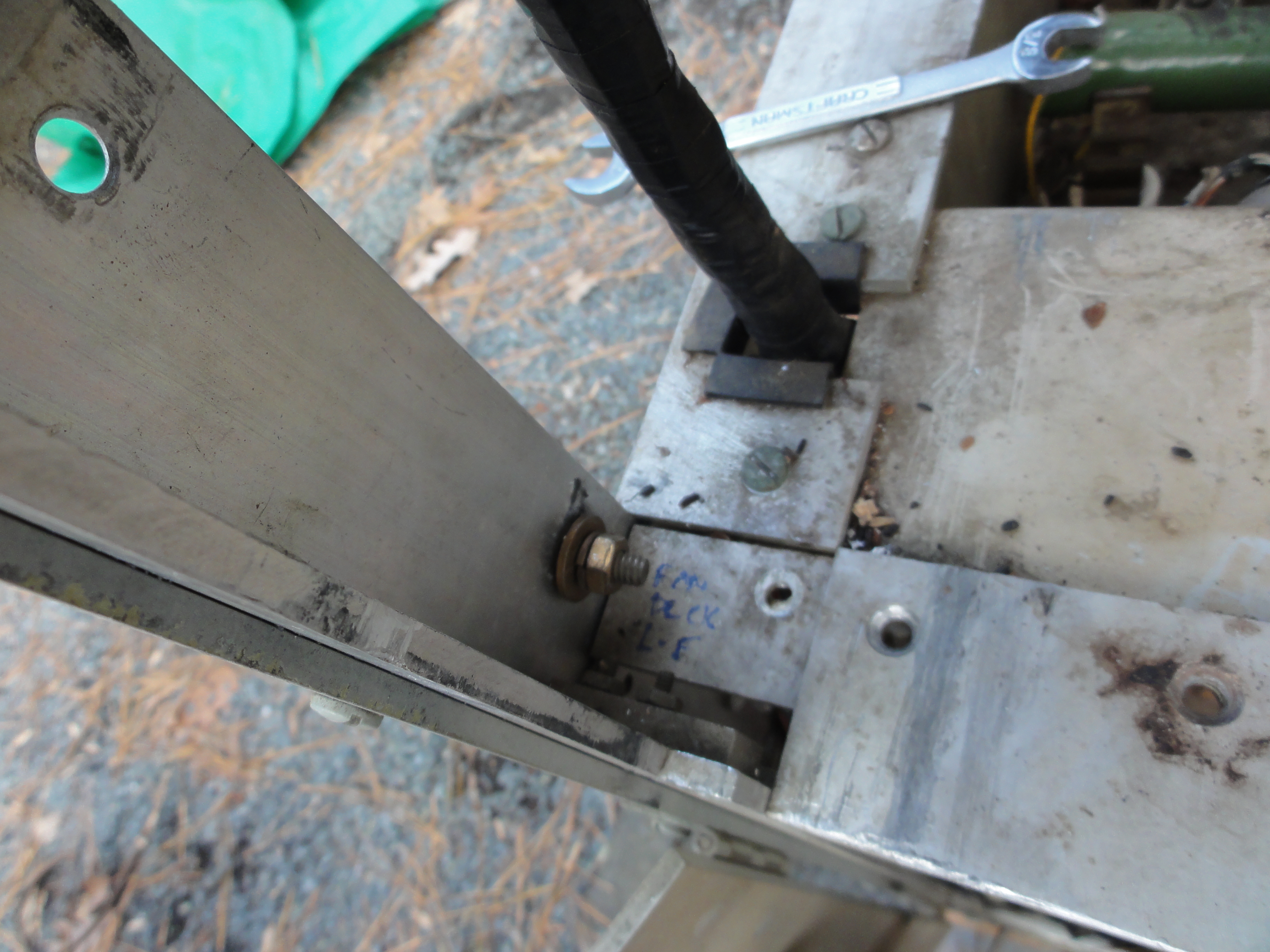

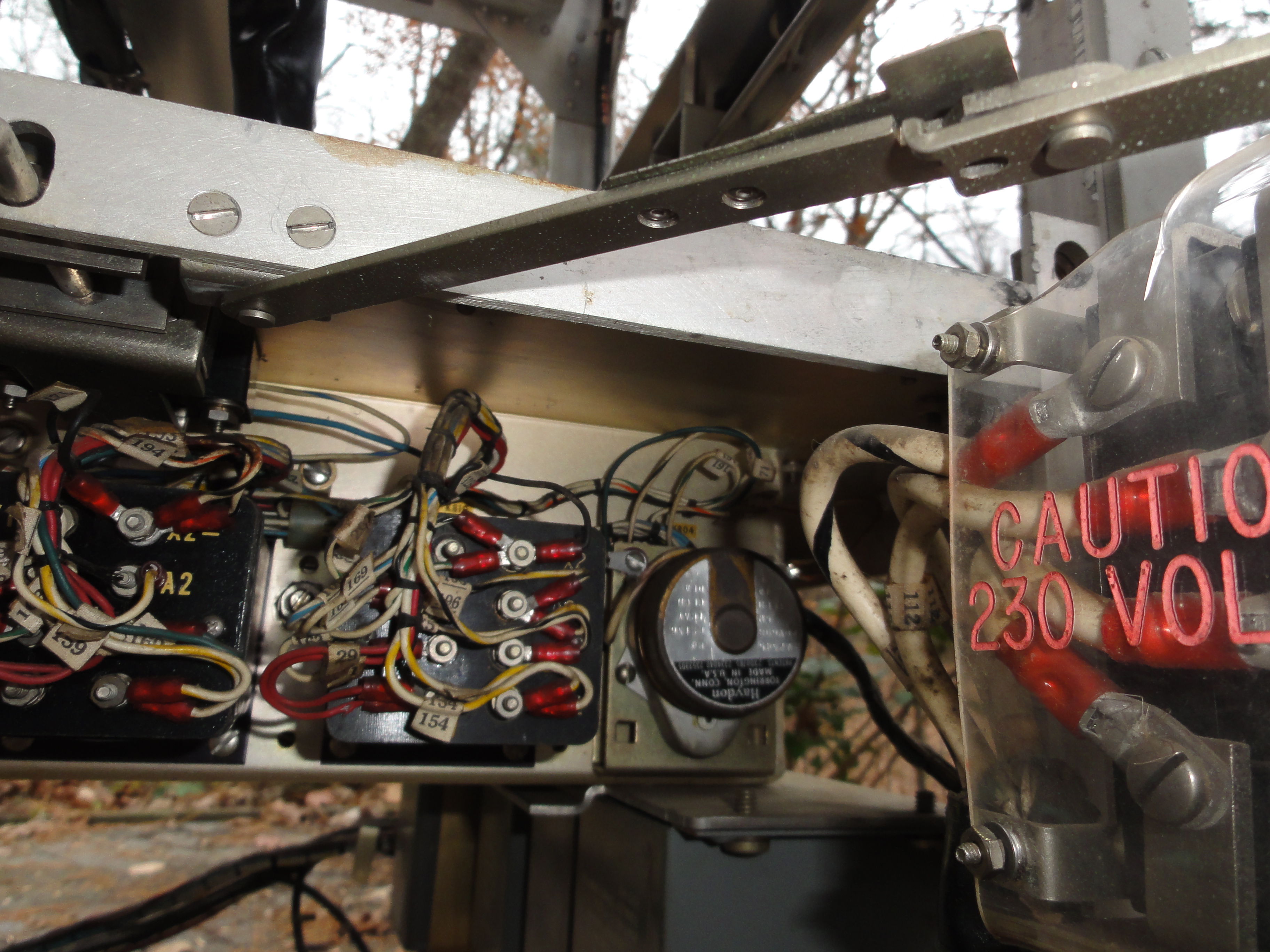

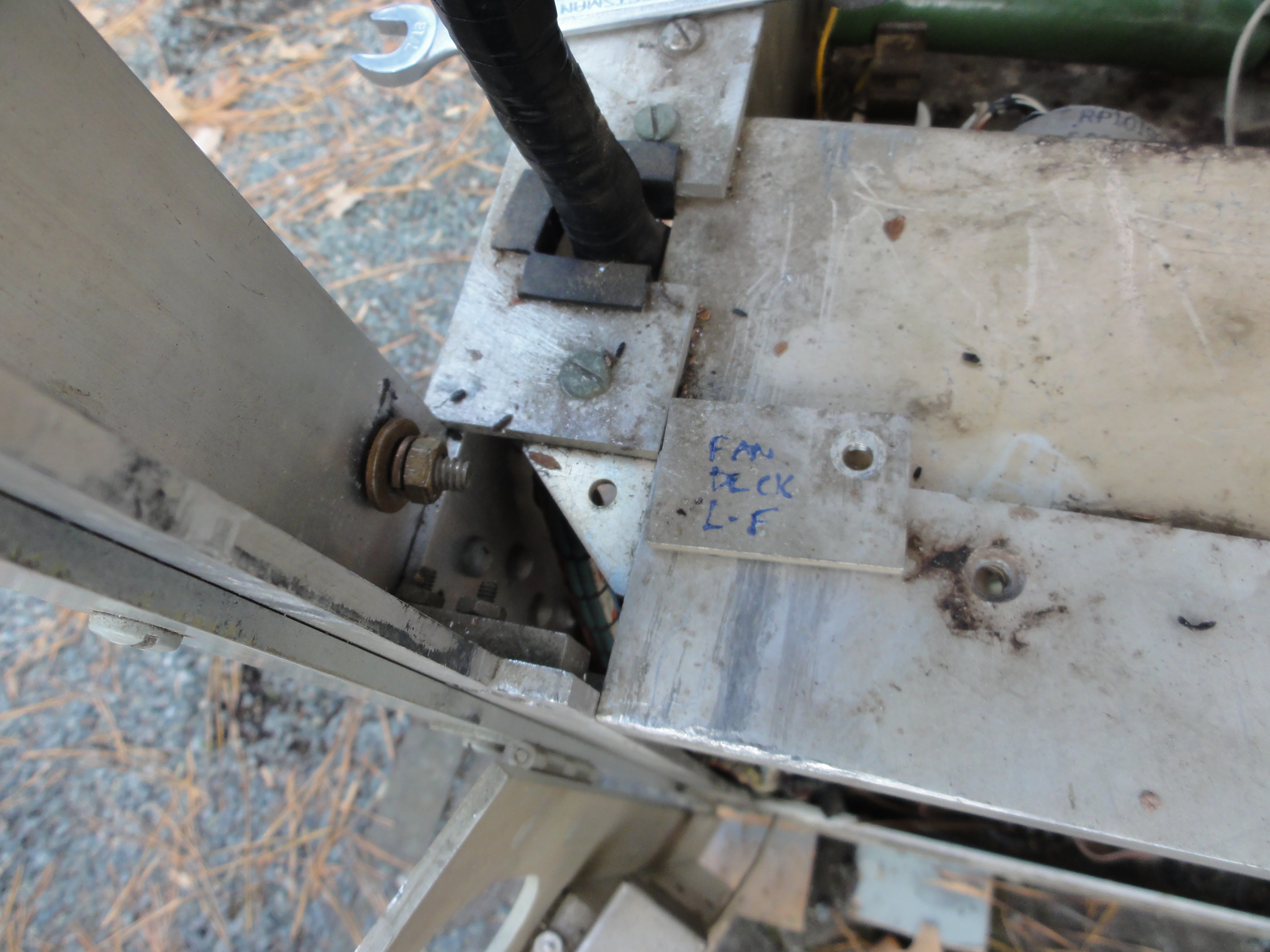

Odd little pieces at front corners - removable so that the harness can be taken out?
it got dark before I could unsolder and remove xfmrs.

Day 4 - got in a few hours before dark/cold. Removed everything from the fan tray - left all the wires attached to the relay bank and to the controls and power resistors on top and bottom of the tray. Still need to remove the AM-CW HV relay mounted on the left side - got access to it by removing a xfmr above it - then maybe can try to remove the tray itself. Radical thought - I may be able to pull the entire wiring harness out - it runs up the corners of the frame but looks removable from there. We'll see!

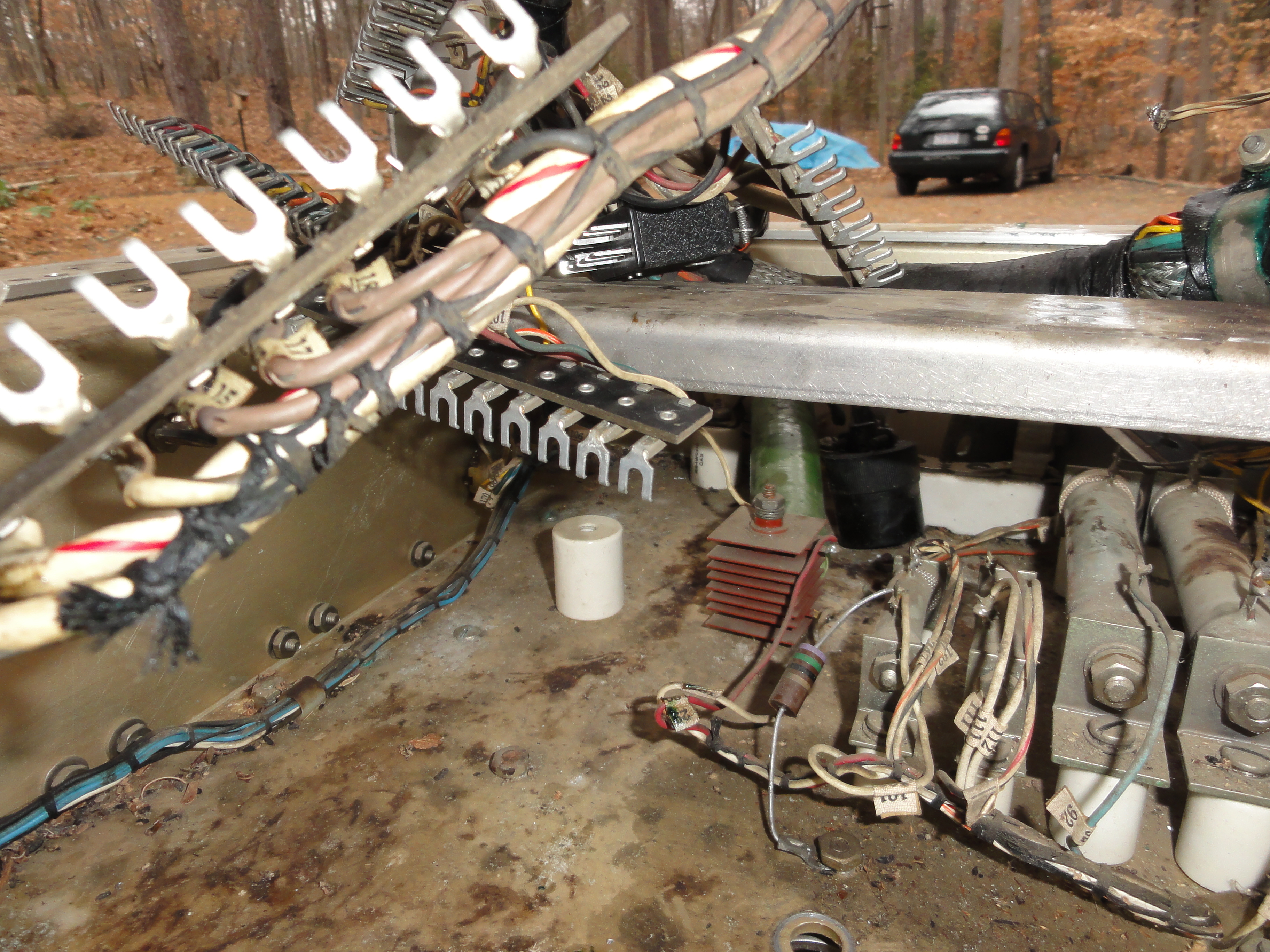

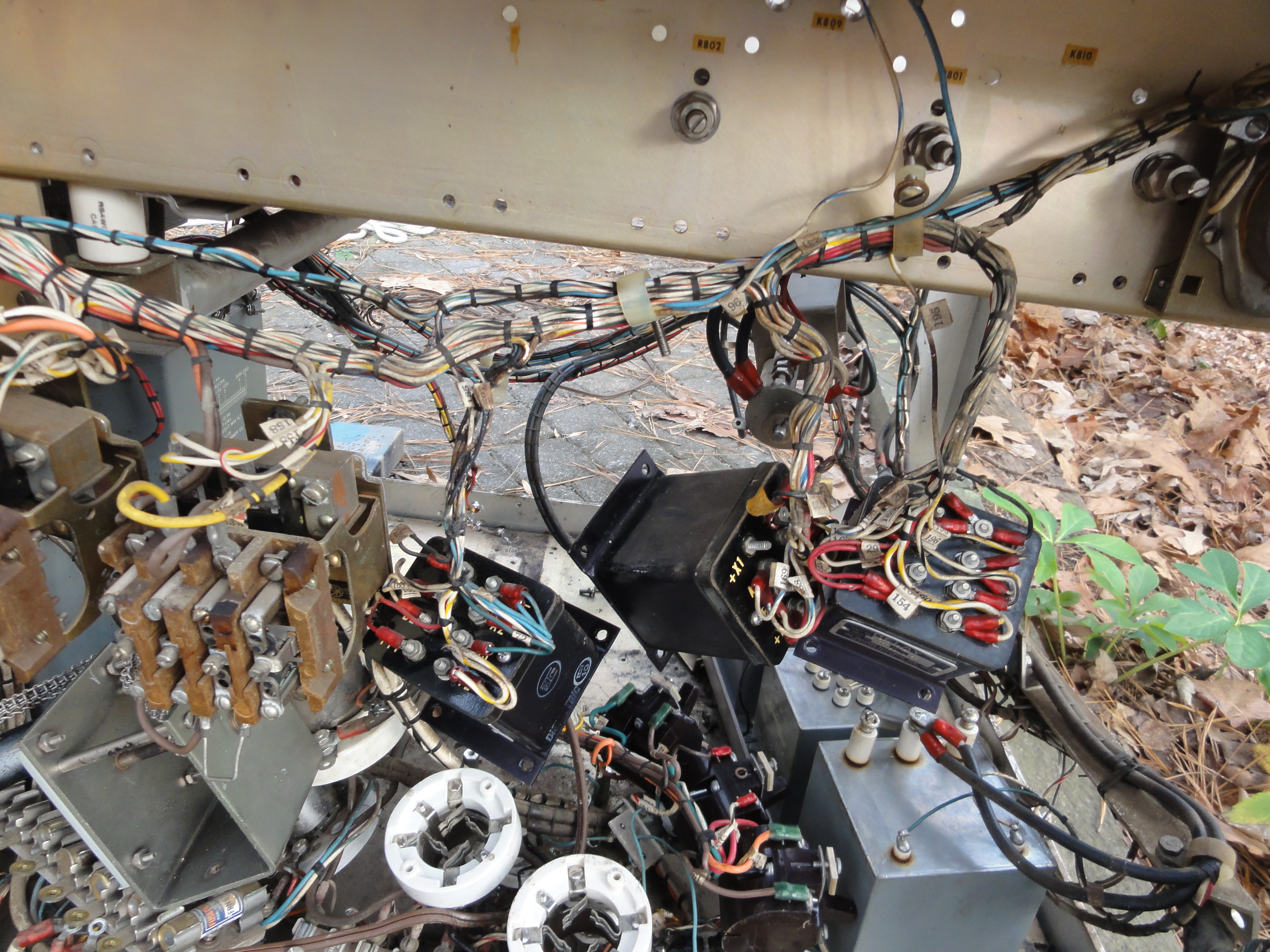

relay bank hanging free - not as much a disaster as it appears....honest!

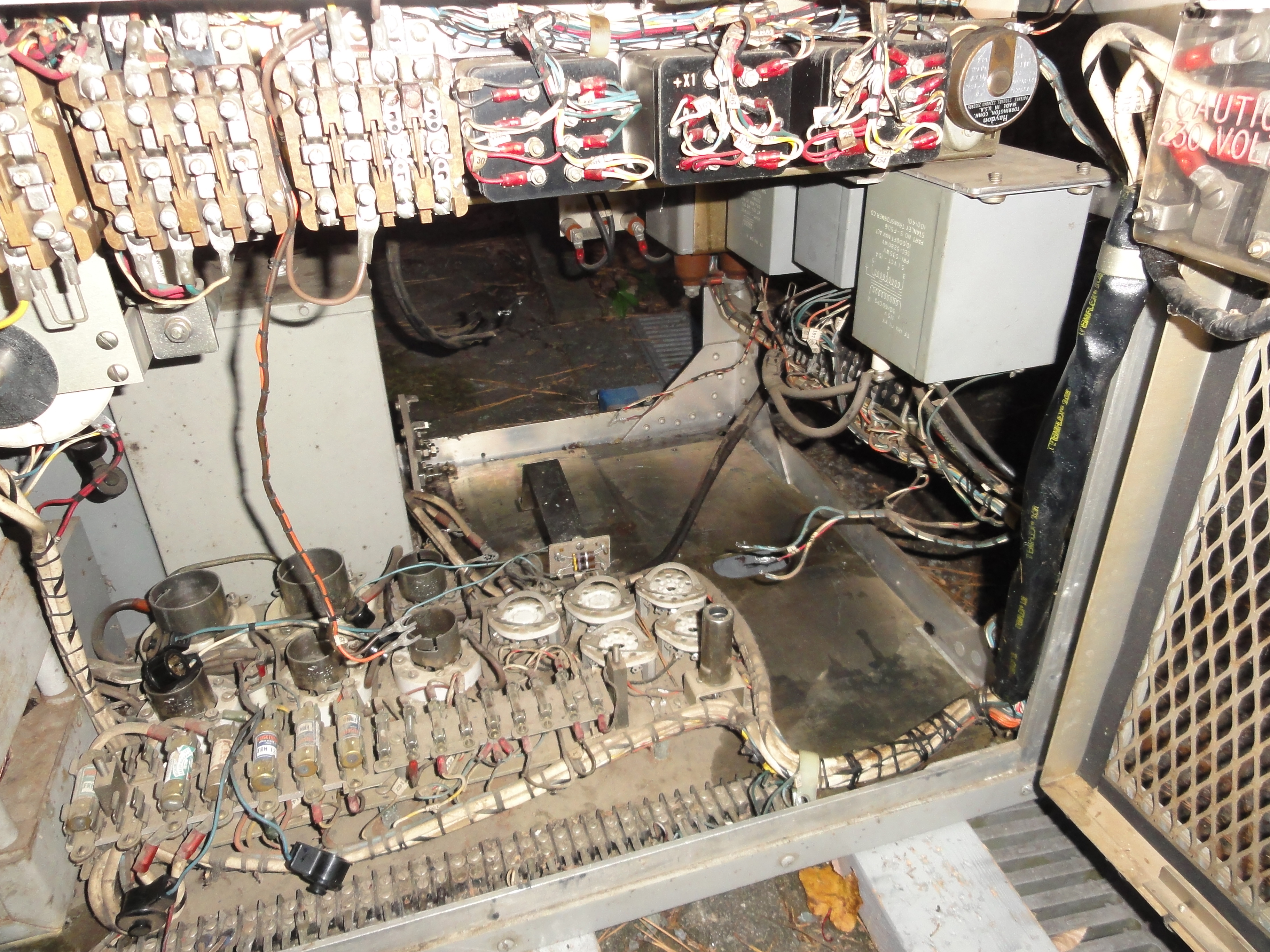

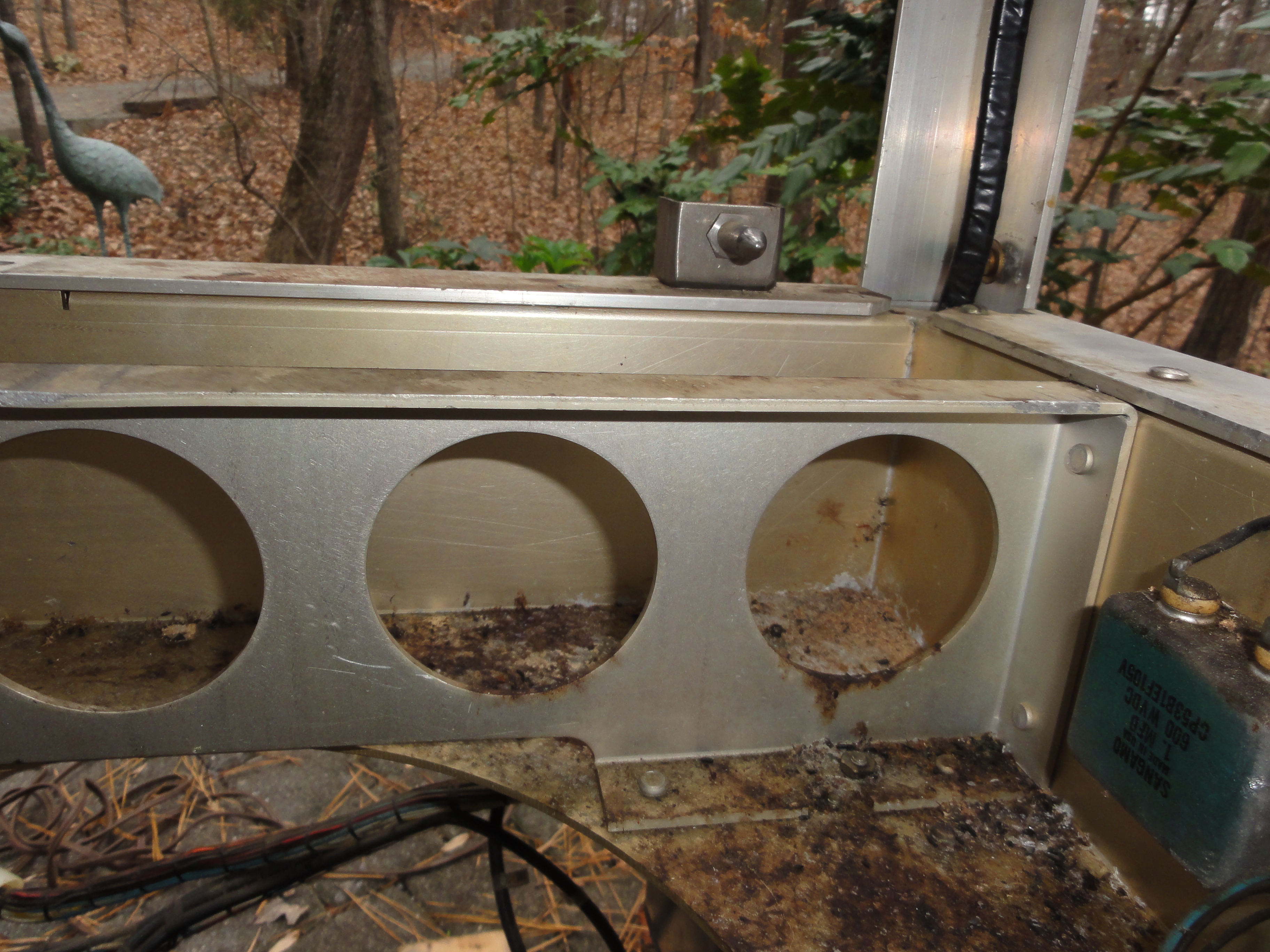

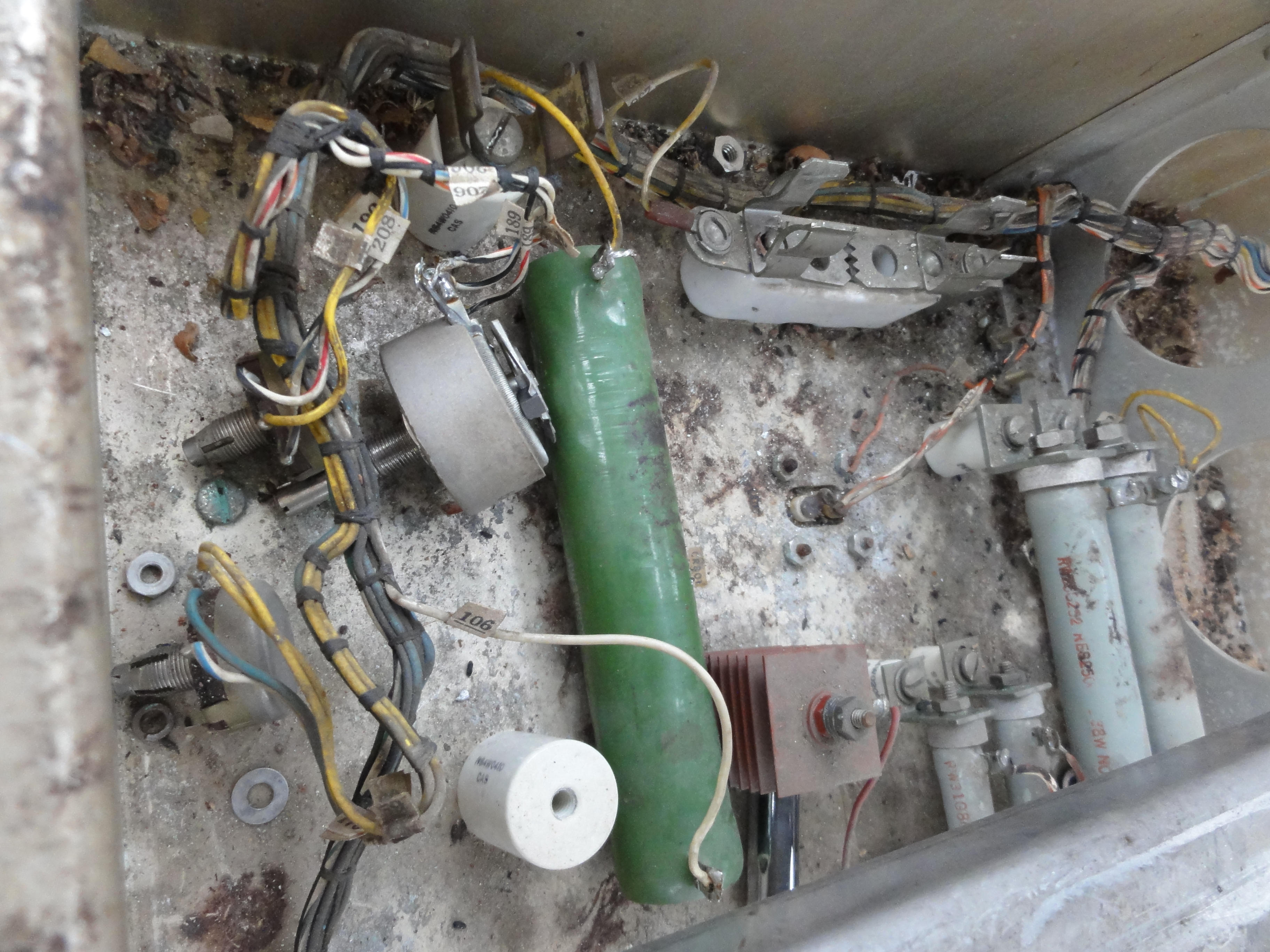

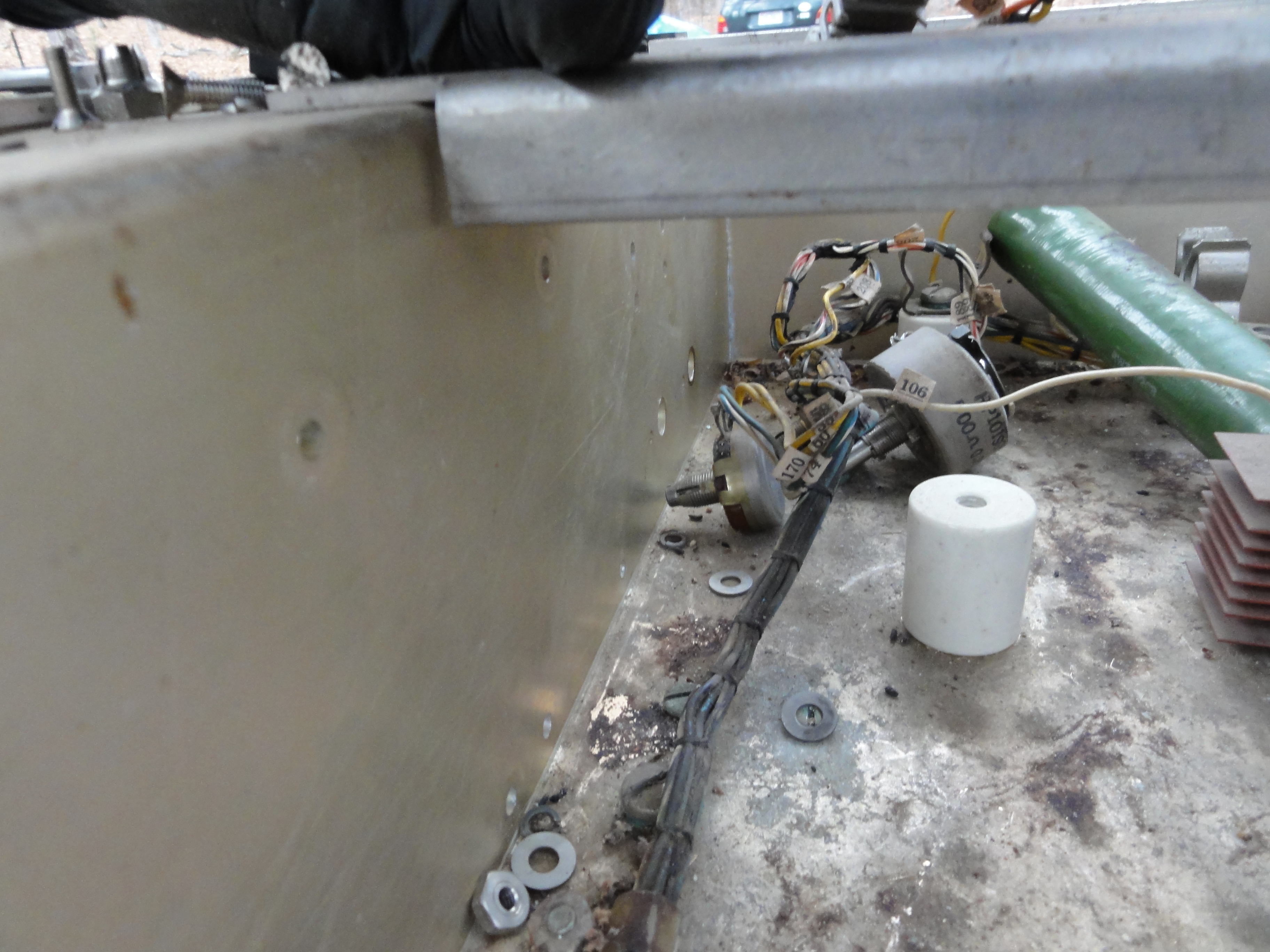

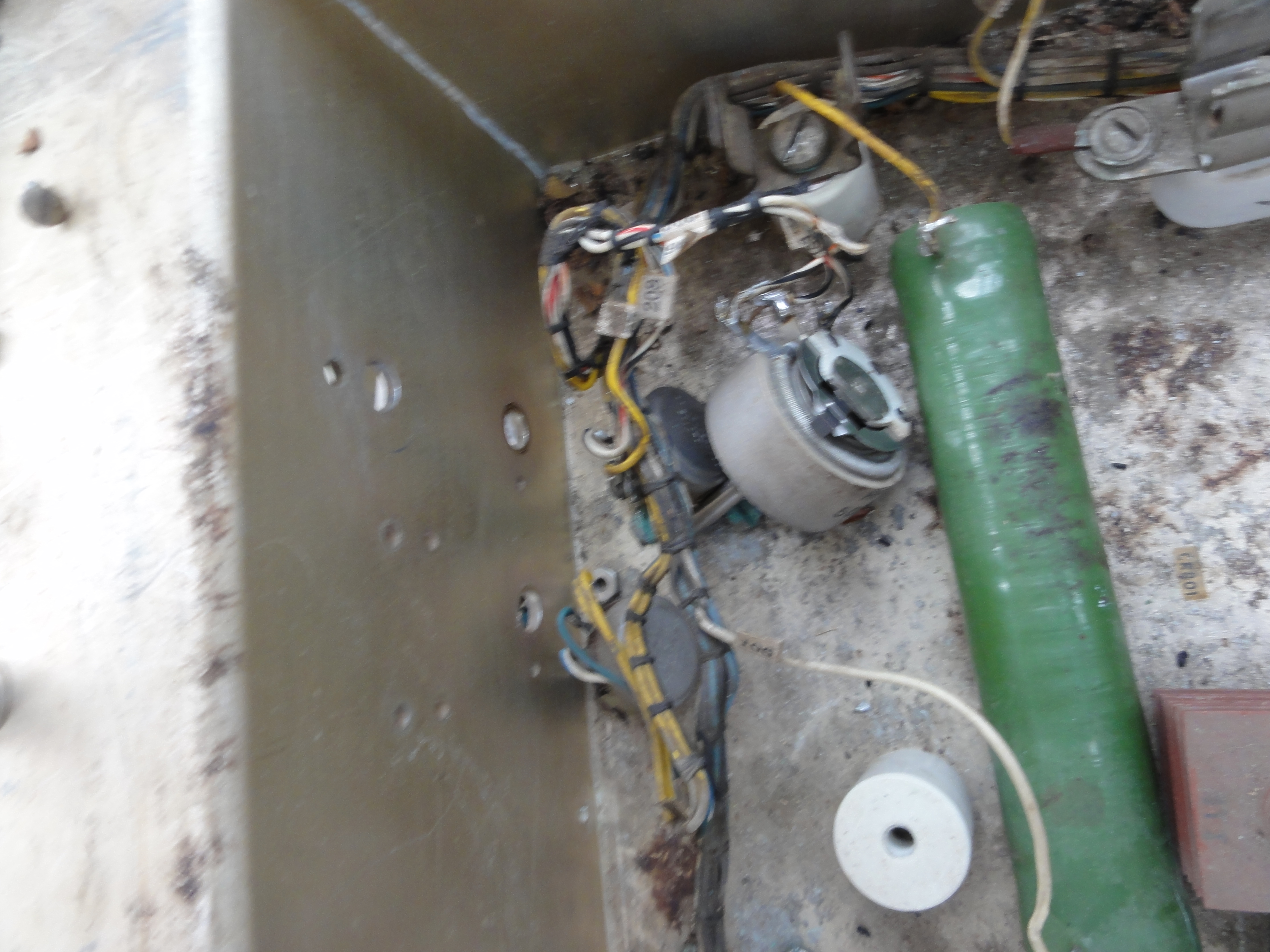

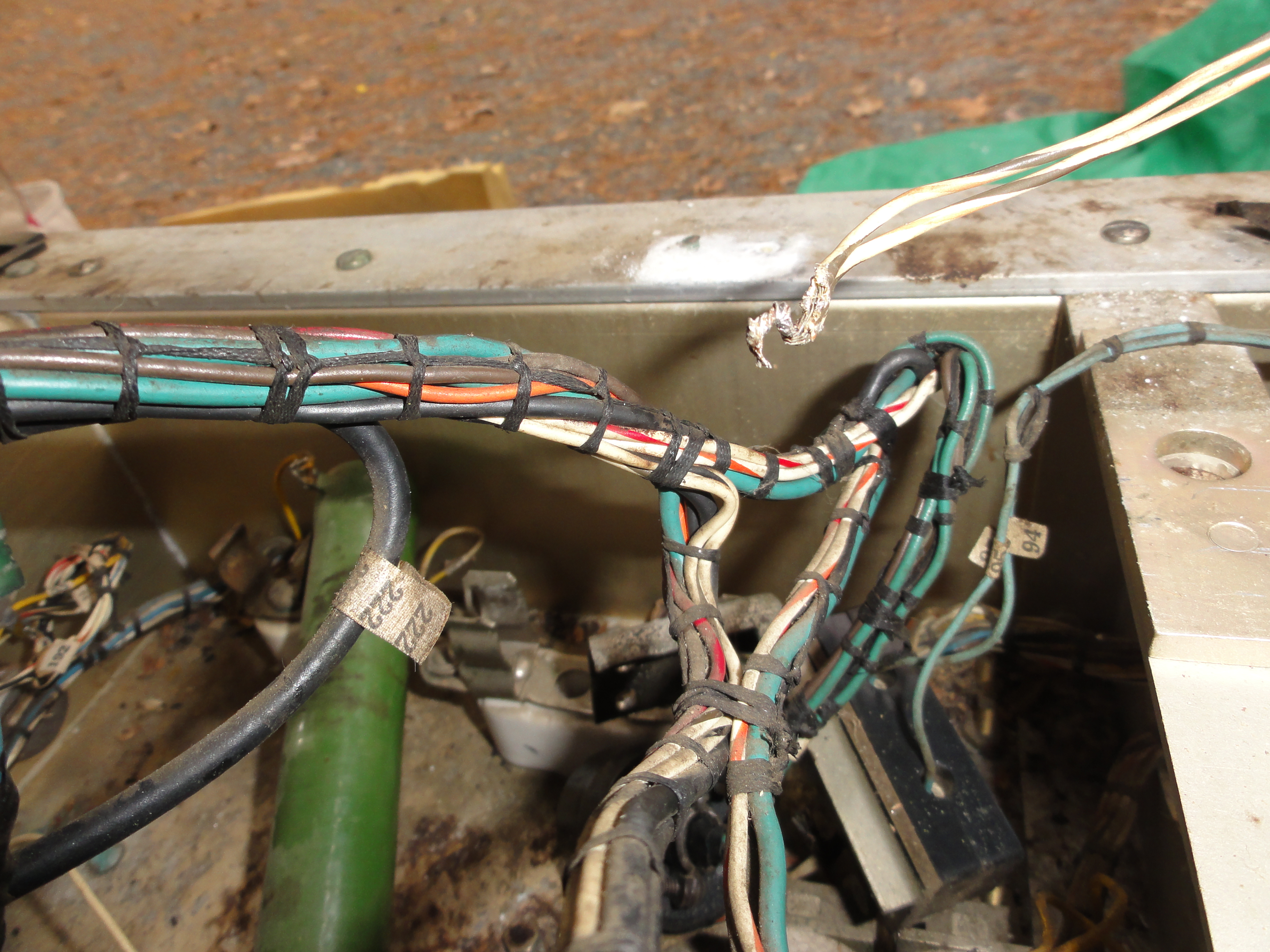

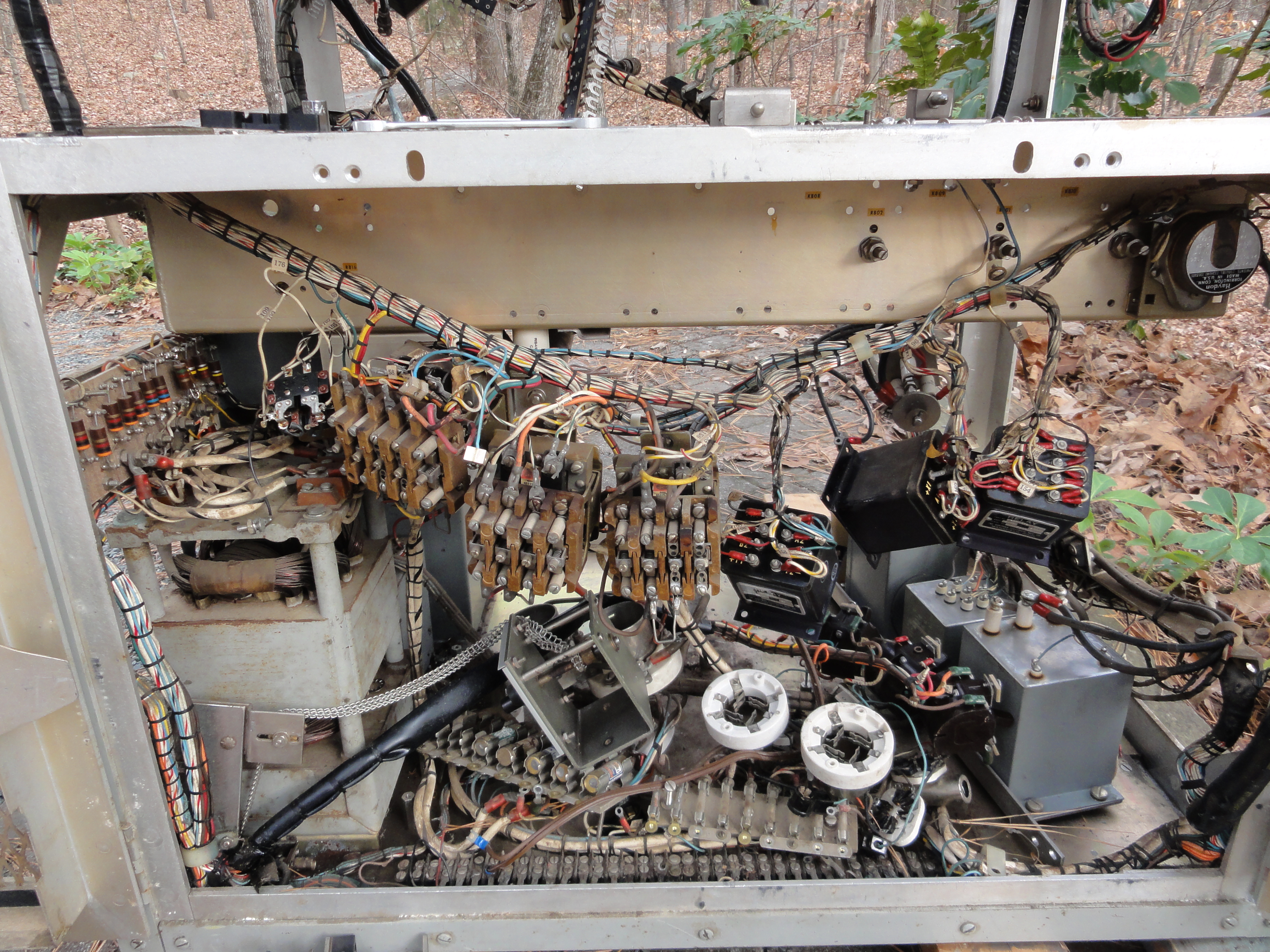

inside the tray

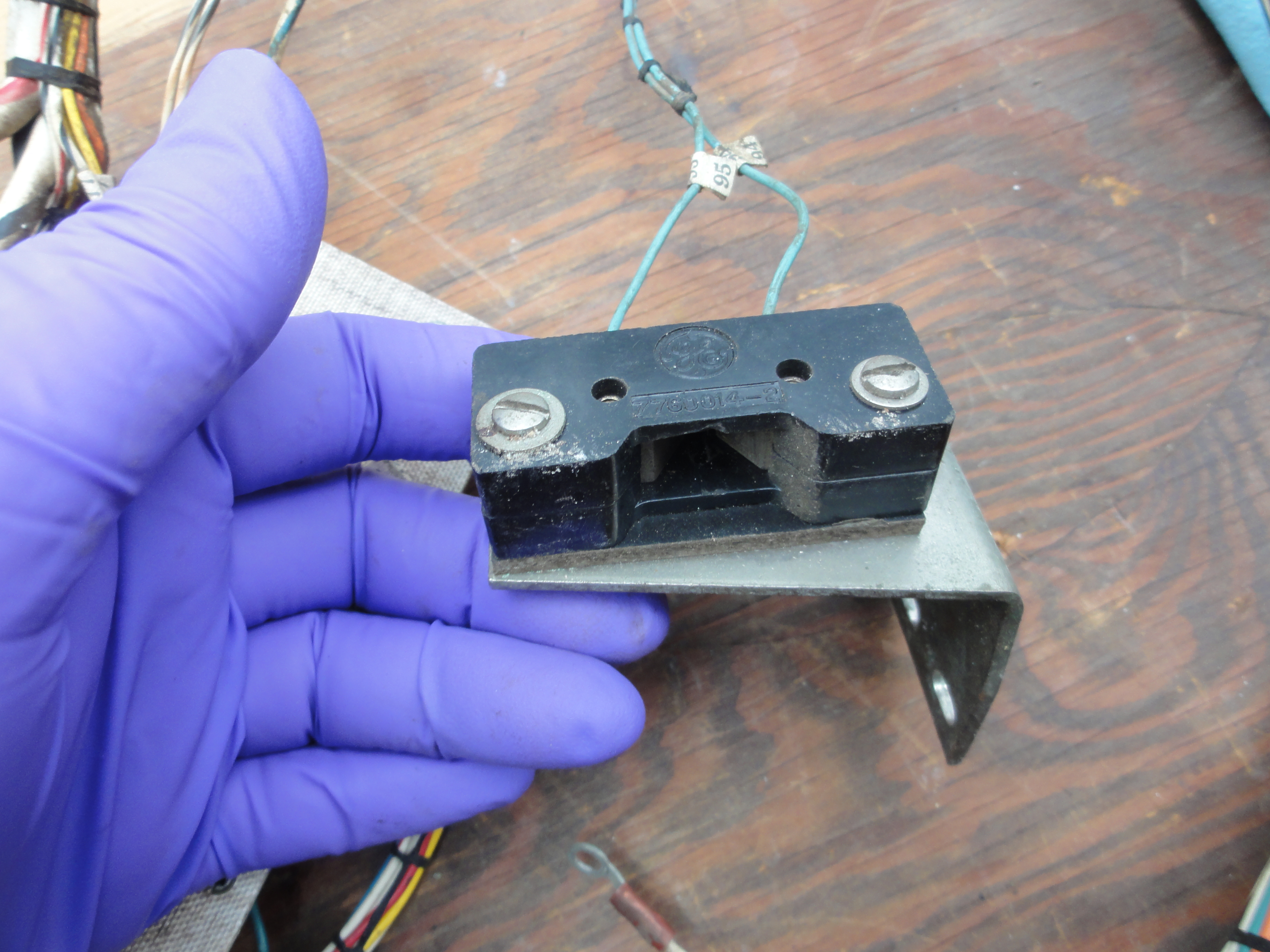

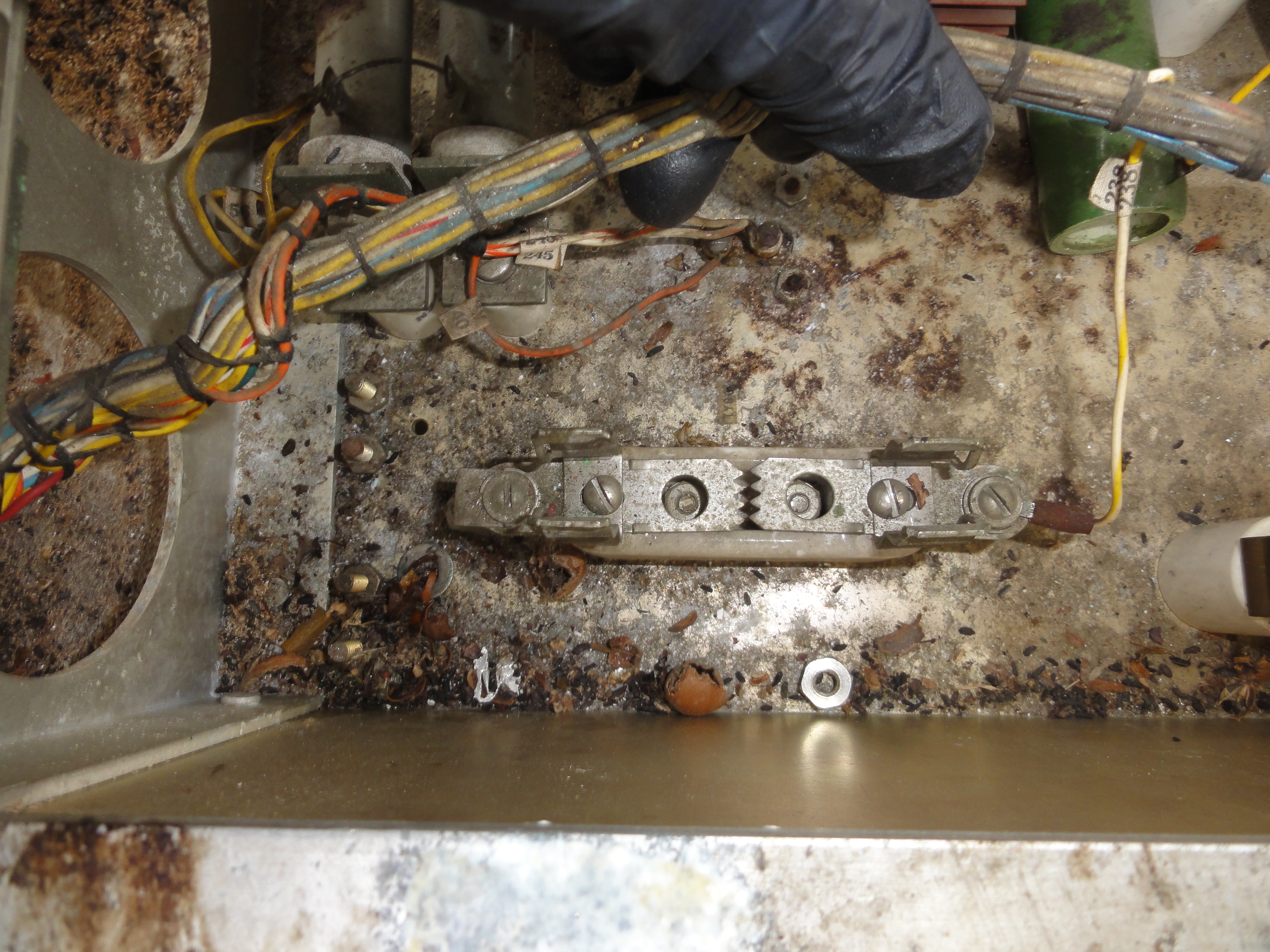

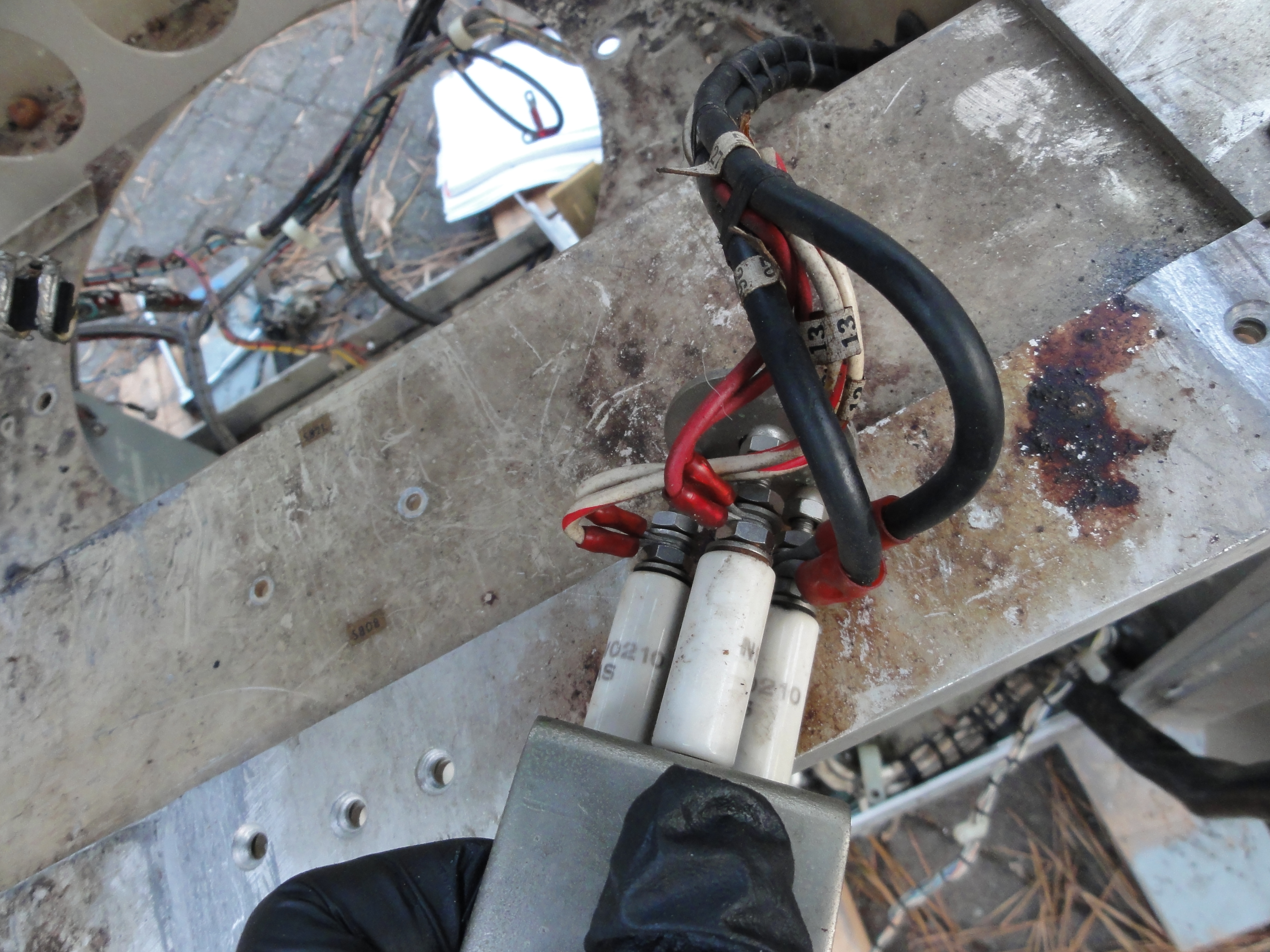

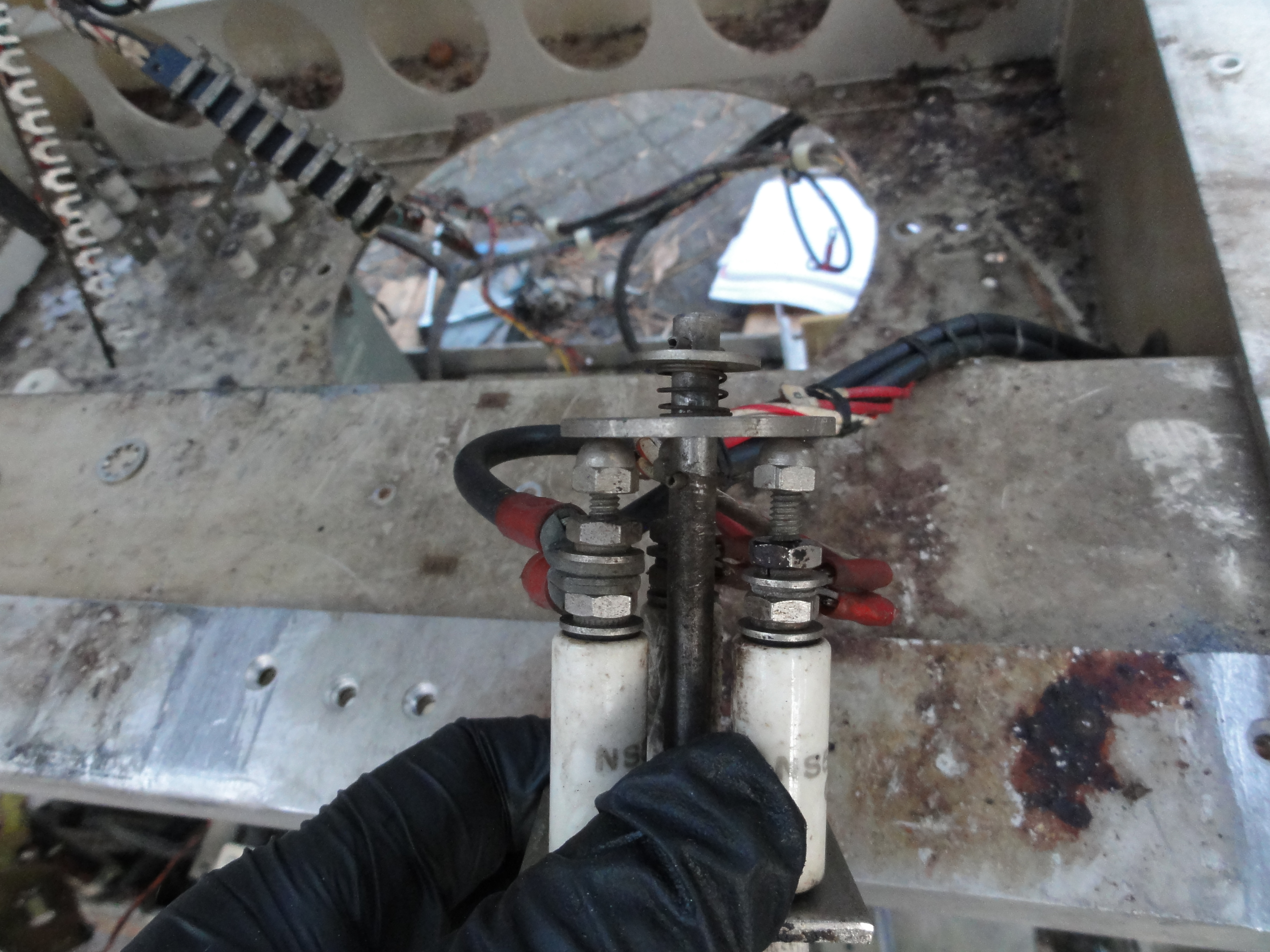

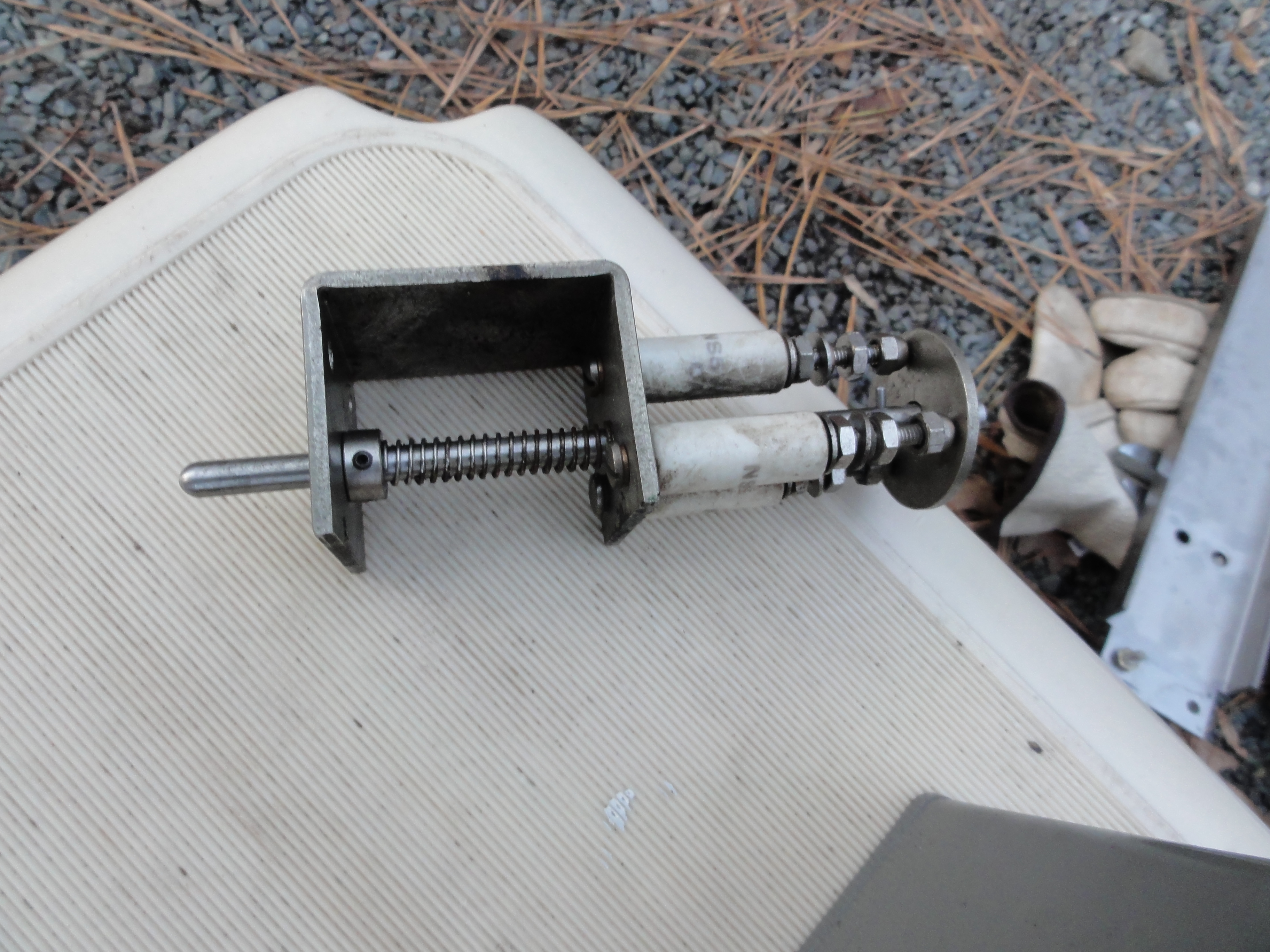

HV interlock

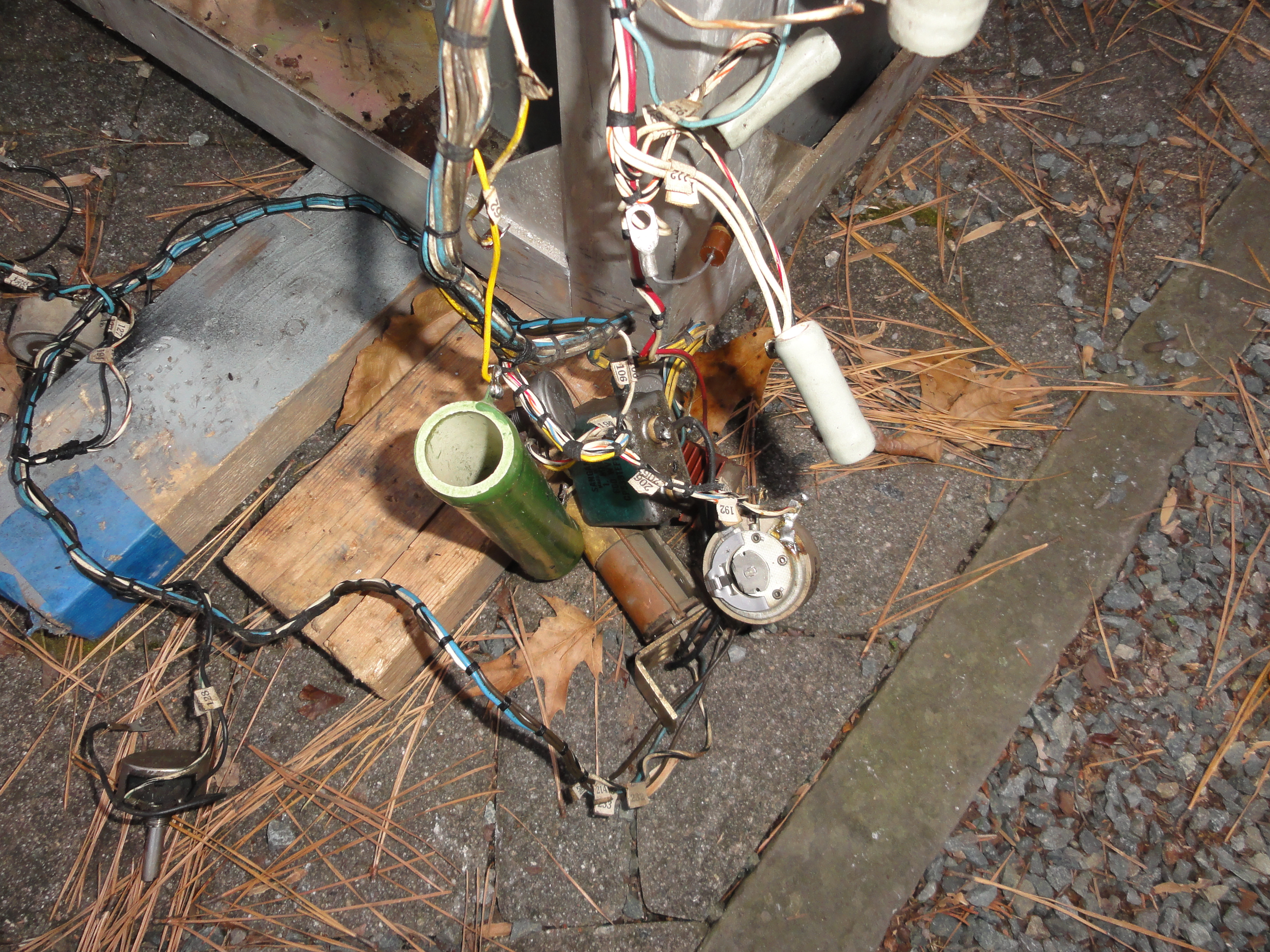

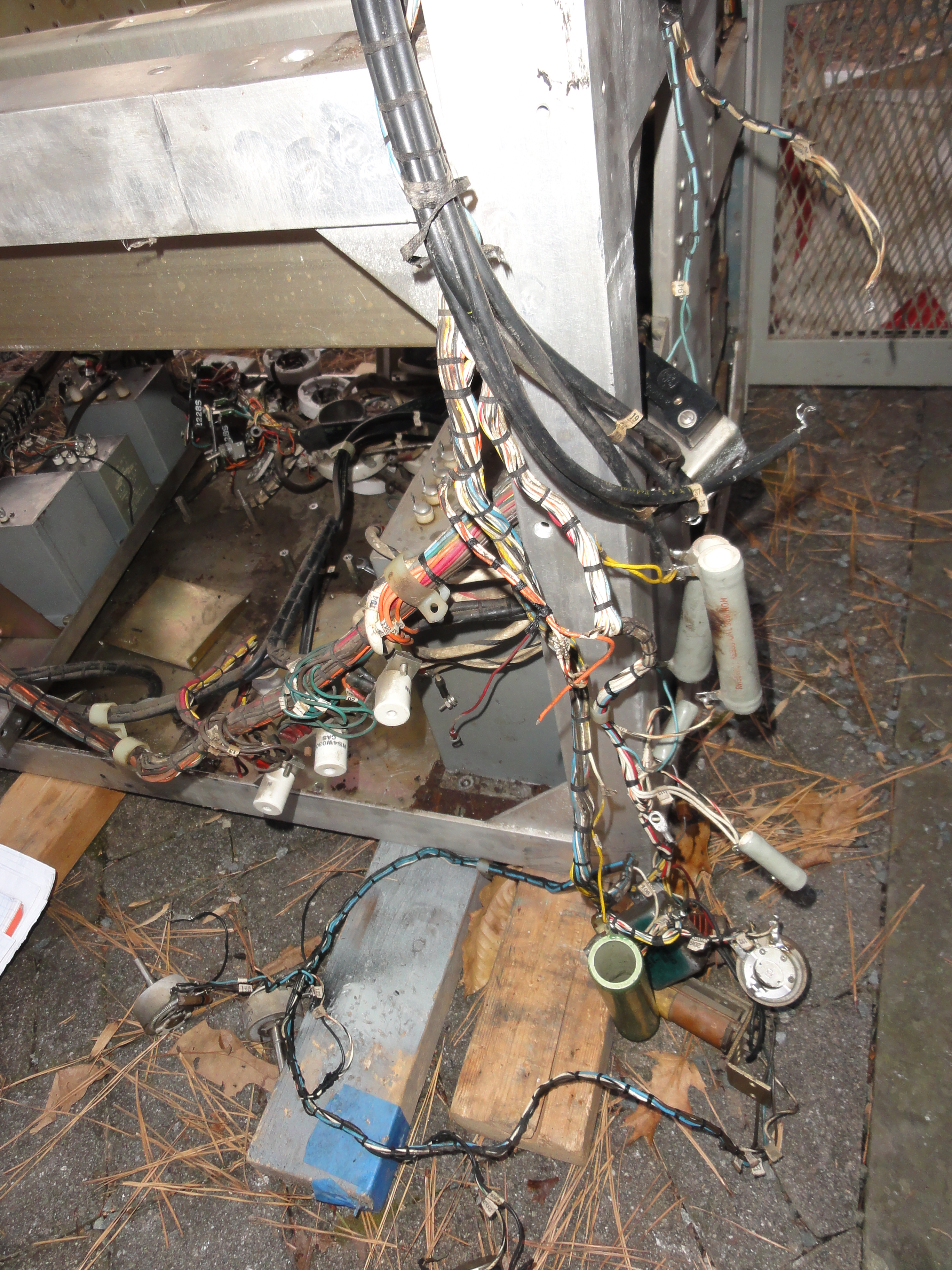

DSC01193.JPG (3772580 bytes) >>>> components from top of tray >>>> DSC01195.JPG (4524862 bytes)

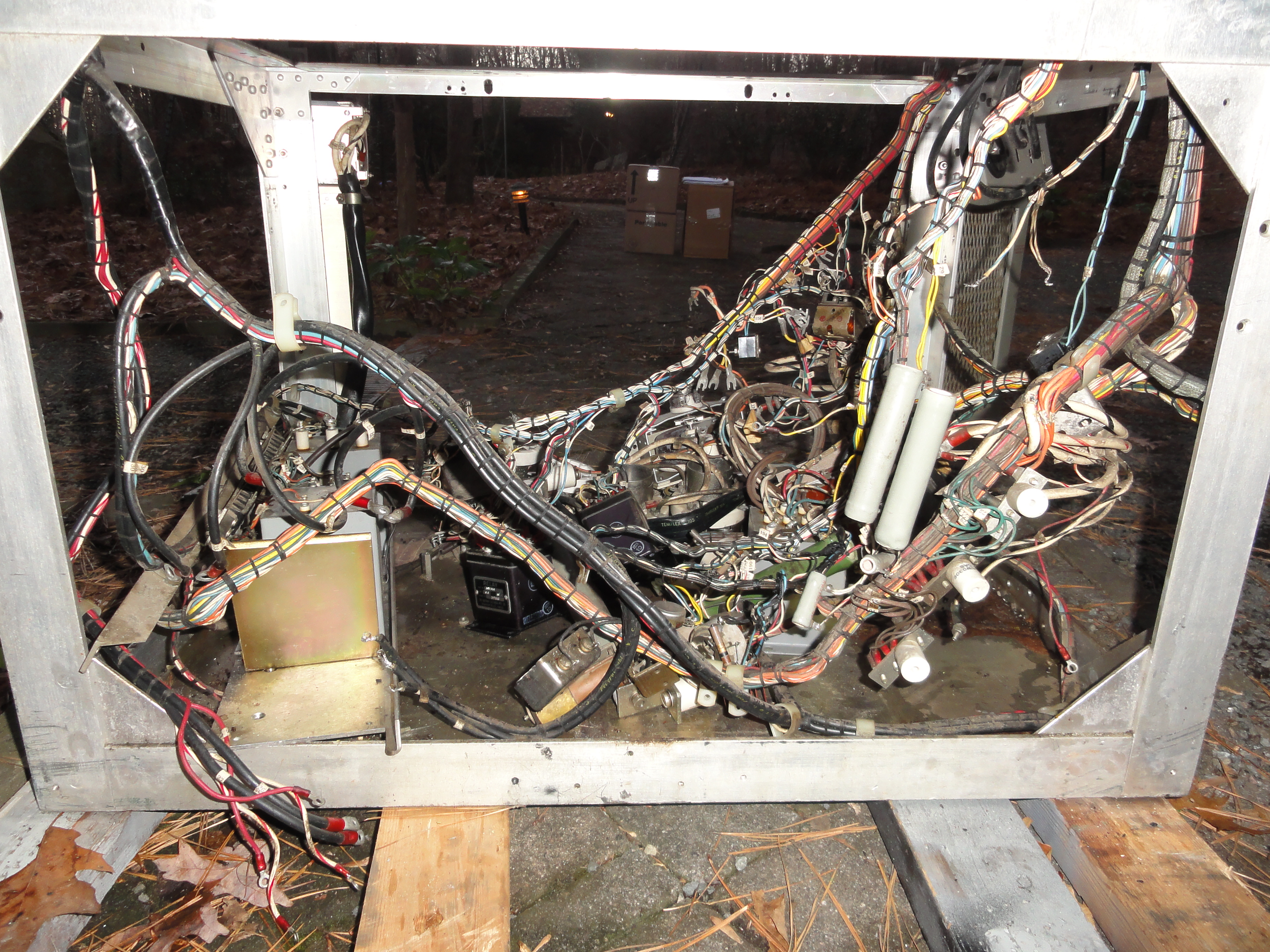

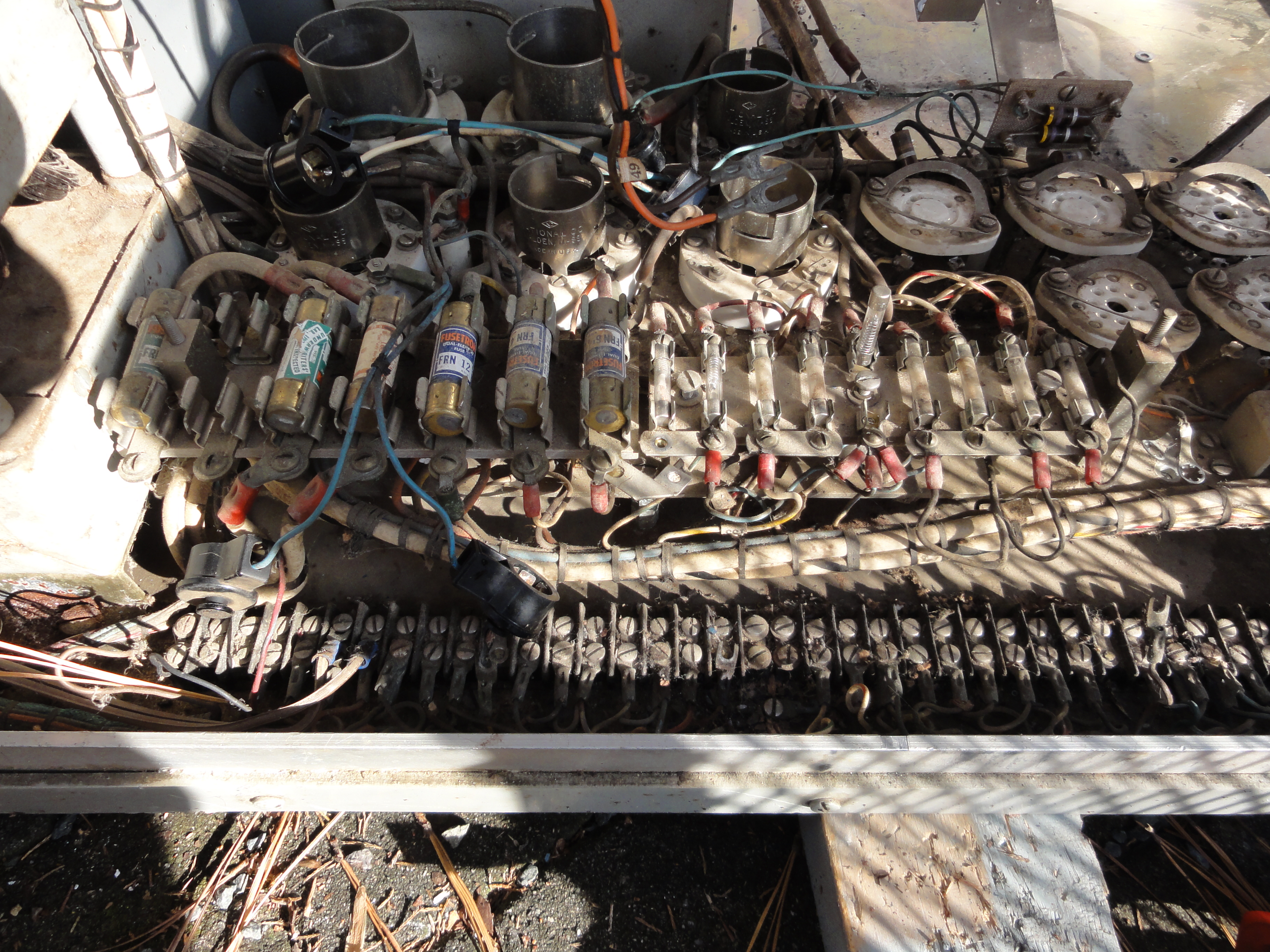

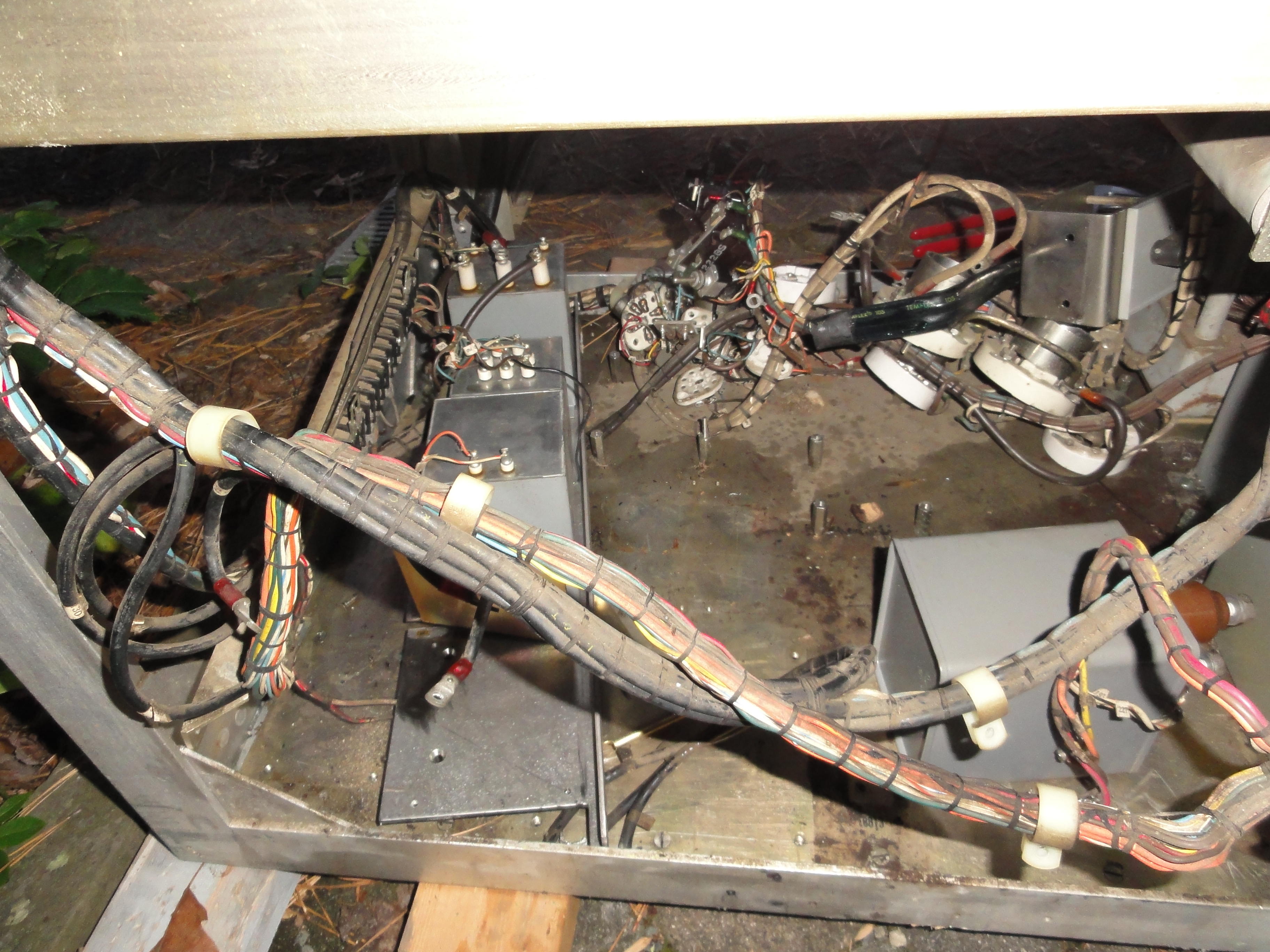

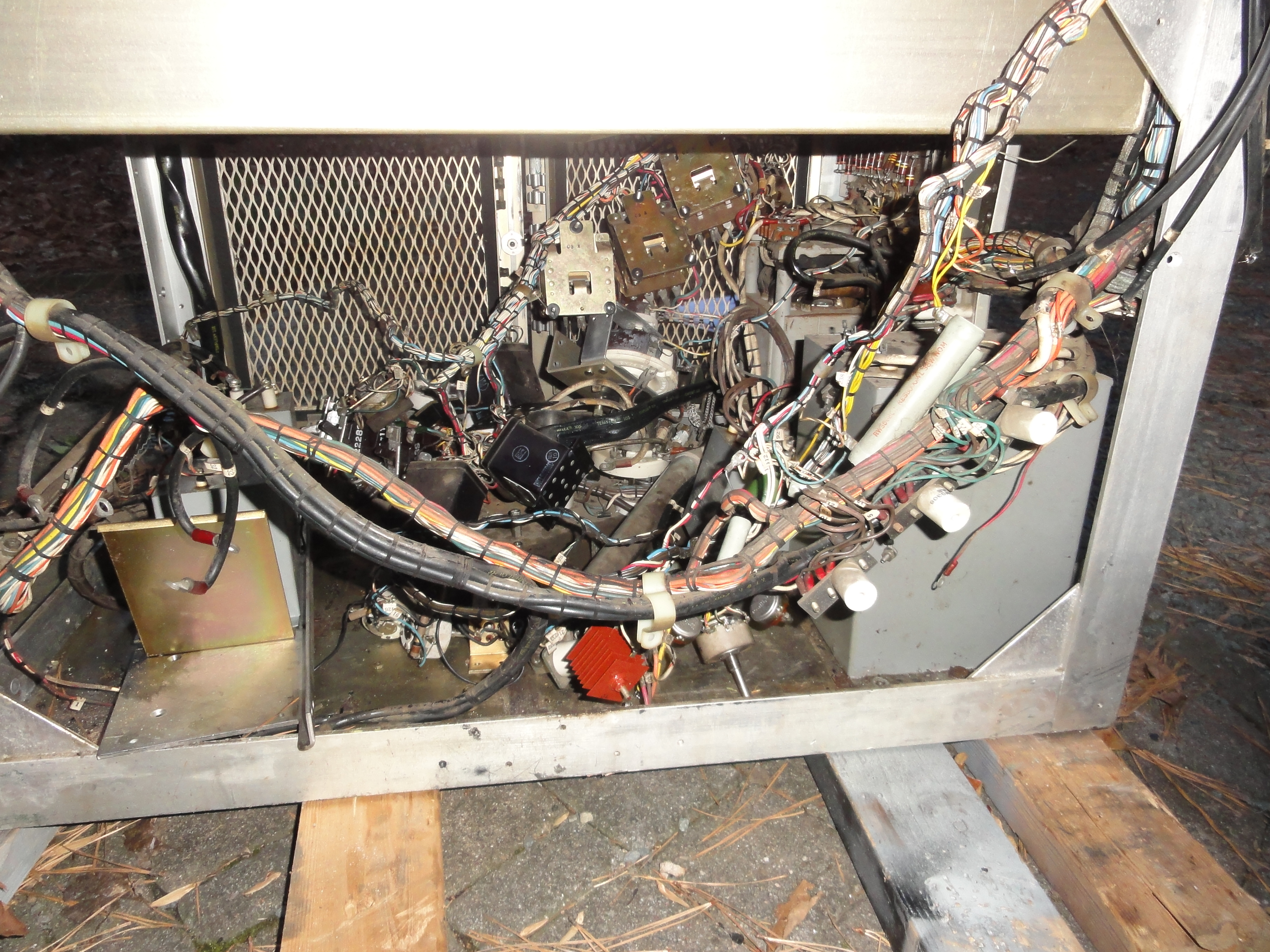

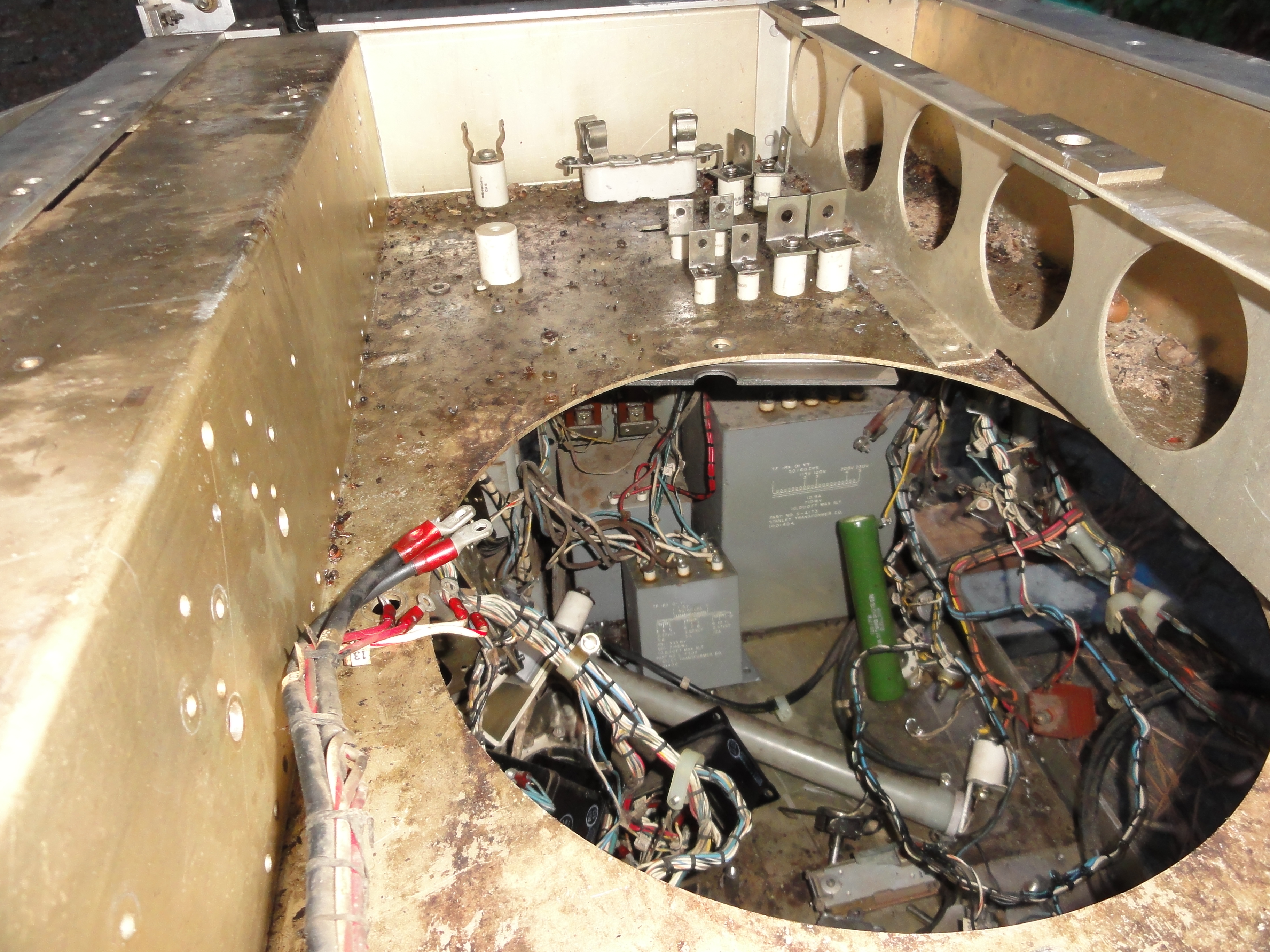

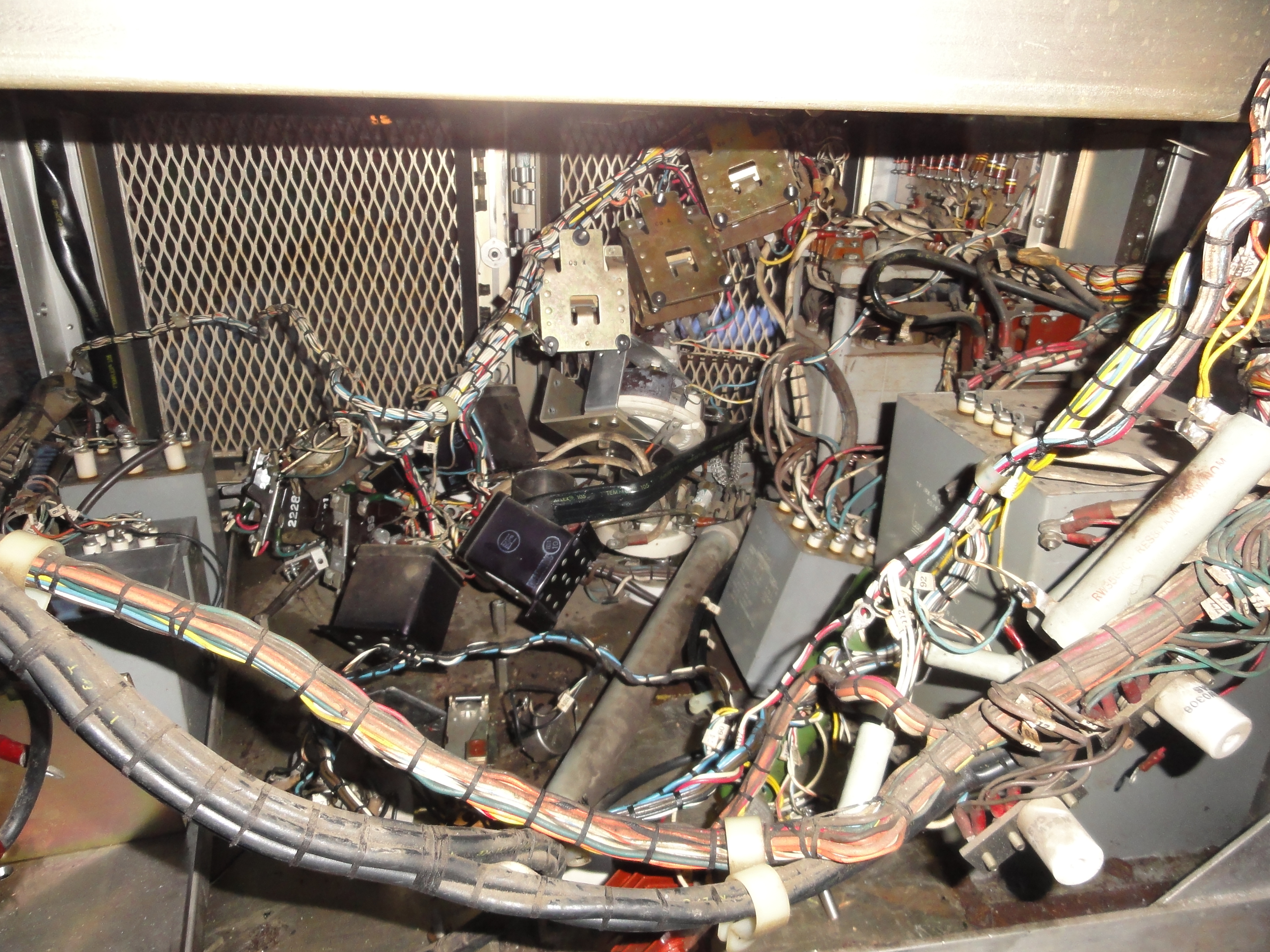

what a mess of entrails!

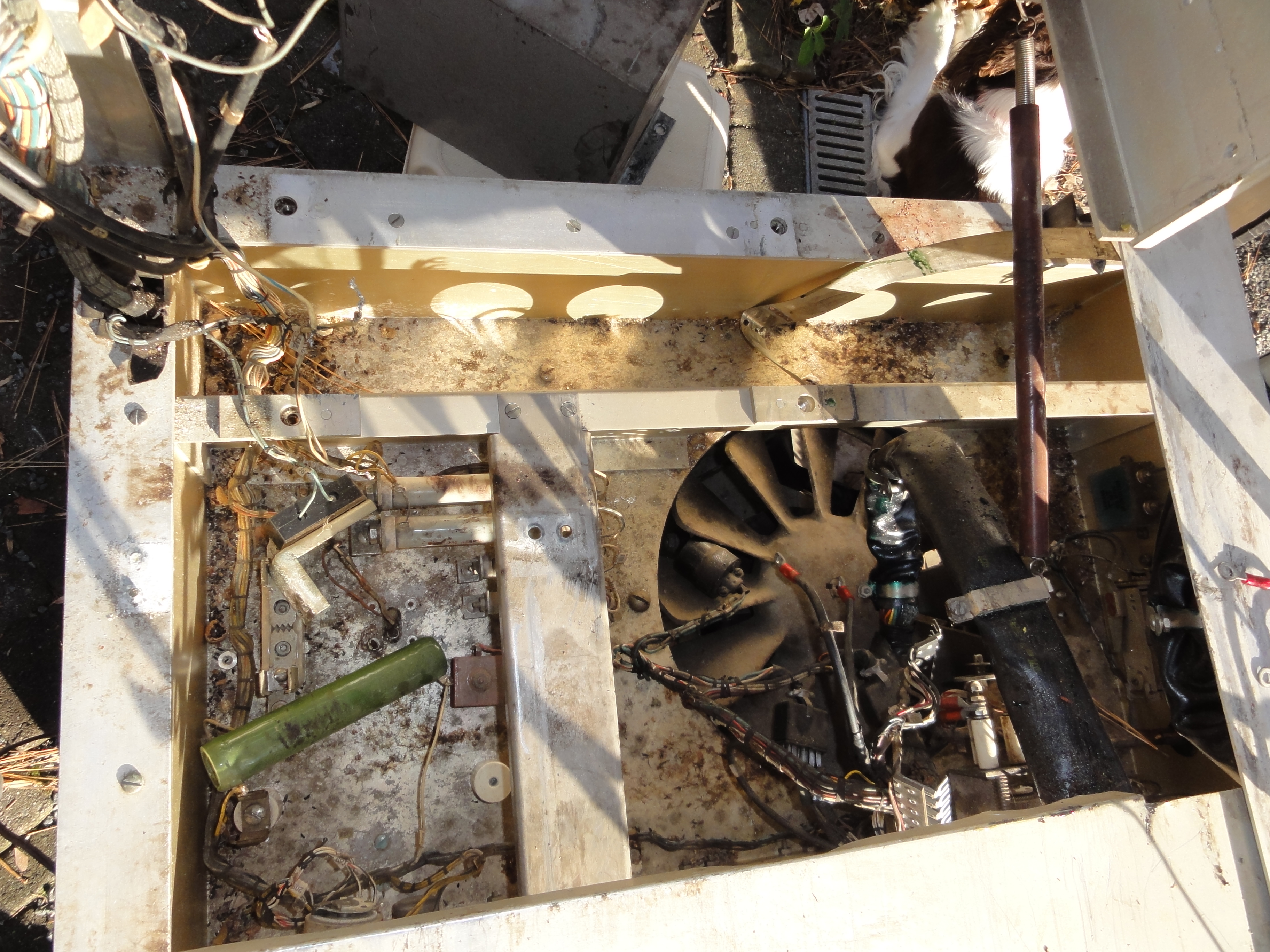

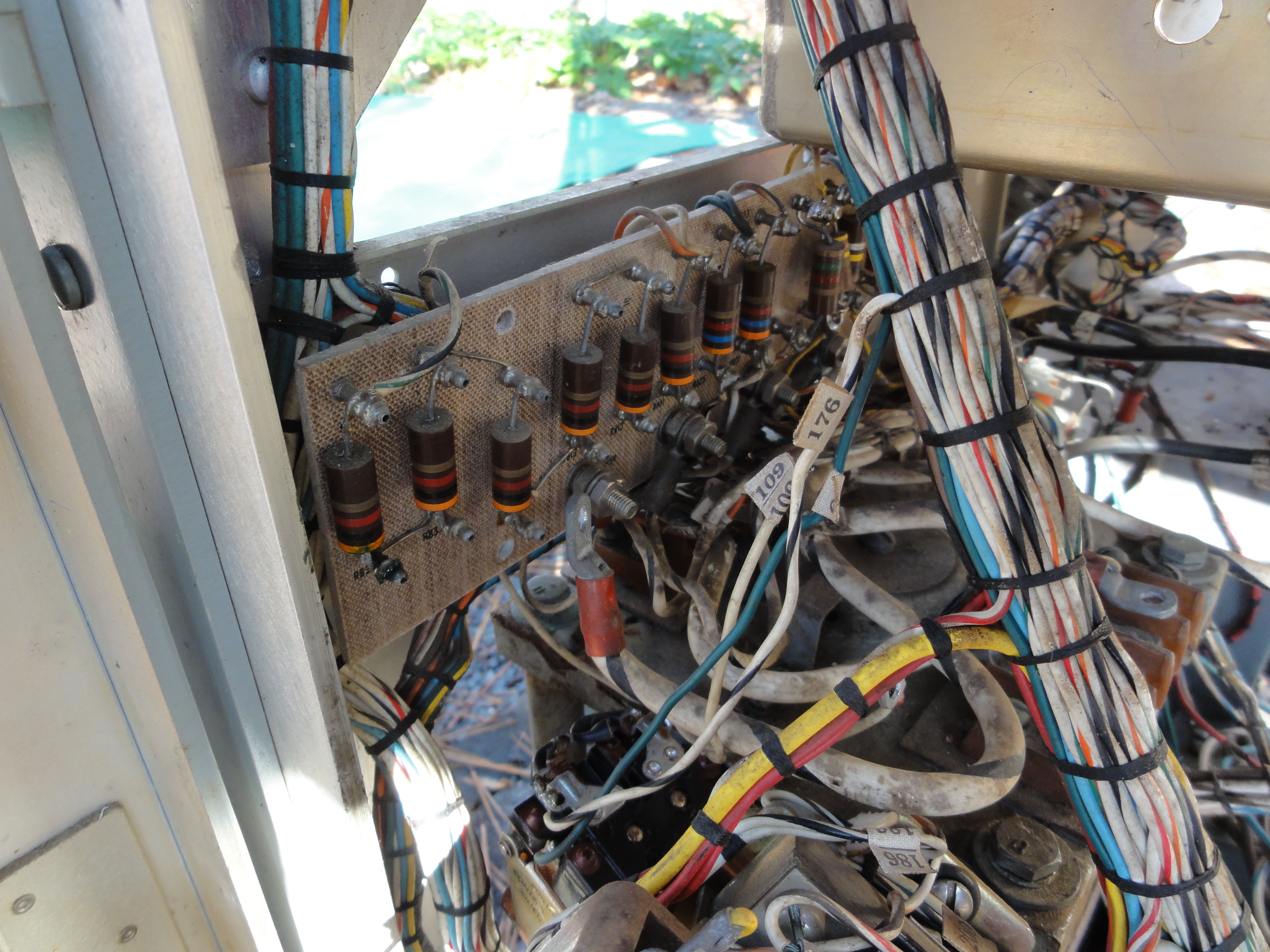

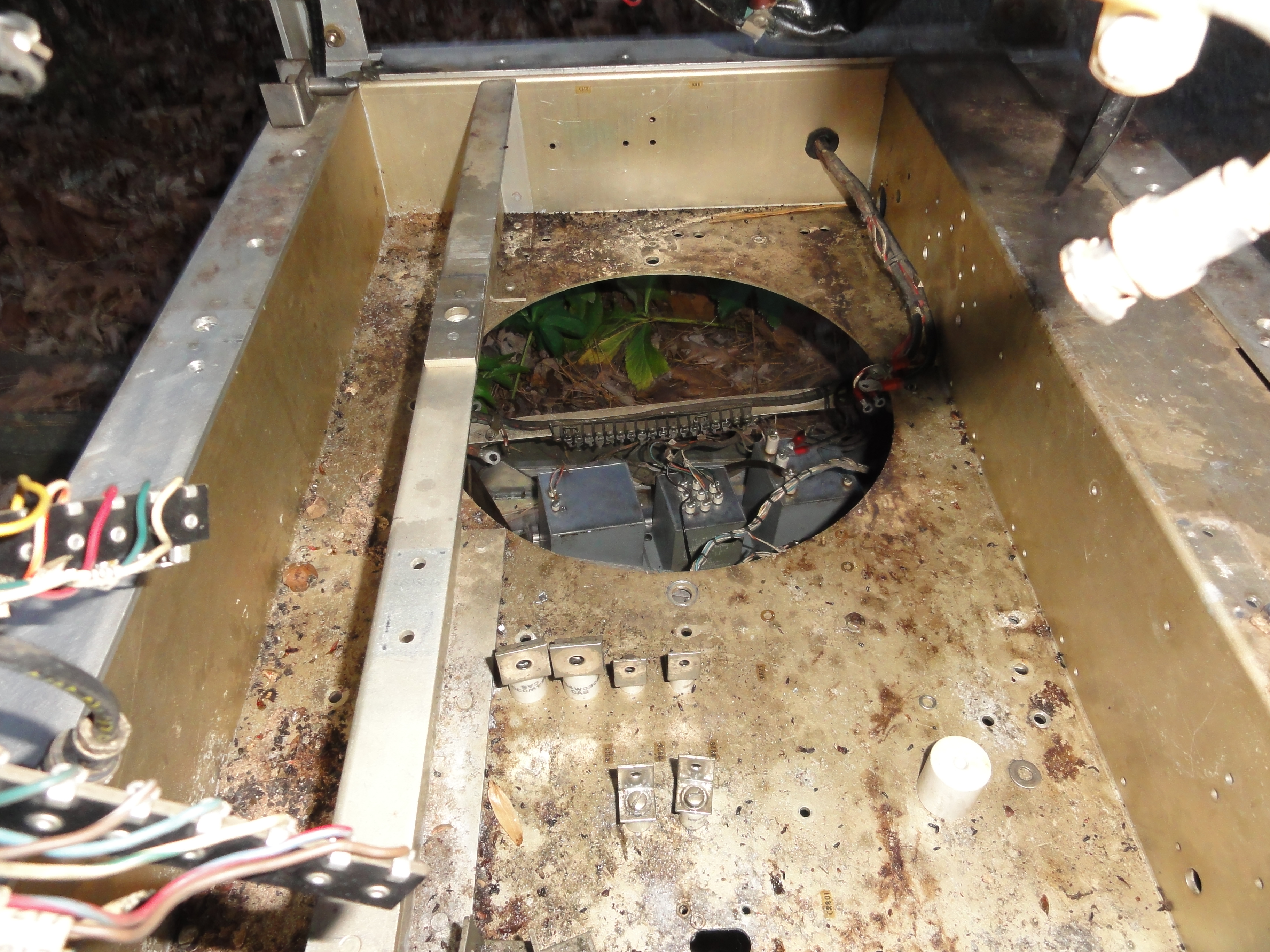

DSC01199.JPG (4409288 bytes) now the tray is filthy but free of wiring and components.

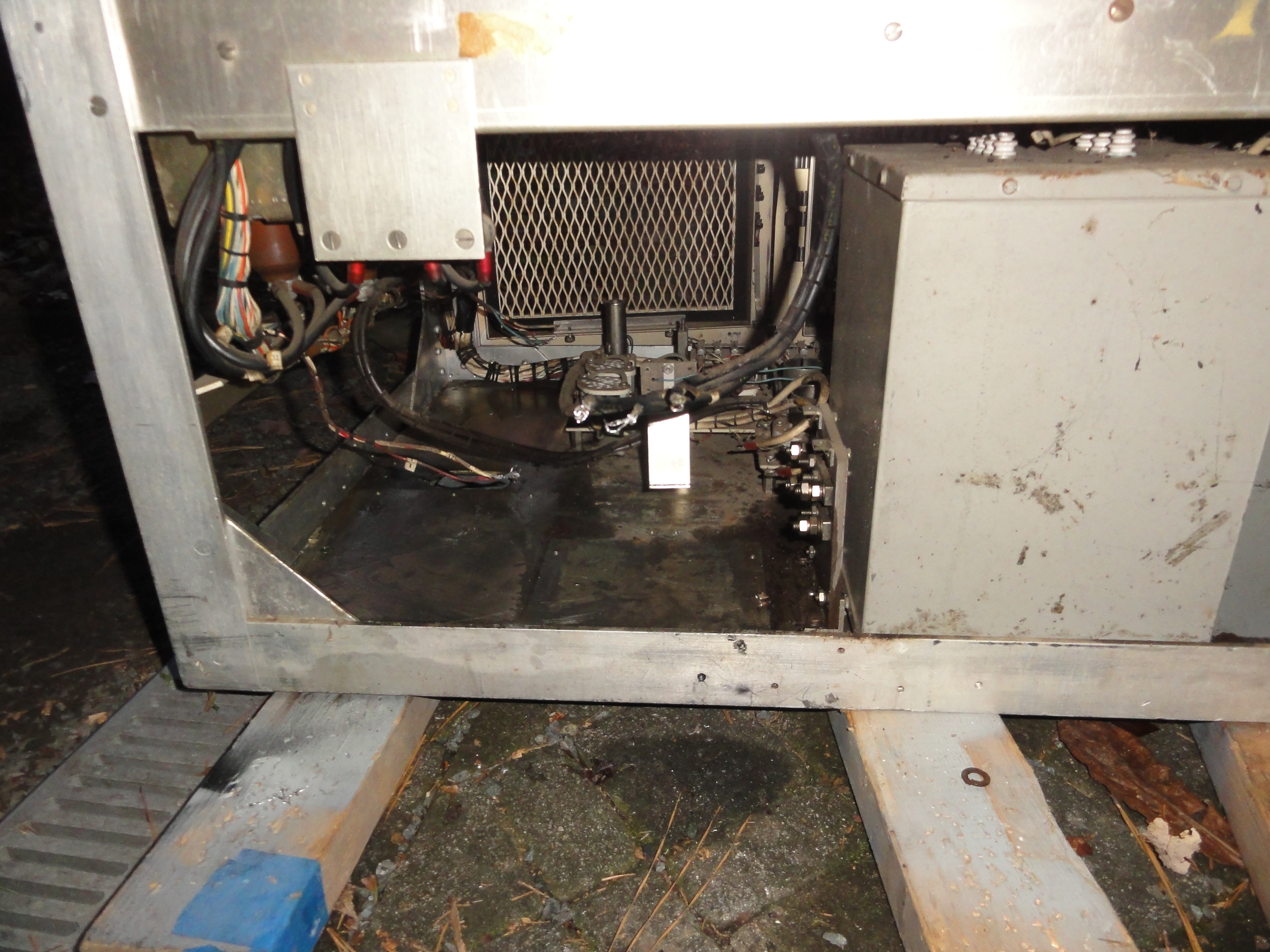

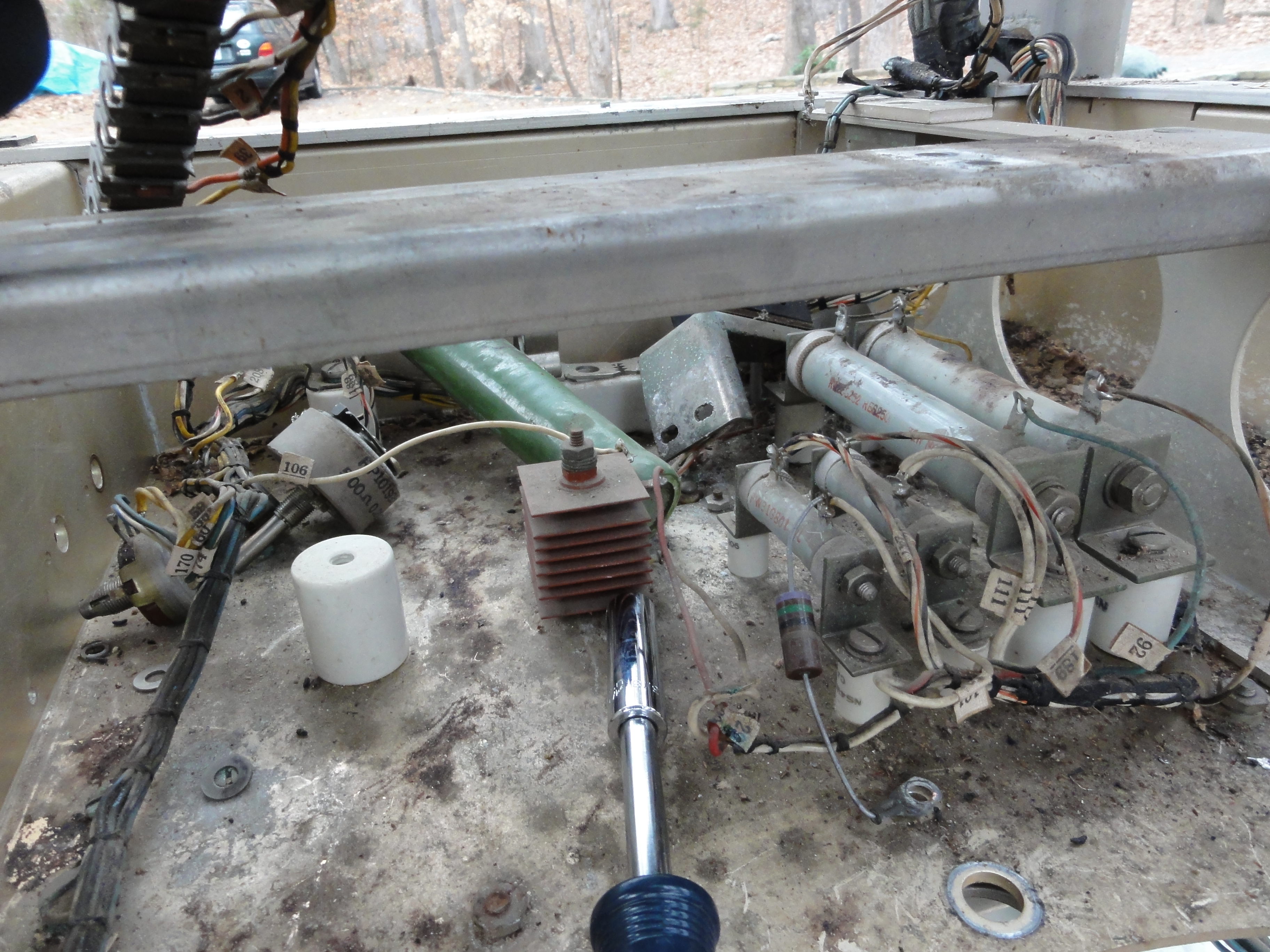

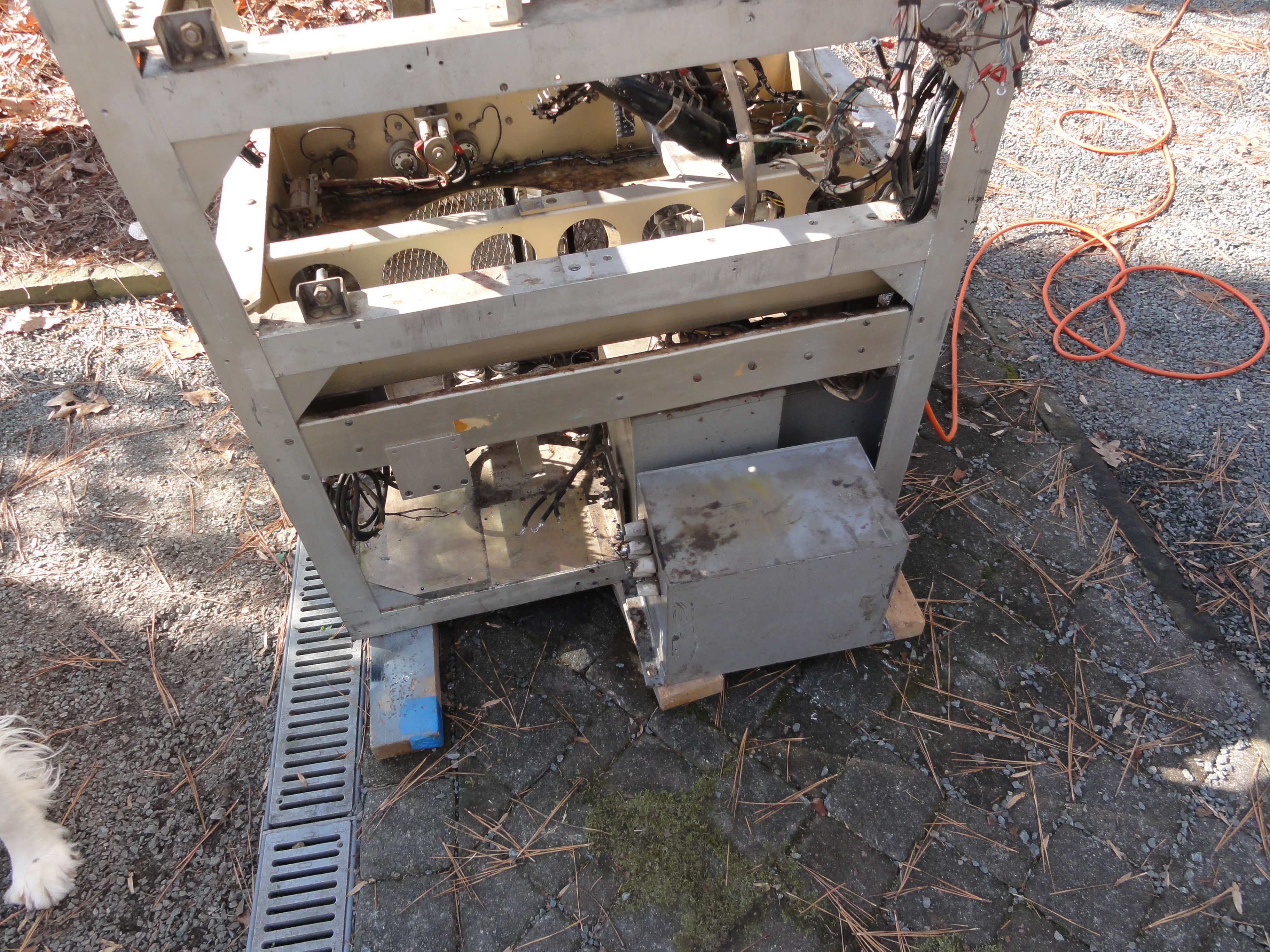

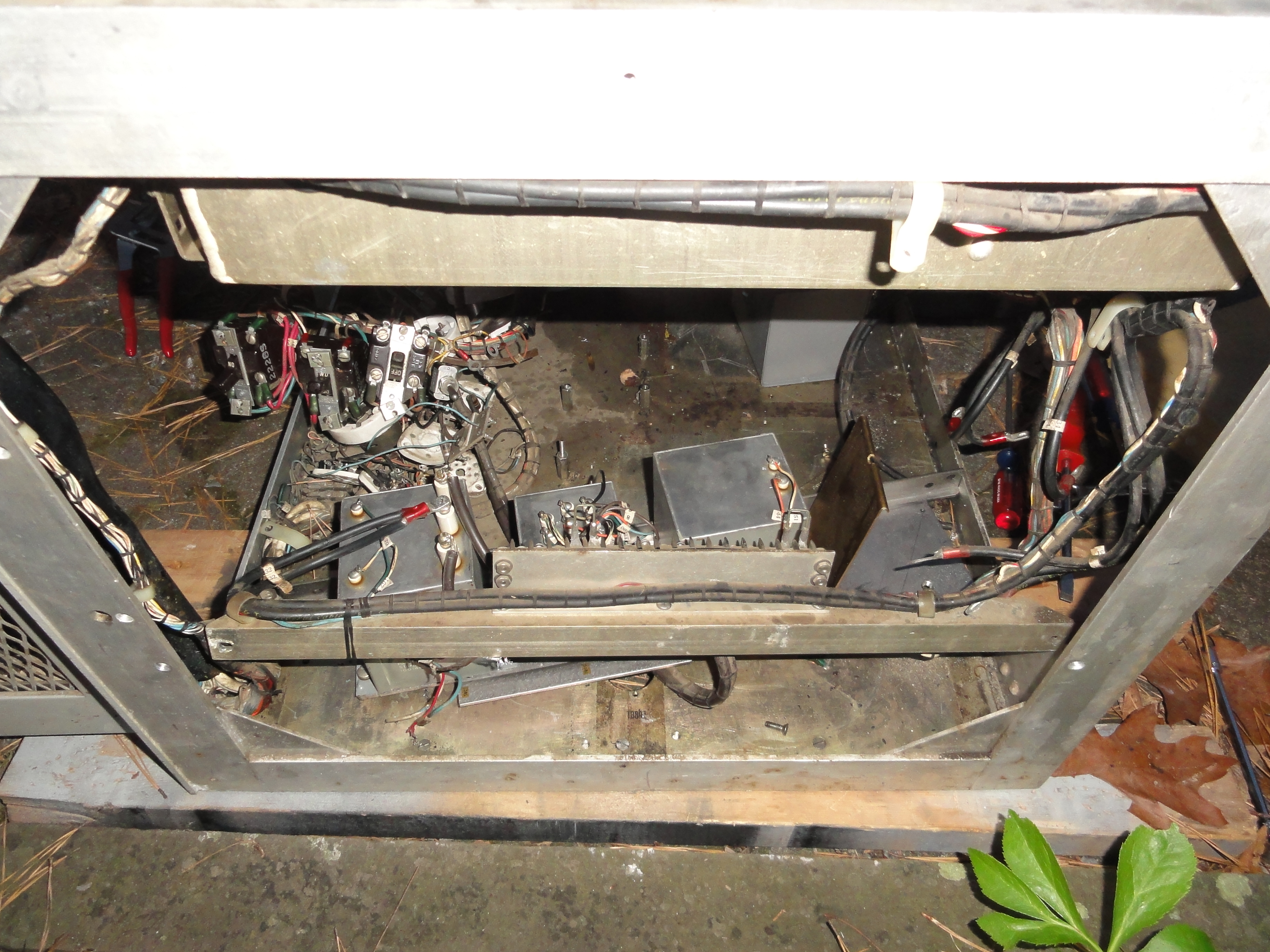

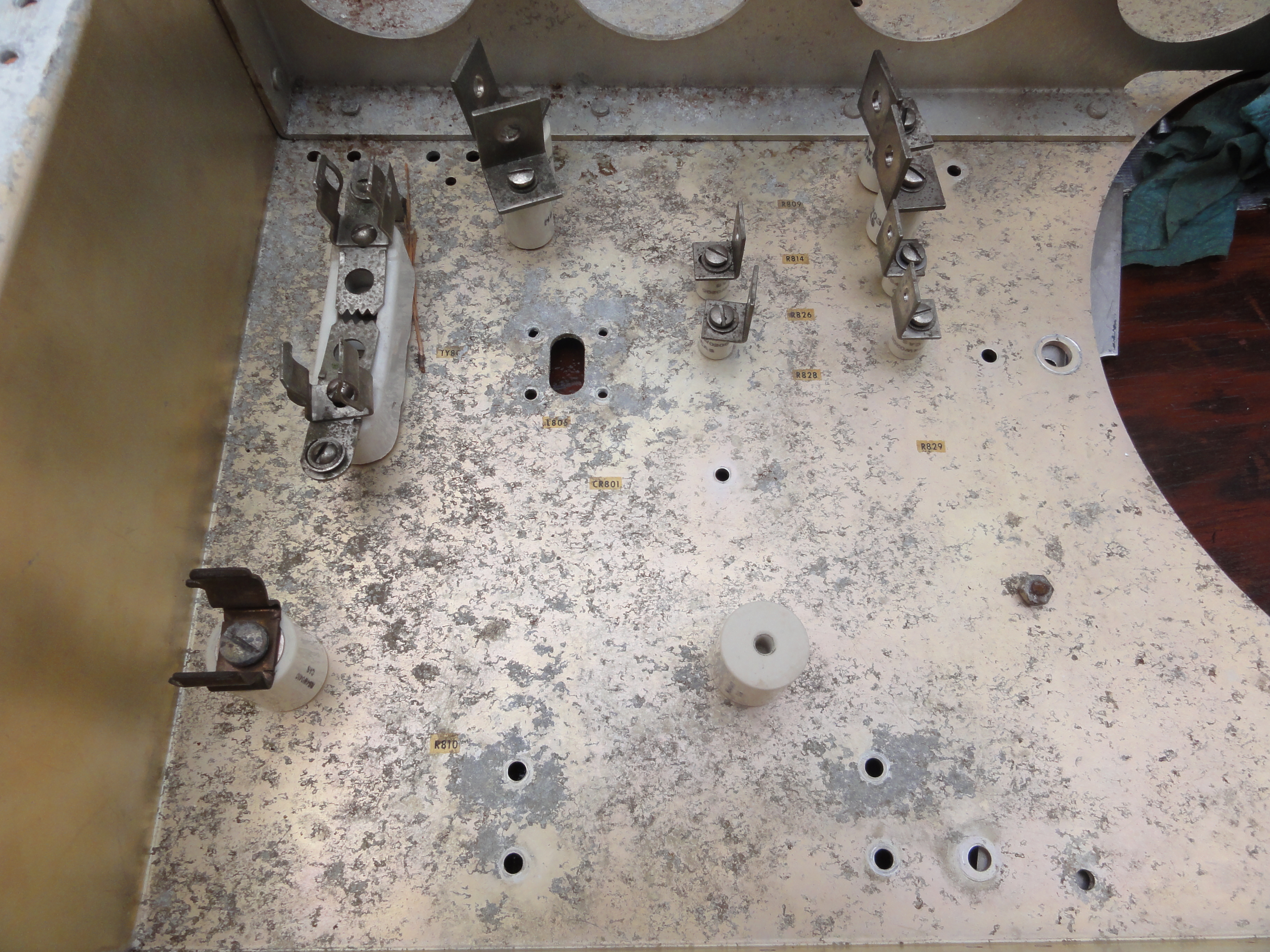

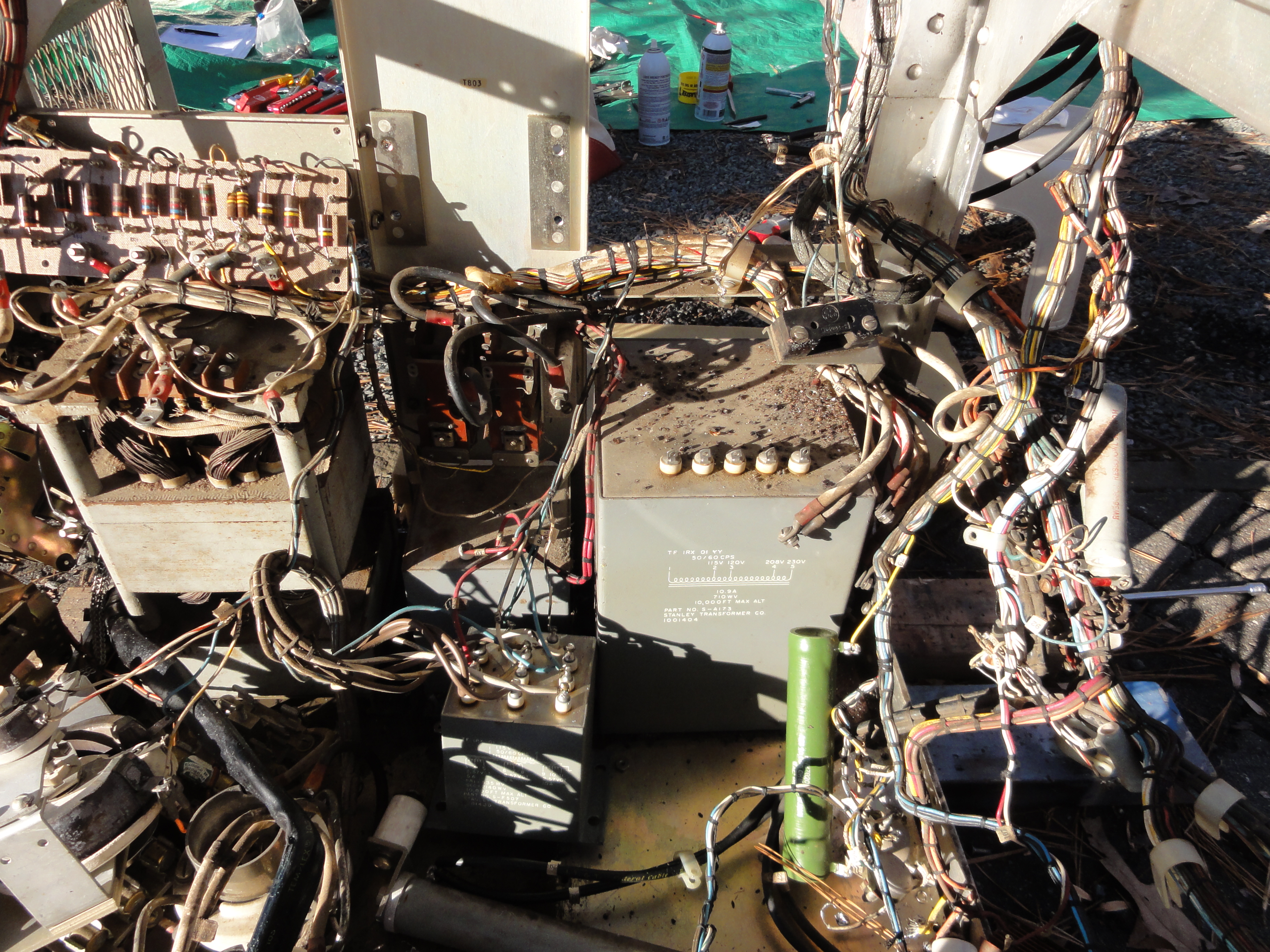

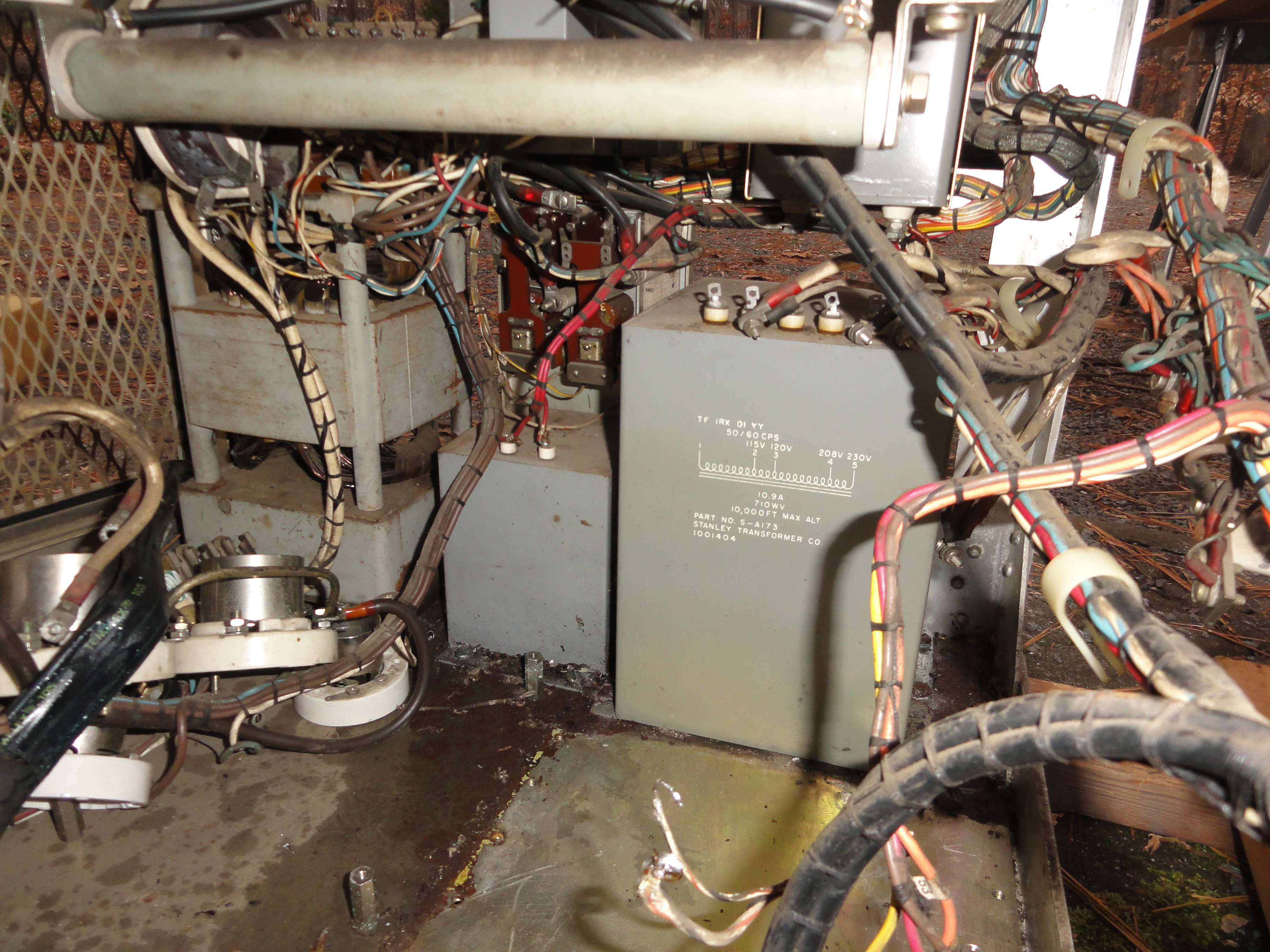

ready to come out - I hope! Remaining components on bottom deck plate are visible through the fan hole.

Day 5 - The rain quit and the sun came back out today. So I dealt with some really really rusty screws (had to chisel the heads off) and got the Fan Tray removed. Then I chiseled a few more screws, but finally got the rest of the heavy iron out. Next up is unsoldering the smaller stuff, removing the harness (I hope) and a good washing for the frame.

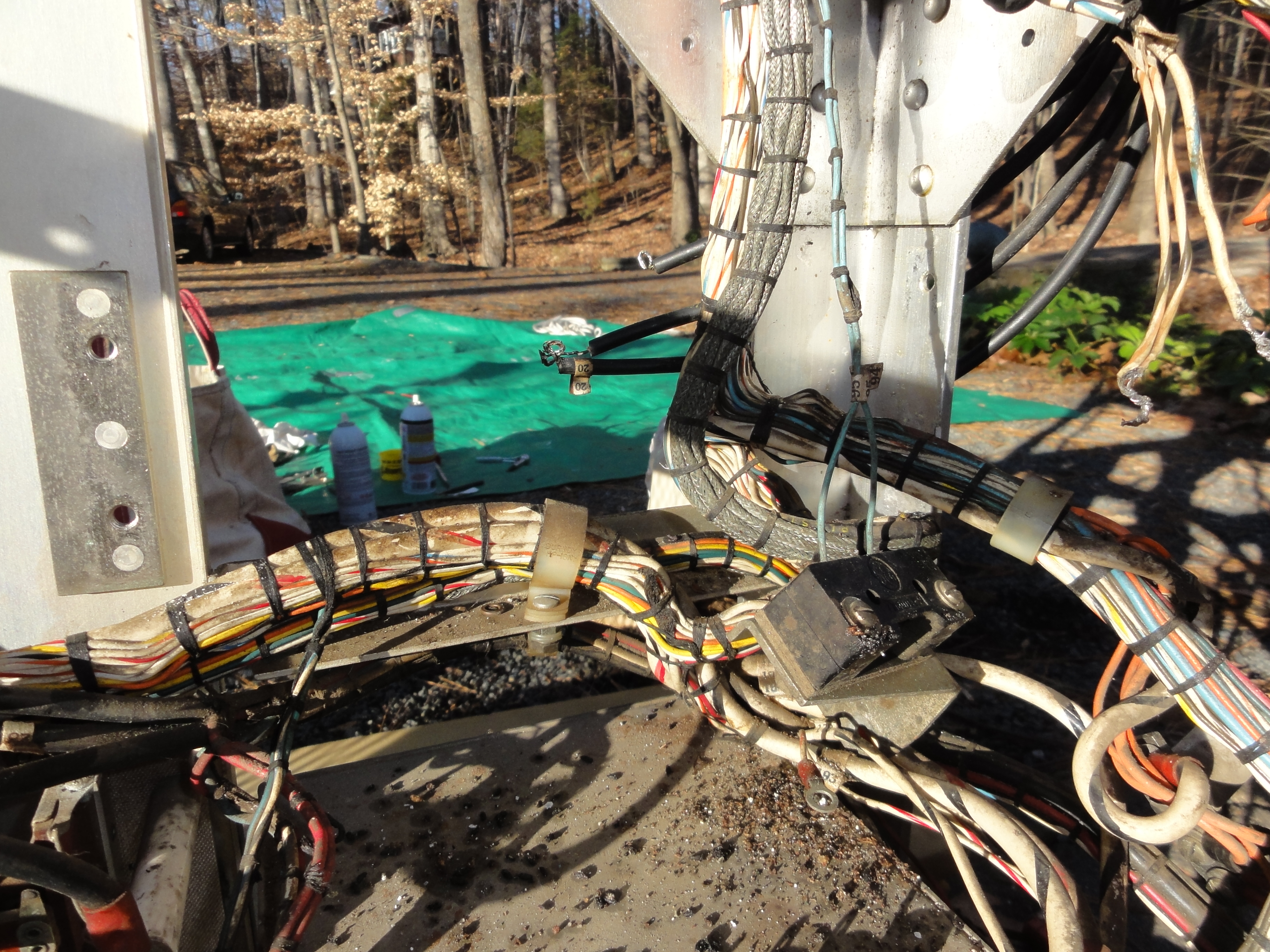

DSC01203.JPG (4351155 bytes) DSC01204.JPG (4381341 bytes) DSC01205.JPG (4323495 bytes) DSC01206.JPG (4005021 bytes)

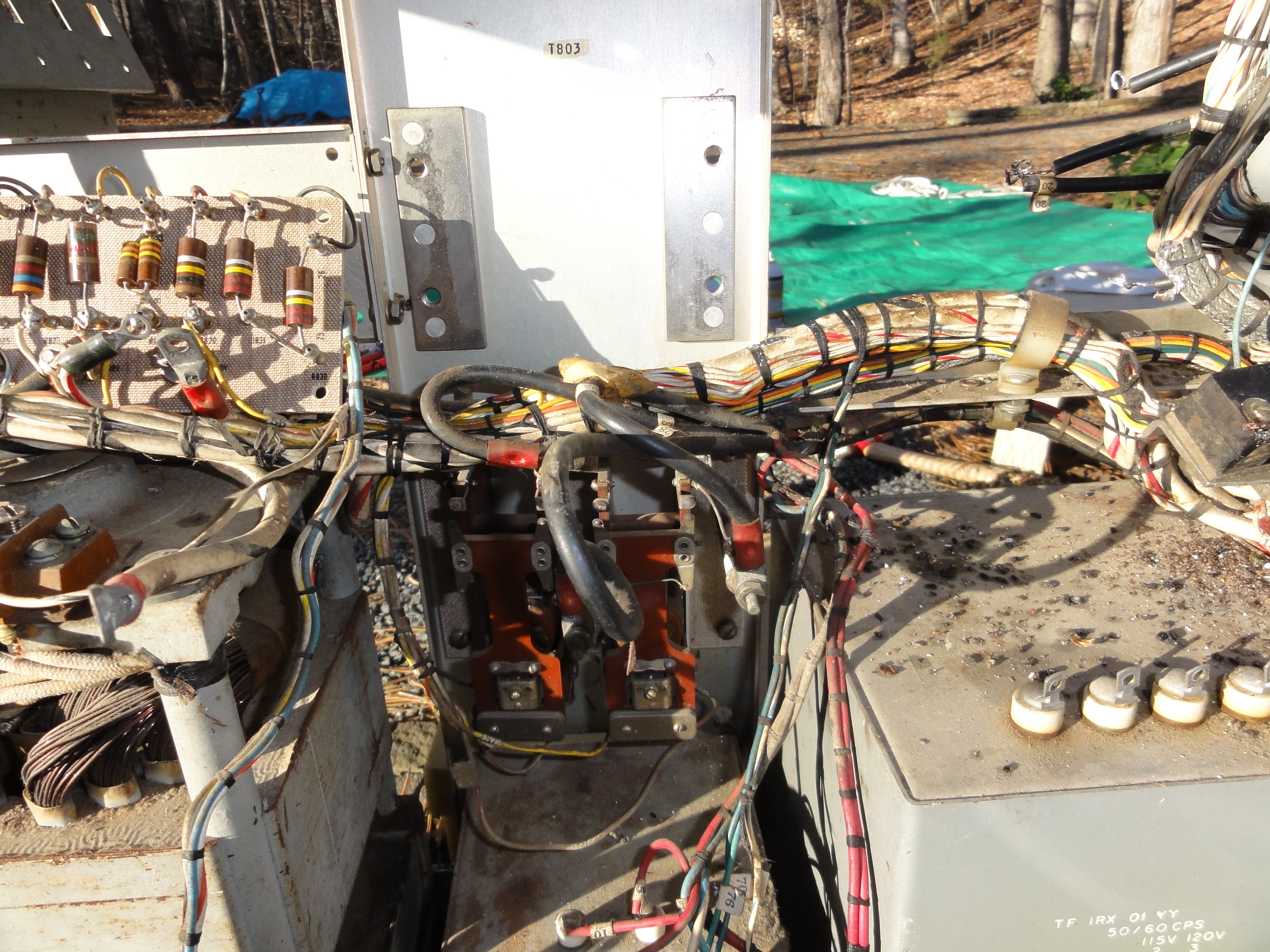

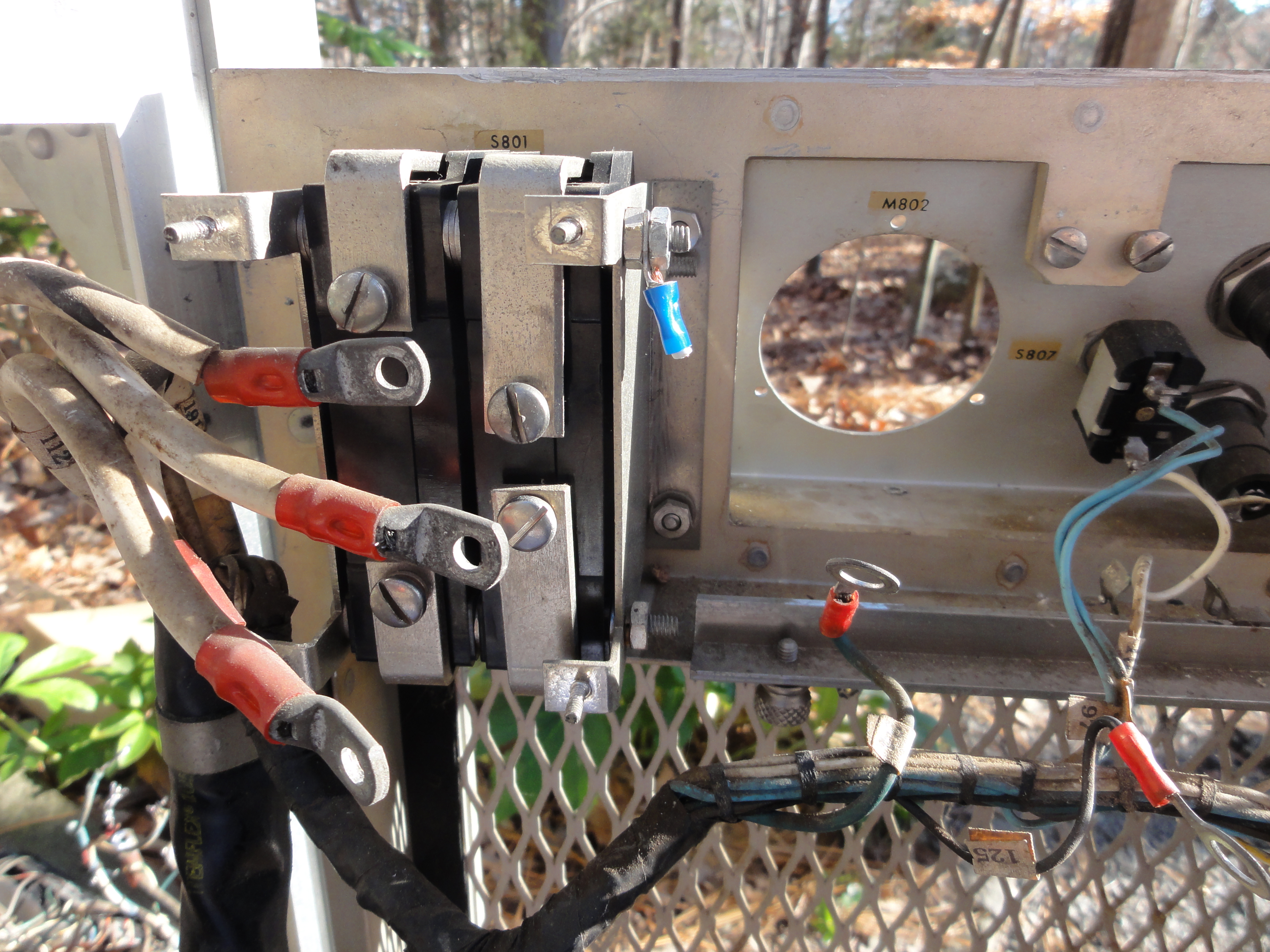

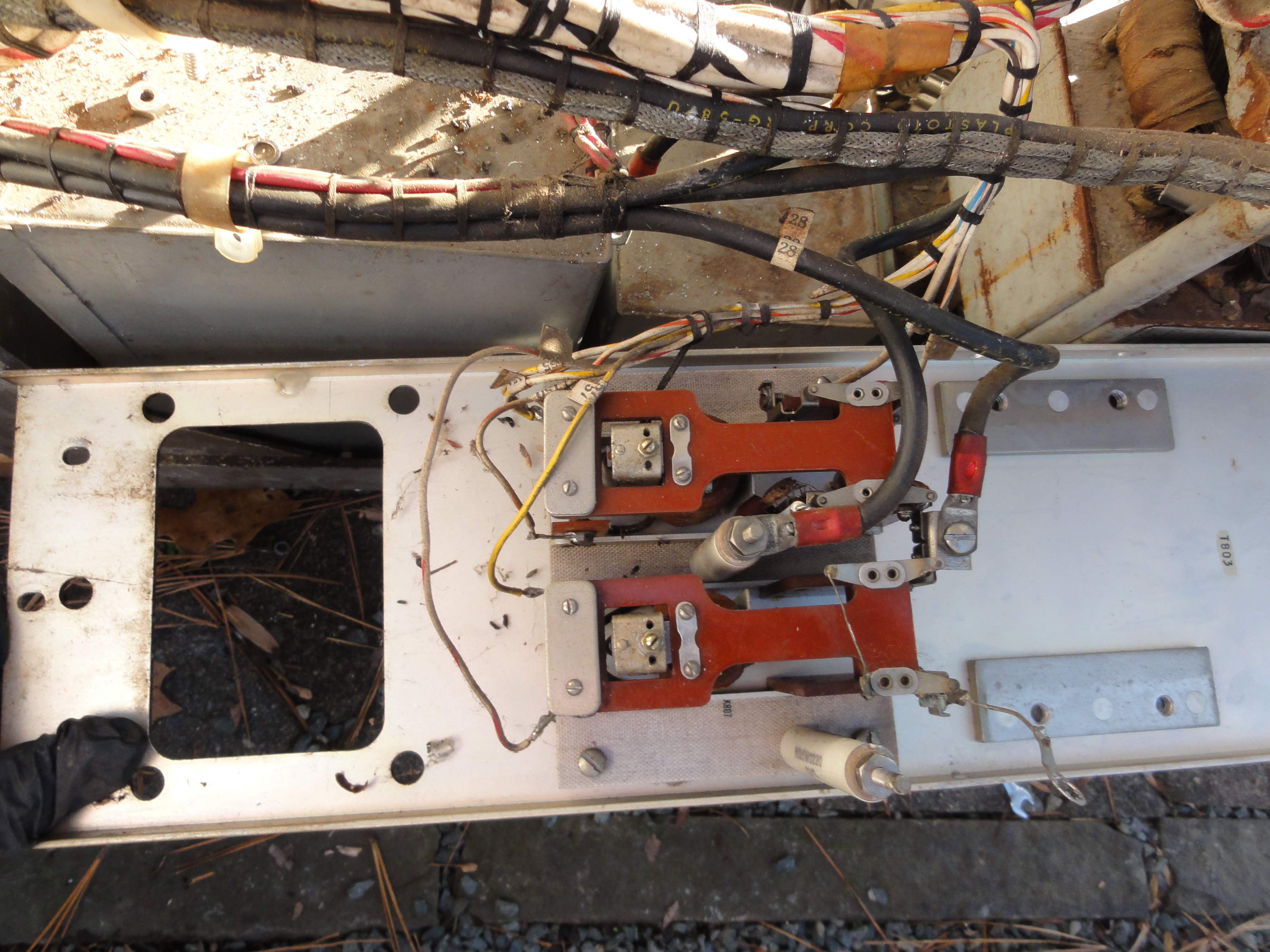

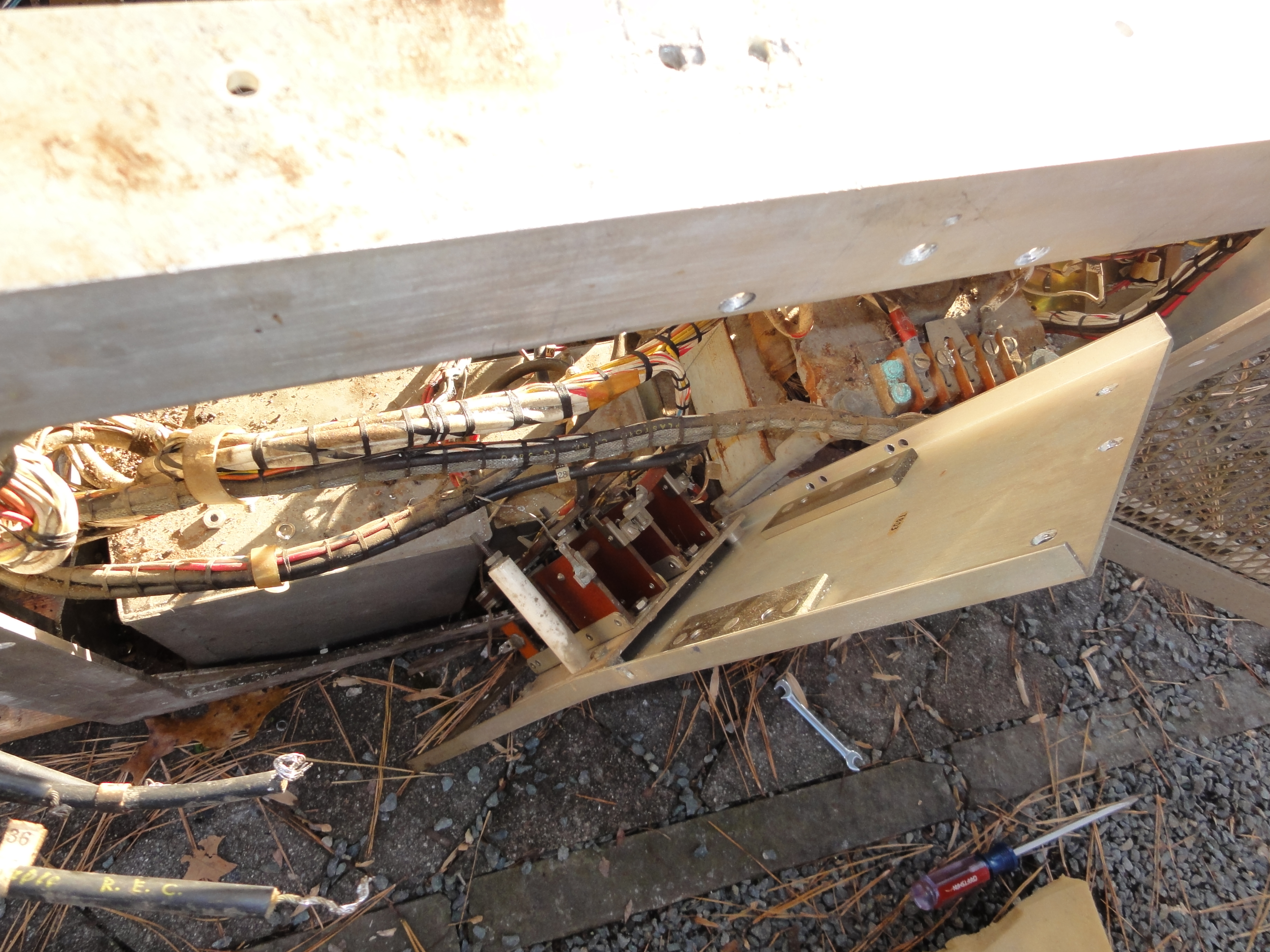

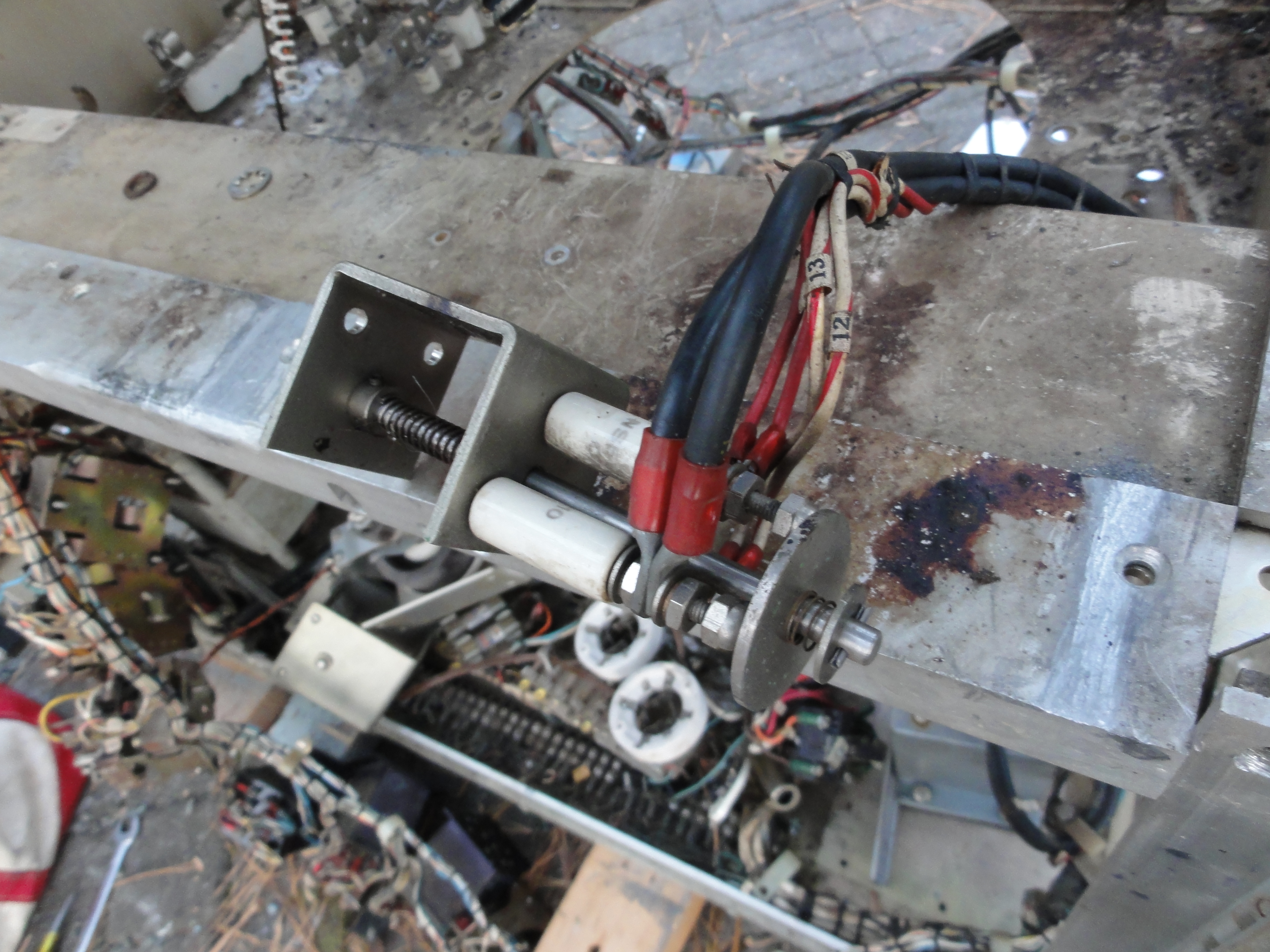

LHS - HV relay support bracket loose

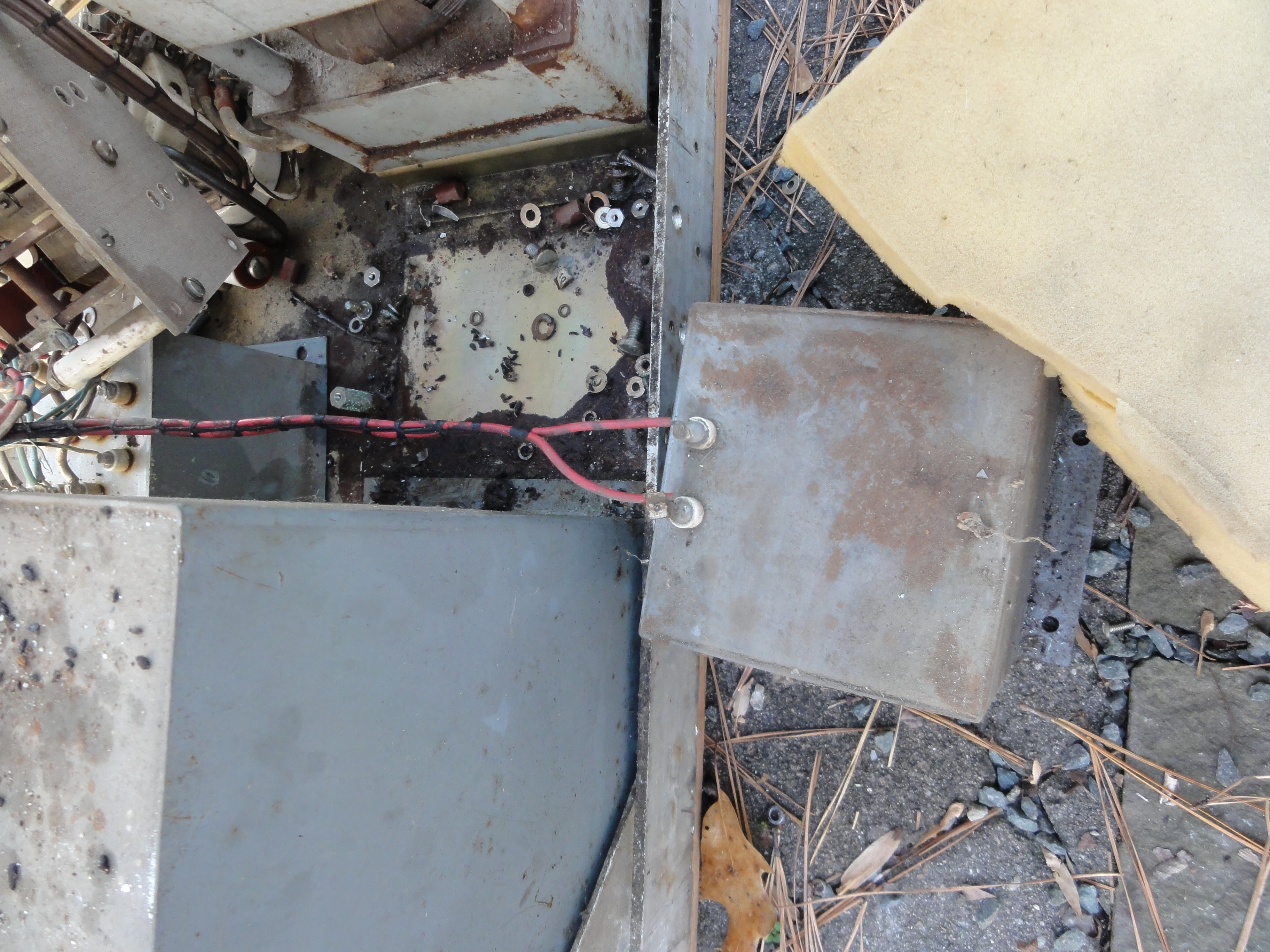

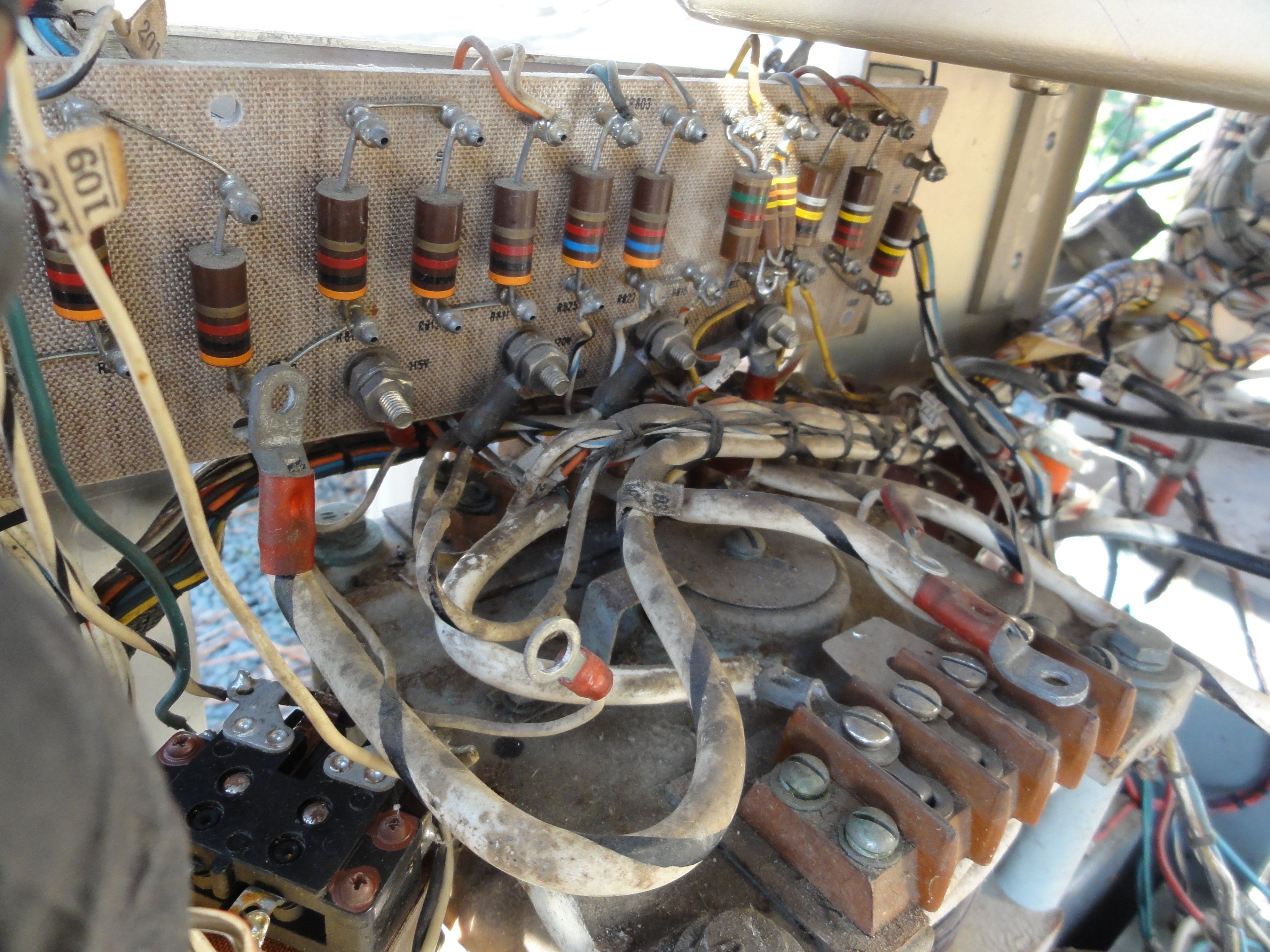

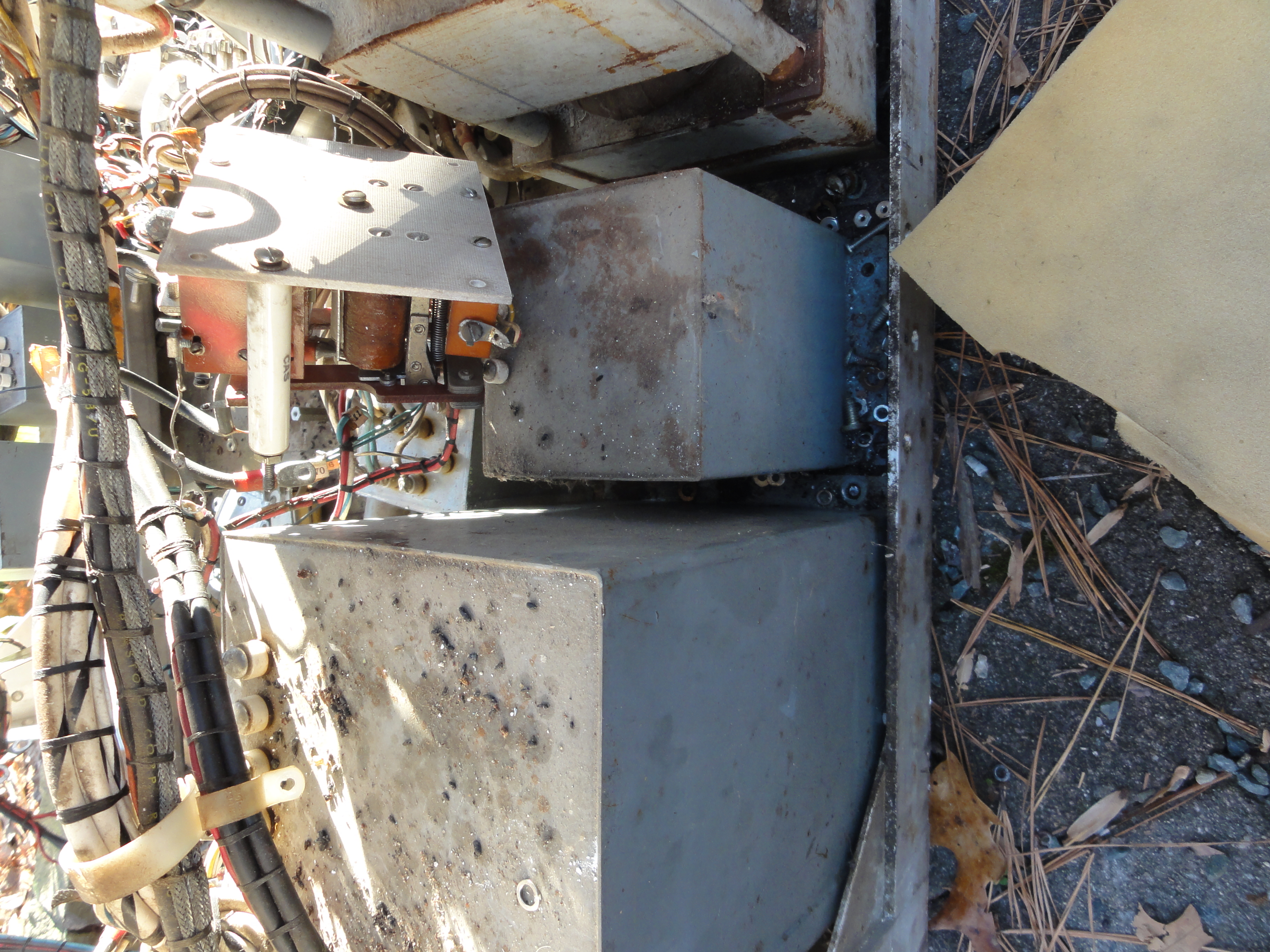

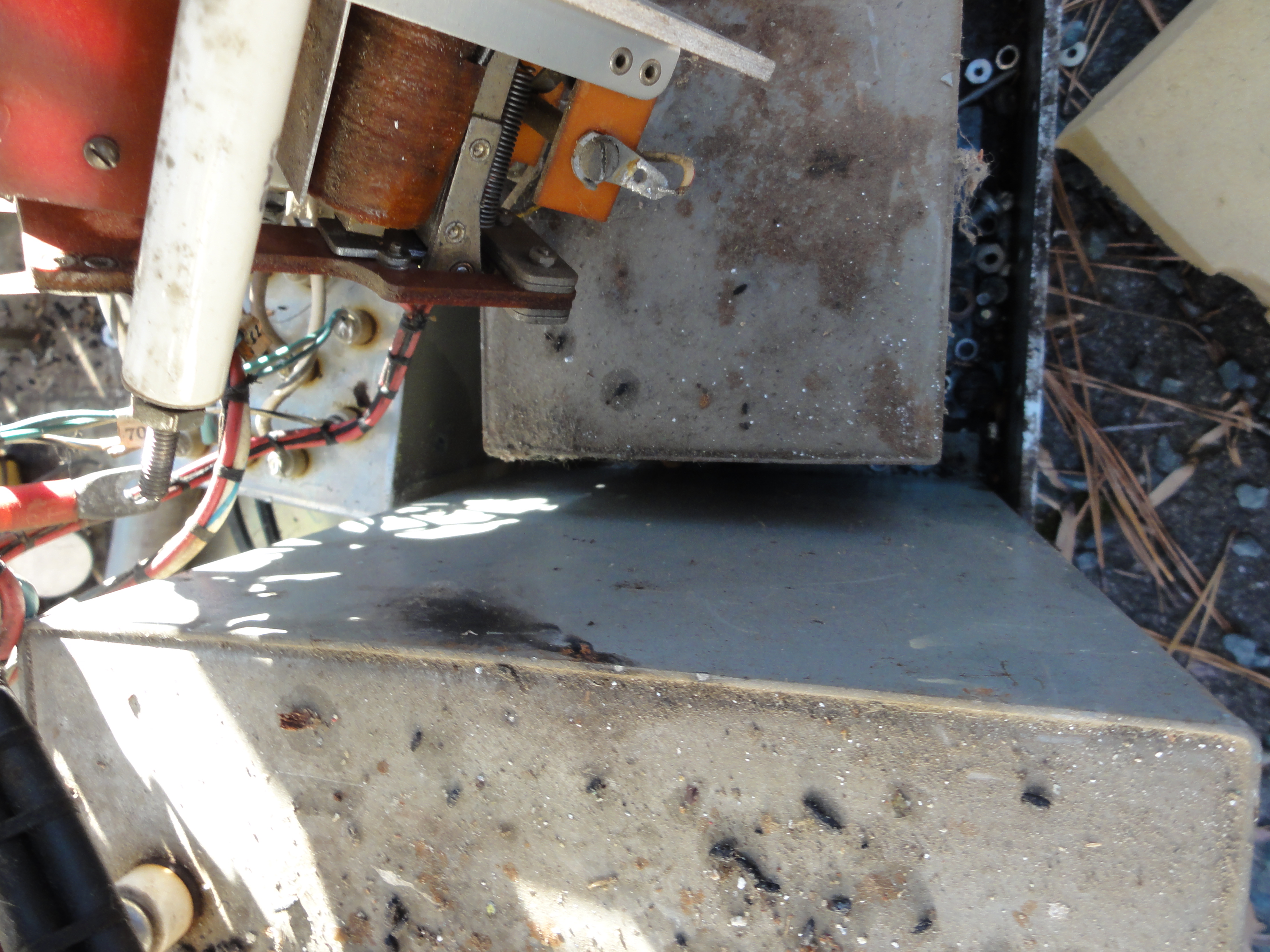

DSC01208.JPG (4007020 bytes) DSC01210.JPG (4305100 bytes) 1200v choke removal enables access to autoxfmr and regulator xfmr

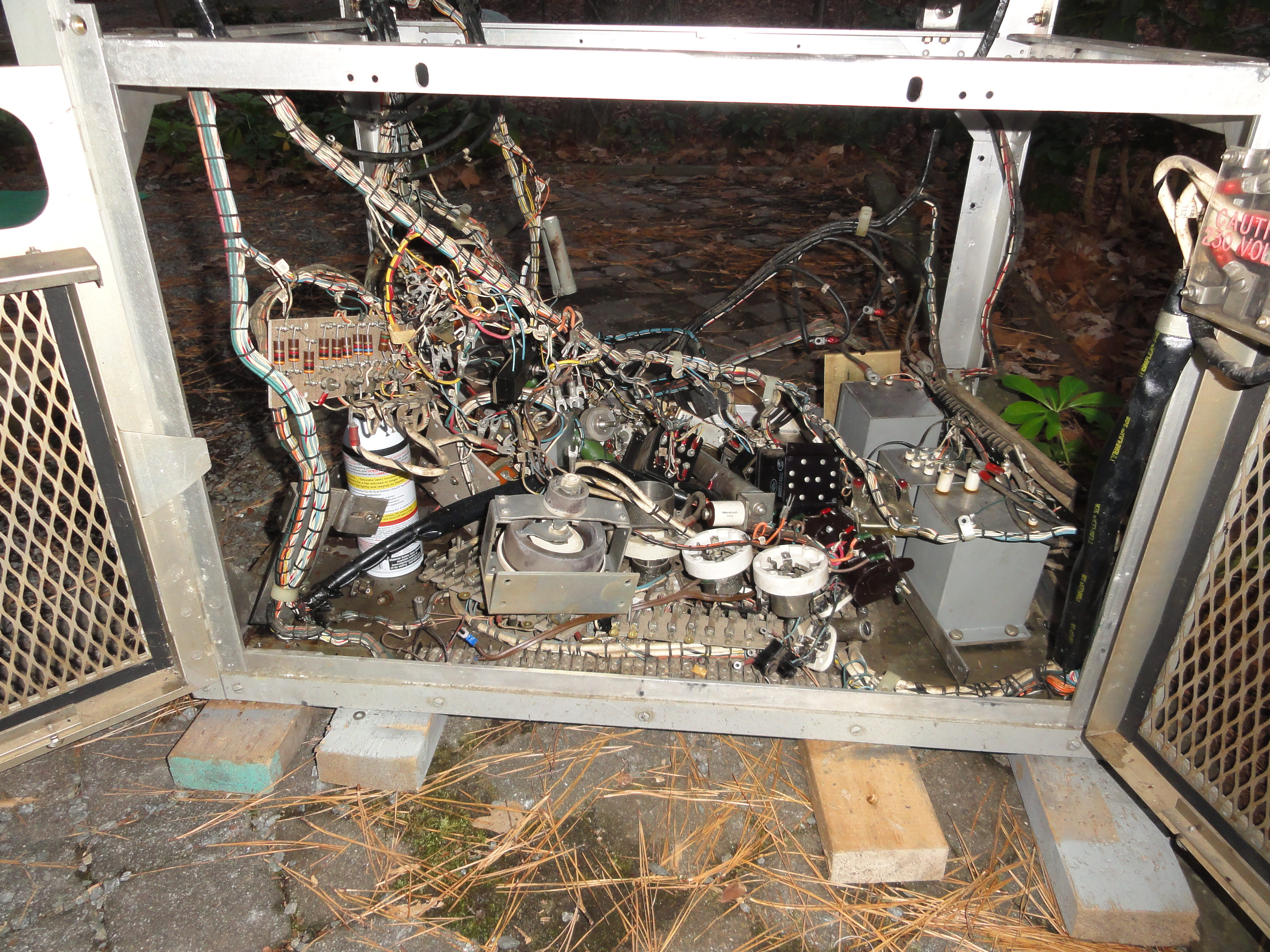

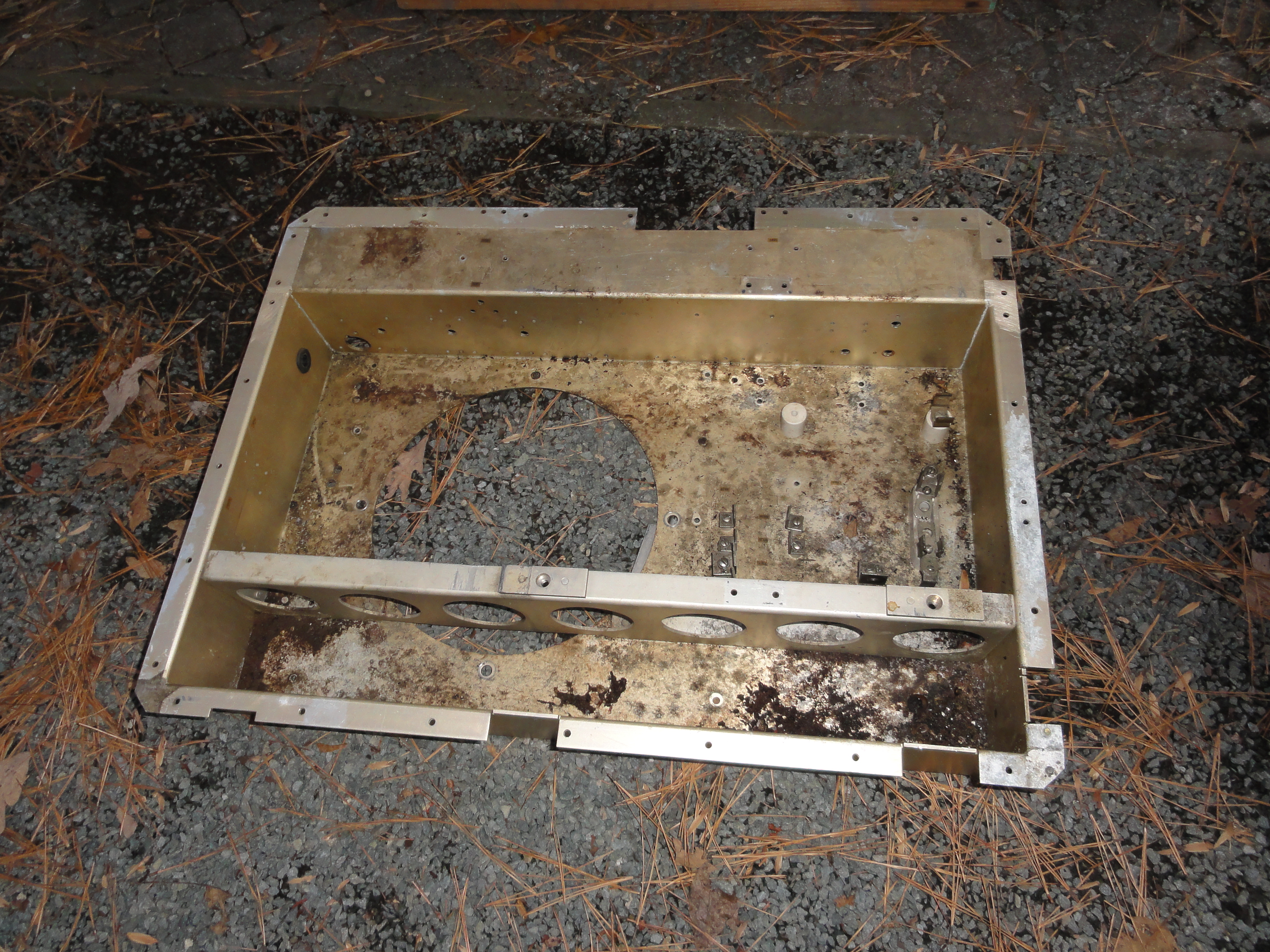

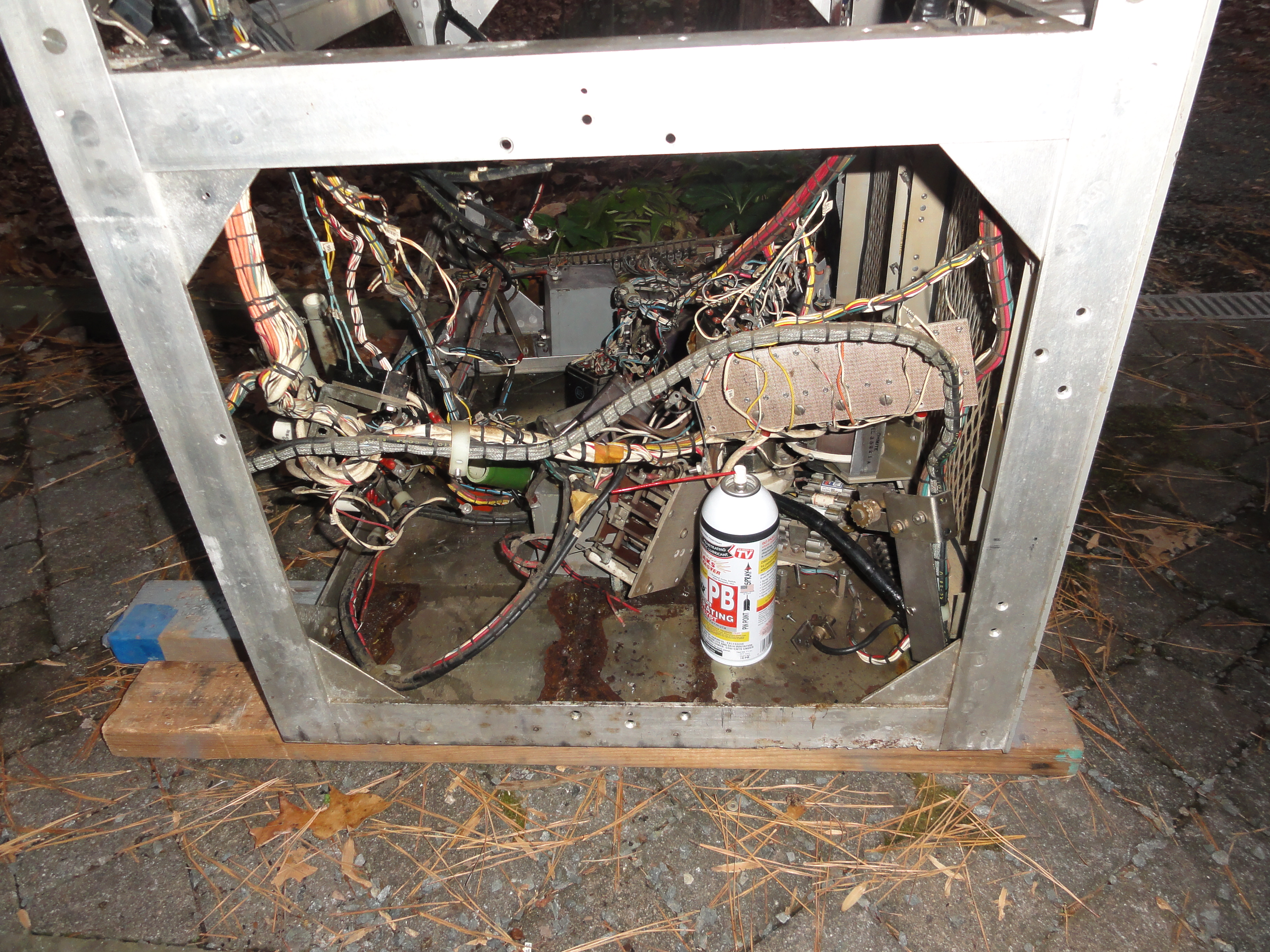

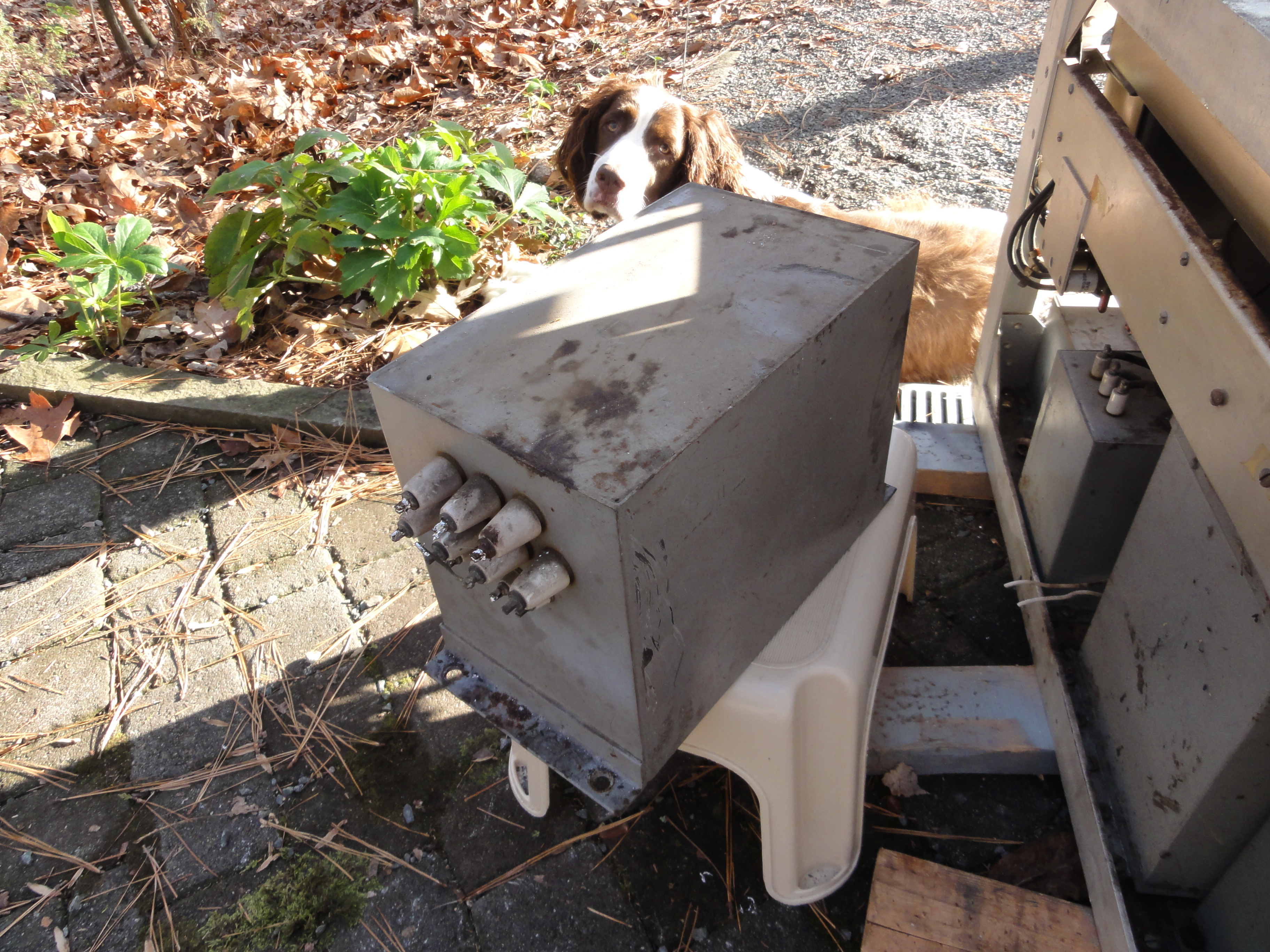

They're out!

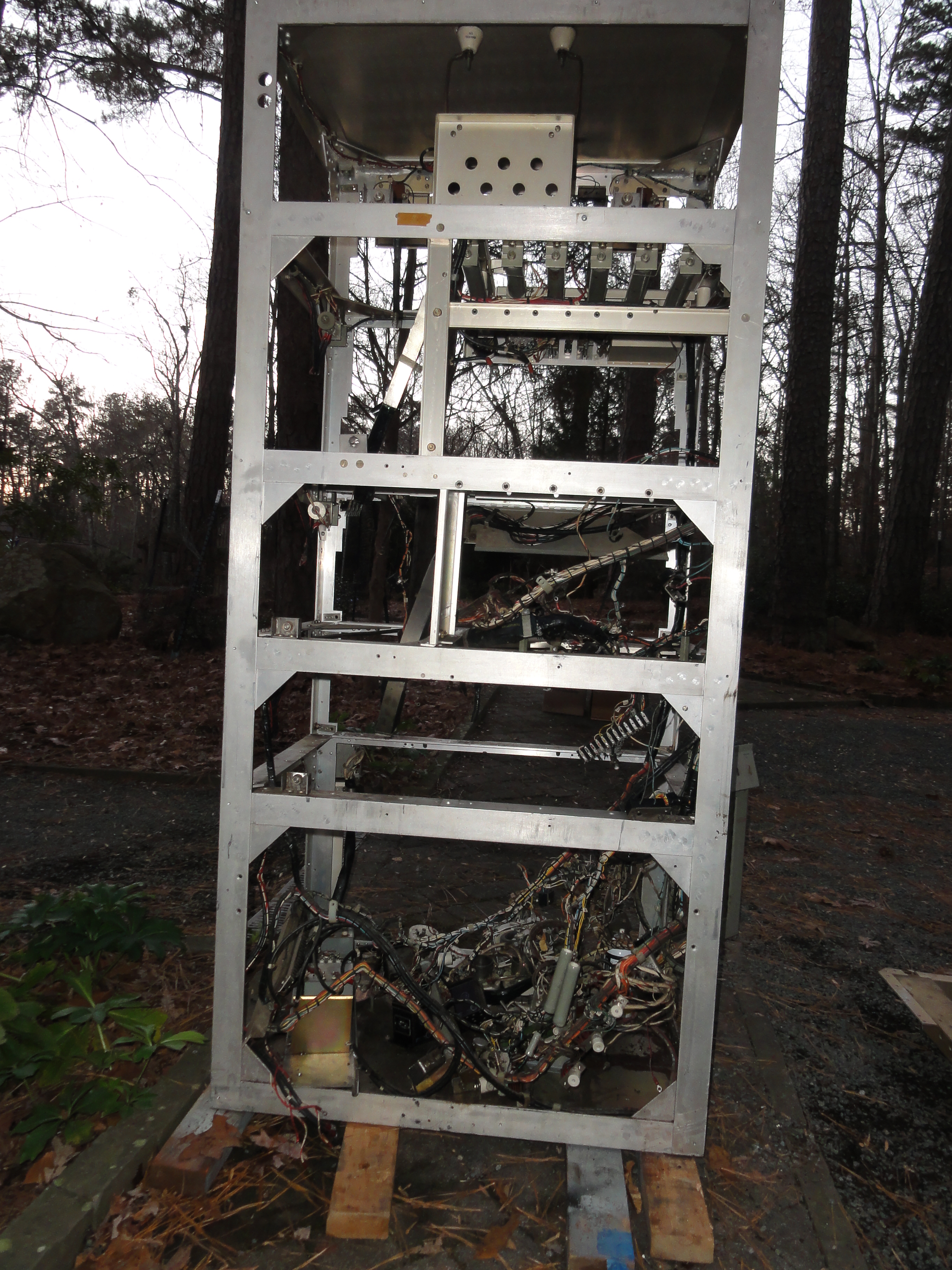

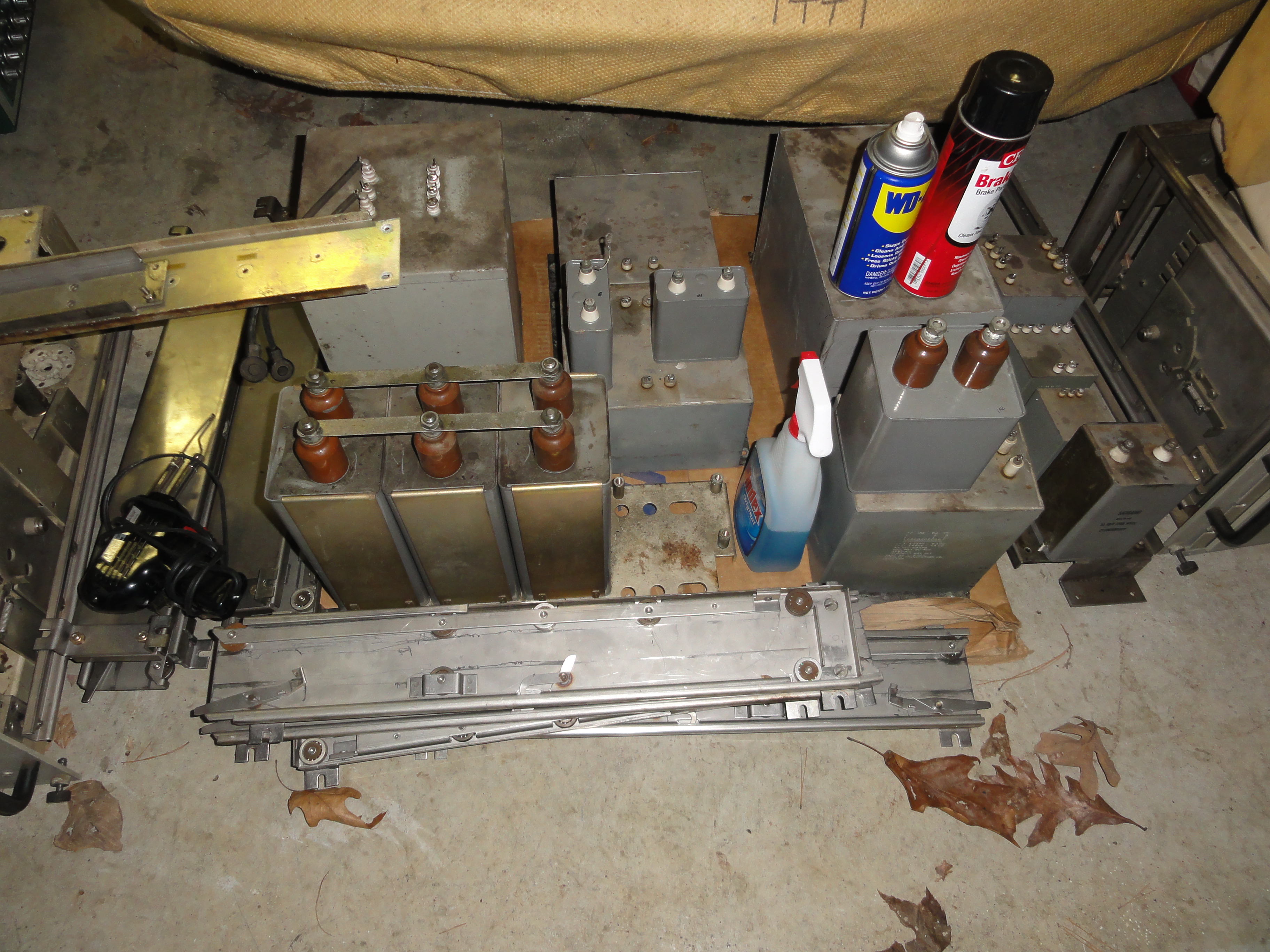

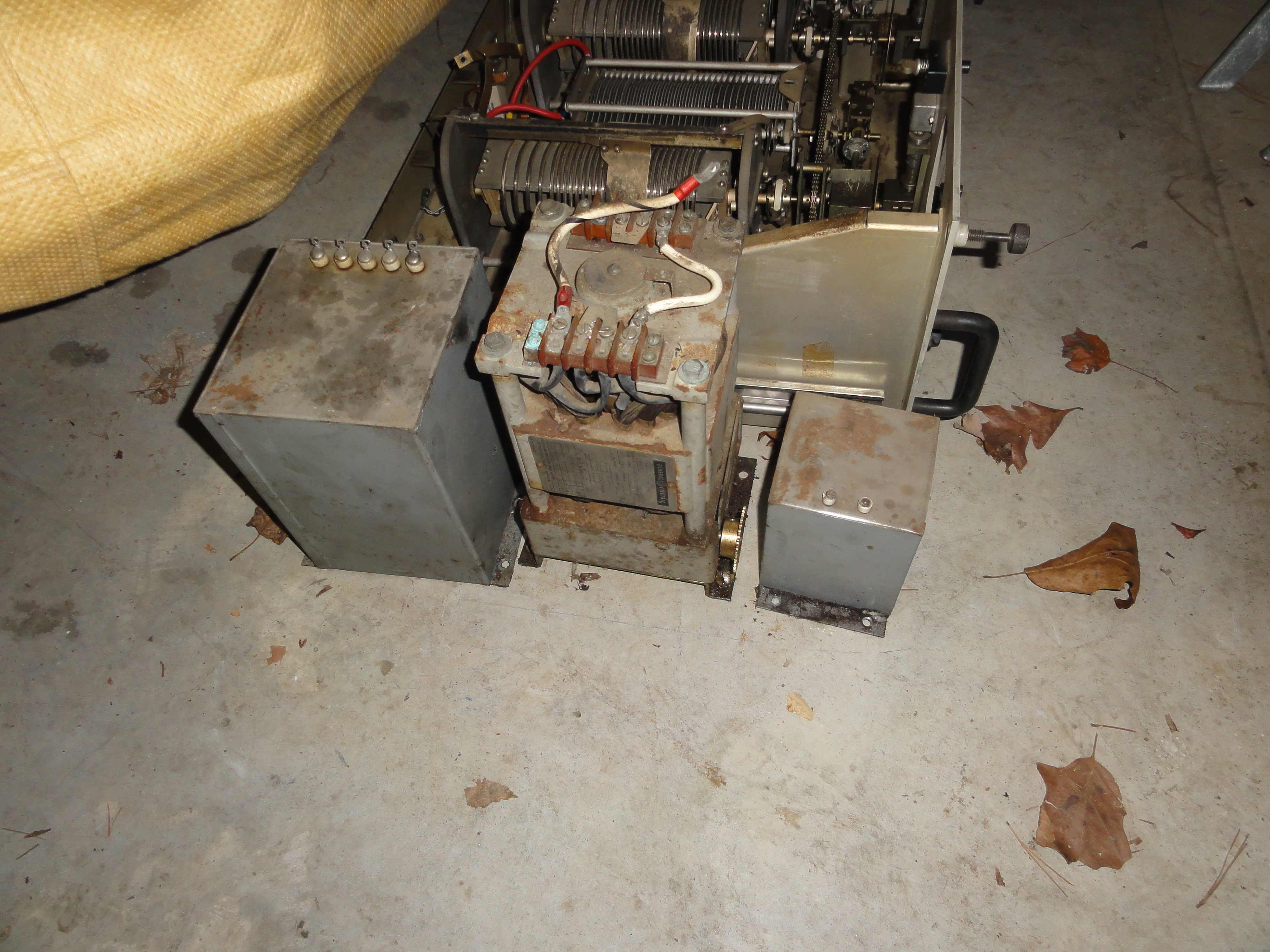

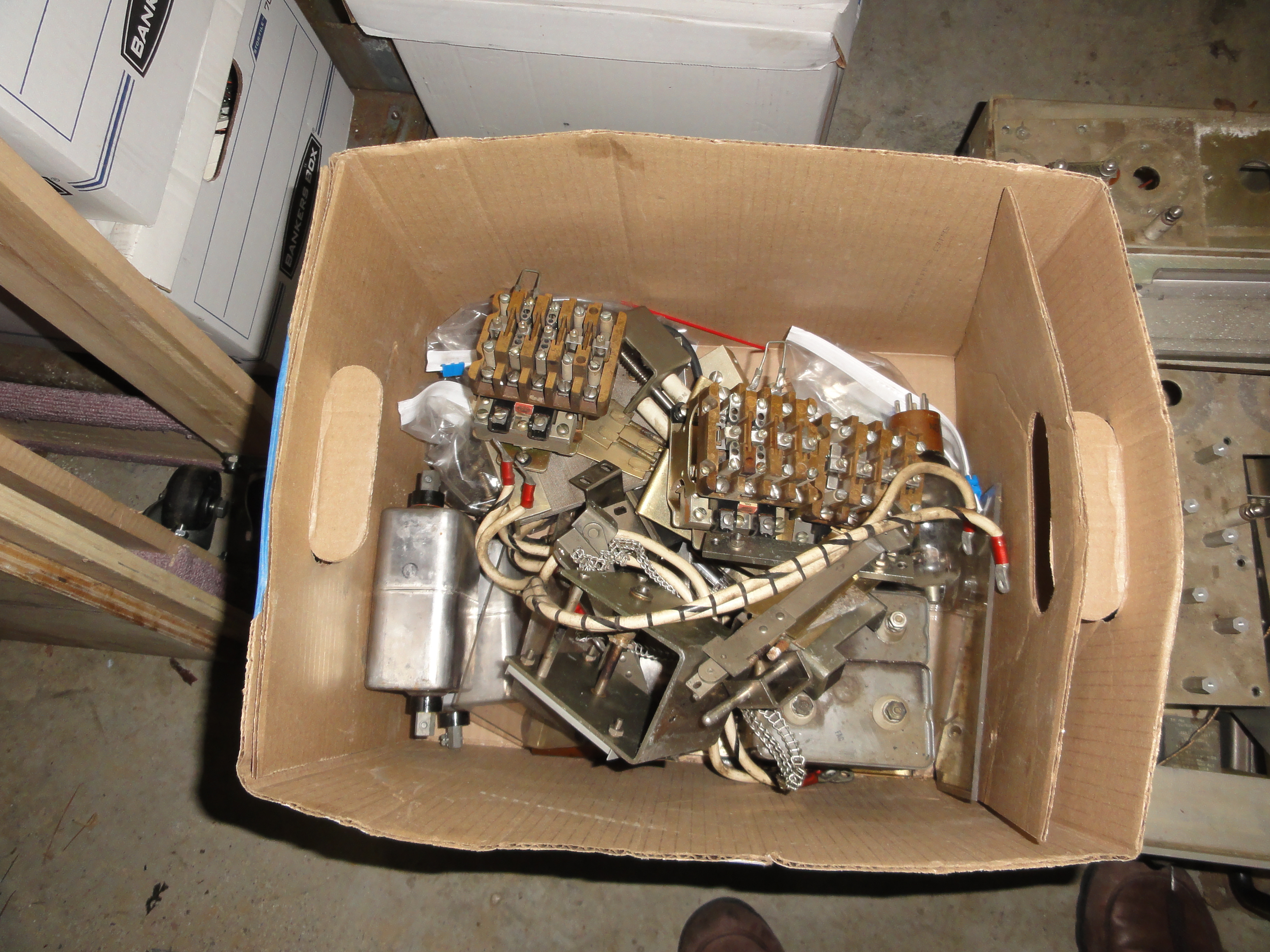

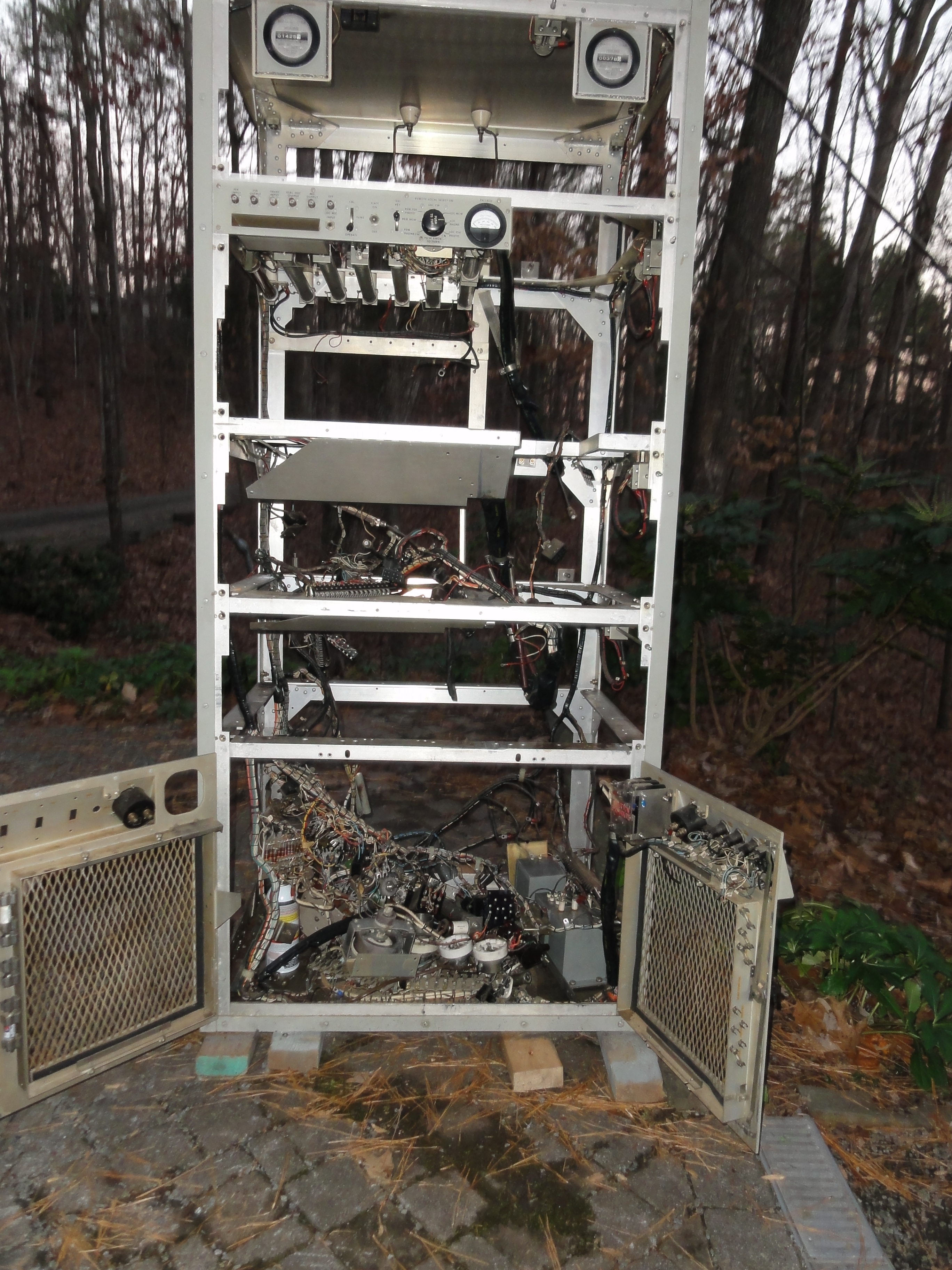

DSC01215.JPG (3461353 bytes) DSC01216.JPG (3623818 bytes) Components in the garage awaiting cleaning

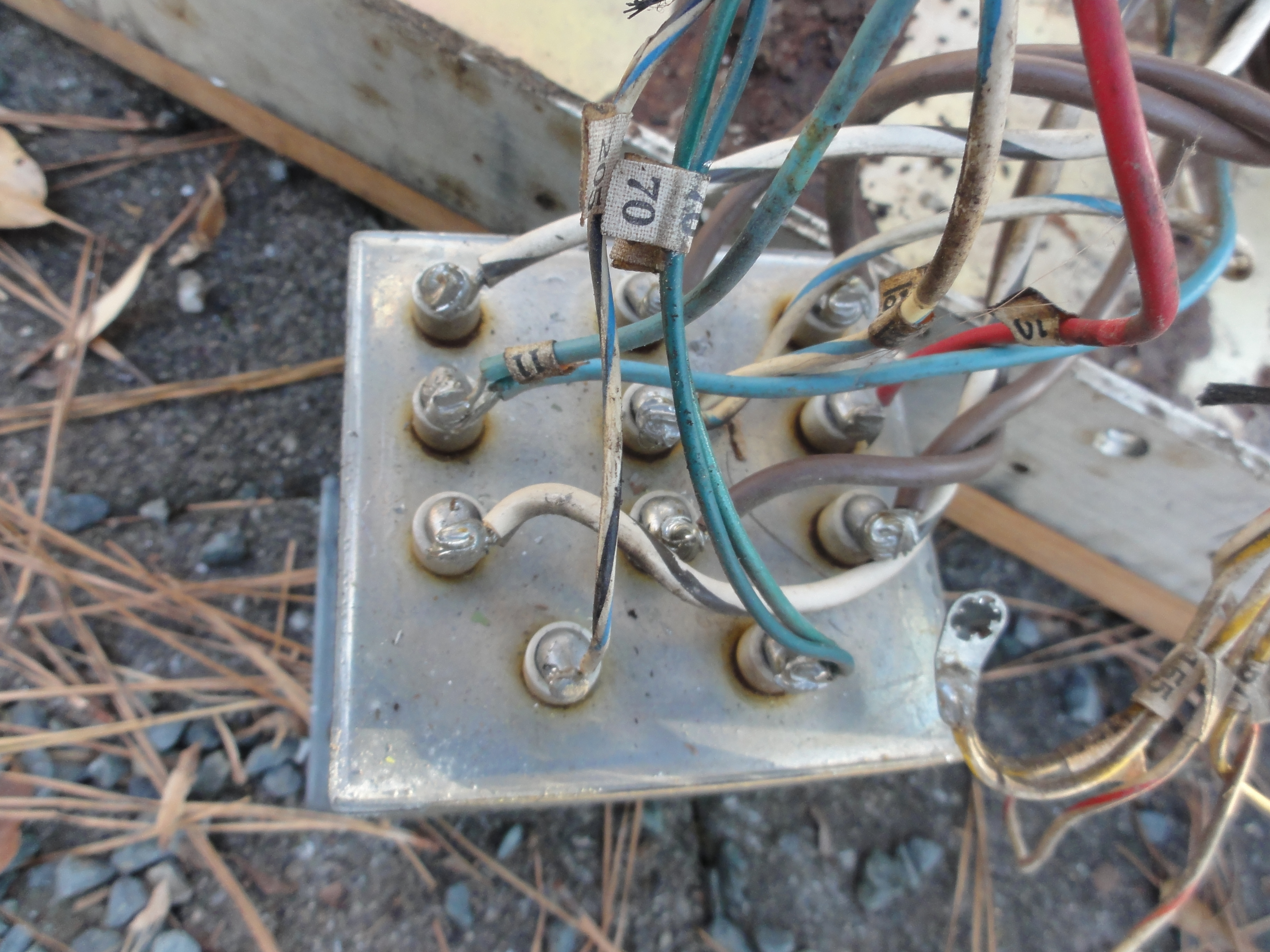

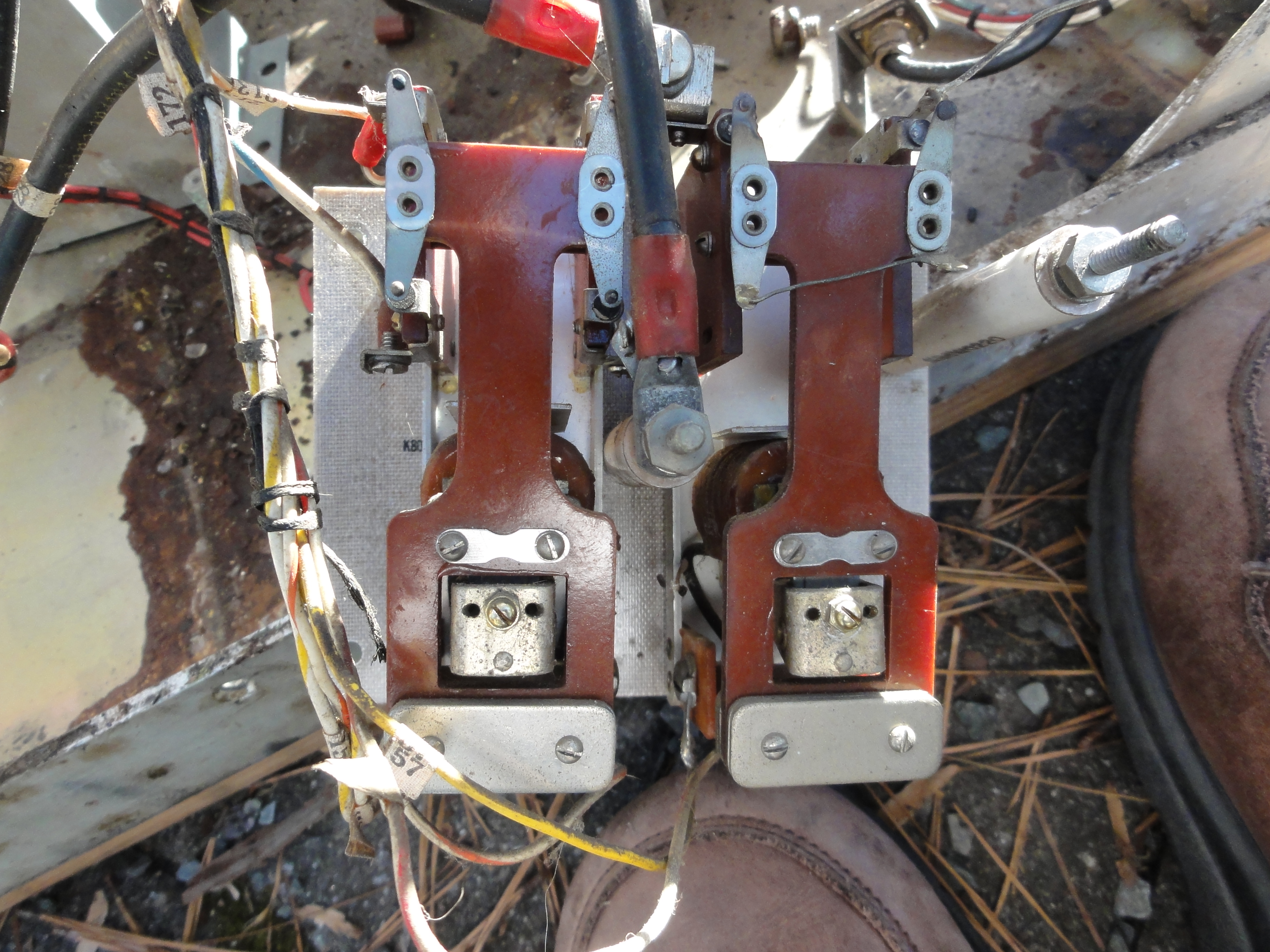

Day 6 - a few more hours of daylight (did I mention all this is happening in mid-December?) and down on my knees for unsoldering some more of the wiring harness

RHS xfmr bracket

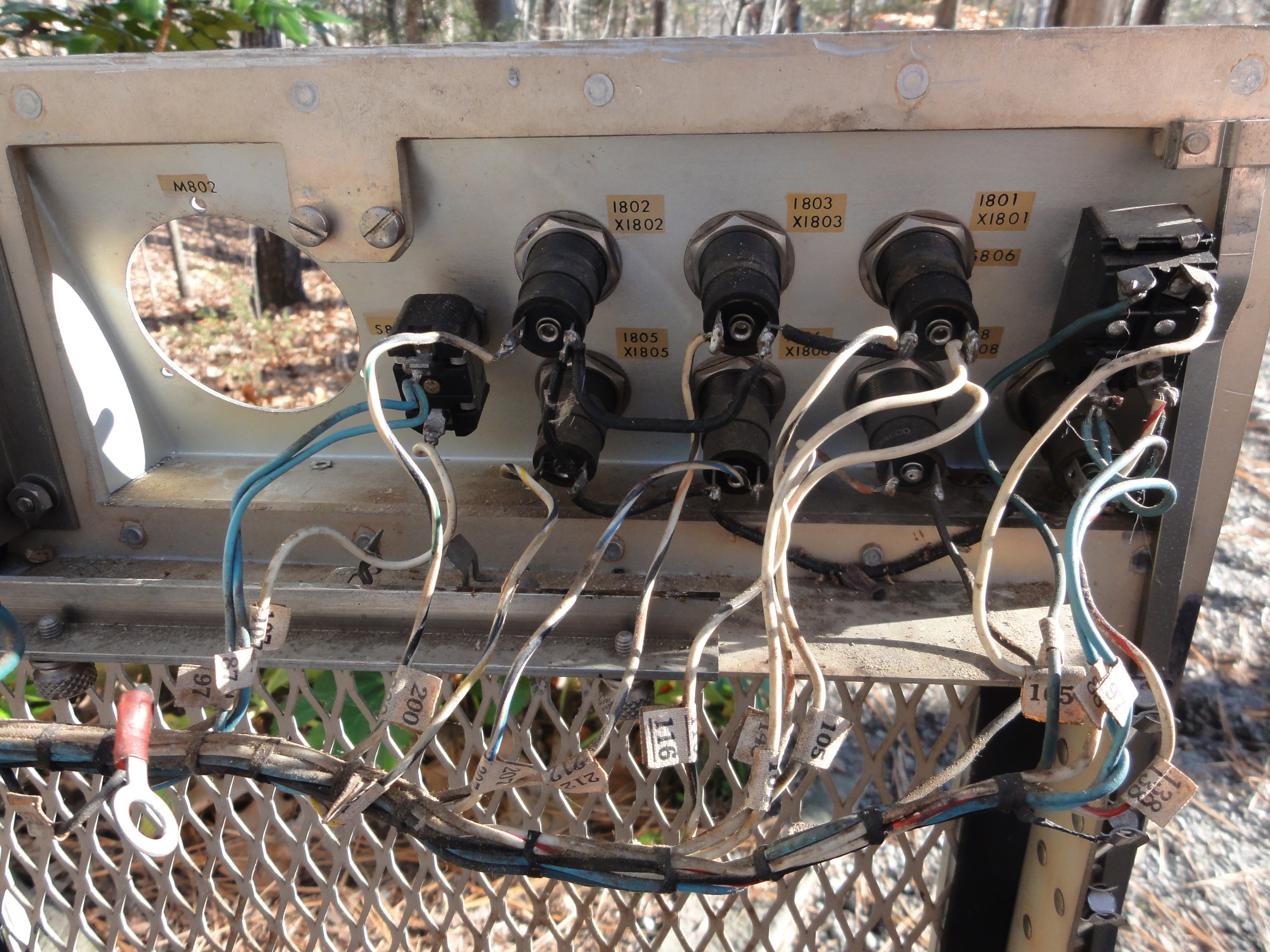

RHS door

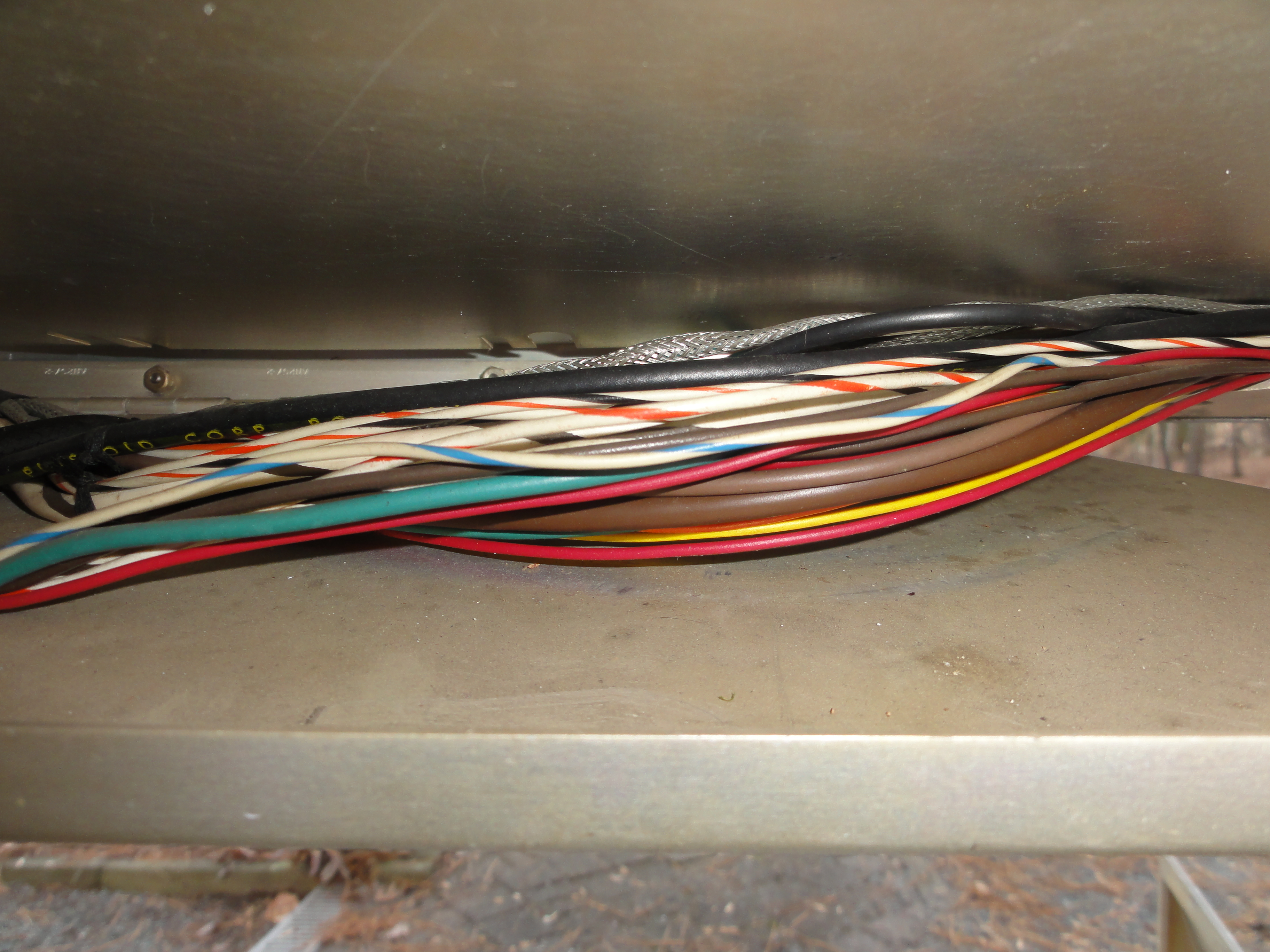

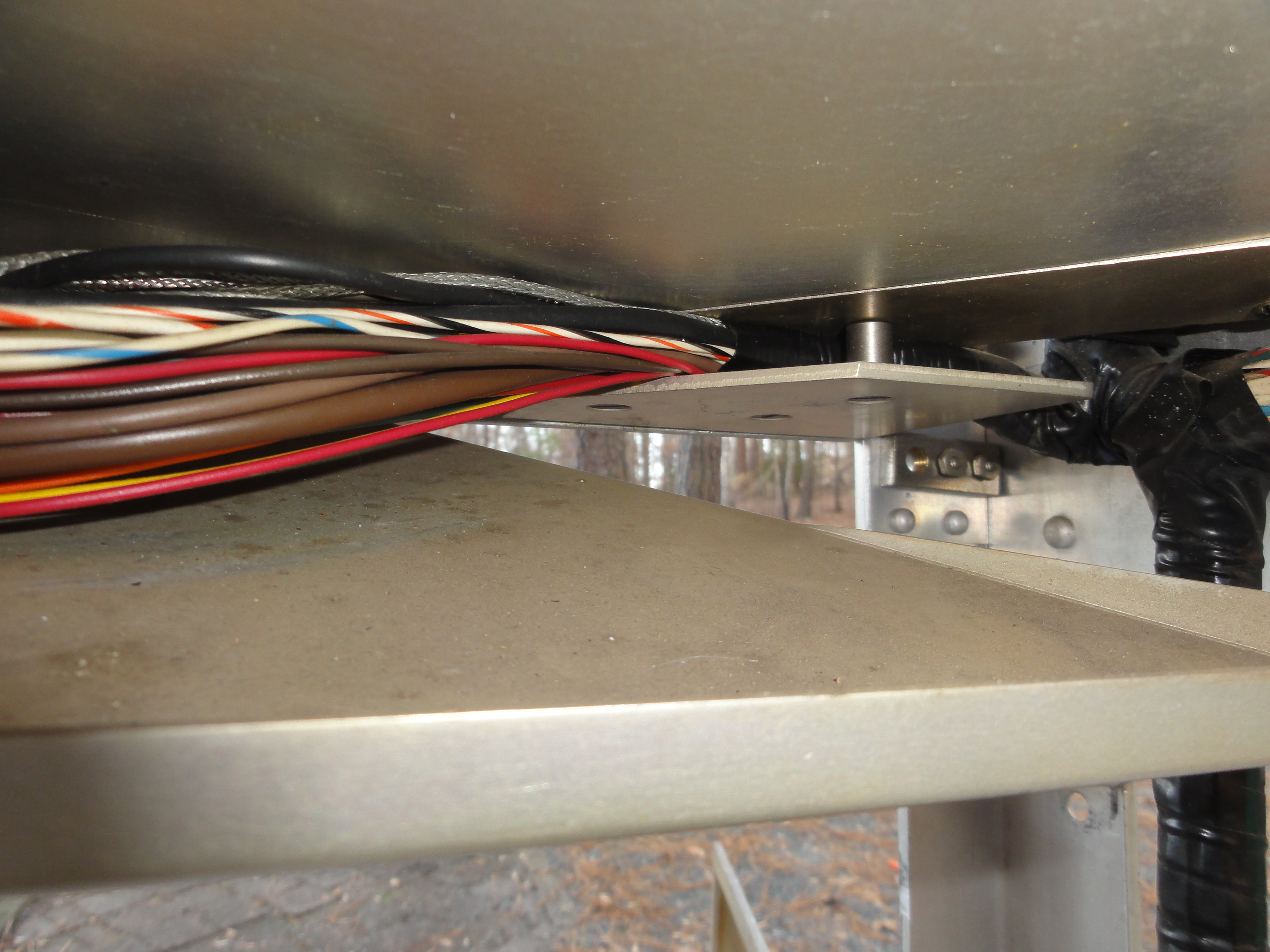

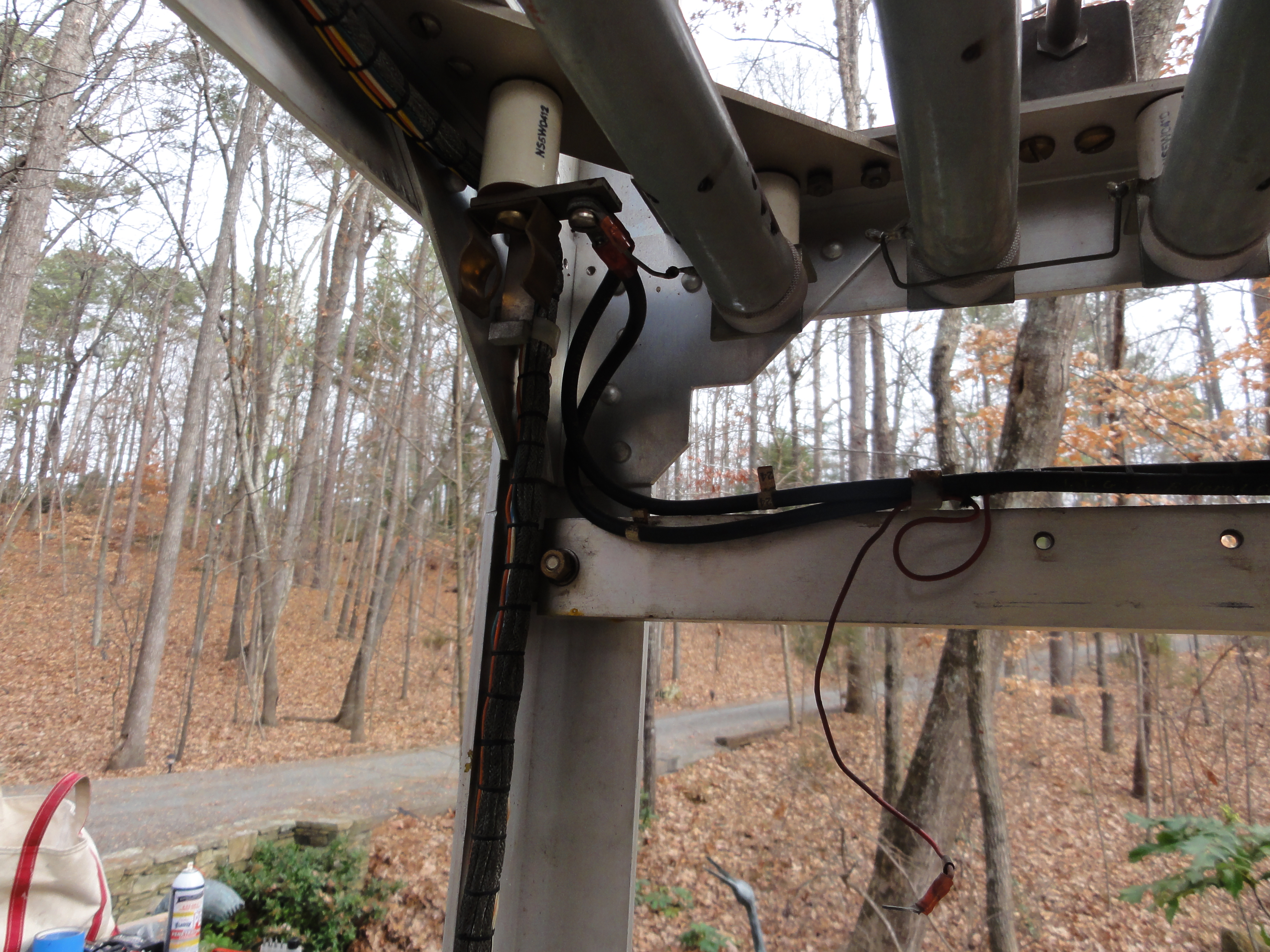

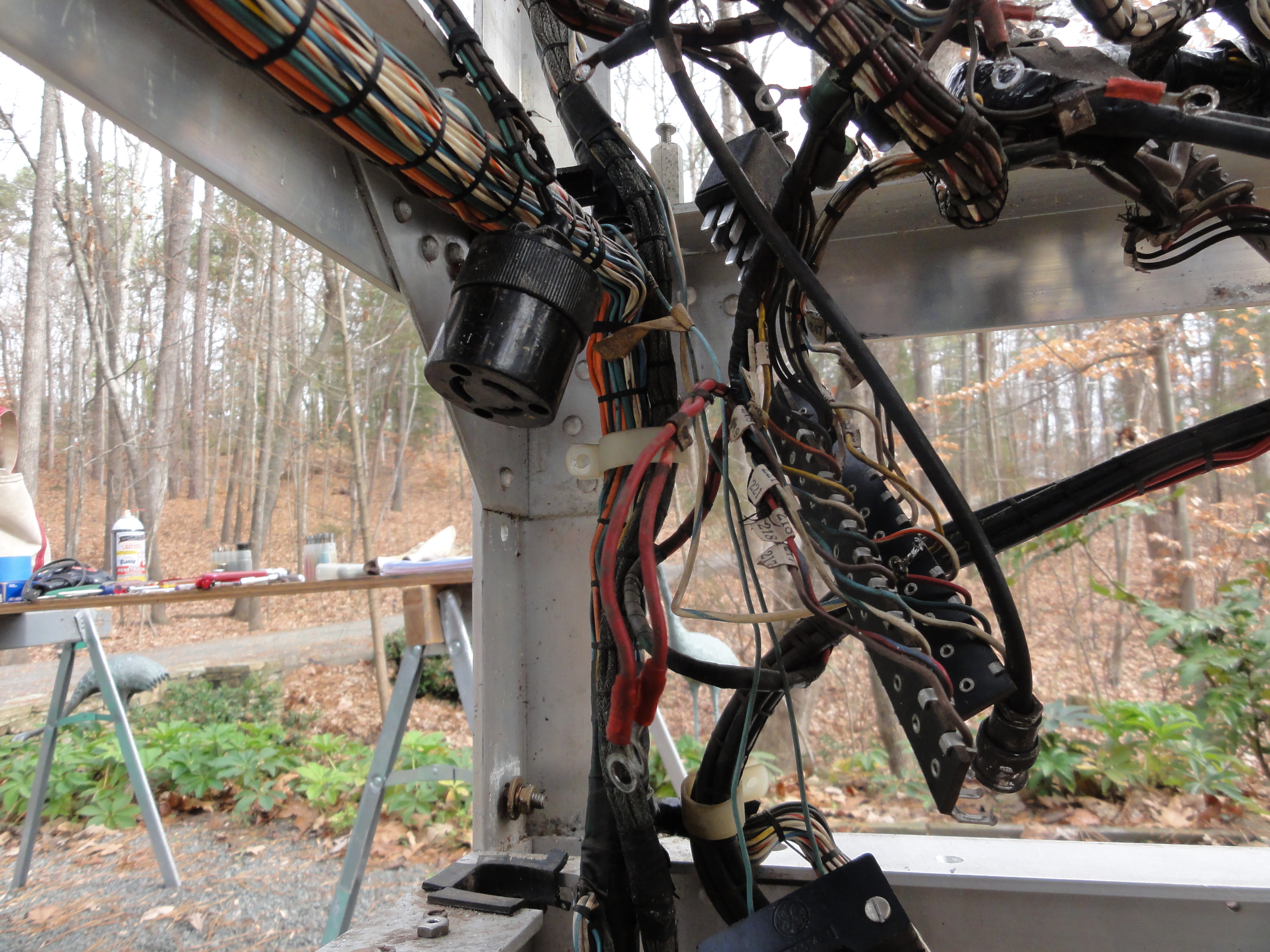

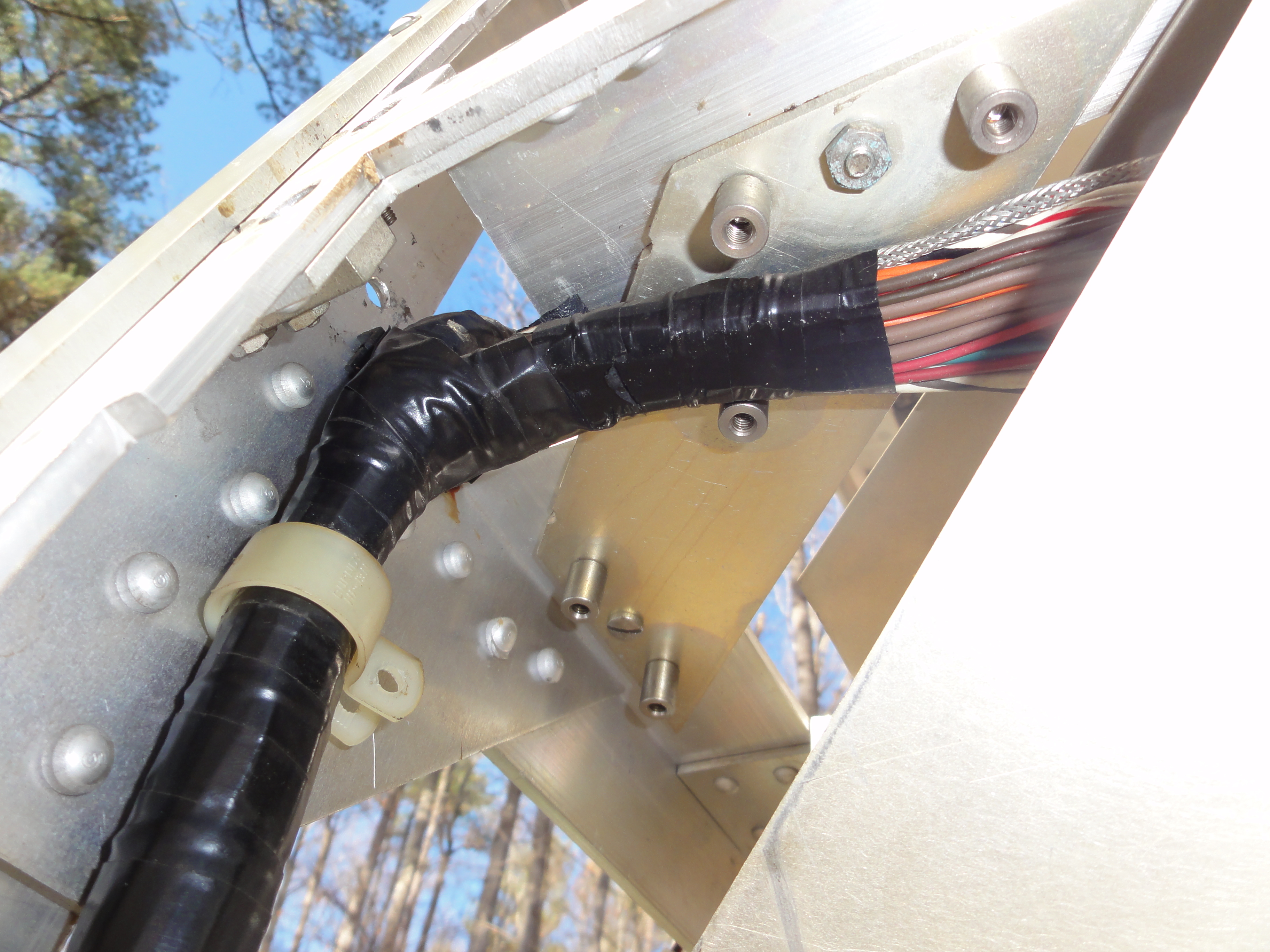

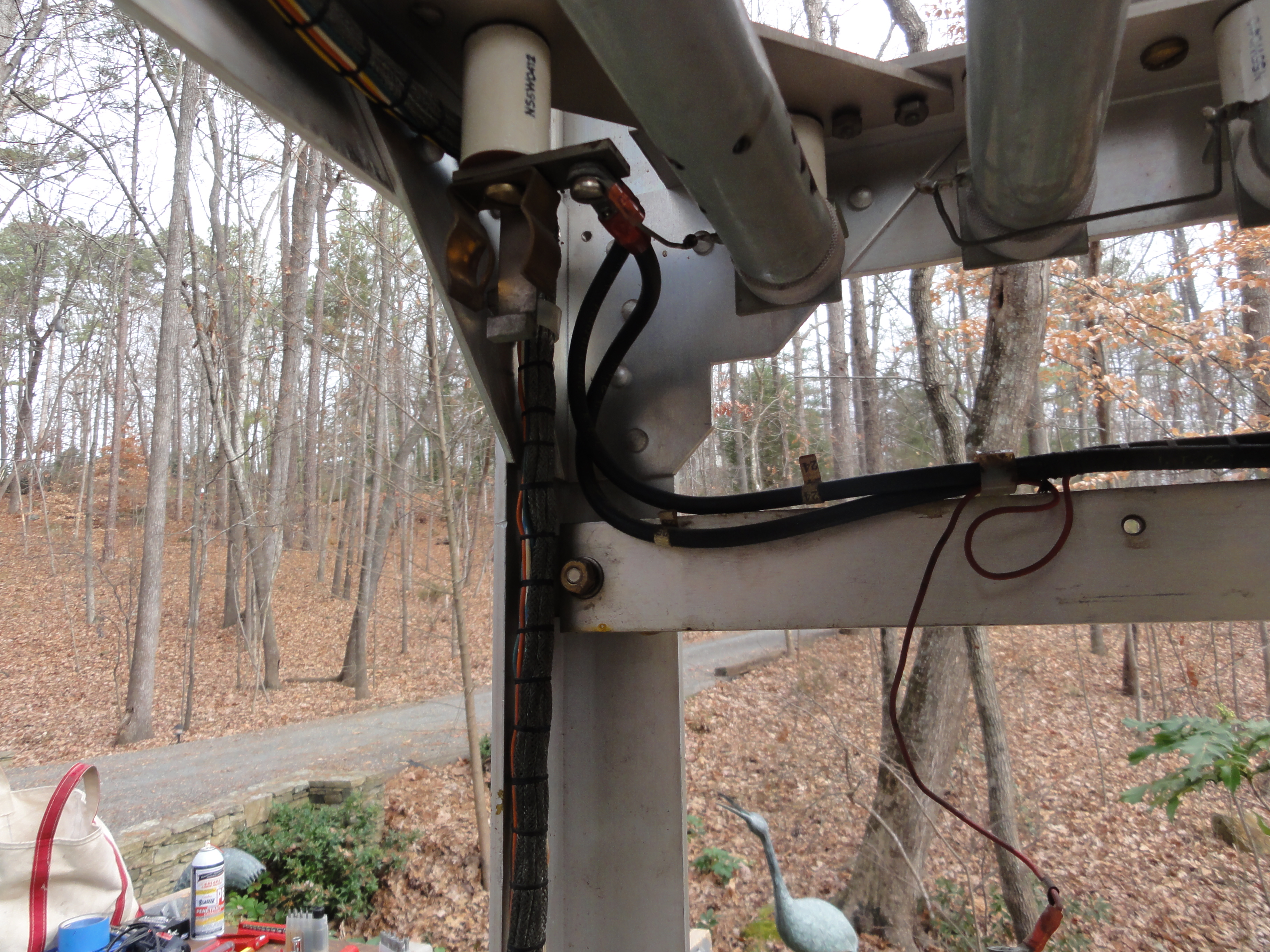

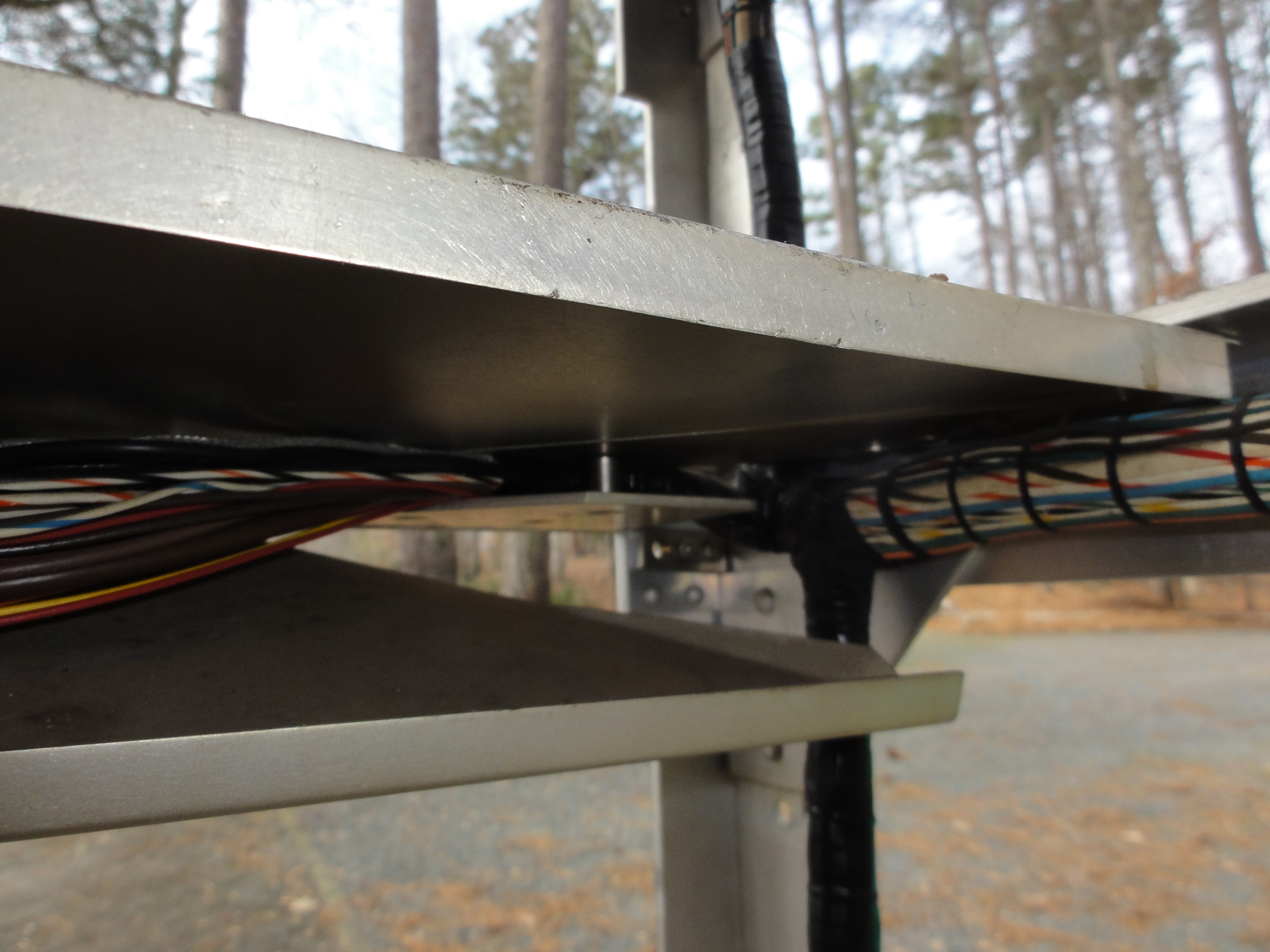

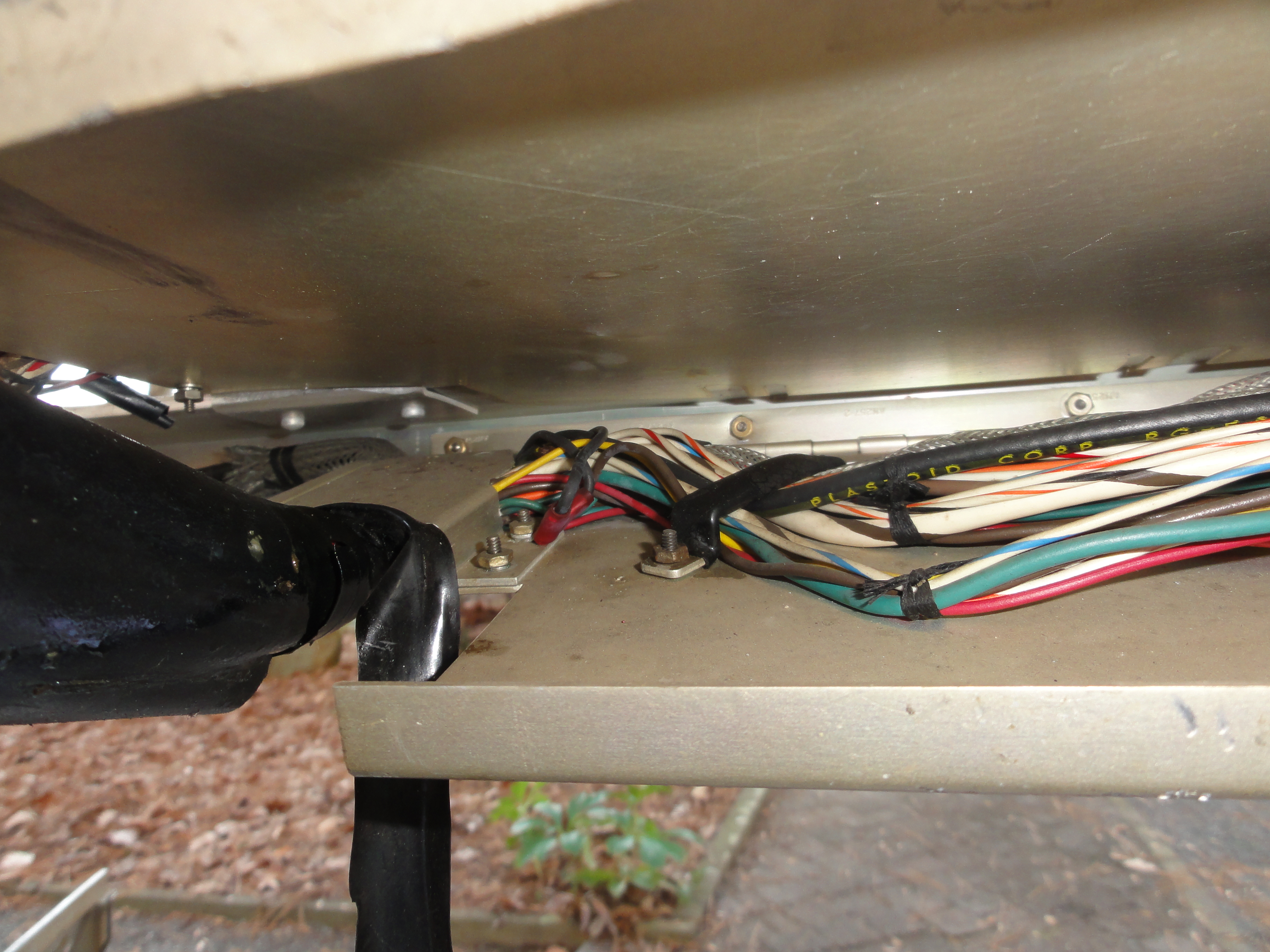

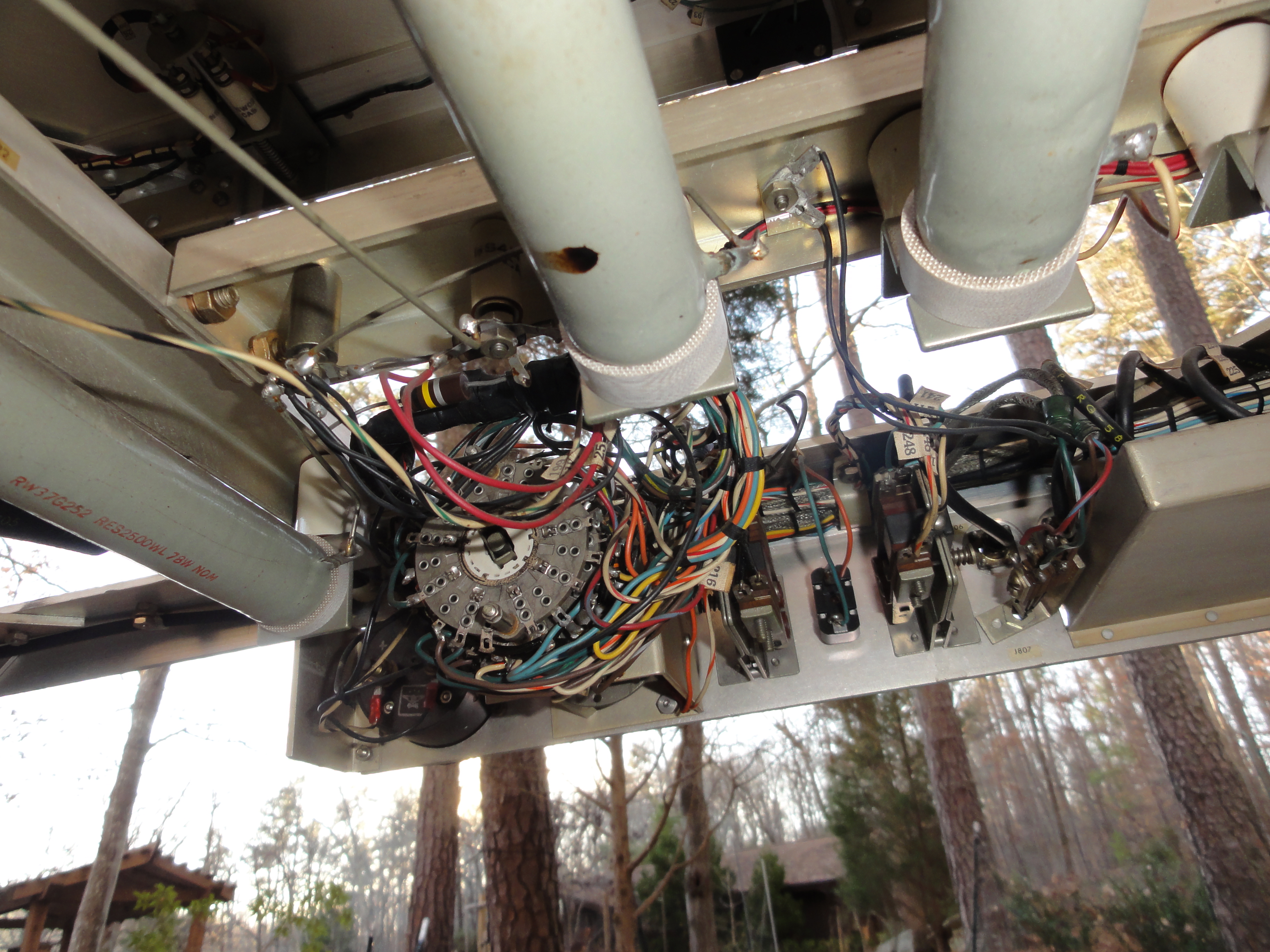

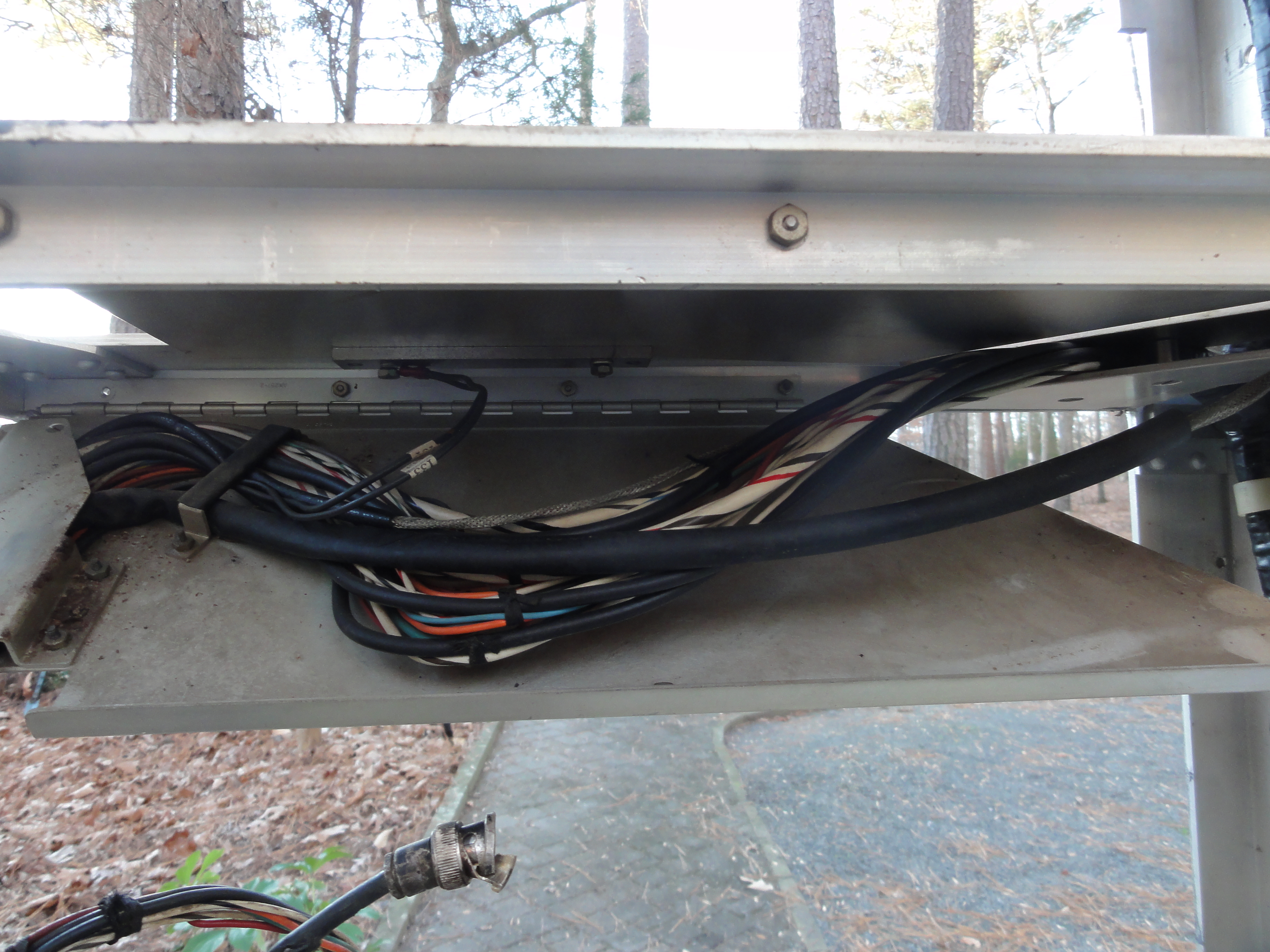

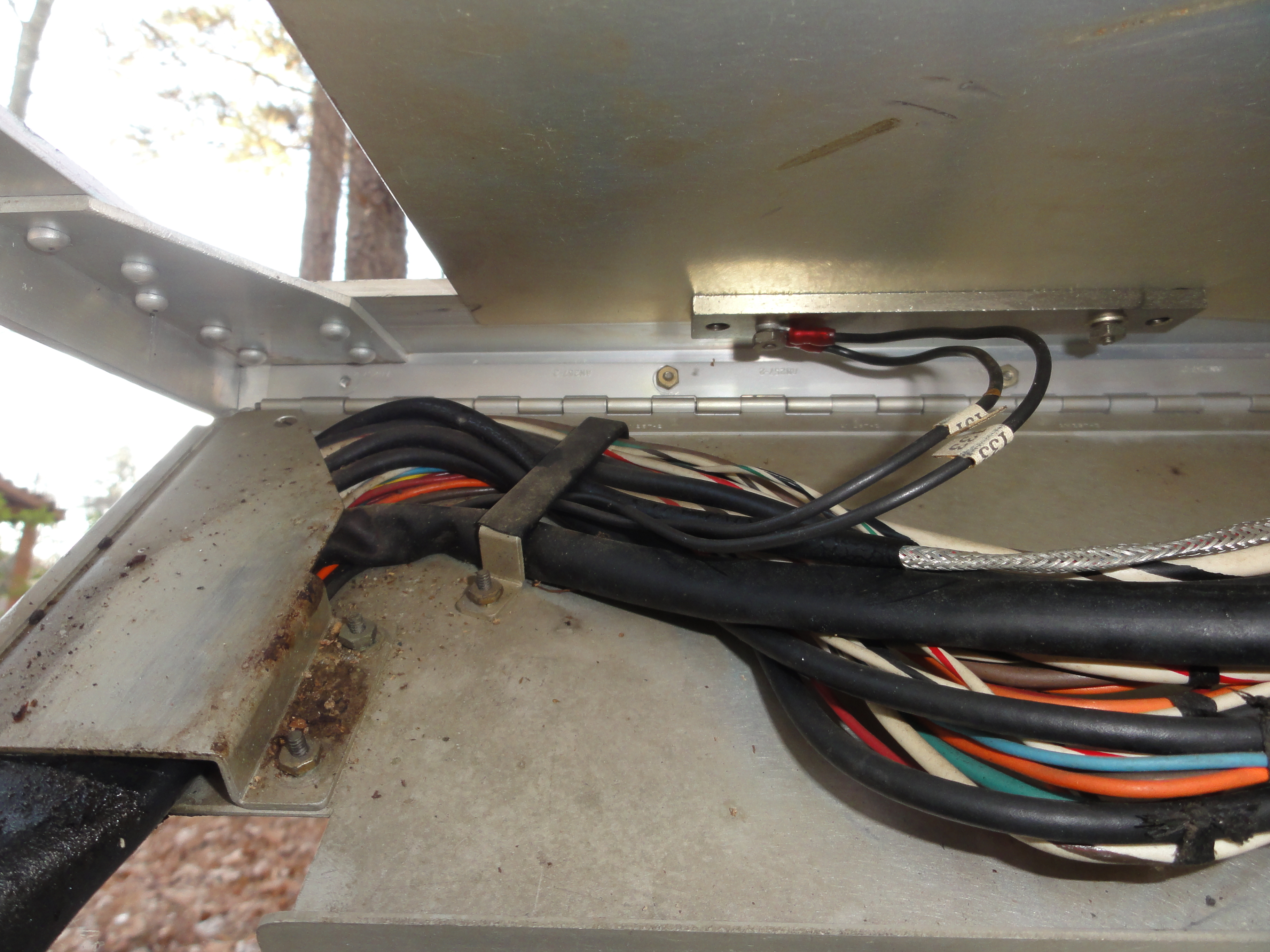

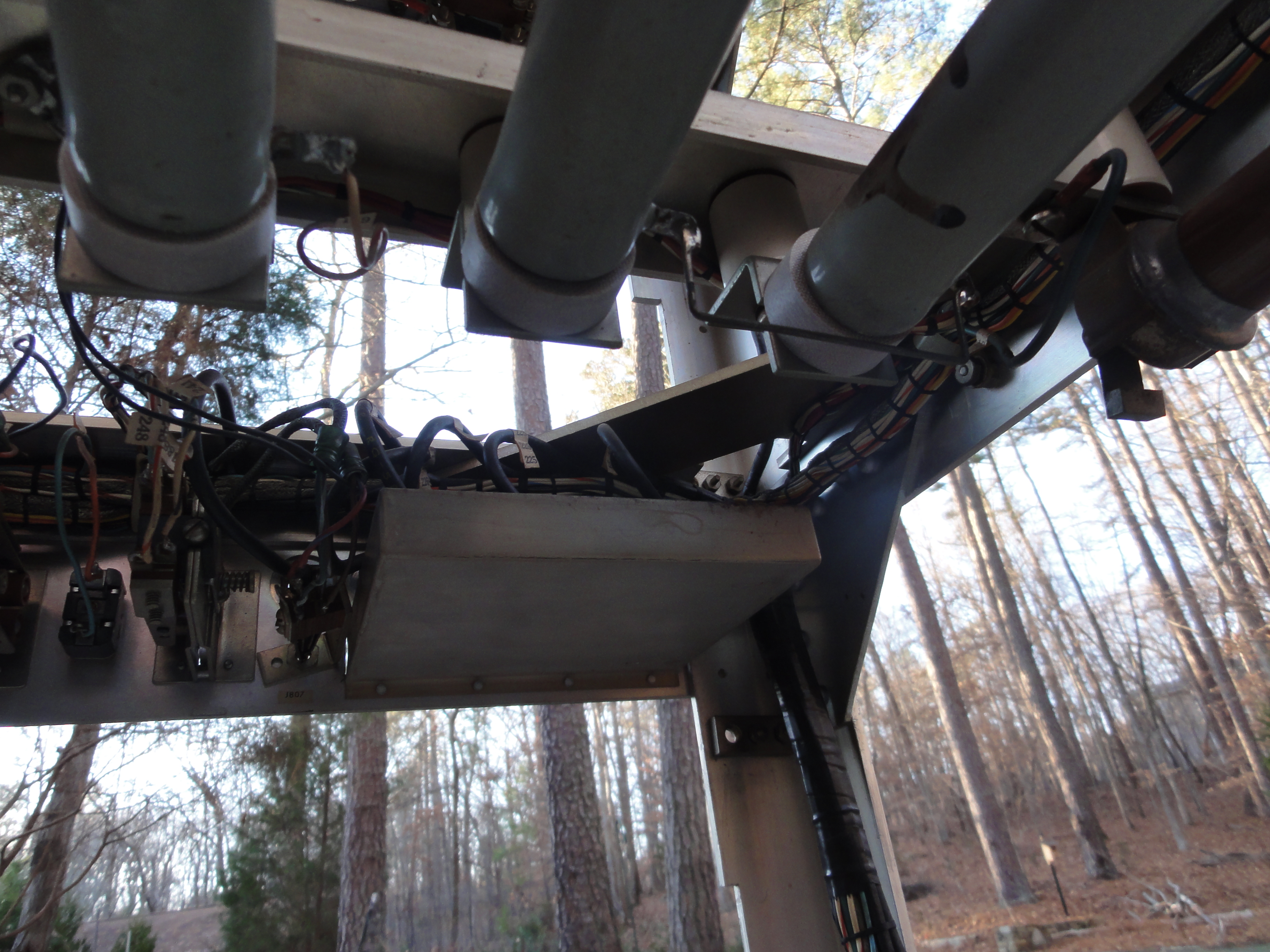

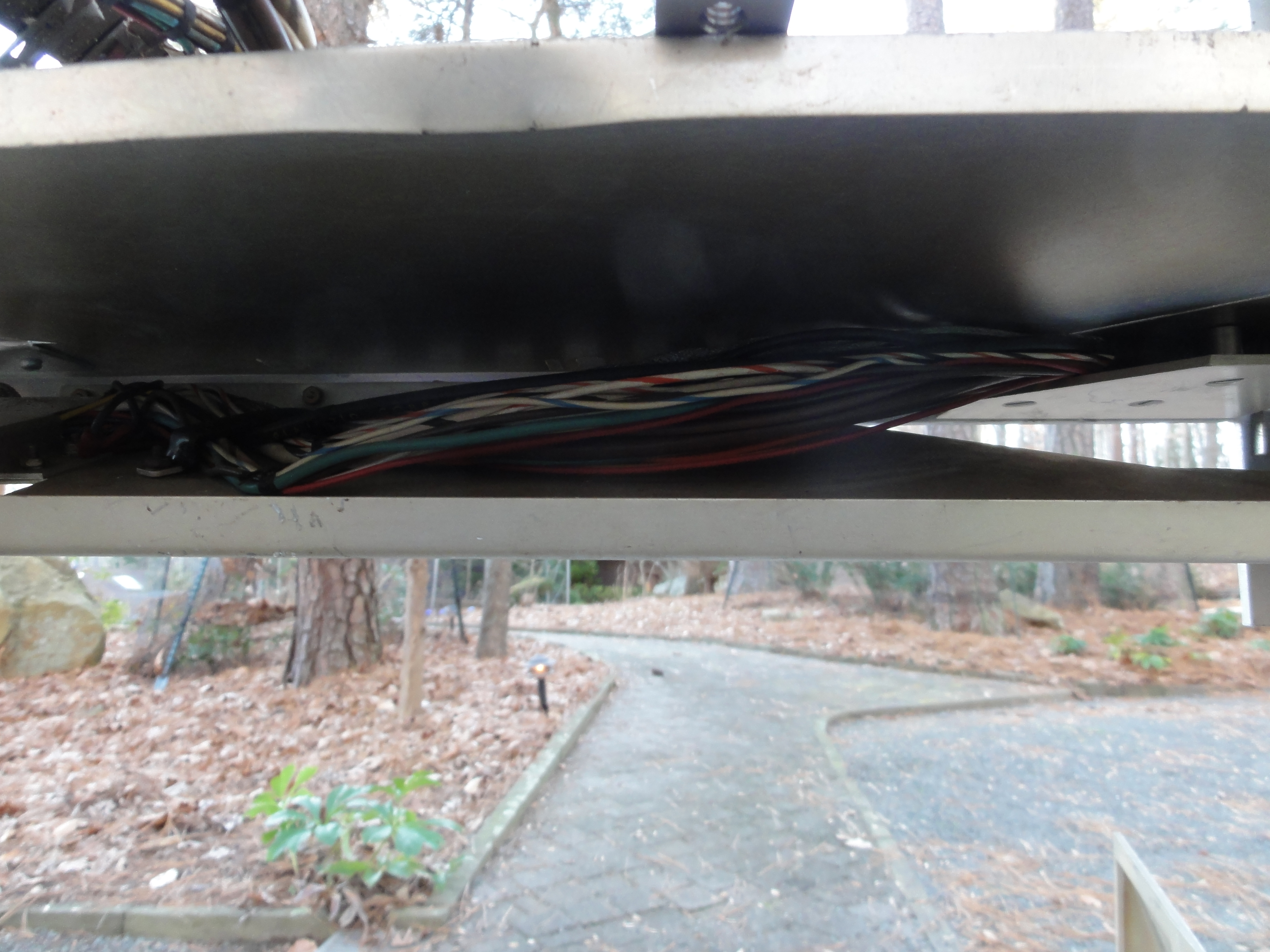

Cable routing

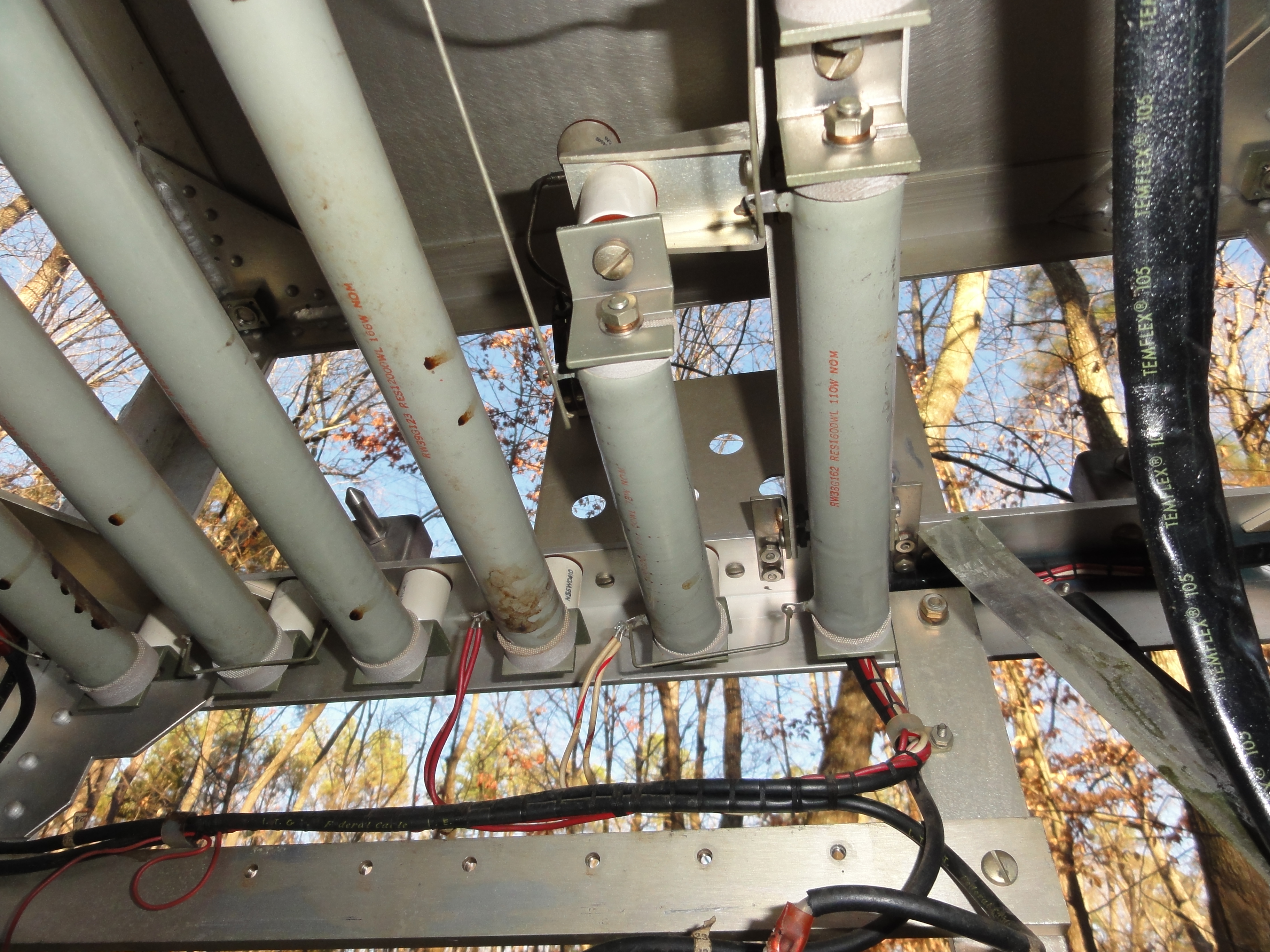

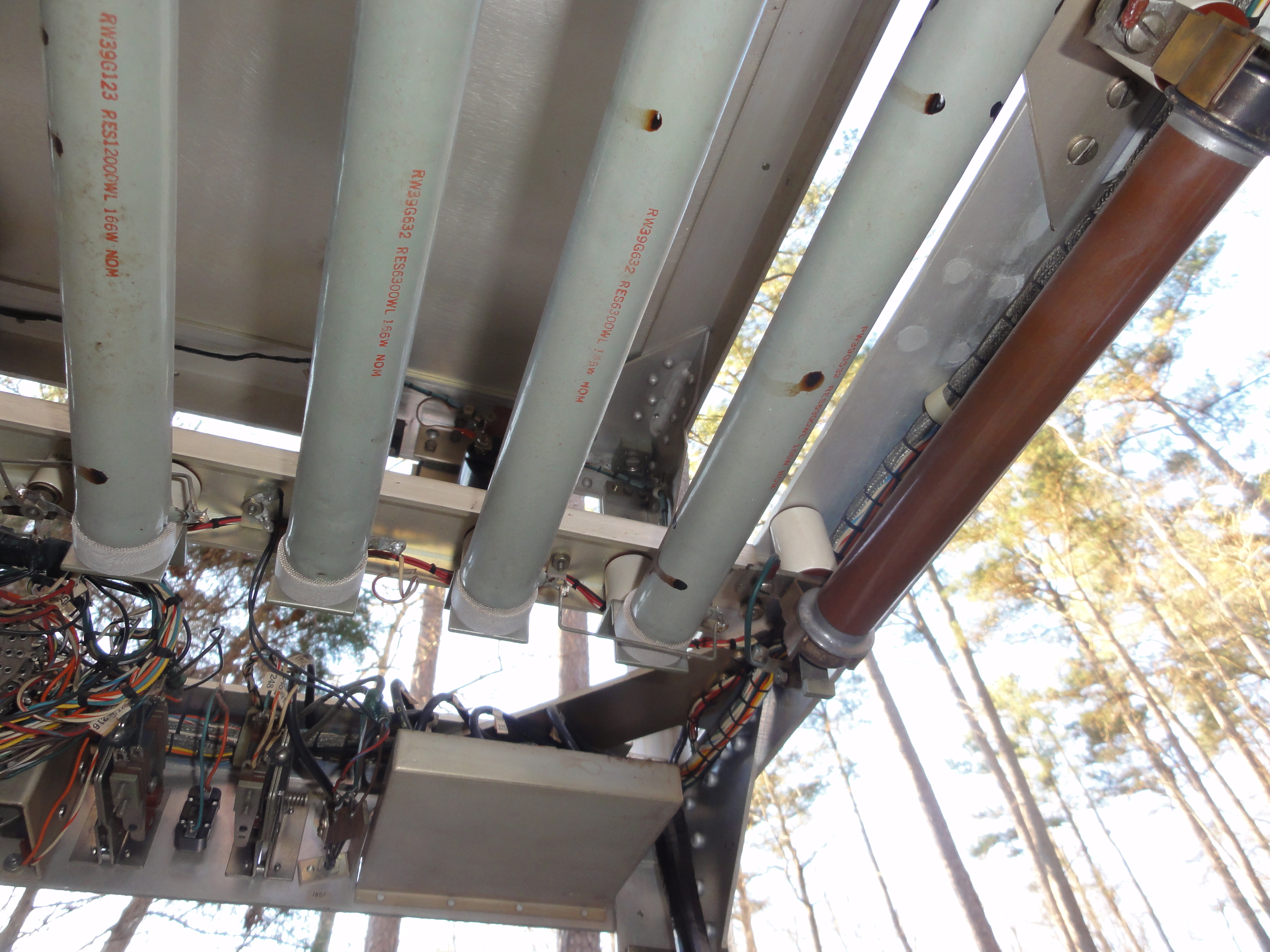

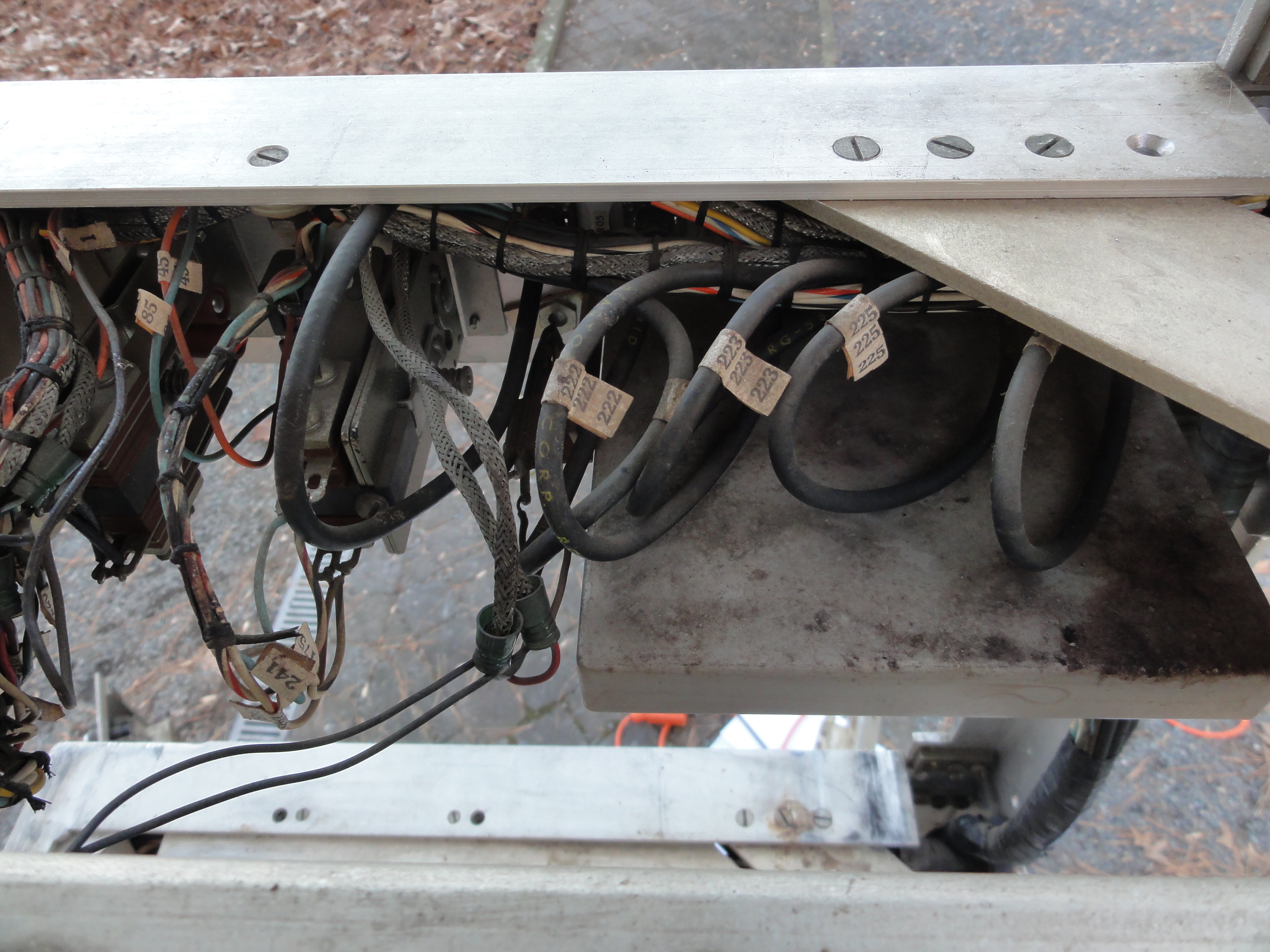

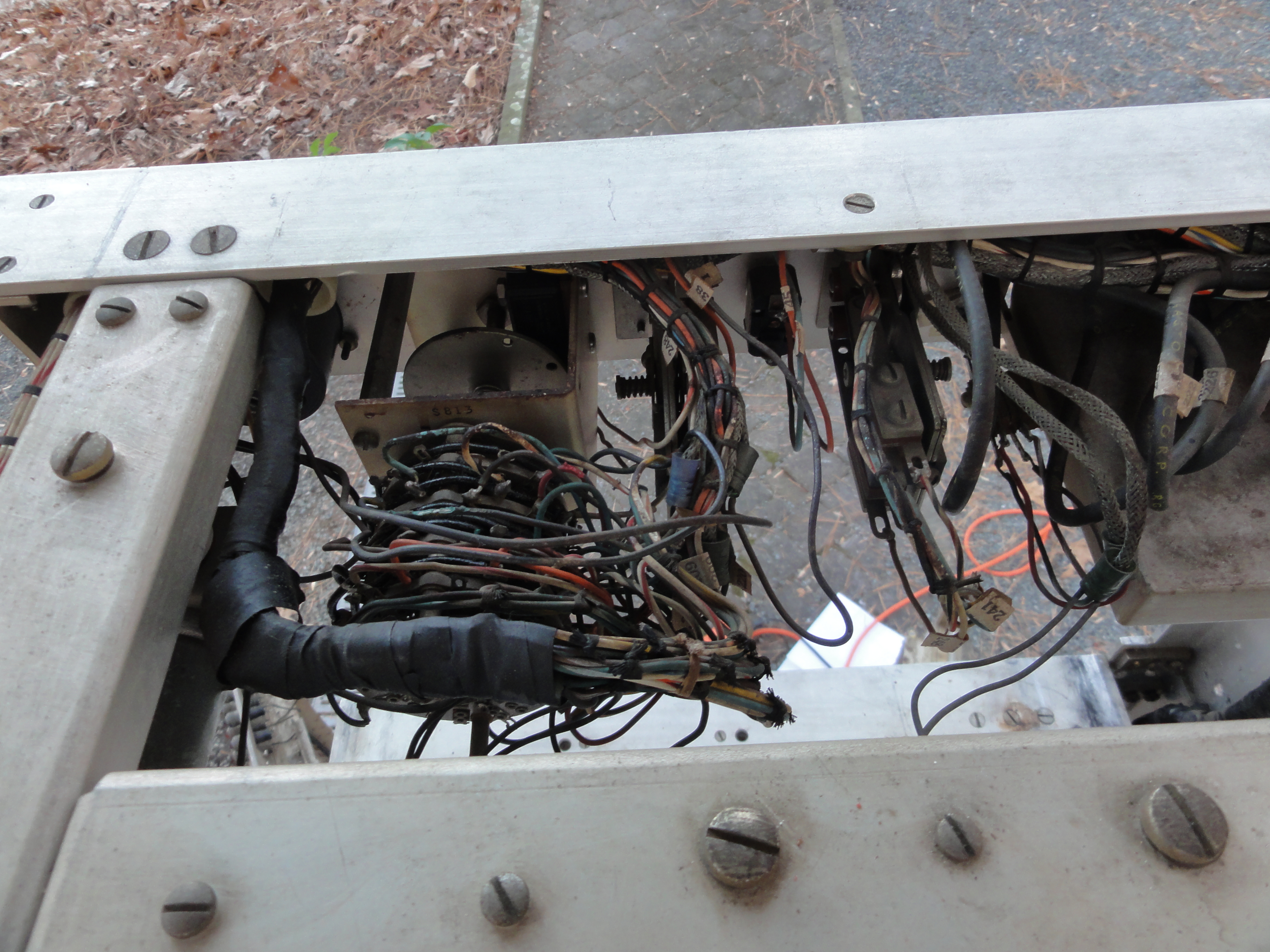

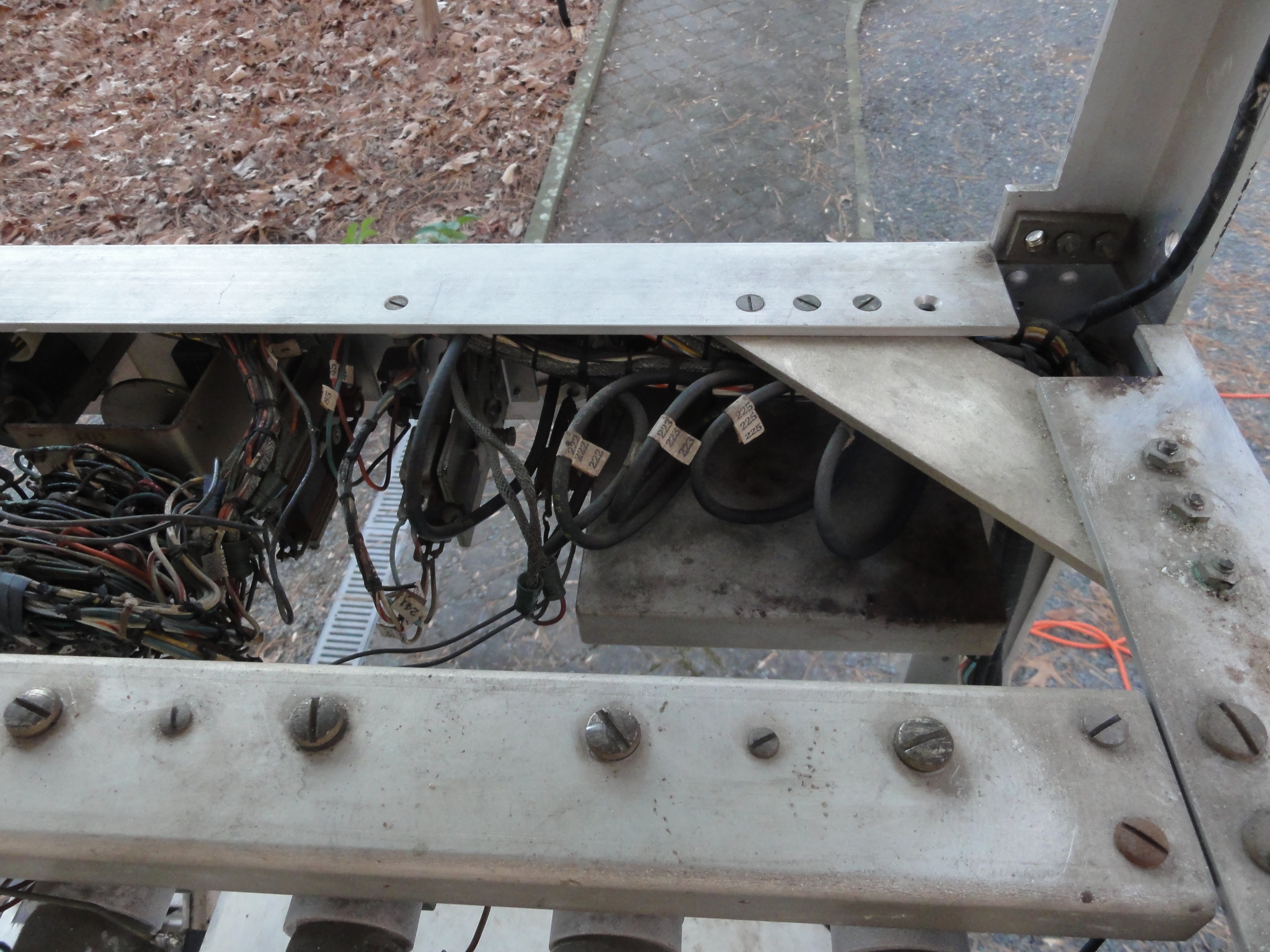

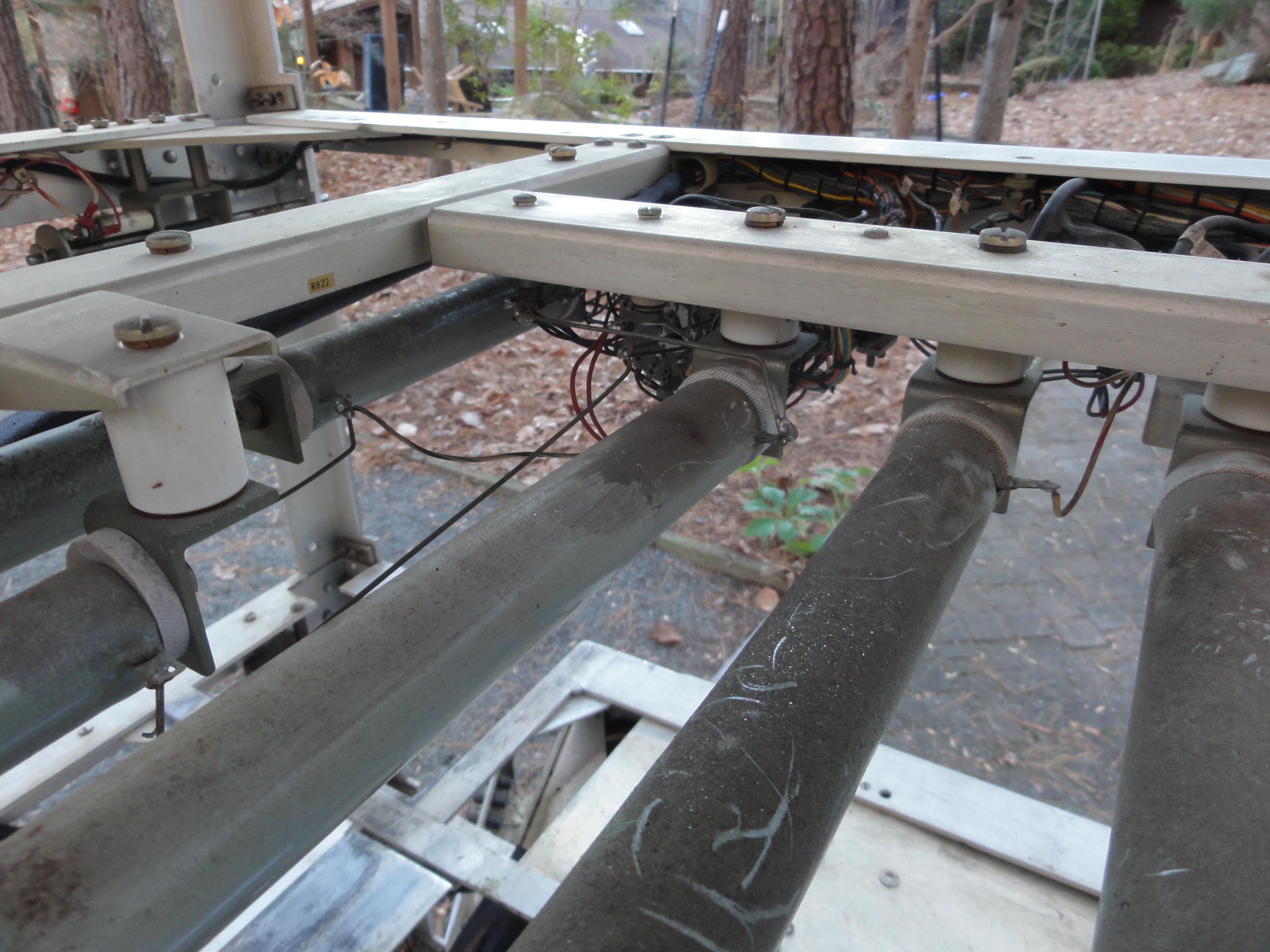

DSC01237.JPG (3971297 bytes) DSC01238.JPG (4076404 bytes) DSC01239.JPG (4134182 bytes) Resistors beneath antenna coupler drawer

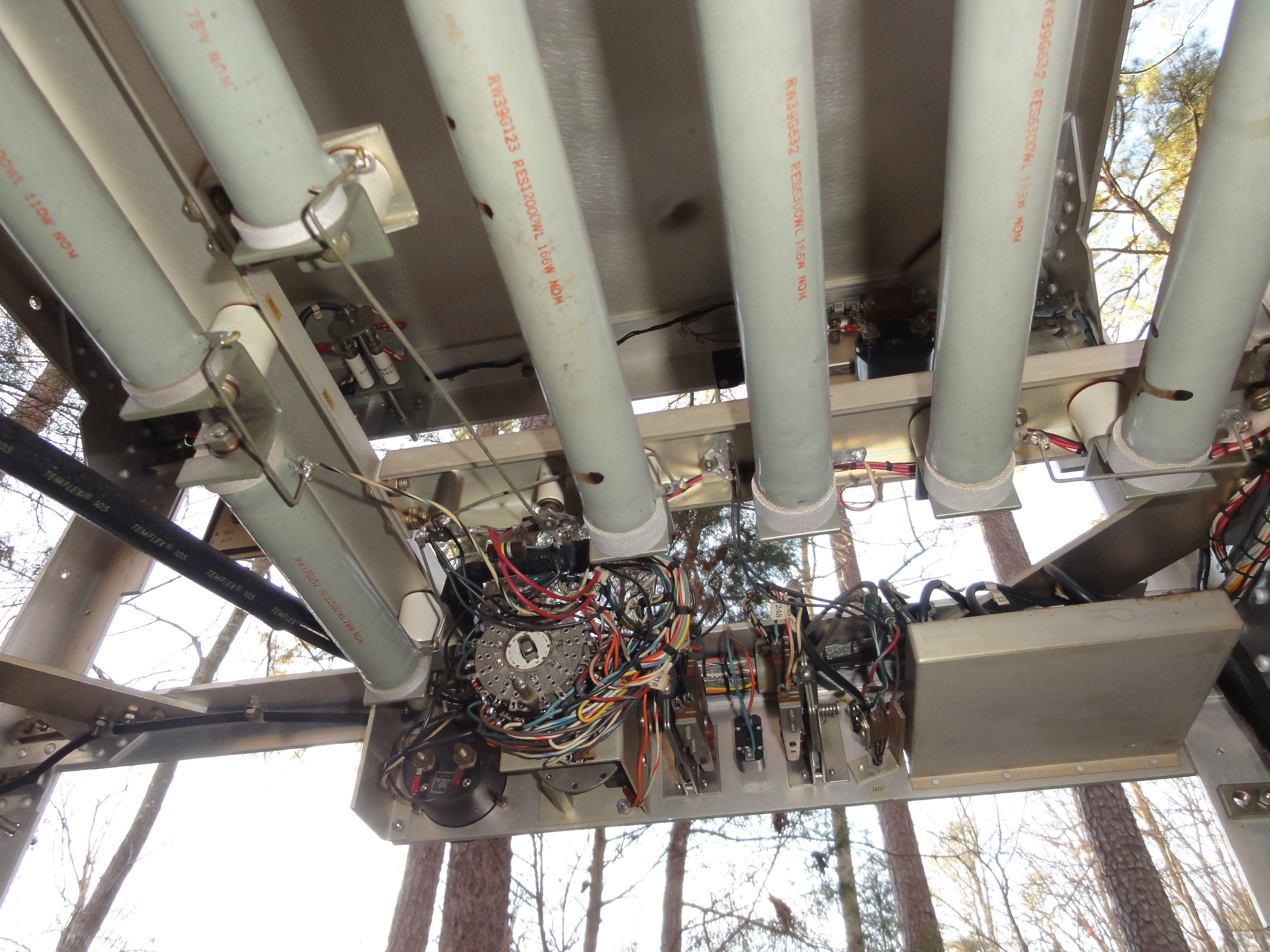

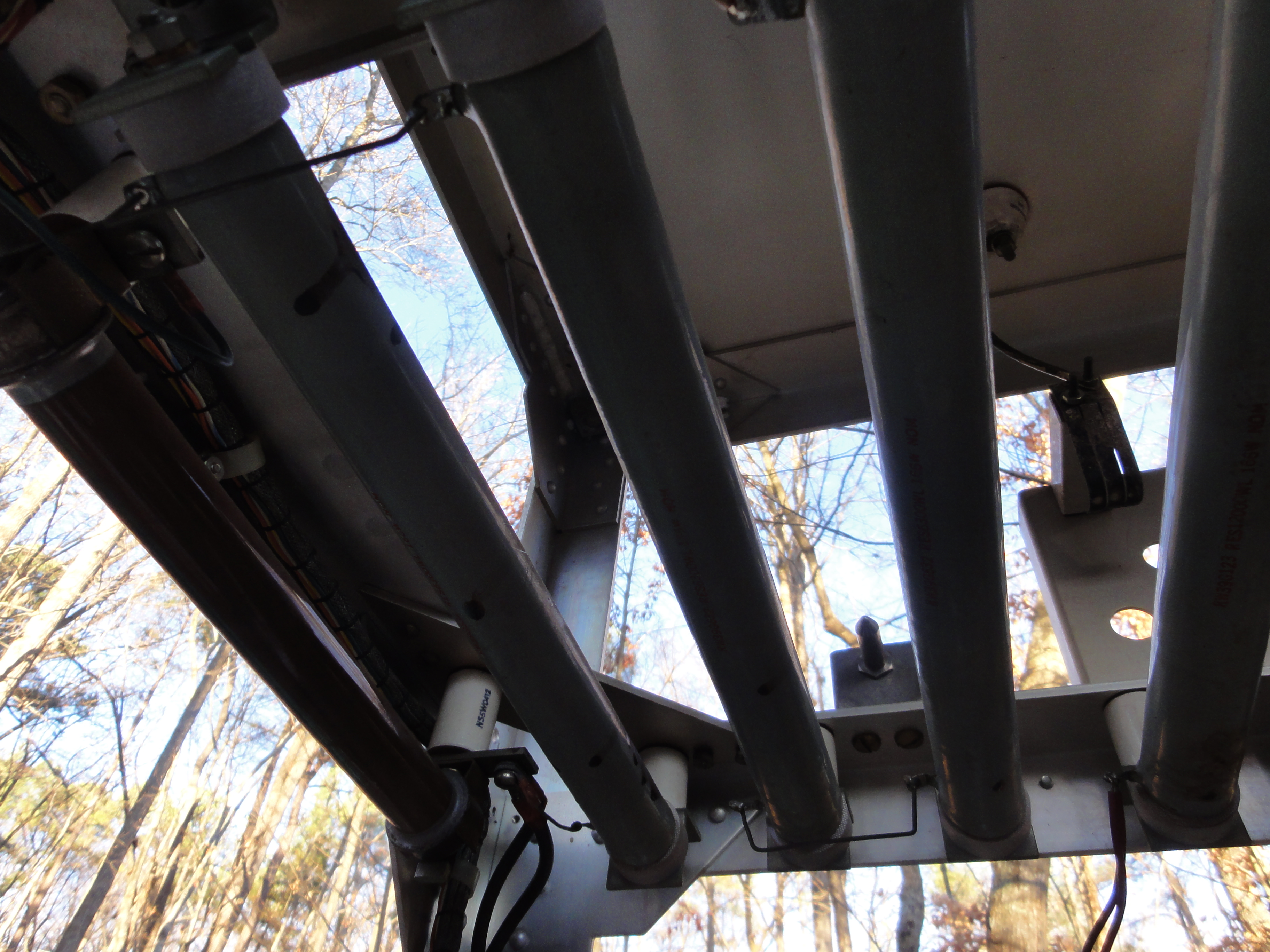

DSC01241.JPG (3931194 bytes) DSC01242.JPG (3930738 bytes) DSC01243.JPG (4259500 bytes) DSC01244.JPG (3925535 bytes)

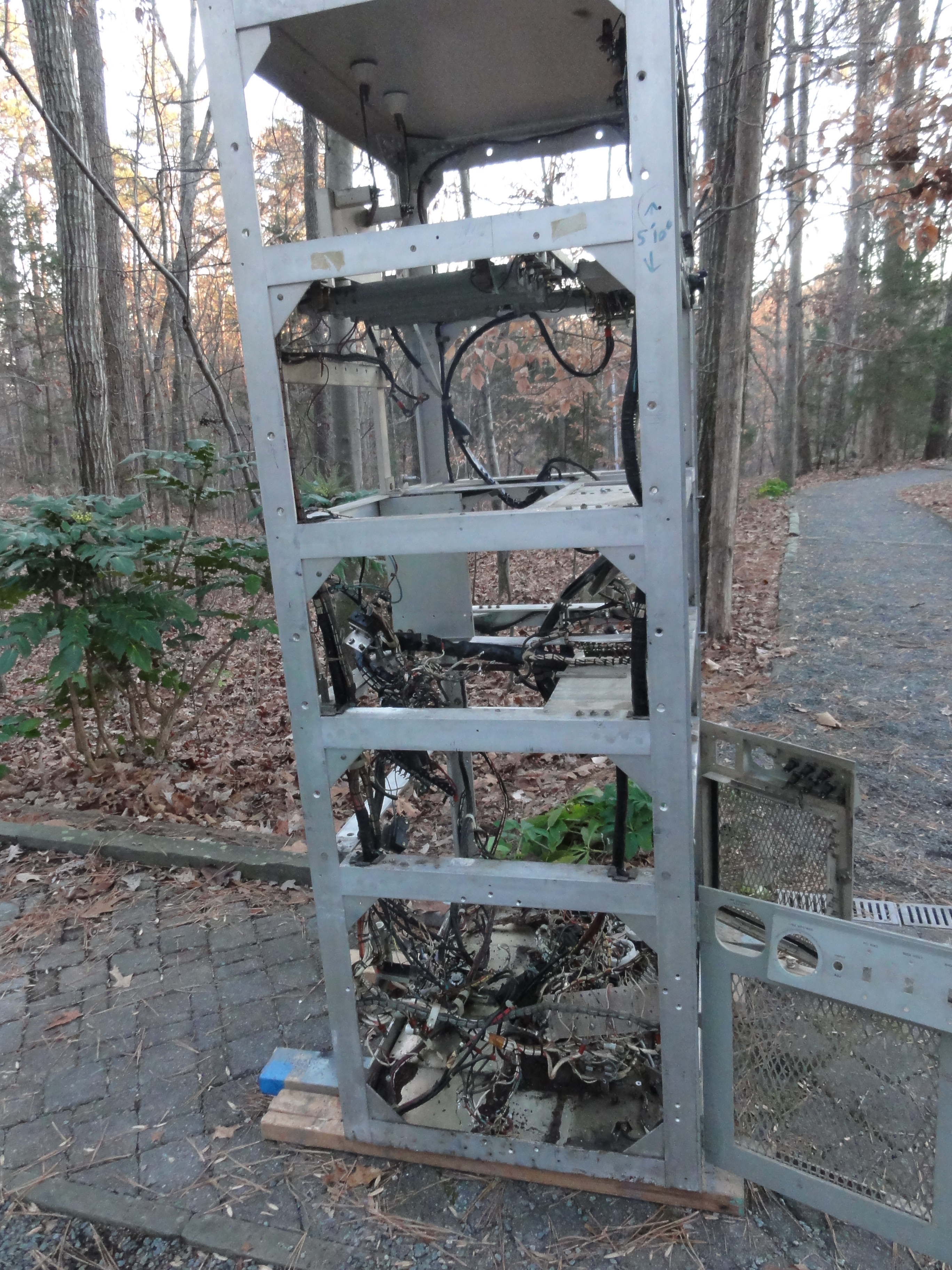

I'm getting close....maybe tomorrow I can get the harness out.

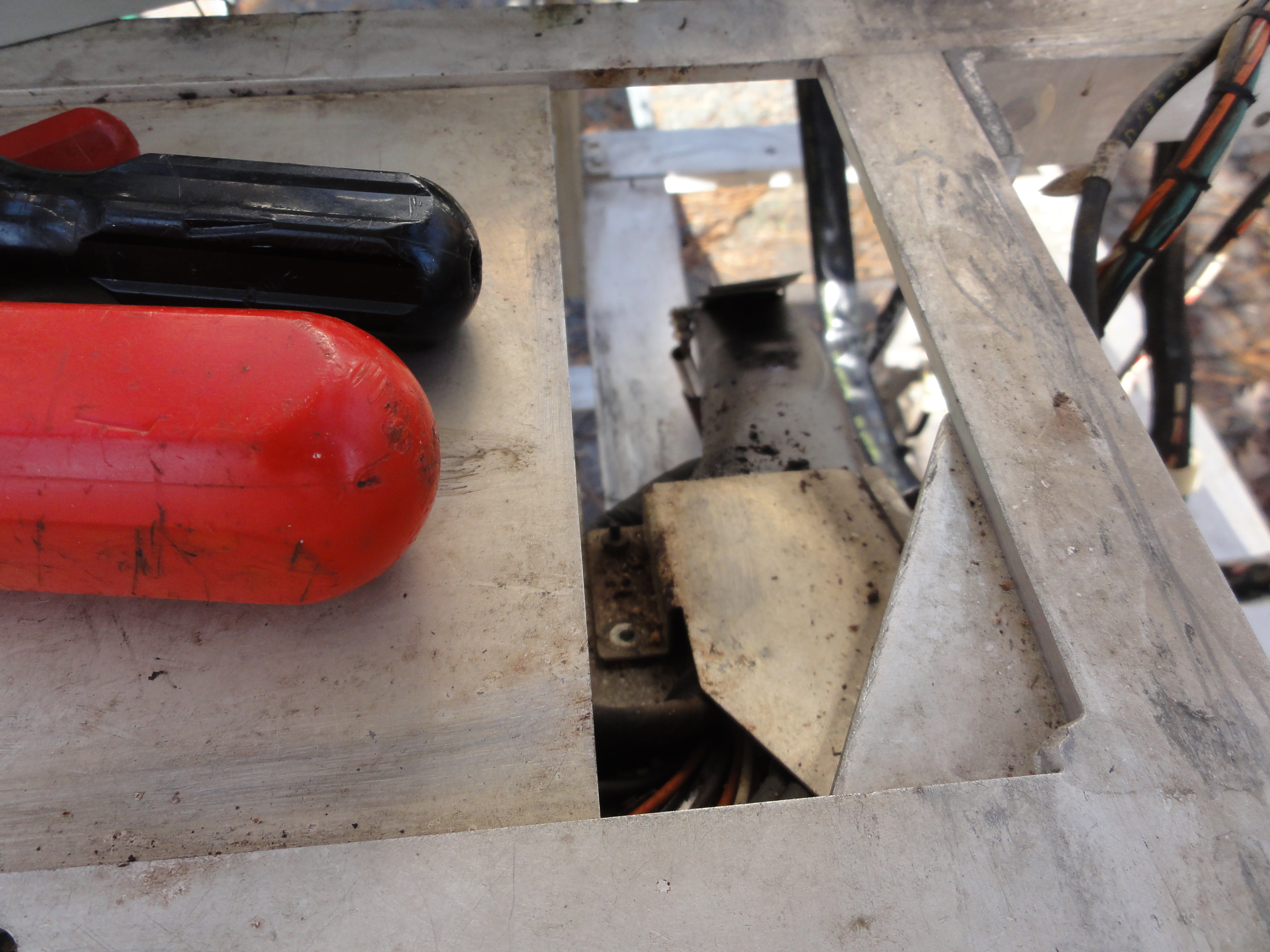

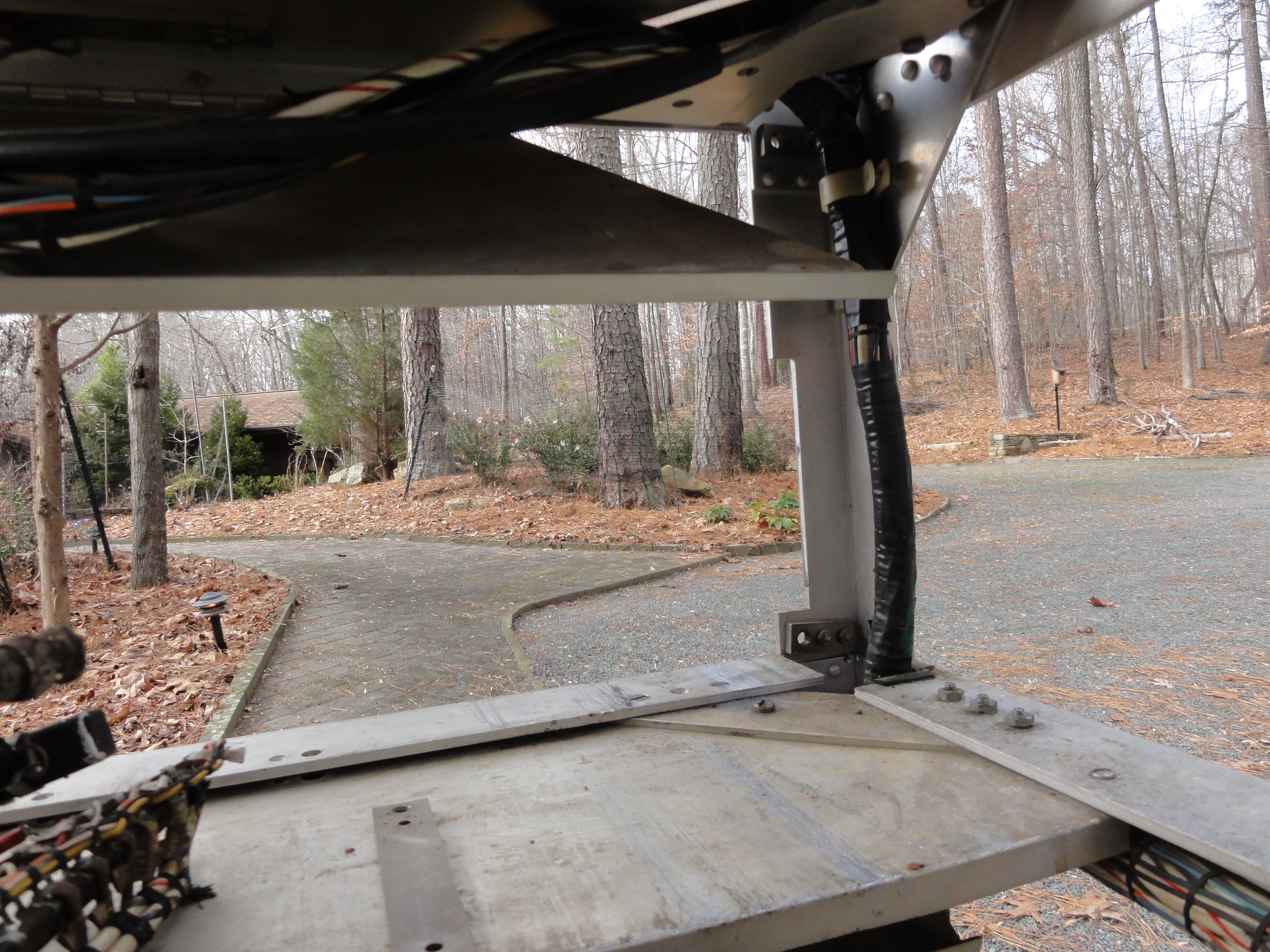

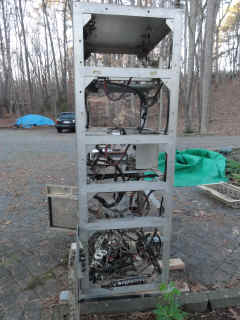

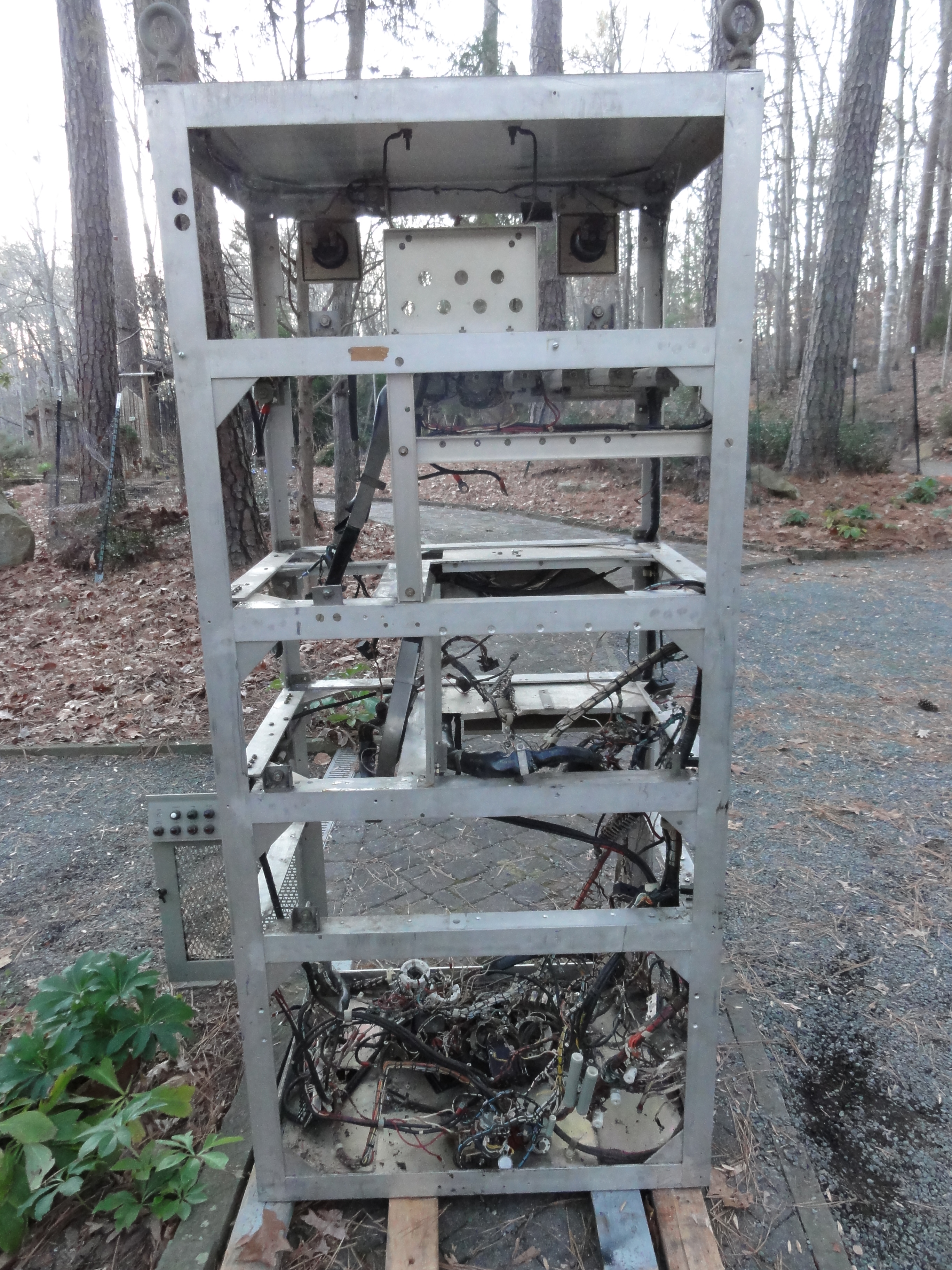

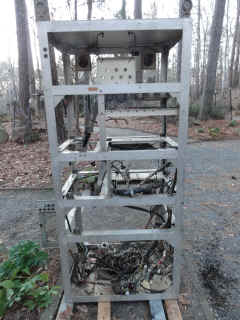

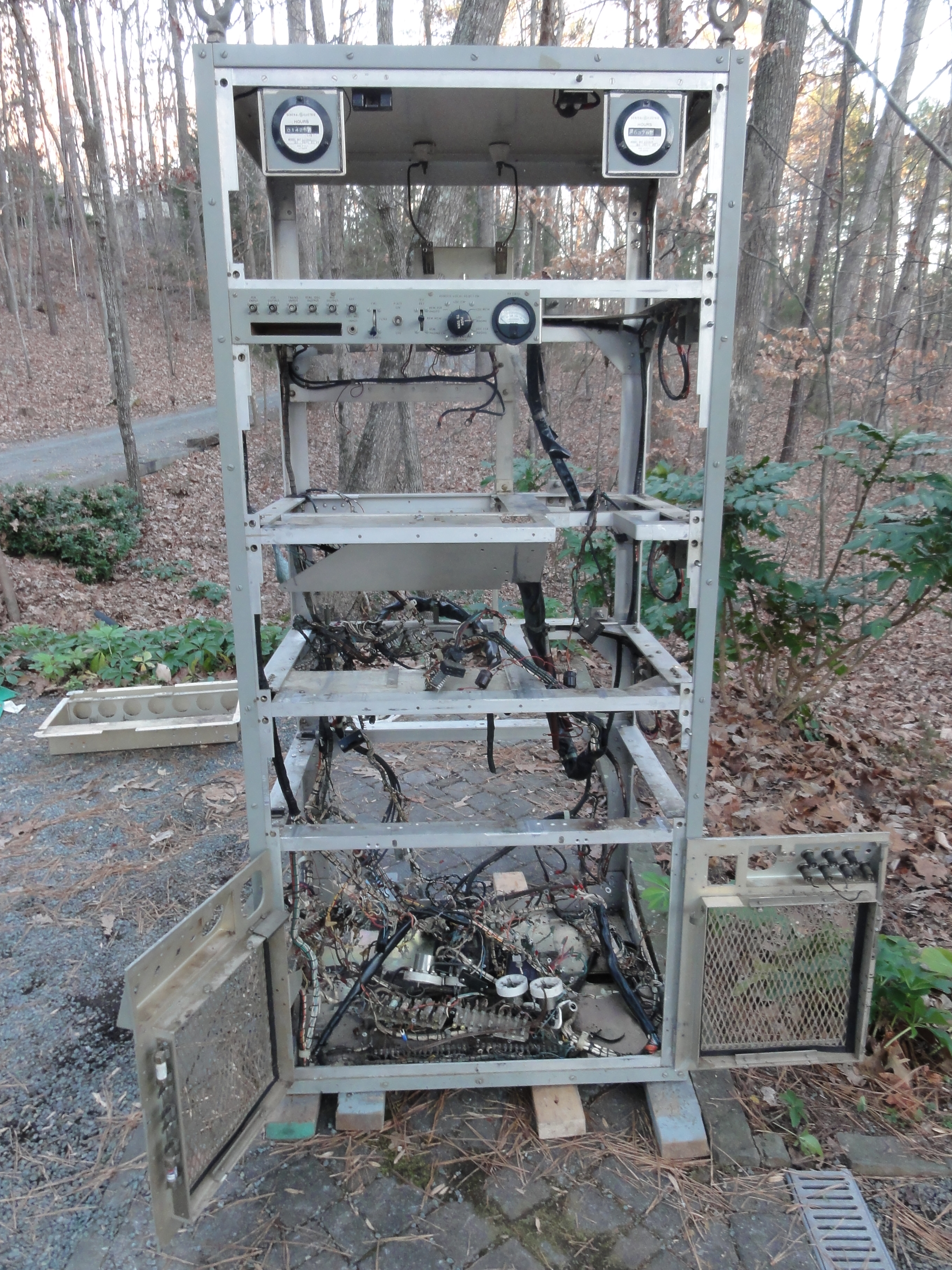

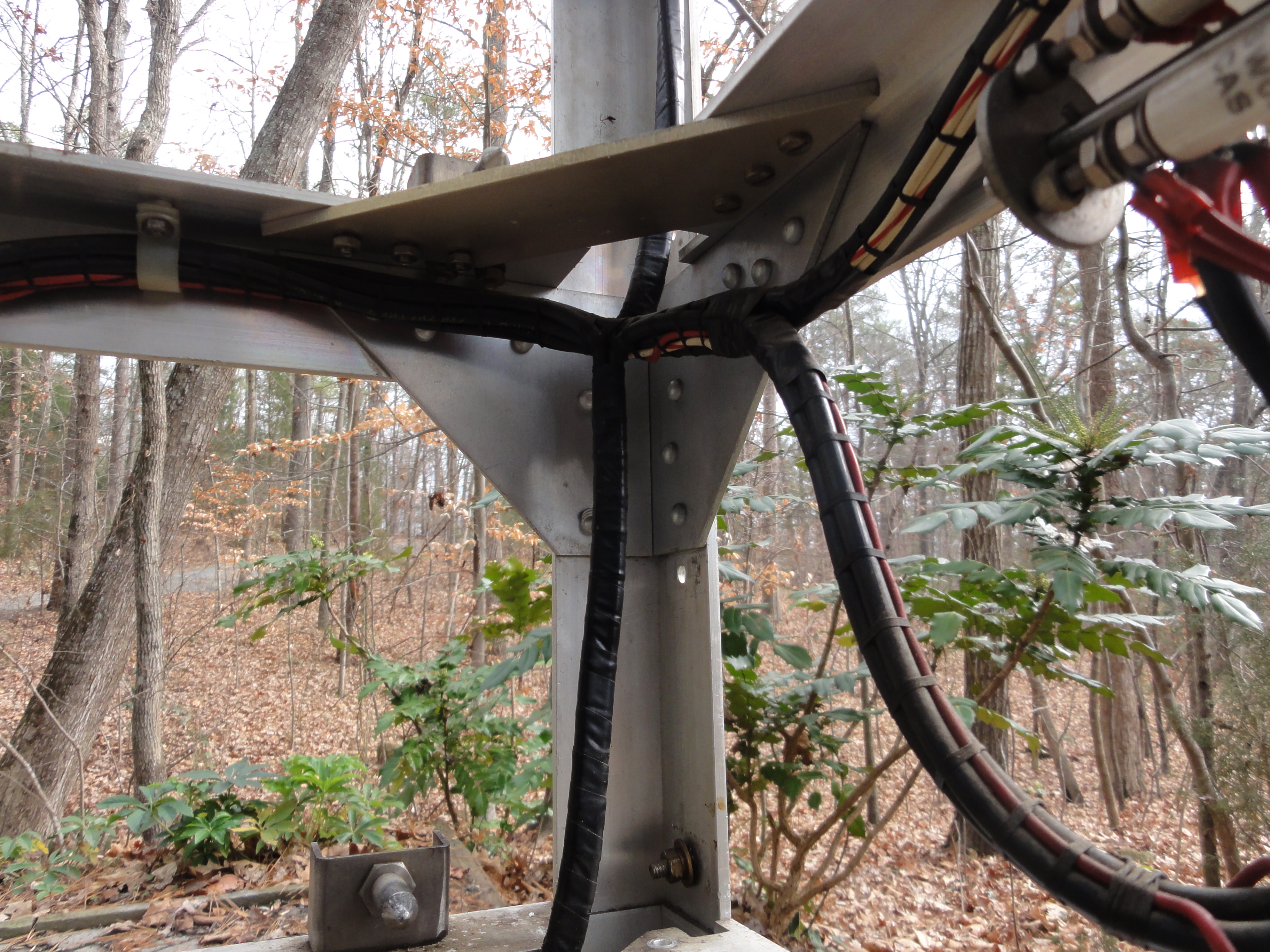

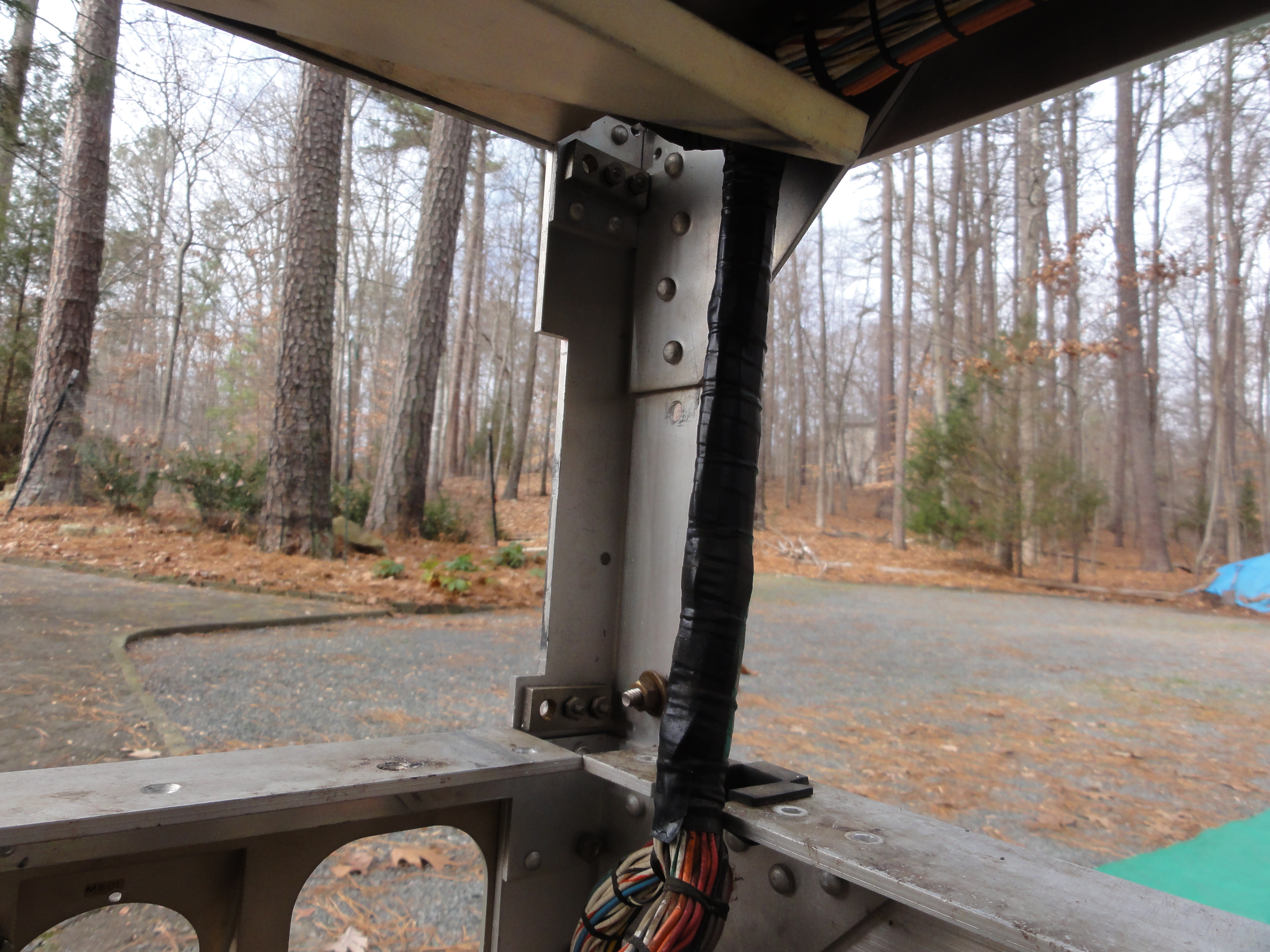

Day 7 - OK, I've got it apart - the big question is how long will it take to get back together?????????

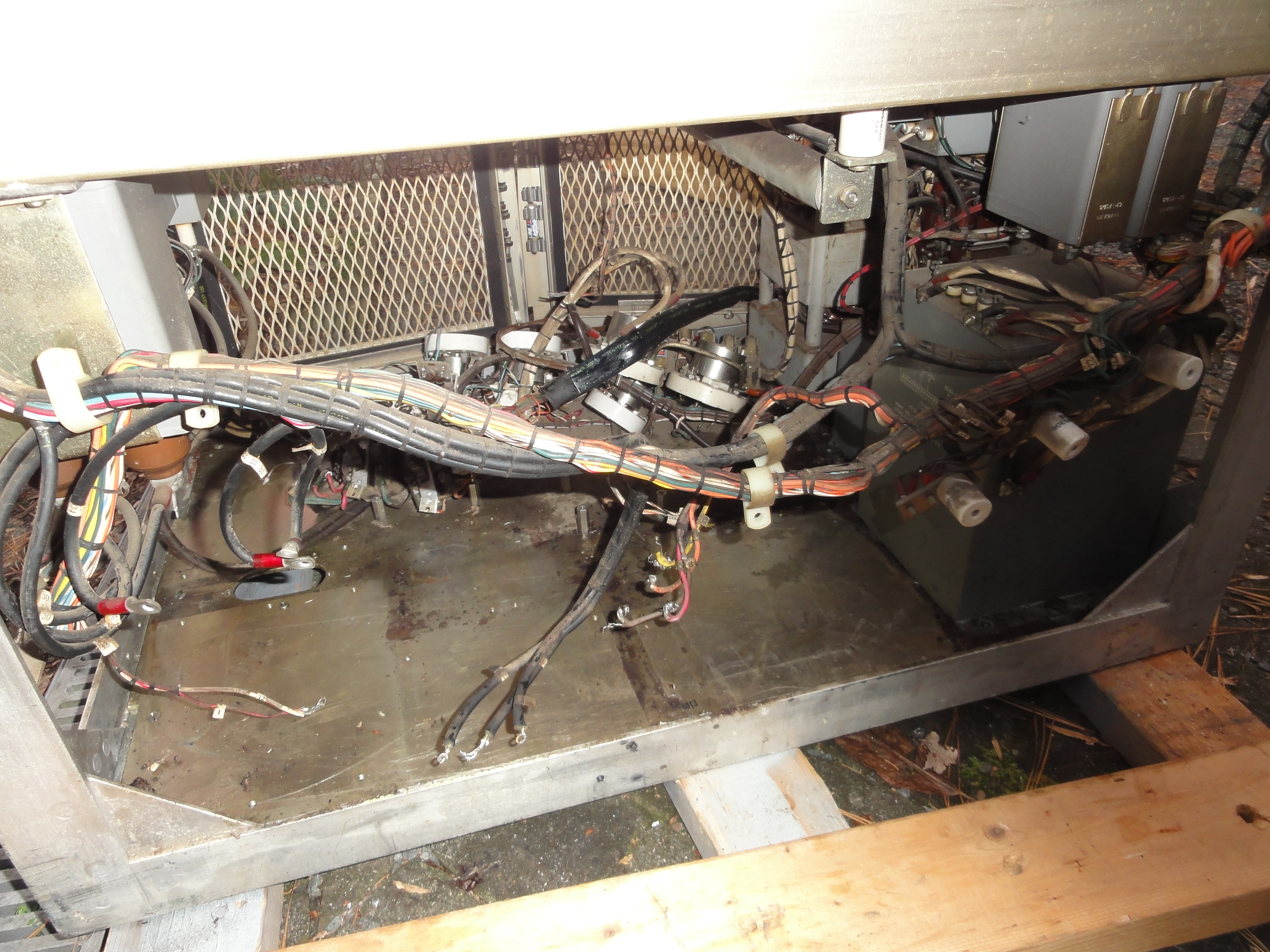

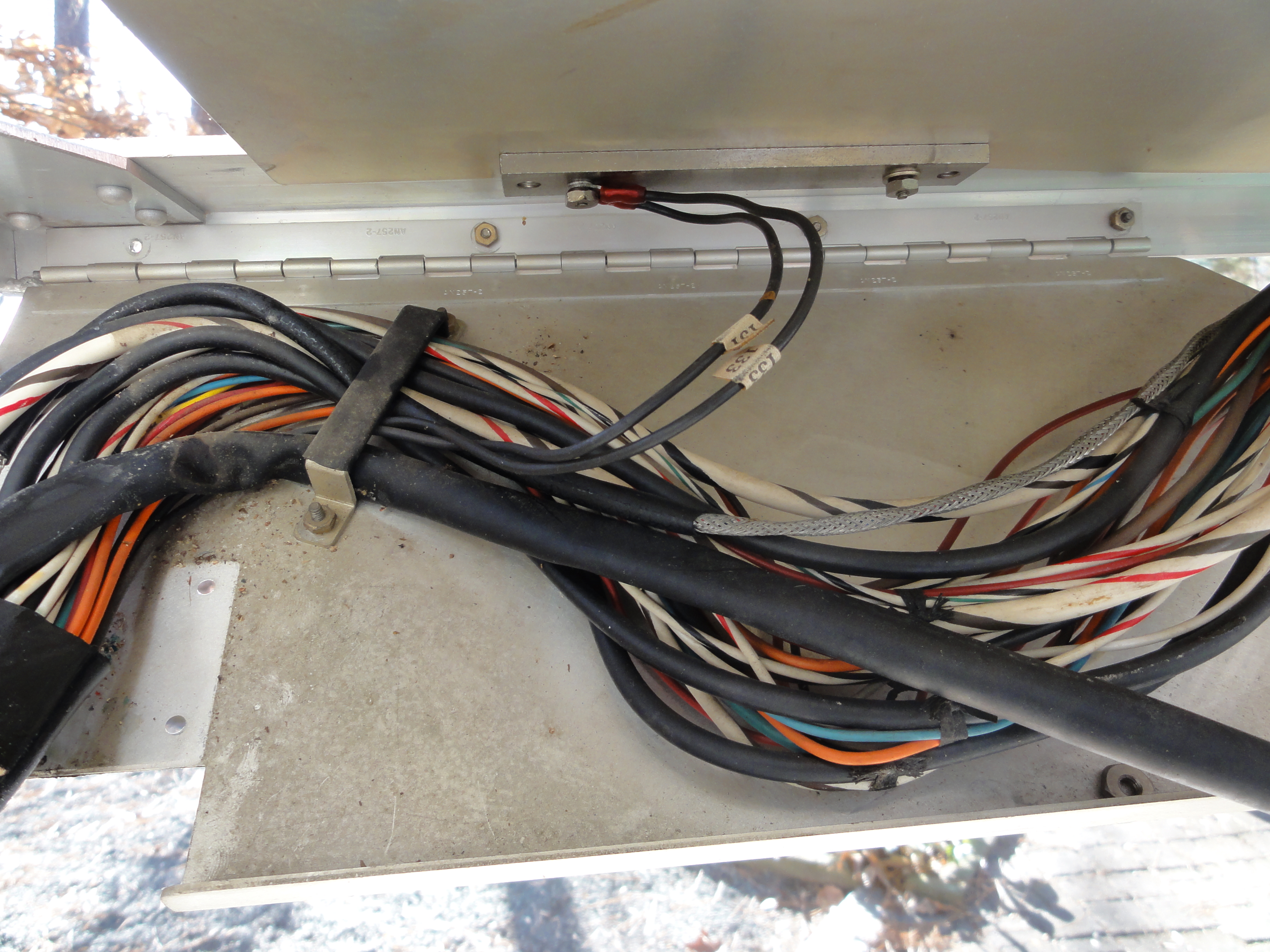

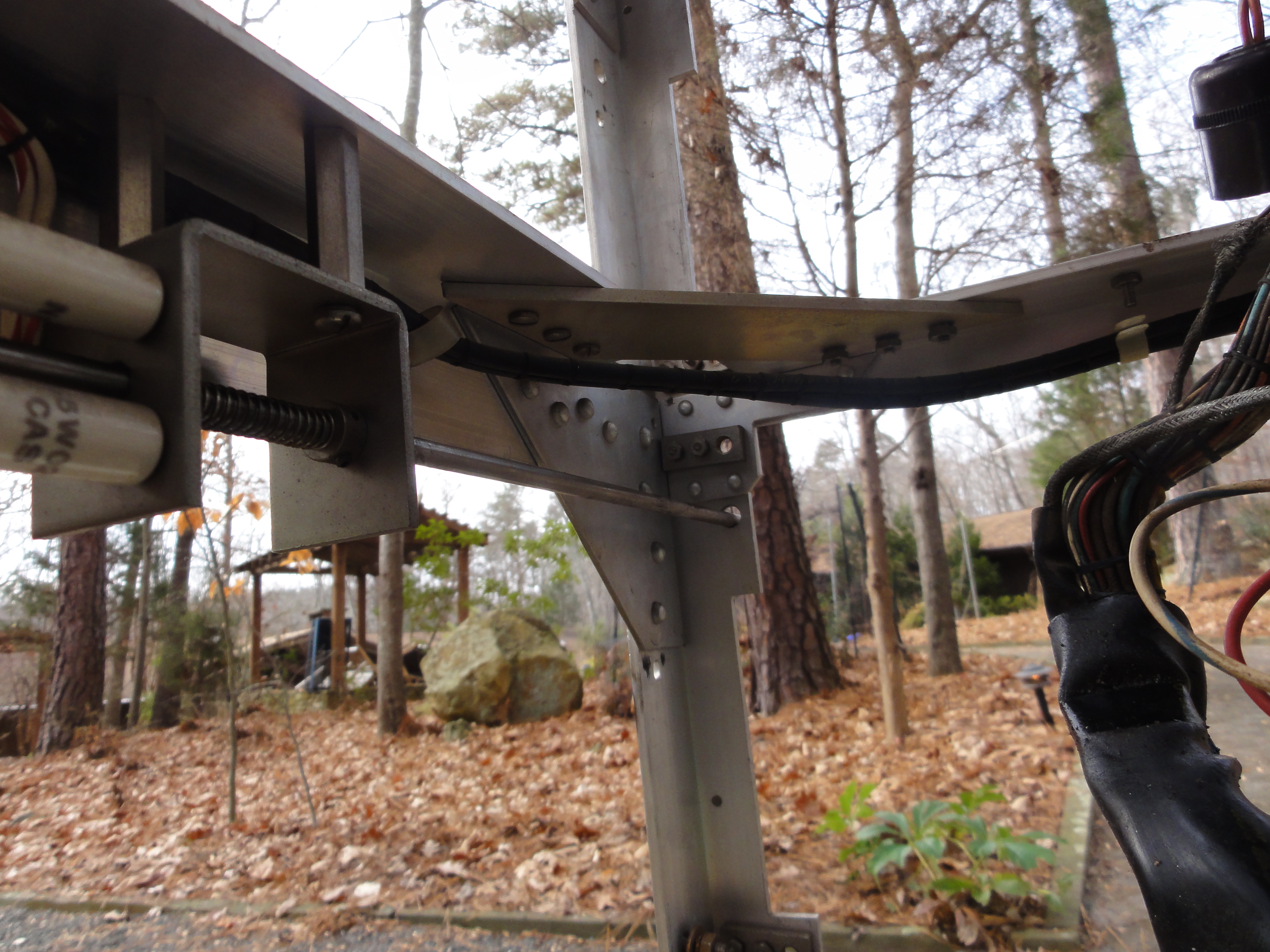

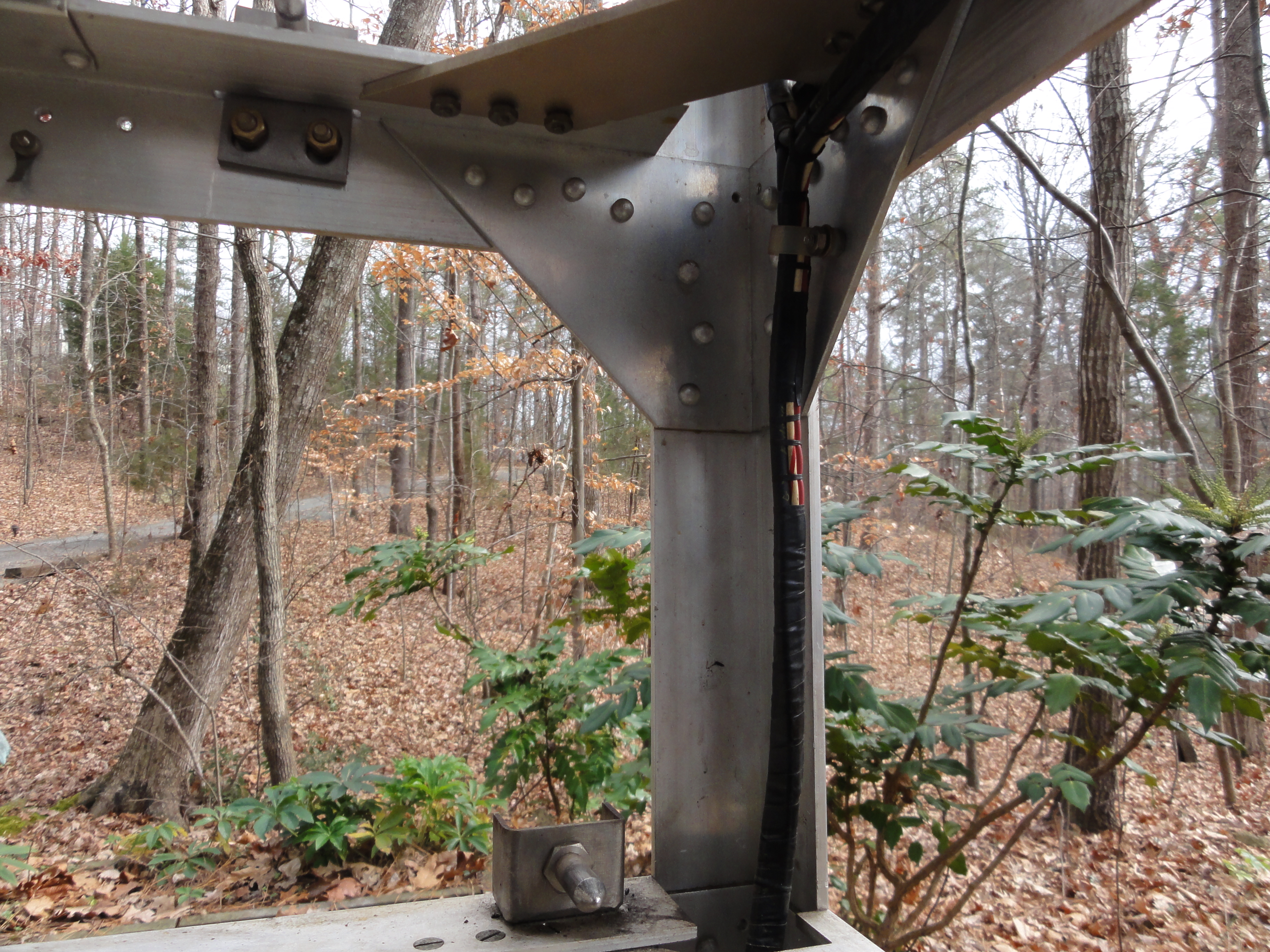

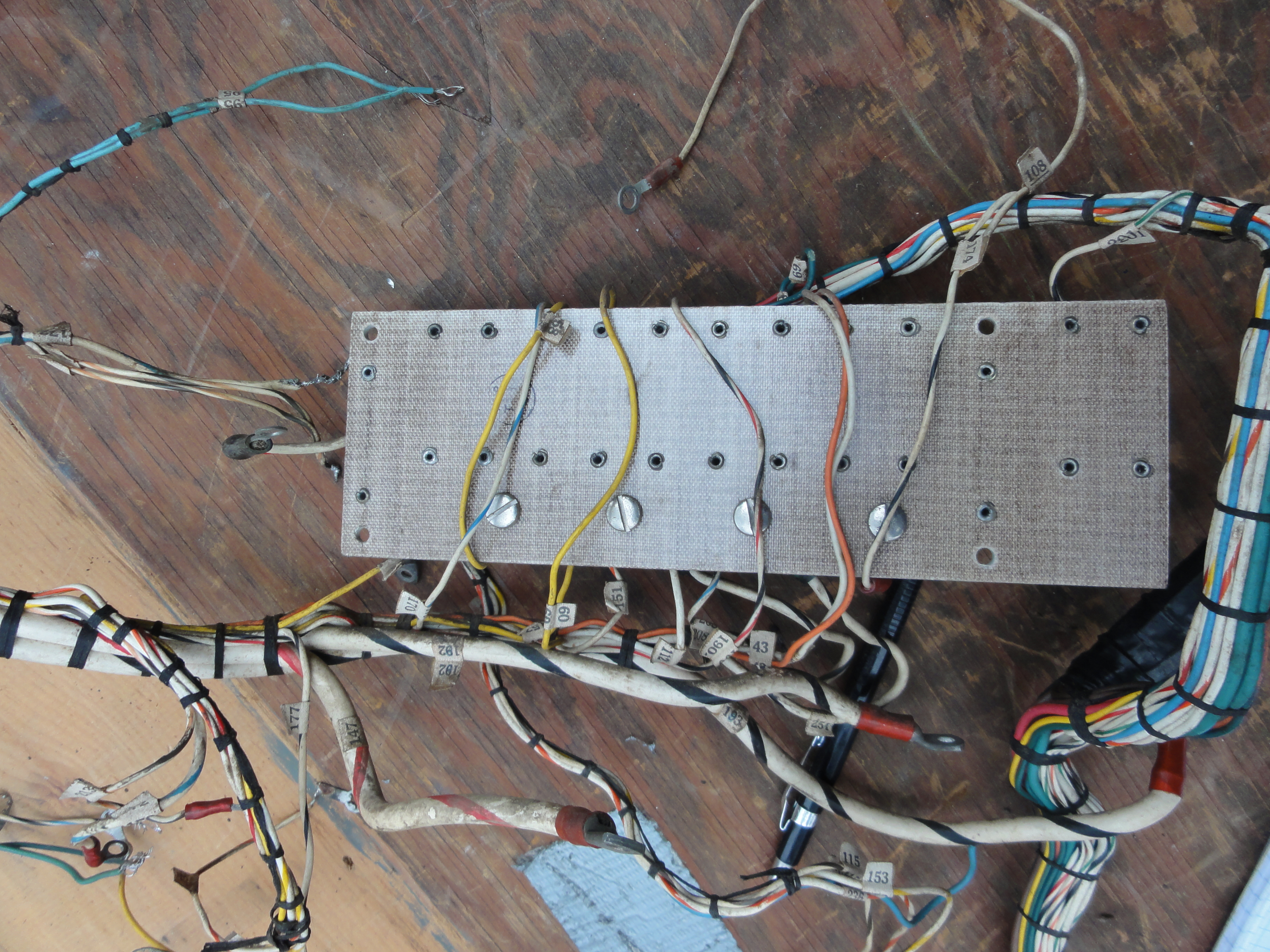

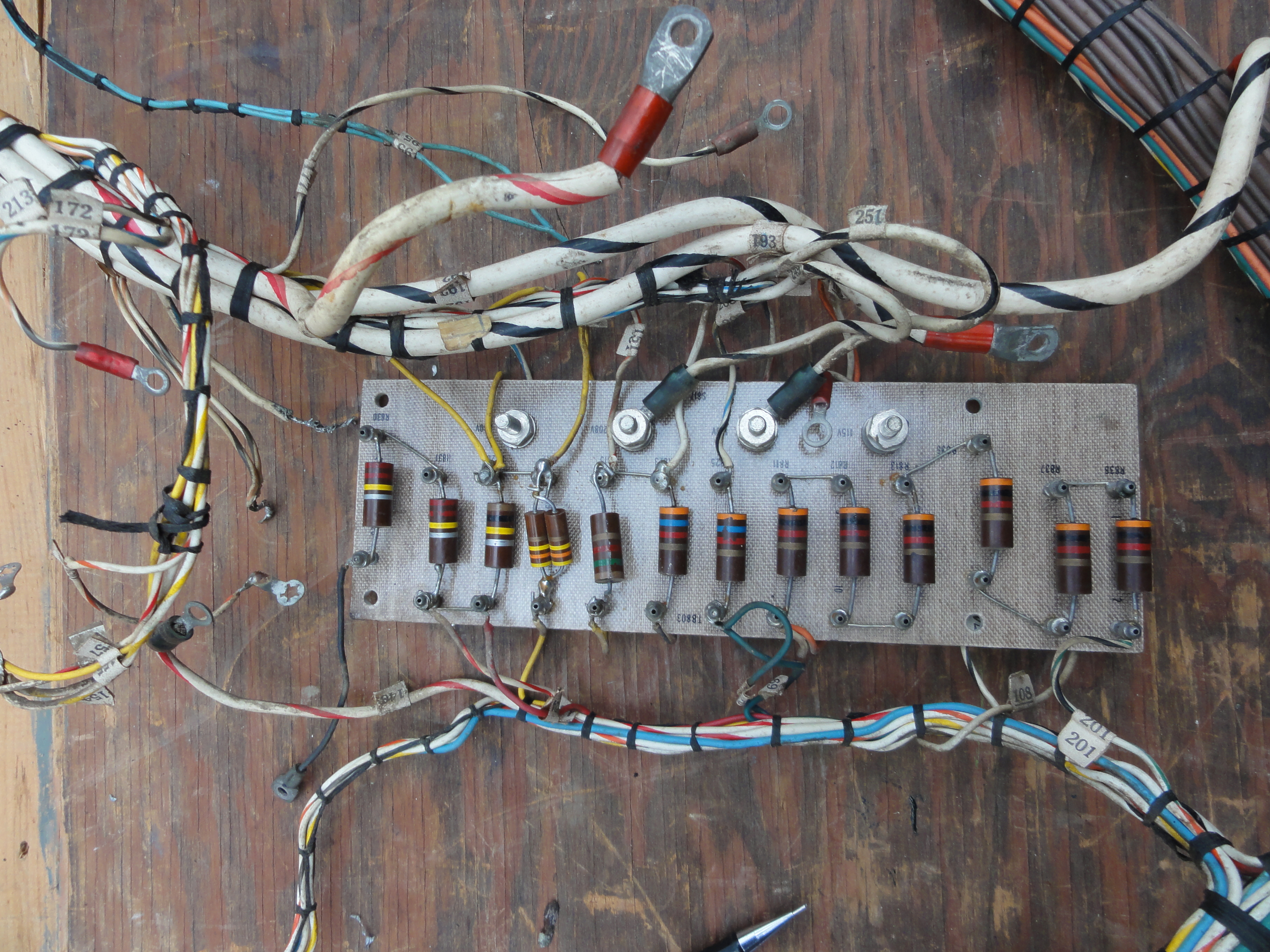

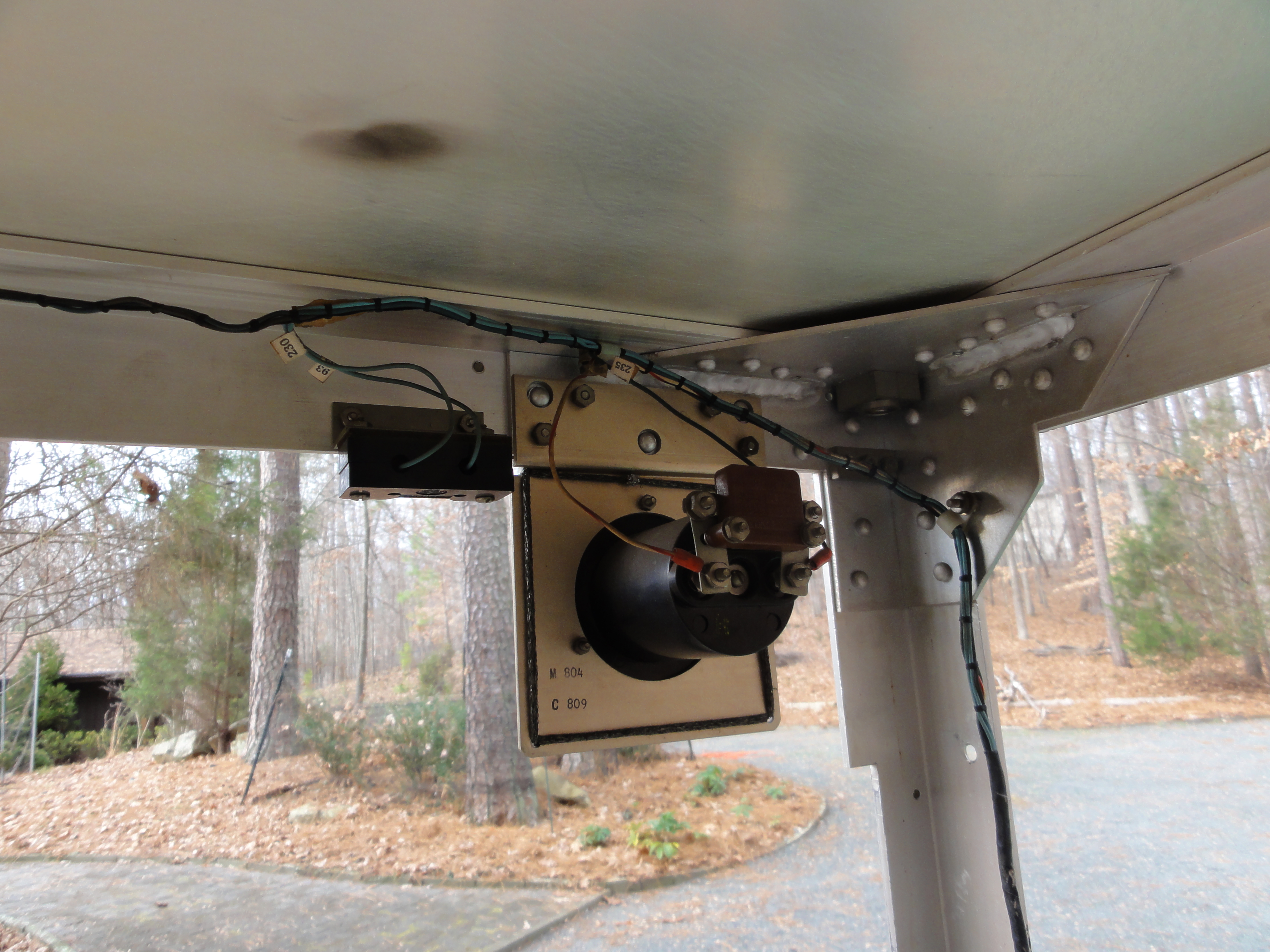

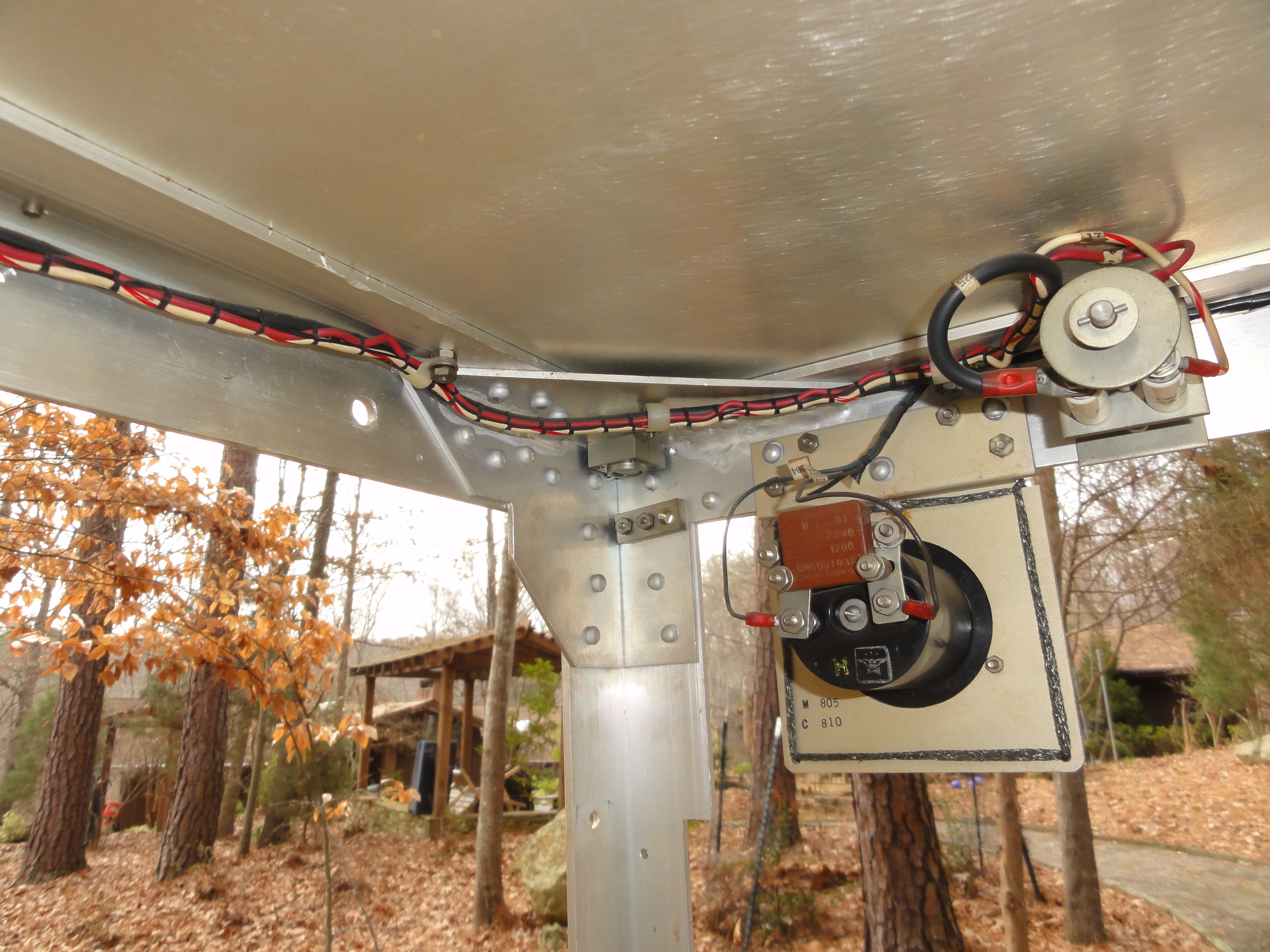

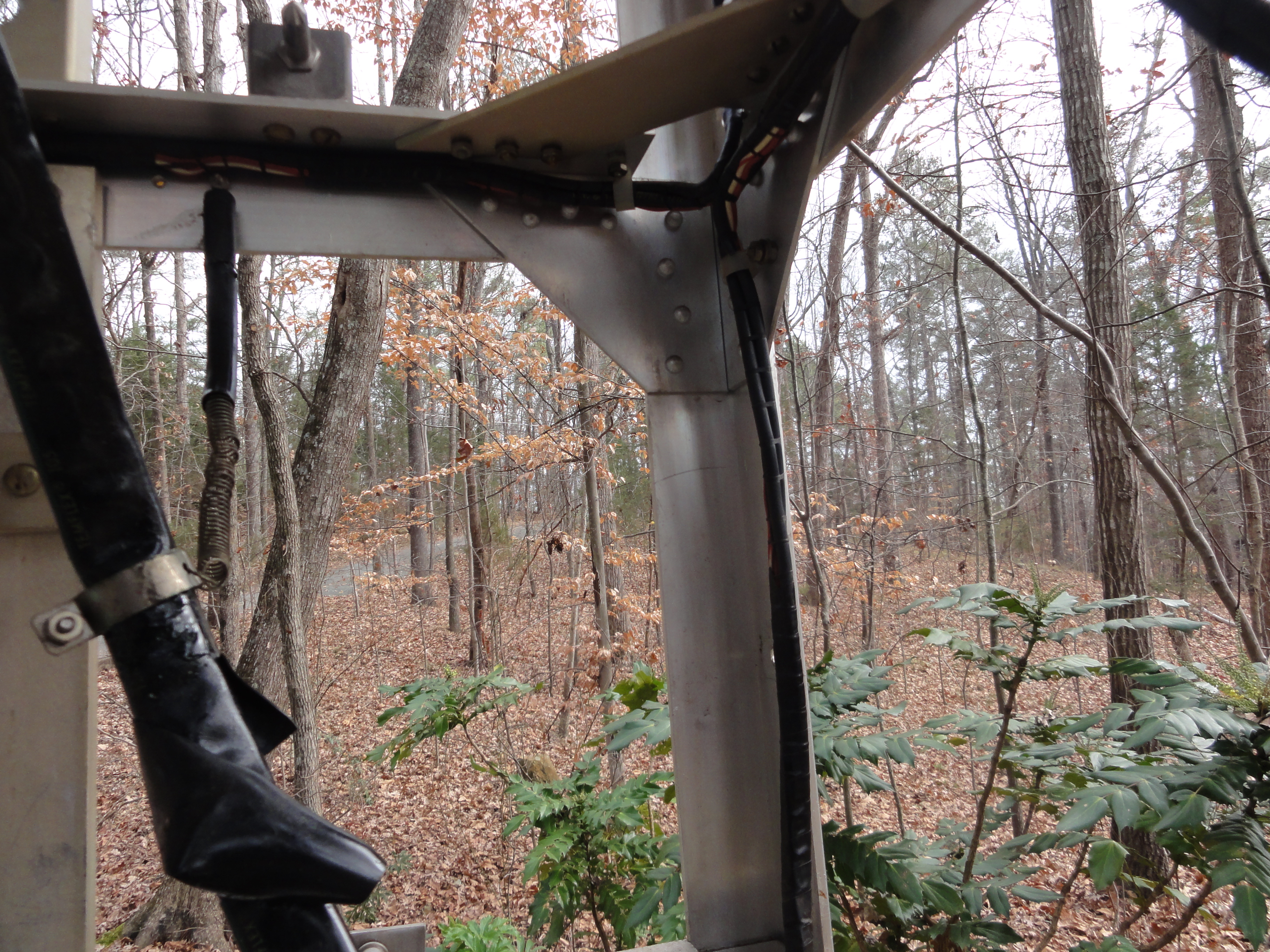

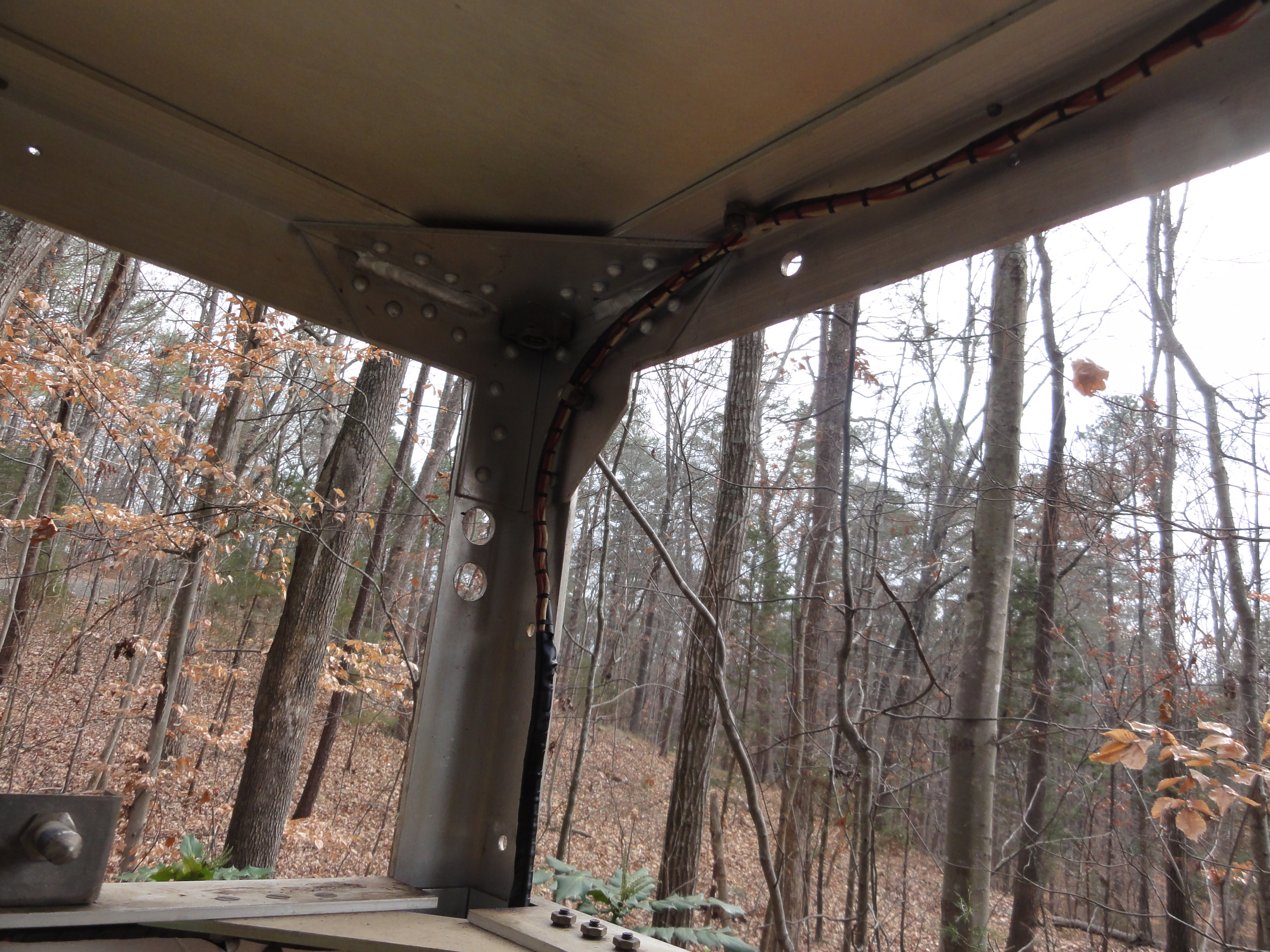

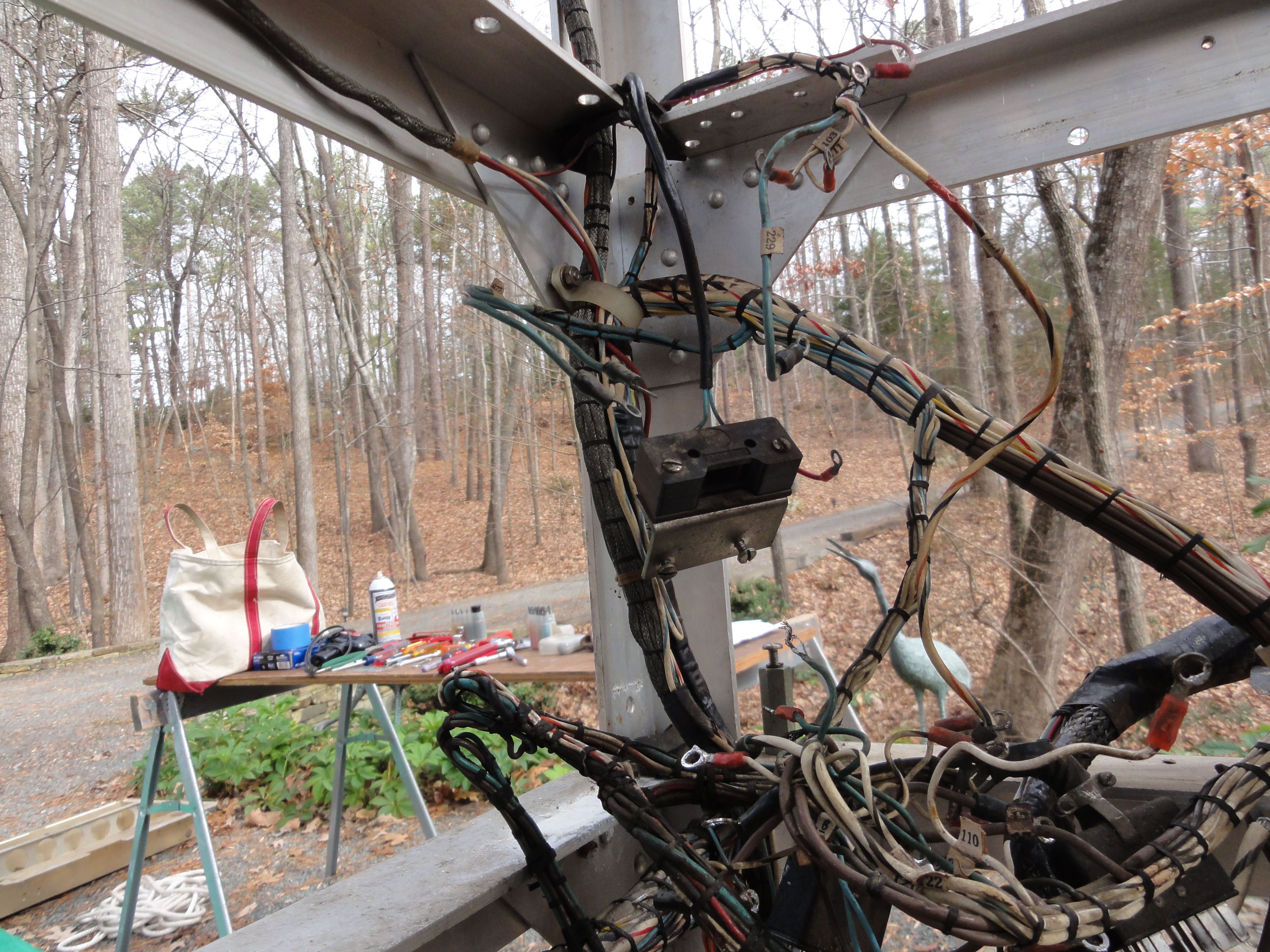

Document the wiring harness

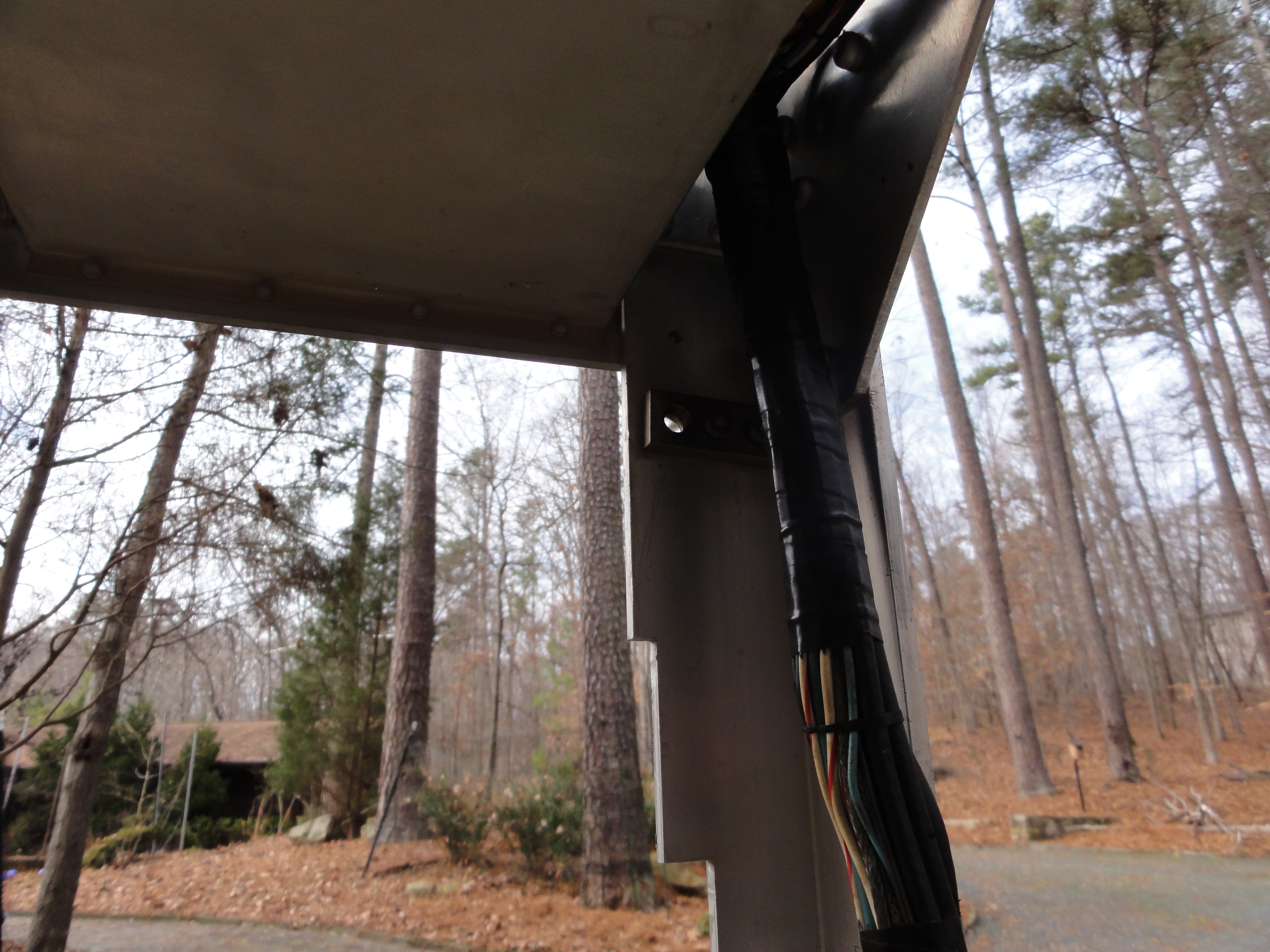

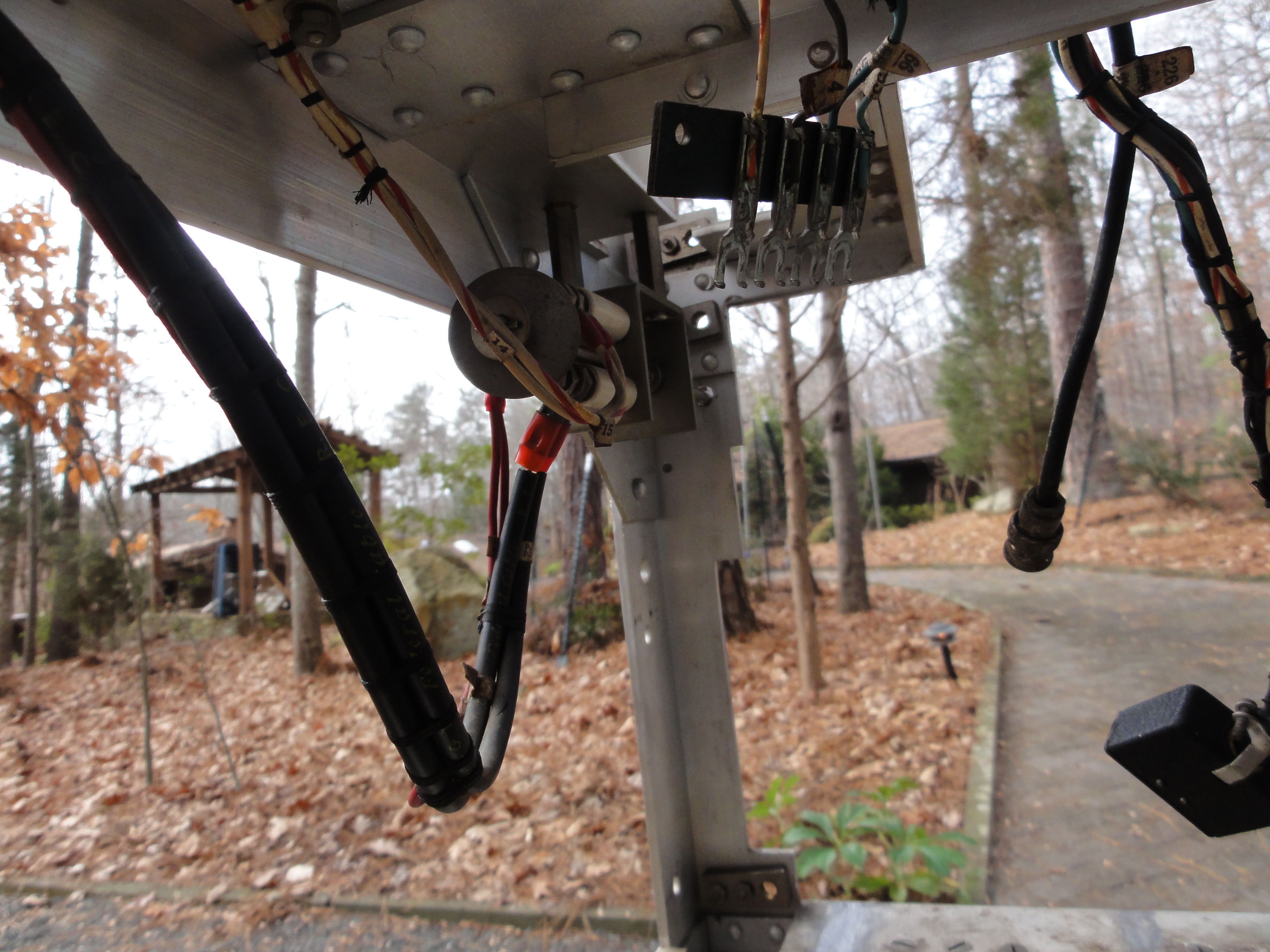

DSC01253.JPG (4044388 bytes) DSC01254.JPG (4328463 bytes) DSC01255.JPG (4415913 bytes) DSC01256.JPG (4454151 bytes)

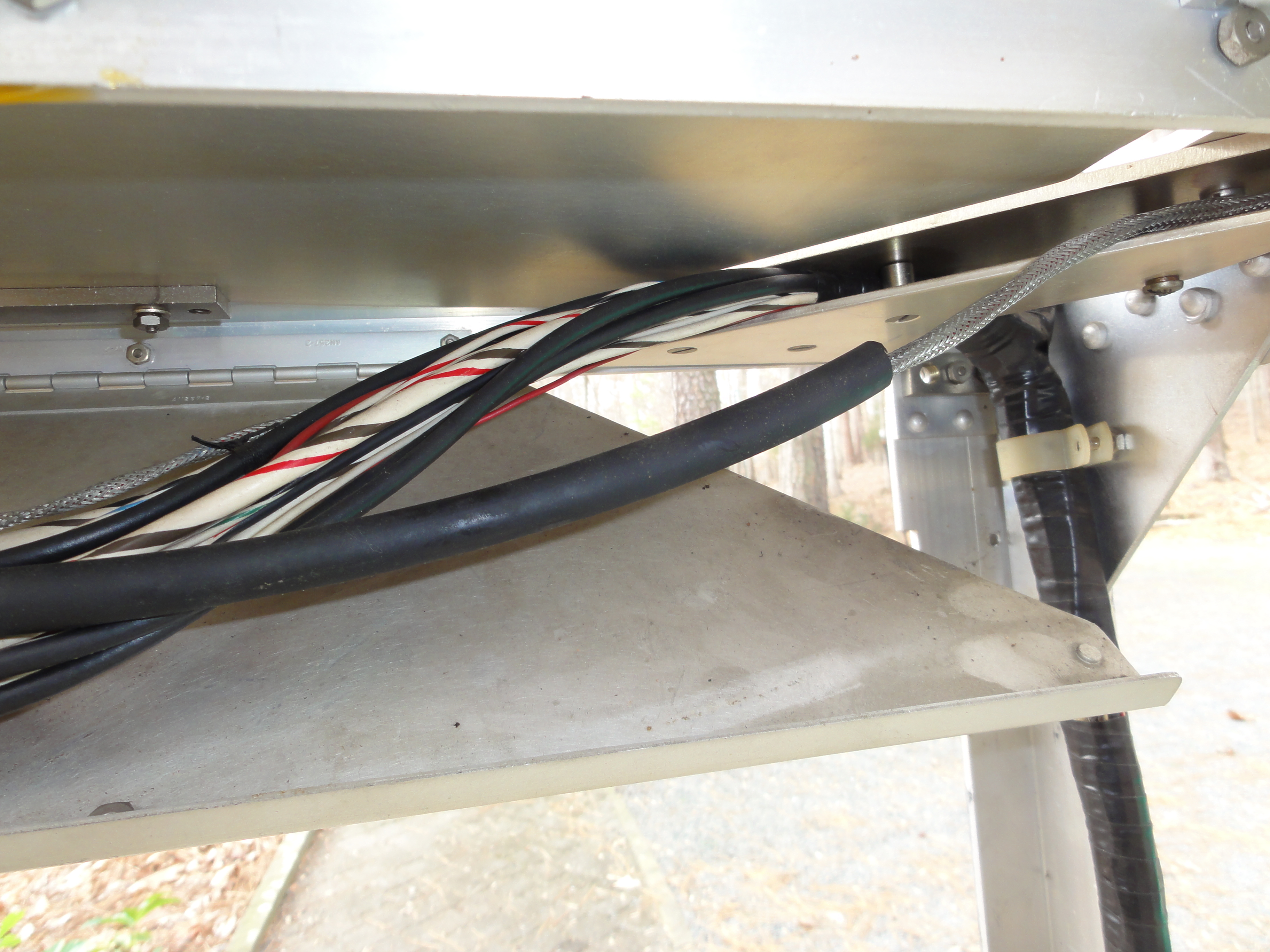

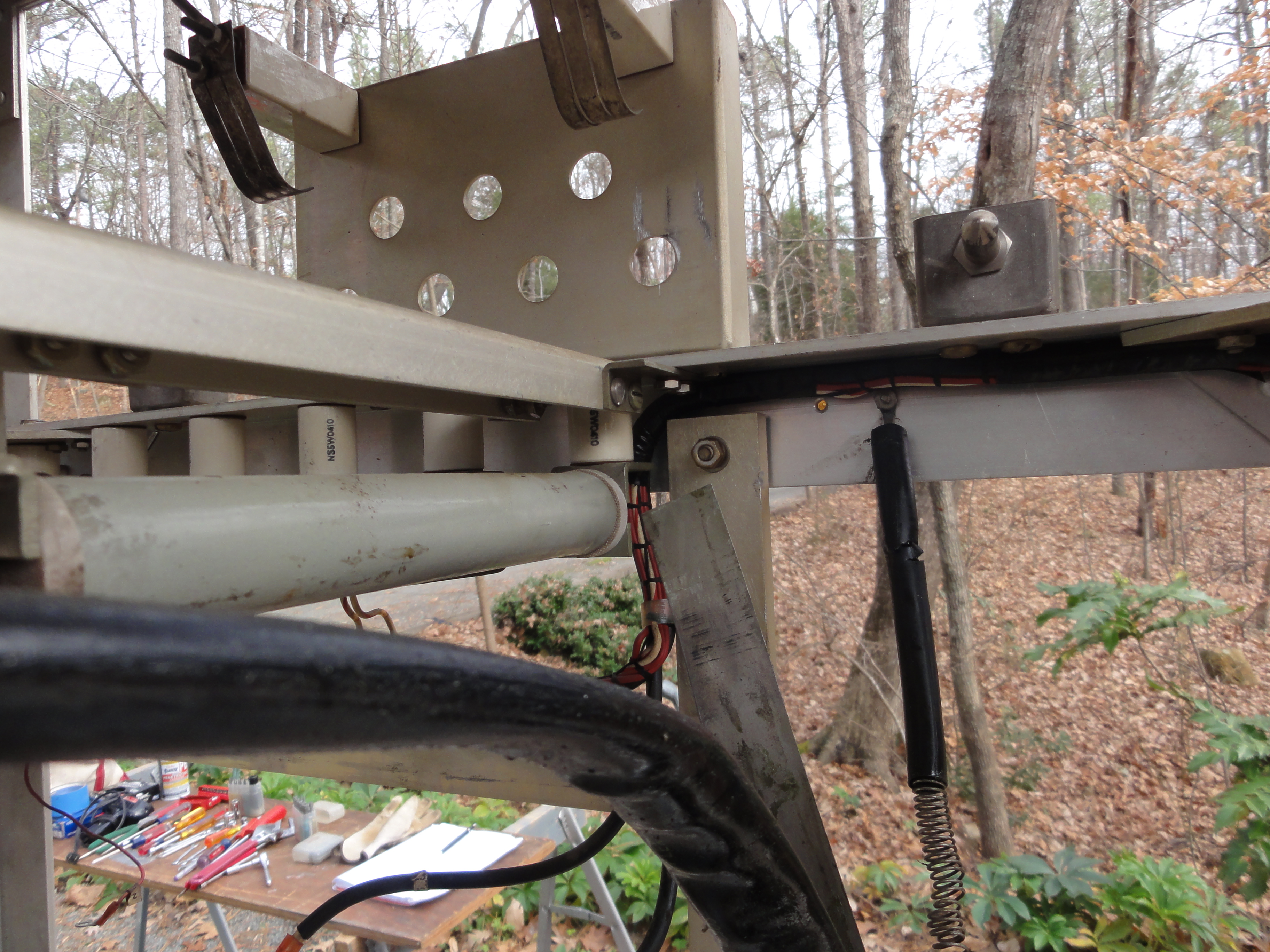

DSC01257.JPG (3874502 bytes) DSC01258.JPG (3963904 bytes) DSC01259.JPG (4363336 bytes) DSC01260.JPG (4363116 bytes)
DSC01261.JPG (4462466 bytes) DSC01262.JPG (4084529 bytes) DSC01263.JPG (4265708 bytes) DSC01264.JPG (4364964 bytes)
DSC01265.JPG (4259477 bytes) DSC01266.JPG (3878410 bytes) DSC01268.JPG (3690642 bytes) DSC01269.JPG (3889221 bytes)

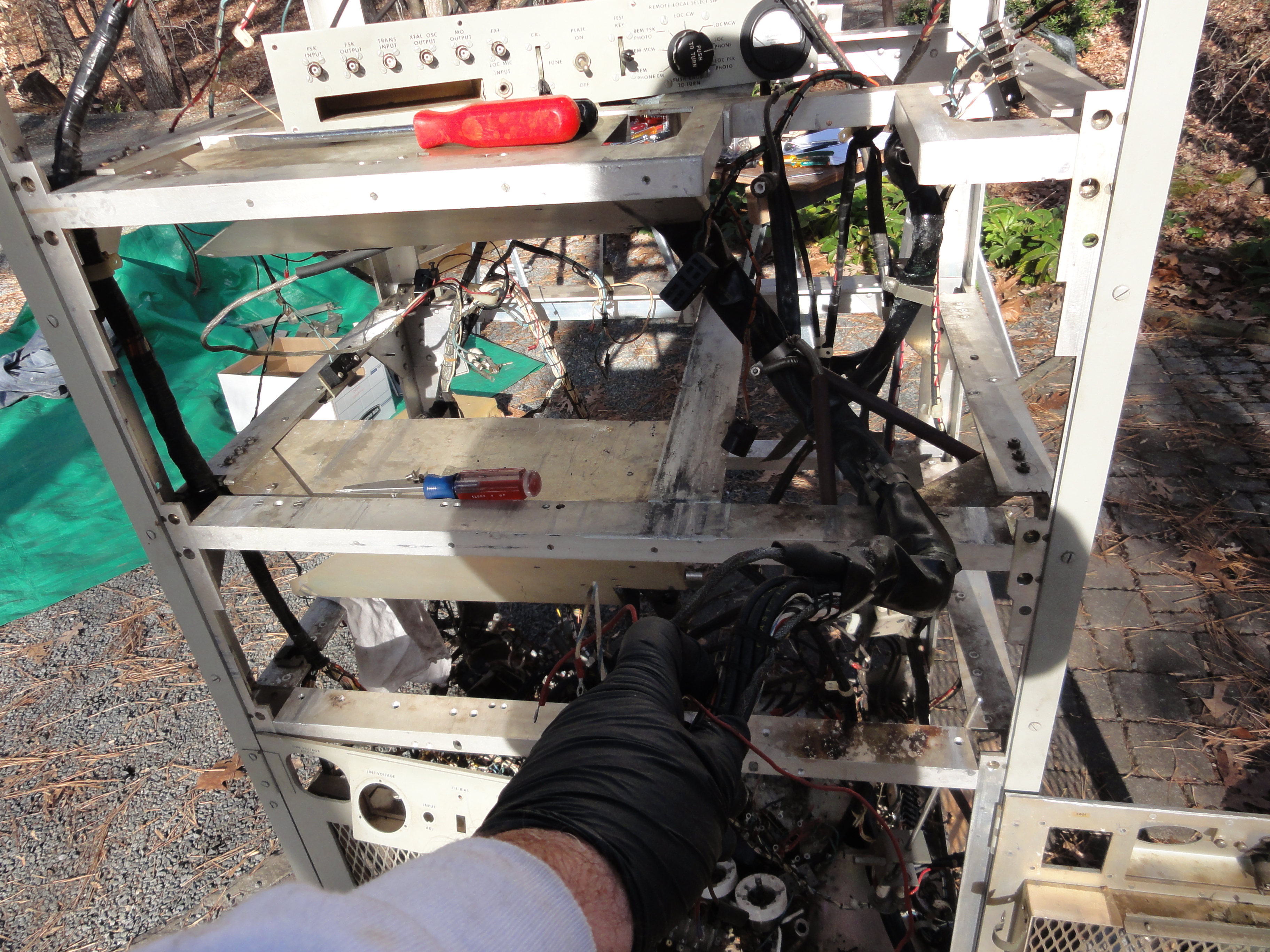

DSC01270.JPG (3908396 bytes) DSC01271.JPG (3818974 bytes) DSC01272.JPG (4502322 bytes) DSC01273.JPG (4055824 bytes)

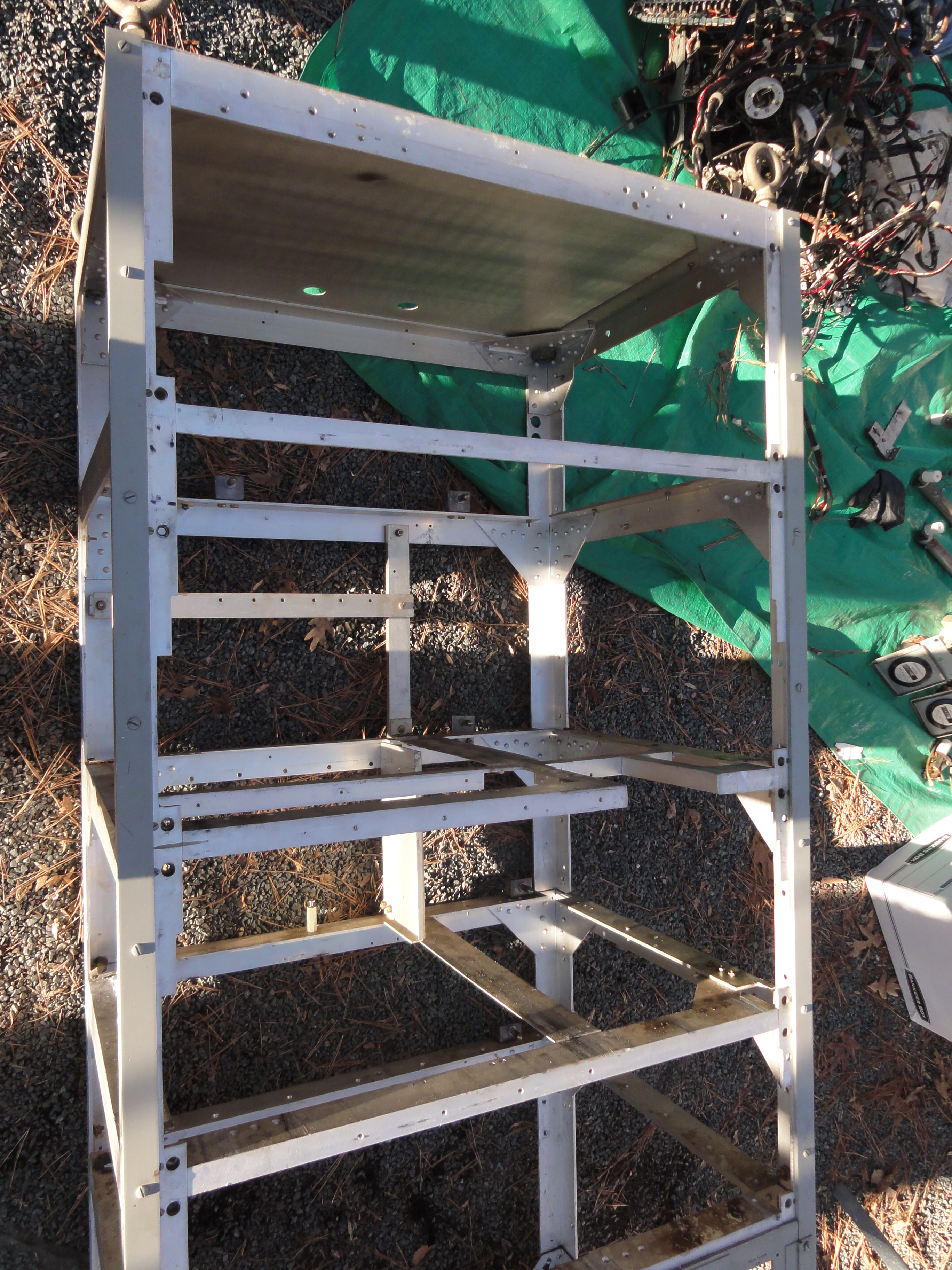

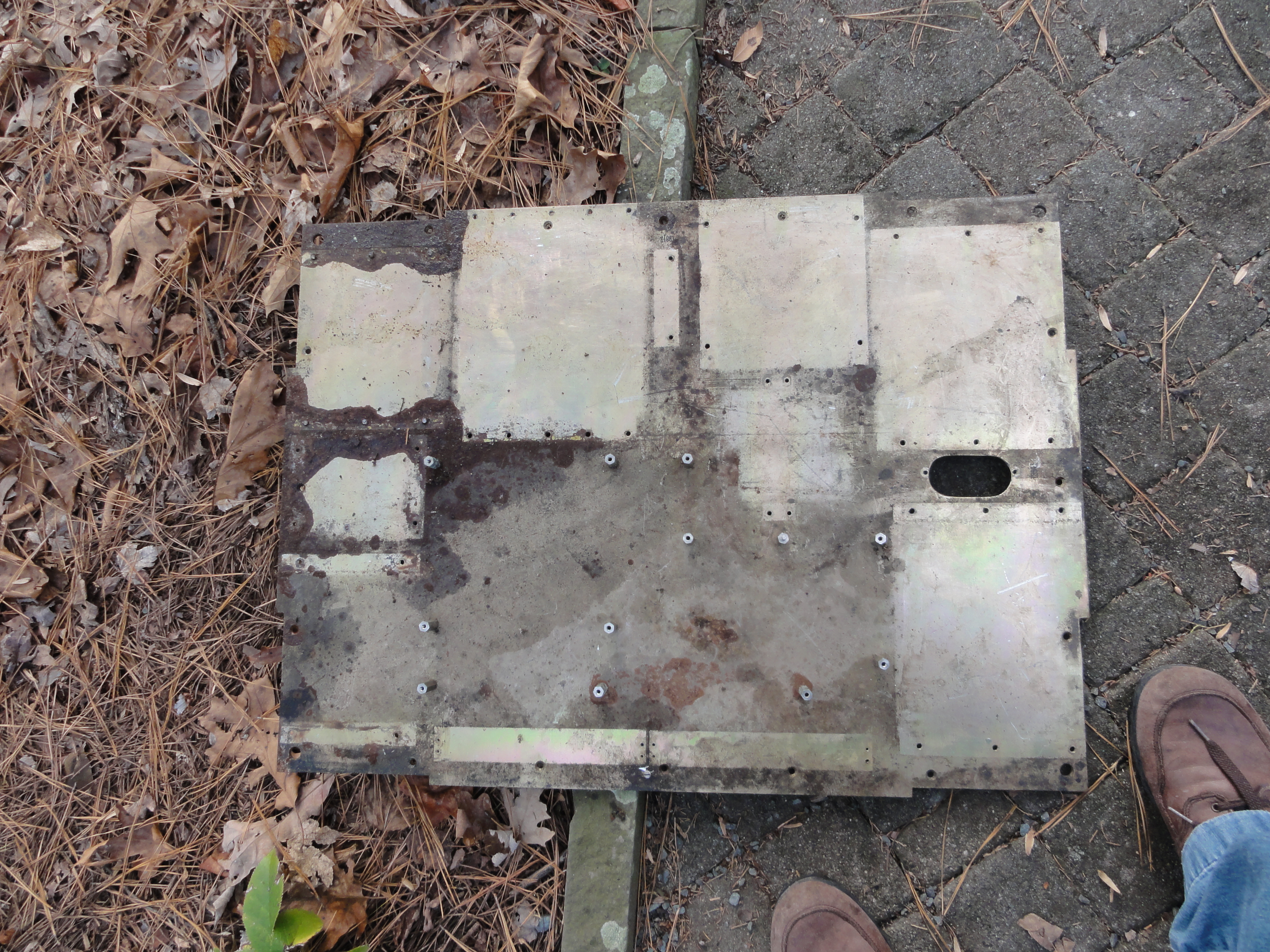

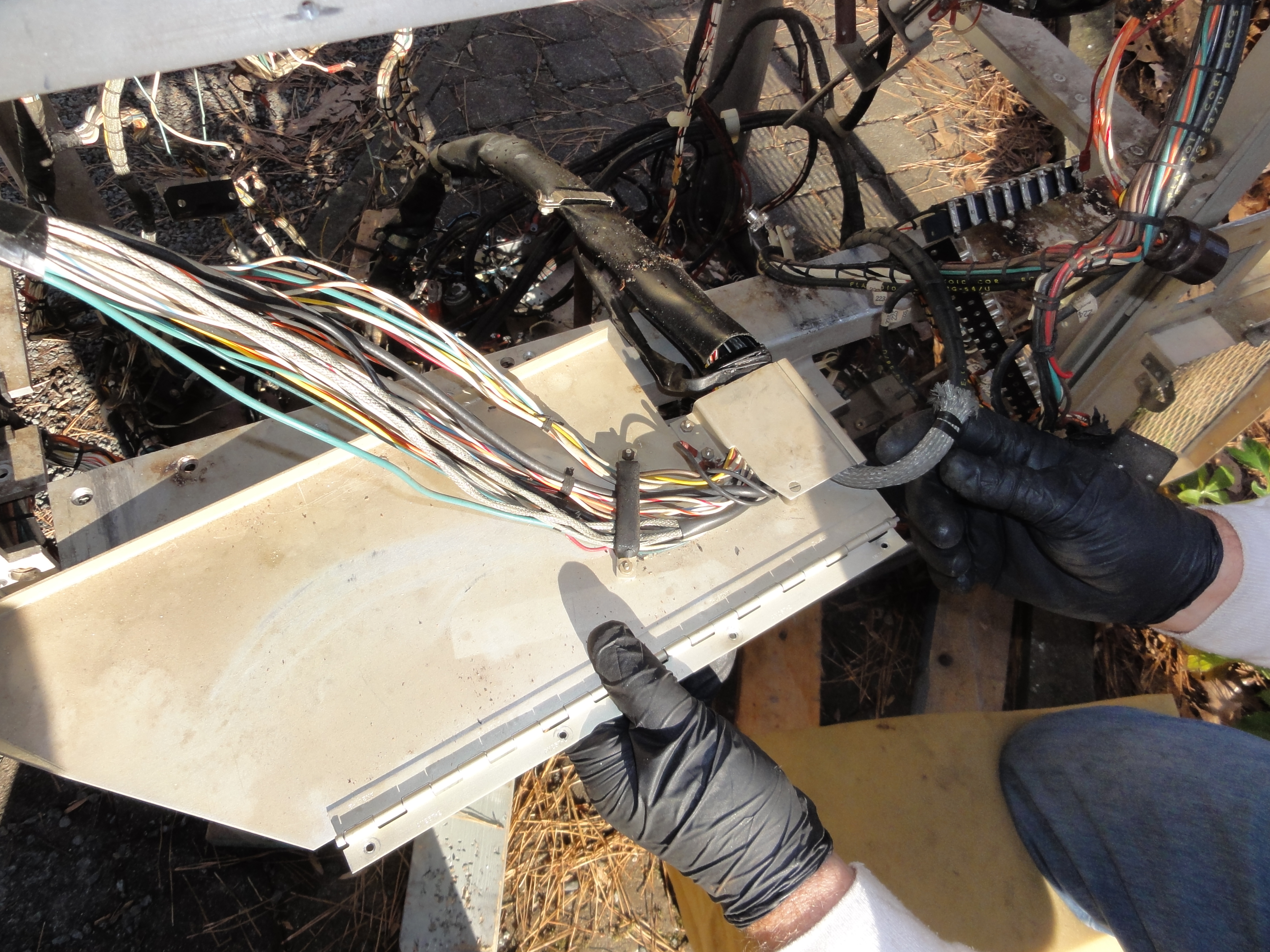

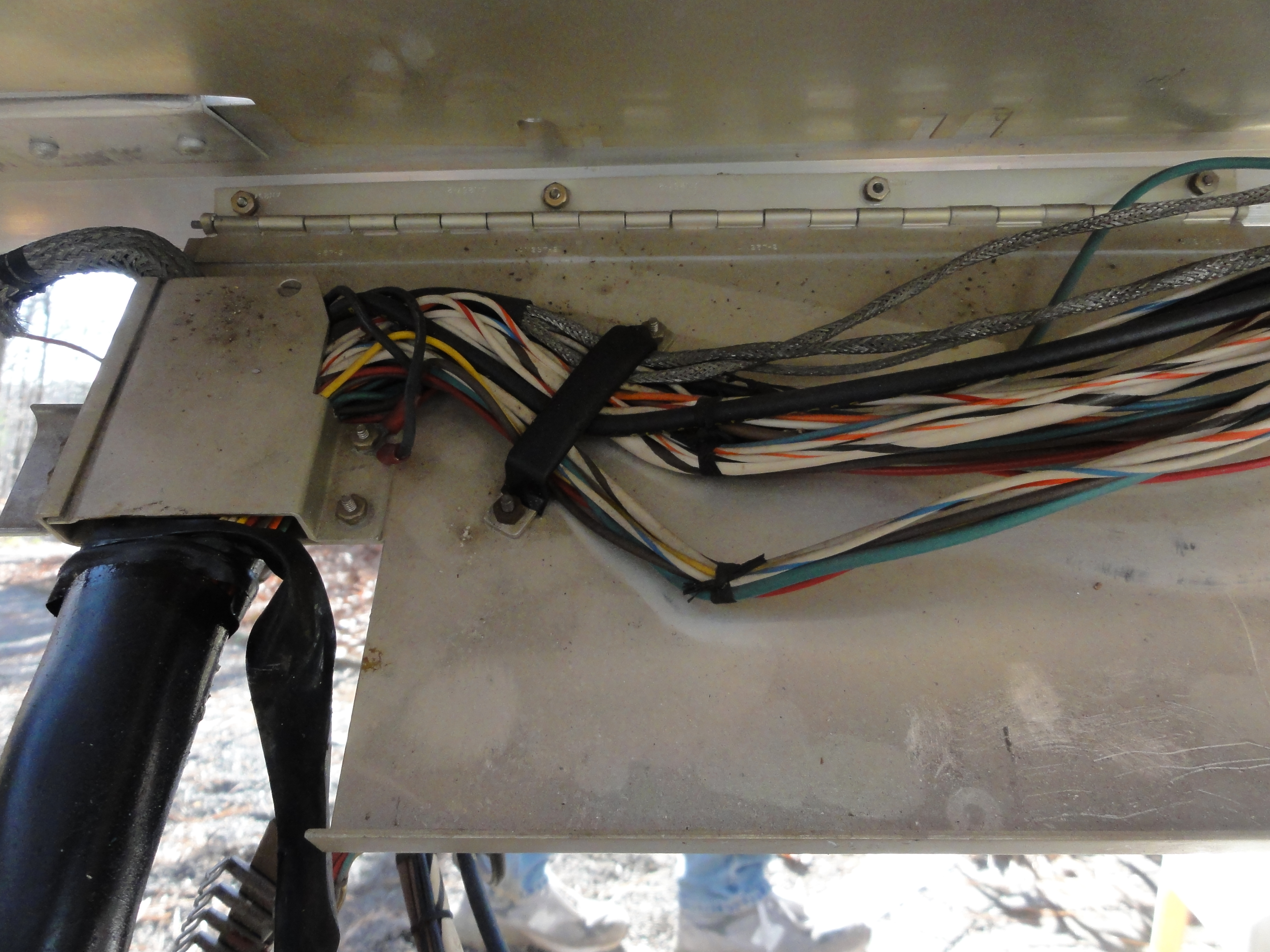

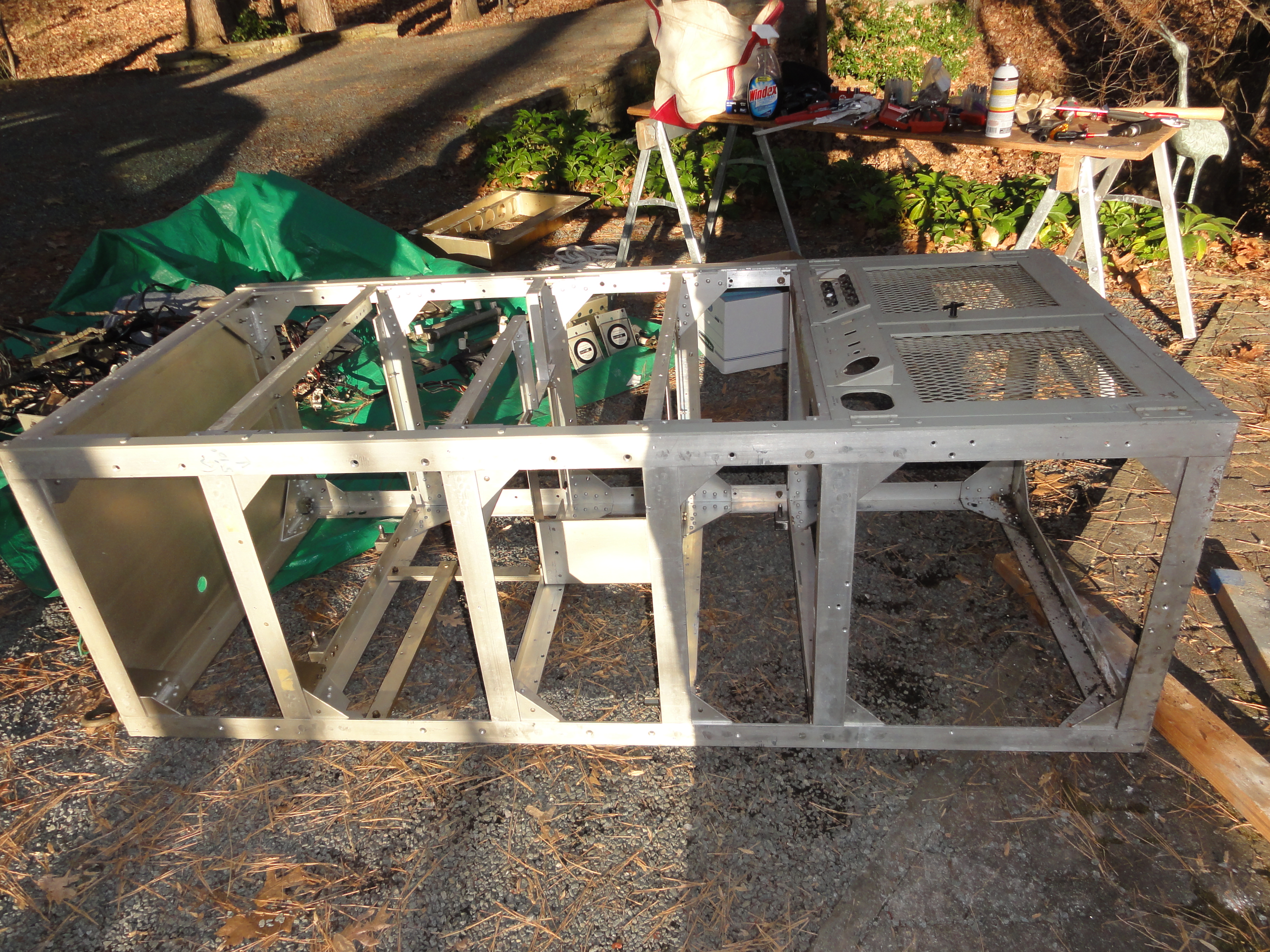

JP says "That's It!

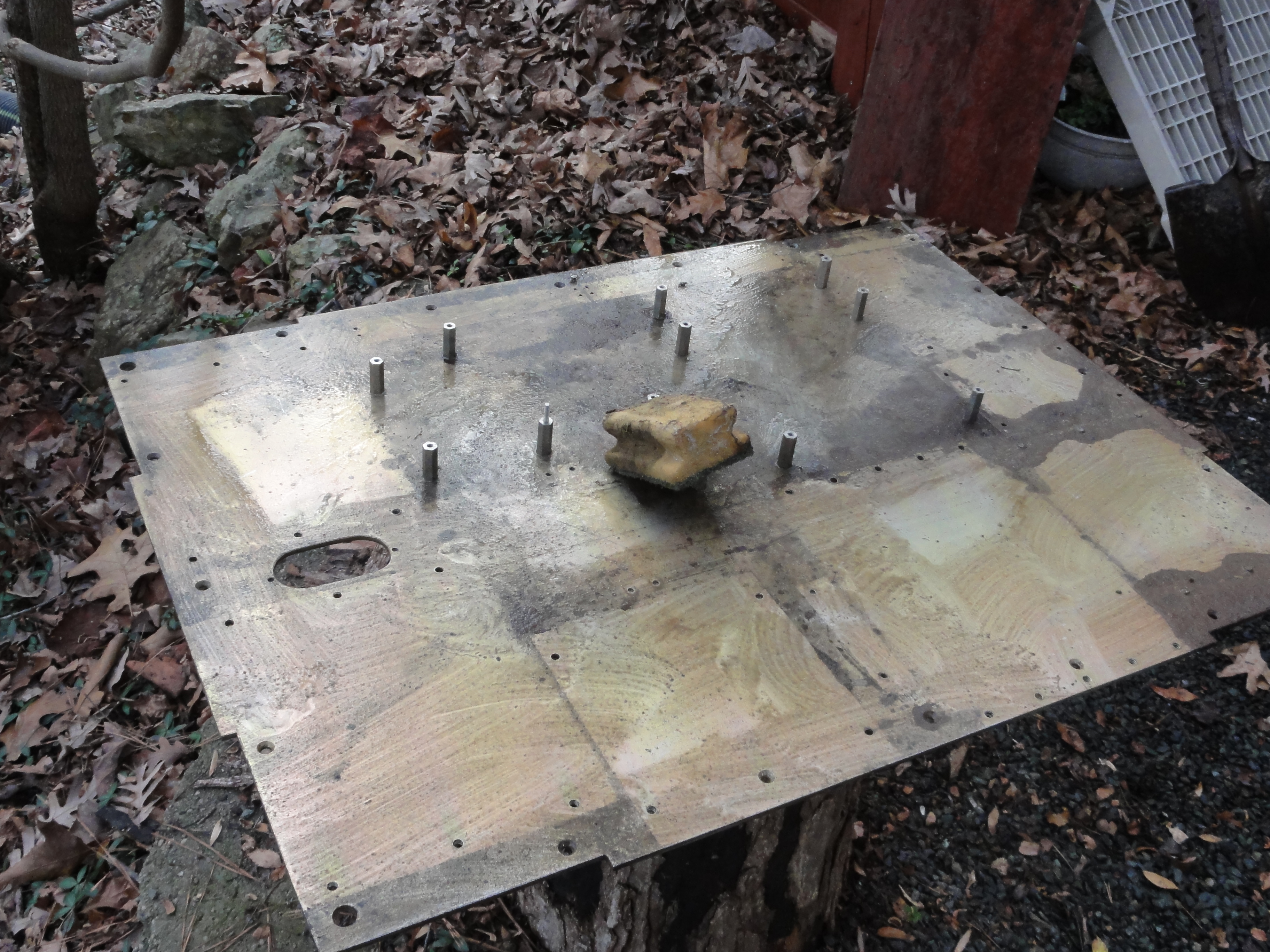

Now two of us can lift it easily
DSC01286.JPG (4193460 bytes) DSC01287.JPG (4482578 bytes) DSC01288.JPG (4042115 bytes) DSC01289.JPG (3062168 bytes)
Heading for the basement ham shack

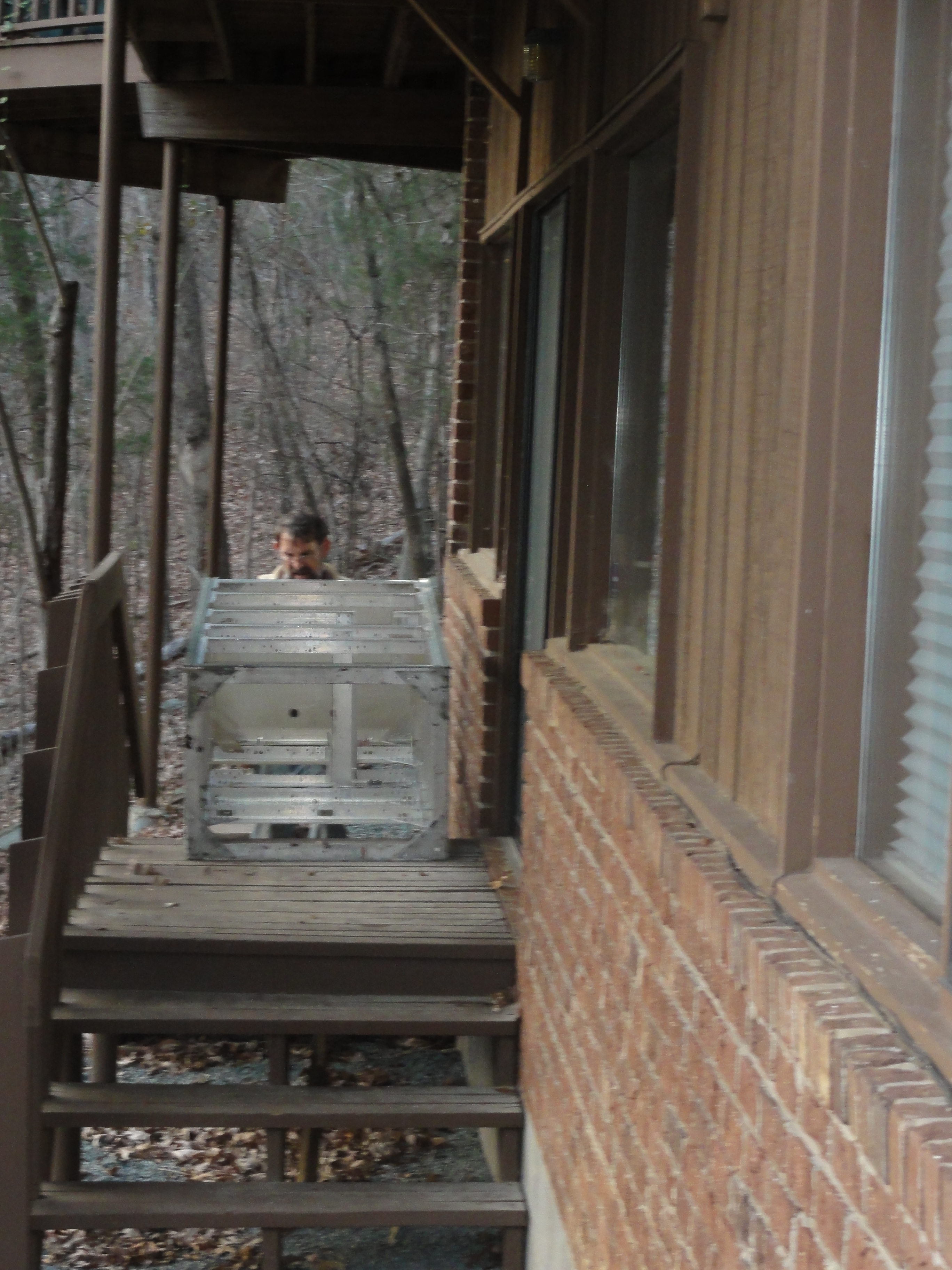

DSC01296.JPG (3177515 bytes) DSC01297.JPG (3213399 bytes) DSC01298.JPG (3304319 bytes) Ok, we're there - just outside the shack door - will leave it here a while to dry off
Will I ever figure out where all those wires go???

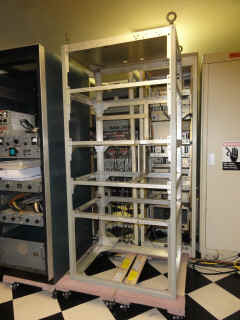

The Rack is in the Shack! -

Stay Tuned for Part II as our hero attempts to re-assemble the world's biggest Heathkit !!!!

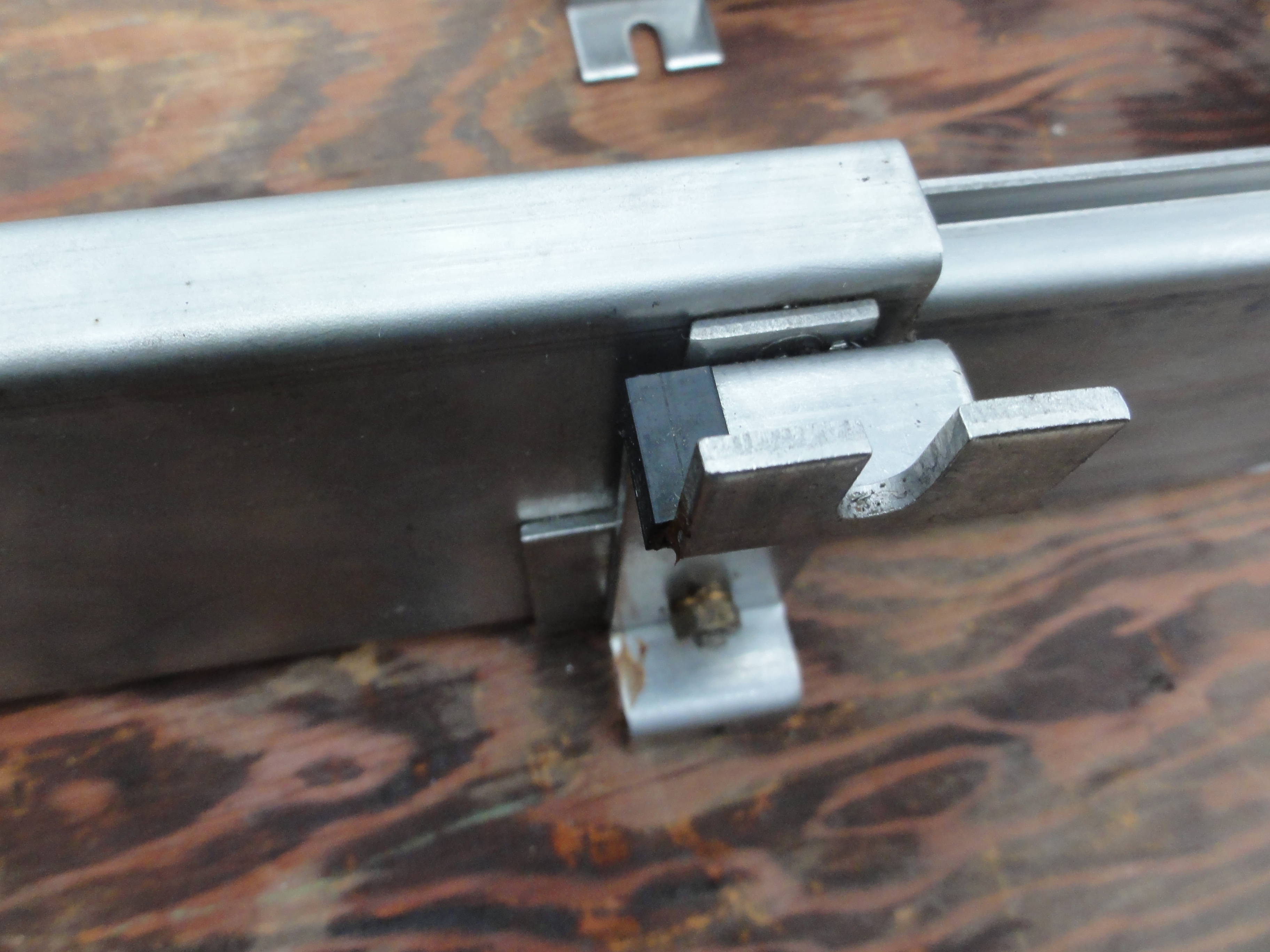

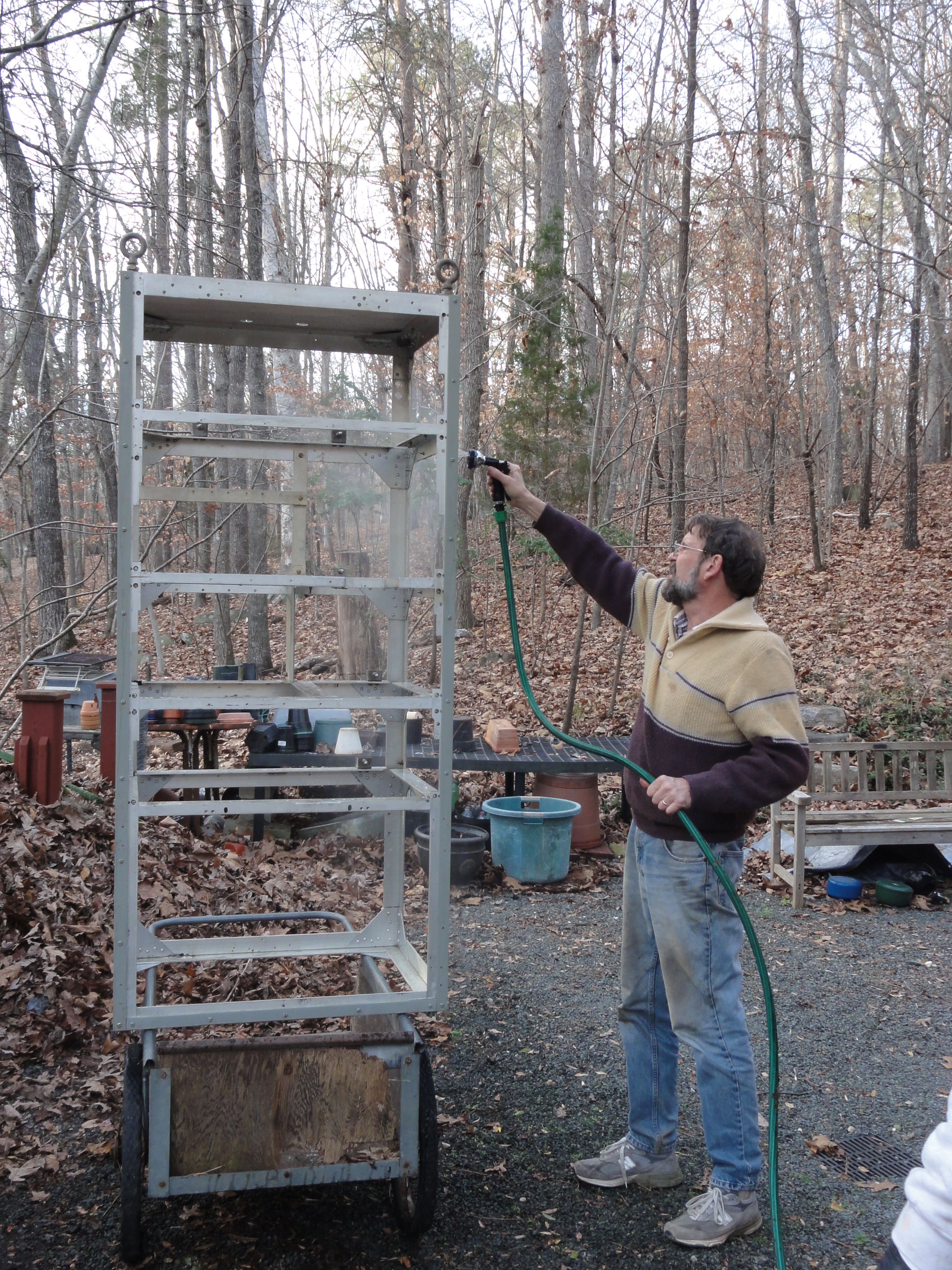

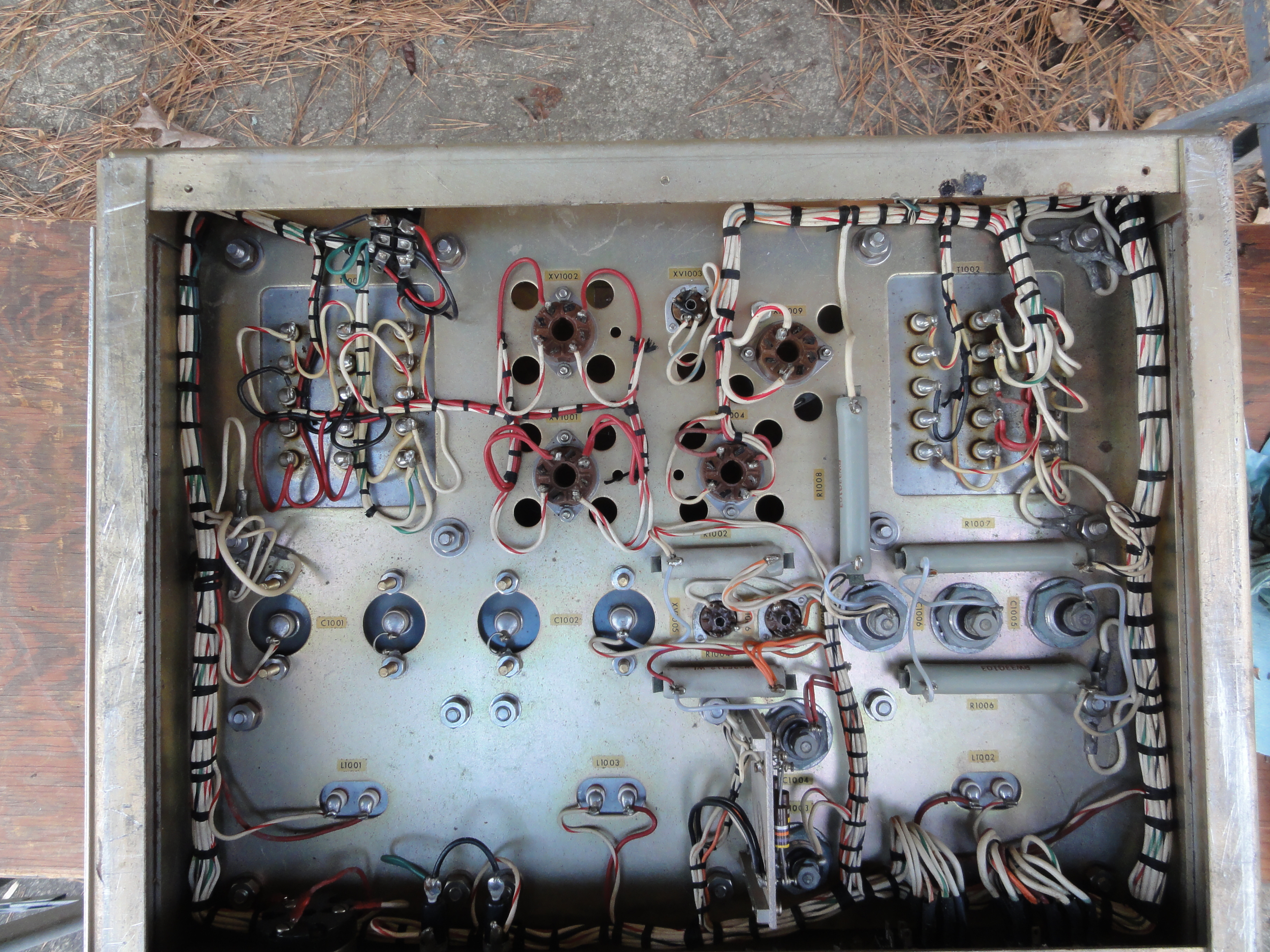

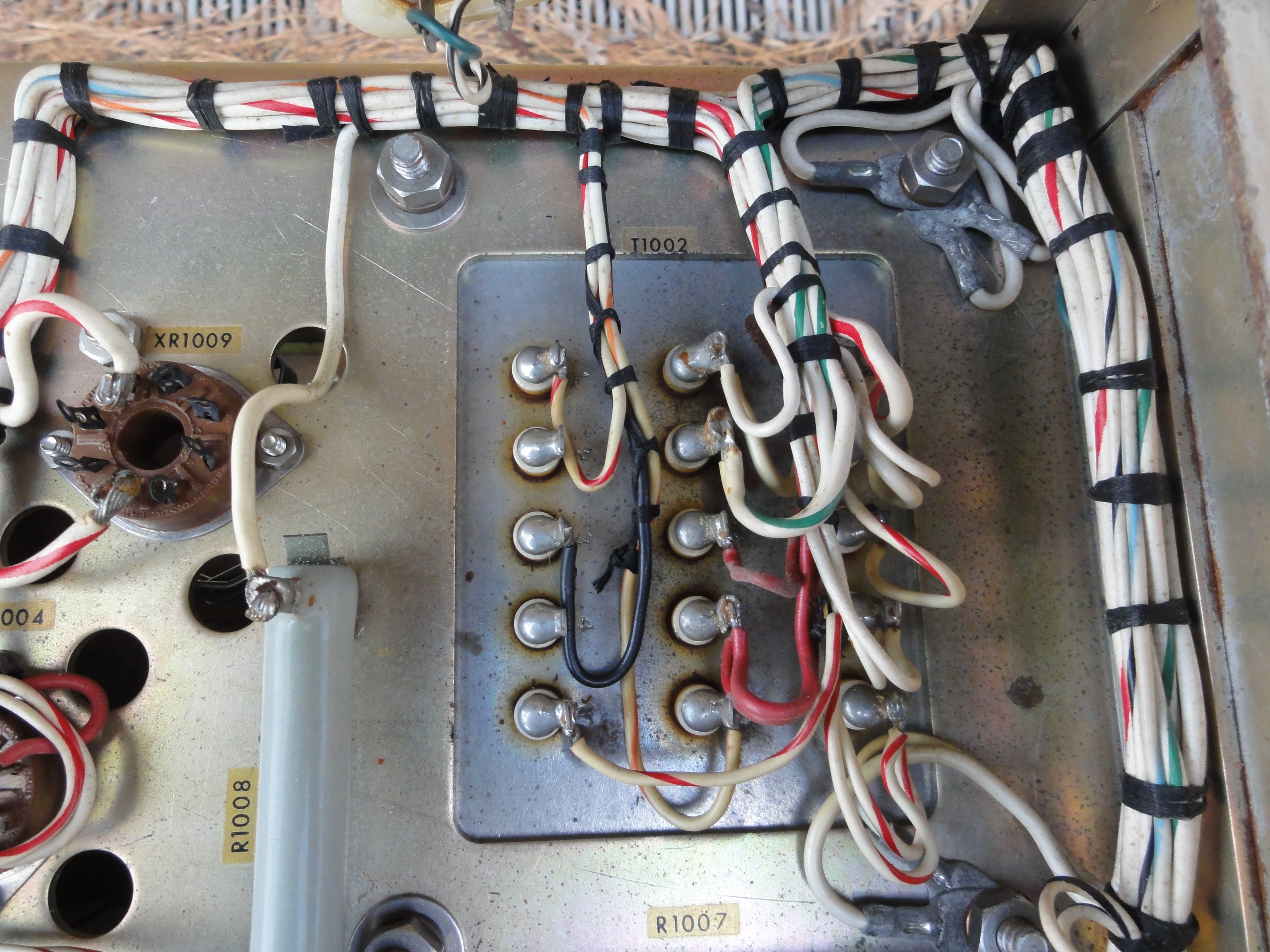

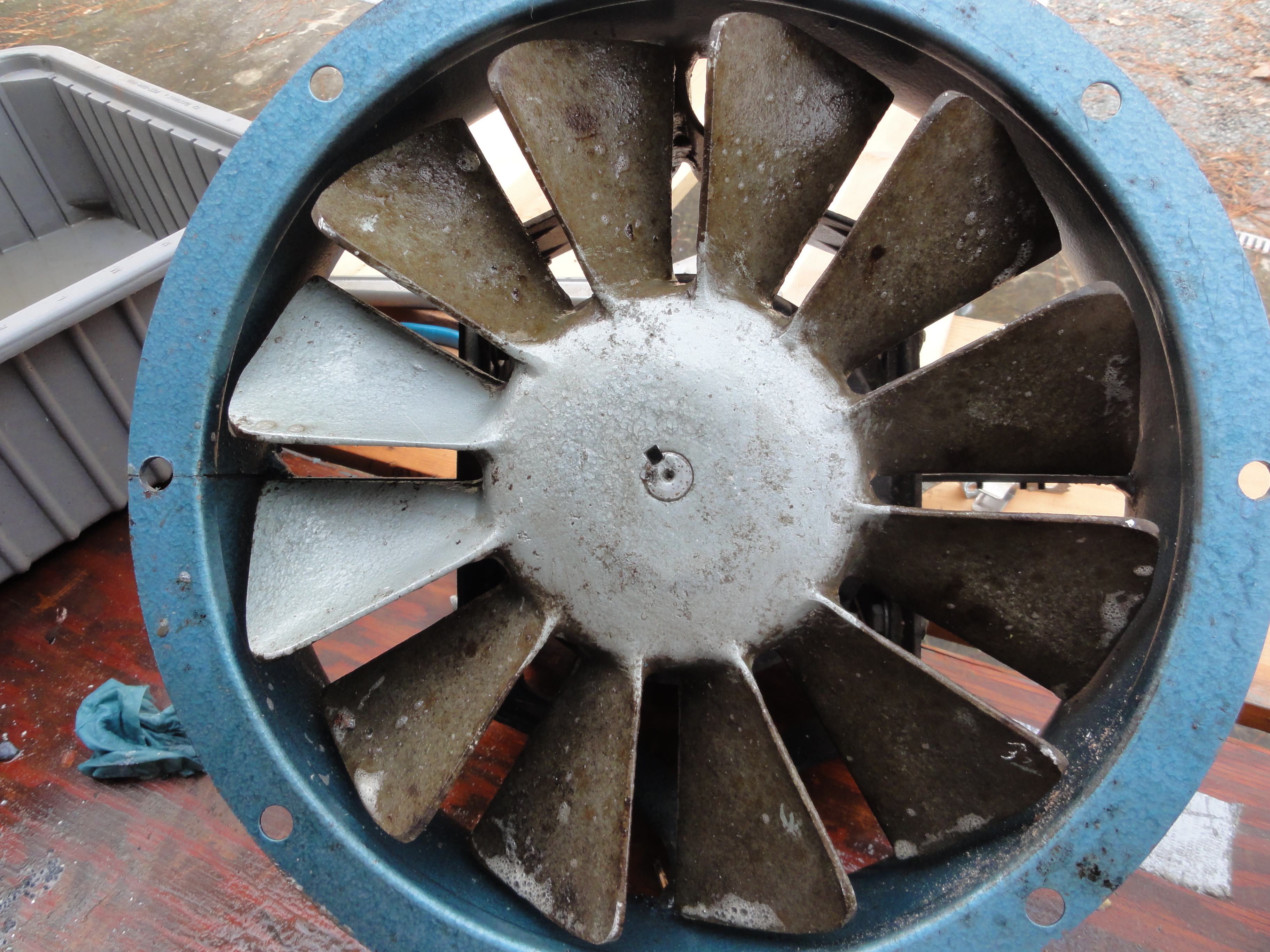

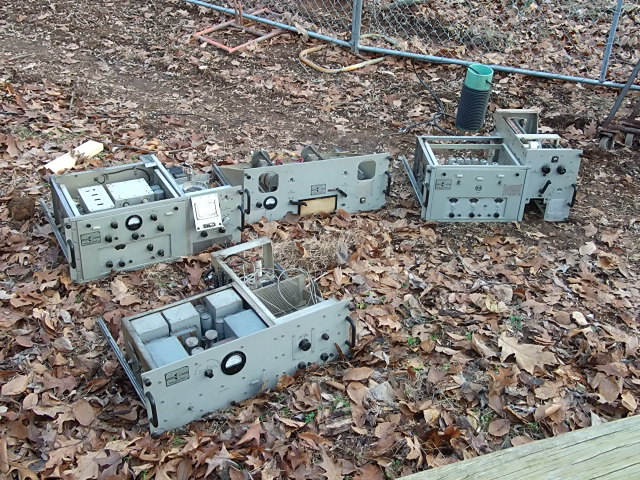

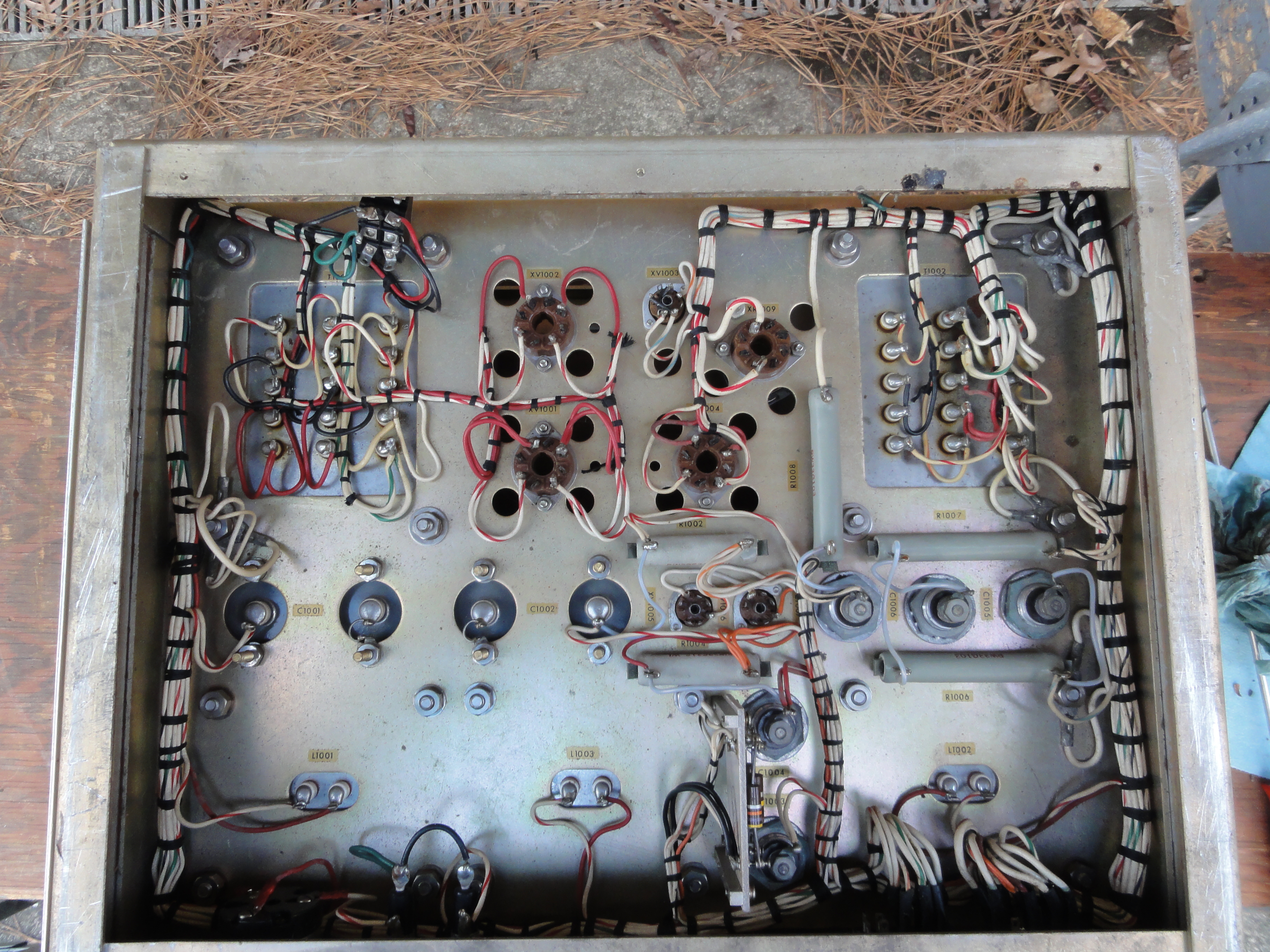

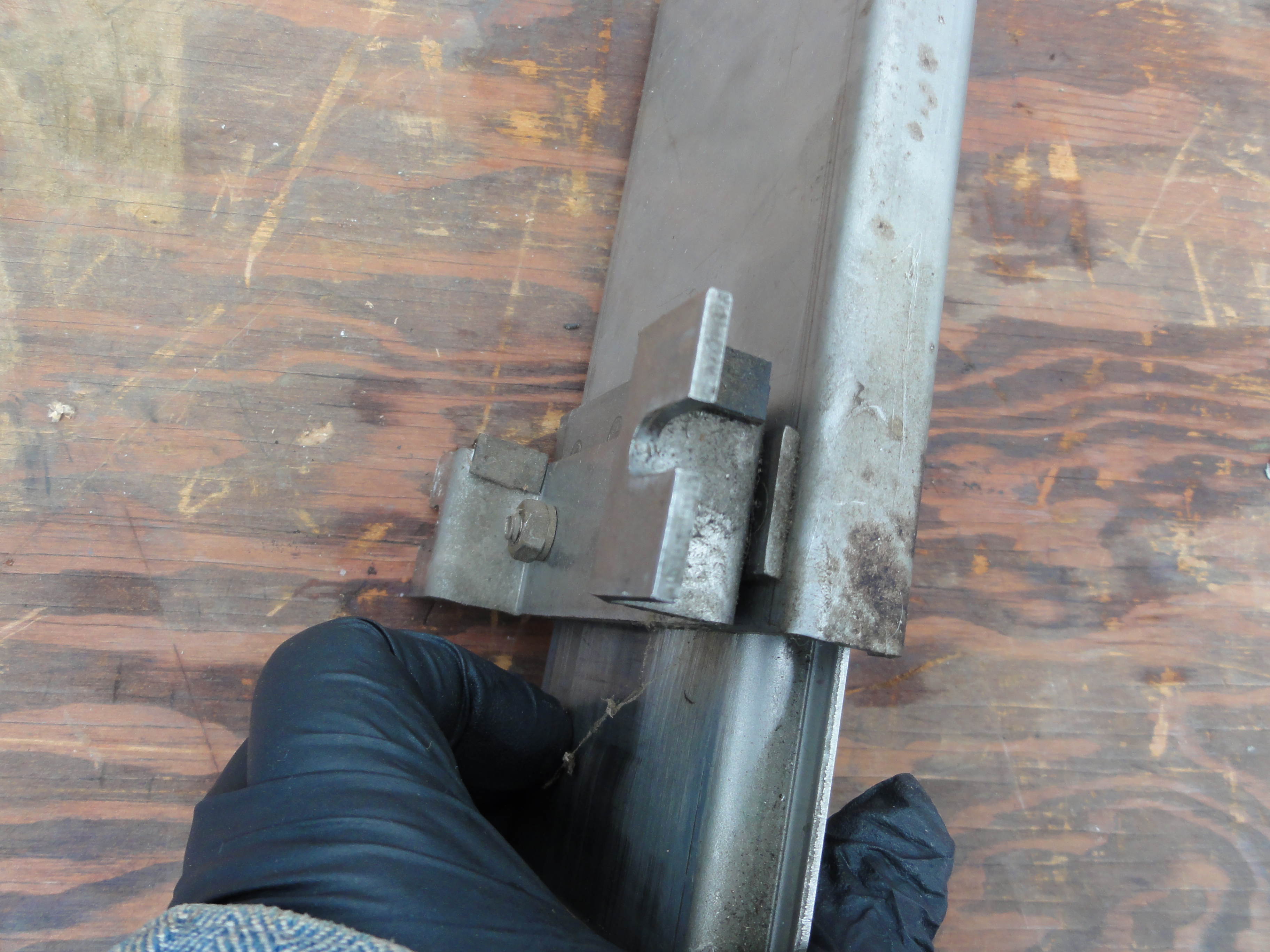

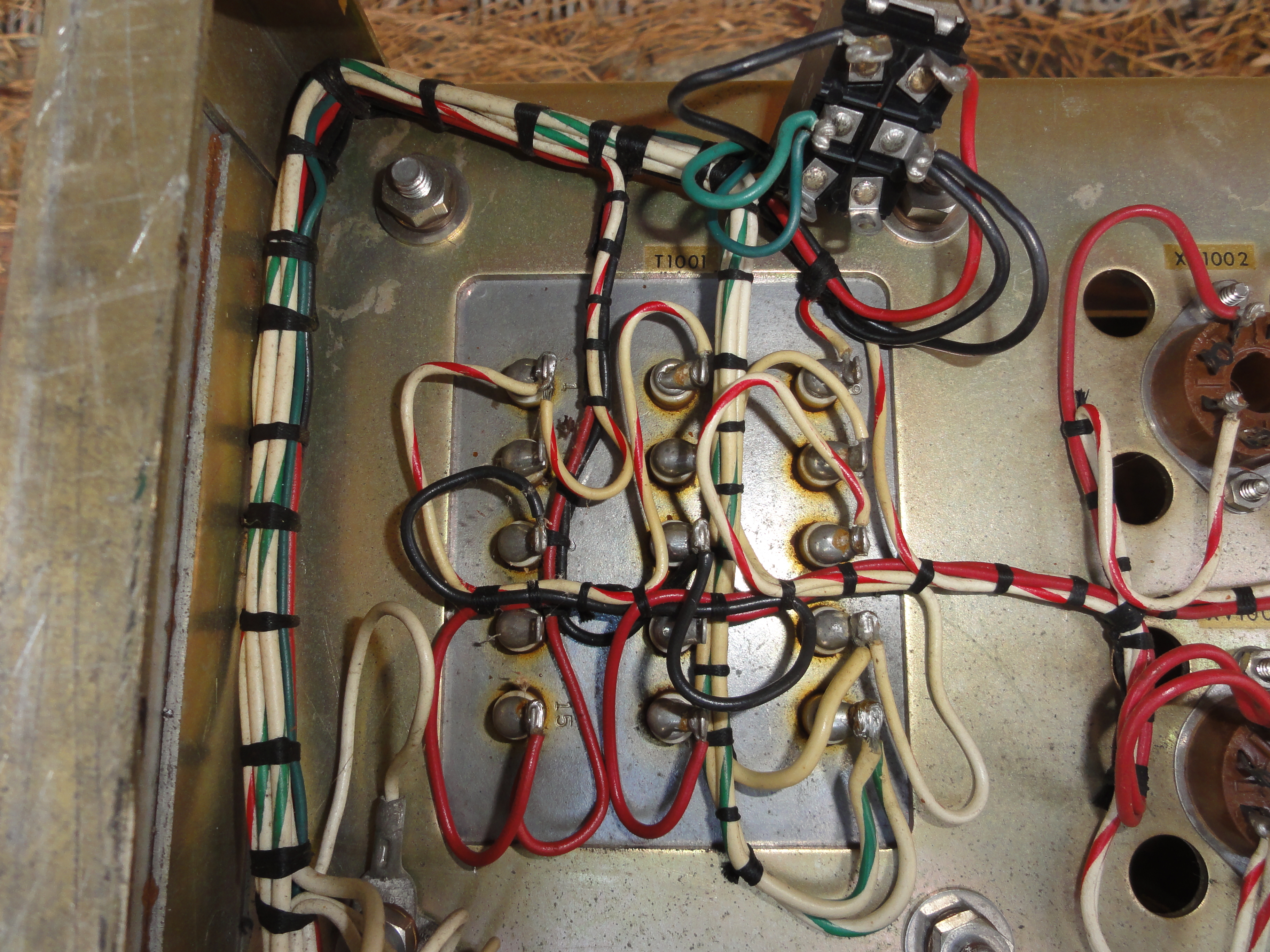

A brief spell of warm weather after Christmas - so I did a first-level cleaning on the drawers and slides, removing mouse pee & poop, acorns, general grunge, etc. before moving them into the house.

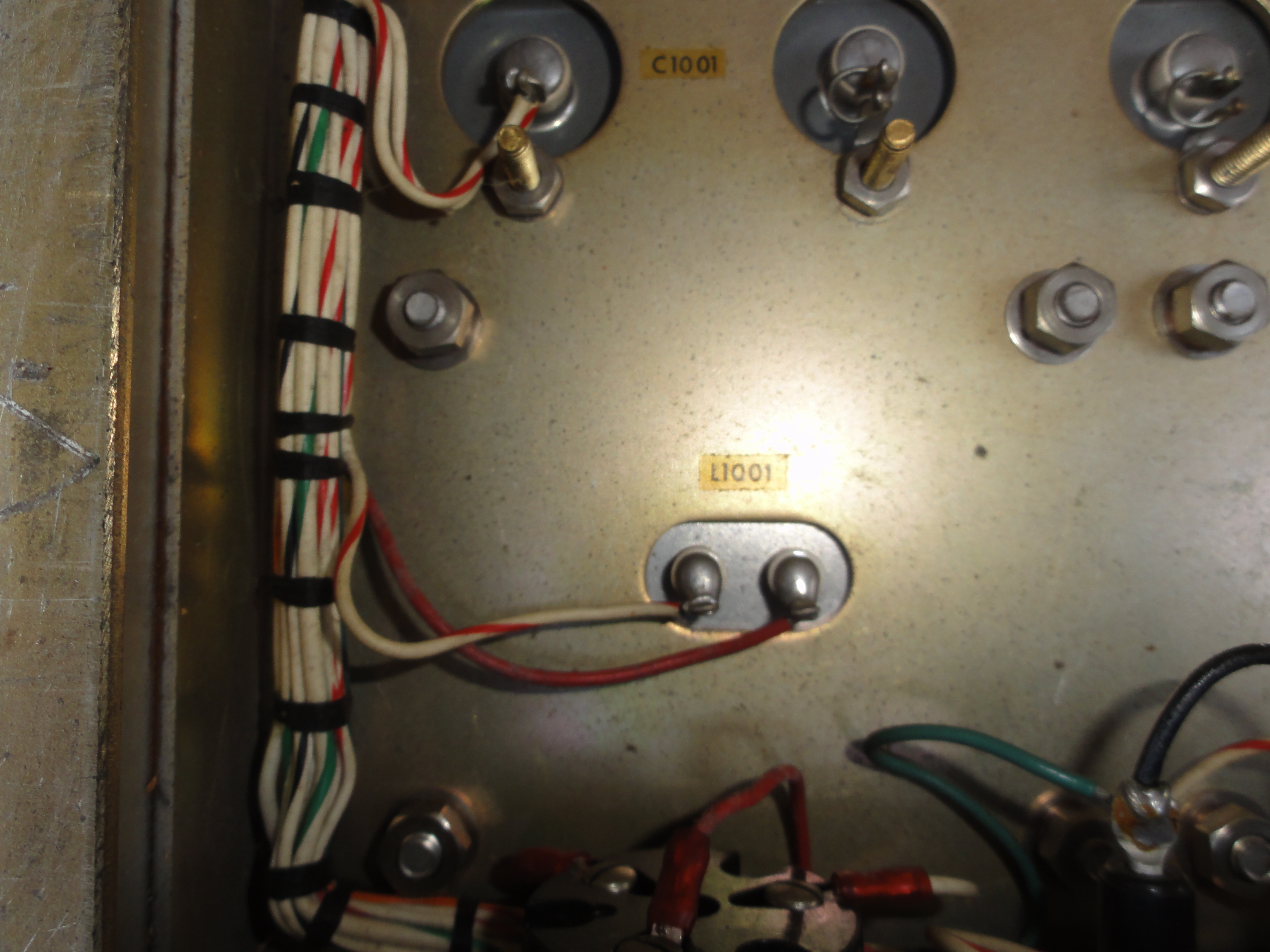

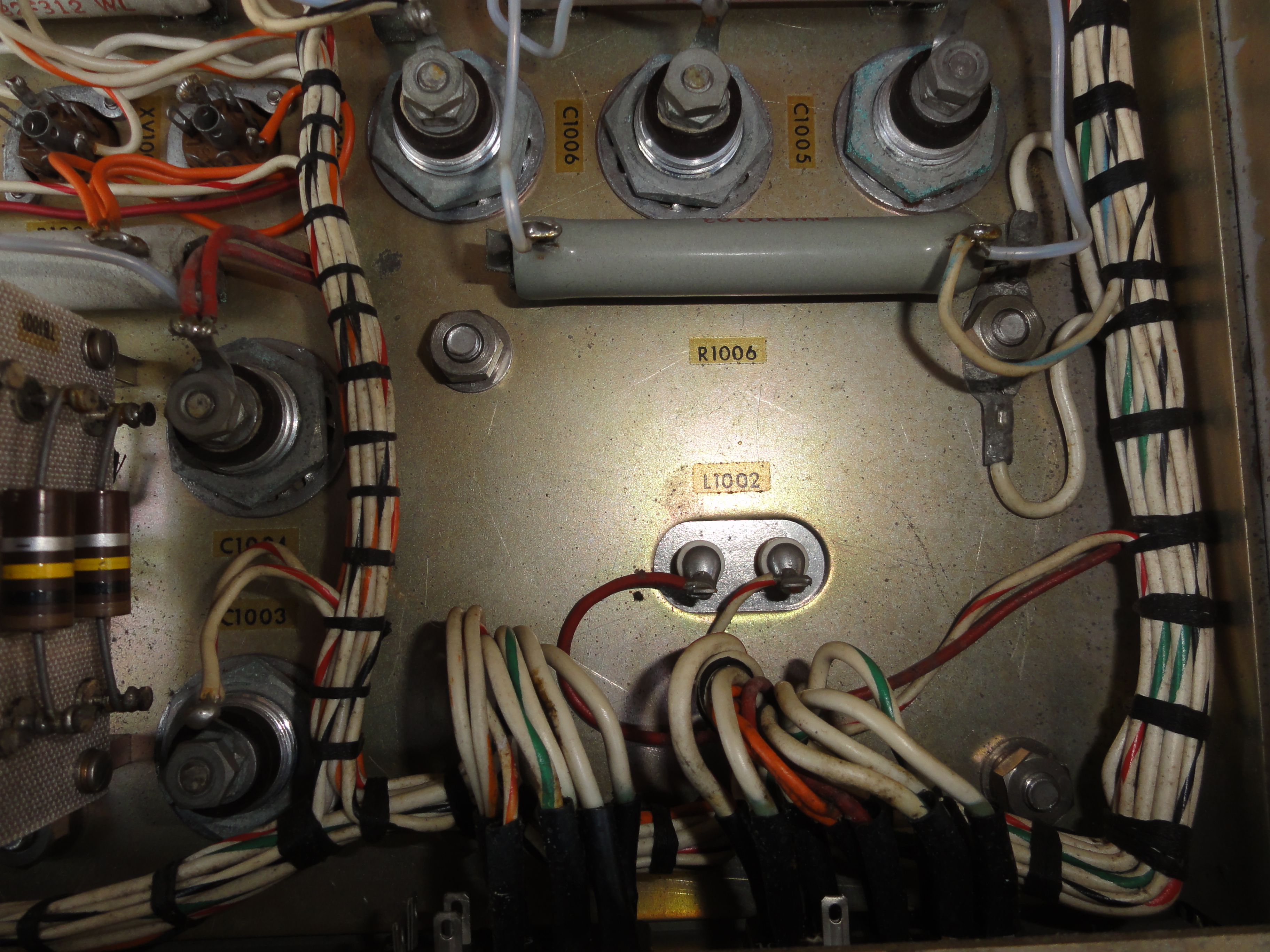

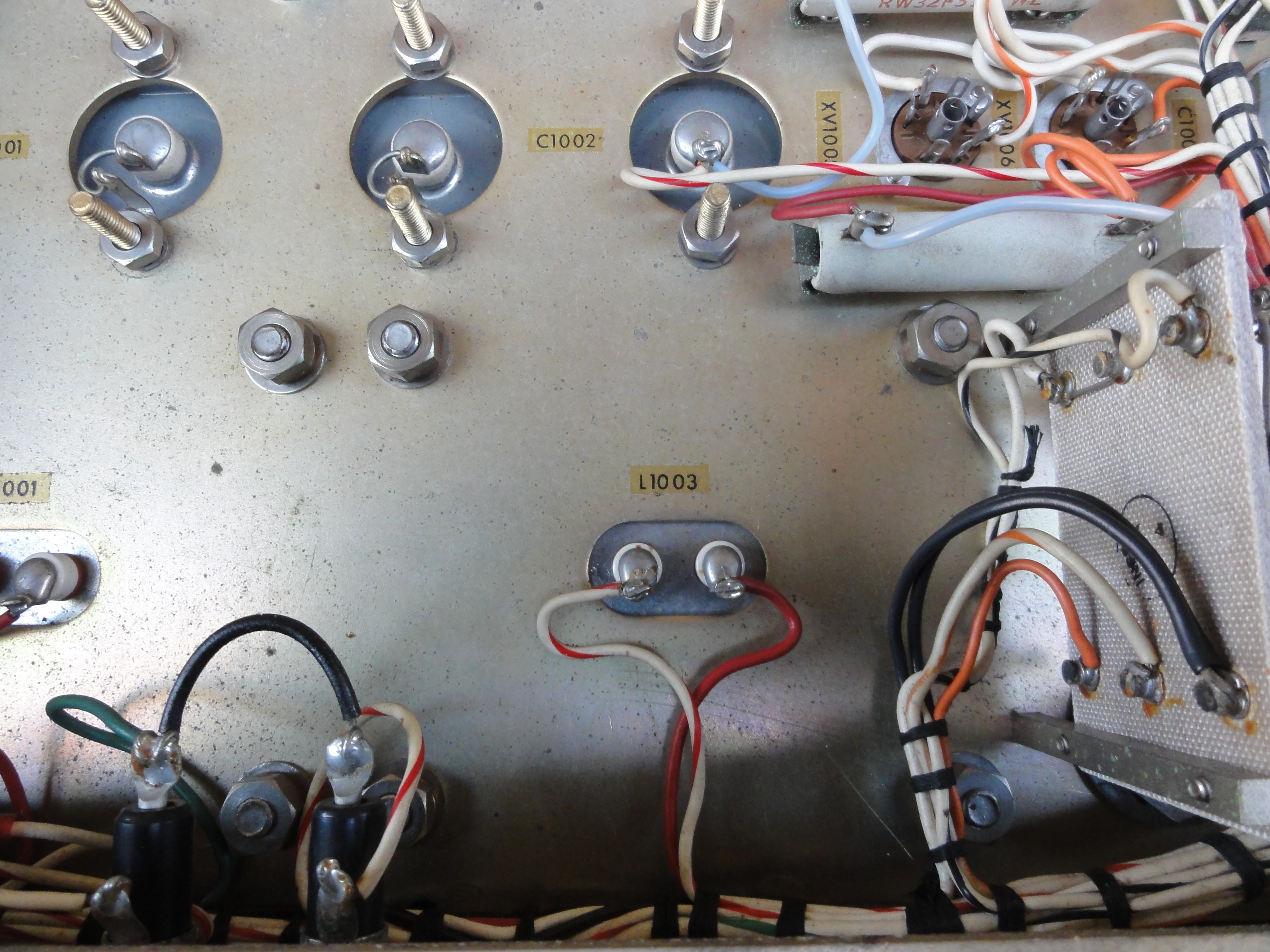

DSC01385.JPG (4147681 bytes) DSC01386.JPG (4066501 bytes) DSC01387.JPG (4006730 bytes) DSC01388.JPG (3653838 bytes)

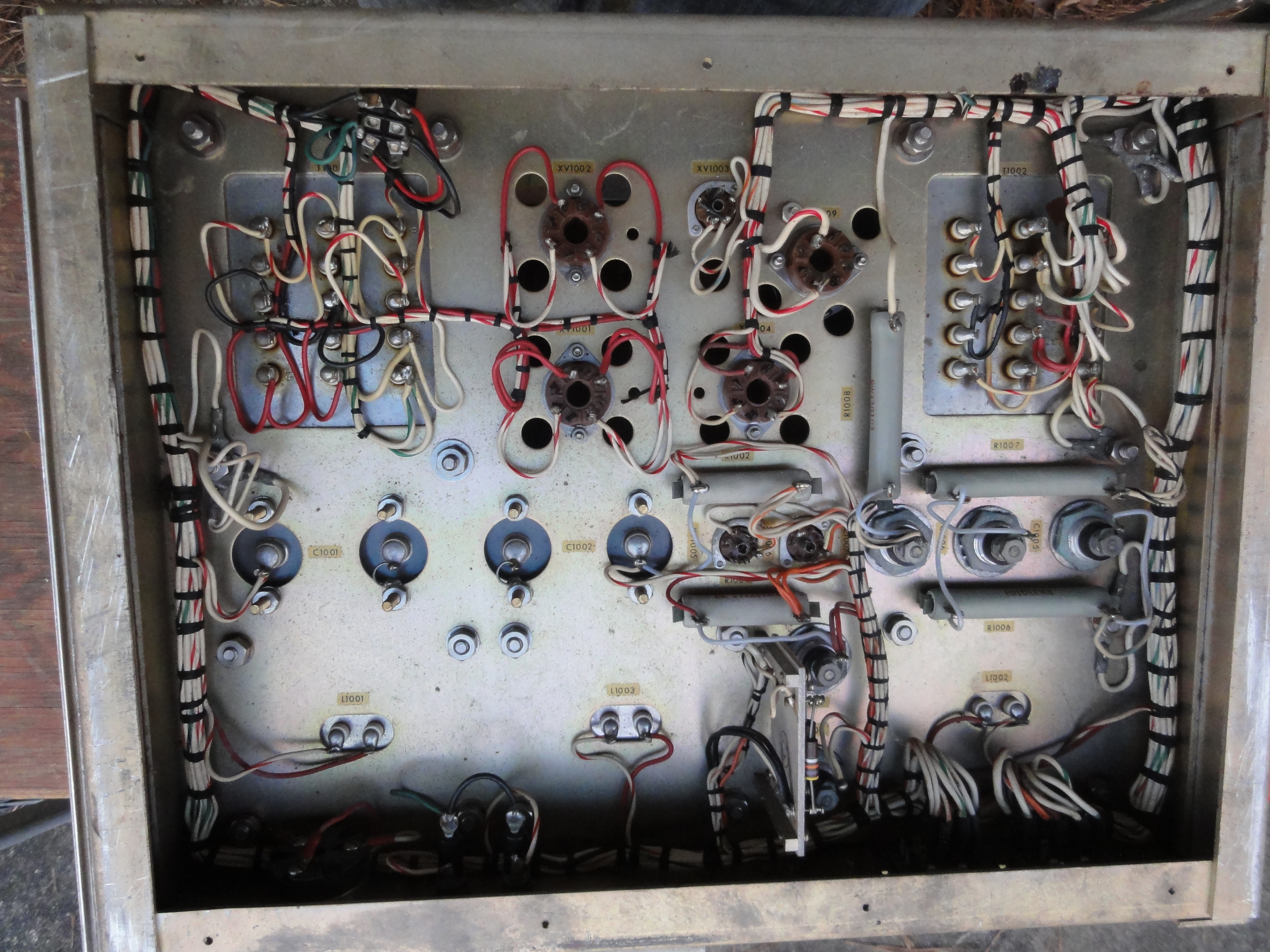

DSC01389.JPG (4421370 bytes) DSC01390.JPG (3929206 bytes) DSC01391.JPG (4171717 bytes) And temporary reassembly inside the shack 12/31/12 - the wiring harness and 800 lbs of xfmrs have yet to be re-installed!

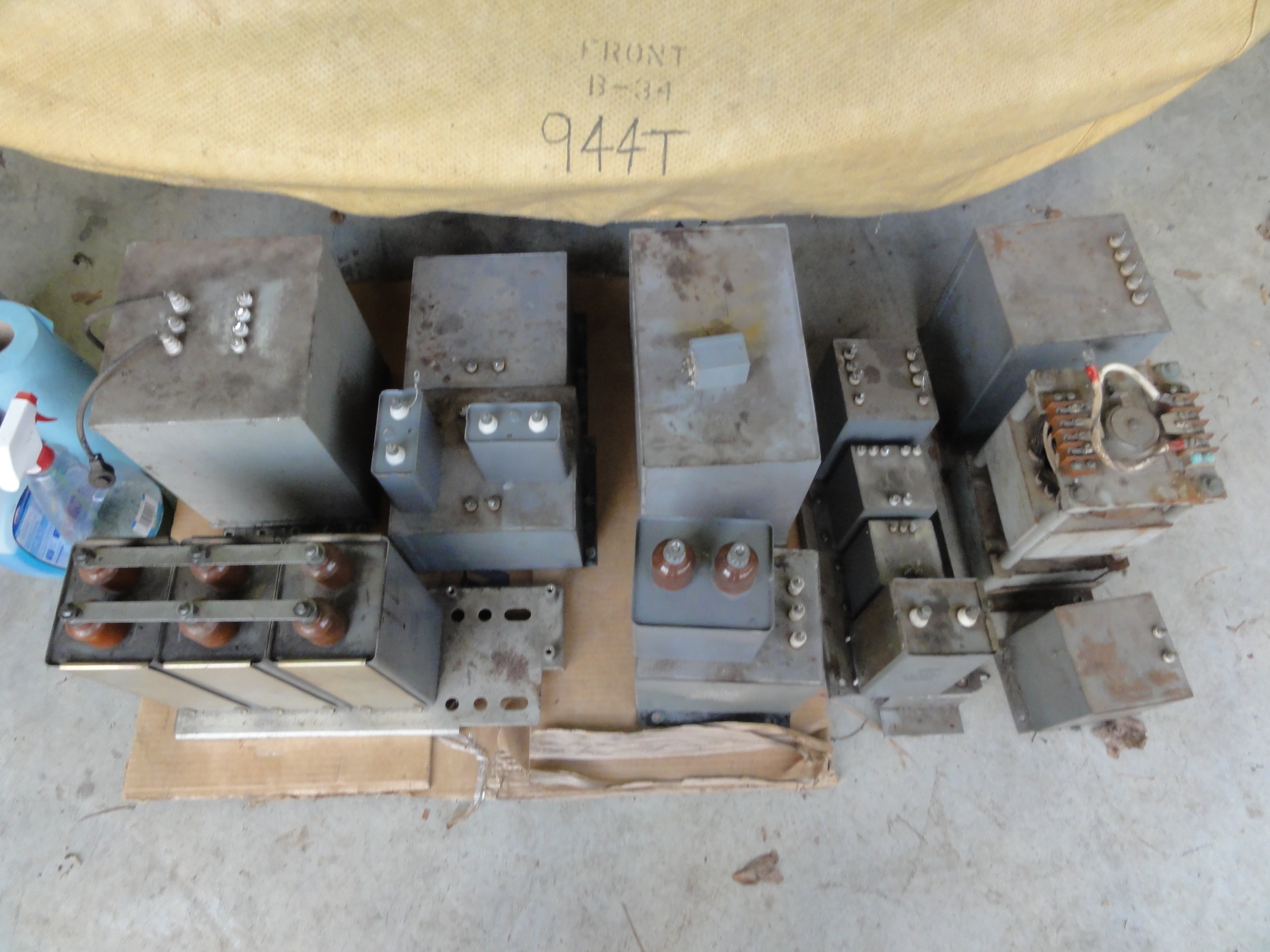

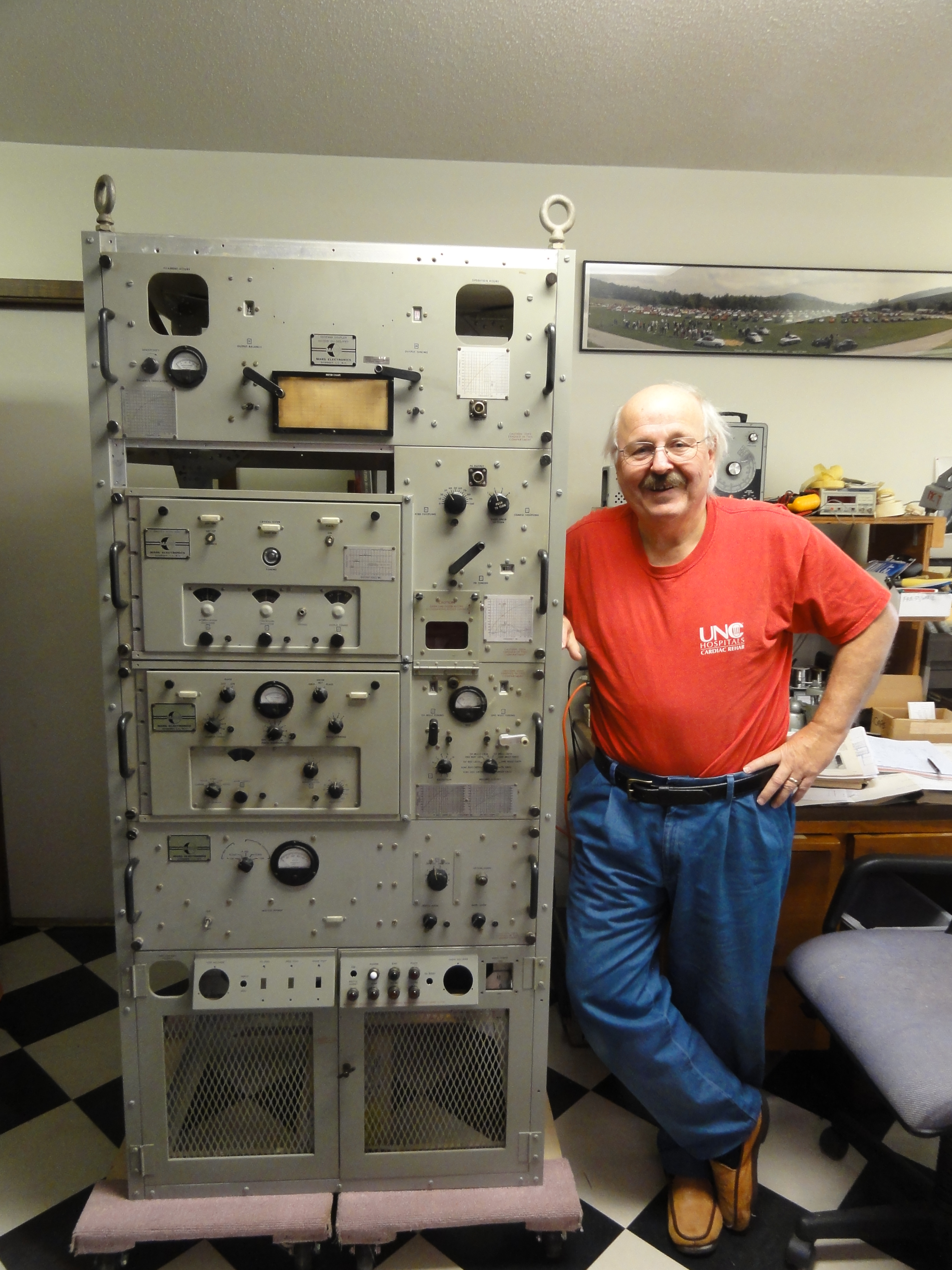

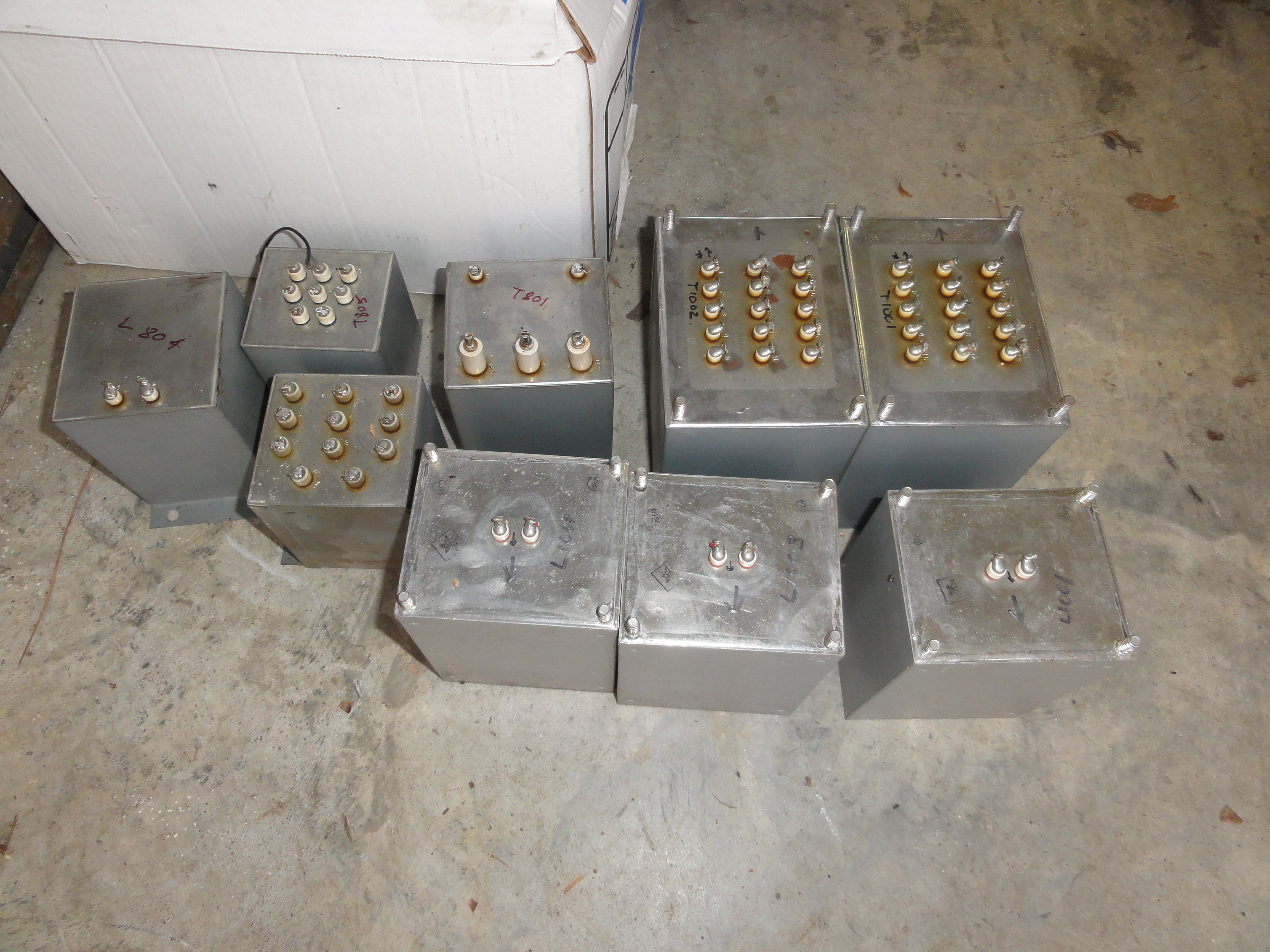

I pulled the transformers from the MO/FSK power supply so I could move the Modulator drawer. All the other transformers are still in the garage too. DSC01392.JPG (4102309 bytes) --DSC01394.JPG (3709808 bytes)

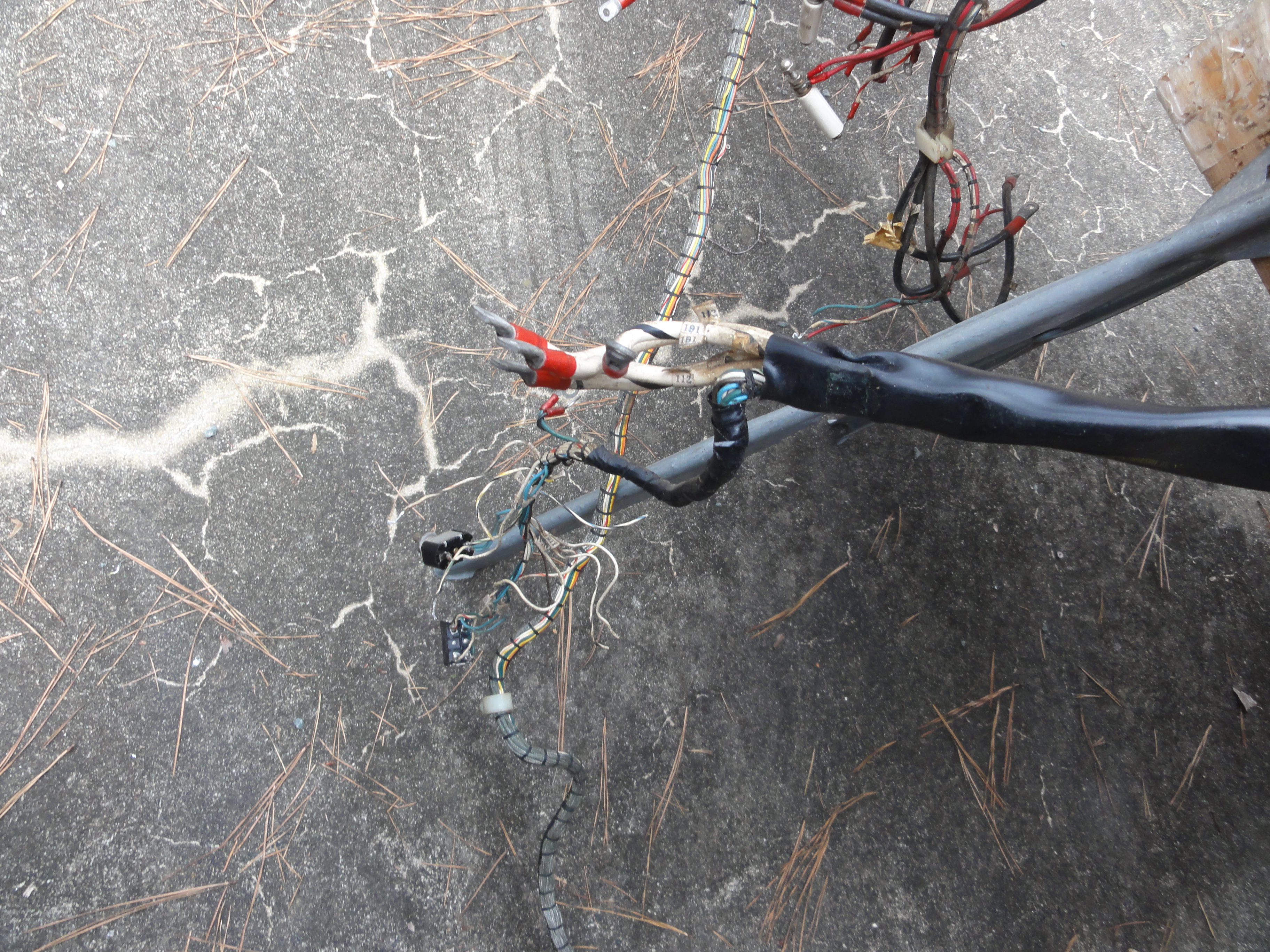

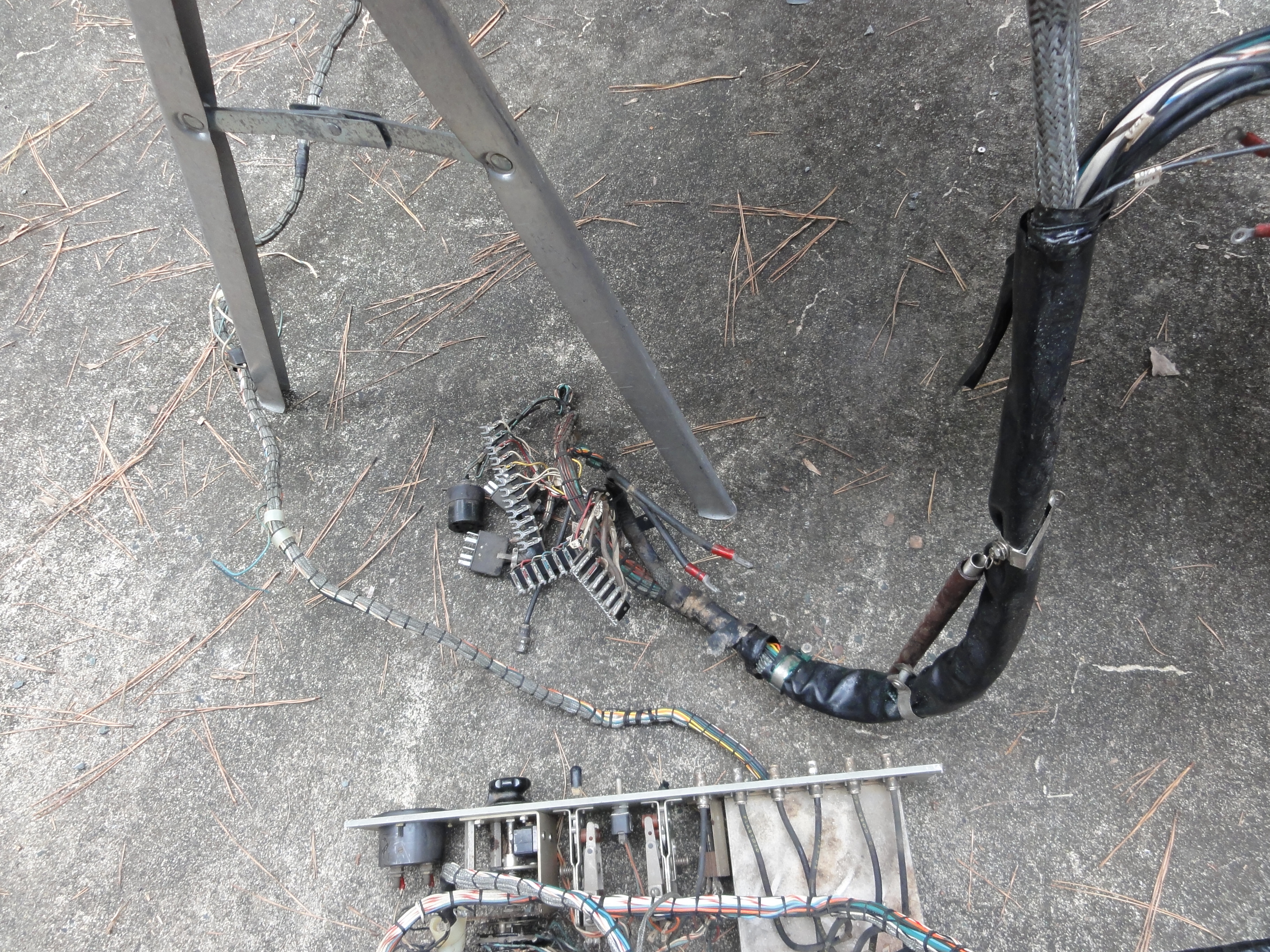

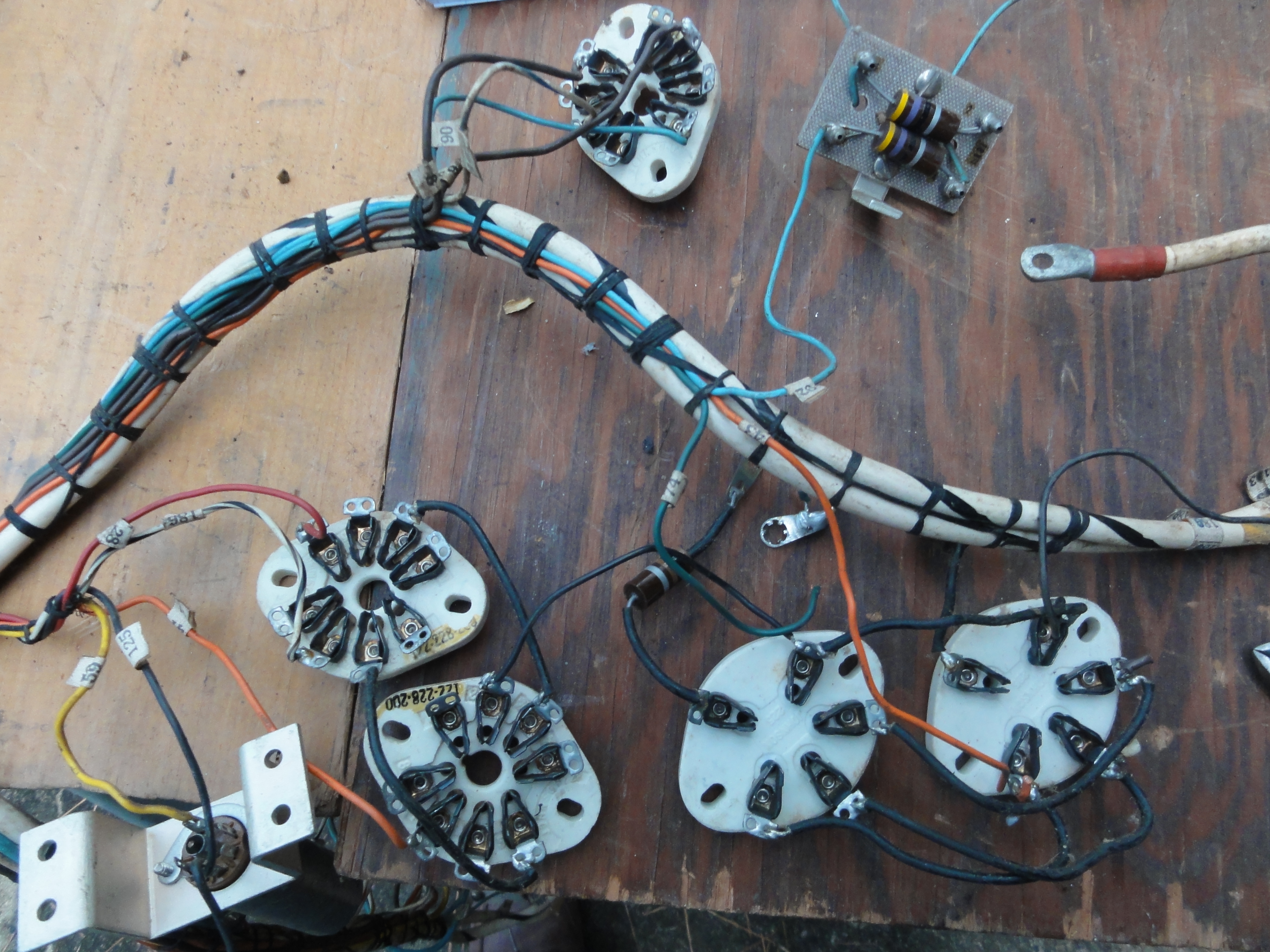

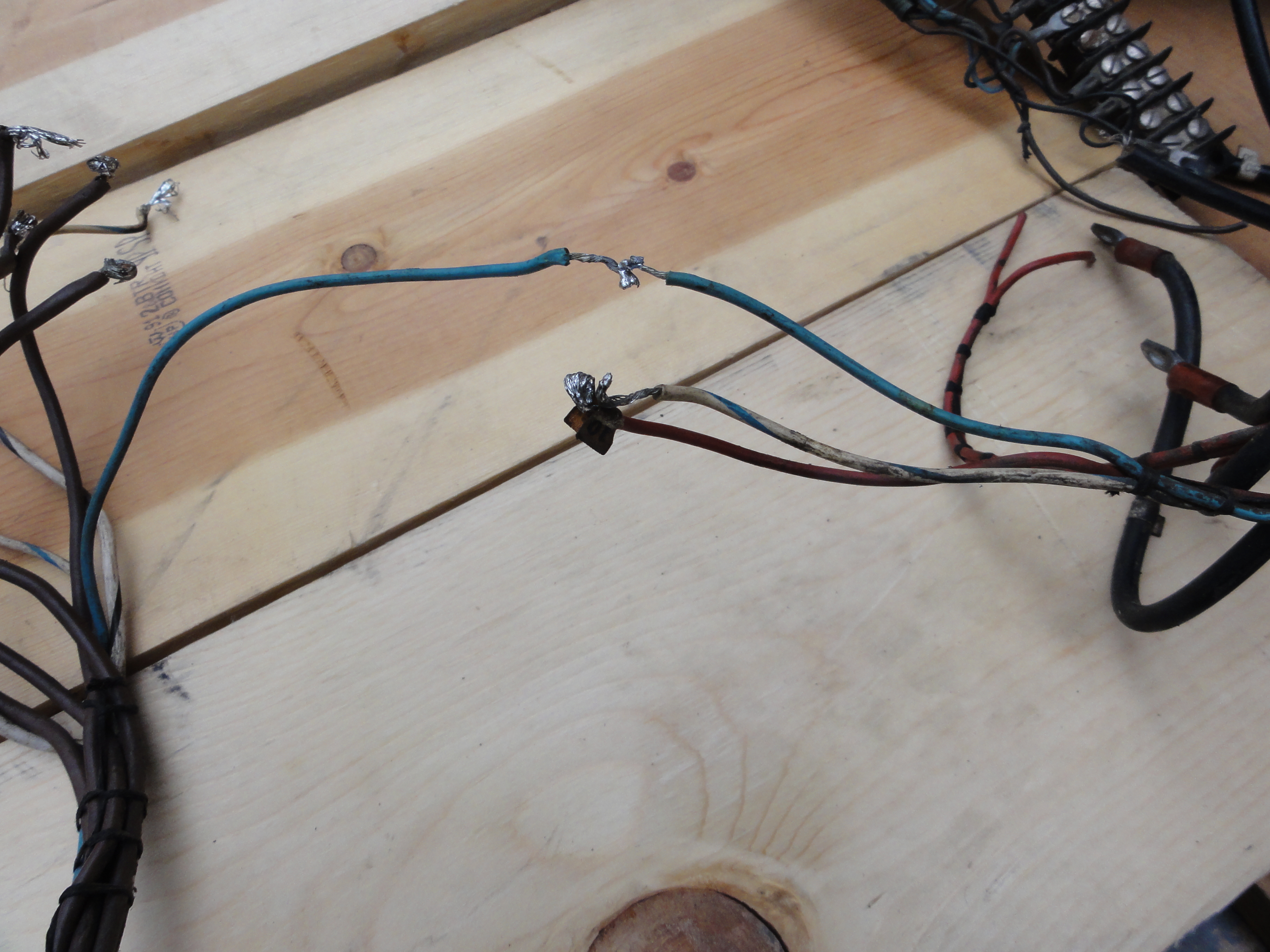

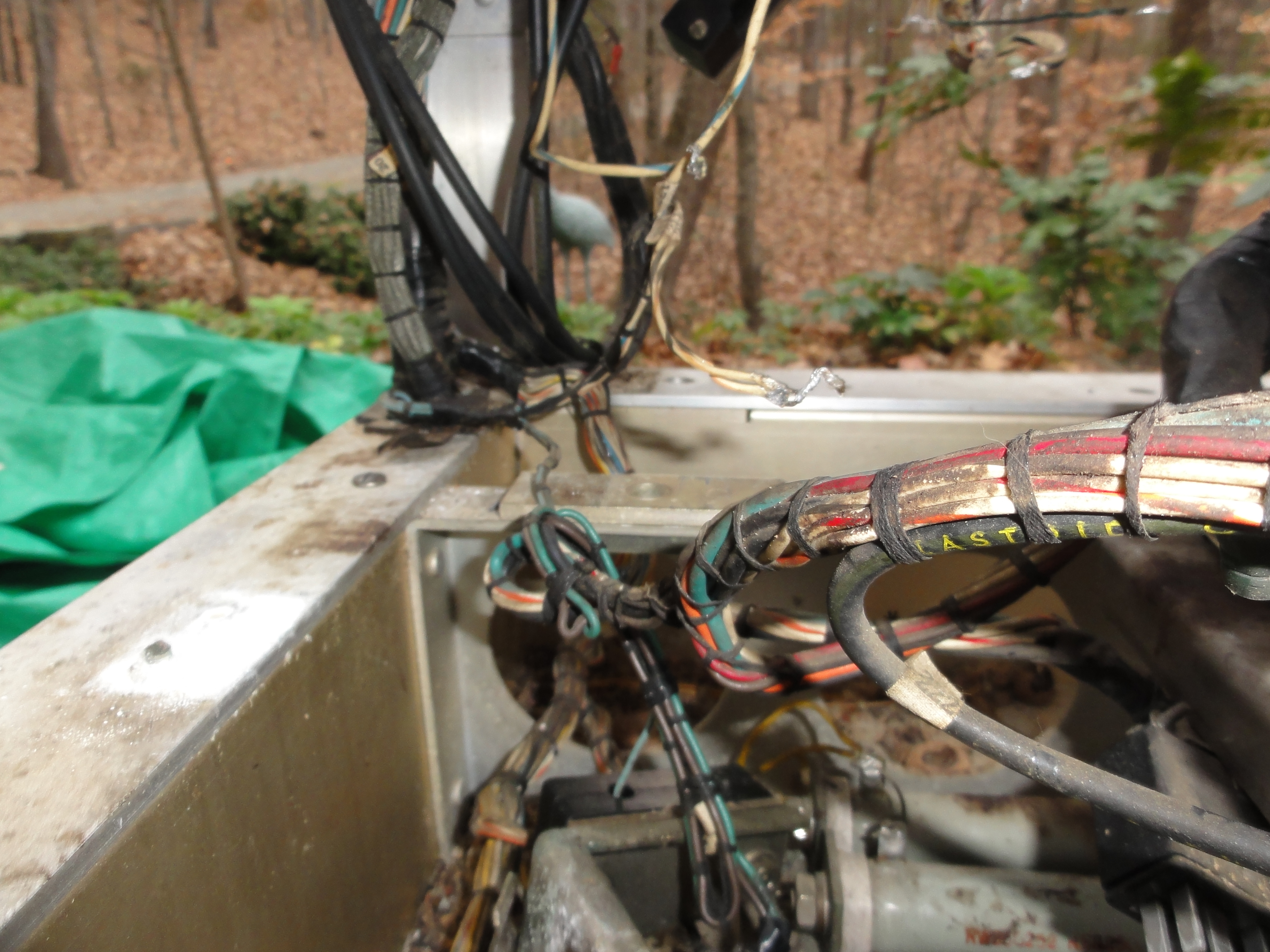

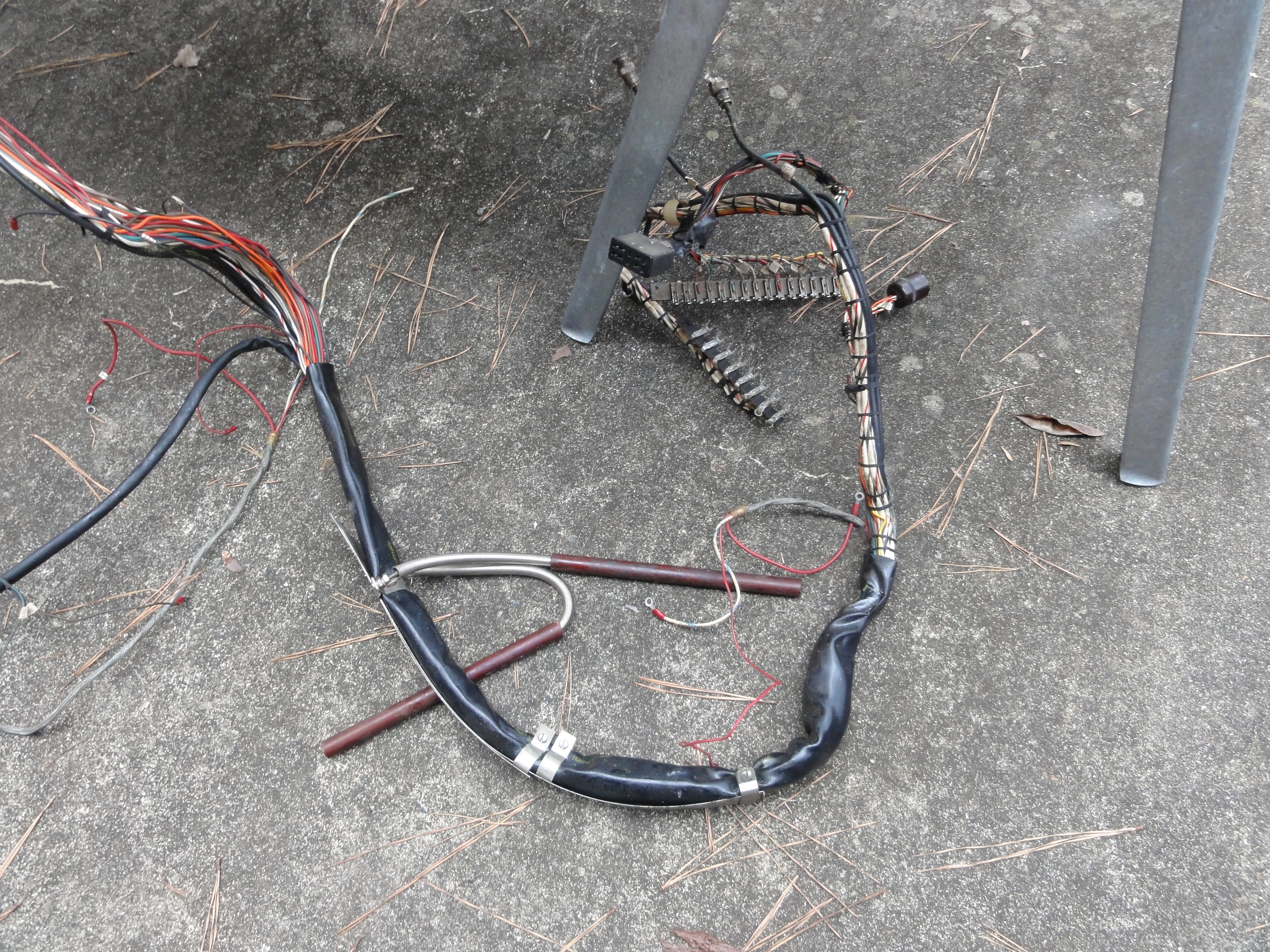

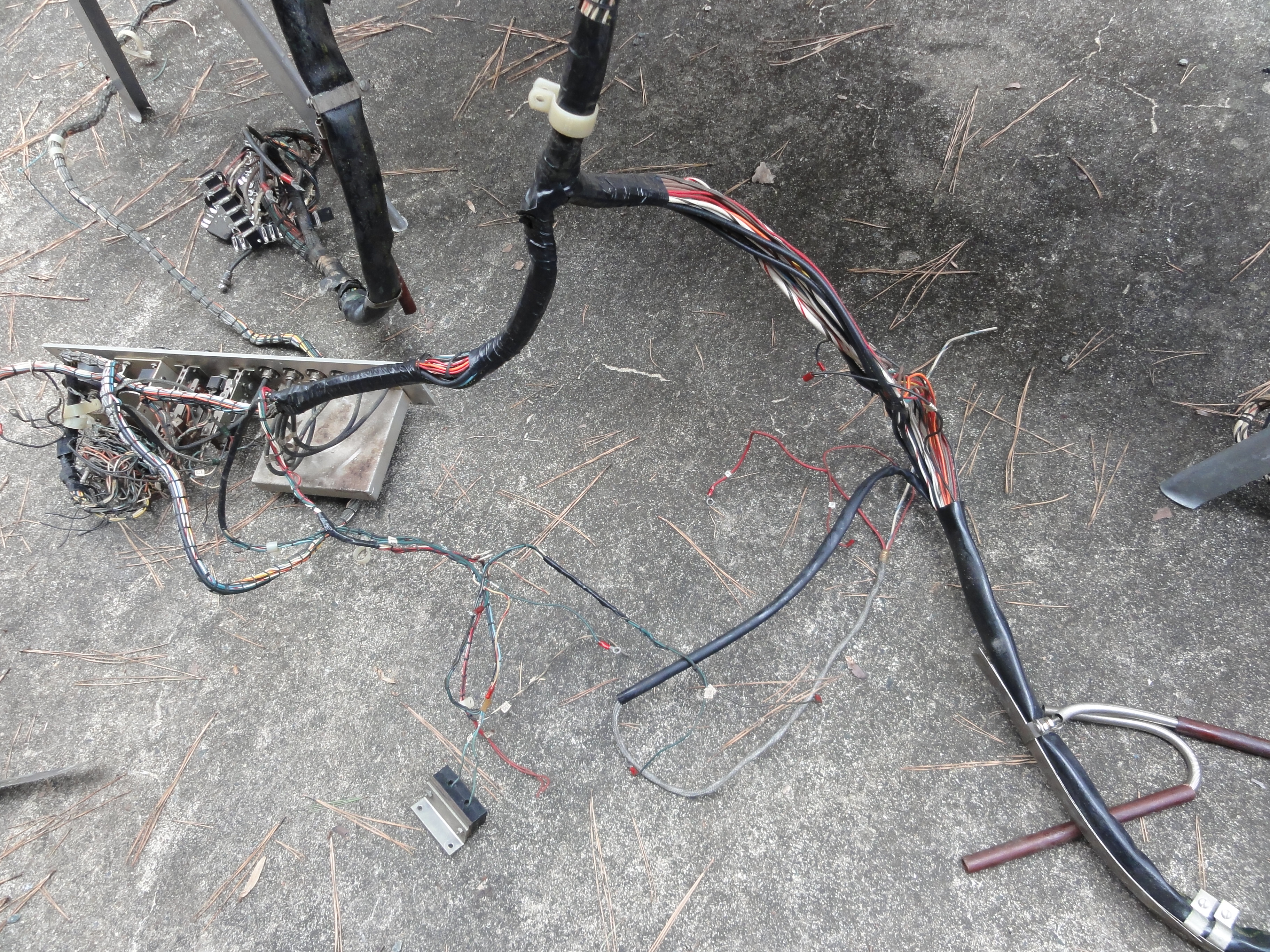

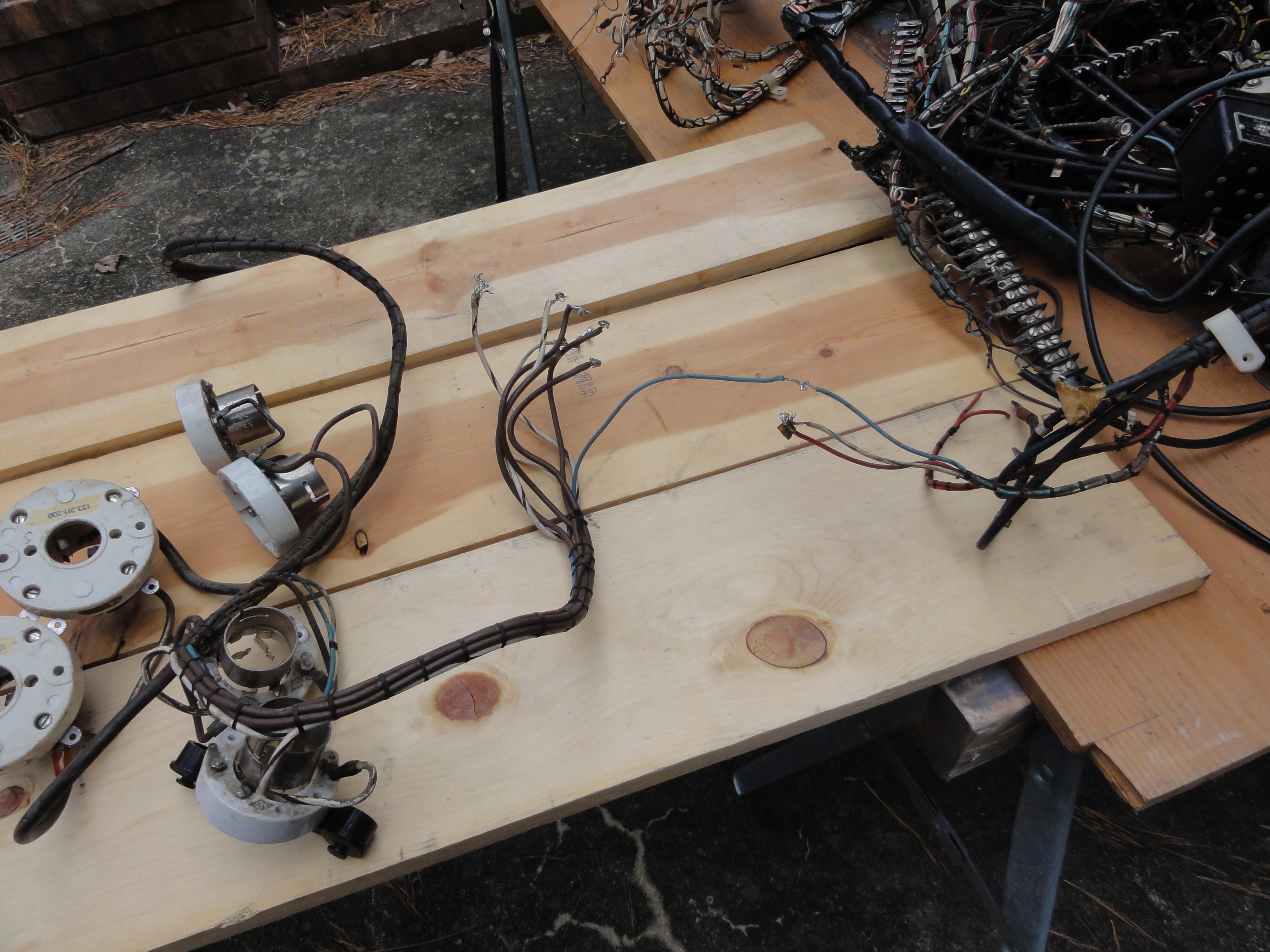

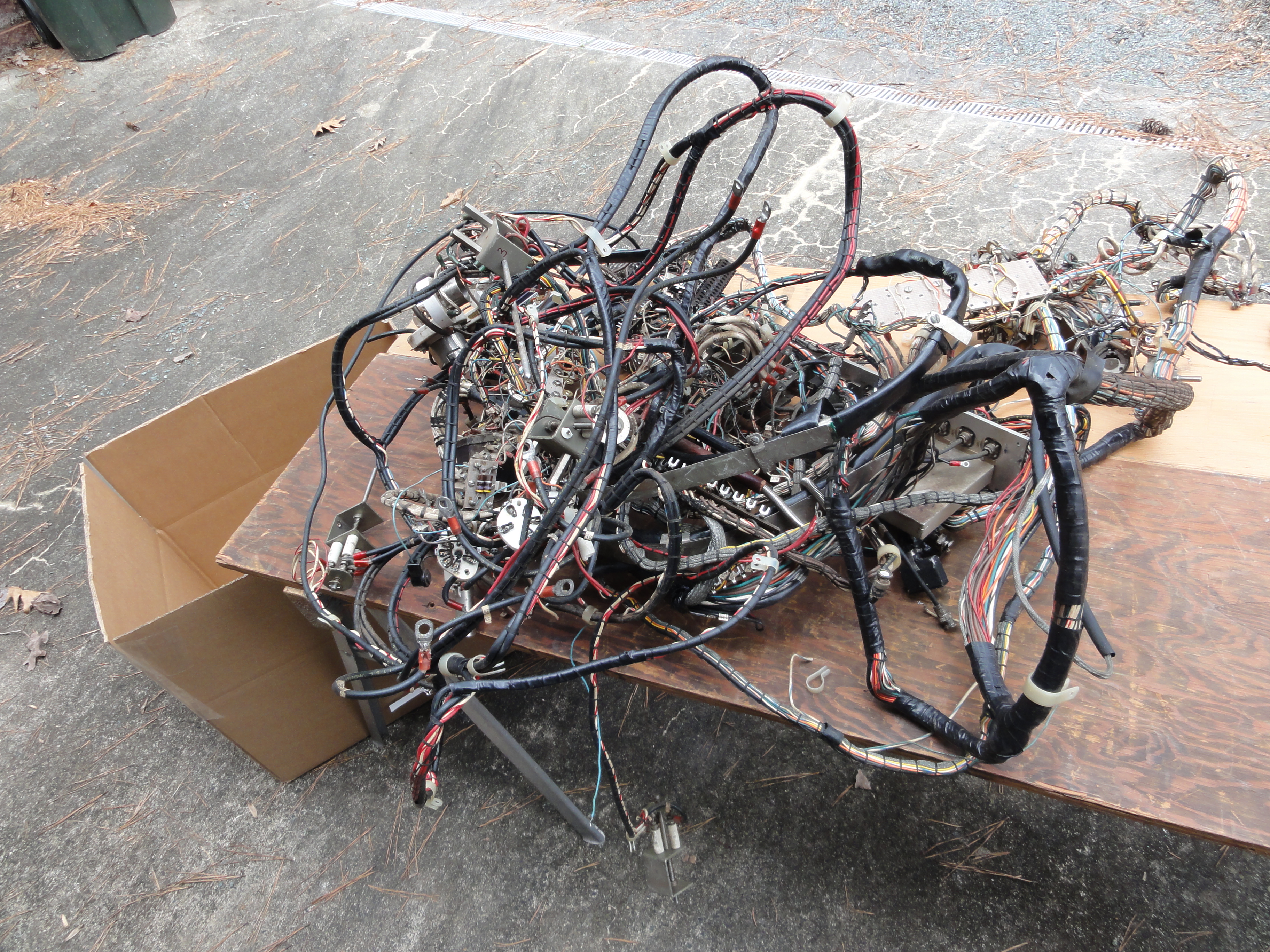

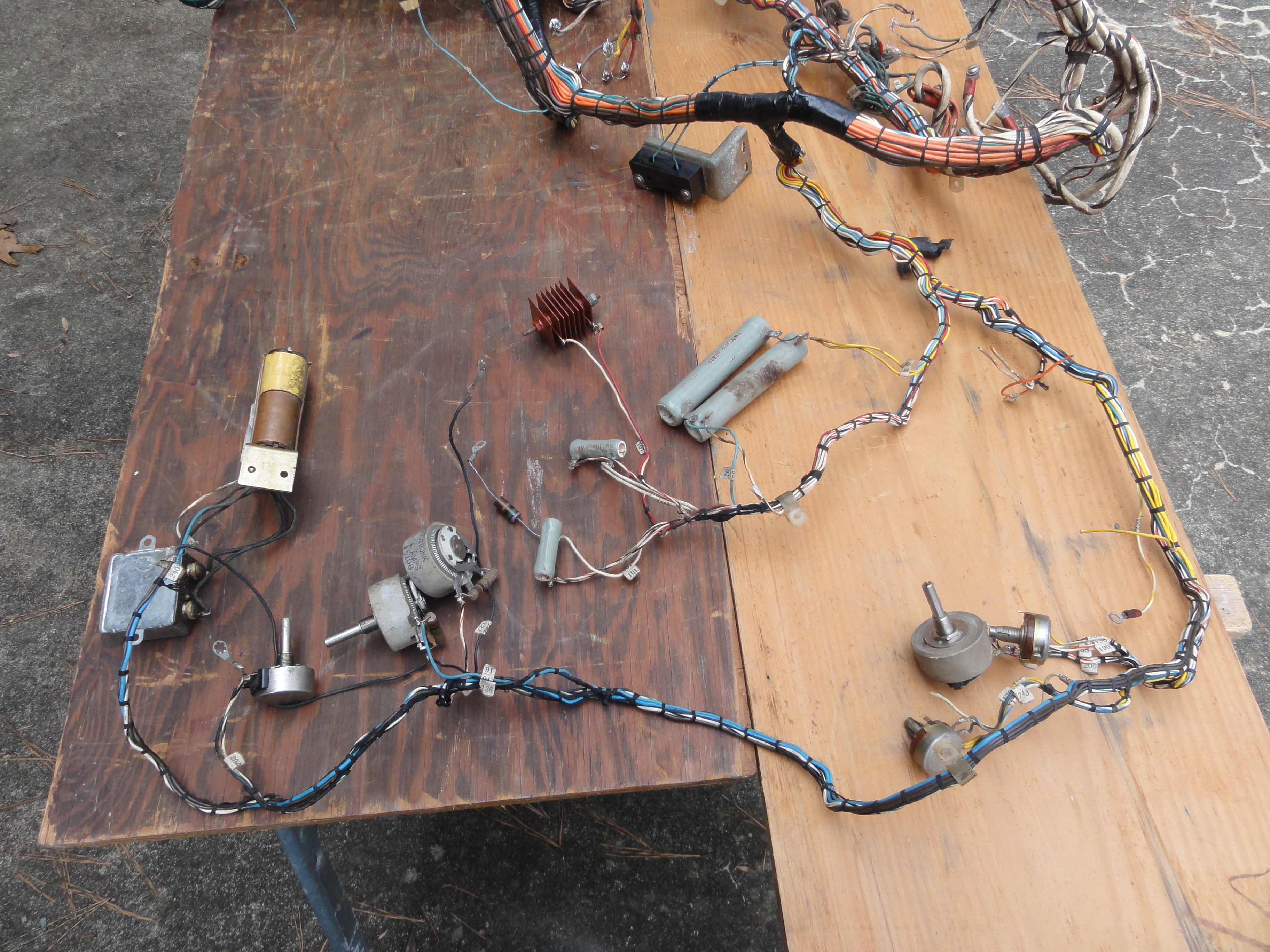

Warm weather in January - starting to untangle & clean the wiring harness

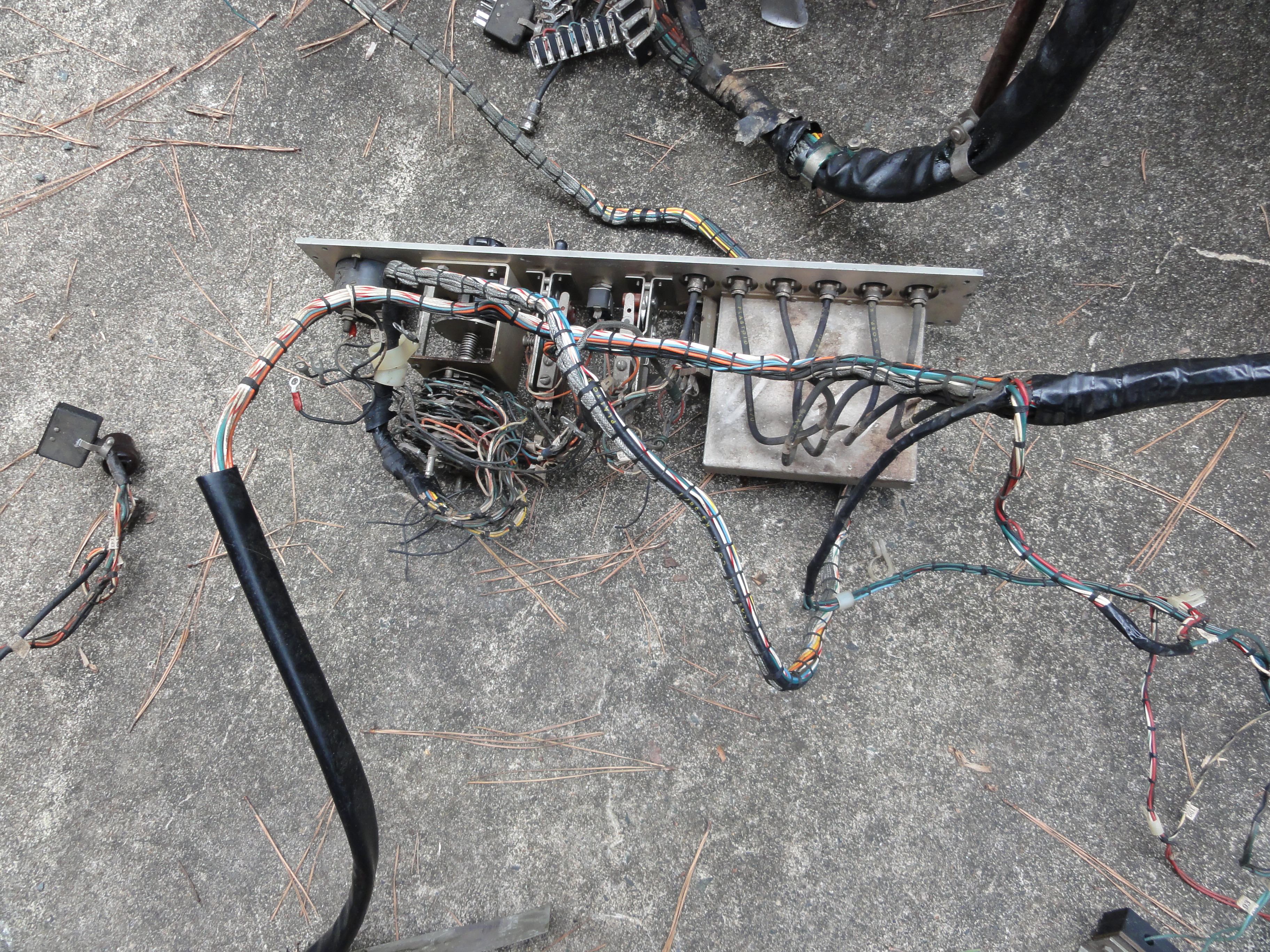

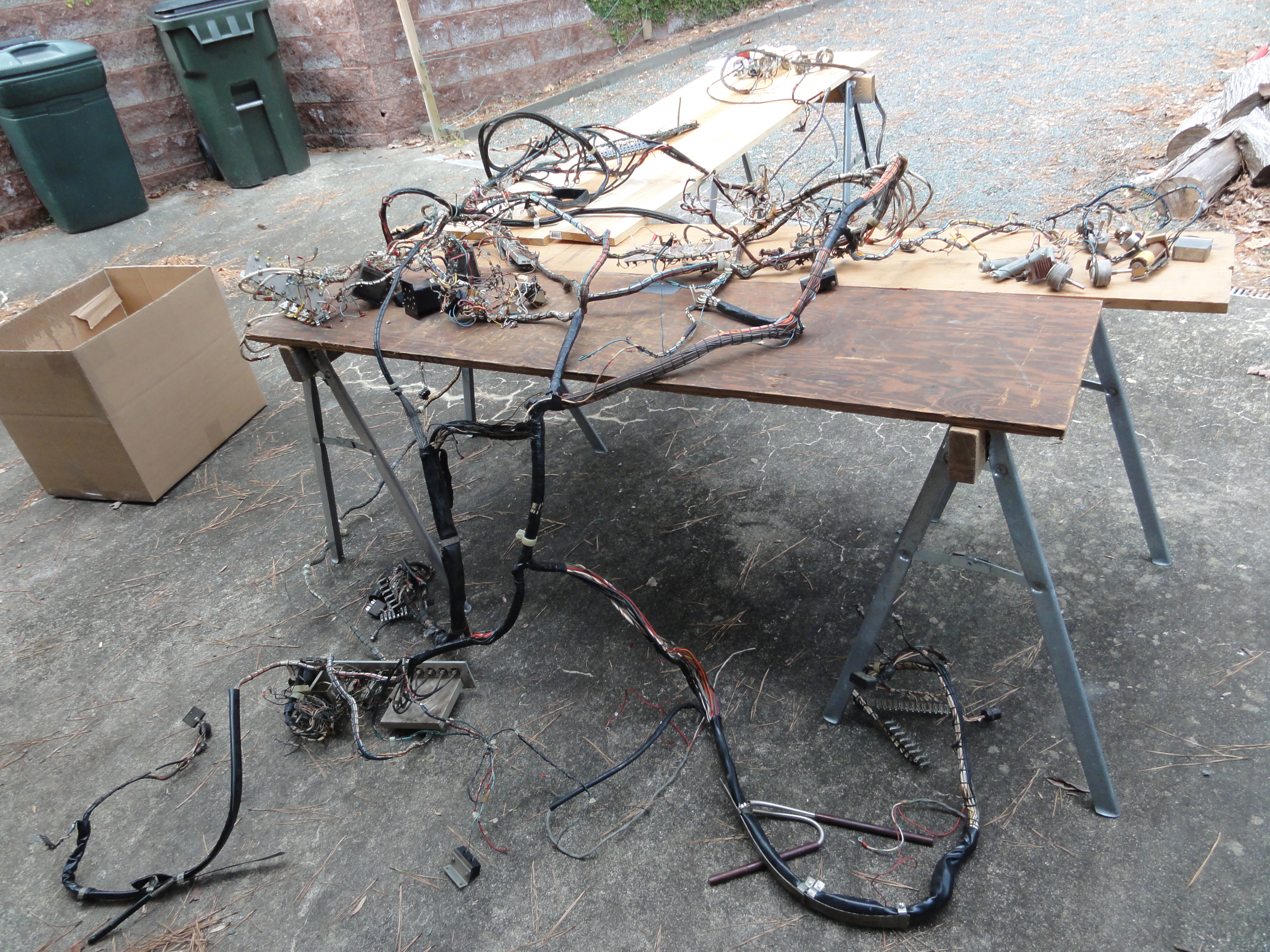

DSC01407.JPG (4543730 bytes) DSC01408.JPG (4409052 bytes) DSC01409.JPG (4443579 bytes) DSC01410.JPG (4508939 bytes)
DSC01411.JPG (4535348 bytes) DSC01412.JPG (4364670 bytes) DSC01413.JPG (4510361 bytes) DSC01414.JPG (4368913 bytes)

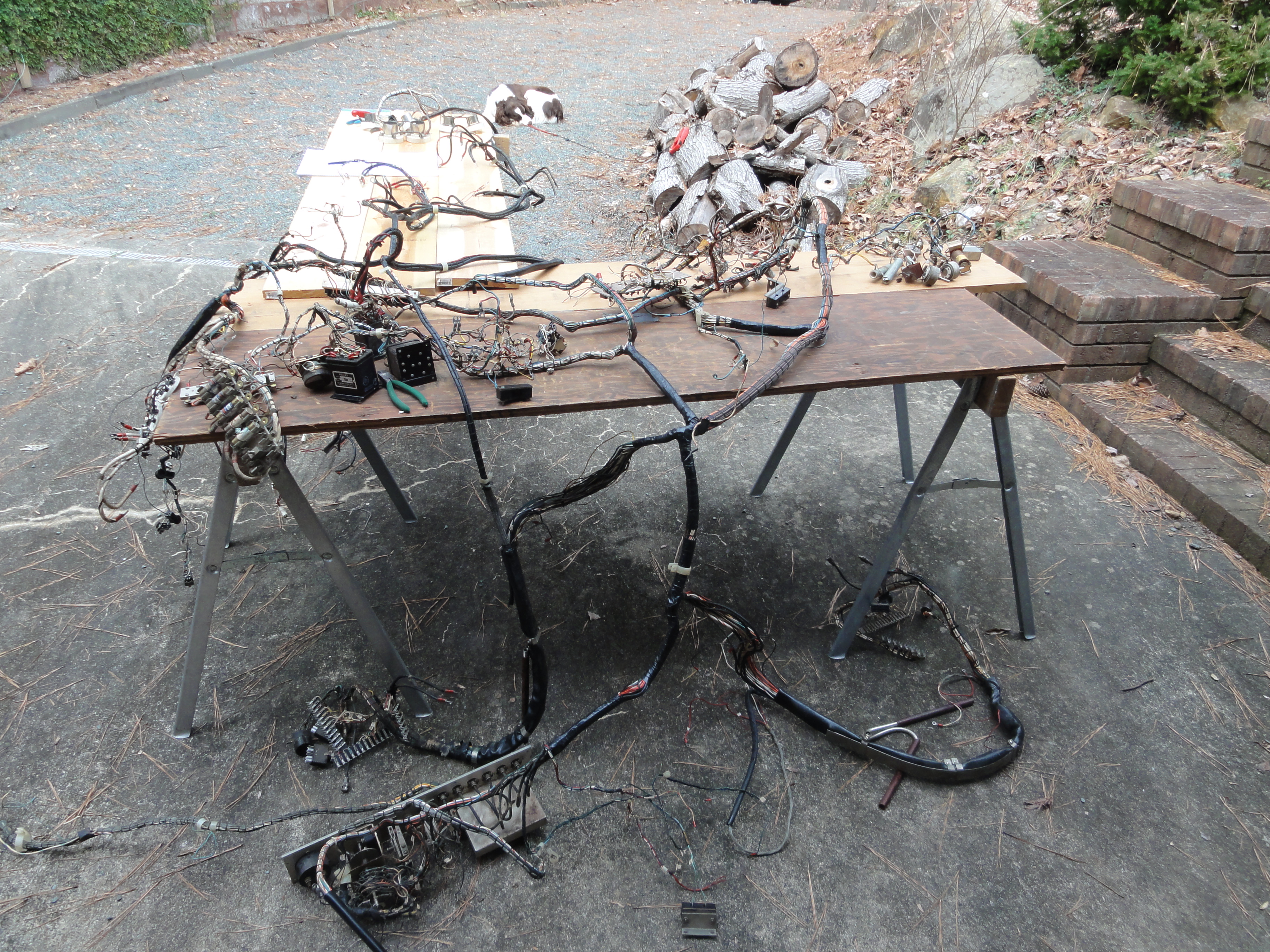

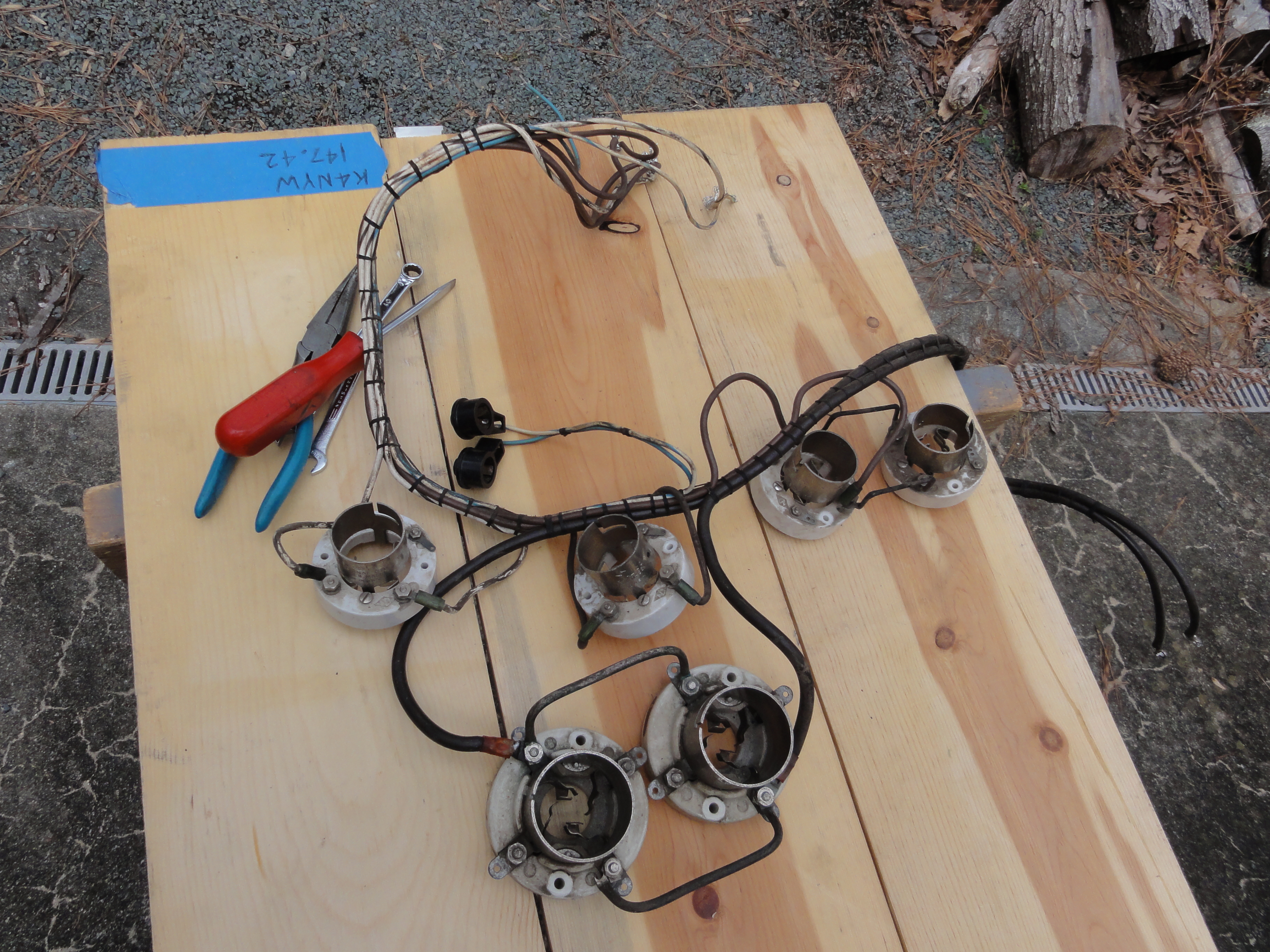

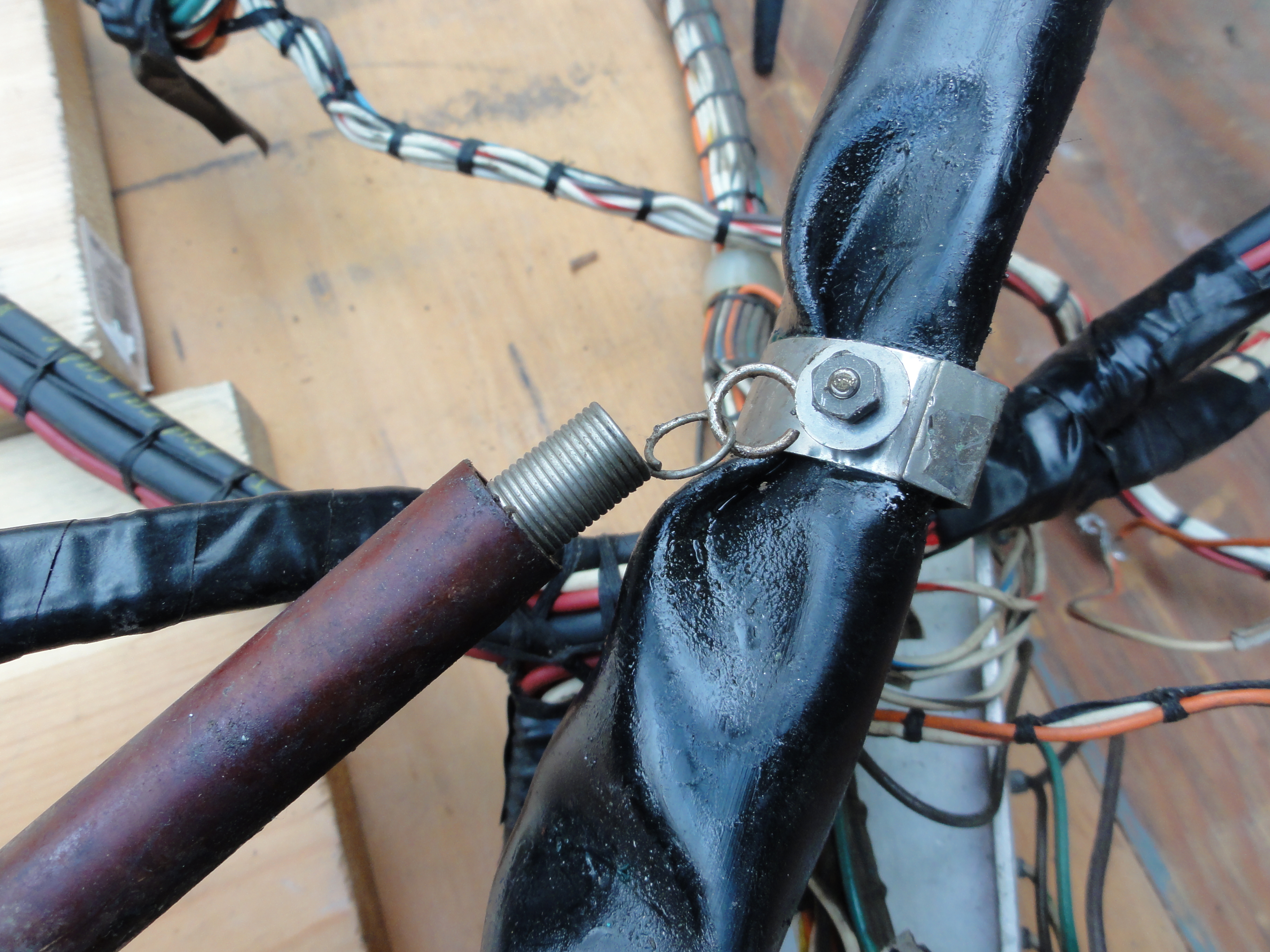

DSC01415.JPG (4328209 bytes) DSC01416.JPG (4380421 bytes) DSC01417.JPG (4129346 bytes) DSC01418.JPG (3963626 bytes)
Tucked in for the evening..

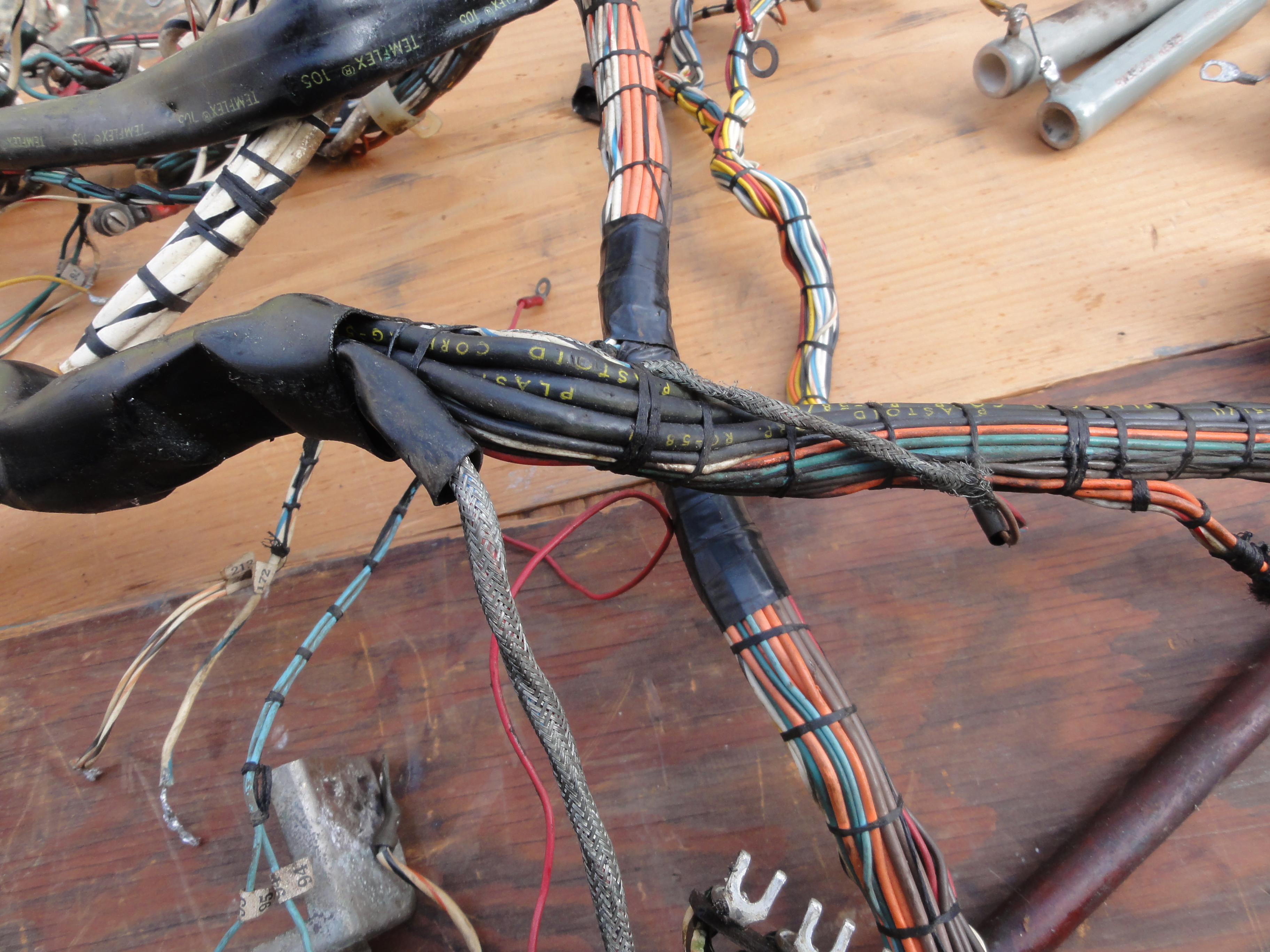

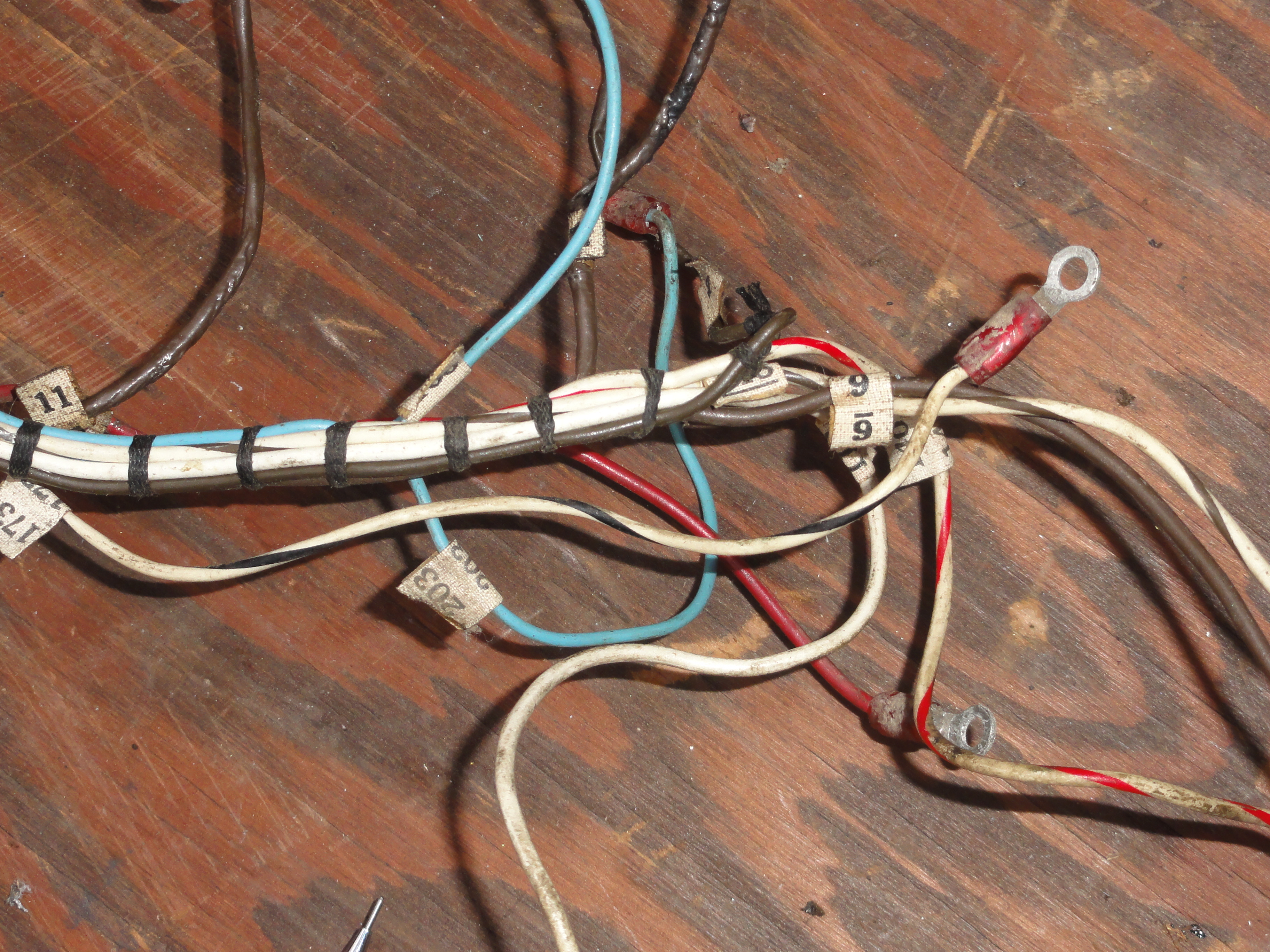

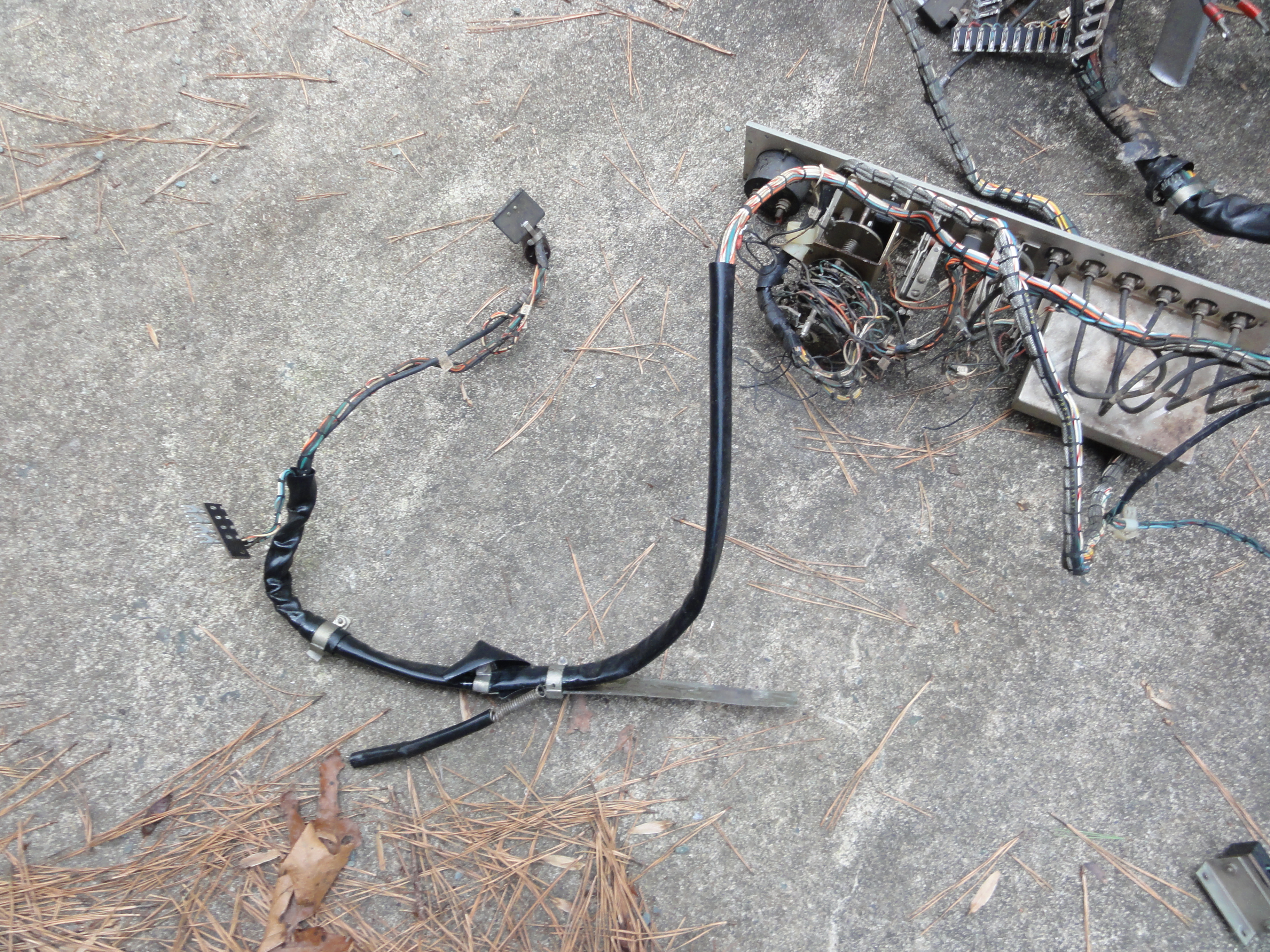

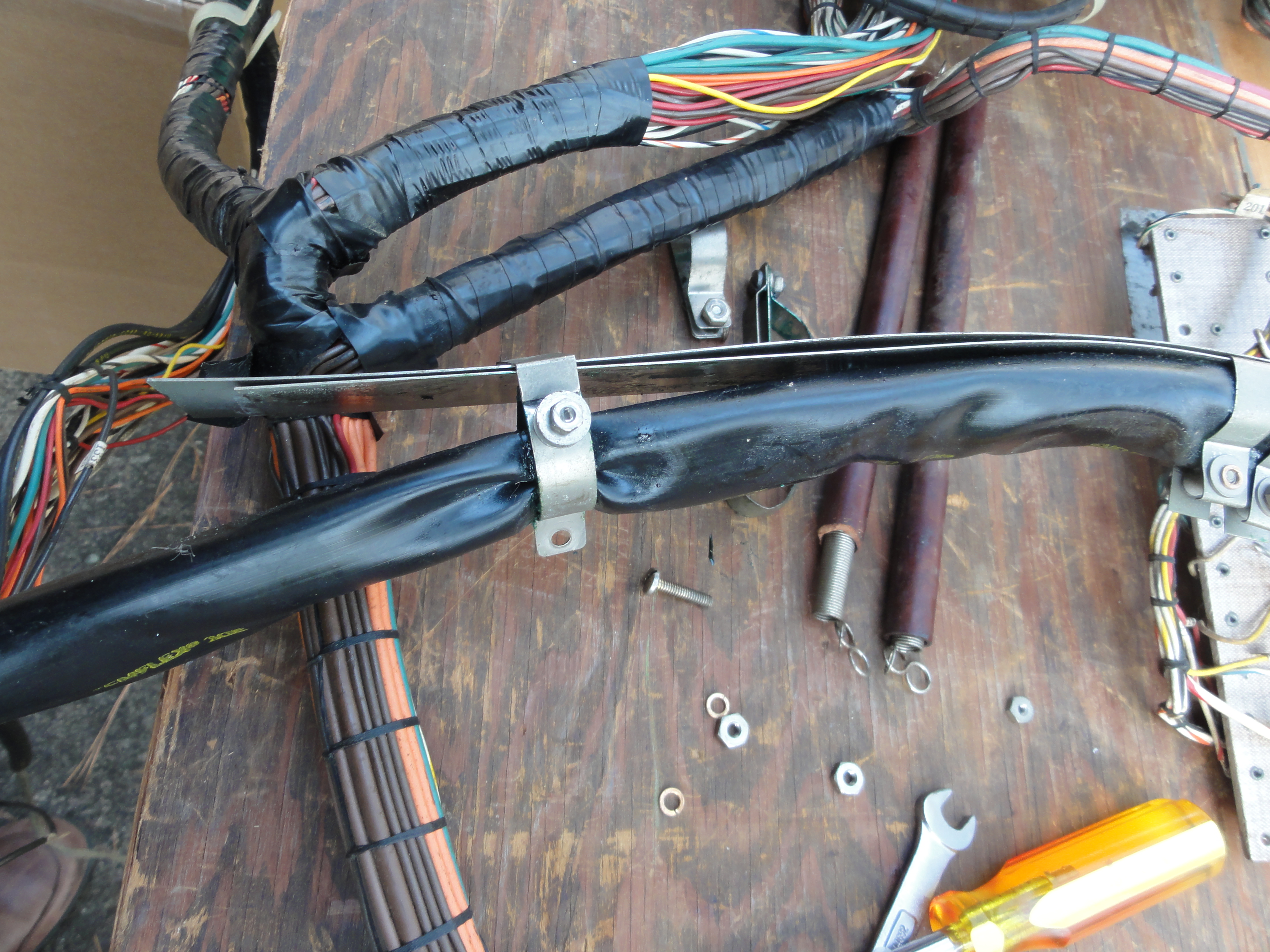

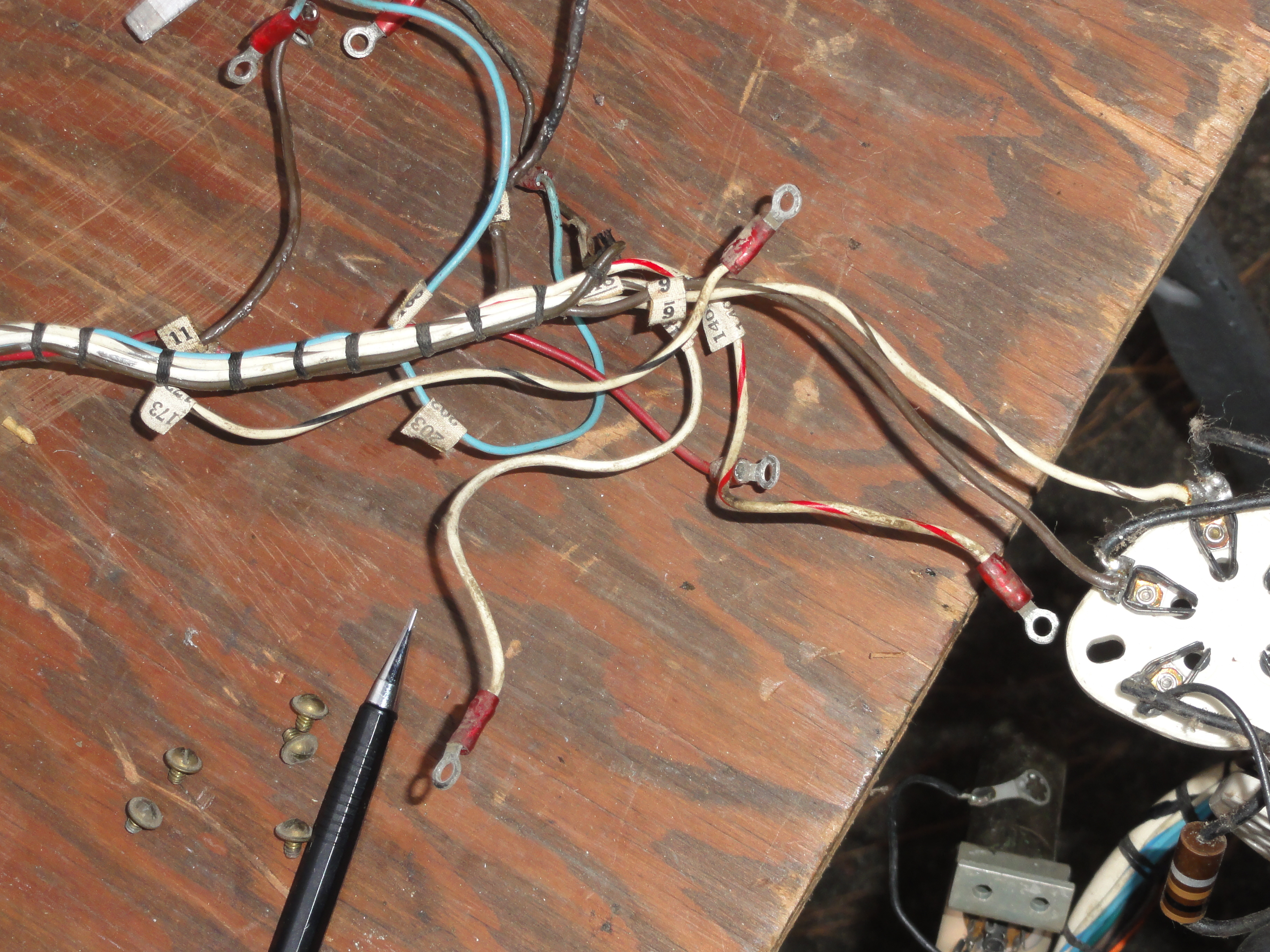

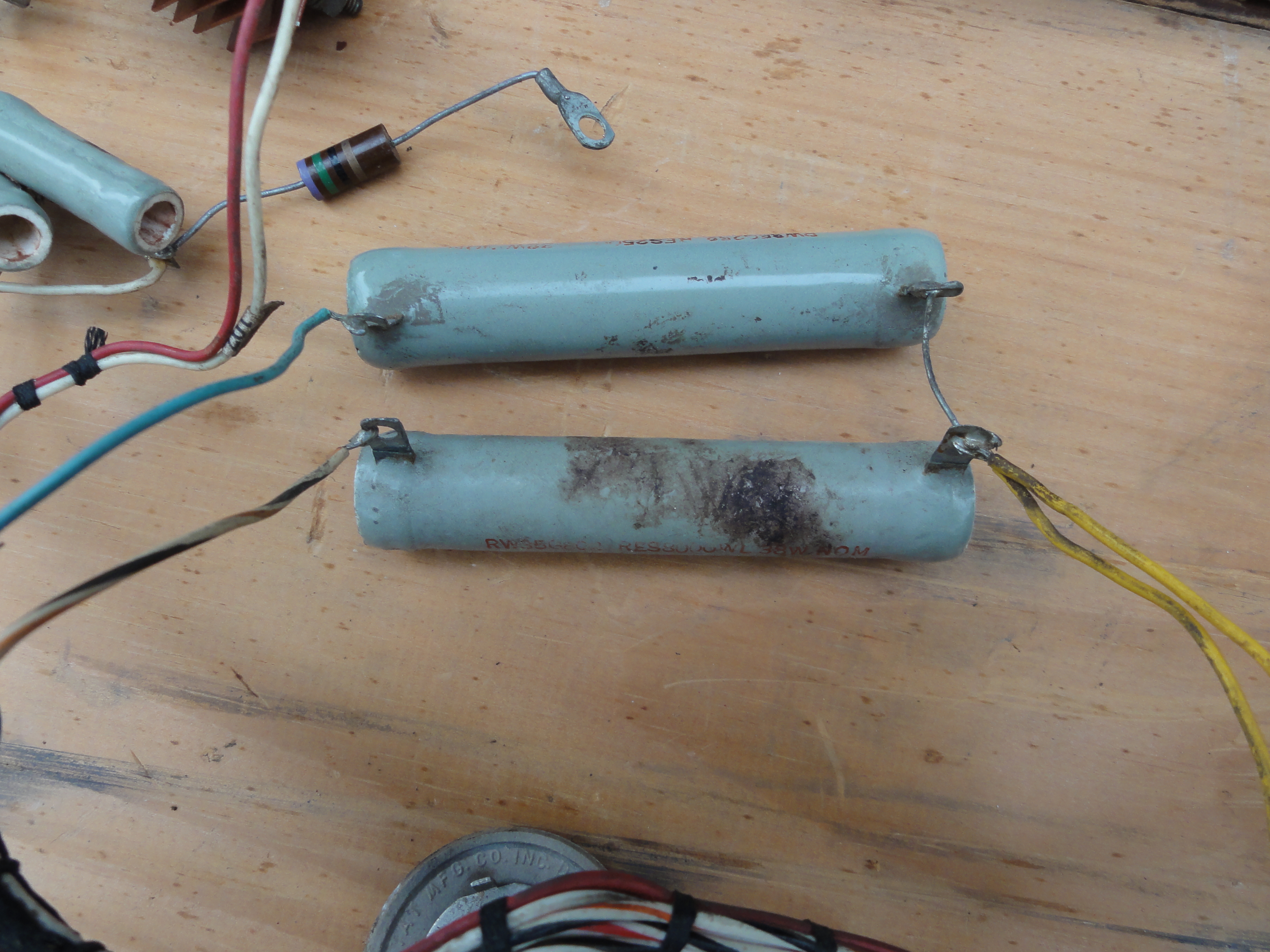

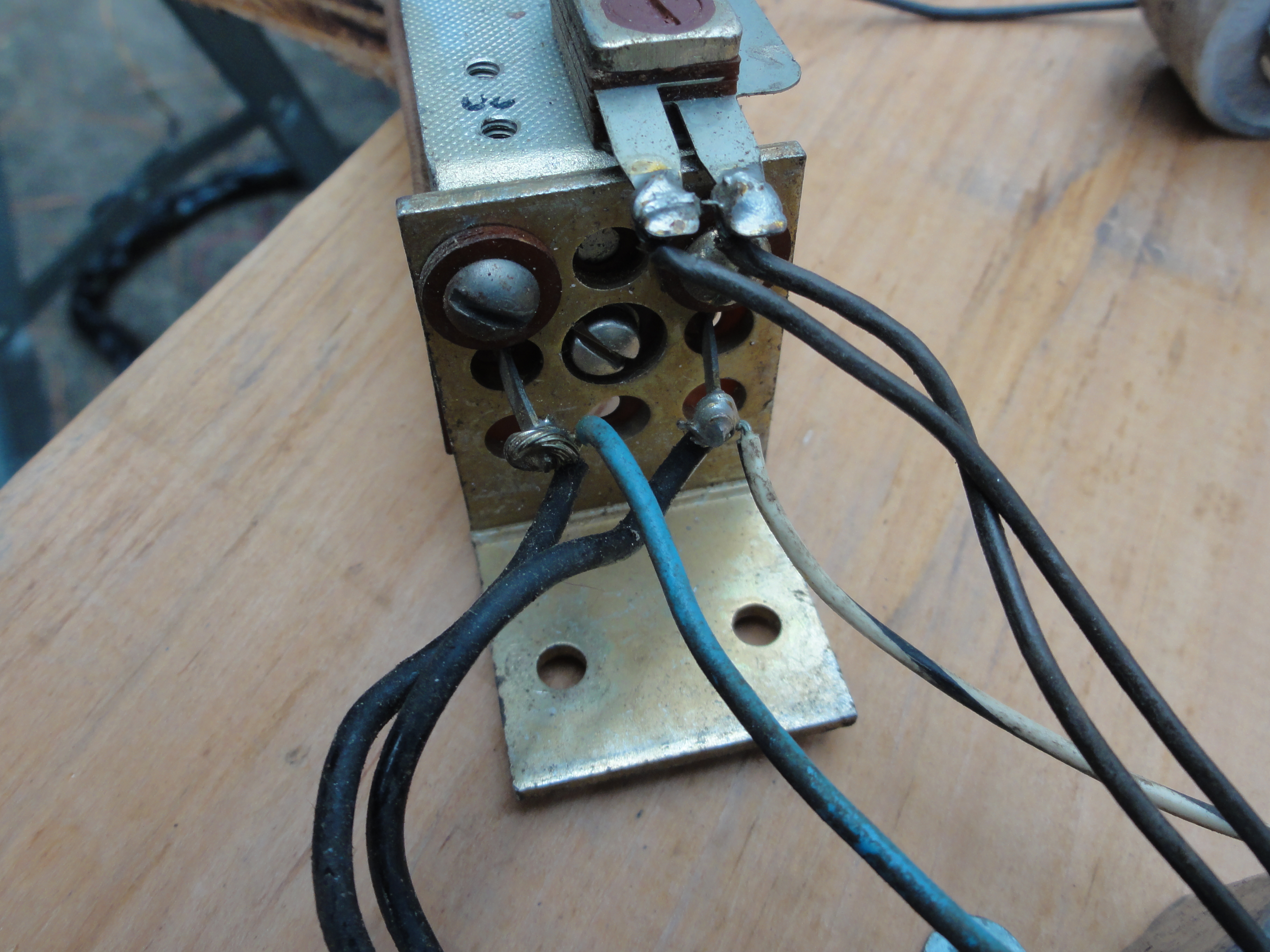

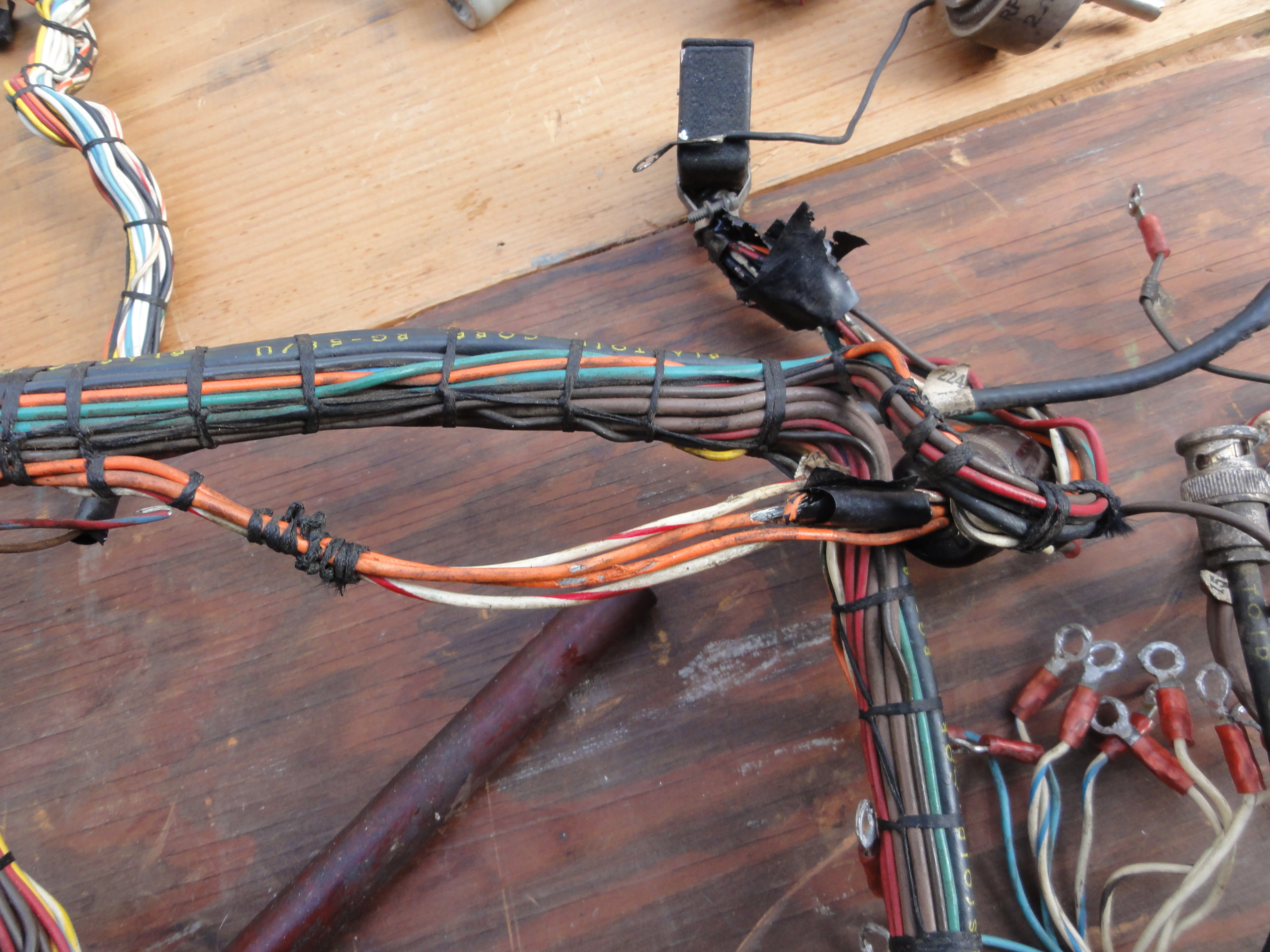

The next day - more work removing components from the harness and documenting same

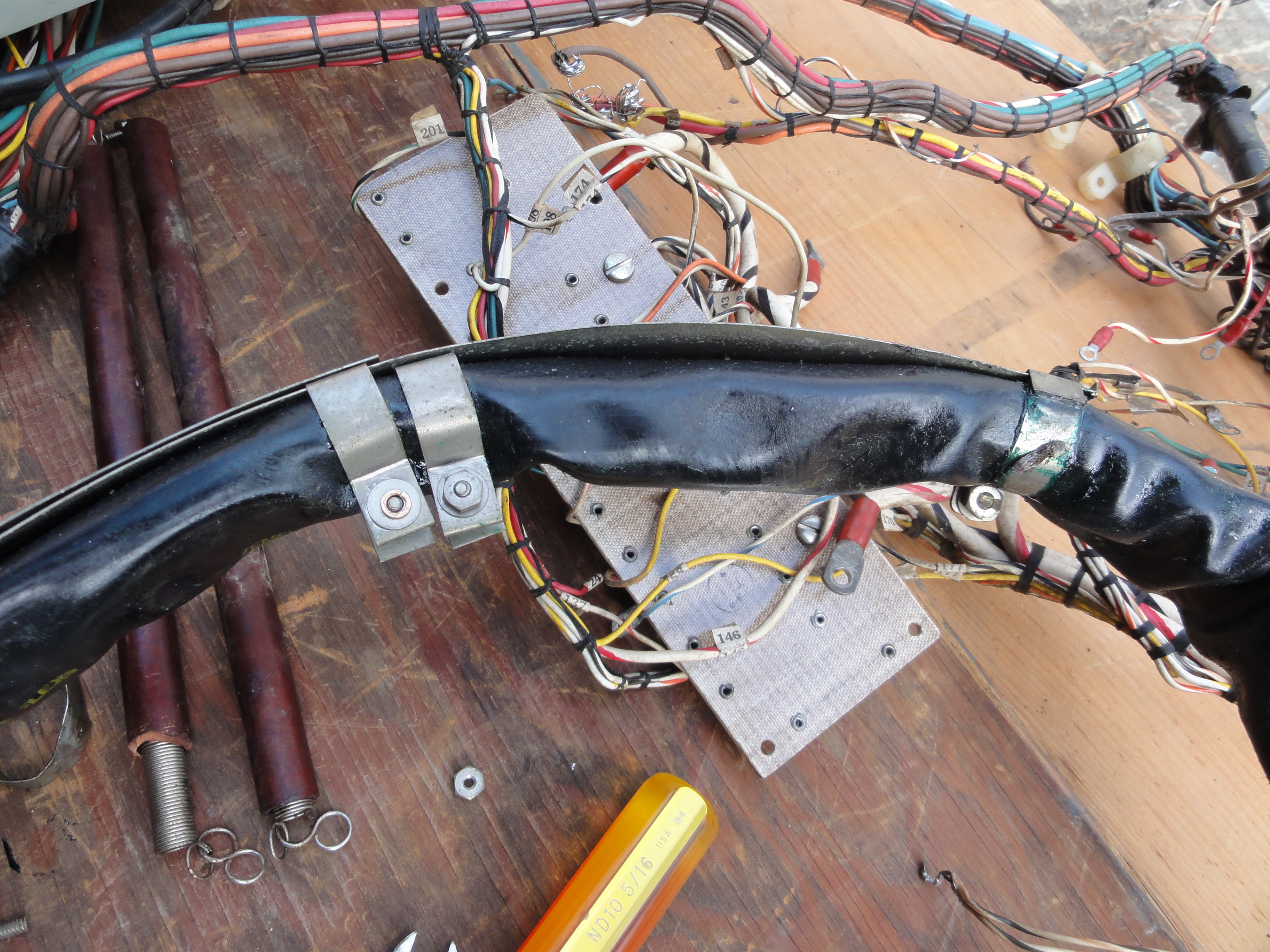

DSC01423.JPG (4329913 bytes) DSC01424.JPG (4459005 bytes) DSC01425.JPG (4025917 bytes) DSC01426.JPG (4042056 bytes)

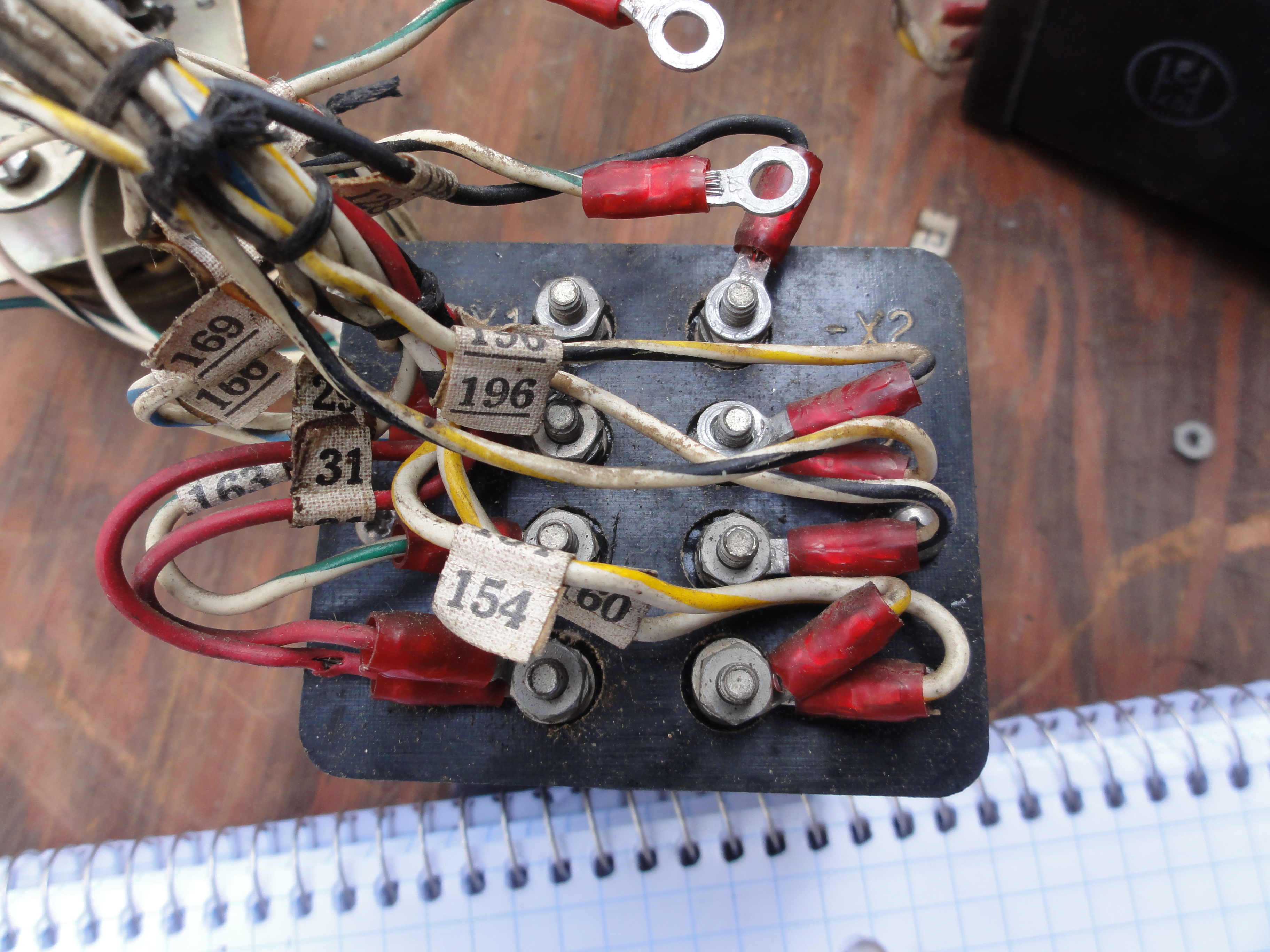

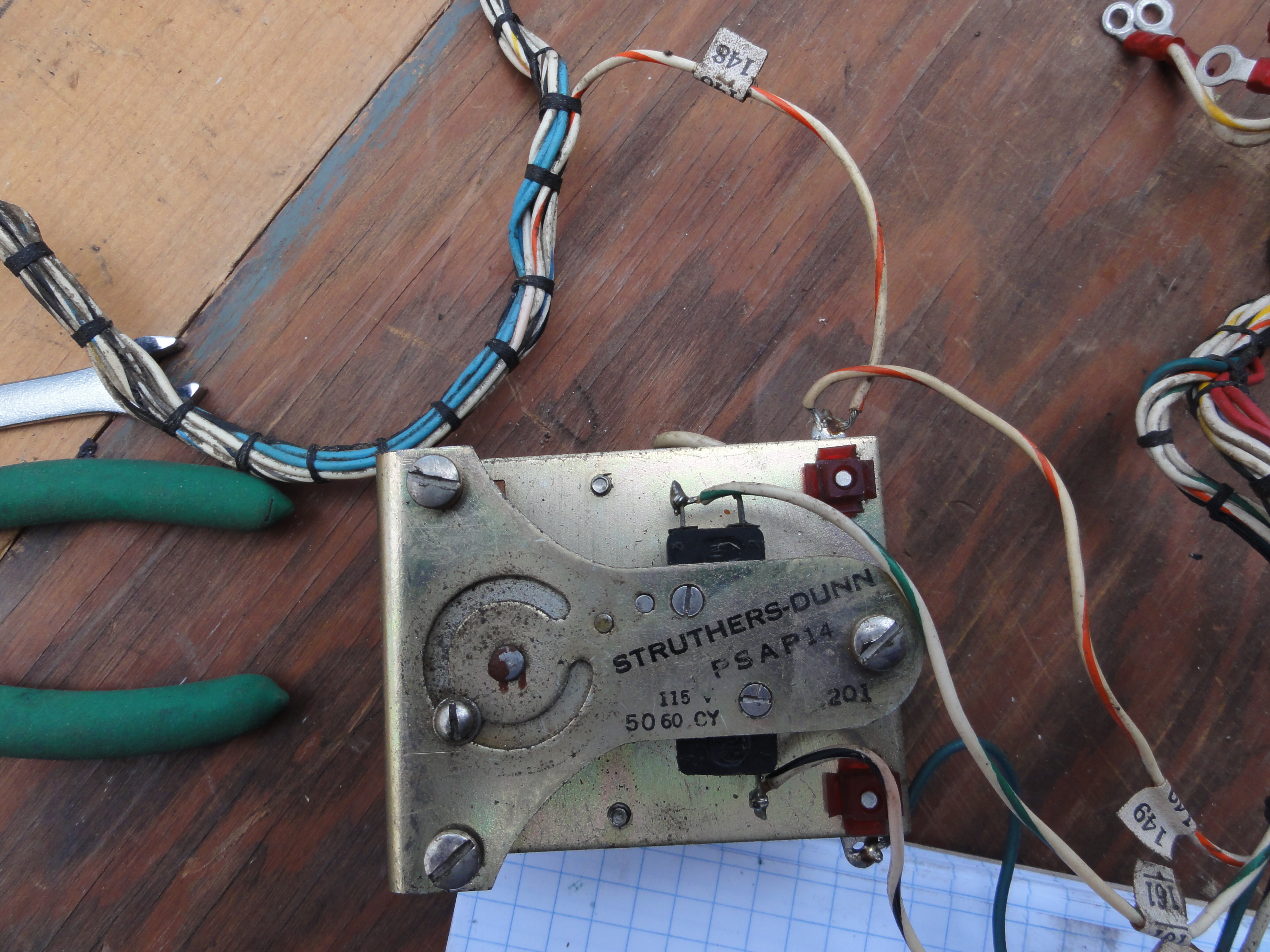

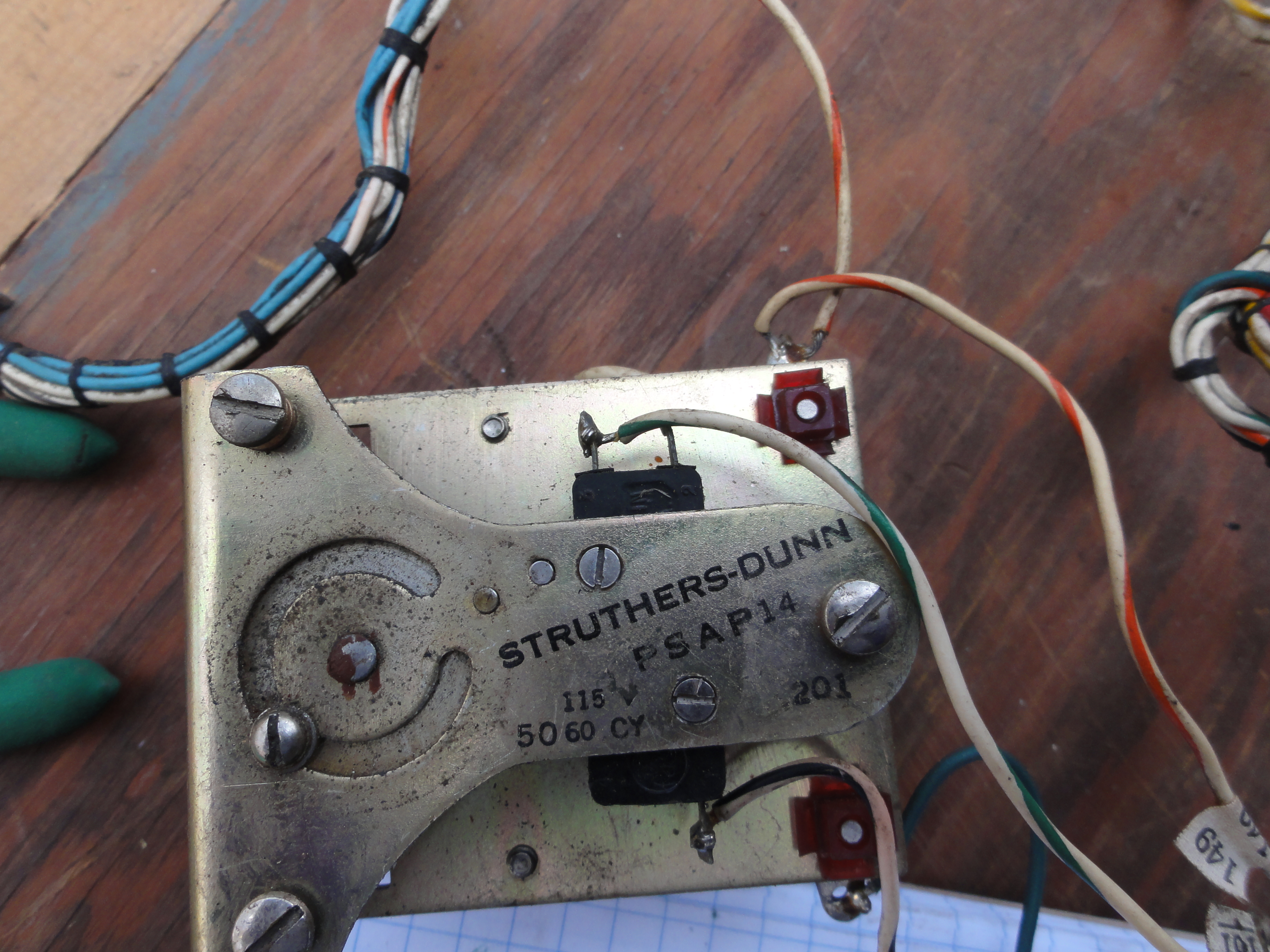

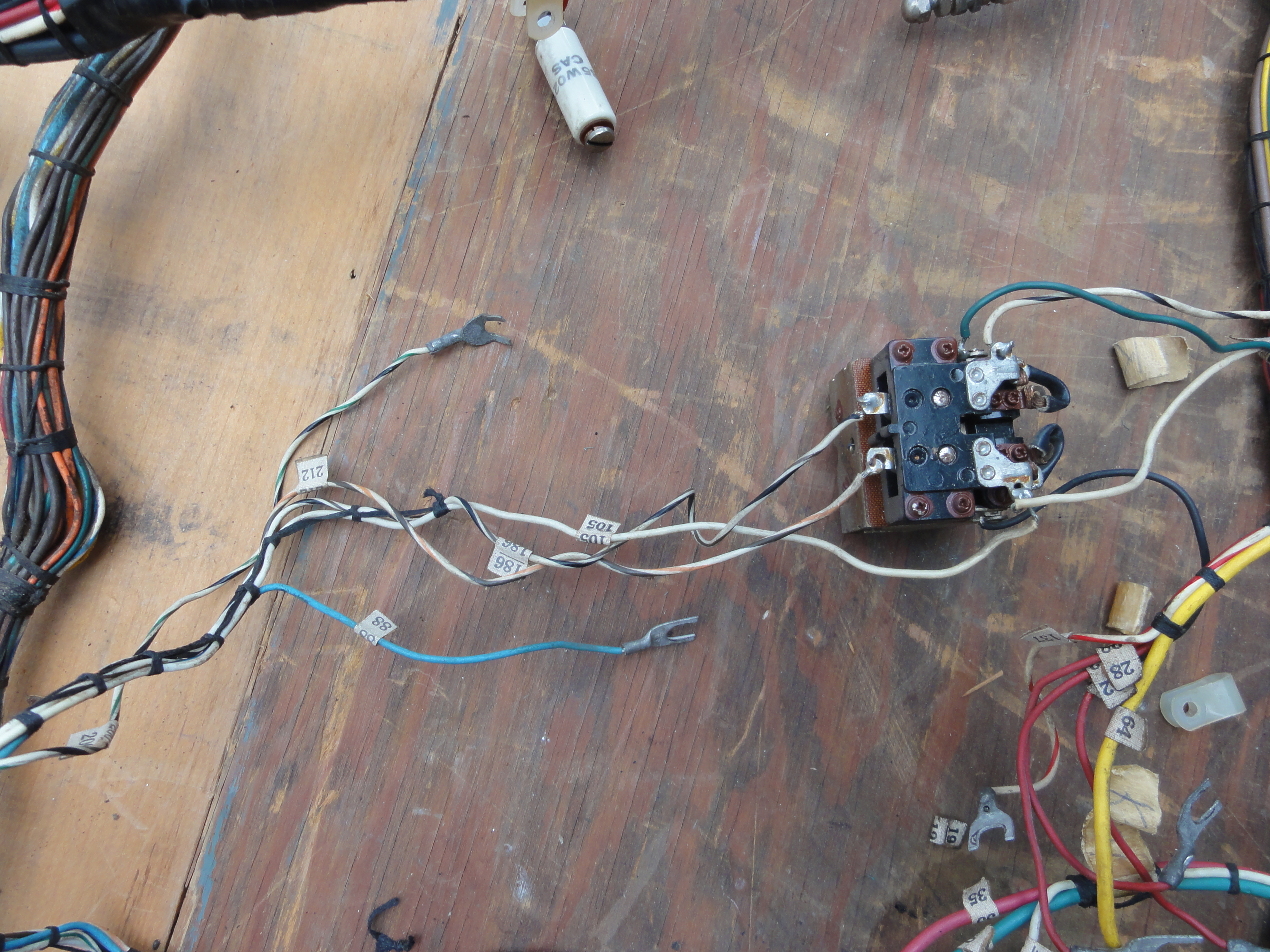

relay "3"

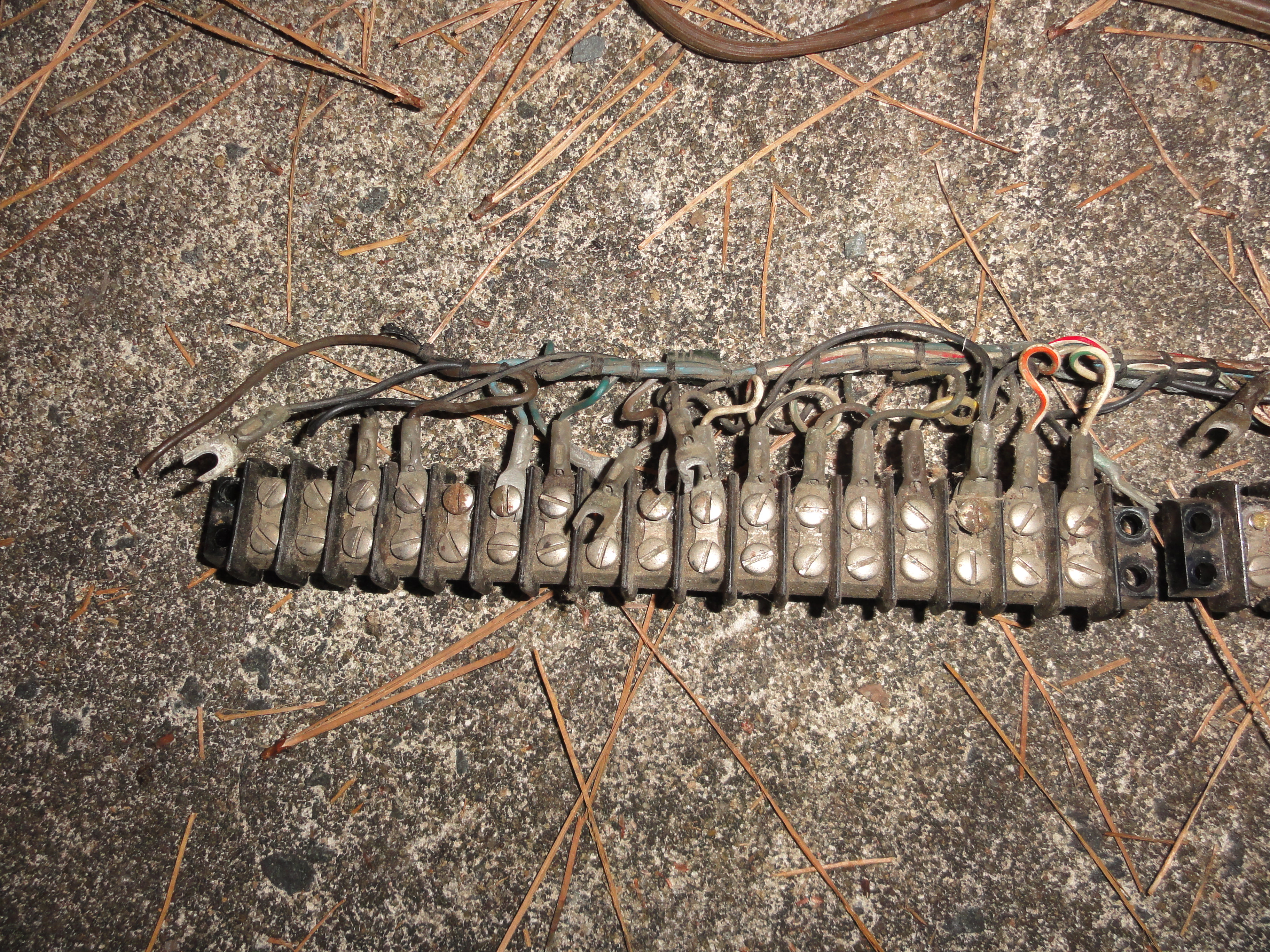

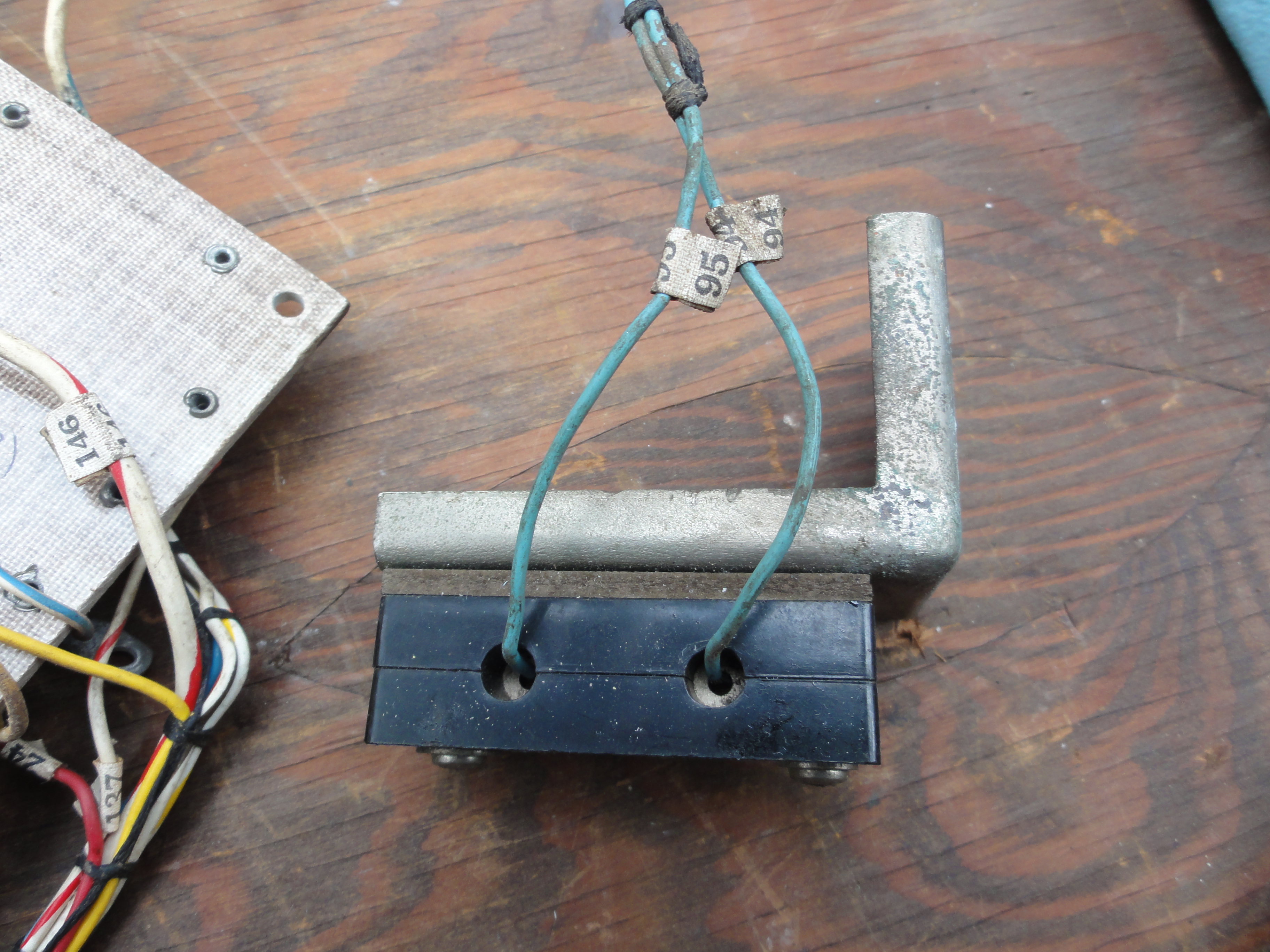

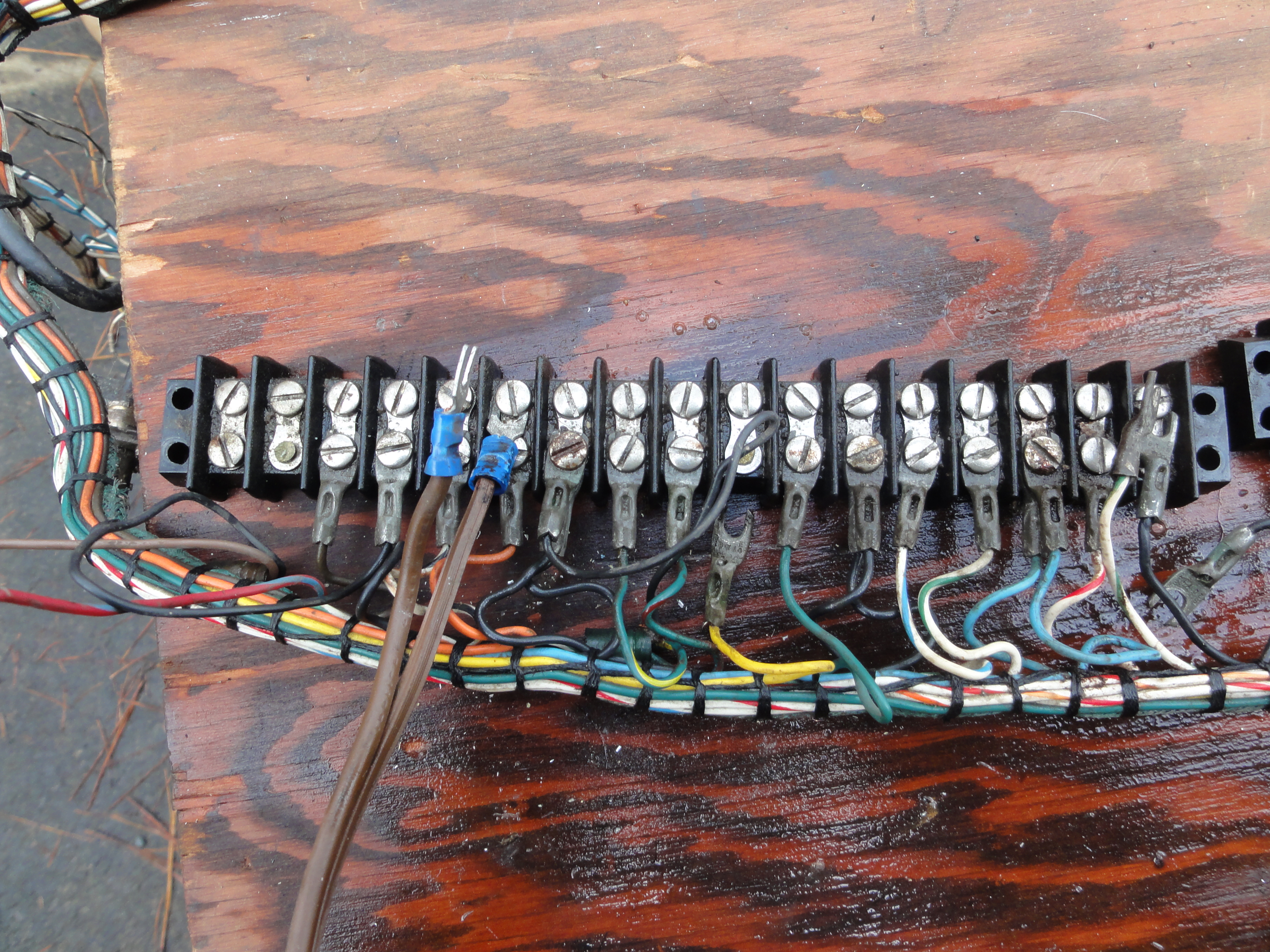

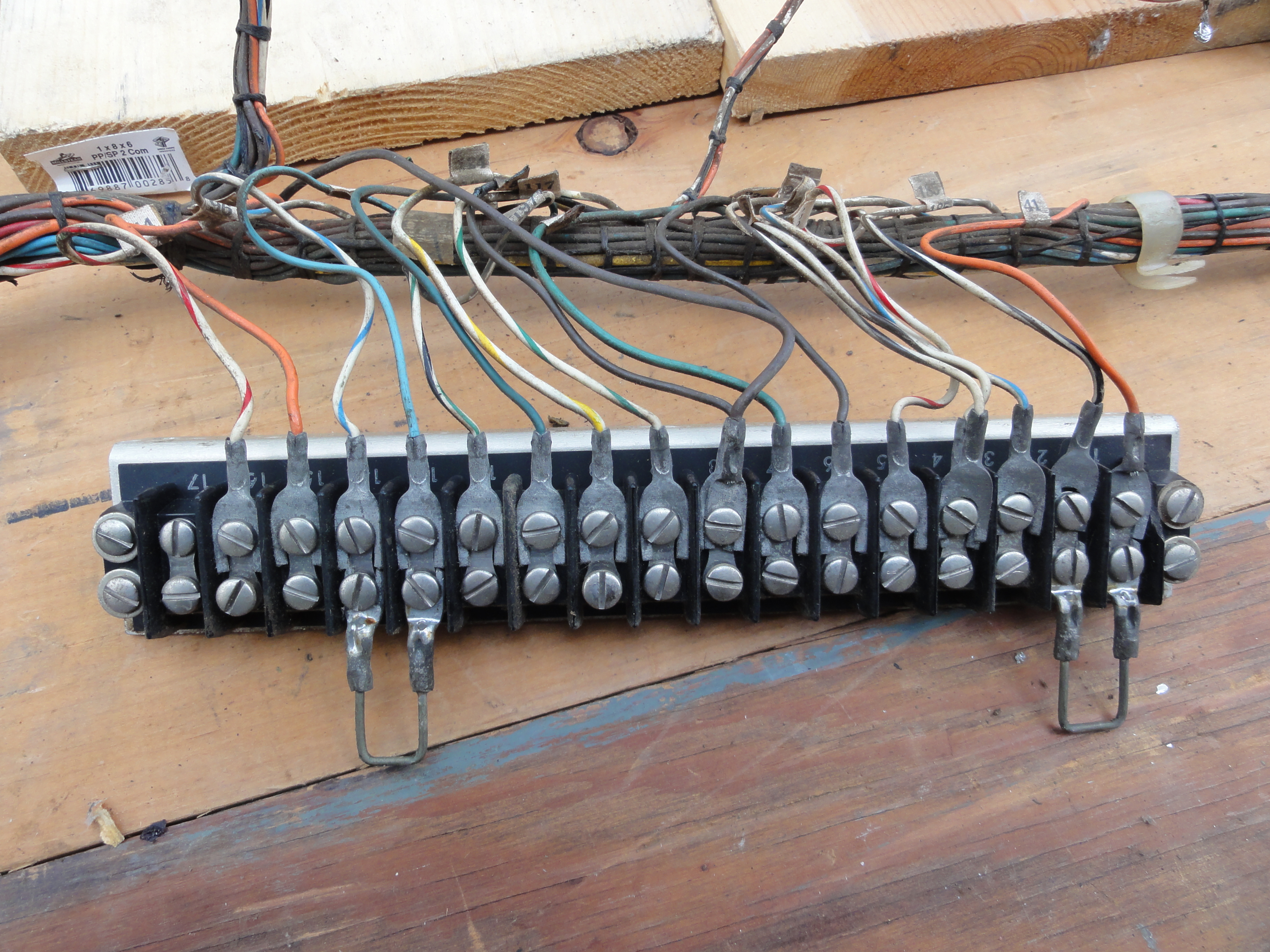

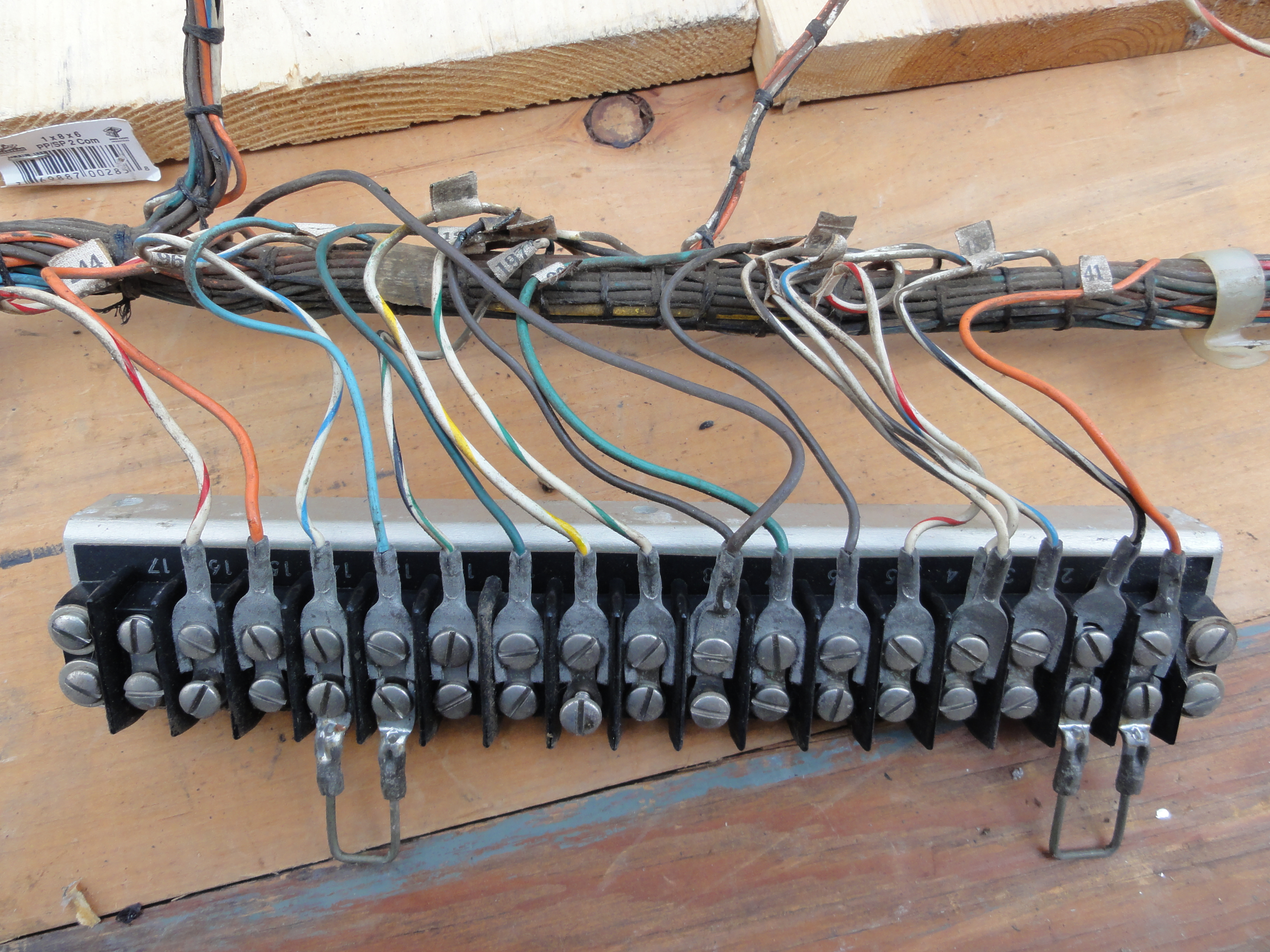

terminal strip for AN/FRT-18 connection

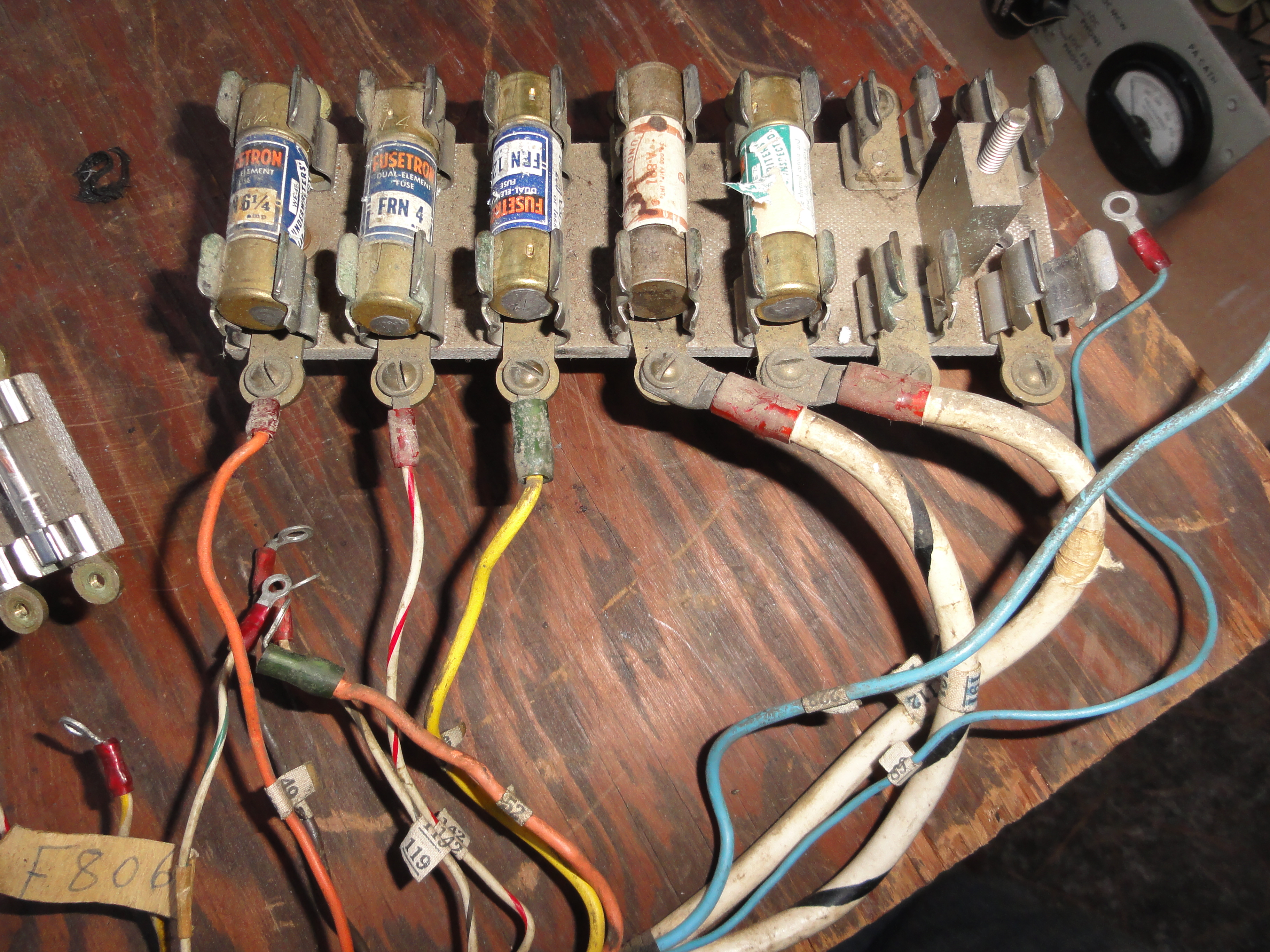

DSC01436.JPG (4120268 bytes) DSC01437.JPG (3895183 bytes) DSC01438.JPG (4492656 bytes) DSC01439.JPG (4451545 bytes)

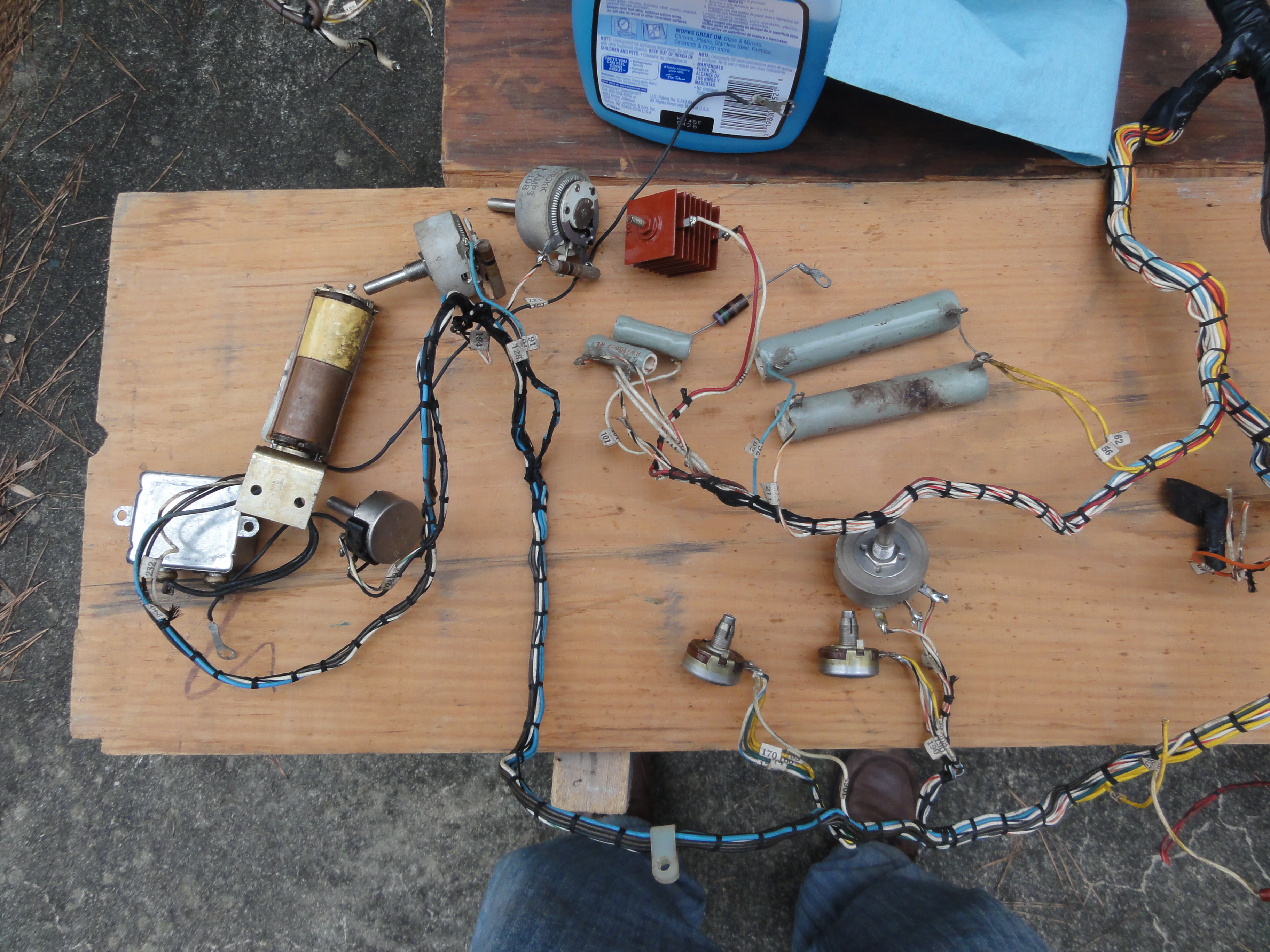

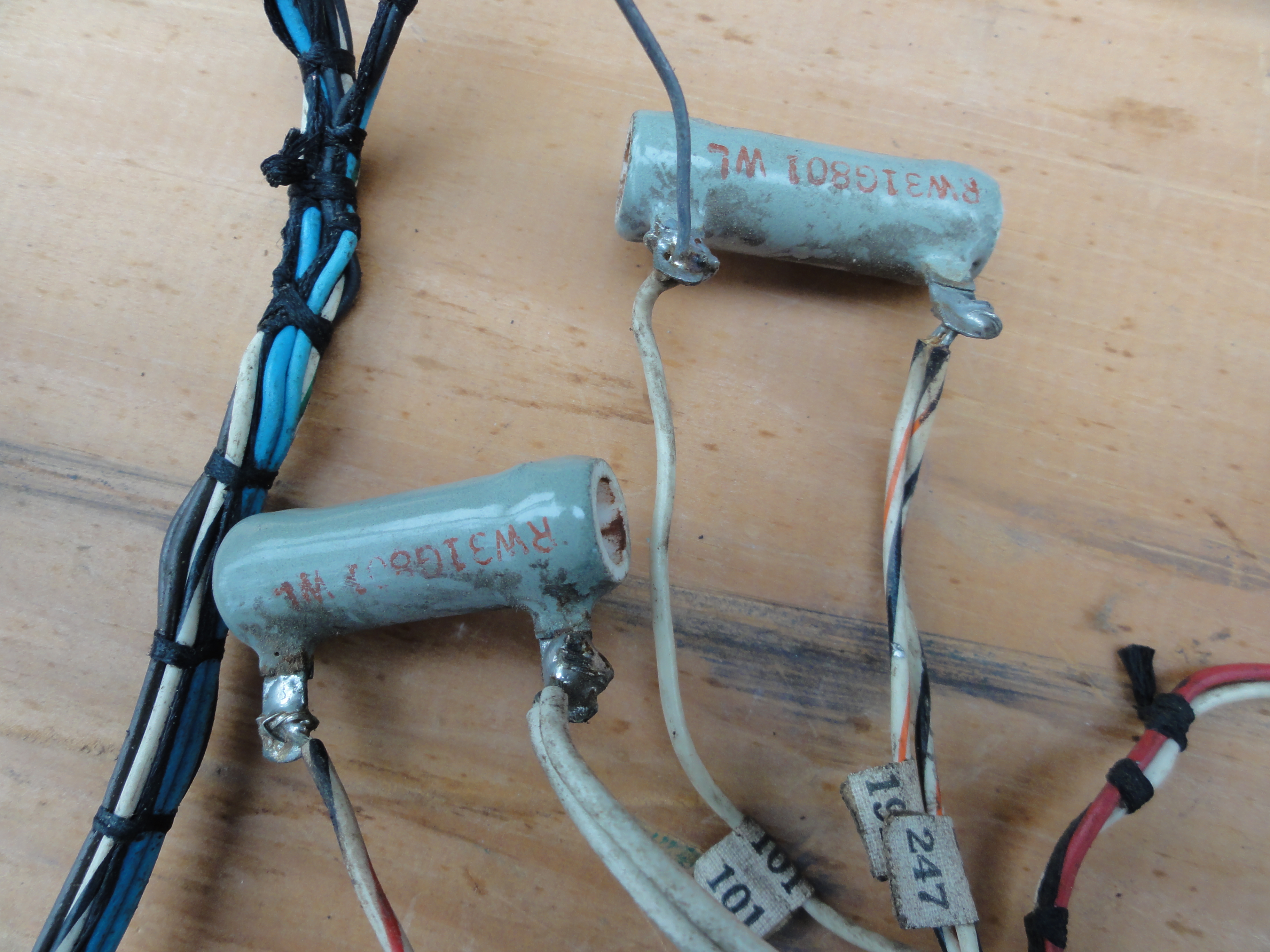

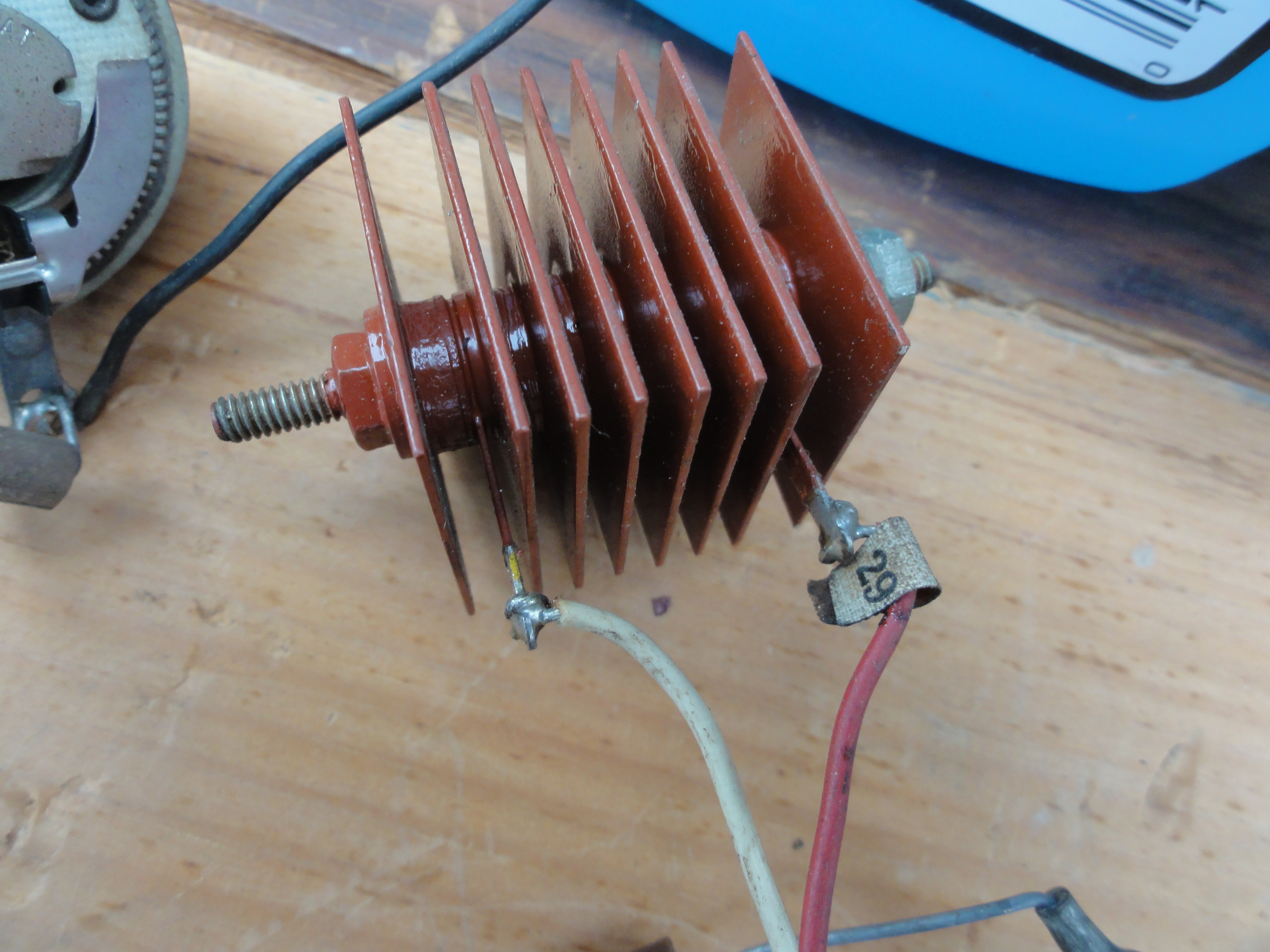

DSC01440.JPG (4217045 bytes) DSC01441.JPG (3871512 bytes) DSC01442.JPG (3728543 bytes) DSC01443.JPG (3755581 bytes)

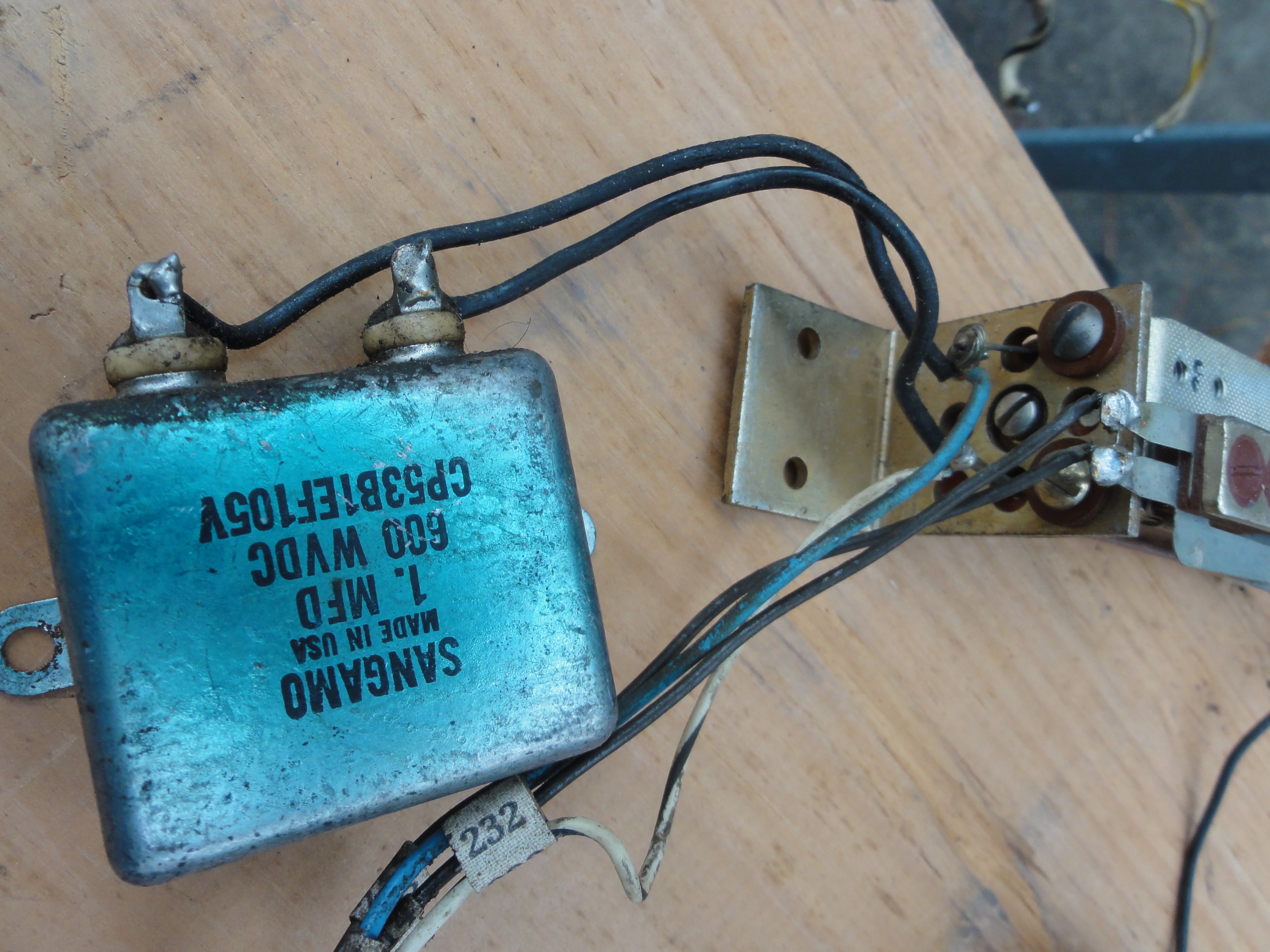

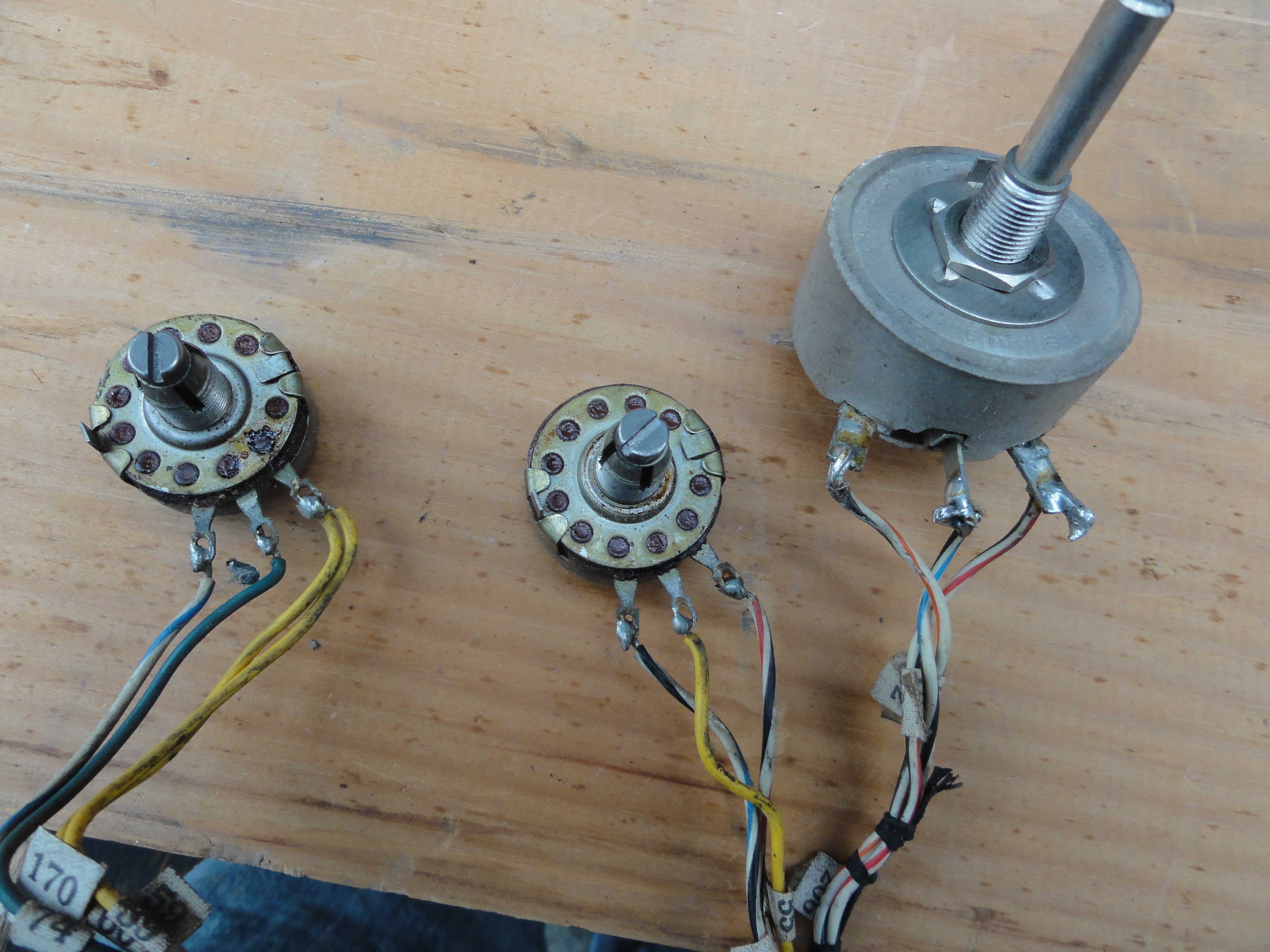

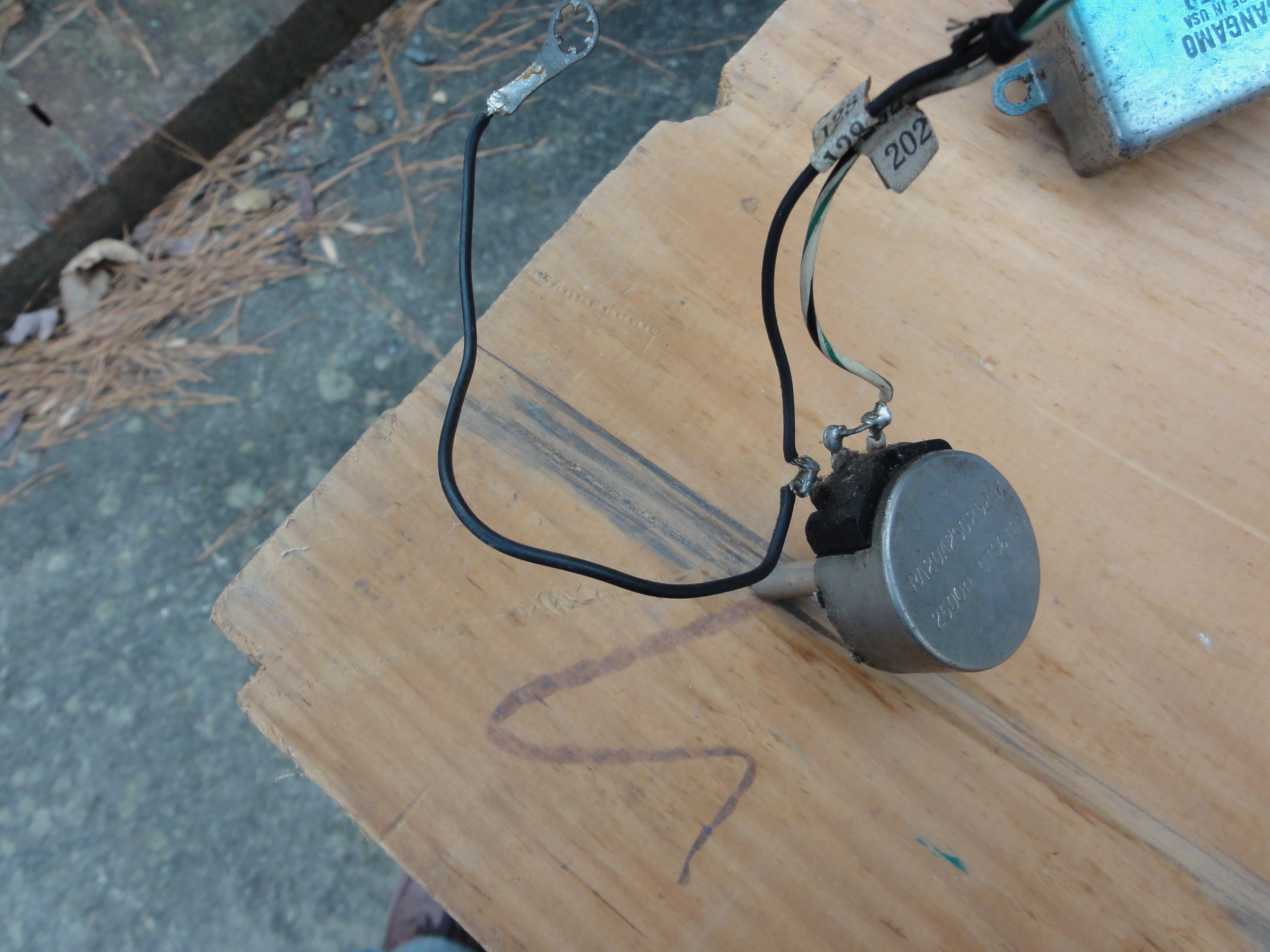

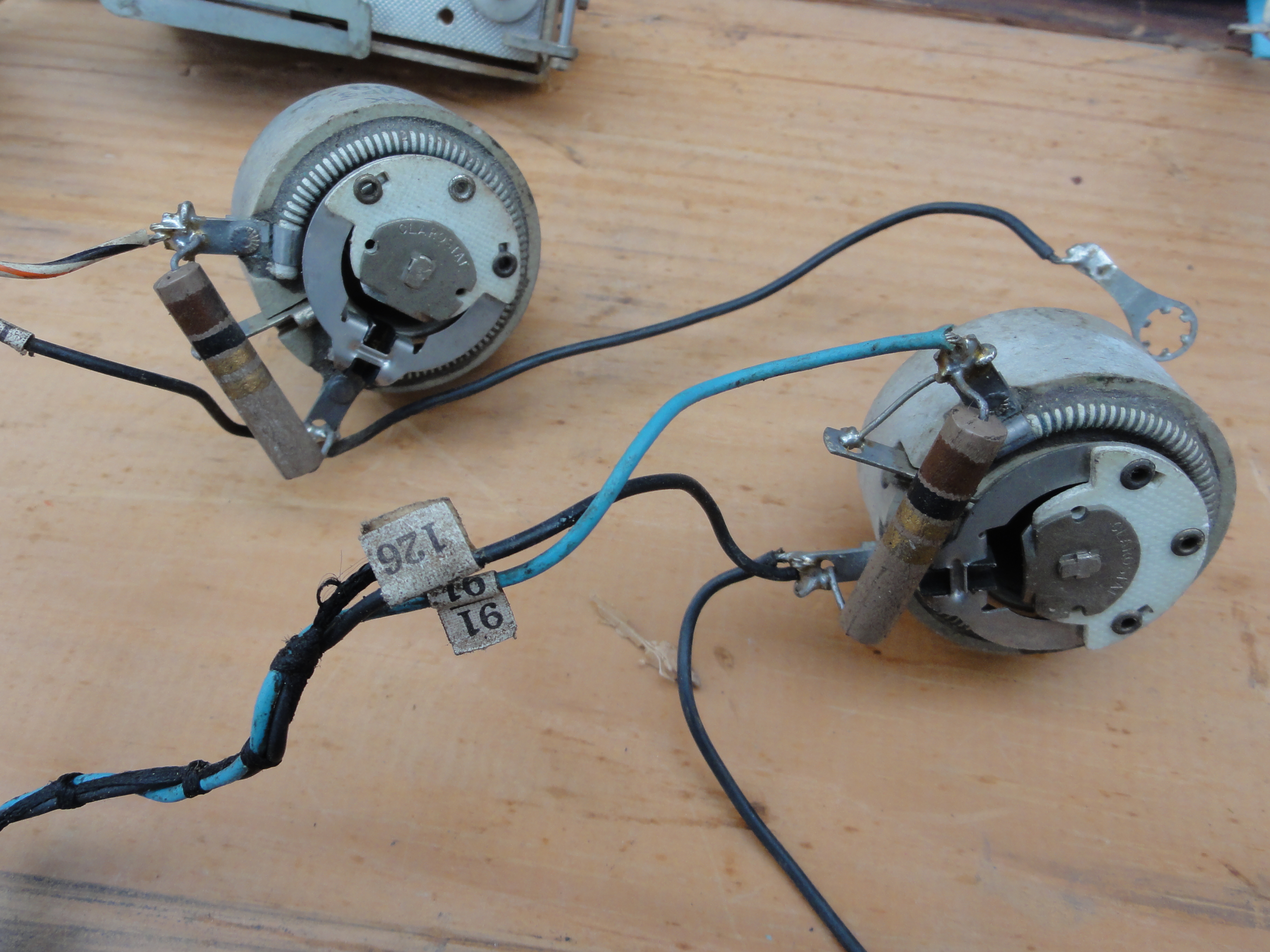

DSC01444.JPG (4029786 bytes) DSC01445.JPG (3900836 bytes) DSC01446.JPG (3948072 bytes) DSC01447.JPG (4050875 bytes)

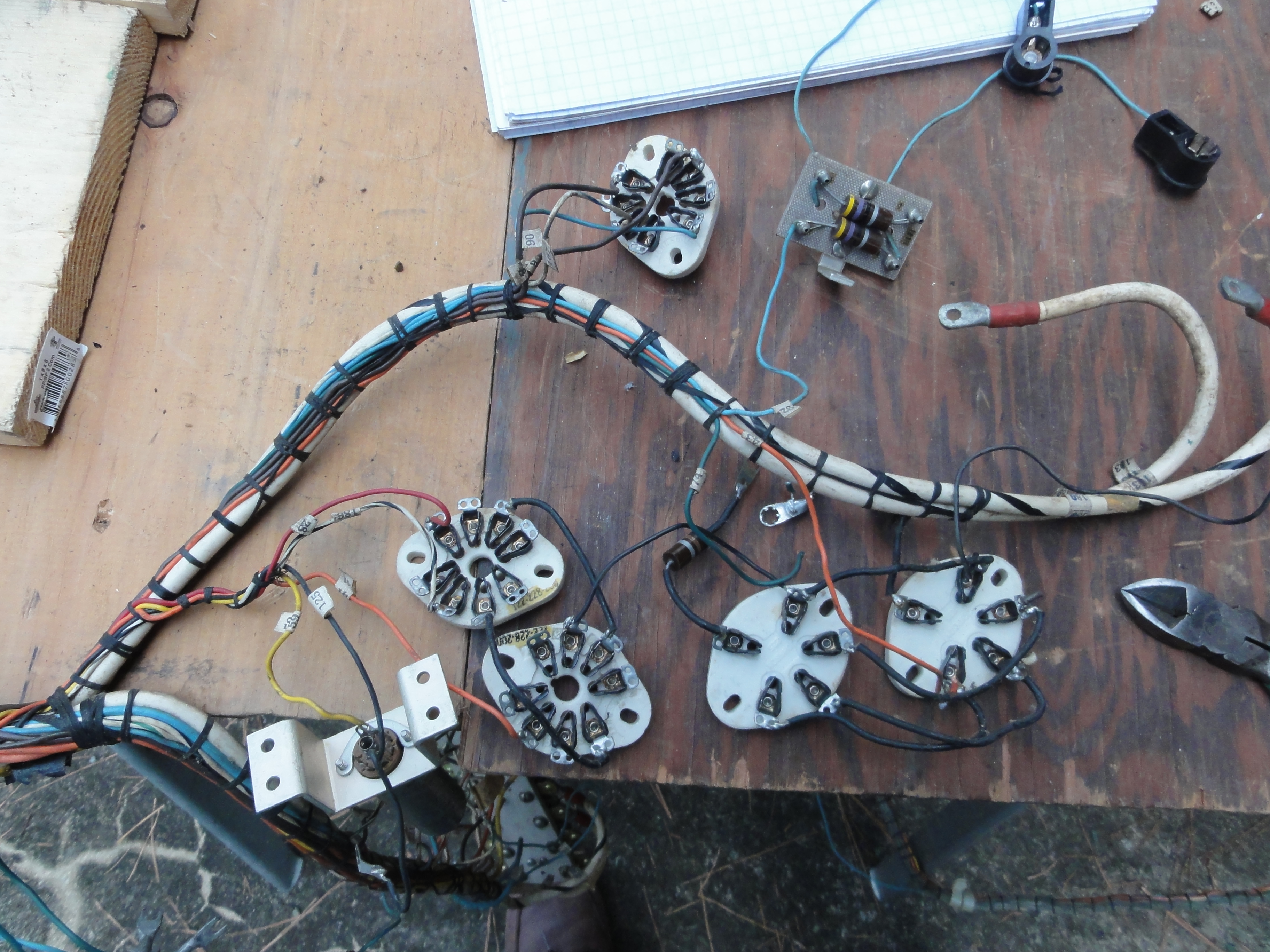

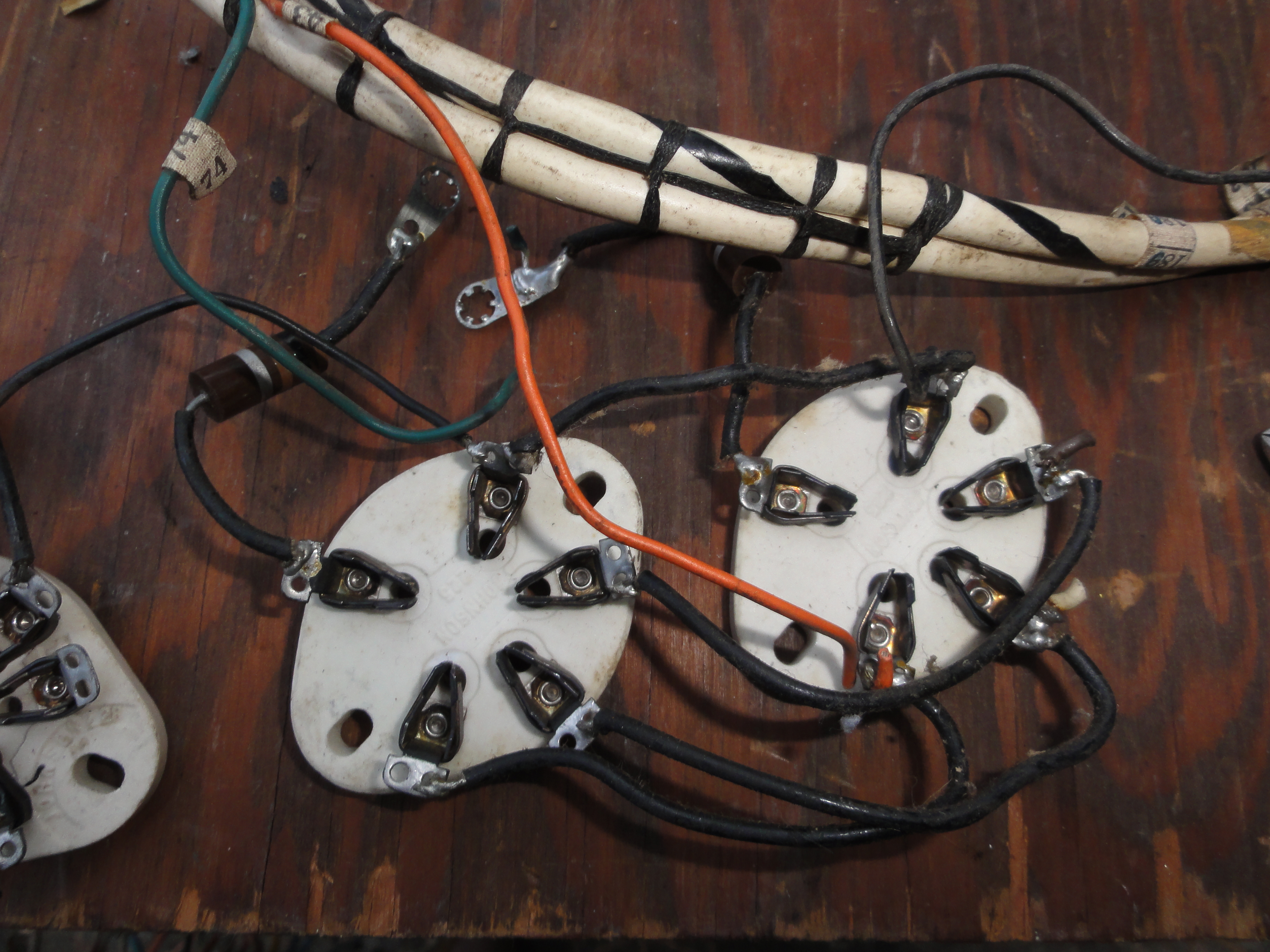

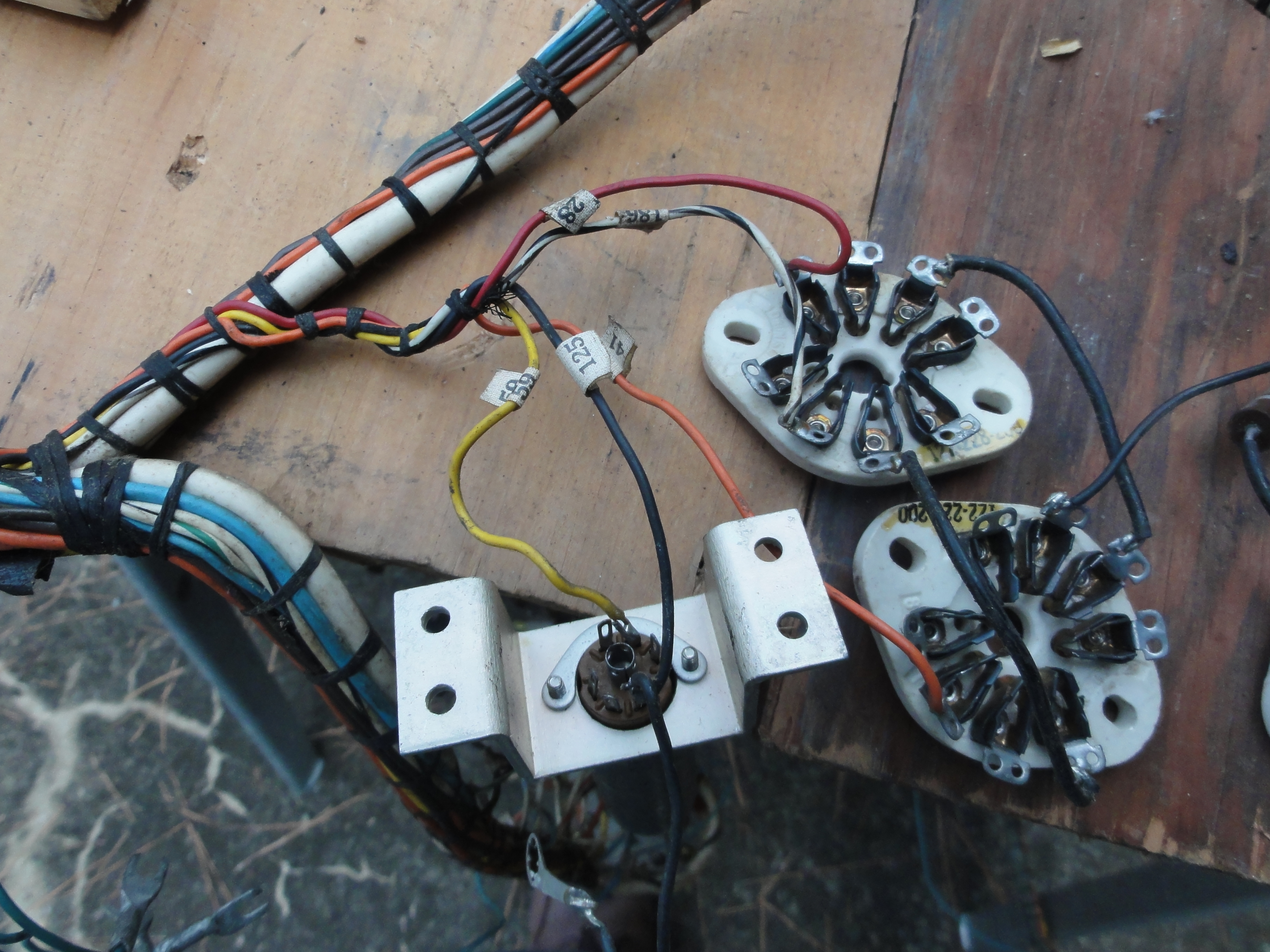

DSC01451.JPG (3881578 bytes) DSC01452.JPG (3821815 bytes) DSC01453.JPG (4054122 bytes) DSC01454.JPG (4037474 bytes)

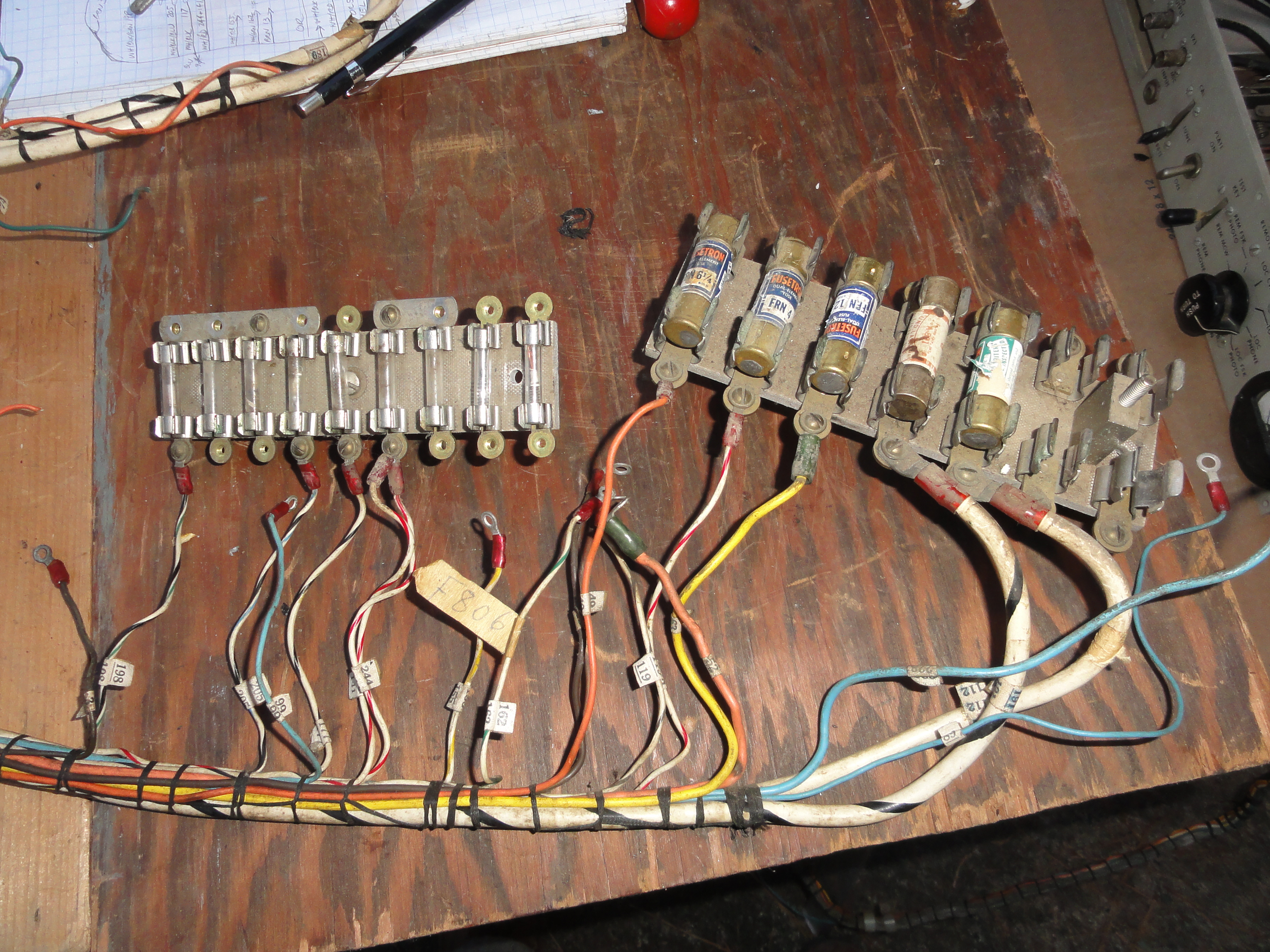

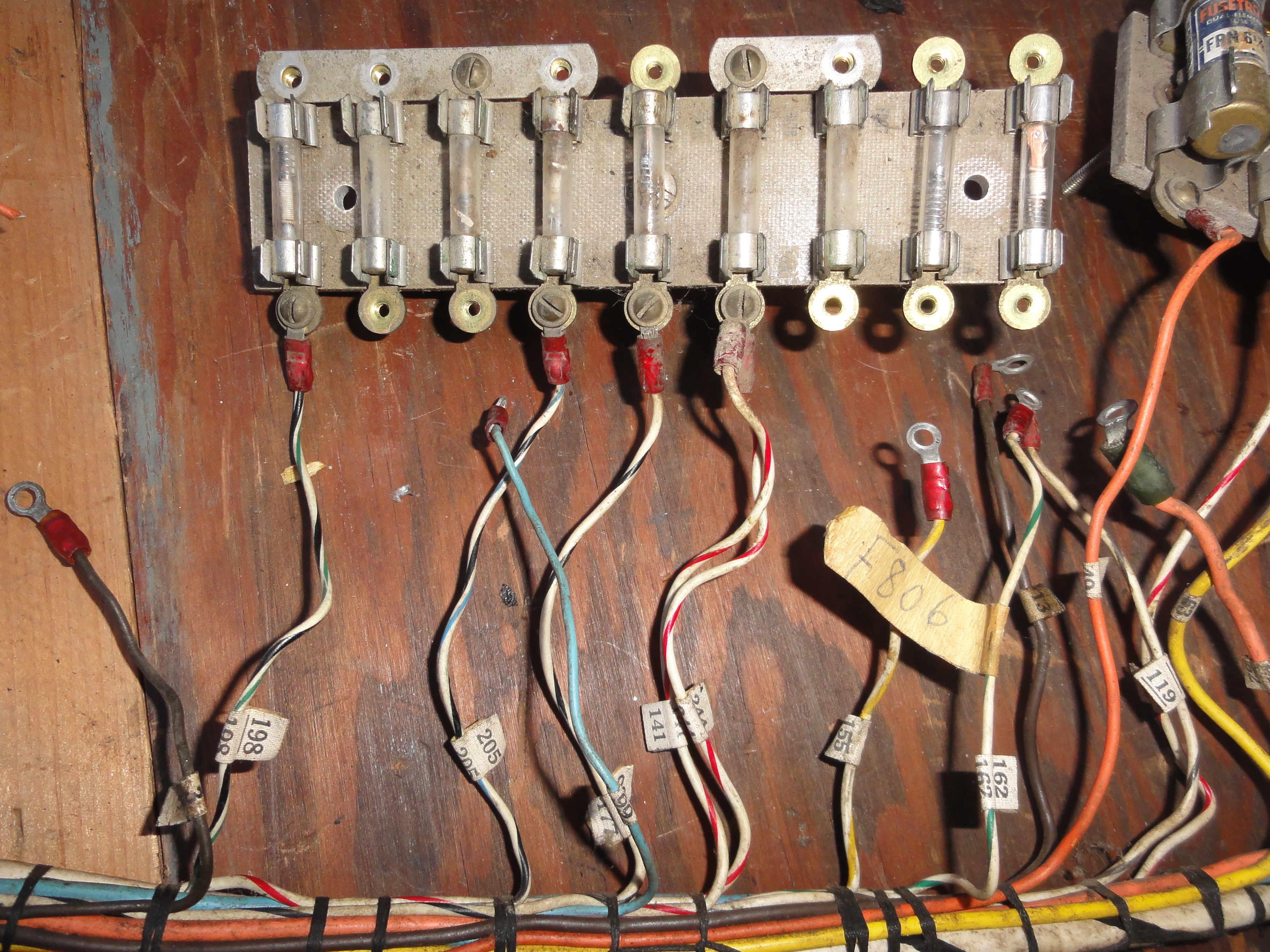

DSC01455.JPG (4344724 bytes) DSC01456.JPG (4366899 bytes) DSC01457.JPG (4427242 bytes) DSC01458.JPG (4052813 bytes)

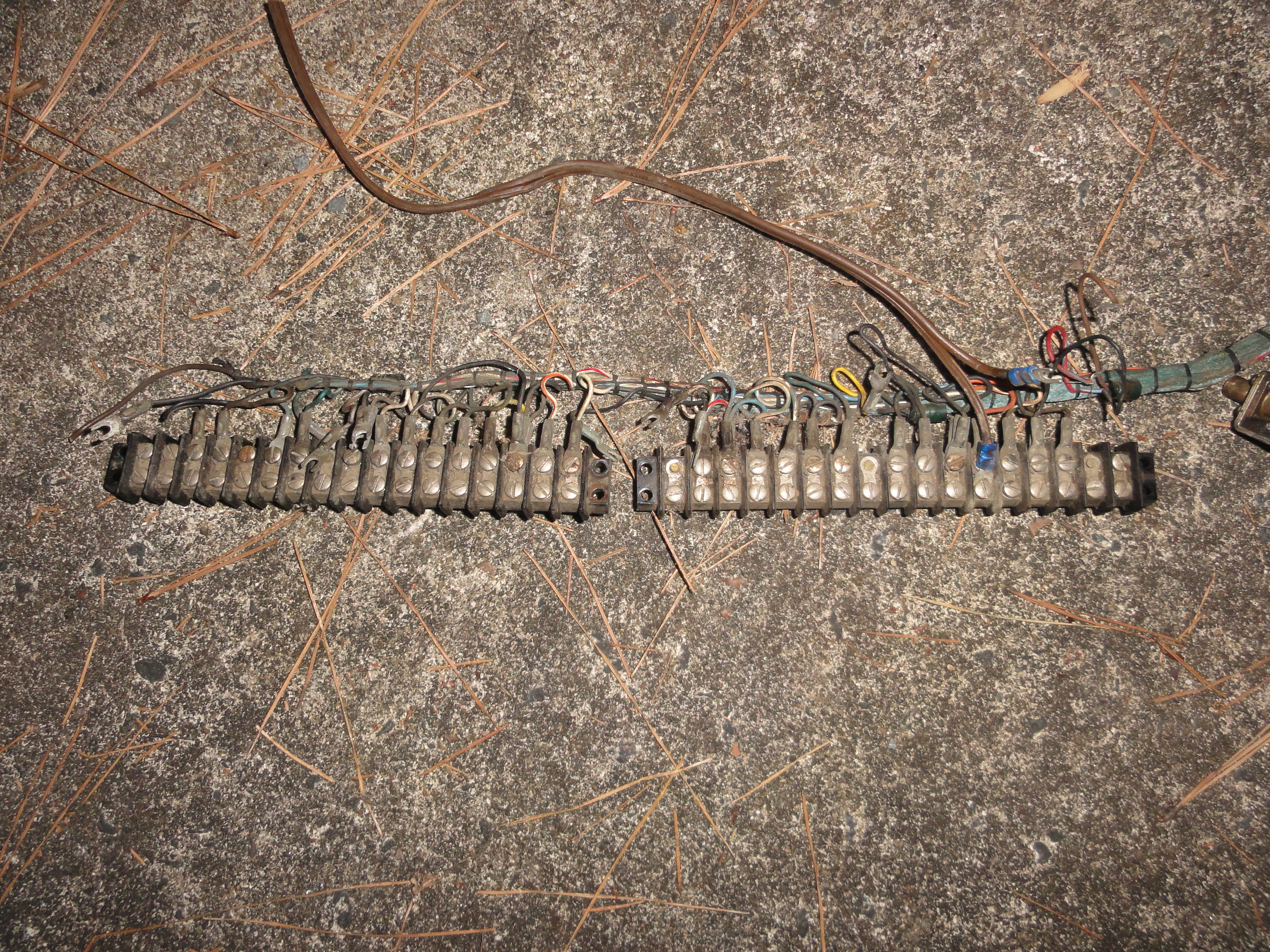

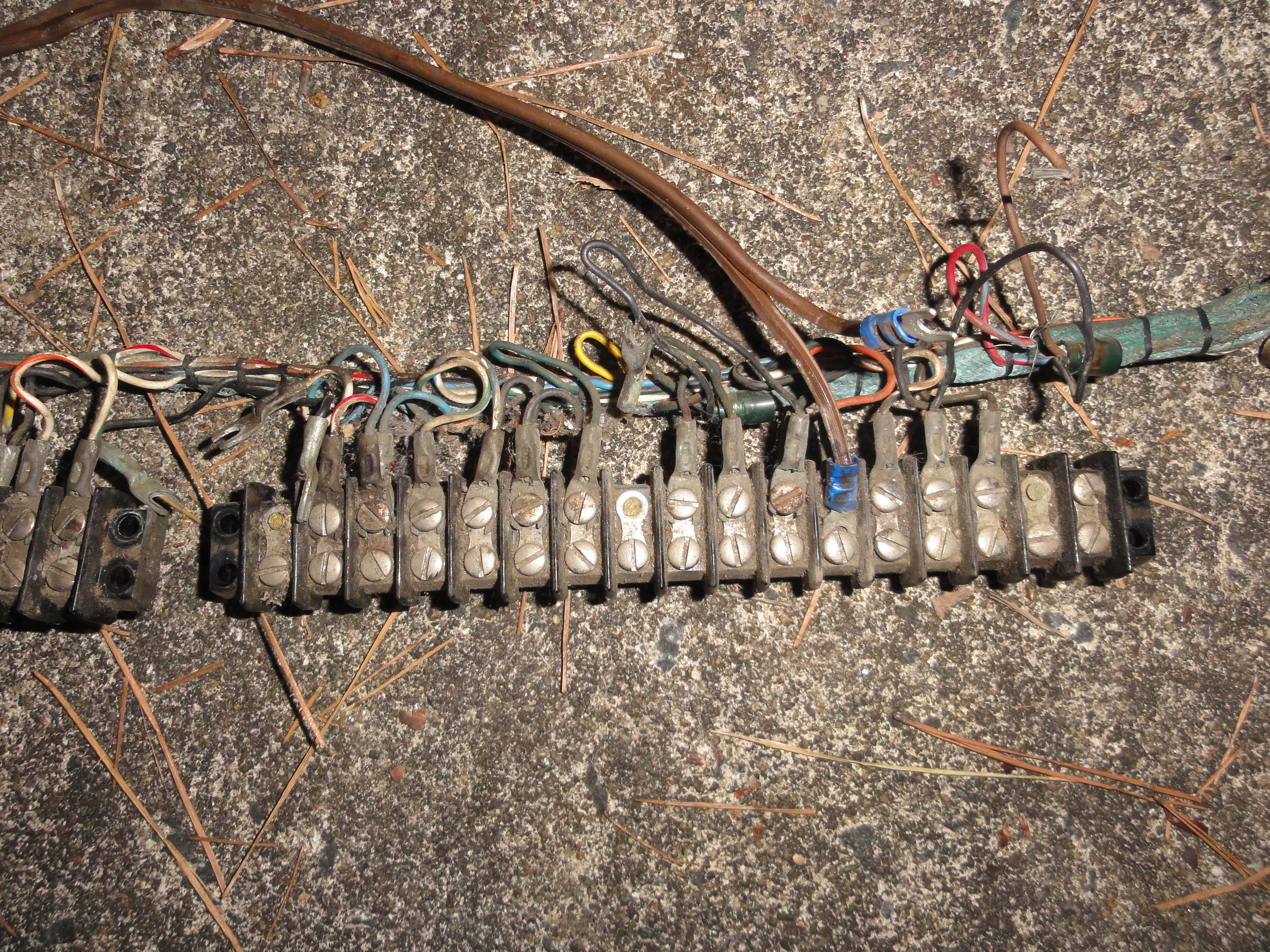

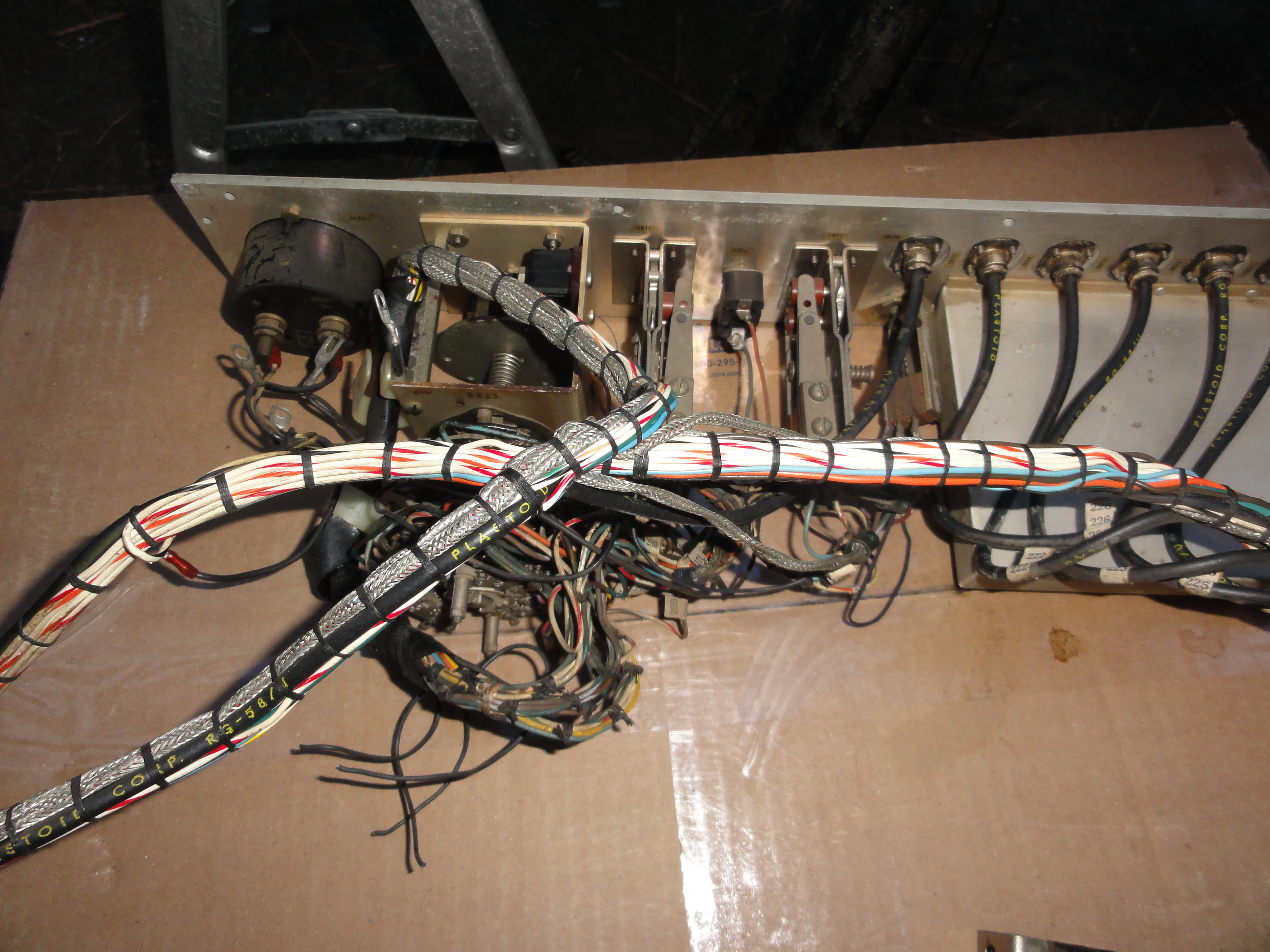

DSC01459.JPG (4226854 bytes) DSC01460.JPG (4472713 bytes) DSC01461.JPG (4579716 bytes) DSC01462.JPG (4527204 bytes)

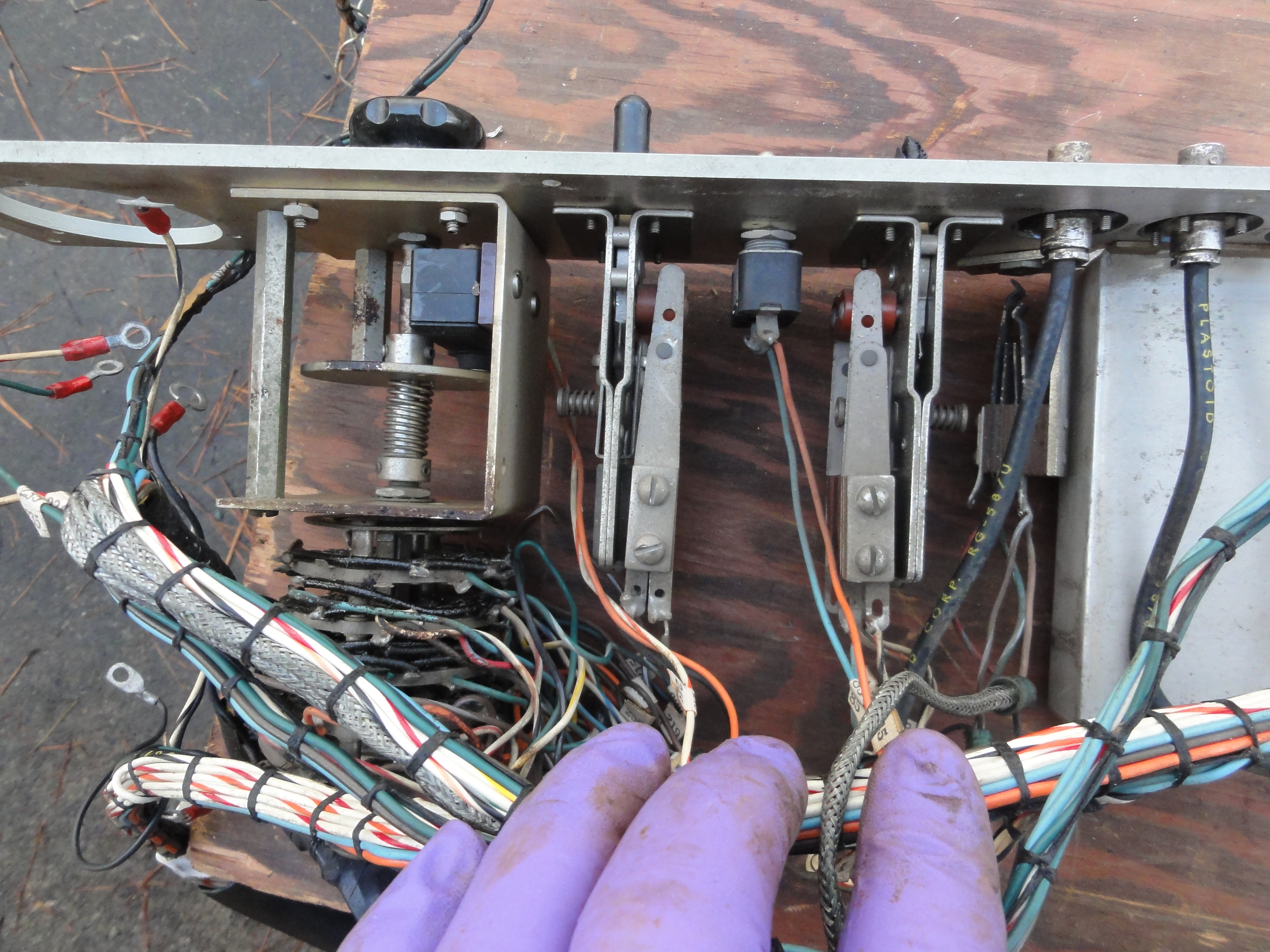

A day of rain and then a nice warm day for working again - a sunny 70 degree Saturday in January!

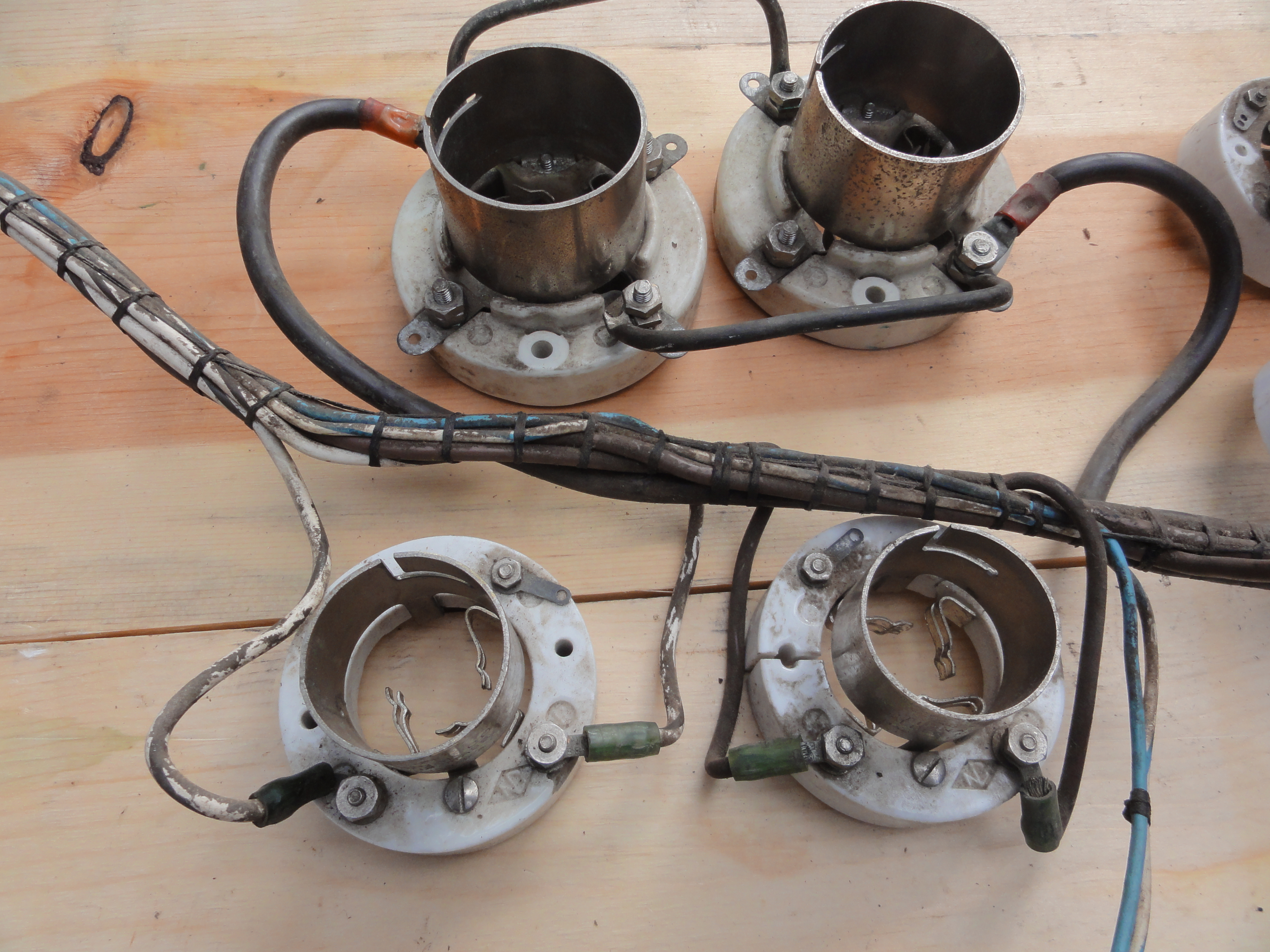

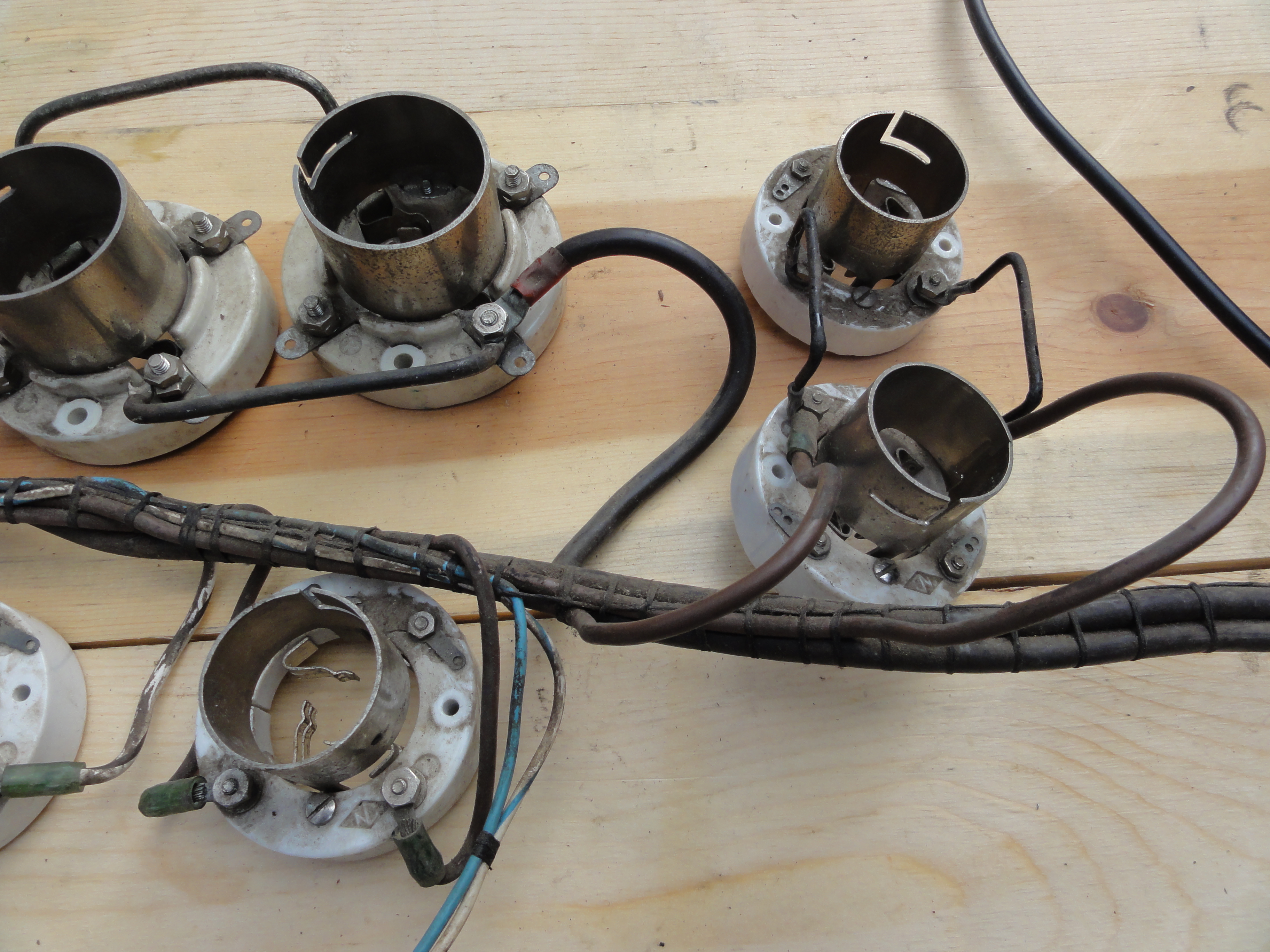

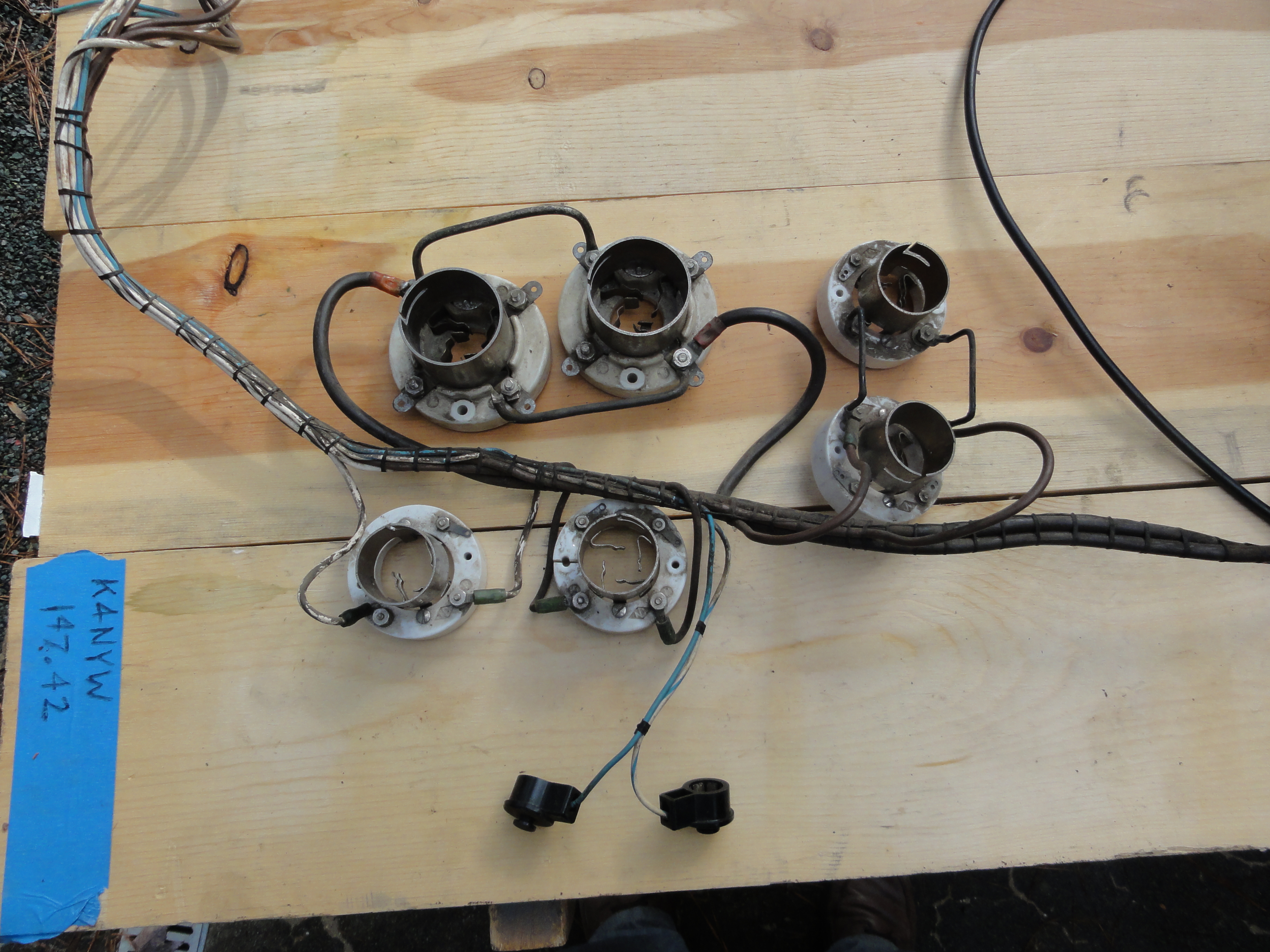

DSC01463.JPG (4093791 bytes) DSC01464.JPG (3964102 bytes) DSC01465.JPG (4027291 bytes) DSC01466.JPG (4308009 bytes)

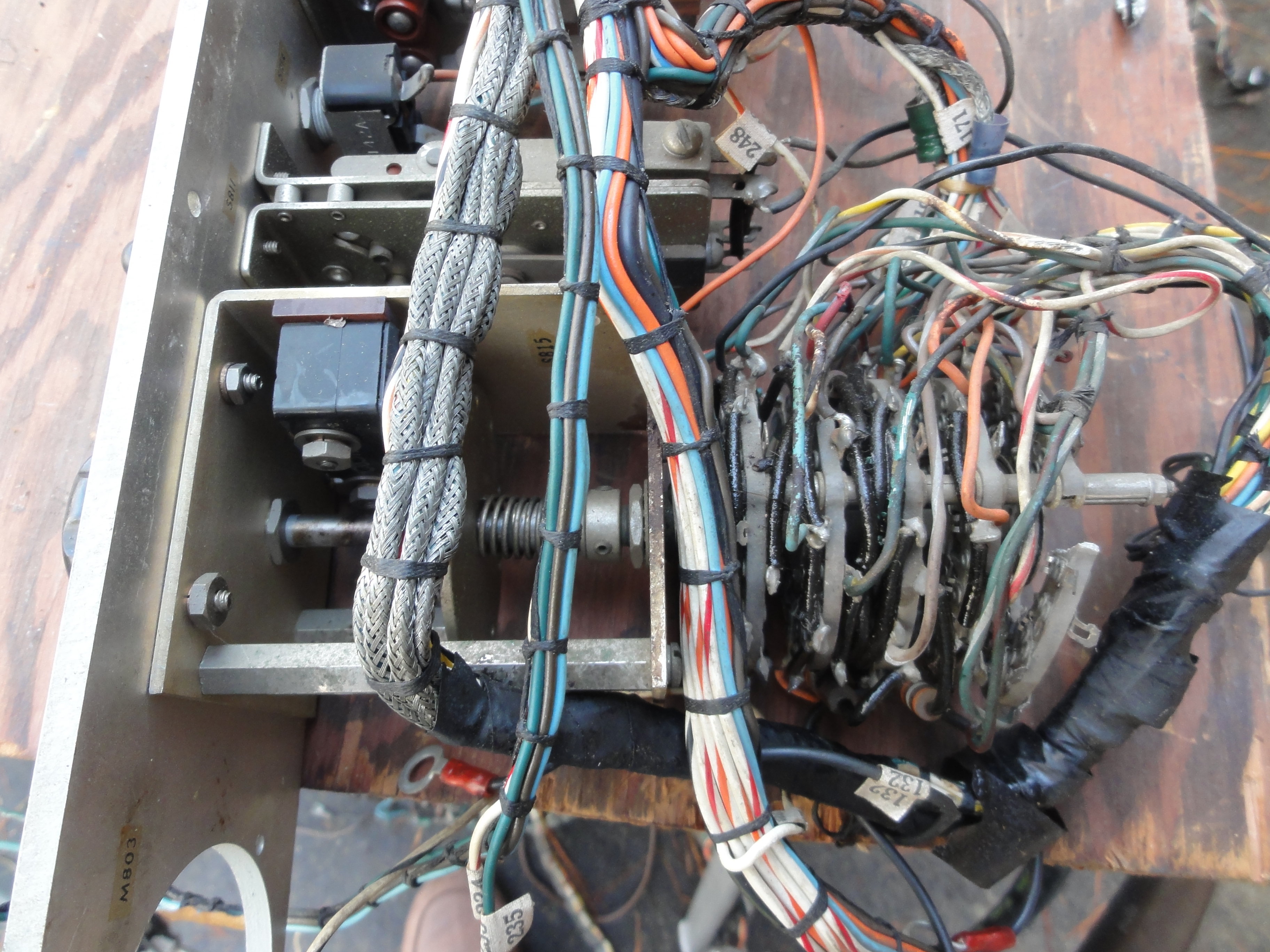

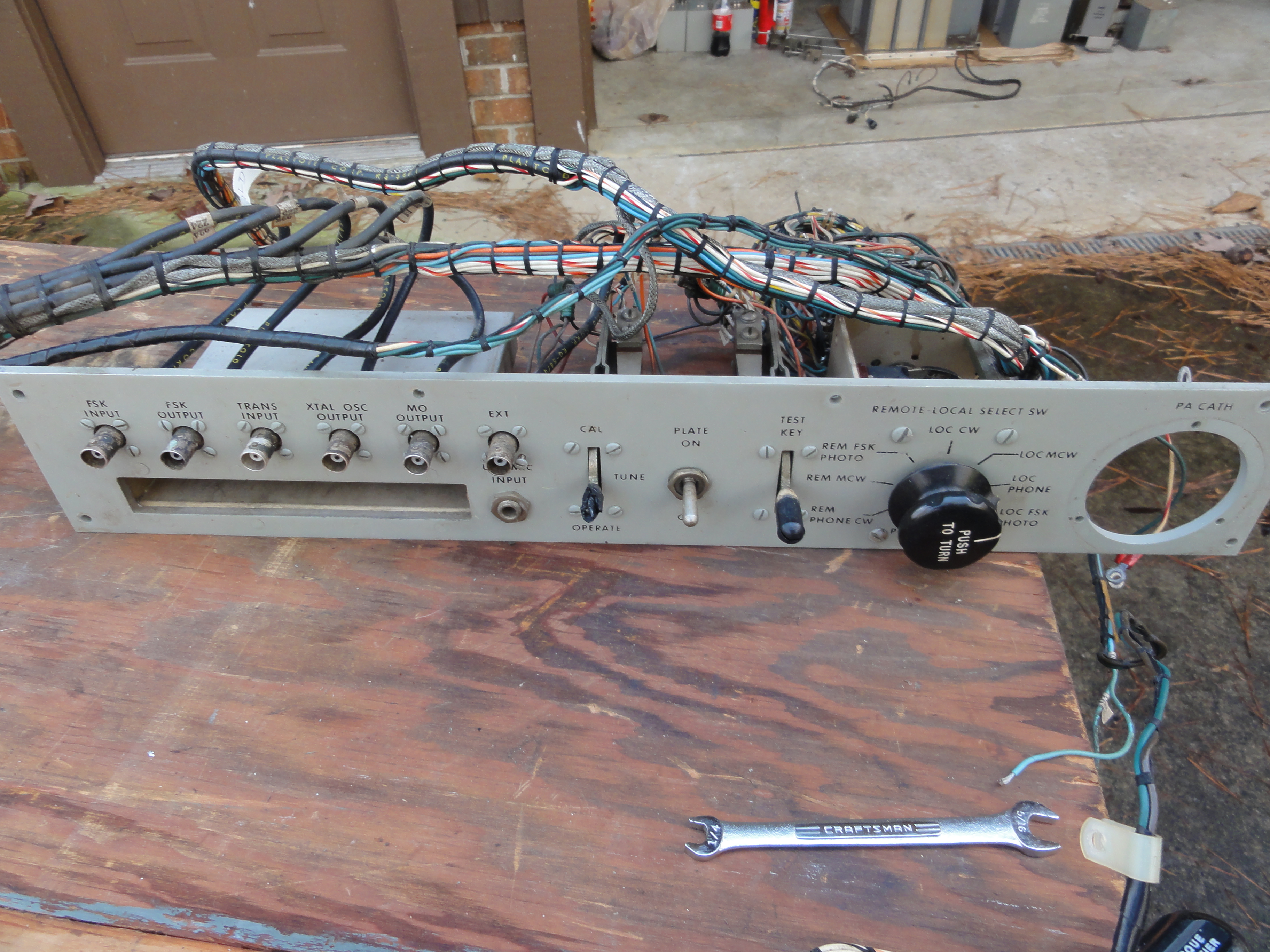

DSC01467.JPG (4335924 bytes) DSC01468.JPG (4230002 bytes) DSC01469.JPG (4245369 bytes) DSC01470.JPG (4144510 bytes)

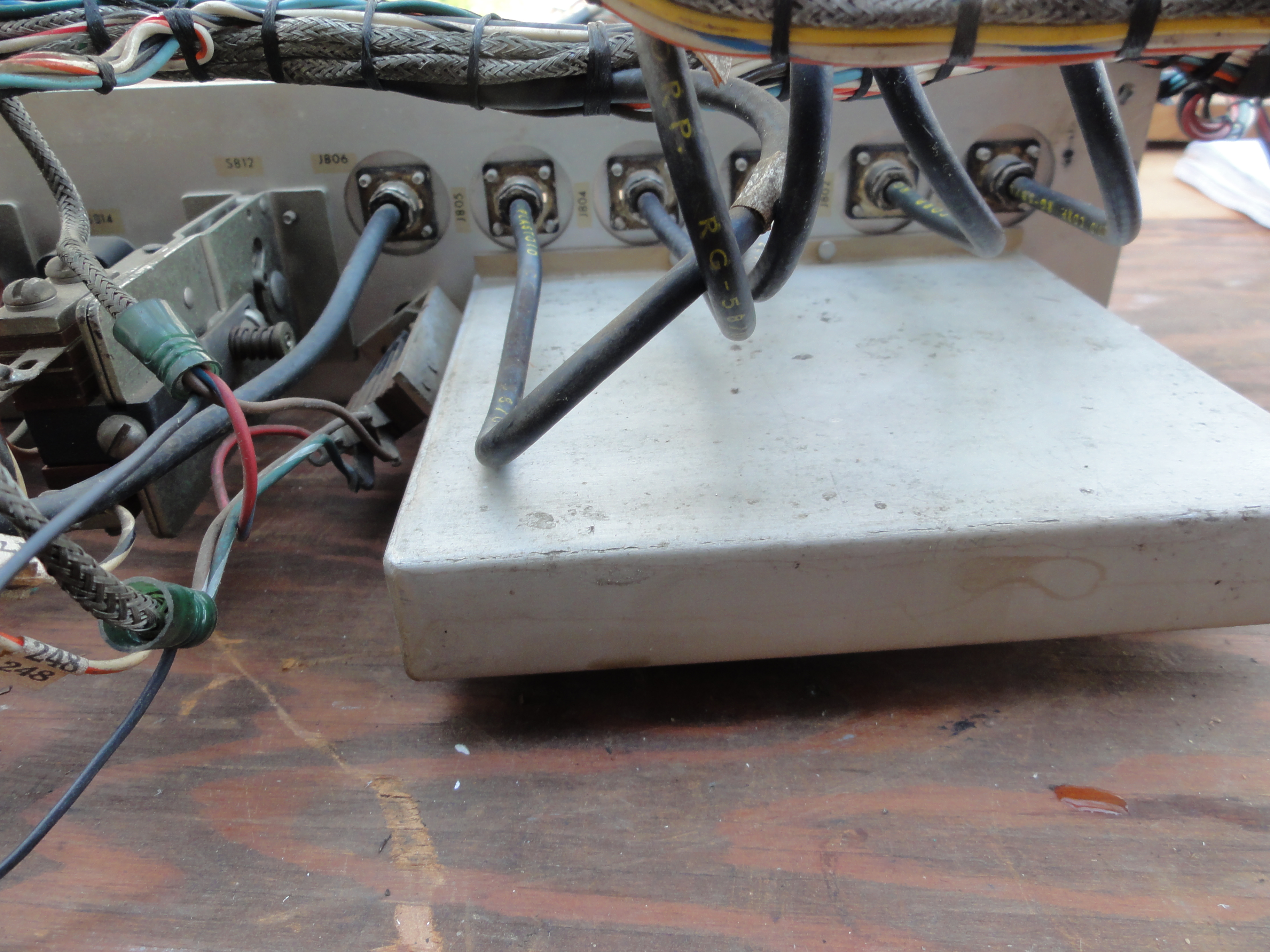

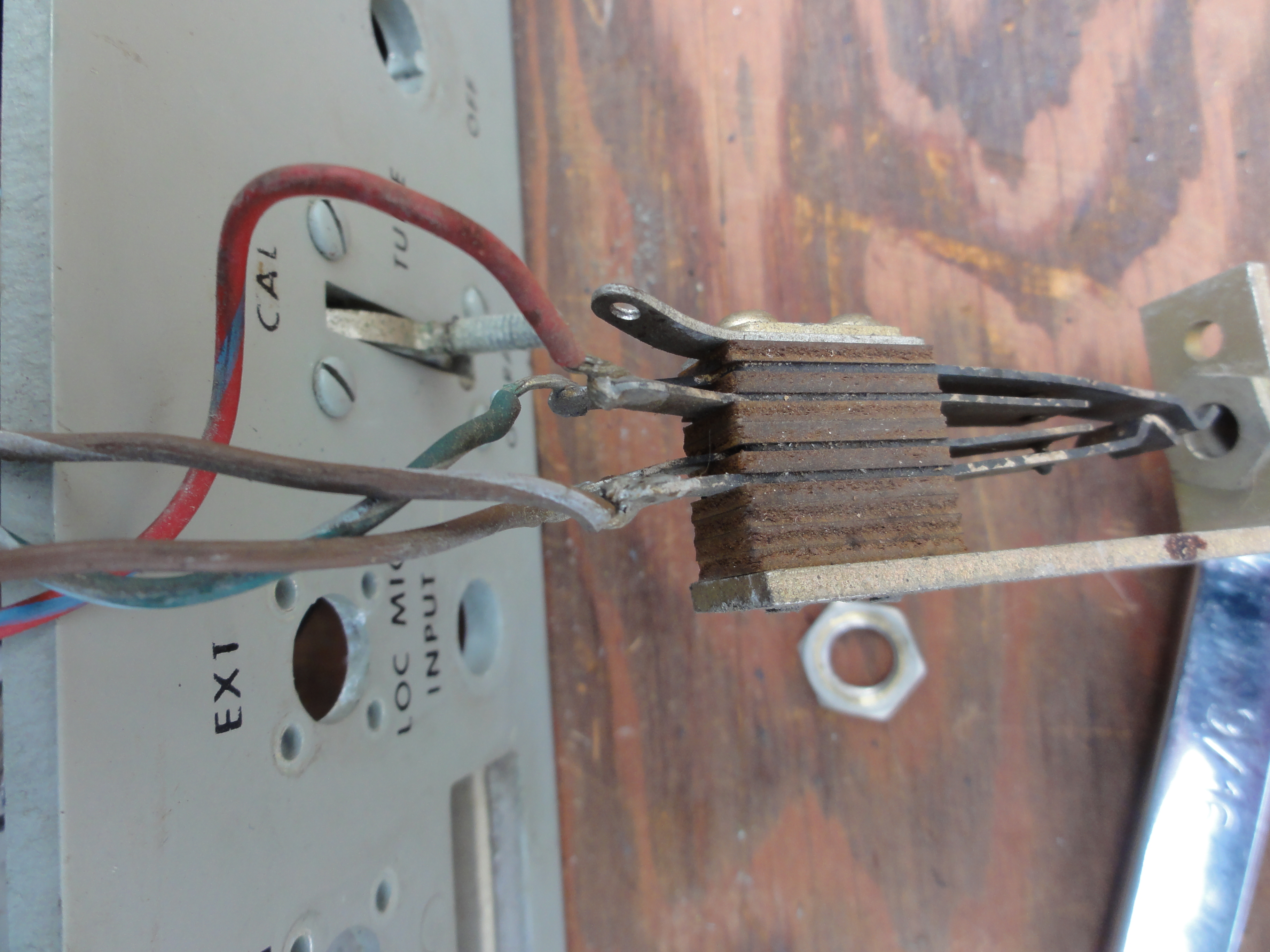

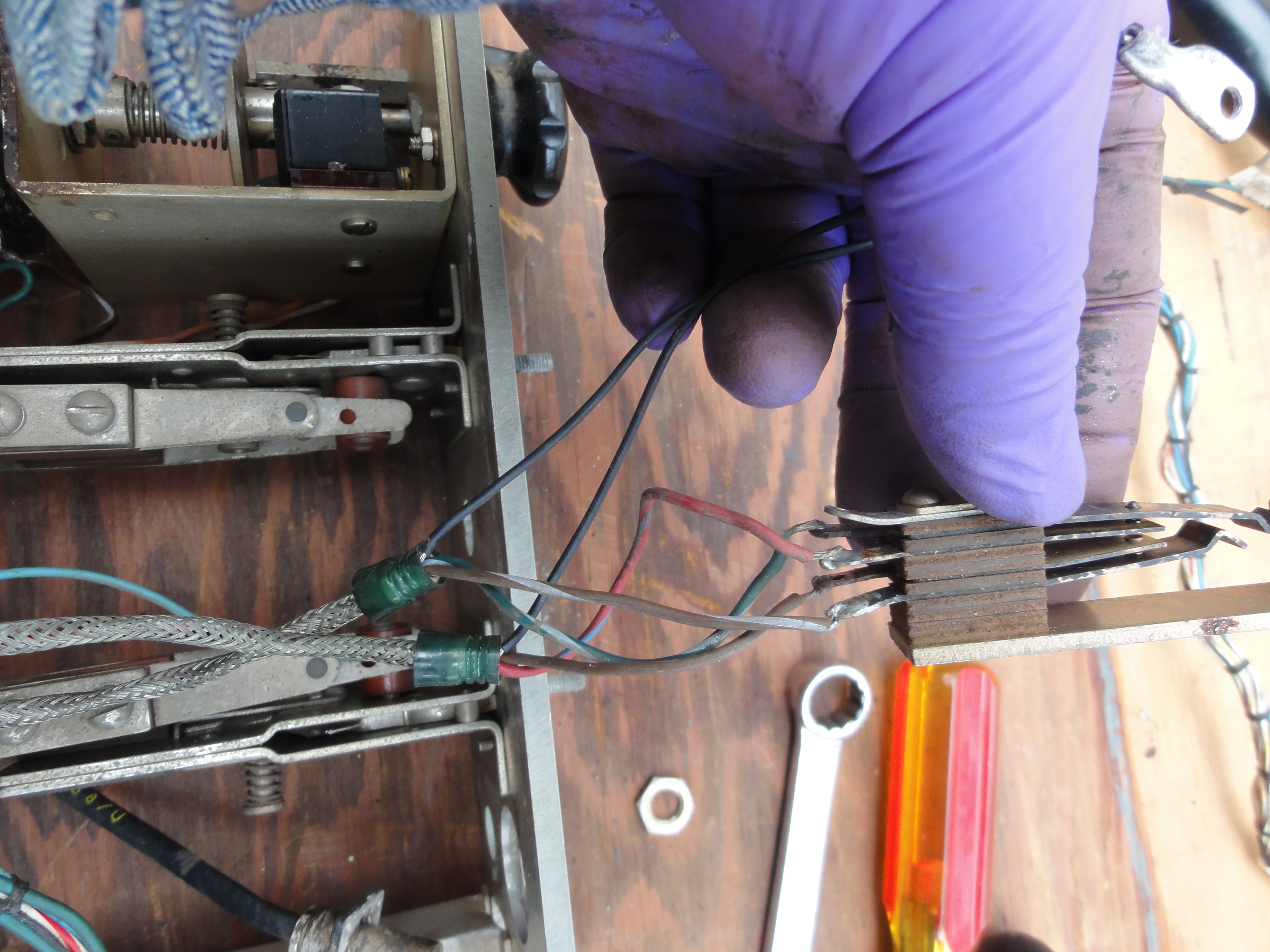

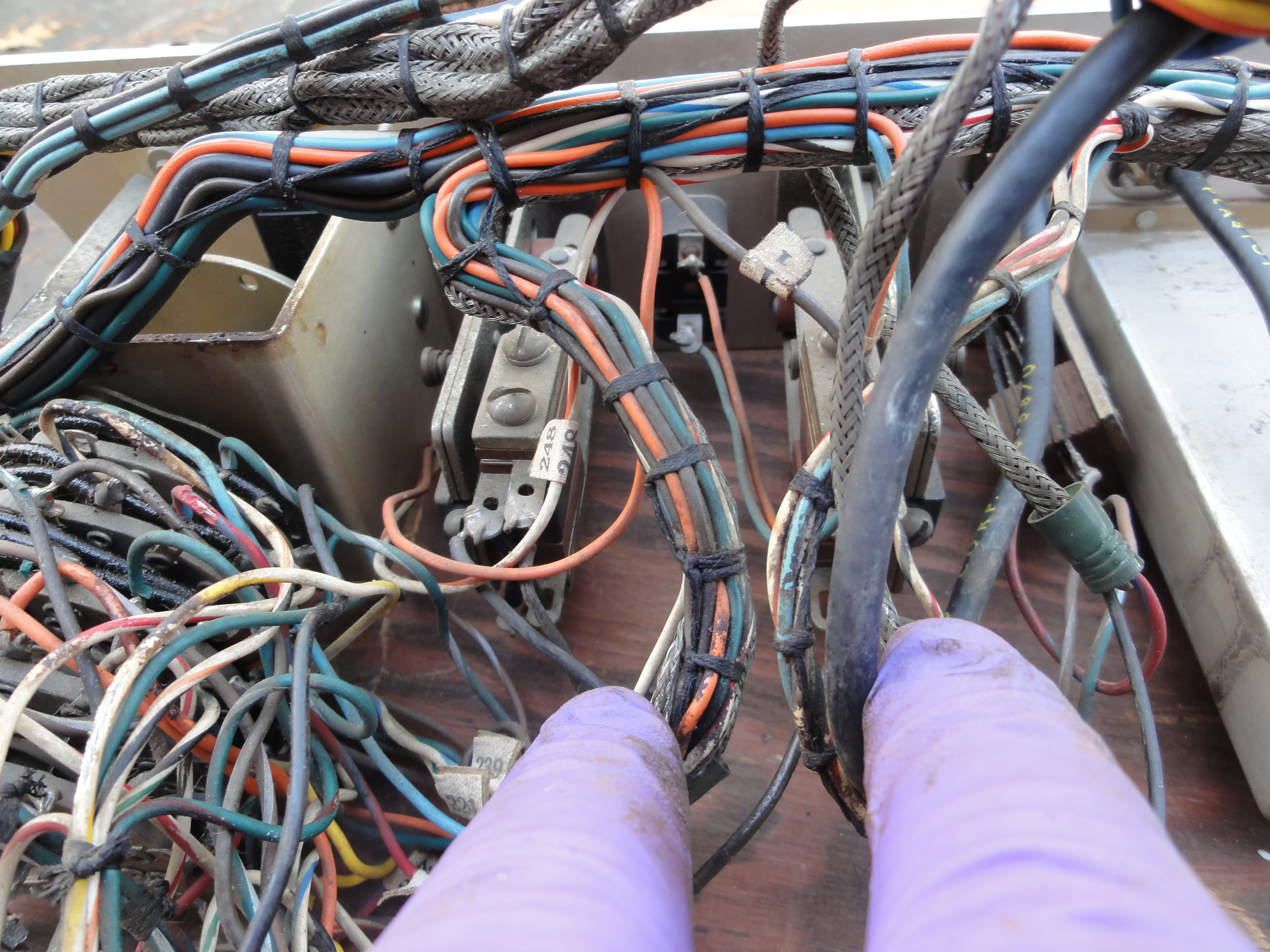

DSC01471.JPG (3909252 bytes) DSC01472.JPG (4188369 bytes) DSC01473.JPG (3726583 bytes) DSC01474.JPG (3926913 bytes)

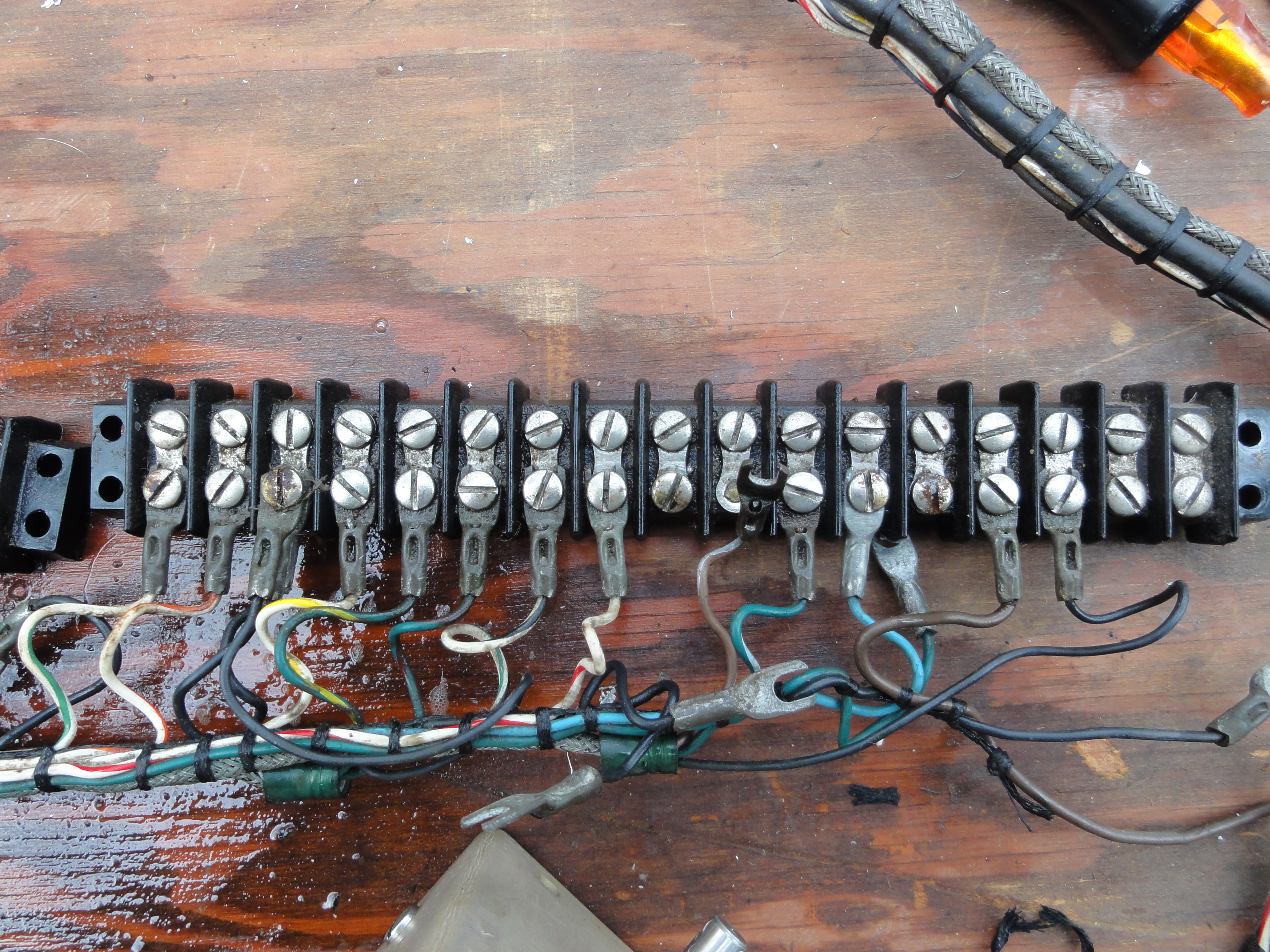

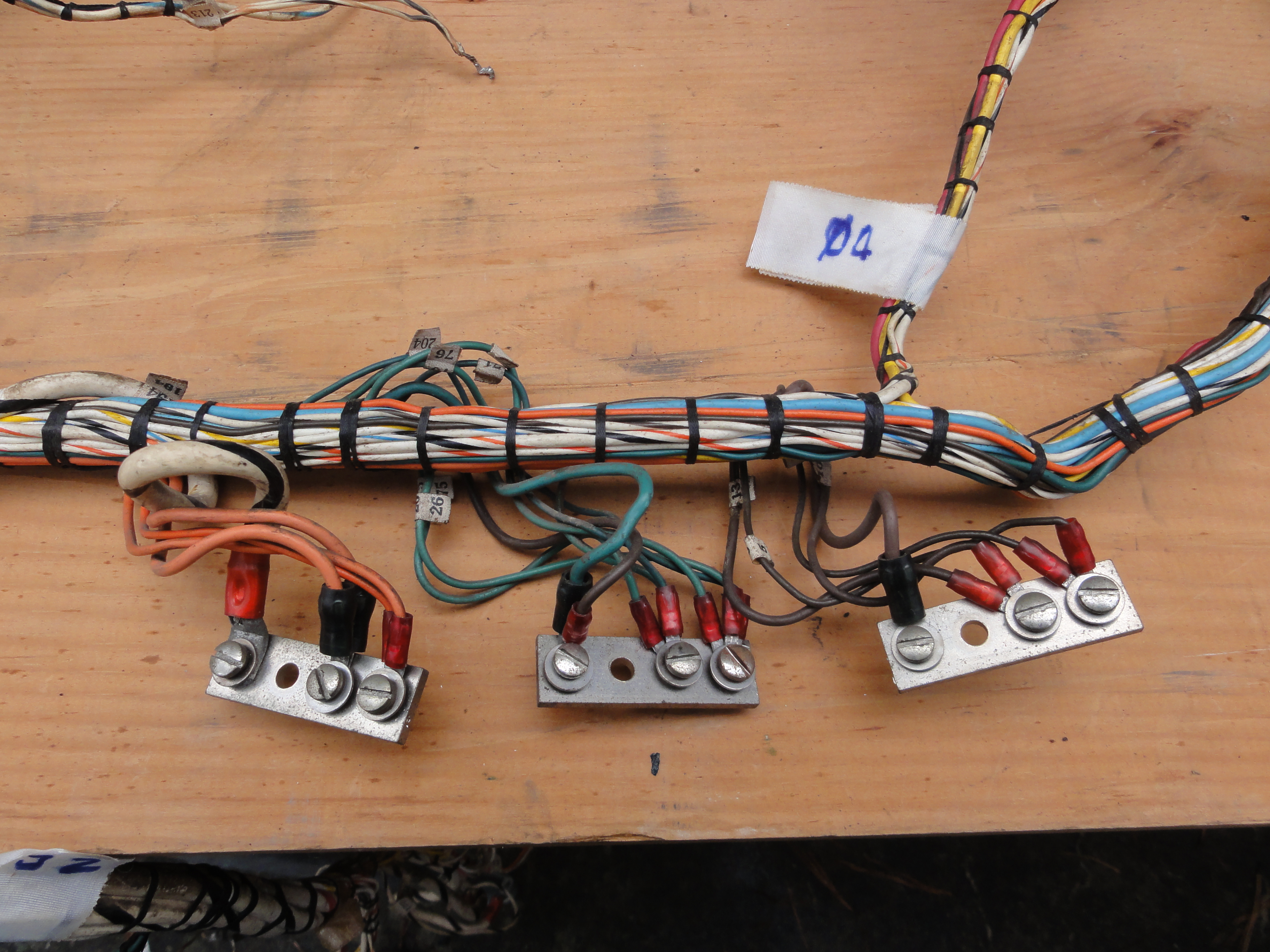

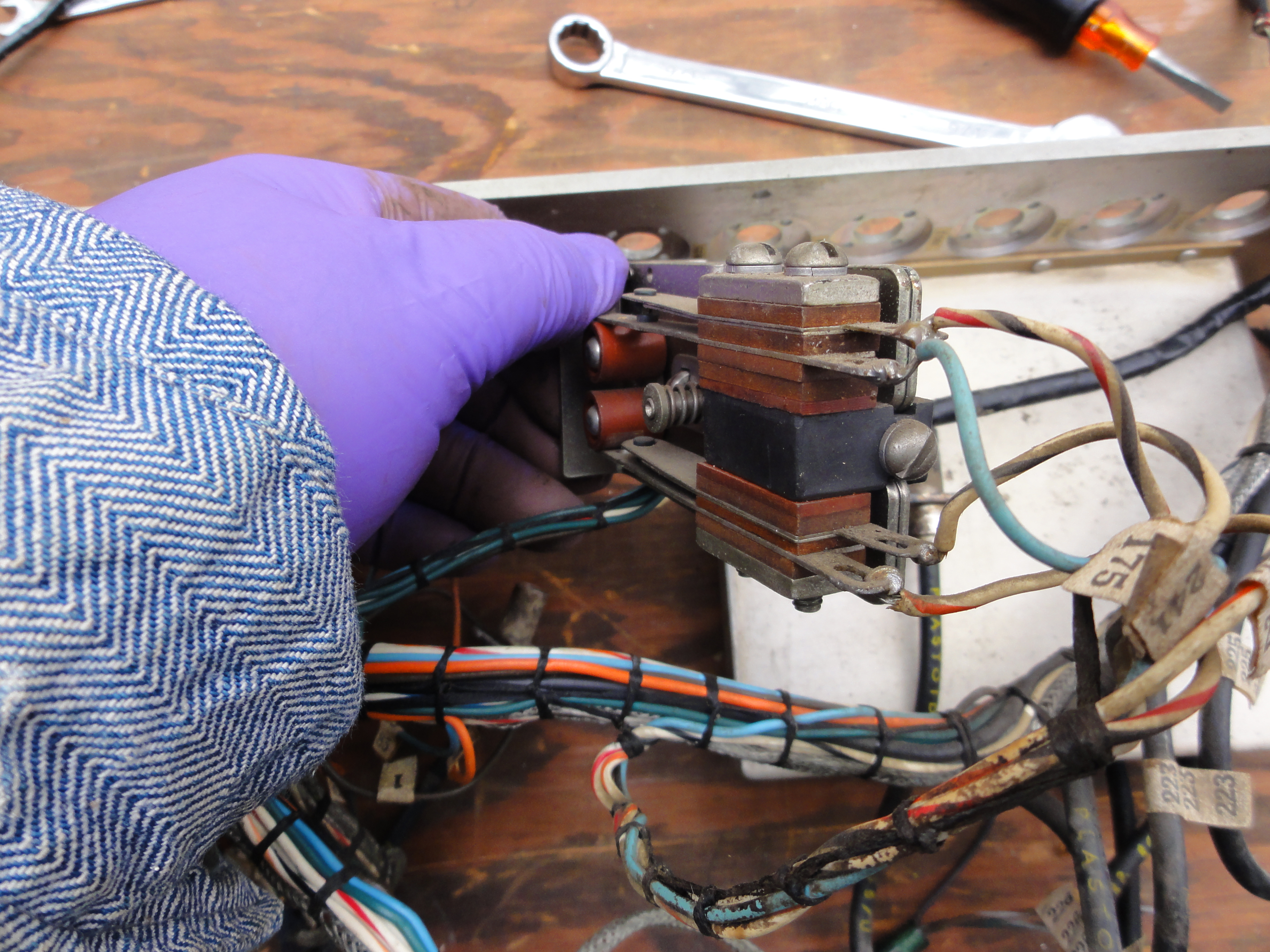

DSC01475.JPG (4355592 bytes) DSC01476.JPG (4334541 bytes) DSC01477.JPG (4452268 bytes) DSC01478.JPG (4058336 bytes)

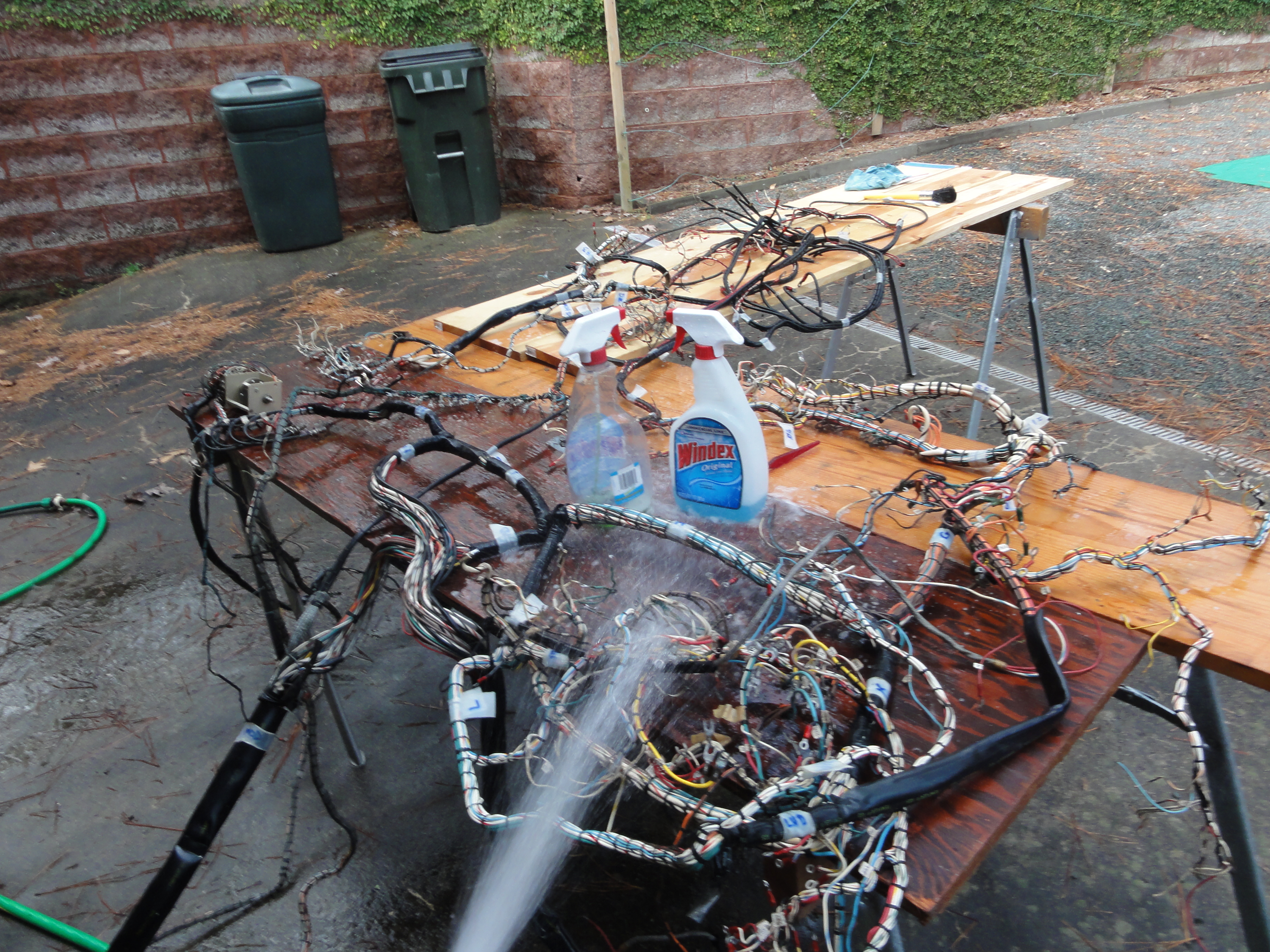

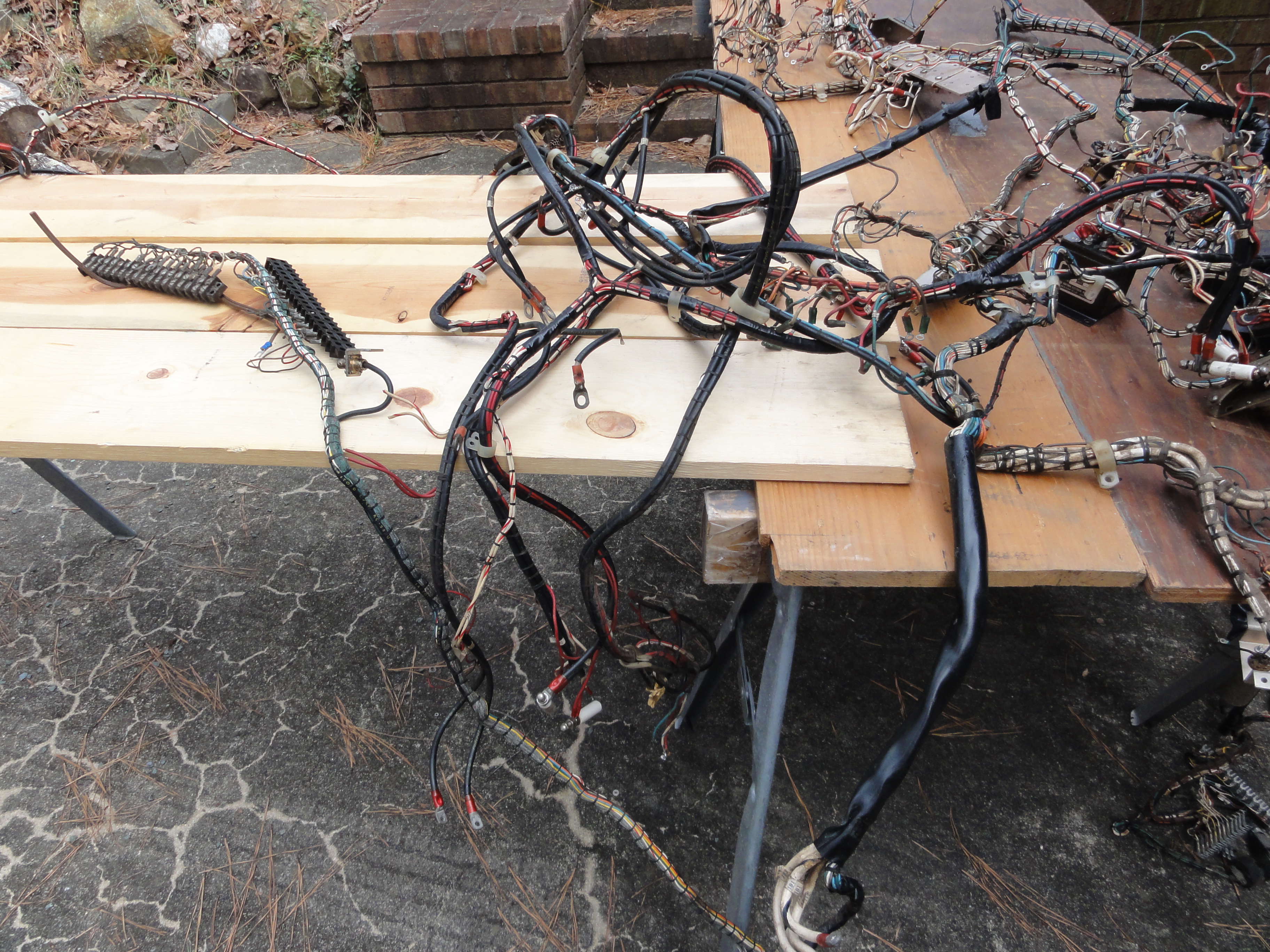

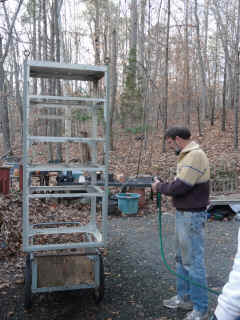

Let's get crazy - hit the wiring  with Windex, scrub with toothbrush, rinse with hose, repeat - then dry it out (I hope)

DSC01479.JPG (4468908 bytes) DSC01480.JPG (4391333 bytes) DSC01481.JPG (4257865 bytes) Result - it is now no longer incredible filthy, just kind of normally dirty...

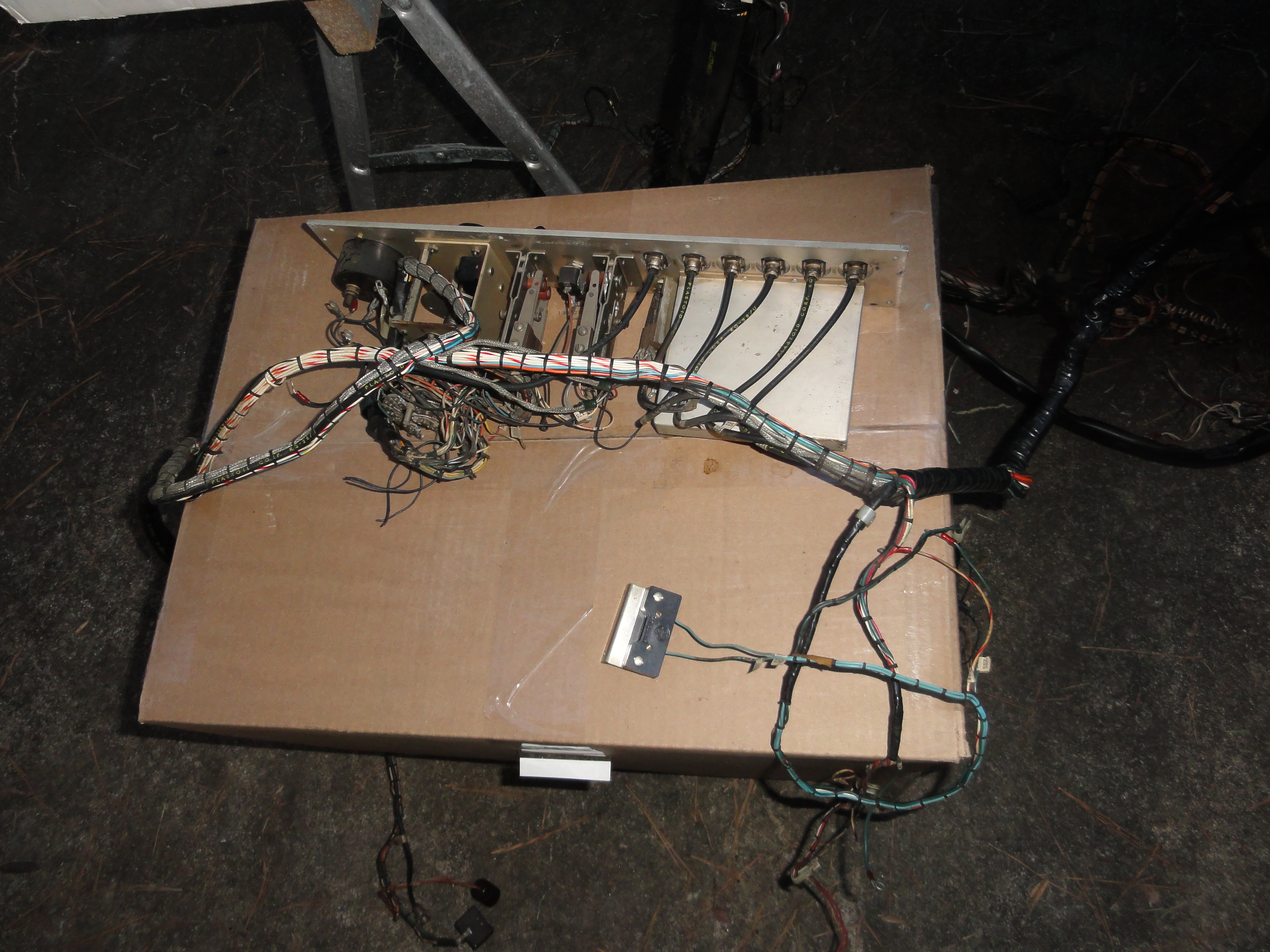

Where'd it go?

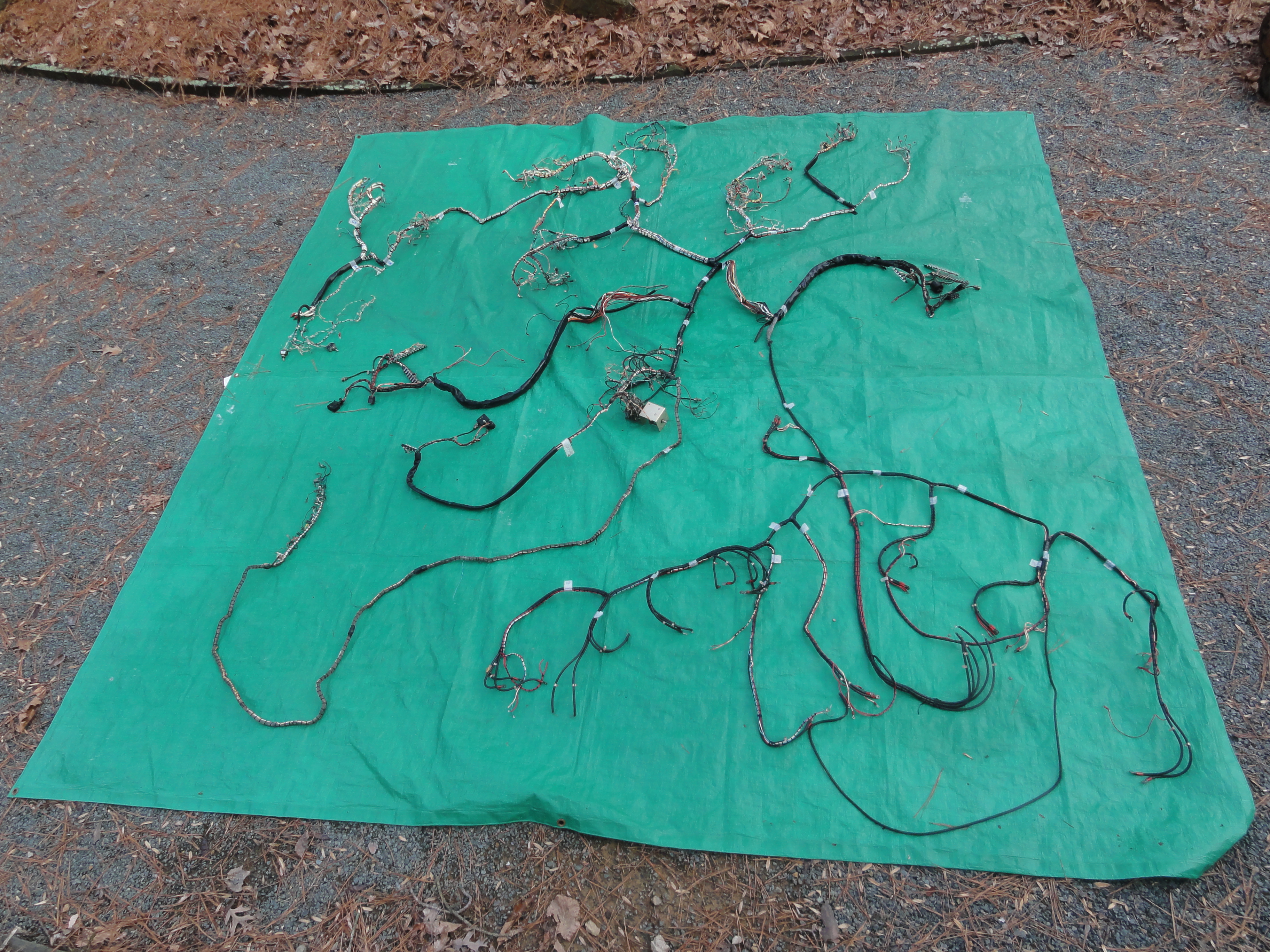

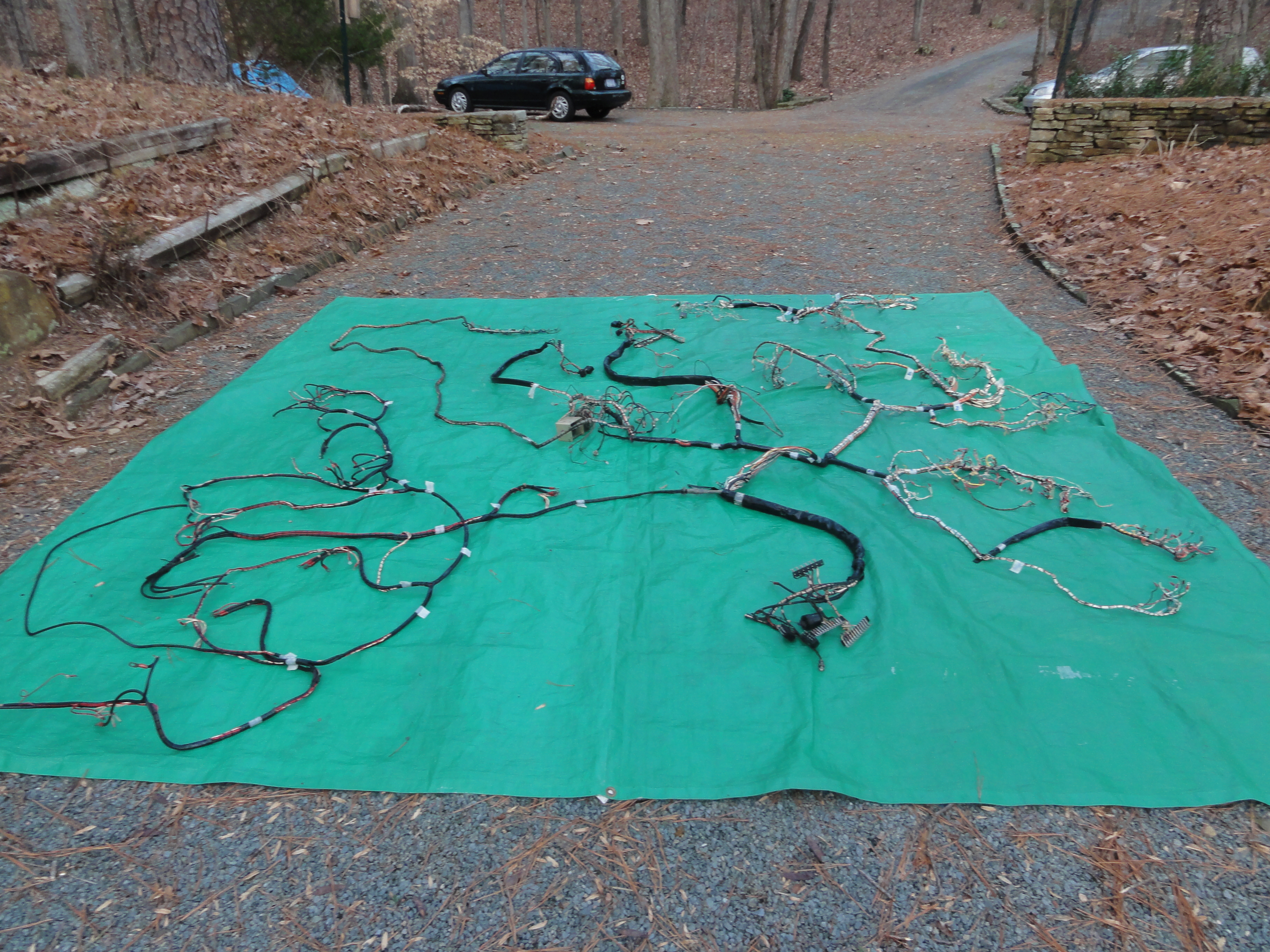

Spread out to dry for a while

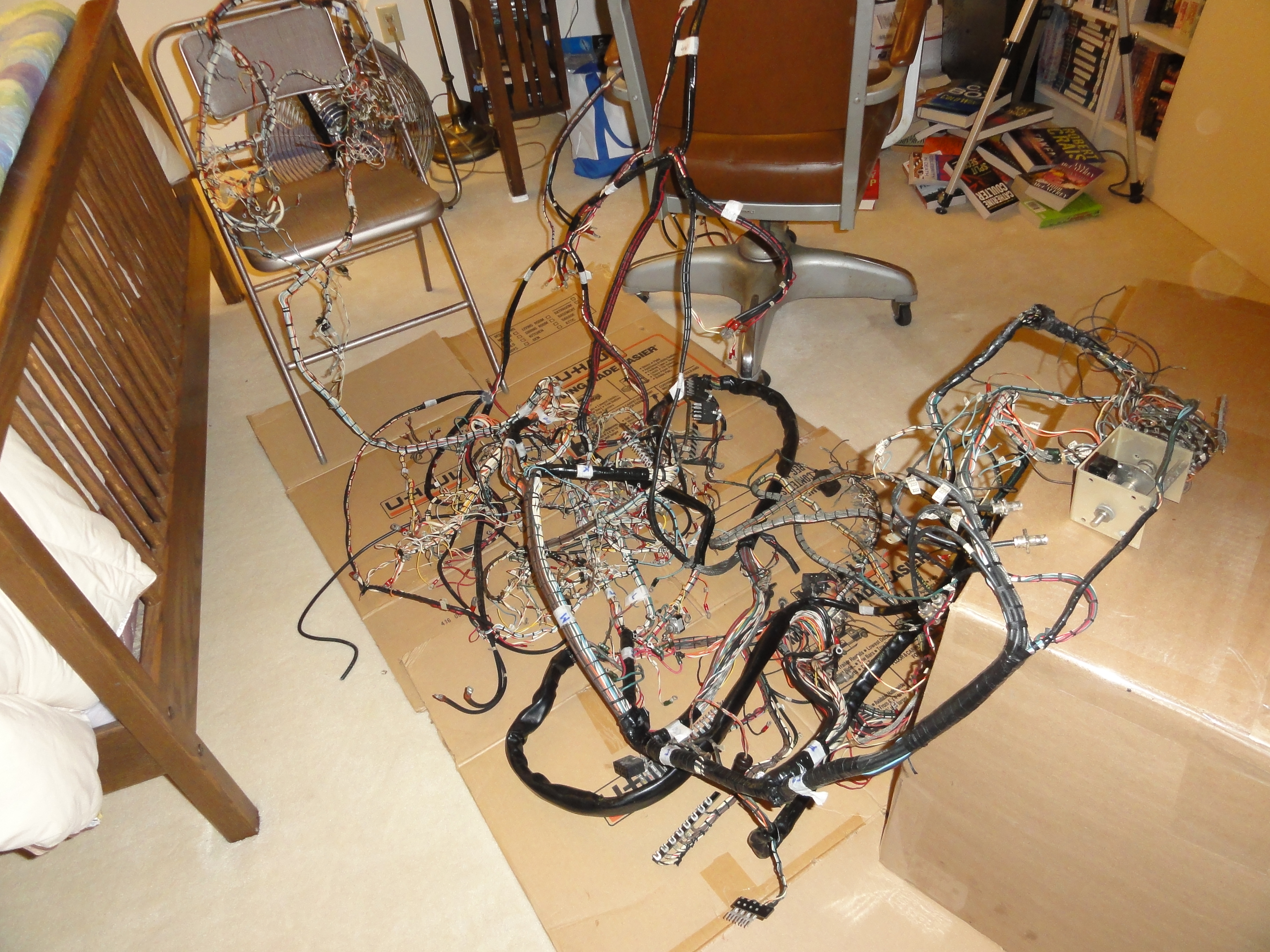

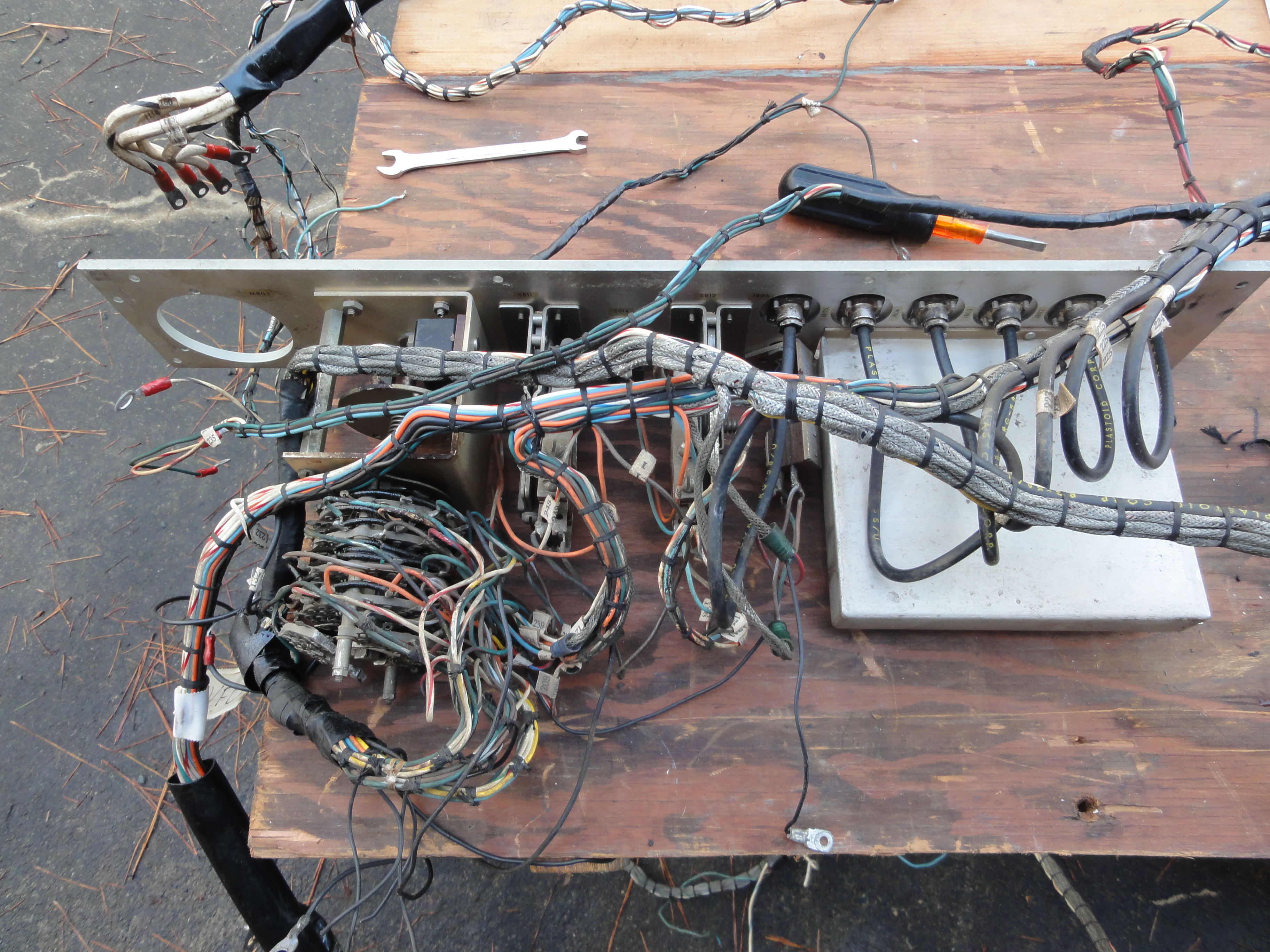

"central nervous system" of AN/FRT-17
End of the one sunny day - time to haul it all inside

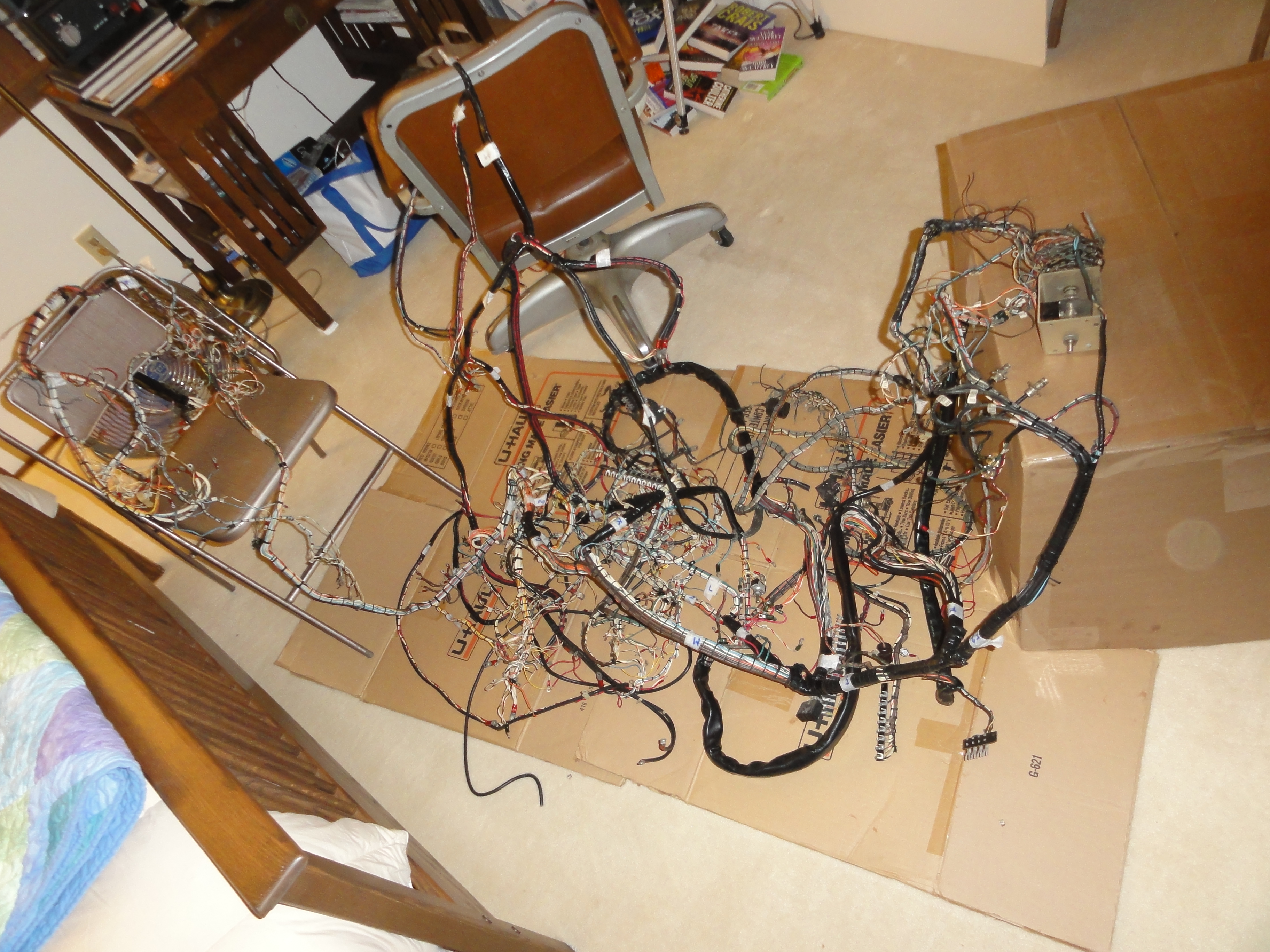

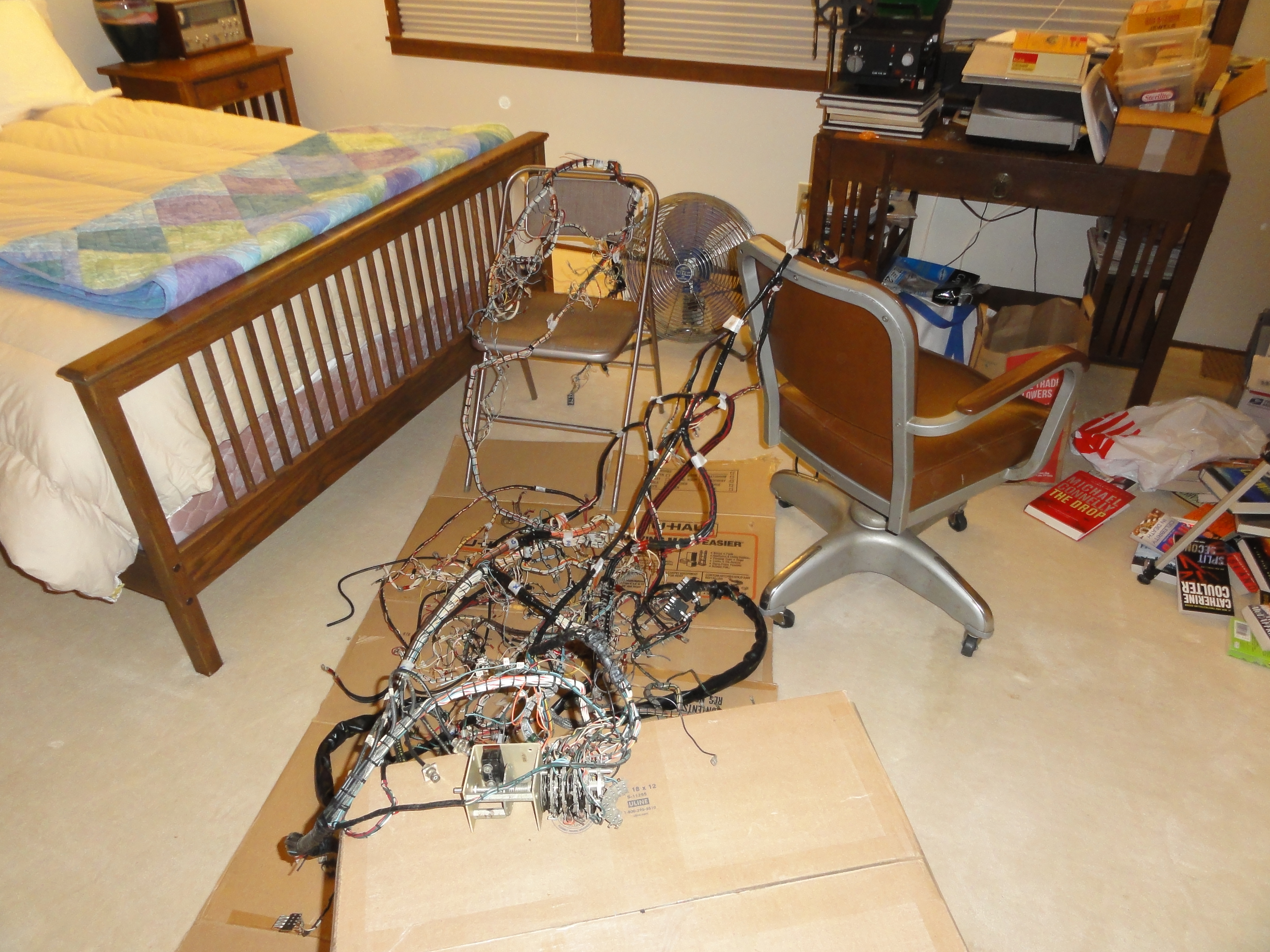

Spread it out, turn up the room heat, turn on the fan....and cross my fingers!

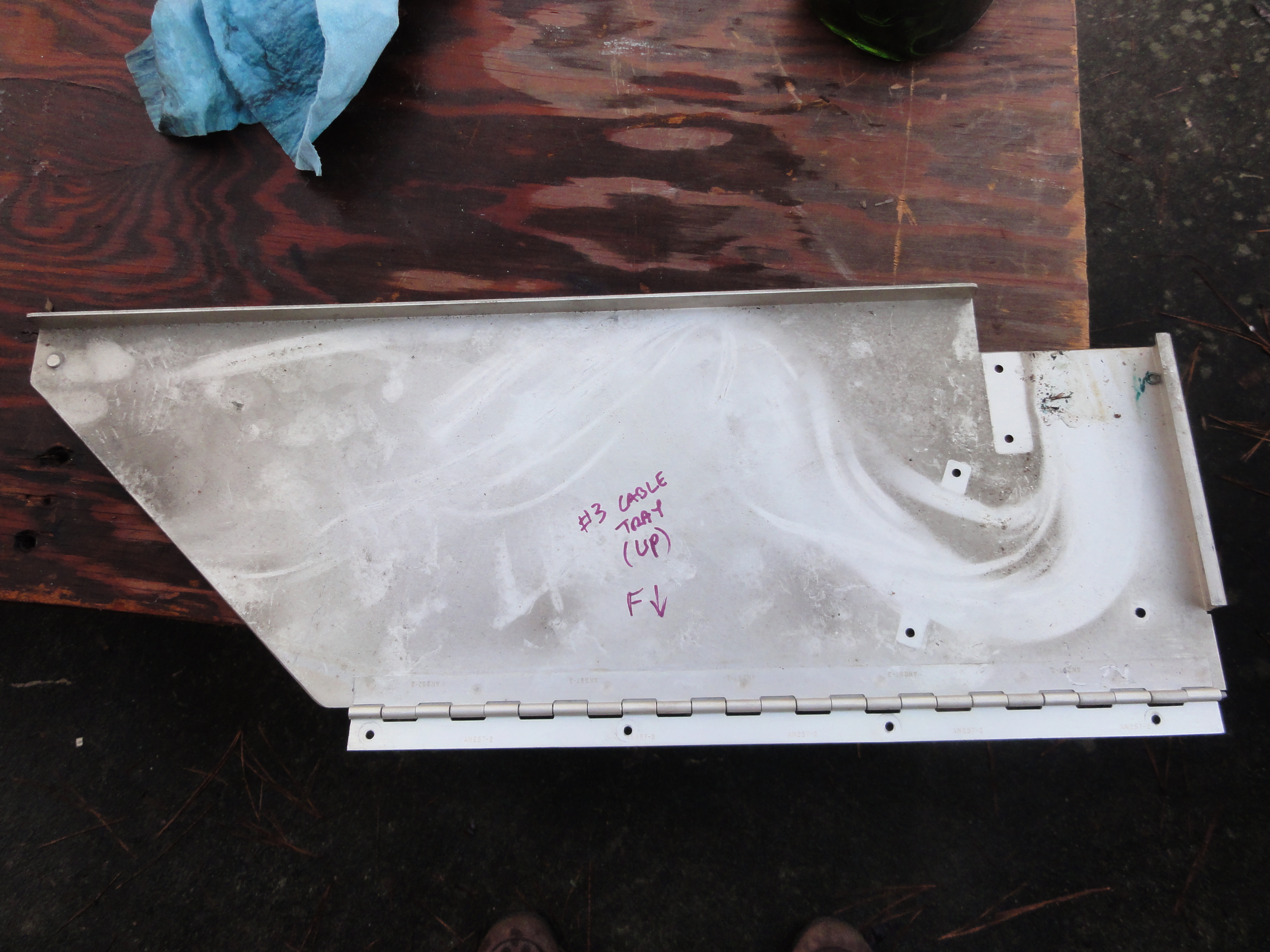

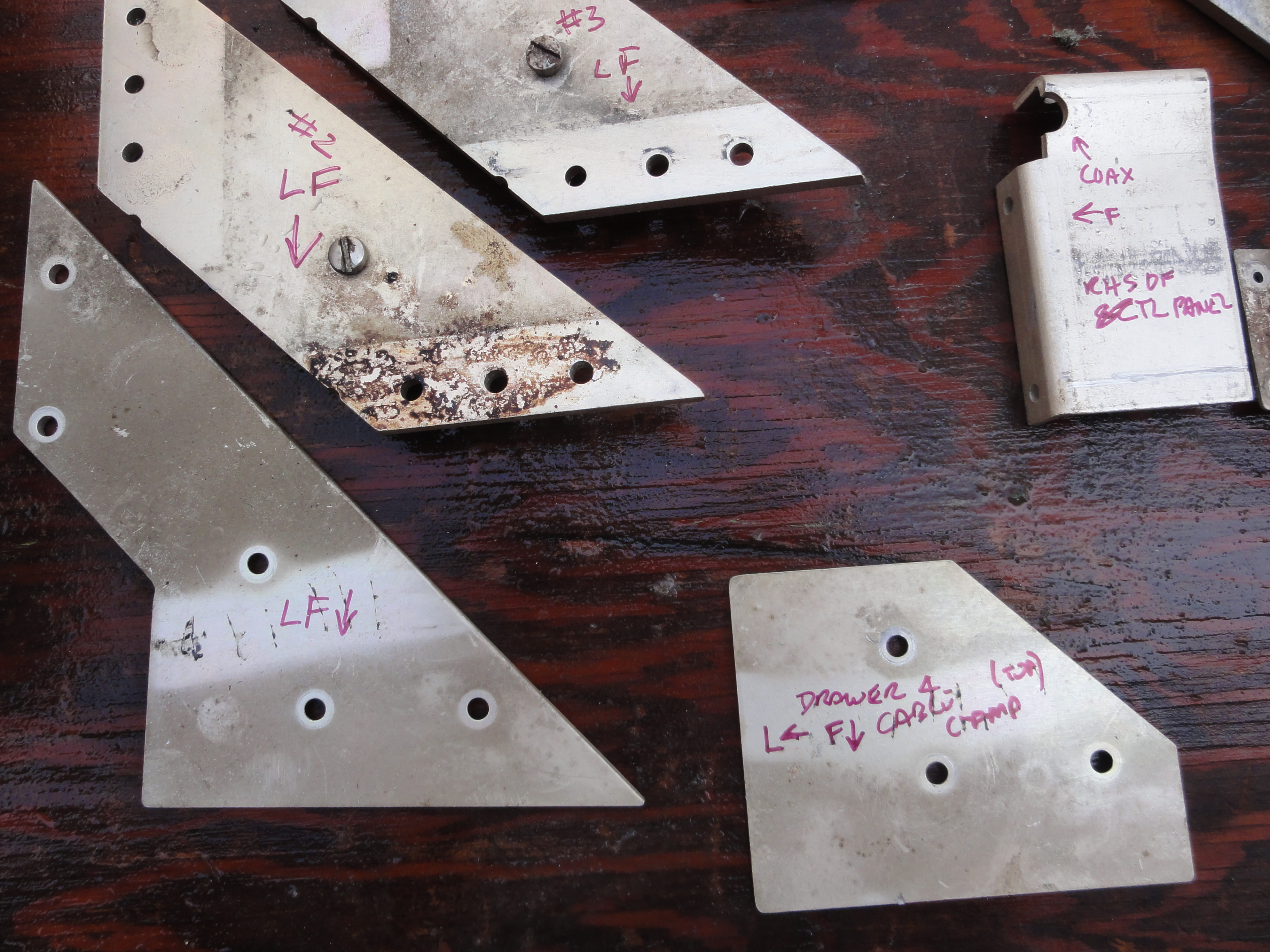

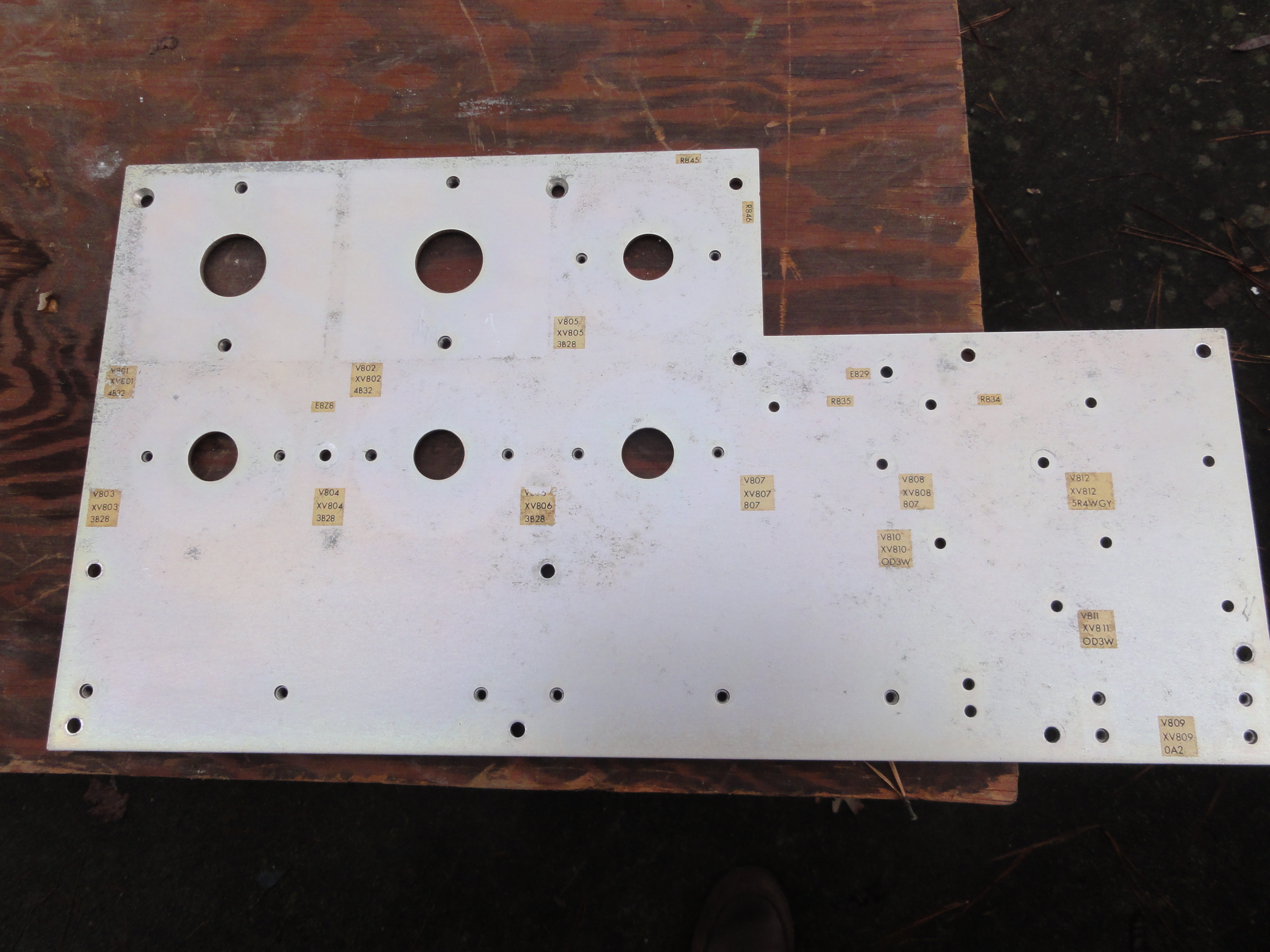

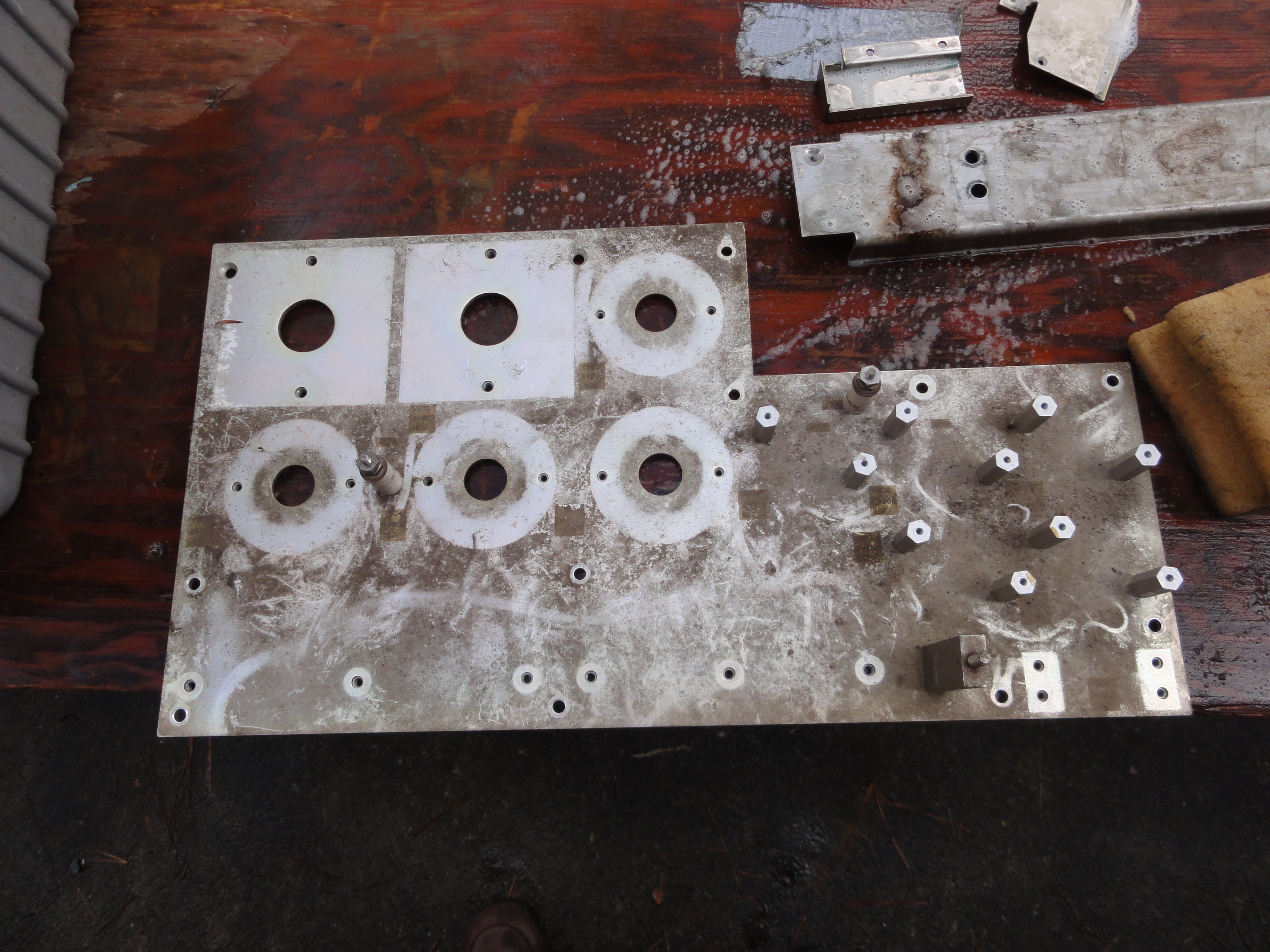

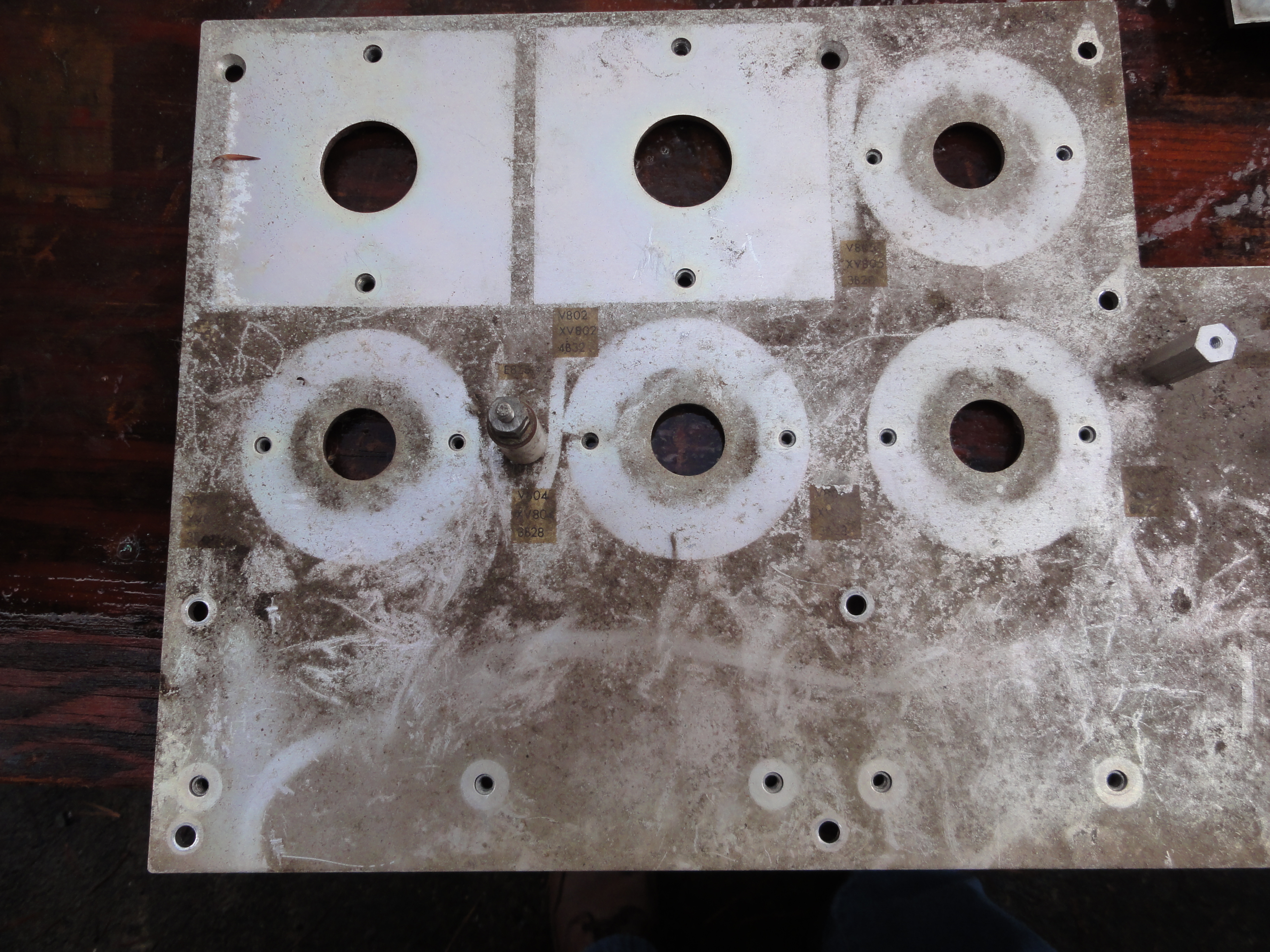

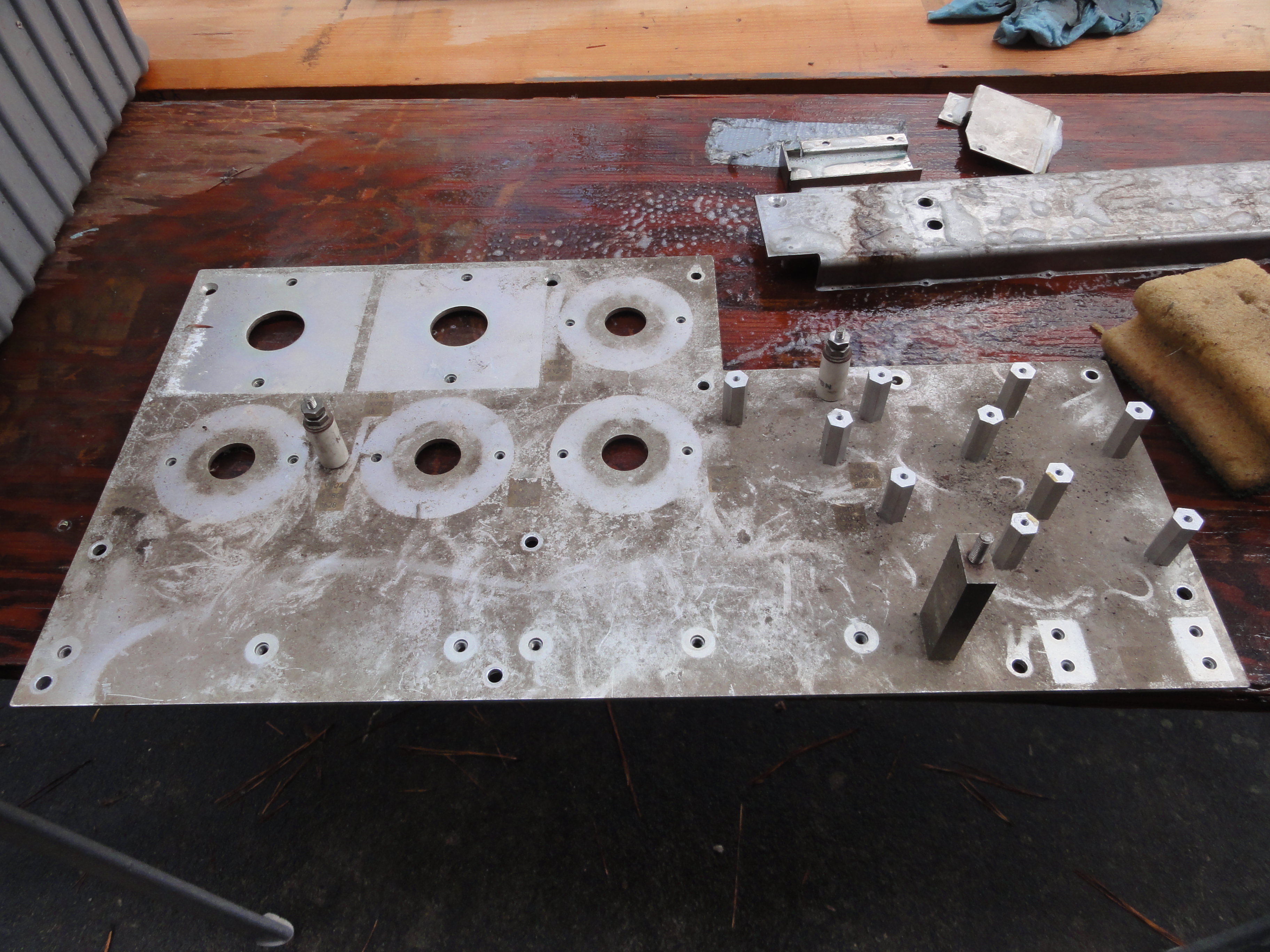

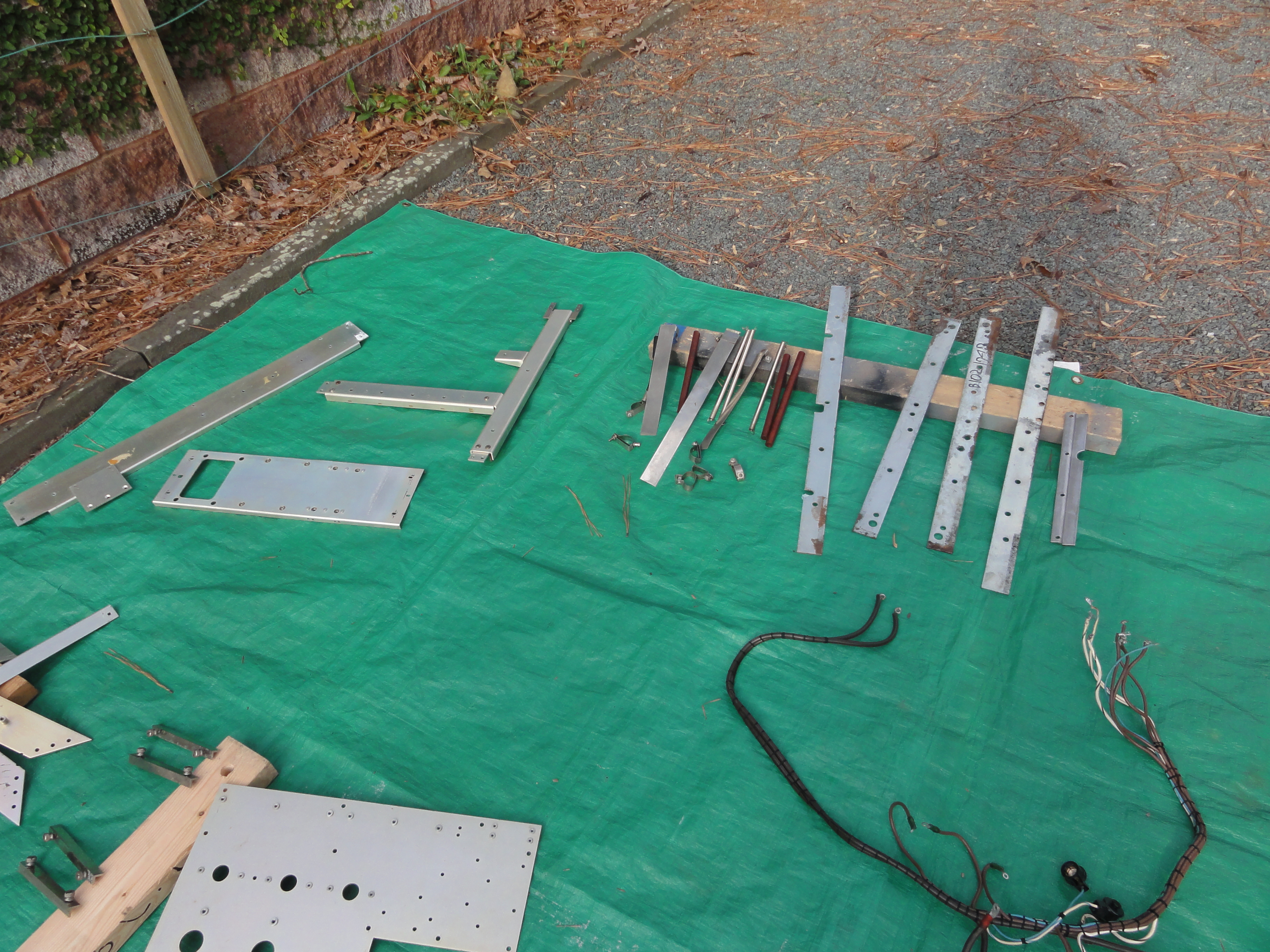

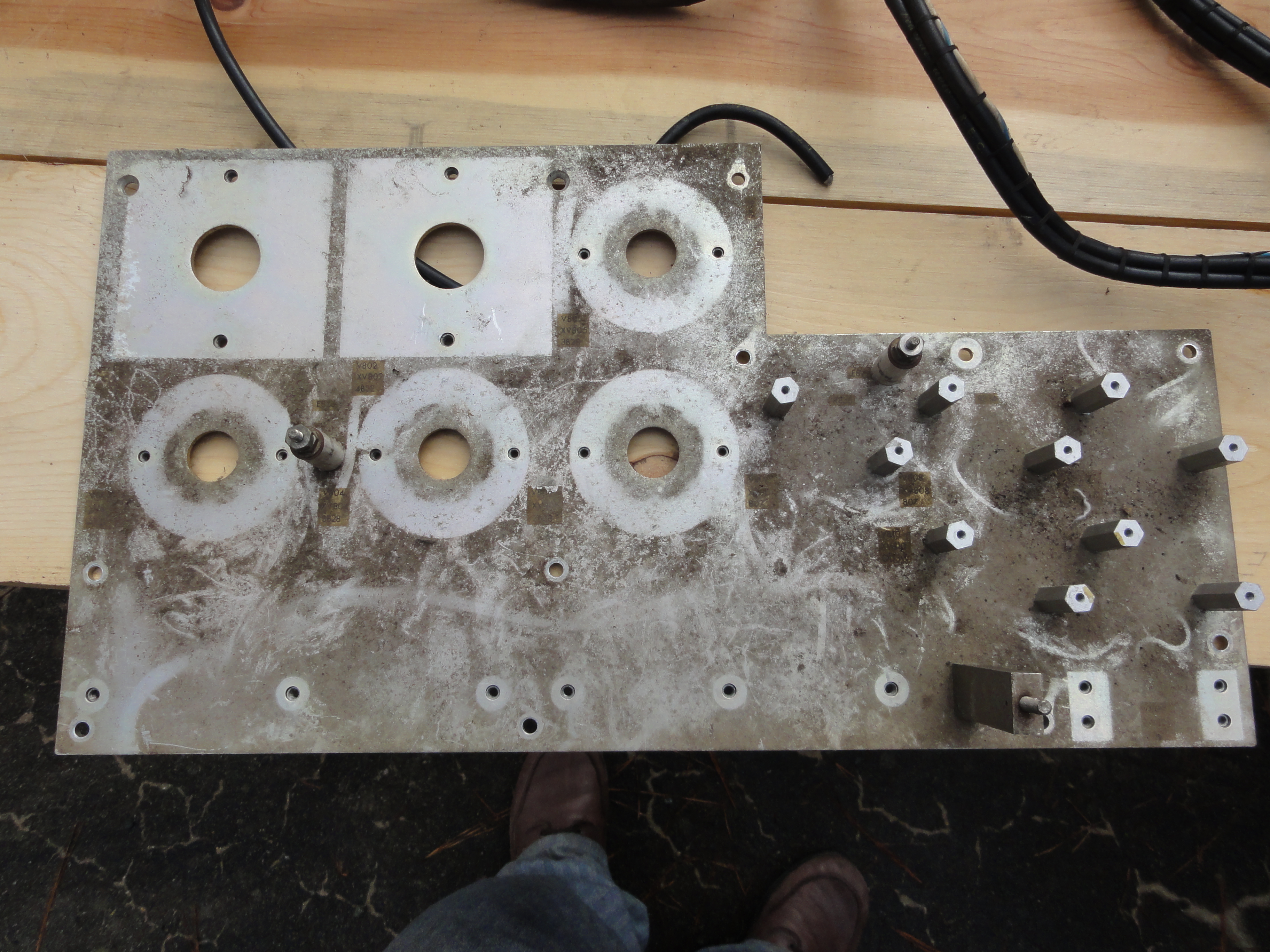

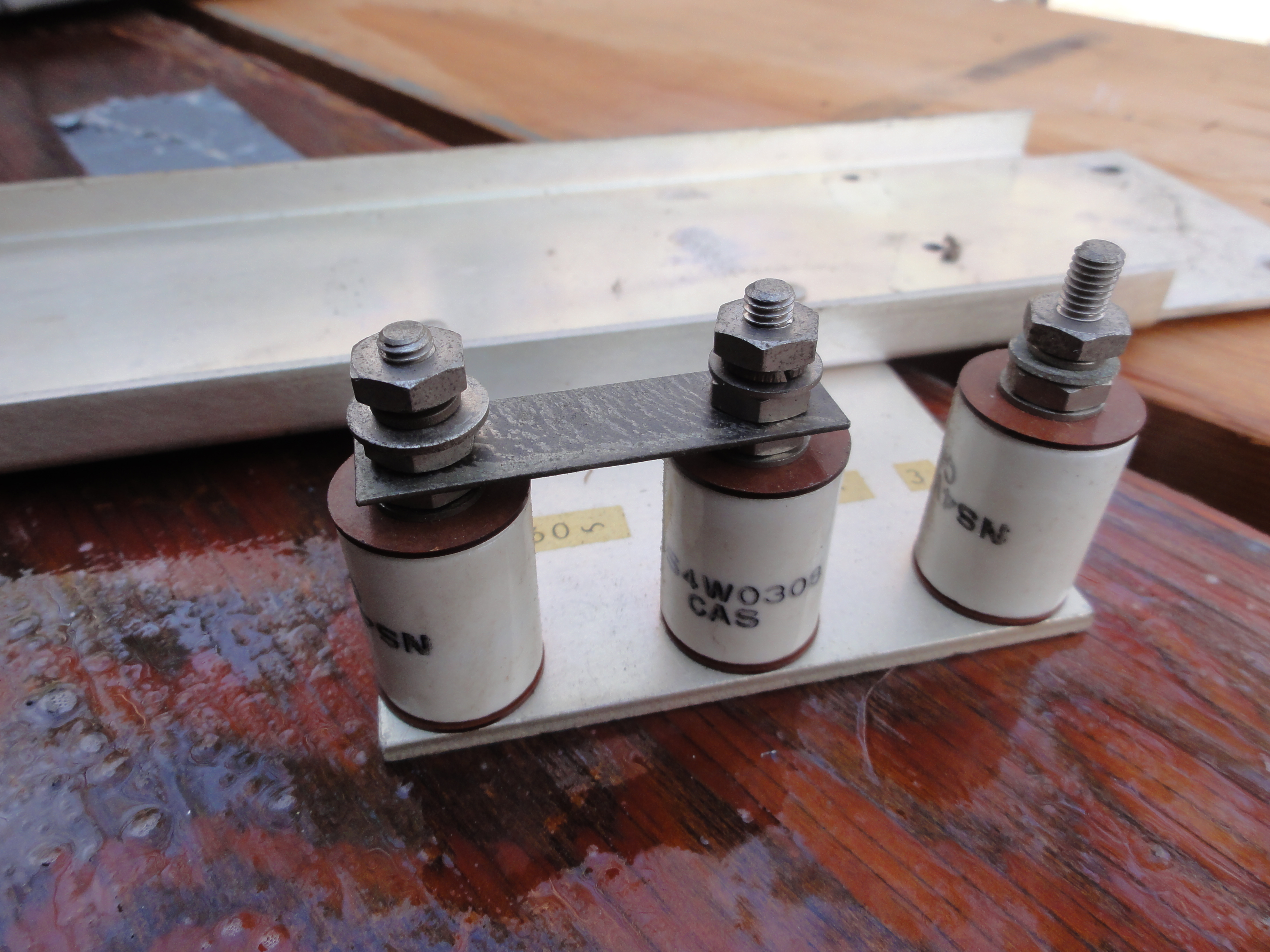

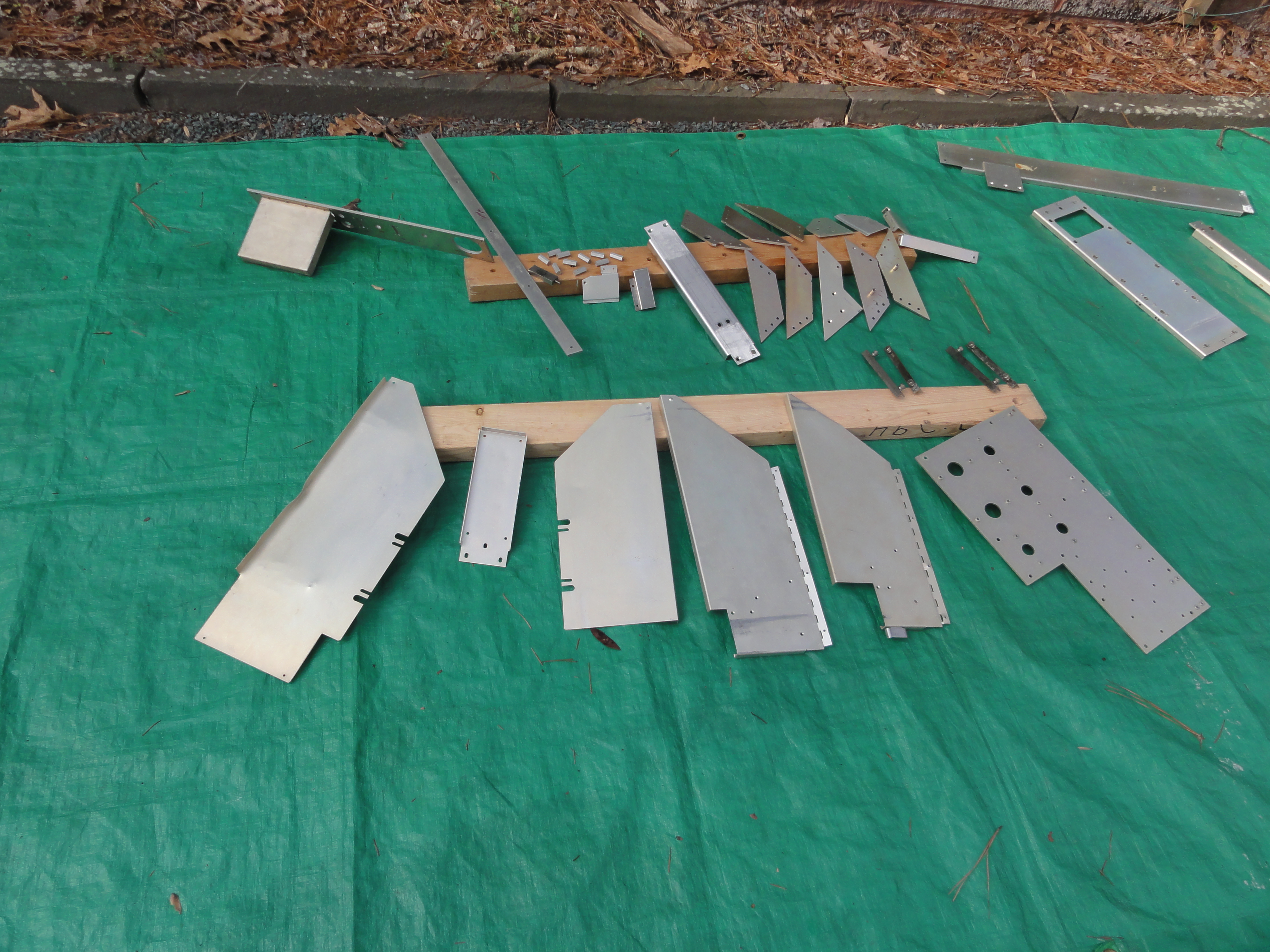

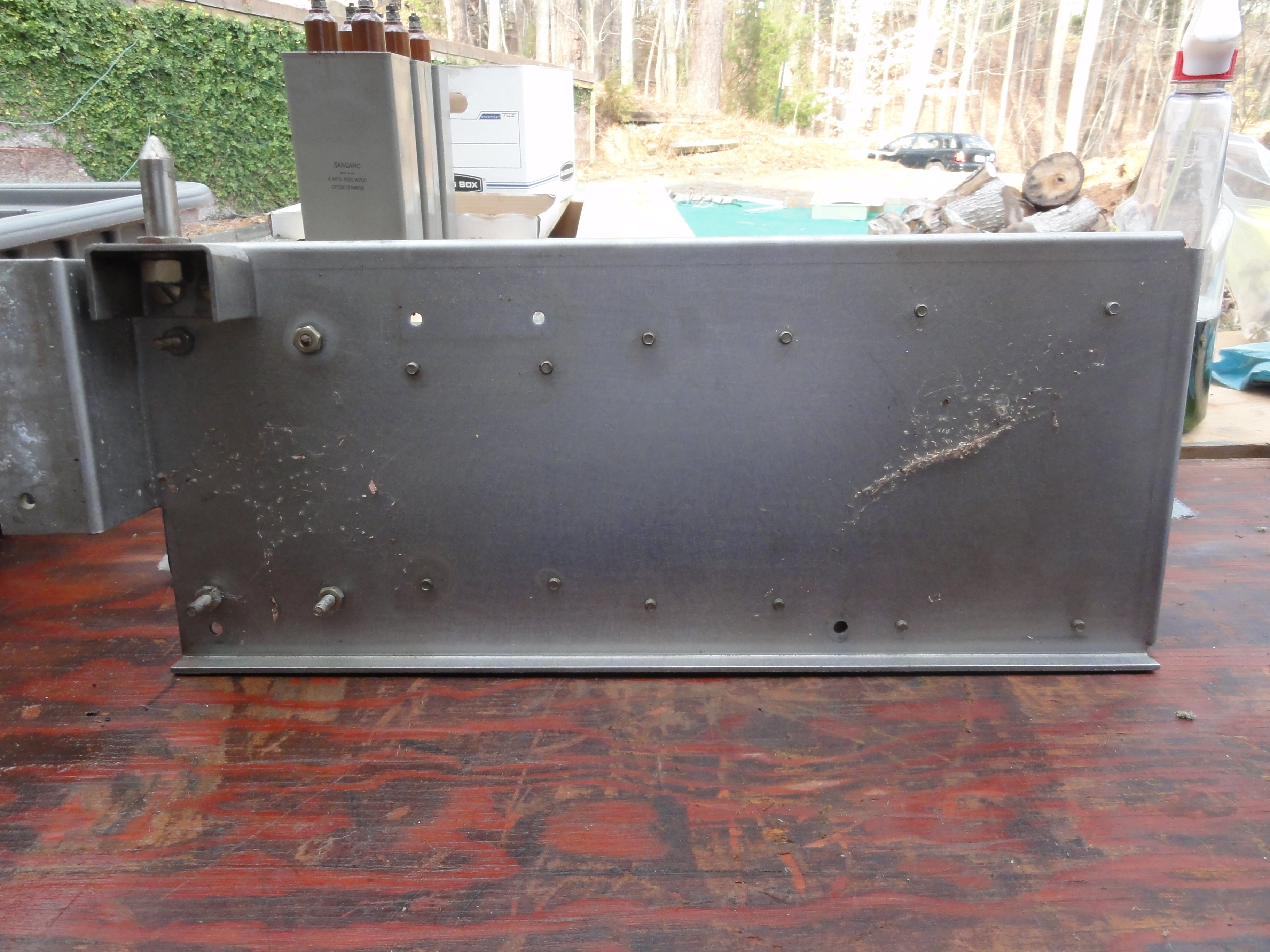

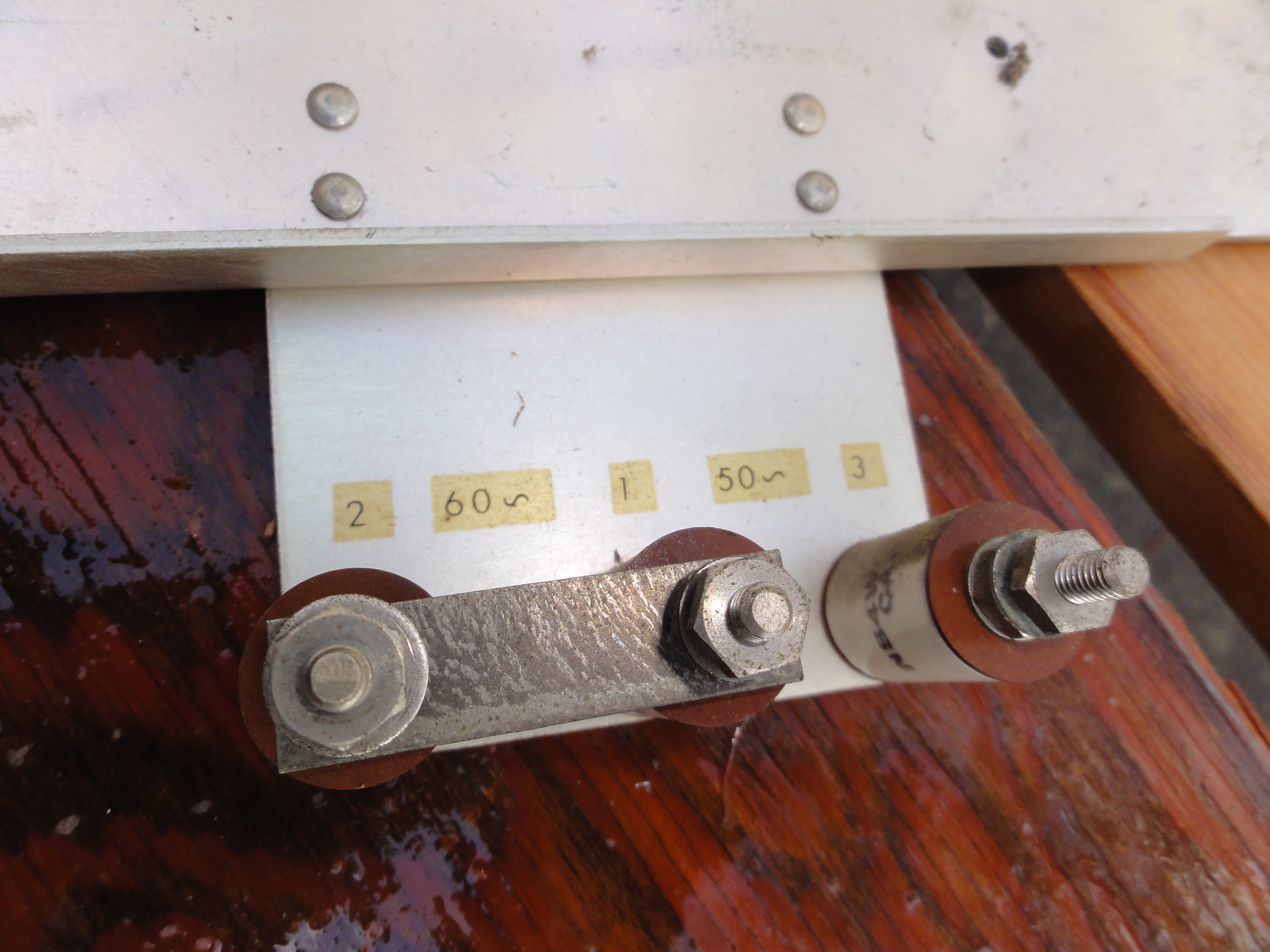

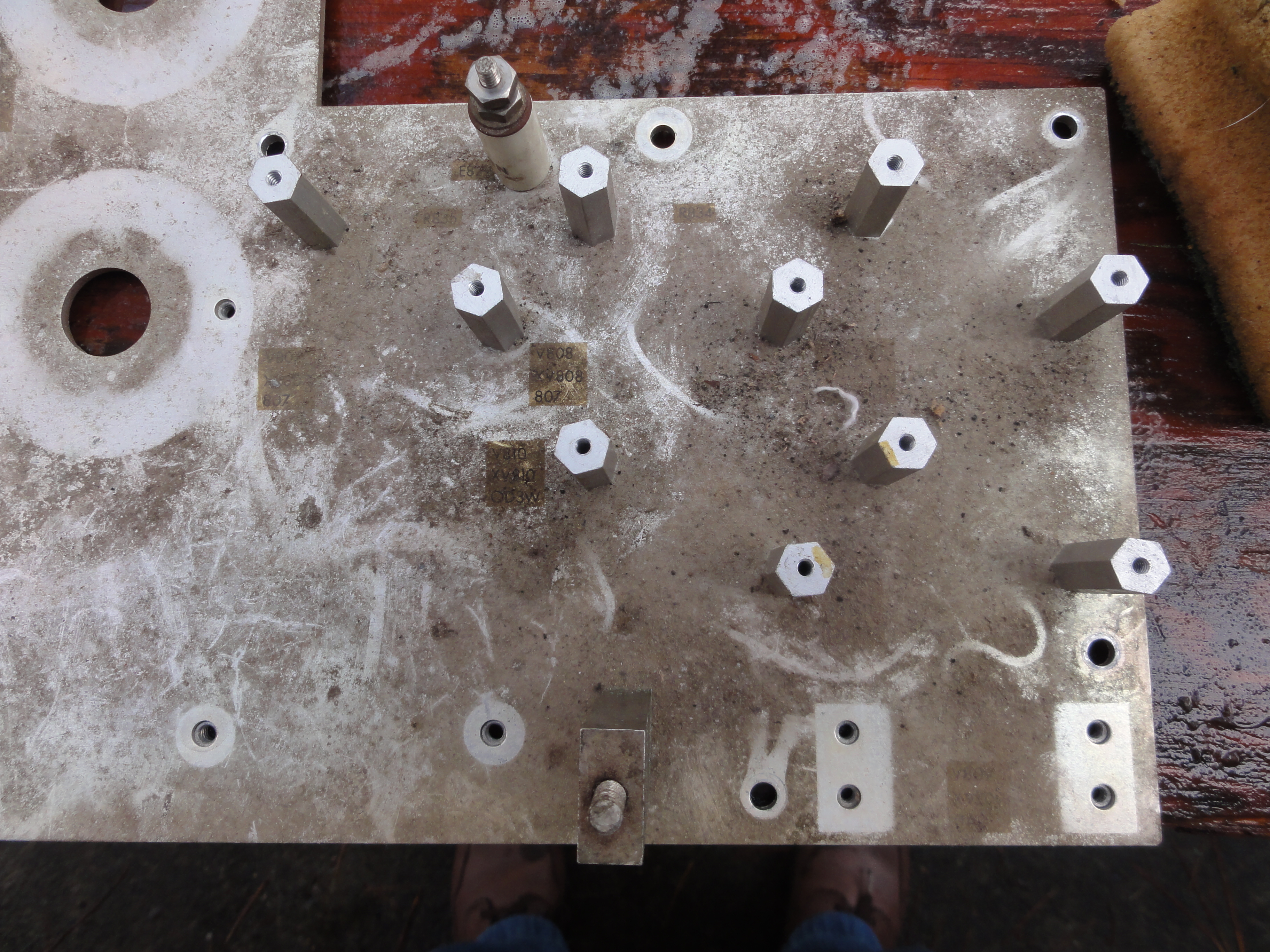

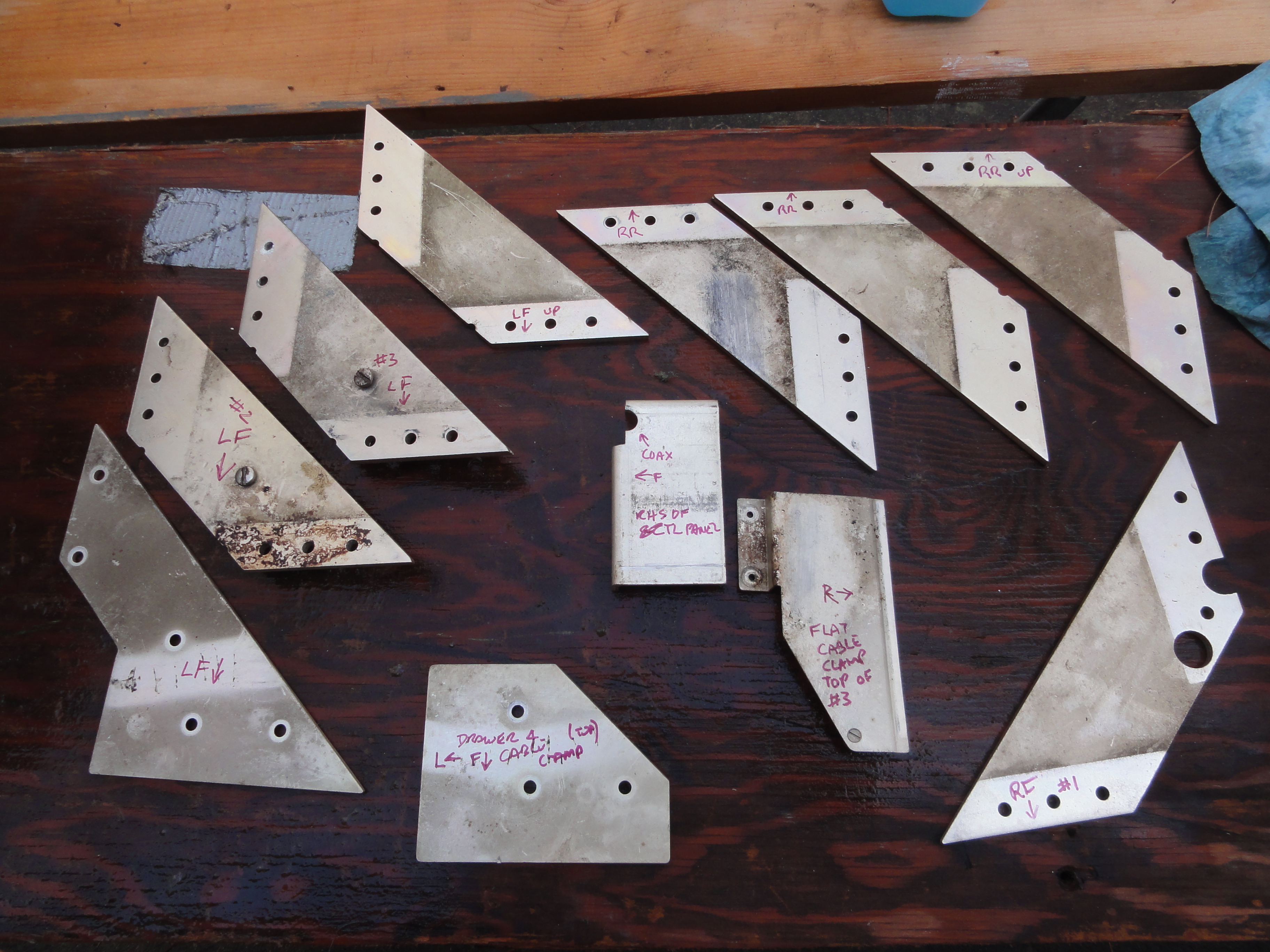

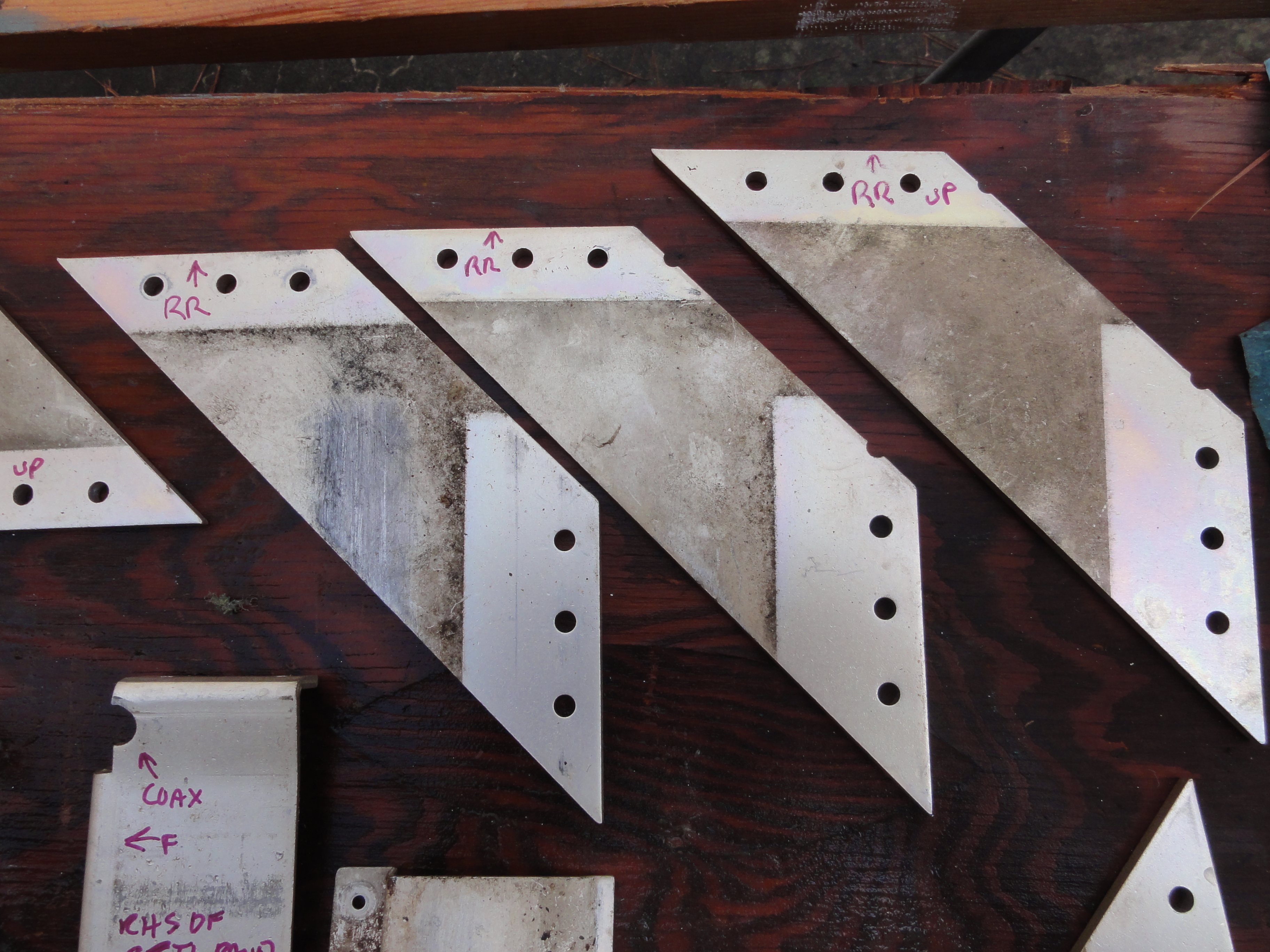

Another warm weekend day! time to wash some misc. metalwork...

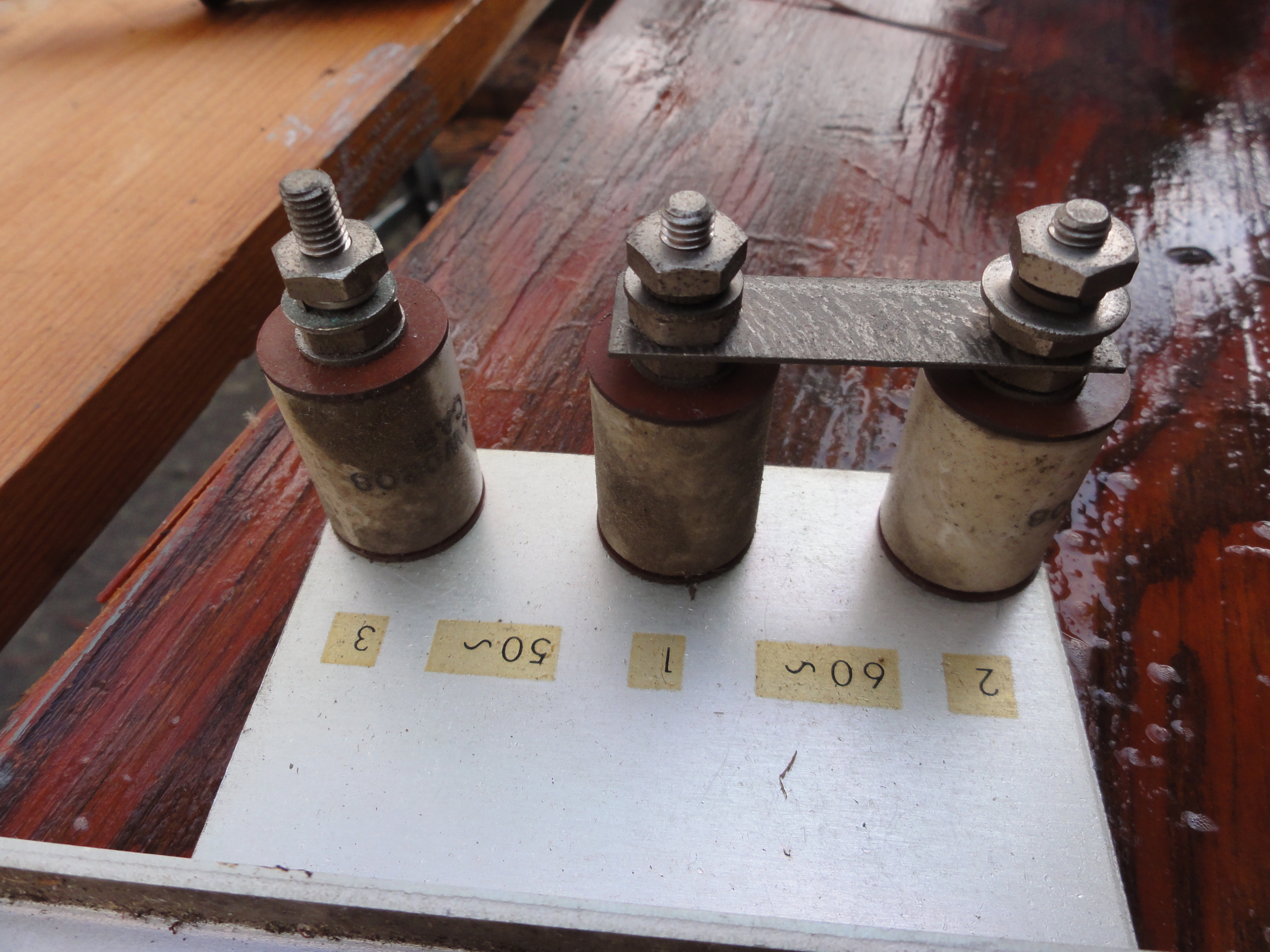

   DSC01490.JPG (3831659 bytes) DSC01491.JPG (4003383 bytes) DSC01492.JPG (4001574 bytes) DSC01493.JPG (3811667 bytes)
DSC01494.JPG (3762847 bytes) DSC01495.JPG (3958793 bytes) DSC01496.JPG (4074384 bytes) DSC01497.JPG (3998465 bytes)

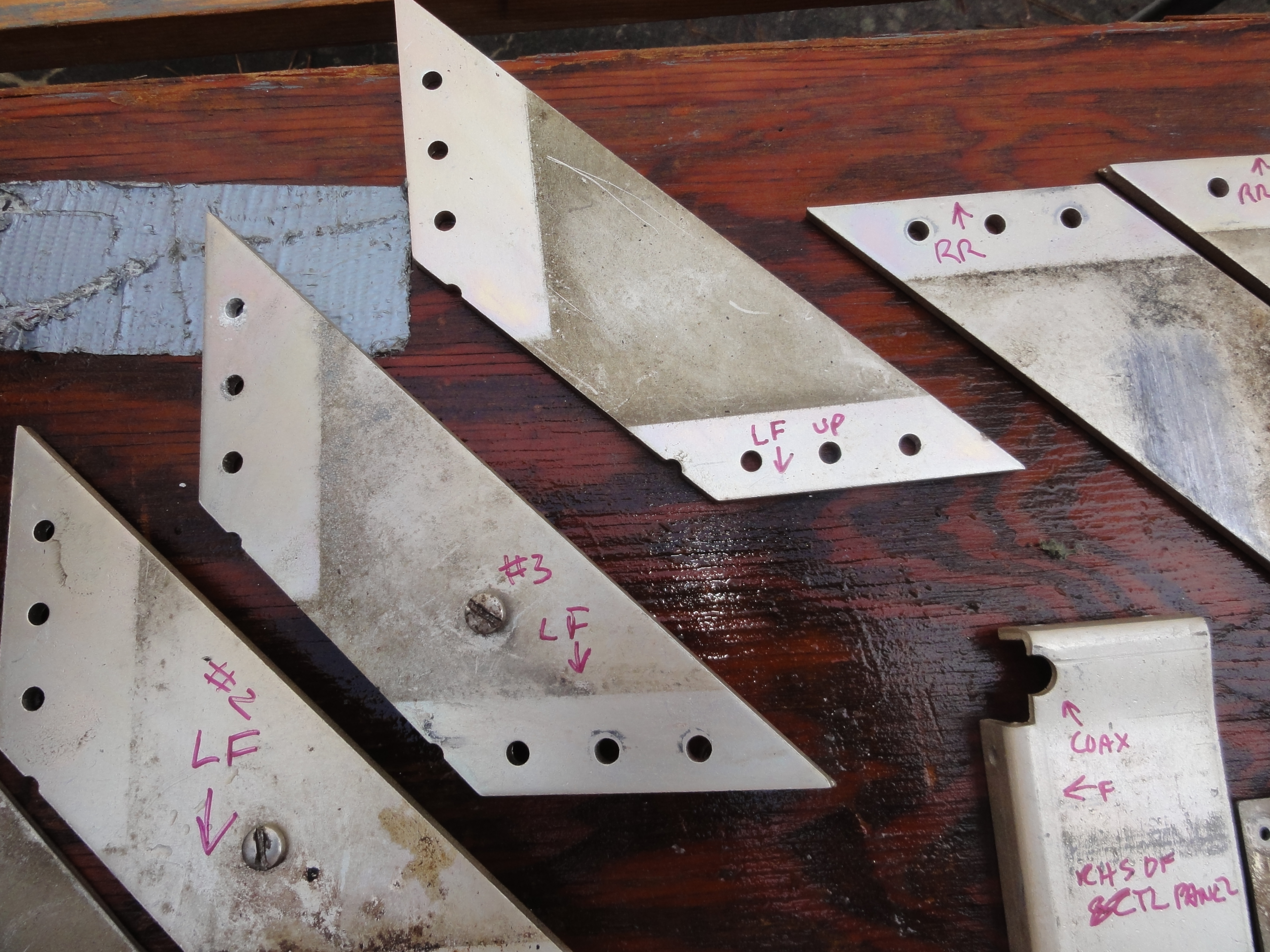

DSC01498.JPG (4229899 bytes) DSC01499.JPG (4089683 bytes) DSC01500.JPG (4109563 bytes) DSC01501.JPG (4346051 bytes)

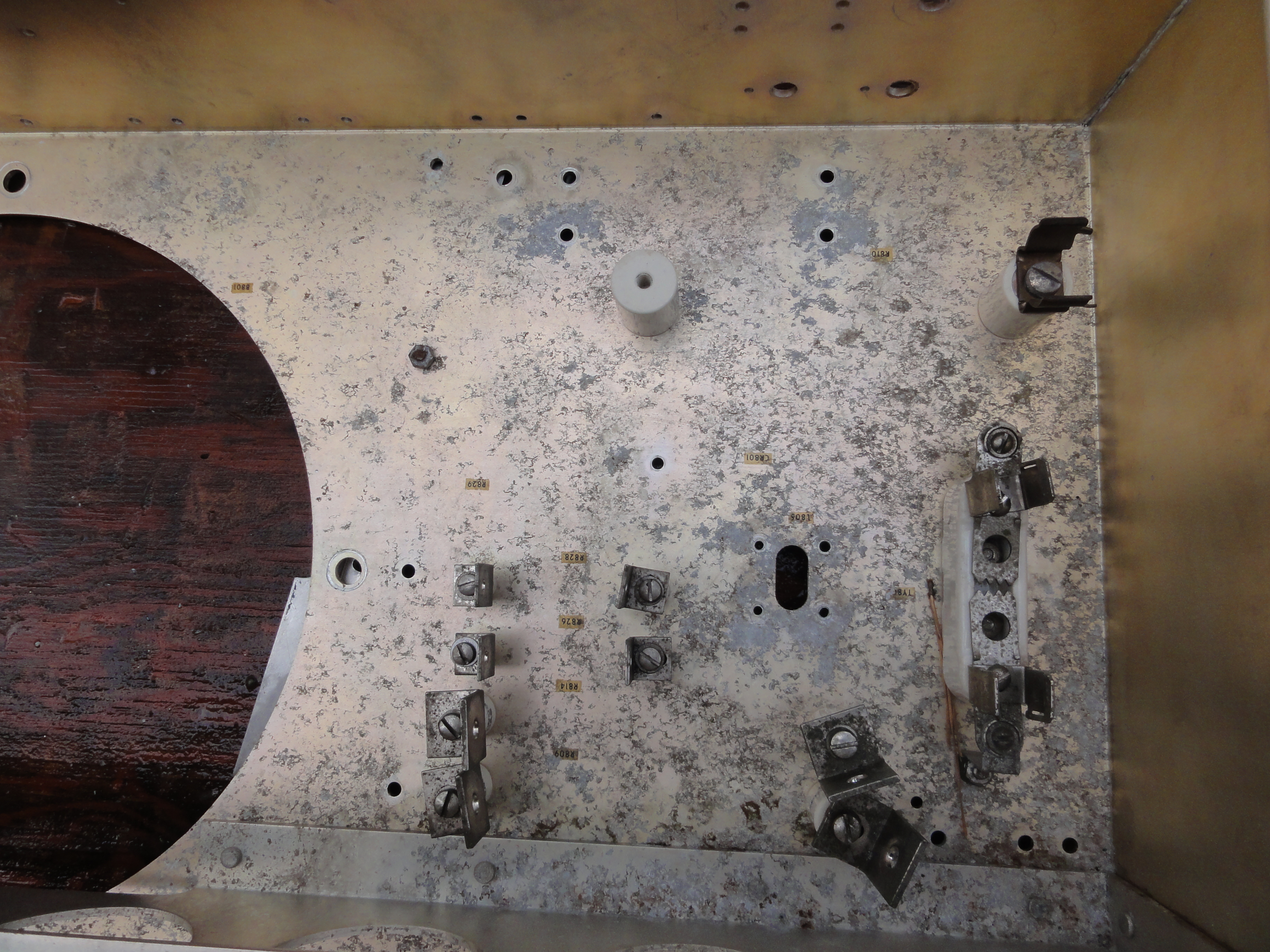

DSC01505.JPG (4078274 bytes) DSC01506.JPG (4054146 bytes) DSC01507.JPG (4314035 bytes) DSC01508.JPG (4444715 bytes)

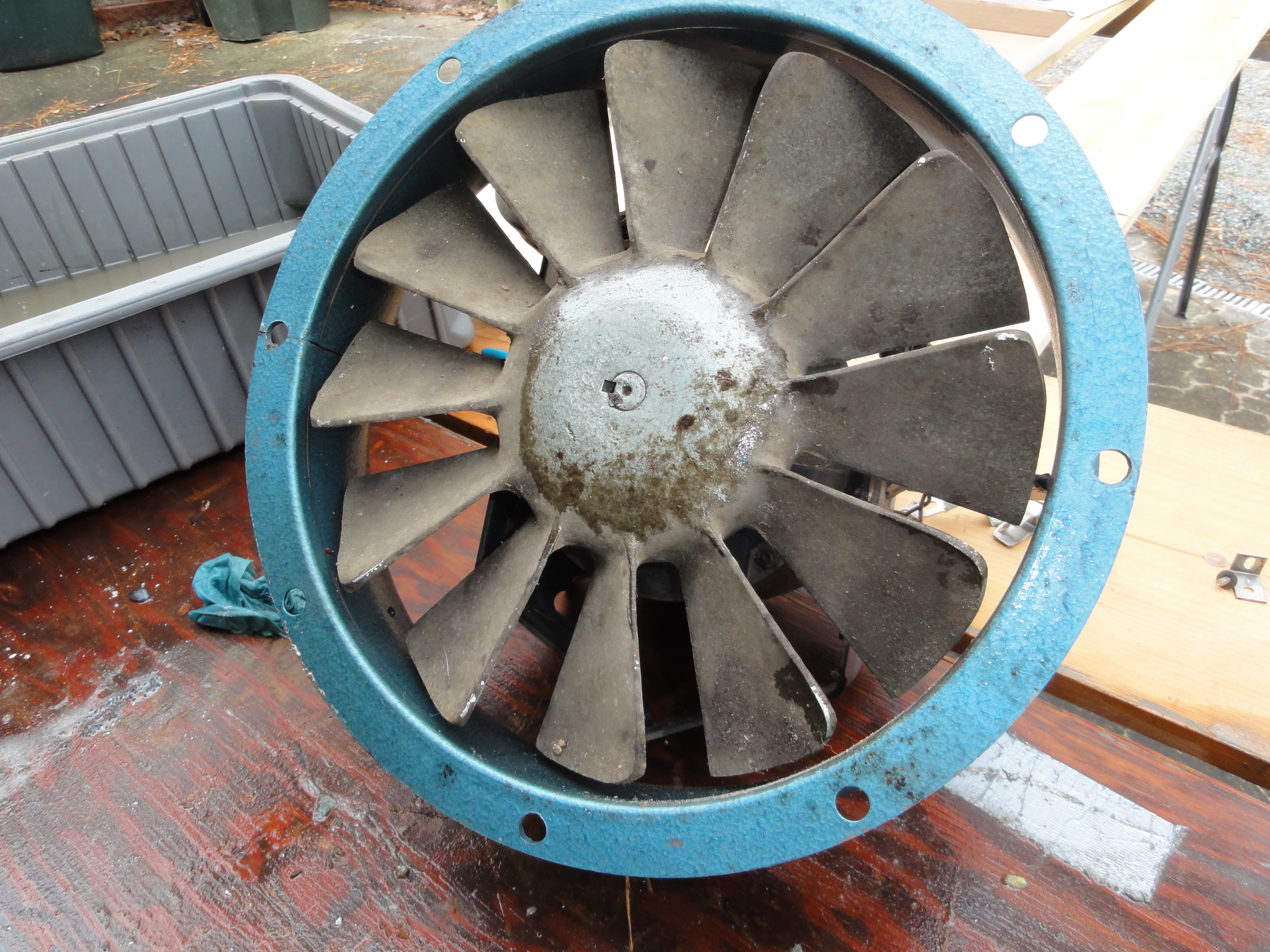

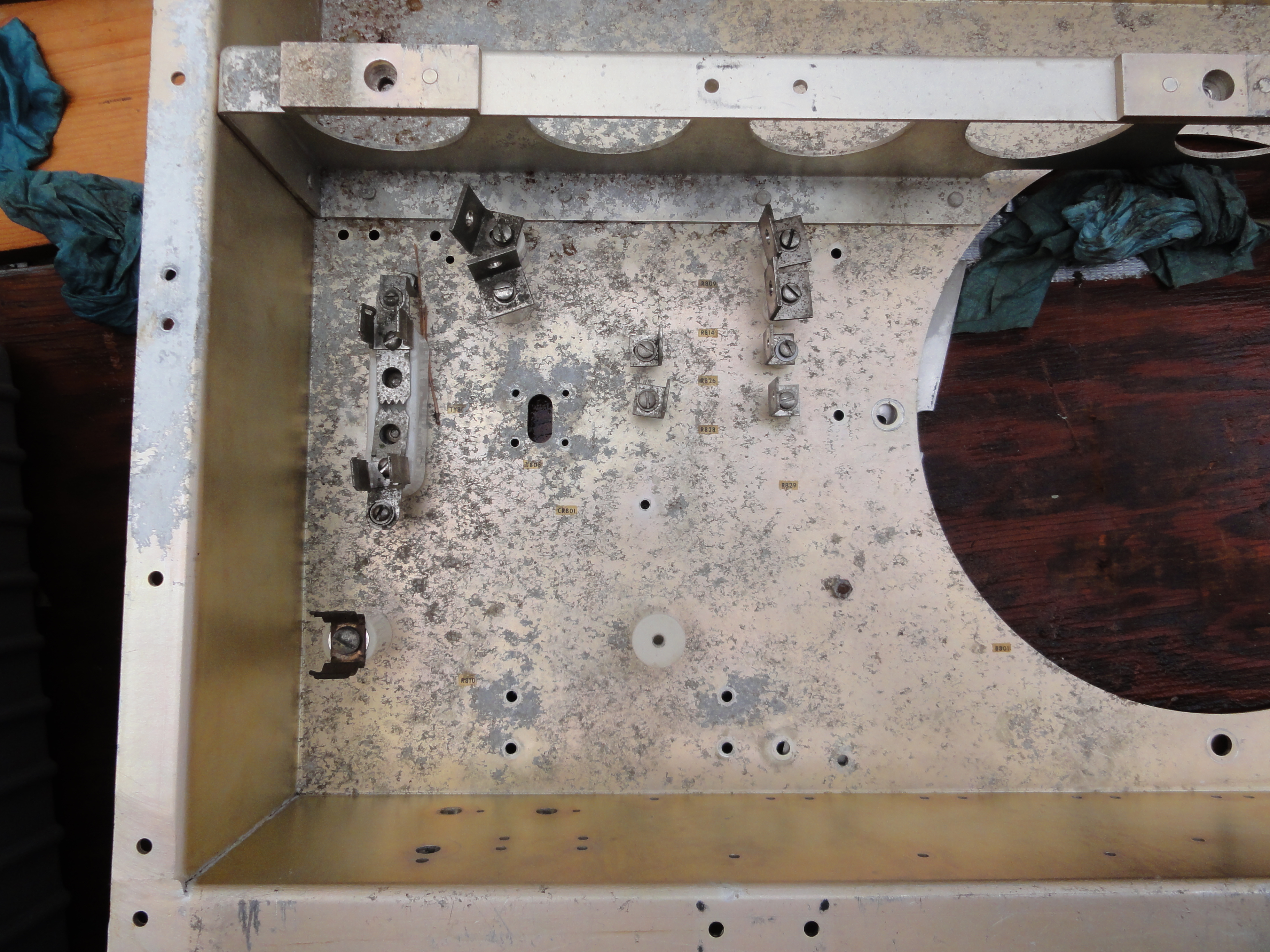

DSC01509.JPG (4132769 bytes) DSC01510.JPG (3652098 bytes) DSC01511.JPG (4312591 bytes) DSC01512.JPG (4333390 bytes)

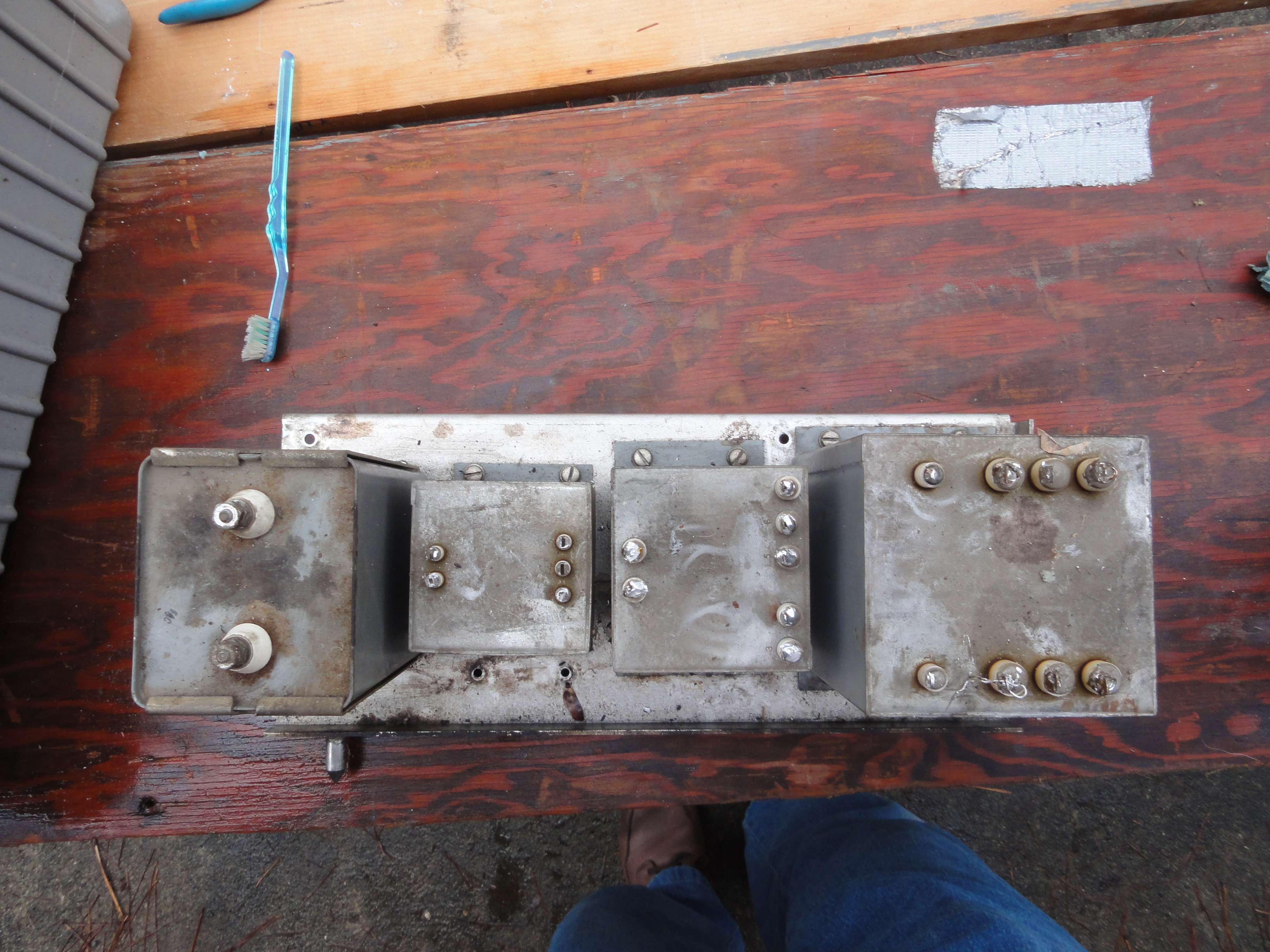

DSC01513.JPG (4226879 bytes) DSC01514.JPG (4145154 bytes) DSC01518.JPG (4226506 bytes) DSC01519.JPG (4206579 bytes)

Photos of meters
