US Navy RTTY Equipment - FSK & AFSK Keyers

RTTY is also called RATT (Radio Teletype)


Early USN RTTY equipment - Click Here
           FSA, FSB, FSC transmitting frequency shift converters


C-2749/URT


FSK keyer - used with URT-19,

manual & spec sheets thanks to K4OZY

c2749a-urt-1105-02.jpg (59591 bytes) c2749a-urt-1105-04.jpg (76126 bytes) c2749a-urt-1105-05.jpg (96254 bytes) c2749a-urt-1105-06.jpg (76293 bytes)
xfk-120301.JPG (35941 bytes) xfk-120303.JPG (61654 bytes) xfk-120304.JPG (75563 bytes) xfk-120305.JPG (56998 bytes)

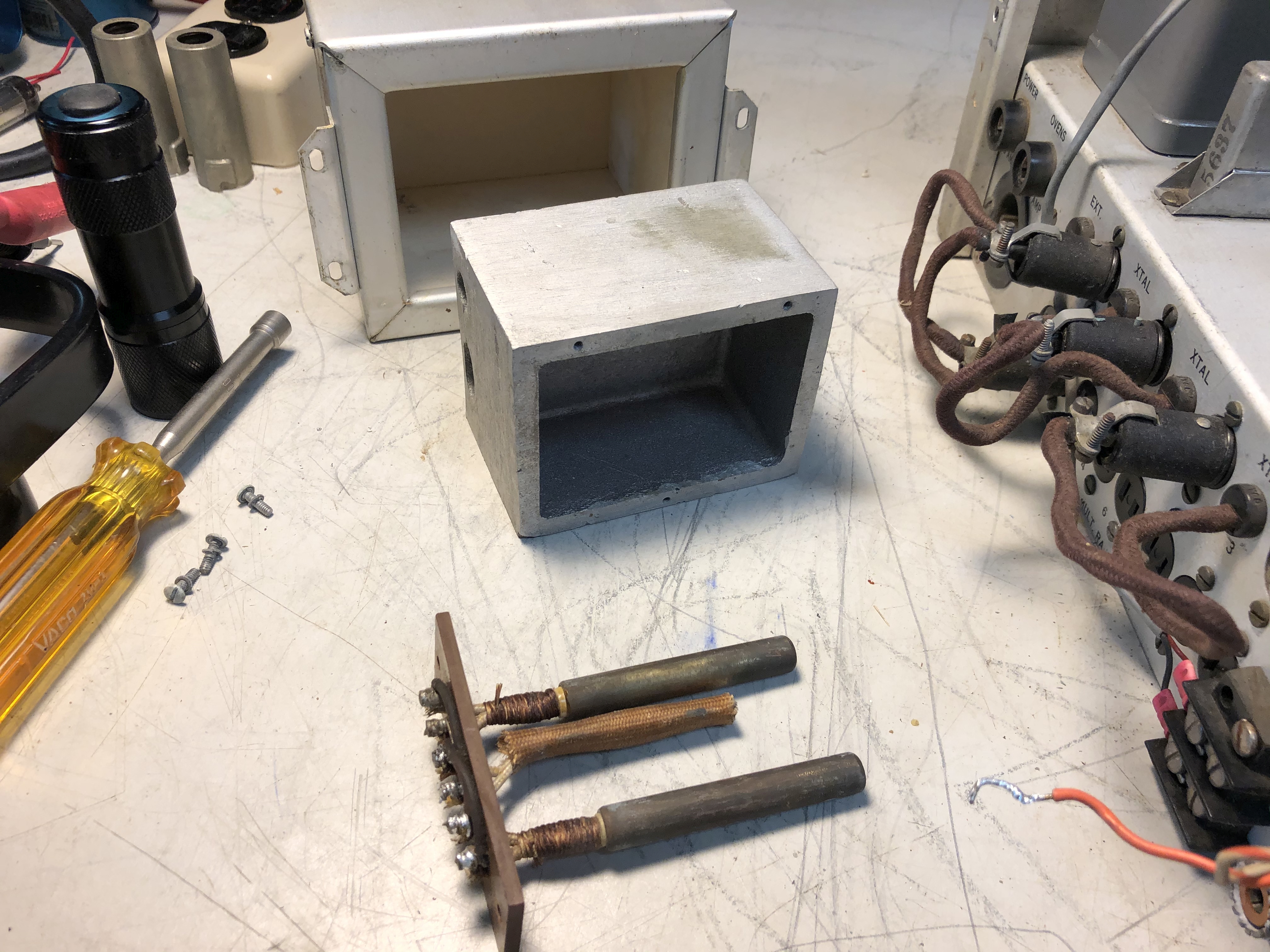

200kc oscillator oven



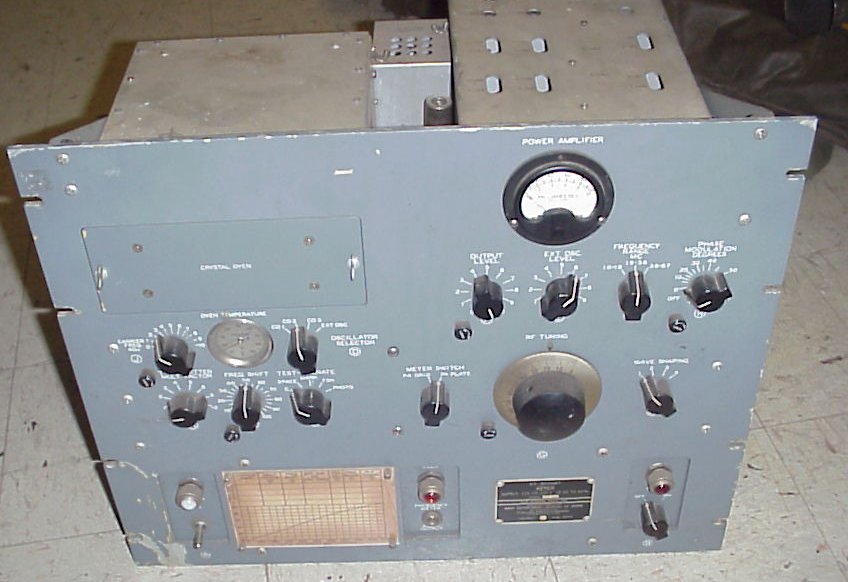

KY-30/GRT






Same as Collins 709B-1

Operation & Circuit Info Page

NAVSHIPS 91232

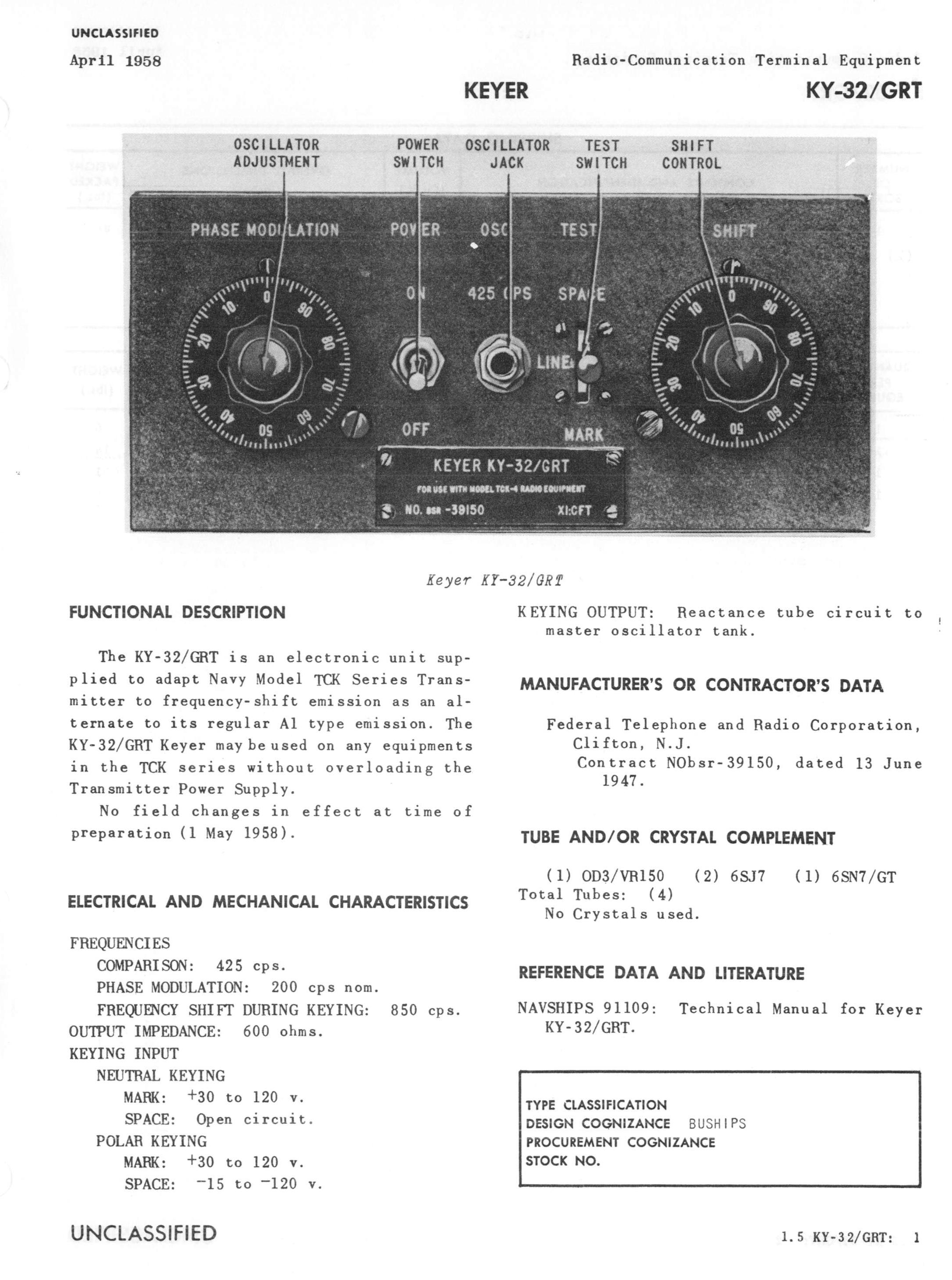

KY-32/GRT


Please let me know if you have a NAVSHIPS 91109 manual

--

KY-43A/URT
KY-43B/URT



Adds FSK to TAB-5, -6, -7



KY-43A for polar TTY signals
KY-43B for polar or neutral TTY signals
NAVSHIPS 91645
NAVSHIPS 0967-997-5010
Fidelity Amplifier Co.

KY-45/FRT-5

frequency shift keyer
used in FRT-5, FRT-6, etc.


-  NAVSHIPS 92346

KY-45 pages from FRT-5A manual

KY-58/GRT & KY-75/SRT

(KY-58/GRT for shore stations, KY-75/SRT for shipboard)

FSK keyers - replace oscillator in transmitter - used with TBL and other?

1.0-6.7 mc, 6 watts output

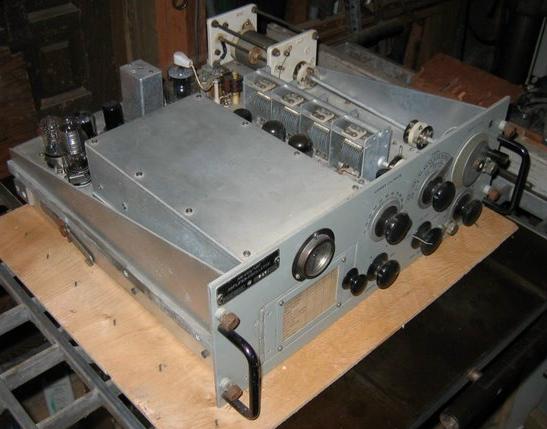

AM/665-URT

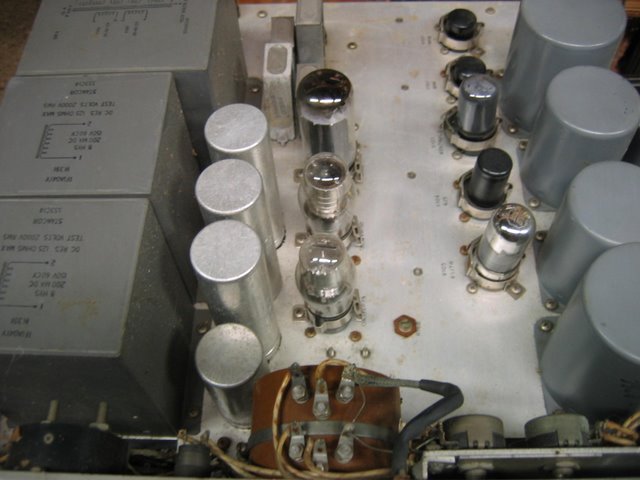

MD-165/URT


Spec Sheet

NAVSHIPS 91543

Manuf - National Radio

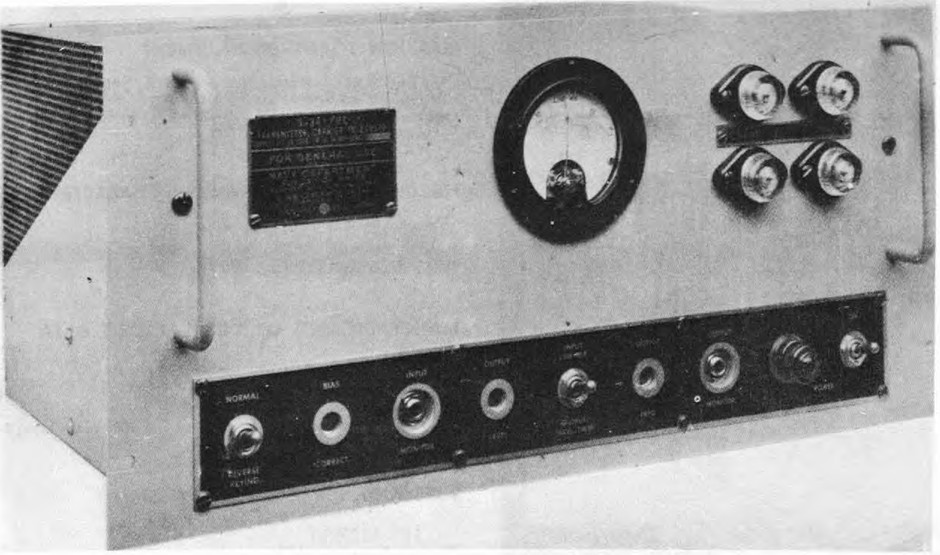

T-341/UC Carrier Telegraph Transmitter

Converts TTY loop input to on-off audio tone

Spec Sheet

NAVSHIPS 91663

-- --

TH-39/UGT
(TMC TIS-2)

photo thanks to Andy Moorer

AFSK keyer used with AN/URT-19, AN/URT-39, AN/URT-40, others



NAVCOMMSTA Guam -
TH-39's in rack #15 on right
Guam - patch panel

TTY signal in and AFSK output to transmitter

Spec Sheets

Manuals

Manuf - TMC

TH-39A/UGT
(
TMC TIS-3)


AFSK keyer used with AN/URT-19, AN/URT-39, AN/URT-40, others




TTY signal in and AFSK output to transmitter

Spec Sheets

Manuals

Manuf - TMC

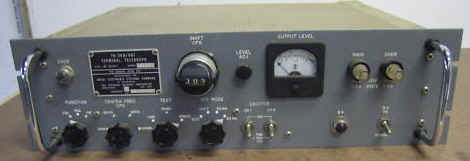

TH-39B/UGT
(
TMC TIS-3)


AFSK keyer used with AN/URT-19, AN/URT-39, AN/URT-40, others



TTY signal in and AFSK output to transmitter

Spec Sheets

Manuals

Manuf - TMC

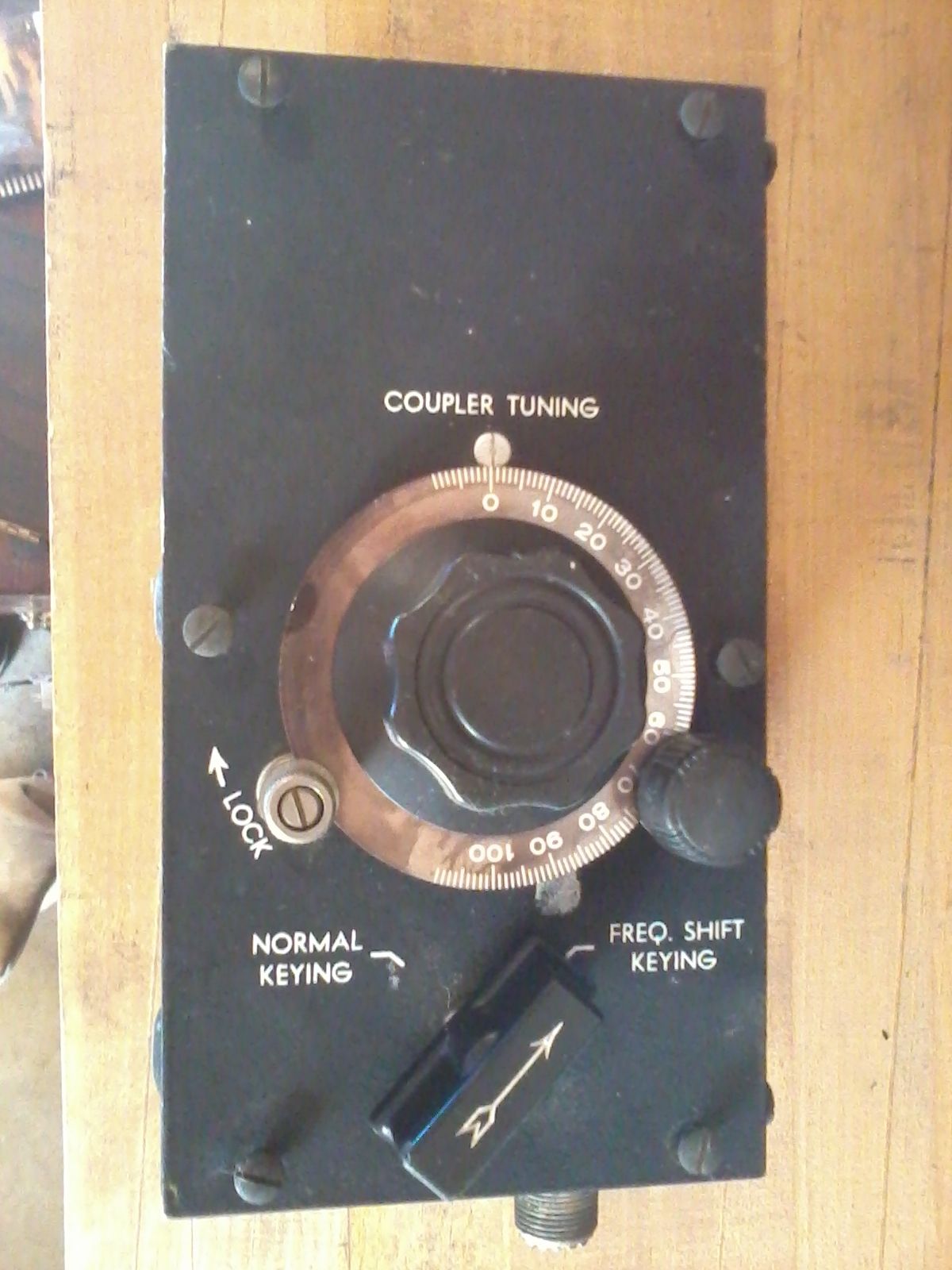

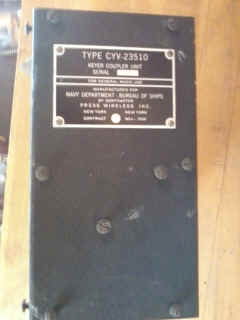

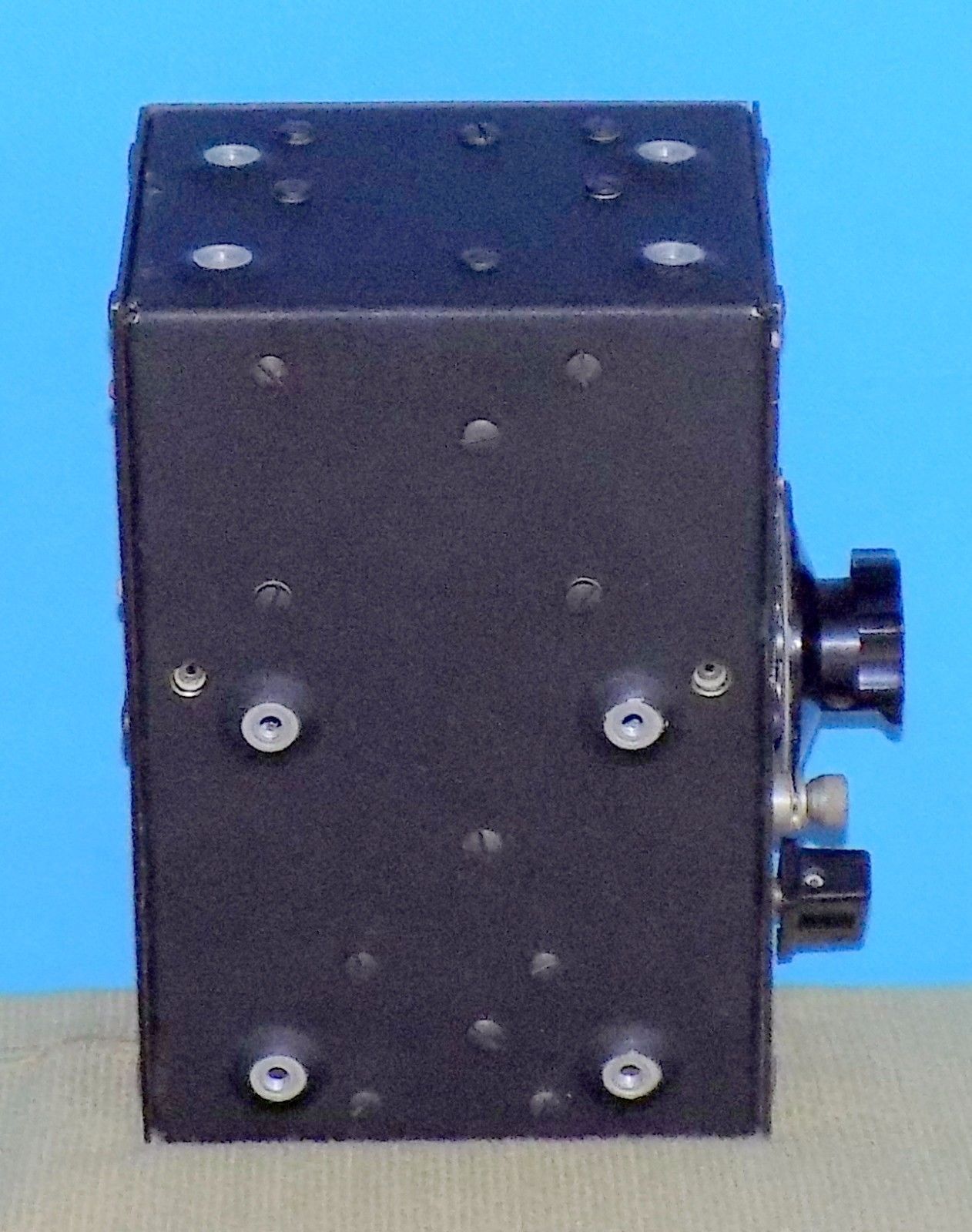

CYV-23510

FSK Coupling Adapter for TBK & TBM transmitters

This is a small unit installed into a TBK (or TBM) transmitter to allow easy hookup of an external frequency shift keyer. Has two tuned RF transformers, one to couple the TBK osc to the 75 ohm FSK input, and the other to couple the 75 ohm FSK output to the TBK IPA. Controls are a common tuning knob for both transformers plus a switch to bypass the FSK. NAVSHIPS 900,206

manuf by Press Wireless



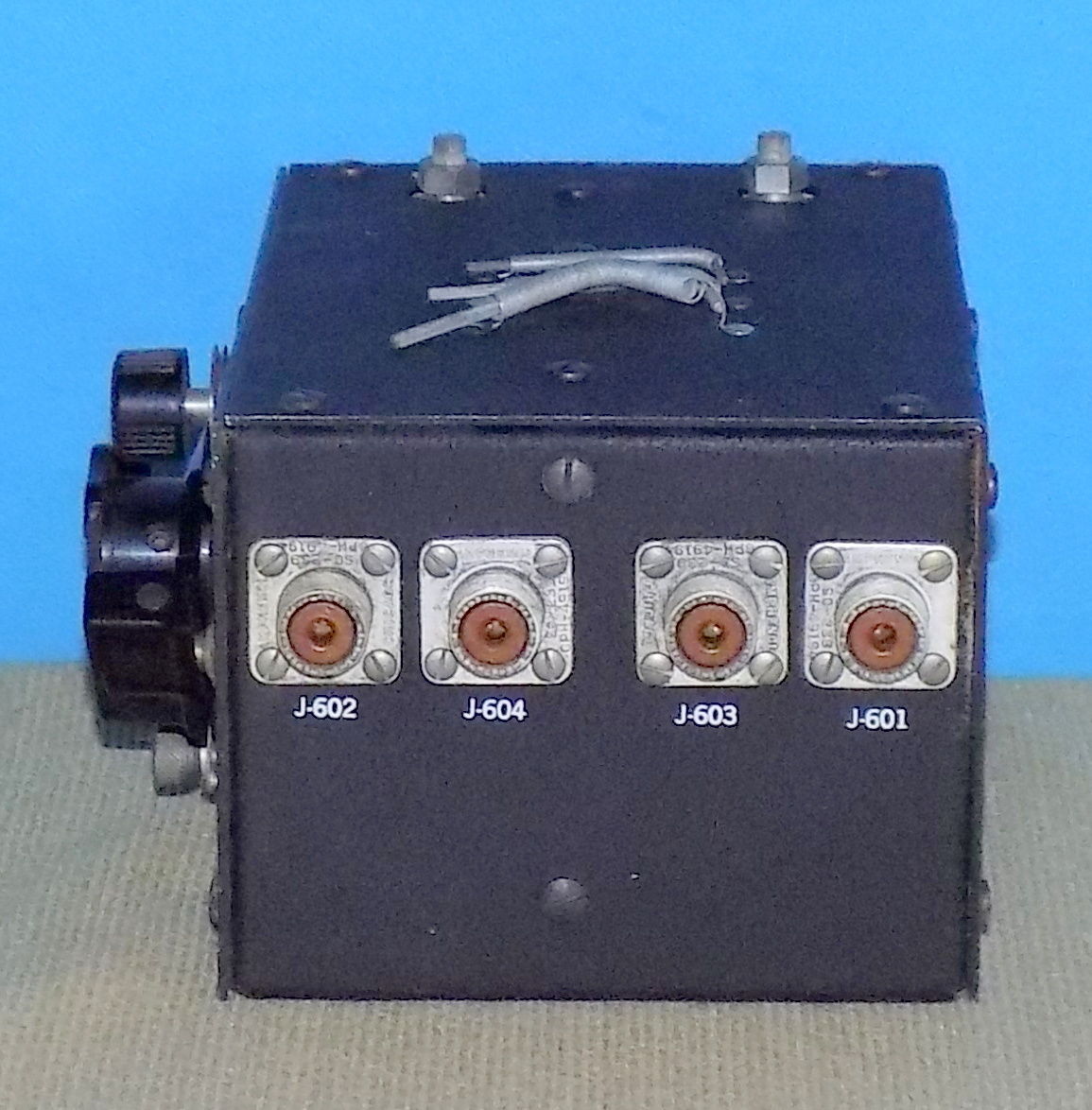

keyer-23510-1802-01.jpg (275255 bytes) keyer-23510-1802-02.jpg (295330 bytes) keyer-23510-1802-03.jpg (247273 bytes) keyer-23510-1802-04.jpg (182948 bytes)

keyer-23510-1411-01.jpg (91525 bytes) keyer-23510-1411-02.jpg (139792 bytes) keyer-23510-1411-03.jpg (175760 bytes) keyer-23510-1411-04.jpg (125612 bytes)

MX-1262/URT
(CBOT-23510)

FSK Coupling Adapter for TBL transmitter

connects TBL to FSA, FSB, KY-30/GRT, KY-58/GRT, KY-75/SRT or similar keyer

section 1 couples xmtr master oscillator to FSK keyer.

section 2 couples FSK keyer output to xmtr's first IPA tubes

NAVSHIPS 91885

manuf by American Electronic Laboratories Inc







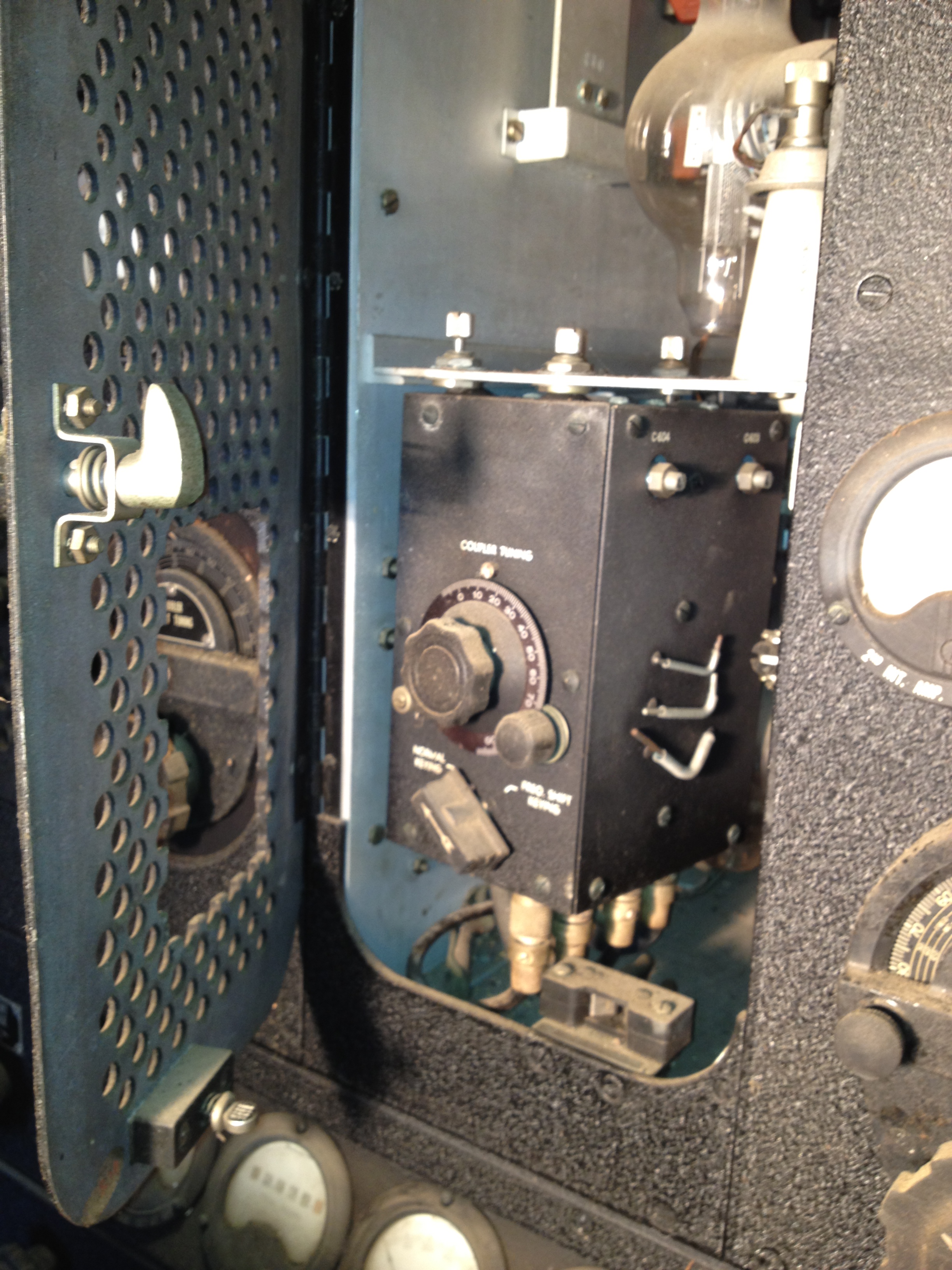

Installed in TBK-18
