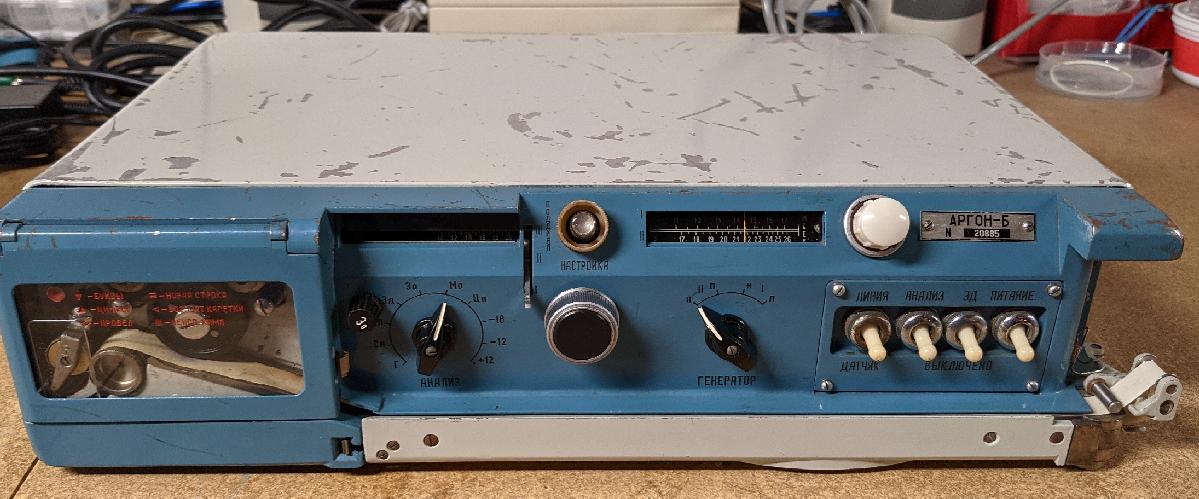

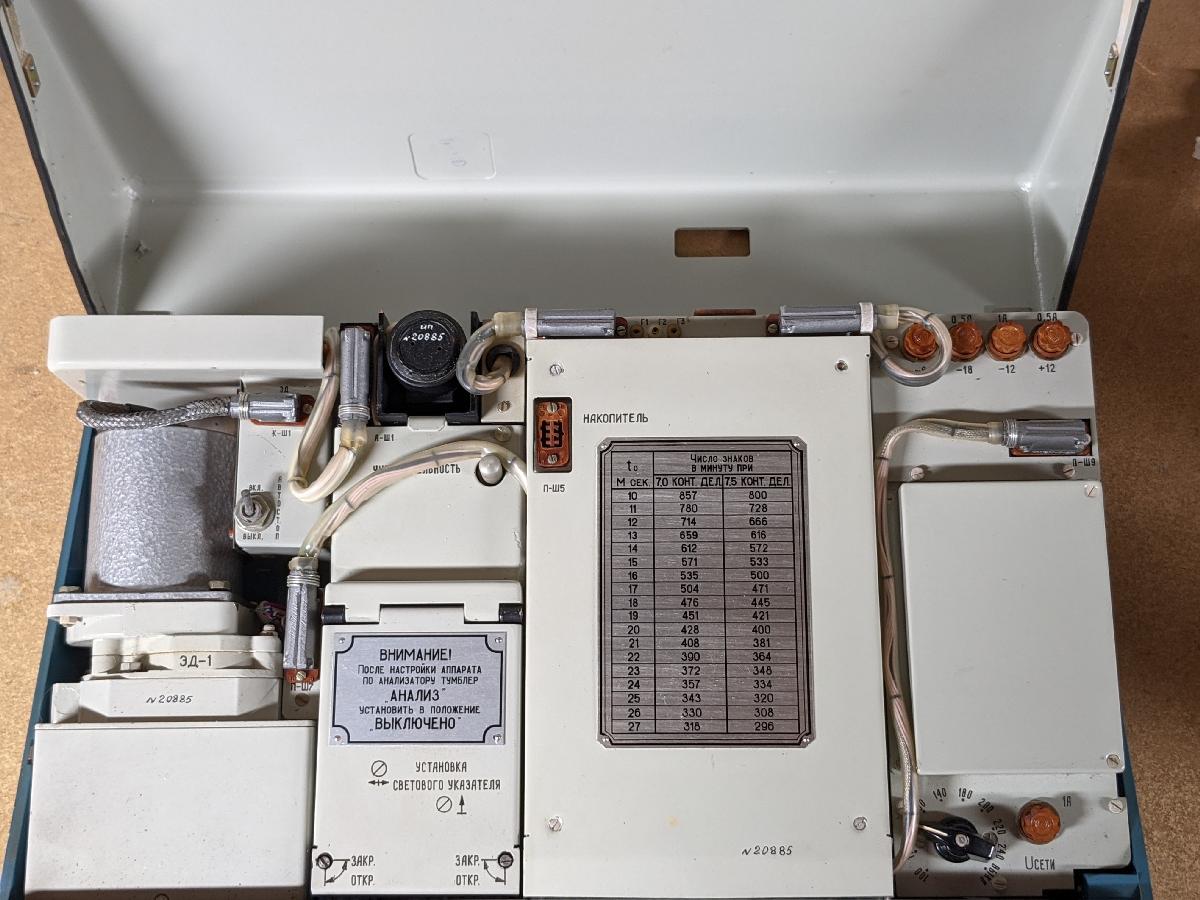

Q: What is this Russian equipment ?- includes a paper tape printer - Model ARGON-B

A: Strip printer for radioteletype interception - see info here

ARGON-5 is a variable-speed teletype printing unit used in intercepting radio-teletype messages. It is fed by the ARGON-4 demodulator, presumably fed by a radio receiver. The “SETTING” dial allows the operator to adjust the bit length in milliseconds. Assuming that the intercepted traffic was encrypted, it seems odd that this is just a printer and not punching tape for later analysis, but what do I know….
It was evidently used in this mobile radio intercept unit
НАСТРOЙКA = SETTING
ПОДДИАЛ = SUBDIAL (SUB-BAND?)
АНАЛИЗ = ANALYSIS
НАКОПИТЕЛЬ = STORAGE DEVICE

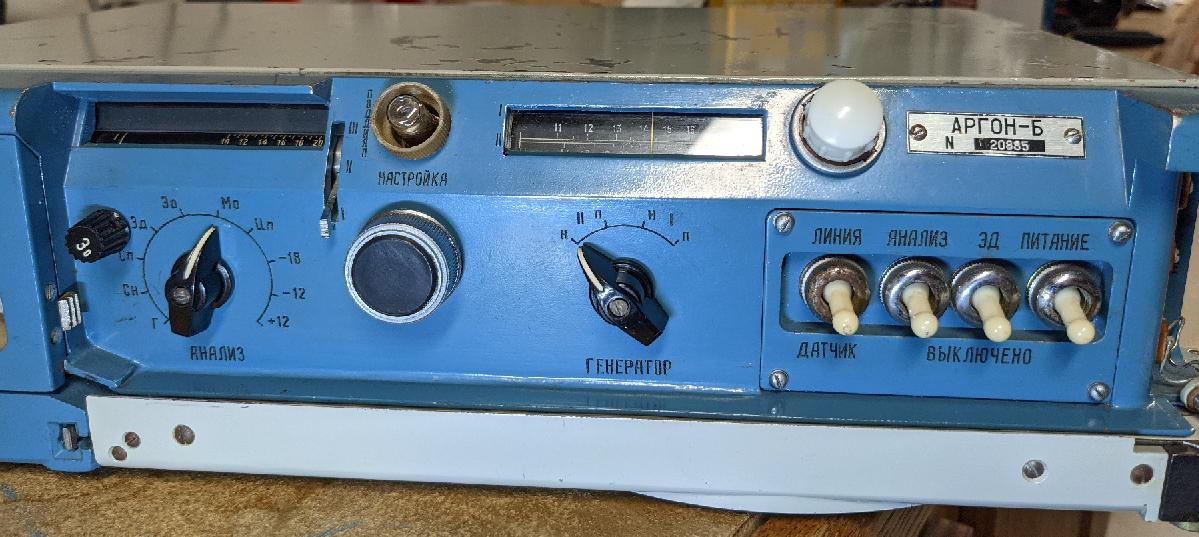

ANALYSIS switch on left
SETTING knob in center left
GENERATOR switch in center right
   (generator dial in MSEC)Machine Front.jpg (98512 bytes)

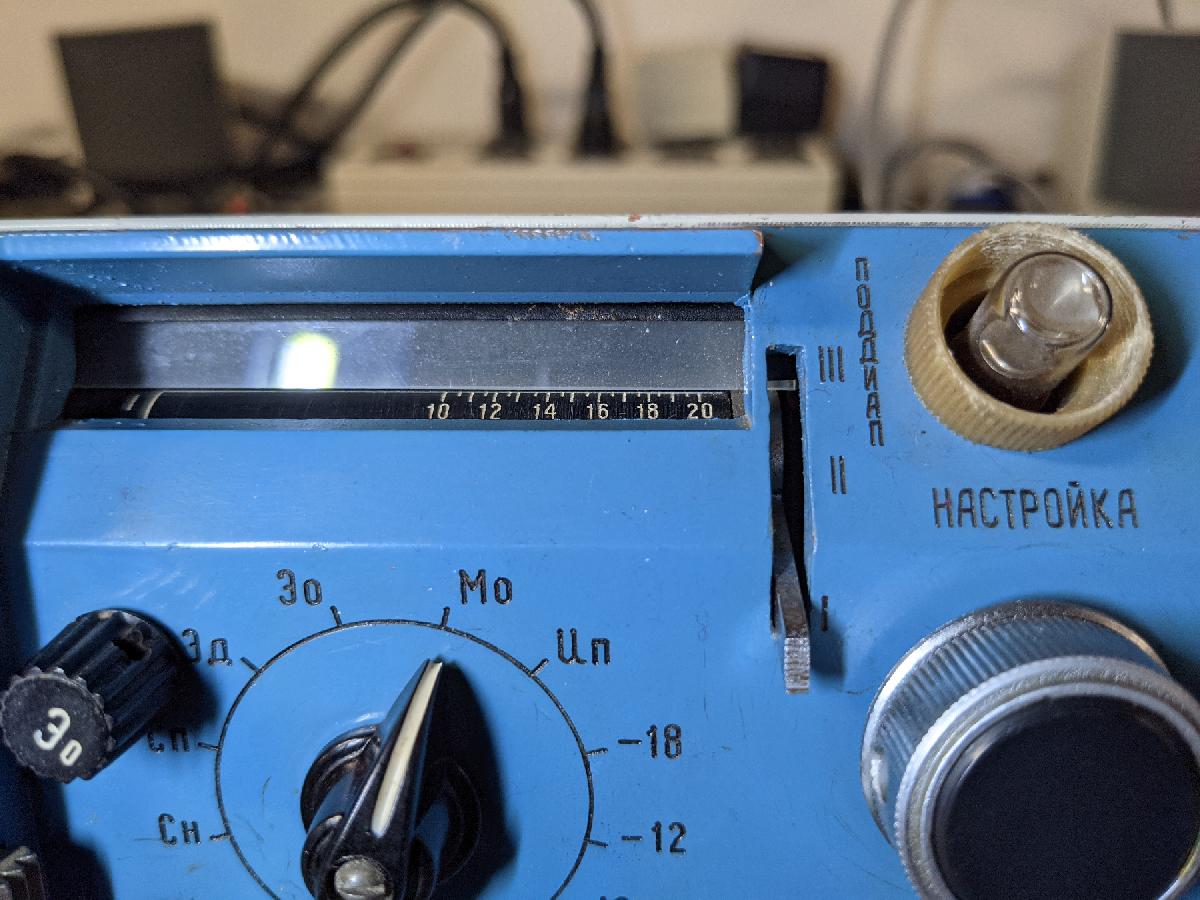

SUBDIAL "I" - 10-20

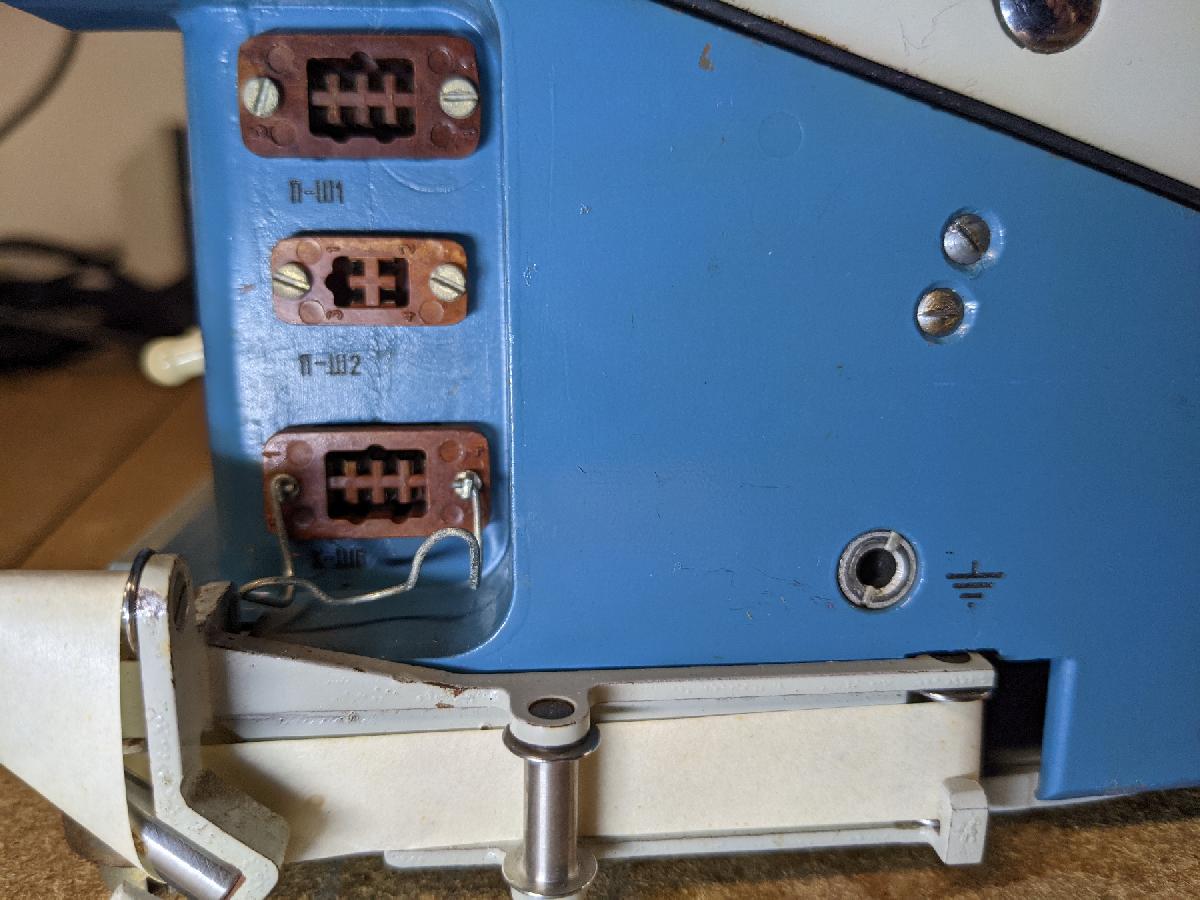

Switches -
LINE-SENSOR
ANALYSIS/ZD?/FEED?-SWITCHED ON?

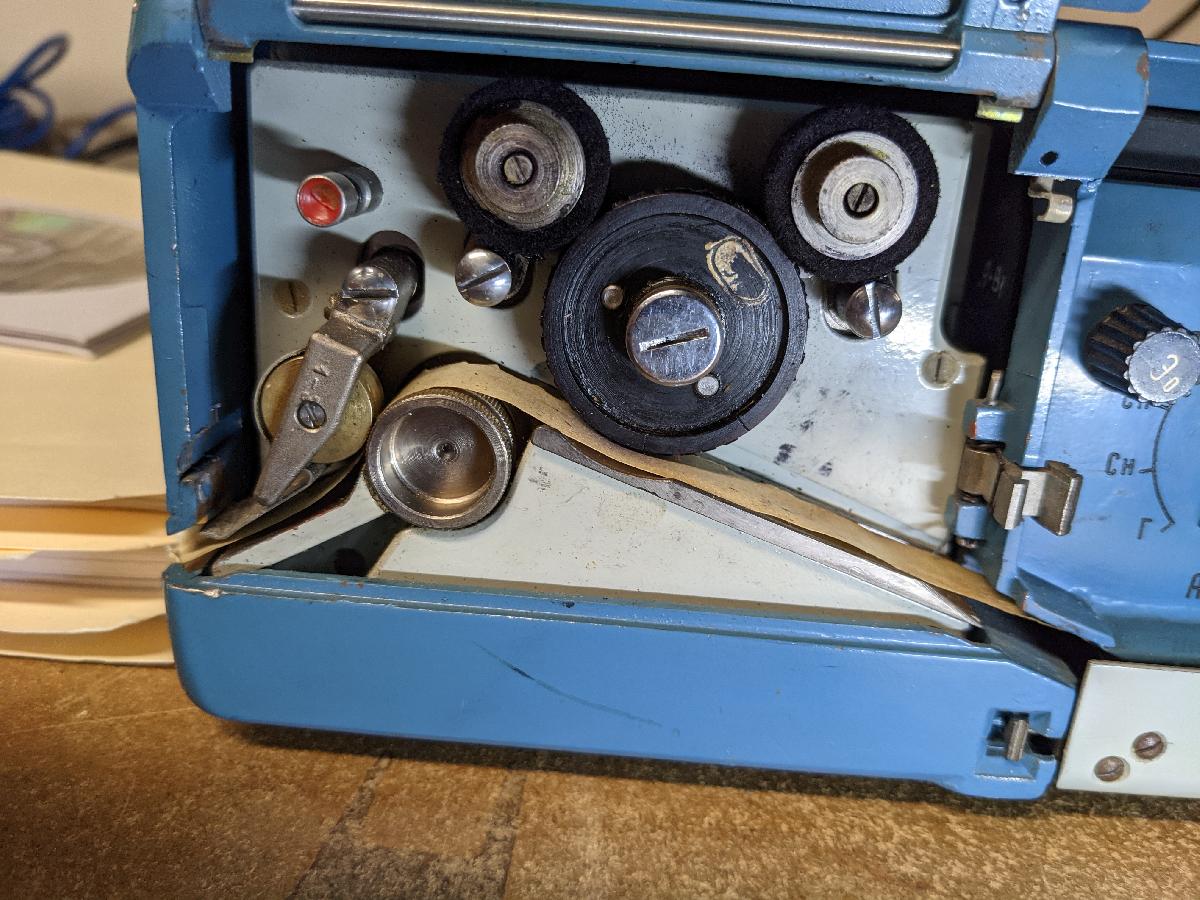

Ink rollers and print wheel

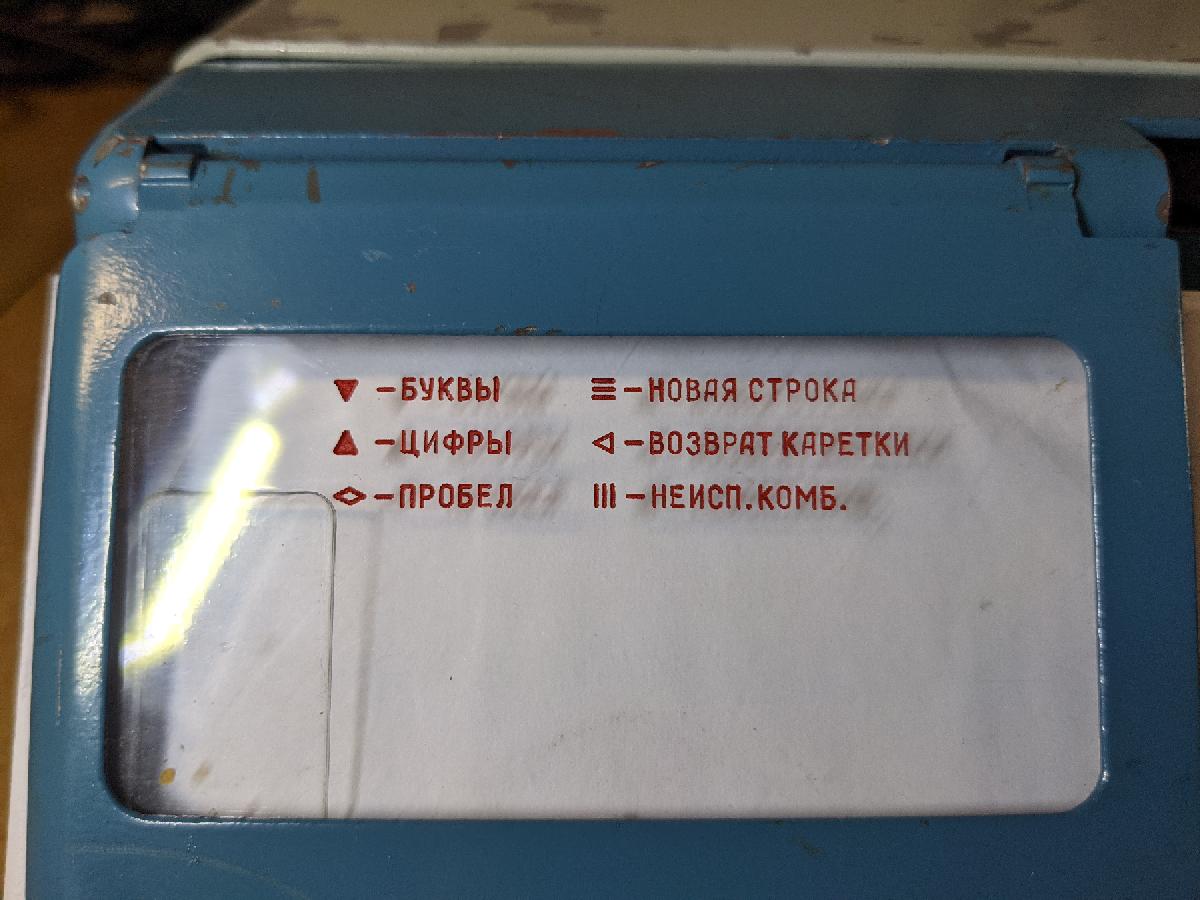

non-character tape printer symbols (letters, figures, new line, etc.)

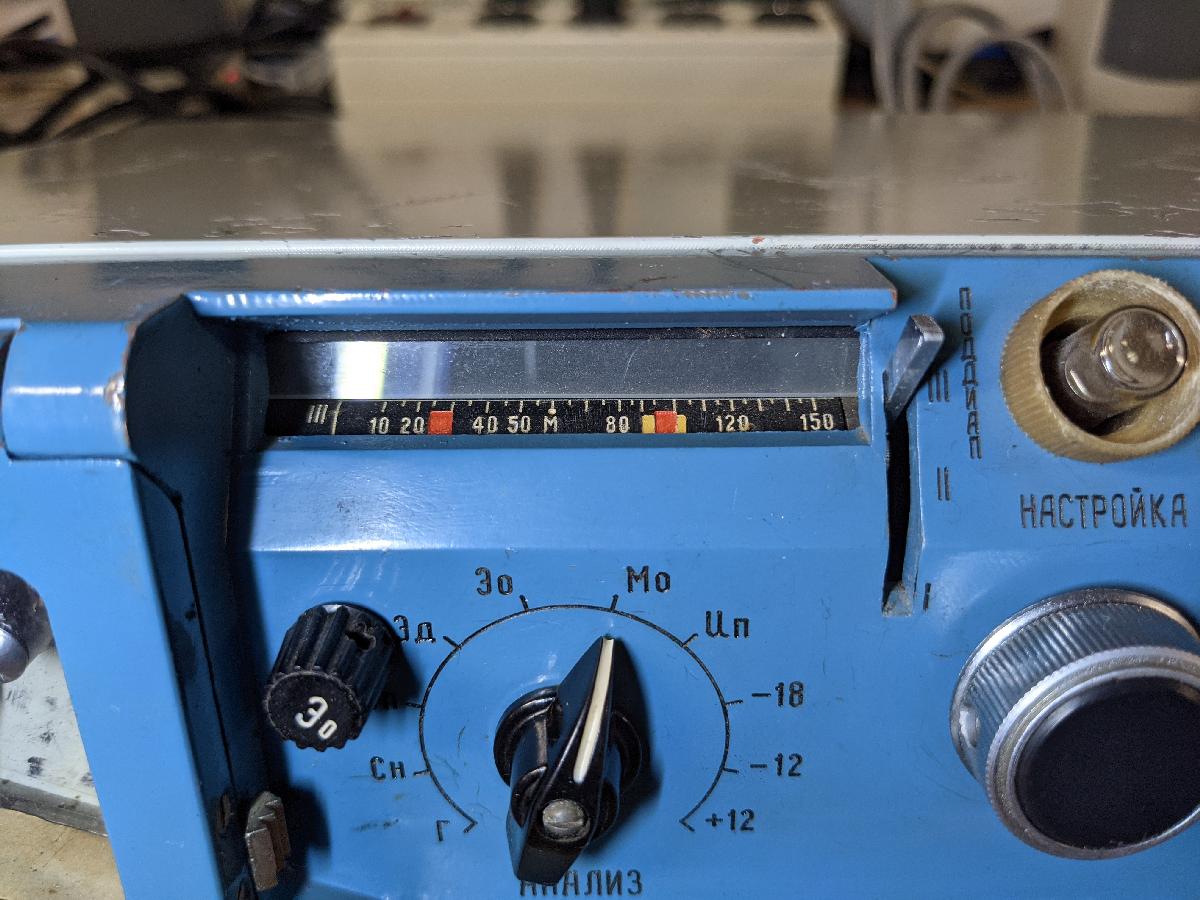

SUBDIAL "II" - 18-36
SUBDIAL "III" - 10-150

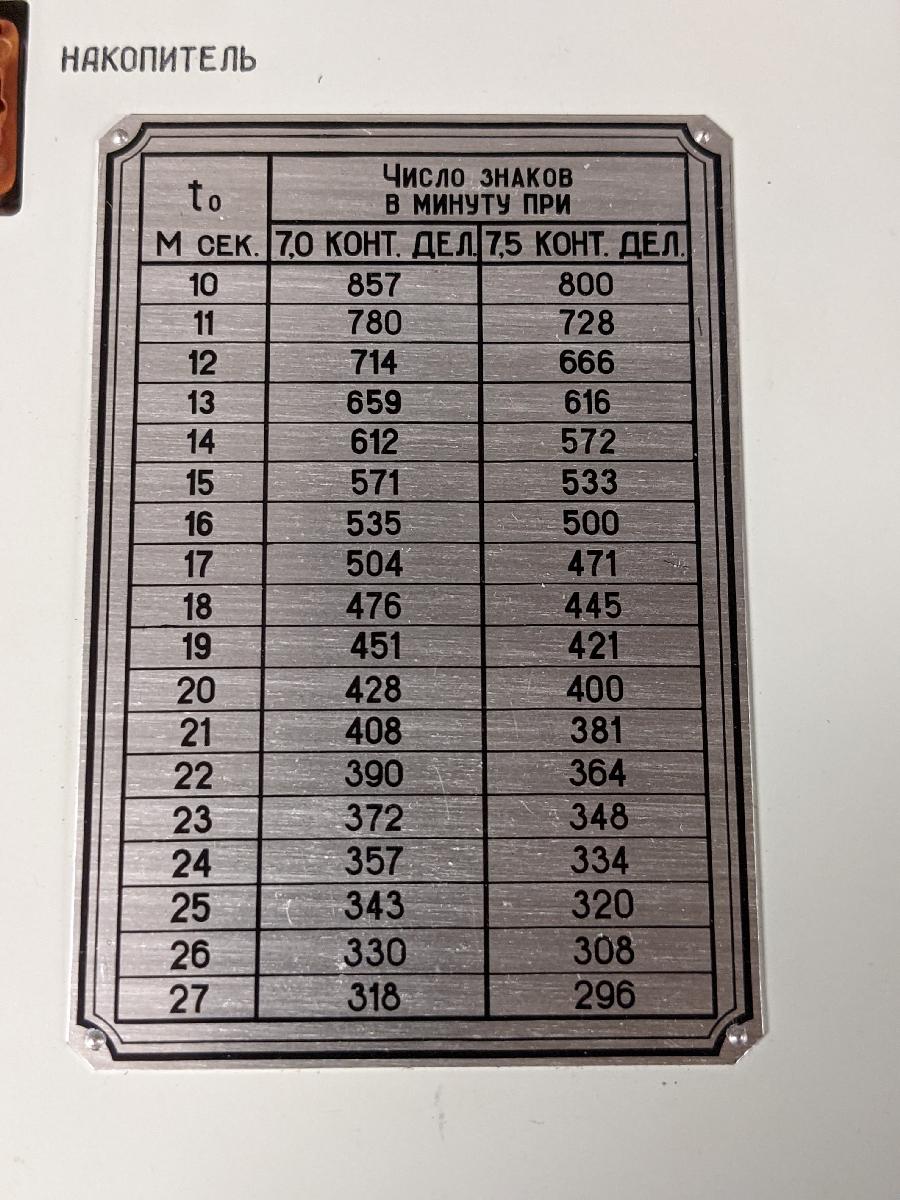

Number of Characters per Minute for different bit times (msec). 7.0 and 7.5 unit characters

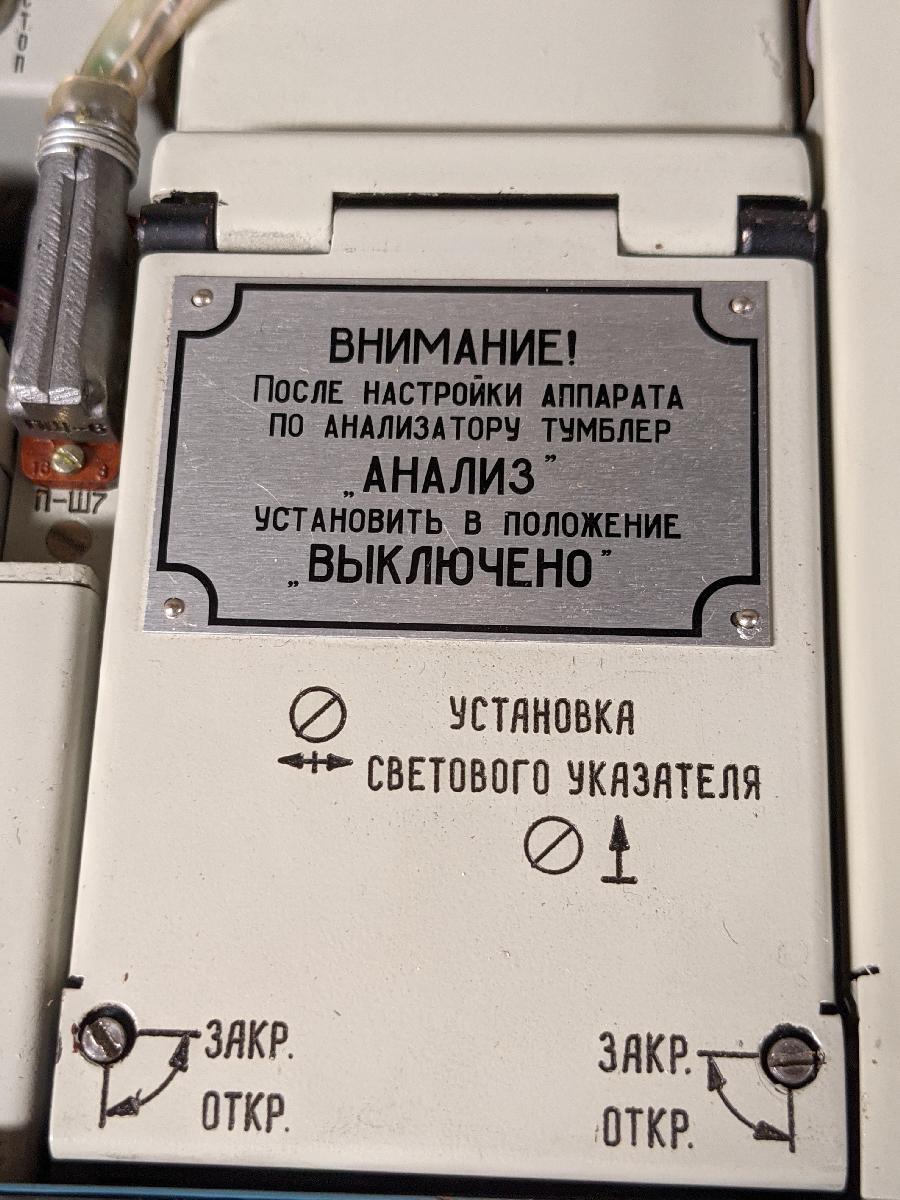

ATTENTION! something something
"ANALYSIS" something something
"INCLUDED"
==

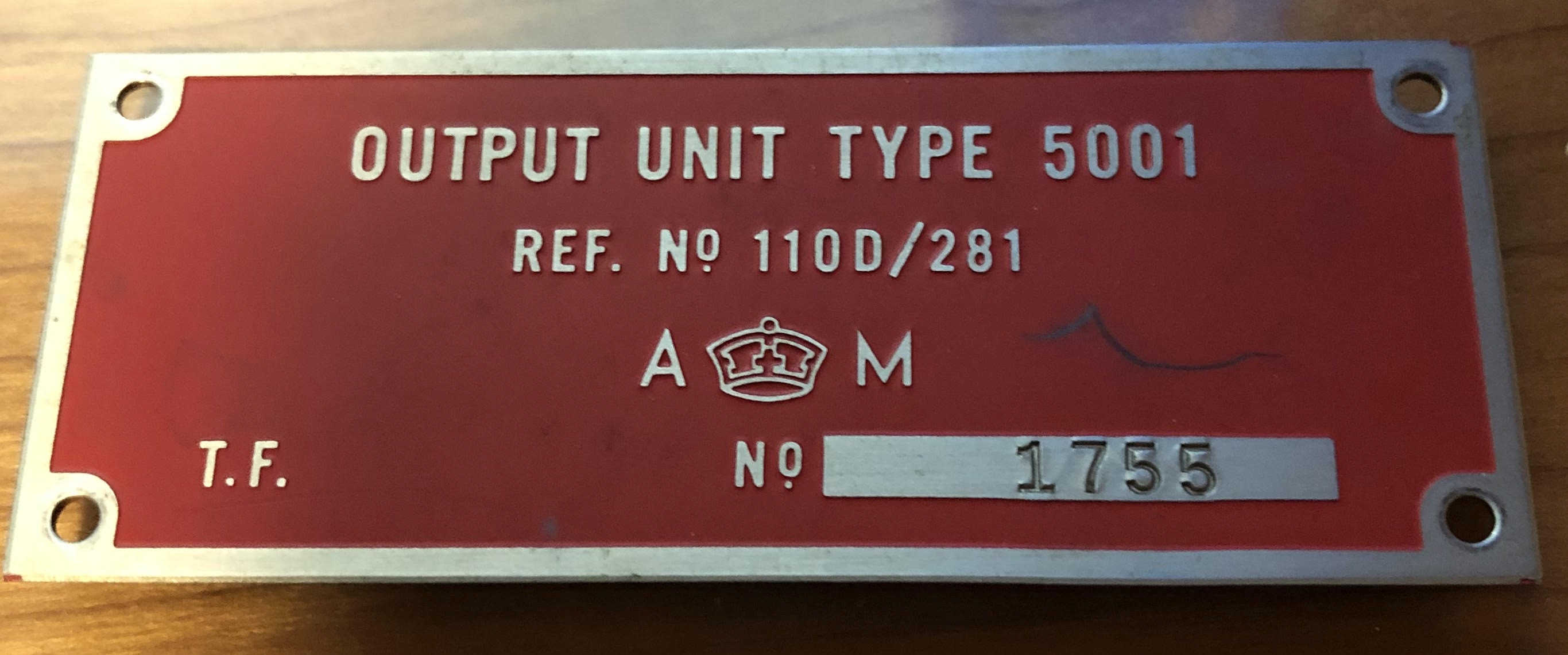

Q: What equipment is this for? I presume British Air Ministry?
A: Part of BC-640 transmitter - VHF for ground to air comms - joint US/UK equipment like SCR-522

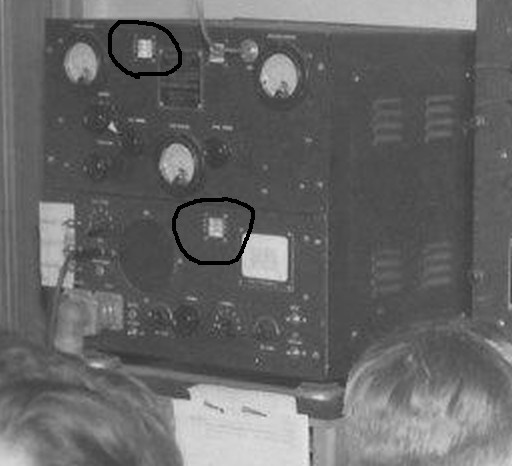

Q: What transmitter-receiver is this? (circles indicate tuning dials?)
A: 8/2021 - TCQ, 30w, 2000-9050 kc

Navy Radio Station_.jpg (12342029 bytes)

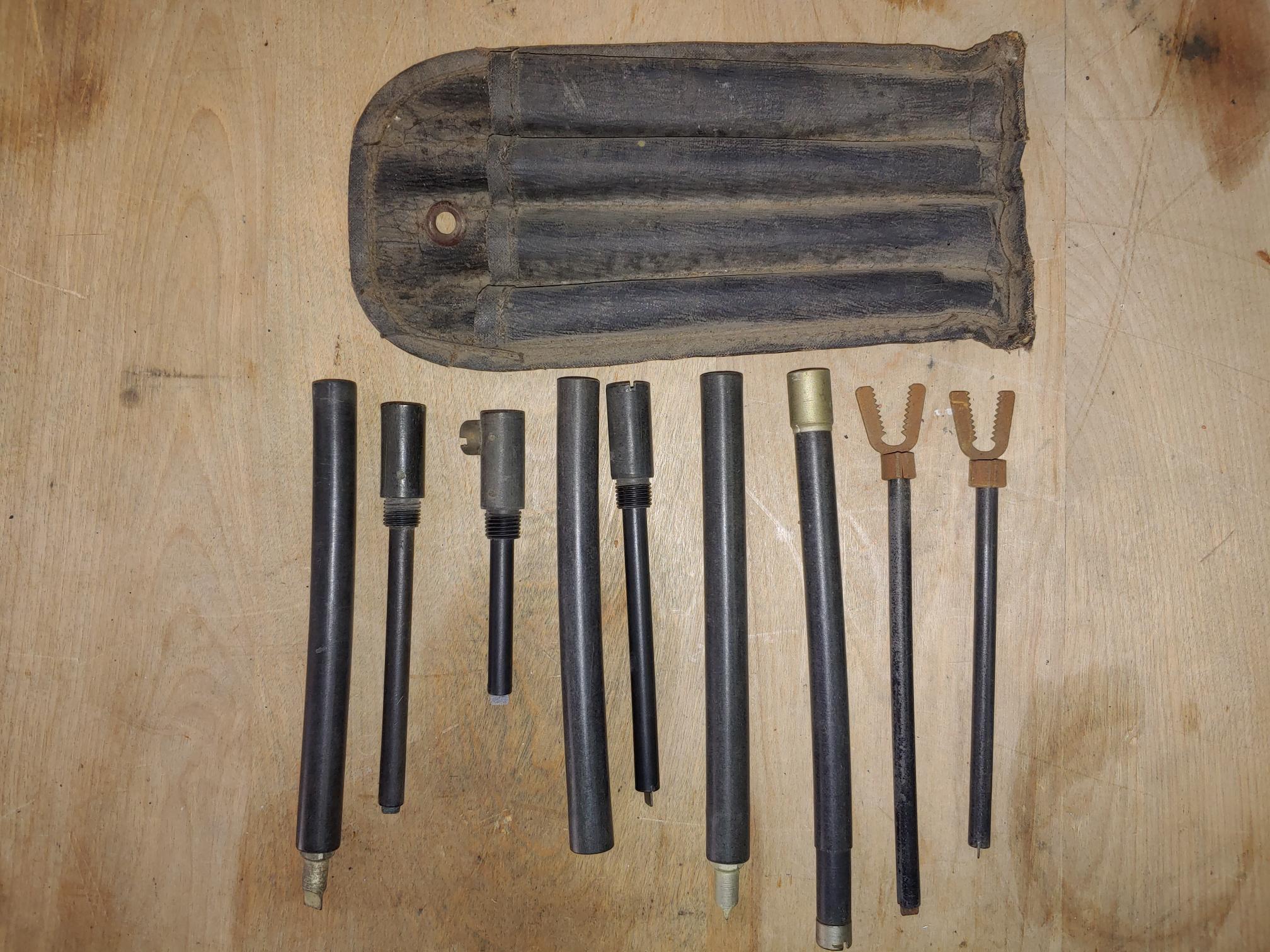

Toolkit for ??

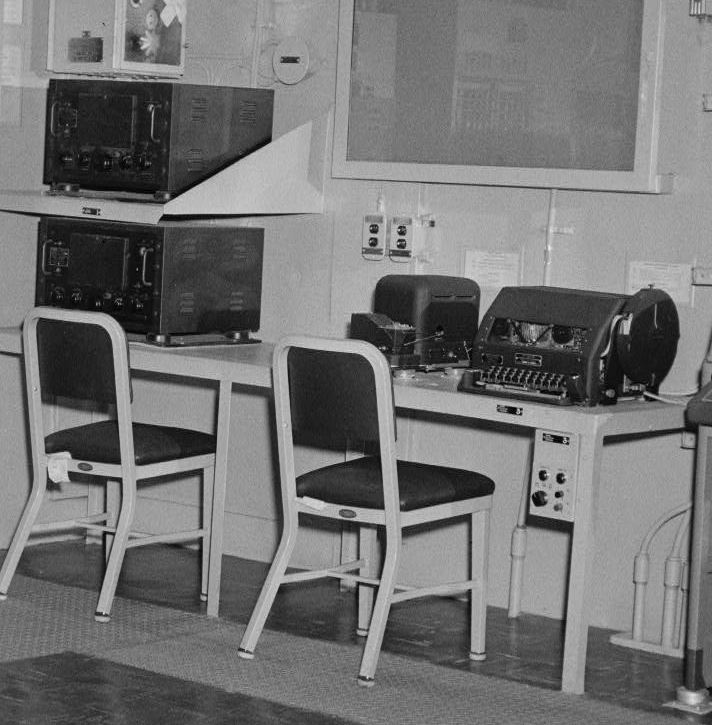

Q: What are the two black units to the left of the Teletype gear? 1959 USS Pyro AE-24
A: RBO-2 receivers with the Escutcheon Covers in place. These covers were added
after the RBO-1 contract to reduce RFI to the receiver.

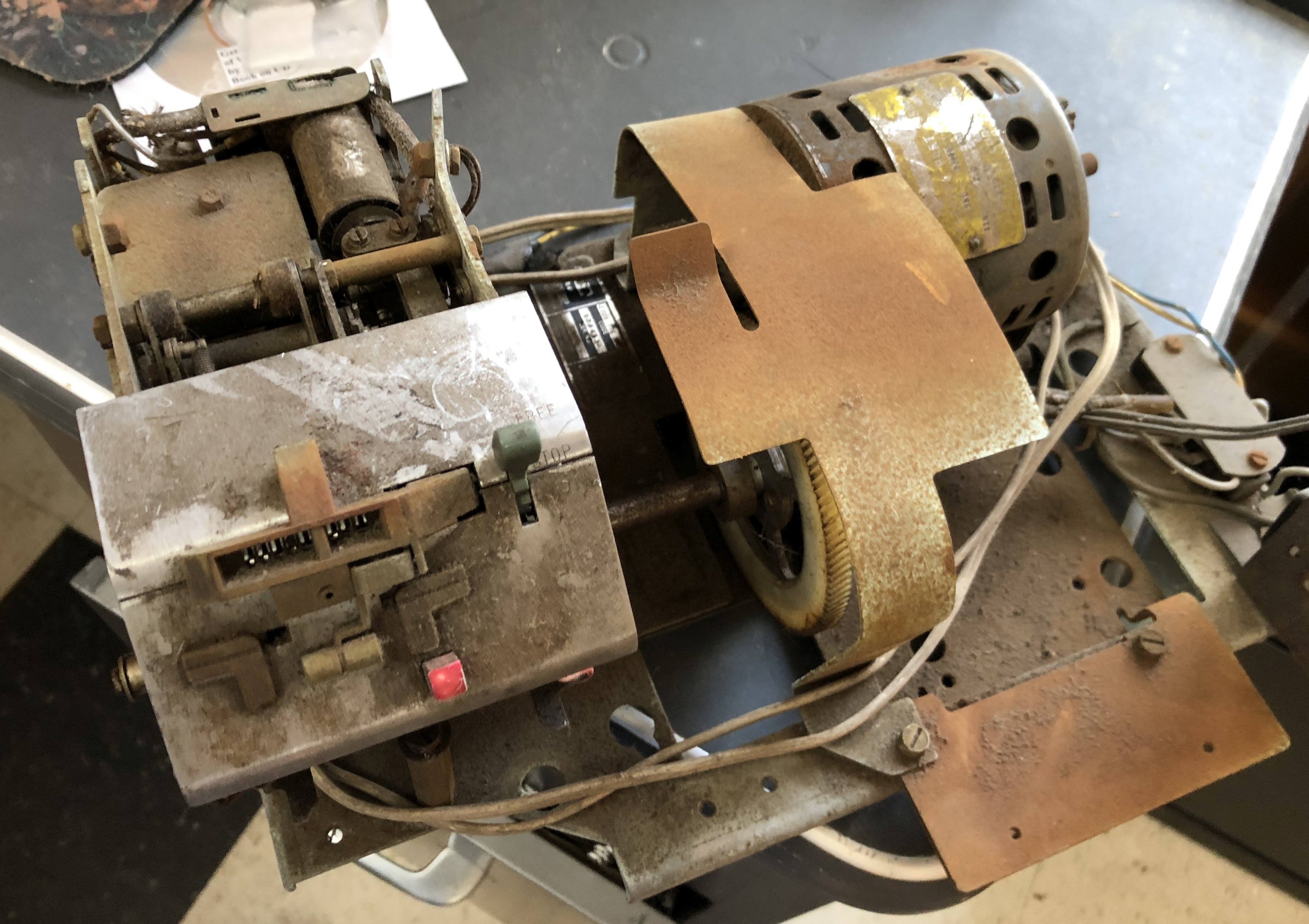

LXD803 - 8-level TD with motor - part of 35ASR

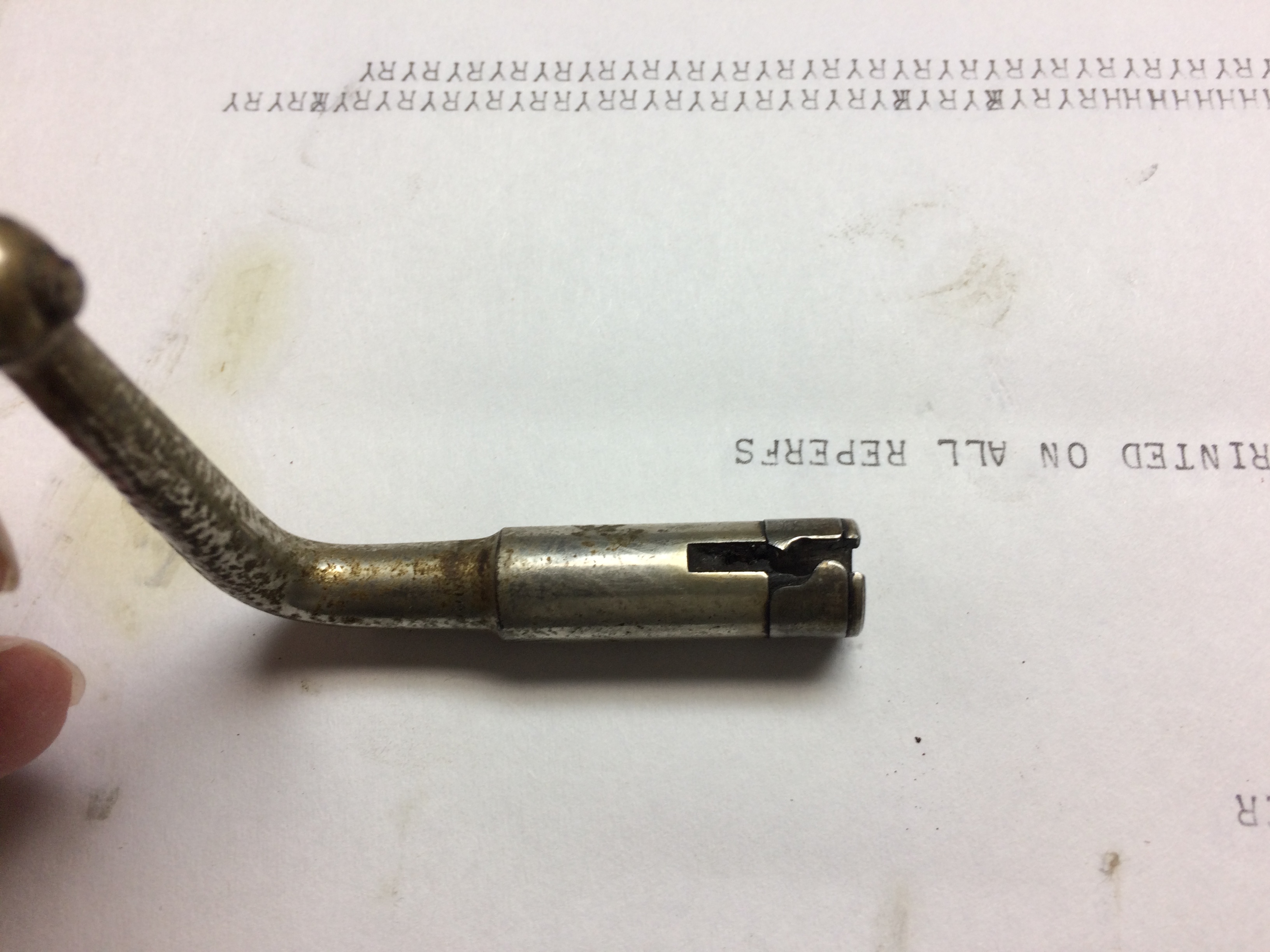

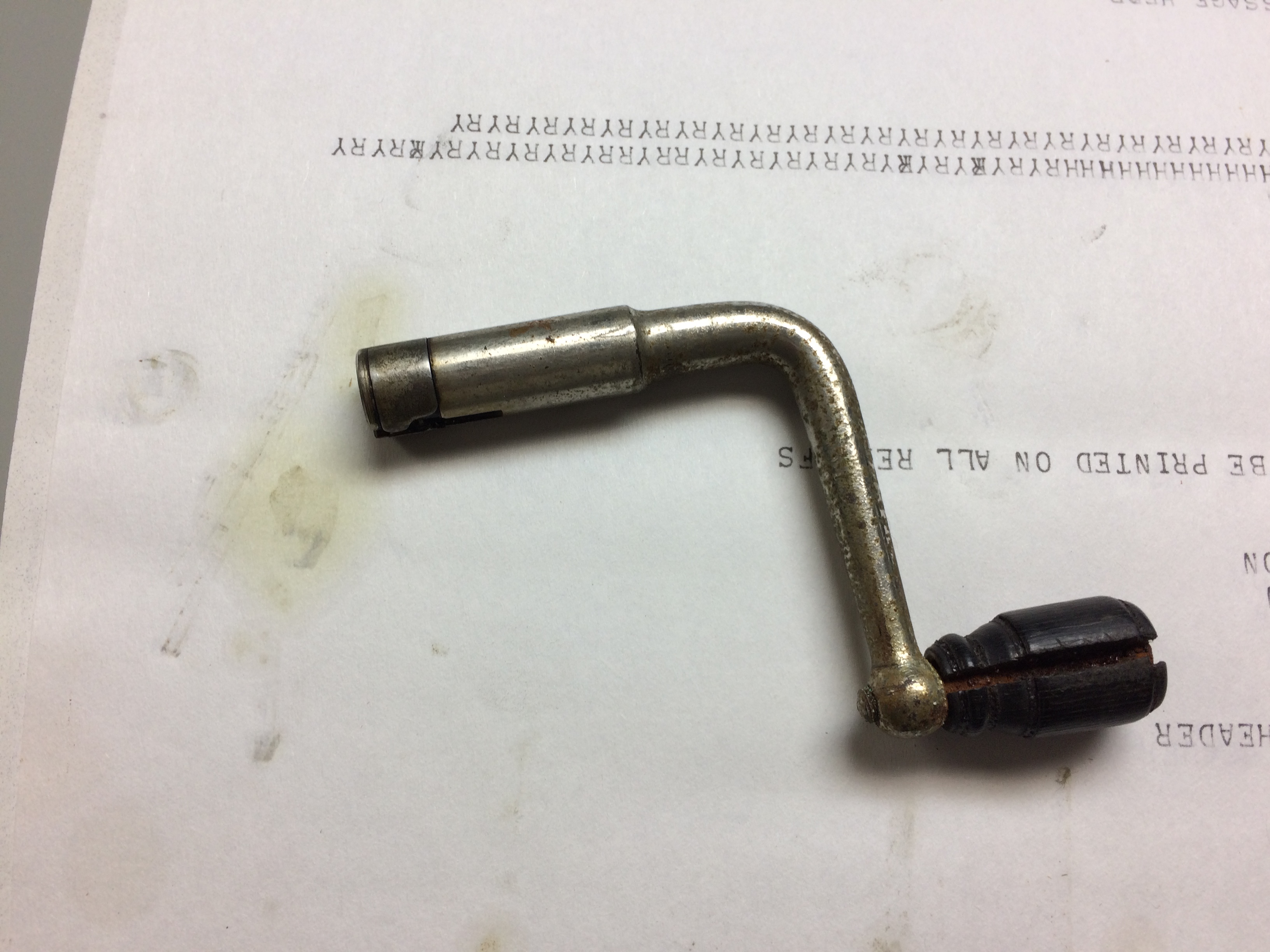

Crank for ??

Solved! - Ken VE4HMQ says:
"Used on Teletype M14 tape printers or TRP's to adjust the range finder thru the front of the printer thru an access hole in the cover...
This is a Teletype Corp'n modification kit, it enables Wire Chiefs to adjust the range while testing circuits...
It is a geared linkage set up, and the crank is differently angled to clear the keytops while turning it..."
Teletype Part 83541 -ID from W9DDD - see pdf page 5 here


AN/URH-2(XN-1) VLF Receiver-Recorder - used to log VLF propagation.

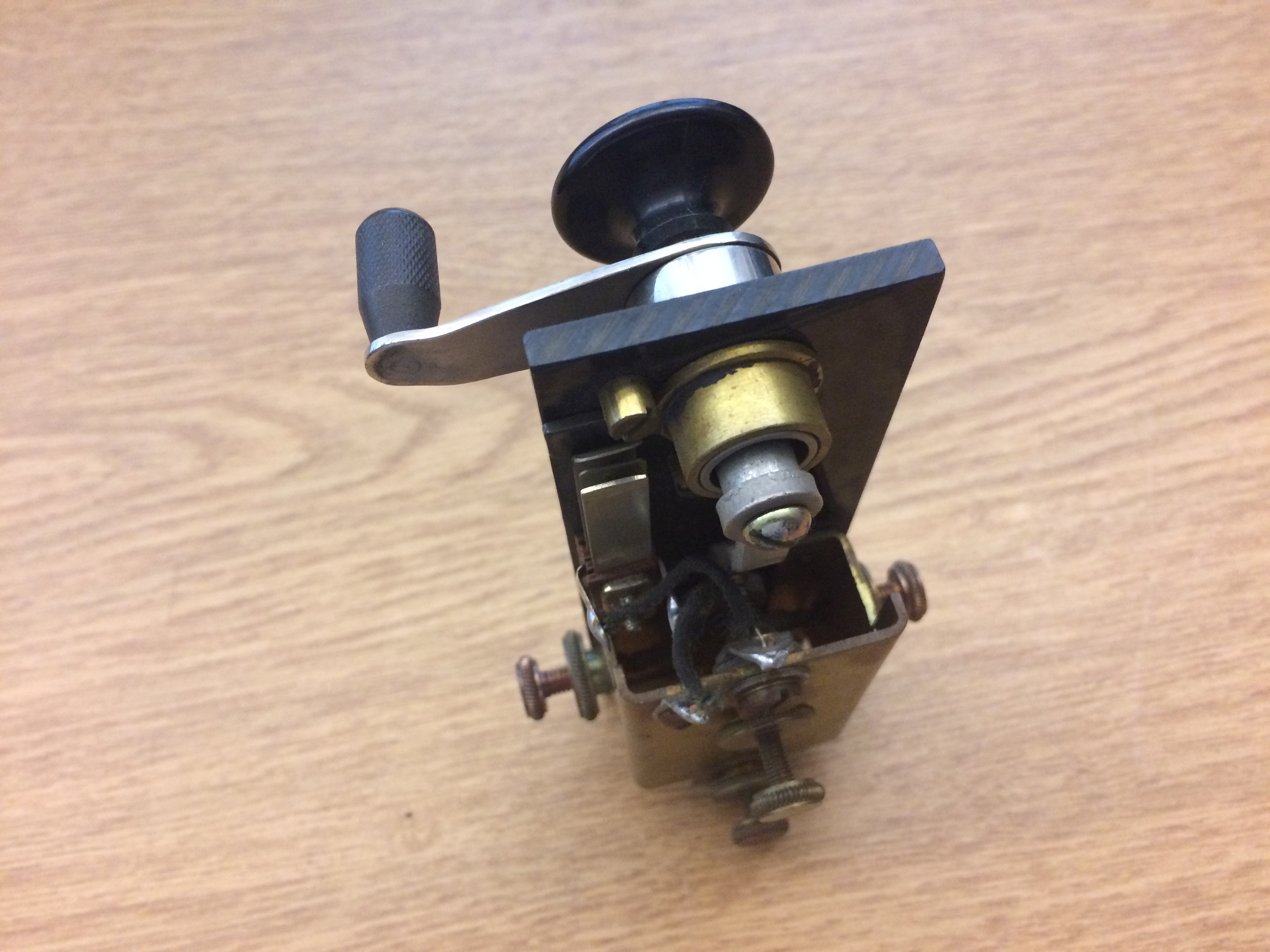

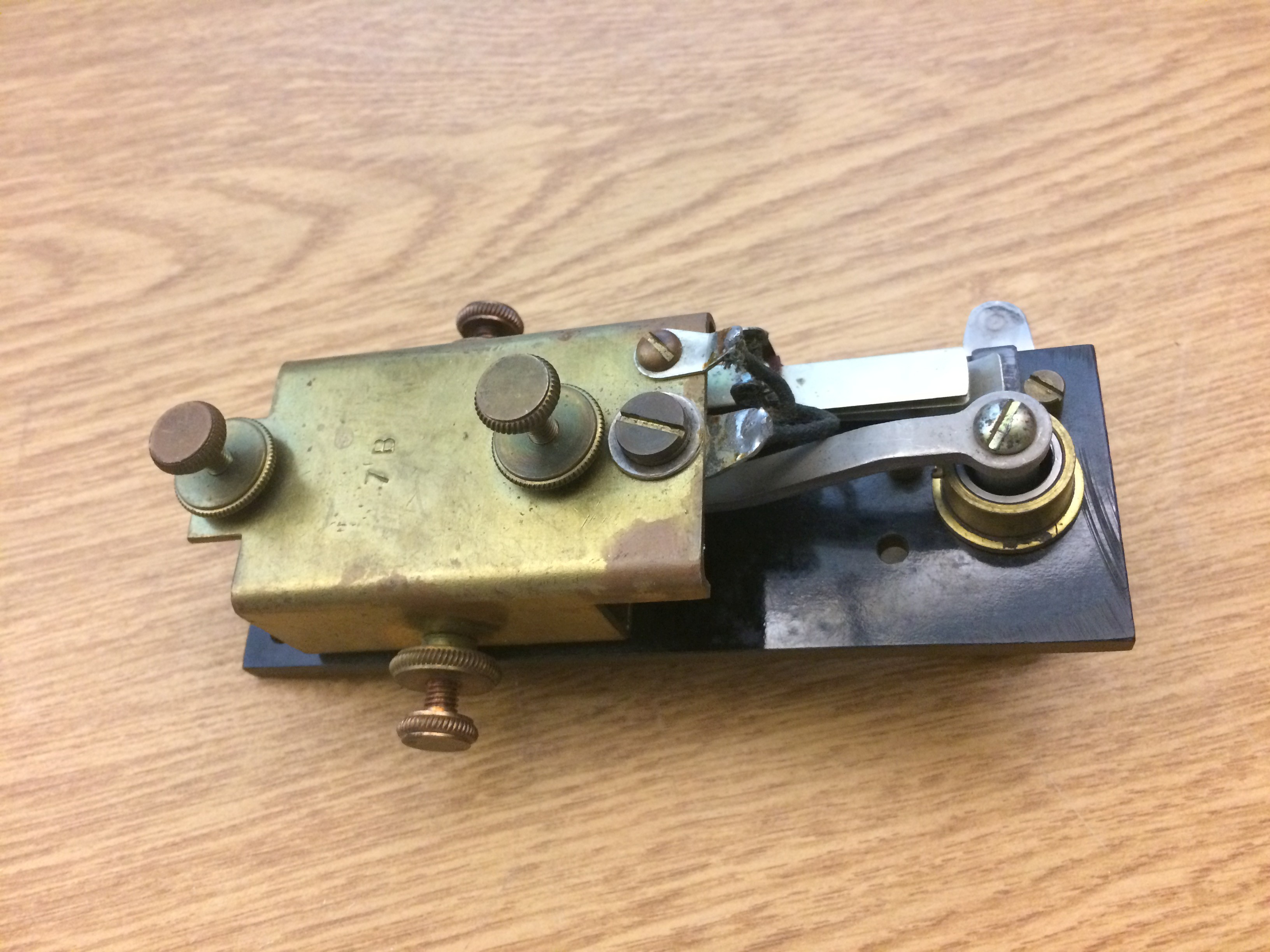

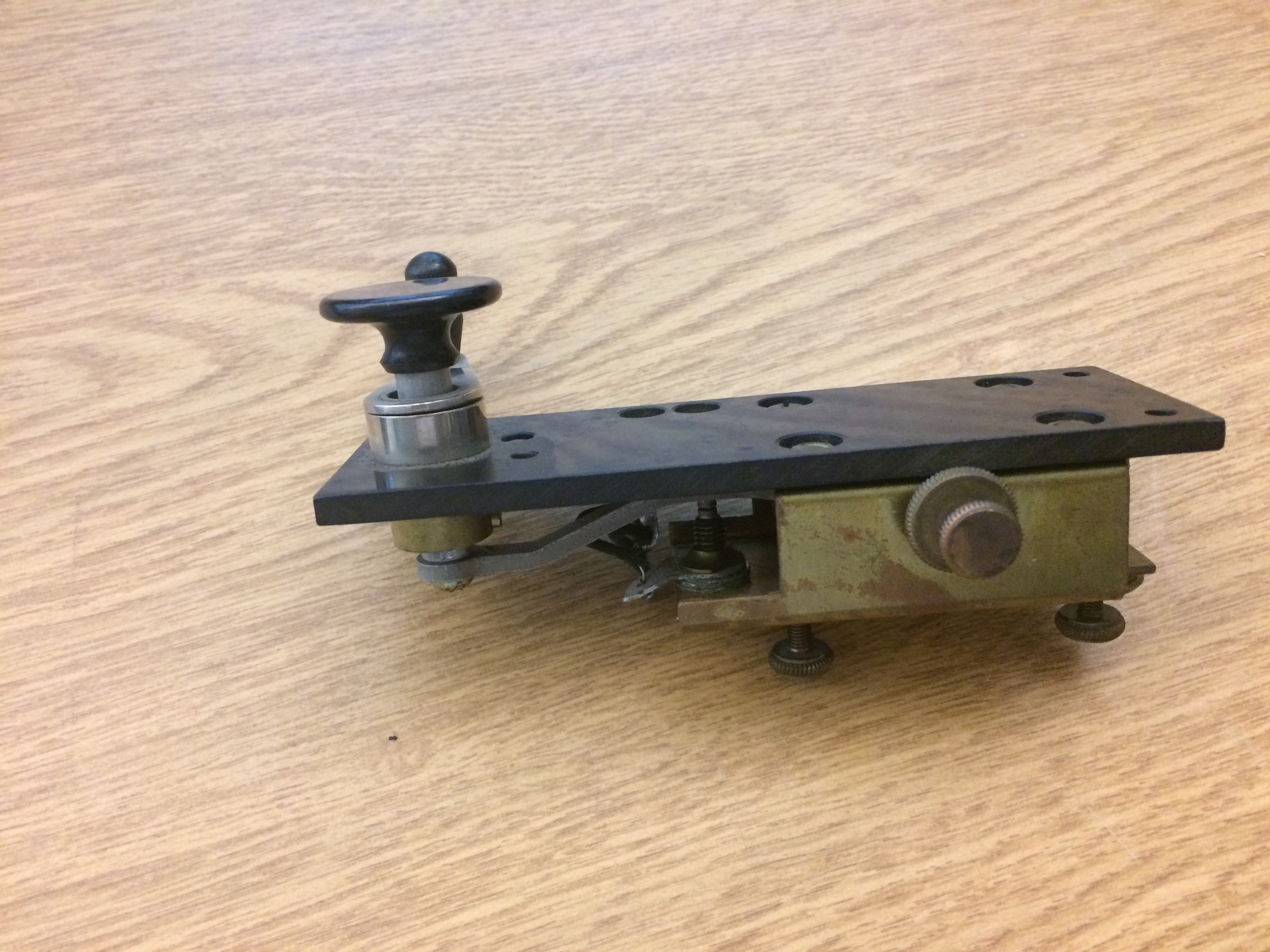

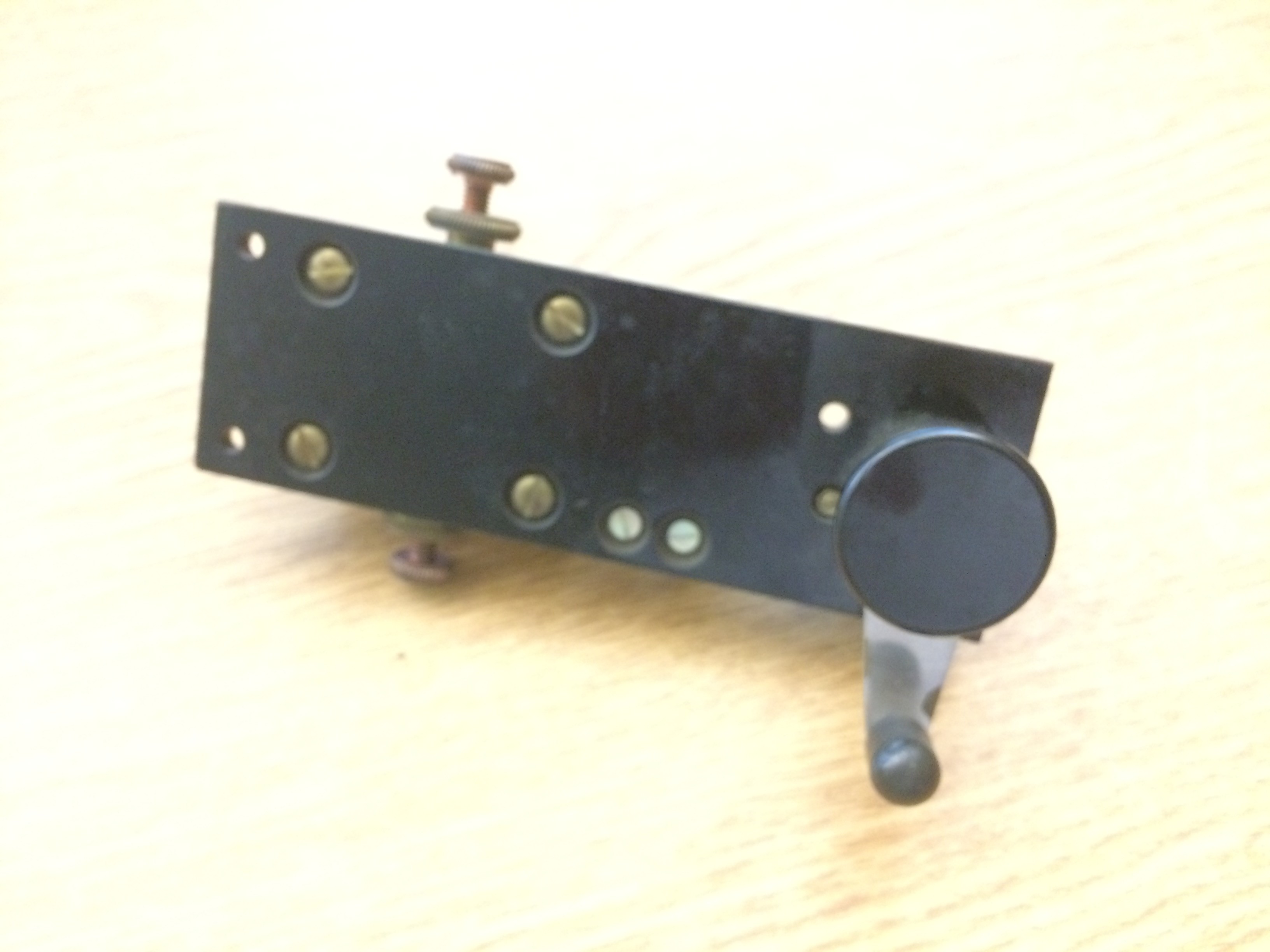

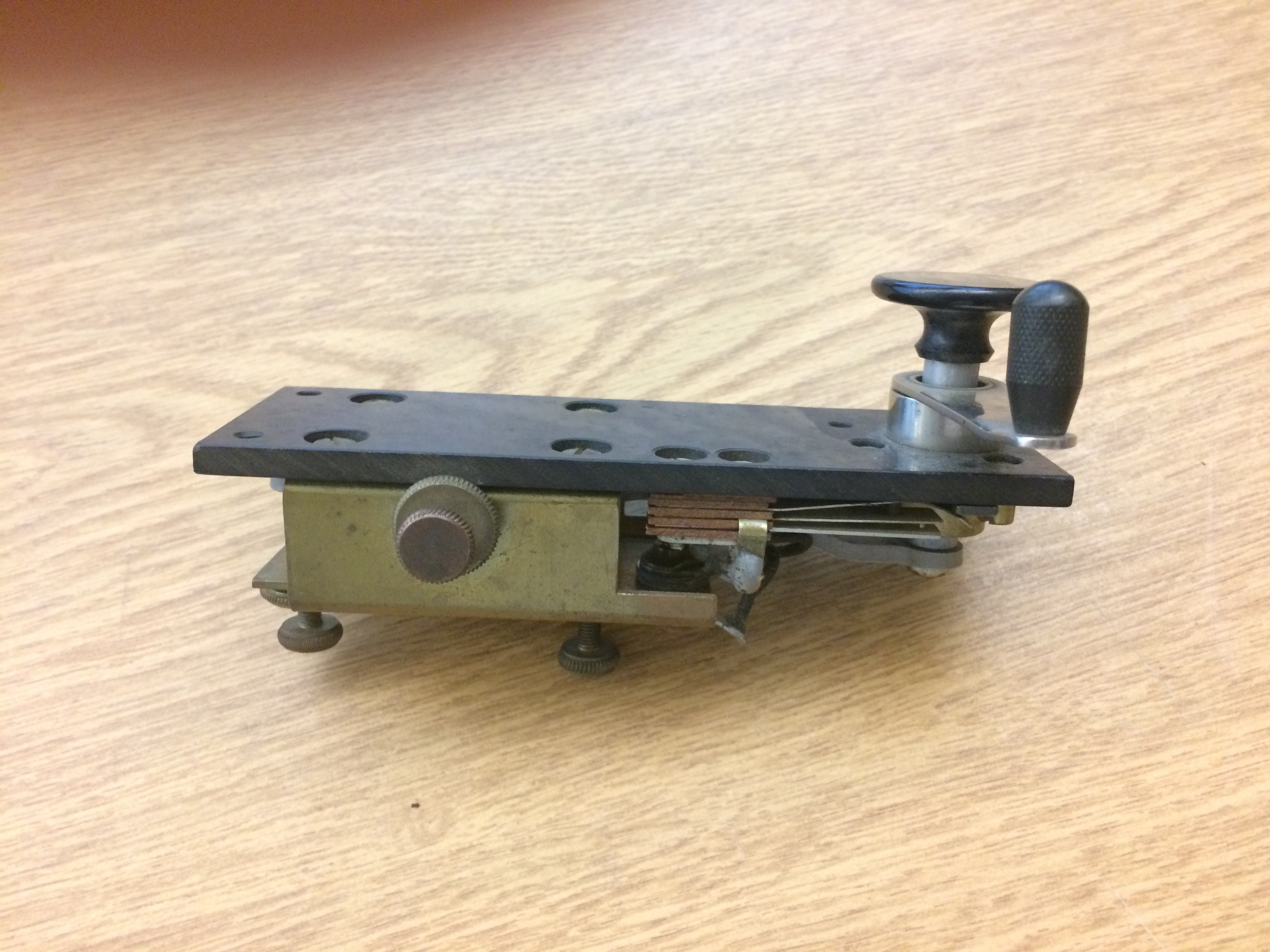

Western Electric 7B "upside down" test-desk key. It was mounted below the desk (e.g. the 17C toll testboard) with the knob extending above the surface. (AWA Journal vol 32, no 2)

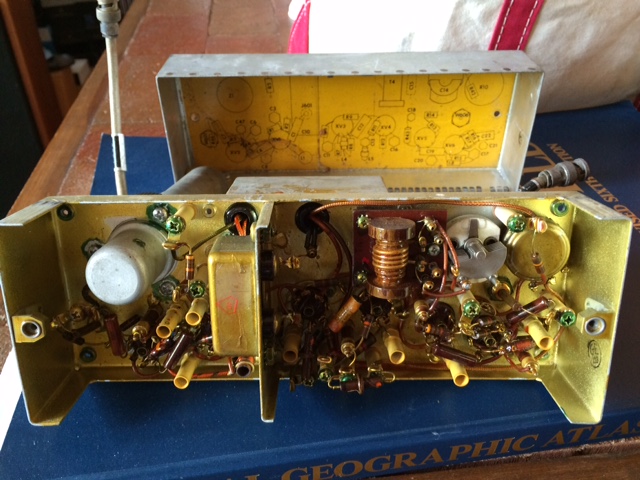

What is this module?

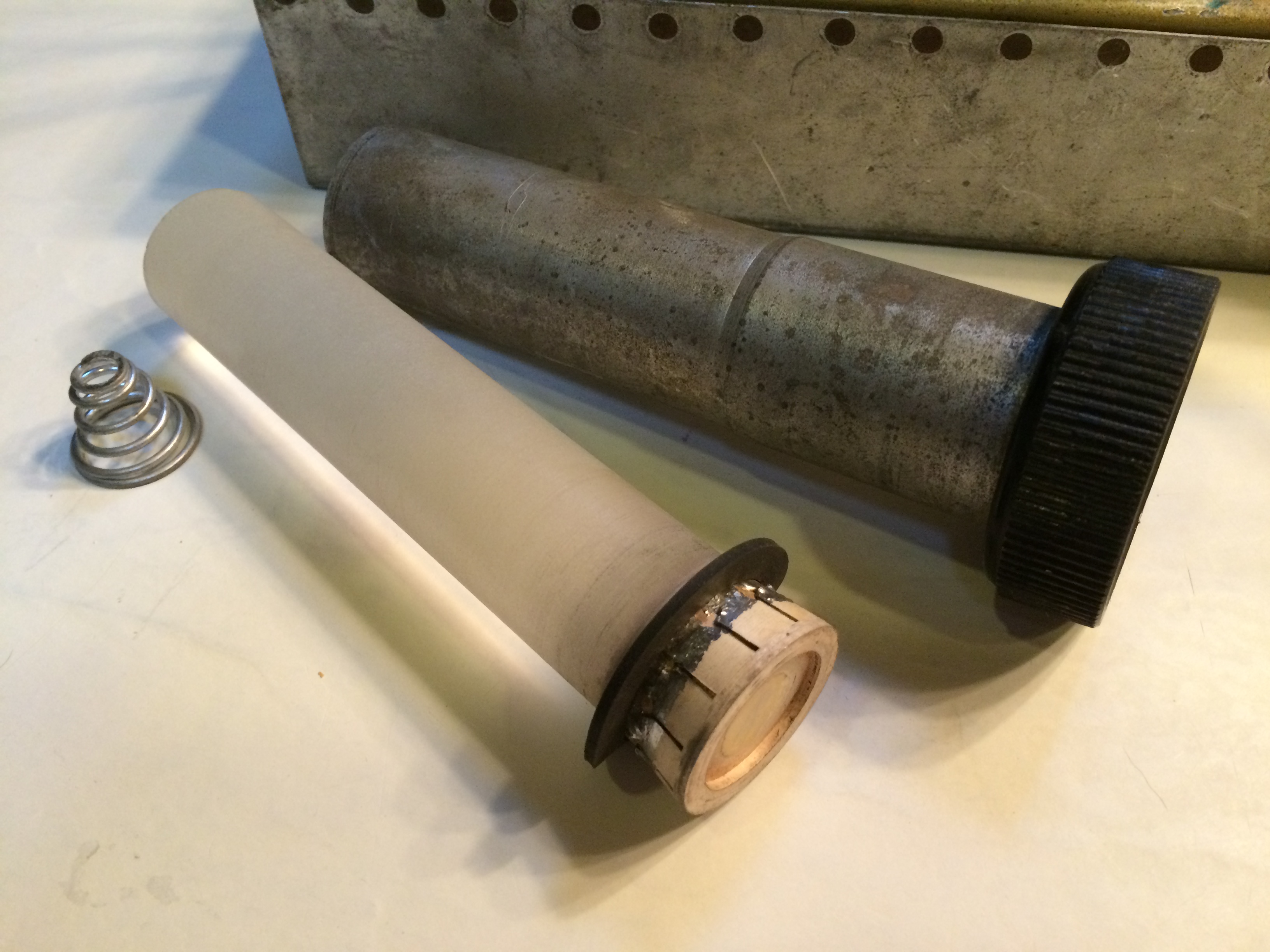

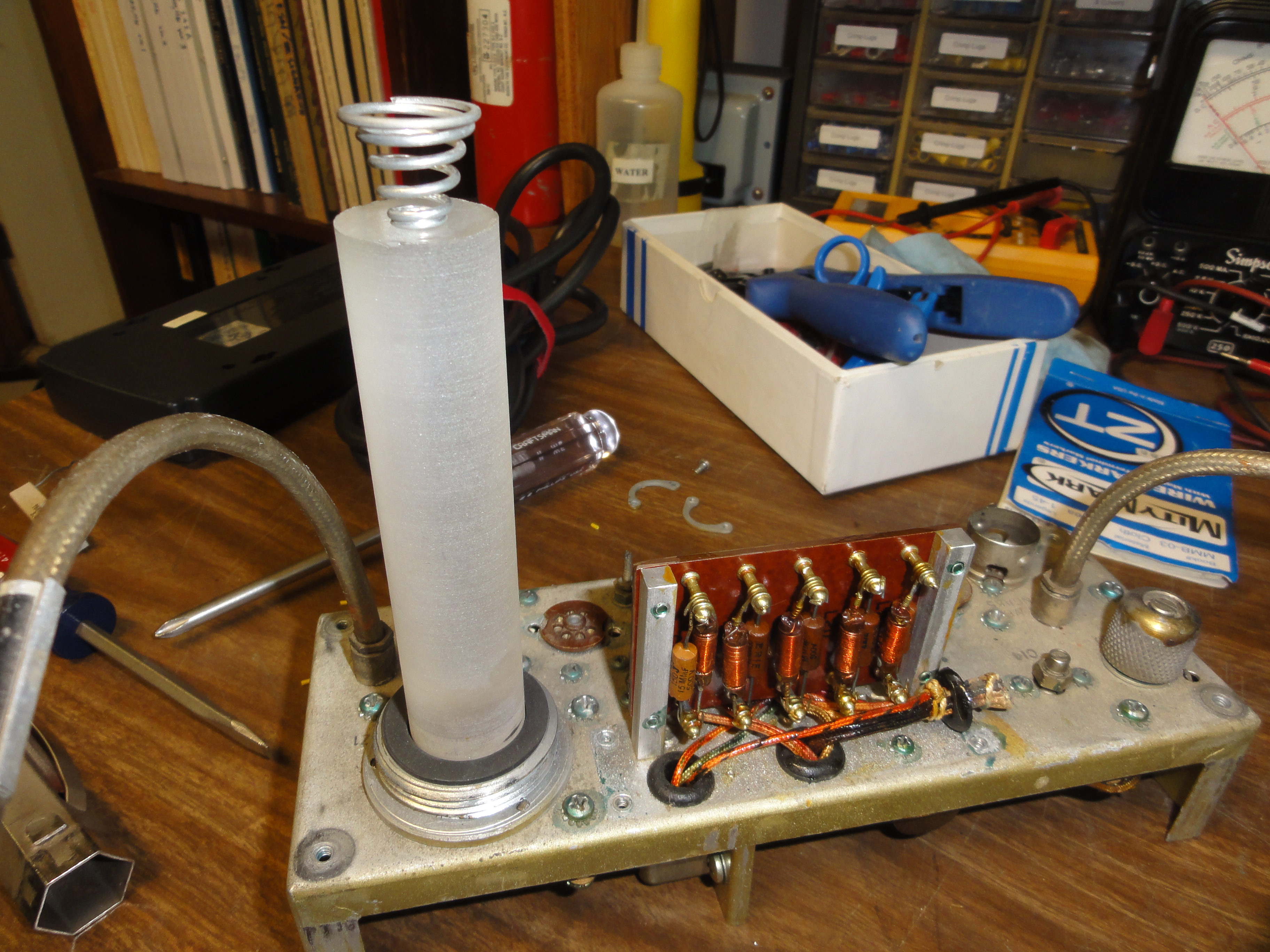

What is the glass rod for?

A: Delay Line - this is a radar calibration device

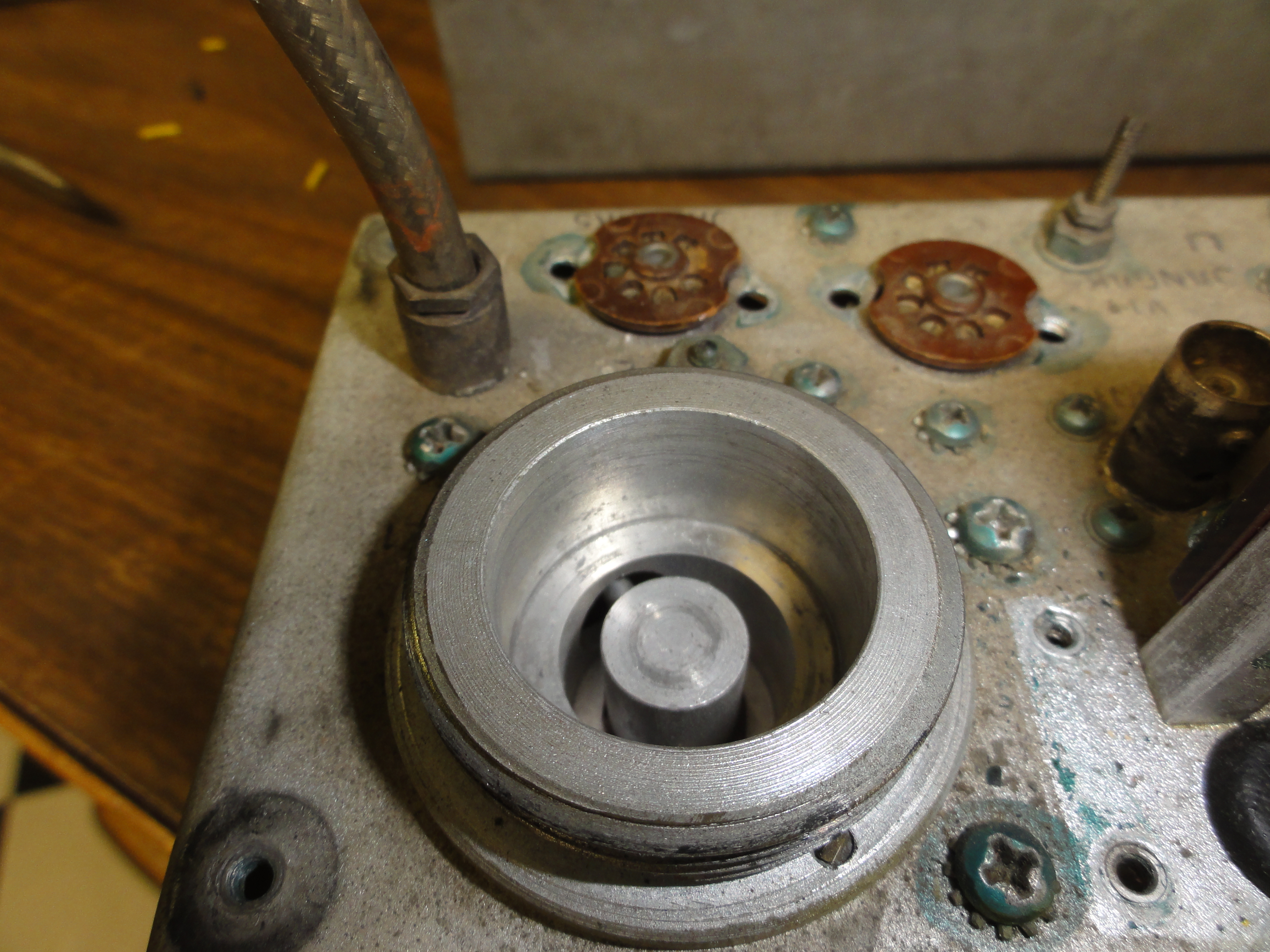

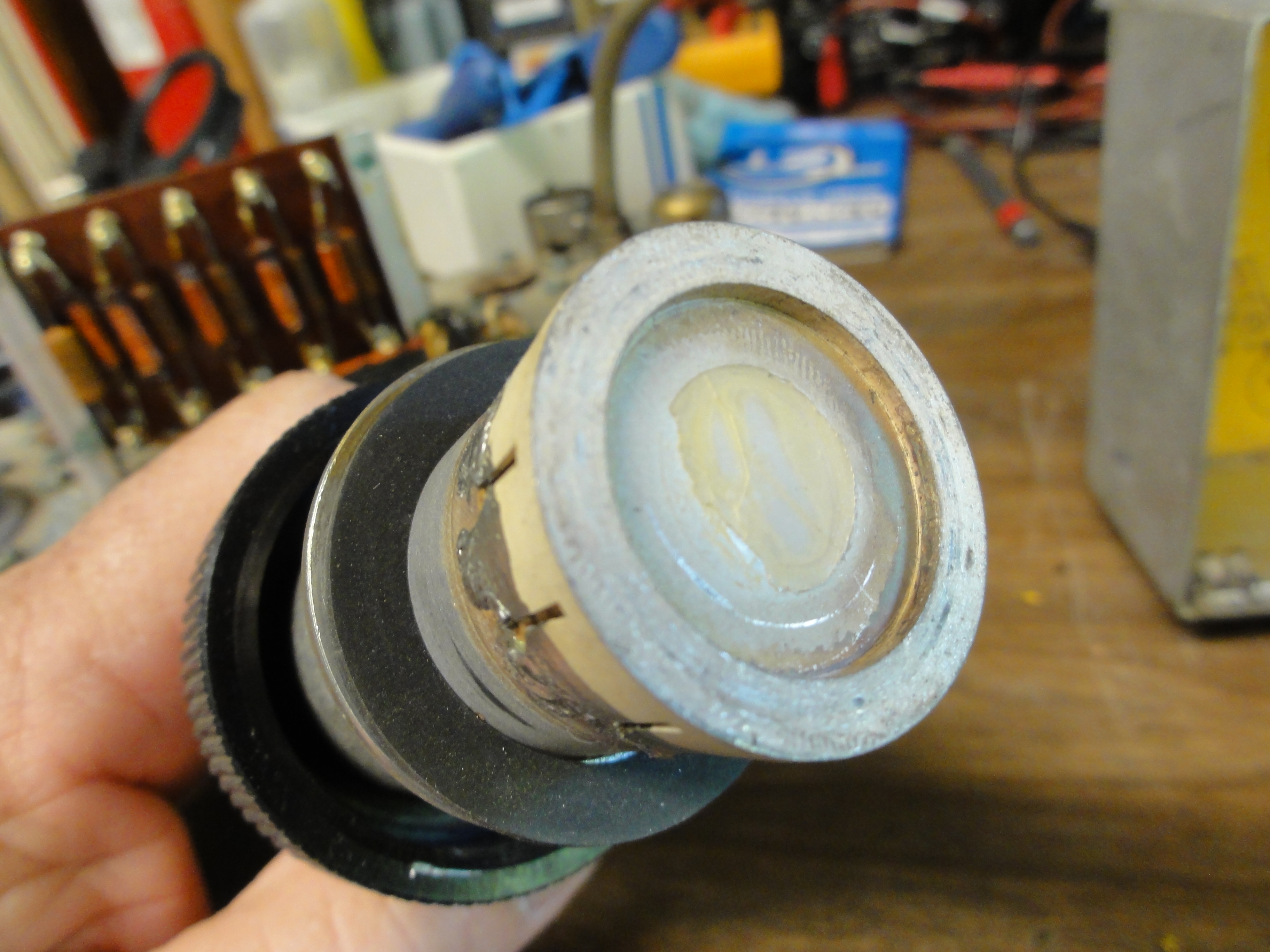

The rod looks like glass - might be quartz but it is awful big for that! The "socket" has a single lead that goes to a spring-loaded metallic contact to the center of the rod's base. The top of the rod is spring loaded too. The base of the rod has a ceramic(?) "button" that measures infinite ohms between the silver coated outside ring (ground) and the center contact. IMG_9387.JPG (130635 bytes) IMG_9389.JPG (137646 bytes)
IMG_9390.JPG (1409781 bytes) IMG_9391.JPG (1345819 bytes) IMG_9392.JPG (1594872 bytes) DSC03055.JPG (4109070 bytes)

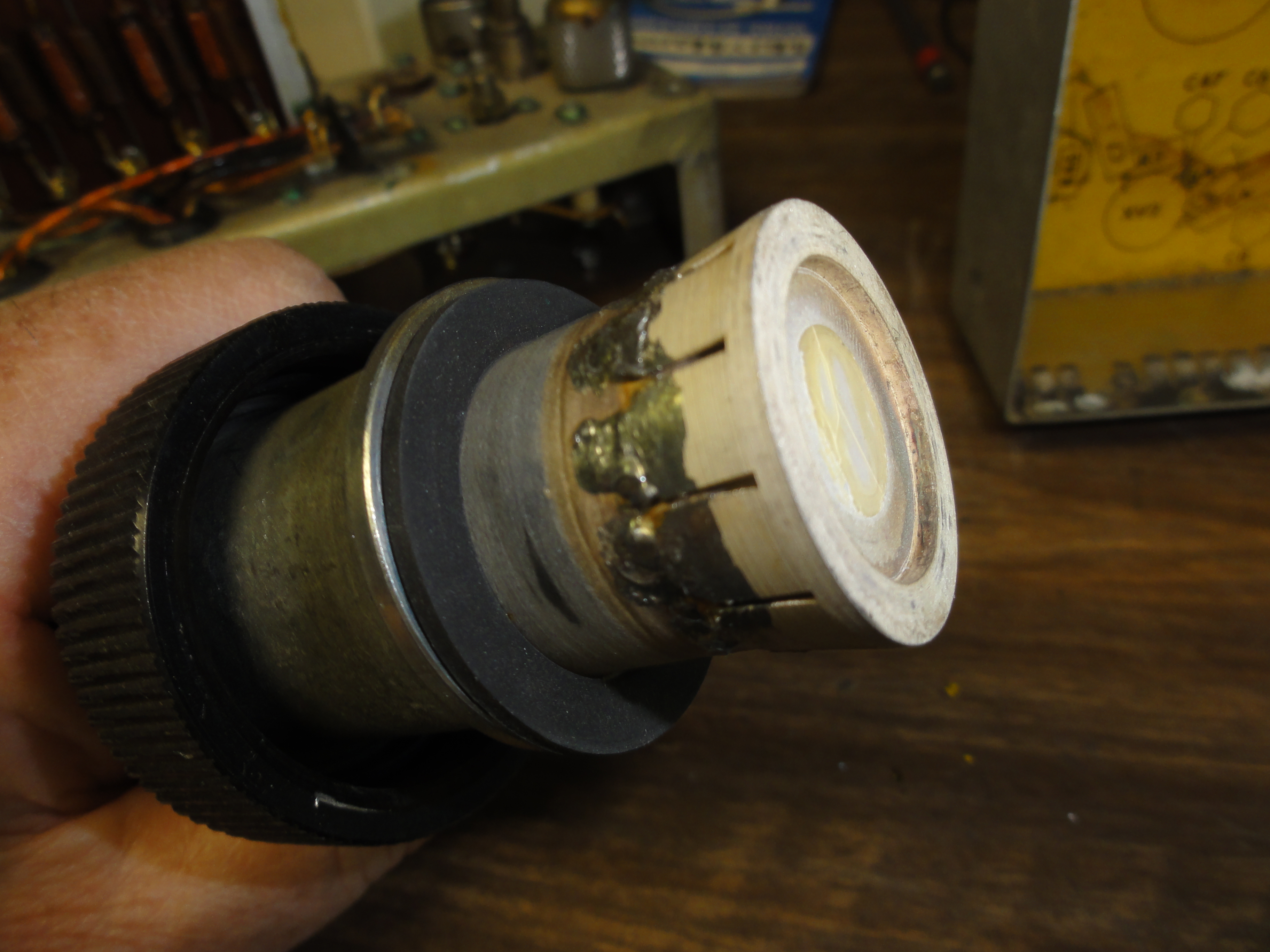

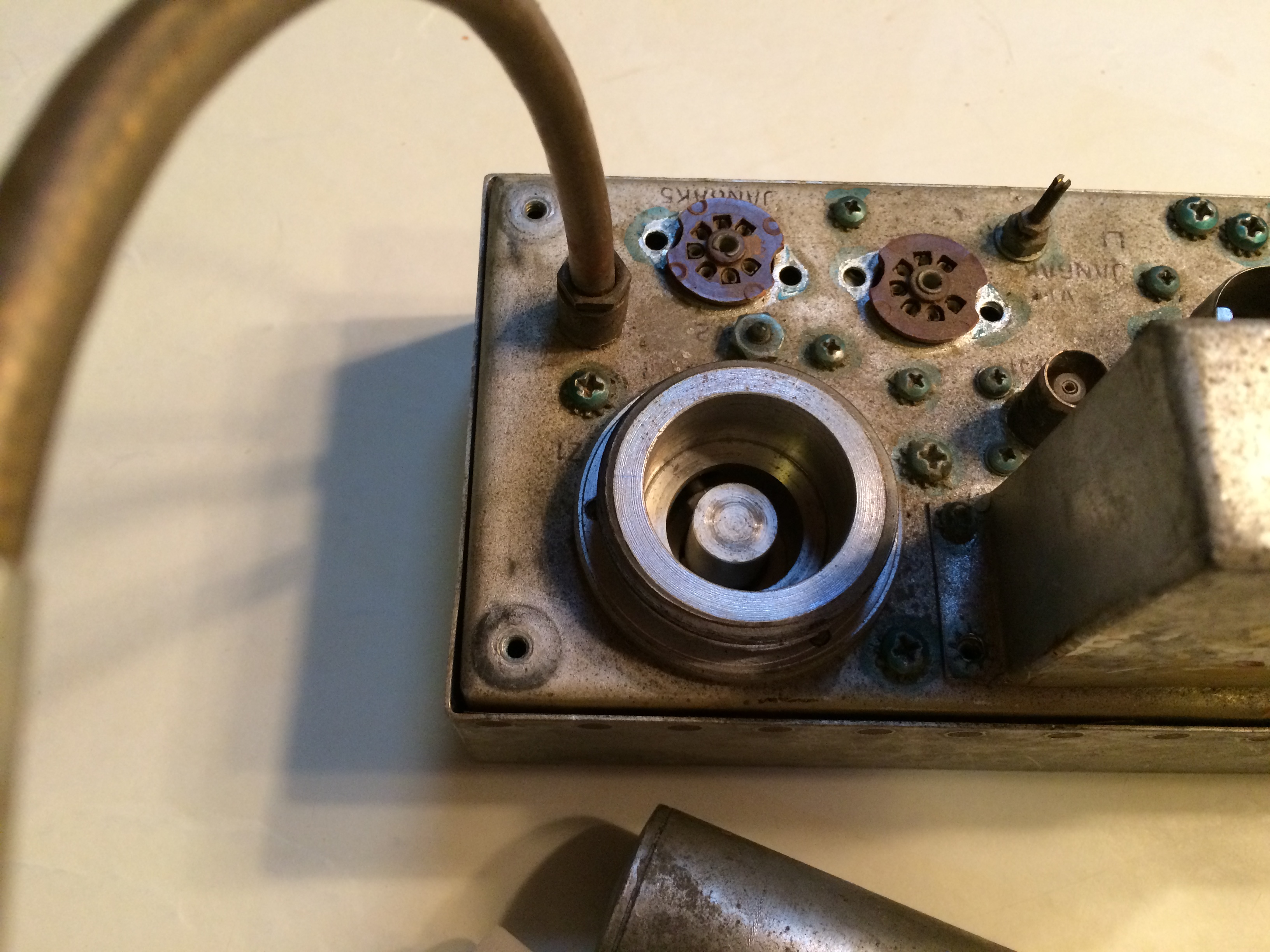

Bottom view of the rod's "socket"

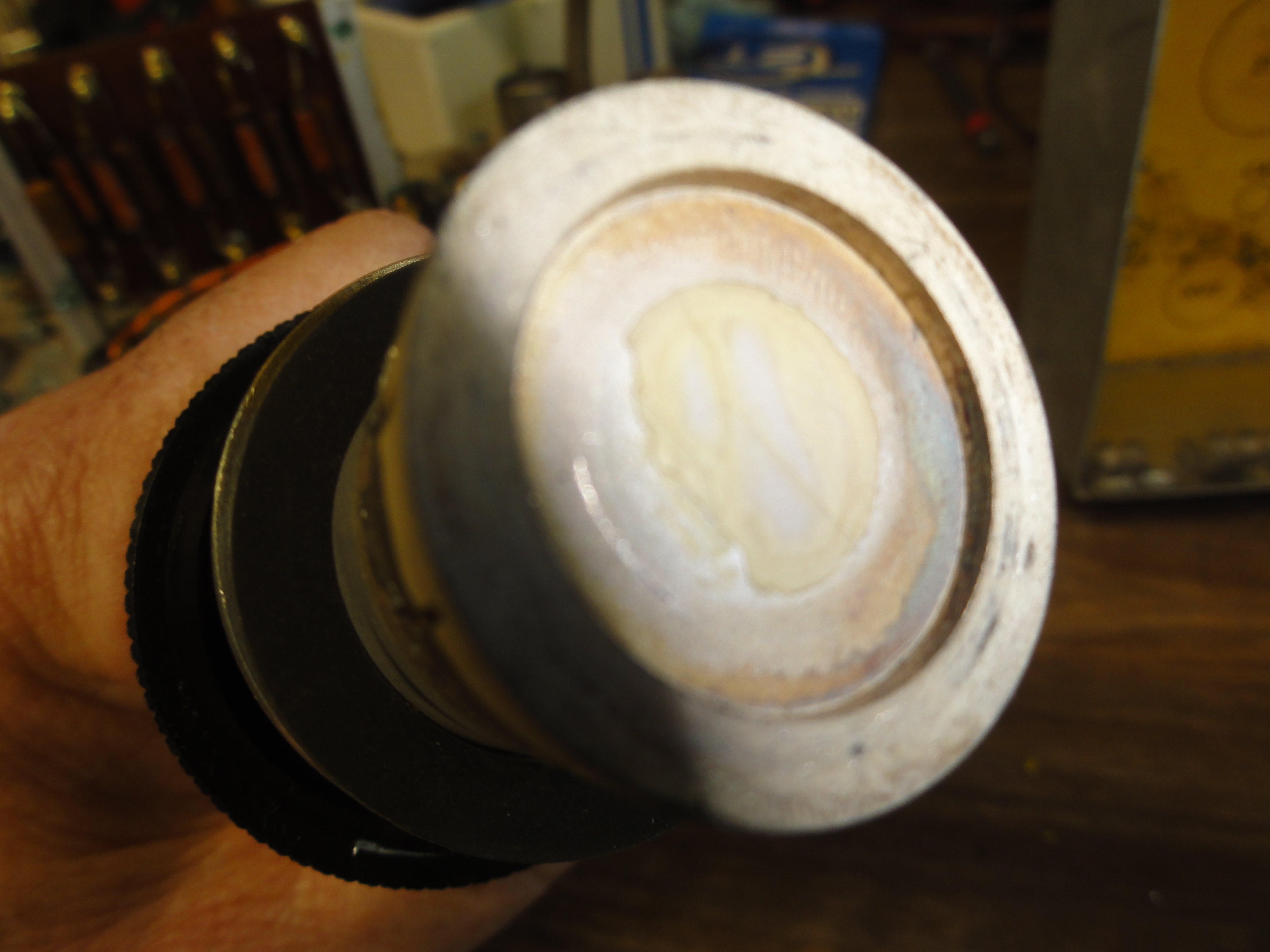

DSC03063.JPG (3767089 bytes) DSC03066.JPG (3832356 bytes) DSC03067.JPG (3341151 bytes) DSC03068.JPG (3804685 bytes)

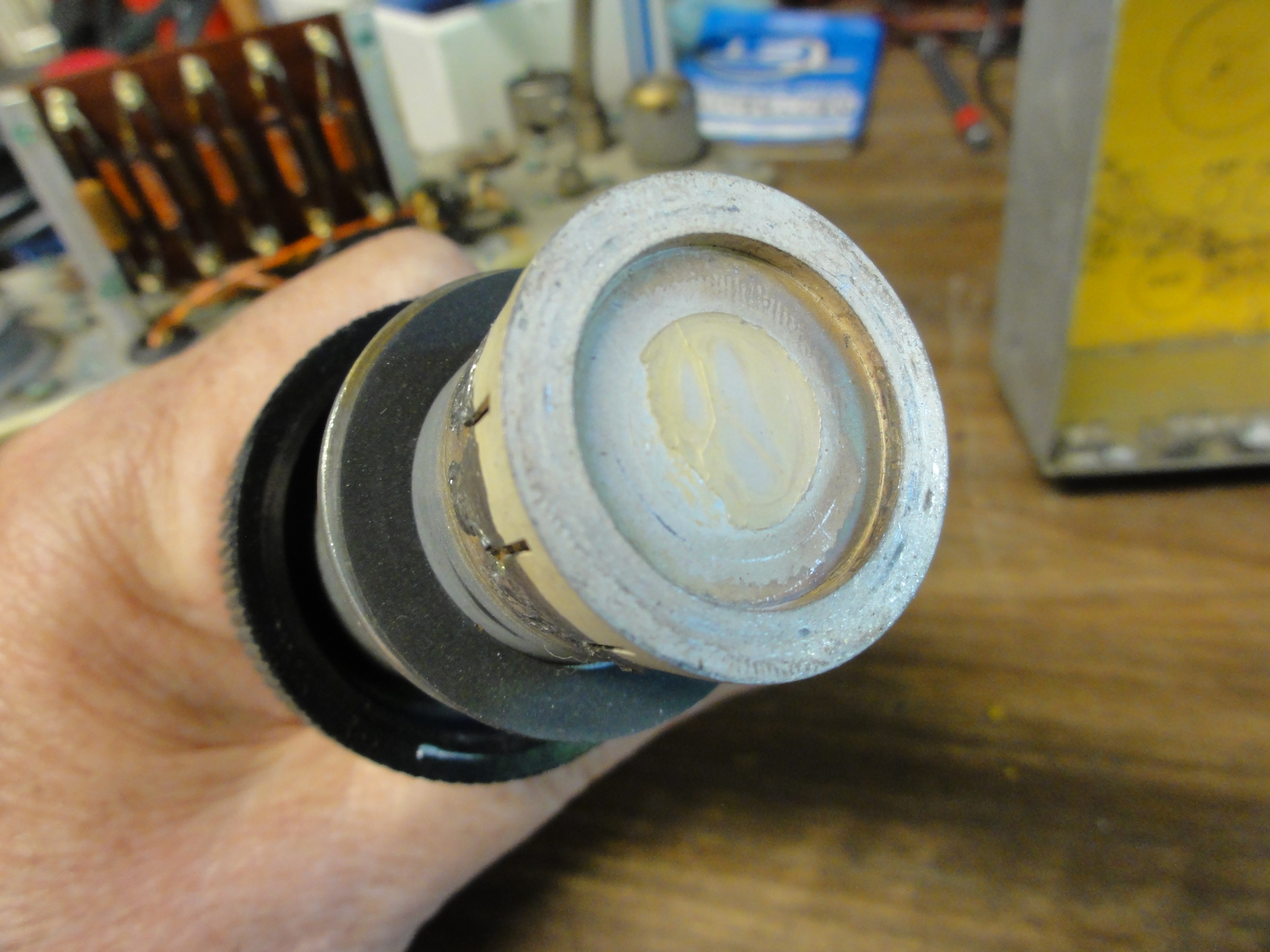

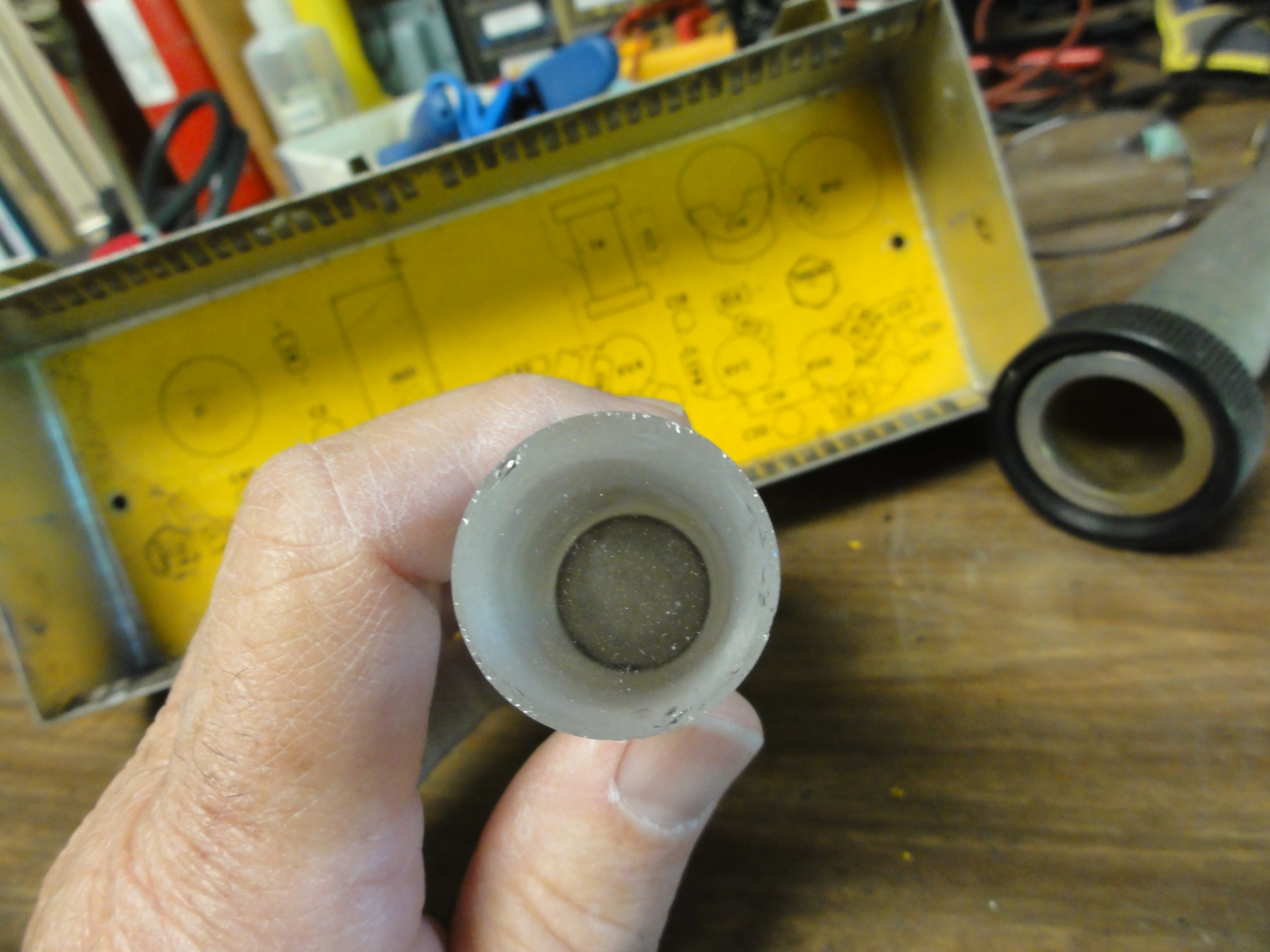

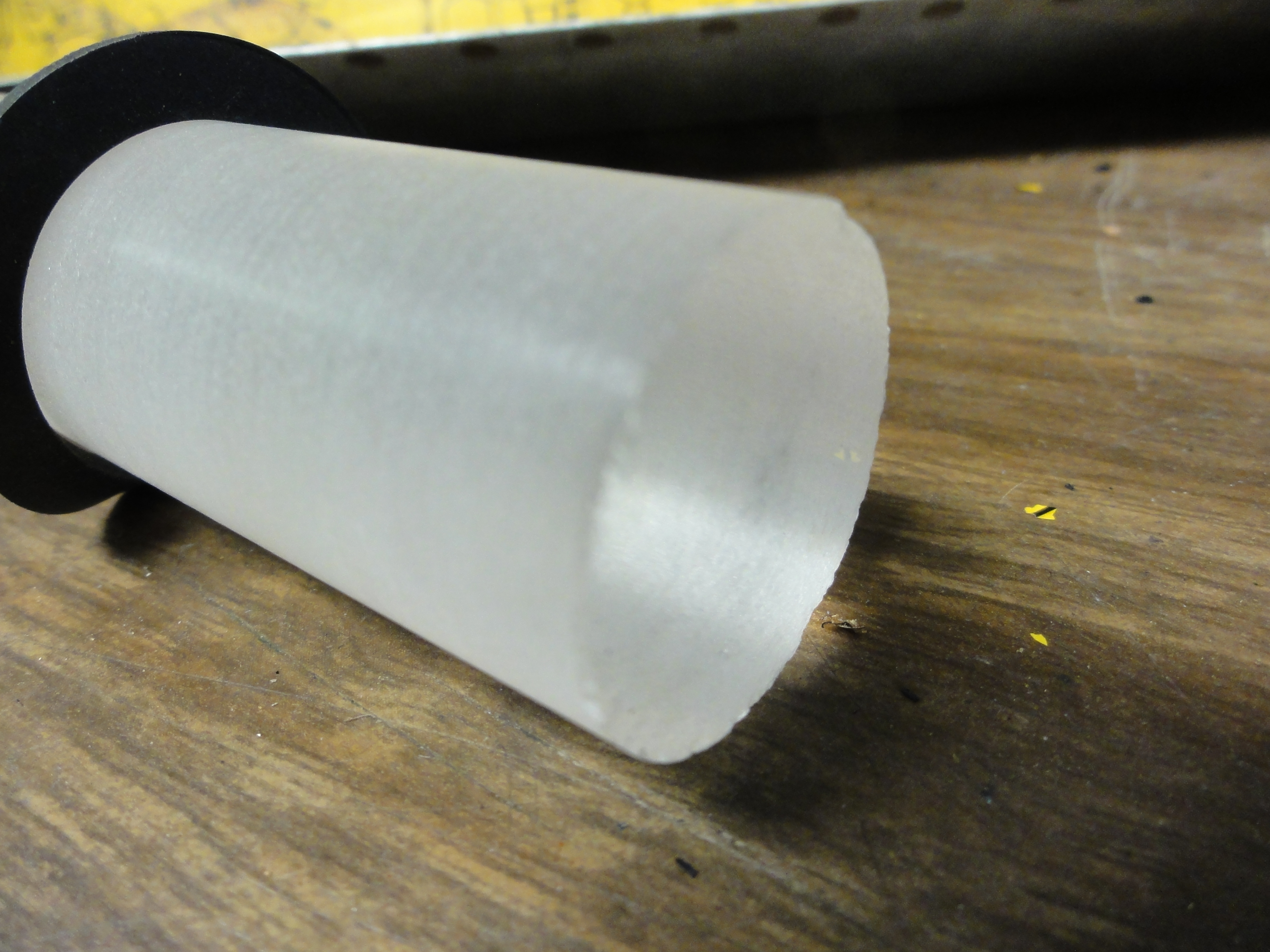

DSC03069.JPG (3632436 bytes) DSC03070.JPG (4127999 bytes) DSC03064.JPG (3679162 bytes) Frosted outside, clear inside

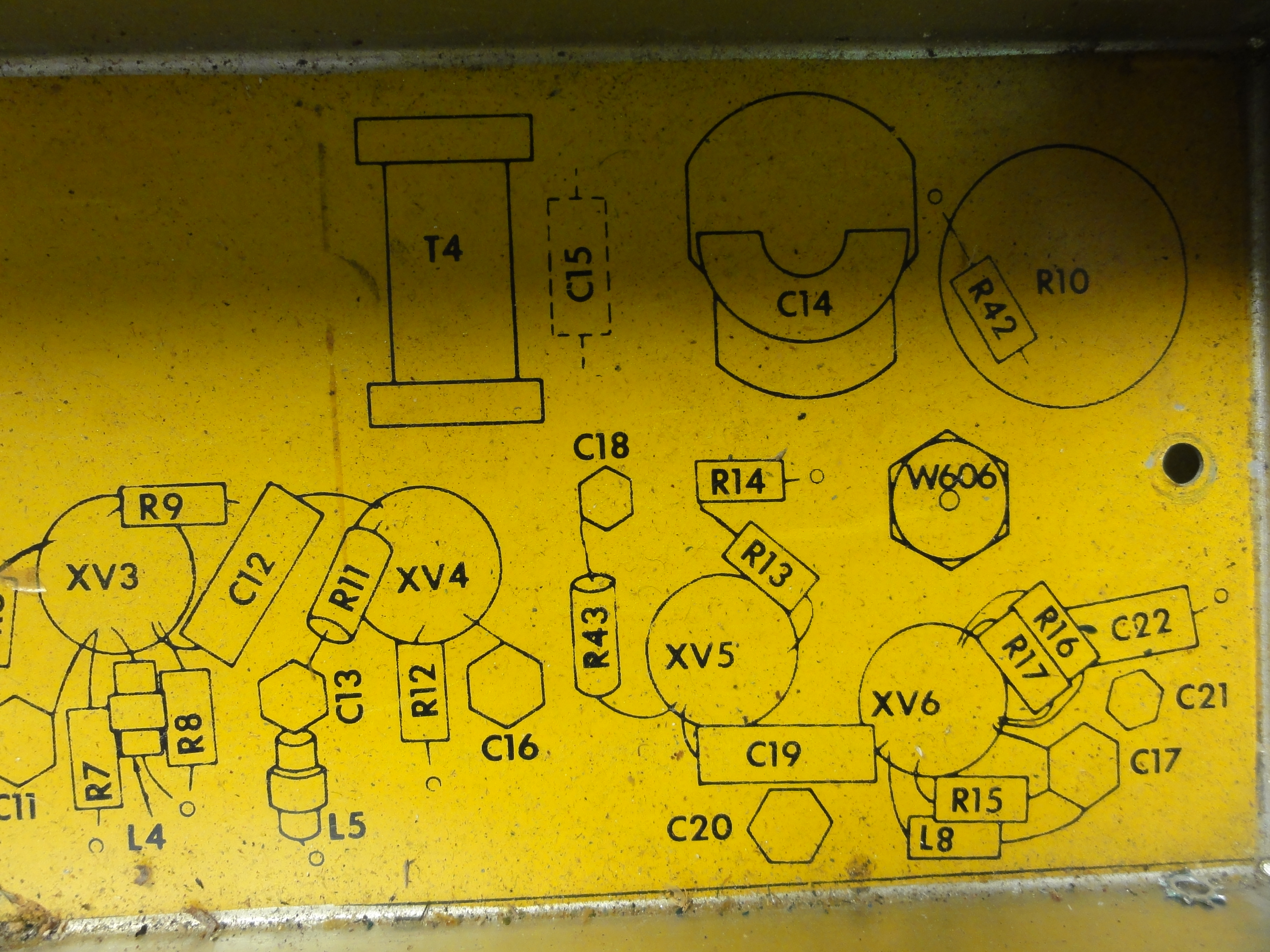

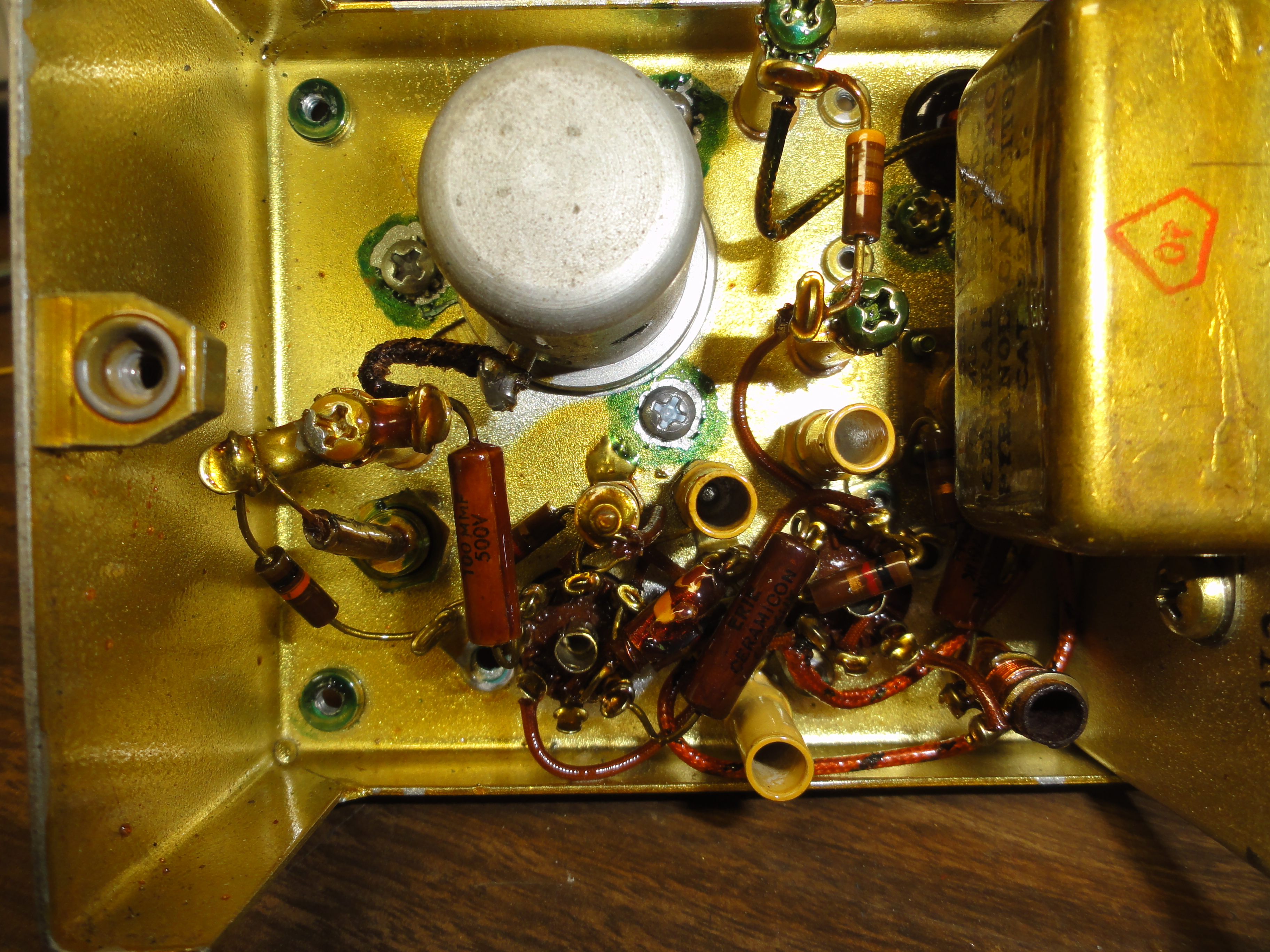

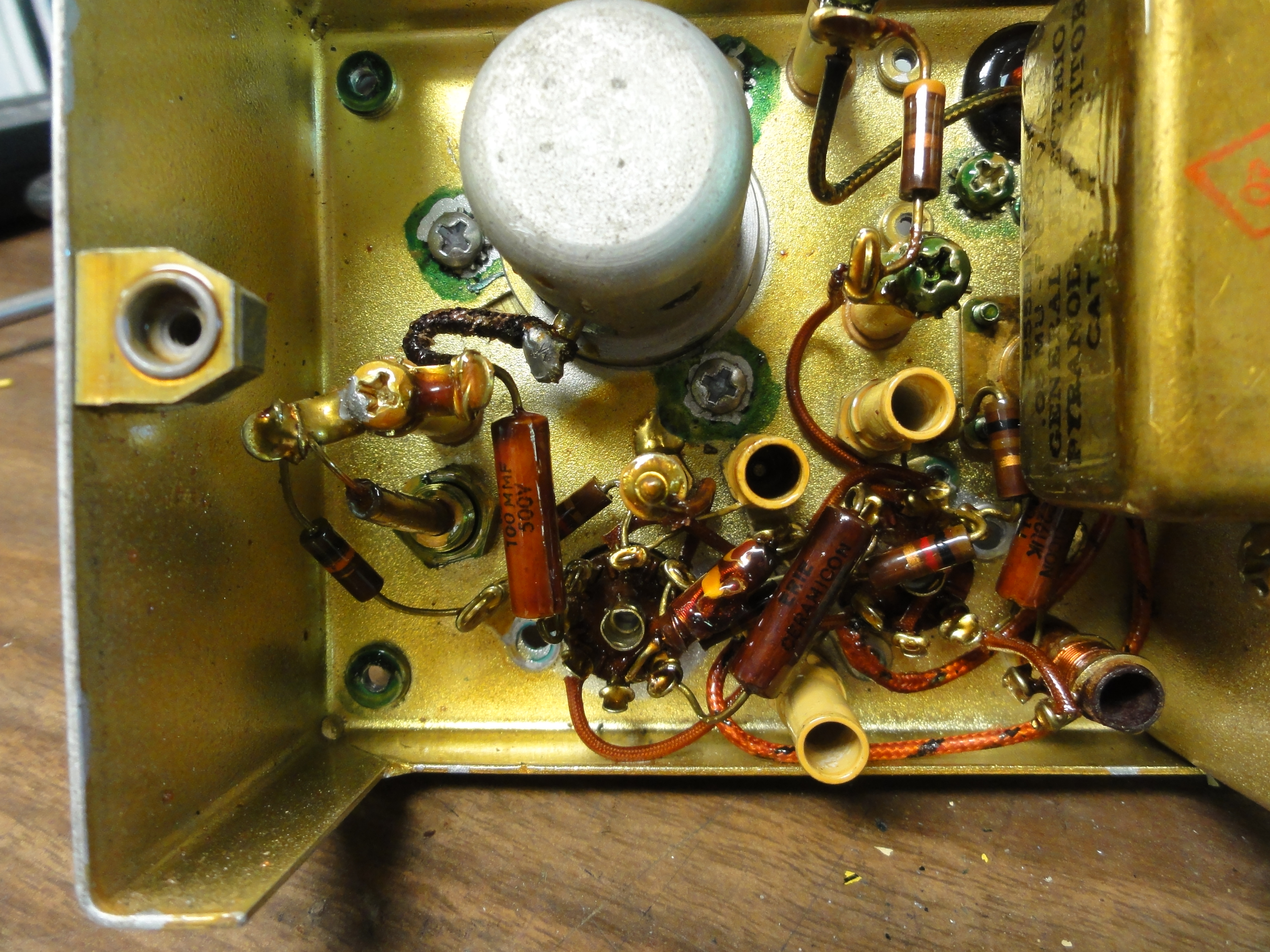

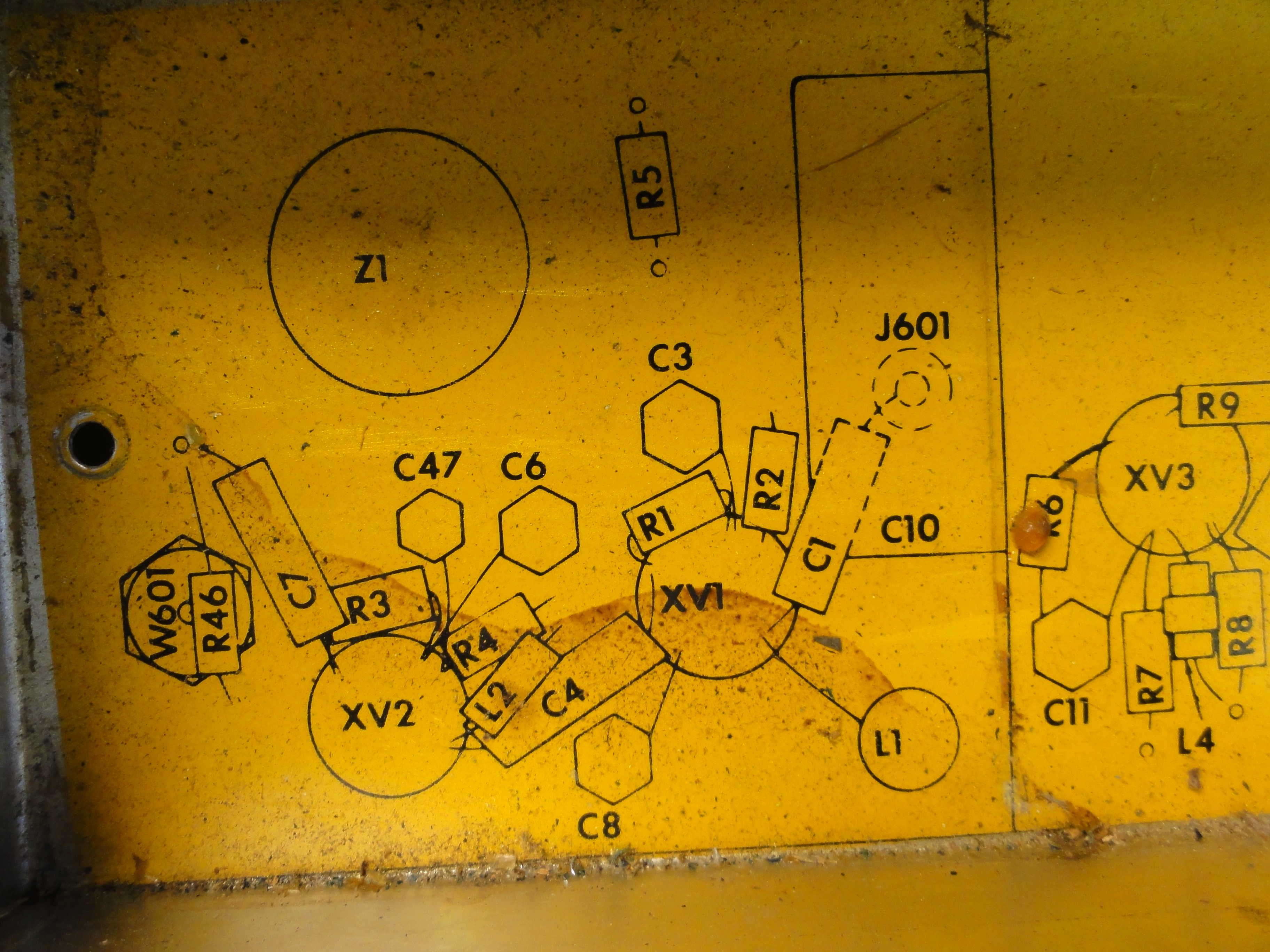

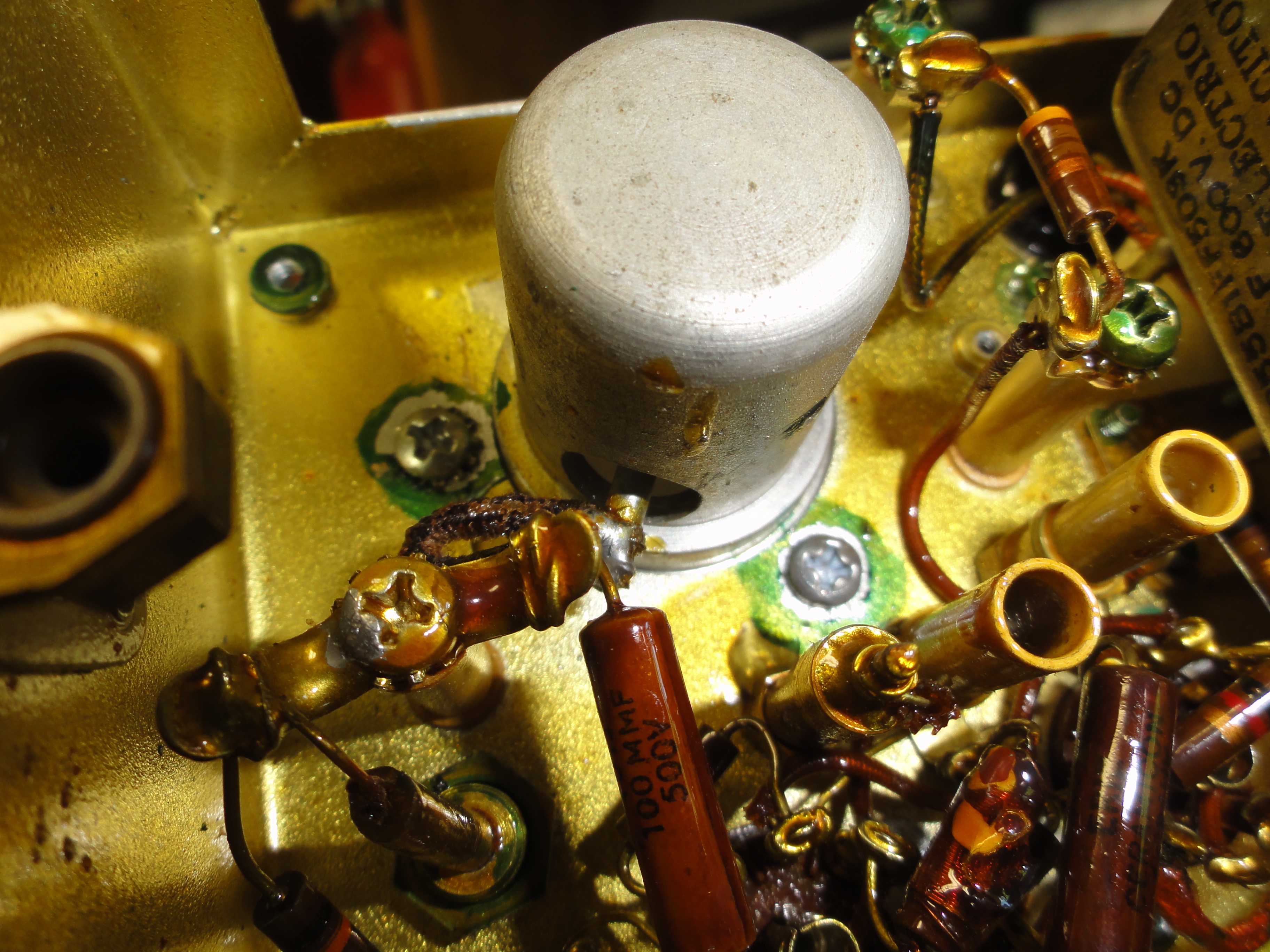

DSC03054.JPG (4279200 bytes) DSC03061.JPG (4129221 bytes) DSC03062.JPG (4188473 bytes) Filtered power supply connections

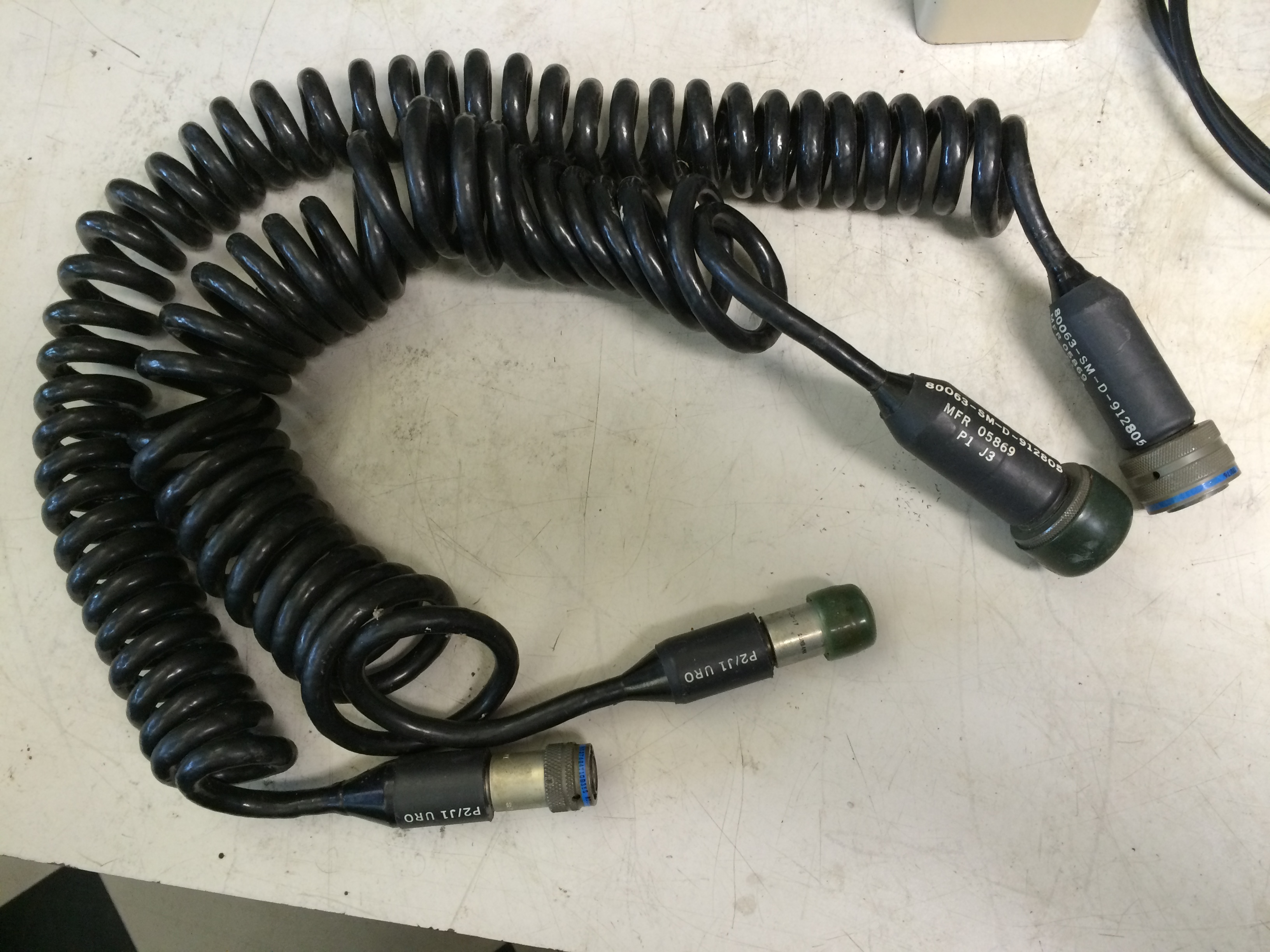

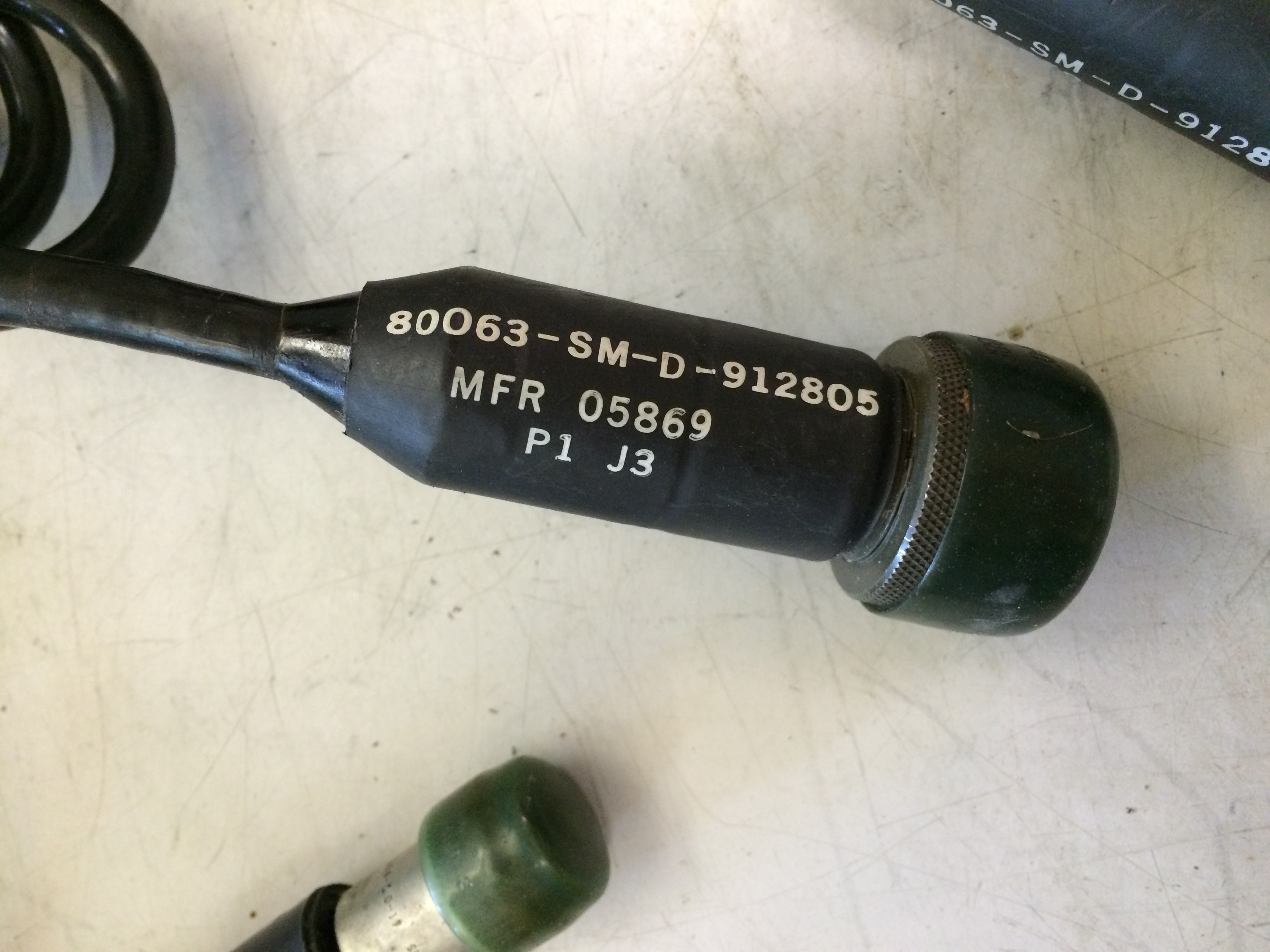

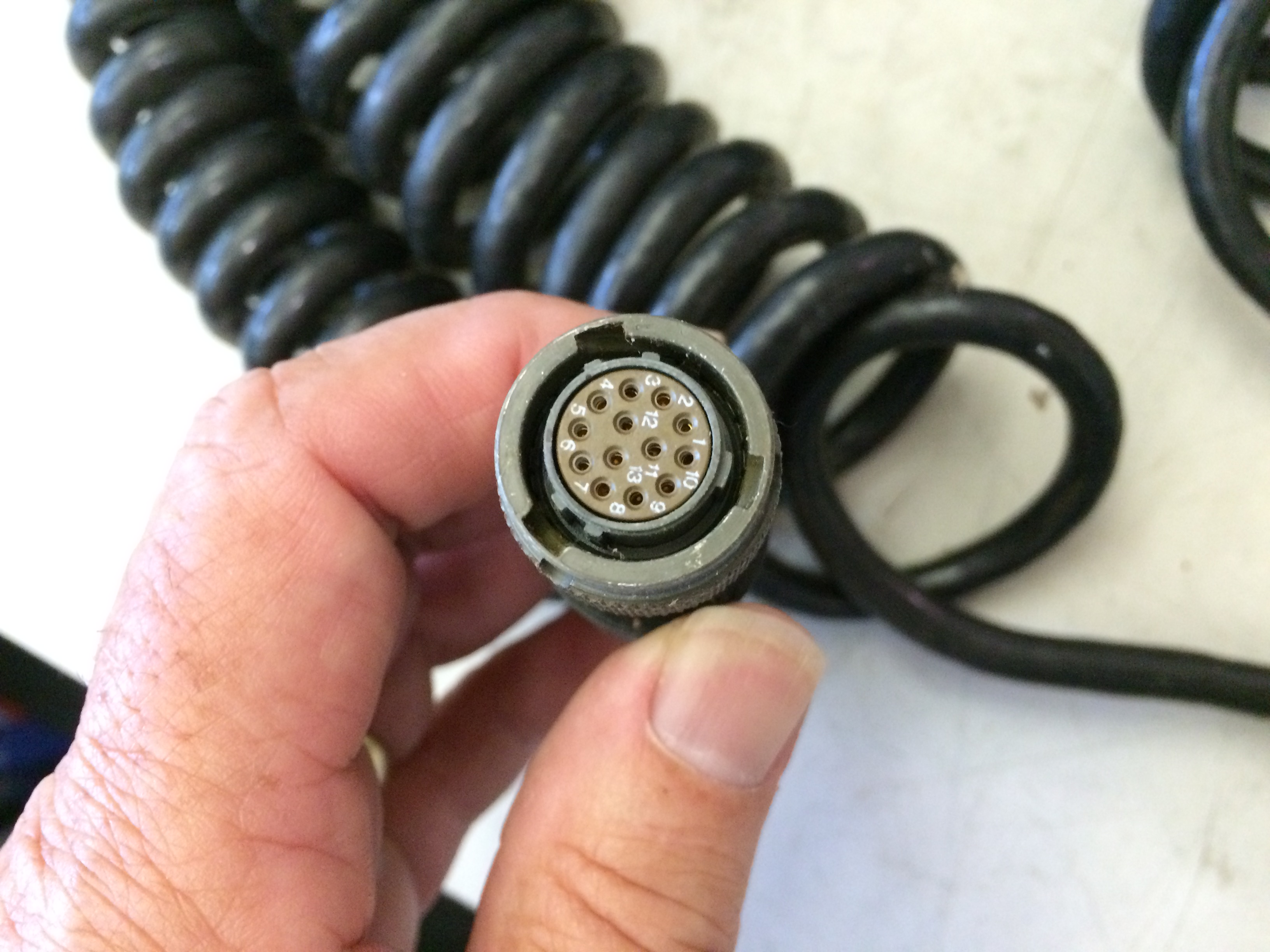

Cable for AN/VSQ-2C(V)2 Data Net Radio


MS27467T15B18S (18 pin)

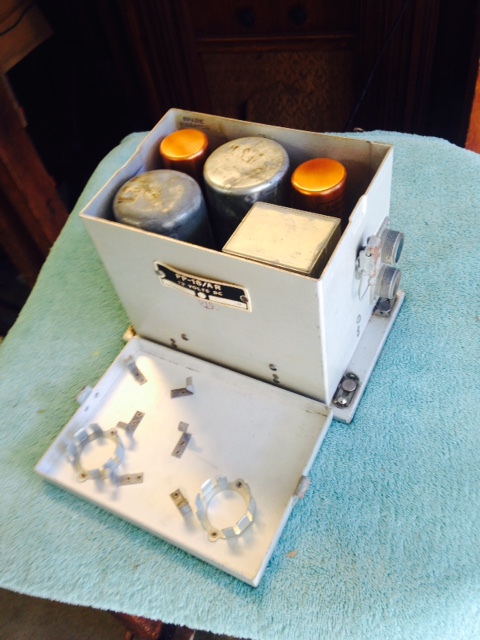

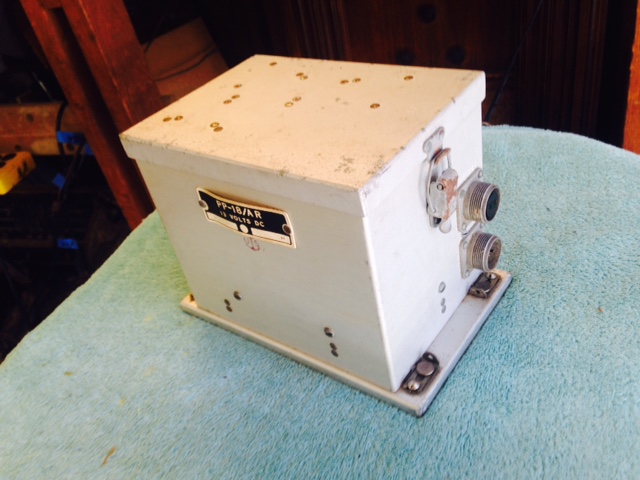

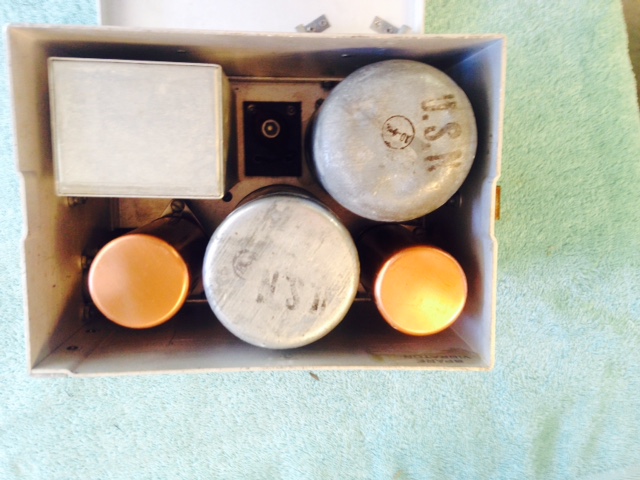

PP-18/AR - Q: what was it used for? A: 12vdc to 28vdc converter

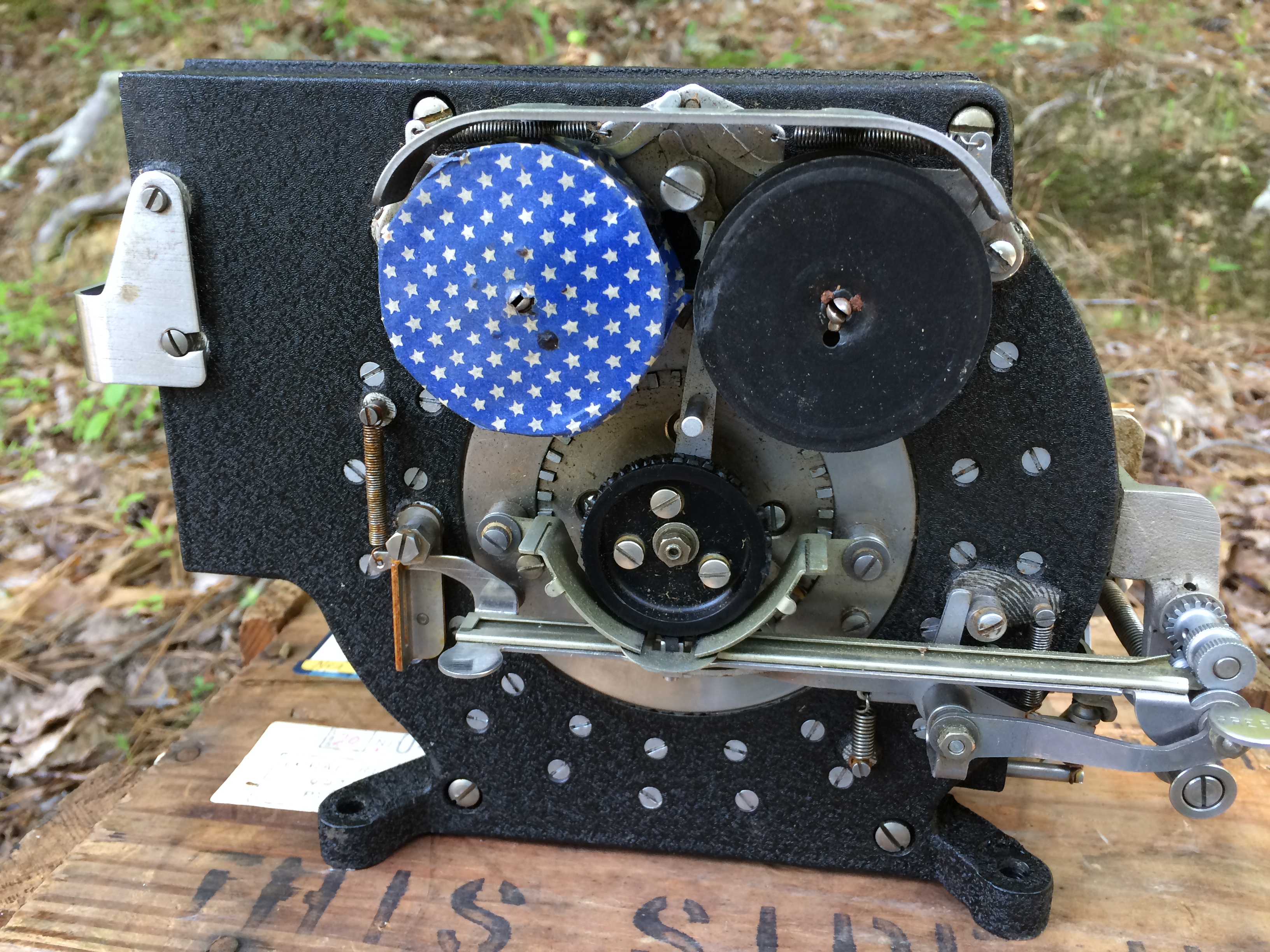

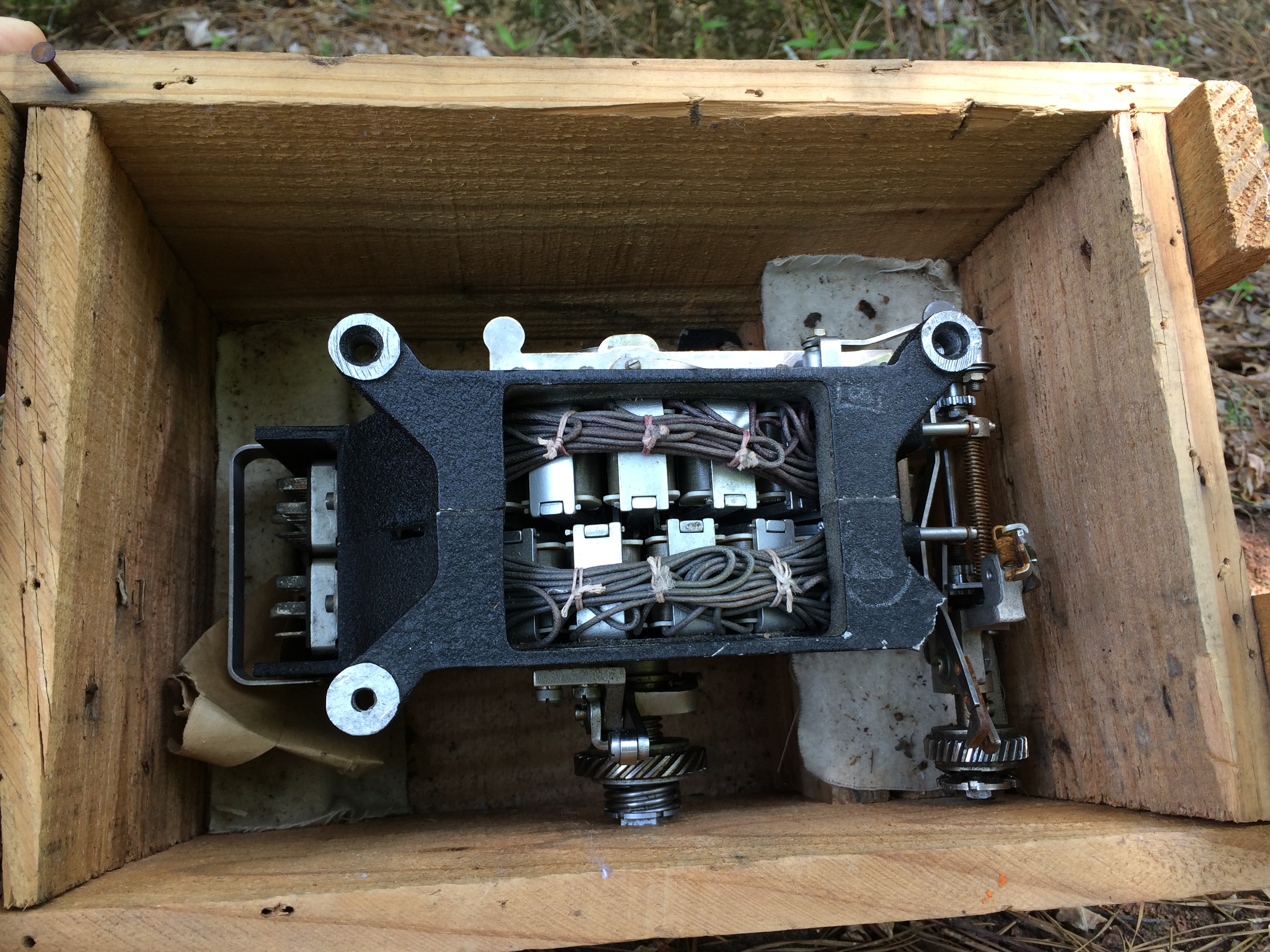

Typewheel tape printer - what is it part of?
I got a quick answer to this one - it is a SIGABA printer mechanism

Looks unused in original crate
One mounting leg is broken off.
The broken piece is in the box

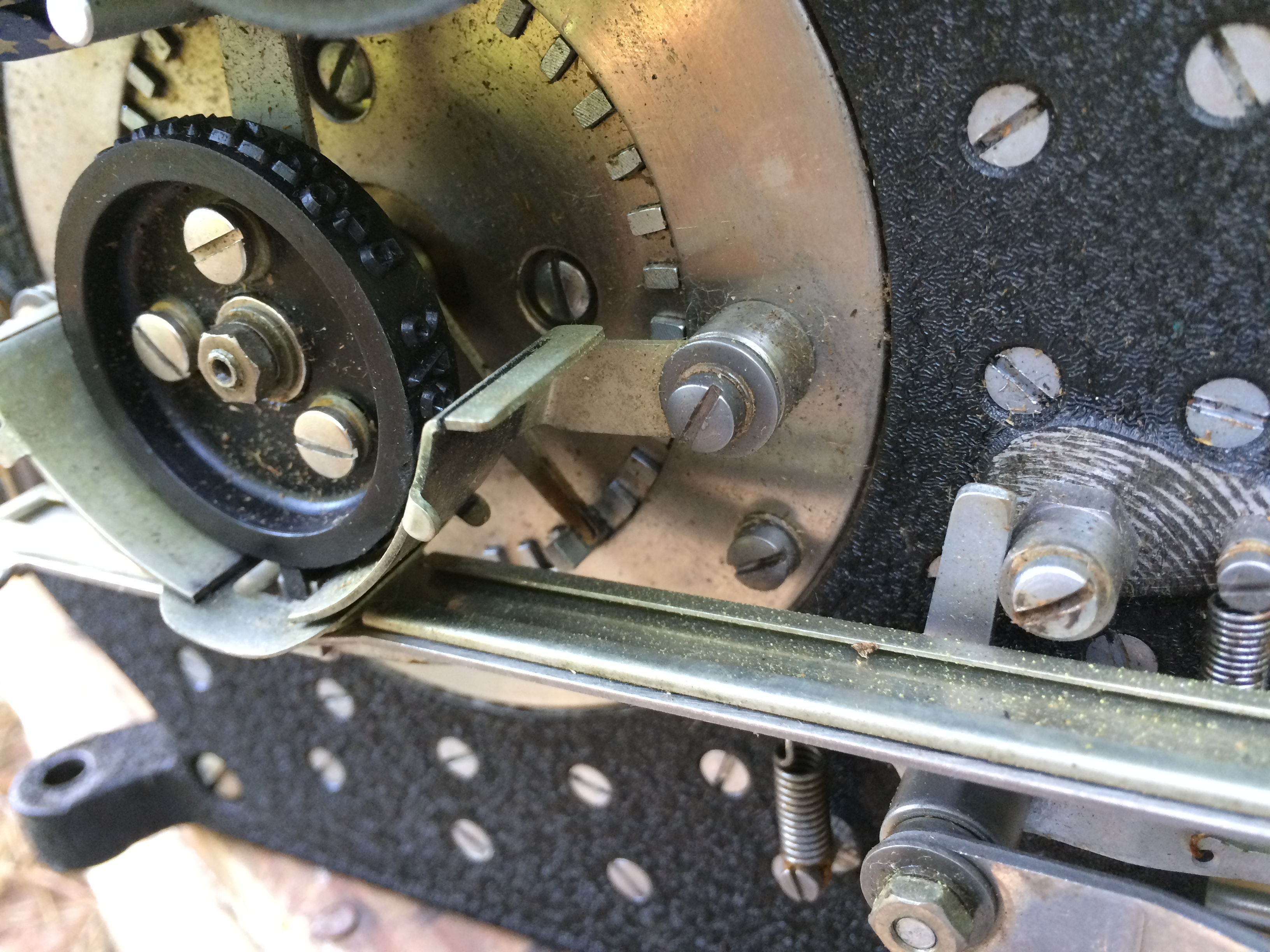

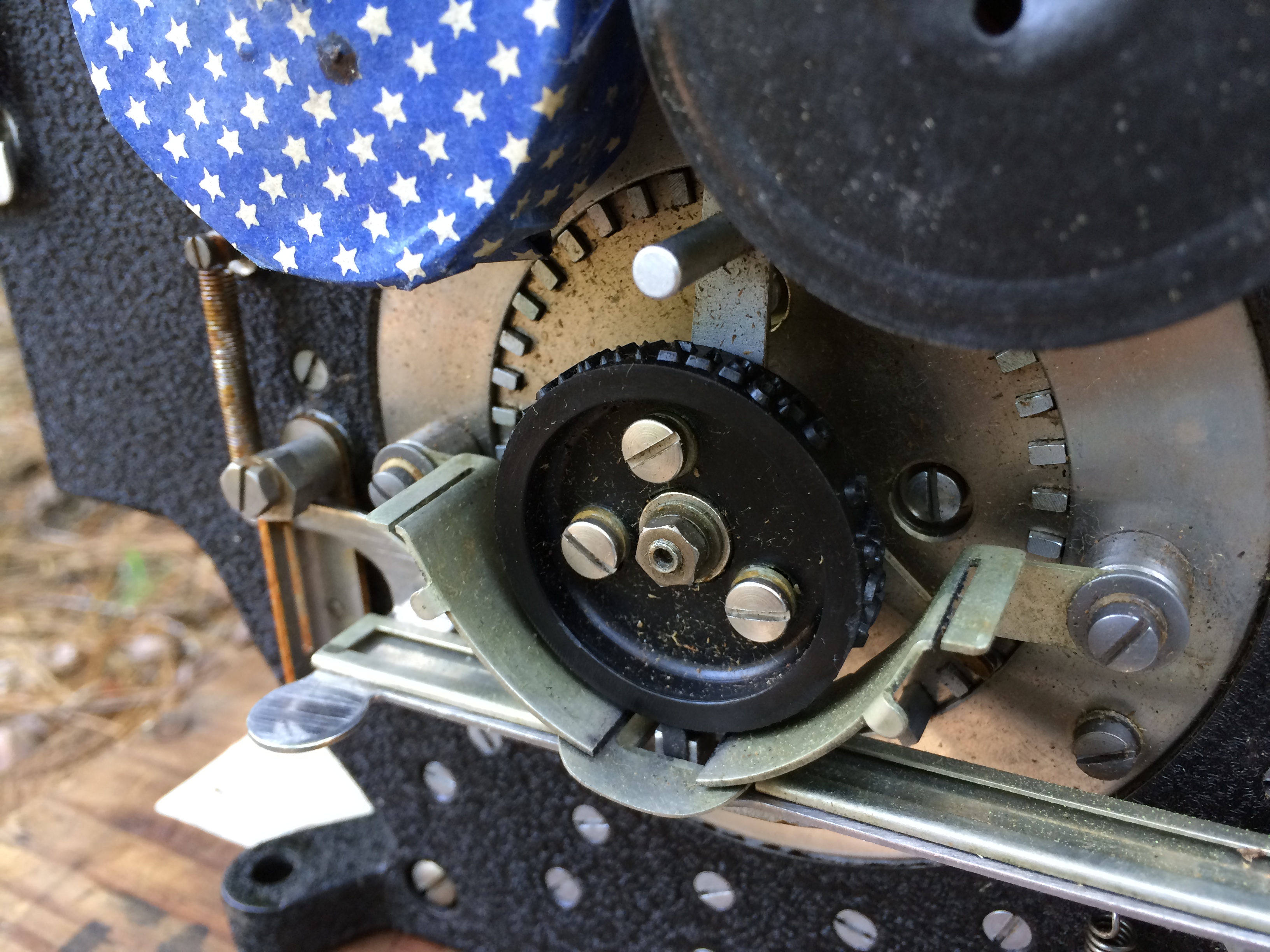

ribbon at top, typewheel in center,
Tape guide and print hammer below.

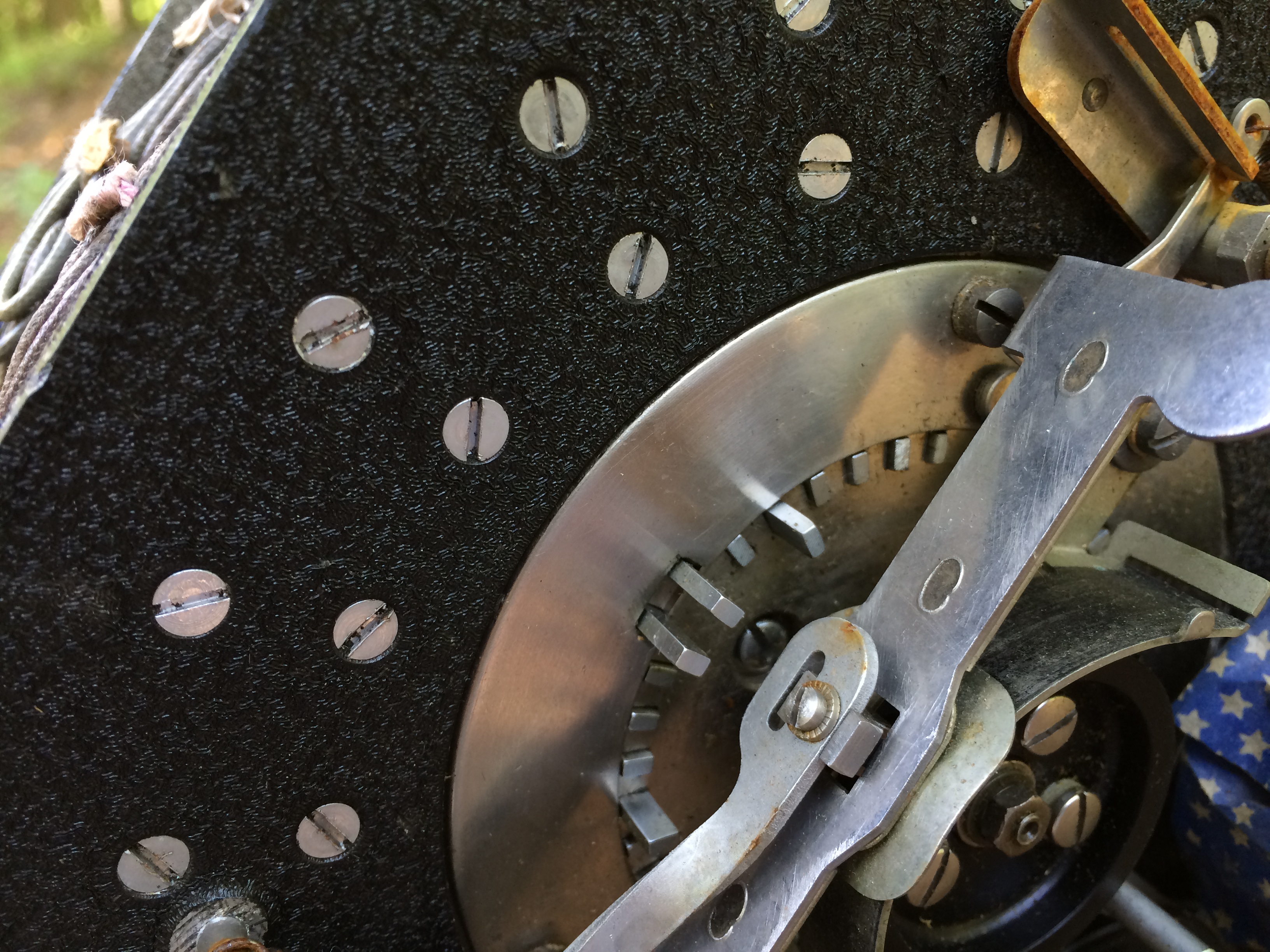

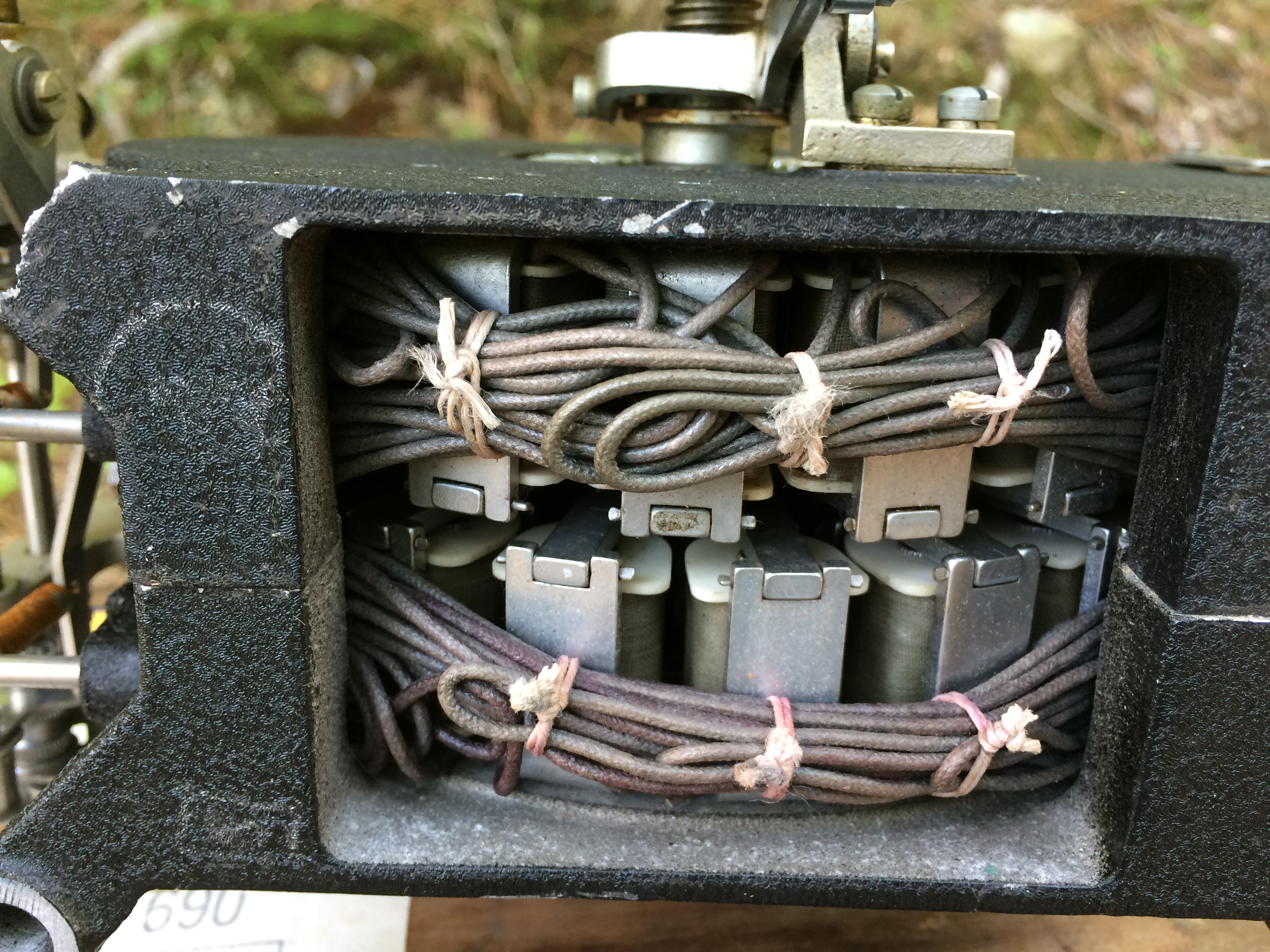

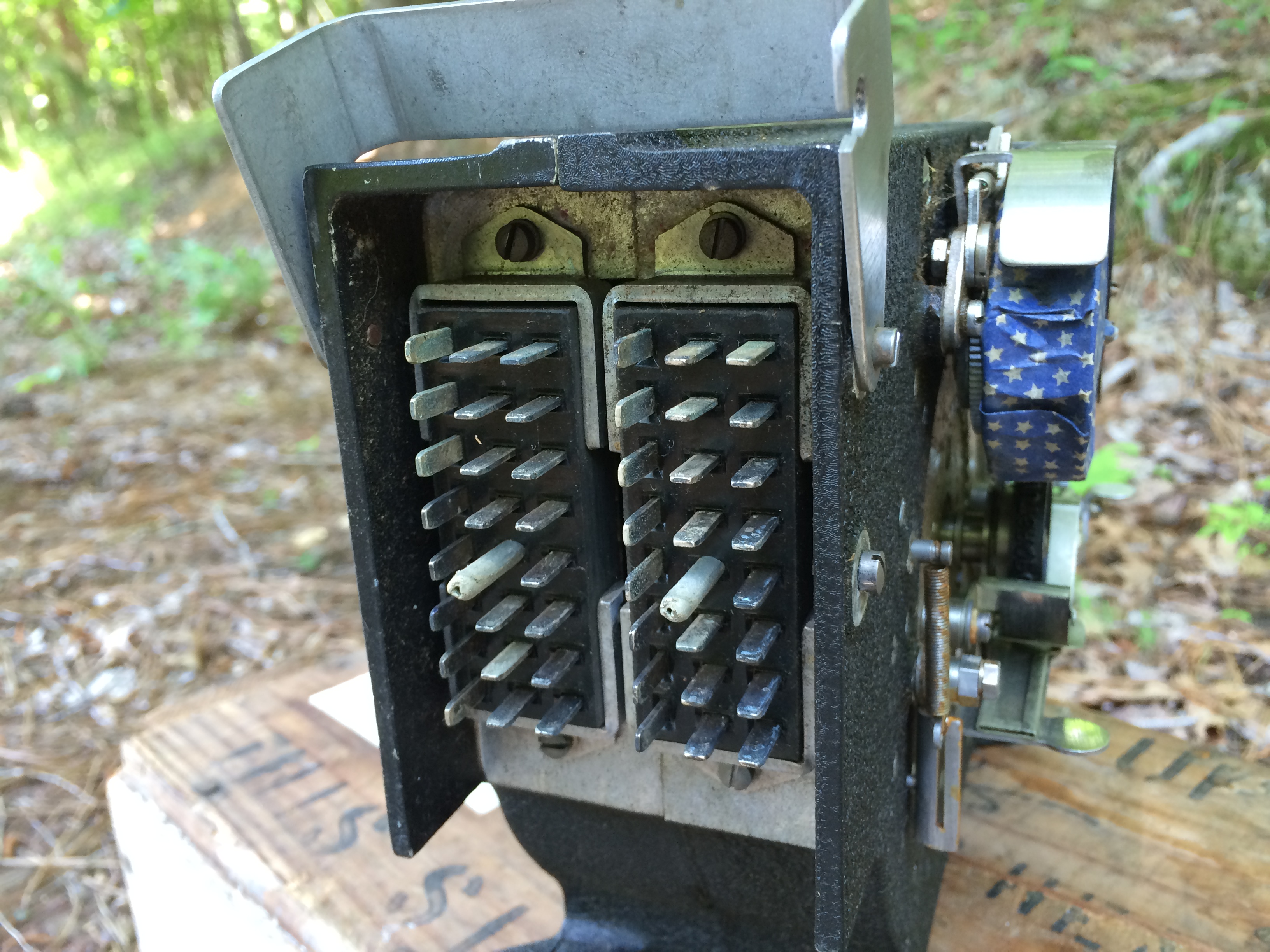

The array of solenoids....
each solenoid raises a pin that can stop
the rotating typewheel

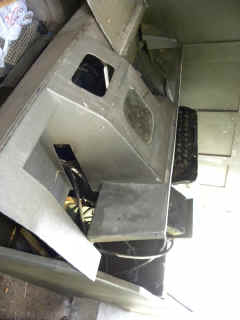

Strange cover for Teletype M19 - Q: what is it for?
"You have one photo of a "strange cover" for an M-19. I had an exact copy of that at one time. It contained a Model 14 or 15 (?) TTY plus a power supply and a tape punch. It was a "console" setup. The cover is spring-loaded to enable it to be lifted easily. Mine came from the FAA station in Missoula, Montana while I lived there."

CV-2310()/G FSK and DFSK demodulator  -

An NSA item (clues - DFSK, shift freqs, no contract number, & ID tag). Please send me e-mail if you have any more info about this unit




Please send me e-mail if you have any info about this unit.

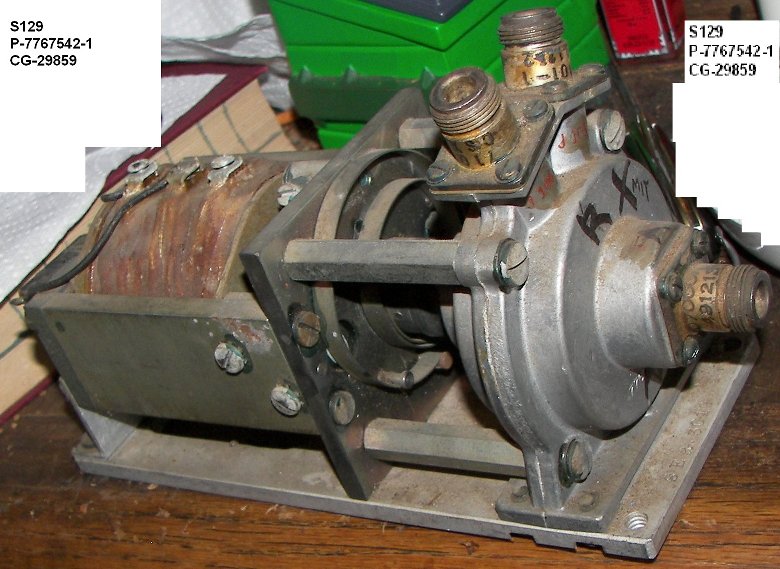

Navy Type CG-29859. Also marked S129. Spring return. T-R relay? For what equipment?
ANSWER - thanks to Steve Atnem - is the T-R relay from a TDE

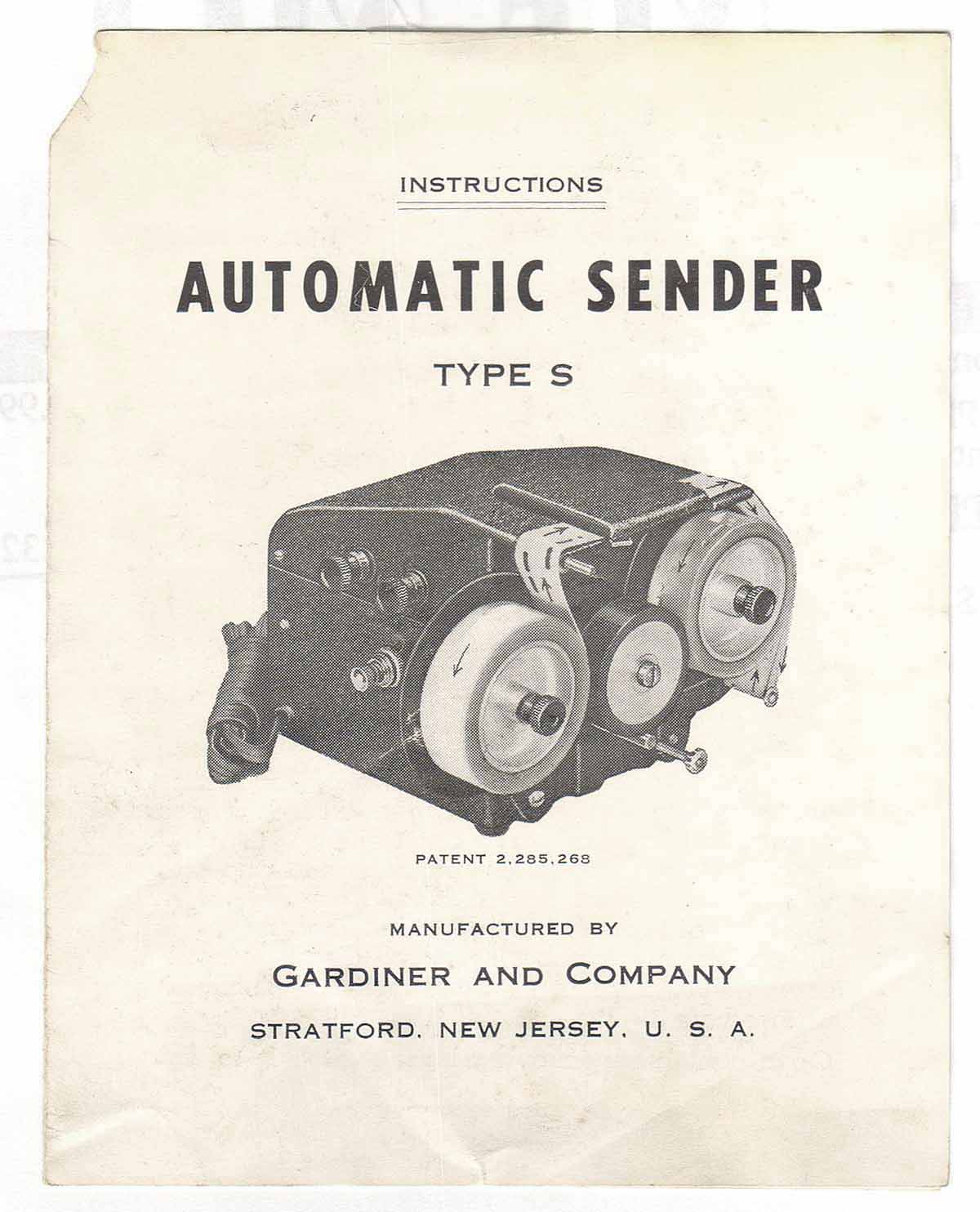

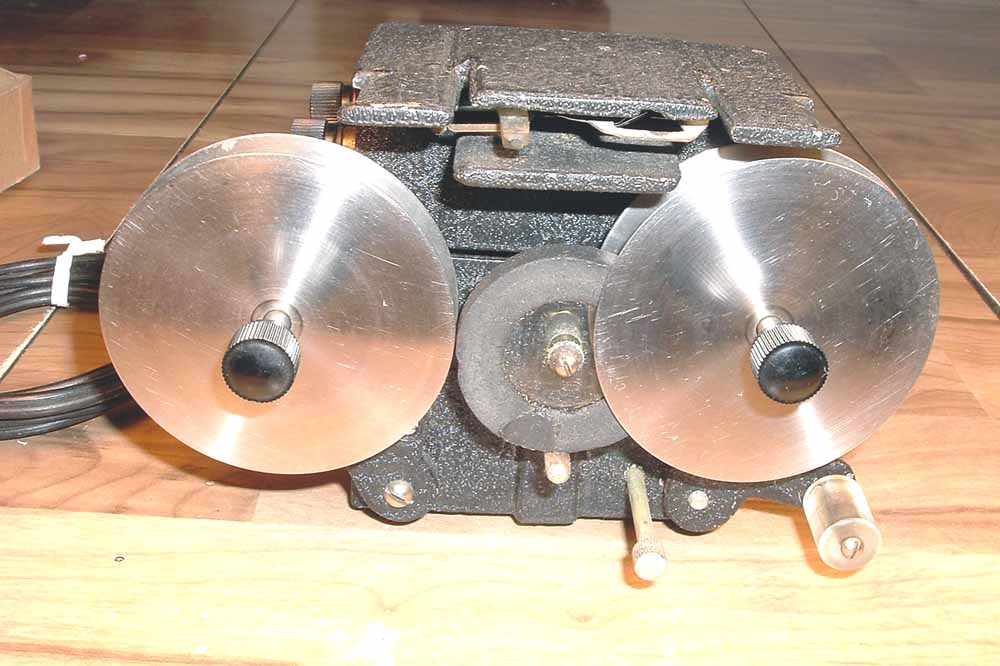

Gardiner Morse code tape sender - uses Instructograph type tape

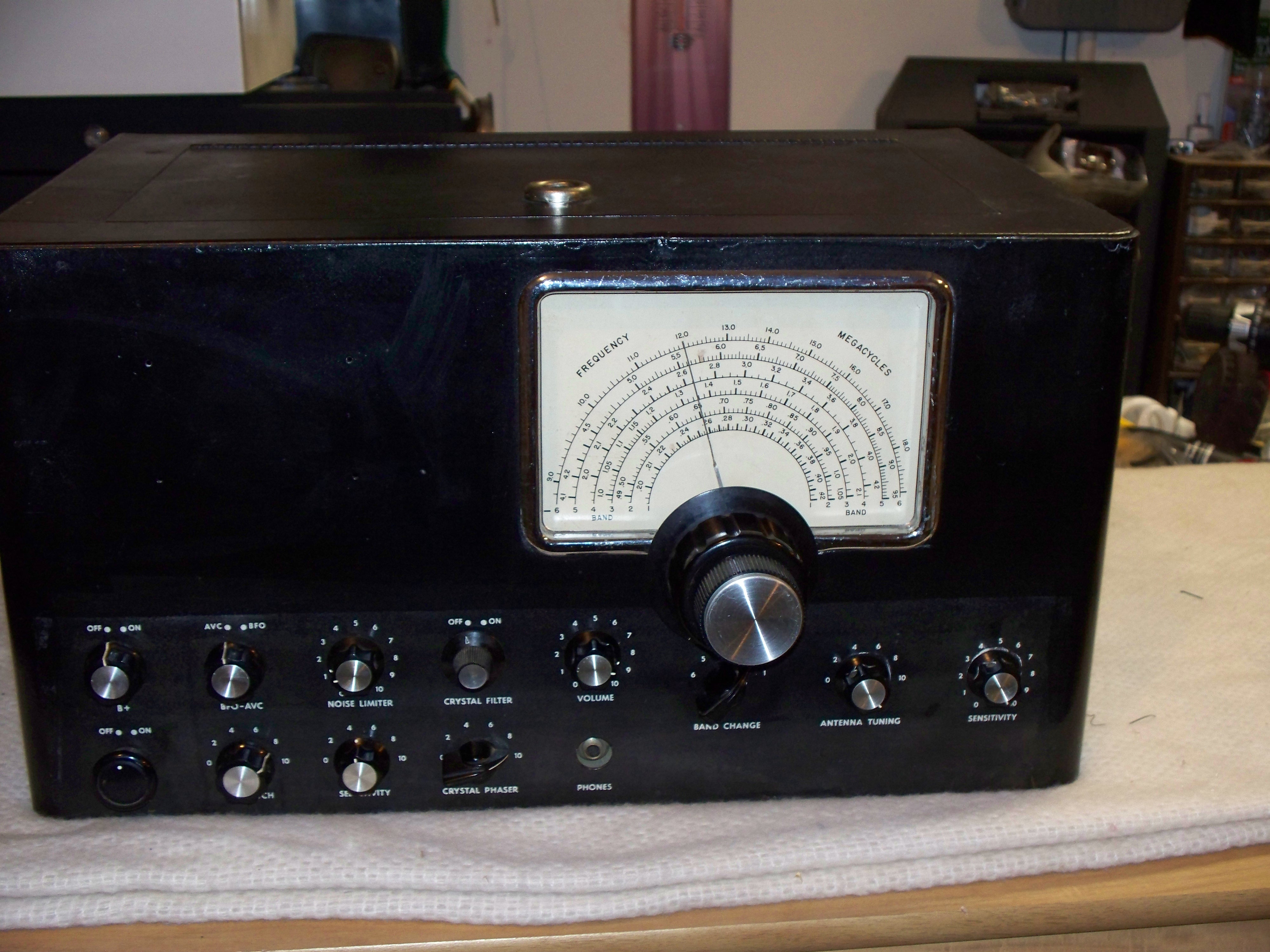

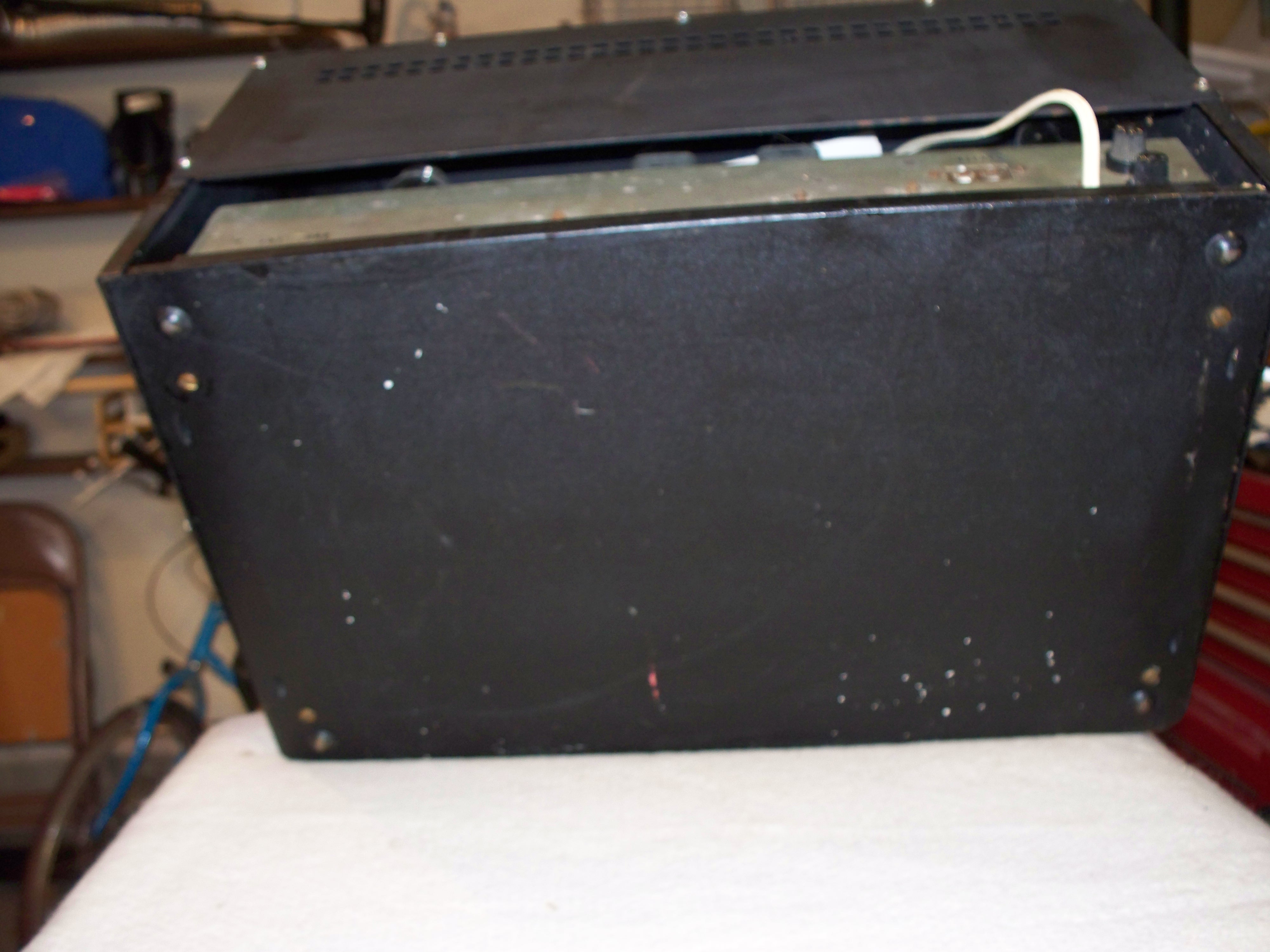

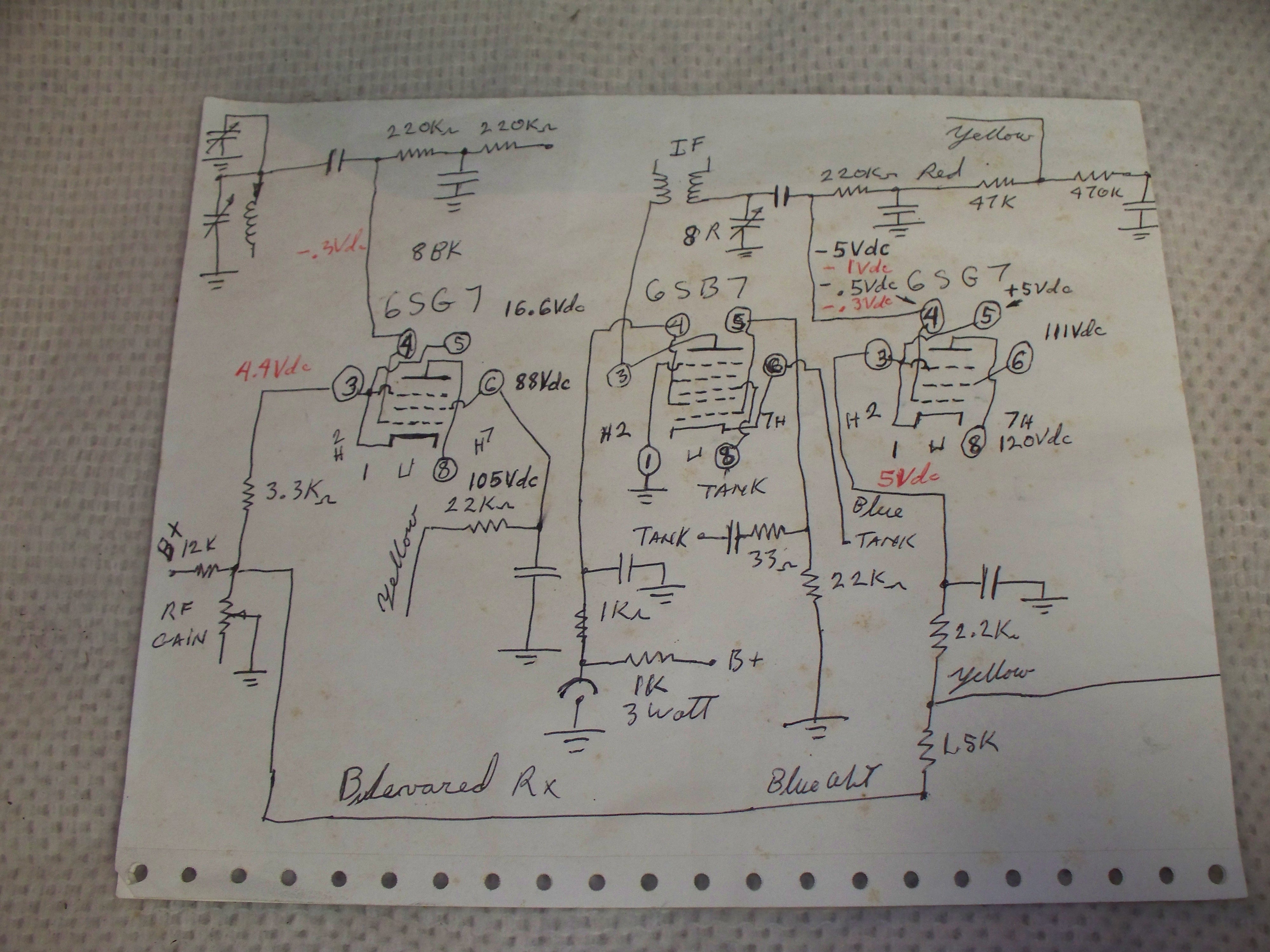

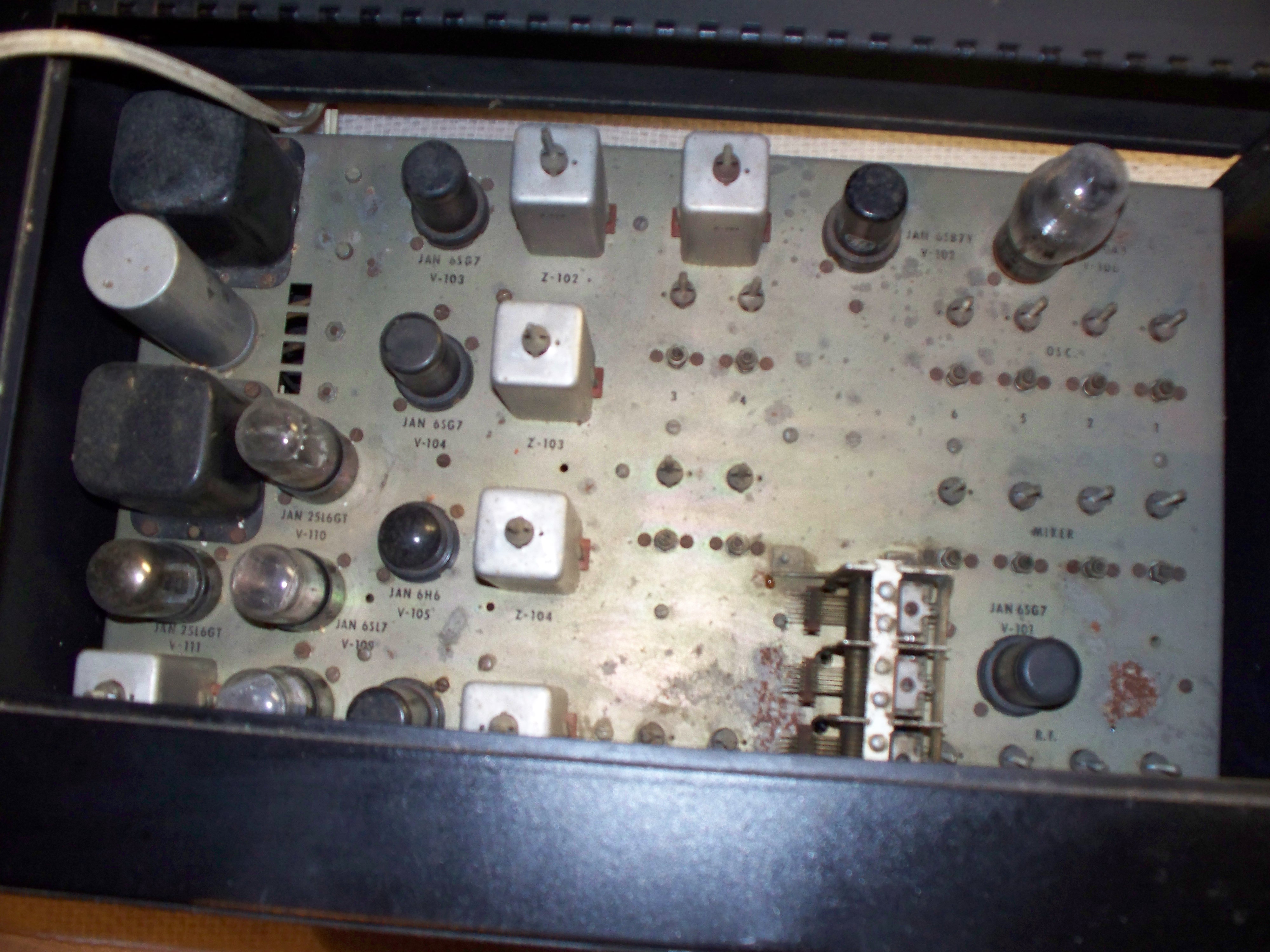

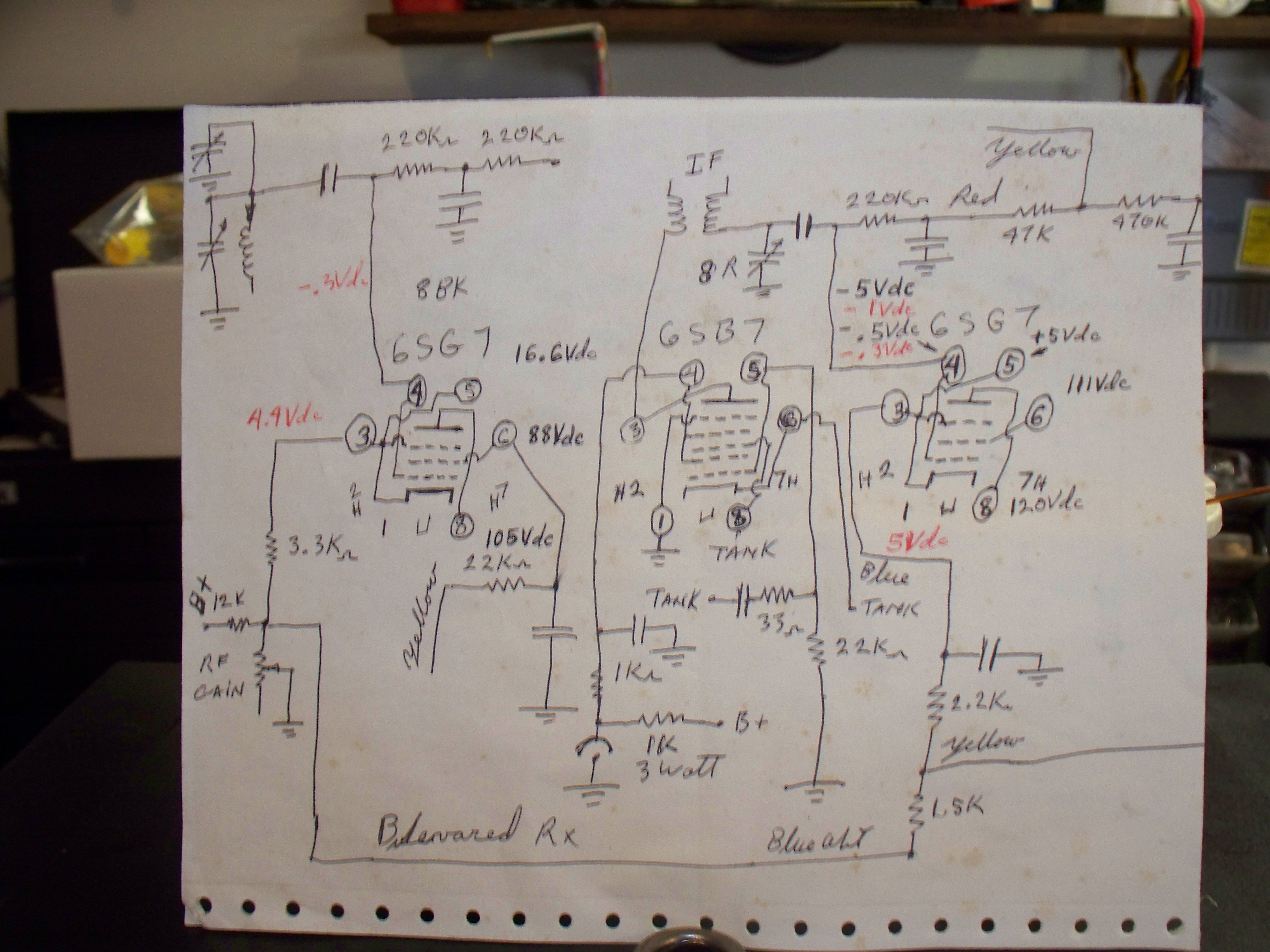

What Receiver is this? Coverage 200kc - 18mc. AC/DC with series filaments? (note two 25L6)
Obviously repainted and with the wrong knobs.

AHA! - US Coast Guard R-138 - https://www.youtube.com/watch?v=c-JoBHjeYYM


What is this? - A: AN/ARC-4
