US Navy Teletype Equipment - 1950's & early 1960's

Torn Tape Relay Equipment
       - Multiple TTY Systems & Routing Equipment

Tape Relay and Automatic Relay Centers
        - Systems and Operation

Misc TTY Equipment - Loop Supplies, Test Equipment, repeaters, etc.

"Index of Teletypewriter, Facsimile, and Associated Equipment"
Navelex 0967-LP-104-0010 - 1977 - Index & Download
Extensive listing of USN TTY gear with cross reference to Teletype model, manuals, etc. - many thanks to Jerry Murphy

1956 - 3rd Naval District, NYC


Model 15 Teletypes
(WAVES with Teleman ratings)

Photo Info

 ----- Late 1960's - Guam

Guam teletype operations (71591 bytes)

bottom row - AN/UGC-25 printer
middle row - TT-176/UG keyboard/printer
top row - TT-187A/UG tape reader plus TT-192A/UG tape punch
wall - KWX-7 sync switch for crypto gear
         (ID thanks to Frank Nichols & Greg Moore)

Click here for many more interesting photos showing TTY equipment at NAVCOMMSTA Guam
- thanks to Rodney Rood

Individual TTY Equipment - Also See Torn Tape Relay Equipment

Model

Type/Photo

Primary Use

Features

More Info

RO - Printer

AN/UGC-25

 ship/shore

Model 28 Receive-Only Page Printer Set (Compact). Consists of friction feed typing unit, cover, base unit, synchronous motor and gearshift for 45.5, 50 and 74.2 baud.

 7.42 unit code, 60 Hz, 115VAC. Includes communication symbol arrangement.

AN/UGC-25 aboard USS Midway

Teletype 28RO "compact"

more photos



AN/UGC-38
AN/UGC-40

 MITE RO

UGC-38 is Weather symbol version


NAVSHIPS 0967-170-8010

TT-171/UG

 ship/shore

floor mount

  - Teletype 28RO

TT-394/UG Mite


KSR - Typing Unit +Keyboard

AN/FGC-10

 -- BP128/247 Typing Unit
BK22LD Keyboard
BB-44 Base
MU-4 Motor Unit
PP-424/U Power Supply		 Teletype Model 15

Navships 91240

AN/UGC-20

 ship/shore

Model 28 Keyboard Send-Receive Page Printer Set (Compact). Consists of cover, friction feed typing unit, keyboard and synchronous motor. Includes communication symbol arrangement and gearshift for 45.5, 50 and 74.2 baud.

 7.42 unit code, 60 Hz, 115VAC. Teletype 28KSR
"compact"

photos

AN/UGC-41

  MITE KSR - MITE Corporation

NAVSHIPS 0967-170-8010

TT-47/UG & TT-48/UG

 ship/shore
floor mount


 TT-47 - PD-17/U synchronous motor

TT-48 - PD-18/U governor motor

CY-870/UG cabinet
CB-154/UG power panel
MX-114/UG keyboard
MX-115/UG typing unit?

 Teletype 28KSR

spec sheet

NAVSHIPS 94393

TT-49/UG & TT-50/UG

 ship/shore
floor mount

Teletype Model 15 modified for shipboard service "with aluminum side frames, a new carriage return assembly, and lighter weight carriage parts. As a result of these modifications, they operate satisfactorily while tilted as much as 45 degrees."

 TT-49/UG synchronous motor
TT-50/UG governor motor

BP149/247 typing unit
BBK20OBJ/LD keyboard
MU40 motor unit
AC203BJ cabinet
80437 gear set
106965 set of spares

 Teletype 15
(modified)

spec sheet

TT-69/UG & TT-70/UG

 ship/shore - tabletop


Same as TT-47 & TT-48 but with CY-971/UG cabinet

 TT-69 synchronous motor
TT-70 governor motor

 Teletype 28KSR

spec sheet

NAVSHIPS 94393





-

TT-176/UG

TT-176C/UG

 ship/shore
tabletop or 19" rack-mount


 TT-434/UG keyboard
TT-438/UG typing unit
SB-408/UG electrical unit


 Teletype 28KSR
"skintight"

photos

ASR - Typing Unit +Keyboard +TD (tape reader) + Typing Reperf (tape punch)

AN/UGC-5 & AN/UGC-6

 UGC-5 no 2nd typing reperf
UGC-6 with 2nd typing reperf

Model 28 Automatic Send-Receive Page Printer Set.

Consists of floor cabinet, friction feed typing unit, keyboard, chadless typing perforator, transmitter distributor, 2 synchronous motors, 2 electrical service units, auxiliary chadless typing reperforators and gears for 45.5, 56.9 and 74.2 baud.

 7.42 unit code, 60 Hz, 115VAC. Includes communication symbol arrangement.

Photos of 28ASR restoration

 Teletype 28ASR

more photos

AN/UGC-49

Model 28 Low Level Automatic Send-Receive Page Printer Set.

Consists of floor cabinet, friction feed typing unit, keyboard, fully perforated typing reperforator, transmitter distributor, 2 synchronous motors, electrical service unit, signal and clutch electrical service assemblies, auxiliary fully perforated typing reperforator and gears for 45.5 and 75 baud.



7.00 unit code, 60 Hz, 115VAC.

Includes communication symbol arrangement, MIL-STD-188B six volt polar interface and Teletype's TEMPEST feature.CRITICOM type.

info from CTO manual



Teletype 28ASR

more photos

AN/FGC-8

 -- BP119/210 Typing Unit
PEX25JX Perforator Transmittter
TT-52/GG Transmitter-Distributor
PP-315/GGA-1 power supply 		--

AN/FGC-9


TT-57/FG Transmitter-Distributor
PP-315/GGA-1 power supply
BP119/210 Typing Unit
MU-4 Motor Unit
PEX25JX Perforator Transmittter

Teletype 19ASR

more info and photos

spec sheet

AN/FGC-11

 Model 19 - governed motor

need better photo

need info

BP22/247 Typing Unit
PEX25LE Perforator Transmitter
XD76FR Transmitter Distributor
PU-109/GG Motor Unit 		--
AN/FGC-12

need better photo

need info

FPR23H247 Printing Unit
FK11OLD 15 keyboard
TT-57/FG Transmitter-Distributor
REC-10 Rectifier 		--

AN/SGC-2

need photo

AN/FGC-11 with FC#2

Model 19 variant

need info

-- --


REPERFORATOR (TAPE PUNCH)

TT-103/FG


photos thanks to Larry Tighe

 keyboard typing reperforator

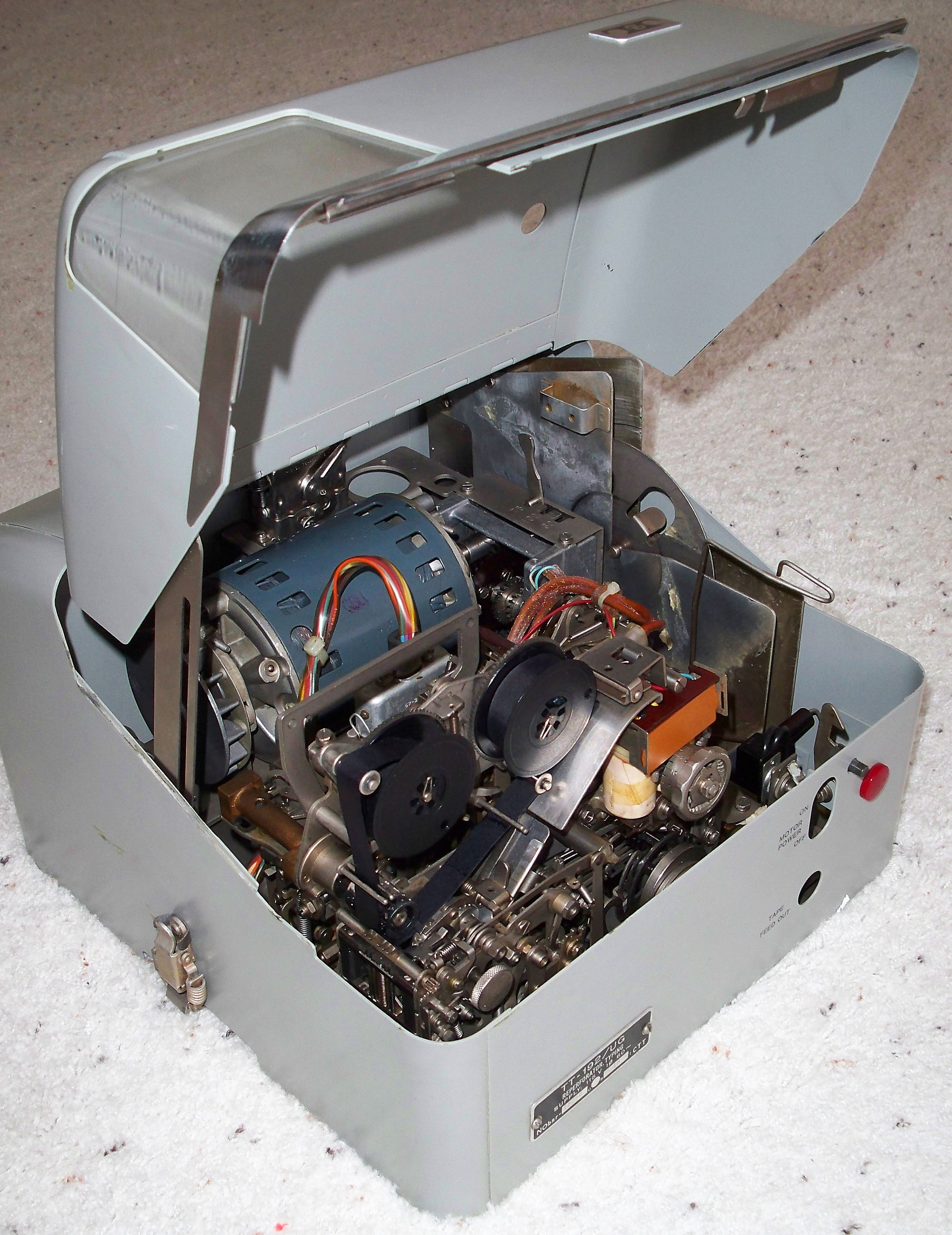

TT-192/UG (synchronous motor)
TT-274/UG (governor motor)



ROTR - read-only typing reperforator (tape punch) - tape reel is on side



 base LRB8
reperf LPR9AWA
motor LMU3
cover LRC202



tt192-ug-1205-01.jpg (29149 bytes) tt192-ug-1205-02.jpg (45809 bytes) tt192-ug-1205-03.jpg (51980 bytes) tt192-ug-110603-01.jpg (820704 bytes)

TT-192A/UG

USS Hornet - Photo Credit Info Here

 Miniature ROTR - read-only typing reperforator (tape punch)


 tape reel is on top, not on side as in standard-sized TT-192 unit
 Teletype
base LRB31
reperf LPR40AWA
motor LMU24
cover LRC205

more photos

TT-253/UG

TT-253C/UG

 keyboard typing reperforator



more photos

TT-605/UG

 Like TT-192A but low-level signaling (+/- 6v)

Miniature ROTR - read-only typing reperforator (tape punch)

Includes MIL-STD-188B six volt polar interface and Teletype's TEMPEST feature. -

TRANSMITTER-DISTRIBUTOR (TAPE READER)

TT-143/UG

see photo here

Model 14 TD - -

TT-187/UG



 Standard size M28 TD - transmitter-distributor (tape reader)

Model 28 Transmitter Distributor Set Consists of cover, base, transmitter distributor, synchronous motor and gears for 45.5, 56.9 and 74.2 baud.

7.42 unit code, 60Hz, 115VAC.

Components of TT-187 & TT-187A

TT-187 & TT-187A dimensions		 Teletype 28LXD

more photos

TT-187A/UG



 Miniature size TD - transmitter-distributor (tape reader)

Model 28 Transmitter Distributor Set Consists of cover, base, transmitter distributor, synchronous motor and gears for 45.5, 56.9 and 74.2 baud.

7.42 unit code, 60Hz, 115VAC.

TT-187 & TT-187A wiring 		Teletype 28LXD

more photos

TT-603/UG

photos

 transmitter distributor (tape reader)
- low-level version of  TT-187

Model 28 Low Level Transmitter Distributor Set (Miniature Size).
Consists of cover, base, transmitter distributor, synchronous motor and gears for 45.5, 50 and 74.2 baud.

7.42 unit code, 60 Hz, 115VAC.

Includes MIL-STD-188B six volt polar interface and Teletype's TEMPEST feature.

 		 Teletype 28LXD

photos

MISCELLANEOUS

TT-71/UG


 printer-projector

prints page and banner

 used for conferences and
carrier briefing room		 spec sheet

TT-268/UG


Super-speed reperf (2400 wpm)
+ TT-187/UG TD


manuf Sylvania
    Soroban (reperf)
    Teletype (TD)		 NAVSHIPS 93454
download 9 MB pdf

MK-810/UG

Gearshift installed in 28ASR - Thanks to Ralph Irish for photos

gearshift mod kit for Model 28



instructions
thanks to Randy Guttery

CRYPTO

TSEC/KWX-7

photos from ebay via Jerry Proc

 sync control switch for KW-7


 -  Jerry's KW-7 page

lots of crypto info here



WWII Navy teletype equipment - I will add a page for this some day

More TTY links

TTY manuals - Navy manuals and Teletype Corp. manuals

Be patient and check back often - this project is just getting started!
